WPF布局之Grid

清风徐来Groot2025-12-07 10:12

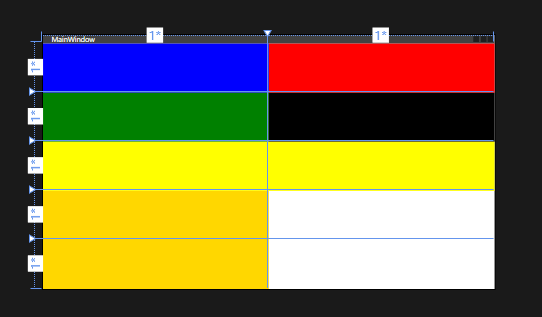

Grid属于网格布局，可以设置行列、宽度、高度、还有跨行显示
cs 复制代码
<Window x:Class="Wpf_LayoutGrid.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:Wpf_LayoutGrid"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <!--设置行列数量和宽度高度，高度可以设置成比例、绝对值和auto自适应-->
        <Grid.RowDefinitions>
            <RowDefinition Height="1*"/>
            <RowDefinition Height="1*"/>
            <RowDefinition Height="1*"/>
            <RowDefinition Height="1*"/>
            <RowDefinition Height="1*"/>
        </Grid.RowDefinitions>

        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="1*"/>
            <ColumnDefinition Width="1*"/>
        </Grid.ColumnDefinitions>

        <!--将控件按照行列位置，自行安排显示区域-->
        <Border Grid.Row="0" Grid.Column="1" Background="Red"/>
        <Border Grid.Row="0" Grid.Column="0" Background="blue"/>
        <Border Grid.Row="1" Grid.Column="0" Background="Green"/>
        <Border Grid.Row="1" Grid.Column="1" Background="Black"/>

        <!--元素能够跨行跨列-->
        <Border Grid.Row="2" Grid.Column="0"  Grid.ColumnSpan="2" Background="Yellow"/>
        <Border Grid.Row="3" Grid.Column="0"  Grid.RowSpan="2" Background="Gold"/>

    </Grid>
</Window>
