SAP ALV 介绍以及一个简单且完整的报表快速开发

SAP Hua2025-12-07 21:43

收藏作为标准用：https://juejin.cn/post/7197337416097218615

链接：https://juejin.cn/post/7197337416097218615

来源：稀土掘金 作者：SAP技术成长之路

报表程序是 ABAP 中最常开发的功能之一，其中 ALV 报表必是 ABAPER 无法避免的任务，ALV 全称 SAP LIST VIEW，是 SAP 提供的强大的数据报表显示工具。

ALV 通过标准函数来直接调用，可以节省编程时间及代码量，输出界面整齐美观，大多会调用函数（CALL Function）来呈现，并且提供用户优化接口，用户可以选择相应的字段对数据进行排序和统计，并能对输出结果进行过滤查询，按自己的需求调整各栏位顺序及格式。

下方列出部分常用 ALV function:

  1. REUSE_ALV_FIELDCATALOG_MERGE
  2. REUSE_ALV_GRID_DISPLAY：Grid 格式的 ALV
  3. REUSE_ALV_LIST_DISPLAY：LIST格式的 ALV
  4. REUSE_ALV_GRID_DISPLAY_LVC

开发 ALV 的基本流程

ALV 就是一个数据报表，基本逻辑就是"查询-取值-输出"。

两个最重要的知识点：

  1. SAP 内表处理逻辑
  2. 数据库查询逻辑

开发流程如下：

  1. 定义 ALV 所要用到的类型池：TYPE-POOLS：SLIS；
  2. 定义 ALV 所要显示的数据对应的内表数据类型及内表数据对象；
  3. 常用数据类型包括：
  • data: slis_fieldcat_alv 定义要显示的字段的详细信息。
  • data: slis_t_fieldcat_alv 包含所有要显示字段信息。
  • data: i_layout 等

要用的参数有:

  • slis_fieldcat-col_pos = 1 : 列编号从1开始。
  • slis_fieldcat-fieldname = : 原表所在字段的名称。
  • slis_fieldcat-seltext_m = : 显示本字段名称，即新字段名称。
  • slis_fieldcat-i_fieldcat_key : 固定列， 固定 'X'

  1. 定义一些显示 ALV 时所要使用到的变量，例如：

    Data：w_repid like sy-repid, " ABAP 程序，我们一般取当前程序

  2. 定义选择屏幕

  3. 声明各个选择屏幕事件块

定义 TOP 区

复制代码
*&---------------------------------------------------------------------*
*&  包含                ZFIUXXX_TOP
*&---------------------------------------------------------------------*

TYPE-POOLS:slis.
TABLES: asmdt,skat,t024.

DATA:BEGIN OF wa_ekgrp,
       ekgrp TYPE t024-ekgrp,
     END OF wa_ekgrp.
DATA:it_ekgrp LIKE TABLE OF wa_ekgrp.

DATA: BEGIN OF gs_out,
        asnum      TYPE asmdt-asnum,    " 服务编号
        asktx      TYPE asmdt-asktx,    " 服务文本描述
        saknr      TYPE skat-saknr,     " 总账科目
        txt20      TYPE skat-txt20,     " 总账科目描述
        zekgrp_str TYPE string,         " 采购组
        erdat      TYPE erdat,          " 创建日期
        erzet      TYPE erzet,          " 创建时间
        ernam      TYPE ernam,          " 创建人员
        zlogin     TYPE zlogin,         " 登录系统ID
        flag,
      END OF gs_out.
DATA: gt_out LIKE TABLE OF gs_out.

DATA: gs_save LIKE gs_out,
      gt_save LIKE gt_out.

DATA: gs_out1 LIKE gs_out,
      gt_out1 LIKE gt_out.

DATA: BEGIN OF gs_ekgrp,
        ekgrp TYPE t024-ekgrp,  " 采购组
        eknam TYPE t024-eknam,  "采购组描述
        sel,   " 复选框
      END OF gs_ekgrp.

DATA: gt_ekgrp LIKE TABLE OF gs_ekgrp.   " 定义参照结构体类型的内表


DATA: gs_layout   TYPE lvc_s_layo,
      gs_fieldcat TYPE lvc_s_fcat,
      gt_fieldcat TYPE lvc_t_fcat,

      i_layout    TYPE lvc_s_layo,
      is_fieldcat TYPE lvc_s_fcat,
      it_fieldcat TYPE lvc_t_fcat.

DATA: gv_tabix TYPE sy-tabix.

DATA:gr_grid TYPE REF TO cl_gui_alv_grid.
DATA:gs_stbl TYPE lvc_s_stbl.
DATA:gcl_alv_grid TYPE REF TO cl_gui_alv_grid,
     gc_grid      TYPE REF TO cl_gui_alv_grid.
FIELD-SYMBOLS:<f_out>  LIKE gs_out.

DATA: gs_events TYPE slis_alv_event,
      gt_events TYPE slis_t_event.

DATA: c_str TYPE string.

DATA: opcode_usr_attr(1) TYPE x VALUE 5,
      terminal           TYPE usr41-terminal.

***** SEREEN *****
SELECTION-SCREEN: BEGIN OF BLOCK b1 WITH FRAME TITLE TEXT-001.
SELECT-OPTIONS: so_asnum FOR asmdt-asnum,
                so_ekgrp FOR t024-ekgrp.
SELECTION-SCREEN: END OF BLOCK b1.

定义 FORM 和模块

复制代码
*&---------------------------------------------------------------------*
*&  INCLUDE                ZFIUXX_FO1
*&---------------------------------------------------------------------*
*&---------------------------------------------------------------------*
*&      Form  GET_DATA
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM  get_data .

  CLEAR: gs_out.
  REFRESH: gt_out.

  " 读取服务编号和描述
  SELECT asnum
         FROM asmd INTO CORRESPONDING FIELDS OF TABLE gt_out
               WHERE asnum IN so_asnum AND lvorm = ''.

  SORT gt_out BY asnum.                   " 先排序，再去除重复
*  DELETE gt_out WHERE asnum IS INITIAL.   " 删除空格
*  DELETE ADJACENT DUPLICATES FROM gt_out COMPARING asnum.

  LOOP AT gt_out INTO gs_out.

    SELECT SINGLE asktx FROM asmdt INTO gs_out-asktx
           WHERE asnum = gs_out-asnum
           AND spras = sy-langu.

    SELECT SINGLE saknr
           txt20
           zekgrp_str
           erdat
           erzet
           ernam
           zlogin

      FROM zfit028 INTO ( gs_out-saknr,
                          gs_out-txt20,
                          gs_out-zekgrp_str,
                          gs_out-erdat,
                          gs_out-erzet,
                          gs_out-ernam,
                          gs_out-zlogin )
      WHERE asnum = gs_out-asnum.

    IF gs_out-zekgrp_str IS NOT INITIAL.

      REFRESH it_ekgrp.
      SPLIT gs_out-zekgrp_str AT '/' INTO TABLE it_ekgrp.

      CLEAR:wa_ekgrp.
      LOOP AT it_ekgrp INTO wa_ekgrp.
        IF wa_ekgrp-ekgrp IN so_ekgrp.
          gs_out-flag = 'X'.
          EXIT.
        ENDIF.
      ENDLOOP.
    ENDIF.

    IF gs_out-saknr IS INITIAL.
      CLEAR gs_out-txt20.
    ENDIF.

    MODIFY gt_out FROM gs_out.
    CLEAR: gs_out.

  ENDLOOP.
  DELETE gt_out WHERE zekgrp_str IS NOT INITIAL AND flag NE 'X'.
  IF so_ekgrp IS NOT INITIAL.
    DELETE gt_out WHERE zekgrp_str IS INITIAL.
  ENDIF.

ENDFORM.

*&---------------------------------------------------------------------*
*&      Form  CHECK_DATA
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM check_data .

ENDFORM.

*&---------------------------------------------------------------------*
*&      Form  SHOW_DATA
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*

FORM show_data.
  PERFORM frm_set_layout.
  IF sy-langu = '1'.
    PERFORM frm_pre_fieldcat.
  ELSE.
    PERFORM frm_pre_fieldcat_en.
  ENDIF.

  PERFORM frm_set_event.

  CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
    EXPORTING
      i_callback_program       = sy-repid
      i_callback_pf_status_set = 'PF_STATUS_SET'
      i_callback_user_command  = 'USER_COMMAND'
      is_layout_lvc            = gs_layout
      it_fieldcat_lvc          = gt_fieldcat
      i_save                   = 'A'
      it_events                = gt_events
    TABLES
      t_outtab                 = gt_out
    EXCEPTIONS
      program_error            = 1
      OTHERS                   = 2.

  IF sy-subrc <> 0.
  ENDIF.

ENDFORM.

FORM pf_status_set USING rt_extab TYPE slis_t_extab.
  SET PF-STATUS 'ZSTATUS'.
ENDFORM.

FORM user_command USING s_ucomm TYPE sy-ucomm
      re_selfield TYPE slis_selfield.

  CALL FUNCTION 'GET_GLOBALS_FROM_SLVC_FULLSCR'
    IMPORTING
      e_grid = gr_grid.
  CALL METHOD gr_grid->check_changed_data.

  CASE s_ucomm.
    WHEN 'BACK'.
      LEAVE TO SCREEN 0.
    WHEN 'SAVE'.
      PERFORM frm_save.
      re_selfield-refresh = 'X'.
    WHEN '&IC1'.
      CLEAR:gv_tabix.
      gv_tabix = re_selfield-tabindex.
      CLEAR:gs_out.
      READ TABLE gt_out INTO gs_out INDEX re_selfield-tabindex .
      CASE re_selfield-fieldname.
        WHEN 'ZEKGRP_STR' .    " 双击采购组
          PERFORM get_ekgrp.
          PERFORM display_ekgrp.
      ENDCASE.

    WHEN OTHERS.
  ENDCASE.
ENDFORM.

FORM frm_set_layout.
  gs_layout-zebra = 'X'.
  gs_layout-cwidth_opt = 'X'.
  gs_layout-sel_mode = 'A'.
ENDFORM.


FORM frm_pre_fieldcat.
  DATA: l_pos TYPE i.
  CLEAR: l_pos.
  REFRESH: gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'ASNUM'.
  gs_fieldcat-coltext = '服务编号'.
  gs_fieldcat-no_zero = 'X'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'ASKTX'.
  gs_fieldcat-coltext = '服务文本描述'.
  gs_fieldcat-just = 'C'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'SAKNR'.
  gs_fieldcat-coltext = '总账科目'.
  gs_fieldcat-ref_table = 'SKA1'.
  gs_fieldcat-ref_field = 'SAKNR'.
  gs_fieldcat-edit = 'X'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'TXT20'.
  gs_fieldcat-coltext = '总账科目描述'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'ZEKGRP_STR'.
  gs_fieldcat-coltext = '采购组'.
  gs_fieldcat-hotspot = 'X'.
  gs_fieldcat-emphasize = 'C001'.
  APPEND gs_fieldcat TO gt_fieldcat.

*  CLEAR gs_fieldcat.
*  l_pos = l_pos + 1.
*  gs_fieldcat-col_pos = l_pos.
*  gs_fieldcat-fieldname = 'EKNAM'.
*  gs_fieldcat-coltext = '采购组描述'.
*  APPEND gs_fieldcat TO gt_fieldcat.
ENDFORM.

*&---------------------------------------------------------------------*
*&      Form  FRM_SAVE
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM frm_save .
  DATA: ls_zfit028 TYPE zfit028,
        lt_zfit028 TYPE TABLE OF zfit028.

  CLEAR: ls_zfit028.
  REFRESH: lt_zfit028.

  LOOP AT gt_out INTO gs_out.

    MOVE gs_out-asnum TO ls_zfit028-asnum.
    MOVE gs_out-asktx TO ls_zfit028-asktx.
    MOVE gs_out-saknr TO ls_zfit028-saknr.
    MOVE gs_out-txt20 TO ls_zfit028-txt20.
    MOVE gs_out-zekgrp_str TO ls_zfit028-zekgrp_str.
    MOVE gs_out-erdat TO ls_zfit028-erdat.
    MOVE gs_out-erzet TO ls_zfit028-erzet.
    MOVE gs_out-ernam TO ls_zfit028-ernam.
    MOVE gs_out-zlogin TO ls_zfit028-zlogin.
    APPEND ls_zfit028 TO lt_zfit028.

*    MOVE-CORRESPONDING gs_out TO ls_zfit028.
*    APPEND ls_zfit028 TO lt_zfit028.

    CLEAR: gs_out,
           ls_zfit028.
  ENDLOOP.


  IF lt_zfit028 IS NOT INITIAL.
*    DELETE FROM zfit028.

    MODIFY zfit028 FROM TABLE lt_zfit028.

    IF sy-subrc = 0.
      COMMIT WORK AND WAIT.
      MESSAGE '保存成功！' TYPE 'S'.

    ELSE.
      ROLLBACK WORK.
      MESSAGE '保存失败！' TYPE 'E'.
    ENDIF.
  ENDIF.
ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  GET_EKGRP
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM get_ekgrp.

  DATA: lt_ekgrp LIKE gt_ekgrp,
        ls_ekgrp LIKE gs_ekgrp.

  REFRESH:gt_ekgrp.

  IF gt_ekgrp IS INITIAL.
    SELECT ekgrp
           eknam FROM t024 INTO CORRESPONDING FIELDS OF TABLE gt_ekgrp.

    MODIFY gt_ekgrp FROM gs_ekgrp TRANSPORTING sel WHERE sel EQ space.
  ENDIF.

  CLEAR: gs_out.
  READ TABLE gt_out INTO gs_out INDEX gv_tabix.
  IF gs_out-zekgrp_str NE ''.
    SPLIT gs_out-zekgrp_str AT '/' INTO TABLE lt_ekgrp.

    LOOP AT gt_ekgrp INTO gs_ekgrp.
      CLEAR:ls_ekgrp.
      READ TABLE lt_ekgrp INTO ls_ekgrp WITH KEY ekgrp = gs_ekgrp-ekgrp.

      IF sy-subrc = 0.
        gs_ekgrp-sel = 'X'.
      ELSE.
        gs_ekgrp-sel = ''.
      ENDIF.

      MODIFY gt_ekgrp FROM gs_ekgrp TRANSPORTING sel.
      CLEAR: ls_ekgrp,
             gs_ekgrp.
    ENDLOOP.
  ENDIF.

ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  DISPLAY_EKGRP
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM display_ekgrp.

  DATA lv_grid_title TYPE lvc_title.

  IF sy-langu = '1'.
    PERFORM frm_i_fieldcat.
    lv_grid_title = '采购组选择'.
  ELSE.
    PERFORM frm_i_fieldcat_en.
    lv_grid_title = 'Purchase Group Select'.
  ENDIF.

  PERFORM frm_i_setlayout.
*  gs_glay-edt_cll_cb = 'X'.

  CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
    EXPORTING
      i_callback_program       = sy-repid
      i_grid_title             = lv_grid_title
      i_callback_pf_status_set = 'PF_STATUS_SET1'
      i_callback_user_command  = 'USER_COMMAND1'
      is_layout_lvc            = i_layout
      it_fieldcat_lvc          = it_fieldcat
    TABLES
      t_outtab                 = gt_ekgrp
    EXCEPTIONS
      program_error            = 1
      OTHERS                   = 2.

  IF sy-subrc <> 0.
  ENDIF.
ENDFORM.

FORM frm_i_setlayout.
  i_layout-zebra = 'X'.
  i_layout-sel_mode = 'A'.
  i_layout-cwidth_opt = 'X'.
ENDFORM.

FORM pf_status_set1 USING rt_extab TYPE slis_t_extab.
  SET PF-STATUS 'ZSTATUS1'.
ENDFORM.

FORM user_command1 USING s_ucomm TYPE sy-ucomm
      re_selfield TYPE slis_selfield.

  DATA: lr_grid TYPE REF TO cl_gui_alv_grid.
  CALL FUNCTION 'GET_GLOBALS_FROM_SLVC_FULLSCR'
    IMPORTING
      e_grid = lr_grid.
  CALL METHOD lr_grid->check_changed_data.

  CASE s_ucomm.
    WHEN 'BACK' OR 'CANCEL'.
      LEAVE TO SCREEN 0.

    WHEN 'SEL_ALL'.
      PERFORM frm_sel_all.
      re_selfield-refresh = 'X'.

    WHEN 'DESEL_ALL'.
      PERFORM frm_desel_all.
      re_selfield-refresh = 'X'.

    WHEN 'SAVE'.
      PERFORM frm_save1.
      re_selfield-refresh = 'X'.
    WHEN OTHERS.
  ENDCASE.
ENDFORM.

FORM frm_i_fieldcat.
  DATA: l_pos TYPE i.
  CLEAR: l_pos.
  REFRESH: it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'SEL'.
  is_fieldcat-coltext = '选择框'.
  is_fieldcat-checkbox = 'X'.
  is_fieldcat-edit = 'X'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'EKGRP'.
  is_fieldcat-coltext = '采购组'.
  is_fieldcat-ref_table = 'T024'.
  is_fieldcat-ref_field = 'EKGRP'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'EKNAM'.
  is_fieldcat-coltext = '采购组描述'.
  APPEND is_fieldcat TO it_fieldcat.

ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  FRM_SAVE1
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM frm_save1.

  IF gt_ekgrp IS NOT INITIAL.
    PERFORM get_data1.
  ENDIF.

  IF gr_grid IS  NOT INITIAL.
    CALL METHOD gr_grid->refresh_table_display.
  ENDIF.

  LEAVE TO SCREEN 0.

ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  GET_DATA1
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM get_data1 .

  DATA: lv_ekgrp TYPE string.
  CLEAR:lv_ekgrp.

  FIELD-SYMBOLS:<fs_out1> LIKE gs_out.

  LOOP AT gt_ekgrp INTO gs_ekgrp WHERE sel = 'X'  .
    CONCATENATE lv_ekgrp gs_ekgrp-ekgrp INTO lv_ekgrp SEPARATED BY '/'.

    CLEAR:gs_ekgrp.
  ENDLOOP.

  SHIFT lv_ekgrp LEFT DELETING LEADING '/'.

  UNASSIGN <fs_out1>.
  READ TABLE gt_out ASSIGNING <fs_out1> INDEX gv_tabix.

  IF sy-subrc = 0.
    <fs_out1>-zekgrp_str = lv_ekgrp.
  ENDIF.

  " 显示当前登录id
  CALL METHOD cl_gui_frontend_services=>get_user_name
    CHANGING
      user_name            = c_str
    EXCEPTIONS
      cntl_error           = 1
      error_no_gui         = 2
      not_supported_by_gui = 3
      OTHERS               = 4.

  CALL METHOD cl_gui_cfw=>flush
    EXCEPTIONS
      cntl_system_error = 1
      cntl_error        = 2.

  CALL 'ThUsrInfo' ID 'OPCODE' FIELD opcode_usr_attr
  ID'TERMINAL' FIELD terminal.

  <fs_out1>-erdat = sy-datum.
  <fs_out1>-erzet = sy-uzeit.
  <fs_out1>-ernam = c_str.
  <fs_out1>-zlogin = terminal.

ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  FRM_SEL_ALL
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM frm_sel_all .
  gs_ekgrp-sel = 'X'.
  MODIFY gt_ekgrp FROM gs_ekgrp TRANSPORTING sel WHERE sel EQ space.
ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  FRM_DESEL_ALL
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM frm_desel_all .
  gs_ekgrp-sel = ''.
  MODIFY gt_ekgrp FROM gs_ekgrp TRANSPORTING sel WHERE sel EQ 'X'.
ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  FRM_PRE_FIELDCAT_EN
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM frm_pre_fieldcat_en .
  DATA: l_pos TYPE i.
  CLEAR: l_pos.
  REFRESH: gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'ASNUM'.
  gs_fieldcat-coltext = 'Activity number'.
  gs_fieldcat-no_zero = 'X'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'ASKTX'.
  gs_fieldcat-coltext = 'Activity number name'.
  gs_fieldcat-just = 'C'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'SAKNR'.
  gs_fieldcat-coltext = 'G/L account number'.
  gs_fieldcat-ref_table = 'SKA1'.
  gs_fieldcat-ref_field = 'SAKNR'.
  gs_fieldcat-edit = 'X'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'TXT20'.
  gs_fieldcat-coltext = 'G/L account number name'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'ZEKGRP_STR'.
  gs_fieldcat-coltext = 'Purchase group'.
  gs_fieldcat-hotspot = 'X'.
  gs_fieldcat-emphasize = 'C001'.
  APPEND gs_fieldcat TO gt_fieldcat.
ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  FRM_I_FIELDCAT_EN
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM frm_i_fieldcat_en .
  DATA: l_pos TYPE i.
  CLEAR: l_pos.
  REFRESH: it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'SEL'.
  is_fieldcat-coltext = 'Select'.
  is_fieldcat-checkbox = 'X'.
  is_fieldcat-edit = 'X'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'EKGRP'.
  is_fieldcat-coltext = 'Purchase Group'.
  is_fieldcat-ref_table = 'T024'.
  is_fieldcat-ref_field = 'EKGRP'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'EKNAM'.
  is_fieldcat-coltext = 'Purchase Group Name'.
  APPEND is_fieldcat TO it_fieldcat.
ENDFORM.

事件区定义

复制代码
*&---------------------------------------------------------------------*
*&  包含                ZFIUXXX_LCL
*&---------------------------------------------------------------------*

CLASS lcl_event_receiver DEFINITION.  " LCL_EVENT_RECEIVER DEFINITION
  PUBLIC SECTION.
    METHODS data_changed FOR EVENT data_changed OF cl_gui_alv_grid
      IMPORTING er_data_changed
                  e_ucomm.

    METHODS handle_modify
                  FOR EVENT data_changed_finished OF cl_gui_alv_grid
      IMPORTING e_modified et_good_cells.
ENDCLASS.


CLASS lcl_event_receiver IMPLEMENTATION.
  METHOD data_changed.
    PERFORM handle_data_changed USING er_data_changed.
  ENDMETHOD.

  METHOD handle_modify.
    PERFORM handle_data_finish USING e_modified et_good_cells.
  ENDMETHOD.    " HANDLE MODIFY

ENDCLASS.         " LCL_EVENT RECEIVER IMPLEMENTATION


*&---------------------------------------------------------------------*
*&      Form  HANDLE_DATA_CHANGED
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      -->P_ER_DATA_CHANGED  text
*----------------------------------------------------------------------*
FORM handle_data_changed  USING    p_er_data_changed
                          TYPE REF TO cl_alv_changed_data_protocol.

  DATA: mod_data        TYPE lvc_t_modi,
        gs_out_mod_data TYPE lvc_s_modi.

  mod_data = p_er_data_changed->mt_mod_cells.
  LOOP AT mod_data INTO gs_out_mod_data.

  ENDLOOP.

ENDFORM.


*&---------------------------------------------------------------------*
*&      Form  HANDLE_DATA_FINISH
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      -->P_E_MODIFIED  text
*      -->P_ET_GOOD_CELLS  text
*----------------------------------------------------------------------*
FORM handle_data_finish  USING    e_modified TYPE char01
                                  et_good_cells TYPE lvc_t_modi.

  DATA: eh_good_cells TYPE lvc_s_modi.

  IF e_modified = 'X'.
    LOOP AT et_good_cells INTO eh_good_cells.      " 修改的行
      UNASSIGN: <f_out>.
      READ TABLE gt_out ASSIGNING <f_out> INDEX eh_good_cells-row_id.
      IF sy-subrc = 0.

        CLEAR: gs_out.
        LOOP AT gt_out INTO gs_out WHERE asnum = <f_out>-asnum.
          " 显示当前登录id
          CALL METHOD cl_gui_frontend_services=>get_user_name
            CHANGING
              user_name            = c_str
            EXCEPTIONS
              cntl_error           = 1
              error_no_gui         = 2
              not_supported_by_gui = 3
              OTHERS               = 4.

          CALL METHOD cl_gui_cfw=>flush
            EXCEPTIONS
              cntl_system_error = 1
              cntl_error        = 2.

          CALL 'ThUsrInfo' ID 'OPCODE' FIELD opcode_usr_attr
          ID'TERMINAL' FIELD terminal.

          gs_out-erdat = sy-datum.
          gs_out-erzet = sy-uzeit.
          gs_out-ernam = c_str.
          gs_out-zlogin = terminal.
          CASE eh_good_cells-fieldname.

            WHEN 'SAKNR'.  " 手动更新SAKNR

              SELECT COUNT( * ) FROM skat WHERE saknr = <f_out>-saknr.
              IF sy-subrc = 0.
                SELECT SINGLE txt20
                FROM skat
                INTO gs_out-txt20
                WHERE saknr = <f_out>-saknr AND spras = sy-langu.

                IF sy-subrc NE 0.
                  CLEAR: gs_out-txt20." ,gs_out-erdat,gs_out-erzet,gs_out-ernam,gs_out-zlogin.
                ENDIF.
                MODIFY gt_out FROM gs_out TRANSPORTING txt20 erdat erzet ernam zlogin .
                CLEAR: gs_out.
              ELSE.
                MESSAGE '输入的总账科目有误，请检查！' TYPE 'E'.
              ENDIF.



            WHEN 'ZEKGRP_STR'.

              IF sy-subrc NE 0.
                CLEAR: gs_out-zekgrp_str.
              ENDIF.

              MODIFY gt_out FROM gs_out TRANSPORTING zekgrp_str erdat erzet ernam zlogin.
              CLEAR: gs_out.

            WHEN OTHERS.
          ENDCASE.
        ENDLOOP.
      ENDIF.
    ENDLOOP.

    " 稳定刷新
    gs_stbl-row = 'X'.
    gs_stbl-col = 'X'.
    CALL METHOD gcl_alv_grid->refresh_table_display
      EXPORTING
        is_stable = gs_stbl.
  ENDIF.
ENDFORM.


*&---------------------------------------------------------------------*
*&      Form  REFRESH_TABLE_ALV
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM refresh_table_alv .
  gs_stbl = 'X'. " 基于行的稳定刷新
  gs_stbl = 'X'.  " 基于列稳定刷新
  CALL METHOD gcl_alv_grid->refresh_table_display
    EXPORTING
      is_stable = gs_stbl.
ENDFORM.

*&---------------------------------------------------------------------*
*&      Form  FRM_SET_EVENT
*定义事件
*&---------------------------------------------------------------------*
FORM frm_set_event.
  CALL FUNCTION 'REUSE_ALV_EVENTS_GET'
    EXPORTING
      i_list_type     = 0
    IMPORTING
      et_events       = gt_events
    EXCEPTIONS
      list_type_wrong = 1
      OTHERS          = 2.

  IF sy-subrc <> 0.
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
    WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  ENDIF.

  gs_events-name = 'CALLER_EXIT'.
  gs_events-form = 'FRM_CALLER_EXIT'.
  APPEND gs_events TO gt_events.

ENDFORM.    " FRM_SET_EVENT


*&---------------------------------------------------------------------*
*&      Form  F_CALLER_EXIT
* 注册回车事件
*&---------------------------------------------------------------------*
FORM frm_caller_exit USING ls_data TYPE slis_data_caller_exit.

  DATA gt_event_receiver TYPE REF TO lcl_event_receiver.
  DATA: lt_f4 TYPE lvc_t_f4,
        ls_f4 TYPE lvc_s_f4.
  CALL FUNCTION 'GET_GLOBALS_FROM_SLVC_FULLSCR'
    IMPORTING
      e_grid = gcl_alv_grid.

* 设置enter事件
  CALL METHOD gcl_alv_grid->register_edit_event
    EXPORTING
      i_event_id = cl_gui_alv_grid=>mc_evt_enter
    EXCEPTIONS
      error      = 1
      OTHERS     = 2.
  CALL METHOD gcl_alv_grid->register_edit_event
    EXPORTING
      i_event_id = cl_gui_alv_grid=>mc_evt_modified
    EXCEPTIONS
      error      = 1
      OTHERS     = 2.
  IF sy-subrc <> 0.
*   Implement suGT_OUTle error handling here
  ENDIF.

  CREATE OBJECT gt_event_receiver.
  SET HANDLER gt_event_receiver->handle_modify FOR gcl_alv_grid.
  SET HANDLER gt_event_receiver->data_changed FOR gcl_alv_grid.

ENDFORM.                   "F_CALLER_EXIT

主程序

复制代码
*&---------------------------------------------------------------------*
*& Report ZFIUXXX
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zfiuxxx.

INCLUDE zfiuxxx_top.    " Global Data
INCLUDE zfiuxxx_fo1.    " Function Modules
INCLUDE zfiuxxx_lcl.    " Events

START-OF-SELECTION.

  PERFORM get_data.
  PERFORM check_data.
  PERFORM show_data.

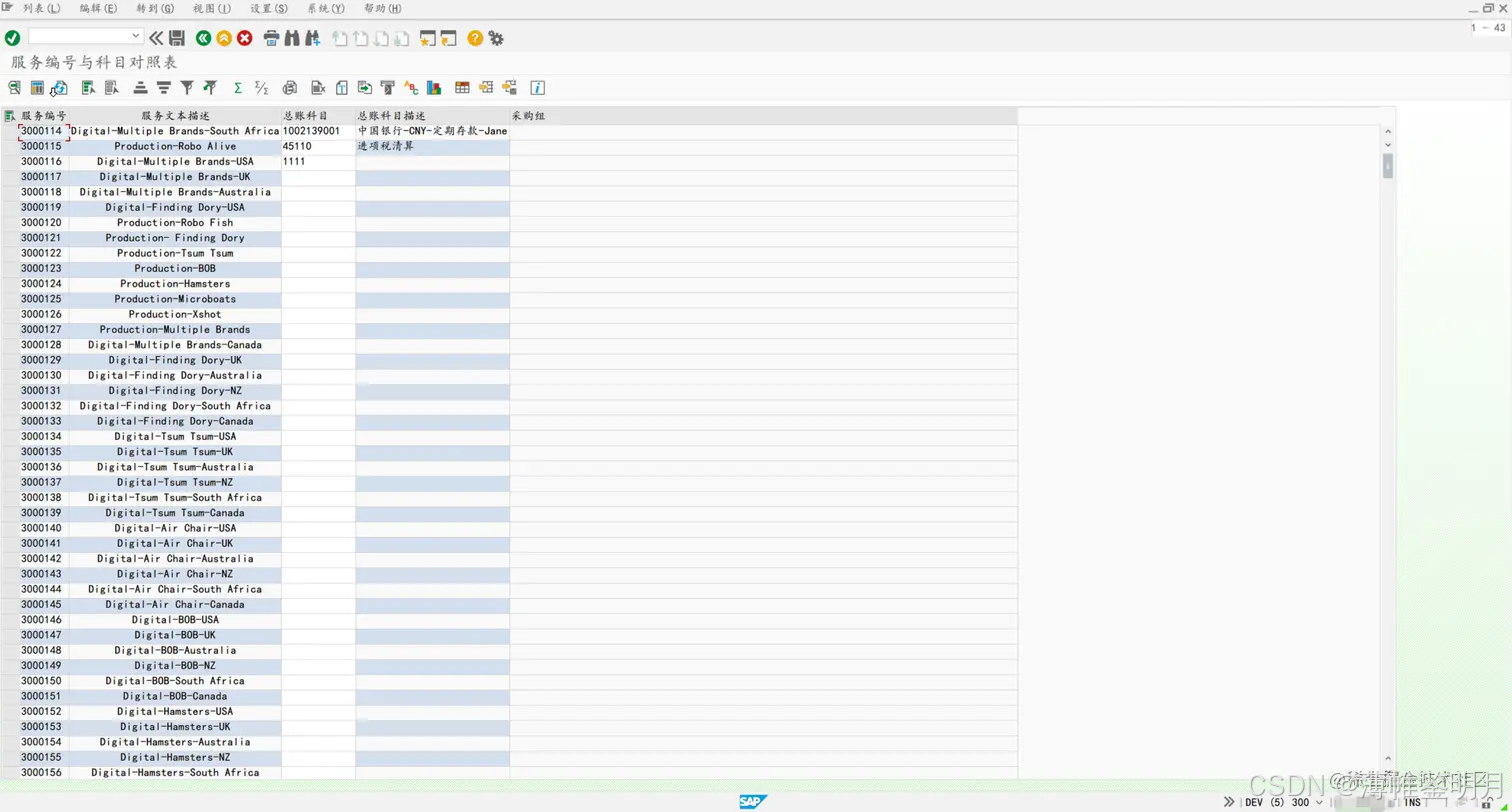

最终呈现：

相关推荐
山茶花开时。1 天前
[SAP ABAP] CONVERSION_EXIT_ALPHA_INPUT
sap·abap
EasyStudios3 天前
金色传说：SAP-ABAP-Excel数据导入工具函数示例
sap·abap·excel导入
EasyStudios3 天前
金色传说：SAP-ABAP-交货单创建及过账工具类示例
sap·abap·工具类·se24·交货单bapi
goyeer6 天前
05.[SAP ABAP] ABAP中的运算符
算法·sap·abap·运算符
爱喝水的鱼丶20 天前
SAP-ABAP：SAP概述：数据处理的系统、应用与产品
运维·学习·sap·abap·1024程序员节
IT小白农民工24 天前
安装SAP Business one for HANA之前的准备
linux·经验分享·sap
寒武青锋24 天前
SAP 后台批量激活程序
sap·abap
LilySesy1 个月前
ABAP+在select的时候，可以A=B A=C B=C这样子JOIN吗？
数据库·sql·ai·excel·sap·abap
LilySesy1 个月前
ABAP+WHERE字段长度不一致报错解决
java·前端·javascript·bug·sap·abap·alv
热门推荐
01GitHub 镜像站点02【超详细教程】手把手教你从微软官网免费下载Windows 10官方原版ISO镜像（2025最新版）03安娜的档案(Anna’s Archive) 镜像网站/国内最新可访问入口（持续更新）04智能库存管理的需求预测模型：从业务痛点到落地代码的完整实践05UV安装并设置国内源06React CVE-2025-55182漏洞排查与修复指南07BongoCat - 跨平台键盘猫动画工具08Linux下V2Ray安装配置指南09本地部署阿里最新开源的Z-Image10打造高效订单处理！ZKmall开源商城的统一履约中心架构解析
