云端双引擎:DevUI 与 MateChat 构建下一代智能云原生交互体系

摘要

在云原生技术全面进入"深水区"的当下,企业级应用的构建已不再仅仅是界面开发的效率比拼,而是向着"智能化、沉浸式、全链路"的交互体验进化。前端开发者面临着双重挑战:一方面需要应对海量数据与复杂交互带来的界面构建压力,另一方面则亟需跨越 AI 技术门槛,将大模型能力无缝集成至业务流中。本文将深入剖析华为云两大核心技术生态------DevUI 企业级前端解决方案与 MateChat 智能交互平台,探讨如何利用 DevUI 的组件生态构建稳健的云原生界面骨架,并通过 MateChat 的 MCP(Model Context Protocol)架构注入智能灵魂,最终实现从"功能堆砌"到"智能协同"的范式转变。

官方资源一键直达:

第一章 深水区的挑战:当云原生遇见 AIGC

随着 Kubernetes 和微服务架构的普及,企业级应用的复杂度呈指数级上升。我们通常用算法复杂度来类比系统构建的难度,假设传统单体应用的界面构建复杂度为 ( O(n) ),那么云原生环境下的多维交互界面复杂度则逼近:

C u i = ∑ i = 1 k ( S i × I i ) + α ⋅ A I C_{ui} = \sum_{i=1}^{k} (S_i \times I_i) + \alpha \cdot AI Cui=i=1∑k(Si×Ii)+α⋅AI

其中, S i S_i Si 代表微服务的状态数量, I i I_i Ii 代表交互维度,而 A A A 则是一个全新的变量------智能化的不确定性。

开发者正面临"效率剪刀差":业务需求迭代速度远超开发工具的进化速度。传统的组件库难以应对高度定制化的云控制台场景,而割裂的 AI 工具链又让智能能力难以落地。正是在这种背景下,DevUIMateChat 应运而生,前者通过极致的工程化组件解决"构建"难题,后者通过创新的交互协议解决"连接"难题。

第二章 DevUI 组件生态:构建云原生应用的"数字骨架"

DevUI 并非仅仅是一套 UI 组件库,它源自华为云复杂的控制台业务,经过了无数次实战的打磨。它提倡"沉浸、灵活、至简"的设计价值观,支持 Angular 与 Vue 两大主流框架,为中后台应用提供了坚实的视觉基础。

2.1 深度实践:高频组件的极限性能优化

在云管理平台中,DataTable(表格) 是最为核心的组件。面对百万级日志数据的渲染,普通的表格组件往往会造成浏览器假死。

DevUI 的虚拟滚动(Virtual Scroll)技术是解决这一问题的银弹。不同于简单的分页,虚拟滚动通过计算视口(Viewport)内的可见元素,动态复用 DOM 节点。

实战代码示例:
typescript 复制代码
import { Component, OnInit } from '@angular/core';
import { originSource, SourceType } from '../mock-data';

@Component({
  selector: 'd-virtual-scroll',
  templateUrl: './virtual-scroll.component.html'
})
export class VirtualScrollComponent implements OnInit {

  dataTableOptions = {
    columns: [
      {
        field: 'firstName',
        header: 'First Name',
        fieldType: 'text',
        sortable: true,
      },
      {
        field: 'lastName',
        header: 'Last Name',
        fieldType: 'text',
        sortable: true,
      },
      {
        field: 'gender',
        header: 'gender',
        fieldType: 'text',
        sortable: true,
      },
      {
        field: 'dob',
        header: 'Date of birth',
        fieldType: 'date',
        sortable: true,
      }
    ]
  };

  dataSource: Array<SourceType> = JSON.parse(JSON.stringify(originSource.slice()));
  ngOnInit() {
    this.expandDataSource();
  }

  private expandDataSource(): void {
    const tmp: Array<SourceType> = this.dataSource;
    for (let index = 0; index < 20; index++) {
      this.dataSource = this.dataSource.concat(tmp);
    }
  }
}

在上述代码中,使用virtualScroll启用虚拟滚动,行高须确定且相同,如果行高高于默认的40px,须配置virtualItemSize 若初始状态无数据,需要对class为cdk-virtual-scroll-viewport的元素设定高度,并且建议对d-data-table元素和noResult模板设定定位。

附上HTML代码:

json 复制代码
<d-data-table
  [dataSource]="dataSource"
  tableHeight="360px"
  [scrollable]="true"
  [virtualScroll]="true"
  [virtualItemSize]="40"
  [virtualMinBufferPx]="80"
  [virtualMaxBufferPx]="200"
  [tableOverflowType]="'overlay'"
>
  <thead dTableHead>
    <tr dTableRow>
      <th dHeadCell *ngFor="let colOption of dataTableOptions.columns">{{ colOption.header }}</th>
    </tr>
  </thead>
  <tbody dTableBody>
    <ng-template let-rowItem="rowItem" let-rowIndex="rowIndex">
      <tr dTableRow>
        <td dTableCell *ngFor="let colOption of dataTableOptions.columns">
          {{ colOption.fieldType === 'date' ? (rowItem[colOption.field] | i18nDate: 'short':false) : rowItem[colOption.field] }}
        </td>
      </tr>
    </ng-template>
  </tbody>
</d-data-table>

当然,还有mock-data,直接拿去

json 复制代码
export interface SourceType {
  id?: number;
  firstName: string;
  lastName: string;
  dob: Date;
  gender: string;
  detail?: string;
  $checked?: boolean;
  $expandConfig?: any;
  children?: any;
  chosen?: boolean;
  $isChildTableOpen?: boolean;
}

export const originSource = [
  {
    id: 1,
    firstName: 'Mark',
    lastName: 'Otto',
    dob: new Date(1990, 12, 1),
    gender: 'Male',
    description: 'handsome man'
  },
  {
    id: 2,
    firstName: 'Jacob',
    lastName: 'Thornton',
    gender: 'Female',
    dob: new Date(1989, 1, 1),
    description: 'interesting man'
  },
  {
    id: 3,
    firstName: 'Danni',
    lastName: 'Chen',
    gender: 'Female',
    dob: new Date(1991, 3, 1),
    description: 'pretty man',
    expandConfig: {description: 'Danni is here'}
  },
  {
    id: 4,
    firstName: 'green',
    lastName: 'gerong',
    gender: 'Male',
    description: 'interesting man',
    dob: new Date(1991, 3, 1),
  },
  {
    id: 5,
    firstName: 'po',
    lastName: 'lang',
    gender: 'Male',
    dob: new Date(1991, 3, 1),
    description: 'lang is here',
  },
  {
    id: 6,
    firstName: 'john',
    lastName: 'li',
    gender: 'Female',
    dob: new Date(1991, 3, 1),
    description: 'pretty man',
  },
  {
    id: 7,
    firstName: 'peng',
    lastName: 'li',
    gender: 'Female',
    dob: new Date(1991, 3, 1),
  },
  {
    id: 8,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: 'Female',
    dob: new Date(1991, 3, 1),
  },
  {
    id: 9,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: 'Female',
    dob: new Date(1991, 3, 1),
    detail: '这是另外一个行详情'
  },
  {
    id: 10,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: 'Female',
    dob: new Date(1991, 3, 1),
  },
  {
    id: 11,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: 'Female',
    dob: new Date(1991, 3, 1),
  },
  {
    id: 12,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: 'Female',
    dob: new Date(1991, 3, 1),
  },
];

export const editableOriginSource = [
  {
    id: 1,
    firstName: 'Mark',
    lastName: 'Otto',
    dob: new Date(1990, 12, 1),
    gender: { id: 1, label: 'Male' },
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 2,
    firstName: 'Jacob',
    lastName: 'Thornton',
    gender: { id: 2, label: 'Female' },
    dob: new Date(1989, 1, 1),
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 3,
    firstName: 'Danni',
    lastName: 'Chen',
    gender: { id: 2, label: 'Female' },
    dob: new Date(2018, 3, 1),
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 4,
    firstName: 'green',
    lastName: 'gerong',
    gender: { id: 1, label: 'Male' },
    dob: new Date(2018, 3, 1),
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 5,
    firstName: 'po',
    lastName: 'lang',
    gender: { id: 1, label: 'Male' },
    dob: new Date(2018, 3, 1),
    detail: '这是一个行详情',
    age: 24,
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 6,
    firstName: 'john',
    lastName: 'li',
    gender: { id: 2, label: 'Female' },
    dob: new Date(2018, 3, 1),
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 7,
    firstName: 'peng',
    lastName: 'li',
    gender: { id: 2, label: 'Female' },
    dob: new Date(2018, 3, 1),
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 8,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: { id: 2, label: 'Female' },
    dob: new Date(2018, 3, 1),
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 9,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: { id: 2, label: 'Female' },
    dob: new Date(2018, 3, 1),
    detail: '这是另外一个行详情',
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 10,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: { id: 2, label: 'Female' },
    dob: new Date(2018, 3, 1),
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 11,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: { id: 2, label: 'Female' },
    dob: new Date(2018, 3, 1),
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
  {
    id: 12,
    firstName: 'Danni',
    lastName: 'Yu',
    gender: { id: 2, label: 'Female' },
    dob: new Date(2018, 3, 1),
    age: 24,
    hobby: [{ id: 1, name: 'music' },
      { id: 2, name: 'football' }],
    duty: [{
      'title': '前端维护',
      'id': 9
    }, {
      'title': '后台维护',
      'disabled': true,
      'isChecked': true,
      'id': 10
    }]
  },
];

export const genderSource = [
  { id: 1, label: 'Male' },
  { id: 2, label: 'Female' }
];

export const hobbySource = [
  { id: 1, name: 'music' },
  { id: 2, name: 'football' },
  { id: 3, name: 'game' },
  { id: 4, name: 'anime' }
];

export const DutySource = [
  {
    'id': 8,
    'title': '维护',
    'open': true,
    'halfChecked': true,
    'children': [
      {
        'title': '前端维护',
        'id': 9
      }, {
        'title': '后台维护',
        'disabled': true,
        'isChecked': true,
        'id': 10
      },
      {
        'title': '数据库维护',
        'disabled': true,
        'id': 11
      }
    ]
  },
  {
    'id': 15,
    'title': '管理',
    'children':
      [
        {
          'title': '向导',
          'id': 16
        }, {
          'title': '配置',
          'id': 17
        }
      ]
  }
];

export const treeDataSource = [
  {
    title: 'table title0',
    lastName: 'Mark',
    dob: new Date(1990, 12, 1),
    status: 'done',
    startDate: new Date(2020, 1, 5),
    endDate: new Date(2020, 1, 8),
    children: [
      {
        title: 'table title01',
        lastName: 'Mark',
        status: 'done',
        dob: new Date(1989, 1, 1),
        children: [
          {
            title: 'table title011',
            lastName: 'Mark',
            status: 'done',
            dob: new Date(1989, 1, 1),
          },
          {
            title: 'table title012',
            lastName: 'Mark',
            status: 'done',
            dob: new Date(1991, 3, 1),
            children: [
              {
                title: 'table title0121',
                lastName: 'Mark',
                status: 'done',
                dob: new Date(1989, 1, 1)
              },
              {
                title: 'table title0122',
                lastName: 'Mark',
                status: 'done',
                dob: new Date(1989, 1, 1)
              }
            ]
          }
        ]
      },
      {
        title: 'table title02',
        lastName: 'Mark',
        status: 'done',
        dob: new Date(1991, 3, 1)
      }
    ]
  },
  {
    title: 'table title1',
    lastName: 'Mark',
    status: 'done',
    dob: new Date(1989, 1, 1),
    startDate: new Date(2020, 1, 4),
    endDate: new Date(2020, 1, 8),
    children: []
  },
  {
    title: 'table title2',
    lastName: 'Mark',
    status: 'done',
    dob: new Date(1991, 3, 1),
    startDate: new Date(2020, 1, 6),
    endDate: new Date(2020, 1, 9),
  },
  {
    title: 'table title3',
    lastName: 'Mark',
    status: 'done',
    dob: new Date(1991, 3, 1),
    detail: '这是一个行详情',
    startDate: new Date(2020, 1, 7),
    endDate: new Date(2020, 1, 10),
  },
  {
    title: 'table title4',
    lastName: 'Mark',
    status: 'done',
    dob: new Date(1991, 3, 1),
    startDate: new Date(2020, 1, 7),
    endDate: new Date(2020, 1, 12),
  }
];

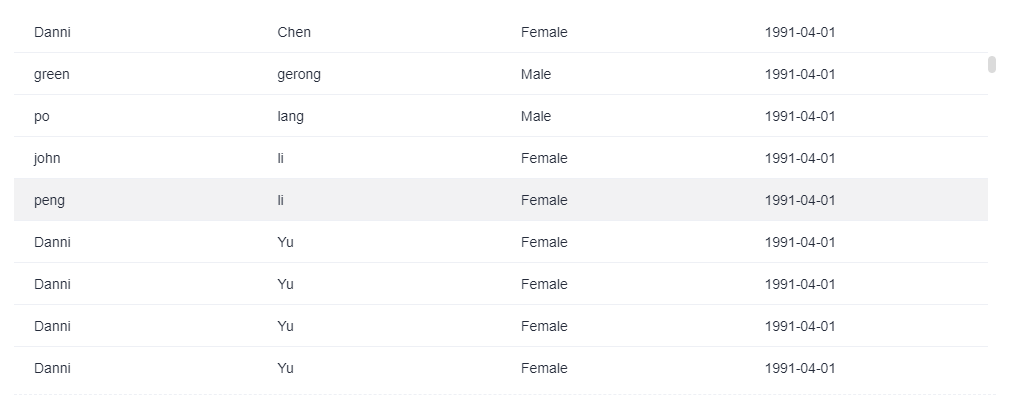

具体效果部分截图如下:

2.2 样式定制与暗黑模式:设计的一致性

云原生工具往往需要支持长时间的运维操作,暗黑模式(Dark Mode) 是刚需。DevUI 基于 CSS Variables(CSS 变量)构建了完善的主题系统。

开发者无需编写两套 CSS。只需引入 DevUI 的主题包,并利用 Design Tokens 进行开发:

相关伪代码如下:

css 复制代码
/* 自定义组件样式使用 DevUI 语义化变量 */
.monitor-card {
  background-color: var(--devui-base-bg); /* 自动适配深浅色 */
  border: 1px solid var(--devui-line);
  color: var(--devui-text);
}

通过简单的 JS 调用即可实现全站秒级换肤,这对于打造沉浸式的 IDE 风格界面至关重要。

2.3 云端创新:低代码与 DevUI 的结合

在华为云的内部实践中,DevUI 已深度集成至低代码平台。通过将 DevUI 组件标准化为 JSON Schema,我们可以实现"通过自然语言生成 UI"。这为后续结合 MateChat 埋下了伏笔------当 AI 理解了 DevUI 的 API 结构,它就能直接生成可用的前端代码。

第三章 MateChat 智能应用:重塑交互的"智慧大脑"

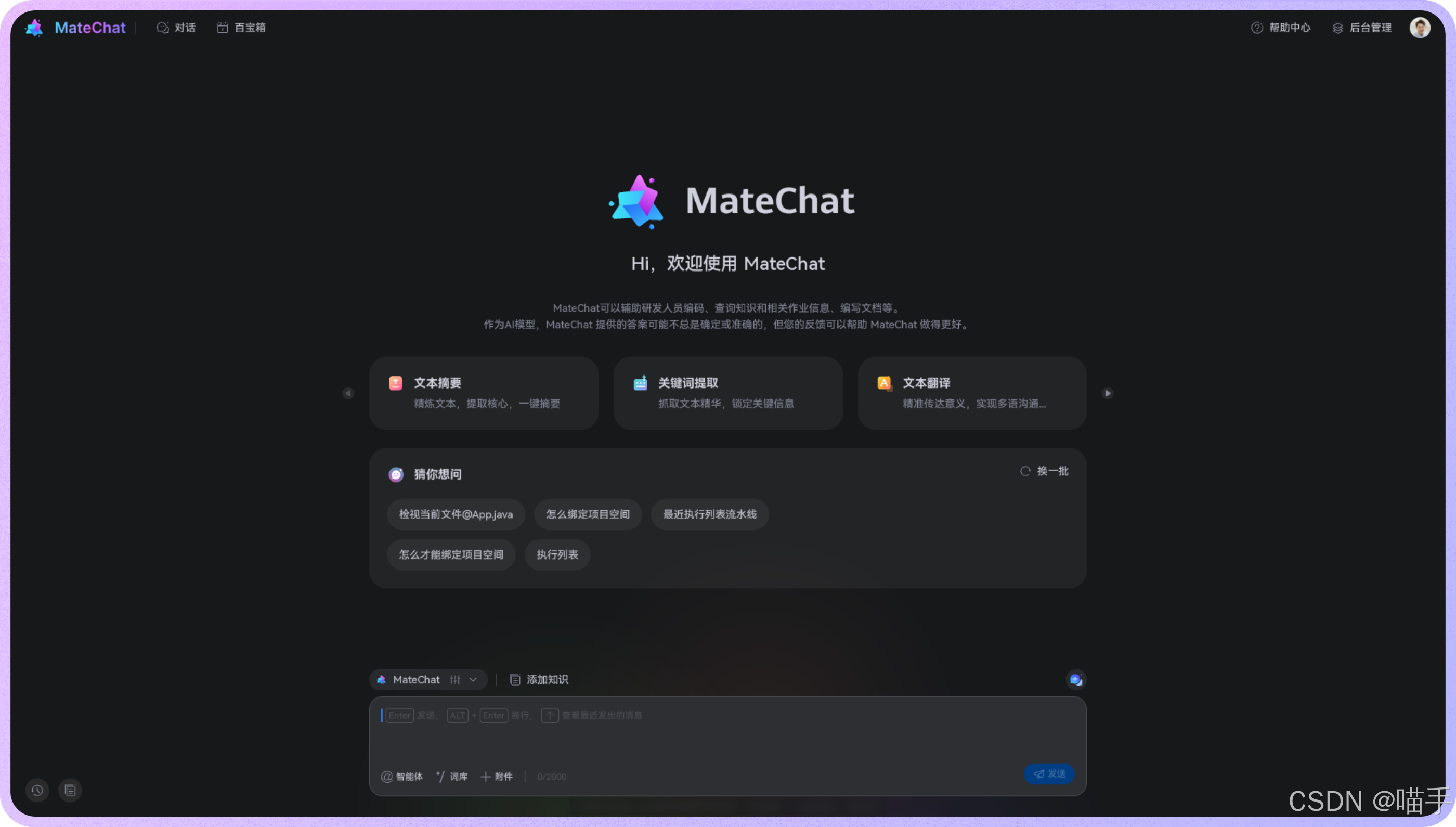

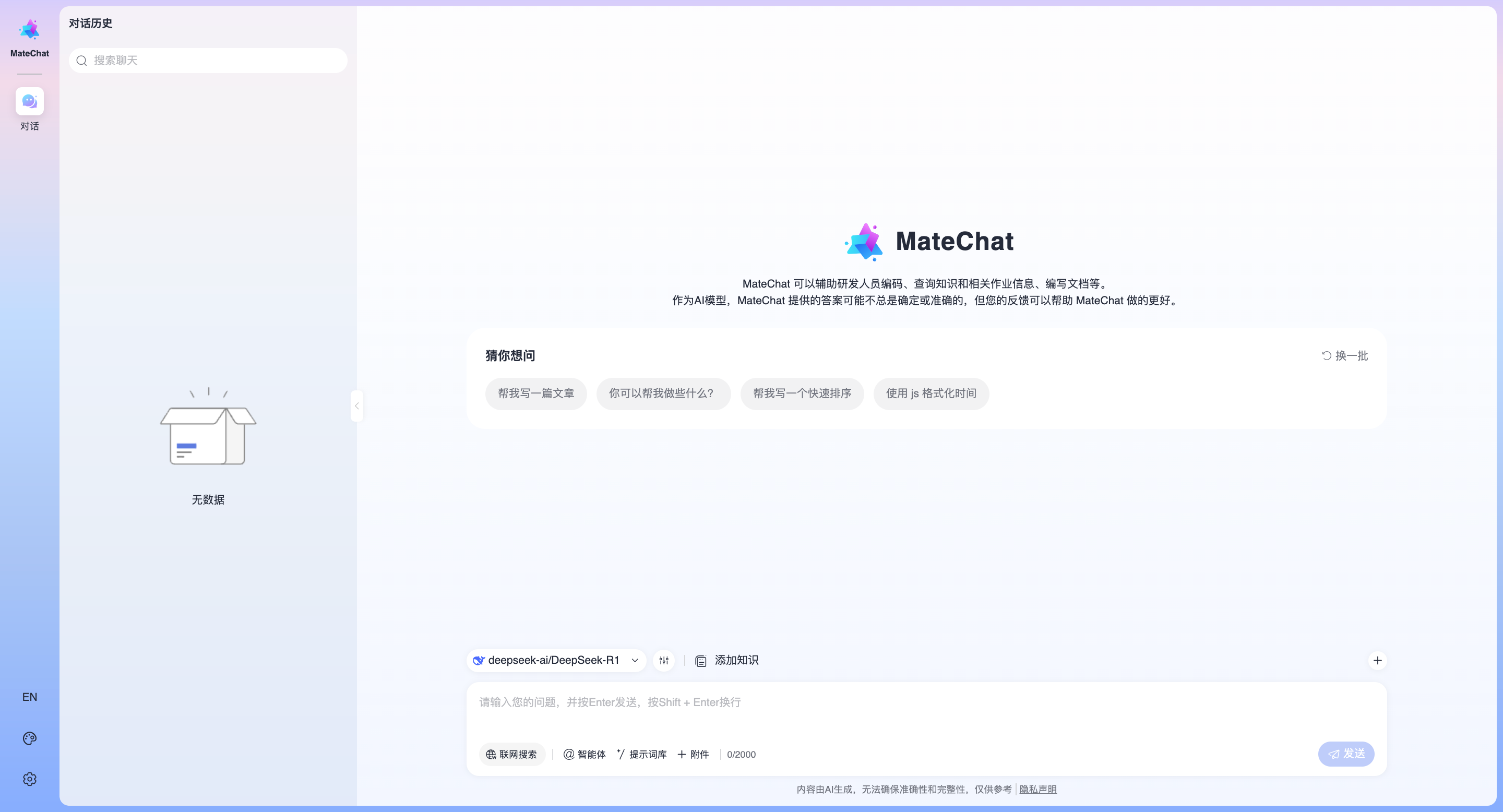

如果说 DevUI 是躯体,那么 MateChat 则是链接开发者与 AI 算力的神经中枢。需要特别强调的是,MateChat 并不是一个传统的 SDK,而是一个聚合了多种大模型能力的智能交互平台 。它没有提供 SDK 供应用内嵌入,而是通过MCP(Model Context Protocol) 和插件生态,成为了开发者桌面上最强大的辅助工具。

3.1 核心范式:为什么是 MateChat?

目前市面上的 AI 聊天工具多如牛毛,MateChat 的核心竞争力在于其对"开发者上下文"的深刻理解。

  1. 多模态聚合:它不绑定单一模型,允许开发者在 GPT-4、Claude、文心一言等模型间无缝切换,寻找最适合当前任务的"大脑"。
  2. 无 SDK 的集成哲学:MateChat 遵循"工具即服务"的理念。我们不需要在业务代码里引入沉重的 AI SDK,而是通过 MateChat 客户端作为代理,去调用、生成、优化我们的代码或工作流。

3.2 创新玩法:MCP(Model Context Protocol)落地实践

MCP 是 MateChat 生态中最具革命性的创新。它允许 MateChat 连接到外部数据源或工具,而无需将这些数据全部灌入大模型的 Context Window 中。

场景描述:假设我们需要在 MateChat 中查询企业内部 DevUI 组件库的私有文档,并让 AI 生成符合公司规范的代码。

实现流程

  1. 构建 MCP Server:编写一个轻量级的服务,用于索引内部 DevUI 文档。
  2. 配置 MateChat:在 MateChat 设置中添加该 MCP Server 的端点。
  3. 交互:用户在 MateChat 中提问,MateChat 智能路由请求给 MCP Server,获取精准上下文后,再由大模型生成答案。
伪代码实现(MCP Server 逻辑):
python 复制代码
# 这是一个概念性的 MCP Server 实现逻辑
from mcp_server import Server, Tool

app = Server("DevUI-Docs-Agent")

@app.tool(name="search_component_docs")
def search_docs(query: str):
    """
    Search private enterprise DevUI documentation.
    Args:
        query: The component name or functionality to search for.
    """
    # 模拟向量数据库检索
    results = vector_db.query(query, top_k=3)
    return format_results(results)

@app.tool(name="get_code_snippet")
def get_snippet(component_name: str):
    """
    Retrieve standard compliant code snippets for a component.
    """
    return snippet_repo.get(component_name)

if __name__ == "__main__":
    app.run(port=8080)

通过这种方式,MateChat 瞬间变身为懂业务、懂规范的"超级员工"。这种RAG(检索增强生成) 的变体实践,完美解决了大模型幻觉和知识滞后的问题。

第四章 融合实战:从"构建"到"生成"的全链路复盘

本章将通过一个真实的 B 端应用场景------"云资源智能监控大屏",来展示 DevUI 与 MateChat 如何协同工作。

4.1 需求分析

我们需要构建一个包含以下功能的仪表盘:

  • 实时 CPU/内存利用率图表(需要高性能渲染)。
  • 告警列表(需要虚拟滚动)。
  • AI 智能诊断助手(通过 MateChat 辅助分析日志)。

4.2 第一阶段:使用 DevUI 快速搭架子

利用 DevUI 的 Layout 布局模板,我们仅需 10 分钟即可搭建出页面框架。

html 复制代码
import { Component, OnInit } from '@angular/core';

@Component({
  selector: 'd-grid-basic',
  templateUrl: './grid-basic.component.html',
})
export class GridBasicComponent implements OnInit {

  constructor() { }

  ngOnInit(): void {
  }

}

ts相关代码如下:

json 复制代码
import { Component, OnInit } from '@angular/core';

@Component({
  selector: 'd-grid-basic',
  templateUrl: './grid-basic.component.html',
})
export class GridBasicComponent implements OnInit {

  constructor() { }

  ngOnInit(): void {
  }

}

4.3 第二阶段:MateChat 赋能------自然语言生成 UI

在开发过程中,我们需要编写复杂的表单来配置告警规则。字段繁多(阈值、通知人、静默期等)。

MateChat 的作用

开发者直接在 MateChat 中输入提示词:

"我正在使用 DevUI Angular 版本,请帮我生成一个告警规则配置表单。包含规则名称(必填)、CPU阈值(数字滑块,范围0-100)、通知人员(多选下拉树,模拟数据)。请使用 d-formd-slider 组件。"

4.4 第三阶段:智能诊断工作流

虽然 MateChat 没有 SDK 嵌入页面,但我们可以通过 URL Scheme系统剪贴板 实现"伪集成"。

当监控大屏出现异常日志时,用户点击"AI 分析"按钮,系统自动将日志内容复制到剪贴板,并唤起 MateChat 客户端。MateChat 检测到特定格式的日志内容(通过预设的智能体配置),自动触发分析流程,给出排查建议。

未来展望:随着浏览器端模型(WebLLM)的成熟,我们甚至可以设想将 MateChat 的轻量化版本通过 Web Components 的形式封装,但这需要依赖 DevUI 团队未来的架构演进。

第五章 思考与展望:AI 时代的开发者新常态

5.1 从 UI 到 AI 的思维跃迁

DevUI 解决了"怎么画界面"的问题,MateChat 解决了"怎么写代码"以及"怎么分析数据"的问题。两者的结合,实际上展示了未来开发者的工作流雏形:

Intent (意图) (\rightarrow) MateChat (转化与生成) (\rightarrow) DevUI (呈现与交互)

5.2 挑战与机遇

尽管前景广阔,但我们也要看到当前的局限性:

  1. 上下文长度限制:MateChat 在处理超大规模项目代码库时,仍受限于 Token 窗口。
  2. 组件语义化:AI 对自定义 CSS 类名的理解不如对原子化 CSS 理解深刻,这对 DevUI 的语义化命名提出了更高要求。

5.3 结语

在云原生的浩瀚星海中,DevUI 是我们赖以生存的飞船外壳,坚固而优雅;MateChat 则是导航系统,智能且敏锐。掌握这两大核心技术,不仅是华为云开发者的必修课,更是通往下一代全栈工程师的入场券。让我们拥抱变化,用代码构建未来,用智能点亮世界!✨

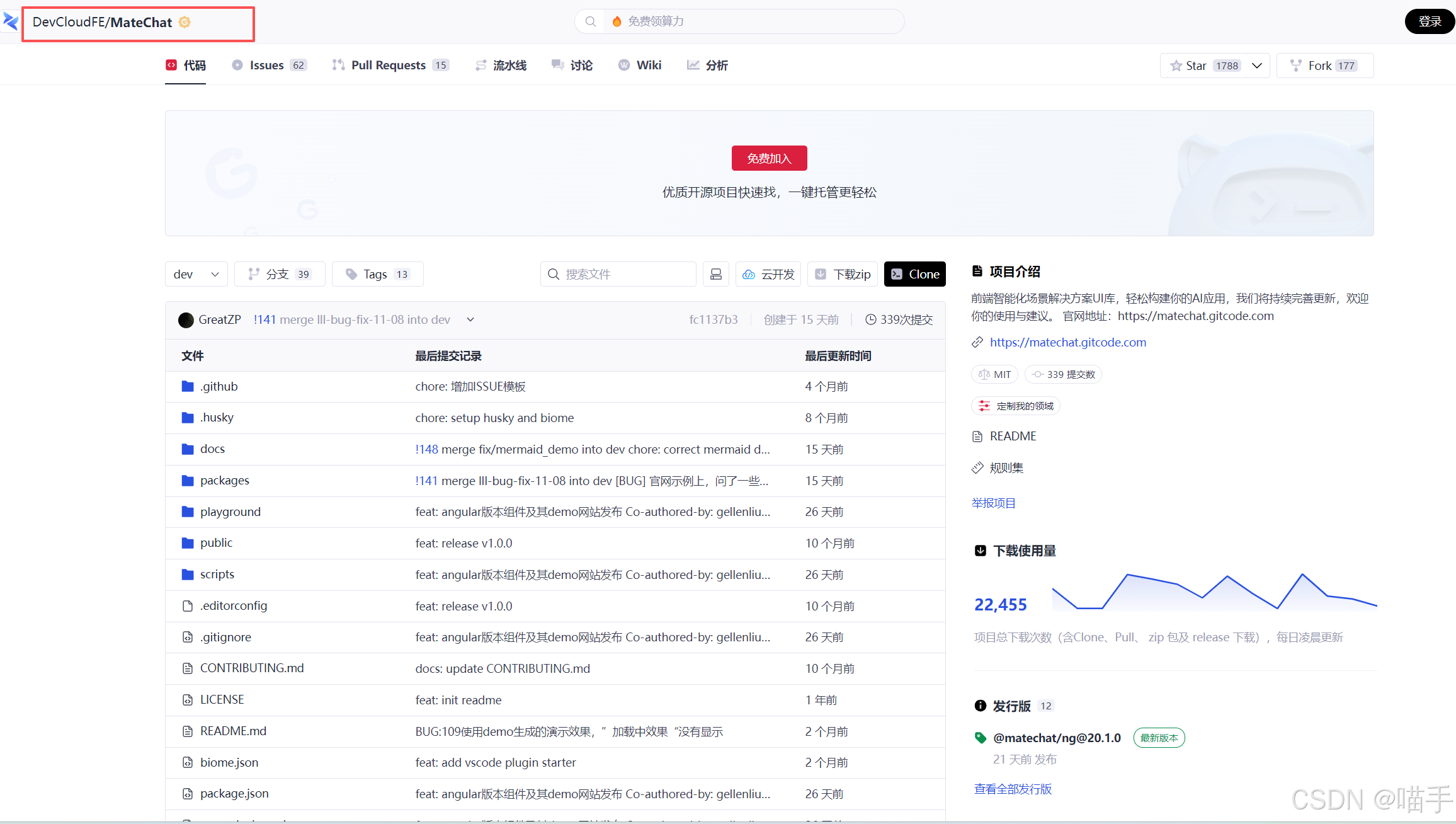

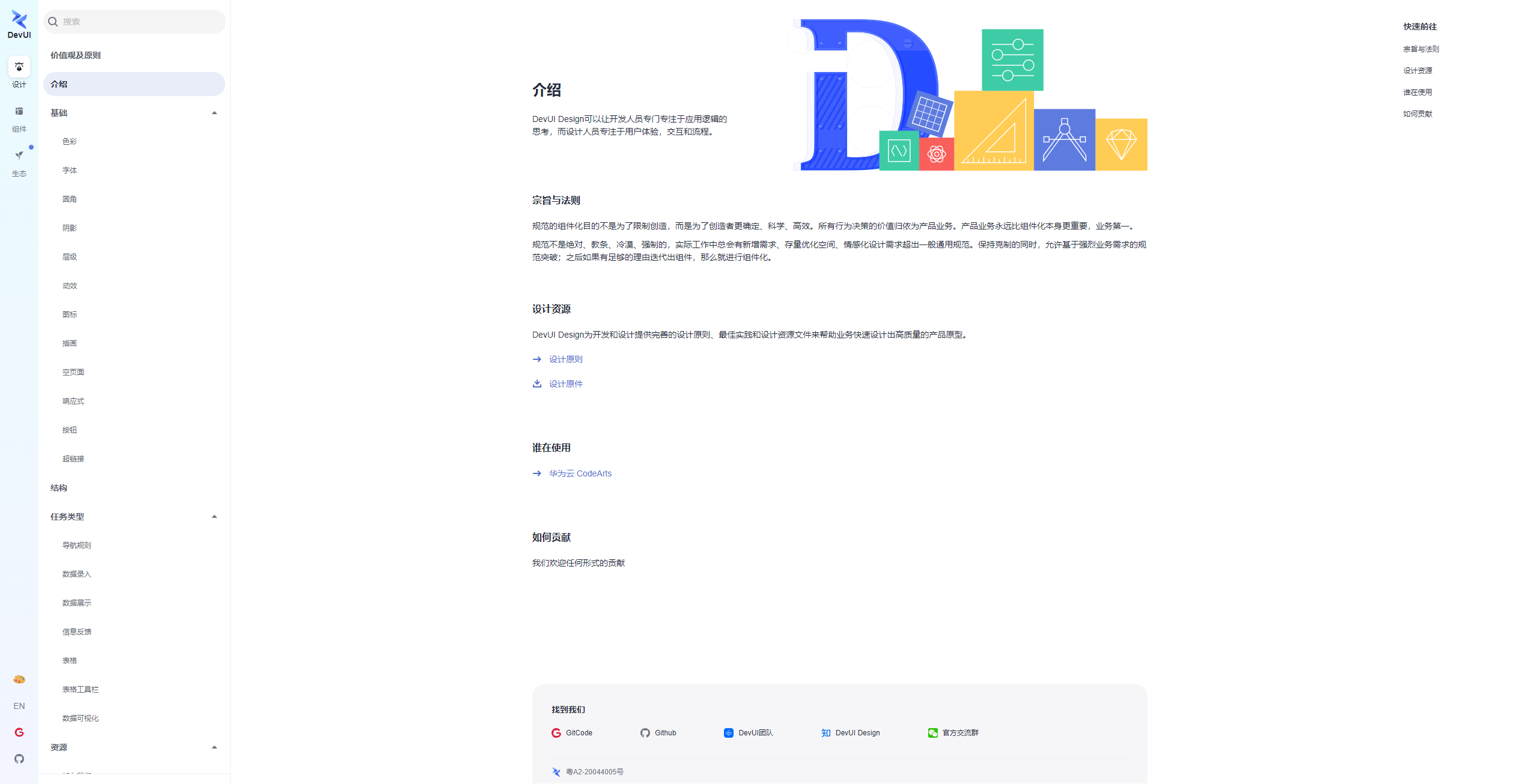

相关官方地址汇总如下:

相关推荐
喵手2 小时前
构建云原生智能中台:DevUI 极致交互与 MateChat 智能体协作实战!
devui·matechat
黑臂麒麟19 小时前
华为云 DevUI初体验:如何快速入门项目搭建
前端·ui·华为云·devui
喵手1 天前
云端双擎:基于 DevUI 与 MateChat 构建下一代企业级 AI 智能中台全景实战指南!
devui·matechat
喵手1 天前
智驭流转:基于 DevUI 与 MateChat 的企业级 DevOps 智能中台重构实录!
devui·matechat
喵手1 天前
云端双引擎:基于 DevUI 与 MateChat 共塑企业级智能中台的新范式
devui·matechat
喵手1 天前
DevUI 与 MateChat 重构云原生时代的“设计-交付”链路!
devui·matechat
wuli_滔滔2 天前
DevUI云控制台实战:多云管理平台前端架构解密
前端·架构·devui·matechat
向上的车轮4 天前
智能交互新范式:基于 MateChat 构建企业级 GenAI 应用的实践与创新
matechat
JarryStudy5 天前
DevUI国际化与本地化:多语言资源动态加载与RTL布局适配
国际化·rtl·devui·核心算法·智能回退
