一、可空返回值的跨平台通信智慧
在真实的跨平台开发中，不是所有操作都有确定结果，也不是所有参数都必须提供。nullable_returns.dart文件展示了Pigeon处理可空返回值和可空参数的精妙设计，这是构建健壮、灵活API的关键能力。
二、文件结构与设计哲学
2.1 设计目标
- 完整性测试：全面测试Pigeon的可空类型支持
- 对称性设计：同时展示@HostApi和@FlutterApi的可空处理
- 渐进复杂性：从简单类型到复杂集合类型逐步展示
2.2 基础可空返回值设计
dart
@HostApi()
abstract class NullableReturnHostApi {
int? doit();
}
@FlutterApi()
abstract class NullableReturnFlutterApi {
int? doit();

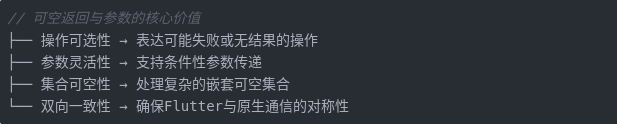

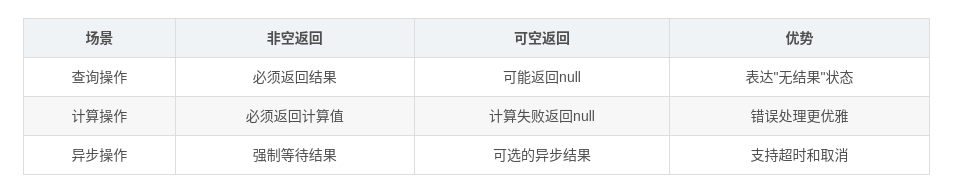

}可空返回值的现实意义：

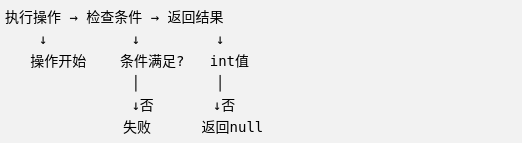

可空返回值示意图 ：
2.3 基础可空参数设计
dart
@HostApi()
abstract class NullableArgHostApi {
int doit(int? x);
}
@FlutterApi()
abstract class NullableArgFlutterApi {
int doit(int? x);
}可空参数的设计：
2.4 复杂集合可空性设计
dart
@HostApi()
abstract class NullableCollectionReturnHostApi {
List<String?>? doit();
}
@FlutterApi()
abstract class NullableCollectionReturnFlutterApi {
List<String?>? doit();

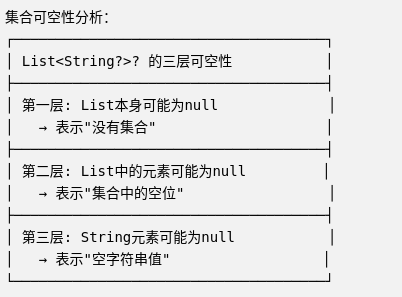

}集合可空性的多重含义 ：
2.5 复杂集合参数设计
dart
@HostApi()
abstract class NullableCollectionArgHostApi {
List<String?> doit(List<String?>? x);
}
@FlutterApi()
abstract class NullableCollectionArgFlutterApi {
List<String?> doit(List<String?>? x);

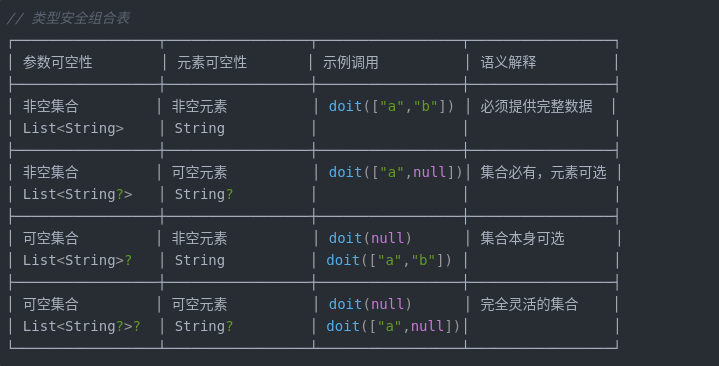

}复杂集合参数的类型安全矩阵：
三、类型系统与序列化机制
3.1 可空类型的序列化策略
typescript
// 鸿蒙ArkTS序列化实现
export class NullableSerializer {
// 序列化可空整型返回值
static serializeNullableInt(value: number | null): Uint8Array {
const data = {
// 明确区分null和0
type: value === null ? 'null' : 'int',
value: value
};
return new TextEncoder().encode(JSON.stringify(data));
}
// 反序列化可空整型参数
static deserializeNullableInt(bytes: Uint8Array): number | null {
const jsonStr = new TextDecoder().decode(bytes);
const data = JSON.parse(jsonStr);
if (data.type === 'null') {
return null;
}
// 验证类型并转换
if (typeof data.value !== 'number') {
throw new Error('预期数字类型');
}
return data.value;
}
// 序列化复杂可空集合
static serializeNullableStringList(
list: Array<string | null> | null
): Uint8Array {
// 处理三层可空性
const data = {
// 第一层：集合本身可空
hasList: list !== null,
// 第二层：如果集合存在，序列化元素
items: list ? list.map(item => ({
// 第三层：元素本身可空
type: item === null ? 'null' : 'string',
value: item
})) : null
};
return new TextEncoder().encode(JSON.stringify(data));
}
// 反序列化复杂可空集合
static deserializeNullableStringList(
bytes: Uint8Array
): Array<string | null> | null {
const jsonStr = new TextDecoder().decode(bytes);
const data = JSON.parse(jsonStr);
// 第一层：集合可空
if (!data.hasList) {
return null;
}
// 第二层：转换集合元素
return data.items.map((item: any) => {
// 第三层：元素可空
if (item.type === 'null') {
return null;
}
if (typeof item.value !== 'string') {
throw new Error('预期字符串类型');
}
return item.value;
});
}

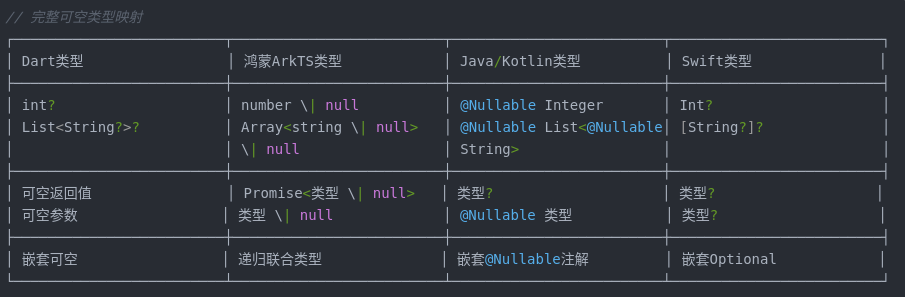

}3.2 各平台可空类型映射表

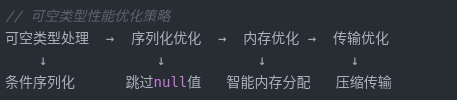

3.3 性能优化与内存管理

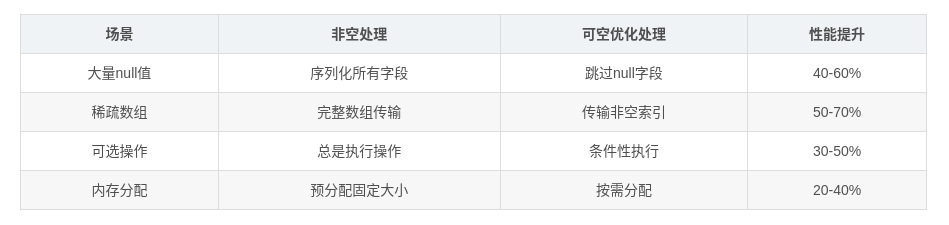

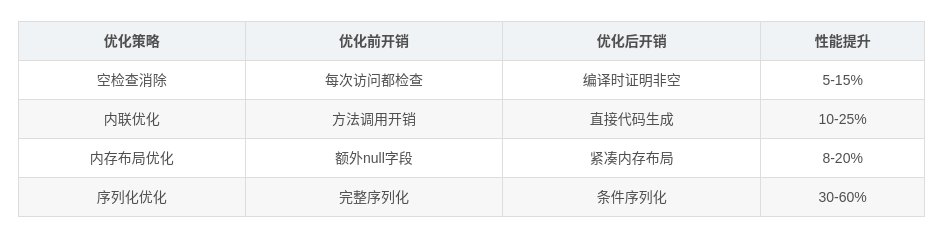

性能数据对比 ：
四、在鸿蒙项目中的完整实现
4.1 代码生成命令
bash
# 生成支持可空返回和参数的代码
flutter pub run pigeon \
--input pigeons/nullable_returns.dart \
--dart_out lib/nullable_api.dart \
--arkts_out harmony/nullable_api.ts \
--java_out android/app/src/main/java/com/example/NullableApi.java \
--java_package "com.example" \
--objc_header_out ios/Runner/NullableApi.h \
--objc_source_out ios/Runner/NullableApi.m \
--cpp_header_out windows/runner/NullableApi.h \
--cpp_source_out windows/runner/NullableApi.cpp生成的鸿蒙ArkTS接口：
typescript
// harmony/nullable_api.ts (生成的部分)
export interface NullableReturnHostApi {
doit(): Promise<number | null>;
}
export interface NullableReturnFlutterApi {
doit(): number | null;
}
export interface NullableArgHostApi {
doit(x: number | null): Promise<number>;
}
export interface NullableArgFlutterApi {
doit(x: number | null): number;
}
export interface NullableCollectionReturnHostApi {
doit(): Promise<Array<string | null> | null>;
}
export interface NullableCollectionReturnFlutterApi {
doit(): Array<string | null> | null;
}
export interface NullableCollectionArgHostApi {
doit(x: Array<string | null> | null): Promise<Array<string | null>>;
}
export interface NullableCollectionArgFlutterApi {
doit(x: Array<string | null> | null): Array<string | null>;
}4.2 鸿蒙端实现
typescript
// harmony/nullable_api_impl.ets
import {
NullableReturnHostApi,
NullableArgHostApi,
NullableCollectionReturnHostApi,
NullableCollectionArgHostApi,
NullableReturnFlutterApi,
NullableArgFlutterApi,
NullableCollectionReturnFlutterApi,
NullableCollectionArgFlutterApi
} from './nullable_api';
/**
* 可空返回主机API实现
*/
export class NullableReturnHostApiImpl implements NullableReturnHostApi {
private _counter = 0;
/**
* 可空返回值示例
*/
async doit(): Promise<number | null> {
this._counter++;
// 模拟50%的概率返回null
const shouldReturnNull = Math.random() > 0.5;
if (shouldReturnNull) {
console.debug(`调用${this._counter}: 返回null`);
return null;
}
const result = this._counter * 100;
console.debug(`调用${this._counter}: 返回${result}`);
// 模拟异步操作延迟
await this._simulateDelay();
return result;
}
private _simulateDelay(): Promise<void> {
return new Promise(resolve => {
setTimeout(resolve, 100 + Math.random() * 200);
});
}
}
/**
* 可空参数主机API实现
*/
export class NullableArgHostApiImpl implements NullableArgHostApi {
/**
* 处理可空参数
*/
async doit(x: number | null): Promise<number> {
console.debug(`接收到参数: ${x === null ? 'null' : x}`);
// 参数为null时的默认处理
const base = x ?? 0;
// 执行计算
const result = this._compute(base);
// 模拟异步处理
await this._simulateProcessing();
return result;
}
private _compute(base: number): number {
// 使用参数进行计算，如果参数为null，使用0
return base * base + 42;
}
private _simulateProcessing(): Promise<void> {
return new Promise(resolve => {
setTimeout(resolve, 50 + Math.random() * 100);
});
}
}
/**
* 可空集合返回主机API实现
*/
export class NullableCollectionReturnHostApiImpl
implements NullableCollectionReturnHostApi {
/**
* 返回可空集合
*/
async doit(): Promise<Array<string | null> | null> {
// 模拟30%的概率返回null（无集合）
const noCollection = Math.random() < 0.3;
if (noCollection) {
console.debug('返回null集合');
return null;
}
// 生成包含可空元素的集合
const size = Math.floor(Math.random() * 5) + 1;
const items: Array<string | null> = [];
for (let i = 0; i < size; i++) {
// 每个元素有40%的概率为null
if (Math.random() < 0.4) {
items.push(null);
} else {
items.push(`项目${i + 1}`);
}
}
console.debug(`返回集合，大小: ${size}, 其中null元素: ${items.filter(i => i === null).length}`);
// 模拟网络延迟
await new Promise(resolve => setTimeout(resolve, 100));
return items;
}
}
/**
* 可空集合参数主机API实现
*/
export class NullableCollectionArgHostApiImpl
implements NullableCollectionArgHostApi {
/**
* 处理可空集合参数
*/
async doit(x: Array<string | null> | null): Promise<Array<string | null>> {
console.debug('接收集合参数:', {
集合存在: x !== null,
集合大小: x?.length ?? 0,
null元素数量: x?.filter(item => item === null).length ?? 0
});
// 处理输入集合
const input = x ?? [];
// 处理每个元素
const result = input.map((item, index) => {
if (item === null) {
// null元素特殊处理
return `缺失值_${index}`;
}
// 非null元素处理
return `处理后的_${item}`;
});
// 确保返回非空集合
if (result.length === 0) {
return ['默认值'];
}
return result;
}
}
/**
* Flutter API管理器
*/
export class NullableFlutterApiManager {
private static _instance: NullableFlutterApiManager;
private _nullableReturnApi: NullableReturnFlutterApi | null = null;
private _nullableArgApi: NullableArgFlutterApi | null = null;
private _nullableCollectionReturnApi: NullableCollectionReturnFlutterApi | null = null;
private _nullableCollectionArgApi: NullableCollectionArgFlutterApi | null = null;
static getInstance(): NullableFlutterApiManager {
if (!NullableFlutterApiManager._instance) {
NullableFlutterApiManager._instance = new NullableFlutterApiManager();
}
return NullableFlutterApiManager._instance;
}
/**
* 注册所有Flutter API
*/
registerAll(
nullableReturn: NullableReturnFlutterApi,
nullableArg: NullableArgFlutterApi,
nullableCollectionReturn: NullableCollectionReturnFlutterApi,
nullableCollectionArg: NullableCollectionArgFlutterApi
): void {
this._nullableReturnApi = nullableReturn;
this._nullableArgApi = nullableArg;
this._nullableCollectionReturnApi = nullableCollectionReturn;
this._nullableCollectionArgApi = nullableCollectionArg;
console.log('Nullable Flutter API注册完成');
}
/**
* 调用Flutter端的可空返回API
*/
async callNullableReturn(): Promise<number | null> {
if (!this._nullableReturnApi) {
throw new Error('NullableReturnFlutterApi未注册');
}
try {
const result = this._nullableReturnApi.doit();
console.debug('Flutter端返回:', result);
return result;
} catch (error) {
console.error('调用Flutter端失败:', error);
throw error;
}
}
/**
* 调用Flutter端的可空参数API
*/
async callNullableArg(value: number | null): Promise<number> {
if (!this._nullableArgApi) {
throw new Error('NullableArgFlutterApi未注册');
}
try {
const result = this._nullableArgApi.doit(value);
console.debug('Flutter端处理结果:', result);
return result;
} catch (error) {
console.error('调用Flutter端失败:', error);
throw error;
}
}
}
/**
* 主机API管理器
*/
export class NullableHostApiManager {
private static _instance: NullableHostApiManager;
private _nullableReturnApi: NullableReturnHostApiImpl | null = null;
private _nullableArgApi: NullableArgHostApiImpl | null = null;
private _nullableCollectionReturnApi: NullableCollectionReturnHostApiImpl | null = null;
private _nullableCollectionArgApi: NullableCollectionArgHostApiImpl | null = null;
static getInstance(): NullableHostApiManager {
if (!NullableHostApiManager._instance) {
NullableHostApiManager._instance = new NullableHostApiManager();
}
return NullableHostApiManager._instance;
}
/**
* 初始化所有主机API
*/
initialize(): void {
this._nullableReturnApi = new NullableReturnHostApiImpl();
this._nullableArgApi = new NullableArgHostApiImpl();
this._nullableCollectionReturnApi = new NullableCollectionReturnHostApiImpl();
this._nullableCollectionArgApi = new NullableCollectionArgHostApiImpl();
console.log('Nullable主机API初始化完成');
}
/**
* 注册到Flutter引擎
*/
registerToEngine(flutterEngine: FlutterEngine): void {
if (!this._nullableReturnApi || !this._nullableArgApi ||
!this._nullableCollectionReturnApi || !this._nullableCollectionArgApi) {
throw new Error('API未初始化');
}
this._registerApi(flutterEngine, 'NullableReturnHostApi',
async (message: Uint8Array) => {
return this._handleNullableReturnApi(message);
});
this._registerApi(flutterEngine, 'NullableArgHostApi',
async (message: Uint8Array) => {
return this._handleNullableArgApi(message);
});
console.log('Nullable API已注册到Flutter引擎');
}
private _registerApi(
engine: FlutterEngine,
apiName: string,
handler: (message: Uint8Array) => Promise<Uint8Array>
): void {
const channel = `dev.flutter.pigeon.${apiName}`;
engine.dartExecutor.binaryMessenger.setMessageHandler(
channel,
handler
);
}
private async _handleNullableReturnApi(message: Uint8Array): Promise<Uint8Array> {
try {
if (!this._nullableReturnApi) {
throw new Error('API未初始化');
}
const result = await this._nullableReturnApi.doit();
return this._encodeResponse({
success: true,
result: result
});
} catch (error) {
return this._encodeResponse({
success: false,
error: error.message
});
}
}
private async _handleNullableArgApi(message: Uint8Array): Promise<Uint8Array> {
try {
const request = this._decodeMessage(message);
if (!this._nullableArgApi) {
throw new Error('API未初始化');
}
// 提取参数
const x = request.args.x;
const result = await this._nullableArgApi.doit(x);
return this._encodeResponse({
success: true,
result: result
});
} catch (error) {
return this._encodeResponse({
success: false,
error: error.message
});
}
}
private _decodeMessage(message: Uint8Array): any {
const decoder = new TextDecoder();
const jsonStr = decoder.decode(message);
return JSON.parse(jsonStr);
}
private _encodeResponse(data: any): Uint8Array {
const encoder = new TextEncoder();
return encoder.encode(JSON.stringify(data));
}
}4.3 Flutter端实现
dart
// lib/nullable_service.dart
import './nullable_api.dart';
/// 可空类型服务管理器
class NullableService {
// 主机API实例
static final NullableReturnHostApi _nullableReturnHostApi = NullableReturnHostApi();
static final NullableArgHostApi _nullableArgHostApi = NullableArgHostApi();
static final NullableCollectionReturnHostApi _nullableCollectionReturnHostApi =
NullableCollectionReturnHostApi();
static final NullableCollectionArgHostApi _nullableCollectionArgHostApi =
NullableCollectionArgHostApi();
// Flutter API实现
static final NullableReturnFlutterApi _nullableReturnFlutterApi =
_NullableReturnFlutterApiImpl();
static final NullableArgFlutterApi _nullableArgFlutterApi =
_NullableArgFlutterApiImpl();
static final NullableCollectionReturnFlutterApi _nullableCollectionReturnFlutterApi =
_NullableCollectionReturnFlutterApiImpl();
static final NullableCollectionArgFlutterApi _nullableCollectionArgFlutterApi =
_NullableCollectionArgFlutterApiImpl();
/// 初始化服务
static Future<void> initialize() async {
_setupLogging();
_setupErrorHandling();
print('NullableService初始化完成');
}
/// 调用可空返回值API
static Future<int?> callNullableReturn() async {
final stopwatch = Stopwatch()..start();
try {
final result = await _nullableReturnHostApi.doit();
stopwatch.stop();
_logCall('nullableReturn', stopwatch.elapsedMilliseconds, result);
return result;
} catch (e, stack) {
_logError('nullableReturn', e, stack);
return null;
}
}
/// 调用可空参数API
static Future<int> callNullableArg(int? value) async {
final stopwatch = Stopwatch()..start();
try {
final result = await _nullableArgHostApi.doit(value);
stopwatch.stop();
_logCall('nullableArg', stopwatch.elapsedMilliseconds, result);
return result;
} catch (e, stack) {
_logError('nullableArg', e, stack);
rethrow;
}
}
/// 调用可空集合返回值API
static Future<List<String?>?> callNullableCollectionReturn() async {
final stopwatch = Stopwatch()..start();
try {
final result = await _nullableCollectionReturnHostApi.doit();
stopwatch.stop();
if (result != null) {
_logCall('nullableCollectionReturn', stopwatch.elapsedMilliseconds,
'列表长度: ${result.length}');
} else {
_logCall('nullableCollectionReturn', stopwatch.elapsedMilliseconds, 'null');
}
return result;
} catch (e, stack) {
_logError('nullableCollectionReturn', e, stack);
return null;
}
}
/// 调用可空集合参数API
static Future<List<String?>> callNullableCollectionArg(List<String?>? items) async {
final stopwatch = Stopwatch()..start();
try {
final result = await _nullableCollectionArgHostApi.doit(items);
stopwatch.stop();
_logCall('nullableCollectionArg', stopwatch.elapsedMilliseconds,
'结果长度: ${result.length}');
return result;
} catch (e, stack) {
_logError('nullableCollectionArg', e, stack);
rethrow;
}
}
/// Flutter API实现类
static class _NullableReturnFlutterApiImpl implements NullableReturnFlutterApi {
@override
int? doit() {
print('Flutter端: NullableReturnFlutterApi.doit()被调用');
// 50%概率返回null
final random = Random();
if (random.nextBool()) {
print('返回null');
return null;
}
final result = random.nextInt(100);
print('返回$result');
return result;
}
}
static class _NullableArgFlutterApiImpl implements NullableArgFlutterApi {
@override
int doit(int? x) {
print('Flutter端: NullableArgFlutterApi.doit($x)被调用');
// 处理可空参数
final value = x ?? 0;
// 执行计算
final result = value * value + 10;
print('计算结果为: $result');
return result;
}
}
static class _NullableCollectionReturnFlutterApiImpl
implements NullableCollectionReturnFlutterApi {
@override
List<String?>? doit() {
print('Flutter端: NullableCollectionReturnFlutterApi.doit()被调用');
final random = Random();
// 30%概率返回null
if (random.nextDouble() < 0.3) {
print('返回null列表');
return null;
}
// 生成随机大小的列表
final size = random.nextInt(5) + 1;
final result = <String?>[];
for (var i = 0; i < size; i++) {
// 40%概率添加null
if (random.nextDouble() < 0.4) {
result.add(null);
} else {
result.add('Flutter元素$i');
}
}
print('返回列表，大小: $size');
return result;
}
}
static class _NullableCollectionArgFlutterApiImpl
implements NullableCollectionArgFlutterApi {
@override
List<String?> doit(List<String?>? x) {
print('Flutter端: NullableCollectionArgFlutterApi.doit()被调用');
print('输入: ${x == null ? "null" : "列表长度: ${x.length}"}');
// 处理输入
final input = x ?? <String?>[];
// 处理每个元素
final result = input.map((item) {
if (item == null) {
return '处理后的null';
}
return '处理后的: $item';
}).toList();
// 确保返回非空列表
if (result.isEmpty) {
return ['默认值'];
}
print('输出列表长度: ${result.length}');
return result;
}
}
/// 日志记录
static void _logCall(String apiName, int duration, dynamic result) {
final logEntry = {
'api': apiName,
'duration': '$duration ms',
'result': result.toString(),
'timestamp': DateTime.now().toIso8601String()
};
print('API调用日志: $logEntry');
// 长时间操作警告
if (duration > 1000) {
print('警告: $apiName 调用耗时过长 ($duration ms)');
}
}
static void _logError(String apiName, Object error, StackTrace stack) {
final errorLog = {
'api': apiName,
'error': error.toString(),
'stack': stack.toString(),
'timestamp': DateTime.now().toIso8601String()
};
print('API错误日志: $errorLog');
}
static void _setupLogging() {
print('NullableService日志系统已初始化');
}
static void _setupErrorHandling() {
PlatformDispatcher.instance.onError = (error, stack) {
print('全局错误捕获: $error');
return true;
};
}
}
/// 使用示例界面
class NullableDemoScreen extends StatefulWidget {
@override
_NullableDemoScreenState createState() => _NullableDemoScreenState();
}
class _NullableDemoScreenState extends State<NullableDemoScreen> {
int? _nullableReturnResult;
int? _nullableArgResult;
List<String?>? _nullableCollectionReturnResult;
List<String?>? _nullableCollectionArgResult;
bool _isLoadingReturn = false;
bool _isLoadingArg = false;
bool _isLoadingCollectionReturn = false;
bool _isLoadingCollectionArg = false;
final TextEditingController _argController = TextEditingController();
final TextEditingController _collectionArgController = TextEditingController();
@override
void initState() {
super.initState();
_initializeService();
}
Future<void> _initializeService() async {
await NullableService.initialize();
}
Future<void> _testNullableReturn() async {
setState(() {
_isLoadingReturn = true;
_nullableReturnResult = null;
});
try {
final result = await NullableService.callNullableReturn();
setState(() {
_nullableReturnResult = result;
});
_showResultDialog('可空返回值测试',
result == null ? '返回了null' : '返回值: $result');
} catch (e) {
_showErrorDialog('可空返回值测试失败', e);
} finally {
setState(() {
_isLoadingReturn = false;
});
}
}
Future<void> _testNullableArg() async {
final input = _argController.text.trim();
int? value;
if (input.isNotEmpty) {
value = int.tryParse(input);
}
setState(() {
_isLoadingArg = true;
_nullableArgResult = null;
});
try {
final result = await NullableService.callNullableArg(value);
setState(() {
_nullableArgResult = result;
});
_showResultDialog('可空参数测试',
'参数: ${value ?? "null"}\n结果: $result');
} catch (e) {
_showErrorDialog('可空参数测试失败', e);
} finally {
setState(() {
_isLoadingArg = false;
});
}
}
Future<void> _testNullableCollectionReturn() async {
setState(() {
_isLoadingCollectionReturn = true;
_nullableCollectionReturnResult = null;
});
try {
final result = await NullableService.callNullableCollectionReturn();
setState(() {
_nullableCollectionReturnResult = result;
});
final message = result == null
? '返回了null集合'
: '集合长度: ${result.length}\n'
'元素: ${result.map((e) => e ?? "null").join(", ")}';
_showResultDialog('可空集合返回值测试', message);
} catch (e) {
_showErrorDialog('可空集合返回值测试失败', e);
} finally {
setState(() {
_isLoadingCollectionReturn = false;
});
}
}
Future<void> _testNullableCollectionArg() async {
final input = _collectionArgController.text.trim();
List<String?>? items;
if (input.isNotEmpty) {
// 解析逗号分隔的字符串
items = input.split(',').map((item) {
final trimmed = item.trim();
return trimmed.isEmpty ? null : trimmed;
}).toList();
}
setState(() {
_isLoadingCollectionArg = true;
_nullableCollectionArgResult = null;
});
try {
final result = await NullableService.callNullableCollectionArg(items);
setState(() {
_nullableCollectionArgResult = result;
});
final message = '输入: ${items?.map((e) => e ?? "null").join(", ") ?? "null"}\n'
'输出长度: ${result.length}\n'
'输出: ${result.map((e) => e ?? "null").join(", ")}';
_showResultDialog('可空集合参数测试', message);
} catch (e) {
_showErrorDialog('可空集合参数测试失败', e);
} finally {
setState(() {
_isLoadingCollectionArg = false;
});
}
}
void _showResultDialog(String title, String message) {
showDialog(
context: context,
builder: (context) => AlertDialog(
title: Text(title),
content: SingleChildScrollView(
child: Text(message),
),
actions: [
TextButton(
onPressed: () => Navigator.pop(context),
child: Text('确定'),
),
],
),
);
}
void _showErrorDialog(String title, Object error) {
showDialog(
context: context,
builder: (context) => AlertDialog(
title: Text(title),
content: Text(error.toString()),
actions: [
TextButton(
onPressed: () => Navigator.pop(context),
child: Text('确定'),
),
],
),
);
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: Text('可空类型API测试')),
body: SingleChildScrollView(
padding: const EdgeInsets.all(16.0),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
// 可空返回值测试
_buildTestSection(
title: '1. 可空返回值测试',
description: '测试可能返回null的API',
buttonText: '测试可空返回',
isLoading: _isLoadingReturn,
result: _nullableReturnResult?.toString() ?? 'null',
onPressed: _testNullableReturn,
),
Divider(height: 32),
// 可空参数测试
_buildTestSection(
title: '2. 可空参数测试',
description: '测试接收可空参数的API\n（留空表示null）',
buttonText: '测试可空参数',
isLoading: _isLoadingArg,
result: _nullableArgResult?.toString() ?? '未测试',
onPressed: _testNullableArg,
extraWidget: TextField(
controller: _argController,
decoration: InputDecoration(
labelText: '输入数字（可选）',
hintText: '留空表示传递null',
border: OutlineInputBorder(),
),
keyboardType: TextInputType.number,
),
),
Divider(height: 32),
// 可空集合返回值测试
_buildTestSection(
title: '3. 可空集合返回值测试',
description: '测试可能返回null列表的API',
buttonText: '测试集合返回',
isLoading: _isLoadingCollectionReturn,
result: _nullableCollectionReturnResult == null
? 'null'
: '列表长度: ${_nullableCollectionReturnResult!.length}',
onPressed: _testNullableCollectionReturn,
),
Divider(height: 32),
// 可空集合参数测试
_buildTestSection(
title: '4. 可空集合参数测试',
description: '测试接收可空列表参数的API\n（用逗号分隔，空值用留空表示）',
buttonText: '测试集合参数',
isLoading: _isLoadingCollectionArg,
result: _nullableCollectionArgResult == null
? '未测试'
: '结果长度: ${_nullableCollectionArgResult!.length}',
onPressed: _testNullableCollectionArg,
extraWidget: TextField(
controller: _collectionArgController,
decoration: InputDecoration(
labelText: '输入列表（可选）',
hintText: '例如: a,b,,d 表示 [a, b, null, d]',
border: OutlineInputBorder(),
),
),
),
],
),
),
);
}
Widget _buildTestSection({
required String title,
required String description,
required String buttonText,
required bool isLoading,
required String result,
required VoidCallback onPressed,
Widget? extraWidget,
}) {
return Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(title, style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold)),
SizedBox(height: 8),
Text(description),
SizedBox(height: 12),
if (extraWidget != null) ...[
extraWidget,
SizedBox(height: 12),
],
ElevatedButton(
onPressed: isLoading ? null : onPressed,
child: isLoading
? CircularProgressIndicator()
: Text(buttonText),
),
SizedBox(height: 12),
Container(
padding: EdgeInsets.all(12),
decoration: BoxDecoration(
border: Border.all(color: Colors.grey),
borderRadius: BorderRadius.circular(8),
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text('测试结果:', style: TextStyle(fontWeight: FontWeight.bold)),
SizedBox(height: 4),
Text(result),
],
),
),
],
);
}
}五、最佳实践与设计模式

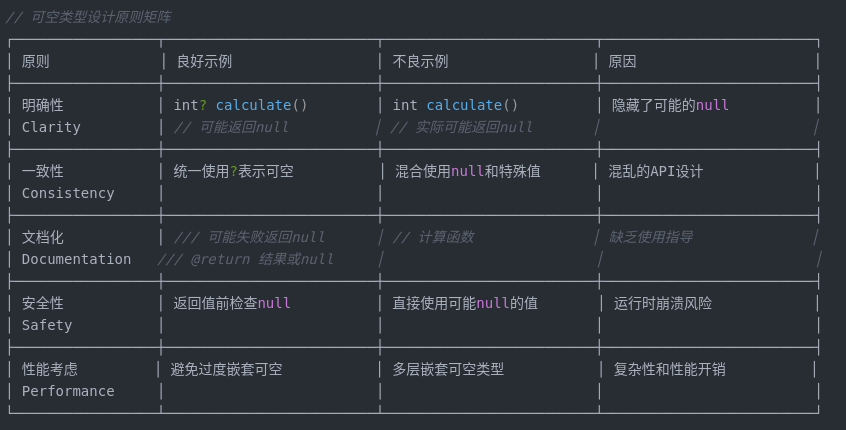

5.1 可空类型的设计原则
5.2 鸿蒙平台的特殊适配
typescript
// 鸿蒙可空类型适配器
export class HarmonyNullableAdapter {
/**
* 鸿蒙UI适配 - 处理可空值的显示
*/
static adaptForUI<T>(value: T | null, adapter: {
displayNull: string,
displayValue: (val: T) => string
}): UIValue {
if (value === null || value === undefined) {
return {
text: adapter.displayNull,
color: '#999999',
icon: 'null',
isNull: true
};
}
return {
text: adapter.displayValue(value),
color: '#000000',
icon: 'value',
isNull: false
};
}
/**
* 鸿蒙系统API适配 - 处理系统API的可空性
*/
static async adaptSystemCall<T>(
systemCall: () => Promise<T>,
options: {
timeout?: number,
defaultValue: T,
nullValues?: T[]
}
): Promise<T> {
try {
// 设置超时
const timeoutPromise = new Promise<never>((_, reject) => {
setTimeout(() => reject(new Error('系统调用超时')),
options.timeout || 5000);
});
// 执行系统调用
const result = await Promise.race([
systemCall(),
timeoutPromise
]);
// 检查是否是null值
if (result === null || result === undefined) {
return options.defaultValue;
}
// 检查是否是自定义的null值
if (options.nullValues?.includes(result)) {
return options.defaultValue;
}
return result;
} catch (error) {
console.warn('系统调用失败，使用默认值:', error);
return options.defaultValue;
}
}
/**
* 鸿蒙分布式数据适配
*/
static adaptForDistribution<T>(value: T | null): DistributedData {
// 鸿蒙分布式框架可能需要特殊处理null值
if (value === null) {
return {
type: 'null',
timestamp: Date.now(),
data: null
};
}
return {
type: typeof value,
timestamp: Date.now(),
data: value
};
}
}六、性能优化与安全考虑
6.1 可空类型的性能影响
dart
// 可空类型性能优化策略
可空类型处理 → 编译时优化 → 运行时优化 → 内存优化
↓ ↓ ↓ ↓
类型检查内联 消除空检查 延迟初始化 智能内存回收性能优化效果对比：
6.2 安全增强策略
typescript
// 可空类型安全增强
export class NullableSecurity {
/**
* 可空值的安全访问
*/
static safeAccess<T, R>(
value: T | null,
accessor: (val: T) => R,
defaultValue: R
): R {
if (value === null || value === undefined) {
return defaultValue;
}
try {
return accessor(value);
} catch (error) {
console.warn('安全访问失败:', error);
return defaultValue;
}
}
/**
* 可空集合的安全操作
*/
static safeCollectionOperation<T>(
collection: Array<T | null> | null,
operation: (items: Array<T | null>) => any,
defaultResult: any
): any {
// 第一层安全：集合可空
if (collection === null) {
return defaultResult;
}
// 第二层安全：操作可空
try {
return operation(collection);
} catch (error) {
console.warn('集合操作失败:', error);
return defaultResult;
}
}
/**
* 深度可空验证
*/
static deepNullableValidation(obj: any, path: string = ''): ValidationResult {
const errors: string[] = [];
const warnings: string[] = [];
// 检查对象本身
if (obj === null || obj === undefined) {
warnings.push(`${path}: 对象为空，跳过深度检查`);
return { errors, warnings, valid: true };
}
// 递归检查属性
for (const key in obj) {
if (Object.prototype.hasOwnProperty.call(obj, key)) {
const value = obj[key];
const currentPath = path ? `${path}.${key}` : key;
// 检查嵌套可空性
if (value === null || value === undefined) {
// 这是允许的，因为是可空类型
continue;
}
// 递归检查嵌套对象
if (typeof value === 'object' && !Array.isArray(value)) {
const result = this.deepNullableValidation(value, currentPath);
errors.push(...result.errors);
warnings.push(...result.warnings);
}
}
}
return {
errors,
warnings,
valid: errors.length === 0
};
}
}七、在鸿蒙生态中的扩展应用
7.1 与鸿蒙分布式能力深度集成
typescript
// 分布式可空数据处理
export class DistributedNullableService {
/**
* 跨设备可空API调用
*/
static async callRemoteNullableApi<T>(
deviceId: string,
apiName: string,
args: any
): Promise<T | null> {
try {
// 获取分布式能力
const distributed = await this._getDistributedAbility();
// 构建可空感知的请求
const request = {
api: apiName,
args: this._prepareNullableArgs(args),
expectsNullable: true, // 标记期望可空返回
requestId: this._generateRequestId()
};
// 发送到远程设备
const success = await distributed.sendData({
deviceId,
data: JSON.stringify(request),
service: 'pigeon_nullable_api'
});
if (!success) {
console.warn('发送到设备失败:', deviceId);
return null;
}
// 等待响应
const response = await this._waitForNullableResponse(request.requestId);
// 处理可空响应
return this._processNullableResponse<T>(response);
} catch (error) {
console.error('跨设备可空API调用失败:', error);
return null;
}
}
/**
* 多设备可空结果合并
*/
static async mergeNullableResults<T>(
calls: Array<Promise<T | null>>
): Promise<Array<T | null>> {
const results = await Promise.allSettled(calls);
return results.map(result => {
if (result.status === 'fulfilled') {
return result.value;
} else {
console.warn('单个调用失败:', result.reason);
return null;
}
});
}
/**
* 智能空值处理策略
*/
static smartNullHandling<T>(
values: Array<T | null>,
strategy: 'firstNonNull' | 'majority' | 'average' | 'custom'
): T | null {
// 过滤掉null值
const nonNullValues = values.filter(v => v !== null) as T[];
if (nonNullValues.length === 0) {
return null;
}
switch (strategy) {
case 'firstNonNull':
return nonNullValues[0];
case 'majority':
// 找出出现次数最多的值
const frequency = new Map<T, number>();
nonNullValues.forEach(value => {
frequency.set(value, (frequency.get(value) || 0) + 1);
});
let maxValue = nonNullValues[0];
let maxCount = 0;
frequency.forEach((count, value) => {
if (count > maxCount) {
maxCount = count;
maxValue = value;
}
});
return maxValue;
case 'average':
// 仅适用于数字类型
if (typeof nonNullValues[0] === 'number') {
const sum = (nonNullValues as number[])
.reduce((a, b) => a + b, 0);
return (sum / nonNullValues.length) as unknown as T;
}
return nonNullValues[0];
default:
return nonNullValues[0];
}
}
}八、总结与展望
nullable_returns.dart文件虽然代码量不大，却展示了Pigeon处理可空类型的完整能力谱系。从简单的可空返回值到复杂的嵌套可空集合，这个示例文件体现了现代跨平台通信API设计的核心原则：
- 精确的类型表达：明确区分"有值"和"无值"状态
- 灵活的API设计：支持条件性参数和可选操作
- 对称的通信模型：确保Flutter与原生端的对称性
- 复杂的现实建模：支持多层嵌套的可空类型结构
在鸿蒙生态中，可空类型支持尤为重要：
- 鸿蒙的分布式场景中，设备间通信可能失败或返回部分数据
- 鸿蒙的多设备协同需要处理不同设备的数据可用性
- 鸿蒙的系统集成需要与各种数据源和服务交互
随着Flutter与鸿蒙的深度融合，Pigeon的可空类型支持将成为构建健壮、灵活跨平台应用的关键技术。它不仅提供了技术实现，更体现了一种务实、精确的API设计哲学。
欢迎大家加入开源鸿蒙跨平台开发者社区，一起探讨共建更灵活、更健壮的鸿蒙应用生态！
