Kubernete部署新一代rustfs文件服务

bash 复制代码

# rustfs-deployment.yaml
# RustFS Kubernetes 部署配置

# 1. Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: rustfs-deployment
  labels:
    app: rustfs
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rustfs
  template:
    metadata:
      labels:
        app: rustfs
    spec:
      containers:
        - name: rustfs
          image: registry.cn-hangzhou.aliyuncs.com/qiluo-images/rustfs:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 9000
              name: api
              protocol: TCP
            - containerPort: 9001
              name: console
              protocol: TCP
          env:
            - name: RUSTFS_ACCESS_KEY
              valueFrom:
                secretKeyRef:
                  name: rustfs-secrets
                  key: RUSTFS_ACCESS_KEY
            - name: RUSTFS_SECRET_KEY
              valueFrom:
                secretKeyRef:
                  name: rustfs-secrets
                  key: RUSTFS_SECRET_KEY
            - name: TZ
              value: "Asia/Shanghai"
            - name: RUSTFS_SERVER_URL
              value: "http://rustfs-service:9000"
          volumeMounts:
            - name: rustfs-data
              mountPath: /data
            - name: rustfs-config
              mountPath: /root/.rustfs
          resources:
            limits:
              cpu: "1"
              memory: "2Gi"
            requests:
              cpu: "0.5"
              memory: "1Gi"
          readinessProbe:
            tcpSocket:
              port: 9000
            initialDelaySeconds: 30
            periodSeconds: 10
            timeoutSeconds: 5
          livenessProbe:
            tcpSocket:
              port: 9000
            initialDelaySeconds: 30
            periodSeconds: 30
            timeoutSeconds: 5
          securityContext:
            runAsUser: 1000
            runAsGroup: 1000
      volumes:
        - name: rustfs-data
          persistentVolumeClaim:
            claimName: rustfs-pvc
        - name: rustfs-config
          persistentVolumeClaim:
            claimName: rustfs-config-pvc
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
---
# 2. Service
apiVersion: v1
kind: Service
metadata:
  name: rustfs-service
  labels:
    app: rustfs
spec:
  selector:
    app: rustfs
  ports:
    - name: api
      protocol: TCP
      port: 9000
      targetPort: 9000
      nodePort: 32090
    - name: console
      protocol: TCP
      port: 9001
      targetPort: 9001
      nodePort: 32091
  type: NodePort
  sessionAffinity: None
  externalTrafficPolicy: Cluster
---
# 3. PersistentVolume - 数据存储
apiVersion: v1
kind: PersistentVolume
metadata:
  name: rustfs-pv
spec:
  capacity:
    storage: 100Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: /data/rustfs/data
    type: DirectoryOrCreate
  persistentVolumeReclaimPolicy: Retain
  storageClassName: manual
---
# 4. PersistentVolumeClaim - 数据存储
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: rustfs-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 100Gi
  storageClassName: manual
---
# 5. PersistentVolume - 配置存储
apiVersion: v1
kind: PersistentVolume
metadata:
  name: rustfs-config-pv
spec:
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: /data/rustfs/config
    type: DirectoryOrCreate
  persistentVolumeReclaimPolicy: Retain
  storageClassName: manual
---
# 6. PersistentVolumeClaim - 配置存储
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: rustfs-config-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  storageClassName: manual

bash 复制代码

#!/bin/bash
# deploy-rustfs.sh

set -e

echo "=== RustFS Kubernetes 部署 ==="

# 配置参数
RUSTFS_DATA_DIR="/data/rustfs"
RUSTFS_KEYS_FILE="$RUSTFS_DATA_DIR/.rustfs-keys"

# 1. 生成安全密钥
echo "1. 生成安全密钥..."
ACCESS_KEY=$(openssl rand -base64 32 | tr -dc 'a-zA-Z0-9' | head -c 20)
SECRET_KEY=$(openssl rand -base64 32 | tr -dc 'a-zA-Z0-9' | head -c 40)

echo "Access Key: $ACCESS_KEY"
echo "Secret Key: $SECRET_KEY"

# 保存密钥到文件
echo "2. 保存密钥到文件..."
mkdir -p "$RUSTFS_DATA_DIR"
cat > "$RUSTFS_KEYS_FILE" << EOF
# RustFS 密钥文件
# 生成时间: $(date)
RUSTFS_ACCESS_KEY=$ACCESS_KEY
RUSTFS_SECRET_KEY=$SECRET_KEY
EOF

chmod 600 "$RUSTFS_KEYS_FILE"
echo "密钥已保存到: $RUSTFS_KEYS_FILE"

# 2. 创建 Kubernetes Secret
echo "3. 创建 Kubernetes Secret..."
kubectl create secret generic rustfs-secrets \
  --from-literal=RUSTFS_ACCESS_KEY="$ACCESS_KEY" \
  --from-literal=RUSTFS_SECRET_KEY="$SECRET_KEY" \
  --dry-run=client -o yaml | kubectl apply -f -

echo "✅ Secret 创建成功"

# 3. 创建数据目录并设置权限
echo "4. 创建数据目录..."
sudo mkdir -p "$RUSTFS_DATA_DIR/data"
sudo mkdir -p "$RUSTFS_DATA_DIR/config"

# 设置目录权限（容器内用户通常是 UID 1000）
echo "设置目录权限..."
sudo chown -R 1000:1000 "$RUSTFS_DATA_DIR"
sudo chmod -R 755 "$RUSTFS_DATA_DIR"

echo "目录结构:"
ls -la "$RUSTFS_DATA_DIR/"

# 4. 部署 YAML 文件

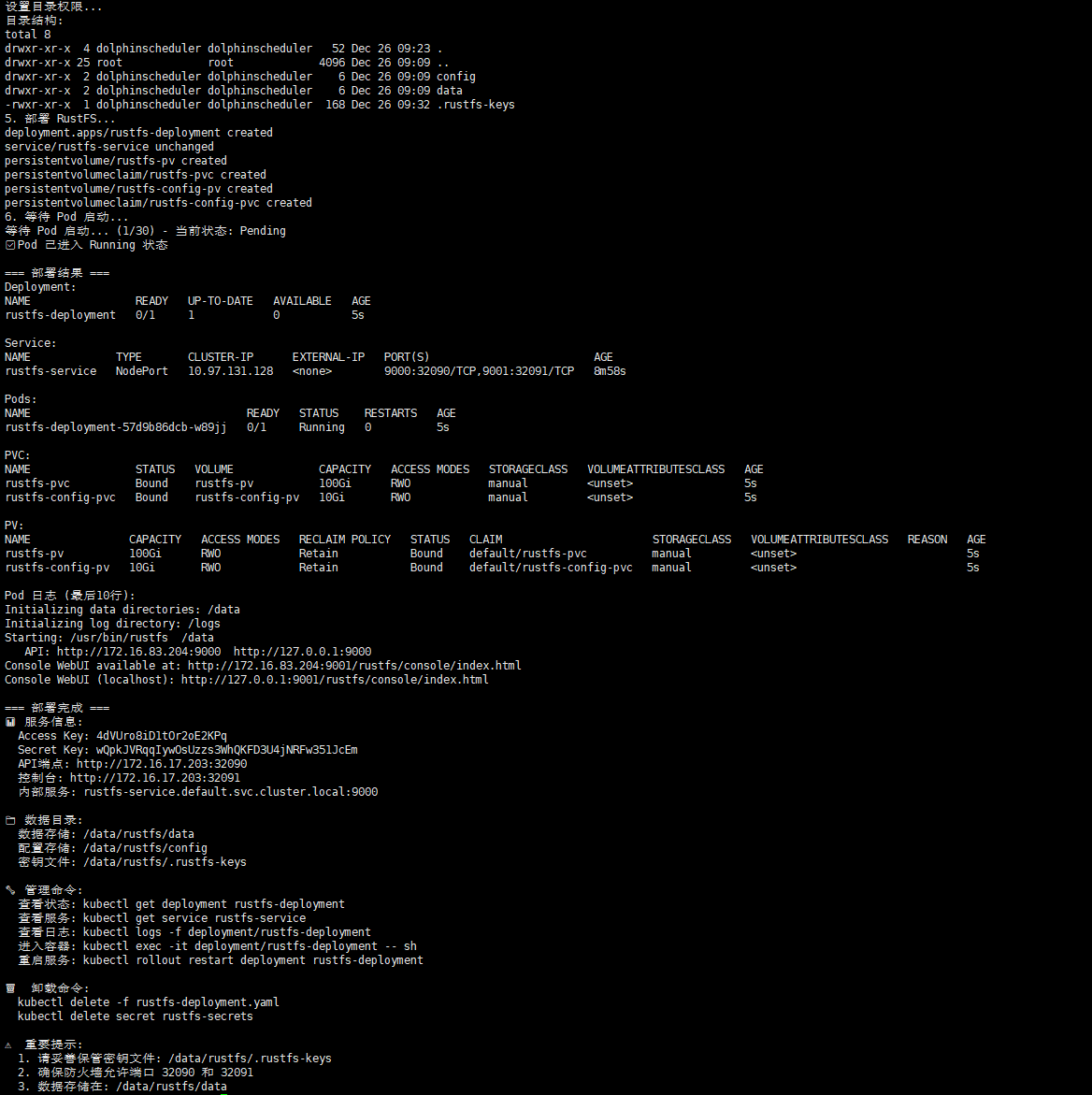

echo "5. 部署 RustFS..."
kubectl apply -f rustfs-deployment.yaml

# 5. 等待并验证部署
echo "6. 等待 Pod 启动..."
for i in {1..30}; do
    POD_STATUS=$(kubectl get pods -l app=rustfs -o jsonpath='{.items[0].status.phase}' 2>/dev/null || echo "Unknown")

    if [ "$POD_STATUS" = "Running" ]; then
        echo "✅ Pod 已进入 Running 状态"
        break
    fi

    if [ $i -eq 30 ]; then
        echo "⚠️  Pod 启动超时，当前状态: $POD_STATUS"
    else
        echo "等待 Pod 启动... ($i/30) - 当前状态: $POD_STATUS"
        sleep 5
    fi
done

# 6. 显示部署结果
echo ""
echo "=== 部署结果 ==="
echo "Deployment:"
kubectl get deployment rustfs-deployment

echo ""
echo "Service:"
kubectl get service rustfs-service

echo ""
echo "Pods:"
kubectl get pods -l app=rustfs

echo ""
echo "PVC:"
kubectl get pvc rustfs-pvc rustfs-config-pvc

echo ""
echo "PV:"
kubectl get pv rustfs-pv rustfs-config-pv

# 获取 Pod 名称和日志
POD_NAME=$(kubectl get pods -l app=rustfs -o jsonpath='{.items[0].metadata.name}' 2>/dev/null || echo "未找到")
if [ "$POD_NAME" != "未找到" ]; then
    echo ""
    echo "Pod 日志 (最后10行):"
    kubectl logs --tail=10 "$POD_NAME"
fi

# 获取节点 IP
NODE_IP=$(kubectl get nodes -o jsonpath='{.items[0].status.addresses[?(@.type=="InternalIP")].address}' 2>/dev/null)
if [ -z "$NODE_IP" ]; then
    NODE_IP="<节点IP>"
fi

echo ""
echo "=== 部署完成 ==="
echo "📊 服务信息:"
echo "  Access Key: $ACCESS_KEY"
echo "  Secret Key: $SECRET_KEY"
echo "  API端点: http://$NODE_IP:32090"
echo "  控制台: http://$NODE_IP:32091"
echo "  内部服务: rustfs-service.default.svc.cluster.local:9000"
echo ""
echo "📁 数据目录:"
echo "  数据存储: $RUSTFS_DATA_DIR/data"
echo "  配置存储: $RUSTFS_DATA_DIR/config"
echo "  密钥文件: $RUSTFS_KEYS_FILE"
echo ""
echo "🔧 管理命令:"
echo "  查看状态: kubectl get deployment rustfs-deployment"
echo "  查看服务: kubectl get service rustfs-service"
echo "  查看日志: kubectl logs -f deployment/rustfs-deployment"
echo "  进入容器: kubectl exec -it deployment/rustfs-deployment -- sh"
echo "  重启服务: kubectl rollout restart deployment rustfs-deployment"
echo ""
echo "🗑️  卸载命令:"
echo "  kubectl delete -f rustfs-deployment.yaml"
echo "  kubectl delete secret rustfs-secrets"
echo ""
echo "⚠️  重要提示:"
echo "  1. 请妥善保管密钥文件: $RUSTFS_KEYS_FILE"
echo "  2. 确保防火墙允许端口 32090 和 32091"
echo "  3. 数据存储在: $RUSTFS_DATA_DIR/data"

bash 复制代码

# 1. 保存文件
vim rustfs-deployment.yaml
vim deploy-rustfs.sh
chmod +x deploy-rustfs.sh

# 2. 执行部署
./deploy-rustfs.sh

# 3. 验证部署
kubectl get all -l app=rustfs

# 4. 测试连接
curl http://<节点IP>:32090
