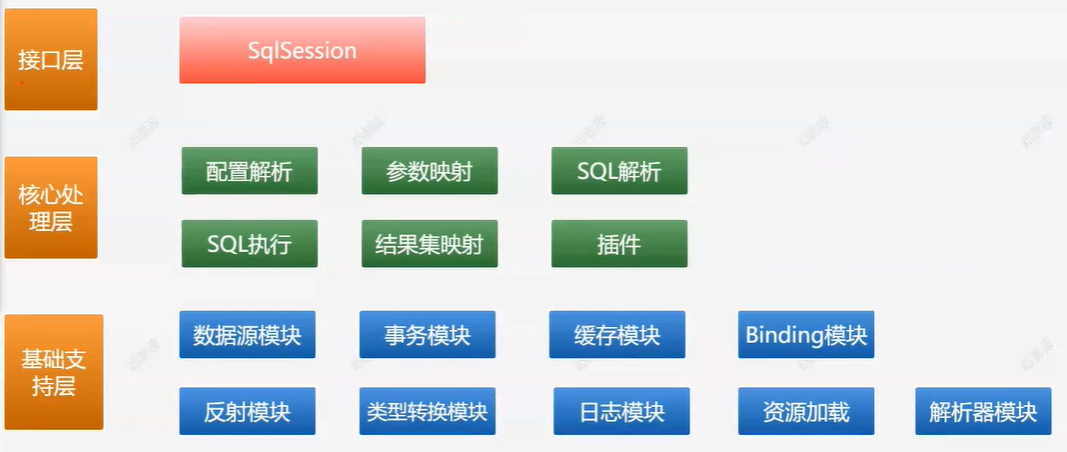

1 架构分析
2 核心流程
Session模块属于最上层的模块，主要用于提供sql执行的接口以及配置文件的加载。
每个基于 MyBatis 的应用都是以一个 SqlSessionFactory 的实例为核心的。SqlSessionFactory 的实例可以通过 SqlSessionFactoryBuilder 获得。而 SqlSessionFactoryBuilder 则可以从 XML 配置文件或一个预先配置的 Configuration 实例来构建出 SqlSessionFactory 实例。
例：
java
String resource = "org/mybatis/example/mybatis-config.xml";
InputStream inputStream = Resources.getResourceAsStream(resource);
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);思考为什么要通过builder来构造factory？
通过构造模式构建复杂对象。然后通过工厂模式构建单一对象。这个过程实际就是一个解耦的过程，将工厂和session的构建独立开来。
既然有了 SqlSessionFactory，顾名思义，我们可以从中获得 SqlSession 的实例。SqlSession 提供了在数据库执行 SQL 命令所需的所有方法。
例：指定mapper对象的方法执行sql
java
try (SqlSession session = sqlSessionFactory.openSession()) {
Blog blog = (Blog) session.selectOne("org.mybatis.example.BlogMapper.selectBlog", 101);
}例：通过mapper对象执行sql
java
try (SqlSession session = sqlSessionFactory.openSession()) {
BlogMapper mapper = session.getMapper(BlogMapper.class);
Blog blog = mapper.selectBlog(101);
}关键类说明：
SqlSessionFactory：用于创建SqlSession对象。
SqlSessionFactoryBuilder：根据配置文件创建SqlSessionFactory。包括mapper.xml文件的解析。
SqlSession：用于执行sql。
2.1 SqlSessionFactoryBuilder解析mapper.xml文件中的信息
cache 配置加载
以mybatis的cache功能为例：
参考：mybatis文档

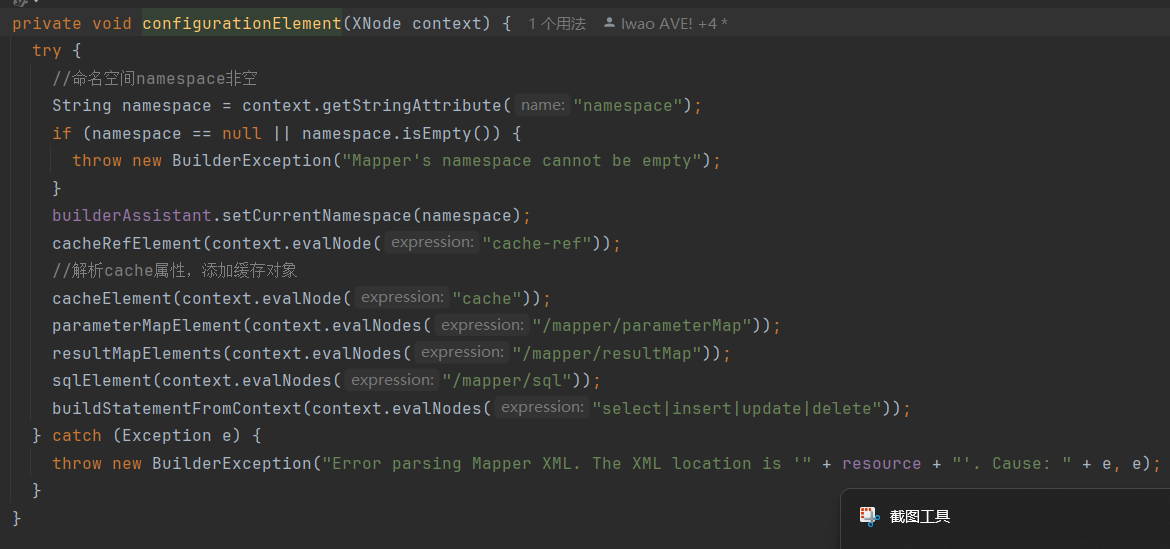

在org.apache.ibatis.builder.xml.XMLMapperBuilder.configurationElement(XNode context)方法中解析了xml文件。

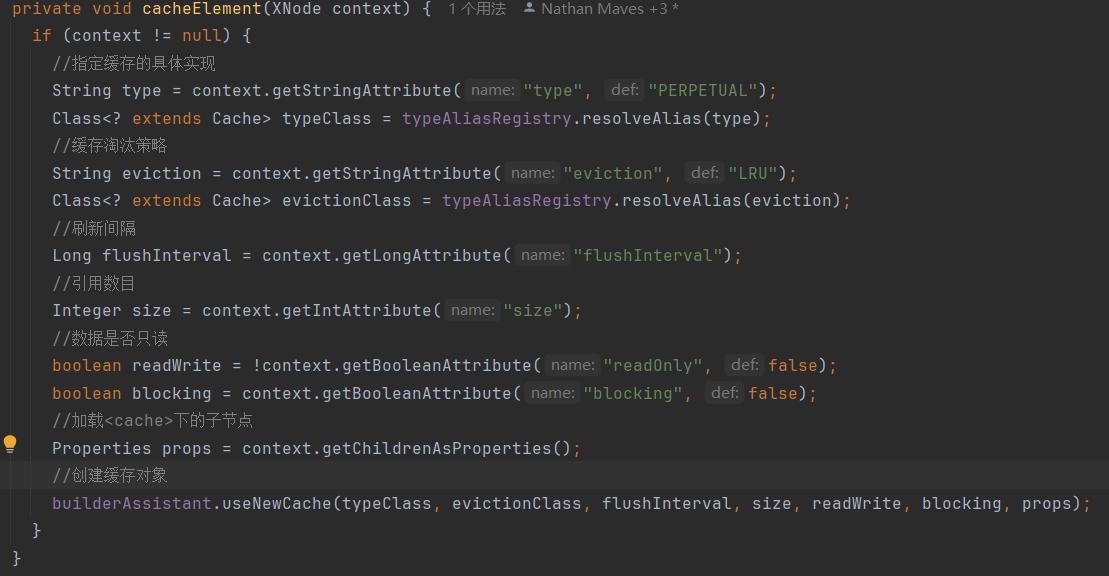

关注 cacheElement(XNode context)方法，该方法解析了缓存配置
首先我们看type属性的解析。

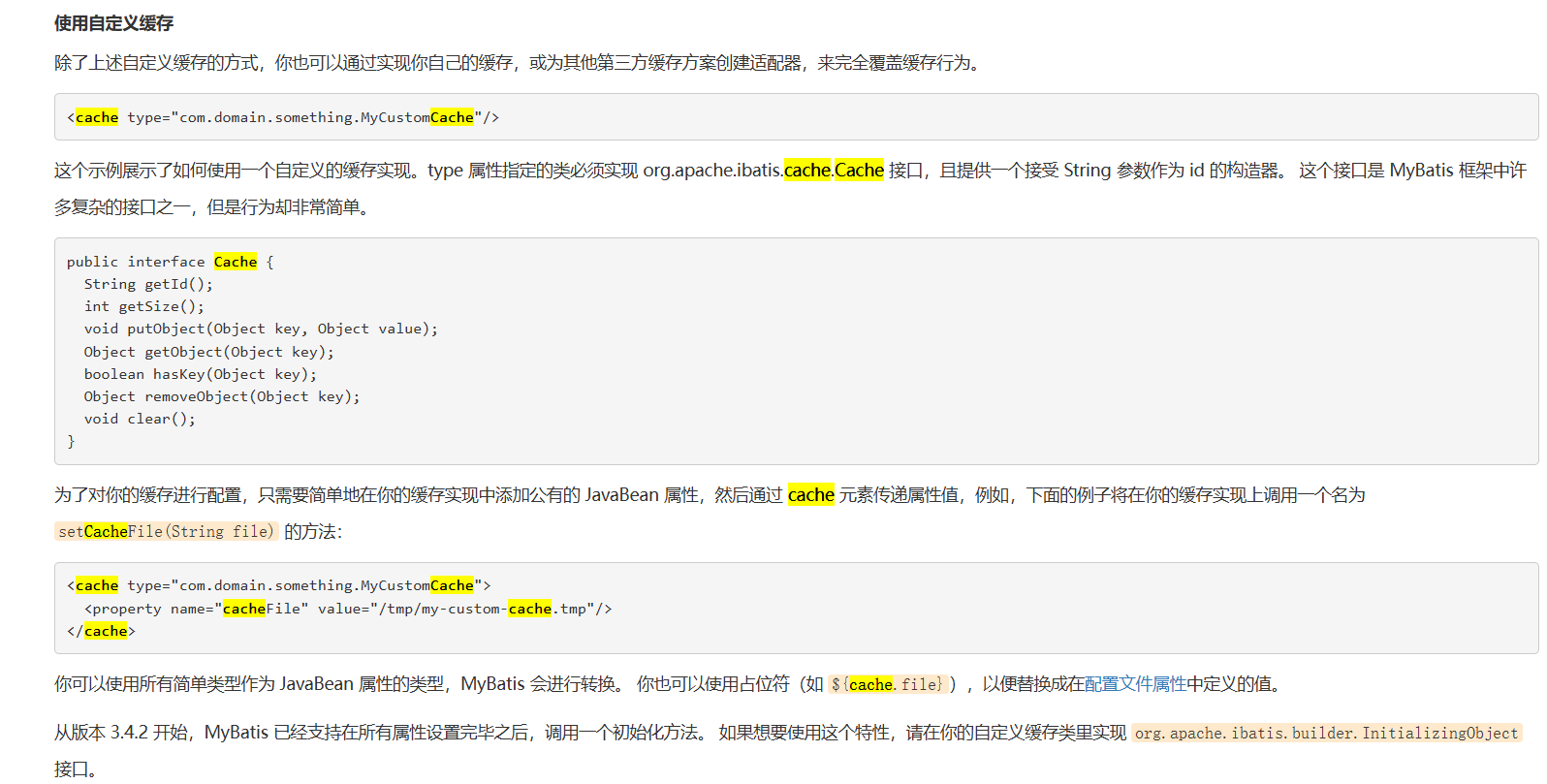

根据官方文档：
type属性，配置的是org.apache.ibatis.cache.Cache接口的实现类。默认实现PerpetualCache.class
statement加载
每个sql（select/delete/insert/update标签中的内容）都会对应一个MappedStatement对象，存储在Configuration对象中。
注意所有的statement都存储在一个全局的configruation对象的Map<String, MappedStatement> mappedStatements属性中（key为MappedStatement的id）。根据下面的applyCurrentNamespace方法可以看出id属性的格式是"namespace"+...+"id(crud标签中的id)"，如com.learn.learn.TestMapper.selectOne;
java
public String applyCurrentNamespace(String base, boolean isReference) {
if (base == null) {
return null;
}
if (isReference) {
// is it qualified with any namespace yet?
if (base.contains(".")) {
return base;
}
} else {
// is it qualified with this namespace yet?
if (base.startsWith(currentNamespace + ".")) {
return base;
}
if (base.contains(".")) {
throw new BuilderException("Dots are not allowed in element names, please remove it from " + base);
}
}
return currentNamespace + "." + base;
}2.2 SqlSession

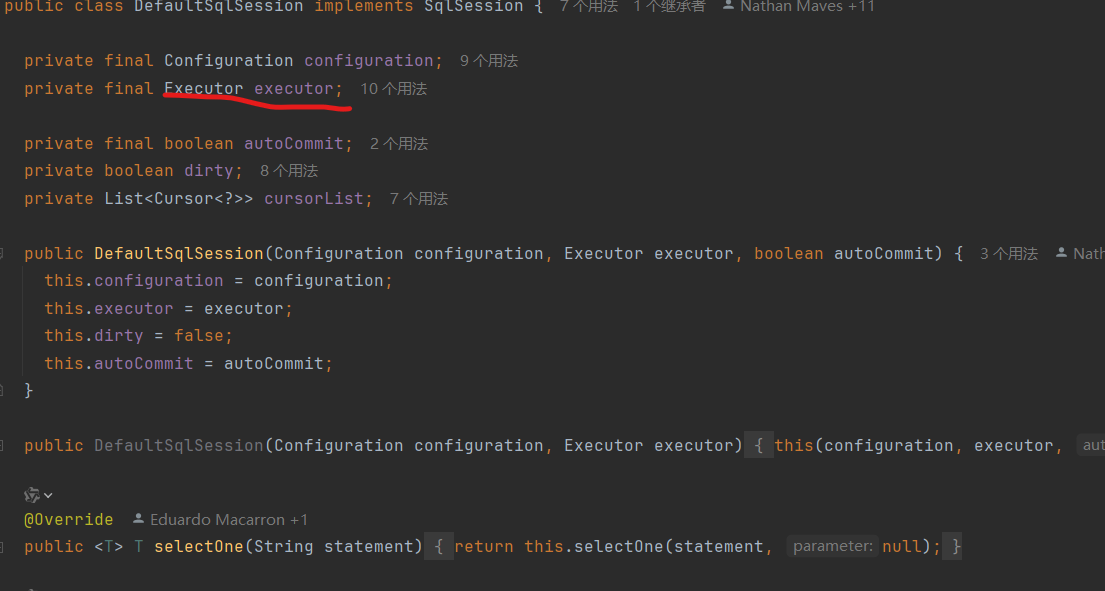

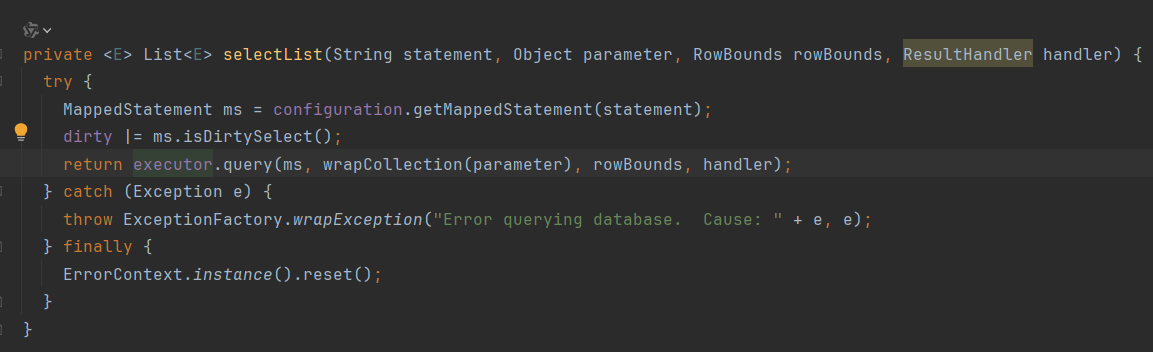

SqlSession对象由SqlSessionFactory对象创建，但是具体执行SQL的对象是SqlSession对象中的Executor对象
例：

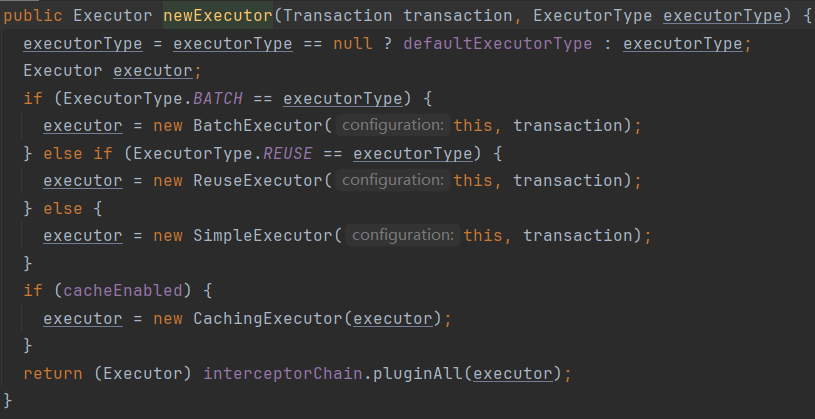

根据代码可知，默认的executor是：SimpleExecutor
根据上述代码可以得知，如果开启了二级缓存，则会在原有的执行器外包装一层CachingExecutor。即配置:settings.cacheEnabled。除此之外还需要在statement中配置cache，因为CachingExecutor这个执行器会需要从statement中获取cache，并且操作这个cache。

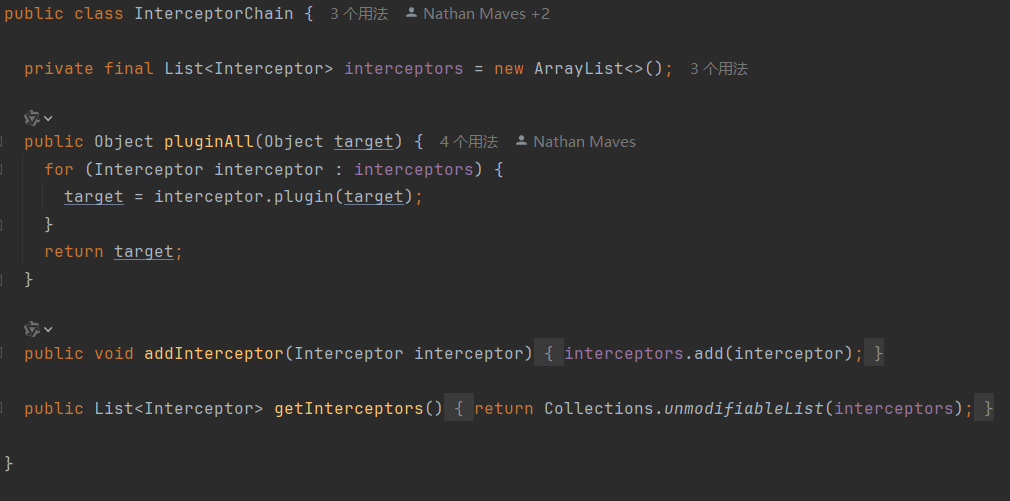

从上述代码中的最后一行可以看出，执行还做了一个操作：
这个个步骤根据源码分析就是为executor生成一个个动态代理对象，使得配置的插件功能能够生效。
executor

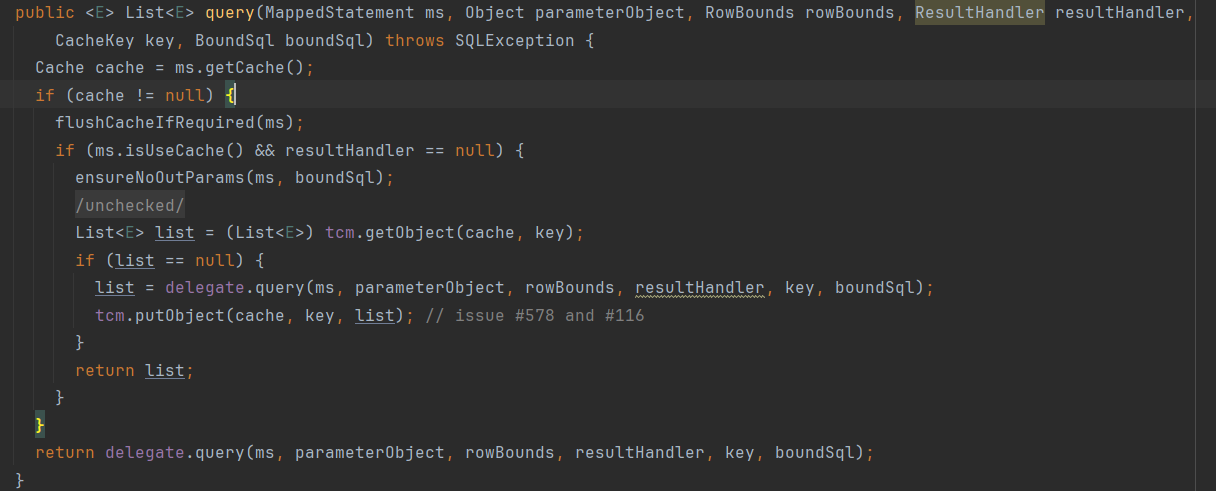

以CacheExecutor为例，可以看出如果开启了二级缓存，那么查询会先去cache查询，没有再去被包装的executor（delegate）查询，并将结果同步到缓存中。
Executor接口除了CacheExecutor之外还有另一个实现类BaseExecutor，该类是一个抽象类，提供了一些模板方法。这里我们阅读一个query方法：
java
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler,
CacheKey key, BoundSql boundSql) throws SQLException {
ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
if (closed) {
throw new ExecutorException("Executor was closed.");
}
if (queryStack == 0 && ms.isFlushCacheRequired()) {
clearLocalCache();
}
List<E> list;
try {
//查询深度，避免递归查询重复处理缓存
queryStack++;
//查询一级缓存
list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
if (list != null) {
handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
} else {
//查询数据库
list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
}
} finally {
queryStack--;
}
if (queryStack == 0) {
for (DeferredLoad deferredLoad : deferredLoads) {
deferredLoad.load();
}
// issue #601
deferredLoads.clear();
if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
// issue #482
clearLocalCache();
}
}
return list;
}
private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds,
ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
List<E> list;
//占位符，标记缓存中已经有数据了，只是查询还没有完成，相同的操作就不需要再查询数据库了
localCache.putObject(key, EXECUTION_PLACEHOLDER);
try {
list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
} finally {
localCache.removeObject(key);
}
localCache.putObject(key, list);
if (ms.getStatementType() == StatementType.CALLABLE) {
localOutputParameterCache.putObject(key, parameter);
}
return list;
}从上述代码看出在BaseExecutor中仍旧是先去查了缓存，没有再去查数据库。这里就引出了二级缓存的概念。
在探究二级缓存之前，上述的方法中有一个queryStack属性，该属性的作用是什么？并且在数据库查询的方法中，为什么要有一个占位符？
设想一个场景：
1 查询学校： 正常查询，加入一级缓存
2 查询学校的学生：正常查询，加入一级缓存
3 查询学生的学校：？从缓存中获取还是再查数据库？延迟加载，从缓存中获取
在并发请求的情况下，同一个session运行多个请求，占位符就用来标记一级缓存中已经有数据了，但是操作还没有完成，相同的数据就不用再查数据库了。
那么queryStack的作用呢？
该作用是在嵌套查询的过程中，防止缓存被误删。
二级缓存
为什么要分两级缓存？这两级的区别在哪里？
二级缓存（即cache）是进程级别的，而一级缓存（即localCache）是session级别的。
SQL语句的执行过程
在上述的二级缓存之后，具体执行sql的executor可根据配置选择，默认的实现是SimpleExecutor。以该类为例分析源码：
java
public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler,
BoundSql boundSql) throws SQLException {
Statement stmt = null;
try {
Configuration configuration = ms.getConfiguration();
//默认创建PreparedStatementHandler，同时完成parameterHandler和resultSethandler的实例化
StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler,
boundSql);
//获取一个statement对象，处理占位符
stmt = prepareStatement(handler, ms.getStatementLog());
//执行查询
return handler.query(stmt, resultHandler);
} finally {
closeStatement(stmt);
}
}
public StatementHandler newStatementHandler(Executor executor, MappedStatement mappedStatement,
Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
StatementHandler statementHandler = new RoutingStatementHandler(executor, mappedStatement, parameterObject,
rowBounds, resultHandler, boundSql);
return (StatementHandler) interceptorChain.pluginAll(statementHandler);
}可以看到具体执行statement的是StatementHandler这个类的对象。并从创建handler的方法中可以看出返回的handler实际上是一个动态代理对象，所以在执行SQL时可以通过插件的方式增强代码，比如在sql执行的前后自定义自己的操作。
这里注意创建StatementHandler的方法中，创建的是RoutingStatementHandler，这其实一个静态代理类：
java
public RoutingStatementHandler(Executor executor, MappedStatement ms, Object parameter, RowBounds rowBounds,
ResultHandler resultHandler, BoundSql boundSql) {
switch (ms.getStatementType()) {
case STATEMENT:
delegate = new SimpleStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
break;
case PREPARED:
delegate = new PreparedStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
break;
case CALLABLE:
delegate = new CallableStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
break;
default:
throw new ExecutorException("Unknown statement type: " + ms.getStatementType());
}
}根据源码可以看出根据statement的类型不同，statementHandler分成三类：
SimpleStatementHandler：执行静态sql的执行器
PreparedStatementHandler：执行可动态配置参数的sql，比如：select * from test where id = {id}
CallableStatementHandler：执行存储过程的执行器
结果映射
以PreparedStatementHandler为例，分析源码：
java
public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
PreparedStatement ps = (PreparedStatement) statement;
ps.execute();
return resultSetHandler.handleResultSets(ps);
}我们可以看出ps执行之后，是通过resultSetHandler来处理了ps返回的结果集。
获取Mapper并执行sql
在实际开发中，我们使用的都是mapper对象。所以接下来分析如何获取到mapper对象。
getMapper方法源码：
java
@Override
public <T> T getMapper(Class<T> type) {
return configuration.getMapper(type, this);
}confifuration.getMapper方法：
java
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
return mapperRegistry.getMapper(type, sqlSession);
}mapperRegistry.getMapper方法：
java
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
if (mapperProxyFactory == null) {
throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
}
try {
return mapperProxyFactory.newInstance(sqlSession);
} catch (Exception e) {
throw new BindingException("Error getting mapper instance. Cause: " + e, e);
}
}实际的mapper对象是由对象工厂创建的。
java
@SuppressWarnings("unchecked")
protected T newInstance(MapperProxy<T> mapperProxy) {
return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
}
public T newInstance(SqlSession sqlSession) {
final MapperProxy<T> mapperProxy = new MapperProxy<>(sqlSession, mapperInterface, methodCache);
return newInstance(mapperProxy);
}而工厂对象创建的是mapper对象的动态代理对象。为什么不直接返回mapper对象，却返回一个代理？
java
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
//如果调用的是toString hashCode equal getClass等方法，则无需走到执行sql的流程
if (Object.class.equals(method.getDeclaringClass())) {
return method.invoke(this, args);
}
//sql方法走的是这里
return cachedInvoker(method).invoke(proxy, method, args, sqlSession);
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
}
private MapperMethodInvoker cachedInvoker(Method method) throws Throwable {
try {
return methodCache.computeIfAbsent(method, m -> {
//非默认方法
if (!m.isDefault()) {
return new PlainMethodInvoker(new MapperMethod(mapperInterface, method, sqlSession.getConfiguration()));
}
//default方法
try {
return new DefaultMethodInvoker(getMethodHandleJava9(method));
} catch (NoSuchMethodException | IllegalAccessException | InvocationTargetException e) {
throw new RuntimeException(e);
}
});
} catch (RuntimeException re) {
Throwable cause = re.getCause();
throw cause == null ? re : cause;
}
}真正执行sql方法的地方在：
java
@Override
public Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable {
return mapperMethod.execute(sqlSession, args);
}execut方法内容：
java
public Object execute(SqlSession sqlSession, Object[] args) {
Object result;
switch (command.getType()) {
case INSERT: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.insert(command.getName(), param));
break;
}
case UPDATE: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.update(command.getName(), param));
break;
}
case DELETE: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.delete(command.getName(), param));
break;
}
case SELECT:
if (method.returnsVoid() && method.hasResultHandler()) {
executeWithResultHandler(sqlSession, args);
result = null;
} else if (method.returnsMany()) {
result = executeForMany(sqlSession, args);
} else if (method.returnsMap()) {
result = executeForMap(sqlSession, args);
} else if (method.returnsCursor()) {
result = executeForCursor(sqlSession, args);
} else {
Object param = method.convertArgsToSqlCommandParam(args);
result = sqlSession.selectOne(command.getName(), param);
if (method.returnsOptional() && (result == null || !method.getReturnType().equals(result.getClass()))) {
result = Optional.ofNullable(result);
}
}
break;
case FLUSH:
result = sqlSession.flushStatements();
break;
default:
throw new BindingException("Unknown execution method for: " + command.getName());
}
if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
throw new BindingException("Mapper method '" + command.getName()
+ "' attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
}
return result;
}3 缓存模块

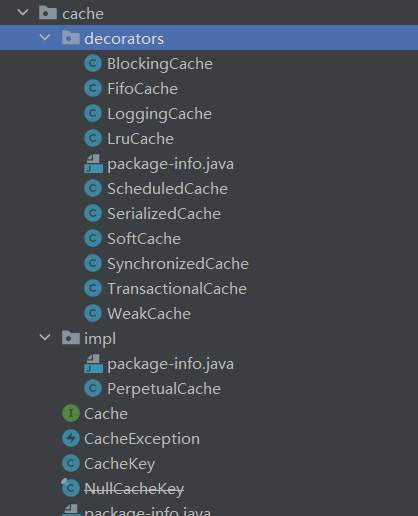

在impl中提供了一个PrepetualCache,其是Cache的实现类。但是其功能本身十分简单，其功能实现是基于map对象实现的。为了使PrepetualCache功能更加强大，mybatis通过装饰器模式，在decorators包下提供了许多装饰器。所以如果要实现我们自己的缓存，可以自行实现Cache接口。
CacheKey
根据之前二级缓存的代码来看，查询cache的的key是CacheKey对象。
java
@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler)
throws SQLException {
BoundSql boundSql = ms.getBoundSql(parameterObject);
CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}CacheKey的创建方法：
java
@Override
public CacheKey createCacheKey(MappedStatement ms, Object parameterObject, RowBounds rowBounds, BoundSql boundSql) {
if (closed) {
throw new ExecutorException("Executor was closed.");
}
CacheKey cacheKey = new CacheKey();
cacheKey.update(ms.getId());//methodName
cacheKey.update(rowBounds.getOffset());//分页处理
cacheKey.update(rowBounds.getLimit());//分页处理
cacheKey.update(boundSql.getSql());//sql
List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
TypeHandlerRegistry typeHandlerRegistry = ms.getConfiguration().getTypeHandlerRegistry();
// mimic DefaultParameterHandler logic
MetaObject metaObject = null;
//查询参数
for (ParameterMapping parameterMapping : parameterMappings) {
if (parameterMapping.getMode() != ParameterMode.OUT) {
Object value;
String propertyName = parameterMapping.getProperty();
if (parameterMapping.hasValue()) {
value = parameterMapping.getValue();
} else if (boundSql.hasAdditionalParameter(propertyName)) {
value = boundSql.getAdditionalParameter(propertyName);
} else if (parameterObject == null) {
value = null;
} else {
ParamNameResolver paramNameResolver = ms.getParamNameResolver();
if (paramNameResolver != null
&& typeHandlerRegistry.hasTypeHandler(paramNameResolver.getType(paramNameResolver.getNames()[0]))
|| typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
value = parameterObject;
} else {
if (metaObject == null) {
metaObject = configuration.newMetaObject(parameterObject);
}
value = metaObject.getValue(propertyName);
}
}
cacheKey.update(value);
}
}
if (configuration.getEnvironment() != null) {
// issue #176
cacheKey.update(configuration.getEnvironment().getId());
}
return cacheKey;
}4 数据源模块
数据源的创建是通过工厂模式创建的：
java
private void environmentsElement(XNode context) throws Exception {
if (context == null) {
return;
}
if (environment == null) {
environment = context.getStringAttribute("default");
}
for (XNode child : context.getChildren()) {
String id = child.getStringAttribute("id");
if (isSpecifiedEnvironment(id)) {
TransactionFactory txFactory = transactionManagerElement(child.evalNode("transactionManager"));
DataSourceFactory dsFactory = dataSourceElement(child.evalNode("dataSource"));
DataSource dataSource = dsFactory.getDataSource();
Environment.Builder environmentBuilder = new Environment.Builder(id).transactionFactory(txFactory)
.dataSource(dataSource);
configuration.setEnvironment(environmentBuilder.build());
break;
}
}
}
java
/**
* @author Clinton Begin
*/
public interface DataSourceFactory {
void setProperties(Properties props);
DataSource getDataSource();

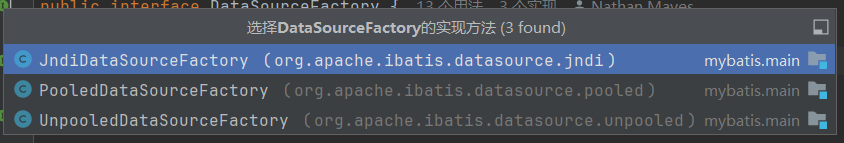

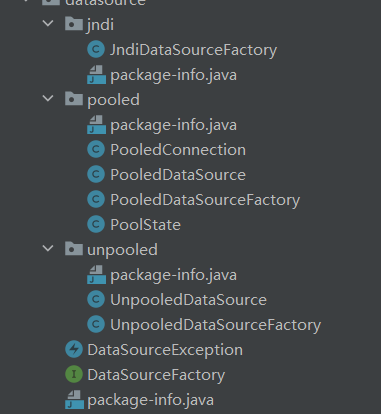

}而Mybatis针对数据源工厂有三种实现：
JNDI DataSource（JndiDatasource）是一种通过Java命名和目录接口（JNDI）获取数据库连接的数据源配置方式，其核心在于将数据库连接的管理交给外部容器（如应用服务器或Web容器），实现连接信息的集中化配置与解耦。
PoolDataSource：通过连接池管理数据库连接。
UnpooledDataSource：不通过连接池管理数据库连接。
java
/**
* @author Clinton Begin
*/
public class PooledDataSourceFactory extends UnpooledDataSourceFactory {
public PooledDataSourceFactory() {
this.dataSource = new PooledDataSource();
}
}通过源码可以看出，PoolDataSource继承了UnpooledDataSourceFactory。区别只是，创建的数据源是PooledDataSource还是UnpooledDataSource。
4.1 连接池数据源获取连接
两个DataSource的区别主要就集中在doGetConnection方法中。UnpooledDataSource每次都会直接新建一个连接，而PooledDataSource，创建连接时会去使用池中的连接。
java
@Override
public Connection getConnection() throws SQLException {
return popConnection(dataSource.getUsername(), dataSource.getPassword()).getProxyConnection();
}
private PooledConnection popConnection(String username, String password) throws SQLException {
boolean countedWait = false;
PooledConnection conn = null;
long t = System.currentTimeMillis();
int localBadConnectionCount = 0;
while (conn == null) {
lock.lock();
try {
if (!state.idleConnections.isEmpty()) {
//如果闲置池不为空，则从闲置队列中取出一个连接
// Pool has available connection
conn = state.idleConnections.remove(0);
if (log.isDebugEnabled()) {
log.debug("Checked out connection " + conn.getRealHashCode() + " from pool.");
}
} else if (state.activeConnections.size() < poolMaximumActiveConnections) {
//闲置池空了，那么判断是否需要创建新连接
// 如果连接池中的连接数量小于最大连接数，则创建一个新连接
// Pool does not have available connection and can create a new connection
conn = new PooledConnection(dataSource.getConnection(), this);
if (log.isDebugEnabled()) {
log.debug("Created connection " + conn.getRealHashCode() + ".");
}
} else {
//连接池空了，且连接池中的连接数量已经达到最大值，此时就不能再创建连接了
// Cannot create new connection
//获取最早创建的连接
PooledConnection oldestActiveConnection = state.activeConnections.get(0);
// 获取最早创建的连接的创建时间
long longestCheckoutTime = oldestActiveConnection.getCheckoutTime();
//如果创建时间超过最大允许时间，则认为该连接已经超时
if (longestCheckoutTime > poolMaximumCheckoutTime) {
// Can claim overdue connection
//统计超时连接信息
state.claimedOverdueConnectionCount++;
state.accumulatedCheckoutTimeOfOverdueConnections += longestCheckoutTime;
state.accumulatedCheckoutTime += longestCheckoutTime;
//删除超时连接
state.activeConnections.remove(oldestActiveConnection);
//如果连接不是自动提交，则回滚
if (!oldestActiveConnection.getRealConnection().getAutoCommit()) {
try {
//回滚
oldestActiveConnection.getRealConnection().rollback();
} catch (SQLException e) {
/*
* Just log a message for debug and continue to execute the following statement like nothing happened.
* Wrap the bad connection with a new PooledConnection, this will help to not interrupt current
* executing thread and give current thread a chance to join the next competition for another valid/good
* database connection. At the end of this loop, bad {@link @conn} will be set as null.
*/
log.debug("Bad connection. Could not roll back");
}
}
//创建新的连接，但是连接还不是完全可用
conn = new PooledConnection(oldestActiveConnection.getRealConnection(), this);
conn.setCreatedTimestamp(oldestActiveConnection.getCreatedTimestamp());
conn.setLastUsedTimestamp(oldestActiveConnection.getLastUsedTimestamp());
oldestActiveConnection.invalidate();
if (log.isDebugEnabled()) {
log.debug("Claimed overdue connection " + conn.getRealHashCode() + ".");
}
} else {
// 如果创建时间没有超过最大允许时间，则判断为正常连接，
// Must wait
try {
//等待数增加
if (!countedWait) {
state.hadToWaitCount++;
countedWait = true;
}
if (log.isDebugEnabled()) {
log.debug("Waiting as long as " + poolTimeToWait + " milliseconds for connection.");
}
long wt = System.currentTimeMillis();
//等待连接
if (!condition.await(poolTimeToWait, TimeUnit.MILLISECONDS)) {
log.debug("Wait failed...");
}
state.accumulatedWaitTime += System.currentTimeMillis() - wt;
} catch (InterruptedException e) {
// set interrupt flag
Thread.currentThread().interrupt();
break;
}
}
}
//连接获取成功
if (conn != null) {
// ping to server and check the connection is valid or not
if (conn.isValid()) {
//连接有效
//如果连接不是自动提交，则回滚
if (!conn.getRealConnection().getAutoCommit()) {
conn.getRealConnection().rollback();
}
//获取连接类型
conn.setConnectionTypeCode(assembleConnectionTypeCode(dataSource.getUrl(), username, password));
conn.setCheckoutTimestamp(System.currentTimeMillis());
conn.setLastUsedTimestamp(System.currentTimeMillis());
state.activeConnections.add(conn);
state.requestCount++;
state.accumulatedRequestTime += System.currentTimeMillis() - t;
} else {
//连接无效
if (log.isDebugEnabled()) {
log.debug("A bad connection (" + conn.getRealHashCode()
+ ") was returned from the pool, getting another connection.");
}
state.badConnectionCount++;
localBadConnectionCount++;
//继续下一个循环
conn = null;
//超过了失败次数
if (localBadConnectionCount > poolMaximumIdleConnections + poolMaximumLocalBadConnectionTolerance) {
if (log.isDebugEnabled()) {
log.debug("PooledDataSource: Could not get a good connection to the database.");
}
throw new SQLException("PooledDataSource: Could not get a good connection to the database.");
}
}
}
} finally {
lock.unlock();
}
}
//获取连接失败
if (conn == null) {
if (log.isDebugEnabled()) {
log.debug("PooledDataSource: Unknown severe error condition. The connection pool returned a null connection.");
}
throw new SQLException(
"PooledDataSource: Unknown severe error condition. The connection pool returned a null connection.");
}
return conn;
}可以看出获取连接是通过自旋的方式来获取连接。
4.2 释放连接
需要注意：PooledDataSource返回的连接是PooledConnection，这个类其实也是一个代理类。查看其invoke方法：
java
//空闲连接队列
protected final List<PooledConnection> idleConnections = new ArrayList<>();
//使用中的连接队列
protected final List<PooledConnection> activeConnections = new ArrayList<>();
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
String methodName = method.getName();
//这里关闭方法，并不释放连接，而是将其放回到连接池中
if (CLOSE.equals(methodName)) {
dataSource.pushConnection(this);
return null;
}
try {
if (!Object.class.equals(method.getDeclaringClass())) {
// issue #579 toString() should never fail
// throw an SQLException instead of a Runtime
checkConnection();
}
return method.invoke(realConnection, args);
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
}
java
protected void pushConnection(PooledConnection conn) throws SQLException {
lock.lock();
try {
//移除当前连接
state.activeConnections.remove(conn);
if (conn.isValid()) {
//连接有效
if (state.idleConnections.size() < poolMaximumIdleConnections
&& conn.getConnectionTypeCode() == expectedConnectionTypeCode) {
//空闲连接数小于最大空闲连接数 且 当前连接类型一致
state.accumulatedCheckoutTime += conn.getCheckoutTime();
if (!conn.getRealConnection().getAutoCommit()) {
//回滚
conn.getRealConnection().rollback();
}
PooledConnection newConn = new PooledConnection(conn.getRealConnection(), this);
//加入空闲队列
state.idleConnections.add(newConn);
newConn.setCreatedTimestamp(conn.getCreatedTimestamp());
newConn.setLastUsedTimestamp(conn.getLastUsedTimestamp());
conn.invalidate();
if (log.isDebugEnabled()) {
log.debug("Returned connection " + newConn.getRealHashCode() + " to pool.");
}
//通知获取连接的线程 取消等待，获取连接
condition.signal();
} else {
//连接无效
state.accumulatedCheckoutTime += conn.getCheckoutTime();
if (!conn.getRealConnection().getAutoCommit()) {
//回滚
conn.getRealConnection().rollback();
}
//关闭连接
conn.getRealConnection().close();
if (log.isDebugEnabled()) {
log.debug("Closed connection " + conn.getRealHashCode() + ".");
}
//连接失效
conn.invalidate();
}
} else {
//连接无效
if (log.isDebugEnabled()) {
log.debug("A bad connection (" + conn.getRealHashCode()
+ ") attempted to return to the pool, discarding connection.");
}
state.badConnectionCount++;
}
} finally {
lock.unlock();
}
}5 事务模块
根据BaseExecutor的源码可知，创建连接并不是直接通过数据源创建的，而是通过事务创建的：
java
shiwuprotected Connection getConnection(Log statementLog) throws SQLException {
Connection connection = transaction.getConnection();
if (statementLog.isDebugEnabled()) {
return ConnectionLogger.newInstance(connection, statementLog, queryStack);
}
return connection;
}事务通过数据源创建连接：
java
protected void openConnection() throws SQLException {
if (log.isDebugEnabled()) {
log.debug("Opening JDBC Connection");
}
connection = dataSource.getConnection();
if (level != null) {
connection.setTransactionIsolation(level.getLevel());
}
setDesiredAutoCommit(autoCommit);

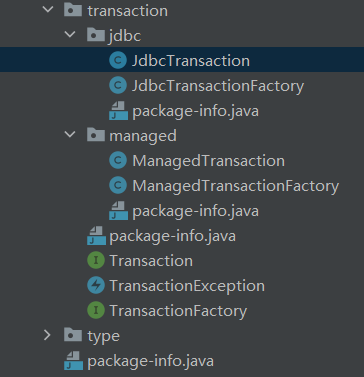

}在mybatis中提供了两种事务：jdbc和managed。jdbc是通过jdbc连接直接提交实现的。而managed是交给容器（比如Spring）去管理。

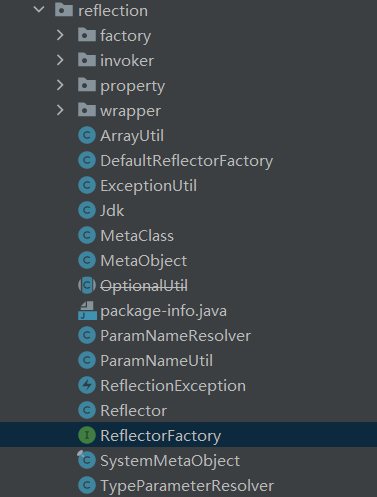

6 反射模块
6.1 Reflector
每个Reflector对象都对应一个class对象，缓存class的内容。Reflector的核心属性：
java
//类
private final Class<?> clazz;
//可读属性集合，就是存在getter方法的属性
private final String[] readablePropertyNames;
//可写属性集合，就是存在setter方法的属性
private final String[] writablePropertyNames;
//setter方法集合
private final Map<String, Invoker> setMethods = new HashMap<>();
//getter方法集合
private final Map<String, Invoker> getMethods = new HashMap<>();
//相应setter方法的参数类型，key是属性名称，value是setter方法的参数类型
private final Map<String, Entry<Type, Class<?>>> setTypes = new HashMap<>();
//相应getter方法的参数类型，key是属性名称，value是getter方法的参数类型
private final Map<String, Entry<Type, Class<?>>> getTypes = new HashMap<>();
//默认构造方法
private Constructor<?> defaultConstructor;
//所有属性的名称合集
private final Map<String, String> caseInsensitivePropertyMap = new HashMap<>();6.2 invoker
Invoker接口用于设置对象的属性值。
java
public interface Invoker {
//执行method，如getter setter
Object invoke(Object target, Object[] args) throws IllegalAccessException, InvocationTargetException;
//获取返回值类型
Class<?> getType();
}6.3 TypeParameterResolver
解决复杂对象的解析，比如user对象中存在集合等情况。
6.4 ObjectFactory
DefaultObjectFactory是ObjectFactory的默认实现。ObjectFactory是用来创建对象的工厂。

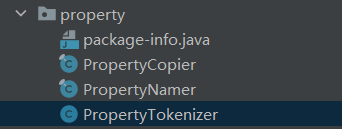

6.5 Properties
propertis包下的工具主要用于复杂属性操作。
6.6 ObjectWrapper
对对象进行包裹，可以通过这个类来实现对属性的修改和读取。
6.7 反射模块的使用
参考：DefaultResultSetHandlers方法：
java
/*
* Copyright 2009-2025 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package org.apache.ibatis.executor.resultset;
import ... // 多个导入语句
/**
* 默认的结果集处理器实现类，负责处理数据库查询结果并将其映射为Java对象
* @author Clinton Begin
* @author Eduardo Macarron
* @author Iwao AVE!
* @author Kazuki Shimizu
* @author Willie Scholtz
*/
public class DefaultResultSetHandler implements ResultSetHandler {
private static final Object DEFERRED = new Object(); // 延迟加载标记
// 执行器、配置、映射语句等核心组件
private final Executor executor;
private final Configuration configuration;
private final MappedStatement mappedStatement;
private final RowBounds rowBounds;
private final ParameterHandler parameterHandler;
private final ResultHandler<?> resultHandler;
private final BoundSql boundSql;
private final TypeHandlerRegistry typeHandlerRegistry;
private final ObjectFactory objectFactory;
private final ReflectorFactory reflectorFactory;
// 待处理关系跟踪器，用于处理嵌套结果中的集合属性创建延迟情况
private final Map<Object, PendingRelation> pendingPccRelations = new IdentityHashMap<>();
// 嵌套结果对象缓存，避免重复构建相同对象
private final Map<CacheKey, Object> nestedResultObjects = new HashMap<>();
// 祖先对象缓存，防止循环引用导致无限递归
private final Map<String, Object> ancestorObjects = new HashMap<>();
private Object previousRowValue; // 上一行数据值，用于有序结果优化性能
// 多结果集支持相关字段
private final Map<String, ResultMapping> nextResultMaps = new HashMap<>();
private final Map<CacheKey, List<PendingRelation>> pendingRelations = new HashMap<>();
// 自动映射缓存，提高自动映射效率
private final Map<String, List<UnMappedColumnAutoMapping>> autoMappingsCache = new HashMap<>();
private final Map<String, List<String>> constructorAutoMappingColumns = new HashMap<>();
// 构造函数映射标识位，减少内存占用
private boolean useConstructorMappings;
/**
* 内部静态类，表示待处理的关系映射信息
*/
private static class PendingRelation {
public MetaObject metaObject; // 元对象实例
public ResultMapping propertyMapping; // 属性映射信息
}
/**
* 未映射列的自动映射信息封装类
*/
private static class UnMappedColumnAutoMapping {
private final String column; // 数据库列名
private final String property; // Java属性名
private final TypeHandler<?> typeHandler; // 类型处理器
private final boolean primitive; // 是否基本类型
public UnMappedColumnAutoMapping(String column, String property, TypeHandler<?> typeHandler, boolean primitive) {
this.column = column;
this.property = property;
this.typeHandler = typeHandler;
this.primitive = primitive;
}
}
/**
* 构造函数初始化所有必需的核心组件
*/
public DefaultResultSetHandler(Executor executor, MappedStatement mappedStatement, ParameterHandler parameterHandler,
ResultHandler<?> resultHandler, BoundSql boundSql, RowBounds rowBounds) {
this.executor = executor;
this.configuration = mappedStatement.getConfiguration();
this.mappedStatement = mappedStatement;
this.rowBounds = rowBounds;
this.parameterHandler = parameterHandler;
this.boundSql = boundSql;
this.typeHandlerRegistry = configuration.getTypeHandlerRegistry();
this.objectFactory = configuration.getObjectFactory();
this.reflectorFactory = configuration.getReflectorFactory();
this.resultHandler = resultHandler;
}
/**
* 处理存储过程输出参数的方法
*/
@Override
public void handleOutputParameters(CallableStatement cs) throws SQLException {
final Object parameterObject = parameterHandler.getParameterObject();
final MetaObject metaParam = configuration.newMetaObject(parameterObject);
final List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
for (int i = 0; i < parameterMappings.size(); i++) {
final ParameterMapping parameterMapping = parameterMappings.get(i);
if (parameterMapping.getMode() == ParameterMode.OUT || parameterMapping.getMode() == ParameterMode.INOUT) {
if (ResultSet.class.equals(parameterMapping.getJavaType())) {
handleRefCursorOutputParameter((ResultSet) cs.getObject(i + 1), parameterMapping, metaParam);
} else {
final String property = parameterMapping.getProperty();
TypeHandler<?> typeHandler = parameterMapping.getTypeHandler();
if (typeHandler == null) {
Type javaType = parameterMapping.getJavaType();
if (javaType == null || javaType == Object.class) {
javaType = metaParam.getGenericSetterType(property).getKey();
}
JdbcType jdbcType = parameterMapping.getJdbcType();
typeHandler = typeHandlerRegistry.getTypeHandler(javaType, jdbcType, null);
if (typeHandler == null) {
typeHandler = typeHandlerRegistry.getTypeHandler(jdbcType);
if (typeHandler == null) {
typeHandler = ObjectTypeHandler.INSTANCE;
}
}
}
metaParam.setValue(property, typeHandler.getResult(cs, i + 1));
}
}
}
}
/**
* 处理REF CURSOR类型的输出参数
*/
private void handleRefCursorOutputParameter(ResultSet rs, ParameterMapping parameterMapping, MetaObject metaParam)
throws SQLException {
if (rs == null) {
return;
}
try {
final String resultMapId = parameterMapping.getResultMapId();
final ResultMap resultMap = configuration.getResultMap(resultMapId);
final ResultSetWrapper rsw = new ResultSetWrapper(rs, configuration);
if (this.resultHandler == null) {
final DefaultResultHandler resultHandler = new DefaultResultHandler(objectFactory);
handleRowValues(rsw, resultMap, resultHandler, new RowBounds(), null);
metaParam.setValue(parameterMapping.getProperty(), resultHandler.getResultList());
} else {
handleRowValues(rsw, resultMap, resultHandler, new RowBounds(), null);
}
} finally {
closeResultSet(rs); // 关闭结果集资源
}
}
/**
* 主要入口方法，处理多个结果集并将它们转换成Java对象列表
*/
@Override
public List<Object> handleResultSets(Statement stmt) throws SQLException {
ErrorContext.instance().activity("handling results").object(mappedStatement.getId());
final List<Object> multipleResults = new ArrayList<>();
int resultSetCount = 0;
ResultSetWrapper rsw = getFirstResultSet(stmt);
List<ResultMap> resultMaps = mappedStatement.getResultMaps();
int resultMapCount = resultMaps.size();
validateResultMapsCount(rsw, resultMapCount);
while (rsw != null && resultMapCount > resultSetCount) {
ResultMap resultMap = resultMaps.get(resultSetCount);
handleResultSet(rsw, resultMap, multipleResults, null);
rsw = getNextResultSet(stmt);
cleanUpAfterHandlingResultSet();
resultSetCount++;
}
String[] resultSets = mappedStatement.getResultSets();
if (resultSets != null) {
while (rsw != null && resultSetCount < resultSets.length) {
ResultMapping parentMapping = nextResultMaps.get(resultSets[resultSetCount]);
if (parentMapping != null) {
String nestedResultMapId = parentMapping.getNestedResultMapId();
ResultMap resultMap = configuration.getResultMap(nestedResultMapId);
handleResultSet(rsw, resultMap, null, parentMapping);
}
rsw = getNextResultSet(stmt);
cleanUpAfterHandlingResultSet();
resultSetCount++;
}
}
return collapseSingleResultList(multipleResults);
}
/**
* 处理游标类型的结果集
*/
@Override
public <E> Cursor<E> handleCursorResultSets(Statement stmt) throws SQLException {
ErrorContext.instance().activity("handling cursor results").object(mappedStatement.getId());
ResultSetWrapper rsw = getFirstResultSet(stmt);
List<ResultMap> resultMaps = mappedStatement.getResultMaps();
int resultMapCount = resultMaps.size();
validateResultMapsCount(rsw, resultMapCount);
if (resultMapCount != 1) {
throw new ExecutorException("Cursor results cannot be mapped to multiple resultMaps");
}
ResultMap resultMap = resultMaps.get(0);
return new DefaultCursor<>(this, resultMap, rsw, rowBounds);
}
/**
* 获取第一个结果集包装器
*/
private ResultSetWrapper getFirstResultSet(Statement stmt) throws SQLException {
ResultSet rs = null;
SQLException e1 = null;
try {
rs = stmt.getResultSet();
} catch (SQLException e) {
// Oracle throws ORA-17283 for implicit cursor
e1 = e;
}
try {
while (rs == null) {
// move forward to get the first resultSet in case the driver
// doesn't return the resultSet as the first result (HSQLDB)
if (stmt.getMoreResults()) {
rs = stmt.getResultSet();
} else if (stmt.getUpdateCount() == -1) {
// no more results. Must be no resultSet
break;
}
}
} catch (SQLException e) {
throw e1 != null ? e1 : e;
}
return rs != null ? new ResultSetWrapper(rs, configuration) : null;
}
/**
* 获取下一个结果集包装器
*/
private ResultSetWrapper getNextResultSet(Statement stmt) {
// Making this method tolerant of bad JDBC drivers
try {
// We stopped checking DatabaseMetaData#supportsMultipleResultSets()
// because Oracle driver (incorrectly) returns false
// Crazy Standard JDBC way of determining if there are more results
// DO NOT try to 'improve' the condition even if IDE tells you to!
// It's important that getUpdateCount() is called here.
if (!(!stmt.getMoreResults() && stmt.getUpdateCount() == -1)) {
ResultSet rs = stmt.getResultSet();
if (rs == null) {
return getNextResultSet(stmt);
} else {
return new ResultSetWrapper(rs, configuration);
}
}
} catch (Exception e) {
// Intentionally ignored.
}
return null;
}
/**
* 关闭结果集资源
*/
private void closeResultSet(ResultSet rs) {
try {
if (rs != null) {
rs.close();
}
} catch (SQLException e) {
// ignore
}
}
/**
* 清理处理完一个结果集后的状态
*/
private void cleanUpAfterHandlingResultSet() {
nestedResultObjects.clear();
}
/**
* 验证结果映射数量是否合法
*/
private void validateResultMapsCount(ResultSetWrapper rsw, int resultMapCount) {
if (rsw != null && resultMapCount < 1) {
throw new ExecutorException(
"A query was run and no Result Maps were found for the Mapped Statement '" + mappedStatement.getId()
+ "'. 'resultType' or 'resultMap' must be specified when there is no corresponding method.");
}
}
/**
* 处理单个结果集，并根据是否有父映射决定如何处理结果
*/
private void handleResultSet(ResultSetWrapper rsw, ResultMap resultMap, List<Object> multipleResults,
ResultMapping parentMapping) throws SQLException {
try {
if (parentMapping != null) {
handleRowValues(rsw, resultMap, null, RowBounds.DEFAULT, parentMapping);
} else if (resultHandler == null) {
DefaultResultHandler defaultResultHandler = new DefaultResultHandler(objectFactory);
handleRowValues(rsw, resultMap, defaultResultHandler, rowBounds, null);
multipleResults.add(defaultResultHandler.getResultList());
} else {
handleRowValues(rsw, resultMap, resultHandler, rowBounds, null);
}
} finally {
closeResultSet(rsw.getResultSet()); // 关闭当前结果集资源
}
}
/**
* 如果只有一个结果，则返回其本身；否则返回整个列表
*/
@SuppressWarnings("unchecked")
private List<Object> collapseSingleResultList(List<Object> multipleResults) {
return multipleResults.size() == 1 ? (List<Object>) multipleResults.get(0) : multipleResults;
}
/**
* 处理每一行记录的数据映射工作，区分简单结果映射与嵌套结果映射两种情况
*/
public void handleRowValues(ResultSetWrapper rsw, ResultMap resultMap, ResultHandler<?> resultHandler,
RowBounds rowBounds, ResultMapping parentMapping) throws SQLException {
if (resultMap.hasNestedResultMaps()) {
ensureNoRowBounds(); // 检查是否启用了安全边界检查模式
checkResultHandler(); // 检查自定义结果处理器兼容性
handleRowValuesForNestedResultMap(rsw, resultMap, resultHandler, rowBounds, parentMapping);
} else {
handleRowValuesForSimpleResultMap(rsw, resultMap, resultHandler, rowBounds, parentMapping);
}
}
/**
* 确保没有设置不安全的RowBounds限制条件
*/
private void ensureNoRowBounds() {
if (configuration.isSafeRowBoundsEnabled() && rowBounds != null
&& (rowBounds.getLimit() < RowBounds.NO_ROW_LIMIT || rowBounds.getOffset() > RowBounds.NO_ROW_OFFSET)) {
throw new ExecutorException(
"Mapped Statements with nested result mappings cannot be safely constrained by RowBounds. "
+ "Use safeRowBoundsEnabled=false setting to bypass this check.");
}
}
/**
* 检查自定义结果处理器是否满足安全要求
*/
protected void checkResultHandler() {
if (resultHandler != null && configuration.isSafeResultHandlerEnabled() && !mappedStatement.isResultOrdered()) {
throw new ExecutorException(
"Mapped Statements with nested result mappings cannot be safely used with a custom ResultHandler. "
+ "Use safeResultHandlerEnabled=false setting to bypass this check "
+ "or ensure your statement returns ordered data and set resultOrdered=true on it.");
}
}
/**
* 处理简单的结果映射逻辑（非嵌套结构）
*/
private void handleRowValuesForSimpleResultMap(ResultSetWrapper rsw, ResultMap resultMap,
ResultHandler<?> resultHandler, RowBounds rowBounds, ResultMapping parentMapping) throws SQLException {
final boolean useCollectionConstructorInjection = resultMap.hasResultMapsUsingConstructorCollection();
DefaultResultContext<Object> resultContext = new DefaultResultContext<>();
ResultSet resultSet = rsw.getResultSet();
skipRows(resultSet, rowBounds); // 跳过指定偏移量的记录数
while (shouldProcessMoreRows(resultContext, rowBounds) && !resultSet.isClosed() && resultSet.next()) {
ResultMap discriminatedResultMap = resolveDiscriminatedResultMap(rsw, resultMap, null);
Object rowValue = getRowValue(rsw, discriminatedResultMap, null, null);
if (!useCollectionConstructorInjection) {
storeObject(resultHandler, resultContext, rowValue, parentMapping, resultSet);
} else {
if (!(rowValue instanceof PendingConstructorCreation)) {
throw new ExecutorException("Expected result object to be a pending constructor creation!");
}
createAndStorePendingCreation(resultHandler, resultSet, resultContext, (PendingConstructorCreation) rowValue);
}
}
}
/**
* 存储处理好的行对象至结果处理器或链接到父对象上
*/
private void storeObject(ResultHandler<?> resultHandler, DefaultResultContext<Object> resultContext, Object rowValue,
ResultMapping parentMapping, ResultSet rs) throws SQLException {
if (parentMapping != null) {
linkToParents(rs, parentMapping, rowValue);
return;
}
if (pendingPccRelations.containsKey(rowValue)) {
createPendingConstructorCreations(rowValue);
}
callResultHandler(resultHandler, resultContext, rowValue);
}
/**
* 将结果传递给结果处理器进行后续处理
*/
@SuppressWarnings("unchecked" /* because ResultHandler<?> is always ResultHandler<Object> */)
private void callResultHandler(ResultHandler<?> resultHandler, DefaultResultContext<Object> resultContext,
Object rowValue) {
resultContext.nextResultObject(rowValue);
((ResultHandler<Object>) resultHandler).handleResult(resultContext);
}
/**
* 判断是否继续处理更多行记录
*/
private boolean shouldProcessMoreRows(ResultContext<?> context, RowBounds rowBounds) {
return !context.isStopped() && context.getResultCount() < rowBounds.getLimit();
}
/**
* 根据偏移量跳过若干条记录
*/
private void skipRows(ResultSet rs, RowBounds rowBounds) throws SQLException {
if (rs.getType() != ResultSet.TYPE_FORWARD_ONLY) {
if (rowBounds.getOffset() != RowBounds.NO_ROW_OFFSET) {
rs.absolute(rowBounds.getOffset());
}
} else {
for (int i = 0; i < rowBounds.getOffset(); i++) {
if (!rs.next()) {
break;
}
}
}
}
/**
* 获取简单结果映射对应的一行数据值
*/
private Object getRowValue(ResultSetWrapper rsw, ResultMap resultMap, String columnPrefix, CacheKey parentRowKey)
throws SQLException {
final ResultLoaderMap lazyLoader = new ResultLoaderMap();
Object rowValue = createResultObject(rsw, resultMap, lazyLoader, columnPrefix, parentRowKey);
if (rowValue != null && !hasTypeHandlerForResultObject(rsw, resultMap.getType())) {
final MetaObject metaObject = configuration.newMetaObject(rowValue);
boolean foundValues = this.useConstructorMappings;
if (shouldApplyAutomaticMappings(resultMap, false)) {
foundValues = applyAutomaticMappings(rsw, resultMap, metaObject, columnPrefix) || foundValues;
}
foundValues = applyPropertyMappings(rsw, resultMap, metaObject, lazyLoader, columnPrefix) || foundValues;
foundValues = lazyLoader.size() > 0 || foundValues;
rowValue = foundValues || configuration.isReturnInstanceForEmptyRow() ? rowValue : null;
}
if (parentRowKey != null) {
// found a simple object/primitive in pending constructor creation that will need linking later
final CacheKey rowKey = createRowKey(resultMap, rsw, columnPrefix);
final CacheKey combinedKey = combineKeys(rowKey, parentRowKey);
if (combinedKey != CacheKey.NULL_CACHE_KEY) {
nestedResultObjects.put(combinedKey, rowValue);
}
}
return rowValue;
}
/**
* 获取嵌套结果映射对应的一行数据值
*/
private Object getRowValue(ResultSetWrapper rsw, ResultMap resultMap, CacheKey combinedKey, String columnPrefix,
Object partialObject) throws SQLException {
final String resultMapId = resultMap.getId();
Object rowValue = partialObject;
if (rowValue != null) {
final MetaObject metaObject = configuration.newMetaObject(rowValue);
putAncestor(rowValue, resultMapId);
applyNestedResultMappings(rsw, resultMap, metaObject, columnPrefix, combinedKey, false);
ancestorObjects.remove(resultMapId);
} else {
final ResultLoaderMap lazyLoader = new ResultLoaderMap();
rowValue = createResultObject(rsw, resultMap, lazyLoader, columnPrefix, combinedKey);
if (rowValue != null && !hasTypeHandlerForResultObject(rsw, resultMap.getType())) {
final MetaObject metaObject = configuration.newMetaObject(rowValue);
boolean foundValues = this.useConstructorMappings;
if (shouldApplyAutomaticMappings(resultMap, true)) {
foundValues = applyAutomaticMappings(rsw, resultMap, metaObject, columnPrefix) || foundValues;
}
foundValues = applyPropertyMappings(rsw, resultMap, metaObject, lazyLoader, columnPrefix) || foundValues;
putAncestor(rowValue, resultMapId);
foundValues = applyNestedResultMappings(rsw, resultMap, metaObject, columnPrefix, combinedKey, true)
|| foundValues;
ancestorObjects.remove(resultMapId);
foundValues = lazyLoader.size() > 0 || foundValues;
rowValue = foundValues || configuration.isReturnInstanceForEmptyRow() ? rowValue : null;
}
if (combinedKey != CacheKey.NULL_CACHE_KEY) {
nestedResultObjects.put(combinedKey, rowValue);
}
}
return rowValue;
}
/**
* 将祖先对象放入缓存以防止循环引用
*/
private void putAncestor(Object resultObject, String resultMapId) {
ancestorObjects.put(resultMapId, resultObject);
}
/**
* 判断是否应该应用自动映射规则
*/
private boolean shouldApplyAutomaticMappings(ResultMap resultMap, boolean isNested) {
if (resultMap.getAutoMapping() != null) {
return resultMap.getAutoMapping();
}
if (isNested) {
return AutoMappingBehavior.FULL == configuration.getAutoMappingBehavior();
} else {
return AutoMappingBehavior.NONE != configuration.getAutoMappingBehavior();
}
}
/**
* 应用显式的属性映射规则
*/
private boolean applyPropertyMappings(ResultSetWrapper rsw, ResultMap resultMap, MetaObject metaObject,
ResultLoaderMap lazyLoader, String columnPrefix) throws SQLException {
final Set<String> mappedColumnNames = rsw.getMappedColumnNames(resultMap, columnPrefix);
boolean foundValues = false;
final List<ResultMapping> propertyMappings = resultMap.getPropertyResultMappings();
for (ResultMapping propertyMapping : propertyMappings) {
String column = prependPrefix(propertyMapping.getColumn(), columnPrefix);
if (propertyMapping.getNestedResultMapId() != null && !JdbcType.CURSOR.equals(propertyMapping.getJdbcType())) {
// the user added a column attribute to a nested result map, ignore it
column = null;
}
if (propertyMapping.isCompositeResult()
|| column != null && mappedColumnNames.contains(column.toUpperCase(Locale.ENGLISH))
|| propertyMapping.getResultSet() != null) {
Object value = getPropertyMappingValue(rsw, metaObject, propertyMapping, lazyLoader, columnPrefix);
// issue #541 make property optional
final String property = propertyMapping.getProperty();
if (property == null) {
continue;
}
if (value == DEFERRED) {
foundValues = true;
continue;
}
if (value != null) {
foundValues = true;
}
if (value != null
|| configuration.isCallSettersOnNulls() && !metaObject.getSetterType(property).isPrimitive()) {
// gcode issue #377, call setter on nulls (value is not 'found')
metaObject.setValue(property, value);
}
}
}
return foundValues;
}
/**
* 获取某个具体属性映射的值
*/
private Object getPropertyMappingValue(ResultSetWrapper rsw, MetaObject metaResultObject,
ResultMapping propertyMapping, ResultLoaderMap lazyLoader, String columnPrefix) throws SQLException {
final ResultSet rs = rsw.getResultSet();
if (propertyMapping.getNestedQueryId() != null) {
return getNestedQueryMappingValue(rsw, metaResultObject, propertyMapping, lazyLoader, columnPrefix);
}
if (JdbcType.CURSOR.equals(propertyMapping.getJdbcType())) {
List<Object> results = getNestedCursorValue(rsw, propertyMapping, columnPrefix);
linkObjects(metaResultObject, propertyMapping, results.get(0), true);
return metaResultObject.getValue(propertyMapping.getProperty());
}
if (propertyMapping.getResultSet() != null) {
addPendingChildRelation(rs, metaResultObject, propertyMapping); // TODO is that OK?
return DEFERRED;
} else {
final String column = prependPrefix(propertyMapping.getColumn(), columnPrefix);
TypeHandler<?> typeHandler = propertyMapping.getTypeHandler();
if (typeHandler == null) {
final String property = propertyMapping.getProperty();
final Type javaType = property == null ? null : metaResultObject.getGenericSetterType(property).getKey();
typeHandler = rsw.getTypeHandler(javaType, column);
if (typeHandler == null) {
throw new ExecutorException(
"No type handler found for '" + javaType + "' and JDBC type '" + rsw.getJdbcType(column) + "'");
}
}
return typeHandler.getResult(rs, column);
}
}
/**
* 创建自动映射列表
*/
private List<UnMappedColumnAutoMapping> createAutomaticMappings(ResultSetWrapper rsw, ResultMap resultMap,
MetaObject metaObject, String columnPrefix) throws SQLException {
final String mapKey = resultMap.getId() + ":" + columnPrefix;
List<UnMappedColumnAutoMapping> autoMapping = autoMappingsCache.get(mapKey);
if (autoMapping == null) {
autoMapping = new ArrayList<>();
final List<String> unmappedColumnNames = rsw.getUnmappedColumnNames(resultMap, columnPrefix);
// Remove the entry to release the memory
List<String> mappedInConstructorAutoMapping = constructorAutoMappingColumns.remove(mapKey);
if (mappedInConstructorAutoMapping != null) {
unmappedColumnNames.removeAll(mappedInConstructorAutoMapping);
}
for (String columnName : unmappedColumnNames) {
String propertyName = columnName;
if (columnPrefix != null && !columnPrefix.isEmpty()) {
// When columnPrefix is specified,
// ignore columns without the prefix.
if (!columnName.toUpperCase(Locale.ENGLISH).startsWith(columnPrefix)) {
continue;
}
propertyName = columnName.substring(columnPrefix.length());
}
final String property = metaObject.findProperty(propertyName, configuration.isMapUnderscoreToCamelCase());
if (property != null && metaObject.hasSetter(property)) {
if (resultMap.getMappedProperties().contains(property)) {
continue;
}
final Type propertyType = metaObject.getGenericSetterType(property).getKey();
TypeHandler<?> typeHandler = rsw.getTypeHandler(propertyType, columnName);
if (typeHandler != null) {
autoMapping.add(new UnMappedColumnAutoMapping(columnName, property, typeHandler,
propertyType instanceof Class && ((Class<?>) propertyType).isPrimitive()));
} else {
configuration.getAutoMappingUnknownColumnBehavior().doAction(mappedStatement, columnName, property,
propertyType);
}
} else {
configuration.getAutoMappingUnknownColumnBehavior().doAction(mappedStatement, columnName,
property != null ? property : propertyName, null);
}
}
autoMappingsCache.put(mapKey, autoMapping);
}
return autoMapping;
}
/**
* 应用自动映射规则填充对象属性
*/
private boolean applyAutomaticMappings(ResultSetWrapper rsw, ResultMap resultMap, MetaObject metaObject,
String columnPrefix) throws SQLException {
List<UnMappedColumnAutoMapping> autoMapping = createAutomaticMappings(rsw, resultMap, metaObject, columnPrefix);
boolean foundValues = false;
if (!autoMapping.isEmpty()) {
for (UnMappedColumnAutoMapping mapping : autoMapping) {
final Object value = mapping.typeHandler.getResult(rsw.getResultSet(), mapping.column);
if (value != null) {
foundValues = true;
}
if (value != null || configuration.isCallSettersOnNulls() && !mapping.primitive) {
// gcode issue #377, call setter on nulls (value is not 'found')
metaObject.setValue(mapping.property, value);
}
}
}
return foundValues;
}
/**
* 连接到父级对象
*/
private void linkToParents(ResultSet rs, ResultMapping parentMapping, Object rowValue) throws SQLException {
CacheKey parentKey = createKeyForMultipleResults(rs, parentMapping, parentMapping.getColumn(),
parentMapping.getForeignColumn());
List<PendingRelation> parents = pendingRelations.get(parentKey);
if (parents != null) {
for (PendingRelation parent : parents) {
if (parent != null && rowValue != null) {
linkObjects(parent.metaObject, parent.propertyMapping, rowValue);
}
}
}
}
/**
* 添加待处理子关系映射
*/
private void addPendingChildRelation(ResultSet rs, MetaObject metaResultObject, ResultMapping parentMapping)
throws SQLException {
CacheKey cacheKey = createKeyForMultipleResults(rs, parentMapping, parentMapping.getColumn(),
parentMapping.getColumn());
PendingRelation deferLoad = new PendingRelation();
deferLoad.metaObject = metaResultObject;
deferLoad.propertyMapping = parentMapping;
List<PendingRelation> relations = pendingRelations.computeIfAbsent(cacheKey, k -> new ArrayList<>());
// issue #255
relations.add(deferLoad);
ResultMapping previous = nextResultMaps.get(parentMapping.getResultSet());
if (previous == null) {
nextResultMaps.put(parentMapping.getResultSet(), parentMapping);
} else if (!previous.equals(parentMapping)) {
throw new ExecutorException("Two different properties are mapped to the same resultSet");
}
}
/**
* 创建多结果集关联键
*/
private CacheKey createKeyForMultipleResults(ResultSet rs, ResultMapping resultMapping, String names, String columns)
throws SQLException {
CacheKey cacheKey = new CacheKey();
cacheKey.update(resultMapping);
if (columns != null && names != null) {
String[] columnsArray = columns.split(",");
String[] namesArray = names.split(",");
for (int i = 0; i < columnsArray.length; i++) {
Object value = rs.getString(columnsArray[i]);
if (value != null) {
cacheKey.update(namesArray[i]);
cacheKey.update(value);
}
}
}
return cacheKey;
}
/**
* 创建结果对象实例
*/
private Object createResultObject(ResultSetWrapper rsw, ResultMap resultMap, ResultLoaderMap lazyLoader,
String columnPrefix, CacheKey parentRowKey) throws SQLException {
this.useConstructorMappings = false; // reset previous mapping result
final List<Class<?>> constructorArgTypes = new ArrayList<>();
final List<Object> constructorArgs = new ArrayList<>();
Object resultObject = createResultObject(rsw, resultMap, constructorArgTypes, constructorArgs, columnPrefix,
parentRowKey);
if (resultObject != null && !hasTypeHandlerForResultObject(rsw, resultMap.getType())) {
final List<ResultMapping> propertyMappings = resultMap.getPropertyResultMappings();
for (ResultMapping propertyMapping : propertyMappings) {
// issue gcode #109 && issue #149
if (propertyMapping.getNestedQueryId() != null && propertyMapping.isLazy()) {
resultObject = configuration.getProxyFactory().createProxy(resultObject, lazyLoader, configuration,
objectFactory, constructorArgTypes, constructorArgs);
break;
}
}
// (issue #101)
if (resultMap.hasResultMapsUsingConstructorCollection() && resultObject instanceof PendingConstructorCreation) {
linkNestedPendingCreations(rsw, resultMap, columnPrefix, parentRowKey,
(PendingConstructorCreation) resultObject, constructorArgs);
}
}
this.useConstructorMappings = resultObject != null && !constructorArgTypes.isEmpty(); // set current mapping result
return resultObject;
}
/**
* 根据不同策略创建结果对象实例
*/
private Object createResultObject(ResultSetWrapper rsw, ResultMap resultMap, List<Class<?>> constructorArgTypes,
List<Object> constructorArgs, String columnPrefix, CacheKey parentRowKey) throws SQLException {
final Class<?> resultType = resultMap.getType();
final MetaClass metaType = MetaClass.forClass(resultType, reflectorFactory);
final List<ResultMapping> constructorMappings = resultMap.getConstructorResultMappings();
if (hasTypeHandlerForResultObject(rsw, resultType)) {
return createPrimitiveResultObject(rsw, resultMap, columnPrefix);
}
if (!constructorMappings.isEmpty()) {
return createParameterizedResultObject(rsw, resultType, constructorMappings, constructorArgTypes, constructorArgs,
columnPrefix, resultMap.hasResultMapsUsingConstructorCollection(), parentRowKey);
} else if (resultType.isInterface() || metaType.hasDefaultConstructor()) {
return objectFactory.create(resultType);
} else if (shouldApplyAutomaticMappings(resultMap, false)) {
return createByConstructorSignature(rsw, resultMap, columnPrefix, resultType, constructorArgTypes,
constructorArgs);
}
throw new ExecutorException("Do not know how to create an instance of " + resultType);
}
/**
* 创建带参数化构造函数的对象实例
*/
Object createParameterizedResultObject(ResultSetWrapper rsw, Class<?> resultType,
List<ResultMapping> constructorMappings, List<Class<?>> constructorArgTypes, List<Object> constructorArgs,
String columnPrefix, boolean useCollectionConstructorInjection, CacheKey parentRowKey) {
boolean foundValues = false;
for (ResultMapping constructorMapping : constructorMappings) {
final Class<?> parameterType = constructorMapping.getJavaType();
final String column = constructorMapping.getColumn();
final Object value;
try {
if (constructorMapping.getNestedQueryId() != null) {
value = getNestedQueryConstructorValue(rsw, constructorMapping, columnPrefix);
} else if (JdbcType.CURSOR.equals(constructorMapping.getJdbcType())) {
List<?> result = (List<?>) getNestedCursorValue(rsw, constructorMapping, columnPrefix).get(0);
if (objectFactory.isCollection(parameterType)) {
MetaObject collection = configuration.newMetaObject(objectFactory.create(parameterType));
collection.addAll((List<?>) result);
value = collection.getOriginalObject();
} else {
value = toSingleObj(result);
}
} else if (constructorMapping.getNestedResultMapId() != null) {
final String constructorColumnPrefix = getColumnPrefix(columnPrefix, constructorMapping);
final ResultMap resultMap = resolveDiscriminatedResultMap(rsw,
configuration.getResultMap(constructorMapping.getNestedResultMapId()), constructorColumnPrefix);
value = getRowValue(rsw, resultMap, constructorColumnPrefix,
useCollectionConstructorInjection ? parentRowKey : null);
} else {
TypeHandler<?> typeHandler = constructorMapping.getTypeHandler();
if (typeHandler == null) {
typeHandler = typeHandlerRegistry.getTypeHandler(constructorMapping.getJavaType(), rsw.getJdbcType(column));
}
value = typeHandler.getResult(rsw.getResultSet(), prependPrefix(column, columnPrefix));
}
} catch (ResultMapException | SQLException e) {
throw new ExecutorException("Could not process result for mapping: " + constructorMapping, e);
}
constructorArgTypes.add(parameterType);
constructorArgs.add(value);
foundValues = value != null || foundValues;
}
if (!foundValues) {
return null;
}
if (useCollectionConstructorInjection) {
// at least one of the nestedResultMaps contained a collection, we have to defer until later
return new PendingConstructorCreation(resultType, constructorArgTypes, constructorArgs);
}
return objectFactory.create(resultType, constructorArgTypes, constructorArgs);
}
/**
* 使用构造函数签名进行自动映射创建对象实例
*/
private Object createByConstructorSignature(ResultSetWrapper rsw, ResultMap resultMap, String columnPrefix,
Class<?> resultType, List<Class<?>> constructorArgTypes, List<Object> constructorArgs) throws SQLException {
return applyConstructorAutomapping(rsw, resultMap, columnPrefix, resultType, constructorArgTypes, constructorArgs,
findConstructorForAutomapping(resultType, rsw).orElseThrow(() -> new ExecutorException(
"No constructor found in " + resultType.getName() + " matching " + rsw.getClassNames())));
}
/**
* 查找适合自动映射的构造函数
*/
private Optional<Constructor<?>> findConstructorForAutomapping(final Class<?> resultType, ResultSetWrapper rsw) {
Constructor<?>[] constructors = resultType.getDeclaredConstructors();
if (constructors.length == 1) {
return Optional.of(constructors[0]);
}
Optional<Constructor<?>> annotated = Arrays.stream(constructors)
.filter(x -> x.isAnnotationPresent(AutomapConstructor.class)).reduce((x, y) -> {
throw new ExecutorException("@AutomapConstructor should be used in only one constructor.");
});
if (annotated.isPresent()) {
return annotated;
}
if (configuration.isArgNameBasedConstructorAutoMapping()) {
// Finding-best-match type implementation is possible,
// but using @AutomapConstructor seems sufficient.
throw new ExecutorException(MessageFormat.format(
"'argNameBasedConstructorAutoMapping' is enabled and the class ''{0}'' has multiple constructors, so @AutomapConstructor must be added to one of the constructors.",
resultType.getName()));
} else {
return Arrays.stream(constructors).filter(x -> findUsableConstructorByArgTypes(x, rsw.getJdbcTypes())).findAny();
}
}
/**
* 判断构造函数参数类型是否匹配JDBC类型
*/
private boolean findUsableConstructorByArgTypes(final Constructor<?> constructor, final List<JdbcType> jdbcTypes) {
final Class<?>[] parameterTypes = constructor.getParameterTypes();
if (parameterTypes.length != jdbcTypes.size()) {
return false;
}
for (int i = 0; i < parameterTypes.length; i++) {
if (!typeHandlerRegistry.hasTypeHandler(parameterTypes[i], jdbcTypes.get(i))) {
return false;
}
}
return true;
}
/**
* 应用构造函数自动映射创建对象实例
*/
private Object applyConstructorAutomapping(ResultSetWrapper rsw, ResultMap resultMap, String columnPrefix,
Class<?> resultType, List<Class<?>> constructorArgTypes, List<Object> constructorArgs, Constructor<?> constructor)
throws SQLException {
boolean foundValues = false;
if (configuration.isArgNameBasedConstructorAutoMapping()) {
foundValues = applyArgNameBasedConstructorAutoMapping(rsw, resultMap, columnPrefix, constructorArgTypes,
constructorArgs, constructor, foundValues);
} else {
foundValues = applyColumnOrderBasedConstructorAutomapping(rsw, constructorArgTypes, constructorArgs, constructor,
foundValues);
}
return foundValues || configuration.isReturnInstanceForEmptyRow()
? objectFactory.create(resultType, constructorArgTypes, constructorArgs) : null;
}
/**
* 基于列顺序的构造函数自动映射应用
*/
private boolean applyColumnOrderBasedConstructorAutomapping(ResultSetWrapper rsw, List<Class<?>> constructorArgTypes,
List<Object> constructorArgs, Constructor<?> constructor, boolean foundValues) throws SQLException {
Class<?>[] parameterTypes = constructor.getParameterTypes();
if (parameterTypes.length > rsw.getClassNames().size()) {
throw new ExecutorException(MessageFormat.format(
"Constructor auto-mapping of ''{0}'' failed. The constructor takes ''{1}'' arguments, but there are only ''{2}'' columns in the result set.",
constructor, parameterTypes.length, rsw.getClassNames().size()));
}
for (int i = 0; i < parameterTypes.length; i++) {
Class<?> parameterType = parameterTypes[i];
String columnName = rsw.getColumnNames().get(i);
TypeHandler<?> typeHandler = rsw.getTypeHandler(parameterType, columnName);
Object value = typeHandler.getResult(rsw.getResultSet(), columnName);
constructorArgTypes.add(parameterType);
constructorArgs.add(value);
foundValues = value != null || foundValues;
}
return foundValues;
}
/**
* 基于参数名称的构造函数自动映射应用
*/
private boolean applyArgNameBasedConstructorAutoMapping(ResultSetWrapper rsw, ResultMap resultMap,
String columnPrefix, List<Class<?>> constructorArgTypes, List<Object> constructorArgs, Constructor<?> constructor,
boolean foundValues) throws SQLException {
List<String> missingArgs = null;
Parameter[] params = constructor.getParameters();
for (Parameter param : params) {
boolean columnNotFound = true;
Param paramAnno = param.getAnnotation(Param.class);
String paramName = paramAnno == null ? param.getName() : paramAnno.value();
for (String columnName : rsw.getColumnNames()) {
if (columnMatchesParam(columnName, paramName, columnPrefix)) {
Class<?> paramType = param.getType();
TypeHandler<?> typeHandler = rsw.getTypeHandler(paramType, columnName);
Object value = typeHandler.getResult(rsw.getResultSet(), columnName);
constructorArgTypes.add(paramType);
constructorArgs.add(value);
final String mapKey = resultMap.getId() + ":" + columnPrefix;
if (!autoMappingsCache.containsKey(mapKey)) {
constructorAutoMappingColumns.computeIfAbsent(mapKey, k -> new ArrayList<>()).add(columnName);
}
columnNotFound = false;
foundValues = value != null || foundValues;
}
}
if (columnNotFound) {
if (missingArgs == null) {
missingArgs = new ArrayList<>();
}
missingArgs.add(paramName);
}
}
if (foundValues && constructorArgs.size() < params.length) {
throw new ExecutorException(MessageFormat.format(
"Constructor auto-mapping of ''{1}'' failed " + "because ''{0}'' were not found in the result set; "
+ "Available columns are ''{2}'' and mapUnderscoreToCamelCase is ''{3}''.",
missingArgs, constructor, rsw.getColumnNames(), configuration.isMapUnderscoreToCamelCase()));
}
return foundValues;
}
/**
* 判断列名是否匹配参数名
*/
private boolean columnMatchesParam(String columnName, String paramName, String columnPrefix) {
if (columnPrefix != null) {
if (!columnName.toUpperCase(Locale.ENGLISH).startsWith(columnPrefix)) {
return false;
}
columnName = columnName.substring(columnPrefix.length());
}
return paramName
.equalsIgnoreCase(configuration.isMapUnderscoreToCamelCase() ? columnName.replace("_", "") : columnName);
}
/**
* 创建原始类型结果对象
*/
private Object createPrimitiveResultObject(ResultSetWrapper rsw, ResultMap resultMap, String columnPrefix)
throws SQLException {
final Class<?> resultType = resultMap.getType();
final String columnName;
if (!resultMap.getResultMappings().isEmpty()) {
final List<ResultMapping> resultMappingList = resultMap.getResultMappings();
final ResultMapping mapping = resultMappingList.get(0);
columnName = prependPrefix(mapping.getColumn(), columnPrefix);
} else {
columnName = rsw.getColumnNames().get(0);
}
final TypeHandler<?> typeHandler = rsw.getTypeHandler(resultType, columnName);
return typeHandler.getResult(rsw.getResultSet(), columnName);
}
/**
* 获取嵌套查询构造函数值
*/
private Object getNestedQueryConstructorValue(ResultSetWrapper rsw, ResultMapping constructorMapping,
String columnPrefix) throws SQLException {
final String nestedQueryId = constructorMapping.getNestedQueryId();
final MappedStatement nestedQuery = configuration.getMappedStatement(nestedQueryId);
final Class<?> nestedQueryParameterType = nestedQuery.getParameterMap().getType();
final Object nestedQueryParameterObject = prepareParameterForNestedQuery(rsw, constructorMapping,
nestedQueryParameterType, columnPrefix);
Object value = null;
if (nestedQueryParameterObject != null) {
final BoundSql nestedBoundSql = nestedQuery.getBoundSql(nestedQueryParameterObject);
final CacheKey key = executor.createCacheKey(nestedQuery, nestedQueryParameterObject, RowBounds.DEFAULT,
nestedBoundSql);
final Class<?> targetType = constructorMapping.getJavaType();
final ResultLoader resultLoader = new ResultLoader(configuration, executor, nestedQuery,
nestedQueryParameterObject, targetType, key, nestedBoundSql);
value = resultLoader.loadResult();
}
return value;
}
/**
* 获取嵌套查询映射值
*/
private Object getNestedQueryMappingValue(ResultSetWrapper rsw, MetaObject metaResultObject,
ResultMapping propertyMapping, ResultLoaderMap lazyLoader, String columnPrefix) throws SQLException {
final String nestedQueryId = propertyMapping.getNestedQueryId();
final String property = propertyMapping.getProperty();
final MappedStatement nestedQuery = configuration.getMappedStatement(nestedQueryId);
final Class<?> nestedQueryParameterType = nestedQuery.getParameterMap().getType();
final Object nestedQueryParameterObject = prepareParameterForNestedQuery(rsw, propertyMapping,
nestedQueryParameterType, columnPrefix);
Object value = null;
if (nestedQueryParameterObject != null) {
final BoundSql nestedBoundSql = nestedQuery.getBoundSql(nestedQueryParameterObject);
final CacheKey key = executor.createCacheKey(nestedQuery, nestedQueryParameterObject, RowBounds.DEFAULT,
nestedBoundSql);
final Class<?> targetType = propertyMapping.getJavaType();
if (executor.isCached(nestedQuery, key)) {
executor.deferLoad(nestedQuery, metaResultObject, property, key, targetType);
value = DEFERRED;
} else {
final ResultLoader resultLoader = new ResultLoader(configuration, executor, nestedQuery,
nestedQueryParameterObject, targetType, key, nestedBoundSql);
if (propertyMapping.isLazy()) {
lazyLoader.addLoader(property, metaResultObject, resultLoader);
value = DEFERRED;
} else {
value = resultLoader.loadResult();
}
}
}
return value;
}
/**
* 准备嵌套查询参数
*/
private Object prepareParameterForNestedQuery(ResultSetWrapper rsw, ResultMapping resultMapping,
Class<?> parameterType, String columnPrefix) throws SQLException {
if (resultMapping.isCompositeResult()) {
return prepareCompositeKeyParameter(rsw, resultMapping, parameterType, columnPrefix);
}
return prepareSimpleKeyParameter(rsw, resultMapping, parameterType, columnPrefix);
}
/**
* 准备简单键参数
*/
private Object prepareSimpleKeyParameter(ResultSetWrapper rsw, ResultMapping resultMapping, Class<?> parameterType,
String columnPrefix) throws SQLException {
// parameterType is ignored in this case
final String columnName = prependPrefix(resultMapping.getColumn(), columnPrefix);
final TypeHandler<?> typeHandler = rsw.getTypeHandler(null, columnName);
return typeHandler.getResult(rsw.getResultSet(), columnName);
}
/**
* 准备复合键参数
*/
private Object prepareCompositeKeyParameter(ResultSetWrapper rsw, ResultMapping resultMapping, Class<?> parameterType,
String columnPrefix) throws SQLException {
// Map is used if parameterType is not specified
final Object parameterObject = instantiateParameterObject(parameterType);
final MetaObject metaObject = configuration.newMetaObject(parameterObject);
boolean foundValues = false;
for (ResultMapping innerResultMapping : resultMapping.getComposites()) {
final String columnName = prependPrefix(innerResultMapping.getColumn(), columnPrefix);
final TypeHandler<?> typeHandler = rsw
.getTypeHandler(metaObject.getGenericSetterType(innerResultMapping.getProperty()).getKey(), columnName);
final Object propValue = typeHandler.getResult(rsw.getResultSet(), columnName);
// issue #353 & #560 do not execute nested query if key is null
if (propValue != null) {
metaObject.setValue(innerResultMapping.getProperty(), propValue);
foundValues = true;
}
}
return foundValues ? parameterObject : null;
}
/**
* 实例化参数对象
*/
private Object instantiateParameterObject(Class<?> parameterType) {
if (parameterType == null) {
return new HashMap<>();
}
if (ParamMap.class.equals(parameterType)) {
return new HashMap<>(); // issue #649
} else {
return objectFactory.create(parameterType);
}
}
/**
* 解析鉴别器映射结果图
*/
public ResultMap resolveDiscriminatedResultMap(ResultSetWrapper rsw, ResultMap resultMap, String columnPrefix)
throws SQLException {
Set<String> pastDiscriminators = new HashSet<>();
Discriminator discriminator = resultMap.getDiscriminator();
while (discriminator != null) {
final Object value = getDiscriminatorValue(rsw, discriminator, columnPrefix);
final String discriminatedMapId = discriminator.getMapIdFor(String.valueOf(value));
if (!configuration.hasResultMap(discriminatedMapId)) {
break;
}
resultMap = configuration.getResultMap(discriminatedMapId);
Discriminator lastDiscriminator = discriminator;
discriminator = resultMap.getDiscriminator();
if (discriminator == lastDiscriminator || !pastDiscriminators.add(discriminatedMapId)) {
break;
}
}
return resultMap;
}
/**
* 获取鉴别器值
*/
private Object getDiscriminatorValue(ResultSetWrapper rsw, Discriminator discriminator, String columnPrefix)
throws SQLException {
final ResultMapping resultMapping = discriminator.getResultMapping();
String column = prependPrefix(resultMapping.getColumn(), columnPrefix);
TypeHandler<?> typeHandler = resultMapping.getTypeHandler();
if (typeHandler == null) {
typeHandler = typeHandlerRegistry.getTypeHandler(resultMapping.getJavaType(), rsw.getJdbcType(column));
}
return typeHandler.getResult(rsw.getResultSet(), column);
}
/**
* 给列名加上前缀
*/
private String prependPrefix(String columnName, String prefix) {
if (columnName == null || columnName.length() == 0 || prefix == null || prefix.length() == 0) {
return columnName;
}
return prefix + columnName;
}
/**
* 处理嵌套结果映射的行值
*/
private void handleRowValuesForNestedResultMap(ResultSetWrapper rsw, ResultMap resultMap,
ResultHandler<?> resultHandler, RowBounds rowBounds, ResultMapping parentMapping) throws SQLException {
final boolean useCollectionConstructorInjection = resultMap.hasResultMapsUsingConstructorCollection();
PendingConstructorCreation lastHandledCreation = null;
if (useCollectionConstructorInjection) {
verifyPendingCreationPreconditions(parentMapping);
}
final DefaultResultContext<Object> resultContext = new DefaultResultContext<>();
ResultSet resultSet = rsw.getResultSet();
skipRows(resultSet, rowBounds);
Object rowValue = previousRowValue;
while (shouldProcessMoreRows(resultContext, rowBounds) && !resultSet.isClosed() && resultSet.next()) {
final ResultMap discriminatedResultMap = resolveDiscriminatedResultMap(rsw, resultMap, null);
final CacheKey rowKey = createRowKey(discriminatedResultMap, rsw, null);
final Object partialObject = nestedResultObjects.get(rowKey);
final boolean foundNewUniqueRow = partialObject == null;
// issue #577, #542 && #101
if (useCollectionConstructorInjection) {
if (foundNewUniqueRow && lastHandledCreation != null) {
createAndStorePendingCreation(resultHandler, resultSet, resultContext, lastHandledCreation);
lastHandledCreation = null;
}
rowValue = getRowValue(rsw, discriminatedResultMap, rowKey, null, partialObject);
if (rowValue instanceof PendingConstructorCreation) {
lastHandledCreation = (PendingConstructorCreation) rowValue;
}
} else if (mappedStatement.isResultOrdered()) {
if (foundNewUniqueRow && rowValue != null) {
nestedResultObjects.clear();
storeObject(resultHandler, resultContext, rowValue, parentMapping, resultSet);
}
rowValue = getRowValue(rsw, discriminatedResultMap, rowKey, null, partialObject);
} else {
rowValue = getRowValue(rsw, discriminatedResultMap, rowKey, null, partialObject);
if (foundNewUniqueRow) {
storeObject(resultHandler, resultContext, rowValue, parentMapping, resultSet);
}
}
}
if (useCollectionConstructorInjection && lastHandledCreation != null) {
createAndStorePendingCreation(resultHandler, resultSet, resultContext, lastHandledCreation);
} else if (rowValue != null && mappedStatement.isResultOrdered()
&& shouldProcessMoreRows(resultContext, rowBounds)) {
storeObject(resultHandler, resultContext, rowValue, parentMapping, resultSet);
previousRowValue = null;
} else if (rowValue != null) {
previousRowValue = rowValue;
}
}
/**
* 链接嵌套待处理创建项
*/
private void linkNestedPendingCreations(ResultSetWrapper rsw, ResultMap resultMap, String columnPrefix,
CacheKey parentRowKey, PendingConstructorCreation pendingCreation, List<Object> constructorArgs)
throws SQLException {
if (parentRowKey == null) {
// nothing to link, possibly due to simple (non-nested) result map
return;
}
final CacheKey rowKey = createRowKey(resultMap, rsw, columnPrefix);
final CacheKey combinedKey = combineKeys(rowKey, parentRowKey);
if (combinedKey != CacheKey.NULL_CACHE_KEY) {
nestedResultObjects.put(combinedKey, pendingCreation);
}
final List<ResultMapping> constructorMappings = resultMap.getConstructorResultMappings();
for (int index = 0; index < constructorMappings.size(); index++) {
final ResultMapping constructorMapping = constructorMappings.get(index);
final String nestedResultMapId = constructorMapping.getNestedResultMapId();
if (nestedResultMapId == null) {
continue;
}
final Class<?> javaType = constructorMapping.getJavaType();
if (javaType == null || !objectFactory.isCollection(javaType)) {
continue;
}
final String constructorColumnPrefix = getColumnPrefix(columnPrefix, constructorMapping);
final ResultMap nestedResultMap = resolveDiscriminatedResultMap(rsw,
configuration.getResultMap(constructorMapping.getNestedResultMapId()), constructorColumnPrefix);
final Object actualValue = constructorArgs.get(index);
final boolean hasValue = actualValue != null;
final boolean isInnerCreation = actualValue instanceof PendingConstructorCreation;
final boolean alreadyCreatedCollection = hasValue && objectFactory.isCollection(actualValue.getClass());
if (!isInnerCreation) {
final Collection<Object> value = pendingCreation.initializeCollectionForResultMapping(objectFactory,
nestedResultMap, constructorMapping, index);
if (!alreadyCreatedCollection) {
// override values with empty collection
constructorArgs.set(index, value);
}
// since we are linking a new value, we need to let nested objects know we did that
final CacheKey nestedRowKey = createRowKey(nestedResultMap, rsw, constructorColumnPrefix);
final CacheKey nestedCombinedKey = combineKeys(nestedRowKey, combinedKey);
if (nestedCombinedKey != CacheKey.NULL_CACHE_KEY) {
nestedResultObjects.put(nestedCombinedKey, pendingCreation);
}
if (hasValue) {
pendingCreation.linkCollectionValue(constructorMapping, actualValue);
}
} else {
final PendingConstructorCreation innerCreation = (PendingConstructorCreation) actualValue;
final Collection<Object> value = pendingCreation.initializeCollectionForResultMapping(objectFactory,
nestedResultMap, constructorMapping, index);
// we will fill this collection when building the final object
constructorArgs.set(index, value);
// link the creation for building later
pendingCreation.linkCreation(constructorMapping, innerCreation);
}
}
}
/**
* 应用嵌套待处理构造创建项
*/
private boolean applyNestedPendingConstructorCreations(ResultSetWrapper rsw, ResultMap resultMap,
MetaObject metaObject, String parentPrefix, CacheKey parentRowKey, boolean newObject, boolean foundValues) {
if (newObject) {
// new objects are linked by createResultObject
return false;
}
for (ResultMapping constructorMapping : resultMap.getConstructorResultMappings()) {
final String nestedResultMapId = constructorMapping.getNestedResultMapId();
final Class<?> parameterType = constructorMapping.getJavaType();
if (nestedResultMapId == null || constructorMapping.getResultSet() != null || parameterType == null
|| !objectFactory.isCollection(parameterType)) {
continue;
}
try {
final String columnPrefix = getColumnPrefix(parentPrefix, constructorMapping);
final ResultMap nestedResultMap = getNestedResultMap(rsw, nestedResultMapId, columnPrefix);
final CacheKey rowKey = createRowKey(nestedResultMap, rsw, columnPrefix);
final CacheKey combinedKey = combineKeys(rowKey, parentRowKey);
// should have inserted already as a nested result object
Object rowValue = nestedResultObjects.get(combinedKey);
PendingConstructorCreation pendingConstructorCreation = null;
if (rowValue instanceof PendingConstructorCreation) {
pendingConstructorCreation = (PendingConstructorCreation) rowValue;
} else if (rowValue != null) {
// found a simple object that was already linked/handled
continue;
}
final boolean newValueForNestedResultMap = pendingConstructorCreation == null;
if (newValueForNestedResultMap) {
final Object parentObject = metaObject.getOriginalObject();
if (!(parentObject instanceof PendingConstructorCreation)) {
throw new ExecutorException(
"parentObject is not a pending creation, cannot continue linking! MyBatis internal error!");
}
pendingConstructorCreation = (PendingConstructorCreation) parentObject;
}
rowValue = getRowValue(rsw, nestedResultMap, combinedKey, columnPrefix,
newValueForNestedResultMap ? null : pendingConstructorCreation);
if (rowValue == null) {
continue;
}
if (rowValue instanceof PendingConstructorCreation) {
if (newValueForNestedResultMap) {
// we created a brand new pcc. this is a new collection value
pendingConstructorCreation.linkCreation(constructorMapping, (PendingConstructorCreation) rowValue);
foundValues = true;
}
} else {
pendingConstructorCreation.linkCollectionValue(constructorMapping, rowValue);
foundValues = true;
if (combinedKey != CacheKey.NULL_CACHE_KEY) {
nestedResultObjects.put(combinedKey, pendingConstructorCreation);
}
}
} catch (SQLException e) {
throw new ExecutorException("Error getting constructor collection nested result map values for '"
+ constructorMapping.getProperty() + "'. Cause: " + e, e);
}
}
return foundValues;
}
/**
* 创建待处理构造项
*/
private void createPendingConstructorCreations(Object rowValue) {
// handle possible pending creations within this object
// by now, the property mapping has been completely built, we can reconstruct it
final PendingRelation pendingRelation = pendingPccRelations.remove(rowValue);
final MetaObject metaObject = pendingRelation.metaObject;
final ResultMapping resultMapping = pendingRelation.propertyMapping;
// get the list to be built
Object collectionProperty = instantiateCollectionPropertyIfAppropriate(resultMapping, metaObject);
if (collectionProperty != null) {
// we expect pending creations now
final Collection<Object> pendingCreations = (Collection<Object>) collectionProperty;
// remove the link to the old collection
metaObject.setValue(resultMapping.getProperty(), null);
// create new collection property
collectionProperty = instantiateCollectionPropertyIfAppropriate(resultMapping, metaObject);
final MetaObject targetMetaObject = configuration.newMetaObject(collectionProperty);
// create the pending objects
for (Object pendingCreation : pendingCreations) {
if (pendingCreation instanceof PendingConstructorCreation) {
final PendingConstructorCreation pendingConstructorCreation = (PendingConstructorCreation) pendingCreation;
targetMetaObject.add(pendingConstructorCreation.create(objectFactory));
}
}
}
}
/**
* 验证待处理创建的前提条件
*/
private void verifyPendingCreationPreconditions(ResultMapping parentMapping) {
if (parentMapping != null) {
throw new ExecutorException(
"Cannot construct objects with collections in constructors using multiple result sets yet!");
}
if (!mappedStatement.isResultOrdered()) {
throw new ExecutorException("Cannot reliably construct result if we are not sure the results are ordered "
+ "so that no new previous rows would occur, set resultOrdered on your mapped statement if you have verified this");
}
}
/**
* 创建并存储待处理创建项
*/
private void createAndStorePendingCreation(ResultHandler<?> resultHandler, ResultSet resultSet,
DefaultResultContext<Object> resultContext, PendingConstructorCreation pendingCreation) throws SQLException {
final Object result = pendingCreation.create(objectFactory);
storeObject(resultHandler, resultContext, result, null, resultSet);
nestedResultObjects.clear();
}
/**
* 应用嵌套结果映射
*/
private boolean applyNestedResultMappings(ResultSetWrapper rsw, ResultMap resultMap, MetaObject metaObject,
String parentPrefix, CacheKey parentRowKey, boolean newObject) {
boolean foundValues = false;
for (ResultMapping resultMapping : resultMap.getPropertyResultMappings()) {
final String nestedResultMapId = resultMapping.getNestedResultMapId();
if (nestedResultMapId != null && resultMapping.getResultSet() == null) {
try {
final String columnPrefix = getColumnPrefix(parentPrefix, resultMapping);
final ResultMap nestedResultMap = getNestedResultMap(rsw, nestedResultMapId, columnPrefix);
if (resultMapping.getColumnPrefix() == null) {
// try to fill circular reference only when columnPrefix
// is not specified for the nested result map (issue #215)
Object ancestorObject = ancestorObjects.get(nestedResultMapId);
if (ancestorObject != null) {
if (newObject) {
linkObjects(metaObject, resultMapping, ancestorObject); // issue #385
}
continue;
}
}
final CacheKey rowKey = createRowKey(nestedResultMap, rsw, columnPrefix);
final CacheKey combinedKey = combineKeys(rowKey, parentRowKey);
Object rowValue = nestedResultObjects.get(combinedKey);
boolean knownValue = rowValue != null;
instantiateCollectionPropertyIfAppropriate(resultMapping, metaObject); // mandatory
if (anyNotNullColumnHasValue(resultMapping, columnPrefix, rsw)) {
rowValue = getRowValue(rsw, nestedResultMap, combinedKey, columnPrefix, rowValue);
if (rowValue != null && !knownValue) {
linkObjects(metaObject, resultMapping, rowValue);
foundValues = true;
}
}
} catch (SQLException e) {
throw new ExecutorException(
"Error getting nested result map values for '" + resultMapping.getProperty() + "'. Cause: " + e, e);
}
}
}
// (issue #101)
if (resultMap.hasResultMapsUsingConstructorCollection()) {
foundValues = applyNestedPendingConstructorCreations(rsw, resultMap, metaObject, parentPrefix, parentRowKey,
newObject, foundValues);
}
return foundValues;
}
/**
* 获取列前缀
*/
private String getColumnPrefix(String parentPrefix, ResultMapping resultMapping) {
final StringBuilder columnPrefixBuilder = new StringBuilder();
if (parentPrefix != null) {
columnPrefixBuilder.append(parentPrefix);
}
if (resultMapping.getColumnPrefix() != null) {
columnPrefixBuilder.append(resultMapping.getColumnPrefix());
}
return columnPrefixBuilder.length() == 0 ? null : columnPrefixBuilder.toString().toUpperCase(Locale.ENGLISH);
}
/**
* 检查非空列是否存在有效值
*/
private boolean anyNotNullColumnHasValue(ResultMapping resultMapping, String columnPrefix, ResultSetWrapper rsw)
throws SQLException {
Set<String> notNullColumns = resultMapping.getNotNullColumns();
if (notNullColumns != null && !notNullColumns.isEmpty()) {
ResultSet rs = rsw.getResultSet();
for (String column : notNullColumns) {
rs.getObject(prependPrefix(column, columnPrefix));
if (!rs.wasNull()) {
return true;
}
}
return false;
}
if (columnPrefix != null) {
for (String columnName : rsw.getColumnNames()) {
if (columnName.toUpperCase(Locale.ENGLISH).startsWith(columnPrefix.toUpperCase(Locale.ENGLISH))) {
return true;
}
}
return false;
}
return true;
}
/**
* 获取嵌套结果映射
*/
private ResultMap getNestedResultMap(ResultSetWrapper rsw, String nestedResultMapId, String columnPrefix)
throws SQLException {
ResultMap nestedResultMap = configuration.getResultMap(nestedResultMapId);
return resolveDiscriminatedResultMap(rsw, nestedResultMap, columnPrefix);
}
/**
* 创建行键
*/
private CacheKey createRowKey(ResultMap resultMap, ResultSetWrapper rsw, String columnPrefix) throws SQLException {
final CacheKey cacheKey = new CacheKey();
cacheKey.update(resultMap.getId());
List<ResultMapping> resultMappings = getResultMappingsForRowKey(resultMap);
if (resultMappings.isEmpty()) {
if (Map.class.isAssignableFrom(resultMap.getType())) {
createRowKeyForMap(rsw, cacheKey);
} else {
createRowKeyForUnmappedProperties(resultMap, rsw, cacheKey, columnPrefix);
}
} else {
createRowKeyForMappedProperties(resultMap, rsw, cacheKey, resultMappings, columnPrefix);
}
if (cacheKey.getUpdateCount() < 2) {
return CacheKey.NULL_CACHE_KEY;
}
return cacheKey;
}
/**
* 合并两个缓存键
*/
private CacheKey combineKeys(CacheKey rowKey, CacheKey parentRowKey) {
if (rowKey.getUpdateCount() > 1 && parentRowKey.getUpdateCount() > 1) {
CacheKey combinedKey;
try {
combinedKey = rowKey.clone();
} catch (CloneNotSupportedException e) {
throw new ExecutorException("Error cloning cache key. Cause: " + e, e);
}
combinedKey.update(parentRowKey);
return combinedKey;
}
return CacheKey.NULL_CACHE_KEY;
}
/**
* 获取用于创建行键的结果映射
*/
private List<ResultMapping> getResultMappingsForRowKey(ResultMap resultMap) {
List<ResultMapping> resultMappings = resultMap.getIdResultMappings();
if (resultMappings.isEmpty()) {
resultMappings = resultMap.getPropertyResultMappings();
}
return resultMappings;
}
/**
* 为已映射属性创建行键
*/
private void createRowKeyForMappedProperties(ResultMap resultMap, ResultSetWrapper rsw, CacheKey cacheKey,
List<ResultMapping> resultMappings, String columnPrefix) throws SQLException {
for (ResultMapping resultMapping : resultMappings) {
if (resultMapping.isSimple()) {
final String column = prependPrefix(resultMapping.getColumn(), columnPrefix);
TypeHandler<?> th = resultMapping.getTypeHandler();
Set<String> mappedColumnNames = rsw.getMappedColumnNames(resultMap, columnPrefix);
// Issue #114
if (column != null && mappedColumnNames.contains(column.toUpperCase(Locale.ENGLISH))) {
if (th == null) {
th = typeHandlerRegistry.getTypeHandler(rsw.getJdbcType(column));
}
if (th == null) {
th = ObjectTypeHandler.INSTANCE;
}
final Object value = th.getResult(rsw.getResultSet(), column);
if (value != null || configuration.isReturnInstanceForEmptyRow()) {
cacheKey.update(column);
cacheKey.update(value);
}
}
}
}
}
/**
* 为未映射属性创建行键
*/
private void createRowKeyForUnmappedProperties(ResultMap resultMap, ResultSetWrapper rsw, CacheKey cacheKey,
String columnPrefix) throws SQLException {
final MetaClass metaType = MetaClass.forClass(resultMap.getType(), reflectorFactory);
List<String> unmappedColumnNames = rsw.getUnmappedColumnNames(resultMap, columnPrefix);
for (String column : unmappedColumnNames) {
String property = column;
if (columnPrefix != null && !columnPrefix.isEmpty()) {
// When columnPrefix is specified, ignore columns without the prefix.
if (!column.toUpperCase(Locale.ENGLISH).startsWith(columnPrefix)) {
continue;
}
property = column.substring(columnPrefix.length());
}
if (metaType.findProperty(property, configuration.isMapUnderscoreToCamelCase()) != null) {
String value = rsw.getResultSet().getString(column);
if (value != null) {
cacheKey.update(column);
cacheKey.update(value);
}
}
}
}
/**
* 为Map类型创建行键
*/
private void createRowKeyForMap(ResultSetWrapper rsw, CacheKey cacheKey) throws SQLException {
List<String> columnNames = rsw.getColumnNames();
for (String columnName : columnNames) {
final String value = rsw.getResultSet().getString(columnName);
if (value != null) {
cacheKey.update(columnName);
cacheKey.update(value);
}
}
}
/**
* 连接对象
*/
private void linkObjects(MetaObject metaObject, ResultMapping resultMapping, Object rowValue) {
linkObjects(metaObject, resultMapping, rowValue, false);
}
/**
* 连接对象（支持游标结果）
*/
private void linkObjects(MetaObject metaObject, ResultMapping resultMapping, Object rowValue,
boolean isNestedCursorResult) {
final Object collectionProperty = instantiateCollectionPropertyIfAppropriate(resultMapping, metaObject);
if (collectionProperty != null) {
final MetaObject targetMetaObject = configuration.newMetaObject(collectionProperty);
if (isNestedCursorResult) {
targetMetaObject.addAll((List<?>) rowValue);
} else {
targetMetaObject.add(rowValue);
}
// it is possible for pending creations to get set via property mappings,
// keep track of these, so we can rebuild them.
final Object originalObject = metaObject.getOriginalObject();
if (rowValue instanceof PendingConstructorCreation && !pendingPccRelations.containsKey(originalObject)) {
PendingRelation pendingRelation = new PendingRelation();
pendingRelation.propertyMapping = resultMapping;
pendingRelation.metaObject = metaObject;
pendingPccRelations.put(originalObject, pendingRelation);
}
} else {
metaObject.setValue(resultMapping.getProperty(),
isNestedCursorResult ? toSingleObj((List<?>) rowValue) : rowValue);
}
}
/**
* 转换为单一对象
*/
private Object toSingleObj(List<?> list) {
// Even if there are multiple elements, silently returns the first one.
return list.isEmpty() ? null : list.get(0);
}
/**
* 适当时实例化集合属性
*/
private Object instantiateCollectionPropertyIfAppropriate(ResultMapping resultMapping, MetaObject metaObject) {
final String propertyName = resultMapping.getProperty();
Object propertyValue = metaObject.getValue(propertyName);
if (propertyValue == null) {
Class<?> type = resultMapping.getJavaType();
if (type == null) {
type = metaObject.getSetterType(propertyName);
}
try {
if (objectFactory.isCollection(type)) {
propertyValue = objectFactory.create(type);
metaObject.setValue(propertyName, propertyValue);
return propertyValue;
}
} catch (Exception e) {
throw new ExecutorException(
"Error instantiating collection property for result '" + resultMapping.getProperty() + "'. Cause: " + e,
e);
}
} else if (objectFactory.isCollection(propertyValue.getClass())) {
return propertyValue;
}
return null;
}
/**
* 检查结果对象是否有类型处理器
*/
private boolean hasTypeHandlerForResultObject(ResultSetWrapper rsw, Class<?> resultType) {
if (rsw.getColumnNames().size() == 1) {
return typeHandlerRegistry.hasTypeHandler(resultType, rsw.getJdbcType(rsw.getColumnNames().get(0)));
}
return typeHandlerRegistry.hasTypeHandler(resultType);
}
}7 类型转换模块
8 插件机制
参考executor的创建：
java
public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
executorType = executorType == null ? defaultExecutorType : executorType;
Executor executor;
if (ExecutorType.BATCH == executorType) {
executor = new BatchExecutor(this, transaction);
} else if (ExecutorType.REUSE == executorType) {
executor = new ReuseExecutor(this, transaction);
} else {
executor = new SimpleExecutor(this, transaction);
}
if (cacheEnabled) {
executor = new CachingExecutor(executor);
}
return (Executor) interceptorChain.pluginAll(executor);
}
java
public Object pluginAll(Object target) {
for (Interceptor interceptor : interceptors) {
target = interceptor.plugin(target);
}
return target;
}
java
default Object plugin(Object target) {
return Plugin.wrap(target, this);
}
java
public static Object wrap(Object target, Interceptor interceptor) {
Map<Class<?>, Set<Method>> signatureMap = getSignatureMap(interceptor);
Class<?> type = target.getClass();
Class<?>[] interfaces = getAllInterfaces(type, signatureMap);
if (interfaces.length > 0) {
return Proxy.newProxyInstance(type.getClassLoader(), interfaces, new Plugin(target, interceptor, signatureMap));
}
return target;
}Plugin类的属性：
java
private final Object target;//被代理的对象
private final Interceptor interceptor;//插件
private final Map<Class<?>, Set<Method>> signatureMap;//注解集合
java
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
//获取注解列表
Set<Method> methods = signatureMap.get(method.getDeclaringClass());
//执行插件
if (methods != null && methods.contains(method)) {
return interceptor.intercept(new Invocation(target, method, args));
}
//直接执行被代理对象的方法
return method.invoke(target, args);
} catch (Exception e) {
throw ExceptionUtil.unwrapThrowable(e);
}
}配置解析
XMLConfigBuilder：读取xml配置，并扫描mapper文件
Configuration：存储配置信息和MapperRegistry
MapperRegistry：存储所有mapper，每一个mapper class对应一个MapperProxyFactory。
