使用 HTML + JavaScript 实现滑动验证码

bjzhang752025-12-31 13:15

文章目录

一、滑动验证码

在现代网络安全体系中，人机验证机制扮演着至关重要的角色。传统的文本验证码由于识别困难、用户体验差等问题逐渐被更先进的验证方式取代。滑动验证码作为一种新型的人机验证手段，凭借其直观的操作体验和良好的安全性，广泛应用于各类网站和应用程序中。本文将详细介绍如何使用 HTML、CSS 和 JavaScript 构建一个完整的滑动验证码系统。

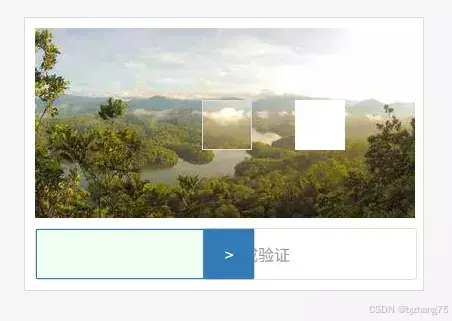

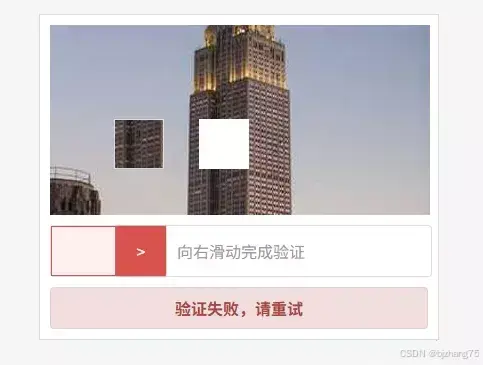

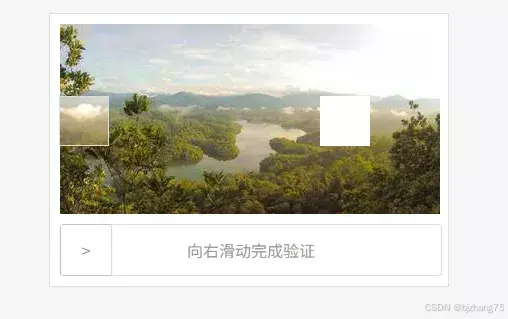

二、效果演示

滑动验证码的核心交互流程包括图像加载、拼图生成、用户拖拽和验证判断四个阶段，用户通过拖拽右侧滑块向右移动，使拼图块与背景图像中的缺口对齐，验证成功时显示绿色成功提示，失败则显示红色错误信息并自动重置。

三、系统分析

1、页面结构

整个滑动验证码系统采用简洁清晰的 HTML 结构设计，主要包括图像显示区（verify-img）、滑动控制区（erify-bar-box）和结果显示区（verify-result）三个核心部分。

html 复制代码
<div class="verify-container">
  <div class="verify-box">
    <div class="verify-img">
      <img class="back-img" src="" style="width:100%;height:100%;"/>
      <div class="loading-indicator" id="backImgLoading" style="position:absolute;top:50%;left:50%;transform:translate(-50%,-50%);color:#666;font-size:14px;display:none;">加载中...</div>
    </div>
    <div class="verify-bar-box">
      <span class="verify-msg">向右滑动完成验证</span>
      <div class="verify-left-bar"></div>
      <div class="verify-move-block">
        <span>&gt;</span>
        <div class="verify-sub-block">
          <img class="block-img" src="" style="width:100%;height:100%;"/>
        </div>
      </div>
    </div>
  </div>
  <div class="verify-result" id="verifyResult"></div>
</div>

2、核心功能实现

2.1 初始化流程

主要实现了随机位置生成、图像加载和拼图绘制三个步骤。

javascript 复制代码
async function init() {
  // 显示加载指示器
  showLoading()
  targetX = Math.floor(Math.random() * (imgWidth - bolckSize - 60)) + 30;
  targetY = Math.floor(Math.random() * (imgHeight - bolckSize - 20)) + 10;
  var img = await loadImg(imgUrl+'?'+Math.random());
  // 创建背景画布并绘制带缺口的图像
  var backCanvas = document.createElement('canvas')
  backCanvas.width = imgWidth;
  backCanvas.height = imgHeight;
  var backCtx = backCanvas.getContext('2d');
  backCtx.drawImage(img, 0, 0, 380, 190, 0, 0, imgWidth, imgHeight);
  backCtx.fillStyle = '#FFFFFF';
  backCtx.fillRect(targetX, targetY, 50, 50);
  backImg.src = backCanvas.toDataURL('image/png');
  // 创建拼图块
  var canvas = document.createElement('canvas')
  canvas.width = 50;
  canvas.height = 50;
  var ctx = canvas.getContext('2d');
  ctx.drawImage(img, targetX, targetY, bolckSize, bolckSize, 0, 0, bolckSize, bolckSize)
  blockImg.src = canvas.toDataURL('image/png');
  subBlock.style.top = (-201 + targetY) + 'px';
  // 隐藏加载指示器
  hideLoading()
}

2.2 拖拽交互处理

通过鼠标事件监听实现流畅的拖拽体验，当用户在滑块上按下鼠标并移动时，滑块滑块会随鼠标移动；当用户释放鼠标时，进行位置校验，如果失败滑块会变为红色并平滑的回到起点位置。

javascript 复制代码
// 鼠标按下事件 - 开始拖拽
moveBlock.addEventListener('mousedown', function(e) {
  isDragging = true;
  startX = e.clientX;
  moveBlock.style.backgroundColor = '#337AB7';
  moveBlock.style.color = '#FFFFFF';
  verifyLeftBar.style.border = '1px solid #337AB7';
});
// 鼠标移动事件 - 拖拽过程
document.addEventListener('mousemove', function(e) {
  if (!isDragging) return;
  var newLeft = e.clientX - startX - 2;
  // 限制滑块移动范围
  if (newLeft < 0) newLeft = 0;
  if (newLeft > maxWidth) newLeft = maxWidth;

  moveBlock.style.left = newLeft + 'px';
  verifyLeftBar.style.width = newLeft + 'px';
  verifyLeftBar.style.border = '1px solid #337AB7';
});
// 鼠标释放事件 - 结束拖拽
document.addEventListener('mouseup', function() {
  if (!isDragging) return;
  isDragging = false;
  var currentPosition = moveBlock.offsetLeft;
  if (Math.abs(currentPosition - targetX) <= tolerance) {
    moveBlock.style.backgroundColor = '#5CB85C';
    moveBlock.style.color = '#FFFFFF';
    verifyLeftBar.style.border = '1px solid #5CB85C';

    // 显示成功提示
    verifyResult.textContent = '验证成功！';
    verifyResult.className = 'verify-result success';
    return;
  }
  moveBlock.style.backgroundColor = '#D9534F';
  moveBlock.style.color = '#FFFFFF';
  verifyLeftBar.style.border = '1px solid #D9534F';
  verifyLeftBar.style.backgroundColor = '#fff0f0';
  // 显示失败提示
  verifyResult.textContent = '验证失败，请重试';
  verifyResult.className = 'verify-result fail';
  // 滑块回弹动画
  moveBlock.style.transition = 'left 0.8s';
  moveBlock.style.left = '0px';

  verifyLeftBar.style.transition = 'width 0.8s';
  verifyLeftBar.style.width = '0px';

  // 动画结束后清除过渡效果
  setTimeout(() => {
    init()
    moveBlock.style.transition = '';
    verifyLeftBar.style.transition = '';
    moveBlock.style.backgroundColor = '#FFFFFF';
    moveBlock.style.color = '#999';
    verifyLeftBar.style.backgroundColor = '#F0FFF0';
    // 清除验证结果提示
    verifyResult.className = 'verify-result';
  }, 800);
});

四、扩展建议

  • 添加服务器端验证，防止客户端伪造结果
  • 增加行为特征检测，识别自动化工具攻击
  • 添加个性化拼图形状设计，丰富视觉表现
  • 增加重试次数限制机制，防止无限重试

五、完整代码

html 复制代码
<!DOCTYPE html>
<html lang="zh-CN">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>滑动验证码</title>
  <style>
      * {
          margin: 0;
          padding: 0;
          box-sizing: border-box;
      }
      body {
          background: #f5f5f5;
      }
      .container {
          display: flex;
          padding: 20px;
          justify-content: center;
      }
      .verify-container {
          background: #fff;
          width:400px;
          padding: 10px;
          border: 1px solid #ddd;
          user-select: none;
      }
      .verify-img {
          width: 380px;
          height: 190px;
          margin-bottom: 10px;
          position: relative;
      }
      .verify-bar-box {
          width: 380px;
          height: 50px;
          line-height: 50px;
          position: relative;
          background: #FFFFFF;
          text-align: center;
          box-sizing: content-box;
          border: 1px solid #ddd;
          border-radius: 4px;
          color: #999;
      }
      .verify-left-bar {
          background: #f0fff0;
          position: absolute;
          top: 0;
          left: 0;
          height: 50px;
      }
      .verify-move-block {
          position: absolute;
          top: 0;
          left: 0;
          background: #fff;
          cursor: pointer;
          box-sizing: content-box;
          box-shadow: 0 0 2px #888888;
          border-radius: 1px;
          width: 50px;
          height: 50px;
      }
      .verify-sub-block {
          position: absolute;
          border: 1px solid #ddd;
          height: 50px;
          left: -2px;
          top: -201px;
      }

      .verify-result {
          margin-top: 10px;
          padding: 8px 12px;
          text-align: center;
          border-radius: 4px;
          font-weight: bold;
          display: none;
      }

      .verify-result.success {
          background-color: #dff0d8;
          color: #3c763d;
          border: 1px solid #d6e9c6;
          display: block;
      }

      .verify-result.fail {
          background-color: #f2dede;
          color: #a94442;
          border: 1px solid #ebccd1;
          display: block;
      }
      .loading-indicator {
          padding: 5px 10px;
          border-radius: 4px;
      }
  </style>
</head>
<body>
<div class="container">
  <div class="verify-container">
    <div class="verify-box">
      <div class="verify-img">
        <img class="back-img" src="" style="width:100%;height:100%;"/>
        <div class="loading-indicator" id="backImgLoading" style="position:absolute;top:50%;left:50%;transform:translate(-50%,-50%);color:#666;font-size:14px;display:none;">加载中...</div>
      </div>
      <div class="verify-bar-box">
        <span class="verify-msg">向右滑动完成验证</span>
        <div class="verify-left-bar"></div>
        <div class="verify-move-block">
          <span>&gt;</span>
          <div class="verify-sub-block">
            <img class="block-img" src="" style="width:100%;height:100%;"/>
          </div>
        </div>
      </div>
    </div>
    <div class="verify-result" id="verifyResult"></div>
  </div>
</div>
<script>
  var verifyBarBox = document.querySelector('.verify-bar-box');
  var moveBlock = document.querySelector('.verify-move-block');
  var verifyLeftBar = document.querySelector('.verify-left-bar');
  var backImg = document.querySelector('.back-img');
  var subBlock = document.querySelector('.verify-sub-block');
  var blockImg = document.querySelector('.block-img');
  var verifyResult = document.getElementById('verifyResult');
  var backImgLoading = document.getElementById('backImgLoading');

  var startX = 0;
  var isDragging = false;
  var maxWidth = verifyBarBox.offsetWidth - moveBlock.offsetWidth;

  var imgUrl = 'https://picsum.photos/380/190';
  var imgWidth = 380;
  var imgHeight = 190;
  var bolckSize = 50;
  var targetX = 0;
  var targetY = 0;
  var tolerance = 5;
  init();
  async function init() {
    // 显示加载指示器
    showLoading()
    targetX = Math.floor(Math.random() * (imgWidth - bolckSize - 60)) + 30;
    targetY = Math.floor(Math.random() * (imgHeight - bolckSize - 20)) + 10;
    var img = await loadImg(imgUrl+'?'+Math.random());
    // 创建背景画布并绘制带缺口的图像
    var backCanvas = document.createElement('canvas')
    backCanvas.width = imgWidth;
    backCanvas.height = imgHeight;
    var backCtx = backCanvas.getContext('2d');
    backCtx.drawImage(img, 0, 0, 380, 190, 0, 0, imgWidth, imgHeight);
    backCtx.fillStyle = '#FFFFFF';
    backCtx.fillRect(targetX, targetY, 50, 50);
    backImg.src = backCanvas.toDataURL('image/png');
    // 创建拼图块
    var canvas = document.createElement('canvas')
    canvas.width = 50;
    canvas.height = 50;
    var ctx = canvas.getContext('2d');
    ctx.drawImage(img, targetX, targetY, bolckSize, bolckSize, 0, 0, bolckSize, bolckSize)

    blockImg.src = canvas.toDataURL('image/png');
    subBlock.style.top = (-201 + targetY) + 'px';
    // 隐藏加载指示器
    hideLoading()
  }
  function showLoading() {
    backImgLoading.style.display = 'block';
    subBlock.style.display = 'none'
    backImg.style.display = 'none'
  }
  function hideLoading() {
    backImgLoading.style.display = 'none';
    subBlock.style.display = 'block'
    backImg.style.display = 'block'
  }

  // 绘制拼图块
  function loadImg(url){
    return new Promise((res,rej)=>{
      const im = new Image();
      im.crossOrigin='anonymous';
      im.onload = ()=>res(im);
      im.onerror= rej;
      im.src = url;
    });
  }

  // 鼠标按下事件 - 开始拖拽
  moveBlock.addEventListener('mousedown', function(e) {
    isDragging = true;
    startX = e.clientX;
    moveBlock.style.backgroundColor = '#337AB7';
    moveBlock.style.color = '#FFFFFF';
    verifyLeftBar.style.border = '1px solid #337AB7';
  });
  // 鼠标移动事件 - 拖拽过程
  document.addEventListener('mousemove', function(e) {
    if (!isDragging) return;
    var newLeft = e.clientX - startX - 2;
    // 限制滑块移动范围
    if (newLeft < 0) newLeft = 0;
    if (newLeft > maxWidth) newLeft = maxWidth;

    moveBlock.style.left = newLeft + 'px';
    verifyLeftBar.style.width = newLeft + 'px';
    verifyLeftBar.style.border = '1px solid #337AB7';
  });
  // 鼠标释放事件 - 结束拖拽
  document.addEventListener('mouseup', function() {
    if (!isDragging) return;
    isDragging = false;
    var currentPosition = moveBlock.offsetLeft;
    if (Math.abs(currentPosition - targetX) <= tolerance) {
      moveBlock.style.backgroundColor = '#5CB85C';
      moveBlock.style.color = '#FFFFFF';
      verifyLeftBar.style.border = '1px solid #5CB85C';

      // 显示成功提示
      verifyResult.textContent = '验证成功！';
      verifyResult.className = 'verify-result success';
      return;
    }
    moveBlock.style.backgroundColor = '#D9534F';
    moveBlock.style.color = '#FFFFFF';
    verifyLeftBar.style.border = '1px solid #D9534F';
    verifyLeftBar.style.backgroundColor = '#fff0f0';
    // 显示失败提示
    verifyResult.textContent = '验证失败，请重试';
    verifyResult.className = 'verify-result fail';
    // 滑块回弹动画
    moveBlock.style.transition = 'left 0.8s';
    moveBlock.style.left = '0px';

    verifyLeftBar.style.transition = 'width 0.8s';
    verifyLeftBar.style.width = '0px';

    // 动画结束后清除过渡效果
    setTimeout(() => {
      init()
      moveBlock.style.transition = '';
      verifyLeftBar.style.transition = '';
      moveBlock.style.backgroundColor = '#FFFFFF';
      moveBlock.style.color = '#999';
      verifyLeftBar.style.backgroundColor = '#F0FFF0';
      // 清除验证结果提示
      verifyResult.className = 'verify-result';
    }, 800);
  });
</script>
</body>
</html>
