华为设备配置练习（八）策略路由配置

华为设备配置（八）策略路由配置

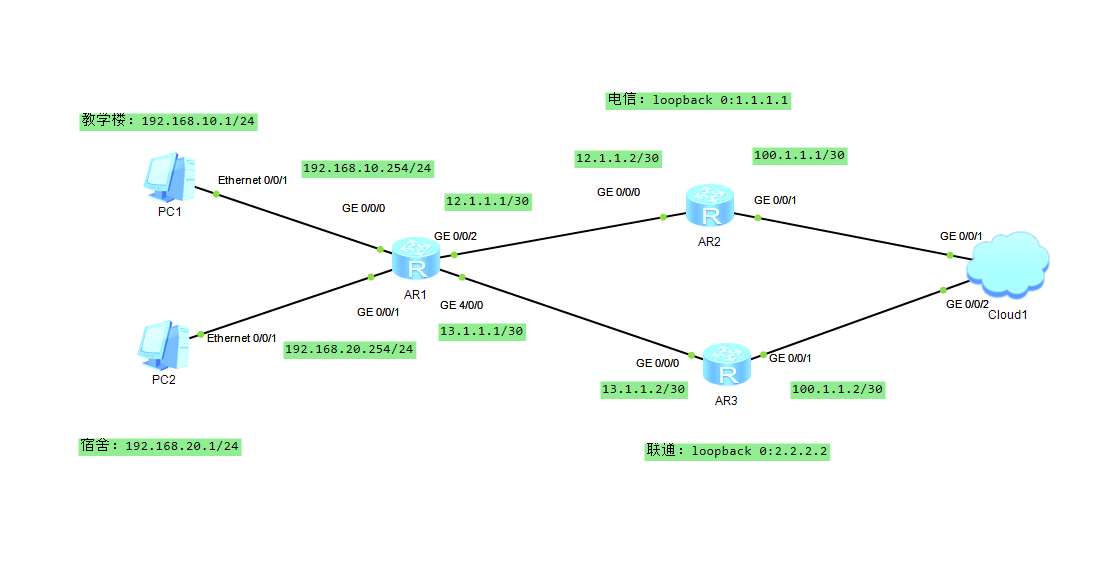

一、网络拓扑

二、IP地址配置

PC 配置

PC1:192.168.10.1 255.255.255.0 192.168.10.254

PC2:192.168.20.1 255.255.255.0 192.168.20.254

R1 配置

[R1]interface g0/0/0
[R1-GigabitEthernet0/0/0]ip address 192.168.10.254 24
[R1]interface g0/0/1
[R1-GigabitEthernet0/0/1]ip address 192.168.20.254 24
[R1]interface g0/0/2
[R1-GigabitEthernet0/0/2]ip address 12.1.1.1 30
[R1]interface g4/0/0
[R1-GigabitEthernet4/0/0]ip address 13.1.1.1 30

R2 配置

[R2]interface g0/0/0
[R2-GigabitEthernet0/0/0]ip address 12.1.1.2 30
[R2]interface g0/0/1
[R2-GigabitEthernet0/0/1]ip address 100.1.1.1 30
[R2]interface LoopBack 0
[R2-LoopBack0]ip address 1.1.1.1 32

R3 配置

[R3]interface g0/0/0
[R3-GigabitEthernet0/0/0]ip address 13.1.1.2 30
[R3]interface g0/0/1
[R3-GigabitEthernet0/0/1]ip address 100.1.1.2 30
[R3]interface LoopBack 0
[R3-LoopBack0]ip address 2.2.2.2 32

三、路由配置

R1 配置

[R1]ip route-static 0.0.0.0 0.0.0.0 12.1.1.2
[R1]ip route-static 0.0.0.0 0.0.0.0 13.1.1.2

R2 配置

[R2]ospf 1
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 12.1.1.0 0.0.0.255
[R2-ospf-1-area-0.0.0.0]network 100.1.1.0 0.0.0.255
[R2-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0

R3 配置

[R3]ospf 1
[R3-ospf-1]area 0
[R3-ospf-1-area-0.0.0.0]network 13.1.1.0 0.0.0.255
[R3-ospf-1-area-0.0.0.0]network 100.1.1.0 0.0.0.255
[R3-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0

路由配置验证

[R2]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 13       Routes : 13

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

        1.1.1.1/32  Direct  0    0           D   127.0.0.1       LoopBack0
        2.2.2.2/32  OSPF    10   1           D   100.1.1.2       GigabitEthernet
0/0/1
       12.1.1.0/30  Direct  0    0           D   12.1.1.2        GigabitEthernet
0/0/0
       12.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       12.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       13.1.1.0/30  OSPF    10   2           D   100.1.1.2       GigabitEthernet
0/0/1
      100.1.1.0/30  Direct  0    0           D   100.1.1.1       GigabitEthernet
0/0/1
      100.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
      100.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

四、NAT配置

[R1]acl 2000
[R1-acl-basic-2000]rule 5 permit source 192.168.10.0 0.0.0.255
[R1-acl-basic-2000]rule 6 permit source 192.168.20.0 0.0.0.255

[R1]interface g0/0/2
[R1-GigabitEthernet0/0/2]nat outbound 2000
[R1]interface g4/0/0
[R1-GigabitEthernet4/0/0]nat outbound 2000

五、流策略配置

1. 流 配置

[R1]acl 2010
[R1-acl-basic-2010]rule 5 permit source 192.168.10.0 0.0.0.255
[R1]acl 2020
[R1-acl-basic-2020]rule 5 permit source 192.168.20.0 0.0.0.255

2. 流分类 配置

[R1]traffic classifier jiaoxue
[R1-classifier-jiaoxue]if-match acl 2010

[R1]traffic classifier sushe
[R1-classifier-sushe]if-match acl 2020

3. 流行为 配置

R1traffic behavior dianxin

R1-behavior-dianxinredirect ip-nexthop 12.1.1.2

R1traffic behavior liantong

R1-behavior-liantongredirect ip-nexthop 13.1.1.2

4. 流策略 配置

[R1]traffic policy p
[R1-trafficpolicy-p]classifier jiaoxue behavior dianxin

[R1]traffic policy q
[R1-trafficpolicy-q]classifier sushe behavior liantong

5. 调用流策略

[R1]interface g0/0/0
[R1-GigabitEthernet0/0/0]traffic-policy p inbound

[R1]interface g0/0/1
[R1-GigabitEthernet0/0/1]traffic-policy q inbound

配置验证

PC2上测试去往R2（1.1.1.1）的路径

PC>tracert 1.1.1.1

traceroute to 1.1.1.1, 8 hops max
(ICMP), press Ctrl+C to stop
 1    *  *  *
 2  13.1.1.2   47 ms  16 ms  15 ms
 3  1.1.1.1   32 ms  31 ms  15 ms
