一、Windows的word转pdf功能
使用的是documents4j转换，maven及版本如下：
java
<dependency>
<groupId>com.documents4j</groupId>
<artifactId>documents4j-local</artifactId>
<version>1.0.3</version>
</dependency>
<dependency>
<groupId>com.documents4j</groupId>
<artifactId>documents4j-transformer-msoffice-word</artifactId>
<version>1.0.3</version>
</dependency>
<dependency>
<groupId>org.freemarker</groupId>
<artifactId>freemarker</artifactId>
<version>2.3.33</version>
</dependency>1、先封装业务参数
java
# 抽出一个封装方法
private void fill(Map<String, Object> templateParam, String key, Object value) {
if(StringUtils.isEmpty(key)){
throw new RuntimeException("key不能为空");
}
templateParam.put("${"+key+"}", value != null ? value : "");
}
# 业务参数示例
// 备注
if(StringUtils.hasLength(sysInspection.getRemarks())){
fill(templateParam, "remarks", sysInspection.getRemarks());
}2、调用word转pdf方法（实际这里的参数传输的是word模板填充模板参数后生成新的word文件的信息）
java
# 注释在方法中会写
String url = wordUtil.generatePdf(
"E:\\WXWork\\1688857451467088\\Cache\\File\\2026-01\\",
"处方单-样例.docx",
templateParam,
"处方单-"+sysInspection.getNickName(),
"E:\\WXWork\\1688857451467088\\Cache\\File\\2026-01\\");3、方法内部实现（主要是两个util工具类，先作解释和可能会修改的地方，将两个文件放在文章最后）
java
/**
* 生成PDF文件
* @param basePackagePath 模板文件所在的包路径
* @param templateFileName 模板文件名
* @param templateParam 模板参数
* @param fileName 填充参数后的word文件名
* @param saveDirectory 填充参数后的word保存文件目录
* @return
*/
public String generatePdf(String basePackagePath, String templateFileName, Map<String,Object> templateParam, String fileName, String saveDirectory) {
try {
fillTemplate(basePackagePath+templateFileName, saveDirectory+fileName+".docx", templateParam);
String filePath = saveDirectory + fileName + ".docx";
File file = new File(filePath);
// 检查文件是否存在
if (!file.exists()) {
throw new FileNotFoundException("文件不存在: " + filePath);
}
// 读取文件内容
byte[] fileContent = new byte[(int) file.length()];
try (FileInputStream fis = new FileInputStream(file)) {
fis.read(fileContent);
}
String test = pdfUtils.test(fileName + ".docx");
return test;
} catch (IOException e) {
log.error("生成pdf异常，异常原因：{}", e.getMessage(), e);
throw new RuntimeException("生成pdf异常，异常原因：" + e.getMessage());
}
}4、test()方法的改动
java
public String test(String fileName){
// windows环境使用 路径换成填充后的word路径即可
// String url = "file:///E:\\WXWork\\1688857451467088\\Cache\\File\\2026-01\\"+fileName;
// String filePath = "E:\\WXWork\\1688857451467088\\Cache\\File\\2026-01";
// String result = wordToPdf(url,filePath, fileName);
// linux环境使用 路径换成填充后的word路径即可
String filePath = "/usr/local/project/template/";
String result = wordToPdf(filePath, fileName);
log.info("word转pdf返回结果:" + result);
return result;
}5、工具类
代码层面差不多就是这样，下面把工具类直接贴出来：
PdfUilts工具类
java
package com.ruoyi.web.controller.tool;
import com.documents4j.api.DocumentType;
import com.documents4j.api.IConverter;
import com.documents4j.job.LocalConverter;
import com.ruoyi.system.utils.util.ObsUploadUtil;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.mock.web.MockMultipartFile;
import org.springframework.stereotype.Component;
import org.springframework.web.multipart.MultipartFile;
import java.io.*;
import java.net.URL;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.util.Arrays;
import java.util.List;
import java.util.Map;
import java.util.concurrent.TimeUnit;
@Slf4j
@Component
public class PdfUtils {
public String wordToPdf(String url,String filePath, String fileName) {
try {
DocumentType documentType = DocumentType.DOC;
if(url.contains(".docx")){
documentType = DocumentType.DOCX;
}
if(url.contains(".doc")){
documentType = DocumentType.DOC;
}
if(url.contains(".xlsx")){
documentType = DocumentType.XLSX;
}else {
if(url.contains(".xls")){
documentType = DocumentType.XLS;
}
}
InputStream inputStream = new URL(url).openStream();
ByteArrayOutputStream stream = new ByteArrayOutputStream();
IConverter converter = LocalConverter.builder().build();
converter.convert(inputStream)
.as(documentType)
.to(stream)
.as(DocumentType.PDF).execute();
//上传图片
byte2File(stream.toByteArray(),filePath + "/pdf",fileName.substring(0,fileName.lastIndexOf(".")) + ".pdf");
MultipartFile multipartFile = convertToMultipartFile(stream,fileName.substring(0,fileName.lastIndexOf(".")) );
String s = ObsUploadUtil.obsUploadQrCode(multipartFile,fileName.substring(0,fileName.lastIndexOf(".")) + ".pdf");
stream.close();
inputStream.close();
return s;
} catch (Exception e) {
e.printStackTrace();
}
return null;
}
/**
* word 转 pdf
*
*/
public String wordToPdf(String filePath, String fileName) {
try {
// 确保路径正确性
String inputFile = new File(filePath, fileName).getAbsolutePath();
String outputDir = new File(filePath, "pdf").getAbsolutePath();
// 创建输出目录
new File(outputDir).mkdirs();
// 使用完整的转换参数
List<String> command = Arrays.asList(
"/usr/bin/libreoffice", // 使用完整路径
"--headless",
"--norestore",
"--convert-to",
"pdf:writer_pdf_Export:PDFExport{" +
"EmbedStandardFonts=1;" +
"EmbedFonts=1;" +
"EmbedOnlyUsedFonts=0;" +
"UseTaggedPDF=1" +
"}",
"--outdir",
outputDir,
inputFile
);
// 创建进程构建器
ProcessBuilder pb = new ProcessBuilder(command);
// 设置环境变量
Map<String, String> env = pb.environment();
env.put("LC_ALL", "zh_CN.UTF-8");
env.put("LANG", "zh_CN.UTF-8");
env.put("LANGUAGE", "zh_CN.UTF-8");
// 重定向错误流到标准输出
pb.redirectErrorStream(true);
// 启动进程
Process process = pb.start();
// 读取输出
StringBuilder output = new StringBuilder();
try (BufferedReader reader = new BufferedReader(
new InputStreamReader(process.getInputStream(), StandardCharsets.UTF_8))) {
String line;
while ((line = reader.readLine()) != null) {
output.append(line).append("\n");
System.out.println(line);
}
}
// 等待进程完成，设置超时
if (!process.waitFor(120, TimeUnit.SECONDS)) {
process.destroyForcibly();
throw new RuntimeException("转换超时");
}
int exitCode = process.exitValue();
if (exitCode != 0) {
throw new RuntimeException("转换失败，退出码：" + exitCode + "\n输出：" + output);
}
// 检查生成的PDF文件
String pdfFileName = fileName.substring(0, fileName.lastIndexOf(".")) + ".pdf";
File pdfFile = new File(outputDir, pdfFileName);
if (!pdfFile.exists() || pdfFile.length() == 0) {
throw new RuntimeException("PDF文件未生成或为空");
}
String absolutePath = pdfFile.getAbsolutePath();
MultipartFile file = convertFileToMultipartFile(pdfFile);
// String s = tencentCosUtil.upLoadFile(multipartFile,"/wordToPdf");
String url = ObsUploadUtil.obsUpload(file);
return url;
} catch (Exception e) {
throw new RuntimeException("PDF转换失败: " + e.getMessage(), e);
}
}
public MultipartFile convertFileToMultipartFile(File file) throws IOException {
// 读取文件内容到字节数组
byte[] fileContent = Files.readAllBytes(file.toPath());
// 创建 MultipartFile 对象
MultipartFile multipartFile = new MockMultipartFile(
file.getName(), // 文件名
file.getName(), // 原始文件名
"application/pdf", // 内容类型，根据实际情况调整
fileContent // 文件内容
);
return multipartFile;
}
// 在使用前检查和配置环境
public static void setupEnvironment() {
try {
// 1. 检查LibreOffice安装
checkLibreOffice();
// 2. 检查和安装字体
installFonts();
// 3. 配置字体
configureFonts();
// 4. 验证环境变量
checkEnvironment();
} catch (Exception e) {
throw new RuntimeException("环境设置失败: " + e.getMessage(), e);
}
}
private static void checkLibreOffice() throws IOException, InterruptedException {
Process process = Runtime.getRuntime().exec("which libreoffice");
if (process.waitFor() != 0) {
throw new RuntimeException("LibreOffice未安装");
}
}
private static void installFonts() throws IOException, InterruptedException {
// 创建字体安装脚本
String scriptContent =
"#!/bin/bash\n" +
"apt-get update\n" +
"apt-get install -y fonts-wqy-zenhei fonts-wqy-microhei fonts-arphic-ukai fonts-arphic-uming\n" +
"fc-cache -fv\n";
File script = new File("/tmp/install_fonts.sh");
Files.write(script.toPath(), scriptContent.getBytes());
script.setExecutable(true);
// 执行脚本
Process process = Runtime.getRuntime().exec("sudo /tmp/install_fonts.sh");
process.waitFor();
// 清理脚本
script.delete();
}
private static void configureFonts() throws IOException {
// 创建字体配置文件
String fontConfig =
"<?xml version=\"1.0\"?>\n" +
"<!DOCTYPE fontconfig SYSTEM \"fonts.dtd\">\n" +
"<fontconfig>\n" +
" <match target=\"pattern\">\n" +
" <test name=\"family\"><string>serif</string></test>\n" +
" <edit name=\"family\" mode=\"prepend\">\n" +
" <string>WenQuanYi Zen Hei</string>\n" +
" </edit>\n" +
" </match>\n" +
" <match target=\"pattern\">\n" +
" <test name=\"family\"><string>sans-serif</string></test>\n" +
" <edit name=\"family\" mode=\"prepend\">\n" +
" <string>WenQuanYi Zen Hei</string>\n" +
" </edit>\n" +
" </match>\n" +
"</fontconfig>";
// 写入配置文件
File configFile = new File(System.getProperty("user.home") + "/.fonts.conf");
Files.write(configFile.toPath(), fontConfig.getBytes());
}
private static void checkEnvironment() {
// 检查环境变量
String[] requiredVars = {"LANG", "LC_ALL", "LANGUAGE"};
for (String var : requiredVars) {
String value = System.getenv(var);
if (value == null || !value.contains("zh_CN")) {
System.err.println("警告: " + var + " 环境变量未正确设置");
}
}
}
public static MultipartFile convertToMultipartFile(ByteArrayOutputStream baos, String fileName) throws IOException {
// 创建一个临时文件
File tempFile = File.createTempFile(fileName, ".pdf");
// 将ByteArrayOutputStream中的数据写入临时文件
try (FileOutputStream fos = new FileOutputStream(tempFile)) {
baos.writeTo(fos);
} catch (IOException e) {
e.printStackTrace();
}
// 创建一个MultipartFile对象
return new MockMultipartFile(
fileName + ".pdf", // 参数名称
fileName + ".pdf", // 文件名
"application/pdf", // 内容类型
Files.readAllBytes(tempFile.toPath()) // 文件内容
);
}
/**
* file转byte
*/
public static byte[] file2byte(File file){
byte[] buffer = null;
try{
FileInputStream fis = new FileInputStream(file);
ByteArrayOutputStream bos = new ByteArrayOutputStream();
byte[] b = new byte[1024];
int n;
while ((n = fis.read(b)) != -1)
{
bos.write(b, 0, n);
}
fis.close();
bos.close();
buffer = bos.toByteArray();
}catch (FileNotFoundException e){
e.printStackTrace();
}
catch (IOException e){
e.printStackTrace();
}
return buffer;
}
/**
* byte 转file
*/
public static File byte2File(byte[] buf, String filePath, String fileName){
BufferedOutputStream bos = null;
FileOutputStream fos = null;
OutputStreamWriter osw = null;
File file = null;
try{
File dir = new File(filePath+"/");
if (!dir.exists()){
dir.mkdirs();
}
file = new File(filePath +File.separator + fileName);
fos = new FileOutputStream(file);
bos = new BufferedOutputStream(fos);
// osw = new OutputStreamWriter(fos, StandardCharsets.UTF_8);
bos.write(buf);
}catch (Exception e){
e.printStackTrace();
}
finally{
if (bos != null){
try{
bos.close();
}catch (IOException e){
e.printStackTrace();
}
}
if (fos != null){
try{
fos.close();
}catch (IOException e){
e.printStackTrace();
}
}
}
return file;
}
/**
* multipartFile转File
**/
public static File multipartFile2File(MultipartFile multipartFile){
File file = null;
if (multipartFile != null){
try {
file= File.createTempFile("tmp", null);
multipartFile.transferTo(file);
System.gc();
file.deleteOnExit();
}catch (Exception e){
e.printStackTrace();
log.warn("multipartFile转File发生异常："+e);
}
}
return file;
}
public String test(String fileName){
// windows
// String url = "file:///E:\\WXWork\\1688857451467088\\Cache\\File\\2026-01\\"+fileName;
// String filePath = "E:\\WXWork\\1688857451467088\\Cache\\File\\2026-01";
// String result = wordToPdf(url,filePath, fileName);
// linux
String filePath = "/usr/local/project/template/";
String result = wordToPdf(filePath, fileName);
log.info("word转pdf返回结果:" + result);
return result;
}
}WordUtil工具类
java
package com.ruoyi.web.controller.tool;
import com.ruoyi.common.utils.StringUtils;
import com.ruoyi.system.utils.util.ObsUploadUtil;
import freemarker.cache.ClassTemplateLoader;
import freemarker.template.Configuration;
import freemarker.template.Template;
import freemarker.template.TemplateException;
import lombok.extern.slf4j.Slf4j;
import net.coobird.thumbnailator.Thumbnails;
import org.apache.poi.util.Units;
import org.apache.poi.xwpf.usermodel.*;
import org.springframework.mock.web.MockMultipartFile;
import org.springframework.stereotype.Component;
import org.springframework.web.multipart.MultipartFile;
import javax.annotation.Resource;
import java.io.*;
import java.nio.file.Files;
import java.util.*;
import java.util.regex.Matcher;
import java.util.regex.Pattern;
@Slf4j
@Component
public class WordUtil {
/**
* 基于模板生成 Word 文档
*
* @param basePackagePath resources 目录下模板所在包路径
* @param templateFileName 模板文件名
* @param templateParam 模板参数
* @param fileName 文件名
*/
@Resource
private PdfUtils pdfUtils;
public static void fillTemplate(String templatePath, String outputPath,Map<String, Object> dataMap) {
try (FileInputStream fis = new FileInputStream(templatePath)) {
// 设置默认编码为UTF-8
System.setProperty("file.encoding", "UTF-8");
XWPFDocument document = new XWPFDocument(fis);
XWPFParagraph pic = document.createParagraph();
Base64.Decoder decoder = Base64.getDecoder();
// 处理段落
for (XWPFParagraph paragraph : document.getParagraphs()) {
replaceParagraph(paragraph, dataMap);
}
// 处理表格
for (XWPFTable table : document.getTables()) {
for (XWPFTableRow row : table.getRows()) {
for (XWPFTableCell cell : row.getTableCells()) {
for (XWPFParagraph paragraph : cell.getParagraphs()) {
replaceParagraph(paragraph, dataMap);
}
}
}
}
// 使用UTF-8编码保存文件
try (FileOutputStream fos = new FileOutputStream(outputPath)) {
document.write(fos);
}
System.err.println("模板填充完成！文件保存在: " + outputPath);
} catch (Exception e) {
e.printStackTrace();
}
}
private static void replaceParagraph(XWPFParagraph paragraph, Map<String, Object> dataMap) {
// 获取段落中所有runs
List<XWPFRun> runs = paragraph.getRuns();
if (runs == null || runs.isEmpty()) return;
// 首先合并所有runs的文本，以便正确识别占位符
StringBuilder fullText = new StringBuilder();
for (XWPFRun run : runs) {
String text = run.getText(0);
if (text != null) {
fullText.append(text);
}
}
String paragraphText = fullText.toString();
// 使用正则表达式查找所有占位符，包括括号内的
Pattern pattern = Pattern.compile("\\$\\{[^}]+\\}|\\([^)]*\\$\\{[^}]+\\}[^)]*\\)");
Matcher matcher = pattern.matcher(paragraphText);
List<ReplacementInfo> replacements = new ArrayList<>();
// 收集所有需要替换的信息
while (matcher.find()) {
String matched = matcher.group();
int start = matcher.start();
int end = matcher.end();
// 找出涉及到的runs
int startRun = -1;
int endRun = -1;
int currentPos = 0;
for (int i = 0; i < runs.size(); i++) {
XWPFRun run = runs.get(i);
String runText = run.getText(0);
if (runText == null) continue;
int runLength = runText.length();
if (startRun == -1 && currentPos + runLength > start) {
startRun = i;
}
if (currentPos + runLength >= end) {
endRun = i;
break;
}
currentPos += runLength;
}
if (startRun != -1 && endRun != -1) {
// 处理括号内的占位符
String replacement = processPlaceholder(matched, dataMap);
replacements.add(new ReplacementInfo(startRun, endRun, matched, replacement));
}
}
// 从后向前替换，避免位置变化影响
Collections.sort(replacements, (a, b) -> b.startRun - a.startRun);
for (ReplacementInfo info : replacements) {
replaceRunRange(paragraph, info);
}
}
private static String processPlaceholder(String text, Map<String, Object> dataMap) {
// 处理括号内的占位符
Pattern placeholderPattern = Pattern.compile("\\$\\{([^}]+)\\}");
Matcher matcher = placeholderPattern.matcher(text);
StringBuffer result = new StringBuffer();
while (matcher.find()) {
String placeholder = matcher.group(0); // 完整的占位符
String key = matcher.group(1); // 占位符中的键
String replacement = Objects.nonNull(dataMap.get("${" + key + "}"))?String.valueOf(dataMap.get("${" + key + "}")):"";
if (replacement != null) {
// 如果在括号内，保留括号
if (text.startsWith("(") && text.endsWith(")")) {
matcher.appendReplacement(result, replacement);
} else {
matcher.appendReplacement(result, Matcher.quoteReplacement(replacement));
}
}
}
matcher.appendTail(result);
return result.toString();
}
private static void replaceRunRange(XWPFParagraph paragraph, ReplacementInfo info) {
List<XWPFRun> runs = paragraph.getRuns();
// 保存第一个run的样式
XWPFRun styleRun = runs.get(info.startRun);
RunStyle style = new RunStyle(styleRun);
// 删除范围内的所有runs
for (int i = info.endRun; i >= info.startRun; i--) {
paragraph.removeRun(i);
}
// 创建新的run并设置文本
XWPFRun newRun = paragraph.insertNewRun(info.startRun);
newRun.setText(info.replacementText);
// 应用样式
style.applyStyle(newRun);
}
public String generate(String basePackagePath, String templateFileName, Object templateParam, String fileName, String saveDirectory) {
try {
// 创建 Freemarker 的 Configuration 对象，设置默认的不兼容改进选项
Configuration configuration = new Configuration(Configuration.DEFAULT_INCOMPATIBLE_IMPROVEMENTS);
configuration.setDefaultEncoding("utf-8");
// 设置模板加载器，加载模板文件
configuration.setTemplateLoader(new ClassTemplateLoader(getClass(), basePackagePath));
Template t = configuration.getTemplate(templateFileName, "utf-8");
// 使用 URLEncoder 对文件名进行编码，以防止中文文件名在不同浏览器和操作系统下出现乱码问题
// String encodedFileName = URLEncoder.encode(fileName + "_" + System.currentTimeMillis(), "utf-8");
String encodedFileName =fileName ;
// 定义保存文件的路径
File saveDir = new File(saveDirectory);
if (!saveDir.exists()) {
saveDir.mkdirs();
}
// 定义文件名
String filePath = saveDir.getAbsolutePath() + File.separator + encodedFileName + ".doc";
// 创建 Writer 对象，用于将生成的文档写到文件中，缓存区大小设为 10KB
Writer out = new BufferedWriter(new FileWriter(filePath), 10240);
// 将模型数据与模板结合生成 Word 文档，写入到 Writer 对象中
t.process(templateParam, out);
out.close();
File file = new File(filePath);
// 检查文件是否存在
if (!file.exists()) {
throw new FileNotFoundException("文件不存在: " + filePath);
}
// 读取文件内容
byte[] fileContent = new byte[(int) file.length()];
try (FileInputStream fis = new FileInputStream(file)) {
fis.read(fileContent);
}
MultipartFile mockMultipartFile = new MockMultipartFile(encodedFileName+".doc", fileContent);
String url = ObsUploadUtil.obsUploadQrCode(mockMultipartFile,"/wordGenerate");
return url;
} catch (IOException | TemplateException e) {
log.error("生成Word文档异常，异常原因：{}", e.getMessage(), e);
throw new RuntimeException("生成Word文档异常，异常原因：" + e.getMessage());
}
}
/**
* 生成PDF文件
* @param basePackagePath 模板文件所在的包路径
* @param templateFileName 模板文件名
* @param templateParam 模板参数
* @param fileName 填充参数后的word文件名
* @param saveDirectory 填充参数后的word保存文件目录
* @return
*/
public String generatePdf(String basePackagePath, String templateFileName, Map<String,Object> templateParam, String fileName, String saveDirectory) {
try {
fillTemplate(basePackagePath+templateFileName, saveDirectory+fileName+".docx", templateParam);
String filePath = saveDirectory + fileName + ".docx";
File file = new File(filePath);
// 检查文件是否存在
if (!file.exists()) {
throw new FileNotFoundException("文件不存在: " + filePath);
}
// 读取文件内容
byte[] fileContent = new byte[(int) file.length()];
try (FileInputStream fis = new FileInputStream(file)) {
fis.read(fileContent);
}
String test = pdfUtils.test(fileName + ".docx");
// MultipartFile mockMultipartFile = new MockMultipartFile(encodedFileName+".doc", fileContent);
// String s = ObsUploadUtil.obsUpload(mockMultipartFile);
return test;
} catch (IOException e) {
log.error("生成pdf异常，异常原因：{}", e.getMessage(), e);
throw new RuntimeException("生成pdf异常，异常原因：" + e.getMessage());
}
}
private static class ReplacementInfo {
int startRun;
int endRun;
String originalText;
String replacementText;
ReplacementInfo(int startRun, int endRun, String originalText, String replacementText) {
this.startRun = startRun;
this.endRun = endRun;
this.originalText = originalText;
this.replacementText = replacementText;
}
}
// 用于保存和恢复运行样式的辅助类
private static class RunStyle {
String fontFamily;
int fontSize;
boolean bold;
boolean italic;
String color;
UnderlinePatterns underline;
RunStyle(XWPFRun run) {
this.fontFamily = run.getFontFamily();
this.fontSize = run.getFontSize();
this.bold = run.isBold();
this.italic = run.isItalic();
this.color = run.getColor();
this.underline = run.getUnderline();
}
void applyStyle(XWPFRun run) {
if (fontFamily != null) {
run.setFontFamily(fontFamily);
run.setFontFamily(fontFamily, XWPFRun.FontCharRange.eastAsia);
}
if (fontSize != -1) {
run.setFontSize(fontSize);
}
run.setBold(bold);
run.setItalic(italic);
if (color != null) {
run.setColor(color);
}
if (underline != null) {
run.setUnderline(underline);
}
}
}
}二、Linux的word转pdf实现
相比较于windows的实现，linux系统多了一些步骤，在业务的实现上大差不差，上述代码包含了两类系统的功能实现，环境有所差异，如下内容解释linux需要的环境部署
1、下载linreoffice环境
java
# 这里是centos系统，使用yum直接下载就行
yum install libreoffice2、设置语言为中文(否则存在乱码情况)

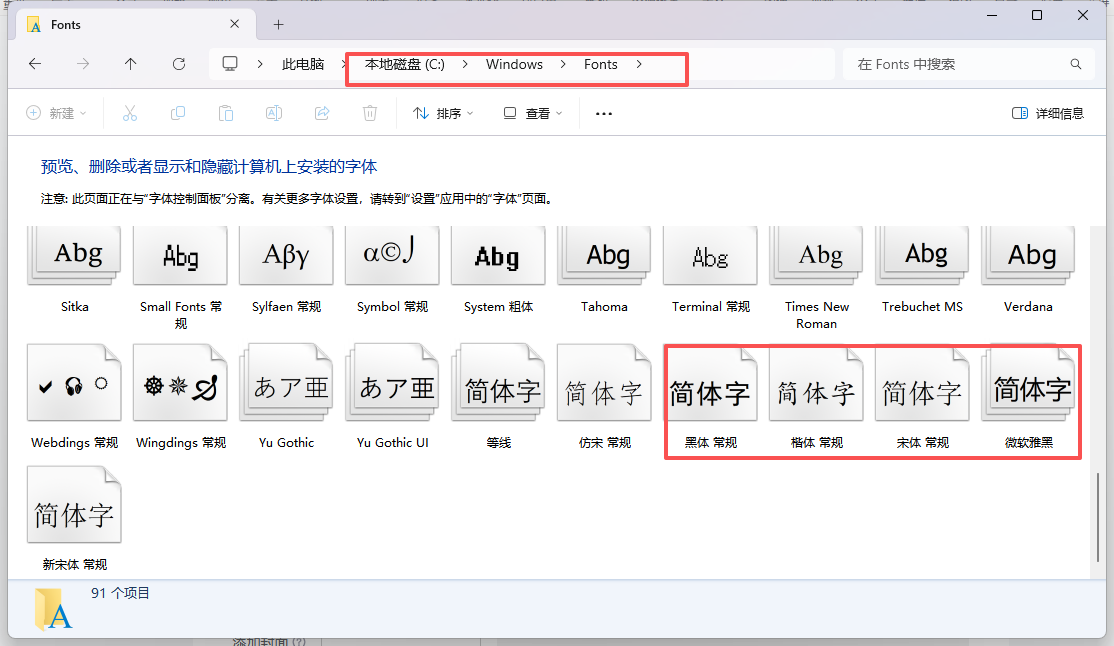

直接将windows的字体拷贝到linux的/usr/share/fonts/chinese路径下，没有chinese文件夹就创建
3、执行权限设置，下载插件
java
# 权限设置
chmod -R 755 /usr/share/fonts/chinese
# 下载
yum -y install ttmkfdir

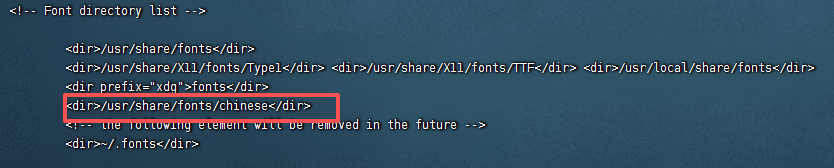

ttmkfdir -e /usr/share/X11/fonts/encodings/encodings.dir4、编辑字体配置，将我们的字体路径配置进去
java
vi /etc/fonts/fonts.conf配置内容
java
<dir>/usr/share/fonts/chinese</dir>
5、刷新系统字体的缓存
java
# 缓存刷新
fc-cache6、 查询字体信息
java
fc-list :lang=zh
然后就可以开始执行业务流程，进行word转pdf的导出，且可填充参数
三、pdf的图片处理
1、模板处理图片
导出pdf时可能会遇到一些图片处理，多加一个url的图片链接参数，在方法里面进行流处理，文件地址换成自己已存在的操作系统路径即可
java
public static void fillTemplate(String templatePath, String outputPath,Map<String, Object> dataMap,String url) {
try (FileInputStream fis = new FileInputStream(templatePath)) {
// 设置默认编码为UTF-8
System.setProperty("file.encoding", "UTF-8");
XWPFDocument document = new XWPFDocument(fis);
XWPFParagraph pic = document.createParagraph();
Base64.Decoder decoder = Base64.getDecoder();
if(StringUtils.isNotEmpty(url)){
byte[] imageByte = decoder.decode(url);
InputStream stream = new ByteArrayInputStream(imageByte);
// File tempFile = FileUtil.createTempFile("/usr/local/project/file/temp", ".jpg", true);
File tempFile = File.createTempFile("/usr/local/project/file/temp", ".jpg");
tempFile.deleteOnExit(); // 程序结束时删除文件
try (OutputStream out = Files.newOutputStream(tempFile.toPath());
InputStream in = stream) {
Thumbnails.of(in).scale(0.8).rotate(270).outputFormat("jpg").toOutputStream(out);
byte[] buffer = new byte[1024];
int length;
// 从原始流读取数据并写入临时文件
while ((length = in.read(buffer)) > 0) {
out.write(buffer, 0, length);
}
}
//处理图片
for (XWPFParagraph paragraph : document.getParagraphs()) {
List<XWPFRun> runs = paragraph.getRuns();
for (XWPFRun run : runs) {
String text = run.getText(0);
if (text != null && text.contains("picture")) {
run.setText("", 0); // 清除占位符文本
run.addPicture(
new FileInputStream(tempFile), XWPFDocument.PICTURE_TYPE_JPEG,
tempFile.getName(),
Units.toEMU(60),
Units.toEMU(30)); // 插入图片
}
}
}
}
// 处理段落
for (XWPFParagraph paragraph : document.getParagraphs()) {
replaceParagraph(paragraph, dataMap);
}
// 处理表格
for (XWPFTable table : document.getTables()) {
for (XWPFTableRow row : table.getRows()) {
for (XWPFTableCell cell : row.getTableCells()) {
for (XWPFParagraph paragraph : cell.getParagraphs()) {
replaceParagraph(paragraph, dataMap);
}
}
}
}
// 使用UTF-8编码保存文件
try (FileOutputStream fos = new FileOutputStream(outputPath)) {
document.write(fos);
}
System.out.println("模板填充完成！文件保存在: " + outputPath);
} catch (Exception e) {
e.printStackTrace();
}
}
