一、问题现象：Gateway 启动阶段直接失败
在启动 Knox Gateway 服务时，进程未完成初始化即退出。
通过 gateway.log 可以观察到如下关键错误信息：
text
ERROR knox.gateway - Failed to load keystore ... Invalid keystore format
FATAL knox.gateway - Failed to start gateway:
The identity keystore was not loaded properly - the provided password may not match the password for the keystore.对应的完整堆栈如下（节选）：
bash
[root@dev1 logs]# cat gateway.log
2025-12-12 10:52:08,311 INFO knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: user.name=knox
2025-12-12 10:52:08,320 INFO knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: user.dir=/home/knox
2025-12-12 10:52:08,320 INFO knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: java.runtime.name=Java(TM) SE Runtime Environment
2025-12-12 10:52:08,321 INFO knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: java.runtime.version=1.8.0_202-b08
2025-12-12 10:52:08,321 INFO knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: java.home=/opt/modules/jdk1.8.0_202/jre
2025-12-12 10:52:08,498 INFO knox.gateway (GatewayConfigImpl.java:loadConfigResource(554)) - Loading configuration resource jar:file:/usr/bigtop/3.2.0/usr/lib/knox/bin/../lib/gateway-server-2.1.0.jar!/conf/gateway-default.xml
2025-12-12 10:52:08,580 INFO knox.gateway (GatewayConfigImpl.java:loadConfigFile(542)) - Loading configuration file /usr/bigtop/3.2.0/usr/lib/knox/conf/gateway-site.xml
2025-12-12 10:52:08,580 INFO knox.gateway (GatewayConfigImpl.java:initGatewayHomeDir(482)) - Using /usr/bigtop/3.2.0/usr/lib/knox/bin/.. as GATEWAY_HOME via system property.
2025-12-12 10:52:08,581 INFO knox.gateway (GatewayConfigImpl.java:init(475)) - Cookie scoping feature enabled: false
2025-12-12 10:52:08,596 INFO knox.gateway (AbstractServiceFactory.java:logServiceUsage(103)) - Using default implementation for MasterService
2025-12-12 10:52:09,029 INFO knox.gateway (AbstractServiceFactory.java:logServiceUsage(103)) - Using default implementation for AliasService
2025-12-12 10:52:09,033 INFO knox.gateway (AbstractServiceFactory.java:logServiceUsage(103)) - Using default implementation for AliasService
2025-12-12 10:52:09,055 INFO knox.gateway (JettySSLService.java:init(74)) - Credential store for the gateway instance found - no need to create one.
2025-12-12 10:52:09,081 ERROR knox.gateway (DefaultKeystoreService.java:isKeyStoreAvailable(509)) - Failed to load keystore [filename=/usr/bigtop/3.2.0/usr/lib/knox/data/security/keystores/gateway.jks, type=jks]: java.io.IOException: Invalid keystore format
2025-12-12 10:52:09,082 FATAL knox.gateway (GatewayServer.java:main(191)) - Failed to start gateway: org.apache.knox.gateway.services.ServiceLifecycleException: The identity keystore was not loaded properly - the provided password may not match the password for the keystore.
org.apache.knox.gateway.services.ServiceLifecycleException: The identity keystore was not loaded properly - the provided password may not match the password for the keystore.
at org.apache.knox.gateway.services.security.impl.JettySSLService.init(JettySSLService.java:97) ~[gateway-server-2.1.0.jar:2.1.0]
at org.apache.knox.gateway.services.GatewayServiceFactory.create(GatewayServiceFactory.java:48) ~[gateway-server-2.1.0.jar:2.1.0]
at org.apache.knox.gateway.services.GatewayServiceFactory.create(GatewayServiceFactory.java:33) ~[gateway-server-2.1.0.jar:2.1.0]
at org.apache.knox.gateway.services.DefaultGatewayServices.init(DefaultGatewayServices.java:59) ~[gateway-server-2.1.0.jar:2.1.0]
at org.apache.knox.gateway.GatewayServer.main(GatewayServer.java:182) [gateway-server-2.1.0.jar:2.1.0]
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) ~[?:1.8.0_202]
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) ~[?:1.8.0_202]
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) ~[?:1.8.0_202]
at java.lang.reflect.Method.invoke(Method.java:498) ~[?:1.8.0_202]
at org.apache.knox.gateway.launcher.Invoker.invokeMainMethod(Invoker.java:68) [gateway.jar:?]
at org.apache.knox.gateway.launcher.Invoker.invoke(Invoker.java:39) [gateway.jar:?]
at org.apache.knox.gateway.launcher.Command.run(Command.java:103) [gateway.jar:?]
at org.apache.knox.gateway.launcher.Launcher.run(Launcher.java:75) [gateway.jar:?]
at org.apache.knox.gateway.launcher.Launcher.main(Launcher.java:52) [gateway.jar:?]
Caused by: org.apache.knox.gateway.services.security.KeystoreServiceException: java.io.IOException: Invalid keystore format
at org.apache.knox.gateway.services.security.impl.DefaultKeystoreService.isKeystoreForGatewayAvailable(DefaultKeystoreService.java:263) ~[gateway-server-2.1.0.jar:2.1.0]
at org.apache.knox.gateway.services.security.impl.JettySSLService.init(JettySSLService.java:81) ~[gateway-server-2.1.0.jar:2.1.0]
... 13 more
Caused by: java.io.IOException: Invalid keystore format
at sun.security.provider.JavaKeyStore.engineLoad(JavaKeyStore.java:663) ~[?:1.8.0_202]
at sun.security.provider.JavaKeyStore$JKS.engineLoad(JavaKeyStore.java:56) ~[?:1.8.0_202]
at sun.security.provider.KeyStoreDelegator.engineLoad(KeyStoreDelegator.java:224) ~[?:1.8.0_202]
at sun.security.provider.JavaKeyStore$DualFormatJKS.engineLoad(JavaKeyStore.java:70) ~[?:1.8.0_202]
at java.security.KeyStore.load(KeyStore.java:1445) ~[?:1.8.0_202]
at org.apache.knox.gateway.services.security.impl.DefaultKeystoreService.isKeyStoreAvailable(DefaultKeystoreService.java:504) ~[gateway-server-2.1.0.jar:2.1.0]
at org.apache.knox.gateway.services.security.impl.DefaultKeystoreService.isKeystoreForGatewayAvailable(DefaultKeystoreService.java:260) ~[gateway-server-2.1.0.jar:2.1.0]
at org.apache.knox.gateway.services.security.impl.JettySSLService.init(JettySSLService.java:81) ~[gateway-server-2.1.0.jar:2.1.0]
... 13 more
[root@dev1 logs]#现象特征总结
- Knox 进程尚未监听端口即退出
- 错误集中在 Keystore 加载阶段
- 日志明确指向 password 不匹配 / keystore 无法解析
二、问题根因：gateway.jks 与当前 master secret 不一致
2.1 Knox 中 keystore 的生成逻辑
Knox 在首次启动 时，会基于 master secret 自动生成并维护一整套安全文件：
| 文件/组件 | 作用说明 |
|---|---|
gateway.jks |
Gateway 自身的身份与 SSL keystore |
| credential store | 存储加密后的敏感配置 |
| alias 信息 | 由 MasterService 统一加解密 |
核心事实
这些文件的加密口令来源只有一个：master secret
2.2 触发问题的典型场景
只要满足以下任意条件之一，就会命中该问题：
- 目录中 已经存在
gateway.jks - 但 master secret 被修改 / 重置
- 或当前运行环境中使用的 master secret 与最初生成 keystore 时不一致
此时 Knox 的行为是：
keystore 文件存在
keystore 内容无法解密
→ 抛出
Invalid keystore format
三、为何 Ambari 页面无法修改 master secret？

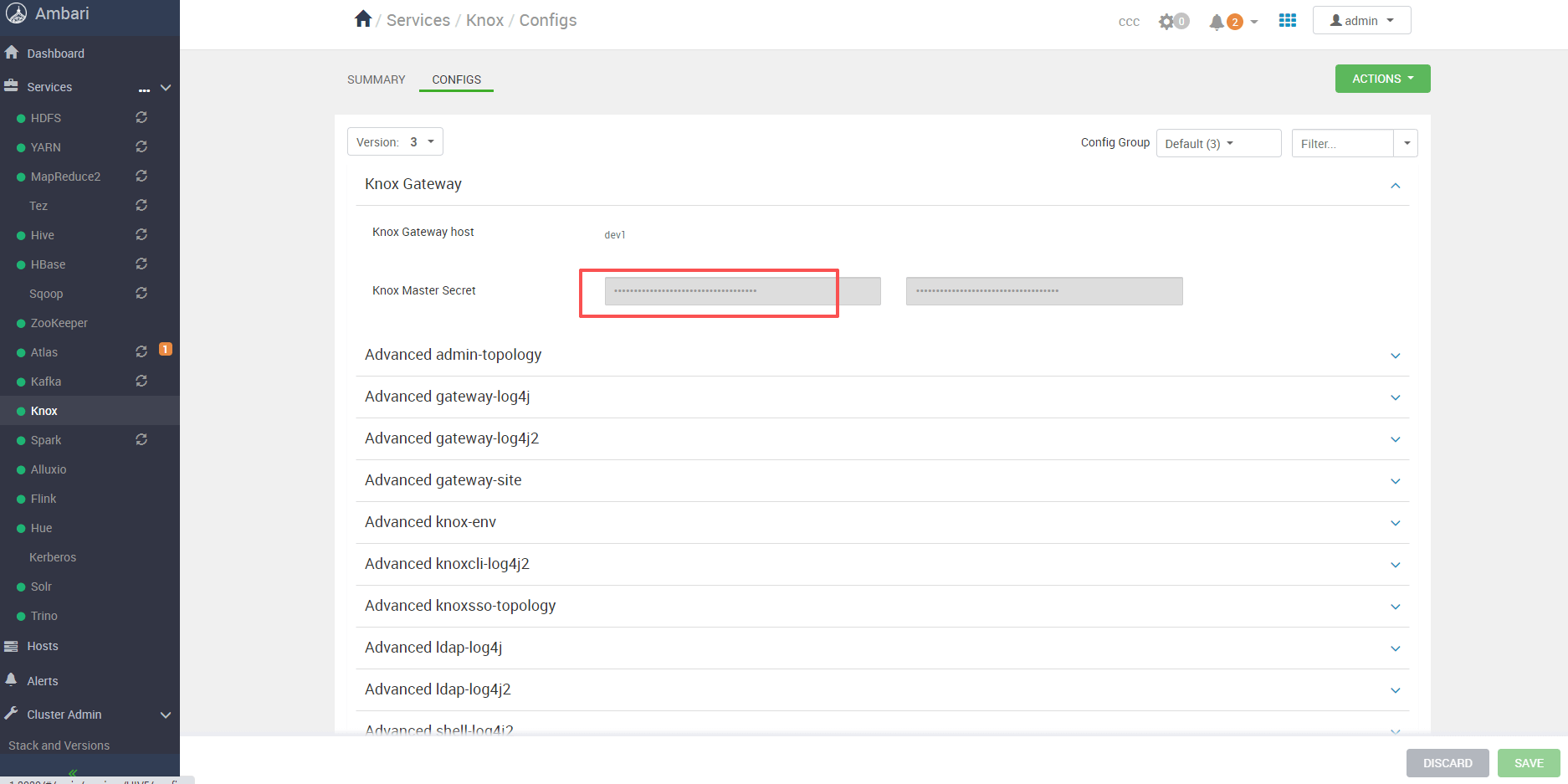

在 Ambari 的 Knox 配置页面中，master.secret 通常呈现为只读状态：
这是刻意的设计
- master secret 只在首次初始化时生效
- Ambari 禁止 UI 层直接修改
- 目的是避免无意操作导致 所有已有 keystore 同时失效
这也是为什么：
- 改配置文件无效
- 改 UI 配置无效
- 但 Knox 仍然继续报 keystore 错误
四、这个密码到底是什么？
这里的 "password" 并不是某个临时生成的随机值，而是：
Knox 安装阶段配置的 master secret
如果时间较久已经遗忘，可以回看当时的 安装文档
Knox安装指导手册
关键结论
gateway.jks 的解密口令 = 当初配置的 master secret
五、正确处理方式（可重建场景）
如果满足以下条件之一：
- 首次部署
- 测试环境
- 可以接受重新生成 keystore
那么处理方式非常直接。
5.1 删除已有 gateway.jks
在 Bigtop 环境中，文件路径通常为：
bash

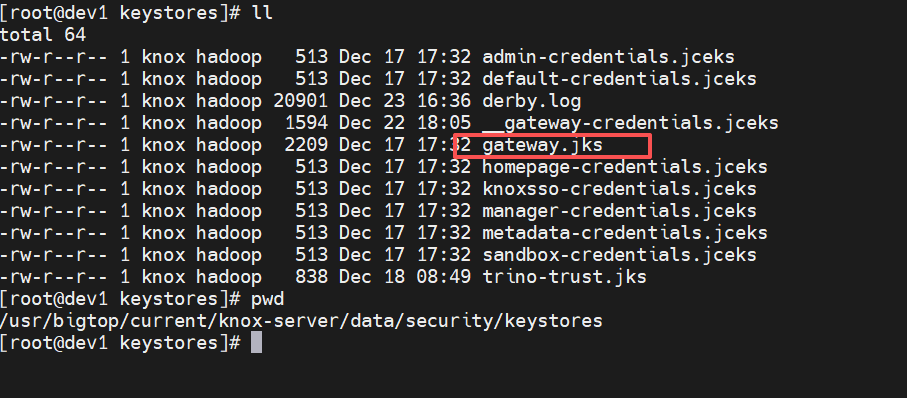

/usr/bigtop/current/knox-server/data/security/keystores/gateway.jks示意如下：
执行删除：
bash
rm -f /usr/bigtop/current/knox-server/data/security/keystores/gateway.jks操作说明
- 只删除
gateway.jks- 不需要手工创建新文件
- 不需要自行生成证书
5.2 通过 Ambari 重启 Knox

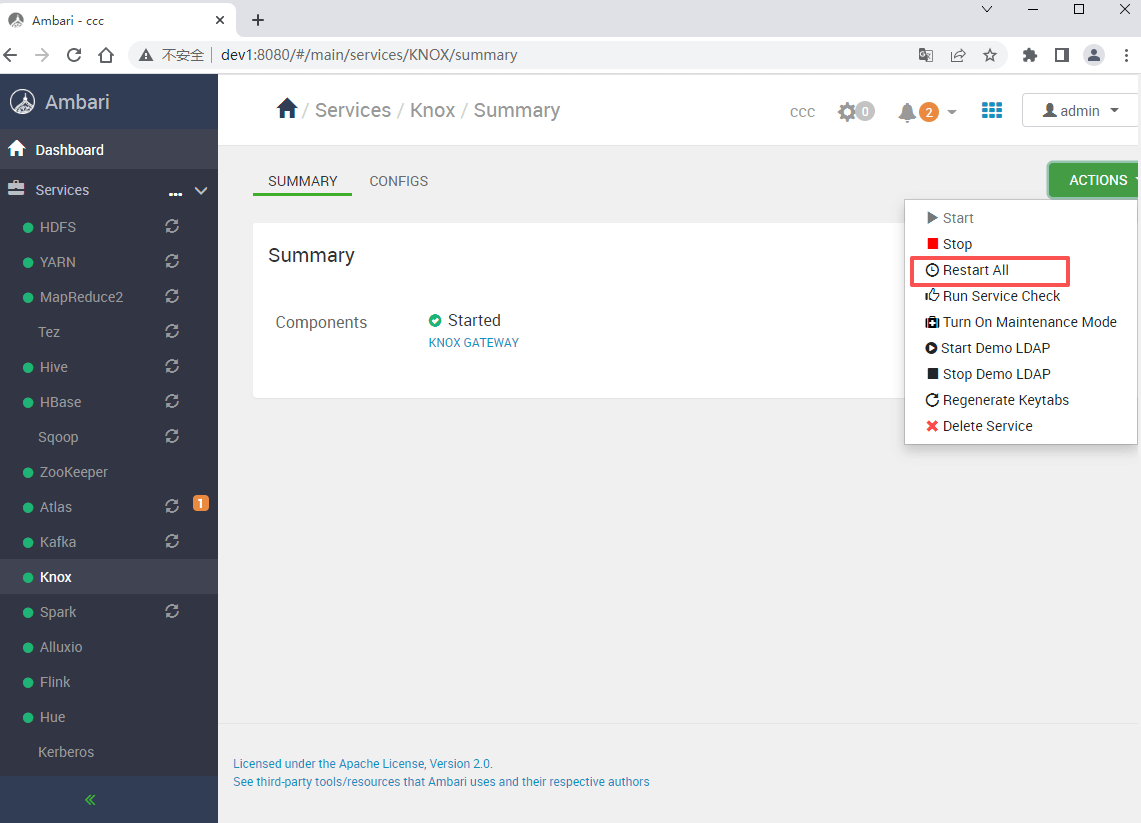

回到 Ambari 首页，直接重启 Knox 服务：
Knox 在启动过程中会自动完成：
- 读取当前 master secret
- 重新生成
gateway.jks- 初始化 SSL 与 Credential Store
- 正常拉起 Jetty
