【matlab绘图】如何绘制fill图+legend如何只显示最后一个图线的注释

fill图：绘图时将某一区域全部"填充"成某一颜色

legend如何只显示最后一个图线的注释：实际绘图时，legend必须得一个一个显示图线的注释，比如有10个图线，但是只想显示最后一个图线的说明，此时就得用以下句柄：

h = findobj(gca, 'Type', 'line'); % 找到所有线形对象
lastLineHandle = h(end); % 获取最后一个线形对象
legend(lastLineHandle, 'Data'); % 只显示最后一个线形的图例

示例代码：

clc
clear
close all
%% 原始数据
data=[0,-6.56791504739934,-20.0628879055108,-21.2537997104595,-9.84067182883140,13.5796707062154,0.204507019931753,-6.11287795317882,-1.08291720833799,-13.6590070286505,-16.3760016482381,6.65767501586793,24.8721148832884,12.6938299674030,8.75875135746932,-4.38504706696121,-28.1249055720163,-29.2168786979224,-16.9554419539488,-2.85177227855408,7.84536663378316,11.3002986210136,22.9506950250483,4.29568264145614,3.21262390483696,-3.33229910848218,-13.0649951613922,1.65581588231743,23.3054150677952,29.4610018387663,26.7287590939792,25.9036668039082,11.6836055272543,1.53703813599095,-6.10576706906166,-7.31161377523497,2.08049255178156,24.1856426779381,34.2870842938865,25.6152887070160,-7.26578085323357,-4.46329234613649,-2.38481330383526,11.0967012242406,13.0095838017417,-1.27265878891692,11.0229782270374,16.2877918425651,5.98310188564722,8.69667017417141,-14.1344471381775,2.89504897633291,2.03339450852938,19.5258470352934,12.5968502003277,-0.719883407783664,7.57593029164828,8.83614626786882,2.83785177626430,-9.59211218985219,-27.2819643831304,-27.9044083998054,-4.74631257842564,-0.318213271040834,-5.60405060804879,8.37389716621277,-8.58263785276618,1.98223593653925,3.49905069521438,-7.98140766927407,-20.8142731694033,-10.4735036308125,-9.76867585749515,-24.4835906757473,-17.3950008527721,-7.92144872912681,12.6414519024875,12.1348842093070,0.282956312295692,-16.3082493288891,-12.7418490178595,-20.0543665574162,-28.0242639056531,-16.2611922741876,-3.75913957029853,-2.97938836235837,0.796303578877409,-12.3428050643715,-29.2450017042716,-14.1549099634592,-3.86401650444398,8.67516936897072,17.9677867337805,4.20430316137518,-9.64623626483231,-16.7707658826007,-24.2759904773844,-10.6845275359866,-0.423770054495659,0.950165518801871,20.9340926634996,21.0990475739254,26.9123167783106,-9.42630277013639,0.308740575649582,-19.2521606334506,-24.7079009357169,-21.0875587332437,-18.0595088121618,-8.10120827484020,26.9837301353093,30.0272091172835,15.8604355075477,-7.01163718553689,-2.39256903646078,-9.63703549995638,2.29070930756316,14.2148700091906,12.8175926259300,-4.92709633705098,1.36025821302173,-8.56138217405326,-1.62296344464075,5.90987356950540,18.9301326324428,0.943828996373869,-7.32074799143537,-6.03165676771837,12.2880241180239,29.2599284261242,16.8366410917998,-2.25097325574052,5.48484319371949,16.8458855772933,16.0400296723381,16.3211932368120,2.02458331957260,16.0474541599998,20.8058973880488,1.82483698985787,-6.79159441110307,-1.08274364821714,-3.39836547038700,9.10708518693053,-2.63736728198529,8.91653801473784,-3.00574405469443,-16.4986629074561,-24.7534070094693,-19.9541397540107,-7.44968903475086,13.4242681872761,22.1021505182875,13.7135321609791,14.2255286351029,13.7305097620224,-10.6128711505096,-25.7657043081309,-18.4138919173557,-1.84286812580779,-7.99223927848439,10.5518449025055,10.7880593374805,23.4278366076134,-0.390910367787066,-2.14627973356750,-11.6756343701221,-9.16632791978599,-11.5236010022087,-3.86303445996492,-0.723273797050879,18.0910158274542,9.16181265706195,-15.7272594533662,-31.0657823706433,-7.46455157326536,3.37578889286645,15.3574127893699,-2.97732422138530,-5.68935731853292,-14.0689848812707,-17.6392826336954,-19.7229448939498,-11.5946412109249,-4.75872024684889,-6.10964759979335,-1.31167526129447,-13.6980348995952,-23.1996150625423,-23.0596220991095,-3.45705398360374,-4.98904419663043,6.91238966126074,19.1216288259581,27.0159671570127,9.37783848742655,4.61651339837549,-24.9643787736164,-23.5034689984617,-25.2956086337594,7.57663909241803,15.9856659878556,29.1910256335223,38.1664415124231,14.2427526809039,5.42719675582183,-2.03556454221911,7.92851096291849,9.40739847542961,22.6178757808357,25.4072842130238,6.36944396286455,1.33663587730979,4.00647354325503,21.2223042126983,2.92052427280618,-1.64458356265501,17.6798215721576,24.6994503697205,14.2595530706263,20.4974933942620,9.82131480202003,-4.69167061477599,-5.56509484418555,-6.62943364014797,7.35543720618249,-0.830549275412871,-14.4062881673155,-13.9081438794908,-15.7079305147888,-17.0569615828122,5.78833455397767,-5.92309436038313,-0.472252440217043,1.50488060516672,-3.10232613172384,-3.55264605390199,7.37515983268898,12.2305846987151,4.20701160990969,-10.1305342146941,-24.6678950330885,-28.1023798474228,-14.0120340067850,2.54511469313456,-1.58905521033917,-7.60819076988361,-4.95862116734120,3.50791458631149,-9.37283664868497,1.98935038324764,9.49674473014313,-11.0484608287417,-2.73734886011780,-2.55345219667942,-15.2007606152513,-10.5302817274118,-17.9664798477150,9.16845192693313,-5.81179412643131,-15.8146615454699,-8.72715540608879,-14.5147352323377,9.23103097659521,12.9444587785867,19.1375390804447,10.7563671835519,1.62884509393493,-9.97499273176816,-11.2561238179392,-16.2736680829594,6.25106435358726,27.0121816470403,19.1992000088830,-9.80151789265295,-18.6805265722285,-22.6275439011959,7.22093360539740,-0.784637597398879,-8.77520067097737,-10.9460047350253,0.949300646879702,9.57346499249769,4.32132721419049,-9.43410984916434,2.30988941433644,-6.65606709492615,-20.6063423649599,-1.09054817700083,5.70622703915177,-7.87436059053438,-17.4620340842619,3.27561617635272,3.25178394130515,3.97337825951849,-5.86728301285219,-13.7448349385730,-7.56220686912203,0.675039276070365,8.40472053318789,7.01700580941714,4.49906591262545,4.93562728777183,-5.80577978232937,-11.7670285907177,-3.20552455525548,-8.32604088604986,-17.0992115305148,13.4914248697298,12.5903146416572,7.04558250547498,14.4063146769603,11.6399583143687,-12.8039492794735,-4.56992219006894,16.1791927940285,10.8098281795530,4.19357870060033,5.72188586971326,4.82369191603436,3.06385052243927,2.18298615161820,-1.32866420734776,-6.64642304257775,18.6727779065897,31.7576730142922,6.86625265222779,9.79265687735025,-2.48752736915351,3.78651178866427,0.0510427903374274,-10.2145256147280,1.57162665692810,7.04812711975176,-5.30383223005466,8.06972593692534,18.9765479062640,2.13430564816296,-14.8563559465936,-18.0117888156607,-15.6481475251215,-6.87528287770188,-0.0735372223824419,13.2488650779586,18.1402109637009,27.6516191998516,30.0487442055500,6.25850086273275,-8.43547523207193,-22.8325506485238,-24.0572904932331,-0.924629515913119,10.1743837435592,26.6572646147928,2.51463863268511,7.63967708750286,13.6313875906647,13.8260578565100,-4.19705041612315,-27.4262643444632,-19.5516493536510,-19.5691622650701,-2.31416412262164,25.1981010217716,31.5914193182164,30.2830264752381,-6.36171110442571,-27.6244119202110,-17.8989838791593,-5.18265134493049,-10.9468048816081,-1.81653515394088,-8.87836738545043,-1.24151419435932,6.84389413530312,19.3478838848376,20.0250991099831,5.45494242608634,9.79409378421318,-14.6709757883586,-26.9524788390625,-18.3627505727106,10.5560660277732,24.6641413890768,17.9671760708035,-5.91175703158660,-22.8207079872415,-2.13845015264163,15.9889522896428,11.7801328149490,-3.34953721309763,2.31528199282181,-5.37026758996059,-0.815373052299101,-6.05740708811601,-5.96855910683349,-16.5656116684539,1.62550030730361,14.3013528421365,10.0225489290378,-9.82383092229577,-15.2854620096517,0.674836272352947,-12.4677063946701,-16.9615682842190,-25.7638106134840,-0.842260572301688,6.35248894089034,5.78506649181479,14.8644169066278,19.2013169725009,-0.551393526430640,-11.4990941249696,-2.79757407422722,-18.5965625418234,-5.24017560632046,0.960128348740376,2.33878252702449,-0.307649180596627,15.1694007261754,12.7869581523974,7.19326461663281,12.5911287382267,-4.35331586910715,-7.62799301265312,9.96123620611182,-0.568891563379118,-0.572008772702668,-8.83485725414910,3.97917184245903,20.5317643896187,5.44101967797560,17.9045957437266,-8.36049971428326,-20.0035979662874,-9.36384138233916,5.62838379133565,-6.63136345249477,-8.05622908234502,6.95749872966332,10.7788998206915,11.2081460958830,-9.08352044156642,-29.6052612458311,-30.9248719246416,3.50441183300828,13.7254354755156,30.5116609140668,13.7502452607267,7.01685732615932,4.12900167313820,2.17667876833314,-19.0783666246491,-10.0623933961857,-15.4159536846715,4.96684769817250,-8.29267862185202,-12.0095573219384,-6.84250897817682,-8.86560948010581,-13.2913646369632,-2.62767531070048,14.3645924698321,-0.711308570361310,10.4499139215985,12.4148690036524,1.12635792051210,-17.6501201559125,-2.69554567456825,8.84859471497113,18.3526497117743,26.5503908430767,-5.91779414233341,-11.4423666075360,-10.6670011653552,-12.5390238914837,1.62303250763082,-0.172061652048347,-3.12928090042925,-16.1768671209647,10.1979309650054,0.627637432526016,-10.9069211933530,2.45661567979489,-7.52009490560906,-21.7474025151920,-0.613637944522749,17.5855797941364,7.09825623006321,-11.4065826068058,-3.46188504289951,-3.36779217777190,13.9557150929697,16.6391727517921,11.7579780489203,7.96951787459384,-9.63673368314058,-5.60314165338643,-9.33765375772117,4.93790237209970,16.5040519764486,39.6016166312019,11.3869997817819,0.982443344805642,-29.6253530663330,-55.5471015306542,-51.9282823509524,-50.1704528293317,3.90847166995919,48.7610503615241,17.5189108620472,-1.81538199997522,-19.3465470080106,-55.4958831137731,-24.1919070602551,-38.8859919753621,2.95230244820886,-16.9293079317989,24.1173503140949,36.4729584995696,27.6215975428835,5.57138511909042,-20.0352093356293,-1.79846273038623,6.97581593847497,38.1236005974749,-10.1543424729602,17.7249837452987,28.7953601668159,27.7895869373141,18.9219900705059,37.3883720278162,-5.22422828366883,9.60057119939385,1.50546545973989,24.5867096081840,49.3261952275113,1.55308519515914,-26.1676912237493,-17.0070878064624,-20.2098287991251,4.86637276005886,12.0313321149335,9.88982472489027,-1.96989443431703,36.5391759432048,32.1787994701312,12.1285406619268,-15.8365348381012,-8.08943350995760,-33.3897612350622,-7.70594599208065,39.5244932031605,34.7834122556028,0.739814454926809,23.9725757284818,-27.9557033747544,-7.08830122630743,-16.2140185442978,12.6786242106846,36.1206428161575,29.6671781616525,-27.0186727612818,1.92491790839418,-37.3833402813025,9.35502270215597,-14.2214390536397,18.8120371024787,45.9838055784821,21.5023255926452,-23.7691149586466,-53.6342345339223,-7.47532911842259,3.37127164611348,34.4082358041332,-15.2563700103777,-0.249102047833516,-43.8922862786380,-57.8081952114417,-46.0478686846502,-43.0564782669983,-47.0058663872708,-5.73072102358313,40.9338641149914,0.799881771309448,23.7328309521636,-36.9850323308009,-42.2344287633616,-2.24233527860367,25.4020672711745,21.0861480368195,-0.965687868141842,-49.3035848829476,-68.7799813374495,-25.4735594089940,-22.7182449997720,-6.84257558313475,27.1014900084208,24.9553233593155,-8.34790936249516,-25.6392644800397,3.65049030557126,18.8551819258759,-23.0622500056654,-11.8959576739411,-7.10652508189514,-34.0065482271852,8.30886670495819,-1.74593309158046,-20.1911612388969,-12.2327278417673,-29.6744227079657,-13.6578830672946,38.0716811512669,18.1143660410694,18.5355138921024,10.2768660045663,26.4310701161622,-2.40418651649136,-34.0710445849878,-7.01765173824334,26.2657316775346,35.1261975068406,46.5867231952207,15.0922538202056,-29.6446830129789,-44.7978351670019,-43.0383425457633,-30.5698371680838,-2.19809362593575,65.6039986401418,67.5800320243903,57.3679072793703,28.1887216487799,-28.6786590494350,2.57076618836274,-0.763002846583139,37.2271679069600,49.1735450796416,10.7671757764328,32.1746946577511,-11.0615815472740,25.3546811657910,35.5189384089266,17.3237080630070,-22.4195622424252,-10.4677043611695,-25.7427322575197,-33.8877653431013,19.7190348522146,54.8239397184601,54.2051637127412,29.5606603326811,11.0286347432392,-38.0838432640729,-4.52288972533891,35.7993538413140,4.94757291277891,-30.0736432796382,-35.8382480241795,-35.3258505804749,-27.3981153615616,23.6373104031319,19.9255671179438,46.6865000547905,34.6480094917353,13.0358131003119,17.3111437547559,-17.8887249662790,-62.9456123269277,-40.4571974202233,-48.5619922987203,-47.3940781941781,-37.7725707239575,-8.50515709855175,-17.6192064657829,-9.71114281017270,-14.6504546833361,8.93886123939459,-0.503060026023014,-3.40073886486106,3.07064818801900,-4.73536975339586,-26.7243942096566,-27.6795376300232,-31.2393644801505,-16.7467957287278,7.87219024690992,30.2530569206117,-6.02439009981166,-19.1074624140368,-34.8088860119254,-36.1568191914269,8.68504973723819,34.8350228476510,16.0877121991621,-17.1303562907861,-10.4485598202165,-22.4850636437440,4.68441916940189,41.2463298031658,65.0341032877739,73.2857415270071,28.7292928629293,-0.916764321674535,-42.1529006154646,-54.5785027870512,-24.6952550027160,24.3269802874399,22.5304484402682,-1.93685023051293,32.8823323347176,63.2290161160695,34.6708545033578,35.8578576156686,32.7272956303312,4.31079120974619,-9.81600910320294,18.6122686627970,-17.3916665613003,21.5013111465321,56.0551948539582,49.7293944639179,-0.731299276652638,1.56998814490462,-4.39849709146715,29.6496783550655,44.5329530401938,42.8105135748013,-19.5793313668951,-53.8071393949772,-12.5008066244427,2.48809270482040,-16.8796092973834,-0.989019549888968,6.56597563829665,-0.00370391843431000,20.1203693750817,15.1756030236167,-2.93180312223579,10.6687483610613,-38.9341197827810,-3.21177908712124,-38.1488570357670,-57.3171522642339,-64.3731338809887,-59.3806595044894,-55.2414304721133,-22.6182139135394,-4.43355572752750,-0.155742904370525,21.5302808953200,-21.2413544107307,-14.4283105221014,-21.4139632651062,-39.7614225067980,-6.00549973127595,-1.92460471601836,3.27861404183597,12.2947415673481,19.3847918903675,-25.5424581322779,1.81639566312795,30.2808703223022,36.9924895224919,3.81026821887954,15.4884828619156,17.3783325167464,5.94209004599670,-21.0070366564062,-22.4686832231125,-0.503122190162176,-22.2804485621476,1.85210167996838,-8.76552308097949,-18.1260024076621,20.4785842922446,47.2636377651260,63.3947690536113,46.1167839966641,32.1181064383167,-27.9301620373762,-25.1996234915937,-51.2939033052520,-43.8670241484091,-6.44741395644075,2.51434216627104,21.2474647388923,11.3160307458721,-15.9043708801841,17.3416889911991,50.3529666878517,-6.34618484114663,-21.0070642033106,-5.15931744931305,2.42606051172396,11.7301815622871,-0.137754620016898,-17.8631917969693,-18.7299225064695,-3.65158241820573,-12.2639009215697,-28.4682285439837,-10.7731260995729,32.1441455556875,28.4125609669029,-13.6729871111058,4.08692250994593,-7.95841497522800,12.1811973636155,3.84419012072436,33.2202619433020,18.3431597164361,34.2229334158993,19.5792271814782,-5.72069909484668,-48.9442794316588,-13.8094433198791,38.4977914944560,61.5401799245852,9.49174509649055,-28.8517957774656,-35.8601551975310,-30.9789464530791,16.0870706810738,60.0079044592243,36.7539574673945,27.9336836692939,24.1711433314192,-36.6134894105482,-71.3614393679453,-13.2210887759593,-23.3071584363532,23.6096953837531,45.5233170319964,19.4126968372035,8.83707040324926,-19.2514147719488,-6.68546775399039,6.41299570665524,-9.02735598183222,-30.1330822991960,-18.4597790739374,26.3955457636647,11.3082091261247,9.15529014222365,-1.55468282116755,-33.1830692940954,-56.3156040138489,-47.8005712295819,20.6068088208633,-2.49063372324516,-9.54036046101473,-28.3322638644636,-13.6497660011451,12.2738129315344,40.4812300931871,18.6270966406132,-17.1573450790388,-11.5881905462394,-49.2342318620449,-1.59454893825056,17.4075658806891,16.7332692214657,32.1918102460902,-0.552862440759295,-1.09233649444936,-43.0255918180318,-28.9067859476925,13.5918434809147,47.8486301342146,64.2931891151595,56.4041133369883,21.5147470077355,-2.84448469617126,-7.34246031549924,-28.7248821107928,-30.7005564269119,-12.5670764743021,-21.7472475360156,16.4285153713823,29.6950787273256,50.7443647714051,16.5258380123037,-39.6299518904009,-64.5341238192215,-26.9952551989621,12.2921493343817,21.1659761944760,-14.8830768658704,7.81185598221070,9.30696559217041,3.92483516471506,-9.15238905992540,-8.25652719293161,11.7996407568001,-28.8551855292608,-53.3820992568819,-6.53987187200097,-26.2762900050991,10.5403163211394,7.84456411883828,-15.4000189222427,-28.8339785017203,-33.2947740021169,-41.9737078457116,-25.2291367664248,-33.3838519447172,-14.8087791853505,25.6743876447919,2.73862310748616,22.6138282379525,34.1304604104776,16.6617211891708,-27.3878279165256,-49.4581889959910,2.54138172805745,-21.6947089185307,-39.4808381559080,-33.6747644430359,-6.18744567343933,19.3351035527079,4.53902520066034,-21.5087554629321,-39.3019497535028,2.35352212819333,0.721049462310070,9.68722113884348,10.7892298280248,47.3771608140311,14.7051699923339,-34.6775406173451,-57.4516623979918,-39.6549390606595,-29.3407918667021,49.6778522410970,64.1716438194662,21.0051163407968,-22.8721694194886,-19.0352691636767,-41.0743864689239,19.3594985617800,48.9287818284054,33.7937704850965,8.48863974827463,35.3769943301422,30.6136727272387,-15.7837712667679,3.85183447402768,48.3930005190126,26.6443871324192,54.7193069993830,8.04362475366026,4.36728531460554,0.870231598902190,10.1176114265907,-10.9332629170386,5.58914119078481,51.5677428725924,24.3647652705704,1.55453585344470,-3.13037068410665,0.186267743207369,42.6937456268286,31.9892091532019,55.2678962911823,13.9000179683913,23.7628489524901,41.2968109688329,25.7829914523053,27.1856321710638,34.0854644173216,51.6706548565713,42.9562282631895,-4.48436481752428,12.2710731103181,-19.2647103464307,-34.7623177514860,15.8924942039300,61.7114556548201,42.7430312075901,37.2433186835944,-31.1890458448012,-38.8365824960003,-15.4581855046900,-9.86680045557950,-23.3370415420953,-38.3027800703355,-10.6367388348207,8.07041277738383,29.1938981918106,42.4199514916453,14.8830821430933,-25.1501257710413,-17.1371588187859,-43.5741267136402,-6.20926431920486,-25.6216972885777,-28.2610559784861,-38.8917155950823];
dt=0.01;
t_end=10;
t1=dt:dt:t_end;

tmd1=1;%透明度
tmd2=0.3;%透明度

qwe=[-100,-76.5081172519901,-42.7734654337302,-29.7248879193613,0,30.7960215203940,45.4527832067873,81.7379795916058,100];
%% 图
figure(5)
p=fill([t1 t1(end:-1:1)],[t1*0+qwe(1) t1*0+qwe(2)],'r');
p.FaceColor = [1 0.8 0.8]; %设置填充颜色
p.EdgeColor = 'none'; %设置边缘填充颜色
p.FaceAlpha=tmd1;
hold on
p=fill([t1 t1(end:-1:1)],[t1*0+qwe(2) t1*0+qwe(3)],'r');
p.FaceColor = [1 0.8 0.8]; %设置填充颜色
p.EdgeColor = 'none'; %设置边缘填充颜色
p.FaceAlpha=tmd2;
hold on
p=fill([t1 t1(end:-1:1)],[t1*0+qwe(3) t1*0+qwe(4)],'r');
p.FaceColor = [0.93, 0.69, 0.13]; %设置填充颜色
p.EdgeColor = 'none'; %设置边缘填充颜色
p.FaceAlpha=tmd1;
hold on
p=fill([t1 t1(end:-1:1)],[t1*0+qwe(4) t1*0+qwe(5)],'r');
p.FaceColor = [0.93, 0.69, 0.13]; %设置填充颜色
p.EdgeColor = 'none'; %设置边缘填充颜色
p.FaceAlpha=tmd2;
hold on
p=fill([t1 t1(end:-1:1)],[t1*0+qwe(5) t1*0+qwe(6)],'r');
p.FaceColor = [0.93, 0.69, 0.13]; %设置填充颜色
p.EdgeColor = 'none'; %设置边缘填充颜色
p.FaceAlpha=tmd1;
hold on
p=fill([t1 t1(end:-1:1)],[t1*0+qwe(6) t1*0+qwe(7)],'r');
p.FaceColor = [0.93, 0.69, 0.13]; %设置填充颜色
p.EdgeColor = 'none'; %设置边缘填充颜色
p.FaceAlpha=tmd2;
hold on
p=fill([t1 t1(end:-1:1)],[t1*0+qwe(7) t1*0+qwe(8)],'r');
p.FaceColor = [1 0.8 0.8]; %设置填充颜色
p.EdgeColor = 'none'; %设置边缘填充颜色
p.FaceAlpha=tmd1;
hold on
p=fill([t1 t1(end:-1:1)],[t1*0+qwe(8) t1*0+qwe(9)],'r');
p.FaceColor = [1 0.8 0.8]; %设置填充颜色
p.EdgeColor = 'none'; %设置边缘填充颜色
p.FaceAlpha=tmd2;
hold on
plot(t1,data,'*-','Color', [0, 0.5, 1],'markersize',5,'LineWidth',1)

ylim([-80,80])
yticks([-80,-40,0,40,80])
xlabel('x')
ylabel('data')

h = findobj(gca, 'Type', 'line'); % 找到所有线形对象
lastLineHandle = h(end); % 获取最后一个线形对象
legend(lastLineHandle, 'Data'); % 只显示最后一个线形的图例

ZT=30;%字体30号
set(gca,'FontSize',ZT);
aaa=2;
set(gcf,'unit','centimeters','position',[2 2 16*aaa 9*aaa]);
set(gca,"FontName","Times New Roman","FontSize",ZT,"LineWidth",2);

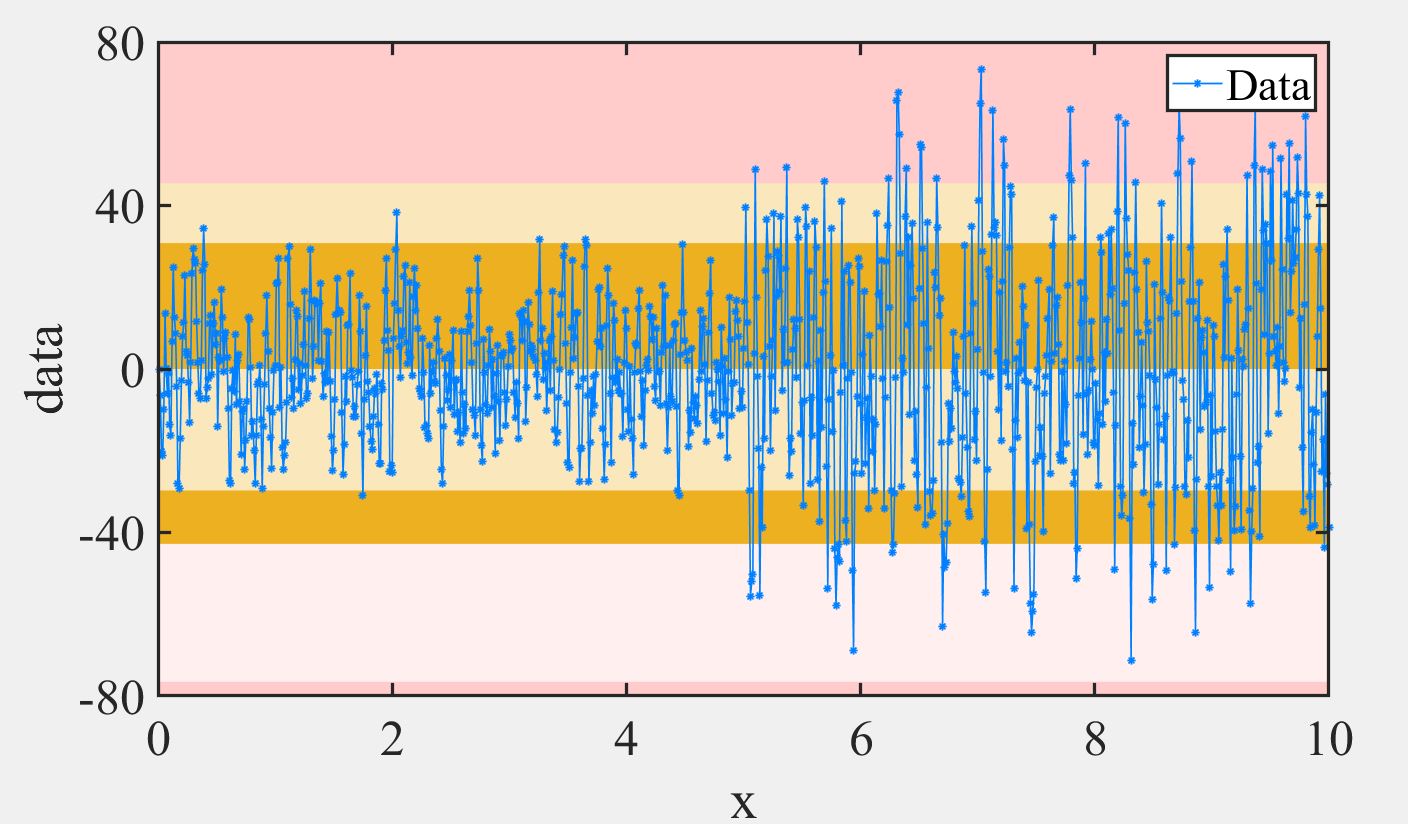

效果：
