cephadm 17.2.5安装部署（二）

lisanmengmeng2026-02-06 8:48

12.修改cephadm为使用本地镜像

#修改cephadm文件，主要是修改ceph镜像的版本信息和改为从本地镜像部署

/usr/sbin/cephadm

DEFAULT_IMAGE = 'quay.io/ceph/ceph:v17'

#4563行

cmd = $ctx.container_engine.path, 'images', image$

#cephadm --image 10.0.0.10:5000/ceph:v17 bootstrap --mon-ip 10.0.0.10

复制代码

# Default container images -----------------------------------------------------
DEFAULT_IMAGE = 'quay.io/ceph/ceph:v17'
DEFAULT_IMAGE_IS_MASTER = False
DEFAULT_IMAGE_RELEASE = 'quincy'
DEFAULT_PROMETHEUS_IMAGE = 'quay.io/prometheus/prometheus:v2.33.4'
DEFAULT_LOKI_IMAGE = 'docker.io/grafana/loki:2.4.0'
DEFAULT_PROMTAIL_IMAGE = 'docker.io/grafana/promtail:2.4.0'
DEFAULT_NODE_EXPORTER_IMAGE = 'quay.io/prometheus/node-exporter:v1.3.1'
DEFAULT_ALERT_MANAGER_IMAGE = 'quay.io/prometheus/alertmanager:v0.23.0'
DEFAULT_GRAFANA_IMAGE = 'quay.io/ceph/ceph-grafana:8.3.5'
DEFAULT_HAPROXY_IMAGE = 'quay.io/ceph/haproxy:2.3'
DEFAULT_KEEPALIVED_IMAGE = 'quay.io/ceph/keepalived:2.1.5'
DEFAULT_SNMP_GATEWAY_IMAGE = 'docker.io/maxwo/snmp-notifier:v1.2.1'
DEFAULT_REGISTRY = 'docker.io'   # normalize unqualified digests to this

13.导入镜像

#for i in ls *.tgz;do echo $i;docker load \<$ i;done

docker load < img_ceph17.tgz

docker load < img_ceph-prometheus-v2.33.4.tgz

docker load < img_ceph-grafana.8.3.5.tgz

docker load < img-ceph-node-exporter-v1.3.1.tgz

docker load < img-ceph-alertmanager-v0.23.0.tgz

14.部署首个mon节点

cephadm bootstrap --mon-ip 192.168.10.30

15.部署完成后，UI访问

URL: https://ceph1:8443/

User: admin

Password: X

16.命令行操作

进入shell

#cephadm shell

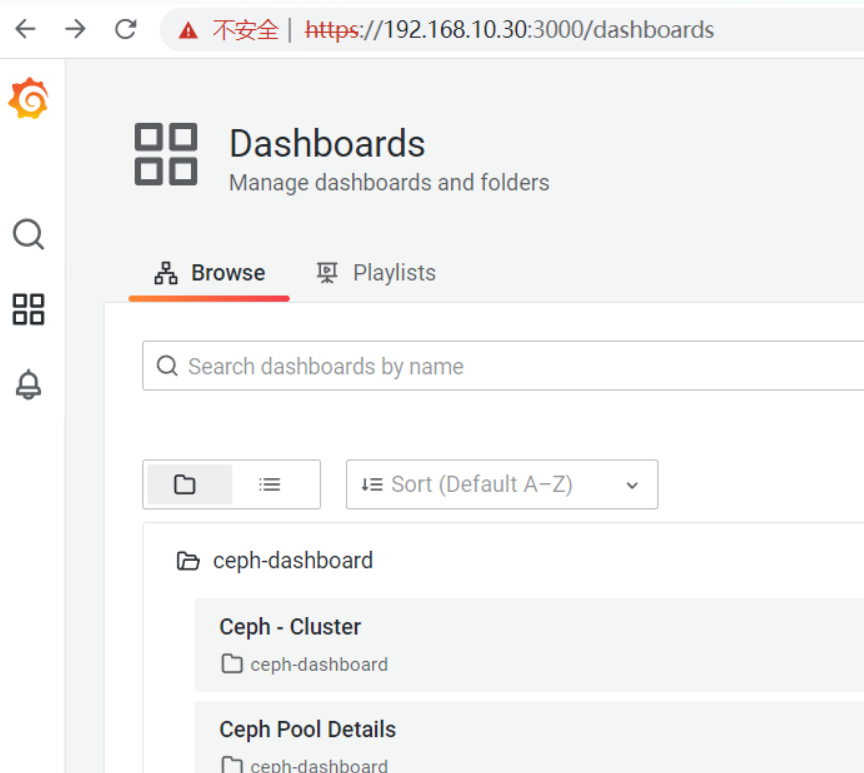

17.查看监控

https://192.168.10.30:3000/

cephadm 17.2.5安装部署 （二）
