使用 HTML + JavaScript 实现文件树

bjzhang752026-02-09 10:01

文章目录

一、文件树

文件树是现代文件管理系统中的核心组件，通过树形结构展示文件和文件夹的层级关系，让用户能够直观地浏览和管理文件。这种界面设计提供了清晰的层次结构，支持文件的展开收起、选中、重命名、删除等操作，极大提升了用户体验和操作效率。本文将介绍如何使用 HTML、CSS 和 JavaScript 实现文件树。

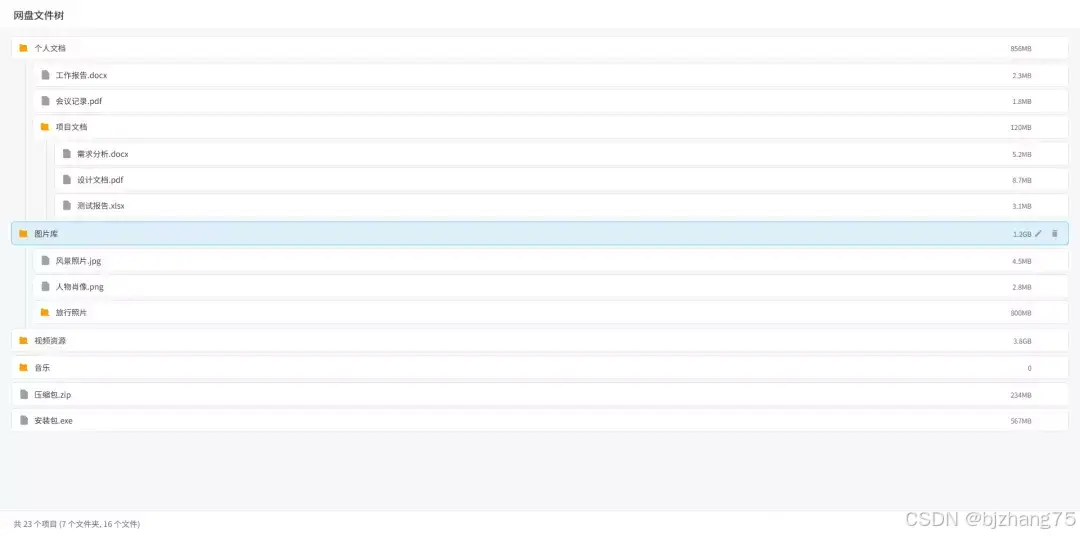

二、效果演示

文件树具有丰富的交互功能。用户可以通过单击选中某个文件或文件夹，被选中的节点会高亮显示。双击文件夹可以展开或收起其子内容，双击文件会触发打开操作。每个节点右侧都有操作按钮，点击重命名按钮可以修改文件名，删除按钮可以移除节点。鼠标悬停在节点上时，会显示操作按钮并改变背景颜色。界面还提供了统计信息，显示当前文件树中项目的总数。

三、系统分析

1、页面结构

页面主要包括以下几个区域：

1.1 文件树区域

展示文件和文件夹的树形结构。

html 复制代码
<div class="file-tree" id="fileTree">
  <div class="loading">正在加载文件树...</div>
</div>

1.2 统计信息区域

html 复制代码
<div class="stats">
    <span id="itemCount">共 0 个项目</span>
</div>

2、核心功能实现

2.1 数据结构设计

文件树的数据结构使用嵌套对象表示，每个节点包含名称、类型、大小和子节点等信息。

javascript 复制代码
const mockFileData = [
  { name: "个人文档", type: "folder", size: "856MB", children: [
      { name: "工作报告.docx", type: "file", size: "2.3MB" },
      { name: "会议记录.pdf", type: "file", size: "1.8MB" },
    ]
  },
];

2.2 节点渲染机制

renderNode 方法负责将数据渲染为 DOM 元素，递归处理子节点。根据节点类型显示不同的图标，对文件夹处理展开收起状态。

javascript 复制代码
renderNode(node, level = 0) {
  if (!node) return '';

  const isExpanded = this.expandedNodes.has(node.id);
  const isSelected = this.selectedNodes.has(node.id);
  const hasChildren = node.children && node.children.length > 0;

  let html = ``; // 生成 HTML 代码，这里省略

  if (hasChildren) {
    html += `<div class="tree-children ${isExpanded ? 'expanded' : ''}">`;
    node.children.forEach(child => {
      html += this.renderNode(child, level + 1);
    });
    html += '</div>';
  } else if (node.type === 'folder') {
    html += `<div class="tree-children ${isExpanded ? 'expanded' : ''}"><div class="folder-empty">空文件夹</div></div>`
  }

  html += '</div>';
  return html;
}

2.3 交互事件处理

通过 handleNodeClick 和 handleNodeDblClick 方法处理用户的点击和双击事件，实现节点选中和展开收起功能。

javascript 复制代码
handleNodeClick(event, nodeId) {
  event.stopPropagation();
  this.setSelection(nodeId);
}
javascript 复制代码
handleNodeDblClick(event, nodeId) {
  event.stopPropagation();
  const node = this.nodeIdMap.get(nodeId);
  if (node && node.type === 'folder') {
    this.toggleNode(nodeId);
  } else {
    alert(`正在打开文件: ${node.name}`);
  }
}

2.4 节点操作功能

renameNode 和 deleteNode 方法分别实现重命名和删除功能。重命名时将文本替换为输入框，支持 Enter 确认和 Escape 取消操作。

javascript 复制代码
renameNode(nodeId) {
  const node = this.nodeIdMap.get(nodeId);
  if (!node) return;

  const treeItem = document.querySelector(`[data-id="${nodeId}"]`);
  if (!treeItem) return;

  const originalName = node.name;
  const nameDiv = treeItem.querySelector('.node-name');
  const input = document.createElement('input');
  input.type = 'text';
  input.className = 'rename-input';
  input.value = originalName;

  nameDiv.innerHTML = '';
  nameDiv.appendChild(input);
  input.focus();
  input.select();
  input.addEventListener('mousedown', (e) => e.stopPropagation());
  input.addEventListener('click', (e) => e.stopPropagation());
  input.addEventListener('dblclick', (e) => e.stopPropagation());

  const finishRename = (newName) => {
    if (newName && newName !== originalName) {
      const parent = this.findParentNode(nodeId);
      if (parent && parent.children.some(child => child.name === newName && child.id !== nodeId)) {
        alert('同名文件或文件夹已存在！');
        input.value = originalName;
        nameDiv.textContent = originalName;
        return;
      }

      node.name = newName;
      this.nodeIdMap.delete(nodeId);
      this.generateNodeIds([node], parent ? parent.id : null);
    } else {
      nameDiv.textContent = originalName;
    }
    this.render();
  };

  input.addEventListener('blur', () => finishRename(input.value));
  input.addEventListener('keypress', (e) => {
    if (e.key === 'Enter') finishRename(input.value);
    else if (e.key === 'Escape') {
      nameDiv.textContent = originalName;
      this.render();
    }
  });
}
javascript 复制代码
deleteNode(nodeId) {
  const node = this.nodeIdMap.get(nodeId);
  if (!node) return;

  if (!confirm(`确定要删除"${node.name}"吗？`)) return;

  const parent = this.findParentNode(nodeId);
  if (parent) {
    parent.children = parent.children.filter(child => child.id !== nodeId);
  } else {
    this.data = this.data.filter(item => item.id !== nodeId);
  }

  this.removeNodeData(nodeId);
  this.render();
}

四、扩展建议

  • 添加拖拽功能实现文件移动
  • 增加搜索和过滤功能
  • 添加多选操作支持
  • 支持键盘快捷键操作

五、完整代码

git地址：https://gitee.com/ironpro/hjdemo/blob/master/file-tree/index.html

html 复制代码
<!DOCTYPE html>
<html lang="zh-CN">
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>文件树</title>
  <style>
    * { margin: 0; padding: 0; box-sizing: border-box; user-select: none; }
    html, body { height: 100%; }
    body { background: #f6f7f9; min-height: 100vh; color: #333; display: flex; flex-direction: column; }
    .container { max-width: 100%; flex: 1; display: flex; flex-direction: column; }
    header { height: 52px; background: #fff; border-bottom: 1px solid #e5e5e5; display: flex; align-items: center; padding: 0 24px; position: sticky; top: 0; z-index: 9; flex-shrink: 0; }
    header h1 { font-size: 18px; font-weight: 500; margin-right: auto; display: flex; align-items: center; gap: 8px; }
    .file-tree { padding: 10px 20px; flex: 1; overflow-y: auto; }
    .tree-item { margin: 2px 0; user-select: none; }
    .tree-node { display: flex; align-items: center; padding: 8px 12px; border-radius: 6px; cursor: pointer; transition: all 0.3s ease; border: 1px solid #e5e5e5; background: #fff; margin-bottom: 4px; }
    .tree-node:hover { background: #f0f7ff; border-color: #06a7ff; }
    .tree-node.selected { background: rgba(6, 167, 255, 0.1); }
    .node-icon { width: 20px; height: 20px; margin-right: 8px; display: flex; align-items: center; justify-content: center; font-size: 16px; transition: transform 0.3s ease; }
    .node-name { flex: 1; font-size: 14px; color: #333; }
    .node-size { font-size: 12px; color: #666; margin-left: 8px; }
    .node-actions { display: flex; gap: 5px; opacity: 0; transition: opacity 0.3s ease; }
    .tree-node:hover .node-actions { opacity: 1; }
    .action-btn { width: 24px; height: 24px; border: none; background: transparent; cursor: pointer; border-radius: 4px; display: flex; align-items: center; justify-content: center; font-size: 12px; color: #666; transition: all 0.3s ease; }
    .action-btn:hover { background: #dee2e6; color: #333; }
    .tree-children { margin-left: 24px; border-left: 2px solid #e9ecef; padding-left: 12px; max-height: 0; overflow: hidden; transition: max-height 0.3s ease; }
    .tree-children.expanded { max-height: 2000px; }
    .folder-empty { color: #999; font-style: italic; padding: 8px 12px; margin-left: 24px; }
    .stats { display: flex; justify-content: space-between; align-items: center; padding: 12px 24px; background: #fff; border-top: 1px solid #e5e5e5; font-size: 14px; color: #666; }
    .loading { text-align: center; padding: 20px; color: #666; }
    .loading::after { content: ''; display: inline-block; width: 20px; height: 20px; border: 2px solid #f3f3f3; border-top: 2px solid #06a7ff; border-radius: 50%; animation: spin 1s linear infinite; margin-left: 10px; }
    @keyframes spin { 0% { transform: rotate(0deg); } 100% { transform: rotate(360deg); } }
    .rename-input { width: 100%; padding: 5px; border-radius: 3px;border: 1px solid #06a7ff; font-size: 14px; user-select: auto; }
    .rename-input:focus { outline: none; }
  </style>
</head>
<body>
<div class="container">
  <header><h1>文件树</h1></header>
  <div class="file-tree" id="fileTree">
    <div class="loading">正在加载文件树...</div>
  </div>
  <div class="stats">
    <span id="itemCount">共 0 个项目</span>
  </div>
</div>
<script>
  const iconMap = {
    folder: '<svg viewBox="0 0 24 24" width="20" height="20"><path fill="#FFA000" d="M10 4H4c-1.11 0-2 .89-2 2v12c0 1.11.89 2 2 2h16c1.11 0 2-.89-2-2V8c0-1.11-.89-2-2-2h-8l-2-2z"/></svg>',
    file: '<svg viewBox="0 0 24 24" width="20" height="20"><path fill="#9E9E9E" d="M14 2H6c-1.1 0-2 .9-2 2v16c0 1.1.9 2 2 2h12c1.1 0 2-.9 2-2V8l-6-6z"/></svg>'
  };

  const mockFileData = [
    { name: "个人文档", type: "folder", size: "856MB", children: [
        { name: "工作报告.docx", type: "file", size: "2.3MB" },
        { name: "会议记录.pdf", type: "file", size: "1.8MB" },
        // ...
      ]
    },
    // ...
  ];

  class FileTreeManager {
    constructor() {
      this.data = mockFileData;
      this.expandedNodes = new Set();
      this.selectedNodes = new Set();
      this.nodeIdMap = new Map();
      this.init();
    }

    init() {
      this.generateNodeIds(this.data);
      this.render();
      this.updateStats();
    }

    generateNodeIds(nodes, parentId = null) {
      nodes.forEach(node => {
        const id = parentId ? `${parentId}-${node.name}` : node.name;
        this.nodeIdMap.set(id, node);
        node.id = id;
        if (node.children) this.generateNodeIds(node.children, id);
      });
    }

    render() {
      const container = document.getElementById('fileTree');
      container.innerHTML = '';

      let html = '';
      this.data.forEach(rootNode => {
        html += this.renderNode(rootNode);
      });
      container.innerHTML = html;

      this.updateStats();
    }

    renderNode(node, level = 0) {
      if (!node) return '';

      const isExpanded = this.expandedNodes.has(node.id);
      const isSelected = this.selectedNodes.has(node.id);
      const hasChildren = node.children && node.children.length > 0;

      let html = `<div class="tree-item" data-name="${this.escapeHtml(node.name)}" data-type="${node.type}" data-id="${node.id}">
          <div class="tree-node ${isSelected ? 'selected' : ''}"
               onclick="fileTreeManager.handleNodeClick(event, '${node.id}')"
               ondblclick="fileTreeManager.handleNodeDblClick(event, '${node.id}')">
            <div class="node-icon ${isExpanded ? 'expanded' : ''}">
              ${this.getIcon(node.type, node.name)}
            </div>
            <div class="node-name">${node.name}</div>
            <div class="node-size">${node.size || ''}</div>
            <div class="node-actions">
              <button class="action-btn" title="重命名" onclick="fileTreeManager.renameNode('${node.id}'); event.stopPropagation();">
                <svg viewBox="0 0 24 24" width="16" height="16"><path fill="#666" d="M3 17.25V21h3.75L17.81 9.94l-3.75-3.75L3 17.25zM20.71 7.04c.39-.39.39-1.02 0-1.41l-2.34-2.34c-.39-.39-1.02-.39-1.41 0l-1.83 1.83 3.75 3.75 1.83-1.83z"/></svg>
              </button>
              <button class="action-btn" title="删除" onclick="fileTreeManager.deleteNode('${node.id}'); event.stopPropagation();">
                <svg viewBox="0 0 24 24" width="16" height="16"><path fill="#666" d="M6 19c0 1.1.9 2 2 2h8c1.1 0 2-.9 2-2V7H6v12zM19 4h-3.5l-1-1h-5l-1 1H5v2h14V4z"/></svg>
              </button>
            </div>
          </div>`;

      if (hasChildren) {
        html += `<div class="tree-children ${isExpanded ? 'expanded' : ''}">`;
        node.children.forEach(child => {
          html += this.renderNode(child, level + 1);
        });
        html += '</div>';
      } else if (node.type === 'folder') {
        html += `<div class="tree-children ${isExpanded ? 'expanded' : ''}"><div class="folder-empty">空文件夹</div></div>`
      }

      html += '</div>';
      return html;
    }

    escapeHtml(text) {
      const div = document.createElement('div');
      div.textContent = text;
      return div.innerHTML;
    }

    getIcon(type, filename) {
      if (type === 'folder') return iconMap.folder;
      return iconMap.file;
    }

    handleNodeClick(event, nodeId) {
      event.stopPropagation();
      this.setSelection(nodeId);
    }

    handleNodeDblClick(event, nodeId) {
      event.stopPropagation();
      const node = this.nodeIdMap.get(nodeId);
      if (node && node.type === 'folder') {
        this.toggleNode(nodeId);
      } else {
        alert(`正在打开文件: ${node.name}`);
      }
    }

    toggleNode(nodeId) {
      if (this.expandedNodes.has(nodeId)) {
        this.expandedNodes.delete(nodeId);
      } else {
        this.expandedNodes.add(nodeId);
      }
      this.render();
    }

    setSelection(nodeId) {
      this.selectedNodes.clear();
      this.selectedNodes.add(nodeId);
      this.render();
    }

    renameNode(nodeId) {
      const node = this.nodeIdMap.get(nodeId);
      if (!node) return;

      const treeItem = document.querySelector(`[data-id="${nodeId}"]`);
      if (!treeItem) return;

      const originalName = node.name;
      const nameDiv = treeItem.querySelector('.node-name');
      const input = document.createElement('input');
      input.type = 'text';
      input.className = 'rename-input';
      input.value = originalName;

      nameDiv.innerHTML = '';
      nameDiv.appendChild(input);
      input.focus();
      input.select();
      input.addEventListener('mousedown', (e) => e.stopPropagation());
      input.addEventListener('click', (e) => e.stopPropagation());
      input.addEventListener('dblclick', (e) => e.stopPropagation());

      const finishRename = (newName) => {
        if (newName && newName !== originalName) {
          const parent = this.findParentNode(nodeId);
          if (parent && parent.children.some(child => child.name === newName && child.id !== nodeId)) {
            alert('同名文件或文件夹已存在！');
            input.value = originalName;
            nameDiv.textContent = originalName;
            return;
          }
          node.name = newName;
          this.nodeIdMap.delete(nodeId);
          this.generateNodeIds([node], parent ? parent.id : null);
        } else {
          nameDiv.textContent = originalName;
        }
        this.render();
      };
      input.addEventListener('blur', () => finishRename(input.value));
      input.addEventListener('keypress', (e) => {
        if (e.key === 'Enter') finishRename(input.value);
        else if (e.key === 'Escape') {
          nameDiv.textContent = originalName;
          this.render();
        }
      });
    }

    deleteNode(nodeId) {
      const node = this.nodeIdMap.get(nodeId);
      if (!node) return;
      if (!confirm(`确定要删除"${node.name}"吗？`)) return;
      const parent = this.findParentNode(nodeId);
      if (parent) {
        parent.children = parent.children.filter(child => child.id !== nodeId);
      } else {
        this.data = this.data.filter(item => item.id !== nodeId);
      }
      this.removeNodeData(nodeId);
      this.render();
    }

    removeNodeData(nodeId) {
      const node = this.nodeIdMap.get(nodeId);
      if (node) {
        this.nodeIdMap.delete(nodeId);
        if (node.children) {
          node.children.forEach(child => this.removeNodeData(child.id));
        }
      }

      this.expandedNodes.delete(nodeId);
      this.selectedNodes.delete(nodeId);
    }

    findParentNode(nodeId) {
      const findInTree = (nodes, id) => {
        for (const node of nodes) {
          if (node.children) {
            if (node.children.some(child => child.id === id)) return node;
            const found = findInTree(node.children, id);
            if (found) return found;
          }
        }
        return null;
      };
      return findInTree(this.data, nodeId);
    }

    getAllNodeIds(nodes, ids = []) {
      nodes.forEach(node => {
        ids.push(node.id);
        if (node.children) this.getAllNodeIds(node.children, ids);
      });
      return ids;
    }

    updateStats() {
      const allNodes = this.getAllNodeIds(this.data);
      const folderCount = this.getAllFolderIds(this.data).length;
      const fileCount = allNodes.length - folderCount;
      document.getElementById('itemCount').textContent = `共 ${allNodes.length} 个项目 (${folderCount} 个文件夹, ${fileCount} 个文件)`;
    }

    getAllFolderIds(nodes, ids = []) {
      nodes.forEach(node => {
        if (node.type === 'folder') {
          ids.push(node.id);
          if (node.children) this.getAllFolderIds(node.children, ids);
        }
      });
      return ids;
    }
  }
  const fileTreeManager = new FileTreeManager();
</script>
</body>
</html>
相关推荐
掘金安东尼2 小时前
⏰前端周刊第 452 期（2026年2月2日-2月8日）
前端·javascript·github
ArkPppp2 小时前
NestJS全栈实战笔记：优雅处理 Entity 与 DTO 的映射与字段过滤
javascript·nestjs
钟智强2 小时前
React2Shell：CVE-2025-66478 Next.js 远程执行漏洞深度分析与代码剖析
开发语言·javascript·ecmascript
Dragon Wu2 小时前
Electron Forge集成React Typescript完整步骤
前端·javascript·react.js·typescript·electron·reactjs
华仔啊2 小时前
jQuery 4.0 发布，IE 终于被放弃了
前端·javascript
空白诗3 小时前
高级进阶 React Native 鸿蒙跨平台开发：slider 滑块组件 - 进度条与评分系统
javascript·react native·react.js
晓得迷路了3 小时前
栗子前端技术周刊第 116 期 - 2025 JS 状态调查结果、Babel 7.29.0、Vue Router 5...
前端·javascript·vue.js
How_doyou_do3 小时前
执行上下文、作用域、闭包 patch
javascript
叫我一声阿雷吧3 小时前
深入理解JavaScript作用域和闭包，解决变量访问问题
开发语言·javascript·ecmascript
热门推荐
01GitHub 镜像站点02Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services03UV安装并设置国内源04openclaw配置教程（linux+局域网ollama）05OpenClaw Chrome扩展使用教程 - 浏览器中继控制06Linux下V2Ray安装配置指南07Claude Code Skills 实用使用手册08AI 规范驱动开发“三剑客”深度对比：Spec-Kit、Kiro 与 OpenSpec 实战指南09openclaw使用nginx反代部署过程 与disconnected (1008): pairing required解决10Vue-skills的中文文档
