SpringBoot学习之Springboot3整合knife4j（五十三）

项目环境：Springboot3.0.0，Mybatis-Plus3.5.8，knife4j4.4.0，JDK17

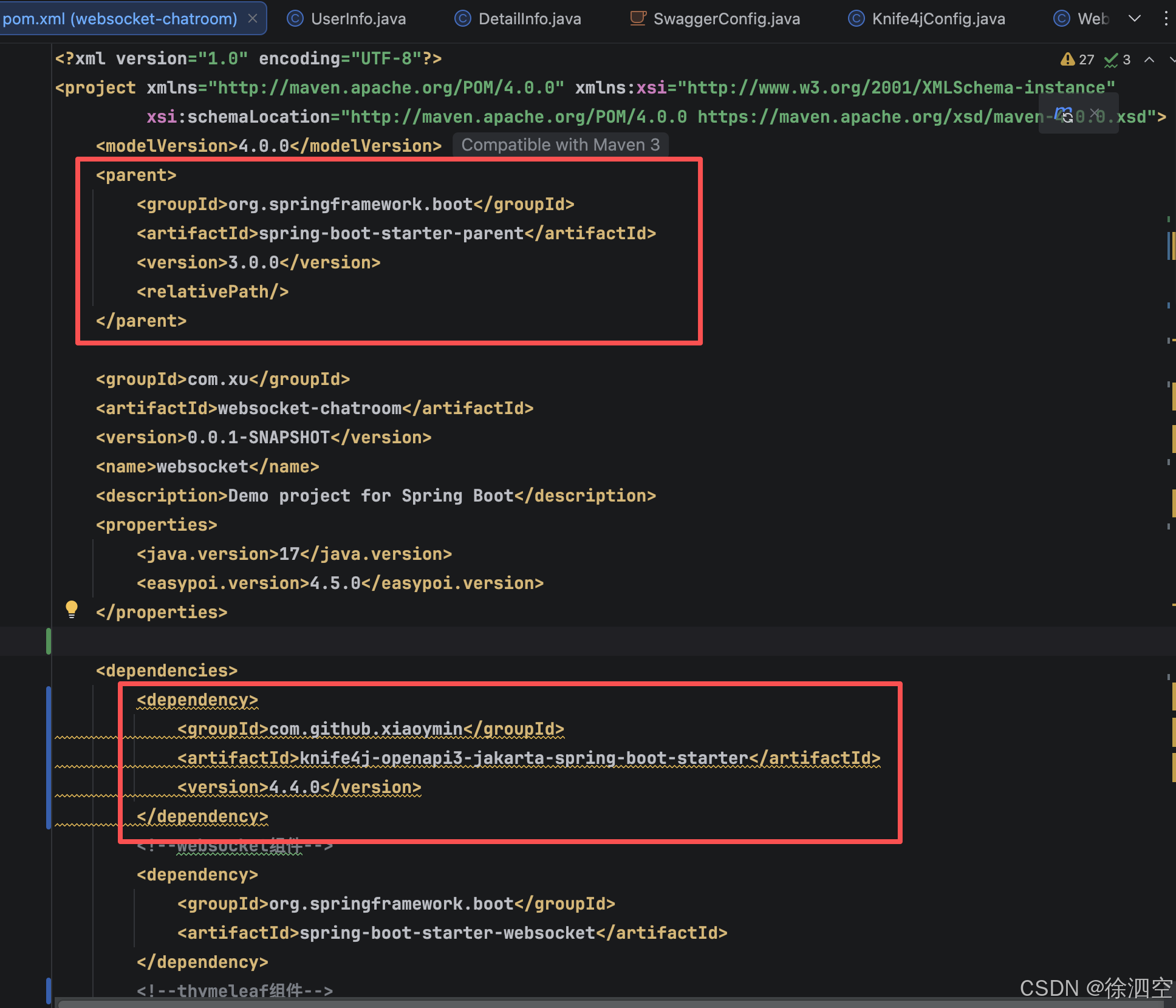

一、POM依赖

我的POM文件（仅供参考）：

XML 复制代码

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.0.0</version>
        <relativePath/>
    </parent>

    <groupId>com.xu</groupId>
    <artifactId>websocket-chatroom</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>websocket</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>17</java.version>
        <easypoi.version>4.5.0</easypoi.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-openapi3-jakarta-spring-boot-starter</artifactId>
            <version>4.4.0</version>
        </dependency>
        <!--websocket组件-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-websocket</artifactId>
        </dependency>
        <!--thymeleaf组件-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.18</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.9</version>
        </dependency>
        <!--json格式工具-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.75</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.5.8</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- EasyPOI -->
        <dependency>
            <groupId>cn.afterturn</groupId>
            <artifactId>easypoi-spring-boot-starter</artifactId>
            <version>${easypoi.version}</version>
        </dependency>
        <dependency>
            <groupId>cn.afterturn</groupId>
            <artifactId>easypoi-base</artifactId>
            <version>${easypoi.version}</version>
        </dependency>
        <dependency>
            <groupId>cn.afterturn</groupId>
            <artifactId>easypoi-web</artifactId>
            <version>${easypoi.version}</version>
        </dependency>
        <dependency>
            <groupId>cn.afterturn</groupId>
            <artifactId>easypoi-annotation</artifactId>
            <version>${easypoi.version}</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
<!--                <version>2.4.3</version>-->
            </plugin>
        </plugins>
    </build>

</project>

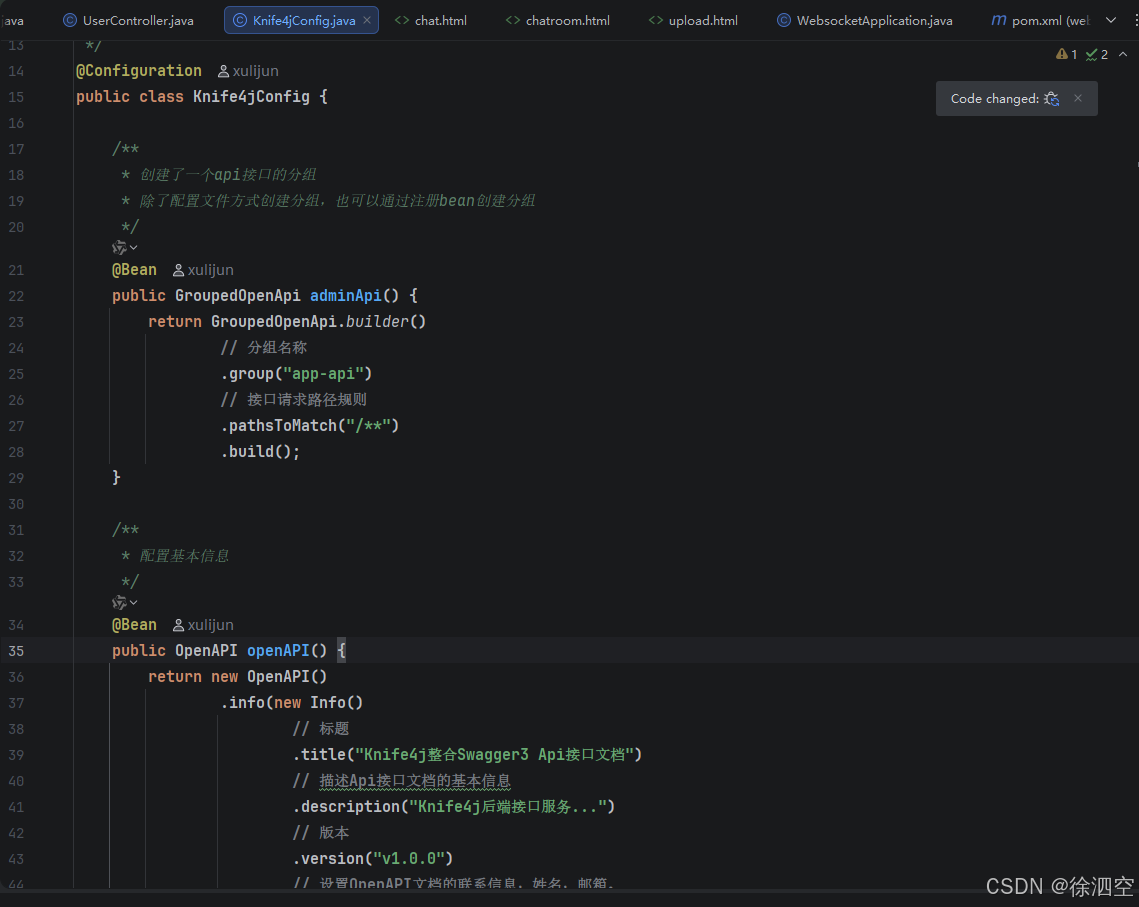

二、Knife4jConfig配置类

java 复制代码

package com.xu.websocket.config;

import io.swagger.v3.oas.models.OpenAPI;
import io.swagger.v3.oas.models.info.Contact;
import io.swagger.v3.oas.models.info.Info;
import io.swagger.v3.oas.models.info.License;
import org.springdoc.core.models.GroupedOpenApi;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * Knife4j整合Swagger3 Api接口文档配置类
 */
@Configuration
public class Knife4jConfig {

    /**
     * 创建了一个api接口的分组
     * 除了配置文件方式创建分组，也可以通过注册bean创建分组
     */
    @Bean
    public GroupedOpenApi adminApi() {
        return GroupedOpenApi.builder()
                // 分组名称
                .group("app-api")
                // 接口请求路径规则
                .pathsToMatch("/**")
                .build();
    }

    /**
     * 配置基本信息
     */
    @Bean
    public OpenAPI openAPI() {
        return new OpenAPI()
                .info(new Info()
                        // 标题
                        .title("Knife4j整合Swagger3 Api接口文档")
                        // 描述Api接口文档的基本信息
                        .description("Knife4j后端接口服务...")
                        // 版本
                        .version("v1.0.0")
                        // 设置OpenAPI文档的联系信息，姓名，邮箱。
                        .contact(new Contact().name("xulijun").email("xulijun137@163.com"))
                        // 设置OpenAPI文档的许可证信息，包括许可证名称为"Apache 2.0"，许可证URL为"http://springdoc.org"。
                        .license(new License().name("Apache 2.0").url("http://springdoc.org"))
                );
    }
}

三、静态资源文件处理器

java 复制代码

package com.xu.websocket.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

/**
 * web层配置类,实现静态资源映射，将knife4j相关资源放行，保证生成的接口文档能够正常进行展示
 */
@Configuration
public class WebMvcConfig implements WebMvcConfigurer {

    /**
     * 设置静态资源映射
     */
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        // 添加静态资源映射规则
        registry.addResourceHandler("/static/**").addResourceLocations("classpath:/static/");
        //配置 knife4j 的静态资源请求映射地址
        registry.addResourceHandler("/doc.html")
                .addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/");
    }
}

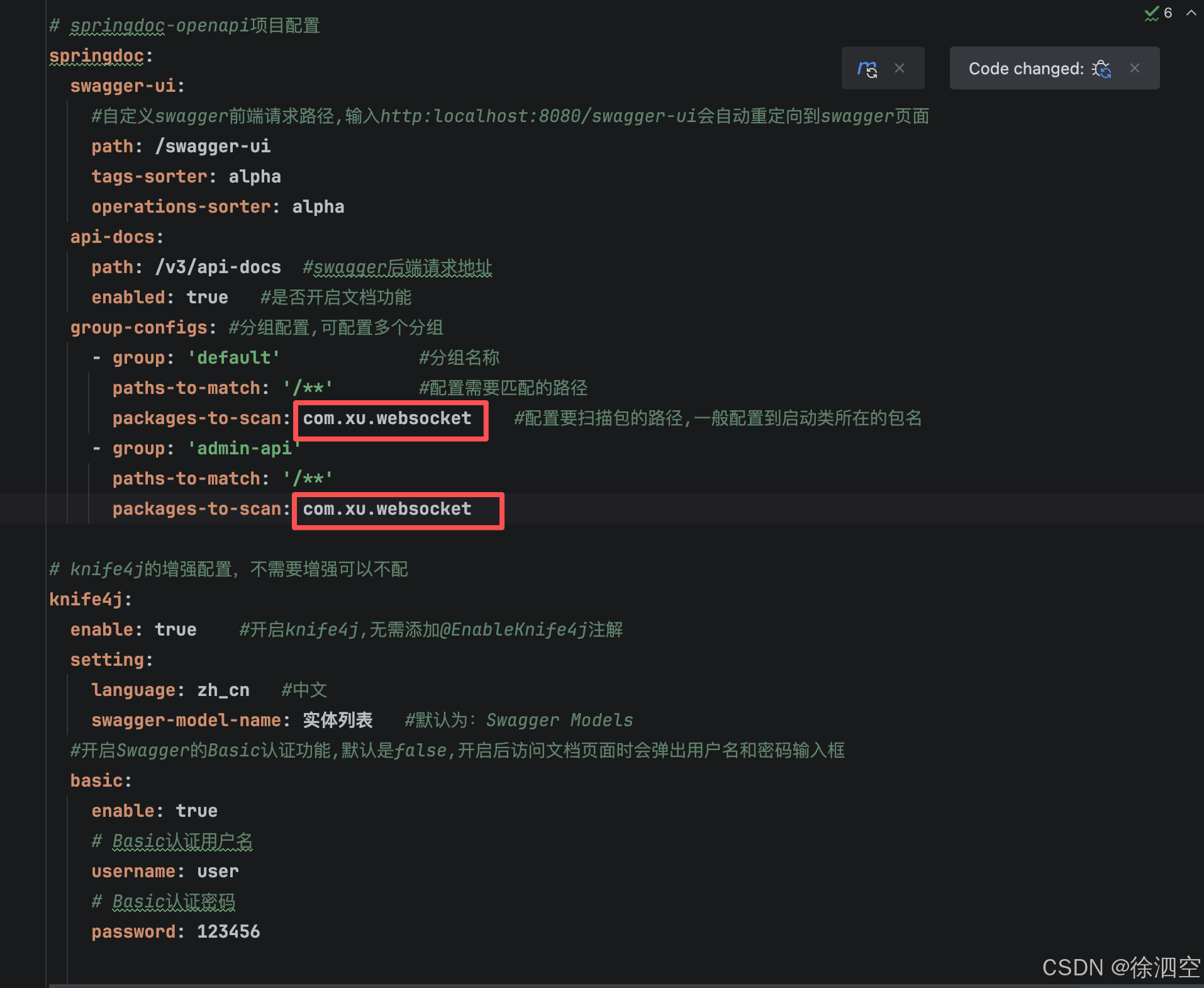

四、配置文件

application.yml

XML 复制代码

server:
  port: 8080

spring:
  datasource:
    url: jdbc:mysql://localhost:3306/xu_demo?useUnicode=true&characterEncoding=utf8&serverTimezone=UTC&allowMultiQueries=true
    username: root
    password: root
    driver-class-name: com.mysql.cj.jdbc.Driver

# MyBatis-Plus 配置
mybatis-plus:
  mapper-locations: classpath:mappers/*.xml # Mapper XML 文件路径
  type-enums-package: com.xu.websocket.model.enums
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl # 打印 SQL 日志（开发环境开启，生产环境关闭）

# springdoc-openapi项目配置
springdoc:
  swagger-ui:
    #自定义swagger前端请求路径,输入http:localhost:8080/swagger-ui会自动重定向到swagger页面
    path: /swagger-ui
    tags-sorter: alpha
    operations-sorter: alpha
  api-docs:
    path: /v3/api-docs  #swagger后端请求地址
    enabled: true   #是否开启文档功能
  group-configs: #分组配置,可配置多个分组
    - group: 'default'             #分组名称
      paths-to-match: '/**'        #配置需要匹配的路径
      packages-to-scan: com.xu.websocket    #配置要扫描包的路径,一般配置到启动类所在的包名
    - group: 'admin-api'
      paths-to-match: '/**'
      packages-to-scan: com.xu.websocket

# knife4j的增强配置，不需要增强可以不配
knife4j:
  enable: true    #开启knife4j,无需添加@EnableKnife4j注解
  setting:
    language: zh_cn   #中文
    swagger-model-name: 实体列表   #默认为：Swagger Models
  #开启Swagger的Basic认证功能,默认是false,开启后访问文档页面时会弹出用户名和密码输入框
  basic:
    enable: true
    # Basic认证用户名
    username: user
    # Basic认证密码
    password: 123456

五、修改启动类

每次启动都不知道knife4j访问页面地址，我们在启动时候打印输出到控制台

java 复制代码

package com.xu.websocket;

import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.boot.Banner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.core.env.Environment;
import org.springframework.web.socket.config.annotation.EnableWebSocket;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;

import java.net.InetAddress;
import java.net.UnknownHostException;

@Slf4j
@EnableWebSocket
@SpringBootApplication
public class WebsocketApplication {
    public static void main(String[] args) {

        //SpringApplication.run(WebsocketApplication.class, args);
        SpringApplication app = new SpringApplication(WebsocketApplication.class);
        Environment env = app.run(args).getEnvironment();
        app.setBannerMode(Banner.Mode.CONSOLE);
        logApplicationStartup(env);
    }

    @Bean
    public ServerEndpointExporter serverEndpointExporter() {
        return new ServerEndpointExporter();
    }

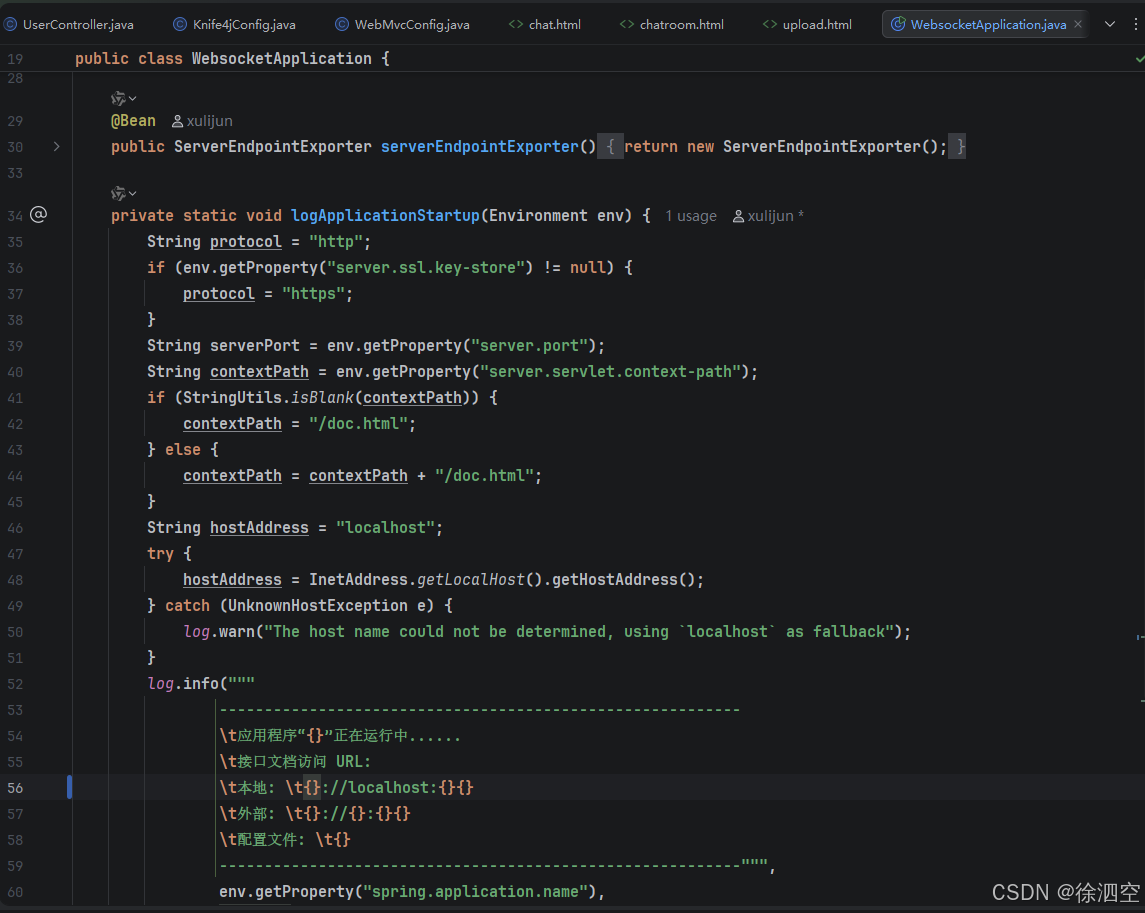

    private static void logApplicationStartup(Environment env) {
        String protocol = "http";
        if (env.getProperty("server.ssl.key-store") != null) {
            protocol = "https";
        }
        String serverPort = env.getProperty("server.port");
        String contextPath = env.getProperty("server.servlet.context-path");
        if (StringUtils.isBlank(contextPath)) {
            contextPath = "/doc.html";
        } else {
            contextPath = contextPath + "/doc.html";
        }
        String hostAddress = "localhost";
        try {
            hostAddress = InetAddress.getLocalHost().getHostAddress();
        } catch (UnknownHostException e) {
            log.warn("The host name could not be determined, using `localhost` as fallback");
        }
        log.info("""
                ----------------------------------------------------------
                \t应用程序"{}"正在运行中......
                \t接口文档访问 URL:
                \t本地: \t{}://localhost:{}{}
                \t外部: \t{}://{}:{}{}
                \t配置文件: \t{}
                ----------------------------------------------------------""",
                env.getProperty("spring.application.name"),
                protocol,
                serverPort,
                contextPath,
                protocol,
                hostAddress,
                serverPort,
                contextPath,
                env.getActiveProfiles());
    }
}

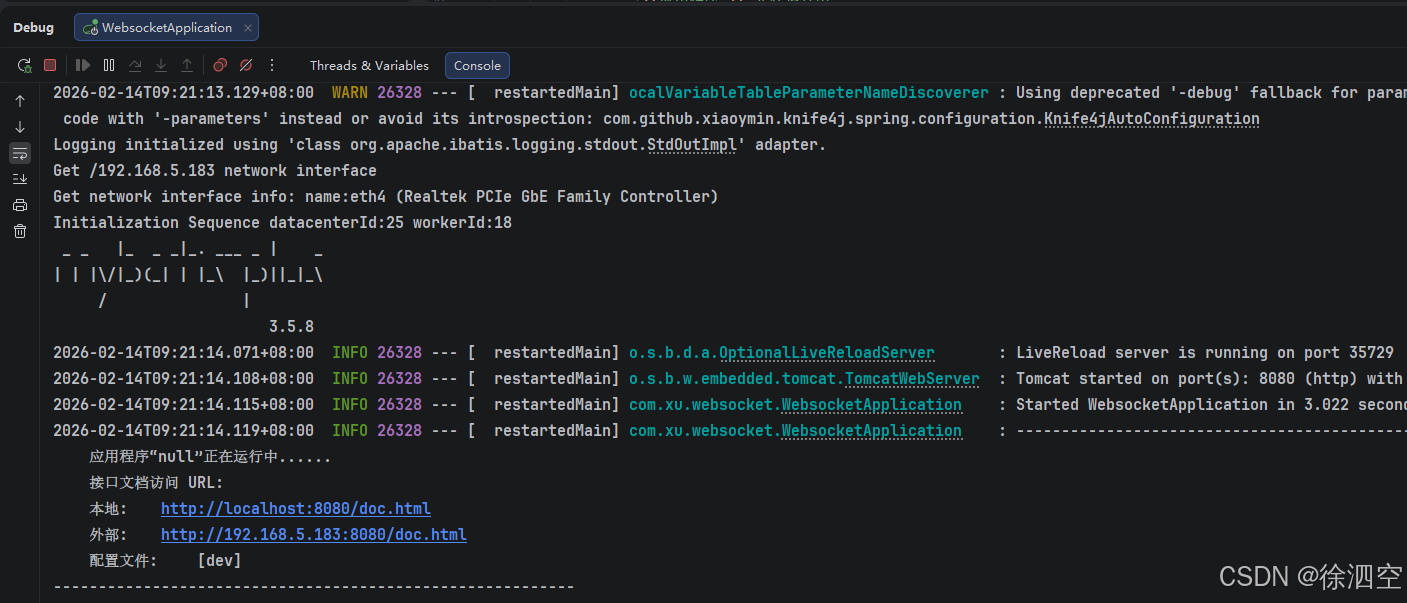

启动后输出信息大概如下：

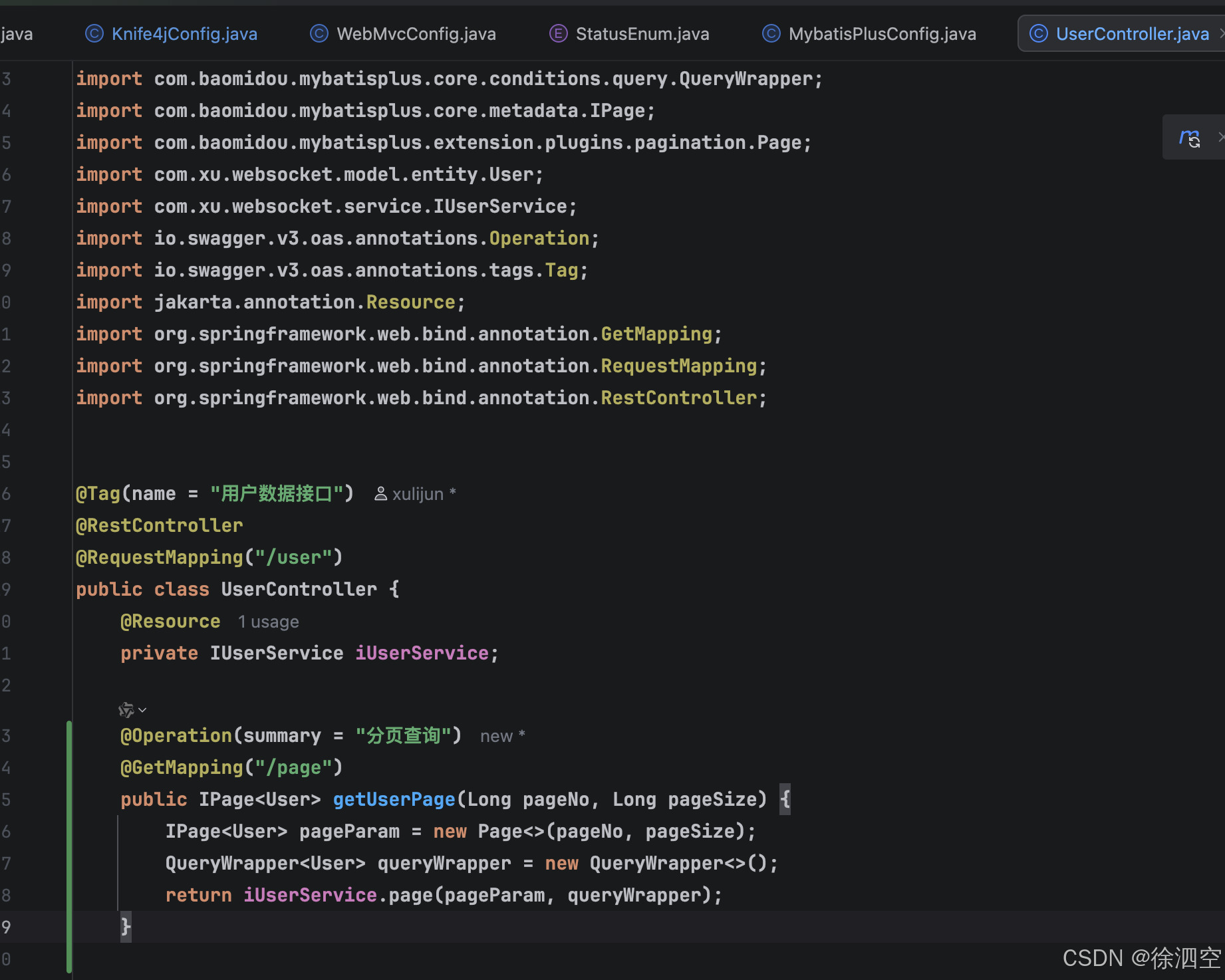

六、编写Controller测试接口

java 复制代码

package com.xu.websocket.controller;

import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.xu.websocket.model.entity.User;
import com.xu.websocket.service.IUserService;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.tags.Tag;
import jakarta.annotation.Resource;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;


@Tag(name = "用户数据接口")
@RestController
@RequestMapping("/user")
public class UserController {
    @Resource
    private IUserService iUserService;

    @Operation(summary = "分页查询")
    @GetMapping("/page")
    public IPage<User> getUserPage(Long pageNo, Long pageSize) {
        IPage<User> pageParam = new Page<>(pageNo, pageSize);
        QueryWrapper<User> queryWrapper = new QueryWrapper<>();
        return iUserService.page(pageParam, queryWrapper);
    }

}

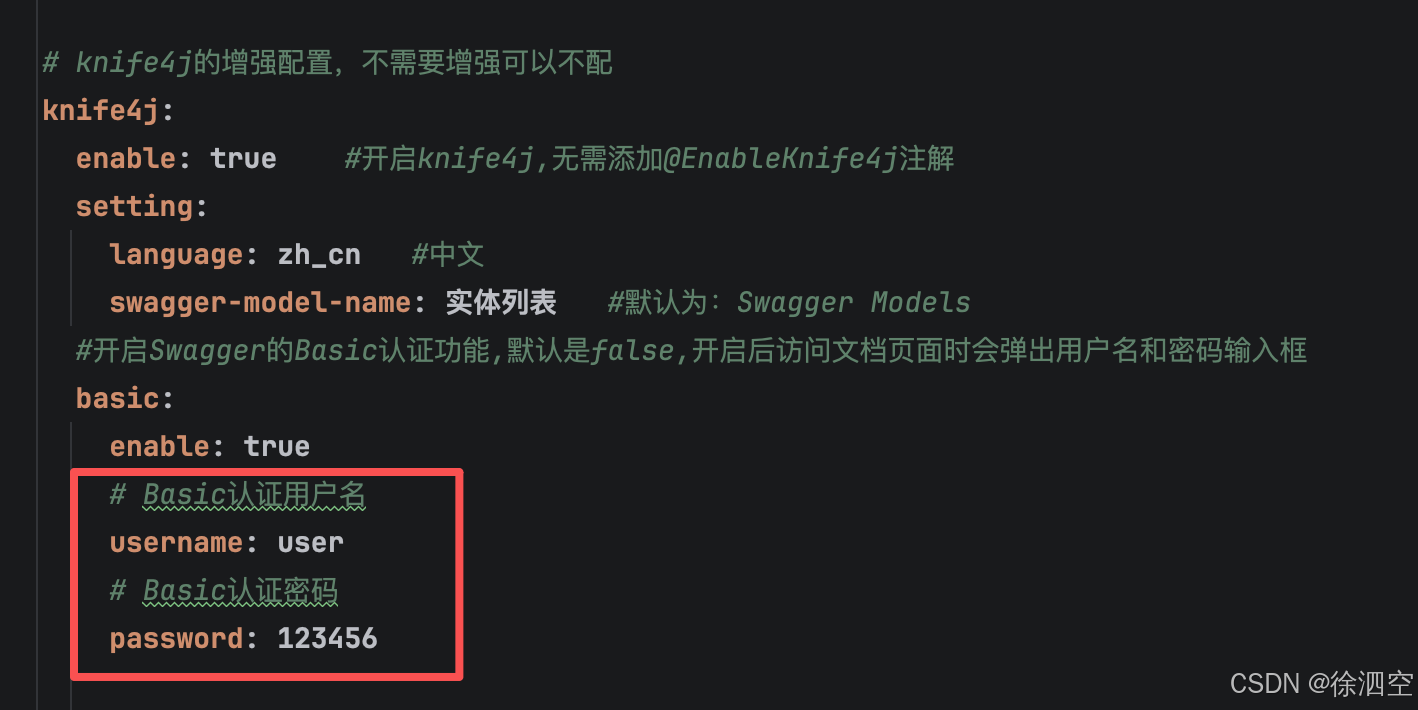

访问接口地址：http://localhost:8080/doc.html，会弹出一个账号密码窗口，输入配置文件中的账号密码即可继续访问

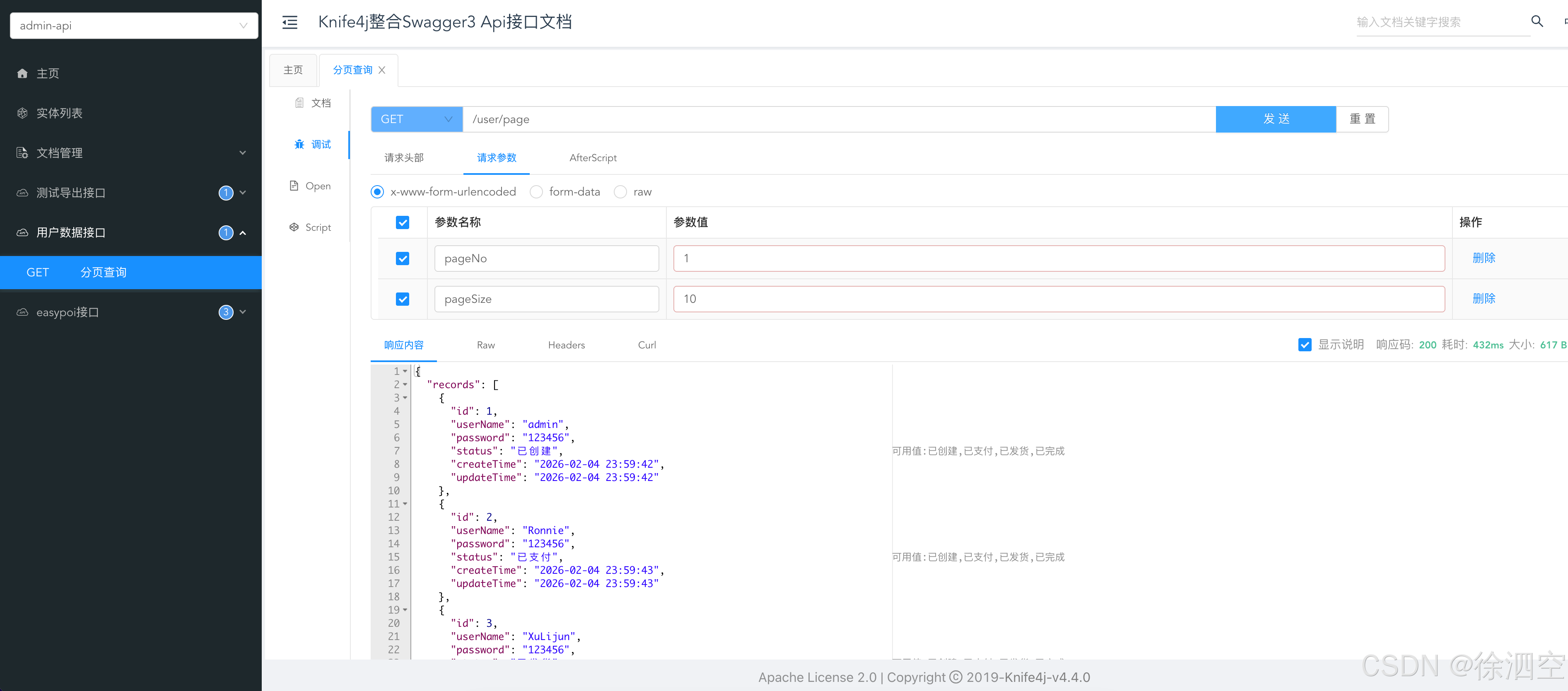

请求接口成功返回数据如下，所以我们的整个Springboot3整合Knife4j4成功，我们下回再见。
