云原生(nginx环境设定)

匀泪2026-02-15 11:07

实验简介

实验一：Nginx 的源码编译

该实验聚焦于 Nginx 从源码到可运行服务的完整部署流程，核心目标是掌握源码编译的自定义配置与服务化管理，步骤如下：

  1. 环境准备：下载 Nginx 1.28.1 源码包，安装编译依赖（gcc、openssl-devel、pcre2-devel、zlib-devel 等）；
  2. 自定义编译配置 ：通过./configure指定安装路径（--prefix=/usr/local/nginx）、运行用户 / 组（nginx），并启用 SSL、HTTP/2、实时 IP、状态监控等核心模块；
  3. 编译与安装 ：执行make && make install完成编译安装，创建 nginx 系统用户（无登录权限）；
  4. 服务化管理 ：编写 systemd 启动文件（/lib/systemd/system/nginx.service），实现 Nginx 的开机自启、状态监控、平滑重载等标准化运维；
  5. 验证：修改默认首页并通过 curl 测试访问，确认服务正常运行。

核心价值：源码编译可按需定制模块，相比 yum 安装更灵活，满足生产环境的个性化需求；systemd 服务化则符合 Linux 系统的标准化运维规范。

实验二：Nginx 的平滑升级及回滚

该实验解决 Nginx 版本升级的 "无停机" 需求，同时保障回滚能力，核心步骤：

  1. 平滑升级（以 1.29.4 为例） ：
    • 下载高版本源码，修改nginx.h隐藏版本信息（自定义为 TIMINGLEE/），编译（仅make不make install）；
    • 替换旧版 Nginx 二进制文件（\cp -f 新版objs/nginx /usr/local/nginx/sbin/）；
    • 向旧 master 进程发送USR2信号：启动新版 master 进程，新旧进程共存，实现无缝升级；
    • 发送WINCH信号：回收旧版 worker 进程，仅保留新版进程；
    • 验证：通过nginx -V确认版本已更新，服务无中断；
  2. 版本回滚 ：
    • 备份新版二进制文件，恢复旧版文件；
    • 向旧 master 进程发送HUP信号：重启旧版 worker 进程；
    • 发送WINCH信号：回收新版 worker 进程，完成回滚；
    • 验证：nginx -V确认版本恢复为旧版（1.28.1）。

核心价值：生产环境中版本升级 / 回滚无需停机，避免业务中断，保障服务高可用。

实验三：Nginx 配置文件的管理及优化参数

该实验针对 Nginx 的性能优化，核心是调整进程、连接、系统资源等参数，提升并发处理能力，核心步骤：

  1. 进程优化 ：
    • 调整worker_processes（工作进程数）：从固定值（2）改为auto（自动适配 CPU 核心数）；
    • 配置worker_cpu_affinity：将工作进程绑定到指定 CPU 核心（0001 0010 0100 1000），避免进程切换开销，通过ps axo pid,cmd,psr验证绑定效果；
  2. 事件模型优化 ：在events块中配置：
    • worker_connections 10000：提升单进程最大连接数；
    • use epoll：启用高效的 epoll 事件模型（Linux 下最优）；
    • accept_mutex on（连接互斥锁）、multi_accept on（批量接收连接），提升连接处理效率；
  3. 系统资源限制 ：
    • 解决 "Too many open files" 问题：修改/etc/security/limits.conf，提升系统级文件打开数限制（nofile/noproc 设为 100000）；
  4. 并发测试 ：使用 ApacheBench（ab）工具（ab -n 100000 -c10000 http://IP/index.html）验证优化效果，解决并发访问失败问题。

核心价值：通过进程、事件模型、系统资源的调优，最大化 Nginx 的并发处理能力，适配高流量场景。

Nginx的源码编译

下载软件

复制代码
[root@nginx ~]# wget https://nginx.org/download/nginx-1.28.1.tar.gz

解压

复制代码
[root@nginx ~]# tar zxf nginx-1.28.1.tar.gz
[root@nginx ~]# cd nginx-1.28.1/
[root@nginx nginx-1.28.1]# ls
auto        CODE_OF_CONDUCT.md  contrib          LICENSE    SECURITY.md
CHANGES     conf                CONTRIBUTING.md  man        src
CHANGES.ru  configure           html             README.md

搭建环境

复制代码
[root@nginx ~]# dnf install gcc openssl-devel.x86_64 pcre2-devel.x86_64 zlib-devel -y
[root@nginx ~]# cd nginx-1.28.1/
[root@nginx nginx-1.28.1]# ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

编译

复制代码
[root@nginx nginx-1.28.1]# make
[root@nginx nginx-1.28.1]# make install

nginx启动

复制代码
#设定环境变量
[root@nginx sbin]# vim  ~/.bash_profile
export PATH=$PATH:/usr/local/nginx/sbin
[root@nginx sbin]# source   ~/.bash_profile
[root@nginx ~]# cd /usr/local/nginx/logs
[root@nginx logs]# useradd  -s /sbin/nologin -M nginx
[root@nginx logs]# nginx
[root@nginx logs]# ps aux | grep nginx
root        3707  0.0  0.2 221300  1920 pts/0    T    14:24   0:00 rm -i -r nginx-1.28.1
root       10459  0.0  0.3  14688  2356 ?        Ss   14:36   0:00 nginx: master process nginx
nginx      10460  0.0  0.5  14888  3892 ?        S    14:36   0:00 nginx: worker process
root       10466  0.0  0.3 221680  2304 pts/0    S+   14:36   0:00 grep --color=auto nginx

#测试
[root@nginx logs]# echo timinglee > /usr/local/nginx/html/index.html
[root@nginx logs]# curl  172.25.254.100
timinglee

编写启动文件

复制代码
[root@nginx ~]# vim /lib/systemd/system/nginx.service
[Unit]
Description=The NGINX HTTP and reverse proxy server
After=syslog.target network-online.target remote-fs.target nss-lookup.target
Wants=network-online.target

[Service]
Type=forking
ExecStartPre=/usr/local/nginx/sbin/nginx -t
ExecStart=/usr/local/nginx/sbin/nginx
ExecReload=/usr/local/nginx/sbin/nginx -s reload
ExecStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true

[Install]
WantedBy=multi-user.target
[root@nginx ~]# systemctl daemon-reload

#验证
[root@nginx ~]# systemctl status nginx.service
○ nginx.service - The NGINX HTTP and reverse proxy server
     Loaded: loaded (/usr/lib/systemd/system/nginx.service; disabled; preset: d>
     Active: inactive (dead)
[root@nginx ~]# systemctl enable --now nginx
Created symlink /etc/systemd/system/multi-user.target.wants/nginx.service → /usr/lib/systemd/system/nginx.service.
Job for nginx.service failed because the control process exited with error code.
See "systemctl status nginx.service" and "journalctl -xeu nginx.service" for details.
[root@nginx ~]# reboot
[root@nginx ~]# systemctl status nginx.service
● nginx.service - The NGINX HTTP and reverse proxy server
     Loaded: loaded (/usr/lib/systemd/system/nginx.service; enabled; preset: di>
     Active: active (running) since Tue 2026-02-10 14:40:35 CST; 30s ago
    Process: 1019 ExecStartPre=/usr/local/nginx/sbin/nginx -t (code=exited, sta>
    Process: 1035 ExecStart=/usr/local/nginx/sbin/nginx (code=exited, status=0/>
   Main PID: 1046 (nginx)
      Tasks: 2 (limit: 4269)
     Memory: 324.0K
        CPU: 12ms
     CGroup: /system.slice/nginx.service
             ├─1046 "nginx: master process /usr/local/nginx/sbin/nginx"
             └─1047 "nginx: worker process"

2月 10 14:40:35 nginx systemd[1]: Starting The NGINX HTTP and reverse proxy ser>
2月 10 14:40:35 nginx nginx[1019]: nginx: the configuration file /usr/local/ngi>
2月 10 14:40:35 nginx nginx[1019]: nginx: configuration file /usr/local/nginx/c>
2月 10 14:40:35 nginx systemd[1]: Started The NGINX HTTP and reverse proxy serv>
lines 1-17/17 (END)

Nginx的平滑升级及回滚

下载高版本的软件

复制代码
[root@nginx ~]# wget https://nginx.org/download/nginx-1.29.4.tar.gz

对于新版本的软件进行源码编译并进行平滑升级

复制代码
#编译nginx隐藏版本
[root@nginx ~]# tar zxf nginx-1.29.4.tar.gz
[root@nginx ~]# cd nginx-1.29.4/src/core/
[root@nginx core]# vim nginx.h
#define nginx_version      1029004
#define NGINX_VERSION      "yxs"
#define NGINX_VER          "TIMINGLEE/" NGINX_VERSION

#文件编辑完成后进行源码编译即可
[root@nginx core]# cd ../../
[root@nginx nginx-1.29.4]# ./configure   --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module
[root@nginx nginx-1.29.4]# make
[root@nginx nginx-1.29.4]# cd objs/
[root@nginx objs]# ls
autoconf.err  nginx    ngx_auto_config.h   ngx_modules.c  src
Makefile      nginx.8  ngx_auto_headers.h  ngx_modules.o
[root@nginx objs]# cd /usr/local/nginx/sbin/
[root@nginx sbin]# ls
nginx
[root@nginx sbin]# \cp -f /root/nginx-1.29.4/objs/nginx  /usr/local/nginx/sbin/nginx
[root@nginx sbin]# ls /usr/local/nginx/logs/
access.log  error.log  nginx.pid
[root@nginx sbin]# ps aux | grep nginx
avahi        893  0.0  0.3  16656  2560 ?        Ss   14:40   0:00 avahi-daemon: running [nginx.local]
root        1046  0.0  0.1  14688   824 ?        Ss   14:40   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       1047  0.0  0.2  14888  1720 ?        S    14:40   0:00 nginx: worker process
root        2909  0.0  1.0 237632  7872 pts/0    T    14:41   0:00 systemctl status nginx.service
root        6022  0.0  0.3 221812  2432 pts/0    S+   14:49   0:00 grep --color=auto nginx
[root@nginx sbin]# kill -USR2 1046 #nginx master进程id
[root@nginx sbin]# ps aux | grep nginx
avahi        893  0.0  0.3  16656  2560 ?        Ss   14:40   0:00 avahi-daemon: running [nginx.local]
root        1046  0.0  0.2  14688  1848 ?        Ss   14:40   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       1047  0.0  0.2  14888  1720 ?        S    14:40   0:00 nginx: worker process
root        2909  0.0  1.0 237632  7872 pts/0    T    14:41   0:00 systemctl status nginx.service
root        6033  0.0  1.0  14716  7808 ?        S    14:50   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       6034  0.0  0.5  14916  4156 ?        S    14:50   0:00 nginx: worker process
root        6038  0.0  0.3 221812  2560 pts/0    S+   14:50   0:00 grep --color=auto nginx

#测试效果
[root@nginx sbin]# nginx -V
nginx version: yxs/
built by gcc 11.5.0 20240719 (Red Hat 11.5.0-5) (GCC)
built with OpenSSL 3.2.2 4 Jun 2024
TLS SNI support enabled
configure arguments: --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

#回收旧版本子进程
[root@nginx sbin]# ps aux | grep nginx
avahi        893  0.0  0.3  16656  2560 ?        Ss   14:40   0:00 avahi-daemon: running [nginx.local]
root        2909  0.0  0.7 237632  5952 pts/0    T    14:41   0:00 systemctl status nginx.service
root        6153  0.0  0.3  14728  2368 ?        Ss   14:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       6154  0.0  0.5  14928  4160 ?        S    14:55   0:00 nginx: worker process
root        6168  0.0  0.3 221812  2304 pts/0    S+   14:57   0:00 grep --color=auto nginx
[root@nginx sbin]# kill -WINCH 6153
[root@nginx sbin]# ps aux | grep nginx
avahi        893  0.0  0.3  16656  2560 ?        Ss   14:40   0:00 avahi-daemon: running [nginx.local]
root        2909  0.0  0.7 237632  5952 pts/0    T    14:41   0:00 systemctl status nginx.service
root        6153  0.0  0.3  14728  2880 ?        Ss   14:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
root        6179  0.0  0.3 221812  2432 pts/0    S+   14:58   0:00 grep --color=auto nginx

版本回退|版本回滚

复制代码
[root@nginx sbin]# cd /usr/local/nginx/sbin/
[root@nginx sbin]# cp nginx nginx.new -p
[root@nginx sbin]# \cp nginx.old  nginx -pf
[root@nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2744 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
root        4919  0.0  0.4  14716  7936 ?        S    10:24   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       4921  0.0  0.2  14916  4156 ?        S    10:24   0:00 nginx: worker process

[root@nginx sbin]# kill -HUP 1643
[root@nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2744 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
root        4919  0.0  0.4  14716  7936 ?        S    10:24   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       4921  0.0  0.2  14916  4156 ?        S    10:24   0:00 nginx: worker process
nginx       4963  0.0  0.2  14888  3896 ?        S    10:32   0:00 nginx: worker process
root        4965  0.0  0.1   6636  2176 pts/0    S+   10:32   0:00 grep --color=auto nginx
[root@nginx sbin]# nginx -V
nginx version: nginx/1.28.1
built by gcc 11.5.0 20240719 (Red Hat 11.5.0-5) (GCC)
built with OpenSSL 3.2.2 4 Jun 2024
TLS SNI support enabled
configure arguments: --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

#回收新版本进程
[root@nginx sbin]# kill -WINCH 4919
[root@nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2744 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
root        4919  0.0  0.4  14716  7936 ?        S    10:24   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       4963  0.0  0.2  14888  3896 ?        S    10:32   0:00 nginx: worker process
root        4969  0.0  0.1   6636  2176 pts/0    S+   10:34   0:00 grep --color=auto nginx

Nginx配置文件的管理及优化参数

复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
user  nginx;
[root@nginx ~]# nginx  -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@nginx ~]# nginx -s reload
[root@nginx ~]# ps aux | grep nginx
avahi        867  0.0  0.2  16656  2176 ?        Ss   15:09   0:00 avahi-daemon: running [nginx.local]
root        2848  0.0  0.7 237632  5760 pts/0    T    15:09   0:00 systemctl status nginx.service
root        2994  0.0  1.1 237632  8960 pts/0    T    15:14   0:00 systemctl status nginx
root        3065  0.0  0.5  15344  3808 ?        Ss   15:16   0:00 nginx: master process nginx -c /etc/nginx/nginx.conf
nginx       3093  0.0  0.4  15812  3436 ?        S    15:16   0:00 nginx: worker process
nginx       3094  0.0  0.4  15812  3436 ?        S    15:16   0:00 nginx: worker process
root        3097  0.0  0.3 221812  2432 pts/0    S+   15:16   0:00 grep --color=auto nginx
复制代码
[root@nginx ~]# vim /usr/local/nginx/conf/nginx.conf
worker_processes  2;
[root@nginx ~]# nginx -s reload
[root@nginx ~]# ps aux | grep nginx
avahi        894  0.0  0.3  16656  2816 ?        Ss   15:17   0:00 avahi-daemon: running [nginx.local]
root        3042  0.0  0.5  15344  3932 ?        Ss   15:19   0:00 nginx: master process nginx -c /etc/nginx/nginx.conf
nginx       3066  0.0  0.4  15812  3560 ?        S    15:20   0:00 nginx: worker process
nginx       3067  0.0  0.4  15812  3560 ?        S    15:20   0:00 nginx: worker process
nginx       3068  0.0  0.4  15812  3560 ?        S    15:20   0:00 nginx: worker process
nginx       3069  0.0  0.4  15812  3560 ?        S    15:20   0:00 nginx: worker process
root        3073  0.0  0.3 221812  2560 pts/0    S+   15:20   0:00 grep --color=auto nginx

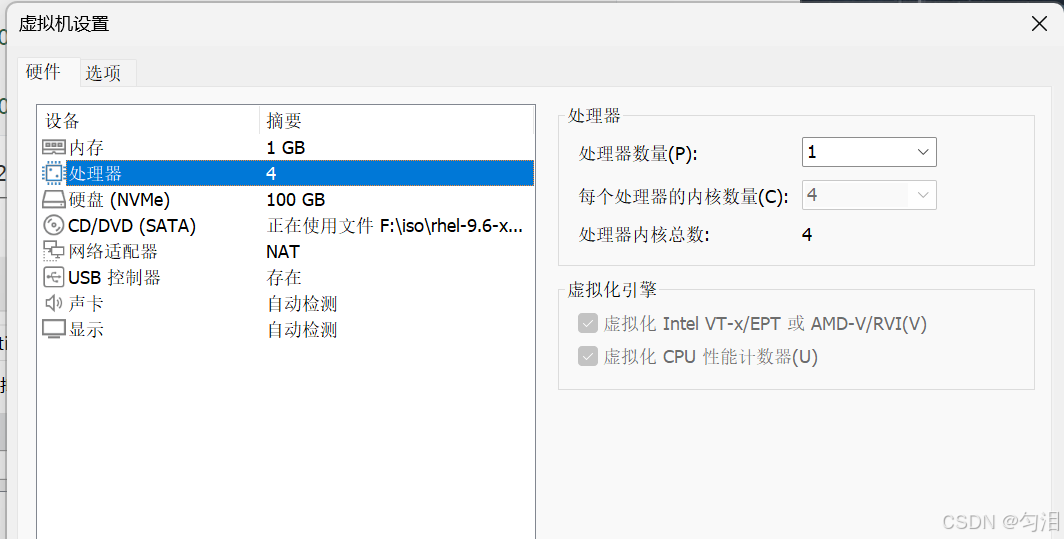

[root@nginx ~]# vim /usr/local/nginx/conf/nginx.conf
worker_processes  auto;
worker_cpu_affinity 0001 0010 0100 1000;
[root@nginx ~]# ps aux | grep nginx
avahi        894  0.0  0.3  16656  2816 ?        Ss   15:17   0:00 avahi-daemon: running [nginx.local]
root        3042  0.0  0.5  15344  3932 ?        Ss   15:19   0:00 nginx: master process nginx -c /etc/nginx/nginx.conf
nginx       3066  0.0  0.4  15812  3560 ?        S    15:20   0:00 nginx: worker process
nginx       3067  0.0  0.4  15812  3560 ?        S    15:20   0:00 nginx: worker process
nginx       3068  0.0  0.4  15812  3560 ?        S    15:20   0:00 nginx: worker process
nginx       3069  0.0  0.4  15812  3560 ?        S    15:20   0:00 nginx: worker process
root        3086  0.0  0.3 221812  2560 pts/0    S+   15:21   0:00 grep --color=auto nginx
[root@nginx ~]# ps axo pid,cmd,psr | grep nginx
   3042 nginx: master process nginx   1
   3066 nginx: worker process         0
   3067 nginx: worker process         3
   3068 nginx: worker process         3
   3069 nginx: worker process         2
   3093 grep --color=auto nginx       0
[root@nginx ~]# vim /usr/local/nginx/conf/nginx.conf
events {
    worker_connections  10000;
    use epoll;
    accept_mutex on;
    multi_accept on;
}
[root@nginx ~]# nginx -s reload

#测试并发
[root@nginx ~]# dnf install httpd-tools -y
[root@nginx ~]# ab  -n 100000 -c5000 http://172.25.254.100/index.html
This is ApacheBench, Version 2.3 <$Revision: 1913912 $>
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking 172.25.254.100 (be patient)
socket: Too many open files (24)

#处理本地文件系统的并发文件数量
[root@nginx ~]# vim /etc/security/limits.conf
*               -       nofile          100000
*               -       noproc          100000
root			-		nofile			100000
[root@nginx ~]# sudo -u nginx ulimit -n
100000
[root@nginx ~]# ulimit  -n
10000

#测试
[root@nginx ~]# ab -n 100000 -c 2000 http://172.25.254.100/index.html
This is ApacheBench, Version 2.3 <$Revision: 1913912 $>
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking 172.25.254.100 (be patient)
Completed 10000 requests
Completed 20000 requests
Completed 30000 requests
Completed 40000 requests
Completed 50000 requests
Completed 60000 requests
Completed 70000 requests
相关推荐
Anastasiozzzz2 小时前
ZGC随手记
java
好家伙VCC2 小时前
# BERT在中文文本分类中的实战优化：从模型微调到部署全流程在自然语言处理（NL
java·python·自然语言处理·分类·bert
只会写bug的小李子2 小时前
AI Agent动态规划失效处理：多步执行卡壳时，局部修正远比从头重来更高效
java·开发语言
NGC_66112 小时前
idea中使用git
java·git·intellij-idea
Renhao-Wan2 小时前
Java 算法实践（三）：双指针与滑动窗口
java·数据结构·算法
Pluchon2 小时前
硅基计划4.0 算法 图的存储&图的深度广度搜索&最小生成树&单源多源最短路径
java·算法·贪心算法·深度优先·动态规划·广度优先·图搜索算法
我命由我123452 小时前
Kotlin 面向对象 - 匿名内部类、匿名内部类简化
android·java·开发语言·java-ee·kotlin·android studio·android jetpack
学到头秃的suhian2 小时前
Redis分布式锁
java·数据库·redis·分布式·缓存
星火开发设计2 小时前
模板特化：为特定类型定制模板实现
java·开发语言·前端·c++·知识
热门推荐
01PHP Error: 常见错误及其解决方法02GitHub 镜像站点03Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services04UV安装并设置国内源05HTB 赛季10 - Pterodactyl - user06openClaw安装飞书插件｜核心踩坑：spawn EINVAL 错误终极解决指南07爬虫逆向之观安（观镜WEB应用安全防护系统）08243 行 microGPT：把“训练 + 推理”拆到骨头里09如何解决 OpenClaw “Pairing required” 报错：两种官方解决方案详解10Android Studio Panda 1 正式版来了：JDK 终于不用手动配了，内存泄漏也有原生方案了
