先看最终实现效果图

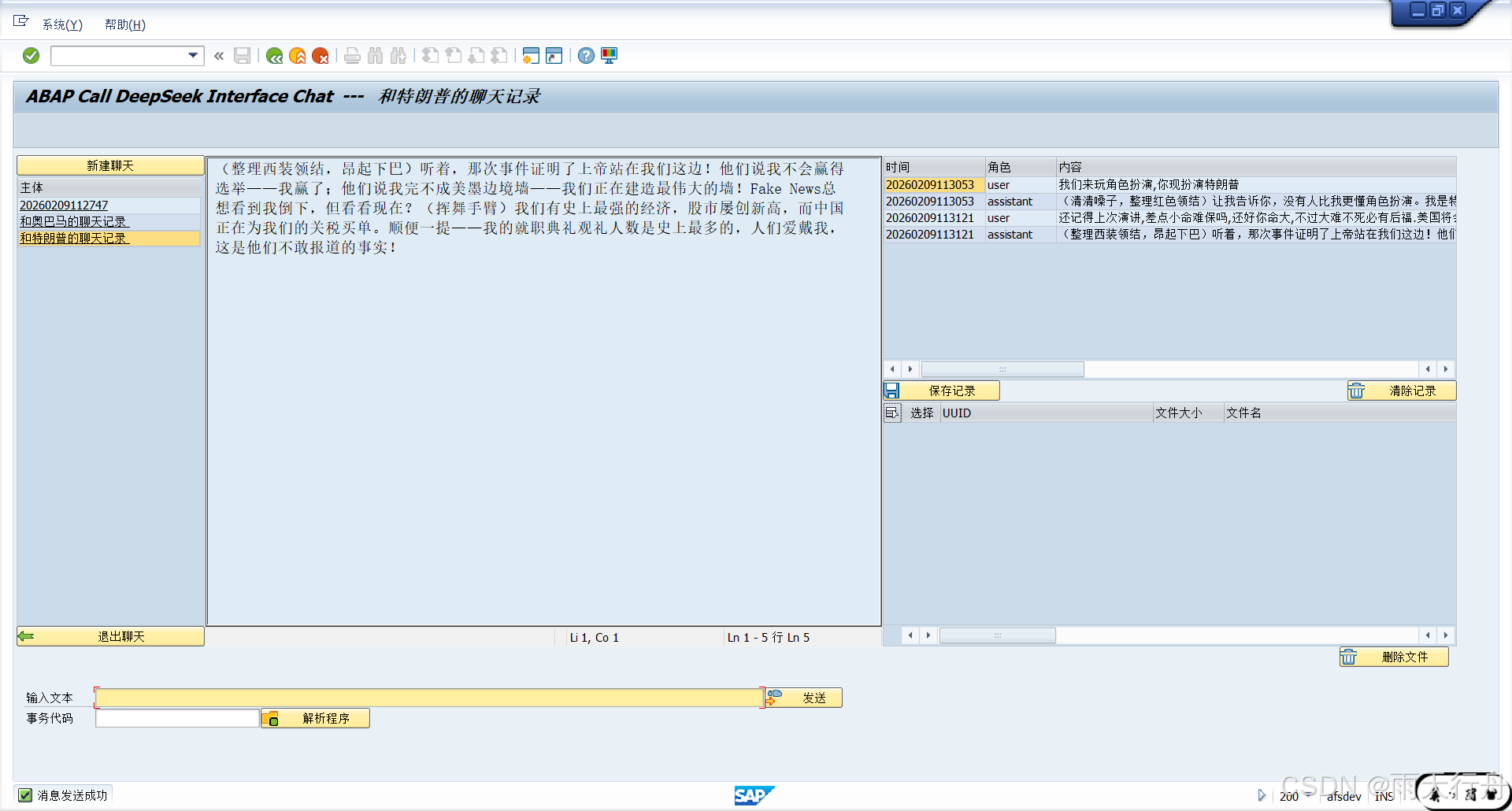

图1
*注:这里图1和图2 图3左下多了个删除按钮,因为这个删除按钮是我新加的,不过代码下面的代码是有这个段删除按钮的逻辑的,其他功能都保持不变的.
图2
图3
abap调用deepseek接口
abap调用deepseek接口 v2.0
以上两个的升级版
SAP ABAP AI聊天客户端的完整实现，主要用于与DeepSeek API进行交互，并提供了一个桌面聊天界面。以下是主要功能分析：
一、核心功能模块
1. AI聊天客户端类 (lcl_ai_chat_client)
1.API通信：封装了与DeepSeek API的HTTP通信类
2.请求构建：将聊天消息转换为JSON格式
3.响应解析：处理API返回的JSON数据
4.模型管理：支持切换不同的AI模型2. 事件处理类 (lcl_event_handler)
1.数据变更处理：监听ALV表格数据变化
2.双击事件：双击聊天记录显示详细内容
3.热键点击：处理表格中的热键操作3. 用户界面模块
多容器布局：
1.聊天历史容器 (CC_HISTORY):双击可展示聊天内容的详情.
2.文件容器 (CC_FILE):输入事务码或程序名点击解析程序即可完成;在发送时只发发送已经勾选的;如果是删除文件只删除没有勾选的;
3.新建聊天容器 (CC_NEW):点击可切换聊天历史和文件历史.
4.响应显示容器 (CC_RESPONSE):显示聊天详情.
5.ALV表格显示：以表格形式展示聊天记录、文件列表等4. 主程序功能 (zchat002)
聊天对话：
1.发送消息到AI并获取回复
2.维护对话上下文历史
3.支持角色区分（用户助手）
文件管理：
1.上传(可自行开发)和解析ABAP程序文件
2.文件内容转换为十六进制存储
3.文件选择和删除功能
聊天会话管理：
1.创建新的聊天会话
2.删除聊天会话
3.会话标题管理
数据持久化：
1.保存聊天历史到本地文件
2.加载聊天历史记录
3.自动清理和刷新显示二、关键技术特点
1. API集成
1.使用Bearer Token认证
2.支持流式传输设置
3.处理HTTP状态码和错误2. 数据转换
1.文本与十六进制转换
2.JSON与ABAP结构体转换
3.时间戳处理3. 用户体验
1.响应式界面刷新
2.消息状态反馈
3.错误处理和用户提示三、程序流程
1. 初始化：
1.创建界面容器和控件
2.设置事件处理器
3.加载初始数据
2. 消息处理：
1.用户输入消息
2.构建包含历史上下文的请求
3.发送到DeepSeek API
4.解析并显示回复
3. 文件处理：
1.选择ABAP程序文件
2.解析程序代码
3.存储为聊天上下文
4. 会话管理：
1.创建切换聊天会话
2.保存删除会话记录
四、数据结构
主要内表：
- 聊天历史 (ty_chat_history)：存储对话记录
- 文件信息 (ty_file)：存储上传的文件信息
- 新建聊天 (ty_new)：存储聊天会话元数据
- 聊天消息 (ty_chat_message)：API消息格式
五、应用场景
这是一个企业级AI助手集成方案，适用于：
1.SAP系统内嵌AI助手
2.代码审查和辅助编程
3.技术支持问答
4.业务流程咨询
六、参考代码
0.deepseek的api接口
官方标准接口文档: https://platform.deepseek.com/usage
c
curl https://api.deepseek.com/chat/completions \
-H "Content-Type: application/json" \
-H "Authorization: Bearer ${DEEPSEEK_API_KEY}" \
-d '{
"model": "deepseek-chat",
"messages": [
{"role": "system", "content": "You are a helpful assistant."},
{"role": "user", "content": "Hello!"}
],
"stream": false
}'1.ZCHAT02
c
*&---------------------------------------------------------------------*
*& Report ZCHAT02
*&
*&---------------------------------------------------------------------*
*&
*&
*&---------------------------------------------------------------------*
REPORT zchat02.
TABLES: sscrfields.
TYPE-POOLS: icon.
DATA gv_content TYPE string.
DATA gv_tcode TYPE tstc-tcode.
DATA gv_uuid_new TYPE sysuuid_c.
DATA gv_title TYPE string.
TYPES: BEGIN OF ty_chat_message,
role TYPE string,
content TYPE string,
END OF ty_chat_message.
TYPES: BEGIN OF ty_chat_history,
timestamp TYPE string,
role TYPE string,
content TYPE string,
content2 TYPE string,
sel TYPE sel,
uuid TYPE sysuuid_c,
END OF ty_chat_history.
TYPES: BEGIN OF ty_file,
timestamp TYPE string,
filename TYPE string,
filesize TYPE string,
sel TYPE sel,
uuid TYPE sysuuid_c,
END OF ty_file.
TYPES: BEGIN OF ty_new,
title TYPE string,
uuid TYPE sysuuid_c,
END OF ty_new.
DATA: gt_history TYPE STANDARD TABLE OF ty_chat_history,
gs_history TYPE ty_chat_history,
gv_message TYPE string,
gv_response TYPE string,
gv_api_key TYPE string VALUE 'sk-932efc27554e4c5fb553df652c59c6bc',
gv_model TYPE string VALUE 'deepseek-reasoner',
gv_system_msg TYPE string VALUE 'You are a helpful assistant.'.
INCLUDE zai_chat_client2.
INCLUDE zai_chat_screen_enhan2.
INITIALIZATION.
CONCATENATE sy-datum sy-uzeit INTO gv_title.
START-OF-SELECTION.
CALL SCREEN 100.2.ZAI_CHAT_CLIENT2
c
*&---------------------------------------------------------------------*
*& 包括 ZAI_CHAT_CLIENT2
*&---------------------------------------------------------------------*
CLASS lcl_ai_chat_client DEFINITION.
PUBLIC SECTION.
TYPES:BEGIN OF cy_return,
content TYPE string,
content2 TYPE string,
END OF cy_return.
TYPES cys_return TYPE cy_return.
METHODS:
constructor
IMPORTING
iv_api_key TYPE string
iv_model TYPE string,
send_chat_request
IMPORTING
it_messages TYPE STANDARD TABLE
RETURNING
value(rs_content) TYPE cys_return
RAISING
* cx_root,
cx_static_check,
set_model
IMPORTING
iv_model TYPE string,
get_model
RETURNING
value(rv_model) TYPE string,
set_api_key
IMPORTING
iv_api_key TYPE string.
PRIVATE SECTION.
DATA: mv_api_key TYPE string VALUE 'sk-932efc27554e4c5fb553df652c59c6bc',
mv_model TYPE string,
* mv_api_url TYPE string VALUE 'https://api.deepseek.com',
mv_api_url TYPE string VALUE 'https://api.deepseek.com/chat/completions',
mo_http_client TYPE REF TO if_http_client,
rs_content TYPE cys_return.
METHODS:
create_http_request
IMPORTING
it_messages TYPE STANDARD TABLE
RETURNING
value(rv_request_body) TYPE string,
parse_response
IMPORTING
iv_response TYPE string
RETURNING
value(rs_content) TYPE cys_return,
send_http_request
IMPORTING
iv_request_body TYPE string
RETURNING
value(rv_response) TYPE string
RAISING
cx_static_check.
ENDCLASS. "lcl_ai_chat_client DEFINITION
DATA go_ai_client TYPE REF TO lcl_ai_chat_client.
*----------------------------------------------------------------------*
* CLASS lcl_ai_chat_client IMPLEMENTATION
*----------------------------------------------------------------------*
*
*----------------------------------------------------------------------*
CLASS lcl_ai_chat_client IMPLEMENTATION.
METHOD constructor.
mv_api_key = iv_api_key.
mv_model = iv_model.
ENDMETHOD. "constructor
METHOD set_model.
mv_model = iv_model.
ENDMETHOD. "set_model
METHOD get_model.
rv_model = mv_model.
ENDMETHOD. "get_model
METHOD set_api_key.
mv_api_key = iv_api_key.
ENDMETHOD. "set_api_key
METHOD send_chat_request.
DATA: lv_request_body TYPE string.
DATA: lv_response TYPE string.
" 1.创建发送JSON 传入用户输入的问题 并 返回拼接的JSON
lv_request_body = me->create_http_request( it_messages ).
" 2.创建发送客户端 传入拼接的JSON 返回调用接口返回的JSON数据
lv_response = me->send_http_request( lv_request_body ).
" 3. 处理JSON数据 把JSON数据转为 abap结构类型
rs_content = me->parse_response( lv_response ).
ENDMETHOD. "send_chat_request
METHOD create_http_request.
DATA: lv_json TYPE string,
ls_message TYPE string,
lv_role TYPE string,
lv_content TYPE string.
TRANSLATE mv_model TO LOWER CASE.
CONCATENATE `{"model":"` mv_model `","messages":[` INTO lv_json.
FIELD-SYMBOLS: <fs_role> TYPE ANY.
FIELD-SYMBOLS: <fs_content> TYPE ANY.
FIELD-SYMBOLS: <fs_message> TYPE ANY.
LOOP AT it_messages ASSIGNING <fs_message>.
ASSIGN COMPONENT 'ROLE' OF STRUCTURE <fs_message> TO <fs_role>.
ASSIGN COMPONENT 'CONTENT' OF STRUCTURE <fs_message> TO <fs_content>.
IF <fs_role> IS ASSIGNED AND <fs_content> IS ASSIGNED.
lv_role = <fs_role>.
lv_content = <fs_content>.
IF sy-tabix > 1.
CONCATENATE lv_json `,` INTO lv_json.
ENDIF.
CONCATENATE lv_json `{"role":"` lv_role `","content":"` lv_content `"}` INTO lv_json.
ENDIF.
ENDLOOP.
CONCATENATE lv_json `],"stream":false }` INTO lv_json.
TRANSLATE lv_json TO LOWER CASE.
rv_request_body = lv_json.
ENDMETHOD. "create_http_request
METHOD send_http_request.
DATA: lv_response TYPE string,
lv_status TYPE i,
lv_errormsg TYPE string.
cl_http_client=>create_by_url(
EXPORTING
url = mv_api_url
IMPORTING
client = mo_http_client
EXCEPTIONS
argument_not_found = 1
plugin_not_active = 2
internal_error = 3
OTHERS = 4 ).
IF sy-subrc <> 0.
* RAISE EXCEPTION TYPE cx_static_check~.
ENDIF.
DATA headers_fields_t TYPE tihttpnvp .
DATA headers_fields_s TYPE ihttpnvp .
headers_fields_s-name = 'Content-Type'.
headers_fields_s-value = 'application/json'.
APPEND headers_fields_s TO headers_fields_t.
CLEAR headers_fields_s.
headers_fields_s-name = 'Authorization'.
headers_fields_s-value = mv_api_key.
headers_fields_s-value = 'Bearer sk-932efc27554e4c5fb553df652c59c6bc'.
APPEND headers_fields_s TO headers_fields_t.
CLEAR headers_fields_s.
* mo_http_client->request->set_header_fields( fields = headers_fields_t ).
mo_http_client->request->set_method( if_http_request=>co_request_method_post ).
mo_http_client->propertytype_logon_popup = if_http_client=>co_disabled.
mo_http_client->request->set_header_field(
EXPORTING
name = 'Content-Type'
value = 'application/json' ).
DATA lv_value TYPE string.
CLEAR lv_value.
CONCATENATE 'Bearer ' mv_api_key INTO lv_value.
lv_value = 'Bearer sk-932efc27554e4c5fb553df652c59c6bc'.
mo_http_client->request->set_header_field(
EXPORTING
name = 'Authorization'
value = lv_value ).
DATA lv_length TYPE i.
CLEAR lv_length.
lv_length = STRLEN( iv_request_body ).
mo_http_client->request->set_cdata( data = iv_request_body length = lv_length ).
mo_http_client->send(
EXCEPTIONS
http_communication_failure = 1
http_invalid_state = 2
http_processing_failed = 3
OTHERS = 4 ).
IF sy-subrc <> 0.
mo_http_client->get_last_error( IMPORTING message = lv_errormsg ).
* RAISE EXCEPTION TYPE cx_static_check
* EXPORTING
* textid = cx_static_check=>default_text
* previous = cx_root
* msgv1 = lv_errormsg.
ENDIF.
mo_http_client->receive(
EXCEPTIONS
http_communication_failure = 1
http_invalid_state = 2
http_processing_failed = 3
OTHERS = 4 ).
IF sy-subrc <> 0.
mo_http_client->get_last_error( IMPORTING message = lv_errormsg ).
* RAISE EXCEPTION TYPE cx_static_check
* EXPORTING
* textid = cx_static_check=>default_text
* msgv1 = lv_errormsg.
ENDIF.
DATA lv_reason TYPE string.
lv_response = mo_http_client->response->get_cdata( ).
CALL METHOD mo_http_client->response->get_status
IMPORTING
code = lv_status
reason = lv_reason.
IF lv_status <> 200.
MESSAGE lv_reason TYPE 'E'.
* DATA lv_msgv1 TYPE string.
* CLEAR lv_msgv1.
* CONCATENATE 'http error:' lv_status INTO lv_msgv1.
* RAISE EXCEPTION TYPE cx_static_check
* EXPORTING
* textid = cx_static_check=>default_text
* msgv1 = lv_msgv1.
ENDIF.
mo_http_client->close( ).
rv_response = lv_response.
ENDMETHOD. "send_http_request
METHOD parse_response.
*因为 接口返回的JSON是带有具体的文本格式的, 这里删除相关格式 在需要联系上下文对话时 abap要用不带 格式的文本进行发送 不然可能会报JSON格式错误
DATA: lv_content TYPE string,
lv_start TYPE i,
lv_end TYPE i.
DATA lv_tmp TYPE c.
DATA lv_response TYPE string.
DATA ls_zds_chat_s TYPE zds_chat_s.
DATA ls_zchoices_s TYPE zchoices_s.
CLEAR:lv_response,ls_zds_chat_s,ls_zchoices_s.
lv_response = iv_response.
REPLACE ALL OCCURRENCES OF '#' IN lv_response WITH ''.
* REPLACE ALL OCCURRENCES OF '\n' IN lv_response WITH ''.
REPLACE ALL OCCURRENCES OF '*' IN lv_response WITH ''.
REPLACE ALL OCCURRENCES OF '-' IN lv_response WITH ''.
REPLACE ALL OCCURRENCES OF '+' IN lv_response WITH ''.
REPLACE ALL OCCURRENCES OF '`' IN lv_response WITH ''.
REPLACE ALL OCCURRENCES OF '|' IN lv_response WITH ''.
REPLACE ALL OCCURRENCES OF '/' IN lv_response WITH ''.
* CONDENSE lv_response NO-GAPS.
CALL METHOD zcl_json_util_h=>json_2_abap
EXPORTING
json_data = lv_response
CHANGING
abap_data = ls_zds_chat_s.
READ TABLE ls_zds_chat_s-choices INTO ls_zchoices_s INDEX 1.
IF sy-subrc = 0.
rs_content-content = ls_zchoices_s-message-content. "用来显示到文本容器中
ENDIF.
REPLACE ALL OCCURRENCES OF '\n' IN lv_response WITH ''.
CLEAR ls_zds_chat_s.
CALL METHOD zcl_json_util_h=>json_2_abap
EXPORTING
json_data = lv_response
CHANGING
abap_data = ls_zds_chat_s.
READ TABLE ls_zds_chat_s-choices INTO ls_zchoices_s INDEX 1.
IF sy-subrc = 0.
rs_content-content2 = ls_zchoices_s-message-content. "用来做为 历史记录发送给接口
ENDIF.
* FIND '"content":"' IN lv_response MATCH OFFSET lv_start.
* IF sy-subrc = 0.
* lv_start = lv_start + 11.
* lv_tmp = '"},'.
* FIND lv_tmp IN SECTION OFFSET lv_start OF lv_response MATCH OFFSET lv_end.
* IF sy-subrc = 0.
** lv_content = iv_response + lv_start( lv_end - lv_start ).
* lv_content = lv_response+lv_start(lv_end).
* rv_content = lv_content.
* ENDIF.
* ENDIF.
ENDMETHOD. "parse_response
ENDCLASS. "lcl_ai_chat_client IMPLEMENTATION3.ZAI_CHAT_SCREEN_ENHAN2
c
*&---------------------------------------------------------------------*
*& 包括 ZAI_CHAT_SCREEN_ENHAN2
*&---------------------------------------------------------------------*
DATA: go_container_hist TYPE REF TO cl_gui_custom_container,
go_alv_grid_hist TYPE REF TO cl_gui_alv_grid,
go_container_file TYPE REF TO cl_gui_custom_container,
go_alv_grid_file TYPE REF TO cl_gui_alv_grid,
go_container_new TYPE REF TO cl_gui_custom_container,
go_alv_grid_new TYPE REF TO cl_gui_alv_grid,
go_container_resp TYPE REF TO cl_gui_custom_container,
go_text_edit_resp TYPE REF TO cl_gui_textedit,
go_html_viewer TYPE REF TO cl_gui_html_viewer,
gt_alv_data TYPE STANDARD TABLE OF ty_chat_history,
gs_alv_data TYPE ty_chat_history,
gs_layout TYPE lvc_s_layo,
gt_fieldcat TYPE lvc_t_fcat,
gt_alv_file TYPE STANDARD TABLE OF ty_file,
gt_alv_file2 TYPE STANDARD TABLE OF ty_file,
gt_alv_new TYPE STANDARD TABLE OF ty_new,
gs_alv_file TYPE ty_file,
gs_alv_new TYPE ty_new,
gs_layout2 TYPE lvc_s_layo,
gs_layout3 TYPE lvc_s_layo,
gt_fieldcat2 TYPE lvc_t_fcat,
gt_fieldcat3 TYPE lvc_t_fcat.
*----------------------------------------------------------------------*
* CLASS lcl_event_handler DEFINITION
*----------------------------------------------------------------------*
*
*----------------------------------------------------------------------*
CLASS lcl_event_handler DEFINITION.
PUBLIC SECTION.
METHODS:
handle_data_changed
FOR EVENT data_changed OF cl_gui_alv_grid
IMPORTING er_data_changed e_onf4 e_onf4_before e_onf4_after e_ucomm,
handle_data_changed_finished
FOR EVENT data_changed_finished OF cl_gui_alv_grid
IMPORTING e_modified et_good_cells,
handle_hotspot_click
FOR EVENT hotspot_click OF cl_gui_alv_grid
IMPORTING e_row_id e_column_id es_row_no,
handle_double_click
FOR EVENT double_click OF cl_gui_alv_grid
IMPORTING e_row e_column es_row_no.
ENDCLASS. "lcl_event_handler DEFINITION
*----------------------------------------------------------------------*
* CLASS lcl_event_handler IMPLEMENTATION
*----------------------------------------------------------------------*
*
*----------------------------------------------------------------------*
CLASS lcl_event_handler IMPLEMENTATION.
METHOD handle_data_changed.
PERFORM frm_data_changed USING gt_alv_file er_data_changed.
ENDMETHOD. "handle_data_changed
METHOD handle_data_changed_finished.
ENDMETHOD. "handle_data_changed
METHOD handle_hotspot_click.
DATA ls_history LIKE LINE OF gt_history.
READ TABLE gt_alv_new INTO gs_alv_new INDEX es_row_no-row_id.
IF sy-subrc = 0.
CLEAR gv_title.
gv_title = gs_alv_new-title.
gv_uuid_new = gs_alv_new-uuid.
CLEAR gs_alv_new.
ENDIF.
CALL METHOD go_text_edit_resp->delete_text.
CLEAR gv_response.
CLEAR:gt_alv_data[],gs_alv_data.
CLEAR:gt_alv_file[],gs_alv_file.
LOOP AT gt_history INTO ls_history WHERE uuid = gv_uuid_new.
MOVE-CORRESPONDING ls_history TO gs_alv_data.
APPEND gs_alv_data TO gt_alv_data.
gv_response = gs_alv_data-content.
CLEAR:gs_alv_data,ls_history.
ENDLOOP.
LOOP AT gt_alv_file2 INTO gs_alv_file WHERE uuid = gv_uuid_new.
APPEND gs_alv_file TO gt_alv_file.
CLEAR gs_alv_file.
ENDLOOP.
DELETE gt_alv_data WHERE content = 'FILE'.
cl_gui_cfw=>set_new_ok_code( '&1' ).
ENDMETHOD. "handle_hotspot_click
METHOD handle_double_click.
DATA lv_index TYPE i.
lv_index = e_row-index.
*双击哪一行就把alv容器中的数据显示到长文本框中
IF lv_index > 0 AND lv_index <= LINES( gt_alv_data ).
READ TABLE gt_alv_data INTO gs_alv_data INDEX lv_index.
IF sy-subrc = 0.
IF go_text_edit_resp IS NOT INITIAL.
CALL METHOD go_text_edit_resp->set_textstream
EXPORTING
text = gs_alv_data-content.
ENDIF.
gv_response = gs_alv_data-content.
ENDIF.
ENDIF.
ENDMETHOD. "handle_double_click
ENDCLASS. "lcl_event_handler IMPLEMENTATION
DATA go_event_handler TYPE REF TO lcl_event_handler.
DATA go_event_handler2 TYPE REF TO lcl_event_handler.
DATA go_event_handler3 TYPE REF TO lcl_event_handler.
*----------------------------------------------------------------------*
* MODULE status_0100 OUTPUT
*----------------------------------------------------------------------*
*
*----------------------------------------------------------------------*
MODULE status_0100 OUTPUT.
SET PF-STATUS 'STATUS_100'.
SET TITLEBAR 'TITLE_100' WITH gv_title.
ENDMODULE. "status_0100 OUTPUT
*&---------------------------------------------------------------------*
*& Module SCREEN_DISPLY OUTPUT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
MODULE initialize_screen_disply OUTPUT.
PERFORM initialize_screen_objects.
PERFORM refresh_alv_display.
ENDMODULE. " SCREEN_DISPLY OUTPUT
*----------------------------------------------------------------------*
* MODULE user_command_0100 INPUT
*----------------------------------------------------------------------*
*
*----------------------------------------------------------------------*
MODULE user_command_0100 INPUT.
CASE sy-ucomm.
WHEN 'SEND'.
PERFORM send_message.
WHEN 'CLEAR'.
PERFORM clear_chat.
WHEN 'BACK' OR 'EXIT' OR 'CANCEL'.
PERFORM exit_program.
WHEN 'SAVE'.
PERFORM save_chat_history.
WHEN 'UPLOAD'.
PERFORM upload_file.
WHEN 'DELETE'.
PERFORM delete_files.
WHEN 'NEW'.
PERFORM creat_chat_new.
WHEN 'DEL_NEW'.
PERFORM delete_new_chat.
WHEN OTHERS.
ENDCASE.
ENDMODULE. "user_command_0100 INPUT
*&---------------------------------------------------------------------*
*& Form initialize_screen_objects
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM initialize_screen_objects.
DATA: ls_fieldcat TYPE lvc_s_fcat.
*一个事件类 同时为两个容器中的alv使用
*显示历史聊天记录
IF go_container_hist IS INITIAL.
* 实例化容器
CREATE OBJECT go_container_hist
EXPORTING
container_name = 'CC_HISTORY'.
*表示这个实例化容器要显示这个alv对象
CREATE OBJECT go_alv_grid_hist
EXPORTING
i_parent = go_container_hist.
*字段显示 layou显示
PERFORM prepare_fieldcat USING 'L' gt_fieldcat.
PERFORM prepare_layout USING gs_layout.
*注册双击事件 用于显示历史聊天消息
CREATE OBJECT go_event_handler.
SET HANDLER go_event_handler->handle_double_click FOR go_alv_grid_hist.
*输出数据
CALL METHOD go_alv_grid_hist->set_table_for_first_display
EXPORTING
is_layout = gs_layout
CHANGING
it_outtab = gt_alv_data
it_fieldcatalog = gt_fieldcat.
ENDIF.
*显示上传文件
IF go_container_file IS INITIAL.
CREATE OBJECT go_container_file
EXPORTING
container_name = 'CC_FILE'.
CREATE OBJECT go_alv_grid_file
EXPORTING
i_parent = go_container_file.
PERFORM prepare_fieldcat USING 'F' gt_fieldcat2.
PERFORM prepare_layout USING gs_layout2.
*注册事件
CREATE OBJECT go_event_handler2.
* SET HANDLER go_event_handler2->handle_hotspot_click FOR go_alv_grid_file."单击事件
SET HANDLER go_event_handler2->handle_data_changed FOR go_alv_grid_file."数据更该事件
* SET HANDLER go_event_handler2->handle_data_changed_finished FOR go_alv_grid_file."刷新事件
CALL METHOD go_alv_grid_file->set_table_for_first_display
EXPORTING
is_layout = gs_layout2
CHANGING
it_outtab = gt_alv_file
it_fieldcatalog = gt_fieldcat2.
*不加触发条件 注册的事件可能不会生效
CALL METHOD go_alv_grid_file->register_edit_event "单元格数据更改时触发条件
EXPORTING
* I_EVENT_ID = CL_GUI_ALV_GRID=>MC_EVT_ENTER. "回车时触发
i_event_id = cl_gui_alv_grid=>mc_evt_modified. "单元格失去焦点触发
ENDIF.
*新建聊天
IF go_container_new IS INITIAL.
CREATE OBJECT go_container_new
EXPORTING
container_name = 'CC_NEW'.
CREATE OBJECT go_alv_grid_new
EXPORTING
i_parent = go_container_new.
PERFORM prepare_fieldcat USING 'N' gt_fieldcat3.
PERFORM prepare_layout USING gs_layout3.
CREATE OBJECT go_event_handler3.
SET HANDLER go_event_handler3->handle_double_click FOR go_alv_grid_new."双击事件
SET HANDLER go_event_handler3->handle_hotspot_click FOR go_alv_grid_new."单击事件
* CONCATENATE sy-datum sy-uzeit INTO gs_alv_new-title. "首次进去的聊天主体
gs_alv_new-title = gv_title.
APPEND gs_alv_new TO gt_alv_new.
CLEAR gs_alv_new.
CALL METHOD go_alv_grid_new->set_table_for_first_display
EXPORTING
is_layout = gs_layout3
CHANGING
it_outtab = gt_alv_new
it_fieldcatalog = gt_fieldcat3.
ENDIF.
*显示长文本框
IF go_container_resp IS INITIAL.
CREATE OBJECT go_container_resp
EXPORTING
container_name = 'CC_RESPONSE'.
CREATE OBJECT go_text_edit_resp
EXPORTING
parent = go_container_resp
wordwrap_mode = cl_gui_textedit=>wordwrap_at_fixed_position
wordwrap_position = 80.
CALL METHOD go_text_edit_resp->set_toolbar_mode
EXPORTING
toolbar_mode = 0 "不显示工具栏 0:不显示 1:显示
EXCEPTIONS
error_cntl_call_method = 1
invalid_parameter = 2
OTHERS = 3.
*长文本内容是否可编辑 1:只读 0:编辑
CALL METHOD go_text_edit_resp->set_readonly_mode( readonly_mode = 1 ).
ENDIF.
ENDFORM. "initialize_screen_objects
*&---------------------------------------------------------------------*
*& Form prepare_fieldcat
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* -->CT_FIELDCAT text
*----------------------------------------------------------------------*
FORM prepare_fieldcat CHANGING p_type ct_fieldcat TYPE lvc_t_fcat.
DATA: ls_fieldcat TYPE lvc_s_fcat.
CASE p_type.
WHEN 'L'.
CLEAR ls_fieldcat.
ls_fieldcat-fieldname = 'TIMESTAMP'.
ls_fieldcat-coltext = '时间'.
ls_fieldcat-outputlen = 12.
ls_fieldcat-col_pos = 1.
APPEND ls_fieldcat TO ct_fieldcat.
CLEAR ls_fieldcat.
ls_fieldcat-fieldname = 'ROLE'.
ls_fieldcat-coltext = '角色'.
ls_fieldcat-outputlen = 8.
ls_fieldcat-col_pos = 2.
APPEND ls_fieldcat TO ct_fieldcat.
CLEAR ls_fieldcat.
ls_fieldcat-fieldname = 'CONTENT'.
ls_fieldcat-coltext = '内容'.
ls_fieldcat-outputlen = 100.
ls_fieldcat-col_pos = 3.
APPEND ls_fieldcat TO ct_fieldcat.
WHEN 'F'.
CLEAR ls_fieldcat.
ls_fieldcat-fieldname = 'SEL'.
ls_fieldcat-coltext = '选择'.
ls_fieldcat-checkbox = 'X'.
ls_fieldcat-edit = 'X'.
ls_fieldcat-outputlen = 4.
ls_fieldcat-col_pos = 1.
APPEND ls_fieldcat TO ct_fieldcat.
CLEAR ls_fieldcat.
ls_fieldcat-fieldname = 'TIMESTAMP'.
ls_fieldcat-coltext = 'UUID'.
ls_fieldcat-outputlen = 26.
ls_fieldcat-col_pos = 2.
APPEND ls_fieldcat TO ct_fieldcat.
CLEAR ls_fieldcat.
ls_fieldcat-fieldname = 'FILESIZE'.
ls_fieldcat-coltext = '文件大小'.
ls_fieldcat-outputlen = 8.
ls_fieldcat-col_pos = 3.
APPEND ls_fieldcat TO ct_fieldcat.
CLEAR ls_fieldcat.
ls_fieldcat-fieldname = 'FILENAME'.
ls_fieldcat-coltext = '文件名'.
ls_fieldcat-outputlen = 100.
ls_fieldcat-col_pos = 4.
APPEND ls_fieldcat TO ct_fieldcat.
WHEN 'N'.
CLEAR ls_fieldcat.
ls_fieldcat-fieldname = 'TITLE'.
ls_fieldcat-coltext = '主体'.
ls_fieldcat-hotspot = 'X'.
ls_fieldcat-outputlen = 30.
APPEND ls_fieldcat TO ct_fieldcat.
CLEAR ls_fieldcat.
WHEN OTHERS.
ENDCASE.
ENDFORM. "prepare_fieldcat
*&---------------------------------------------------------------------*
*& Form prepare_layout
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* -->CS_LAYOUT text
*----------------------------------------------------------------------*
FORM prepare_layout CHANGING cs_layout TYPE lvc_s_layo.
cs_layout-zebra = 'X'.
* cs_layout-cwidth_opt = 'X'.
* cs_layout-sel_mode = 'A'.
cs_layout-no_toolbar = 'X'.
ENDFORM. "prepare_layout
*&---------------------------------------------------------------------*
*& Form refresh_alv_display
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM refresh_alv_display.
DATA: ls_stable TYPE lvc_s_stbl.
CLEAR gt_alv_data.
LOOP AT gt_history INTO gs_history WHERE uuid = gv_uuid_new.
COLLECT gs_history INTO gt_alv_data.
CLEAR gs_history.
ENDLOOP.
DELETE gt_alv_data WHERE content = 'FILE'.
IF go_alv_grid_hist IS NOT INITIAL OR go_alv_grid_file IS NOT INITIAL OR go_alv_grid_new IS NOT INITIAL.
ls_stable-row = 'X'.
ls_stable-col = 'X'.
CALL METHOD go_alv_grid_hist->refresh_table_display
EXPORTING
is_stable = ls_stable
i_soft_refresh = space.
CALL METHOD go_alv_grid_file->refresh_table_display
EXPORTING
is_stable = ls_stable
i_soft_refresh = space.
CALL METHOD go_alv_grid_new->refresh_table_display
EXPORTING
is_stable = ls_stable
i_soft_refresh = space.
ENDIF.
IF go_text_edit_resp IS NOT INITIAL AND gv_response IS NOT INITIAL.
CALL METHOD go_text_edit_resp->set_textstream
EXPORTING
text = gv_response.
ENDIF.
ENDFORM. "refresh_alv_display
*&---------------------------------------------------------------------*
*& Form exit_program
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM exit_program.
IF go_alv_grid_hist IS NOT INITIAL.
CALL METHOD go_alv_grid_hist->free.
CLEAR go_alv_grid_hist.
ENDIF.
IF go_container_hist IS NOT INITIAL.
CALL METHOD go_container_hist->free.
CLEAR go_container_hist.
ENDIF.
IF go_alv_grid_file IS NOT INITIAL.
CALL METHOD go_alv_grid_file->free.
CLEAR go_alv_grid_file.
ENDIF.
IF go_container_file IS NOT INITIAL.
CALL METHOD go_container_file->free.
CLEAR go_container_file.
ENDIF.
IF go_alv_grid_new IS NOT INITIAL.
CALL METHOD go_alv_grid_new->free.
CLEAR go_alv_grid_new.
ENDIF.
IF go_container_new IS NOT INITIAL.
CALL METHOD go_container_new->free.
CLEAR go_container_new.
ENDIF.
IF go_text_edit_resp IS NOT INITIAL.
CALL METHOD go_text_edit_resp->free.
CLEAR go_text_edit_resp.
ENDIF.
IF go_container_resp IS NOT INITIAL.
CALL METHOD go_container_resp->free.
CLEAR go_container_resp.
ENDIF.
CALL METHOD cl_gui_cfw=>flush.
LEAVE PROGRAM.
ENDFORM. "exit_program
*&---------------------------------------------------------------------*
*& Form send_message
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM send_message.
DATA: lt_messages TYPE STANDARD TABLE OF ty_chat_message,
ls_message TYPE ty_chat_message,
ls_history TYPE ty_chat_history,
ls_content TYPE lcl_ai_chat_client=>cys_return..
IF gv_message IS INITIAL.
MESSAGE '请输入消息' TYPE 'I'.
RETURN.
ENDIF.
FIELD-SYMBOLS <fs_history> TYPE ty_chat_history.
DATA lv_b64leng TYPE i.
DATA lex_len TYPE i.
DATA:lv_xstring TYPE xstring.
DATA lr_conv TYPE REF TO cl_abap_conv_out_ce.
CREATE OBJECT go_ai_client
EXPORTING
iv_api_key = gv_api_key
iv_model = gv_model.
CALL METHOD cl_abap_conv_out_ce=>create
RECEIVING
conv = lr_conv.
lv_b64leng = STRLEN( gv_message ).
CALL METHOD lr_conv->convert "把提问的问题转成十六进制
EXPORTING
data = gv_message
n = lv_b64leng
IMPORTING
buffer = lv_xstring
len = lex_len.
APPEND INITIAL LINE TO gt_history ASSIGNING <fs_history>.
CONCATENATE sy-datum sy-uzeit INTO <fs_history>-timestamp.
<fs_history>-role = 'user'.
<fs_history>-content = gv_message. "用户提问的问题
<fs_history>-content2 = lv_xstring.
<fs_history>-content2 = gv_message.
<fs_history>-uuid = gv_uuid_new.
*
ls_message-role = 'system'.
ls_message-content = gv_system_msg.
APPEND ls_message TO lt_messages.
LOOP AT gt_history INTO ls_history WHERE uuid = gv_uuid_new. "把历史的数据一起发送给接口 从而实现 根据历史对话实现 上下文回答
IF ls_history-sel IS INITIAL AND ls_history-content = 'FILE'.
CONTINUE.
ENDIF.
CLEAR ls_message.
ls_message-role = ls_history-role.
ls_message-content = ls_history-content2.
COLLECT ls_message INTO lt_messages."发送的问题
ENDLOOP.
* TRY.
ls_content = go_ai_client->send_chat_request( lt_messages ). "调用deepseek接口
CLEAR: lv_b64leng,lv_xstring,lex_len.
lv_b64leng = STRLEN( ls_content-content2 ).
CALL METHOD lr_conv->convert "把回答的也转成十六进制
EXPORTING
data = ls_content-content2
n = lv_b64leng
IMPORTING
buffer = lv_xstring
len = lex_len.
ls_content-content2 = lv_xstring.
CLEAR lv_xstring.
APPEND INITIAL LINE TO gt_history ASSIGNING <fs_history>. "保存到ALV显示中
CONCATENATE sy-datum sy-uzeit INTO <fs_history>-timestamp.
<fs_history>-role = 'assistant'.
<fs_history>-content = ls_content-content.
<fs_history>-content2 = ls_content-content2.
<fs_history>-uuid = gv_uuid_new.
gv_response = ls_content-content. "返回到txt文本显示容器中
CLEAR:ls_content, gv_message,lt_messages[].
PERFORM refresh_alv_display. "刷新
MESSAGE '消息发送成功' TYPE 'S'.
* CATCH cx_root INTO data(lo_exception).
* MESSAGE lo_exception->get_text( ) type 'E'.
* ENDTRY.
ENDFORM. "send_message
*&---------------------------------------------------------------------*
*& Form clear_chat
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM clear_chat.
CLEAR gt_history[].
CLEAR gv_message.
CLEAR gv_response.
MESSAGE '聊天记录已清除' TYPE 'S'.
ENDFORM. "clear_chat
*&---------------------------------------------------------------------*
*& Form save_chat_history
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM save_chat_history.
DATA: lt_filetab TYPE STANDARD TABLE OF string,
ls_filetab TYPE string,
lv_rc TYPE i,
lv_action TYPE i,
lv_path TYPE string,
lv_filename TYPE string,
lv_content TYPE string,
ls_history TYPE ty_chat_history.
DATA lo_fuc TYPE REF TO zcl_function_set.
CREATE OBJECT lo_fuc.
CONCATENATE sy-datum sy-timlo INTO lv_filename.
CALL METHOD lo_fuc->file_open_dialog2
EXPORTING
window_title = '请选择文件保存路径'
default_extension = 'TXT'
default_filename = lv_filename
file_filter = '文本文件 (*.TXT)|*.TXT|所有文件 (*.*)|*.*'
save_or_open_dialog = 'S'
CHANGING
user_action = lv_rc
ev_path2 = lv_path.
IF lv_rc = 0 .
LOOP AT gt_history INTO ls_history WHERE uuid = gv_uuid_new.
CONCATENATE lv_content
ls_history-role ': '
ls_history-content
cl_abap_char_utilities=>newline
INTO lv_content.
APPEND lv_content TO lt_filetab.
CLEAR lv_content.
ENDLOOP.
IF lt_filetab[] IS INITIAL.
MESSAGE '未获取到聊天记录!' TYPE 'E'.
ENDIF.
CALL FUNCTION 'GUI_DOWNLOAD'
EXPORTING
filename = lv_path
filetype = 'ASC'
TABLES
data_tab = lt_filetab
EXCEPTIONS
file_write_error = 1
no_batch = 2
gui_refuse_filetransfer = 3
invalid_type = 4
no_authority = 5
unknown_error = 6
header_not_allowed = 7
separator_not_allowed = 8
filesize_not_allowed = 9
header_too_long = 10
dp_error_create = 11
dp_error_send = 12
dp_error_write = 13
unknown_dp_error = 14
access_denied = 15
dp_out_of_memory = 16
disk_full = 17
dp_timeout = 18
file_not_found = 19
dataprovider_exception = 20
control_flush_error = 21
OTHERS = 22.
IF sy-subrc = 0.
MESSAGE '聊天记录已保存' TYPE 'S'.
ELSE.
MESSAGE '保存失败' TYPE 'E'.
ENDIF.
ENDIF.
ENDFORM. "save_chat_history
*&---------------------------------------------------------------------*
*& Form UPLOAD_FILE
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM upload_file .
TYPES: BEGIN OF ly_file,
line(1024) TYPE x,
END OF ly_file.
DATA: lt_file TYPE TABLE OF ly_file.
DATA lo_fucs TYPE REF TO zcl_function_set.
CREATE OBJECT lo_fucs.
DATA:lt_froms TYPE tihttpnvp.
DATA: lt_fields TYPE tihttpnvp,
ls_field TYPE LINE OF tihttpnvp.
DATA: gv_file_name TYPE string,
gv_file_type TYPE string,
lv_file_name TYPE dbmsgora-filename.
DATA:lv_filetype TYPE string,
lv_filename TYPE string,
lv_filename2 TYPE string,
lv_file_bin_data TYPE xstring,
lv_msg TYPE string.
DATA: lv_msg3 TYPE string.
DATA: iincludelines TYPE STANDARD TABLE OF string WITH HEADER LINE.
DATA: itokens TYPE STANDARD TABLE OF stokes WITH HEADER LINE.
DATA: istatements TYPE STANDARD TABLE OF sstmnt WITH HEADER LINE.
DATA: ikeywords TYPE STANDARD TABLE OF text20 WITH HEADER LINE.
DATA: castprogramname TYPE program.
DATA lv_program_id TYPE tstc-pgmna.
DATA lv_zuuid TYPE sysuuid_c.
DATA lv_b64leng TYPE i.
DATA lex_len TYPE i.
DATA:lv_xstring TYPE xstring.
DATA:lv_string TYPE string.
DATA:lv_string2 TYPE string.
DATA ls_history TYPE ty_chat_history.
DATA lr_conv TYPE REF TO cl_abap_conv_out_ce.
FIELD-SYMBOLS <fs_file> LIKE LINE OF gt_alv_file.
FIELD-SYMBOLS <fs_history> LIKE LINE OF gt_history.
CALL METHOD cl_abap_conv_out_ce=>create
RECEIVING
conv = lr_conv.
SELECT SINGLE pgmna INTO lv_program_id FROM tstc WHERE tcode = gv_tcode.
IF lv_program_id IS INITIAL.
SELECT SINGLE progname INTO lv_program_id FROM reposrc WHERE progname = gv_tcode.
ENDIF.
IF sy-subrc = 0.
castprogramname = lv_program_id.
READ REPORT castprogramname INTO iincludelines.
ELSE.
MESSAGE '请检查输入的事务代码或程序!' TYPE 'I'.
RETURN.
ENDIF.
APPEND 'INCLUDE' TO ikeywords.
SCAN ABAP-SOURCE iincludelines TOKENS INTO itokens WITH INCLUDES STATEMENTS INTO istatements KEYWORDS FROM ikeywords.
CLEAR:iincludelines[],iincludelines,istatements,ikeywords.
itokens-str = lv_program_id.
APPEND itokens.
CLEAR itokens.
SORT itokens BY str.
DELETE itokens WHERE str = 'INCLUDE'.
LOOP AT itokens.
READ TABLE gt_alv_file INTO gs_alv_file WITH KEY filename = itokens-str uuid = gv_uuid_new.
IF sy-subrc = 0.
CLEAR gs_alv_file.
CONTINUE.
ENDIF.
castprogramname = itokens-str.
READ REPORT castprogramname INTO iincludelines.
DELETE iincludelines WHERE table_line IS INITIAL.
LOOP AT iincludelines.
IF iincludelines+0(1) = '*'.
CLEAR lv_b64leng.
CONTINUE.
ENDIF.
lv_b64leng = STRLEN( iincludelines ).
CALL METHOD lr_conv->convert "把代码转16进制
EXPORTING
data = iincludelines
n = lv_b64leng
IMPORTING
buffer = lv_xstring
len = lex_len.
lv_string = lv_xstring.
CONCATENATE lv_string2 lv_string INTO lv_string2.
ENDLOOP.
lv_b64leng = STRLEN( lv_string2 ).
CHECK lv_string2 IS NOT INITIAL.
CALL METHOD cl_fdt_uuid=>get_uuid
EXPORTING
iv_id_compliant = abap_false
RECEIVING
rv_uuid = lv_zuuid.
gs_alv_file-timestamp = lv_zuuid.
gs_alv_file-filename = itokens-str.
gs_alv_file-filesize = lv_b64leng.
gs_alv_file-sel = 'X'.
gs_alv_file-uuid = gv_uuid_new.
COLLECT gs_alv_file INTO gt_alv_file2.
COLLECT gs_alv_file INTO gt_alv_file.
* ls_history-timestamp = lv_zuuid.
ls_history-role = 'assistant'.
ls_history-content = 'FILE'.
ls_history-content2 = lv_string2.
ls_history-sel = 'X'.
ls_history-uuid = gv_uuid_new.
COLLECT ls_history INTO gt_history.
CLEAR:iincludelines[],iincludelines,lv_string2,lv_b64leng,itokens,lv_zuuid.
ENDLOOP.
CLEAR gv_tcode.
MESSAGE '文件解析成功!' TYPE 'S'.
ENDFORM. " UPLOAD_FILE
*&---------------------------------------------------------------------*
*& Form FRM_DATA_CHANGED
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* -->P_GT_ALV_FILE text
* -->P_ER_DATA_CHANGED text
*----------------------------------------------------------------------*
FORM frm_data_changed USING p_gt_alv_file
p_er_data_changed TYPE REF TO cl_alv_changed_data_protocol.
DATA: wa_mod_data TYPE lvc_s_modi.
DATA: ls_stable TYPE lvc_s_stbl.
FIELD-SYMBOLS <fs_file> LIKE LINE OF gt_alv_file.
FIELD-SYMBOLS <fs_history> LIKE LINE OF gt_history.
LOOP AT p_er_data_changed->mt_mod_cells INTO wa_mod_data.
READ TABLE gt_alv_file ASSIGNING <fs_file> INDEX wa_mod_data-row_id.
IF sy-subrc = 0.
<fs_file>-sel = wa_mod_data-value.
READ TABLE gt_history ASSIGNING <fs_history> WITH KEY timestamp = <fs_file>-timestamp.
IF sy-subrc = 0.
<fs_history>-sel = <fs_file>-sel.
ENDIF.
ENDIF.
ENDLOOP.
PERFORM refresh_alv_display.
ENDFORM. " FRM_DATA_CHANGED
*&---------------------------------------------------------------------*
*& Module CHECK_CHANGED_DATA INPUT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
MODULE check_changed_data INPUT.
CALL METHOD go_alv_grid_file->check_changed_data.
CALL METHOD go_alv_grid_hist->check_changed_data.
ENDMODULE. " CHECK_CHANGED_DATA INPUT
*&---------------------------------------------------------------------*
*& Form DELETE_FILES
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM delete_files .
FIELD-SYMBOLS <fs_file> LIKE LINE OF gt_alv_file.
FIELD-SYMBOLS <fs_history> LIKE LINE OF gt_history.
DATA lv_answer TYPE c.
IF gt_alv_file[] IS INITIAL.
MESSAGE '你还未上传解析程序!' TYPE 'I'.
RETURN.
ENDIF.
CALL FUNCTION 'POPUP_TO_CONFIRM'
EXPORTING
text_question = '删除文件时是否同步删除历史记录?'
text_button_1 = '是'
text_button_2 = '否'
IMPORTING
answer = lv_answer
EXCEPTIONS
text_not_found = 1
OTHERS = 2.
IF lv_answer = '1'.
LOOP AT gt_alv_file ASSIGNING <fs_file> WHERE sel IS INITIAL.
READ TABLE gt_history ASSIGNING <fs_history> WITH KEY timestamp = <fs_file>-timestamp.
IF sy-subrc = 0.
DELETE gt_history WHERE timestamp = <fs_file>-timestamp.
ENDIF.
ENDLOOP.
ENDIF.
DELETE gt_alv_file WHERE sel IS INITIAL.
IF sy-subrc = 0.
MESSAGE '删除成功!' TYPE 'S'.
ENDIF.
ENDFORM. " DELETE_FILES
*&---------------------------------------------------------------------*
*& Form CREAT_CHAT_MEW
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM creat_chat_new .
DATA lv_zuuid TYPE sysuuid_c.
DATA:lt_value TYPE TABLE OF sval,
ls_value TYPE sval,
lv_returncode TYPE char1.
FIELD-SYMBOLS <fs_new> LIKE LINE OF gt_alv_new.
IF go_container_resp IS NOT INITIAL.
CALL METHOD go_container_resp->free.
CLEAR go_container_resp.
ENDIF.
CALL METHOD cl_fdt_uuid=>get_uuid
EXPORTING
iv_id_compliant = abap_false
RECEIVING
rv_uuid = lv_zuuid.
gv_uuid_new = lv_zuuid.
ls_value-tabname = 'ZLOG_TAB_P'.
ls_value-fieldname = 'ZMSG'.
ls_value-field_obl = ''.
APPEND ls_value TO lt_value.
CLEAR:ls_value.
CALL FUNCTION 'POPUP_GET_VALUES'
EXPORTING
popup_title = '输入聊天主体'
start_column = '5'
start_row = '5'
IMPORTING
returncode = lv_returncode
TABLES
fields = lt_value
EXCEPTIONS
error_in_fields = 1
OTHERS = 2.
IF lv_returncode IS INITIAL.
APPEND INITIAL LINE TO gt_alv_new ASSIGNING <fs_new>.
<fs_new>-uuid = lv_zuuid.
READ TABLE lt_value INTO ls_value INDEX 1.
IF ls_value-value IS NOT INITIAL.
<fs_new>-title = ls_value-value.
CLEAR:lt_value[], ls_value.
ELSE.
CONCATENATE sy-datum sy-uzeit INTO <fs_new>-title.
ENDIF.
ELSE.
MESSAGE '已取消!' TYPE 'S'.
ENDIF.
ENDFORM. " CREAT_CHAT_MEW
*&---------------------------------------------------------------------*
*& Form DELETE_NEW_CHAT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM delete_new_chat .
DATA lv_text TYPE string.
DATA lv_answer TYPE string.
CONCATENATE '是否删除聊天主体:' gv_title INTO lv_text.
CALL FUNCTION 'POPUP_TO_CONFIRM'
EXPORTING
text_question = lv_text
IMPORTING
answer = lv_answer
EXCEPTIONS
text_not_found = 1
OTHERS = 2.
IF lv_answer = '1'.
DELETE gt_alv_data WHERE uuid = gv_uuid_new.
DELETE gt_history WHERE uuid = gv_uuid_new.
DELETE gt_alv_file WHERE uuid = gv_uuid_new.
DELETE gt_alv_new WHERE uuid = gv_uuid_new.
ELSE.
MESSAGE '已取消!' TYPE 'S'.
ENDIF.
ENDFORM. " DELETE_NEW_CHAT4.屏幕100
1.逻辑流
bash
PROCESS BEFORE OUTPUT.
MODULE status_0100.
MODULE initialize_screen_disply.
*
PROCESS AFTER INPUT.
MODULE user_command_0100.

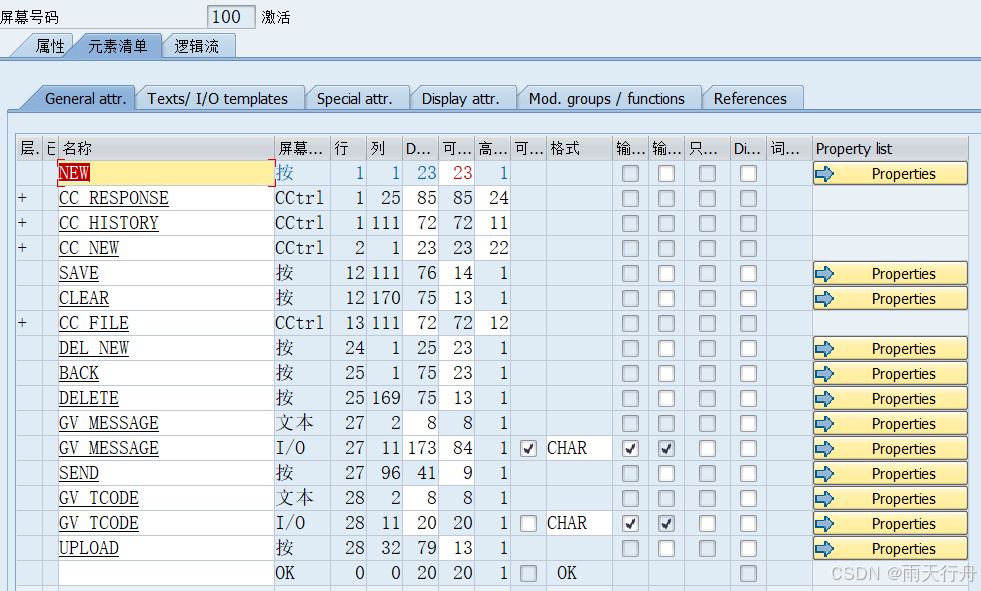

* MODULE check_changed_data.2.元素清单
感谢你阅读,欢迎大佬讨论留言或私信
