一.Web 服务基础介绍

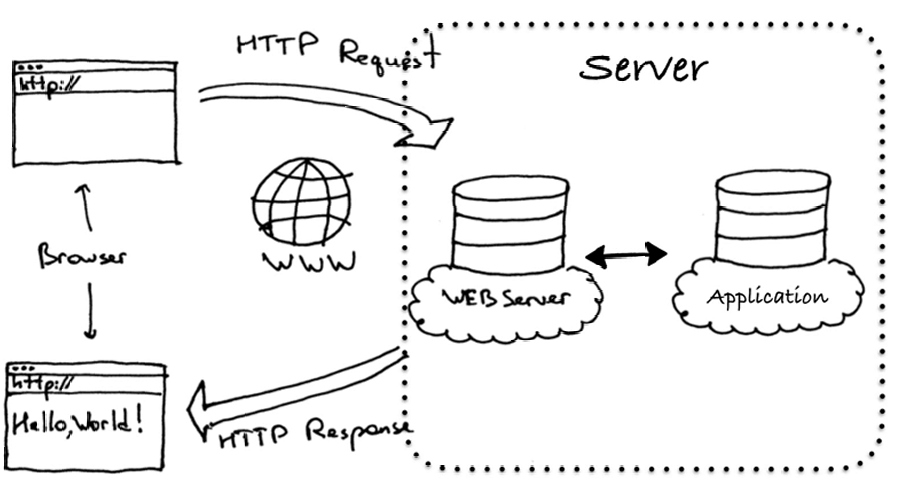

正常情况下的单次web服务访问流程：

二.Nginx 架构和安装

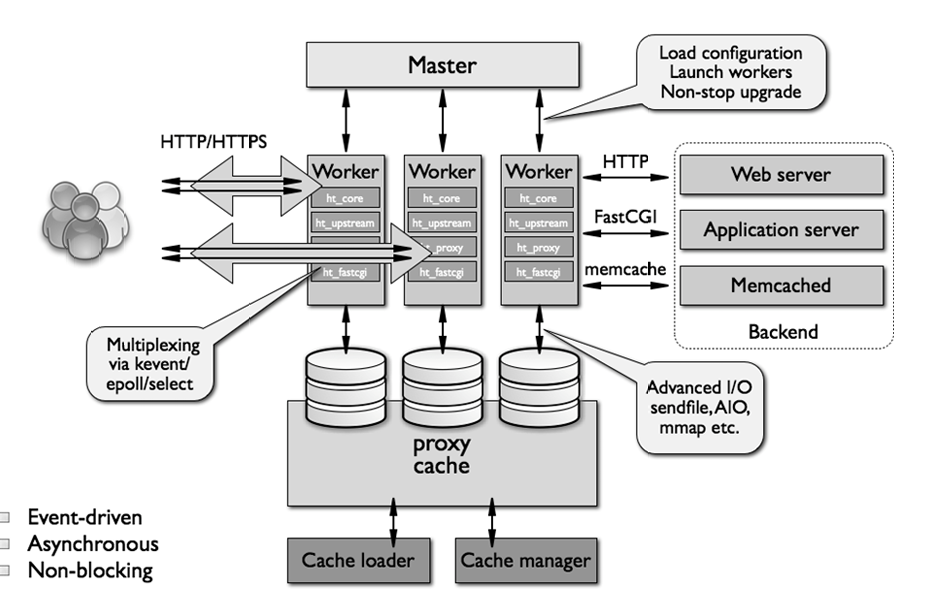

Nginx 架构

Nginx的源码编译

1.下载软件

$root@Nginx \~$ # wget https://nginx.org/download/nginx-1.28.1.tar.gz

2.解压

$root@Nginx \~$ # tar zxf nginx-1.28.1.tar.gz

$root@Nginx \~$ # cd nginx-1.28.1/

$root@Nginx nginx-1.28.1$ # ls

auto CHANGES.ru conf contrib html man SECURITY.md

CHANGES CODE_OF_CONDUCT.md configure CONTRIBUTING.md LICENSE README.md src

3.检测环境

#安装依赖性

$root@Nginx \~$ # dnf install gcc openssl-devel.x86_64 pcre2-devel.x86_64 zlib-devel -y

$root@Nginx nginx-1.28.1$ # ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

4.编译

$root@Nginx nginx-1.28.1$ # make

$root@Nginx nginx-1.28.1$ # make install

5.nginx启动

#设定环境变量

$root@Nginx sbin$ # vim ~/.bash_profile

export PATH=$PATH:/usr/local/nginx/sbin

$root@Nginx sbin$ # source ~/.bash_profile

$root@Nginx logs$ # useradd -s /sbin/nologin -M nginx

$root@Nginx logs$ # nginx

$root@Nginx logs$ # ps aux | grep nginx

root 44012 0.0 0.1 14688 2356 ? Ss 17:01 0:00 nginx: master process nginx

nginx 44013 0.0 0.2 14888 3892 ? S 17:01 0:00 nginx: worker process

root 44015 0.0 0.1 6636 2176 pts/0 S+ 17:01 0:00 grep --color=auto nginx

#测试

$root@Nginx logs$ # echo timinglee > /usr/local/nginx/html/index.html

$root@Nginx logs$ # curl 172.25.254.100

timinglee

6.编写启动文件

$root@Nginx \~$ # vim /lib/systemd/system/nginx.service

Unit

Description=The NGINX HTTP and reverse proxy server

After=syslog.target network-online.target remote-fs.target nss-lookup.target

Wants=network-online.target

Service

Type=forking

ExecStartPre=/usr/local/nginx/sbin/nginx -t

ExecStart=/usr/local/nginx/sbin/nginx

ExecReload=/usr/local/nginx/sbin/nginx -s reload

ExecStop=/bin/kill -s QUIT $MAINPID

PrivateTmp=true

Install

WantedBy=multi-user.target

$root@Nginx \~$ # systemctl daemon-reload

#验证

$root@Nginx \~$ # systemctl status nginx.service

○ nginx.service - The NGINX HTTP and reverse proxy server

Loaded: loaded (/usr/lib/systemd/system/nginx.service; disabled; preset: disabled)

Active: inactive (dead)

$root@Nginx \~$ # systemctl enable --now nginx

$root@Nginx \~$ # ps aux | grep nginx

root 1839 0.0 0.1 14688 2356 ? Ss 09:53 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 1840 0.0 0.2 14888 3828 ? S 09:53 0:00 nginx: worker process

$root@Nginx \~$ # reboot

$root@Nginx \~$ # systemctl status nginx.service

Nginx的平滑升级及回滚

1.下载高版本的软件

$root@Nginx \~$ # wget https://nginx.org/download/nginx-1.29.4.tar.gz

2.对于新版本的软件进行源码编译并进行平滑升级

#编译nginx隐藏版本

$root@Nginx \~$ # tar zxf nginx-1.29.4.tar.gz

$root@Nginx \~$ # cd nginx-1.29.4/src/core/

$root@Nginx core$ # vim nginx.h

#define nginx_version 1029004

#define NGINX_VERSION ""

#define NGINX_VER "TIMINGLEE/" NGINX_VERSION

#文件编辑完成后进行源码编译即可

$root@Nginx core$ # cd ../../

$root@Nginx nginx-1.29.4$ # ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

$root@Nginx nginx-1.29.4$ # make

$root@Nginx nginx-1.29.4$ # cd objs/

$root@Nginx objs$ # ls

autoconf.err nginx ngx_auto_config.h ngx_modules.c src

Makefile nginx.8 ngx_auto_headers.h ngx_modules.o

$root@Nginx objs$ # cd /usr/local/nginx/sbin/

$root@Nginx sbin$ # ls

nginx

$root@Nginx sbin$ # cp nginx nginx.old #把之前的旧版的nginx命令备份

$root@Nginx sbin$ # \cp -f /root/nginx-1.29.4/objs/nginx /usr/local/nginx/sbin/nginx

$root@Nginx sbin$ # ls /usr/local/nginx/logs/

access.log error.log nginx.pid

$root@Nginx sbin$ # ps aux | grep nginx

root 1643 0.0 0.1 14688 2360 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 1644 0.0 0.2 14888 3896 ? S 09:55 0:00 nginx: worker process

$root@Nginx sbin$ # kill -USR2 1643 #nginx master进程id

$root@Nginx sbin$ # ps aux | grep nginx

root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 1644 0.0 0.2 14888 3896 ? S 09:55 0:00 nginx: worker process

root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process

root 4923 0.0 0.1 6636 2176 pts/0 S+ 10:25 0:00 grep --color=auto nginx

$root@Nginx sbin$ # ls /usr/local/nginx/logs/

access.log error.log nginx.pid nginx.pid.oldbin

#测试效果

$root@Nginx sbin$ # nginx -V

nginx version: TIMINGLEE/

built by gcc 11.5.0 20240719 (Red Hat 11.5.0-5) (GCC)

built with OpenSSL 3.2.2 4 Jun 2024

TLS SNI support enabled

configure arguments: --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

#回收旧版本子进程

$root@Nginx sbin$ # ps aux | grep nginx

root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 1644 0.0 0.2 14888 3896 ? S 09:55 0:00 nginx: worker process

root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process

root 4929 0.0 0.1 6636 2176 pts/0 S+ 10:27 0:00 grep --color=auto nginx

$root@Nginx sbin$ # kill -WINCH 1643

$root@Nginx sbin$ # ps aux | grep nginx

root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process

root 4932 0.0 0.1 6636 2176 pts/0 S+ 10:28 0:00 grep --color=auto nginx

3.版本回退|版本回滚

$root@Nginx sbin$ # cd /usr/local/nginx/sbin/

$root@Nginx sbin$ # cp nginx nginx.new -p

$root@Nginx sbin$ # \cp nginx.old nginx -pf

$root@Nginx sbin$ # ps aux | grep nginx

root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process

$root@Nginx sbin$ # kill -HUP 1643

$root@Nginx sbin$ # ps aux | grep nginx

root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process

nginx 4963 0.0 0.2 14888 3896 ? S 10:32 0:00 nginx: worker process

root 4965 0.0 0.1 6636 2176 pts/0 S+ 10:32 0:00 grep --color=auto nginx

$root@Nginx sbin$ # nginx -V

nginx version: nginx/1.28.1

built by gcc 11.5.0 20240719 (Red Hat 11.5.0-5) (GCC)

built with OpenSSL 3.2.2 4 Jun 2024

TLS SNI support enabled

#回收新版本进程

$root@Nginx sbin$ # kill -WINCH 4919

$root@Nginx sbin$ # ps aux | grep nginx

root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 4963 0.0 0.2 14888 3896 ? S 10:32 0:00 nginx: worker process

root 4969 0.0 0.1 6636 2176 pts/0 S+ 10:34 0:00 grep --color=auto nginx

三 Nginx 核心配置详解

Nginx配置文件的管理及优化参数

$root@Nginx \~$ # vim /usr/local/nginx/conf/nginx.conf

user nginx;

$root@Nginx \~$ # nginx -t

nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok

nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # ps aux | grep nginx

root 5506 0.0 0.2 14564 3912 ? Ss 14:40 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 5511 0.0 0.2 14996 4032 ? S 14:41 0:00 nginx: worker process

$root@Nginx \~$ # vim /usr/local/nginx/conf/nginx.conf

worker_processes 2;

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # ps aux | grep nginx

root 5506 0.0 0.2 14796 4040 ? Ss 14:40 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 5516 0.0 0.2 15012 4048 ? S 14:42 0:00 nginx: worker process

nginx 5517 0.0 0.2 15012 4048 ? S 14:42 0:00 nginx: worker process

#在vmware中更改硬件cpu核心个数，然后重启

$root@Nginx \~$ # vim /usr/local/nginx/conf/nginx.conf

worker_processes auto;

worker_cpu_affinity 0001 0010 0100 1000;

$root@Nginx \~$ # ps aux | grep nginx

root 887 0.0 0.1 14564 2212 ? Ss 14:51 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 889 0.0 0.2 14964 3748 ? S 14:51 0:00 nginx: worker process

nginx 890 0.0 0.2 14964 3748 ? S 14:51 0:00 nginx: worker process

nginx 891 0.0 0.2 14964 3748 ? S 14:51 0:00 nginx: worker process

nginx 892 0.0 0.2 14964 3748 ? S 14:51 0:00 nginx: worker process

$root@Nginx \~$ # ps axo pid,cmd,psr | grep nginx

887 nginx: master process /usr/ 3

1635 nginx: worker process 0

1636 nginx: worker process 1

1637 nginx: worker process 2

1638 nginx: worker process 3

$root@Nginx \~$ # vim /usr/local/nginx/conf/nginx.conf

events {

worker_connections 10000;

use epoll;

accept_mutex on;

multi_accept on;

}

$root@Nginx \~$ # nginx -s reload

#测试并发

$root@Nginx \~$ # dnf install httpd-tools -y

$root@Nginx \~$ # ab -n 100000 -c5000 http://172.25.254.100/index.html

This is ApacheBench, Version 2.3 < $Revision: 1913912$ >

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking 172.25.254.100 (be patient)

socket: Too many open files (24) #并发数量过多导致访问失败

#处理本地文件系统的并发文件数量

$root@Nginx \~$ # vim /etc/security/limits.conf

* - nofile 100000

* - noproc 100000

root - nofile 100000

$root@Nginx \~$ # sudo -u nginx ulimit -n

100000

$root@Nginx \~$ # ulimit -n 10000

100000

#测试

$root@Nginx \~$ # ab -n 100000 -c10000 http://172.25.254.100/index.html

This is ApacheBench, Version 2.3 < $Revision: 1913912$ >

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking 172.25.254.100 (be patient)

Completed 10000 requests

Completed 20000 requests

Completed 30000 requests

Completed 40000 requests

Completed 50000 requests

Nginx下构建PC站点

1.location中的root

$root@Nginx conf$ # cd /usr/local/nginx/conf/

$root@Nginx conf$ # mkdir conf.d

$root@Nginx conf$ # vim nginx.conf

82 include "/usr/local/nginx/conf/conf.d/*.conf";

$root@Nginx conf$ # nginx -s reload

$root@Nginx conf$ # cd conf.d/

$root@Nginx \~$ # mkdir -p /webdata/nginx/timinglee.org/lee/html

$root@Nginx \~$ # echo lee.timinglee.org > /webdata/nginx/timinglee.org/lee/html/index.html

$root@Nginx conf.d$ # vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

root /webdata/nginx/timinglee.org/lee/html;

}

root@Nginx conf.d]# systemctl restart nginx.service

#测试

$root@Nginx conf.d$ # vim /etc/hosts

172.25.254.100 Nginx www.timinglee.org lee.timinglee.org

$root@Nginx conf.d$ # curl www.timinglee.org

timinglee

$root@Nginx conf.d$ # curl lee.timinglee.org

lee.timinglee.org

#local示例需要访问lee.timinglee.org/lee/目录

$root@Nginx conf.d$ # vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

root /webdata/nginx/timinglee.org/lee/html;

}

location /lee { #lee标识location中的root值+location 后面指定的值代表目录的路径

root /webdata/nginx/timinglee.org/lee/html;

}

$root@Nginx conf.d$ # systemctl restart nginx.service

$root@Nginx conf.d$ # mkdir -p /webdata/nginx/timinglee.org/lee/html/lee

$root@Nginx conf.d$ # echo lee > /webdata/nginx/timinglee.org/lee/html/lee/index.html

$root@Nginx conf.d$ # curl lee.timinglee.org/lee/

lee

2.location中的alias

$root@Nginx conf.d$ # vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /passwd { #标识文件

alias /etc/passwd;

}

location /passwd/ { #表示目录

alias /mnt/;

}

$root@Nginx conf.d$ # nginx -s reload

$root@Nginx conf.d$ # echo passwd > /mnt/index.html

#测试

$root@Nginx conf.d$ # curl lee.timinglee.org/passwd/

passwd

$root@Nginx conf.d$ # curl lee.timinglee.org/passwd

root:x:0:0:root:/root:/bin/bash

bin:x:1:1:bin:/bin:/sbin/nologin

daemon:x:2:2:daemon:/sbin:/sbin/nologin

KeepAlived长链接优化

1.设定长链接时间

$root@Nginx \~$ # vim /usr/local/nginx/conf/nginx.conf

keepalive_timeout 5;

$root@Nginx \~$ # nginx -s reload

#测试

$root@Nginx \~$ # dnf install telnet -y

$root@Nginx \~$ # telnet www.timinglee.org 80

Trying 172.25.254.100...

Connected to www.timinglee.org.

Escape character is '^]'.

GET / HTTP/1.1 <<<<

Host: www.timinglee.org <<<<

<<<

HTTP/1.1 200 OK

Server: nginx/1.28.1

Date: Sat, 31 Jan 2026 08:27:02 GMT

Content-Type: text/html

Content-Length: 10

Last-Modified: Thu, 29 Jan 2026 09:02:15 GMT

Connection: keep-alive

ETag: "697b2217-a"

Accept-Ranges: bytes

timinglee 显示的页面出现后根据设定的长链接时间会等待，超过时间后会自动退出

Connection closed by foreign host.

2.设定长链接次数

$root@Nginx \~$ # vim /usr/local/nginx/conf/nginx.conf

keepalive_requests 3;

$root@Nginx \~$ # nginx -s reload

#测试

$root@Nginx \~$ # telnet www.timinglee.org 80

Trying 172.25.254.100...

Connected to www.timinglee.org.

Escape character is '^]'.

GET / HTTP/1.1

Host: www.timinglee.org

HTTP/1.1 200 OK #第一次

Server: nginx/1.28.1

Date: Sat, 31 Jan 2026 08:32:14 GMT

Content-Type: text/html

Content-Length: 10

Last-Modified: Thu, 29 Jan 2026 09:02:15 GMT

Connection: keep-alive

Keep-Alive: timeout=100

ETag: "697b2217-a"

Accept-Ranges: bytes

timinglee

GET / HTTP/1.1

Host: www.timinglee.org

HTTP/1.1 200 OK #第二次

Server: nginx/1.28.1

Date: Sat, 31 Jan 2026 08:32:24 GMT

Content-Type: text/html

Content-Length: 10

Last-Modified: Thu, 29 Jan 2026 09:02:15 GMT

Connection: keep-alive

Keep-Alive: timeout=100

ETag: "697b2217-a"

Accept-Ranges: bytes

timinglee

GET / HTTP/1.1

Host: www.timinglee.org

HTTP/1.1 200 OK #第三次

Server: nginx/1.28.1

Date: Sat, 31 Jan 2026 08:32:35 GMT

Content-Type: text/html

Content-Length: 10

Last-Modified: Thu, 29 Jan 2026 09:02:15 GMT

Connection: close

ETag: "697b2217-a"

Accept-Ranges: bytes

timinglee

Connection closed by foreign host.

Location 字符匹配详解

1.Location后什么都不带直接指定目录

$root@Nginx conf.d$ # vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "/null-1";

}

$root@Nginx conf.d$ # curl lee.timinglee.org/null/

/null-1

$root@Nginx conf.d$ # curl lee.timinglee.org/NULL/

<html>

<head><title>404 Not Found</title></head>

<body>

<center><h1>404 Not Found</h1></center>

<hr><center>nginx/1.28.1</center>

</body>

</html>

2.location 后用 =

$root@Nginx conf.d$ # vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null { #精确匹配到此结束

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

$root@Nginx conf.d$ # nginx -s reload

$root@Nginx conf.d$ # curl lee.timinglee.org/null

null-2

3.location 后用"^~"

$root@Nginx conf.d$ # vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null {

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

location ^~ /lee {

return 200 "lee";

}

$root@Nginx conf.d$ # nginx -s reload

lee

$root@Nginx conf.d$ # curl lee.timinglee.org/lee

lee

$root@Nginx conf.d$ # curl lee.timinglee.org/test/lee

<html>

<head><title>404 Not Found</title></head>

<body>

<center><h1>404 Not Found</h1></center>

<hr><center>nginx/1.28.1</center>

</body>

</html>

4.location 后用"~"

$root@Nginx conf.d$ # vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null {

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

location ^~ /lee {

return 200 "lee";

}

location ~ /timing/ {

return 200 "timing";

}

$root@Nginx conf.d$ # nginx -s reload

$root@Nginx conf.d$ # curl lee.timinglee.org/timinga/

timing

$root@Nginx conf.d$ # curl lee.timinglee.org/timing/

timing

$root@Nginx conf.d$ # curl lee.timinglee.org/a/timing/

timing

$root@Nginx conf.d$ # curl lee.timinglee.org/a/timinga/

timing

$root@Nginx conf.d$ # curl lee.timinglee.org/a/atiming/

<html>

<head><title>404 Not Found</title></head>

<body>

<center><h1>404 Not Found</h1></center>

<hr><center>nginx/1.28.1</center>

</body>

</html>

5.location 后用"~*"

$root@Nginx conf.d$ # vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null {

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

location ^~ /lee {

return 200 "lee";

}

location ~ /timing/ {

return 200 "timing";

}

location ~* /timinglee {

return 200 "timinglee";

}

$root@Nginx conf.d$ # nginx -s reload

$root@Nginx conf.d$ # curl lee.timinglee.org/Timinglee/

timinglee

$root@Nginx conf.d$ # curl lee.timinglee.org/timinglee/

timinglee

$root@Nginx conf.d$ # curl lee.timinglee.org/timinglee/a

timinglee

$root@Nginx conf.d$ # curl lee.timinglee.org/a/timinglee/a

timinglee

$root@Nginx conf.d$ # curl lee.timinglee.org/a/atiminglee/a

<html>

<head><title>404 Not Found</title></head>

<body>

<center><h1>404 Not Found</h1></center>

<hr><center>nginx/1.28.1</center>

</body>

</html>

6.location 后用"\"

$root@Nginx conf.d$ # vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null {

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

location ^~ /lee {

return 200 "lee";

}

location ~ /timing/ {

return 200 "timing";

}

location ~* /timinglee {

return 200 "timinglee";

}

location ~* \.(img|php|jsp)$ {

return 200 "app";

}

$root@Nginx conf.d$ # nginx -s reload

$root@Nginx conf.d$ # curl lee.timinglee.org/test.php

app

$root@Nginx conf.d$ # curl lee.timinglee.org/test.jsp

app

服务访问的用户认证

$root@Nginx \~$ # htpasswd -cmb /usr/local/nginx/conf/.htpasswd admin lee

Adding password for user admin

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /admin {

root /usr/local/nginx/html;

auth_basic "login passwd";

auth_basic_user_file "/usr/local/nginx/conf/.htpasswd";

}

$root@Nginx \~$ # systemctl restart nginx.service

#测试：

root@Nginx ~]# curl lee.timinglee.org/admin/

<html>

<head><title>401 Authorization Required</title></head>

<body>

<center><h1>401 Authorization Required</h1></center>

<hr><center>nginx/1.28.1</center>

</body>

</html>

自定义错误页面

$root@Nginx \~$ # mkdir /usr/local/nginx/errorpage

$root@Nginx \~$ # echo "太不巧了，你要访问的页面辞职了！！" > /usr/local/nginx/errorpage/errormessage

$root@Nginx \~$ # cat /usr/local/nginx/errorpage/errormessage

太不巧了，你要访问的页面辞职了！！

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

$root@Nginx \~$ # curl lee.timinglee.org/lee/

太不巧了，你要访问的页面辞职了！！

$root@Nginx \~$ # mkdir -p /usr/local/nginx/logs/timinglee.org/

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

$root@Nginx \~$ # systemctl restart nginx.service

#测试

$root@Nginx \~$ # cd /usr/local/nginx/logs/timinglee.org/

$root@Nginx timinglee.org$ # ls

lee.error

$root@Nginx timinglee.org$ # cat lee.error

$root@Nginx timinglee.org$ # curl lee.timinglee.org/lee/

太不巧了，你要访问的页面辞职了！！

$root@Nginx timinglee.org$ # cat lee.error

2026/02/01 11:10:57 $error$ 2467#0: *1 "/usr/local/nginx/html/lee/index.html" is not found (2: No such file or directory), client: 172.25.254.100, server: lee.timinglee.org, request: "GET /lee/ HTTP/1.1", host: "lee.timinglee.org"

Nginx中建立下载服务器

$root@Nginx \~$ # mkdir -p /usr/local/nginx/download

$root@Nginx \~$ # cp /etc/passwd /usr/local/nginx/download/

$root@Nginx \~$ # dd if=/dev/zero of=/usr/local/nginx/download/bigfile bs=1M count=100

记录了100+0 的读入

记录了100+0 的写出

104857600字节（105 MB，100 MiB）已复制，0.152409 s，688 MB/s

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

}

$root@Nginx \~$ # nginx -s reload

访问

1.启用列表功能

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

autoindex on;

}

$root@Nginx \~$ # nginx -s reload

2.下载控速

$root@Nginx \~$ # wget http://lee.timinglee.org/download/bigfile

--2026-02-01 11:37:52-- http://lee.timinglee.org/download/bigfile

正在解析主机 lee.timinglee.org (lee.timinglee.org)... 172.25.254.100

正在连接 lee.timinglee.org (lee.timinglee.org)|172.25.254.100|:80... 已连接。

已发出 HTTP 请求，正在等待回应... 200 OK

长度：104857600 (100M) $application/octet-stream$

正在保存至: "bigfile"

bigfile 100% $=================================\>$ 100.00M 232MB/s 用时 0.4s

2026-02-01 11:37:52 (232 MB/s) - 已保存 "bigfile" $104857600/104857600$ )

$root@Nginx \~$ # rm -fr bigfile

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

autoindex on;

limit_rate 1024k;

}

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # wget http://lee.timinglee.org/download/bigfile

--2026-02-01 11:39:09-- http://lee.timinglee.org/download/bigfile

正在解析主机 lee.timinglee.org (lee.timinglee.org)... 172.25.254.100

正在连接 lee.timinglee.org (lee.timinglee.org)|172.25.254.100|:80... 已连接。

已发出 HTTP 请求，正在等待回应... 200 OK

长度：104857600 (100M) $application/octet-stream$

正在保存至: "bigfile"

bigfile 12% $===\>$ 12.00M 1.00MB/s 剩余 88s

3.显示文件大小优化

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

autoindex on;

limit_rate 1024k;

autoindex_exact_size off;

}

$root@Nginx \~$ # nginx -s reload

效果

root@Nginx ~]# curl lee.timinglee.org/download

<html>

<head><title>301 Moved Permanently</title></head>

<body>

<center><h1>301 Moved Permanently</h1></center>

<hr><center>nginx/1.28.1</center>

</body>

</html>

5.设定页面风格

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

autoindex on;

limit_rate 1024k;

autoindex_exact_size off;

autoindex_localtime on;

autoindex_format html | xml | json | jsonp;

}

$root@Nginx \~$ # nginx -s reload

xml风格

json风格

Nginx的文件检测

$root@Nginx \~$ # echo default > /usr/local/nginx/errorpage/default.html

$root@Nginx \~$ # cat /usr/local/nginx/errorpage/default.html

default

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

root /usr/local/nginx/errorpage;

try_files $uri$ uri.html $uri/index.html /default.html;

}

$root@Nginx \~$ # nginx -s reload

#测试：

$root@Nginx \~$ # curl -v lee.timinglee.org/aaaaaaaaaa/

* Trying 172.25.254.100:80...

* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)

> GET /aaaaaaaaaa/ HTTP/1.1

> Host: lee.timinglee.org

> User-Agent: curl/7.76.1

> Accept: */*

* Mark bundle as not supporting multiuse

< HTTP/1.1 200 OK

< Server: nginx/1.28.1

< Date: Sun, 01 Feb 2026 06:25:45 GMT

< Content-Type: text/html

< Content-Length: 8

< Last-Modified: Sun, 01 Feb 2026 06:17:57 GMT

< Connection: keep-alive

< Keep-Alive: timeout=100

< ETag: "697ef015-8"

< Accept-Ranges: bytes

default

* Connection #0 to host lee.timinglee.org left intact

四 Nginx 高级配置

Nginx的状态页

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /nginx_status{

stub_status;

auth_basic "auth login";

auth_basic_user_file /usr/local/nginx/conf/.htpasswd;

allow 172.25.254.0/24;

deny all;

}

$root@Nginx \~$ # nginx -s reload

访问效果

Nginx的压缩功能

$root@Nginx \~$ # mkdir /usr/local/nginx/timinglee.org/lee/html -p

$root@Nginx \~$ # echo hello lee > /usr/local/nginx/timinglee.org/lee/html/index.html

$root@Nginx html$ # cp /usr/local/nginx/logs/access.log /usr/local/nginx/timinglee.org/lee/html/bigfile.txt

$root@Nginx \~$ # vim /usr/local/nginx/conf/nginx.conf

gzip on;

gzip_comp_level 4;

gzip_disable "MSIE $1-6$ \.";

gzip_min_length 1024k;

gzip_buffers 32 1024k;

gzip_types text/plain application/javascript application/x-javascript text/css application/xml text/javascript application/x-httpd-php image/gif image/png;

gzip_vary on;

gzip_static on;

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /nginx_status{

stub_status;

auth_basic "auth login";

auth_basic_user_file /usr/local/nginx/conf/.htpasswd;

allow 172.25.254.0/24;

deny all;

}

$root@Nginx \~$ # nginx -s reload

#测试

$root@Nginx html$ # curl --head --compressed lee.timinglee.org/bigfile.txt

HTTP/1.1 200 OK

Server: nginx/1.28.1

Date: Sun, 01 Feb 2026 07:32:10 GMT

Content-Type: text/plain

Last-Modified: Sun, 01 Feb 2026 07:29:53 GMT

Connection: keep-alive

Keep-Alive: timeout=100

Vary: Accept-Encoding

ETag: W/"697f00f1-2ca84bd"

Content-Encoding: gzip

$root@Nginx html$ # curl --head --compressed lee.timinglee.org/index.html

HTTP/1.1 200 OK

Server: nginx/1.28.1

Date: Sun, 01 Feb 2026 07:32:19 GMT

Content-Type: text/html

Content-Length: 10

Last-Modified: Sun, 01 Feb 2026 07:19:59 GMT

Connection: keep-alive

Keep-Alive: timeout=100

ETag: "697efe9f-a"

Accept-Ranges: bytes

Nginx 变量

1.升级Nginx支持echo

$root@Nginx \~$ # systemctl stop nginx.service

$root@Nginx \~$ # ps aux | grep nginx

root 5193 0.0 0.1 6636 2176 pts/1 S+ 16:08 0:00 grep --color=auto nginx

$root@Nginx \~$ # tar zxf echo-nginx-module-0.64.tar.gz

$root@Nginx \~$ # cd nginx-1.28.1/

$root@Nginx nginx-1.28.1$ # make clean

$root@Nginx nginx-1.28.1$ # make

$root@Nginx nginx-1.28.1$ # rm -rf /usr/local/nginx/sbin/nginx

$root@Nginx nginx-1.28.1$ # cp objs/nginx /usr/local/nginx/sbin/ -p

#测试

$root@Nginx nginx-1.28.1$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $remote_addr;

}

$root@Nginx nginx-1.28.1$ # nginx -t

nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok

nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful

$root@Nginx nginx-1.28.1$ # systemctl start nginx.service

2.理解内建变量

$root@Nginx nginx-1.28.1$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $remote_addr;

}

$root@Nginx nginx-1.28.1$ # nginx -s reload

$root@Nginx nginx-1.28.1$ # curl lee.timinglee.org/vars/

172.25.254.100

$root@Nginx nginx-1.28.1$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $args;

}

$root@Nginx nginx-1.28.1$ # nginx -s reload

$root@Nginx nginx-1.28.1$ # curl "http://lee.timinglee.org/vars?key=lee\&id=11"

key=lee&id=11

$root@Nginx nginx-1.28.1$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $args;

echo $is_args;

}

$root@Nginx nginx-1.28.1$ # nginx -s reload

$root@Nginx nginx-1.28.1$ # curl "http://lee.timinglee.org/vars?key=lee\&id=11"

172.25.254.100

key=lee&id=11

$root@Nginx nginx-1.28.1$ # curl "http://lee.timinglee.org/vars"

172.25.254.100

$root@Nginx nginx-1.28.1$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $document_root;

}

$root@Nginx nginx-1.28.1$ # nginx -s reload

$root@Nginx nginx-1.28.1$ # curl "http://lee.timinglee.org/vars?key=lee\&id=11"

/usr/local/nginx/timinglee.org/lee/html

$root@Nginx nginx-1.28.1$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $remote_addr;

echo $args;

echo $is_args;

echo $document_root;

echo $document_uri;

echo $host;

echo $remote_port;

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

echo $server_protocol;

echo $server_addr;

echo $server_name;

echo $server_port;

echo $http_user_agent;

echo $cookie_key2;

echo $http_user_agent;

echo $sent_http_content_type;

}

$root@Nginx nginx-1.28.1$ # nginx -s reload

$root@Nginx nginx-1.28.1$ # curl -b "key1=hello,key2=timinglee" -A "haha" -ulee:lee "http://lee.timinglee.org/vars?key=lee\&id=11"

172.25.254.100

key=lee&id=11

/usr/local/nginx/timinglee.org/lee/html

/vars

lee.timinglee.org

45156

lee

GET

/usr/local/nginx/timinglee.org/lee/html/vars

/vars?key=lee&id=11

http

HTTP/1.1

172.25.254.100

lee.timinglee.org

haha

timinglee

haha

text/html

自定义变量

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $remote_addr;

echo $args;

echo $is_args;

echo $document_root;

echo $document_uri;

echo $host;

echo $remote_port;

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

echo $server_protocol;

echo $server_addr;

echo $server_name;

echo $server_port;

echo $http_user_agent;

echo $cookie_key2;

echo $http_user_agent;

echo $sent_http_content_type;

set $test lee; #手动设定变量值

echo $test;

set $web_port$ server_port; #变量个传递

echo $web_port;

}

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # curl lee.timinglee.org/vars/

172.25.254.100

/usr/local/nginx/timinglee.org/lee/html

/vars/

lee.timinglee.org

42538

GET

/usr/local/nginx/timinglee.org/lee/html/vars/

/vars/

http

HTTP/1.1

172.25.254.100

lee.timinglee.org

curl/7.76.1

text/html

lee

五 Nginx Rewrite 相关功能

网页从写

1.网页重写中的指令

#if

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

if ( $http_user_agent ~* firefox ) {

return 200 "test if messages";

}

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # curl lee.timinglee.org

lee page

$root@Nginx \~$ # curl -A "firefox" lee.timinglee.org

test if messages $root@Nginx \~$ #

#set

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

set $testname timinglee;

echo $testname;

}

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # curl lee.timinglee.org

timinglee

#return

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

return 200 "hello world";

}

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # curl lee.timinglee.org

hello world

#break

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

set $test1 lee1;

set $test2 lee2;

if ($http_user_agent = firefox){

break;

}

set $test3 lee3;

echo $test1$ test2 $test3;

}

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # curl lee.timinglee.org

lee1 lee2 lee3

$root@Nginx \~$ # curl -A "firefox" lee.timinglee.org

lee1 lee2

2 flag

#redirect;

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

rewrite / http://www.baidu.com redirect;

}

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # curl -I lee.timinglee.org

HTTP/1.1 302 Moved Temporarily #定向方式返回值

Server: nginx/1.28.1

Date: Tue, 03 Feb 2026 02:43:47 GMT

Content-Type: text/html

Content-Length: 145

Connection: keep-alive

Keep-Alive: timeout=100

Location: http://www.baidu.com #定向效果

#permanent

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

rewrite / http://www.baidu.com permanent;

}

$root@Nginx \~$ # nginx -s reload

$root@Nginx \~$ # curl -I lee.timinglee.org

HTTP/1.1 301 Moved Permanently

Server: nginx/1.28.1

Date: Tue, 03 Feb 2026 02:45:38 GMT

Content-Type: text/html

Content-Length: 169

Connection: keep-alive

Keep-Alive: timeout=100

Location: http://www.baidu.com

#break 和 last

$root@Nginx \~$ # mkdir /webdir/timinglee.org/lee/html/{break,last,test1,test2}

$root@Nginx \~$ # echo break > /webdir/timinglee.org/lee/html/break/index.html

$root@Nginx \~$ # echo last > /webdir/timinglee.org/lee/html/last/index.html

$root@Nginx \~$ # echo test1 > /webdir/timinglee.org/lee/html/test1/index.html

$root@Nginx \~$ # echo test2 > /webdir/timinglee.org/lee/html/test2/index.html

#break

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location /break {

rewrite /break/(.*) /test1/$1 break;

rewrite /test1 /test2;

}

location /test1 {

return 200 "test1 end page";

}

location /test2 {

return 200 "TEST2 END PAGE";

}

root@Nginx ~]# nginx -s reload

$root@Nginx \~$ # curl -L lee.timinglee.org/break/index.html

test1

#last

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location /break {

rewrite /break/(.*) /test1/$1 last;

rewrite /test1 /test2;

}

location /test1 {

return 200 "test1 end page";

}

location /test2 {

return 200 "TEST2 END PAGE";

}

root@Nginx ~]# nginx -s reload

$root@Nginx \~$ # curl -L lee.timinglee.org/break/index.html

test1 end page

Nginx利用网页重写实现全站加密

1.制作key

$root@Nginx \~$ # openssl req -newkey rsa:2048 -nodes -sha256 -keyout /usr/local/nginx/certs/timinglee.org.key -x509 -days 365 -out /usr/local/nginx/certs/timinglee.org.crt

2.编辑加密配置文件

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

listen 443 ssl;

ssl_certificate /usr/local/nginx/certs/timinglee.org.crt;

ssl_certificate_key /usr/local/nginx/certs/timinglee.org.key;

ssl_session_cache shared:sslcache:20m;

ssl_session_timeout 10m;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location / {

if ($scheme = http ){

rewrite /(.*) https://$host/$1 redirect;

}

$root@Nginx \~$ # systemctl restart nginx.service

#测试

$root@Nginx \~$ # curl -I http://lee.timinglee.org/test1/

HTTP/1.1 302 Moved Temporarily

Server: nginx/1.28.1

Date: Tue, 03 Feb 2026 03:21:22 GMT

Content-Type: text/html

Content-Length: 145

Connection: keep-alive

Keep-Alive: timeout=100

Location: https://lee.timinglee.org/test1/

防盗链

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location / {

valid_referers none blocked server_names *.timinglee.org ~/.baidu/.;

if ($invalid_referer){

return 404;

}

location /img {

valid_referers none blocked server_names *.timinglee.org ~/.baidu/.;

if ($invalid_referer){

rewrite ^/ http://lee.timinglee.org/daolian/daolian.png;

}

$root@Nginx \~$ # nginx -s reload

在测试时：

#另外的web服务器

$root@RS1 \~$ # vim /var/www/html/index.html

<html>

<head>

</head>

<body>

</body>

</html>

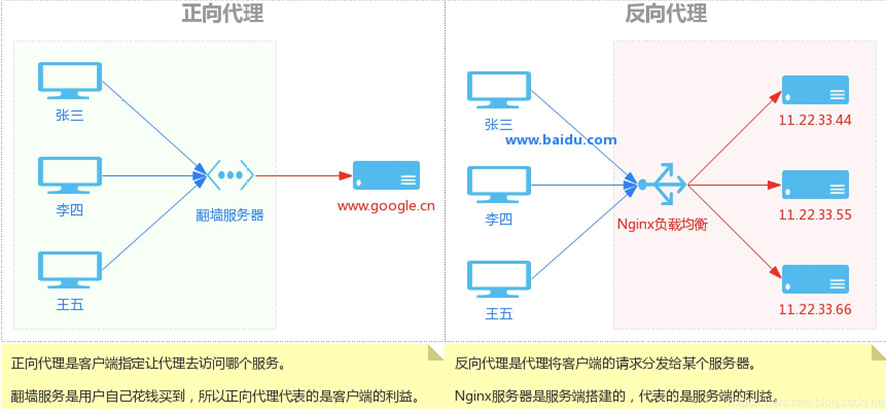

六 Nginx 反向代理功能

Nginx反向代理

1.实验环境

#172.25.254.10 RS1 172.25.254.20 RS2

$root@RSX \~$ # dnf install httpd -y

$root@RSX \~$ # systemctl enable --now httpd

$root@RSX \~$ # echo 172.25.254.20 > /var/www/html/index.html

#测试在Nginx主机中

$root@Nginx \~$ # curl 172.25.254.10

172.25.254.10

$root@Nginx \~$ # curl 172.25.254.20

172.25.254.20

2.简单的代理方法

$root@RS2 \~$ # mkdir /var/www/html/web

$root@RS2 \~$ # echo 172.25.254.20 web > /var/www/html/web/index.html

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.10:80;

}

location /web {

proxy_pass http://172.25.254.20:80;

}

$root@Nginx \~$ # nginx -s reload

#测试

$root@Nginx \~$ # curl 172.25.254.20/web/

172.25.254.20 web

$root@Nginx \~$ # curl 172.25.254.10

172.25.254.10

3.proxy_hide_header filed

$Administrator.DESKTOP-VJ307M3$ ➤ curl -v lee.timinglee.org

* Trying 172.25.254.100:80...

* TCP_NODELAY set

* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)

> GET / HTTP/1.1

> Host: lee.timinglee.org

> User-Agent: curl/7.65.0

> Accept: */*

* Mark bundle as not supporting multiuse

< HTTP/1.1 200 OK

< Server: nginx/1.28.1

< Date: Tue, 03 Feb 2026 06:31:03 GMT

< Content-Type: text/html; charset=UTF-8

< Content-Length: 14

< Connection: keep-alive

< Keep-Alive: timeout=100

< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT

< ETag: "e-649e570e8a49f" #可以看到ETAG信息

< Accept-Ranges: bytes

172.25.254.10

* Connection #0 to host lee.timinglee.org left intact

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.10:80;

proxy_hide_header ETag;

}

location /web {

proxy_pass http://172.25.254.20:80;

}

$root@Nginx \~$ # nginx -s reload

#测试

$Administrator.DESKTOP-VJ307M3$ ➤ curl -v lee.timinglee.org

* Trying 172.25.254.100:80...

* TCP_NODELAY set

* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)

> GET / HTTP/1.1

> Host: lee.timinglee.org

> User-Agent: curl/7.65.0

> Accept: */*

* Mark bundle as not supporting multiuse

< HTTP/1.1 200 OK

< Server: nginx/1.28.1

< Date: Tue, 03 Feb 2026 06:33:11 GMT

< Content-Type: text/html; charset=UTF-8

< Content-Length: 14

< Connection: keep-alive

< Keep-Alive: timeout=100

< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT

< Accept-Ranges: bytes

172.25.254.10

4.proxy_pass_header

$Administrator.DESKTOP-VJ307M3$ ➤ curl -v lee.timinglee.org

* Trying 172.25.254.100:80...

* TCP_NODELAY set

* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)

> GET / HTTP/1.1

> Host: lee.timinglee.org

> User-Agent: curl/7.65.0

> Accept: */*

* Mark bundle as not supporting multiuse

< HTTP/1.1 200 OK

< Server: nginx/1.28.1 #默认访问不透传server信息

< Date: Tue, 03 Feb 2026 06:35:35 GMT

< Content-Type: text/html; charset=UTF-8

< Content-Length: 14

< Connection: keep-alive

< Keep-Alive: timeout=100

< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT

< Accept-Ranges: bytes

172.25.254.10

* Connection #0 to host lee.timinglee.org left intact

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.10:80;

proxy_pass_header Server;

}

location /web {

proxy_pass http://172.25.254.20:80;

}

$root@Nginx \~$ # nginx -s reload

Administrator.DESKTOP-VJ307M3] ➤ curl -v lee.timinglee.org

* Trying 172.25.254.100:80...

* TCP_NODELAY set

* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)

> GET / HTTP/1.1

> Host: lee.timinglee.org

> User-Agent: curl/7.65.0

> Accept: */*

* Mark bundle as not supporting multiuse

< HTTP/1.1 200 OK

< Date: Tue, 03 Feb 2026 06:37:25 GMT

< Content-Type: text/html; charset=UTF-8

< Content-Length: 14

< Connection: keep-alive

< Keep-Alive: timeout=100

< Server: Apache/2.4.62 (Red Hat Enterprise Linux) #透传结果

< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT

< Accept-Ranges: bytes

172.25.254.10

* Connection #0 to host lee.timinglee.org left intact

4.透传信息

$root@RS1 \~$ # vim /etc/httpd/conf/httpd.conf

LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\" \"%{X-Forwarded-For}i\"" combined

$root@RS1 \~$ # systemctl restart httpd

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.10:80;

proxy_set_header X-Forwarded-For $remote_addr;

}

location /web {

proxy_pass http://172.25.254.20:80;

}

$root@Nginx \~$ # nginx -s reload

$Administrator.DESKTOP-VJ307M3$ ➤ curl lee.timinglee.org

172.25.254.10

$root@RS1 \~$ # cat /etc/httpd/logs/access_log

172.25.254.100 - - $03/Feb/2026:14:47:37 +0800$ "GET / HTTP/1.0" 200 14 "-" "curl/7.65.0" "172.25.254.1"

利用反向代理实现动静分离

1.试验机环境

#在10中

$root@RS1 \~$ # dnf install php -y

$root@RS1 \~$ # systemctl restart httpd

$root@RS1 \~$ # vim /var/www/html/index.php

<?php

echo "<h2>172.25.254.10</h2>";

phpinfo();

2.动静分离的实现

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.20:80;

}

location ~* \.(php|js)$ {

proxy_pass http://172.25.254.10:80;

}

$root@Nginx \~$ # nginx -s reload

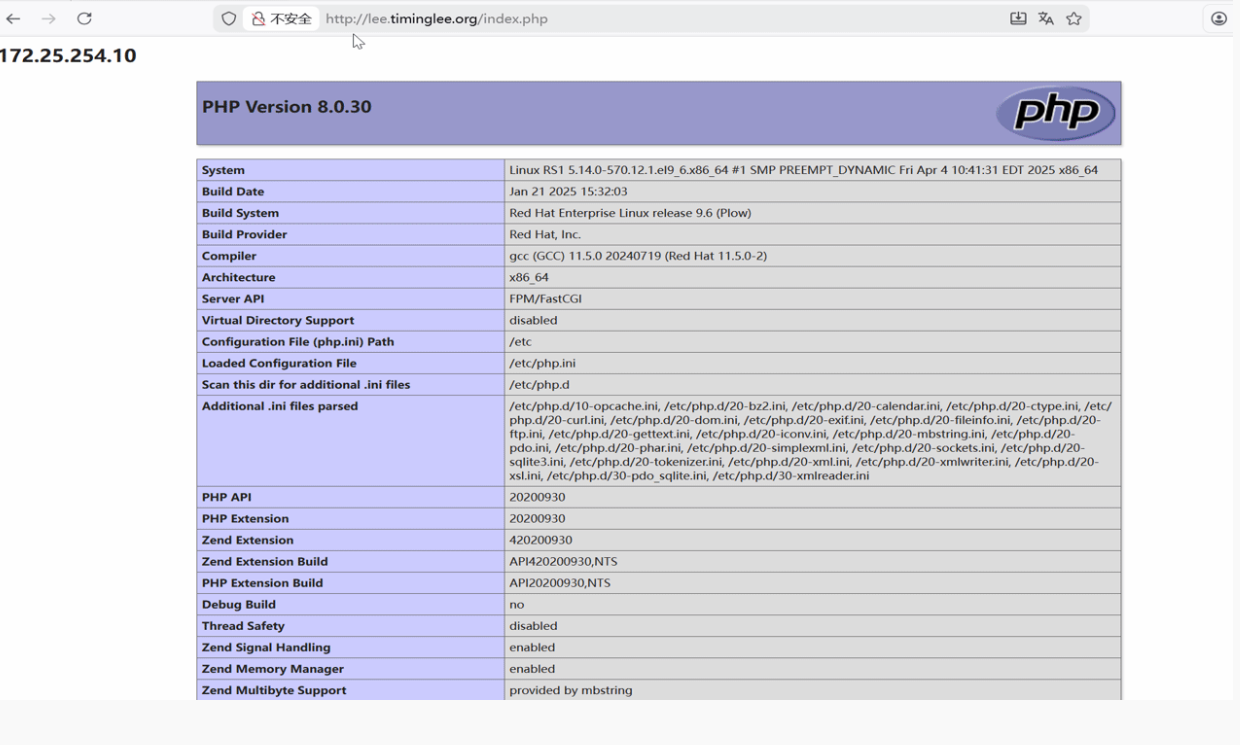

测试：

缓存加速

1.当未启用缓存时进行压测

$Administrator.DESKTOP-VJ307M3$ ➤ ab -n 10000 -c 50 lee.timinglee.org/index.php

This is ApacheBench, Version 2.3 < $Revision: 1807734$ >

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking lee.timinglee.org (be patient)

Completed 1000 requests

Completed 2000 requests

Completed 3000 requests

Completed 4000 requests

Completed 5000 requests

Completed 6000 requests

Completed 7000 requests

Completed 8000 requests

Completed 9000 requests

Completed 10000 requests

Finished 10000 requests

Server Software: nginx/1.28.1

Server Hostname: lee.timinglee.org

Server Port: 80

Document Path: /index.php

Document Length: 72921 bytes

Concurrency Level: 50

Time taken for tests: 13.678 seconds

Complete requests: 10000

Failed requests: 9963 #失败的

(Connect: 0, Receive: 0, Length: 9963, Exceptions: 0)

Total transferred: 731097819 bytes

HTML transferred: 729237819 bytes

Requests per second: 731.10 $#/sec$ (mean)

Time per request: 68.390 $ms$ (mean)

Time per request: 1.368 $ms$ (mean, across all concurrent requests)

Transfer rate: 52197.72 $Kbytes/sec$ received

Connection Times (ms)

min mean $+/-sd$ median max

Connect: 0 7 4.0 6 26

Processing: 4 61 168.8 44 3405

Waiting: 2 38 129.9 26 3316

Total: 5 68 168.7 51 3405

Percentage of the requests served within a certain time (ms)

50% 51

66% 61

75% 68

80% 71

90% 83

95% 92

98% 105

99% 506

100% 3405 (longest request)

2.设定缓存加速

$root@Nginx \~$ # vim /usr/local/nginx/conf/nginx.conf

proxy_cache_path /usr/local/nginx/proxy_cache levels=1:2:2 keys_zone=proxycache:20m inactive=120s max_size=1g;

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.20:80;

}

location ~* \.(php|js)$ {

proxy_pass http://172.25.254.10:80;

proxy_cache proxycache;

proxy_cache_key $request_uri;

proxy_cache_valid 200 302 301 10m;

proxy_cache_valid any 1m;

}

$root@Nginx \~$ # systemctl restart nginx.service

$root@Nginx \~$ # tree /usr/local/nginx/proxy_cache/

/usr/local/nginx/proxy_cache/

0 directories, 0 files

#测试

$Administrator.DESKTOP-VJ307M3$ ➤ ab -n 10000 -c 50 lee.timinglee.org/index.php

This is ApacheBench, Version 2.3 < $Revision: 1807734$ >

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking lee.timinglee.org (be patient)

Completed 1000 requests

Completed 2000 requests

Completed 3000 requests

Completed 4000 requests

Completed 5000 requests

Completed 6000 requests

Completed 7000 requests

Completed 8000 requests

Completed 9000 requests

Completed 10000 requests

Finished 10000 requests

Server Software: nginx/1.28.1

Server Hostname: lee.timinglee.org

Server Port: 80

Document Path: /index.php

Document Length: 72925 bytes

Concurrency Level: 50

Time taken for tests: 4.365 seconds

Complete requests: 10000

Failed requests: 0

Total transferred: 731110000 bytes

HTML transferred: 729250000 bytes

Requests per second: 2290.76 $#/sec$ (mean)

Time per request: 21.827 $ms$ (mean)

Time per request: 0.437 $ms$ (mean, across all concurrent requests)

Transfer rate: 163554.31 $Kbytes/sec$ received

Connection Times (ms)

min mean $+/-sd$ median max

Connect: 0 4 1.8 4 11

Processing: 4 18 31.3 15 734

Waiting: 1 9 30.7 5 726

Total: 6 22 31.2 20 734

Percentage of the requests served within a certain time (ms)

50% 20

66% 21

75% 21

80% 22

90% 27

95% 32

98% 41

99% 46

100% 734 (longest request)

$root@Nginx \~$ # tree /usr/local/nginx/proxy_cache/

/usr/local/nginx/proxy_cache/

└── 1

└── af

└── 15

└── e251273eb74a8ee3f661a7af00915af1

3 directories, 1 file

反向代理负载均衡

1.实验环境

172.25.254.100 #Nginx 代理服务器

172.25.254.10 #后端web A，Apache部署

172.25.254.20 #后端web B，Apache部署

2.实现负载均衡

$root@Nginx \~$ # mkdir /usr/local/nginx/conf/upstream/

$root@Nginx \~$ # vim /usr/local/nginx/conf/nginx.conf

events {

worker_connections 10000;

use epoll;

accept_mutex on;

multi_accept on;

}

http {

include mime.types;

default_type application/octet-stream;

include "/usr/local/nginx/conf/upstream/*.conf"; #子配置目录

$root@Nginx \~$ # vim /usr/local/nginx/conf/upstream/loadbalance.conf

upstream webserver {

server 172.25.254.10:80 weight=1 fail_timeout=15s max_fails=3;

server 172.25.254.20:80 weight=1 fail_timeout=15s max_fails=3;

server 172.25.254.100:8888 backup;

}

server {

listen 80;

server_name www.timinglee.org;

location ~ / {

proxy_pass http://webserver;

}

$root@Nginx \~$ # mkdir /webdir/timinglee.org/error/html -p

$root@Nginx \~$ # echo error > /webdir/timinglee.org/error/html/index.html

$root@Nginx \~$ # vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 8888;

root /webdir/timinglee.org/error/html;

}

#测试：

$root@Nginx \~$ # curl www.timinglee.org

172.25.254.10

$root@Nginx \~$ # curl www.timinglee.org

172.25.254.20

$root@Nginx \~$ # curl www.timinglee.org

172.25.254.10

$root@Nginx \~$ # curl www.timinglee.org

172.25.254.20

$root@Nginx \~$ # curl www.timinglee.org

172.25.254.20

$root@Nginx \~$ # curl www.timinglee.org

172.25.254.20

$root@RS1+2 \~$ # systemctl stop httpd

$root@Nginx \~$ # curl www.timinglee.org

error

Nginx整合PHP

$root@Nginx conf.d$ # mkdir /webdir/timinglee.org/php/html -p

$root@Nginx conf.d$ # vim /webdir/timinglee.org/php/html/index.html

php.timinglee.org

$root@Nginx conf.d$ # vim /webdir/timinglee.org/php/html/index.php

<?php

phpinfo();

$root@Nginx \~$ # cd /usr/local/nginx/conf/conf.d/

$root@Nginx conf.d$ # vim php.conf

server {

listen 80;

server_name php.timinglee.org;

root /webdir/timinglee.org/php/html;

location ~ \.php$ {

fastcgi_pass 127.0.0.1:9000;

fastcgi_index index.php;

include fastcgi.conf;

}

$root@Nginx conf.d$ # nginx -s reload

#测试

http://php.timinglee.org

http://php.timinglee.org/index.php

PHP的源码编译

1.下载源码包

$root@Nginx \~$ # wget https://www.php.net/distributions/php-8.3.30.tar.gz

$root@Nginx \~$ # wget https://mirrors.aliyun.com/rockylinux/9.7/devel/x86_64/os/Packages/o/oniguruma-devel-6.9.6-1.el9.6.x86_64.rpm #依赖

2.解压

$root@Nginx \~$ # tar zxf php-8.3.30.tar.gz

$root@Nginx \~$ # ls

anaconda-ks.cfg lee.png nginx-1.29.4.tar.gz test.c

daolian.png nginx-1.28.1 php-8.3.30

echo-nginx-module-0.64 nginx-1.28.1.tar.gz php-8.3.30.tar.gz

echo-nginx-module-0.64.tar.gz nginx-1.29.4 test

$root@Nginx \~$ # cd php-8.3.30

3.源码编译

$root@Nginx \~$ # dnf install gcc systemd-devel-252-51.el9.x86_64 libxml2-devel.x86_64 sqlite-devel.x86_64 libcurl-devel.x86_64 libpng-devel.x86_64 oniguruma-devel-6.9.6-1.el9.6.x86_64.rpm -y

$root@Nginx \~$ # cd php-8.3.30/

$root@Nginx php-8.3.30$ # ./configure \

--prefix=/usr/local/php \ #安装路径

--with-config-file-path=/usr/local/php/etc \ #指定配置路径

--enable-fpm \ #用cgi方式启动程序

--with-fpm-user=nginx \ #指定运行用户身份

--with-fpm-group=nginx \

--with-curl \ #打开curl浏览器支持

--with-iconv \ #启用iconv函数，转换字符编码

--with-mhash \ #mhash加密方式扩展库

--with-zlib \ #支持zlib库，用于压缩http压缩传输

--with-openssl \ #支持ssl加密

--enable-mysqlnd \ #mysql数据库

--with-mysqli \

--with-pdo-mysql \

--disable-debug \ #关闭debug功能

--enable-sockets \ #支持套接字访问

--enable-soap \ #支持soap扩展协议

--enable-xml \ #支持xml

--enable-ftp \ #支持ftp

--enable-gd \ #支持gd库

--enable-exif \ #支持图片元数据

--enable-mbstring \ #支持多字节字符串

--enable-bcmath \ #打开图片大小调整,用到zabbix监控的时候用到了这个模块

--with-fpm-systemd #支持systemctl 管理cgi

$root@Nginx php-8.3.30$ # make && make instsall

4.配置PHP

$root@Nginx php-8.3.30$ # cd /usr/local/php/etc

$root@Nginx etc$ # cp -p php-fpm.conf.default php-fpm.conf

$root@Nginx etc$ # vim php-fpm.conf

global

; Pid file

; Note: the default prefix is /usr/local/php/var

; Default Value: none

pid = run/php-fpm.pid

$root@Nginx etc$ # cd php-fpm.d/

$root@Nginx php-fpm.d$ # cp www.conf.default www.conf

$root@Nginx php-fpm.d$ # vim www.conf

41 listen = 0.0.0.0:9000

$root@Nginx php-fpm.d$ # cp /root/php-8.3.30/php.ini-production /usr/local/php/etc/php.ini

$root@Nginx php-fpm.d$ # vim /usr/local/php/etc/php.ini

989 date.timezone = Asia/Shangha

$root@Nginx \~$ # cp /root/php-8.3.30/sapi/fpm/php-fpm.service /lib/systemd/system/

$root@Nginx \~$ # vim /lib/systemd/system/php-fpm.service

Mounts the /usr, /boot, and /etc directories read-only for processes invoked by this unit.

#ProtectSystem=full #注释此参数

$root@Nginx \~$ # systemctl daemon-reload

$root@Nginx \~$ # systemctl enable --now php-fpm

$root@Nginx \~$ # netstat -antlupe | grep php

tcp 0 0 0.0.0.0:9000 0.0.0.0:* LISTEN 0 329917 165562/php-fpm: mas

5.为php设定环境变量

$root@Nginx \~$ # vim ~/.bash_profile

export PATH=$PATH:/usr/local/nginx/sbin:/usr/local/php/sbin:/usr/local/php/bin

$root@Nginx \~$ # source ~/.bash_profile

$root@Nginx \~$ # php -m

利用memcache实现php的缓存加速

1.安装memcache

$root@Nginx \~$ # dnf install memcached.x86_64 -y

2.配置memcache

$root@Nginx \~$ # vim /etc/sysconfig/memcached

PORT="11211"

USER="memcached"

MAXCONN="1024"

CACHESIZE="64"

OPTIONS="-l 0.0.0.0,::1"

$root@Nginx \~$ # systemctl enable --now memcached.service

$root@Nginx \~$ # netstat -antlupe | grep memcache

tcp 0 0 0.0.0.0:11211 0.0.0.0:* LISTEN 991 437305 166169/memcached

tcp6 0 0 ::1:11211 :::* LISTEN 991 437306 166169/memcached

3.升级php对于memcache的支持

$root@Nginx \~$ # php -m #查看php支持的插件

$root@Nginx \~$ # tar zxf memcache-8.2.tgz

$root@Nginx \~$ # cd memcache-8.2/

$root@Nginx memcache-8.2$ # dnf install autoconf -y

$root@Nginx memcache-8.2$ # phpize

$root@Nginx memcache-8.2$ # ./configure && make && make install

$root@Nginx memcache-8.2$ # ls /usr/local/php/lib/php/extensions/no-debug-non-zts-20230831/

memcache.so opcache.so

$root@Nginx memcache-8.2$ # vim /usr/local/php/etc/php.ini

939 extension=memcache

$root@Nginx memcache-8.2$ # systemctl restart php-fpm.service

$root@Nginx memcache-8.2$ # php -m | grep memcache

memcache

4.测试性能

$root@Nginx memcache-8.2$ # vim memcache.php

define('ADMIN_USERNAME','admin'); // Admin Username

define('ADMIN_PASSWORD','lee'); // Admin Password

$MEMCACHE_SERVERS\[\] = '172.25.254.100:11211'; // add more as an array

#$MEMCACHE_SERVERS\[\] = 'mymemcache-server2:11211'; // add more as an array

$root@Nginx memcache-8.2$ # cp -p memcache.php /webdir/timinglee.org/php/html/

$root@Nginx memcache-8.2$ # cp -p example.php /webdir/timinglee.org/php/html/

#测试

http://php.timinglee.org/memcache.php #数据页面，在浏览器中可以直接访问

$root@Nginx memcache-8.2$ # ab -n 1000 -c 300 php.timinglee.org/example.php

4.测试性能

$root@Nginx memcache-8.2$ # vim memcache.php

define('ADMIN_USERNAME','admin'); // Admin Username

define('ADMIN_PASSWORD','lee'); // Admin Password

$MEMCACHE_SERVERS\[\] = '172.25.254.100:11211'; // add more as an array

#$MEMCACHE_SERVERS\[\] = 'mymemcache-server2:11211'; // add more as an array

$root@Nginx memcache-8.2$ # cp -p memcache.php /webdir/timinglee.org/php/html/

$root@Nginx memcache-8.2$ # cp -p example.php /webdir/timinglee.org/php/html/

#测试

http://php.timinglee.org/memcache.php #数据页面，在浏览器中可以直接访问

$root@Nginx memcache-8.2$ # ab -n 1000 -c 300 php.timinglee.org/example.php

nginx+memcache实现高速缓存解

1.重新编译nginx

$root@Nginx \~$ # systemctl stop nginx.service

$root@Nginx \~$ # cp /usr/local/nginx/conf/ /mnt/ -r

$root@Nginx \~$ # rm -fr /usr/local/nginx/

$root@Nginx \~$ # rm -rf nginx-1.29.4 nginx-1.28.1

$root@Nginx \~$ # tar zxf nginx-1.28.1.tar.gz

$root@Nginx \~$ # cd nginx-1.28.1/

$root@Nginx \~$ # tar zxf srcache-nginx-module-0.33.tar.gz

$root@Nginx \~$ # tar zxf memc-nginx-module-0.20.tar.gz

$root@Nginx \~$ # cd nginx-1.28.1/

$root@Nginx nginx-1.28.1$ # make && make install

$root@Nginx \~$ # cd /usr/local/nginx/conf

$root@Nginx conf$ # rm -fr nginx.conf

$root@Nginx conf$ # cp /mnt/conf/nginx.conf /mnt/conf/conf.d/ . -r

$root@Nginx conf$ # systemctl start nginx.service

2.整合memcache

$root@Nginx conf$ # vim /usr/local/nginx/conf/conf.d/php.conf

upstream memcache {

server 127.0.0.1:11211;

keepalive 512;

}

server {

listen 80;

server_name php.timinglee.org;

root /webdir/timinglee.org/php/html;

index index.php index.html;

location /memc {

internal;

memc_connect_timeout 100ms;

memc_send_timeout 100ms;

memc_read_timeout 100ms;

set $memc_key$ query_string;

set $memc_exptime 300;

memc_pass memcache;

}

location ~ \.php$ {

set $key$ uri$args;

srcache_fetch GET /memc $key;

srcache_store PUT /memc $key;

fastcgi_pass 127.0.0.1:9000;

fastcgi_index index.php;

include fastcgi.conf;

}

$root@Nginx conf$ # nginx -s reload

#测试

$root@Nginx conf$ # ab -n 10000 -c500 http://php.timinglee.org/example.php

Nginx的四层负载均衡代理

1.实验环境（Mysql）

$root@RS1 \~$ # dnf install mariadb-server -y

$root@RS2 \~$ # dnf install mariadb-server -y

$root@RS1 \~$ # vim /etc/my.cnf.d/mariadb-server.cnf

server-id=10

$root@RS2 \~$ # vim /etc/my.cnf.d/mariadb-server.cnf

server-id=20

$root@RS1 \~$ # systemctl enable --now mariadb

$root@RS2 \~$ # systemctl enable --now mariadb

$root@RS1 \~$ # mysql

Welcome to the MariaDB monitor. Commands end with ; or \g.

Your MariaDB connection id is 3

Server version: 10.5.27-MariaDB MariaDB Server

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB $(none)$ > CREATE USER lee@'%' IDENTIFIED BY 'lee';

Query OK, 0 rows affected (0.001 sec)

MariaDB $(none)$ > GRANT ALL ON *.* TO lee@'%';

Query OK, 0 rows affected (0.001 sec)

MariaDB $(none)$ >

$root@RS2 \~$ # mysql

Welcome to the MariaDB monitor. Commands end with ; or \g.

Your MariaDB connection id is 3

Server version: 10.5.27-MariaDB MariaDB Server

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB $(none)$ > CREATE USER lee@'%' IDENTIFIED BY 'lee';

Query OK, 0 rows affected (0.001 sec)

MariaDB $(none)$ > GRANT ALL ON *.* TO lee@'%';

Query OK, 0 rows affected (0.001 sec)

2.实验环境（dns）

$root@RS1 \~$ # dnf install bind -y

$root@RS2 \~$ # dnf install bind -y

$root@RS1 \~$ # vim /etc/named.conf

$root@RS2 \~$ # vim /etc/named.conf

options {

// listen-on port 53 { 127.0.0.1; };

// listen-on-v6 port 53 { ::1; };

directory "/var/named";

dump-file "/var/named/data/cache_dump.db";

statistics-file "/var/named/data/named_stats.txt";

memstatistics-file "/var/named/data/named_mem_stats.txt";

secroots-file "/var/named/data/named.secroots";

recursing-file "/var/named/data/named.recursing";

// allow-query { localhost; };

dnssec-validation no;

$root@RS1 \~$ # vim /etc/named.rfc1912.zones

$root@RS2 \~$ # vim /etc/named.rfc1912.zones

zone "timinglee.org" IN {

type master;

file "timinglee.org.zone";

allow-update { none; };

};

$root@RS1 \~$ # cd /var/named/

$root@RS2 \~$ # cd /var/named/

$root@RS1 named$ # cp -p named.localhost timinglee.org.zone

$root@RS2 named$ # cp -p named.localhost timinglee.org.zone

$root@RS1 named$ # vim timinglee.org.zone

$TTL 1D

@ IN SOA dns.timingle.org. rname.invalid. (

0 ; serial

1D ; refresh

1H ; retry

1W ; expire

3H ) ; minimum

NS dns.timinglee.org.

dns A 172.25.254.10

$root@RS2 named$ # vim timinglee.org.zone

$TTL 1D

@ IN SOA dns.timingle.org. rname.invalid. (

0 ; serial

1D ; refresh

1H ; retry

1W ; expire

3H ) ; minimum

NS dns.timinglee.org.

dns A 172.25.254.20

$root@RS2 named$ # systemctl enable --now named

#测试

$root@RS1 named$ # dig dns.timinglee.org @172.25.254.10

; <<>> DiG 9.16.23-RH <<>> dns.timinglee.org @172.25.254.10

;; global options: +cmd

;; Got answer:

;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 24486

;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:

; EDNS: version: 0, flags:; udp: 1232

; COOKIE: 4bb88849cac36aa4010000006982fef4676bf81574ab80b7 (good)

;; QUESTION SECTION:

;dns.timinglee.org. IN A

;; ANSWER SECTION:

dns.timinglee.org. 86400 IN A 172.25.254.10

;; Query time: 3 msec

;; SERVER: 172.25.254.10#53(172.25.254.10)

;; WHEN: Wed Feb 04 16:10:28 CST 2026

;; MSG SIZE rcvd: 90

$root@RS1 named$ # dig dns.timinglee.org @172.25.254.20

; <<>> DiG 9.16.23-RH <<>> dns.timinglee.org @172.25.254.20

;; global options: +cmd

;; Got answer:

;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 42456

;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:

; EDNS: version: 0, flags:; udp: 1232

; COOKIE: 7c088d4822b8f1c1010000006982fef9047f3812bdaf7c0e (good)

;; QUESTION SECTION:

;dns.timinglee.org. IN A

;; ANSWER SECTION:

dns.timinglee.org. 86400 IN A 172.25.254.20

;; Query time: 1 msec

;; SERVER: 172.25.254.20#53(172.25.254.20)

;; WHEN: Wed Feb 04 16:10:33 CST 2026

;; MSG SIZE rcvd: 90

3.tcp四层负载

$root@Nginx conf$ # mkdir /usr/local/nginx/conf/tcp -p

$root@Nginx conf$ # mkdir /usr/local/nginx/conf/udp -p

$root@Nginx conf$ # vim /usr/local/nginx/conf/nginx.conf

include "/usr/local/nginx/conf/tcp/*.conf";

$root@Nginx conf$ # vim /usr/local/nginx/conf/tcp/mariadb.conf

stream {

upstream mysql_server {

server 172.25.254.10:3306 max_fails=3 fail_timeout=30s;

server 172.25.254.20:3306 max_fails=3 fail_timeout=30s;

}

server {

listen 172.25.254.100:3306;

proxy_pass mysql_server;

proxy_connect_timeout 30s;

proxy_timeout 300s;

}

$root@Nginx conf$ # nginx -s reload

#检测

$root@Nginx \~$ # mysql -ulee -plee -h172.25.254.100

Welcome to the MariaDB monitor. Commands end with ; or \g.

Your MariaDB connection id is 4

Server version: 10.5.27-MariaDB MariaDB Server

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB $(none)$ > SELECT @@server_id;

+-------------+

| @@server_id |

+-------------+

| 10 |

+-------------+

1 row in set (0.001 sec)

MariaDB $(none)$ > quit

Bye

$root@Nginx \~$ # mysql -ulee -plee -h172.25.254.100

Welcome to the MariaDB monitor. Commands end with ; or \g.

Your MariaDB connection id is 4

Server version: 10.5.27-MariaDB MariaDB Server

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB $(none)$ > SELECT @@server_id;

+-------------+

| @@server_id |

+-------------+

| 20 |

+-------------+

1 row in set (0.001 sec)

4.udp四层负载

$root@Nginx \~$ # vim /usr/local/nginx/conf/tcp/mariadb.conf

stream {

upstream mysql_server {

server 172.25.254.10:3306 max_fails=3 fail_timeout=30s;

server 172.25.254.20:3306 max_fails=3 fail_timeout=30s;

}

upstream dns_server{

server 172.25.254.10:53 max_fails=3 fail_timeout=30s;

server 172.25.254.20:53 max_fails=3 fail_timeout=30s;

}

server {

listen 172.25.254.100:3306;

proxy_pass mysql_server;

proxy_connect_timeout 30s;

proxy_timeout 300s;

}

server {

listen 172.25.254.100:53 udp;

proxy_pass dns_server;

proxy_timeout 1s;

proxy_responses 1;

error_log logs/dns.log;

}

$root@Nginx \~$ # nginx -s reload

#测试

$root@Nginx \~$ # dig dns.timinglee.org @172.25.254.100

; <<>> DiG 9.16.23-RH <<>> dns.timinglee.org @172.25.254.100

;; global options: +cmd

;; Got answer:

;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 32224

;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:

; EDNS: version: 0, flags:; udp: 1232

; COOKIE: 9ac742ccc566d4450100000069830452db8dce1f1b224c9f (good)

;; QUESTION SECTION:

;dns.timinglee.org. IN A

;; ANSWER SECTION:

dns.timinglee.org. 86400 IN A 172.25.254.10

;; Query time: 2 msec

;; SERVER: 172.25.254.100#53(172.25.254.100)

;; WHEN: Wed Feb 04 16:33:22 CST 2026

;; MSG SIZE rcvd: 90

$root@Nginx \~$ # dig dns.timinglee.org @172.25.254.100

; <<>> DiG 9.16.23-RH <<>> dns.timinglee.org @172.25.254.100

;; global options: +cmd

;; Got answer:

;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 2259

;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:

; EDNS: version: 0, flags:; udp: 1232

; COOKIE: 7f9ffa4884c0b685010000006983045565fd892fc72c5514 (good)

;; QUESTION SECTION:

;dns.timinglee.org. IN A

;; ANSWER SECTION:

dns.timinglee.org. 86400 IN A 172.25.254.20

;; Query time: 2 msec

;; SERVER: 172.25.254.100#53(172.25.254.100)

;; WHEN: Wed Feb 04 16:33:25 CST 2026

;; MSG SIZE rcvd: 90

七 nginx 二次开发版本

openresty

编译安装 openresty

$root@Nginx src$ #wget https://openresty.org/download/openresty-1.27.1.2.tar.gz

$root@Nginx \~$ #dnf -yq install gcc pcre-devel openssl-devel perl zlib-devel

$root@Nginx \~$ #useradd -r -s /sbin/nologin nginx

$root@Nginx \~$ #tar zxf openresty-1.27.1.2

$root@webserver \~$ # cd openresty-1.27.1.2/

$root@Nginx openresty-1.17.8.2$ #./configure \

--prefix=/apps/openresty \

--user=nginx --group=nginx \

--with-http_ssl_module \

--with-http_v2_module \

--with-http_stub_status_module \

--with-http_gzip_static_module

--with-pcre --with-stream \

--with-stream_ssl_module \

--with-stream_realip_module

$root@Nginx openresty-1.17.8.2$ #gmake && gmake install

$root@webserver openresty$ # vim ~/.bash_profile

export PATH=$PATH:/usr/local/openresty/bin

source ~/.bash_profile

$root@Nginx openresty-1.17.8.2$ #openresty -v

nginx version: openresty/1.17.8.2

$root@Nginx openresty-1.17.8.2$ #openresty

$root@Nginx openresty-1.17.8.2$ #ps -ef |grep nginx

$root@webserver openresty$ # echo hello test > /usr/local/openresty/nginx/html/index.html

$root@webserver openresty$ # curl 172.25.254.200

hello test
