Spring组件扫描原理解析

一、概述

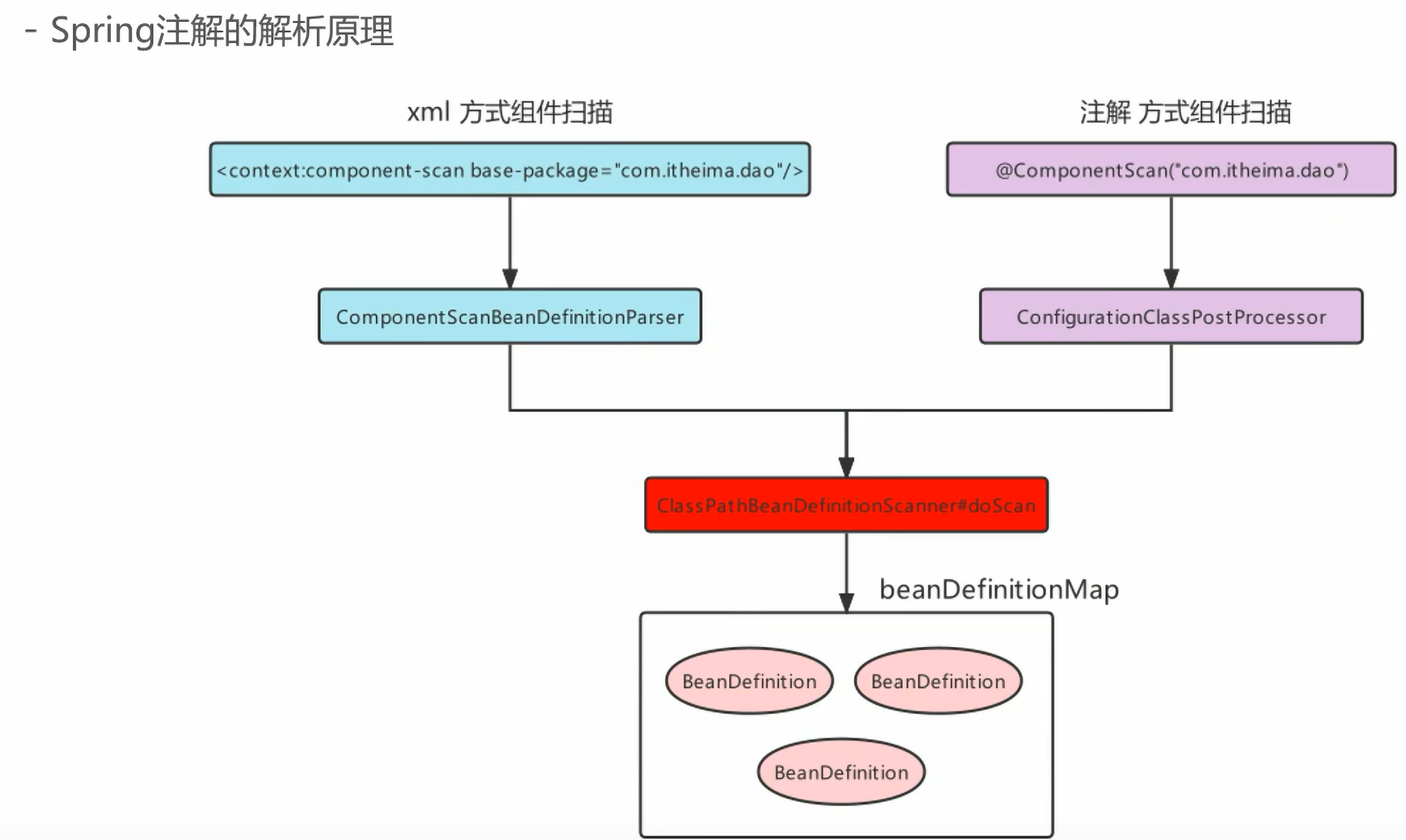

用一幅图来对两种方式配置Bean的组件扫描进行一个总结：

二、原理剖析

通过之前的学习我们知道只要是将Bean放到了BeanDefinitionMap中，那么就势必会经过Spring的那套Bean的生命周期，就势必会创建Bean。

2.1xml组件扫描方式

首先我们在xml中是通过这段代码来进行组件扫描的，扫描指定的基本包及其子包下的类，识别使用@Component注解：

java 复制代码

<context:component-scan base-package="com.itheima"/>

依据之前学习的命名空间的知识我们知道，通过命名空间是可以找到它对应的Handler处理器的，命名空间：

java 复制代码

xmlns:context="http://www.springframework.org/schema/context"

对应的Handler处理器：

java 复制代码

http\://www.springframework.org/schema/context=org.springframework.context.config.ContextNamespaceHandler
http\://www.springframework.org/schema/jee=org.springframework.ejb.config.JeeNamespaceHandler
http\://www.springframework.org/schema/lang=org.springframework.scripting.config.LangNamespaceHandler
http\://www.springframework.org/schema/task=org.springframework.scheduling.config.TaskNamespaceHandler
http\://www.springframework.org/schema/cache=org.springframework.cache.config.CacheNamespaceHandler

进入ContextNamespaceHandler：

java 复制代码

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//

package org.springframework.context.config;

import org.springframework.beans.factory.xml.NamespaceHandlerSupport;
import org.springframework.context.annotation.AnnotationConfigBeanDefinitionParser;
import org.springframework.context.annotation.ComponentScanBeanDefinitionParser;

public class ContextNamespaceHandler extends NamespaceHandlerSupport {
    public ContextNamespaceHandler() {
    }

    public void init() {
        this.registerBeanDefinitionParser("property-placeholder", new PropertyPlaceholderBeanDefinitionParser());
        this.registerBeanDefinitionParser("property-override", new PropertyOverrideBeanDefinitionParser());
        this.registerBeanDefinitionParser("annotation-config", new AnnotationConfigBeanDefinitionParser());
        this.registerBeanDefinitionParser("component-scan", new ComponentScanBeanDefinitionParser());
        this.registerBeanDefinitionParser("load-time-weaver", new LoadTimeWeaverBeanDefinitionParser());
        this.registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser());
        this.registerBeanDefinitionParser("mbean-export", new MBeanExportBeanDefinitionParser());
        this.registerBeanDefinitionParser("mbean-server", new MBeanServerBeanDefinitionParser());
    }
}

进入component-scan对应的ComponentScanBeanDefinitionParser，看它的parse解析方法：

java 复制代码

 @Nullable
    public BeanDefinition parse(Element element, ParserContext parserContext) {
        String basePackage = element.getAttribute("base-package");
        basePackage = parserContext.getReaderContext().getEnvironment().resolvePlaceholders(basePackage);
        String[] basePackages = StringUtils.tokenizeToStringArray(basePackage, ",; \t\n");
        ClassPathBeanDefinitionScanner scanner = this.configureScanner(parserContext, element);
        Set<BeanDefinitionHolder> beanDefinitions = scanner.doScan(basePackages);
        this.registerComponents(parserContext.getReaderContext(), beanDefinitions, element);
        return null;
    }

进入ClassPathBeanDefinitionScanner的doScan方法，重点看这：

java 复制代码

 if (this.checkCandidate(beanName, candidate)) {
                    BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
                    definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
                    beanDefinitions.add(definitionHolder);
                    this.registerBeanDefinition(definitionHolder, this.registry);
                }

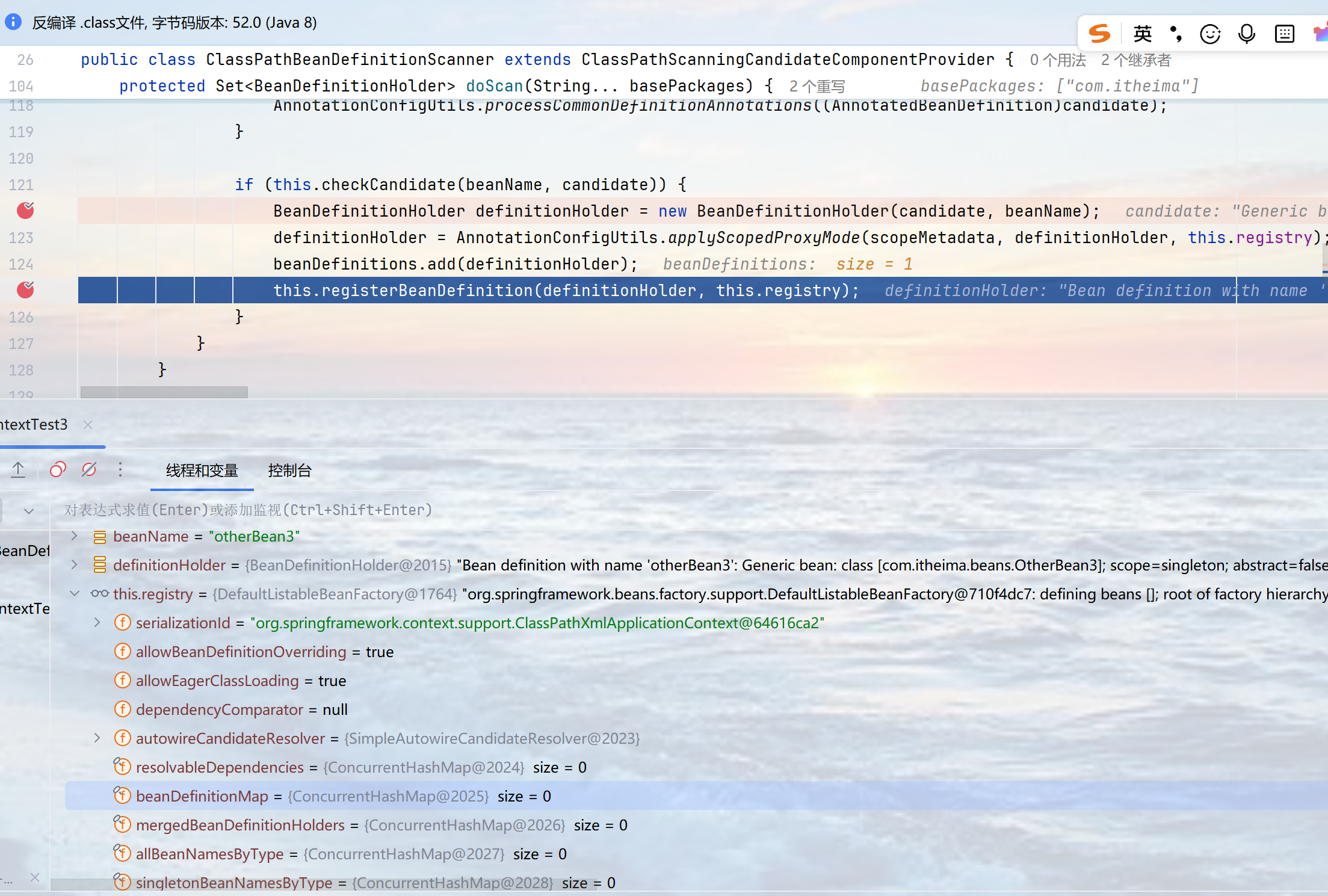

执行到BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);时可以看到BeanName是OtherBean3，BeanDefinitionMap为空；执行完this.registerBeanDefinition(definitionHolder, this.registry);，OtherBean3就注入了BeanDefinitionMap：

由此可见xml组件扫描方式是将Bean直接放到BeanDefinitionMap中实现创建Bean的，并没有通过BeanFactoryPostProcessor。

2.2注解方式主键扫描

首先先是进入AnnotationConfigApplicationContext类：

java 复制代码

public class AnnotationConfigApplicationContext extends GenericApplicationContext implements AnnotationConfigRegistry {
    private final AnnotatedBeanDefinitionReader reader;
    private final ClassPathBeanDefinitionScanner scanner;

    public AnnotationConfigApplicationContext() {
        StartupStep createAnnotatedBeanDefReader = this.getApplicationStartup().start("spring.context.annotated-bean-reader.create");
        this.reader = new AnnotatedBeanDefinitionReader(this);
        createAnnotatedBeanDefReader.end();
        this.scanner = new ClassPathBeanDefinitionScanner(this);
    }

    public AnnotationConfigApplicationContext(DefaultListableBeanFactory beanFactory) {
        super(beanFactory);
        this.reader = new AnnotatedBeanDefinitionReader(this);
        this.scanner = new ClassPathBeanDefinitionScanner(this);
    }

    public AnnotationConfigApplicationContext(Class<?>... componentClasses) {
        this();
        this.register(componentClasses);
        this.refresh();
    }

    public AnnotationConfigApplicationContext(String... basePackages) {
        this();
        this.scan(basePackages);
        this.refresh();
    }

直接进入this()，

java 复制代码

public AnnotationConfigApplicationContext() {
        StartupStep createAnnotatedBeanDefReader = this.getApplicationStartup().start("spring.context.annotated-bean-reader.create");
        this.reader = new AnnotatedBeanDefinitionReader(this);
        createAnnotatedBeanDefReader.end();
        this.scanner = new ClassPathBeanDefinitionScanner(this);
    }

进入AnnotatedBeanDefinitionReader，之前xml的形式是XmlBeanDefinitionReader：

java 复制代码

public AnnotatedBeanDefinitionReader(BeanDefinitionRegistry registry) {
        this(registry, getOrCreateEnvironment(registry));
    }

    public AnnotatedBeanDefinitionReader(BeanDefinitionRegistry registry, Environment environment) {
        this.beanNameGenerator = AnnotationBeanNameGenerator.INSTANCE;
        this.scopeMetadataResolver = new AnnotationScopeMetadataResolver();
        Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
        Assert.notNull(environment, "Environment must not be null");
        this.registry = registry;
        this.conditionEvaluator = new ConditionEvaluator(registry, environment, (ResourceLoader)null);
        AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);
    }

再是进入**AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);**中的registerAnnotationConfigProcessors：

java 复制代码

public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(BeanDefinitionRegistry registry, @Nullable Object source) {
        DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
        if (beanFactory != null) {
            if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
                beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
            }

            if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
                beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
            }
        }

        Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet(8);
        if (!registry.containsBeanDefinition("org.springframework.context.annotation.internalConfigurationAnnotationProcessor")) {
            RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, "org.springframework.context.annotation.internalConfigurationAnnotationProcessor"));
        }

        if (!registry.containsBeanDefinition("org.springframework.context.annotation.internalAutowiredAnnotationProcessor")) {
            RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, "org.springframework.context.annotation.internalAutowiredAnnotationProcessor"));
        }

        if (jsr250Present && !registry.containsBeanDefinition("org.springframework.context.annotation.internalCommonAnnotationProcessor")) {
            RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, "org.springframework.context.annotation.internalCommonAnnotationProcessor"));
        }

        if (jpaPresent && !registry.containsBeanDefinition("org.springframework.context.annotation.internalPersistenceAnnotationProcessor")) {
            RootBeanDefinition def = new RootBeanDefinition();

            try {
                def.setBeanClass(ClassUtils.forName("org.springframework.orm.jpa.support.PersistenceAnnotationBeanPostProcessor", AnnotationConfigUtils.class.getClassLoader()));
            } catch (ClassNotFoundException ex) {
                throw new IllegalStateException("Cannot load optional framework class: org.springframework.orm.jpa.support.PersistenceAnnotationBeanPostProcessor", ex);
            }

            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, "org.springframework.context.annotation.internalPersistenceAnnotationProcessor"));
        }

        if (!registry.containsBeanDefinition("org.springframework.context.event.internalEventListenerProcessor")) {
            RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, "org.springframework.context.event.internalEventListenerProcessor"));
        }

        if (!registry.containsBeanDefinition("org.springframework.context.event.internalEventListenerFactory")) {
            RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, "org.springframework.context.event.internalEventListenerFactory"));
        }

        return beanDefs;
    }

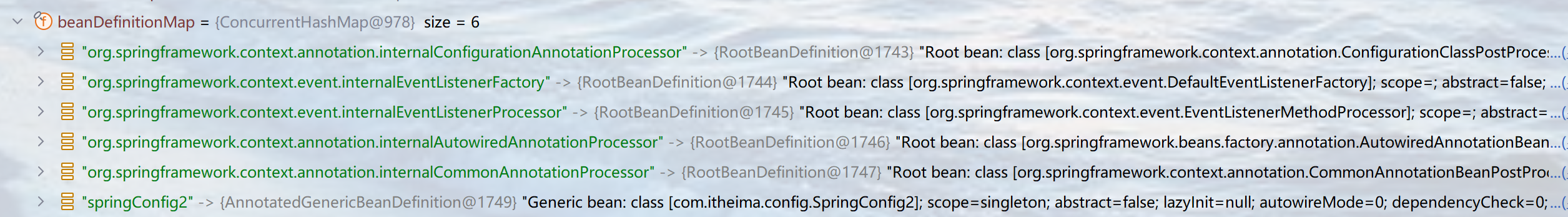

在这里会注册六个if中的Bean进入BeanDefinitionMap当中：

每执行完一次return beanDefs就是注册一个。再进入ConfigurationClassPostProcessor.class（因为是注解形式的组件扫描），看到postProcessBeanDefinitionRegistry中的parser.parse(candidates);的parse方法，关注与parse相关的：

java 复制代码

for(BeanDefinitionHolder holder : this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName())) {

继续推进，看componentScanParser的parse方法：

java 复制代码

ClassPathBeanDefinitionScanner scanner = new ClassPathBeanDefinitionScanner(this.registry, componentScan.getBoolean("useDefaultFilters"), this.environment, this.resourceLoader);

是否有一种似曾相识燕归来的感觉呢？哈哈，实际上这是和xml配置组件扫描是一致的啦，接下来就是老套路了，继续看doscan，由此进入：

java 复制代码

 return scanner.doScan(StringUtils.toStringArray(basePackages));

java 复制代码

  if (this.checkCandidate(beanName, candidate)) {
                    BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
                    definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
                    beanDefinitions.add(definitionHolder);
                    this.registerBeanDefinition(definitionHolder, this.registry);

一样的逻辑定义definitionHolder，使用BeanDefinitionRegistry的registerBeanDefinition(definitionHolder进行注册Bean到BeanDefinitionMap当中，完结了。
