好运buff机 ------ 测试报告

测试目标

项目背景

这是一款可供企业使用的抽奖平台，支持活动创建、人员管理、奖品分配、多轮抽奖流程及实时通知。系统可以承载大量的抽奖请求，保障数据一致性与高并发性能，满足企业营销活动需求。

项目结构

1. 管理员模块：登录、注册
2. 普通用户模块：用户列表、普通用户注册
3. 奖品模块：奖品列表、奖品创建
4. 活动模块：活动列表、创建活动
5. 抽奖模块：抽奖活动、中奖者页面展示

测试环境

• 操作系统：Windows11
• 浏览器：Chrome

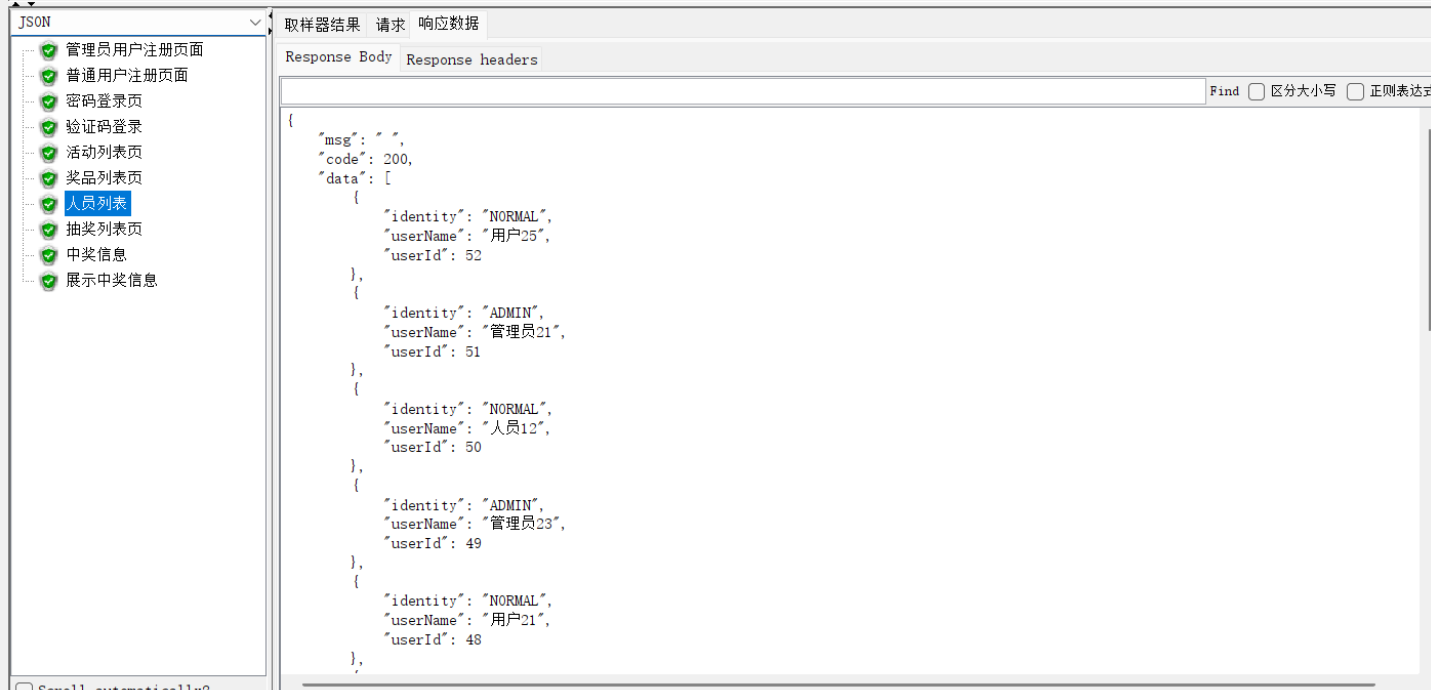

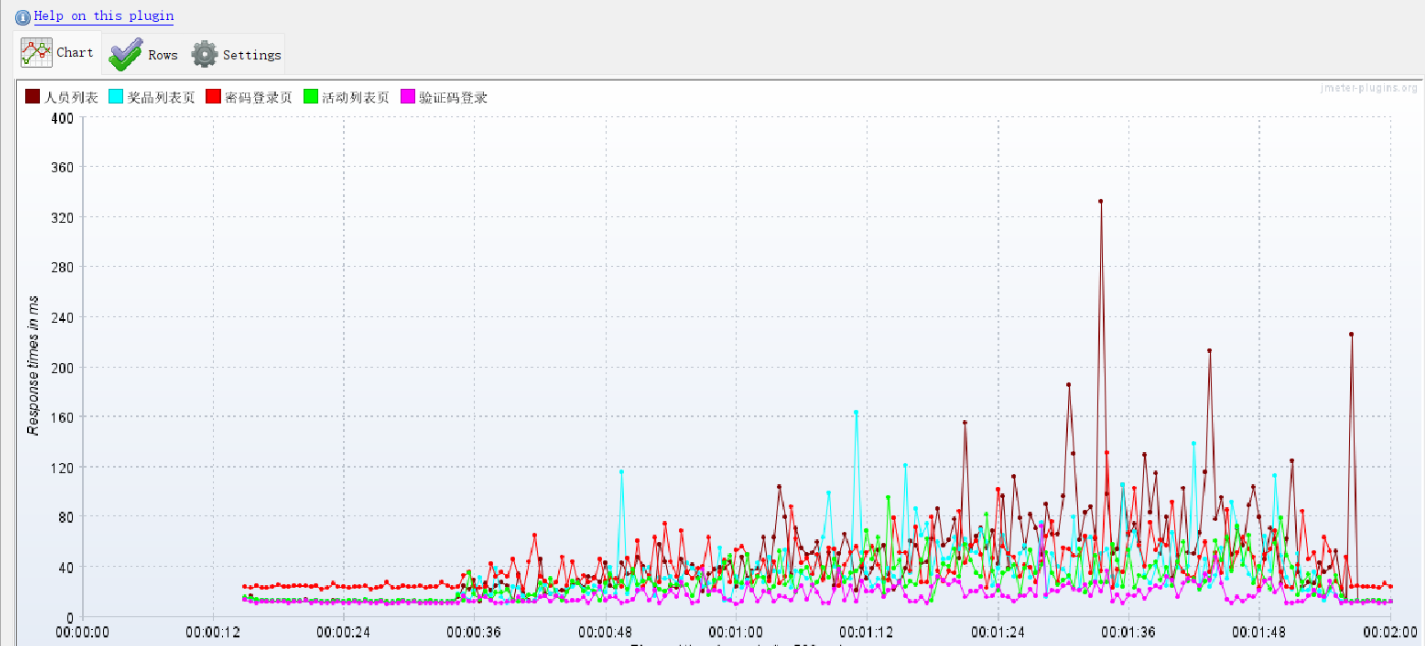

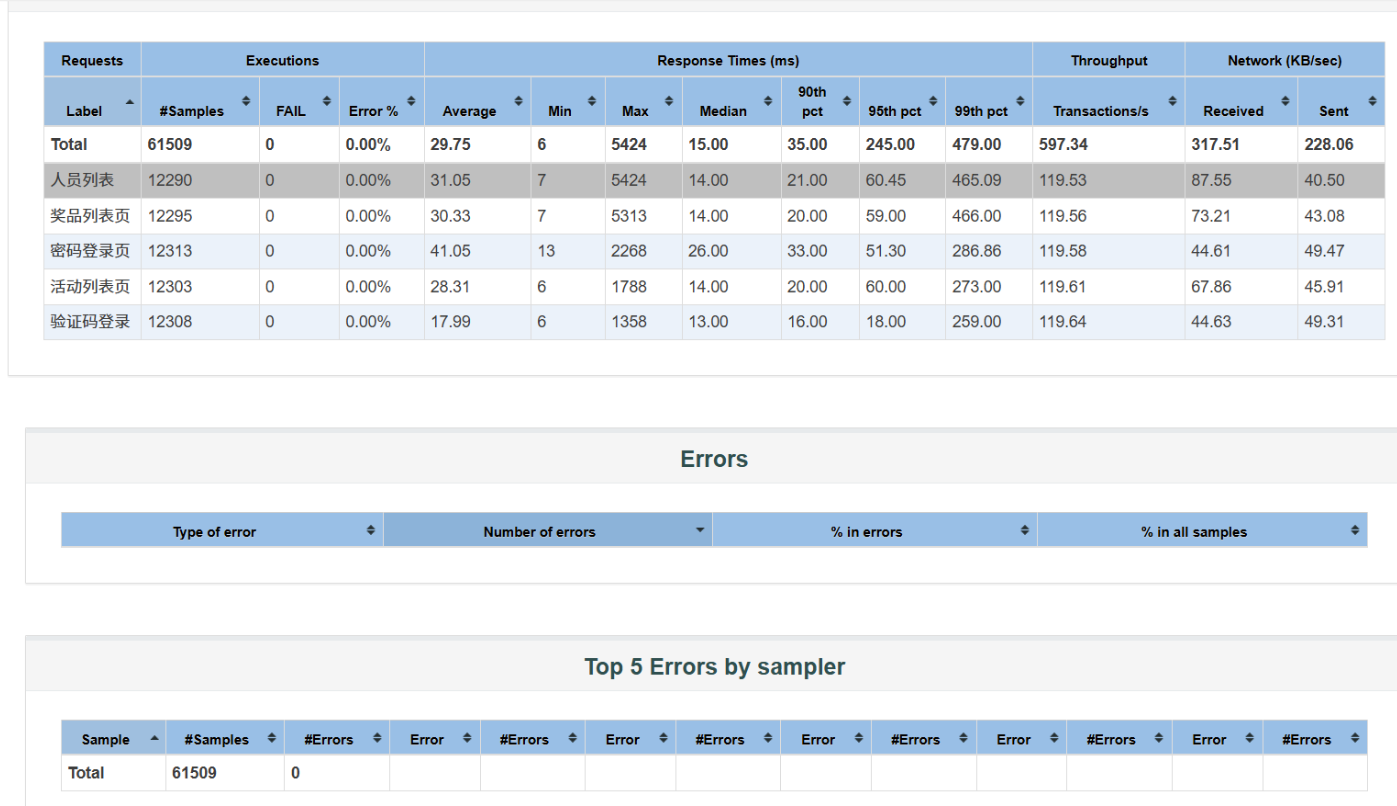

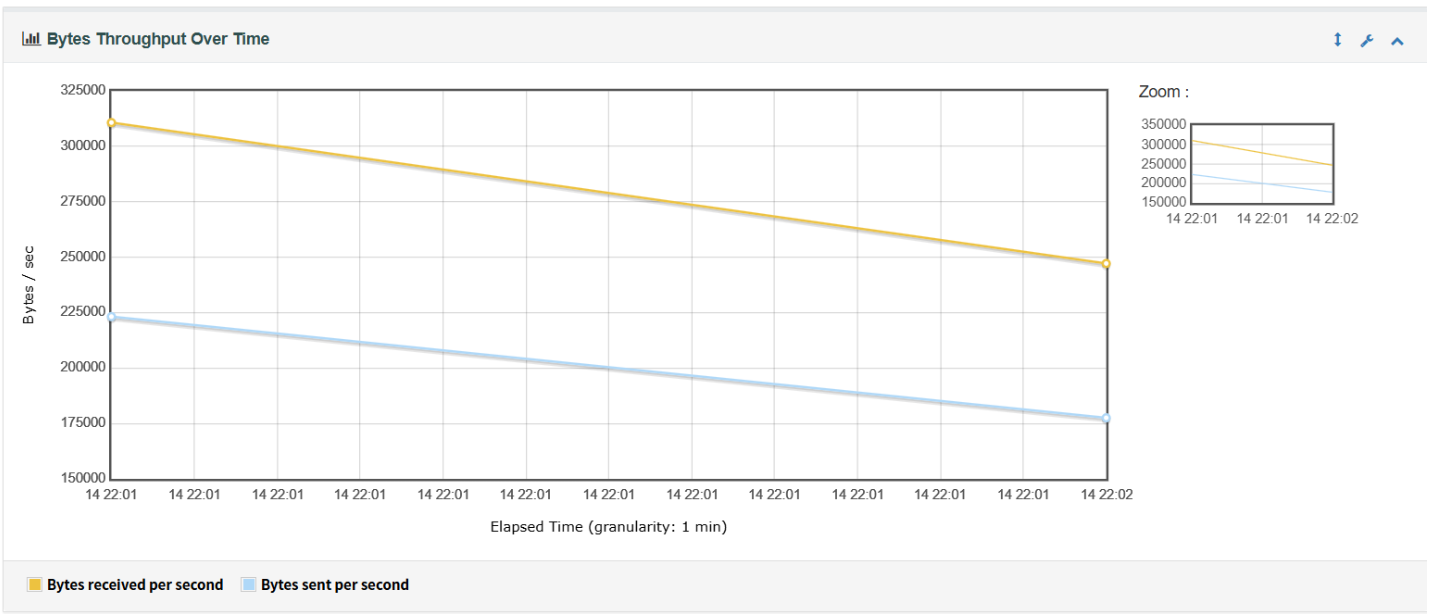

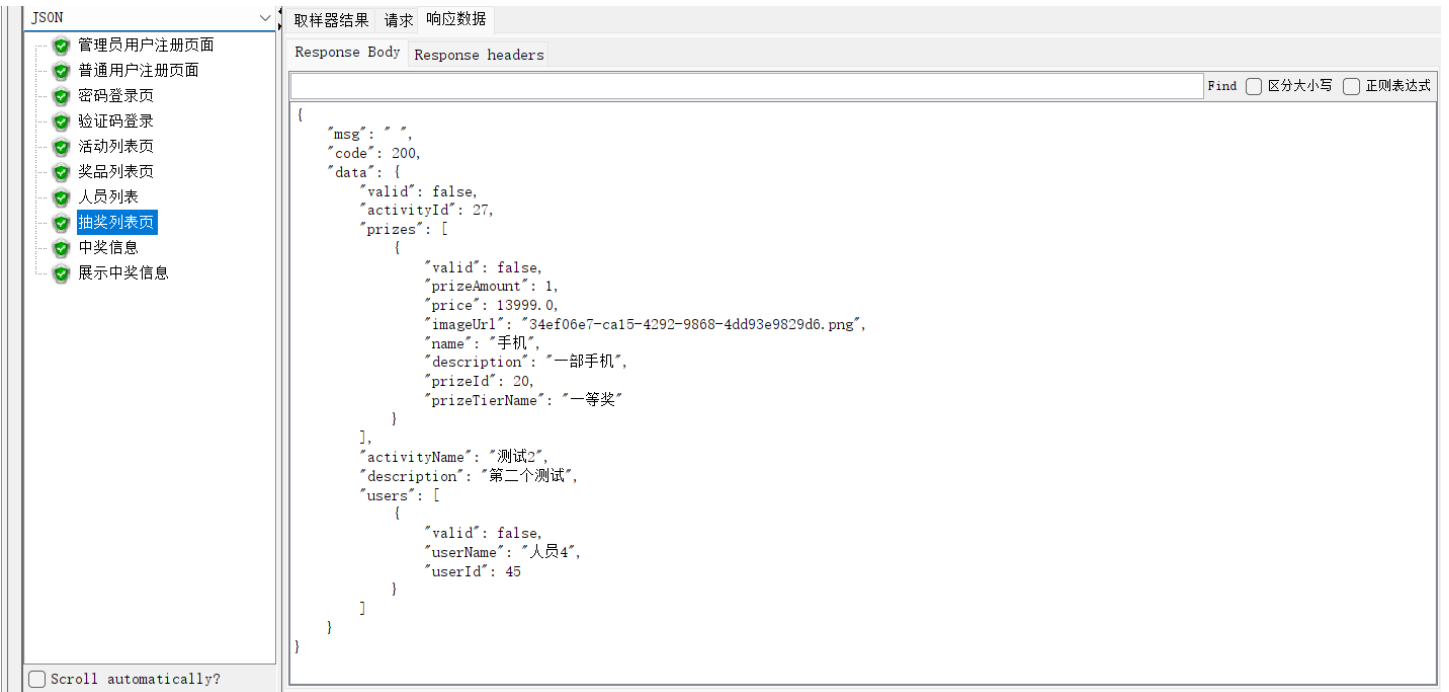

• 测试工具：Selenium、JMeter、postman

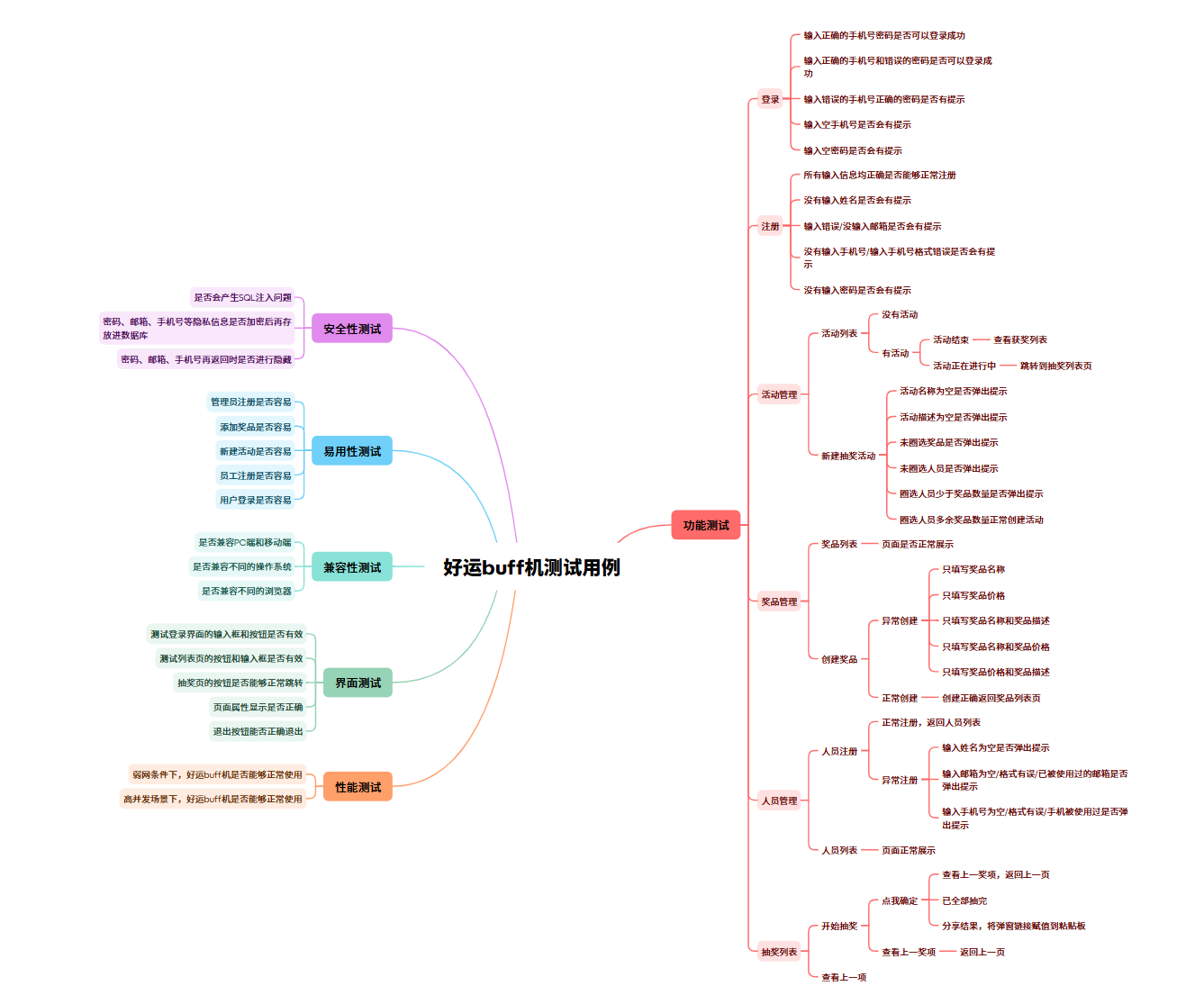

测试用例

功能测试

手动测试

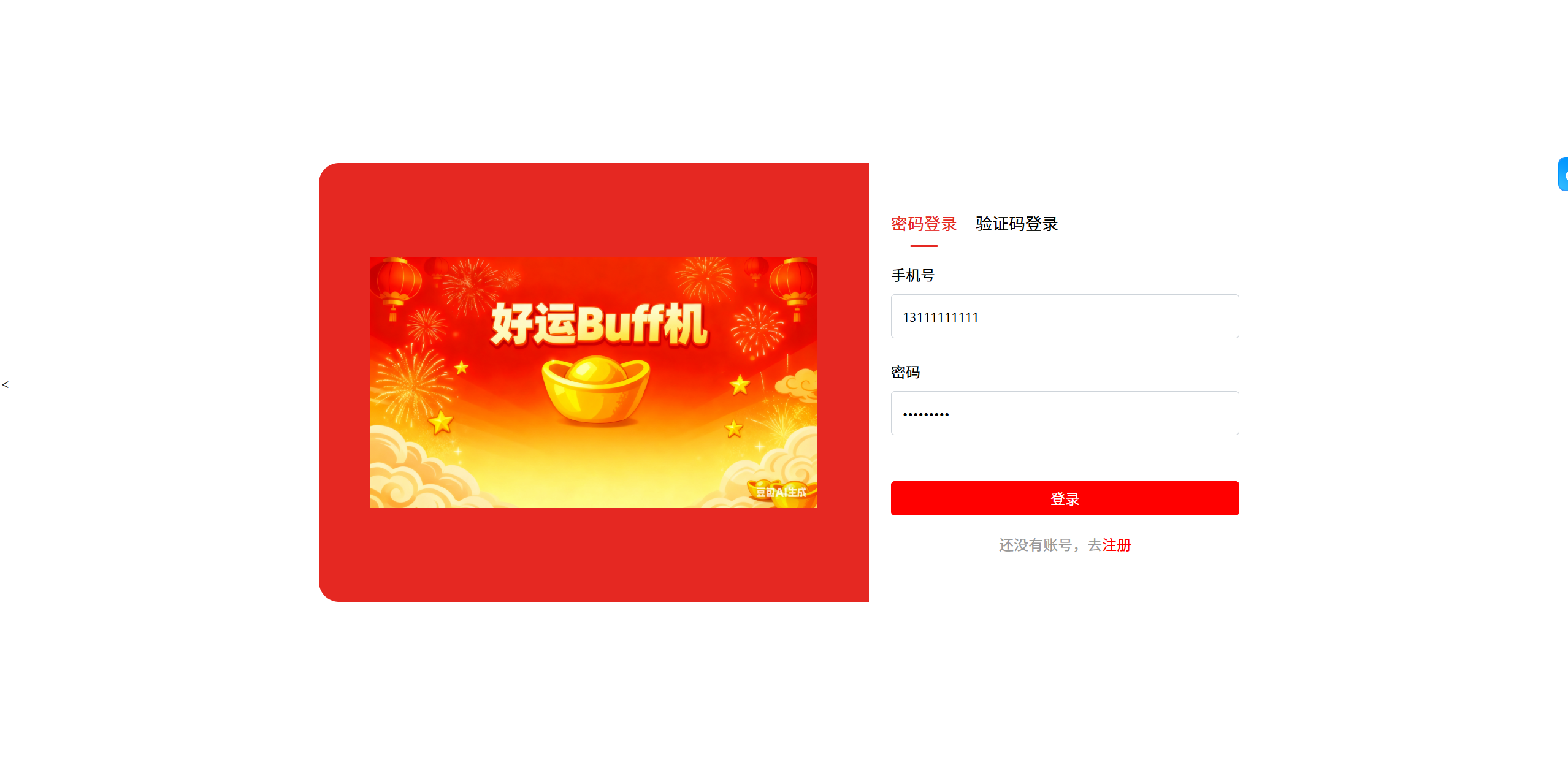

登录页面测试

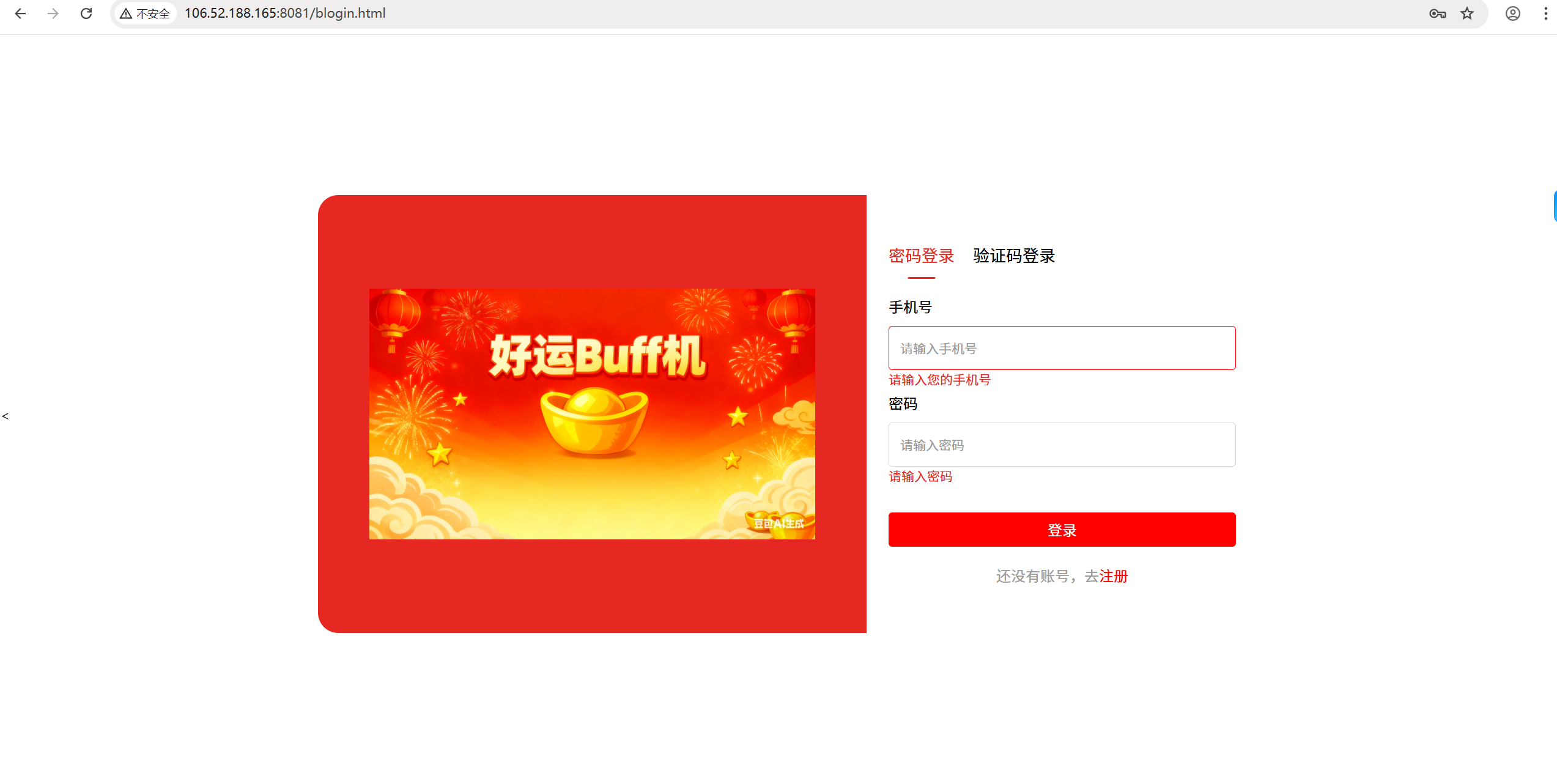

测试场景一：手机号和密码都不填

预期结果：系统提示手机号、密码为空

测试场景二：手机号格式不正确和密码填写正确

预期结果：弹窗提示"登陆失败登录方式不存在"

测试场景三：手机号填写错误和密码填写正确

预期结果：弹窗提醒"登录失败！用户信息为空"

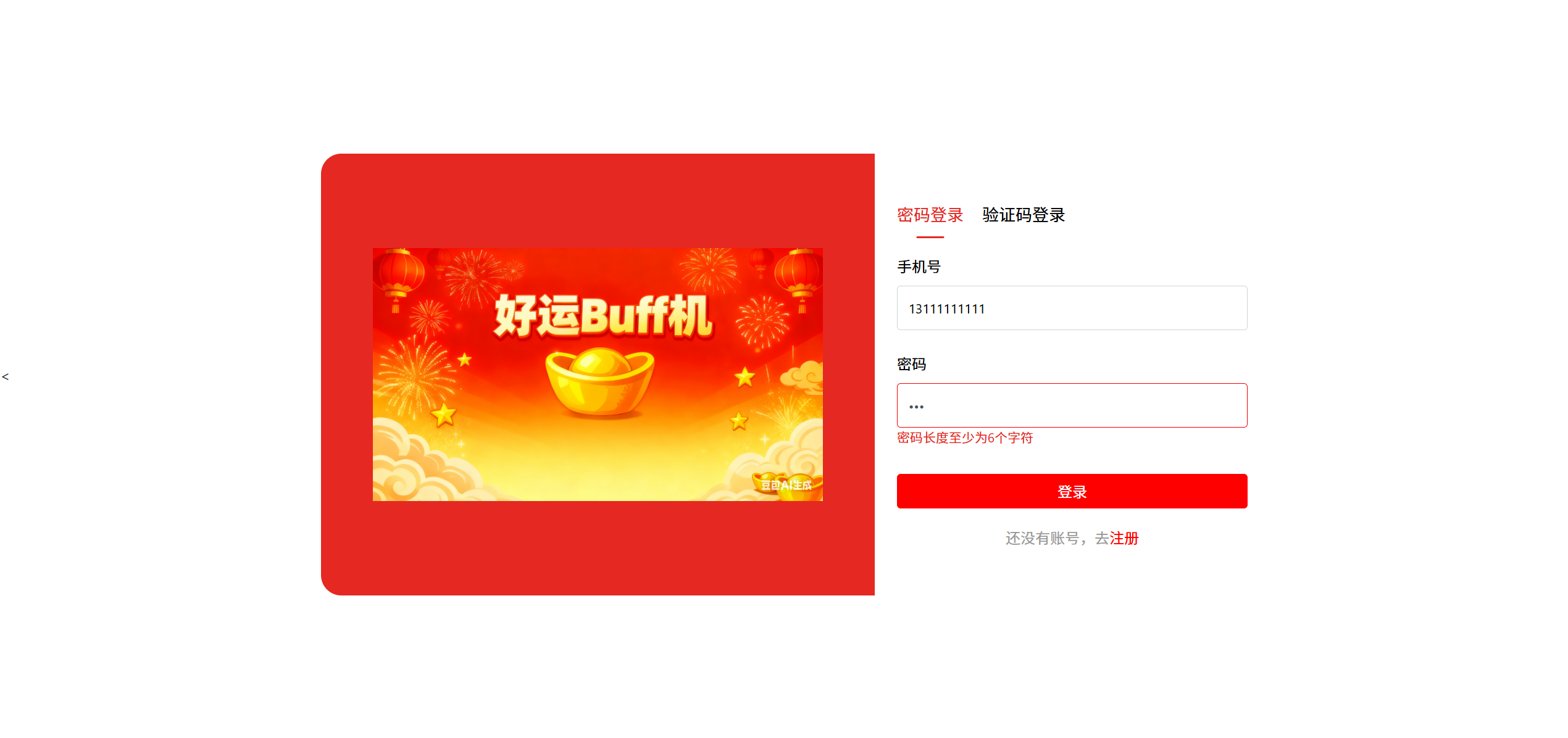

测试场景四：手机号正确，密码错误（密码格式错误）

预期结果：系统提醒"密码长度至少为6个字符"

测试场景五：手机号正确，密码错误（密码格式正确）

预期结果：弹窗提醒"登录失败密码错误"

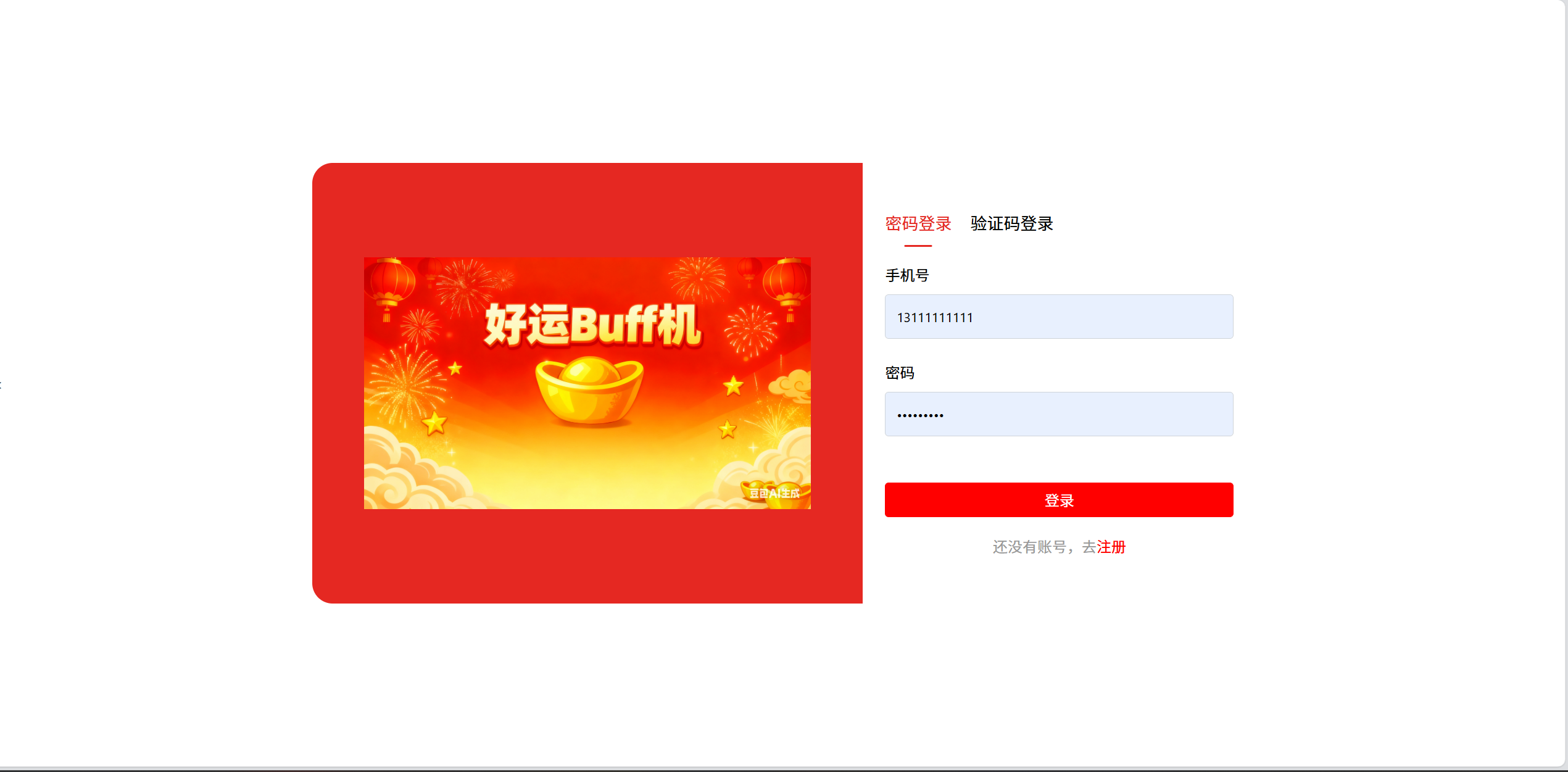

测试场景六：手机号正确，密码正确

预期结果：跳转到活动中心页

注册管理员用户页面测试

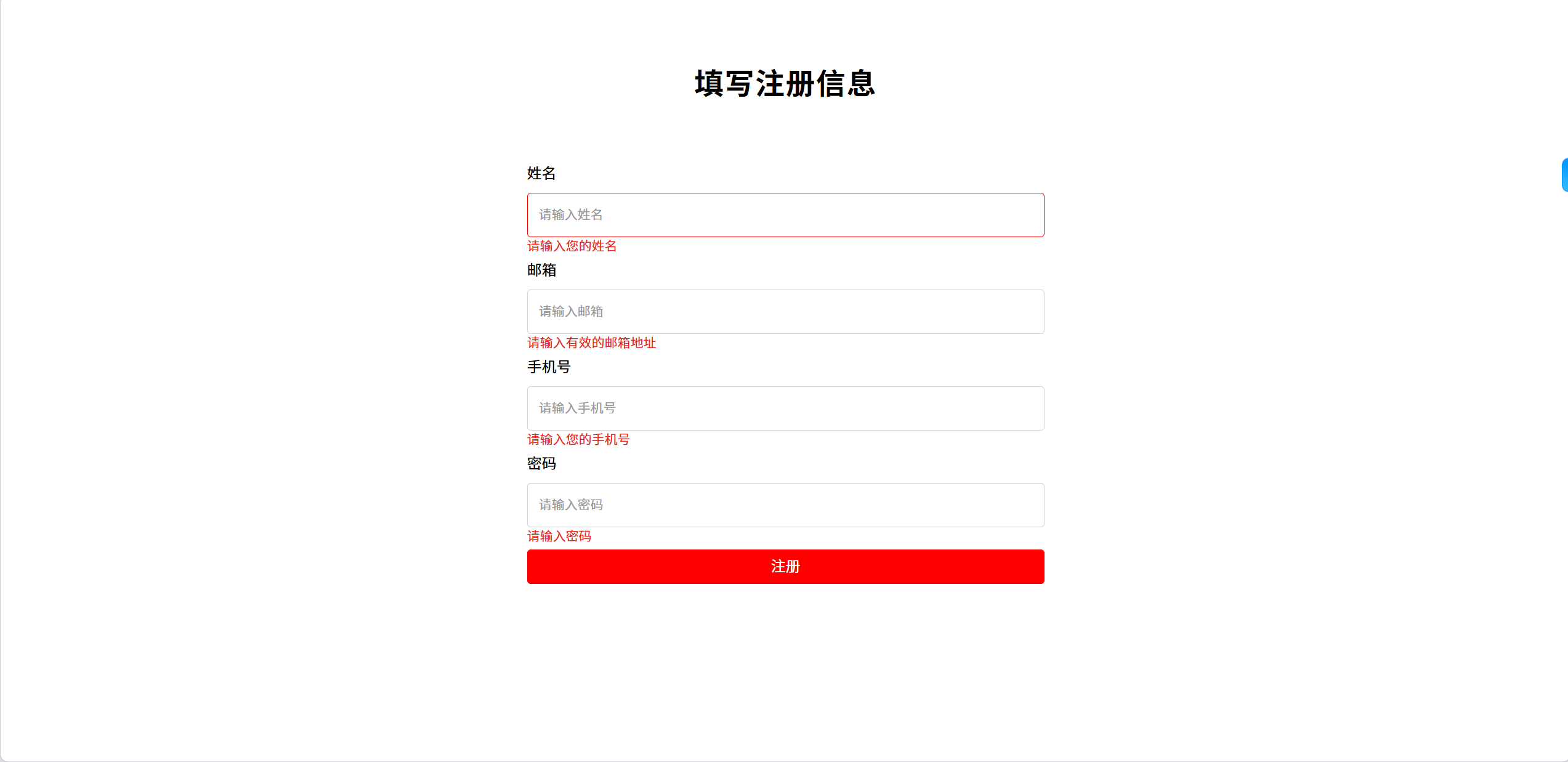

测试场景一：所有都为空

预测场景：系统提示为空

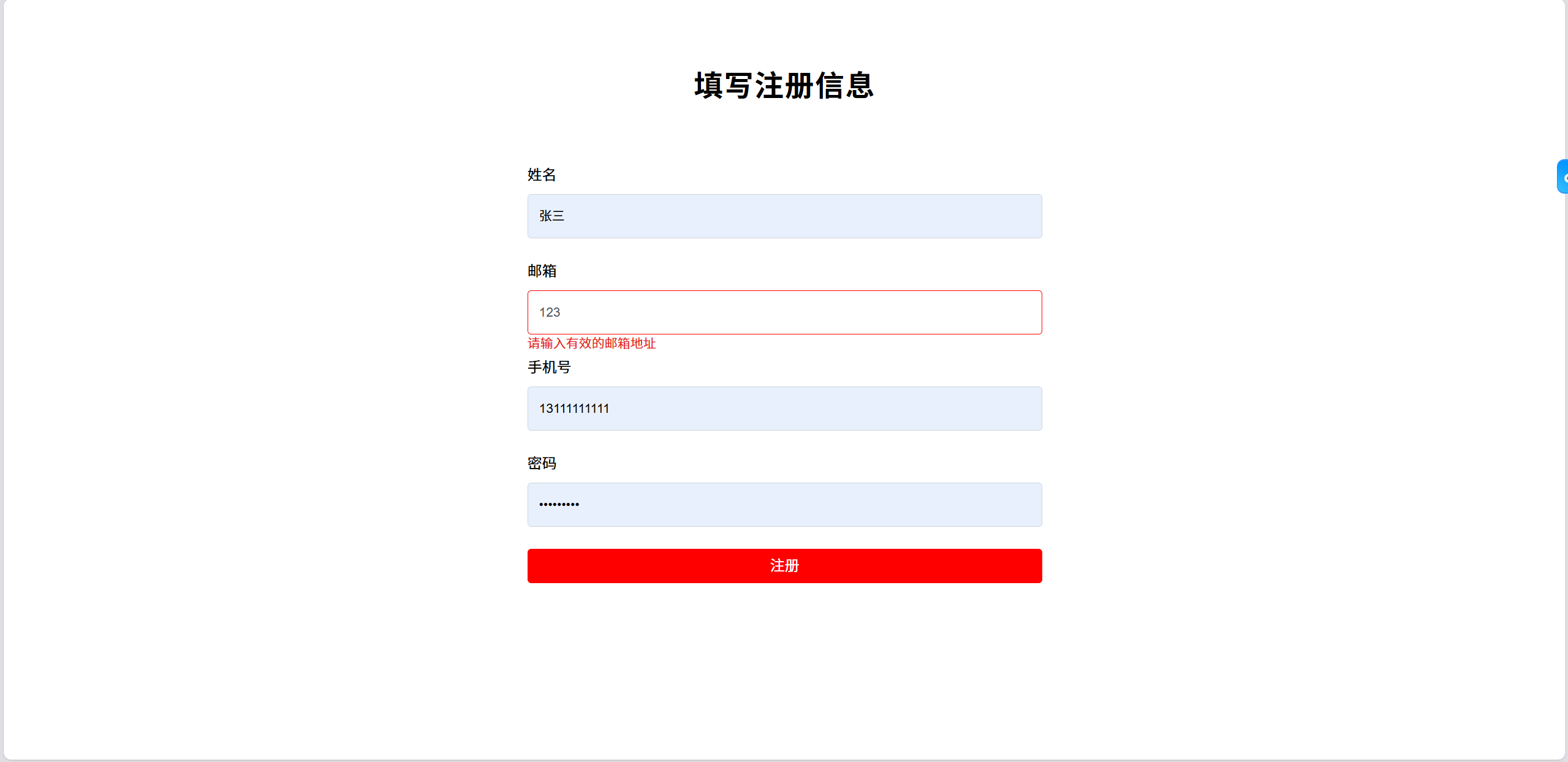

测试场景二：邮箱格式错误，其他正确

预测场景：系统提示请输入有效的邮箱地址

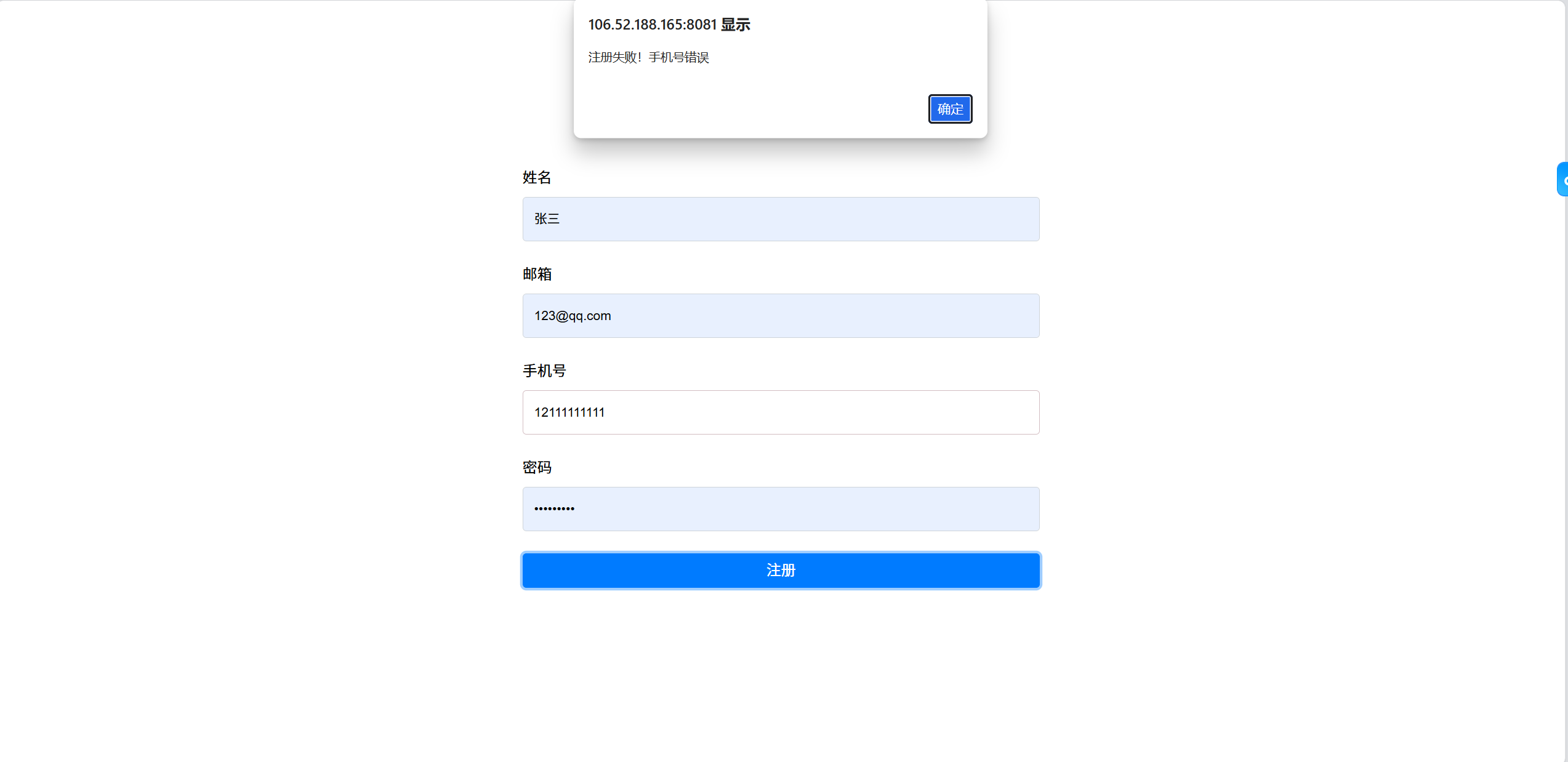

测试场景三：手机号格式错误，其他正确

预期场景：弹窗提醒"注册失败手机号错误"

测试场景四：密码格式错误，其他正确

预测场景：系统提示密码长度至少为6个字符

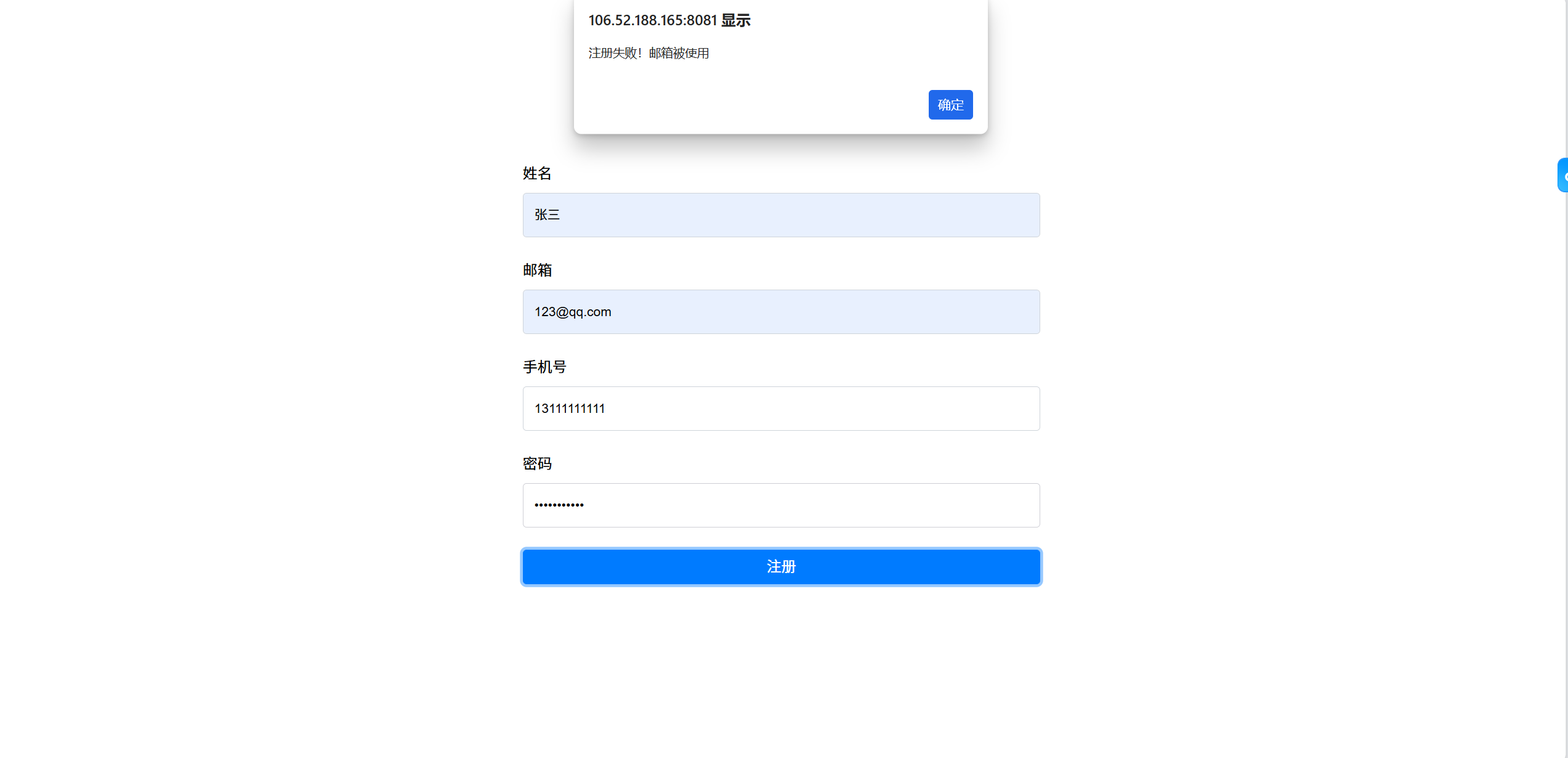

测试场景五：邮箱被使用过

预测场景：系统提示邮箱被使用

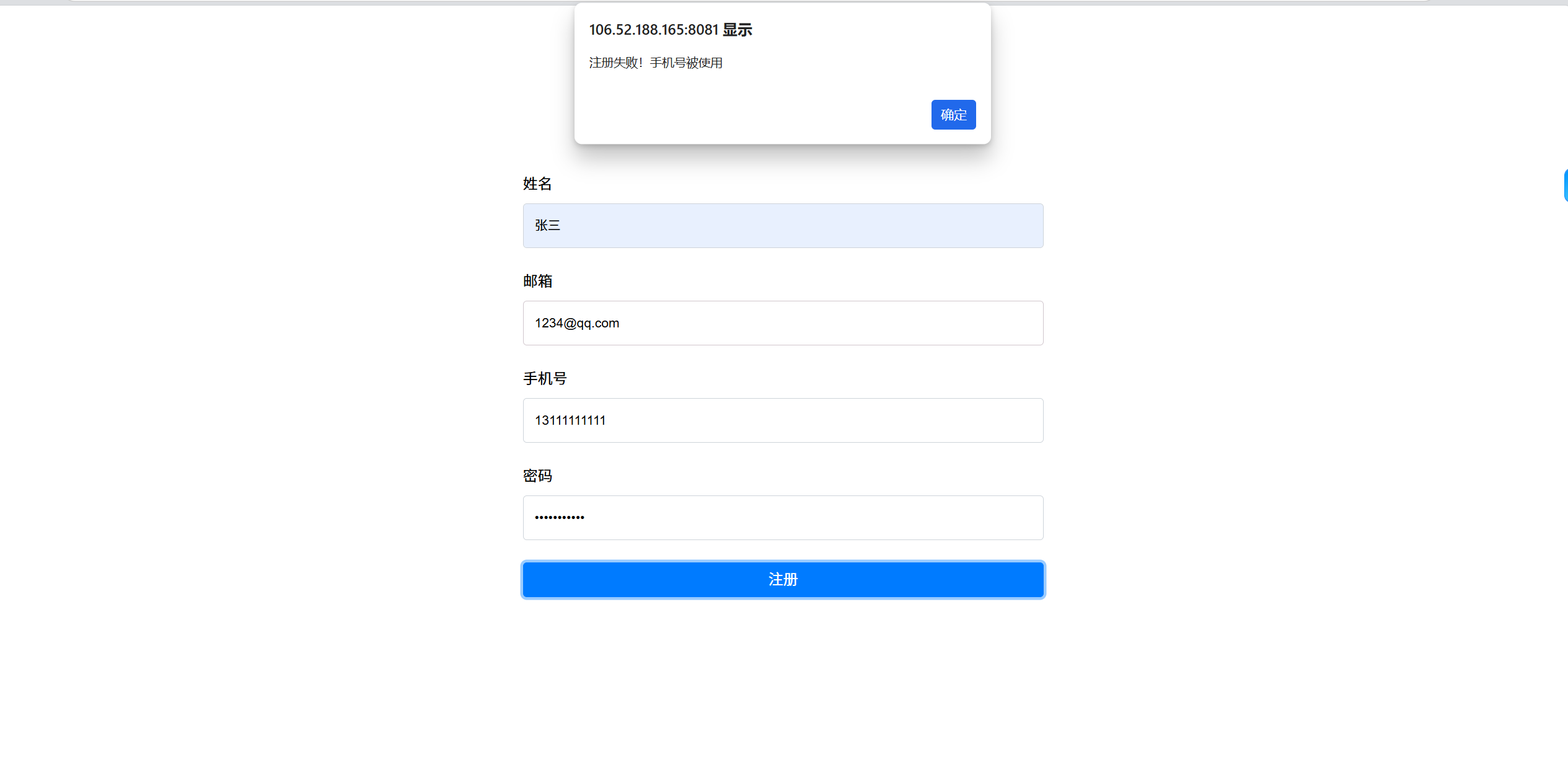

测试场景六：手机号被使用过

预测场景：系统提示手机号被使用

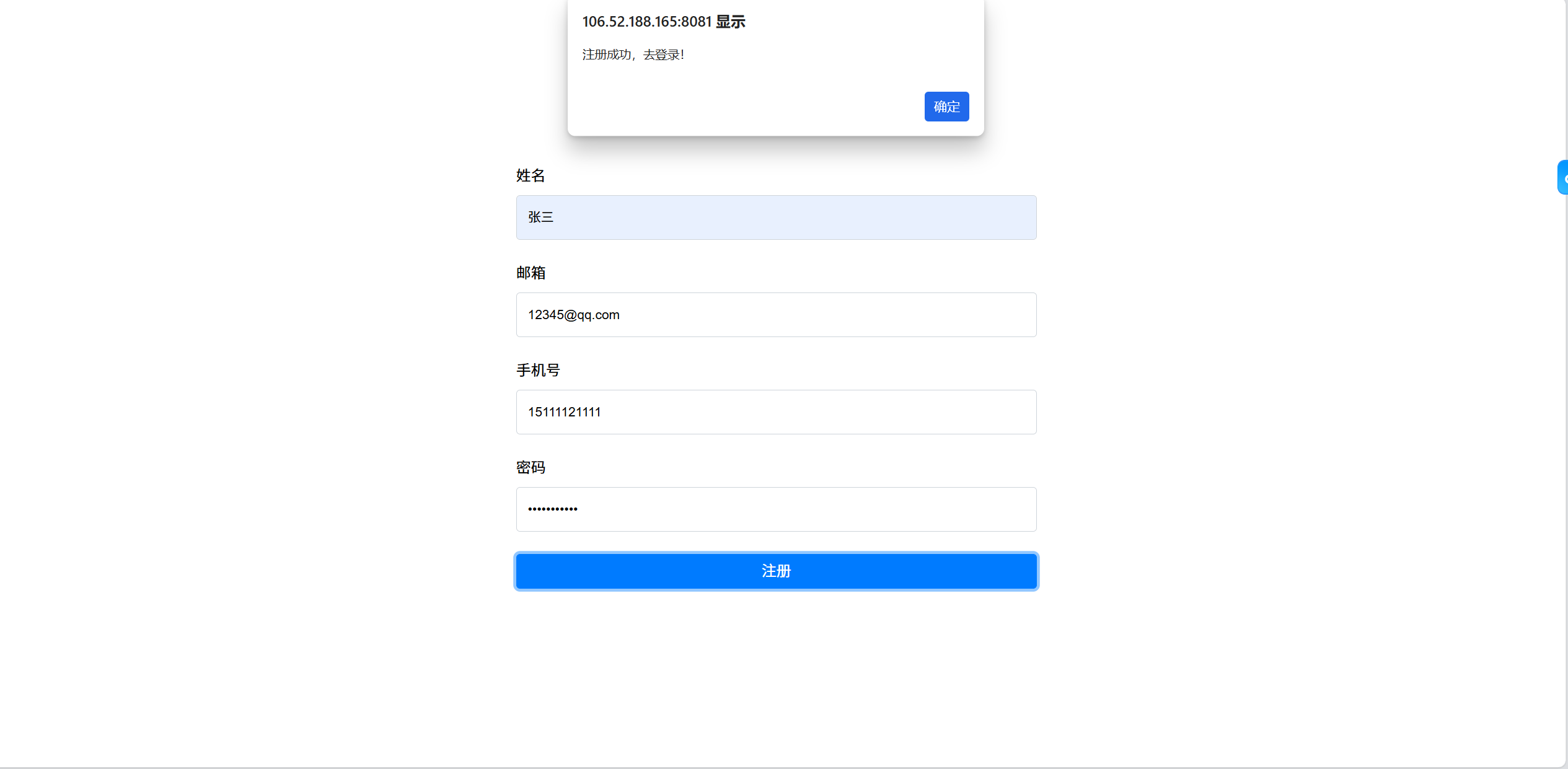

测试场景七：全部正确

预测场景：弹窗"注册成功，点击确定"，成功跳转登录页

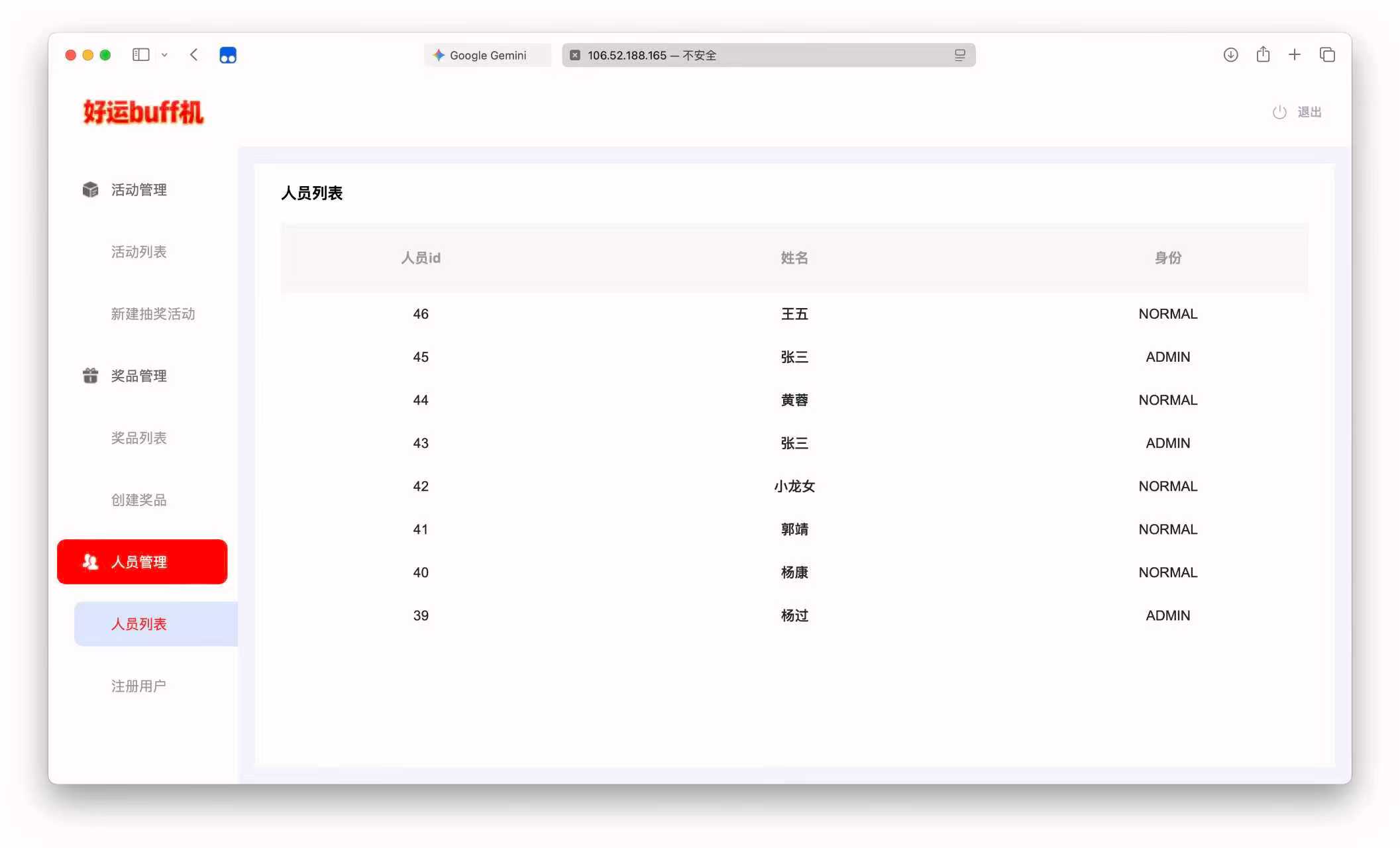

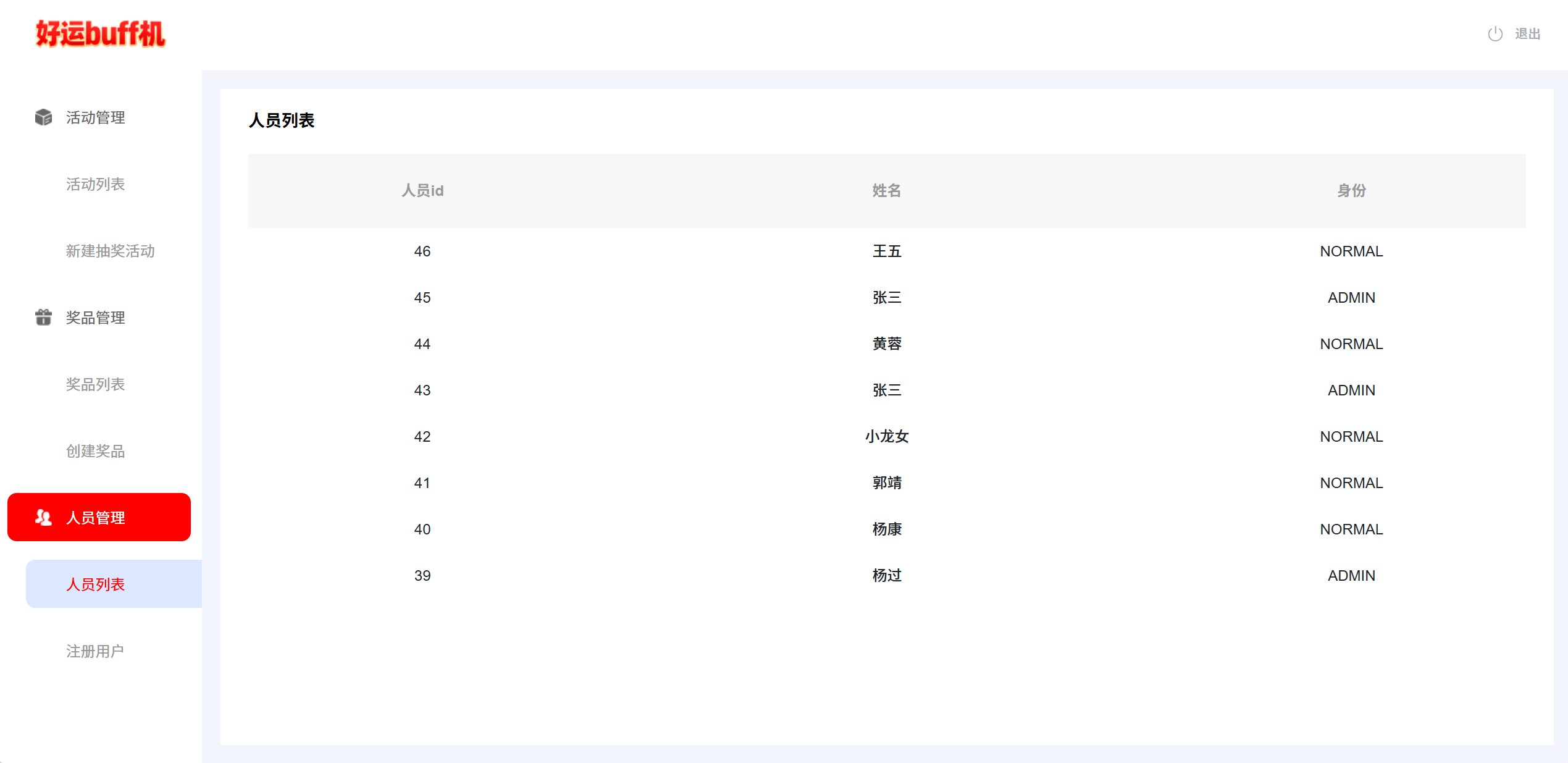

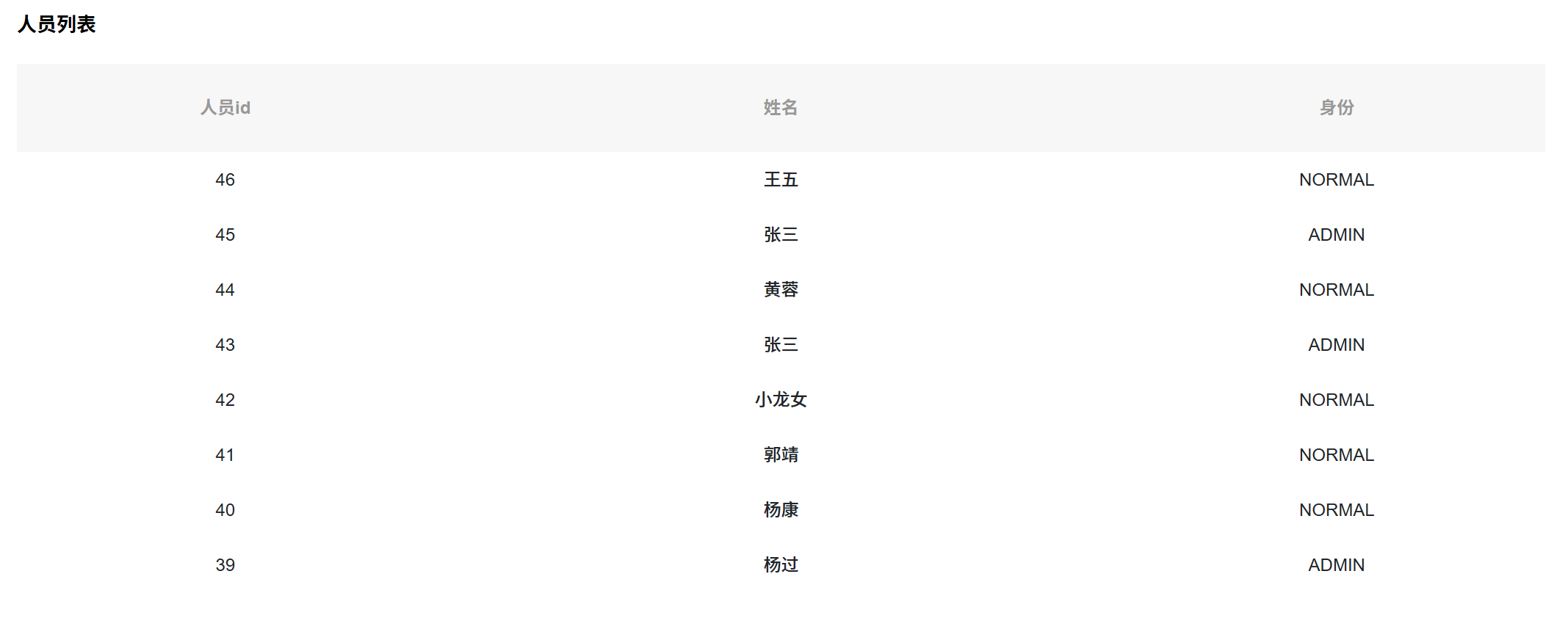

用户列表页面测试

测试场景一：点击人员列表

预测场景：正常显示人员列表

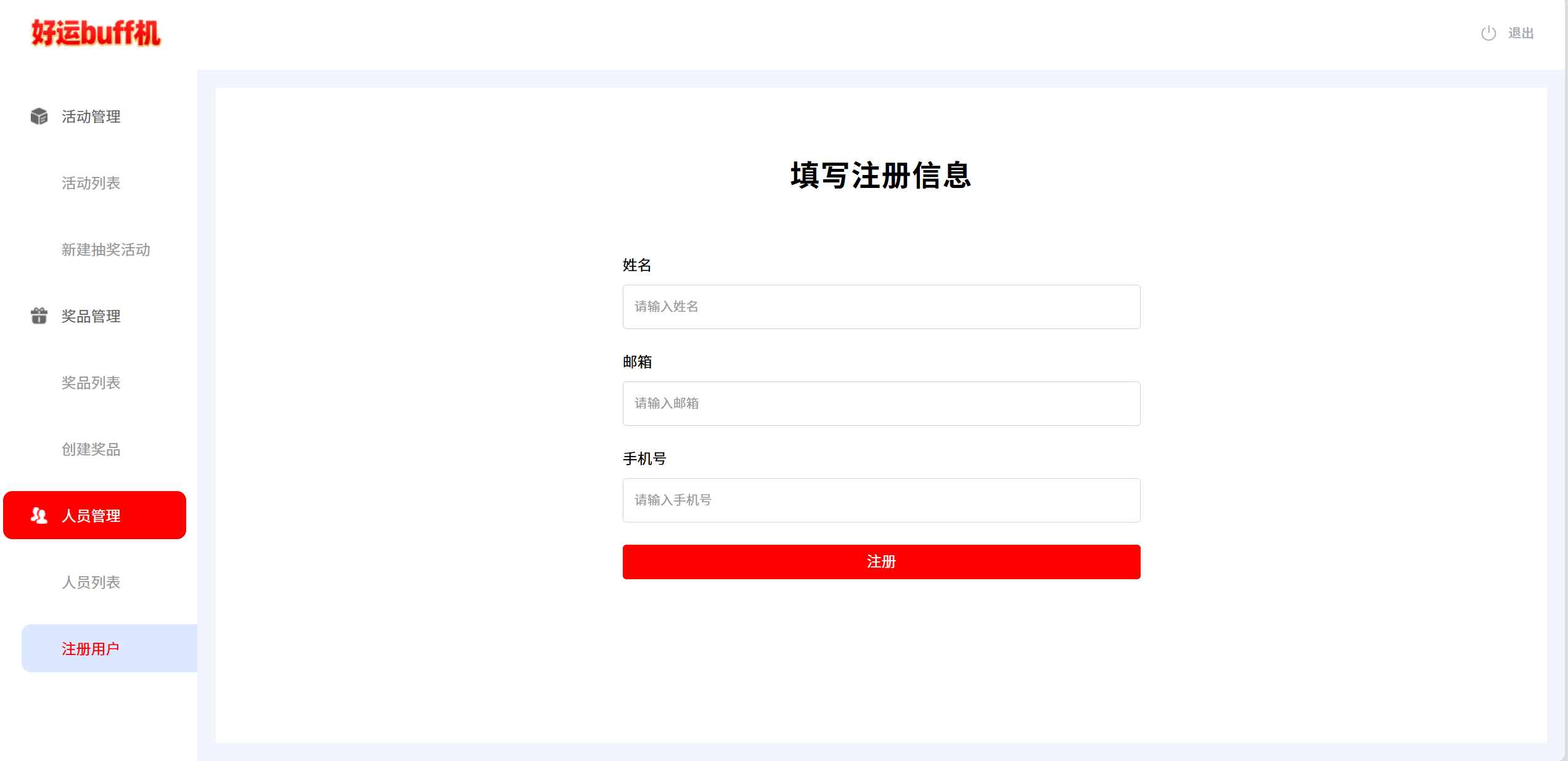

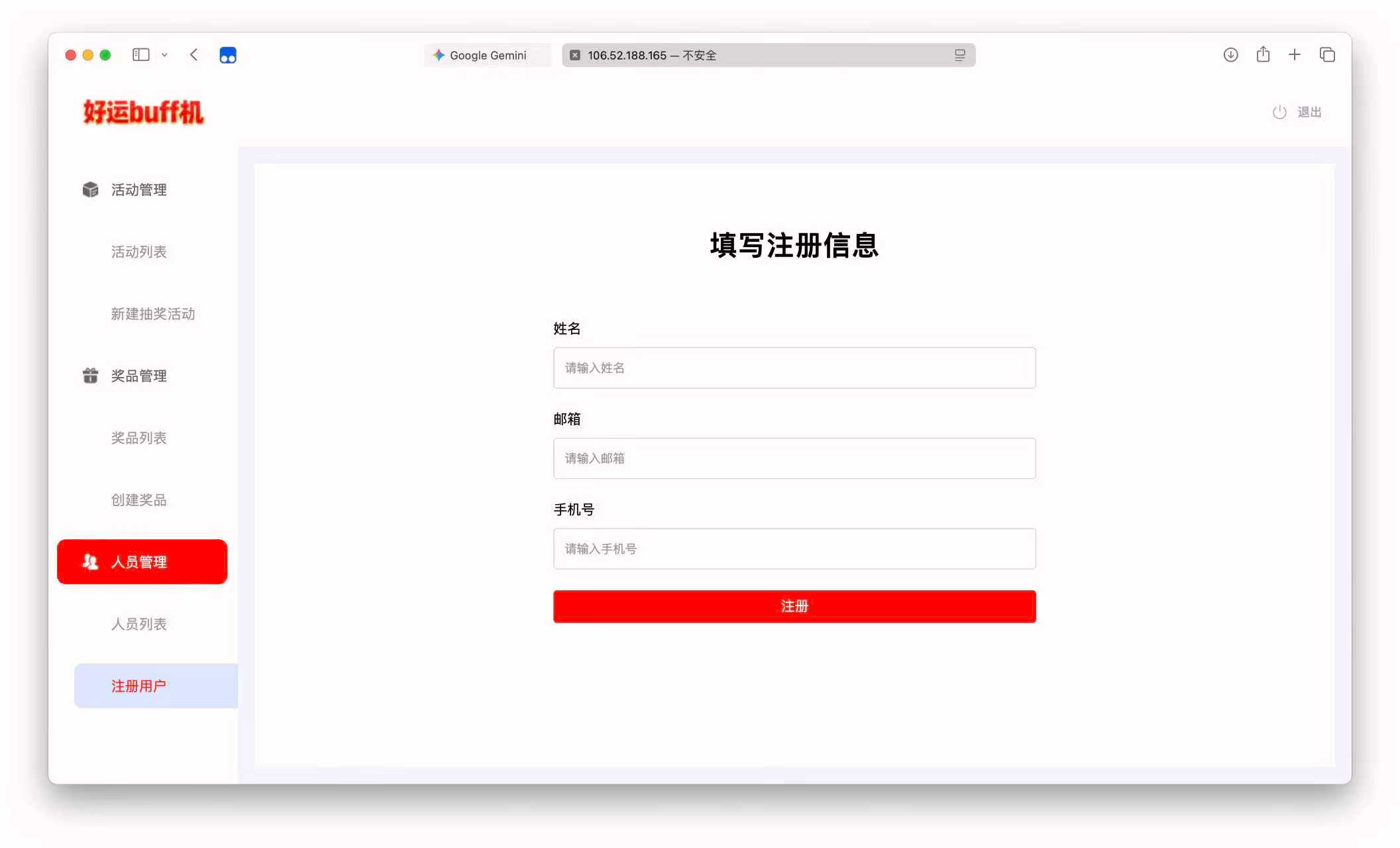

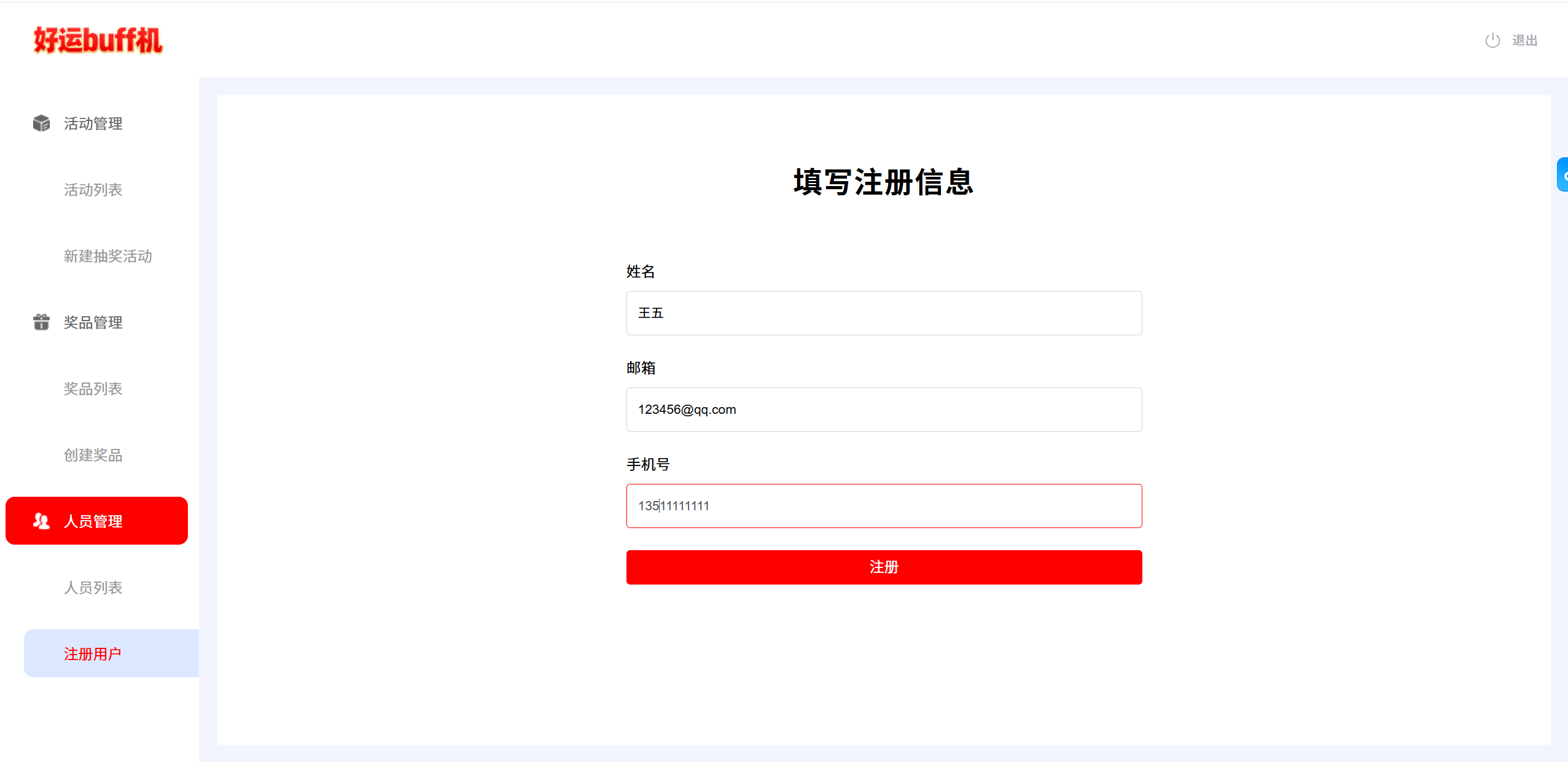

注册普通用户页面测试

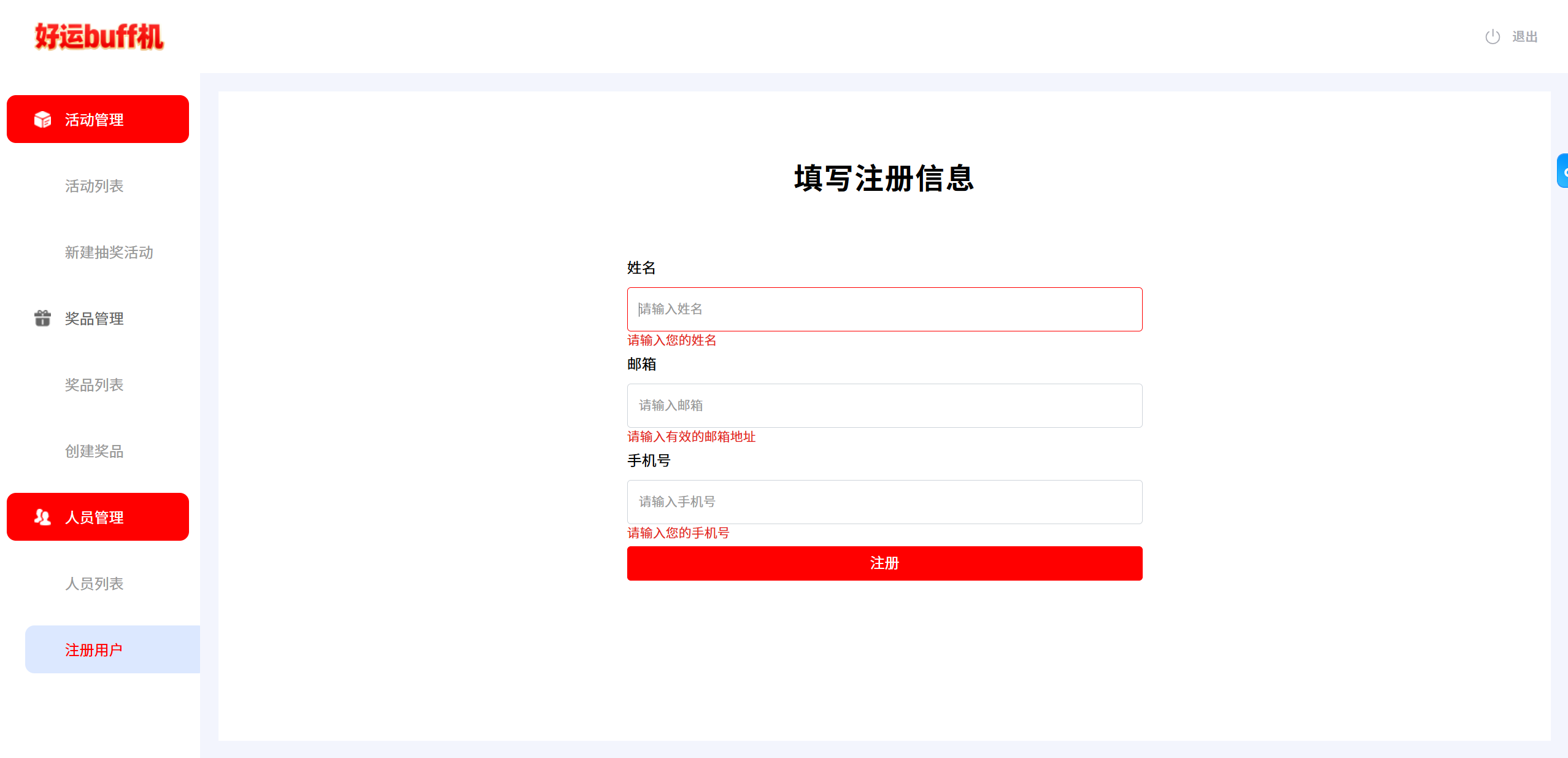

测试场景一：姓名、邮箱和手机号都为空

预期结果：系统提示姓名、邮箱、手机号为空

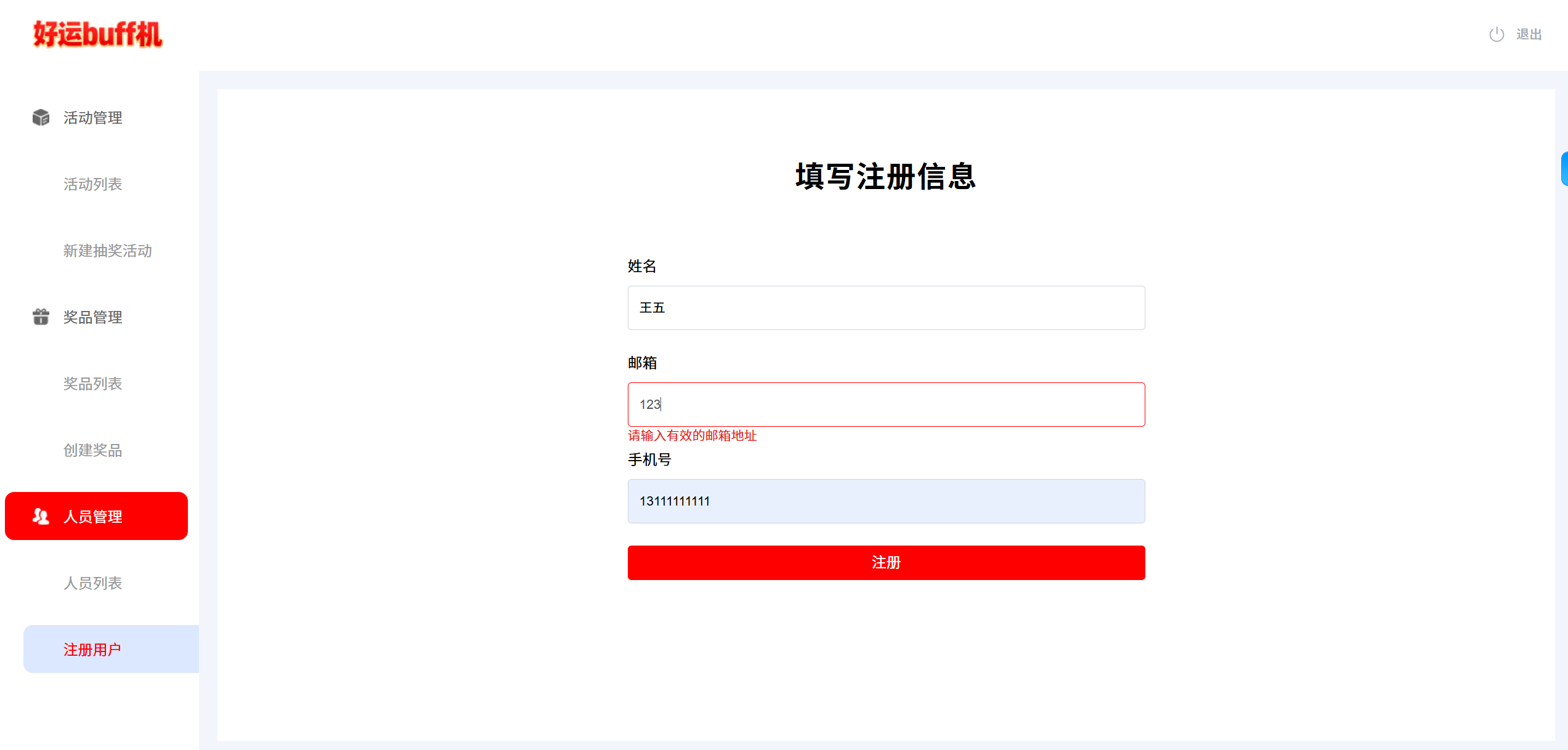

测试场景二：邮箱格式错误，手机号正确填写

预期结果：系统提示"请输入有效的邮箱地址"

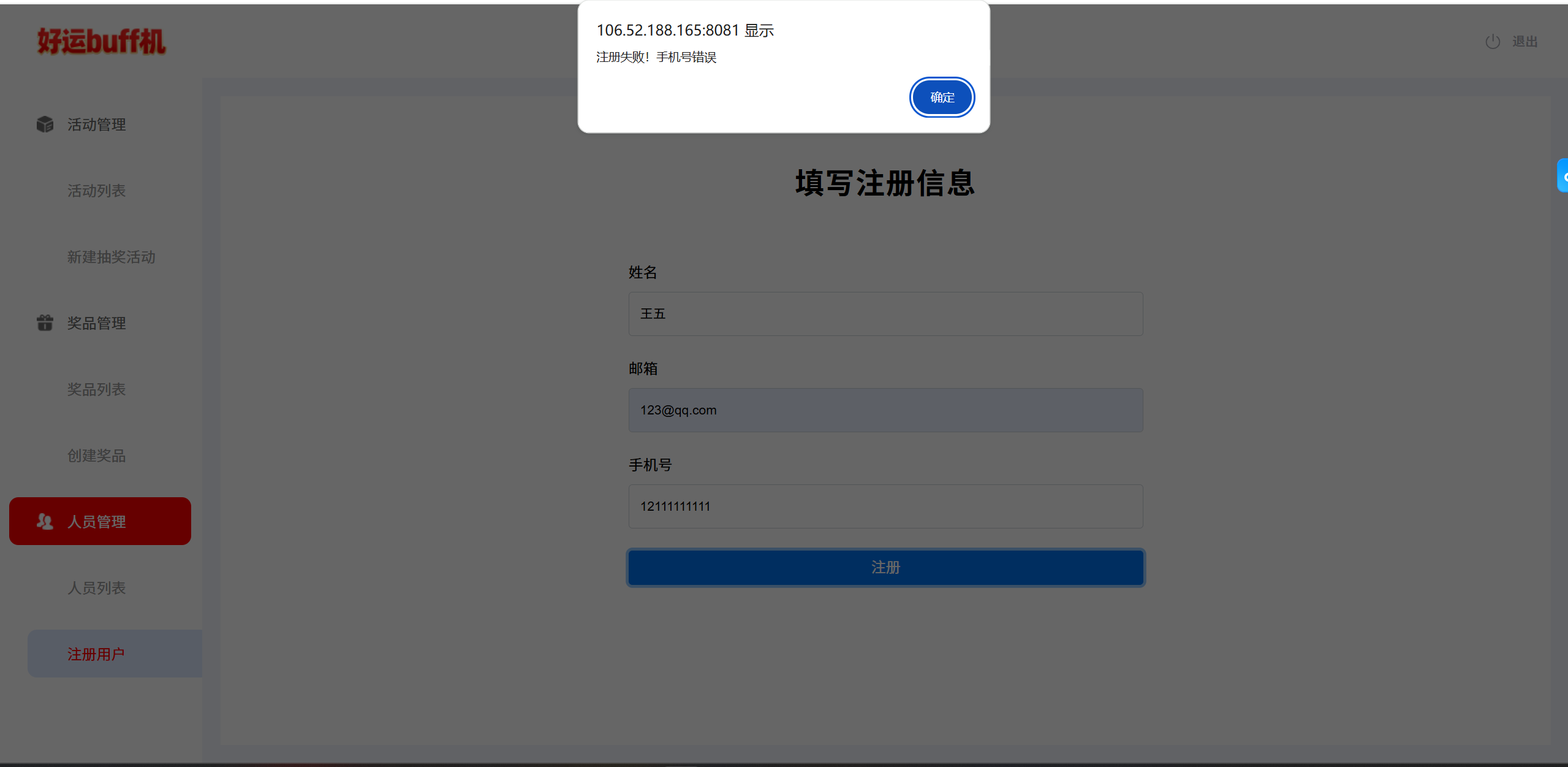

测试场景三：邮箱格式正确、手机号格式不正确

预期结果：弹窗提示"手机号格式问题"

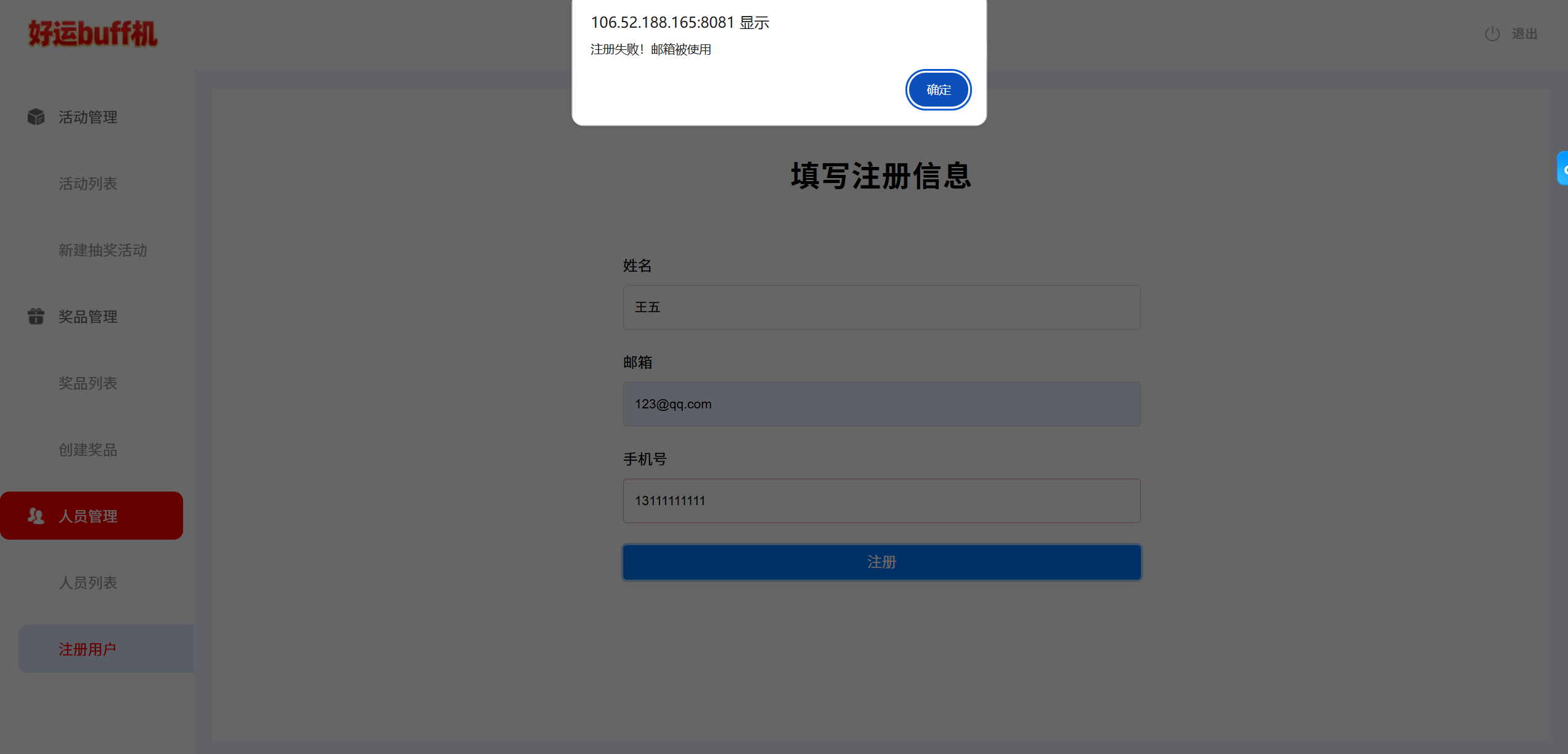

测试场景四：邮箱被使用过

预期结果：系统提示邮箱被使用过

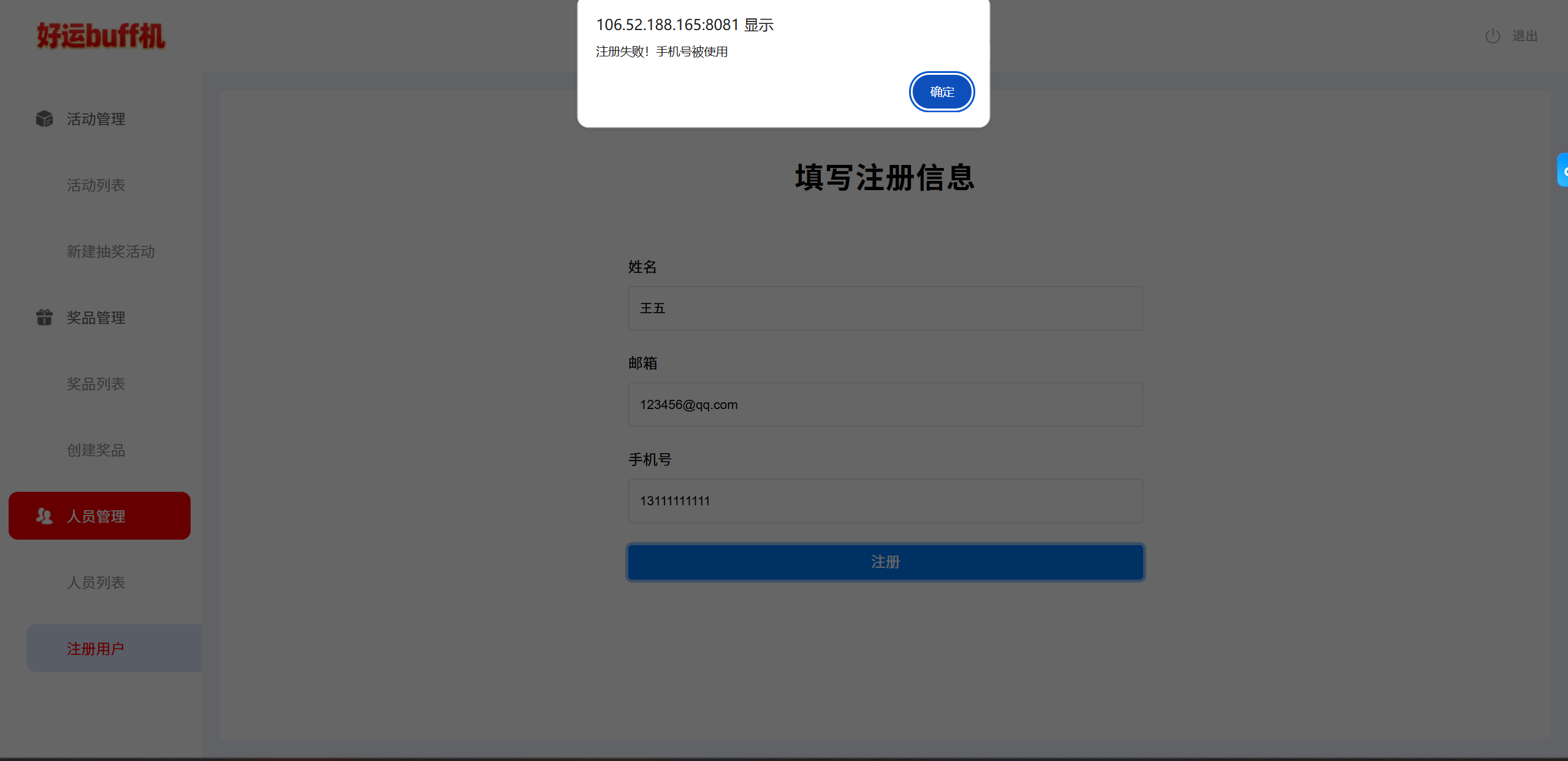

测试场景五：手机号被使用过

预期结果：系统提示手机号被使用过

测试场景六：全部填写正确

预期结果：跳转到人员列表页

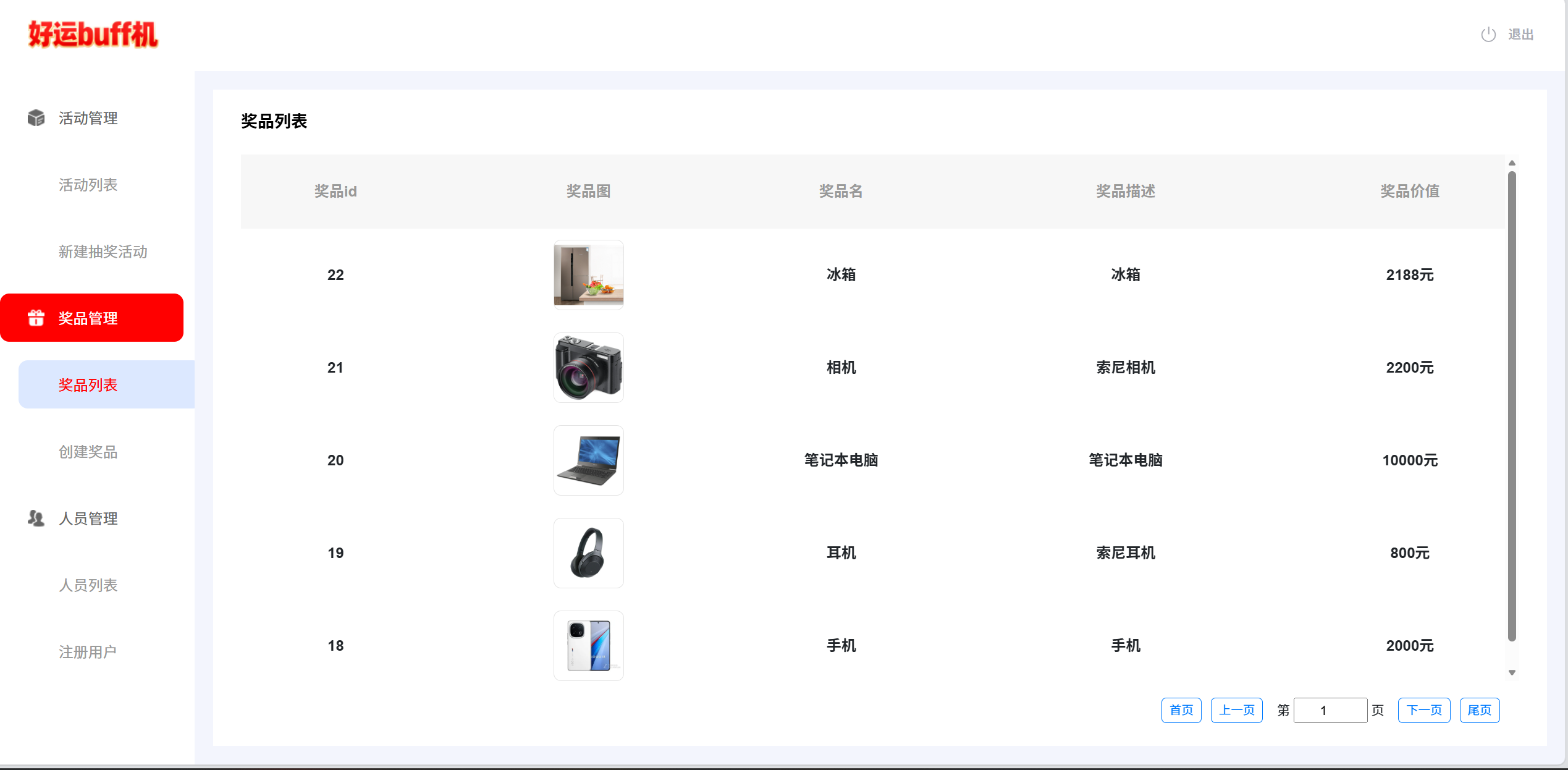

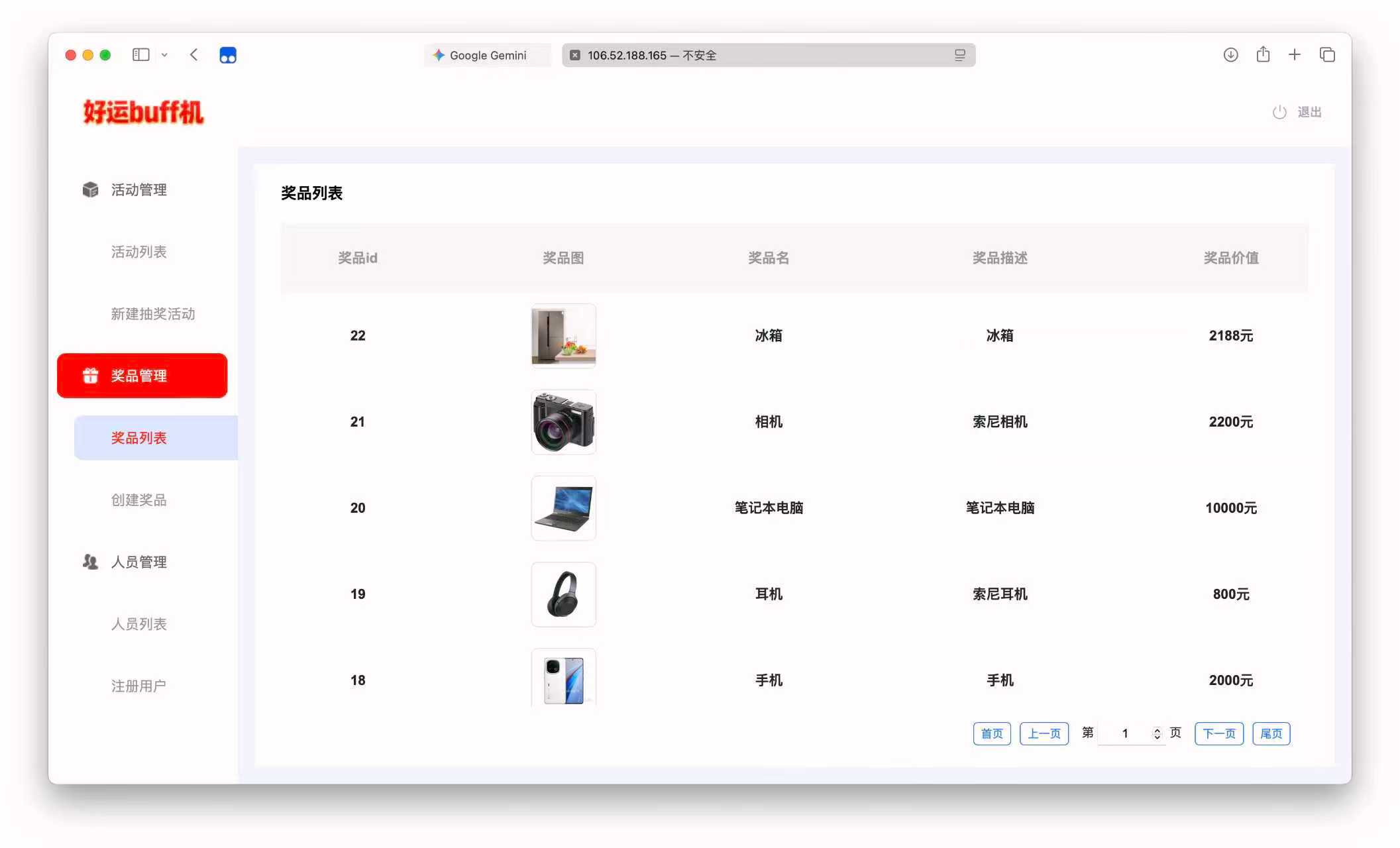

奖品列表页测试

测试场景一：点击奖品列表

预测场景：正常显示奖品列表

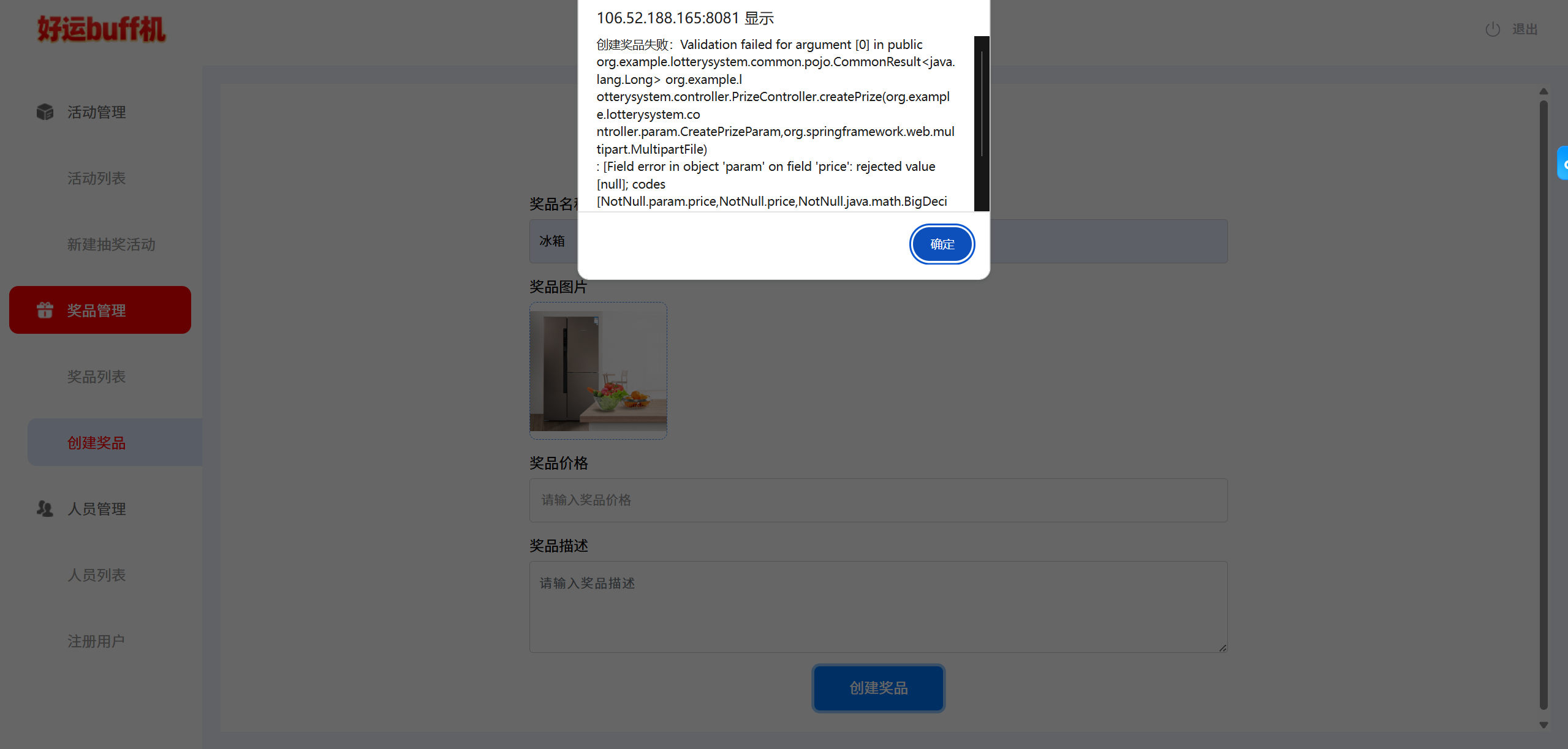

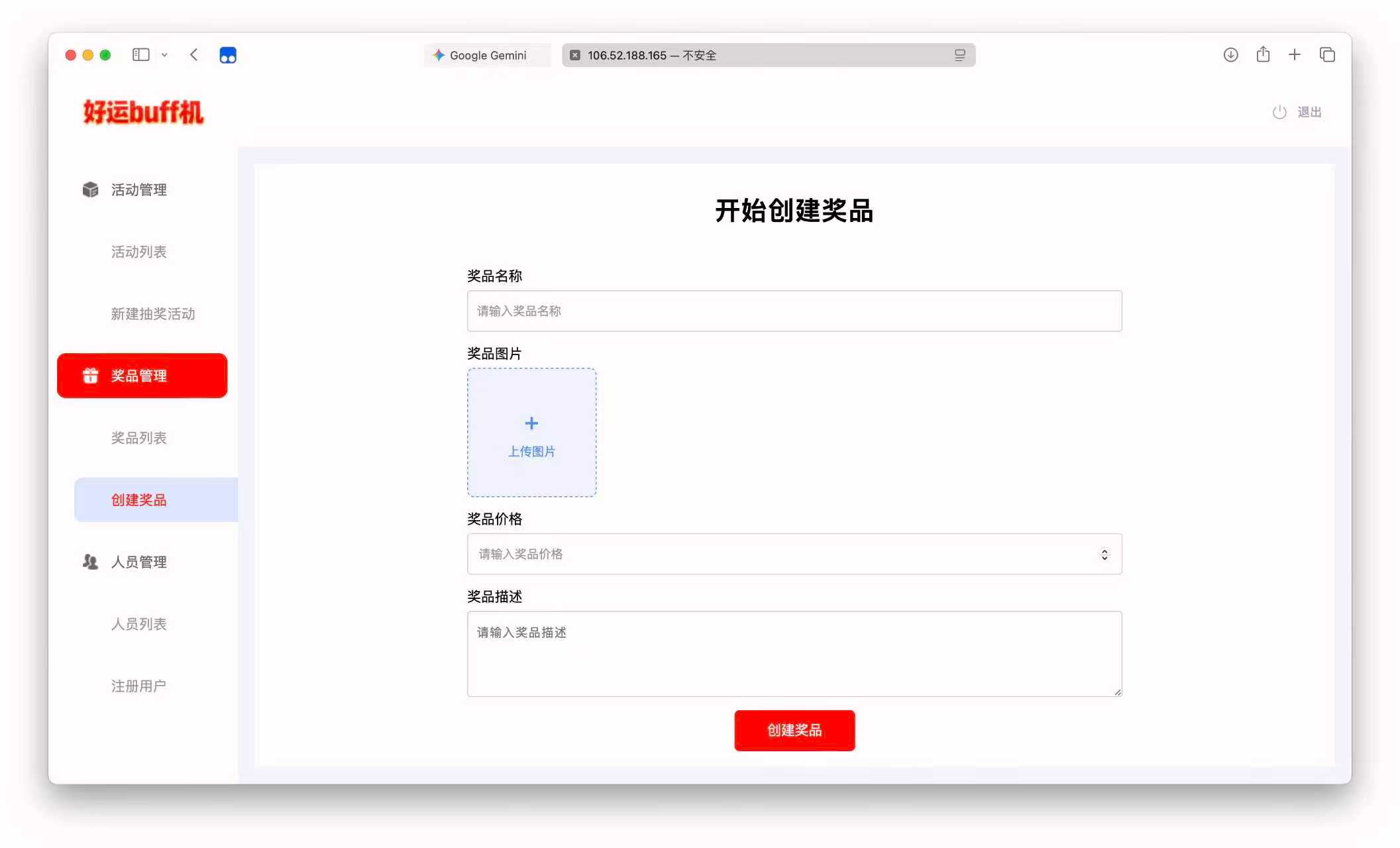

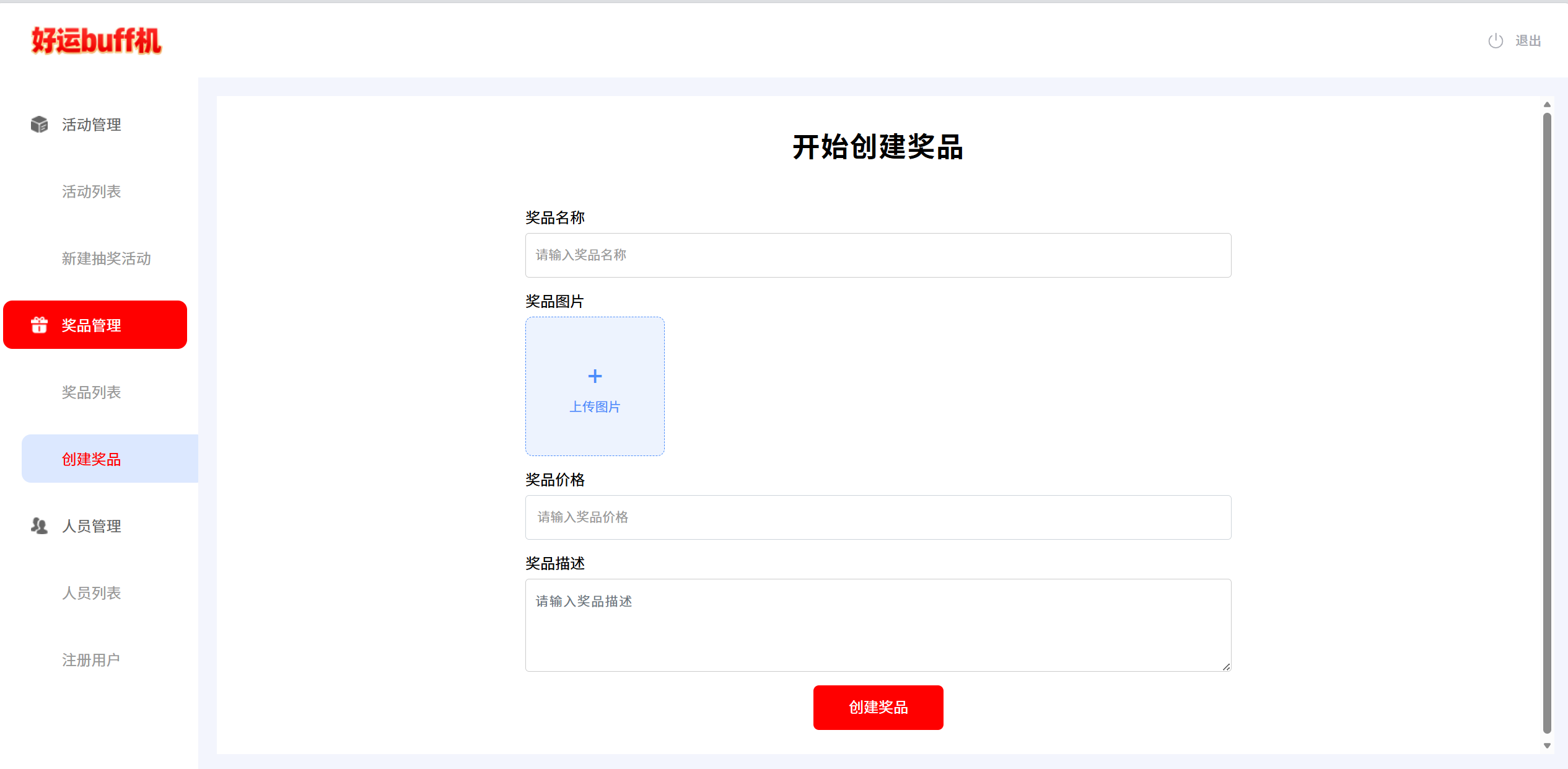

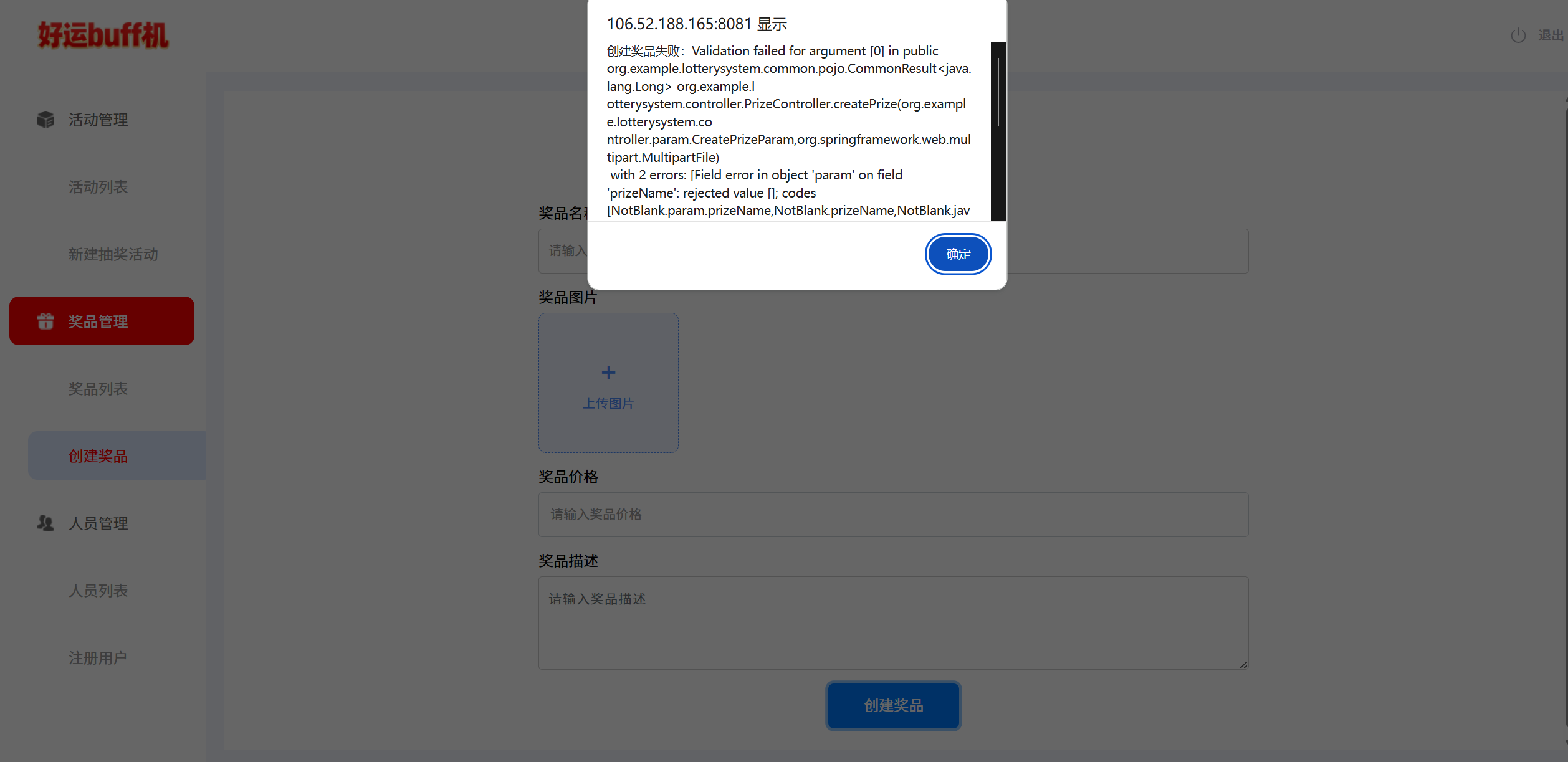

创建奖品页面测试

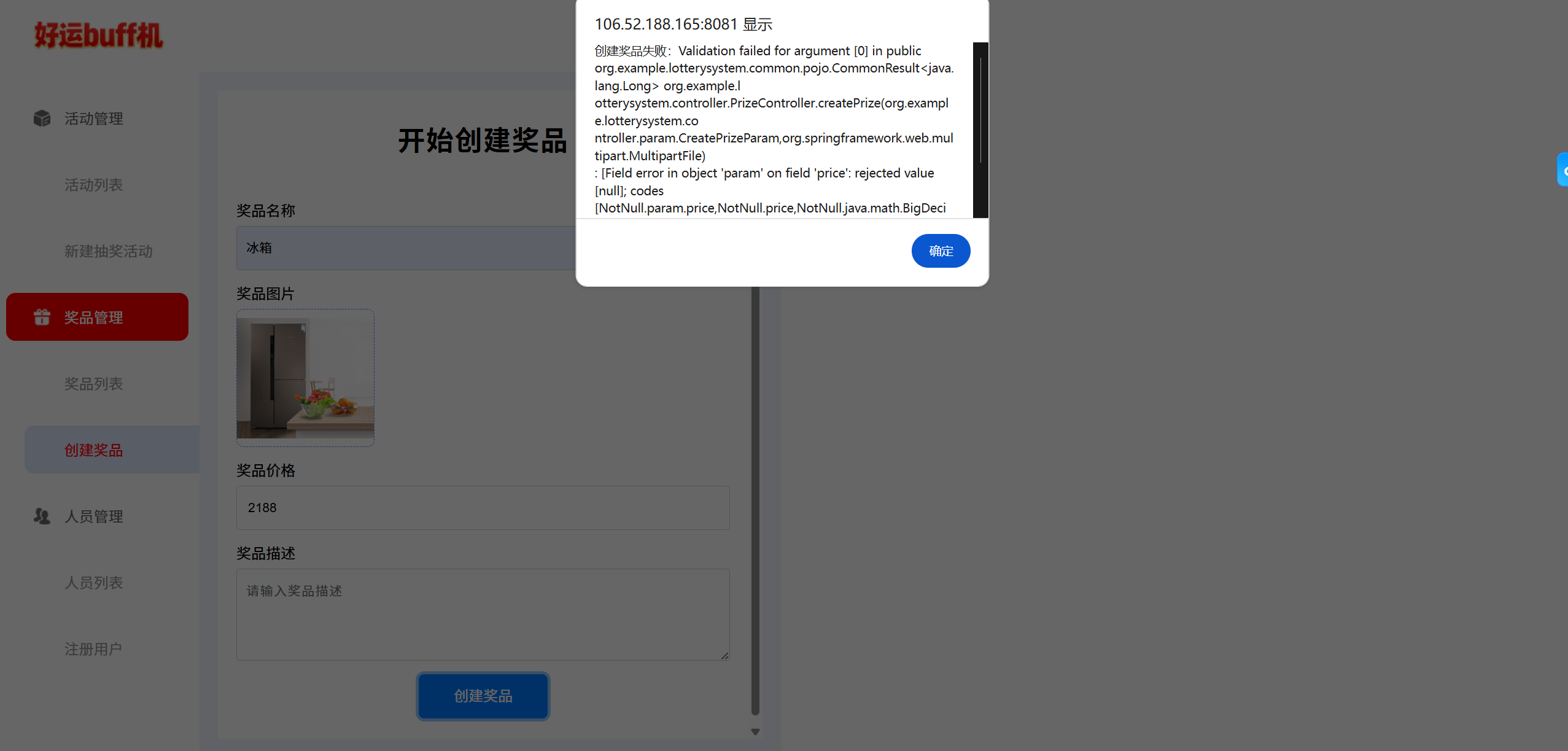

测试场景一：全部空着提交

预测场景：弹窗"创建失败"

测试场景二：只填写奖品名称、其他不填

预测场景：弹窗"创建失败"

测试场景三：填写奖品名称、奖品图片，其他不填

预测场景：弹窗"创建失败"

测试场景四：只填写奖品名称、奖品图片、奖品价格，其他不填

预测场景：弹窗"创建失败"

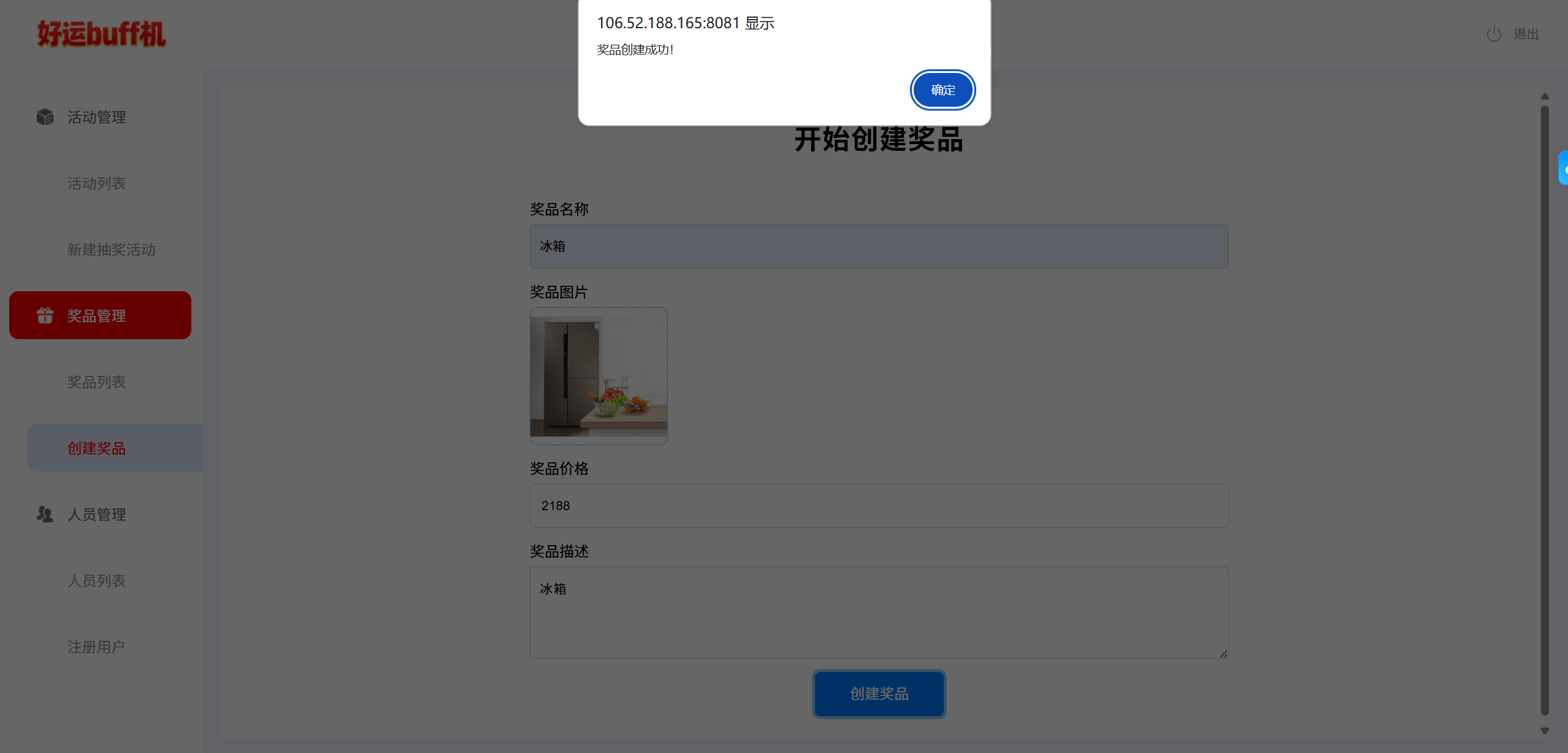

测试场景五：全部正常填写

预测场景：弹窗"创建成功"

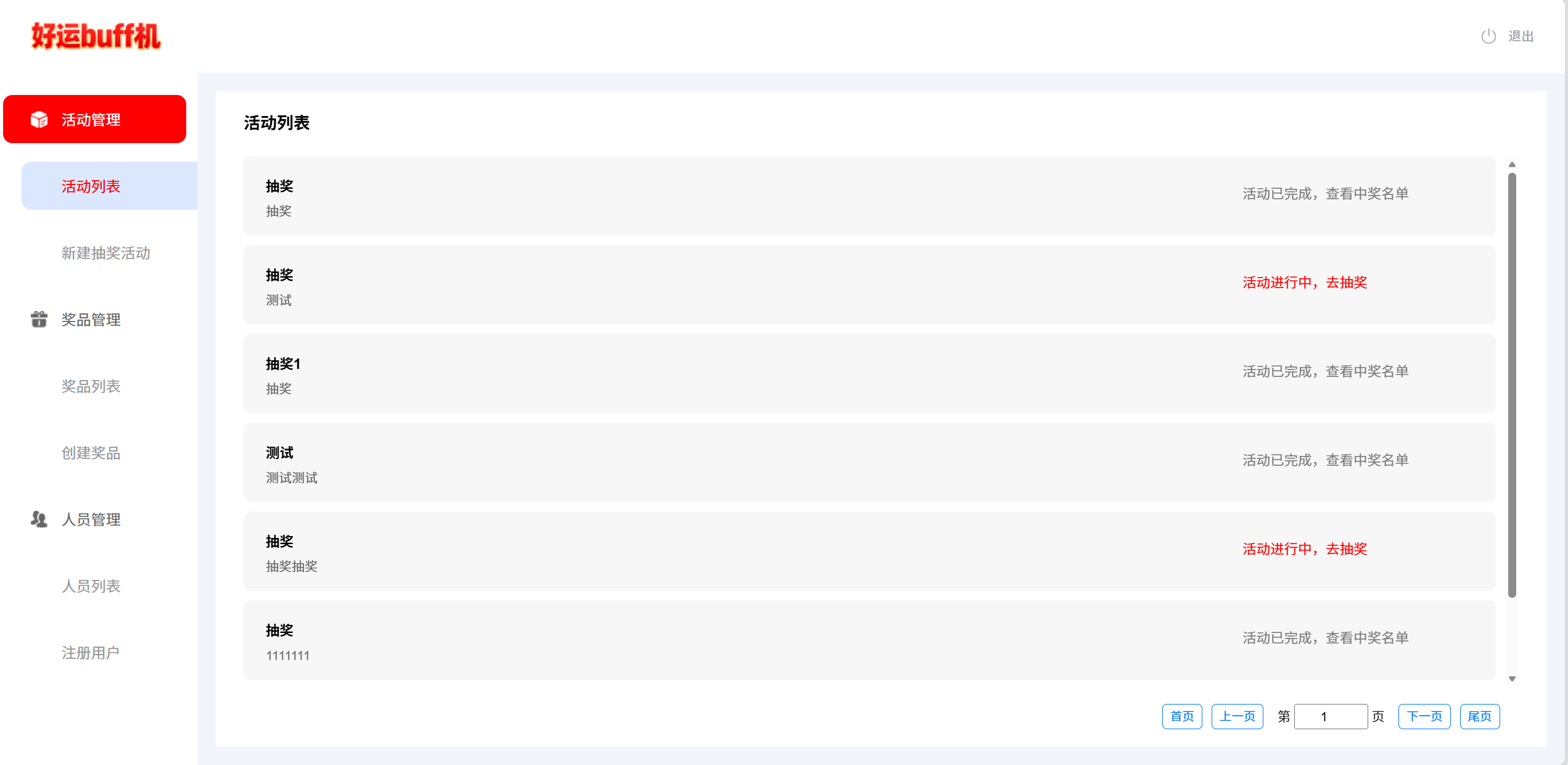

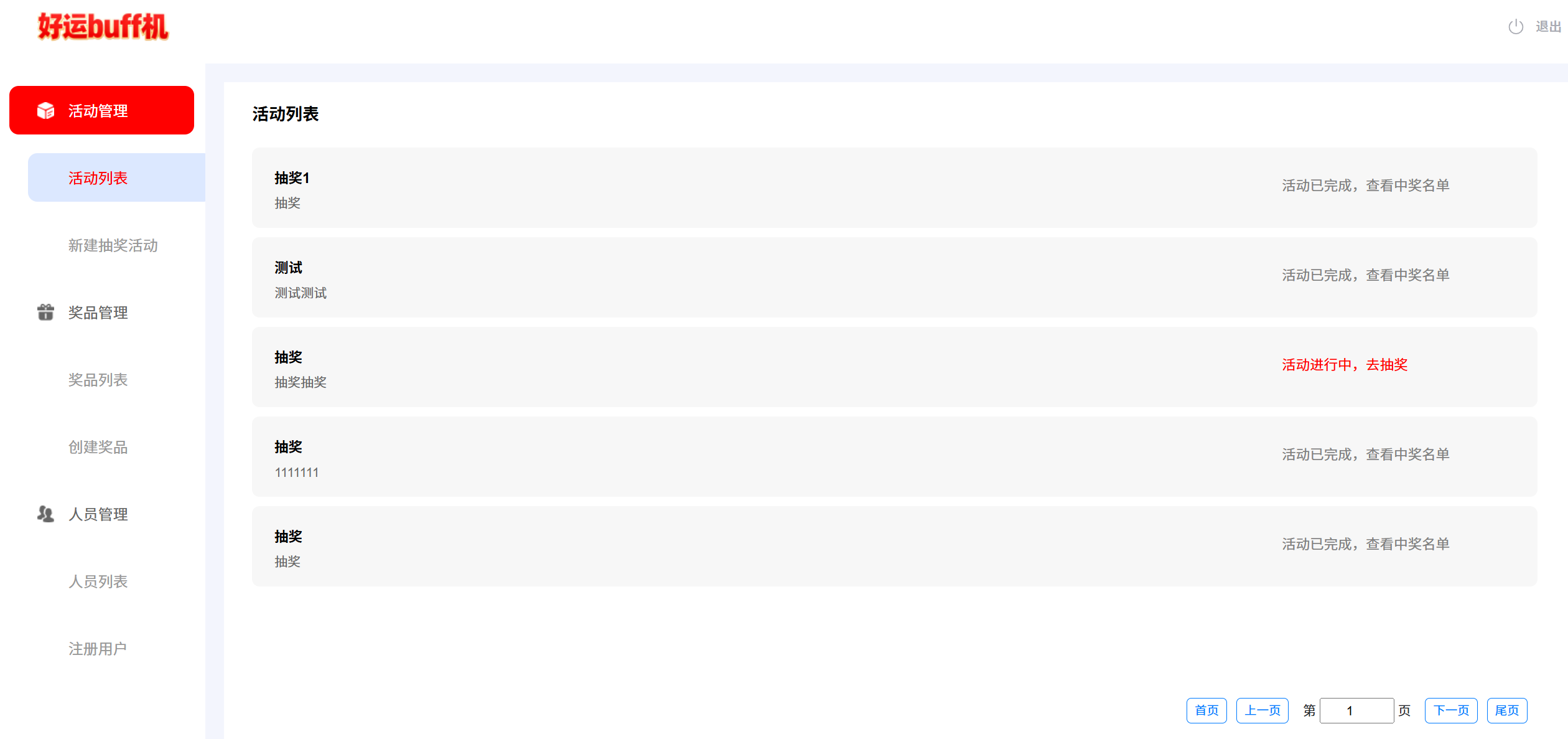

活动页面测试

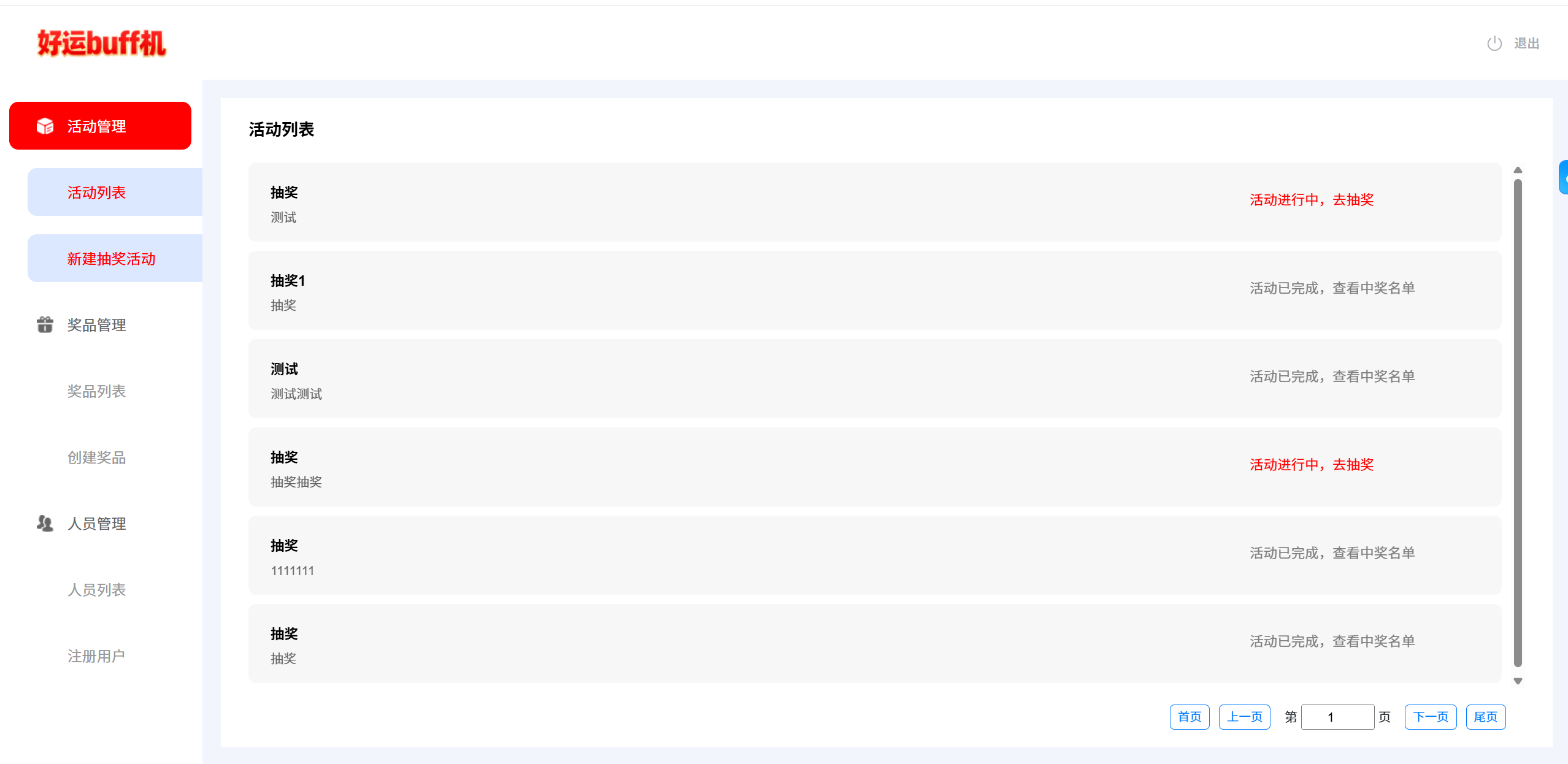

测试场景一：点击活动列表

预测场景：正常显示活动列表

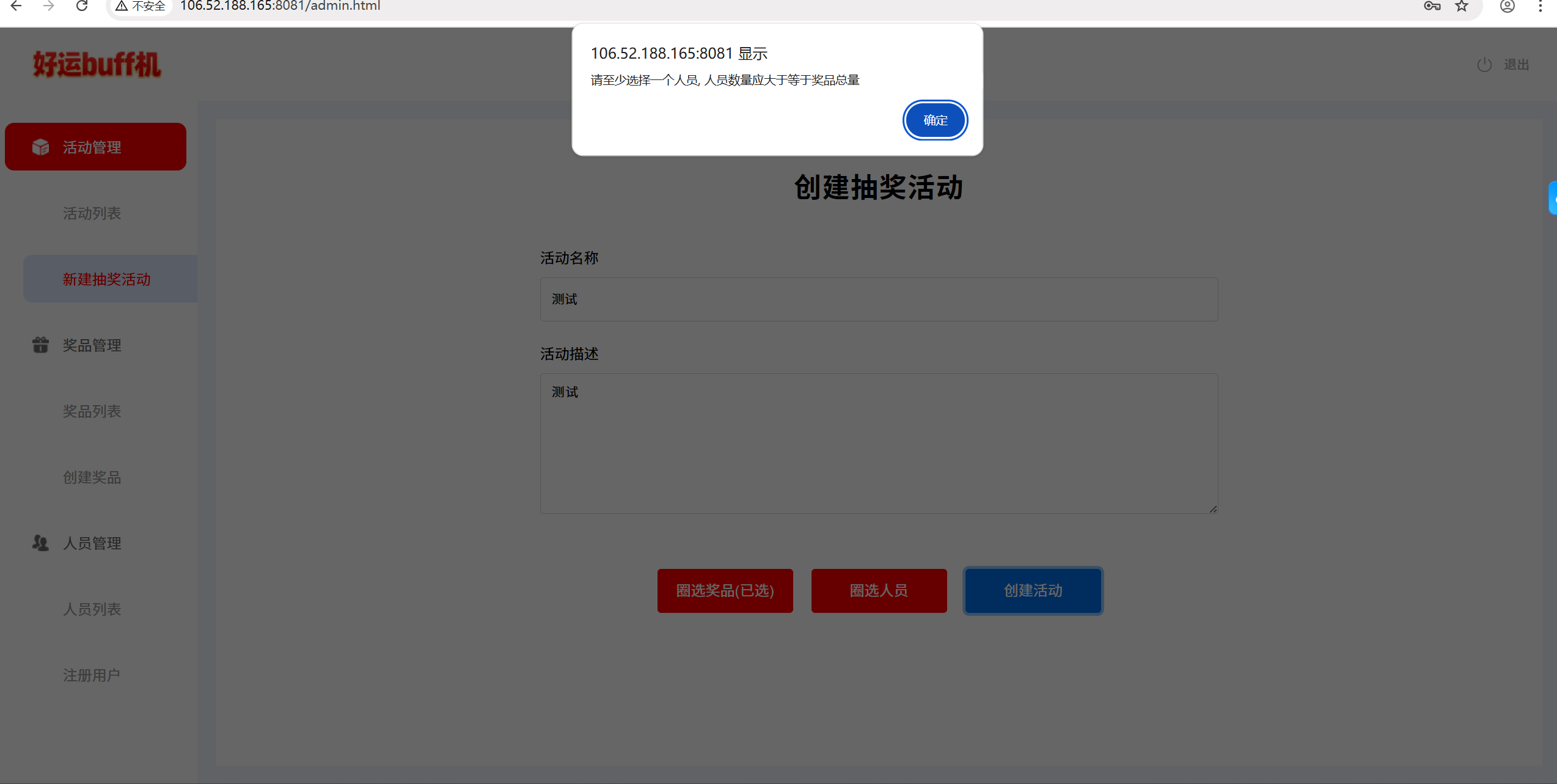

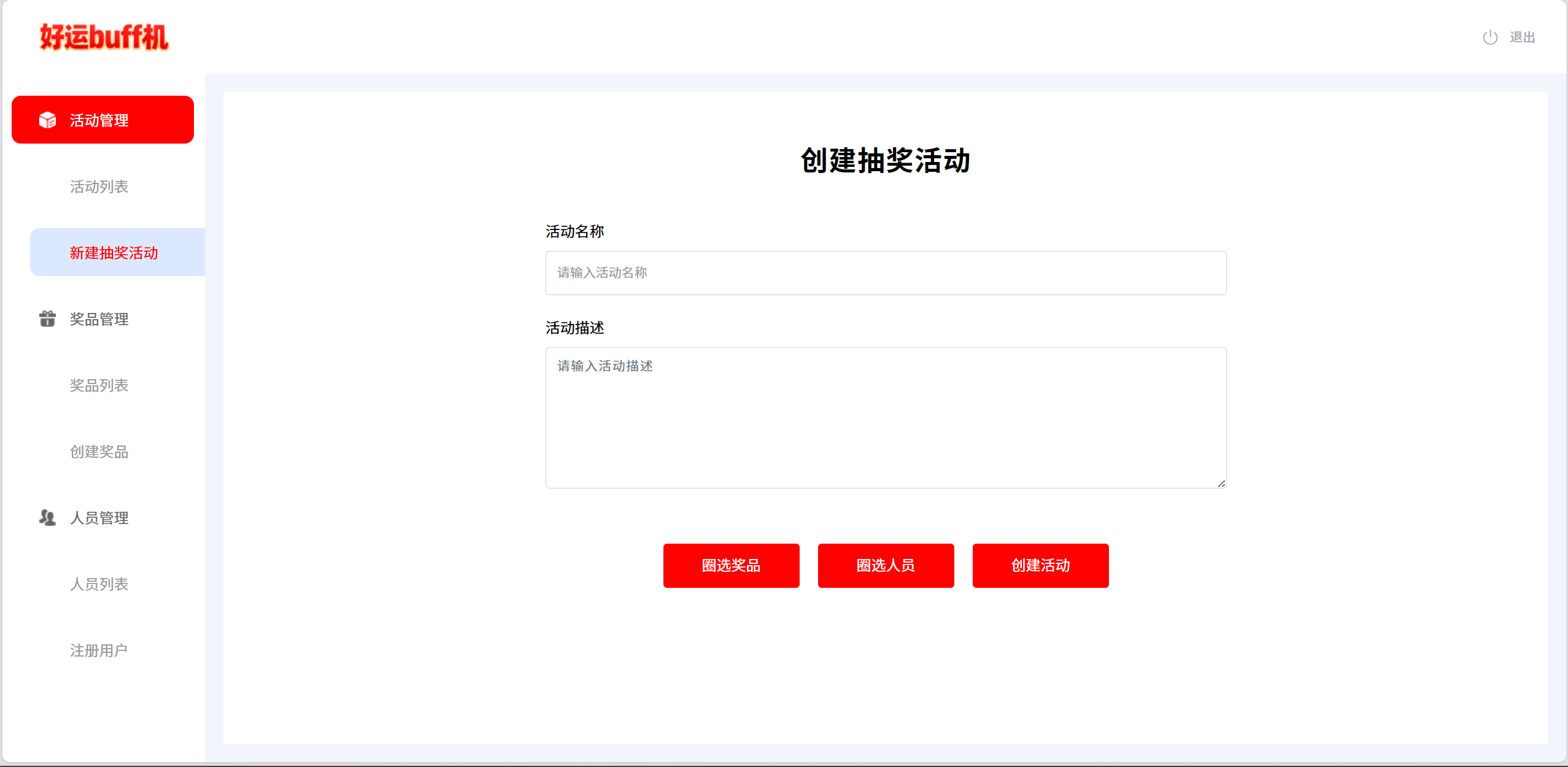

创建活动页面测试

测试场景一：都空着

预测场景：系统提示为空

测试场景二：填写活动名称和奖品描述，未圈选奖品和人员

预测场景：弹窗提醒"请至少选择一个奖品"

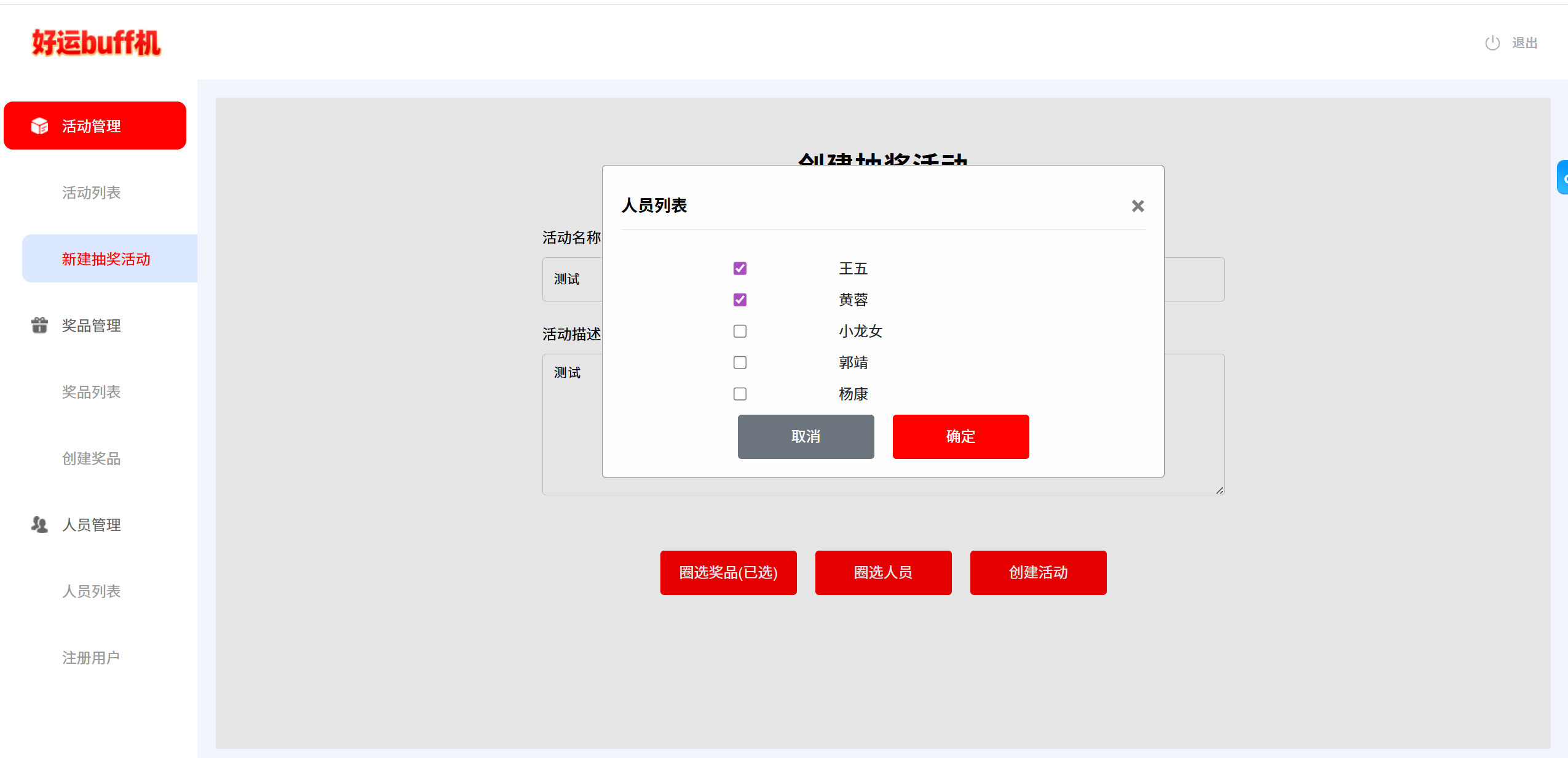

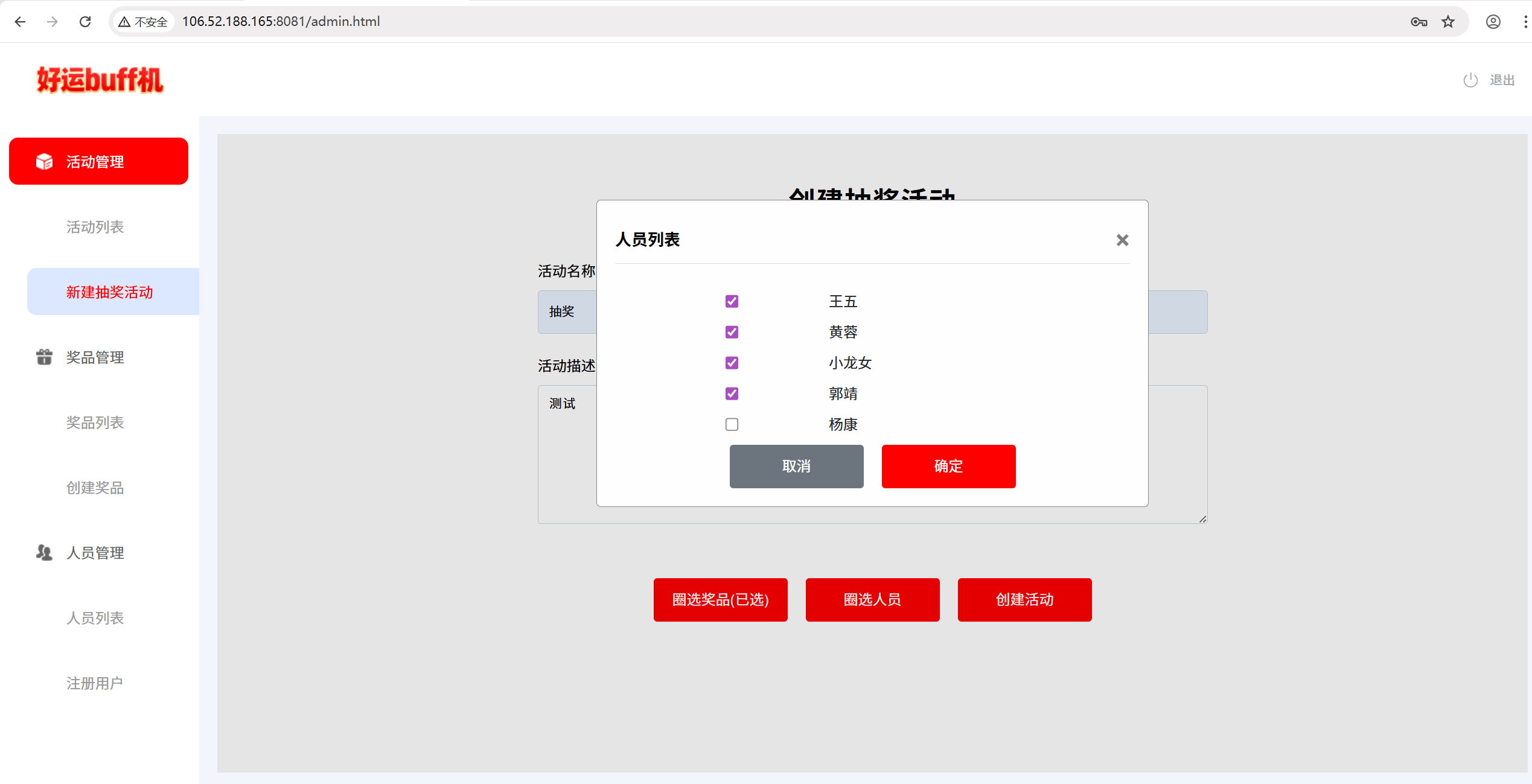

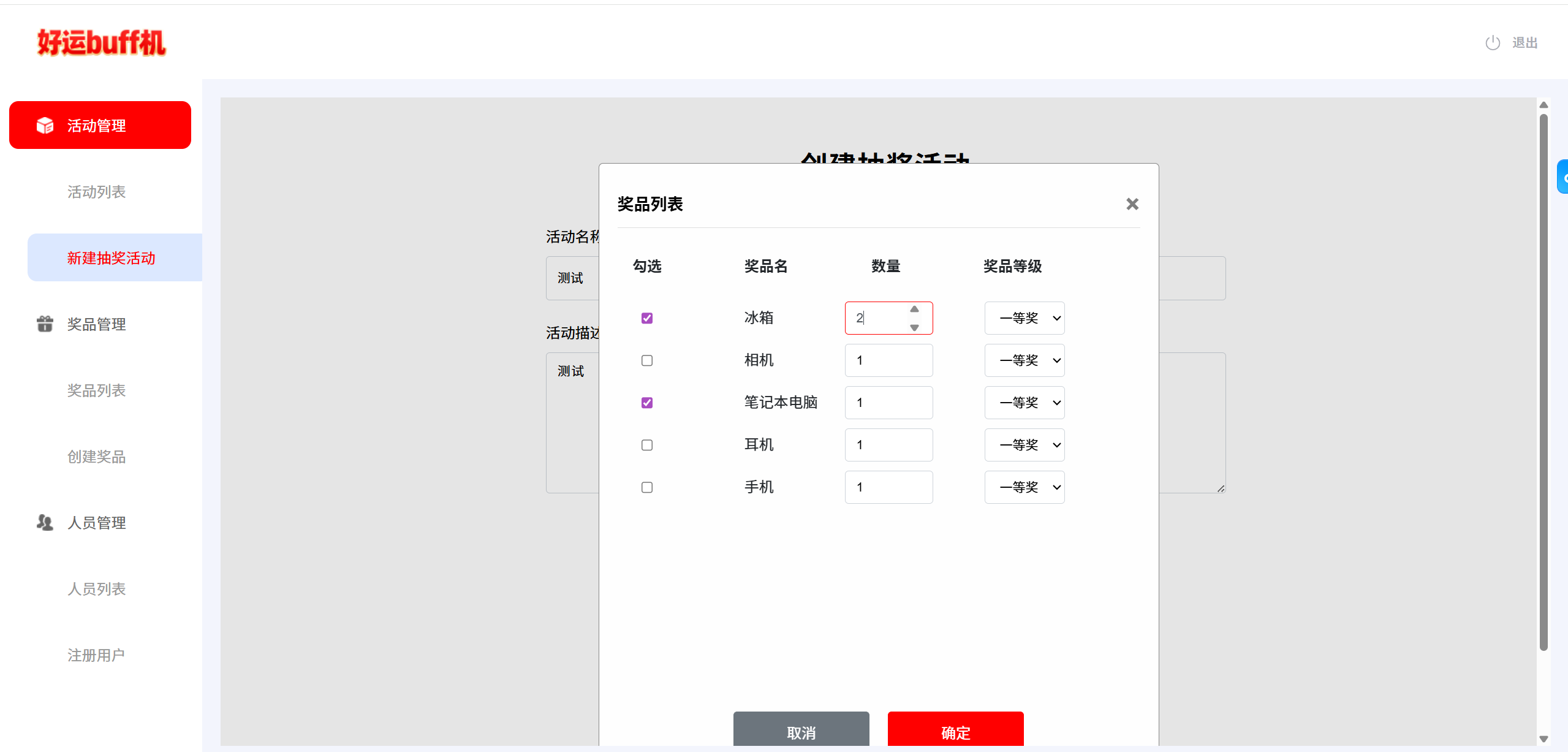

测试场景三：填写活动名称和奖品描述，圈选奖品，未圈选人员

预测场景：弹窗提醒"请至少选择一个人员"

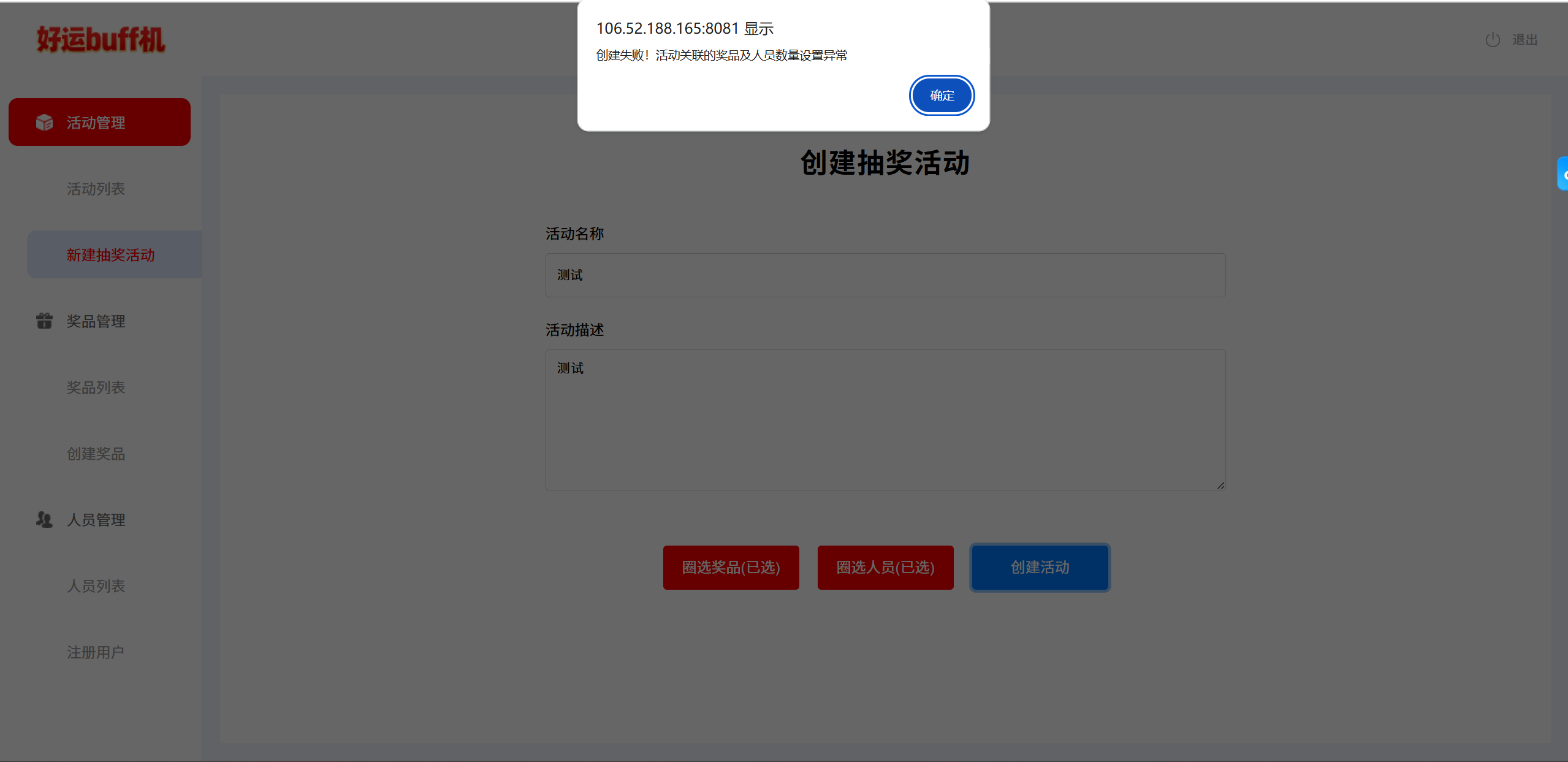

测试场景四：填写活动名称和奖品描述，圈选奖品，圈选人员（圈选人员人数比奖品少）

预测场景：弹窗提醒"创建失败！活动关联奖品及人员数量设置异常"

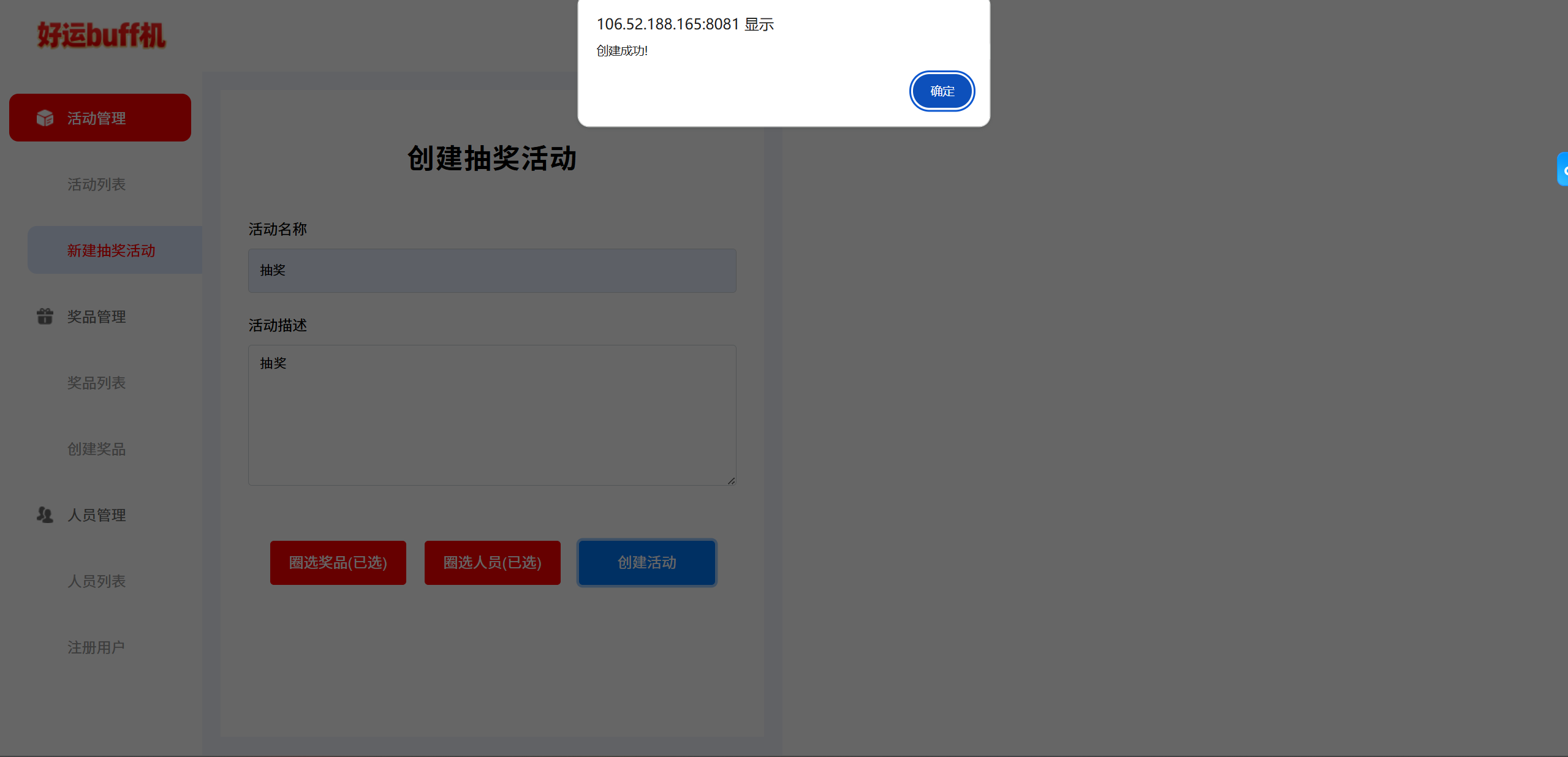

测试场景五：填写活动名称和奖品描述，圈选奖品，圈选人员（圈选人员人数比奖品多）

预测场景：弹窗提示创建成功，跳转活动列表

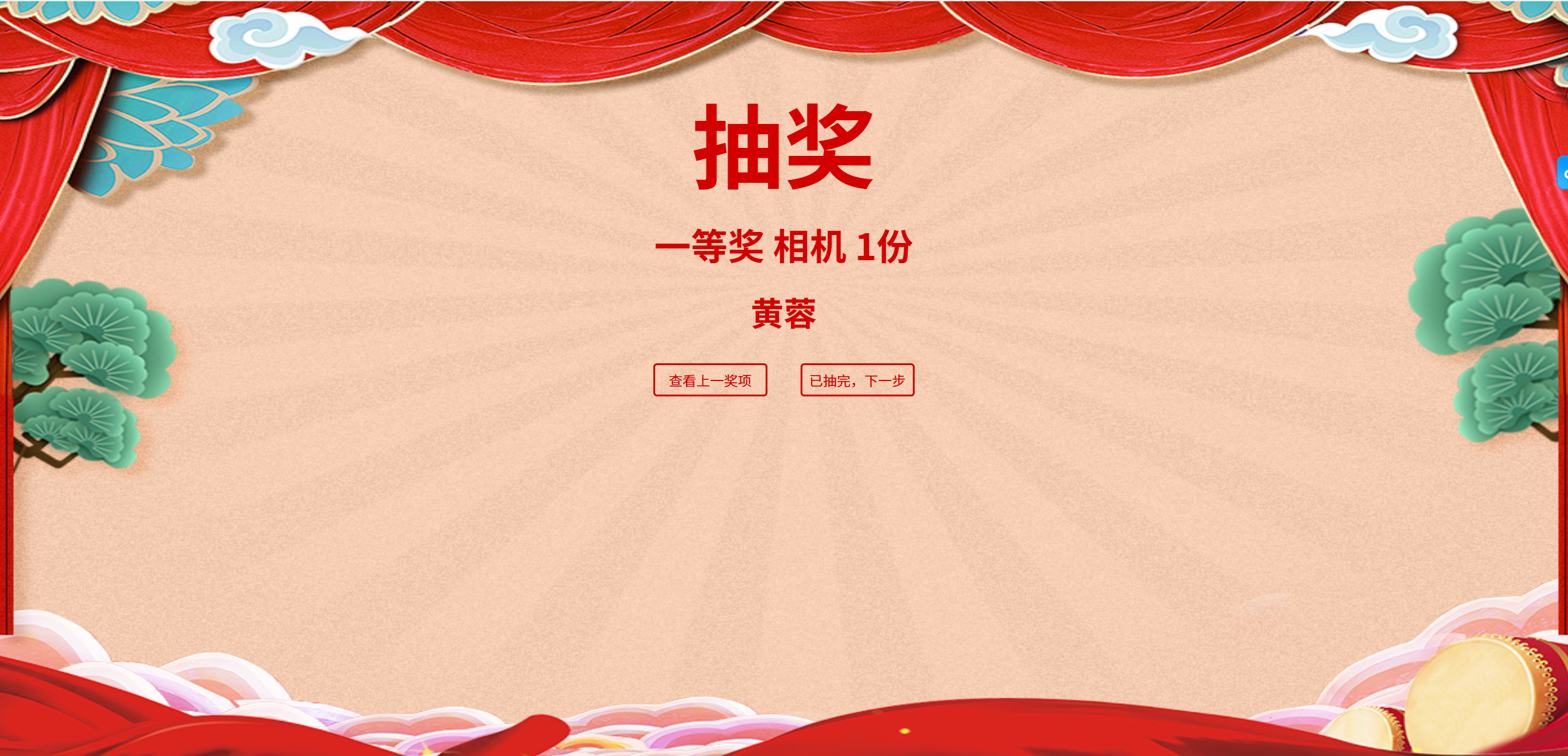

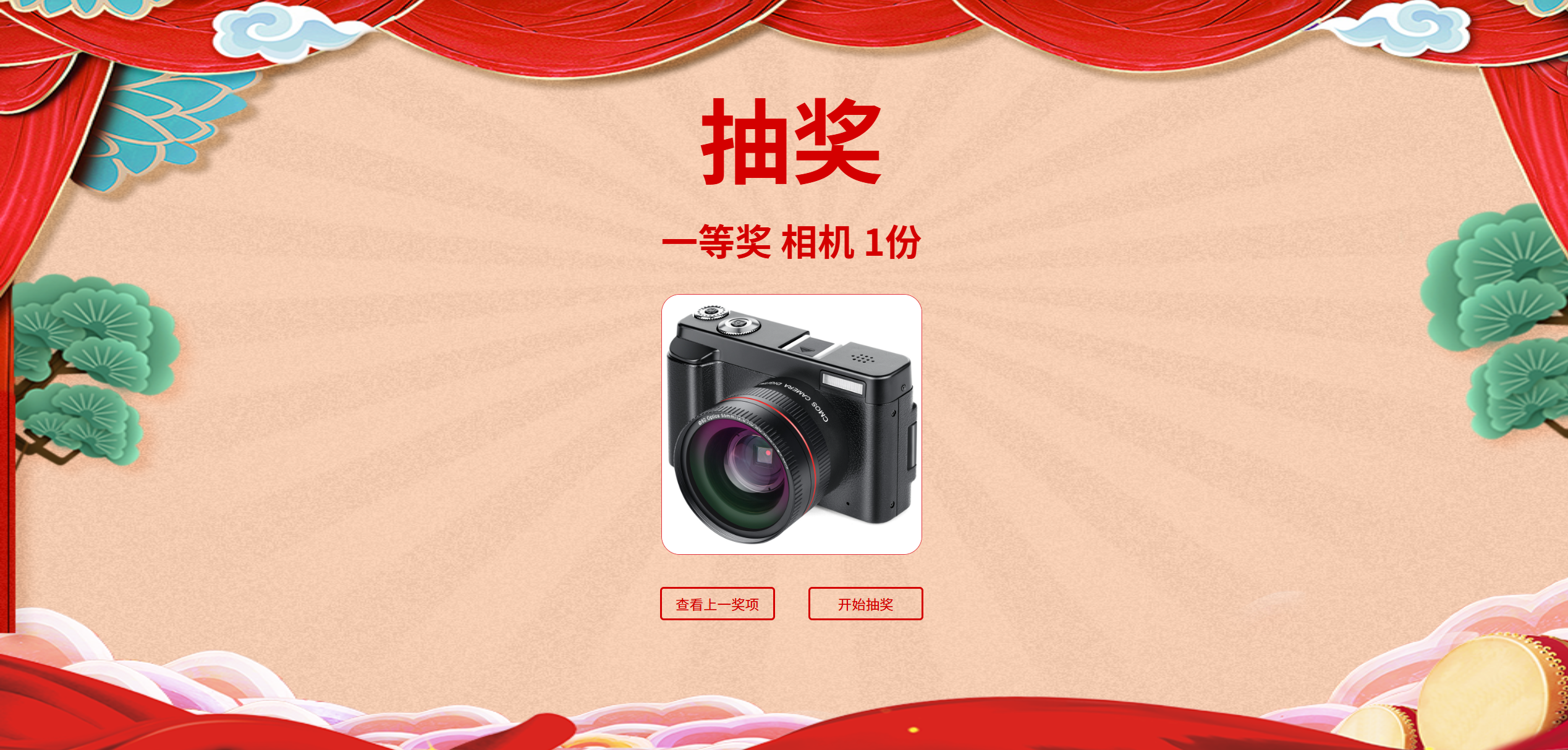

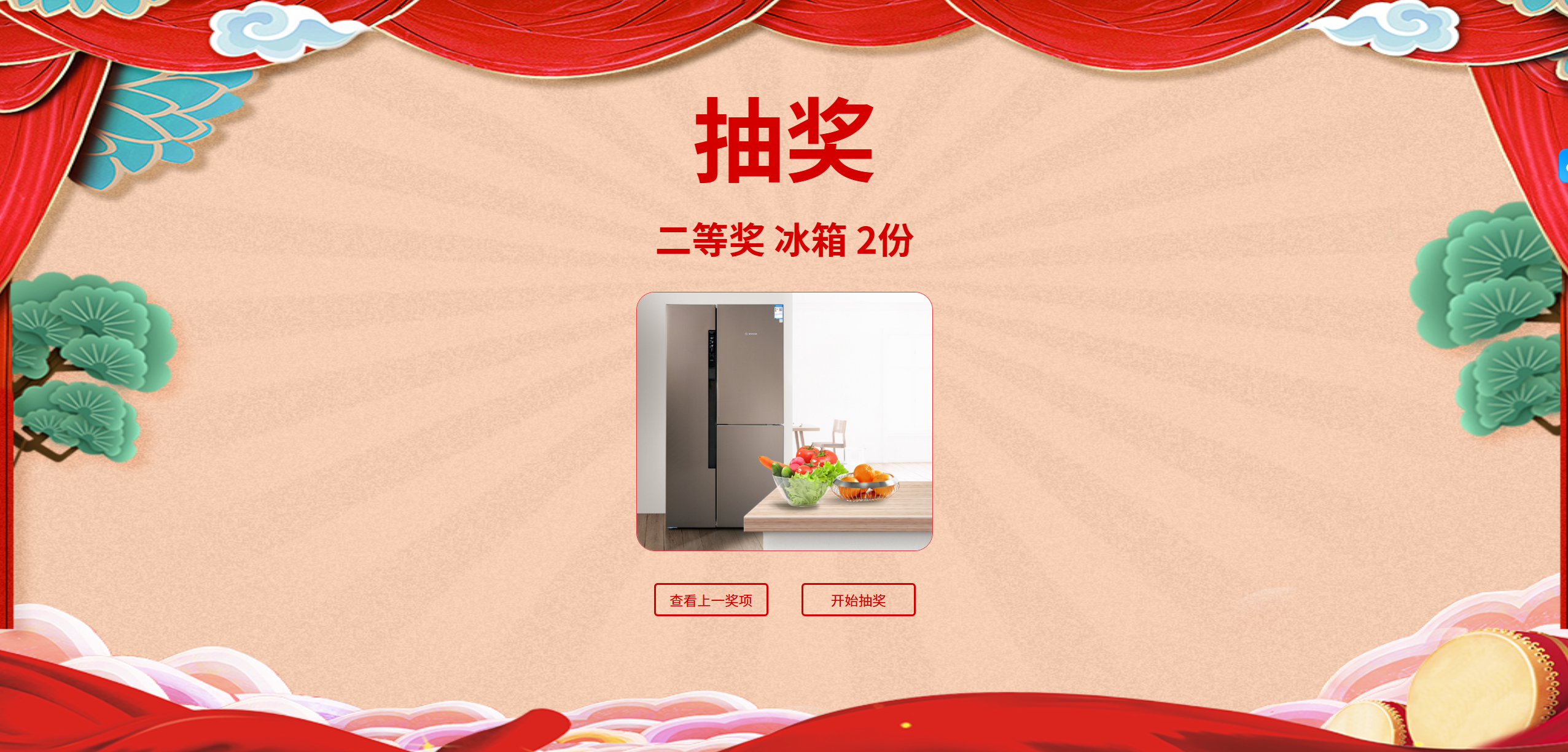

抽奖页面测试

测试场景一：正常抽奖流程

预期结果：展示中奖者名单

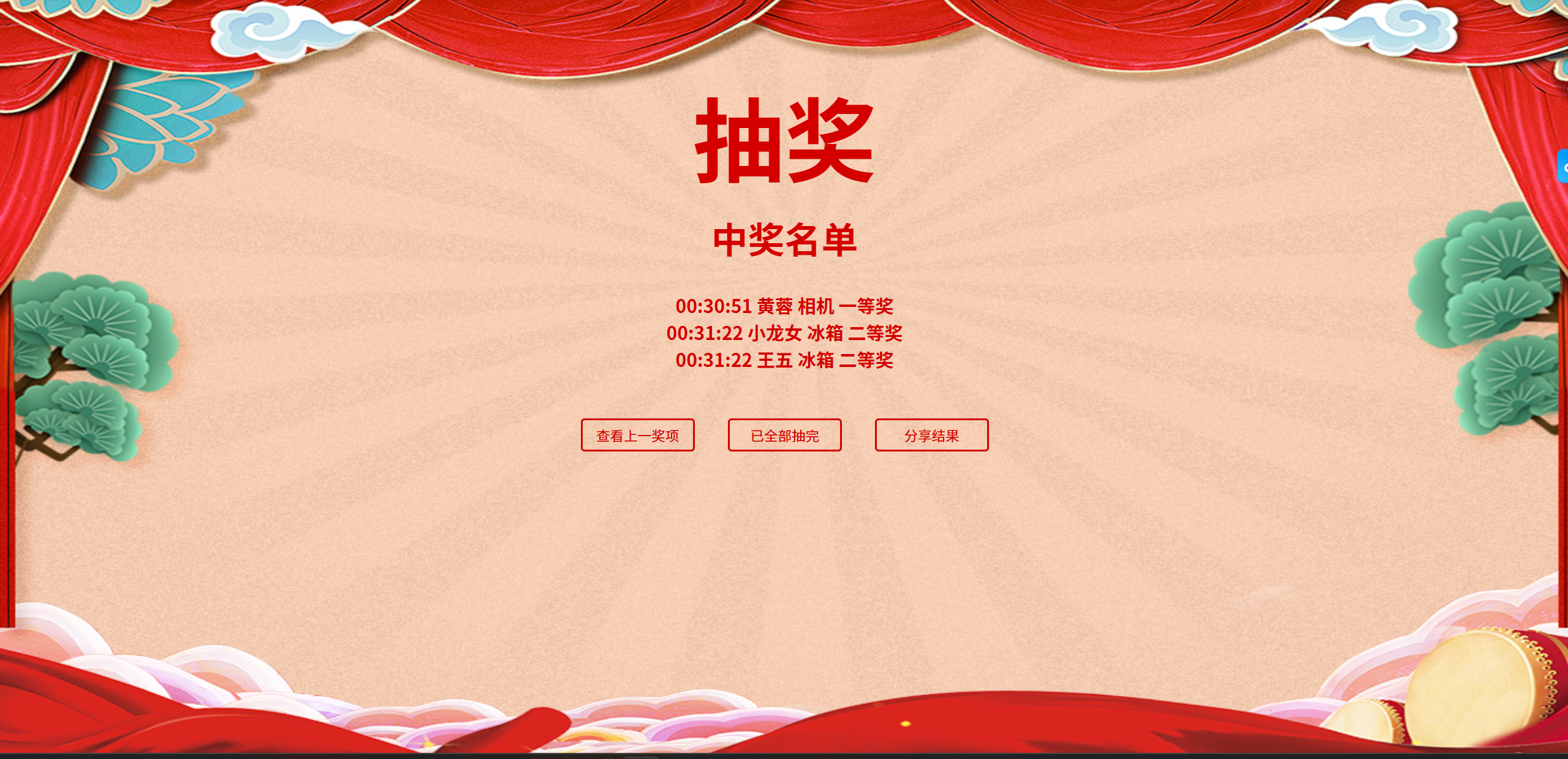

中奖者展示页面测试

测试用例一：查看抽奖结束后的名单

预期结果：展示名单

自动化测试

驱动类

package common;

import io.github.bonigarcia.wdm.WebDriverManager;
import org.apache.commons.io.FileUtils;
import org.openqa.selenium.OutputType;
import org.openqa.selenium.TakesScreenshot;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;

import java.io.File;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.time.Duration;

public class Utils {
    public static WebDriver driver;

    public static WebDriver createDriver(){
        if(driver == null){
            WebDriverManager.chromedriver().setup();
            ChromeOptions options = new ChromeOptions();
//            允许访问所有的链接
            options.addArguments("--remote-allow-orgins=*");
            driver = new ChromeDriver(options);
//            等待
            driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(2));
        }
        return  driver;
    }
    public Utils(String url){
//        调用driver对象
        driver = createDriver();
//        访问url
        driver.get(url);
    }

    public void getScreenShot(String str) throws IOException {

        //        屏幕截图
        SimpleDateFormat sim1 = new SimpleDateFormat("yyyy-MM-dd");
        SimpleDateFormat sim2 = new SimpleDateFormat("HHmmssSS");

        String dirTime = sim1.format(System.currentTimeMillis());
        String fileTime = sim2.format(System.currentTimeMillis());

        //./src/test/image/2024-07-17/test01-17453020.png
        String filename = "./src/test/image/"+ dirTime +"/"+ str + "-" +fileTime +fileTime+".png";
        File srcFile = ((TakesScreenshot)driver).getScreenshotAs(OutputType.FILE);
//        srcFile放到指定位置
        FileUtils.copyFile(srcFile,new File(filename));
    }
}

注册测试类

package tests;

import common.Utils;
import org.openqa.selenium.By;

public class RegisterPageTest extends Utils {
    private static String url = "http://106.52.188.165:8081/register.html?admin=true";
    public RegisterPageTest() {
        super(url);
    }
//    正常注册
    public  void checkRegisterPage(){
        driver.findElement(By.cssSelector("#name")).sendKeys("张三");
        driver.findElement(By.cssSelector("#mail")).sendKeys("125@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("18111111112");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        driver.switchTo().alert().accept();
        driver.quit();
    }
}

异常注册测试类

package tests;

import common.Utils;
import org.openqa.selenium.By;

public class ErrorRegisterPageTest extends Utils {
    private static String url = "http://106.52.188.165:8081/register.html?admin=true";
    public ErrorRegisterPageTest() {
        super(url);
    }

    public  void checkErrorRegisterPage(){
//        姓名为空
        driver.findElement(By.cssSelector("#name")).sendKeys("");
        driver.findElement(By.cssSelector("#mail")).sendKeys("126@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("1311111131111");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearElement();
//        邮箱为空
        driver.findElement(By.cssSelector("#name")).sendKeys("张三");
        driver.findElement(By.cssSelector("#mail")).sendKeys("");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("1311111113111");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearElement();
//        电话为空
        driver.findElement(By.cssSelector("#name")).sendKeys("张三");
        driver.findElement(By.cssSelector("#mail")).sendKeys("126@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearElement();
//        密码为空
        driver.findElement(By.cssSelector("#name")).sendKeys("张三");
        driver.findElement(By.cssSelector("#mail")).sendKeys("126@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("1311111113111");
        driver.findElement(By.cssSelector("#password")).sendKeys("");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearElement();
    //邮箱被使用过
        driver.findElement(By.cssSelector("#name")).sendKeys("张三");
        driver.findElement(By.cssSelector("#mail")).sendKeys("123@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("1311111113111");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearElement();
//        邮箱格式错误
        driver.findElement(By.cssSelector("#name")).sendKeys("张三");
        driver.findElement(By.cssSelector("#mail")).sendKeys("123");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("1311111113111");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearElement();
//        电话被使用过
        driver.findElement(By.cssSelector("#name")).sendKeys("张三");
        driver.findElement(By.cssSelector("#mail")).sendKeys("123");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("1311111111111");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearElement();
//        电话格式不正确
        driver.findElement(By.cssSelector("#name")).sendKeys("张三");
        driver.findElement(By.cssSelector("#mail")).sendKeys("123");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("1211111111111");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        driver.quit();
    }
//    清空输入的方法
    public static void clearElement(){
        driver.findElement(By.cssSelector("#name")).clear();
        driver.findElement(By.cssSelector("#mail")).clear();
        driver.findElement(By.cssSelector("#phoneNumber")).clear();
        driver.findElement(By.cssSelector("#password")).clear();
    }
}

登录测试

package tests;

import common.Utils;
import jdk.jshell.execution.Util;
import org.openqa.selenium.By;

public class LoginPageTest extends Utils {
private static String url = "http://106.52.188.165:8081/blogin.html";
    public LoginPageTest() {
        super(url);
    }

    //正常登录
    public void checkLogin(){
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("18111111112");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#loginForm > button")).click();
    }
}

异常登录测试

package tests;

import common.Utils;
import org.openqa.selenium.Alert;
import org.openqa.selenium.By;
import org.openqa.selenium.TimeoutException;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.time.Duration;

public class ErrorLoginPageTest extends Utils {
    private static String url = "http://106.52.188.165:8081/blogin.html";
    public ErrorLoginPageTest() {
        super(url);
    }

    public void checkErrorLoginPage(){

        //手机号为空
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#loginForm > button")).click();
        clearElement();

        //密码为空
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("18111111112");
        driver.findElement(By.cssSelector("#password")).sendKeys("");
        driver.findElement(By.cssSelector("#loginForm > button")).click();
        clearElement();

        //        手机号格式错误
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("1811111111");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#loginForm > button")).click();
        try {
            WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(10));
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());

            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearElement();

        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("12111111112");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456789");
        driver.findElement(By.cssSelector("#loginForm > button")).click();
        try {
            WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(10));
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());

            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearElement();


        //        密码错误
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("18111111112");
        driver.findElement(By.cssSelector("#password")).sendKeys("12345678");
        driver.findElement(By.cssSelector("#loginForm > button")).click();
        try {
            WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(10));
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());

            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearElement();
        driver.quit();
    }

    public void  clearElement(){
        driver.findElement(By.cssSelector("#phoneNumber")).clear();
        driver.findElement(By.cssSelector("#password")).clear();
    }
}

活动中心测试

package tests;

import common.Utils;
import jdk.jshell.execution.Util;
import org.openqa.selenium.Alert;
import org.openqa.selenium.By;
import org.openqa.selenium.JavascriptExecutor;
import org.openqa.selenium.TimeoutException;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.time.Duration;

public class ActivityCenterPageTest extends Utils {
    private static String url = "http://106.52.188.165:8081/admin.html";
    public ActivityCenterPageTest() {
        super(url);
    }

    //    正常添加工作人员
    public void checkPersonnelManagement(){
        WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(20));
        driver.findElement(By.cssSelector("#register")).click();
        wait.until(webDriver ->{
            JavascriptExecutor js = (JavascriptExecutor) webDriver;
            return "complete".equals(js.executeScript("return document.readyState"));
        });
        driver.switchTo().frame("contentFrame");
        driver.findElement(By.xpath("//*[@id=\"name\"]")).sendKeys("黄蓉");
        driver.findElement(By.xpath("//*[@id=\"mail\"]")).sendKeys("234@qq.com");
        driver.findElement(By.xpath("//*[@id=\"phoneNumber\"]")).sendKeys("13141111111");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        System.out.println(driver.getTitle());
        driver.quit();
    }


    //    正常添加奖品
    public void checkPrizeManagement(){
        WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(20));
        driver.findElement(By.cssSelector("body > div.cont-box > div.sidebar > ul > li:nth-child(2) > ul > li:nth-child(2) > a")).click();
        wait.until(webDriver ->{
            JavascriptExecutor js = (JavascriptExecutor) webDriver;
            return "complete".equals(js.executeScript("return document.readyState"));
        });

        driver.switchTo().frame("contentFrame");
        driver.findElement(By.cssSelector("#prizeName")).sendKeys("相机");
        driver.findElement(By.cssSelector("#prizeImageUrl")).sendKeys("D:/PIC/prize.jpg");
        driver.findElement(By.cssSelector("#price")).sendKeys("2200");
        driver.findElement(By.cssSelector("#description")).sendKeys("索尼相机");
        driver.findElement(By.cssSelector("body > div > button")).click();
        driver.switchTo().alert().accept();
        System.out.println(driver.getTitle());
    }

    //    活动管理测试
    public void checkActivityManagement(){
        WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(20));
        driver.findElement(By.cssSelector("#createActivity")).click();
        wait.until(webDriver ->{
            JavascriptExecutor js = (JavascriptExecutor) webDriver;
            return "complete".equals(js.executeScript("return document.readyState"));
        });

        //活动名称和描述
        driver.switchTo().frame("contentFrame");
        driver.findElement(By.cssSelector("#activityName")).sendKeys("测试");
        driver.findElement(By.cssSelector("#description")).sendKeys("测试测试");

        //圈选奖品
        driver.findElement(By.cssSelector("#buttonPrizes")).click();
        driver.findElement(By.cssSelector("#prize-20")).click();
        driver.findElement(By.cssSelector("#prize-21")).click();
        driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > select")).click();
        driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).clear();
        driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).sendKeys("2");
        driver.findElement(By.cssSelector("#prizesModal > div > div.form-btn-box > button.btn.btn-primary")).click();

        //圈选人员
        driver.findElement(By.cssSelector("#buttonUsers")).click();
        driver.findElement(By.cssSelector("#user-44")).click();
        driver.findElement(By.cssSelector("#user-42")).click();
        driver.findElement(By.cssSelector("#user-41")).click();
        driver.findElement(By.cssSelector("#usersModal > div > div.form-btn-box > button.btn.btn-primary")).click();

        //创建活动
        driver.findElement(By.cssSelector("#createActivity")).click();
        //处理弹窗
        try {
            wait = new WebDriverWait(driver, Duration.ofSeconds(10));
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());

            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
    }
}

异常活动中心测试

package tests;

import common.Utils;
import org.openqa.selenium.Alert;
import org.openqa.selenium.By;
import org.openqa.selenium.JavascriptExecutor;
import org.openqa.selenium.TimeoutException;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.time.Duration;

public class ErrorActivityCenterPageTest extends Utils {
    private static String url = "http://106.52.188.165:8081/admin.html";
    public ErrorActivityCenterPageTest() {
        super(url);
    }
    public void checkErrorPersonnelManagement(){
        WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(20));
        driver.findElement(By.cssSelector("#register")).click();

        wait.until(webDriver ->{
            JavascriptExecutor js = (JavascriptExecutor) webDriver;
            return "complete".equals(js.executeScript("return document.readyState"));
        });
        driver.switchTo().frame("contentFrame");
        //        名字为空
        driver.findElement(By.cssSelector("#name")).sendKeys("");
        driver.findElement(By.cssSelector("#mail")).sendKeys("235@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("13141111112");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearPersonalElement();
        //邮箱为空
        driver.findElement(By.cssSelector("#name")).sendKeys("李四");
        driver.findElement(By.cssSelector("#mail")).sendKeys("");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("13141111112");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearPersonalElement();
        //手机为空
        driver.findElement(By.cssSelector("#name")).sendKeys("李四");
        driver.findElement(By.cssSelector("#mail")).sendKeys("235@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearPersonalElement();
        //邮箱格式不正确
        driver.findElement(By.cssSelector("#name")).sendKeys("李四");
        driver.findElement(By.cssSelector("#mail")).sendKeys("123");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("13141111112");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        clearPersonalElement();
        //手机格式不正确
        driver.findElement(By.cssSelector("#name")).sendKeys("李四");
        driver.findElement(By.cssSelector("#mail")).sendKeys("345@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("1314111111");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        try {
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());
            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearPersonalElement();
        //邮箱被使用过
        driver.findElement(By.cssSelector("#name")).sendKeys("李四");
        driver.findElement(By.cssSelector("#mail")).sendKeys("123@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("13141111112");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        try {
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());
            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearPersonalElement();
        //手机被使用过
        driver.findElement(By.cssSelector("#name")).sendKeys("李四");
        driver.findElement(By.cssSelector("#mail")).sendKeys("321@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("13111111111");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        try {
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());
            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearPersonalElement();
    }


    //清空添加人员的方法
    public void clearPersonalElement(){
        driver.findElement(By.xpath("//*[@id=\"name\"]")).clear();
        driver.findElement(By.xpath("//*[@id=\"mail\"]")).clear();
        driver.findElement(By.xpath("//*[@id=\"phoneNumber\"]")).clear();
    }

    //    测试异常添加奖品的方法
    public void checkErrorPrizeManagement(){
        WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(20));
        driver.findElement(By.cssSelector("body > div.cont-box > div.sidebar > ul > li:nth-child(2) > ul > li:nth-child(2) > a")).click();
        wait.until(webDriver ->{
            JavascriptExecutor js = (JavascriptExecutor) webDriver;
            return "complete".equals(js.executeScript("return document.readyState"));
        });

        driver.switchTo().frame("contentFrame");

//        没有奖品名称
        driver.findElement(By.cssSelector("#prizeName")).sendKeys("");
        driver.findElement(By.cssSelector("#prizeImageUrl")).sendKeys("D:/PIC/prize.jpg");
        driver.findElement(By.cssSelector("#price")).sendKeys("2200");
        driver.findElement(By.cssSelector("#description")).sendKeys("索尼相机");
        driver.findElement(By.cssSelector("body > div > button")).click();
        try {
             wait = new WebDriverWait(driver, Duration.ofSeconds(10));
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());

            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearPrizeElement();

        //        没有照片
        driver.findElement(By.cssSelector("#prizeName")).sendKeys("相机");
        driver.findElement(By.cssSelector("#prizeImageUrl")).sendKeys("");
        driver.findElement(By.cssSelector("#price")).sendKeys("2200");
        driver.findElement(By.cssSelector("#description")).sendKeys("索尼相机");
        driver.findElement(By.cssSelector("body > div > button")).click();
        try {
            wait = new WebDriverWait(driver, Duration.ofSeconds(10));
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());

            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearPrizeElement();
//        没有价格
        driver.findElement(By.cssSelector("#prizeName")).sendKeys("相机");
        driver.findElement(By.cssSelector("#prizeImageUrl")).sendKeys("D:/PIC/prize.jpg");
        driver.findElement(By.cssSelector("#price")).sendKeys("");
        driver.findElement(By.cssSelector("#description")).sendKeys("索尼相机");
        driver.findElement(By.cssSelector("body > div > button")).click();
        try {
            wait = new WebDriverWait(driver, Duration.ofSeconds(10));
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());

            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearPrizeElement();

        //        没有奖品描述
        driver.findElement(By.cssSelector("#prizeName")).sendKeys("相机");
        driver.findElement(By.cssSelector("#prizeImageUrl")).sendKeys("D:/PIC/prize.jpg");
        driver.findElement(By.cssSelector("#price")).sendKeys("2200");
        driver.findElement(By.cssSelector("#description")).sendKeys("");
        driver.findElement(By.cssSelector("body > div > button")).click();
        try {
            wait = new WebDriverWait(driver, Duration.ofSeconds(10));
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());

            // 处理弹窗
            System.out.println("弹窗文本: " + alert.getText());
            alert.accept(); // 或 alert.dismiss()

        } catch (TimeoutException e) {
            System.out.println("10秒内未检测到弹窗");
        }
        clearPrizeElement();

    }
    public void  clearPrizeElement(){
        driver.findElement(By.cssSelector("#prizeName")).clear();
        driver.findElement(By.cssSelector("#prizeImageUrl")).clear();
        driver.findElement(By.cssSelector("#price")).clear();
        driver.findElement(By.cssSelector("#description")).clear();
    }

//    异常活动管理测试
public void checkErrorActivityManagement(){

    WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(20));
    driver.findElement(By.cssSelector("#createActivity")).click();
    wait.until(webDriver ->{
        JavascriptExecutor js = (JavascriptExecutor) webDriver;
        return "complete".equals(js.executeScript("return document.readyState"));
    });

    //没有活动名称
    //活动名称和描述
    driver.switchTo().frame("contentFrame");
    driver.findElement(By.cssSelector("#description")).sendKeys("测试测试");

    //圈选奖品
    driver.findElement(By.cssSelector("#buttonPrizes")).click();
    driver.findElement(By.cssSelector("#prize-20")).click();
    driver.findElement(By.cssSelector("#prize-21")).click();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > select")).click();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).clear();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).sendKeys("2");
    driver.findElement(By.cssSelector("#prizesModal > div > div.form-btn-box > button.btn.btn-primary")).click();

    //圈选人员
    driver.findElement(By.cssSelector("#buttonUsers")).click();
    driver.findElement(By.cssSelector("#user-44")).click();
    driver.findElement(By.cssSelector("#user-42")).click();
    driver.findElement(By.cssSelector("#user-41")).click();
    driver.findElement(By.cssSelector("#usersModal > div > div.form-btn-box > button.btn.btn-primary")).click();

    //创建活动
    driver.findElement(By.cssSelector("#createActivity")).click();

    clearActivityElements();

    //没有活动描述
    //活动名称和描述

    driver.findElement(By.cssSelector("#activityName")).sendKeys("测试");
    driver.findElement(By.cssSelector("#description")).sendKeys("");

    //圈选奖品
    driver.findElement(By.cssSelector("#buttonPrizes")).click();
    driver.findElement(By.cssSelector("#prize-20")).click();
    driver.findElement(By.cssSelector("#prize-21")).click();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > select")).click();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).clear();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).sendKeys("2");
    driver.findElement(By.cssSelector("#prizesModal > div > div.form-btn-box > button.btn.btn-primary")).click();

    //圈选人员
    driver.findElement(By.cssSelector("#buttonUsers")).click();
    driver.findElement(By.cssSelector("#user-44")).click();
    driver.findElement(By.cssSelector("#user-42")).click();
    driver.findElement(By.cssSelector("#user-41")).click();
    driver.findElement(By.cssSelector("#usersModal > div > div.form-btn-box > button.btn.btn-primary")).click();

    //创建活动
    driver.findElement(By.cssSelector("#createActivity")).click();
    clearActivityElements();

    //没有圈选奖品
    driver.findElement(By.cssSelector("#activityName")).sendKeys("测试");
    driver.findElement(By.cssSelector("#description")).sendKeys("测试测试");

    //圈选奖品
    //圈选人员
    driver.findElement(By.cssSelector("#buttonUsers")).click();
    driver.findElement(By.cssSelector("#user-44")).click();
    driver.findElement(By.cssSelector("#user-42")).click();
    driver.findElement(By.cssSelector("#user-41")).click();
    driver.findElement(By.cssSelector("#usersModal > div > div.form-btn-box > button.btn.btn-primary")).click();

    //创建活动
    driver.findElement(By.cssSelector("#createActivity")).click();

    //处理弹窗
    try {
         wait = new WebDriverWait(driver, Duration.ofSeconds(10));
        Alert alert = wait.until(ExpectedConditions.alertIsPresent());

        // 处理弹窗
        System.out.println("弹窗文本: " + alert.getText());
        alert.accept(); // 或 alert.dismiss()

    } catch (TimeoutException e) {
        System.out.println("10秒内未检测到弹窗");
    }

    clearActivityElements();

    //没有圈选人员
    driver.findElement(By.cssSelector("#activityName")).sendKeys("测试");
    driver.findElement(By.cssSelector("#description")).sendKeys("测试测试");

    //圈选奖品
    driver.findElement(By.cssSelector("#buttonPrizes")).click();
    driver.findElement(By.cssSelector("#prize-20")).click();
    driver.findElement(By.cssSelector("#prize-21")).click();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > select")).click();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).clear();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).sendKeys("2");
    driver.findElement(By.cssSelector("#prizesModal > div > div.form-btn-box > button.btn.btn-primary")).click();

    //圈选人员

    //创建活动
    driver.findElement(By.cssSelector("#createActivity")).click();

    //处理弹窗
    try {
        wait = new WebDriverWait(driver, Duration.ofSeconds(10));
        Alert alert = wait.until(ExpectedConditions.alertIsPresent());

        // 处理弹窗
        System.out.println("弹窗文本: " + alert.getText());
        alert.accept(); // 或 alert.dismiss()

    } catch (TimeoutException e) {
        System.out.println("10秒内未检测到弹窗");
    }
    clearActivityElements();

    //奖品数量 > 人员数量
    driver.findElement(By.cssSelector("#activityName")).sendKeys("测试");
    driver.findElement(By.cssSelector("#description")).sendKeys("测试测试");

    //圈选奖品
    driver.findElement(By.cssSelector("#buttonPrizes")).click();
    driver.findElement(By.cssSelector("#prize-20")).click();
    driver.findElement(By.cssSelector("#prize-21")).click();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > select")).click();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).clear();
    driver.findElement(By.cssSelector("#prizesContainer > div:nth-child(1) > input.form-control")).sendKeys("3");
    driver.findElement(By.cssSelector("#prizesModal > div > div.form-btn-box > button.btn.btn-primary")).click();

    //圈选人员
    driver.findElement(By.cssSelector("#buttonUsers")).click();
    driver.findElement(By.cssSelector("#user-44")).click();
    driver.findElement(By.cssSelector("#user-42")).click();
    driver.findElement(By.cssSelector("#user-41")).click();
    driver.findElement(By.cssSelector("#usersModal > div > div.form-btn-box > button.btn.btn-primary")).click();

    //创建活动
    driver.findElement(By.cssSelector("#createActivity")).click();

    //处理弹窗
    try {
        wait = new WebDriverWait(driver, Duration.ofSeconds(10));
        Alert alert = wait.until(ExpectedConditions.alertIsPresent());

        // 处理弹窗
        System.out.println("弹窗文本: " + alert.getText());
        alert.accept(); // 或 alert.dismiss()

    } catch (TimeoutException e) {
        System.out.println("10秒内未检测到弹窗");
    }
    clearActivityElements();

    driver.quit();
    }
    public void clearActivityElements(){
        driver.findElement(By.cssSelector("#activityName")).clear();
        driver.findElement(By.cssSelector("#description")).clear();
        driver.findElement(By.cssSelector("#buttonPrizes")).click();
        driver.findElement(By.cssSelector("#prize-20")).click();
        driver.findElement(By.cssSelector("#prize-21")).click();
        driver.findElement(By.cssSelector("#prizesModal > div > div.form-btn-box > button.btn.btn-primary")).click();
        driver.findElement(By.cssSelector("#buttonUsers")).click();
        driver.findElement(By.cssSelector("#user-44")).click();
        driver.findElement(By.cssSelector("#user-42")).click();
        driver.findElement(By.cssSelector("#user-41")).click();
        driver.findElement(By.cssSelector("#usersModal > div > div.form-btn-box > button.btn.btn-primary")).click();
    }
}

抽奖测试

package tests;

import common.Utils;
import org.openqa.selenium.By;
import org.openqa.selenium.JavascriptExecutor;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.time.Duration;
import java.util.Set;

public class LotteryPageTest extends Utils {
    private static String url = "http://106.52.188.165:8081/admin.html";
    public LotteryPageTest() {
        super(url);
    }

    public void checkLotterySystem(){
        WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(20));
        driver.findElement(By.cssSelector("#activitiesList")).click();
        wait.until(webDriver ->{
            JavascriptExecutor js = (JavascriptExecutor) webDriver;
            return "complete".equals(js.executeScript("return document.readyState"));
        });

        driver.switchTo().frame("contentFrame");
        String preHandle = driver.getWindowHandle();

        driver.findElement(By.cssSelector("#activities > div:nth-child(2) > div.active > p > a")).click();

        Set<String> windowHandles = driver.getWindowHandles();
        for (String curHandler:windowHandles){
            if(curHandler != preHandle){
                driver.switchTo().window(curHandler);
            }
        }

        driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).click();
        driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).click();
        driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).click();
        driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).click();
        driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).click();
        driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).click();
        driver.quit();
    }
}

执行测试

import tests.*;

public class RunTest {
    public static void main(String[] args) {

//        正常注册测试
//        RegisterPageTest registerPageTest = new RegisterPageTest();
//        registerPageTest.checkRegisterPage();

//        异常注册测试
//        ErrorRegisterPageTest errorRegisterPageTest = new ErrorRegisterPageTest();
//        errorRegisterPageTest.checkErrorRegisterPage();

//        正常登陆测试
        LoginPageTest loginPageTest = new LoginPageTest();
        loginPageTest.checkLogin();

//        异常登录测试
//        ErrorLoginPageTest errorLoginPageTest = new ErrorLoginPageTest();
//        errorLoginPageTest.checkErrorLoginPage();

//        活动中心测试
//        ActivityCenterPageTest activityCenterPageTest = new ActivityCenterPageTest();
//        人员管理测试
//        activityCenterPageTest.checkPersonnelManagement();
//        奖品管理测试
//        activityCenterPageTest.checkPrizeManagement();
//        活动管理测试
//        activityCenterPageTest.checkActivityManagement();

//        异常活动中心测试
//        ErrorActivityCenterPageTest errorActivityCenterPageTest = new ErrorActivityCenterPageTest();
//        异常人员管理测试
//        errorActivityCenterPageTest.checkErrorPersonnelManagement();
//        异常奖品管理测试
//        errorActivityCenterPageTest.checkErrorPrizeManagement();
//        异常活动管理测试
//        errorActivityCenterPageTest.checkErrorActivityManagement();

//        抽奖测试
        LotteryPageTest lotteryPageTest = new LotteryPageTest();
        lotteryPageTest.checkLotterySystem();
    }
}

性能测试

使用Jmeter对项目进行测试

接口测试

管理员注册接口测试

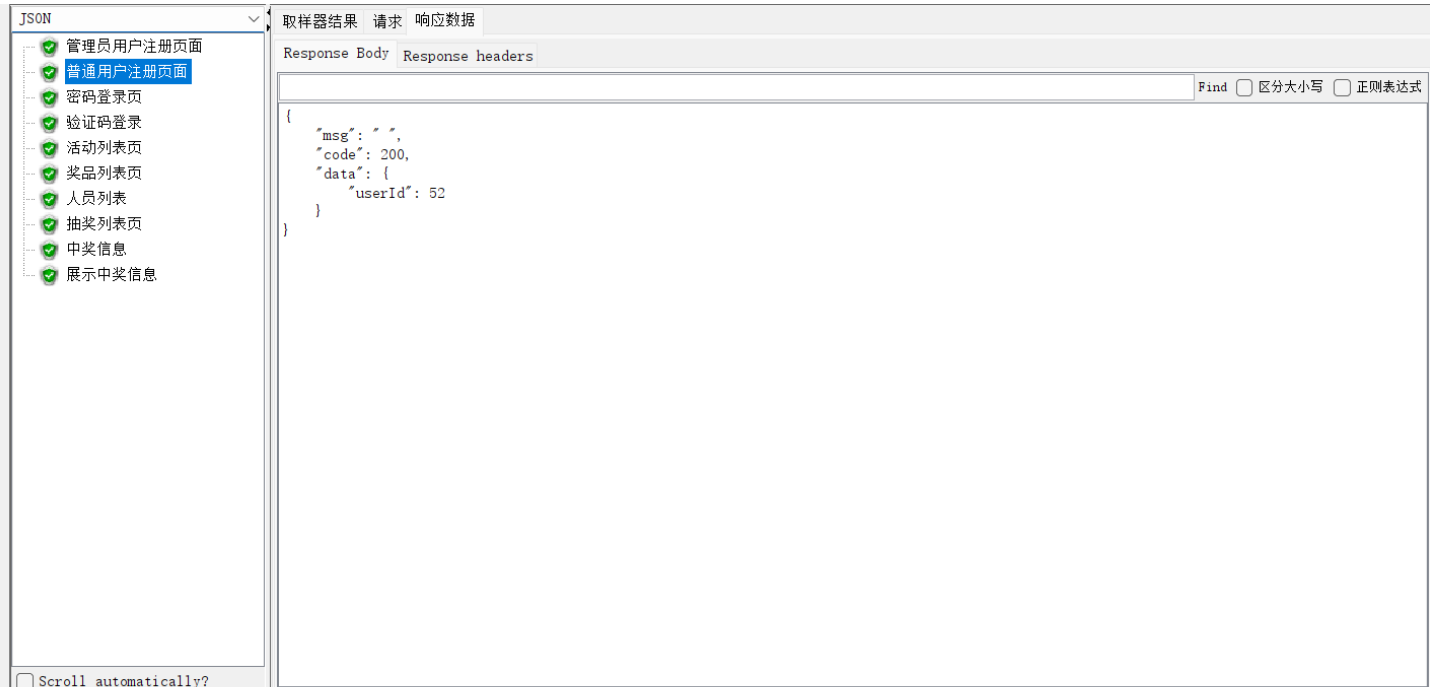

普通用户注册接口测试

密码登录接口测试

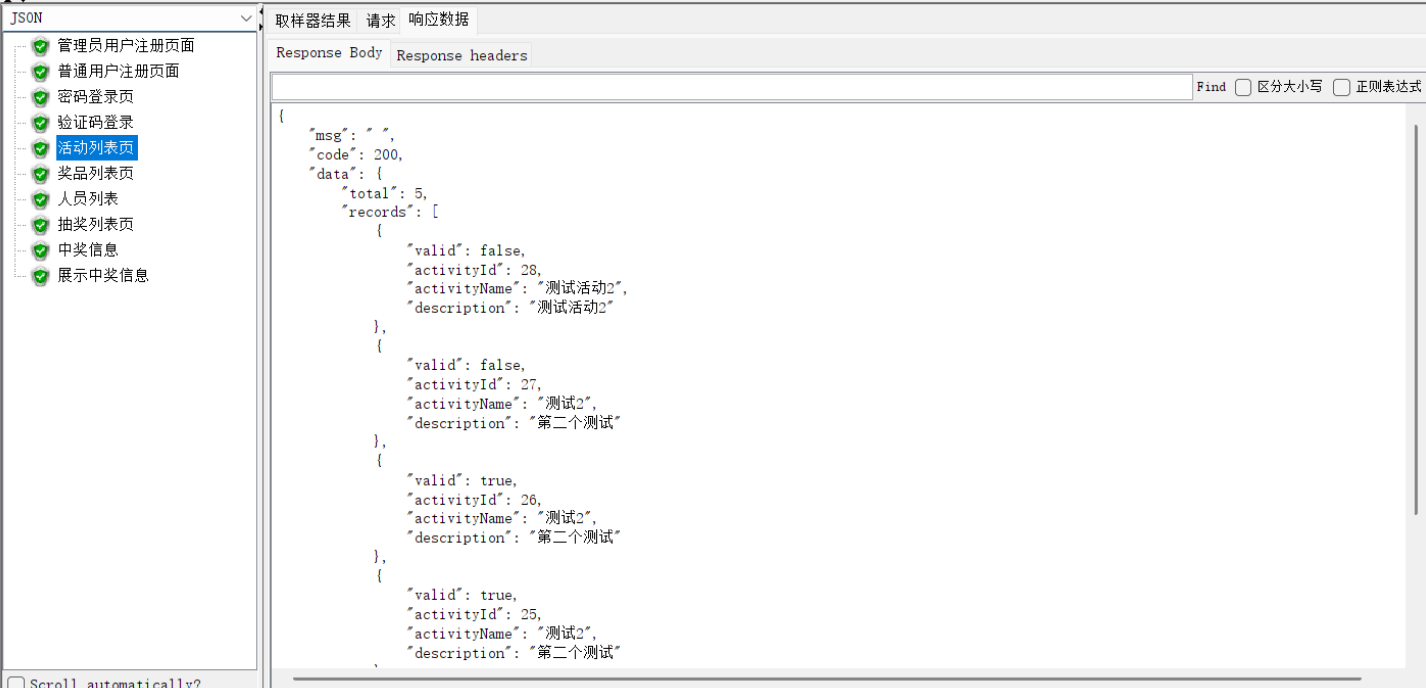

获取活动列表接口测试

获取奖品列表接口测试

获取人员列表接口测试

获取抽奖活动页列表

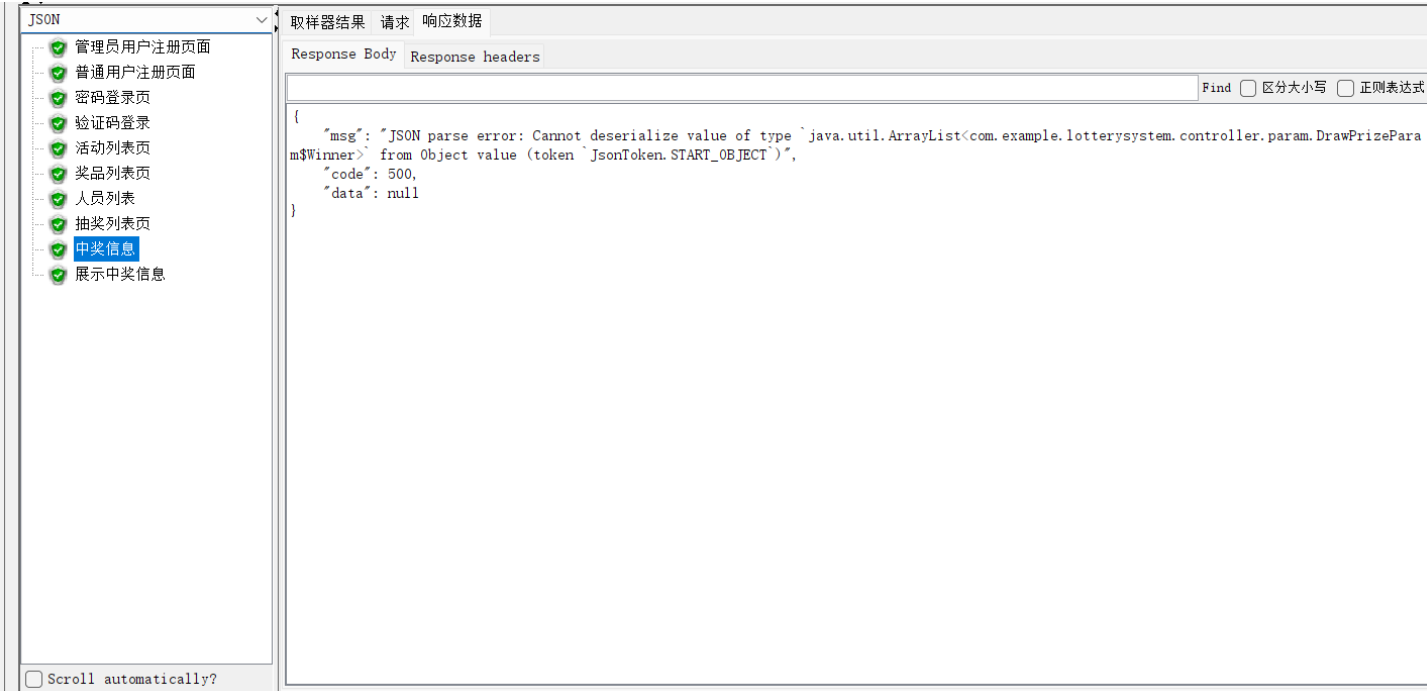

获取中奖信息

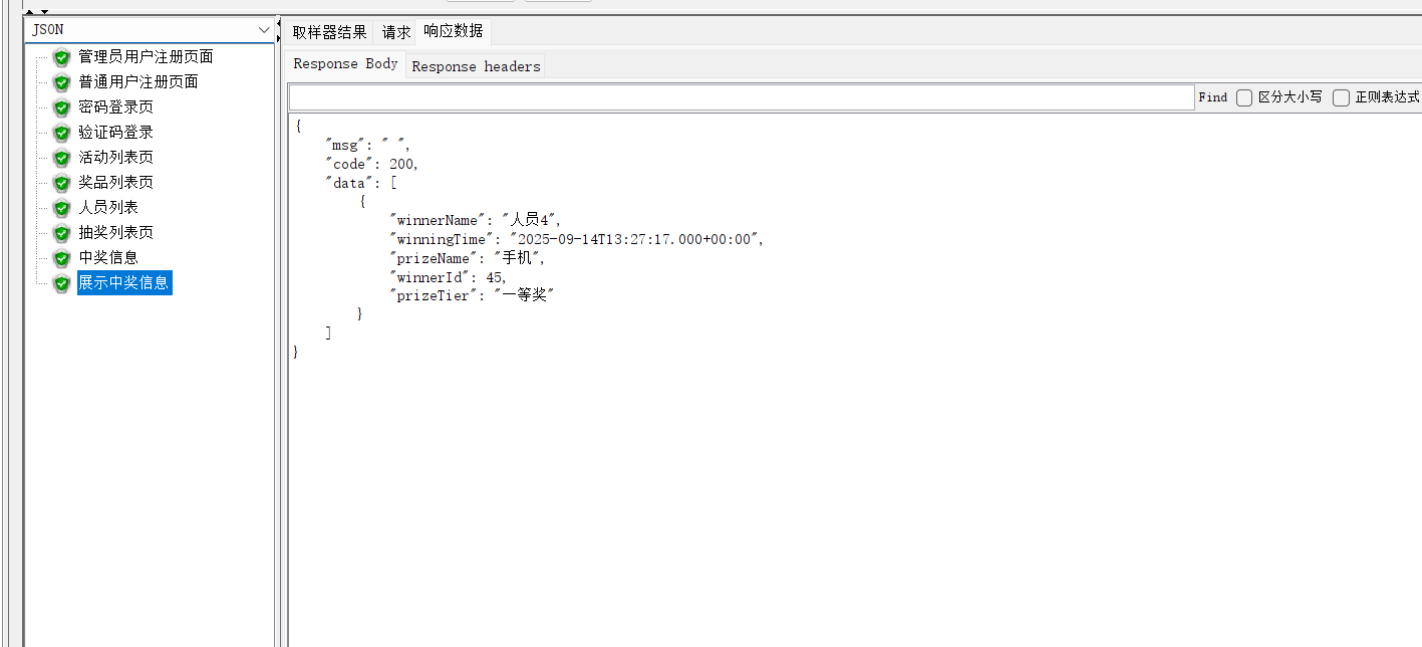

展示中奖信息

负载测试

聚合报告

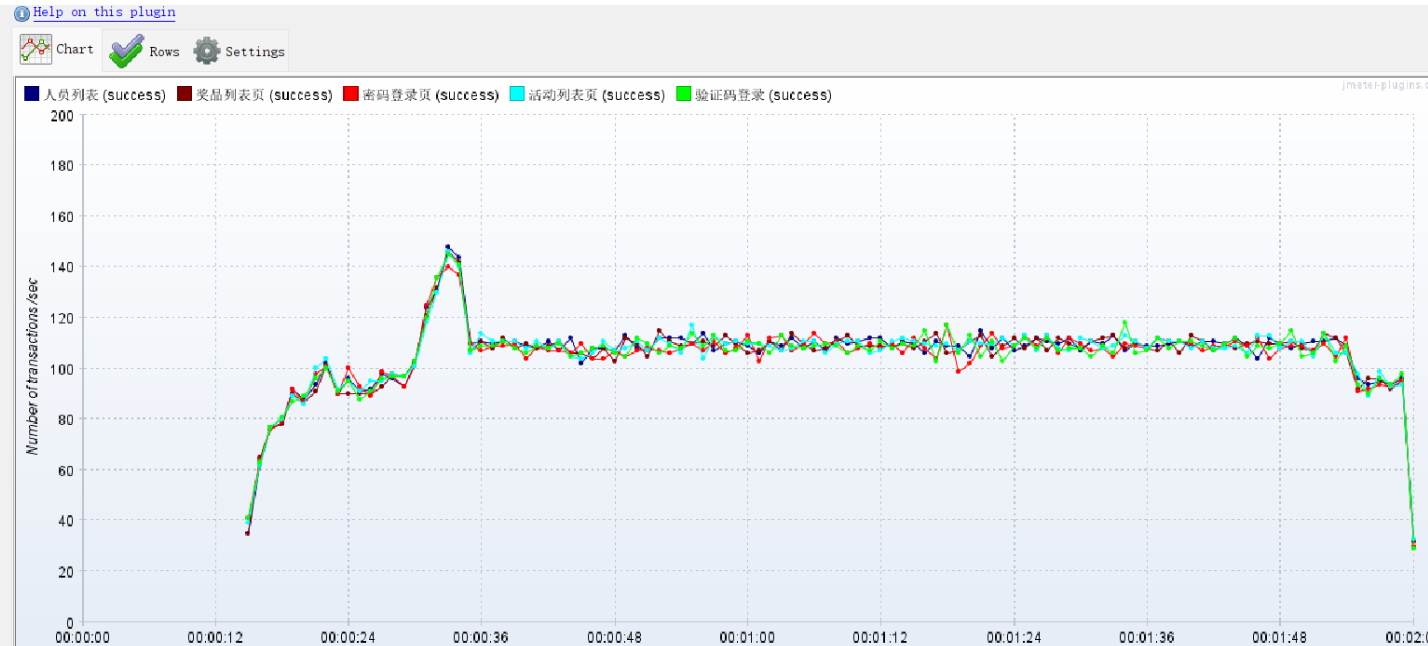

TPS

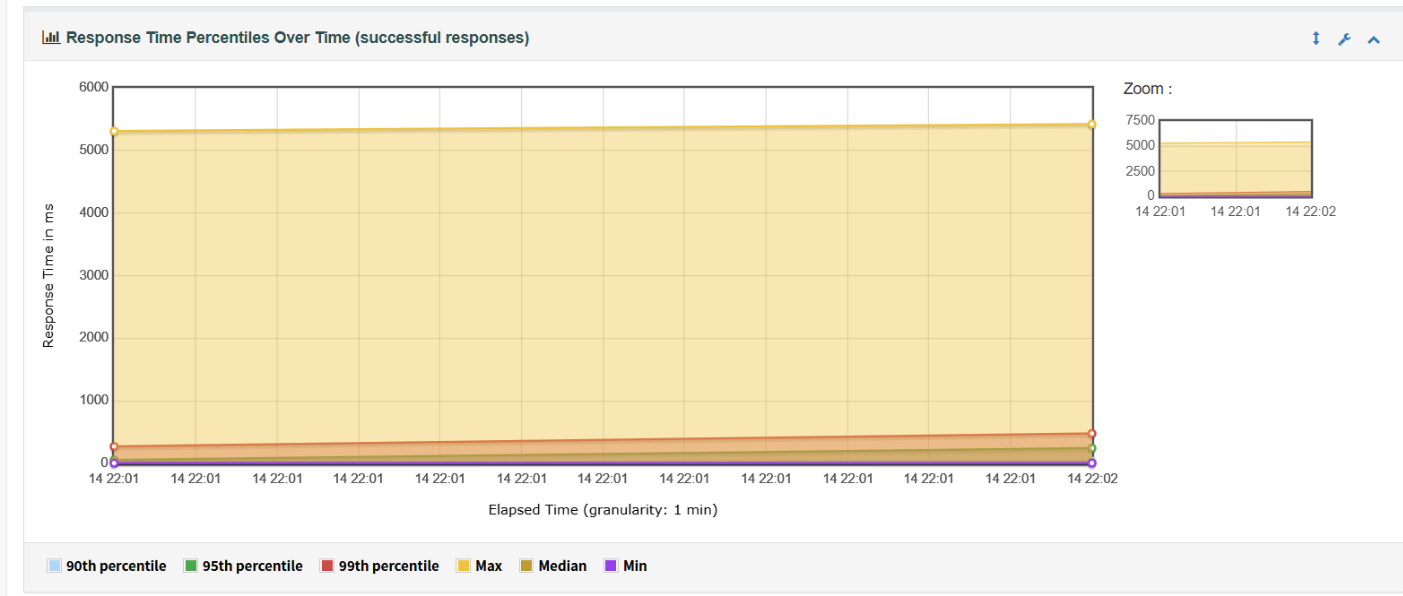

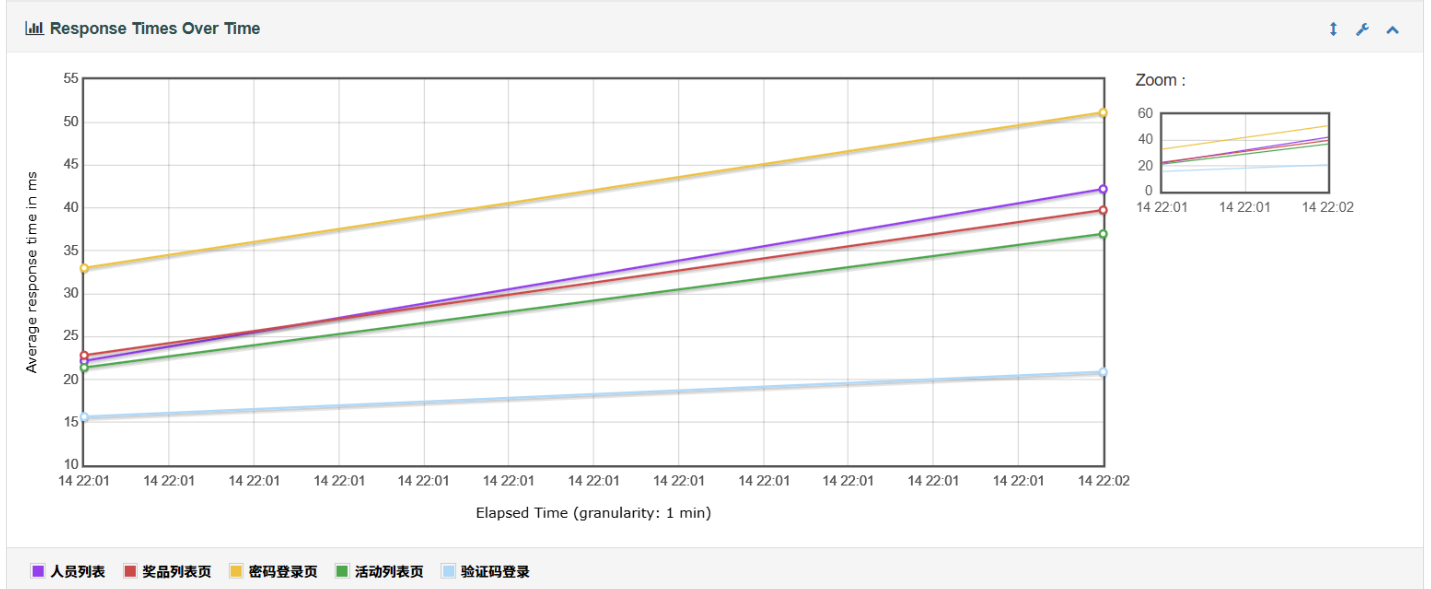

响应时间

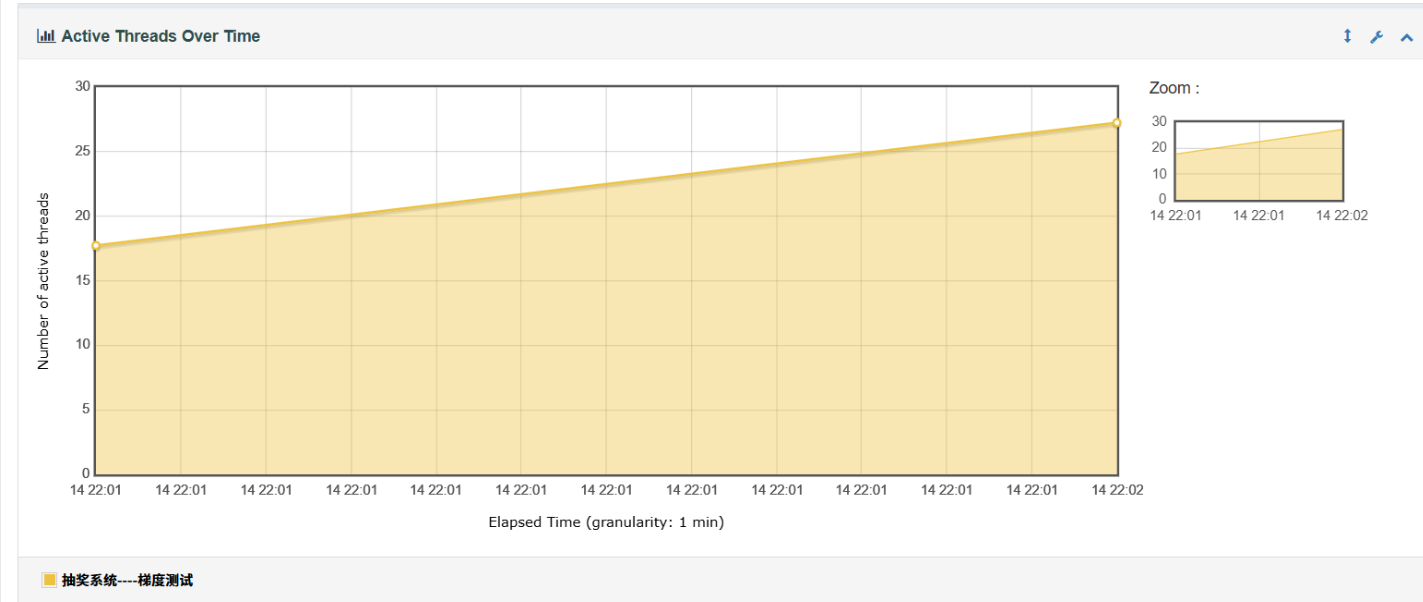

活跃线程

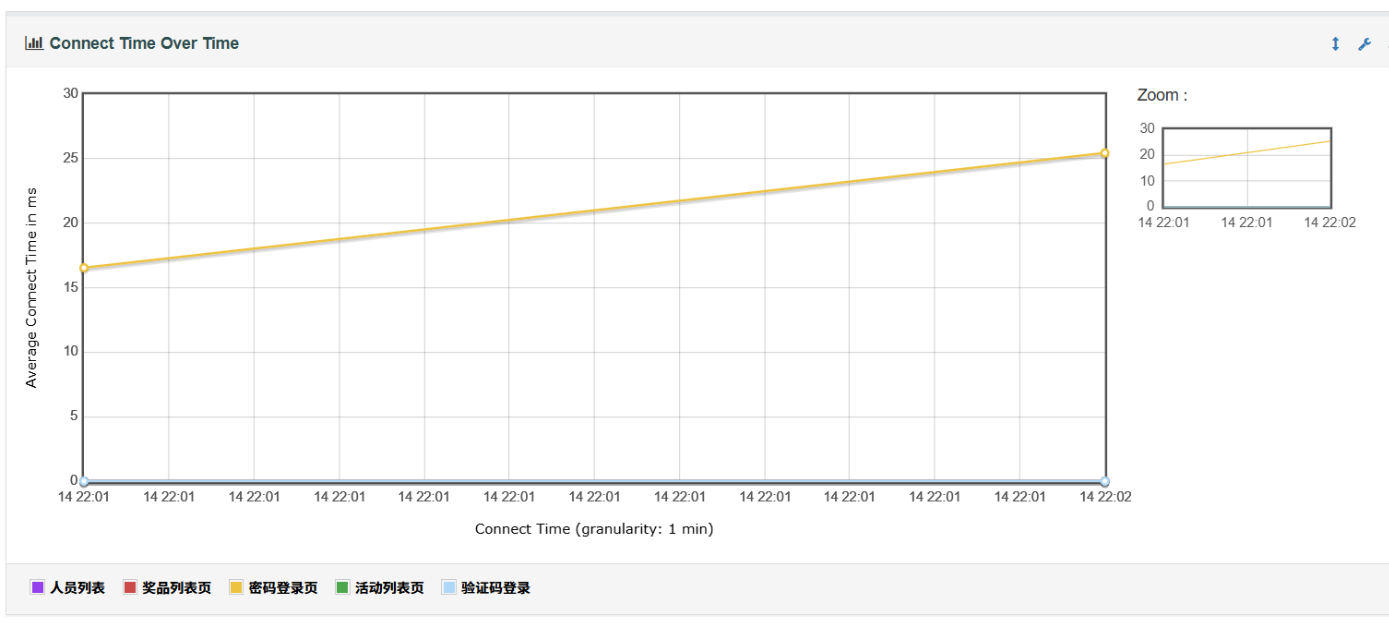

性能报告

兼容性测试

测试场景一：在Edge浏览器中打开好运buff机

预期场景：正常打开

测试场景二：在MAC（UNIX操作系统下）中打开好运buff机

预期场景：正常打开

安全测试

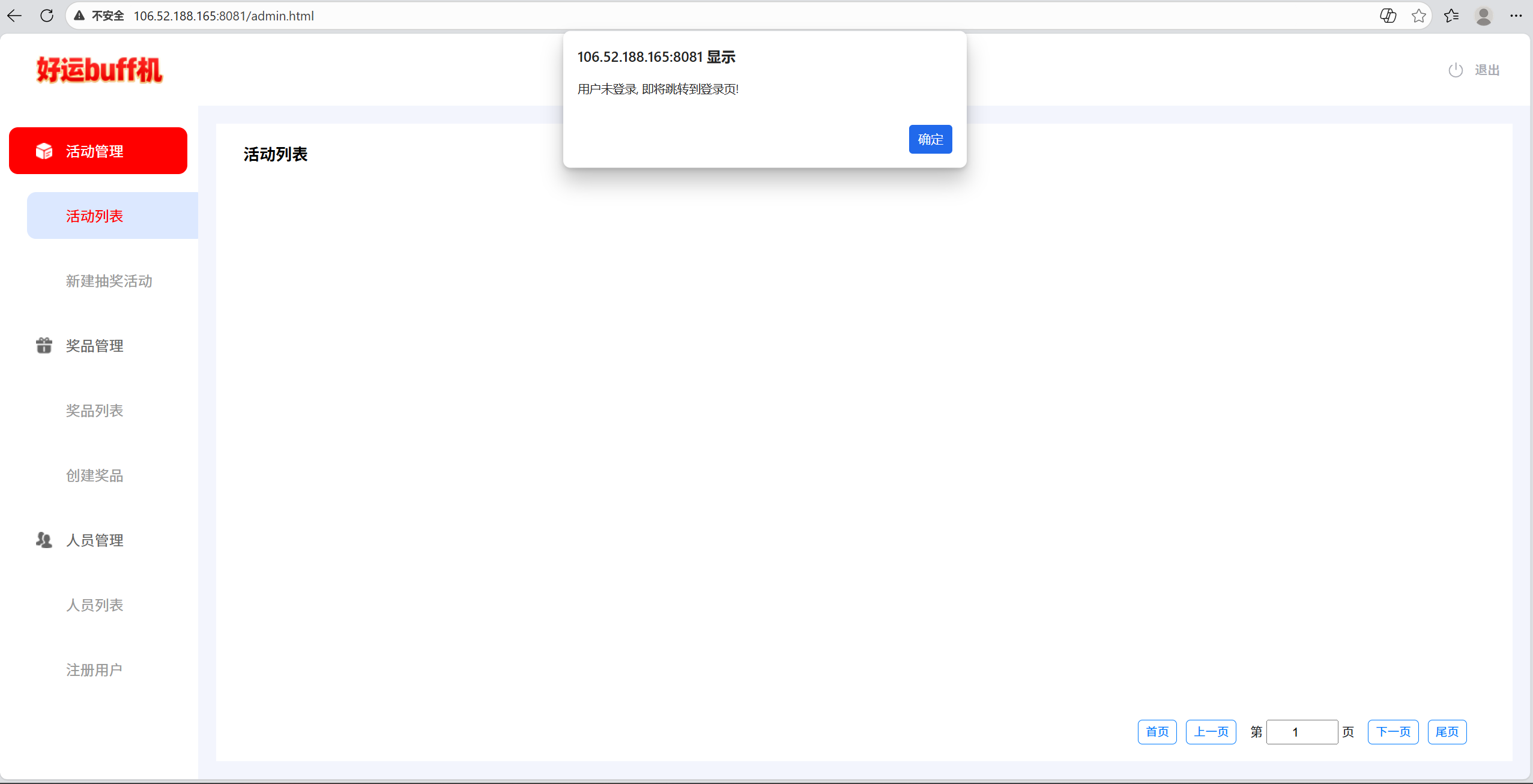

长时间未操作，要求用户重新登录

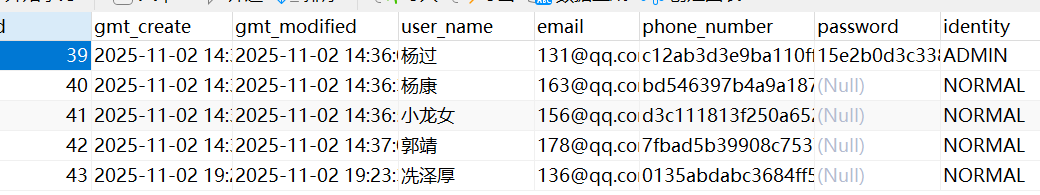

手机号、账号密码进行加密存储

易用性测试

错误有引导，反馈清晰

测试总结

问题点

有些错误提示直接把异常抛给用户

错误提示不统一（一种弹窗，一种系统提示）

总结

本次测试总体来说还是比较顺利的，但是程序还有一些次要等级的bug需要处理
