国产沐创N20 100G网卡性能测试

Felven2026-02-26 8:11

1、硬件环境

鲲鹏服务器，两个920s，共64核 主频2.6G，内存256GB 主频2933MHz，N20网卡 PCIE速率 4.0x8

bash 复制代码
[root@localhost /opt#] lspci -s 01:00.0 -vvv | grep LnkSta
LnkSta: Speed 16GT/s, Width x8 (downgraded)
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+ EqualizationPhase1+
[root@localhost /opt#] lspci -s 01:00.1 -vvv | grep LnkSta
LnkSta: Speed 16GT/s, Width x8 (downgraded)
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-

2、软件配置

操作系统：麒麟信安3.5.2 内核版本5.10.0

/etc/sysctl.conf 文件配置缓存区

bash 复制代码
net.core.rmem_max=67108864
net.core.rmem_default=67108864
net.ipv4.udp_rmem_min=67108864
net.ipv4.tcp_mem=218910000000 291910000000 437820000000
net.ipv4.tcp_rmem=67108864
net.ipv4.tcp_wmem=67108864
net.core.netdev_max_backlog=3000

关闭中断负载均衡，网卡中断设置亲核性

bash 复制代码
systemctl disable irqbalance
systemctl stop irqbalance
sh set_irq_affinity 0-31 enp1s0f0

3、陪测设备

鲲鹏计算模块，鲲鹏920s，32核 2.6G，内存64GB 主频2933MHz 鲲鹏100G自带网卡

4、iperf测试

N20作为client端-5线程

bash 复制代码
[root@localhost /opt#] taskset -c 16-23 iperf -c 192.180.1.10 -p 7000 -t 60 -i 5 -P 5
------------------------------------------------------------
Client connecting to 192.180.1.10, TCP port 7000
TCP window size: 2.57 MByte (default)
------------------------------------------------------------
[ 7] local 192.180.1.20 port 53158 connected with 192.180.1.10 port 7000
[ 5] local 192.180.1.20 port 53150 connected with 192.180.1.10 port 7000
[ 6] local 192.180.1.20 port 53142 connected with 192.180.1.10 port 7000
[ 4] local 192.180.1.20 port 53122 connected with 192.180.1.10 port 7000
[ 3] local 192.180.1.20 port 53136 connected with 192.180.1.10 port 7000
[ ID] Interval Transfer Bandwidth
[ 7] 0.0- 5.0 sec 9.61 GBytes 16.5 Gbits/sec
[ 5] 0.0- 5.0 sec 9.86 GBytes 16.9 Gbits/sec
[ 6] 0.0- 5.0 sec 9.66 GBytes 16.6 Gbits/sec
[ 4] 0.0- 5.0 sec 9.83 GBytes 16.9 Gbits/sec
[ 3] 0.0- 5.0 sec 10.2 GBytes 17.5 Gbits/sec
[SUM] 0.0- 5.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 5.0-10.0 sec 10.0 GBytes 17.2 Gbits/sec
[ 5] 5.0-10.0 sec 9.54 GBytes 16.4 Gbits/sec
[ 6] 5.0-10.0 sec 9.88 GBytes 17.0 Gbits/sec
[ 4] 5.0-10.0 sec 9.92 GBytes 17.0 Gbits/sec
[ 3] 5.0-10.0 sec 9.83 GBytes 16.9 Gbits/sec
[SUM] 5.0-10.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 10.0-15.0 sec 10.3 GBytes 17.6 Gbits/sec
[ 5] 10.0-15.0 sec 9.94 GBytes 17.1 Gbits/sec
[ 6] 10.0-15.0 sec 10.1 GBytes 17.4 Gbits/sec
[ 4] 10.0-15.0 sec 9.90 GBytes 17.0 Gbits/sec
[ 3] 10.0-15.0 sec 9.00 GBytes 15.5 Gbits/sec
[SUM] 10.0-15.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 15.0-20.0 sec 9.96 GBytes 17.1 Gbits/sec
[ 5] 15.0-20.0 sec 9.45 GBytes 16.2 Gbits/sec
[ 6] 15.0-20.0 sec 10.2 GBytes 17.6 Gbits/sec
[ 4] 15.0-20.0 sec 9.97 GBytes 17.1 Gbits/sec
[ 3] 15.0-20.0 sec 9.58 GBytes 16.5 Gbits/sec
[SUM] 15.0-20.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 20.0-25.0 sec 10.3 GBytes 17.6 Gbits/sec
[ 5] 20.0-25.0 sec 10.1 GBytes 17.3 Gbits/sec
[ 6] 20.0-25.0 sec 9.99 GBytes 17.2 Gbits/sec
[ 4] 20.0-25.0 sec 10.2 GBytes 17.5 Gbits/sec
[ 3] 20.0-25.0 sec 8.72 GBytes 15.0 Gbits/sec
[SUM] 20.0-25.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 25.0-30.0 sec 9.64 GBytes 16.6 Gbits/sec
[ 5] 25.0-30.0 sec 9.94 GBytes 17.1 Gbits/sec
[ 6] 25.0-30.0 sec 9.58 GBytes 16.5 Gbits/sec
[ 4] 25.0-30.0 sec 10.0 GBytes 17.2 Gbits/sec
[ 3] 25.0-30.0 sec 10.0 GBytes 17.2 Gbits/sec
[SUM] 25.0-30.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 30.0-35.0 sec 10.1 GBytes 17.3 Gbits/sec
[ 5] 30.0-35.0 sec 10.1 GBytes 17.4 Gbits/sec
[ 6] 30.0-35.0 sec 10.0 GBytes 17.2 Gbits/sec
[ 4] 30.0-35.0 sec 9.34 GBytes 16.0 Gbits/sec
[ 3] 30.0-35.0 sec 9.62 GBytes 16.5 Gbits/sec
[SUM] 30.0-35.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 35.0-40.0 sec 10.1 GBytes 17.4 Gbits/sec
[ 5] 35.0-40.0 sec 9.96 GBytes 17.1 Gbits/sec
[ 6] 35.0-40.0 sec 10.1 GBytes 17.3 Gbits/sec
[ 4] 35.0-40.0 sec 9.67 GBytes 16.6 Gbits/sec
[ 3] 35.0-40.0 sec 9.37 GBytes 16.1 Gbits/sec
[SUM] 35.0-40.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 40.0-45.0 sec 9.74 GBytes 16.7 Gbits/sec
[ 5] 40.0-45.0 sec 10.1 GBytes 17.4 Gbits/sec
[ 6] 40.0-45.0 sec 9.70 GBytes 16.7 Gbits/sec
[ 4] 40.0-45.0 sec 10.3 GBytes 17.7 Gbits/sec
[ 3] 40.0-45.0 sec 9.34 GBytes 16.0 Gbits/sec
[SUM] 40.0-45.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 45.0-50.0 sec 10.2 GBytes 17.5 Gbits/sec
[ 5] 45.0-50.0 sec 9.45 GBytes 16.2 Gbits/sec
[ 6] 45.0-50.0 sec 9.34 GBytes 16.0 Gbits/sec
[ 4] 45.0-50.0 sec 10.1 GBytes 17.4 Gbits/sec
[ 3] 45.0-50.0 sec 10.1 GBytes 17.3 Gbits/sec
[SUM] 45.0-50.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 50.0-55.0 sec 10.2 GBytes 17.5 Gbits/sec
[ 5] 50.0-55.0 sec 10.2 GBytes 17.5 Gbits/sec
[ 6] 50.0-55.0 sec 9.10 GBytes 15.6 Gbits/sec
[ 4] 50.0-55.0 sec 10.0 GBytes 17.2 Gbits/sec
[ 3] 50.0-55.0 sec 9.74 GBytes 16.7 Gbits/sec
[SUM] 50.0-55.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 7] 55.0-60.0 sec 10.1 GBytes 17.4 Gbits/sec
[ 7] 0.0-60.0 sec 120 GBytes 17.2 Gbits/sec
[ 5] 55.0-60.0 sec 9.78 GBytes 16.8 Gbits/sec
[ 5] 0.0-60.0 sec 118 GBytes 17.0 Gbits/sec
[ 6] 55.0-60.0 sec 10.1 GBytes 17.4 Gbits/sec
[ 6] 0.0-60.0 sec 118 GBytes 16.9 Gbits/sec
[ 4] 55.0-60.0 sec 9.47 GBytes 16.3 Gbits/sec
[ 4] 0.0-60.0 sec 119 GBytes 17.0 Gbits/sec
[ 3] 55.0-60.0 sec 9.73 GBytes 16.7 Gbits/sec
[SUM] 55.0-60.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 3] 0.0-60.0 sec 115 GBytes 16.5 Gbits/sec
[SUM] 0.0-60.0 sec 590 GBytes 84.5 Gbits/sec

N20作为client端-6线程

bash 复制代码
[root@localhost /opt#] taskset -c 16-30 iperf -c 192.180.1.10 -p 7000 -t 60 -i 5 -P 6
------------------------------------------------------------
Client connecting to 192.180.1.10, TCP port 7000
TCP window size: 2.73 MByte (default)
------------------------------------------------------------
[ 4] local 192.180.1.20 port 51088 connected with 192.180.1.10 port 7000
[ 3] local 192.180.1.20 port 51090 connected with 192.180.1.10 port 7000
[ 11] local 192.180.1.20 port 51140 connected with 192.180.1.10 port 7000
[ 6] local 192.180.1.20 port 51118 connected with 192.180.1.10 port 7000
[ 7] local 192.180.1.20 port 51126 connected with 192.180.1.10 port 7000
[ 10] local 192.180.1.20 port 51128 connected with 192.180.1.10 port 7000
[ ID] Interval Transfer Bandwidth
[ 4] 0.0- 5.0 sec 8.21 GBytes 14.1 Gbits/sec
[ 3] 0.0- 5.0 sec 8.21 GBytes 14.1 Gbits/sec
[ 11] 0.0- 5.0 sec 8.16 GBytes 14.0 Gbits/sec
[ 6] 0.0- 5.0 sec 8.19 GBytes 14.1 Gbits/sec
[ 7] 0.0- 5.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 0.0- 5.0 sec 8.19 GBytes 14.1 Gbits/sec
[SUM] 0.0- 5.0 sec 49.2 GBytes 84.4 Gbits/sec
[ 4] 5.0-10.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 5.0-10.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 5.0-10.0 sec 8.19 GBytes 14.1 Gbits/sec
[ 6] 5.0-10.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 5.0-10.0 sec 8.21 GBytes 14.1 Gbits/sec
[ 10] 5.0-10.0 sec 8.21 GBytes 14.1 Gbits/sec
[SUM] 5.0-10.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 10.0-15.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 10.0-15.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 10.0-15.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 10.0-15.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 10.0-15.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 10.0-15.0 sec 8.20 GBytes 14.1 Gbits/sec
[SUM] 10.0-15.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 15.0-20.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 15.0-20.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 15.0-20.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 15.0-20.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 15.0-20.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 15.0-20.0 sec 8.21 GBytes 14.1 Gbits/sec
[SUM] 15.0-20.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 20.0-25.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 20.0-25.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 20.0-25.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 20.0-25.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 20.0-25.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 20.0-25.0 sec 8.20 GBytes 14.1 Gbits/sec
[SUM] 20.0-25.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 25.0-30.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 25.0-30.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 25.0-30.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 25.0-30.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 25.0-30.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 25.0-30.0 sec 8.20 GBytes 14.1 Gbits/sec
[SUM] 25.0-30.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 30.0-35.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 30.0-35.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 30.0-35.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 30.0-35.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 30.0-35.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 30.0-35.0 sec 8.20 GBytes 14.1 Gbits/sec
[SUM] 30.0-35.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 35.0-40.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 35.0-40.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 35.0-40.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 35.0-40.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 35.0-40.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 35.0-40.0 sec 8.20 GBytes 14.1 Gbits/sec
[SUM] 35.0-40.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 40.0-45.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 40.0-45.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 40.0-45.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 40.0-45.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 40.0-45.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 40.0-45.0 sec 8.20 GBytes 14.1 Gbits/sec
[SUM] 40.0-45.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 45.0-50.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 45.0-50.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 45.0-50.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 45.0-50.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 45.0-50.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 45.0-50.0 sec 8.20 GBytes 14.1 Gbits/sec
[SUM] 45.0-50.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 50.0-55.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 3] 50.0-55.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 11] 50.0-55.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 50.0-55.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 7] 50.0-55.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 10] 50.0-55.0 sec 8.20 GBytes 14.1 Gbits/sec
[SUM] 50.0-55.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 4] 55.0-60.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 4] 0.0-60.0 sec 98.4 GBytes 14.1 Gbits/sec
[ 3] 55.0-60.0 sec 8.21 GBytes 14.1 Gbits/sec
[ 3] 0.0-60.0 sec 98.4 GBytes 14.1 Gbits/sec
[ 11] 55.0-60.0 sec 8.21 GBytes 14.1 Gbits/sec
[ 11] 0.0-60.0 sec 98.4 GBytes 14.1 Gbits/sec
[ 6] 55.0-60.0 sec 8.20 GBytes 14.1 Gbits/sec
[ 6] 0.0-60.0 sec 98.4 GBytes 14.1 Gbits/sec
[ 7] 55.0-60.0 sec 8.19 GBytes 14.1 Gbits/sec
[ 7] 0.0-60.0 sec 98.4 GBytes 14.1 Gbits/sec
[ 10] 55.0-60.0 sec 8.20 GBytes 14.1 Gbits/sec
[SUM] 55.0-60.0 sec 49.2 GBytes 84.5 Gbits/sec
[ 10] 0.0-60.0 sec 98.4 GBytes 14.1 Gbits/sec
[SUM] 0.0-60.0 sec 590 GBytes 84.5 Gbits/sec

N20作为server端-5线程 下面为陪测设备终端输出

bash 复制代码
(base) [root@node4294967280-0 ~]# taskset -c 16-23 iperf -c 192.180.1.20 -p 7000 -t 60 -i 5 -P 5
------------------------------------------------------------
Client connecting to 192.180.1.20, TCP port 7000
TCP window size: 520 KByte (default)
------------------------------------------------------------
[ 4] local 192.180.1.10 port 35316 connected with 192.180.1.20 port 7000
[ 3] local 192.180.1.10 port 35318 connected with 192.180.1.20 port 7000
[ 7] local 192.180.1.10 port 35324 connected with 192.180.1.20 port 7000
[ 5] local 192.180.1.10 port 35322 connected with 192.180.1.20 port 7000
[ 6] local 192.180.1.10 port 35320 connected with 192.180.1.20 port 7000
[ ID] Interval Transfer Bandwidth
[ 4] 0.0- 5.0 sec 11.4 GBytes 19.5 Gbits/sec
[ 3] 0.0- 5.0 sec 11.5 GBytes 19.7 Gbits/sec
[ 7] 0.0- 5.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 5] 0.0- 5.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 6] 0.0- 5.0 sec 11.5 GBytes 19.8 Gbits/sec
[SUM] 0.0- 5.0 sec 57.4 GBytes 98.6 Gbits/sec
[ 4] 5.0-10.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 3] 5.0-10.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 7] 5.0-10.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 5] 5.0-10.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 6] 5.0-10.0 sec 11.5 GBytes 19.8 Gbits/sec
[SUM] 5.0-10.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 4] 10.0-15.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 3] 10.0-15.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 7] 10.0-15.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 5] 10.0-15.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 6] 10.0-15.0 sec 11.5 GBytes 19.8 Gbits/sec
[SUM] 10.0-15.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 4] 15.0-20.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 3] 15.0-20.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 7] 15.0-20.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 5] 15.0-20.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 6] 15.0-20.0 sec 11.5 GBytes 19.8 Gbits/sec
[SUM] 15.0-20.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 4] 20.0-25.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 3] 20.0-25.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 7] 20.0-25.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 5] 20.0-25.0 sec 11.5 GBytes 19.8 Gbits/sec
[ 6] 20.0-25.0 sec 11.5 GBytes 19.8 Gbits/sec
[SUM] 20.0-25.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 4] 25.0-30.0 sec 6.89 GBytes 11.8 Gbits/sec
[ 3] 25.0-30.0 sec 6.94 GBytes 11.9 Gbits/sec
[ 7] 25.0-30.0 sec 6.94 GBytes 11.9 Gbits/sec
[ 5] 25.0-30.0 sec 6.95 GBytes 11.9 Gbits/sec
[ 6] 25.0-30.0 sec 6.76 GBytes 11.6 Gbits/sec
[SUM] 25.0-30.0 sec 34.5 GBytes 59.2 Gbits/sec
[ 4] 30.0-35.0 sec 5.99 GBytes 10.3 Gbits/sec
[ 3] 30.0-35.0 sec 6.02 GBytes 10.3 Gbits/sec
[ 7] 30.0-35.0 sec 6.02 GBytes 10.3 Gbits/sec
[ 5] 30.0-35.0 sec 6.02 GBytes 10.3 Gbits/sec
[ 6] 30.0-35.0 sec 5.96 GBytes 10.2 Gbits/sec
[SUM] 30.0-35.0 sec 30.0 GBytes 51.5 Gbits/sec
[ 4] 35.0-40.0 sec 5.99 GBytes 10.3 Gbits/sec
[ 3] 35.0-40.0 sec 6.01 GBytes 10.3 Gbits/sec
[ 7] 35.0-40.0 sec 5.99 GBytes 10.3 Gbits/sec
[ 5] 35.0-40.0 sec 6.03 GBytes 10.4 Gbits/sec
[ 6] 35.0-40.0 sec 5.96 GBytes 10.2 Gbits/sec
[SUM] 35.0-40.0 sec 30.0 GBytes 51.5 Gbits/sec
[ 4] 40.0-45.0 sec 5.99 GBytes 10.3 Gbits/sec
[ 3] 40.0-45.0 sec 6.00 GBytes 10.3 Gbits/sec
[ 7] 40.0-45.0 sec 6.01 GBytes 10.3 Gbits/sec
[ 5] 40.0-45.0 sec 6.01 GBytes 10.3 Gbits/sec
[ 6] 40.0-45.0 sec 5.96 GBytes 10.2 Gbits/sec
[SUM] 40.0-45.0 sec 30.0 GBytes 51.5 Gbits/sec
[ 4] 45.0-50.0 sec 5.99 GBytes 10.3 Gbits/sec
[ 3] 45.0-50.0 sec 6.00 GBytes 10.3 Gbits/sec
[ 7] 45.0-50.0 sec 6.01 GBytes 10.3 Gbits/sec
[ 5] 45.0-50.0 sec 6.01 GBytes 10.3 Gbits/sec
[ 6] 45.0-50.0 sec 5.95 GBytes 10.2 Gbits/sec
[SUM] 45.0-50.0 sec 30.0 GBytes 51.5 Gbits/sec
[ 4] 50.0-55.0 sec 5.97 GBytes 10.3 Gbits/sec
[ 3] 50.0-55.0 sec 6.01 GBytes 10.3 Gbits/sec
[ 7] 50.0-55.0 sec 5.91 GBytes 10.1 Gbits/sec
[ 5] 50.0-55.0 sec 6.03 GBytes 10.4 Gbits/sec
[ 6] 50.0-55.0 sec 5.92 GBytes 10.2 Gbits/sec
[SUM] 50.0-55.0 sec 29.8 GBytes 51.3 Gbits/sec
[ 4] 55.0-60.0 sec 5.98 GBytes 10.3 Gbits/sec
[ 4] 0.0-60.0 sec 100 GBytes 14.3 Gbits/sec
[ 3] 55.0-60.0 sec 6.03 GBytes 10.4 Gbits/sec
[ 3] 0.0-60.0 sec 101 GBytes 14.4 Gbits/sec
[ 7] 55.0-60.0 sec 6.04 GBytes 10.4 Gbits/sec
[ 7] 0.0-60.0 sec 101 GBytes 14.4 Gbits/sec
[ 5] 55.0-60.0 sec 5.95 GBytes 10.2 Gbits/sec
[ 5] 0.0-60.0 sec 101 GBytes 14.4 Gbits/sec
[ 6] 55.0-60.0 sec 5.82 GBytes 10.0 Gbits/sec
[SUM] 55.0-60.0 sec 29.8 GBytes 51.2 Gbits/sec
[ 6] 0.0-60.0 sec 99.9 GBytes 14.3 Gbits/sec
[SUM] 0.0-60.0 sec 502 GBytes 71.8 Gbits/sec

N20作为server端-6线程 下面为陪测设备终端输出

bash 复制代码
(base) [root@node4294967280-0 ~]# taskset -c 16-30 iperf -c 192.180.1.20 -p 7000 -t 60 -i 5 -P 6
------------------------------------------------------------
Client connecting to 192.180.1.20, TCP port 7000
TCP window size: 552 KByte (default)
------------------------------------------------------------
[ 9] local 192.180.1.10 port 33752 connected with 192.180.1.20 port 7000
[ 4] local 192.180.1.10 port 33746 connected with 192.180.1.20 port 7000
[ 8] local 192.180.1.10 port 33750 connected with 192.180.1.20 port 7000
[ 3] local 192.180.1.10 port 33742 connected with 192.180.1.20 port 7000
[ 5] local 192.180.1.10 port 33744 connected with 192.180.1.20 port 7000
[ 6] local 192.180.1.10 port 33748 connected with 192.180.1.20 port 7000
[ ID] Interval Transfer Bandwidth
[ 9] 0.0- 5.0 sec 9.42 GBytes 16.2 Gbits/sec
[ 4] 0.0- 5.0 sec 9.36 GBytes 16.1 Gbits/sec
[ 8] 0.0- 5.0 sec 9.39 GBytes 16.1 Gbits/sec
[ 3] 0.0- 5.0 sec 10.4 GBytes 17.9 Gbits/sec
[ 5] 0.0- 5.0 sec 9.36 GBytes 16.1 Gbits/sec
[ 6] 0.0- 5.0 sec 9.39 GBytes 16.1 Gbits/sec
[SUM] 0.0- 5.0 sec 57.3 GBytes 98.5 Gbits/sec
[ 9] 5.0-10.0 sec 9.44 GBytes 16.2 Gbits/sec
[ 4] 5.0-10.0 sec 9.42 GBytes 16.2 Gbits/sec
[ 8] 5.0-10.0 sec 9.41 GBytes 16.2 Gbits/sec
[ 3] 5.0-10.0 sec 10.4 GBytes 17.9 Gbits/sec
[ 5] 5.0-10.0 sec 9.42 GBytes 16.2 Gbits/sec
[ 6] 5.0-10.0 sec 9.46 GBytes 16.3 Gbits/sec
[SUM] 5.0-10.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 9] 10.0-15.0 sec 9.46 GBytes 16.3 Gbits/sec
[ 4] 10.0-15.0 sec 9.43 GBytes 16.2 Gbits/sec
[ 8] 10.0-15.0 sec 9.39 GBytes 16.1 Gbits/sec
[ 3] 10.0-15.0 sec 10.4 GBytes 17.9 Gbits/sec
[ 5] 10.0-15.0 sec 9.43 GBytes 16.2 Gbits/sec
[ 6] 10.0-15.0 sec 9.46 GBytes 16.3 Gbits/sec
[SUM] 10.0-15.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 9] 15.0-20.0 sec 9.44 GBytes 16.2 Gbits/sec
[ 4] 15.0-20.0 sec 9.43 GBytes 16.2 Gbits/sec
[ 8] 15.0-20.0 sec 9.40 GBytes 16.1 Gbits/sec
[ 3] 15.0-20.0 sec 10.4 GBytes 17.9 Gbits/sec
[ 5] 15.0-20.0 sec 9.44 GBytes 16.2 Gbits/sec
[ 6] 15.0-20.0 sec 9.47 GBytes 16.3 Gbits/sec
[SUM] 15.0-20.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 9] 20.0-25.0 sec 9.50 GBytes 16.3 Gbits/sec
[ 4] 20.0-25.0 sec 9.50 GBytes 16.3 Gbits/sec
[ 8] 20.0-25.0 sec 9.45 GBytes 16.2 Gbits/sec
[ 3] 20.0-25.0 sec 10.2 GBytes 17.5 Gbits/sec
[ 5] 20.0-25.0 sec 9.48 GBytes 16.3 Gbits/sec
[ 6] 20.0-25.0 sec 9.47 GBytes 16.3 Gbits/sec
[SUM] 20.0-25.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 9] 25.0-30.0 sec 9.57 GBytes 16.4 Gbits/sec
[ 4] 25.0-30.0 sec 9.59 GBytes 16.5 Gbits/sec
[ 8] 25.0-30.0 sec 9.60 GBytes 16.5 Gbits/sec
[ 3] 25.0-30.0 sec 9.63 GBytes 16.5 Gbits/sec
[ 5] 25.0-30.0 sec 9.61 GBytes 16.5 Gbits/sec
[ 6] 25.0-30.0 sec 9.60 GBytes 16.5 Gbits/sec
[SUM] 25.0-30.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 9] 30.0-35.0 sec 9.46 GBytes 16.3 Gbits/sec
[ 4] 30.0-35.0 sec 9.46 GBytes 16.3 Gbits/sec
[ 8] 30.0-35.0 sec 9.40 GBytes 16.2 Gbits/sec
[ 3] 30.0-35.0 sec 10.4 GBytes 17.9 Gbits/sec
[ 5] 30.0-35.0 sec 9.43 GBytes 16.2 Gbits/sec
[ 6] 30.0-35.0 sec 9.43 GBytes 16.2 Gbits/sec
[SUM] 30.0-35.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 9] 35.0-40.0 sec 9.46 GBytes 16.3 Gbits/sec
[ 4] 35.0-40.0 sec 9.44 GBytes 16.2 Gbits/sec
[ 8] 35.0-40.0 sec 9.44 GBytes 16.2 Gbits/sec
[ 3] 35.0-40.0 sec 10.4 GBytes 17.9 Gbits/sec
[ 5] 35.0-40.0 sec 9.43 GBytes 16.2 Gbits/sec
[ 6] 35.0-40.0 sec 9.40 GBytes 16.2 Gbits/sec
[SUM] 35.0-40.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 9] 40.0-45.0 sec 9.47 GBytes 16.3 Gbits/sec
[ 4] 40.0-45.0 sec 9.45 GBytes 16.2 Gbits/sec
[ 8] 40.0-45.0 sec 9.48 GBytes 16.3 Gbits/sec
[ 3] 40.0-45.0 sec 10.3 GBytes 17.8 Gbits/sec
[ 5] 40.0-45.0 sec 9.44 GBytes 16.2 Gbits/sec
[ 6] 40.0-45.0 sec 9.42 GBytes 16.2 Gbits/sec
[SUM] 40.0-45.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 9] 45.0-50.0 sec 9.54 GBytes 16.4 Gbits/sec
[ 4] 45.0-50.0 sec 9.58 GBytes 16.5 Gbits/sec
[ 8] 45.0-50.0 sec 9.58 GBytes 16.5 Gbits/sec
[ 3] 45.0-50.0 sec 9.58 GBytes 16.5 Gbits/sec
[ 5] 45.0-50.0 sec 9.59 GBytes 16.5 Gbits/sec
[ 6] 45.0-50.0 sec 9.58 GBytes 16.5 Gbits/sec
[SUM] 45.0-50.0 sec 57.5 GBytes 98.7 Gbits/sec
[ 9] 50.0-55.0 sec 9.62 GBytes 16.5 Gbits/sec
[ 4] 50.0-55.0 sec 9.59 GBytes 16.5 Gbits/sec
[ 8] 50.0-55.0 sec 9.61 GBytes 16.5 Gbits/sec
[ 3] 50.0-55.0 sec 9.61 GBytes 16.5 Gbits/sec
[ 5] 50.0-55.0 sec 9.58 GBytes 16.5 Gbits/sec
[ 6] 50.0-55.0 sec 9.59 GBytes 16.5 Gbits/sec
[SUM] 50.0-55.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 9] 55.0-60.0 sec 9.60 GBytes 16.5 Gbits/sec
[ 9] 0.0-60.0 sec 114 GBytes 16.3 Gbits/sec
[ 4] 55.0-60.0 sec 9.60 GBytes 16.5 Gbits/sec
[ 4] 0.0-60.0 sec 114 GBytes 16.3 Gbits/sec
[ 8] 55.0-60.0 sec 9.60 GBytes 16.5 Gbits/sec
[ 8] 0.0-60.0 sec 114 GBytes 16.3 Gbits/sec
[ 3] 55.0-60.0 sec 9.60 GBytes 16.5 Gbits/sec
[ 3] 0.0-60.0 sec 122 GBytes 17.4 Gbits/sec
[ 5] 55.0-60.0 sec 9.58 GBytes 16.5 Gbits/sec
[ 5] 0.0-60.0 sec 114 GBytes 16.3 Gbits/sec
[ 6] 55.0-60.0 sec 9.61 GBytes 16.5 Gbits/sec
[SUM] 55.0-60.0 sec 57.6 GBytes 99.0 Gbits/sec
[ 6] 0.0-60.0 sec 114 GBytes 16.3 Gbits/sec
[SUM] 0.0-60.0 sec 691 GBytes 98.9 Gbits/sec

5、结论

N20作为client端，发送速率最大就84GB/s左右，无法提升

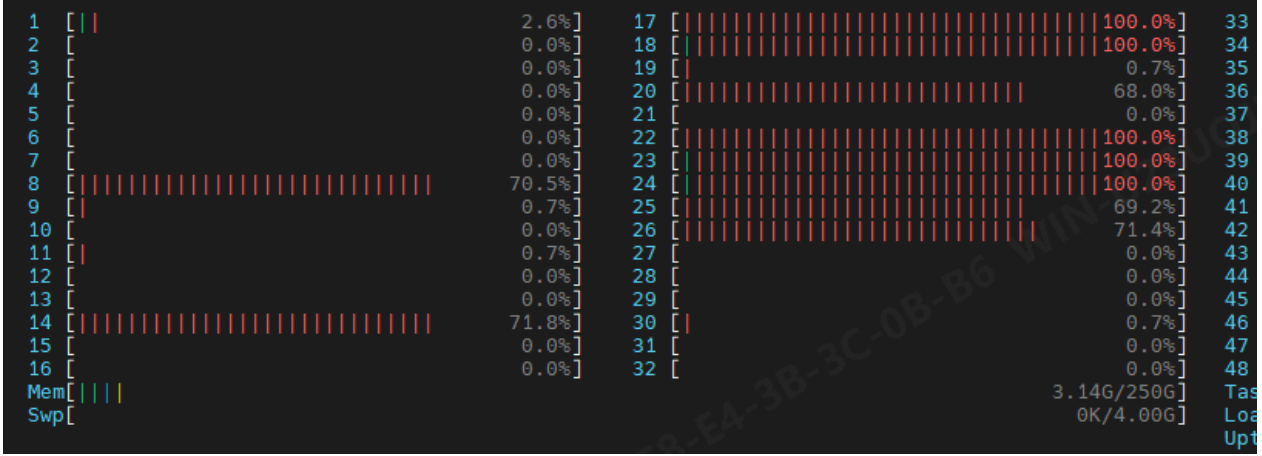

N20作为server端，接收数据，如果要稳定在90GB/s以上至少需要6个核，5个核的时候运行一段时间CPU占用率会跑到100%，导致后面速率下降。

相关推荐
一只程序熊1 小时前
uniappx richtext img 图片无法显示
linux·服务器·数据库
senijusene1 小时前
Linux软件编程： 线程属性与线程间通信详解
java·linux·jvm·算法
Bryce_Zhou1 小时前
rv1126bp RGB666屏幕花屏问题
linux
我真的想 啸7 小时前
在 Ubuntu 24.04 系统上安装并使用 Codex CLI
linux·ubuntu·arcgis
嵌入小生00710 小时前
线程（2）/ 线程属性 /相关函数接口--- 嵌入式（Linux）
linux·嵌入式·线程·软件编程·僵尸线程·马年开工第一学·线程属性
No8g攻城狮11 小时前
【Linux】Linux nano 编辑器全攻略：从入门到精通
linux·运维·编辑器·nano
zl_dfq11 小时前
Linux 之 【网络套接字编程】（固定宽度整数类型、socket常见API、netstat）
linux·网络
huaweichenai13 小时前
Linux安装http-server并部署html静态站点
linux·运维·服务器
Gss77714 小时前
Linux 正则表达式详解（基础 + 扩展 + 实操）
linux·运维·正则表达式
热门推荐
01GitHub 镜像站点02Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services03【OpenClaw 本地实战 Ep.3】突破瓶颈：强制修改 openclaw.json 解锁 32k 上下文记忆04AI Agent 平台横评：ZeroClaw vs OpenClaw vs Nanobot05OpenClaw 使用和管理 MCP 完全指南06Clawdbot部署教程：解决‘gateway token missing’授权问题的完整步骤07AI agent：介绍 ZeroClaw 安装，使用08OpenClaw 安装之（三）DeepSeek模型接入配置和详细配置参数09AI 规范驱动开发“三剑客”深度对比：Spec-Kit、Kiro 与 OpenSpec 实战指南10EvoMap 是什么？
