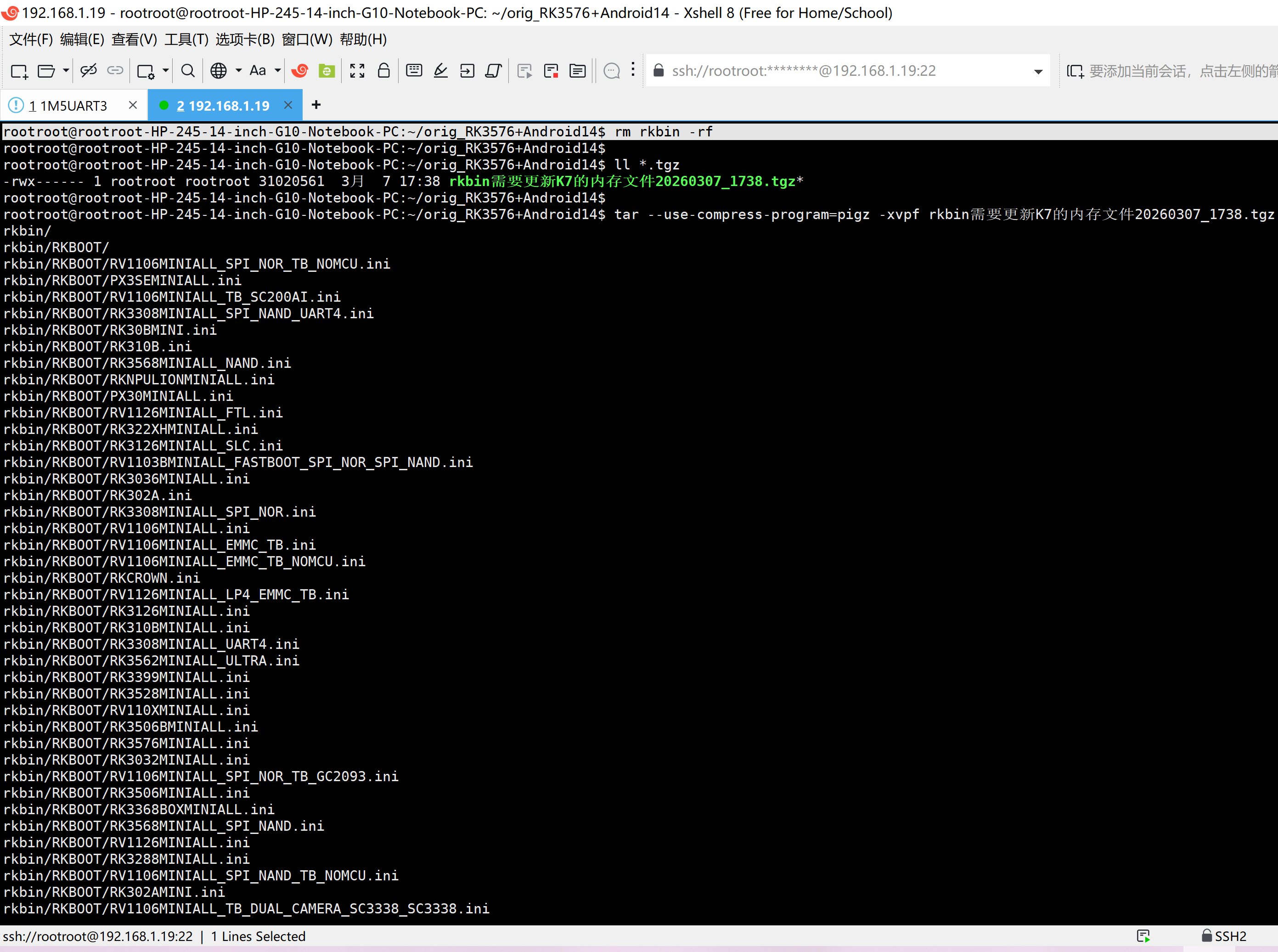

rm rkbin -rf
tar --use-compress-program=pigz -xvpf rkbin需要更新K7的内存文件20260307_1738.tgz
cd u-boot/
ll
make distclean
ll
cd ..
ll

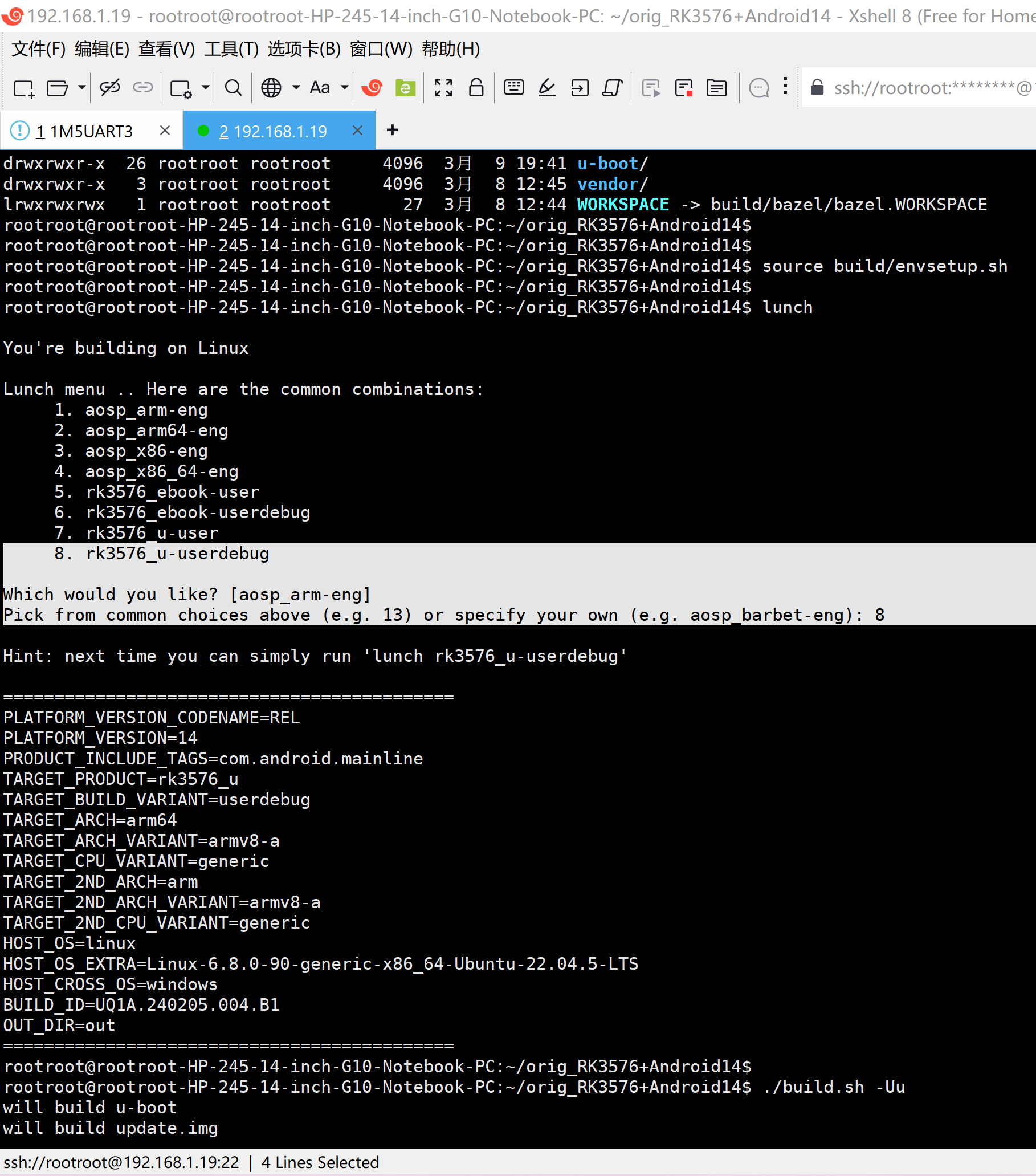

source build/envsetup.sh
lunch
- rk3576_u-userdebug
Pick from common choices above (e.g. 13) or specify your own (e.g. aosp_barbet-eng): 8
./build.sh -Uu
20260309解决瑞芯微原厂RK3576的Android14刷入乐晓电子的K7开发板
2026/3/9 19:06
缘起：KickPi的K7开发板rk3576-android14.0-20250217.tar.gz编译之后，给K7刷机竟然启动不了。
根据经验一般认为是DDR更换之后引起的异常。
gitee 是国产内存，但是实际拿到的K7是三星的K4F内存了。
想起来Buildroot是OK的。直接替换Buildroot的rkbin就搞定了。
Z:\14TB\SDK\rk3576_data\1-SDK软件源码\Linux\sdk\rk3576-linux-20250618.tar.gz
Z:\20250704\rk3576-android14.0\rkbin\bin\rk35\rk3576_ddr_lp4_2112MHz_lp5_2736MHz_v1.09.bin
整体替换rk3576-android14.0\rkbin目录。
然后重新完整编译。
你可以重新解压缩。
或者清除out、uboot、kernel
不过HDMI显示比较晚。9s以后？
直接修改之后是12s左右才会有HDMI显示了。

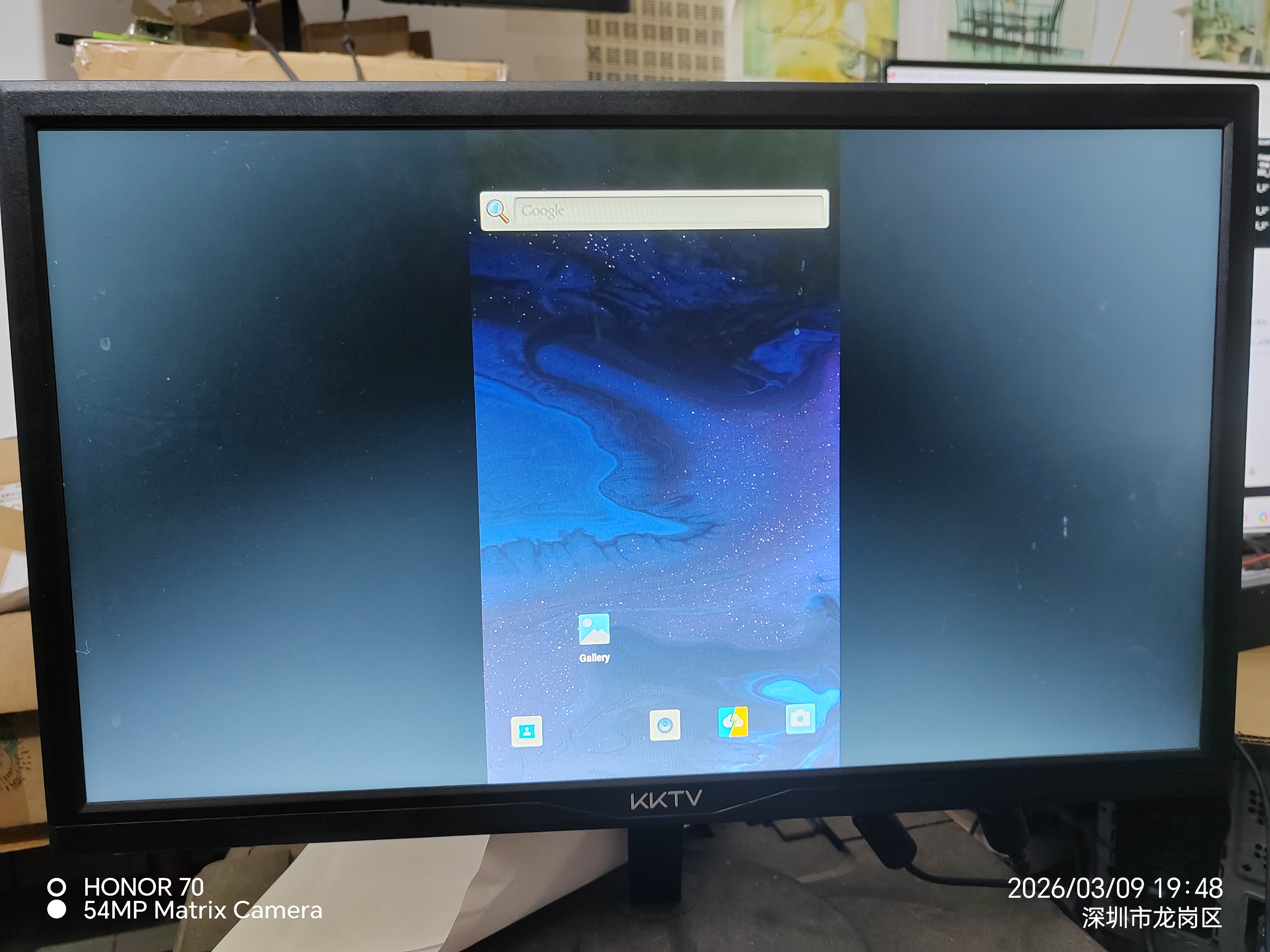

默认是竖屏？
通过网盘分享的文件：A153#RK3576 RK原厂SDK TRM、DDR支持列表
链接: https://pan.baidu.com-s/1VRwC_LN17J1Sl0UYYgoVag?pwd=r2nm 提取码: r2nm
--来自百度网盘超级会员v7的分享
https://gitee.com/tanzhtanzh/kickpi-book/blob/master/rk3576/zh/04-SDK编译/03-Android_SDK编译.md
03-Android_SDK编译
https://blog.csdn.net/wb4916/article/details/149219265?spm=1011.2415.3001.5331
20250709解决KickPi的K7开发板rk3576-android14.0-20250217.tar.gz编译之后刷机启动不了
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~$ cd orig_RK3576+Android14/
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ ll
total 70137456
drwx------ 2 rootroot rootroot 4096 3月 8 11:32 ./
drwxr-x--- 36 rootroot rootroot 12288 3月 8 11:34 ../
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:06 RK3576_Android14.0_SDK_RELEASE.tar.gz00*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:05 RK3576_Android14.0_SDK_RELEASE.tar.gz01*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:06 RK3576_Android14.0_SDK_RELEASE.tar.gz02*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:06 RK3576_Android14.0_SDK_RELEASE.tar.gz03*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:05 RK3576_Android14.0_SDK_RELEASE.tar.gz04*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:07 RK3576_Android14.0_SDK_RELEASE.tar.gz05*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:08 RK3576_Android14.0_SDK_RELEASE.tar.gz06*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:11 RK3576_Android14.0_SDK_RELEASE.tar.gz07*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:10 RK3576_Android14.0_SDK_RELEASE.tar.gz08*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:10 RK3576_Android14.0_SDK_RELEASE.tar.gz09*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:14 RK3576_Android14.0_SDK_RELEASE.tar.gz10*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:14 RK3576_Android14.0_SDK_RELEASE.tar.gz11*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:16 RK3576_Android14.0_SDK_RELEASE.tar.gz12*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:16 RK3576_Android14.0_SDK_RELEASE.tar.gz13*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:13 RK3576_Android14.0_SDK_RELEASE.tar.gz14*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:21 RK3576_Android14.0_SDK_RELEASE.tar.gz15*
-rwx------ 1 rootroot rootroot 3101184291 3月 8 11:20 RK3576_Android14.0_SDK_RELEASE.tar.gz16*
-rwx------ 1 rootroot rootroot 1258 3月 8 11:01 RK3576_Android14.0_SDK_RELEASE.tar.gz.md5sum.txt*
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ cat RK3576_Android14.0_SDK_RELEASE.tar.gz* > RK3576_Android14.0_SDK_RELEASE.tar.gz
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ ll
total 140274832
drwx------ 2 rootroot rootroot 4096 3月 8 11:35 ./
drwxr-x--- 36 rootroot rootroot 12288 3月 8 11:34 ../
-rwx------ 1 rootroot rootroot 1258 3月 8 11:01 1RK3576_Android14.0_SDK_RELEASE.tar.gz.md5sum.txt*
-rw-rw-r-- 1 rootroot rootroot 71820661027 3月 8 11:38 RK3576_Android14.0_SDK_RELEASE.tar.gz
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:06 RK3576_Android14.0_SDK_RELEASE.tar.gz00*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:05 RK3576_Android14.0_SDK_RELEASE.tar.gz01*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:06 RK3576_Android14.0_SDK_RELEASE.tar.gz02*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:06 RK3576_Android14.0_SDK_RELEASE.tar.gz03*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:05 RK3576_Android14.0_SDK_RELEASE.tar.gz04*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:07 RK3576_Android14.0_SDK_RELEASE.tar.gz05*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:08 RK3576_Android14.0_SDK_RELEASE.tar.gz06*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:11 RK3576_Android14.0_SDK_RELEASE.tar.gz07*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:10 RK3576_Android14.0_SDK_RELEASE.tar.gz08*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:10 RK3576_Android14.0_SDK_RELEASE.tar.gz09*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:14 RK3576_Android14.0_SDK_RELEASE.tar.gz10*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:14 RK3576_Android14.0_SDK_RELEASE.tar.gz11*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:16 RK3576_Android14.0_SDK_RELEASE.tar.gz12*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:16 RK3576_Android14.0_SDK_RELEASE.tar.gz13*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:13 RK3576_Android14.0_SDK_RELEASE.tar.gz14*
-rwx------ 1 rootroot rootroot 4294967296 3月 8 11:21 RK3576_Android14.0_SDK_RELEASE.tar.gz15*
-rwx------ 1 rootroot rootroot 3101184291 3月 8 11:20 RK3576_Android14.0_SDK_RELEASE.tar.gz16*
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ tar zxvf RK3576_Android14.0_SDK_RELEASE.tar.gz
Updating files: 100% (8198/8198), done.
Updating files: 100% (2478/2478), done.
Updating files: 100% (125/125), done.
Updating files: 100% (6999/6999), done.
Updating files: 100% (9605/9605), done.xternal/ksoap2Updating files: 52% (11490/21683)
Updating files: 100% (21683/21683), done.
Updating files: 100% (864/864), done./external/FP16Updating files: 84% (6703/7979)
Updating files: 100% (7979/7979), done.
Updating files: 100% (2887/2887), done.xternal/nist-pkitsUpdating files: 28% (826/2887)
Updating files: 100% (4468/4468), done.
Updating files: 100% (4463/4463), done.xternal/rust/crates/flagsetUpdating files: 90% (4033/4463)
Updating files: 100% (8409/8409), done.xternal/rust/crates/instantUpdating files: 74% (6223/8409)
Updating files: 100% (8903/8903), done.xternal/rust/crates/scopeguardUpdating files: 6% (562/8061)
Updating files: 100% (10828/10828), done.
Updating files: 100% (8061/8061), done.
Updating files: 100% (4908/4908), done.xternal/subsampling-scale-image-viewUpdating files: 77% (3780/4908)
Updating files: 100% (11884/11884), done.
Updating files: 100% (29003/29003), done.
Updating files: 100% (263/263), done./external/vulkan-validation-layersUpdating files: 39% (32471/83257)
Updating files: 100% (6794/6794), done.ackages/apps/QuickSearchBoxUpdating files: 83% (39626/47741)
Updating files: 100% (47741/47741), done.
Updating files: 100% (83257/83257), done.
Updating files: 100% (1178/1178), done.
Updating files: 100% (14/14), done.rm/hardware/st/secure_elementUpdating files: 92% (13/14)
Updating files: 100% (2424/2424), done.
Updating files: 100% (6826/6826), done.ackages/modules/CronetUpdating files: 59% (4028/6826)
Updating files: 100% (7705/7705), done.
Updating files: 100% (2795/2795), done.
Updating files: 100% (44/44), done.
Updating files: 100% (646/646), done.
Updating files: 100% (7462/7462), done.ackages/providers/BlockedNumberProviderUpdating files: 13% (971/7462)
Updating files: 100% (444/444), done.m/packages/apps/Car/SystemUIUpdating files: 9% (672/7462)
Updating files: 100% (1151/1151), done.
Updating files: 100% (2775/2775), done.system/memory/libdmabufheapUpdating files: 51% (1438/2775)
Updating files: 100% (7462/7462), done.
Updating files: 100% (1789/1789), done.
Updating files: 100% (159/159), done.m/test/robolectric-extensionsUpdating files: 69% (110/159)
Updating files: 100% (175/175), done.
Updating files: 100% (671/671), done.m/tools/test/mobly_extensionsUpdating files: 84% (586/697)
Updating files: 100% (33/33), done.
Updating files: 100% (1353/1353), done.prebuilts/bazel/darwin-x86_64Updating files: 5% (68/1353)
Updating files: 100% (18749/18749), done./vendor/rockchip/hardware/tv_inputUpdating files: 65% (12296/18749)
Updating files: 100% (697/697), done.
Updating files: 100% (9555/9555), done.
Updating files: 100% (21235/21235), done.
Updating files: 100% (5970/5970), done.
Updating files: 100% (7165/7165), done.
Updating files: 100% (5756/5756), done.
Updating files: 100% (7085/7085), done.
Updating files: 100% (3959/3959), done.
Updating files: 100% (12749/12749), done.
Updating files: 100% (15152/15152), done.
Updating files: 100% (12747/12747), done.
Updating files: 100% (1522/1522), done.
Updating files: 100% (2297/2297), done.
Updating files: 100% (9897/9897), done.
Updating files: 100% (683/683), done.
Updating files: 100% (958/958), done.
Updating files: 100% (763/763), done.
Updating files: 100% (2101/2101), done.
Updating files: 100% (21272/21272), done.
Updating files: 100% (18265/18265), done.
Updating files: 100% (18387/18387), done.
Updating files: 100% (30673/30673), done.
Updating files: 100% (486/486), done.m/system/apexUpdating files: 61% (299/486)
Checking out: 100% (1230/1230), done in 3m27.885s
repo sync has finished successfully.
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ ll
【整体替换】
Z:\20250704\rk3576-android14.0\rkbin
Y:\orig_RK3576+Android14\rkbin
U-Boot 2017.09-231221 #rootroot (Mar 09 2026 - 10:34:31 +0800)
Model: Rockchip RK3576 Evaluation board
MPIDR: 0x0
PreSerial: 0, raw, 0x2ad40000
DRAM: 4 GiB
Sysmem: init
Relocation Offset: bda1a000
Relocation fdt: fb9f9c10 - fb9fece8
CR: M/C/I
Using default environment
optee api revision: 2.0
mmc@2a310000: 1, mmc@2a330000: 0
Bootdev(atags): mmc 0
MMC0: HS400 Enhanced Strobe, 200Mhz
PartType: EFI
DM: v2
Android 14.0, Build 2024.2, v2
boot mode: loader
RESC: 'boot', blk@0x0001ecd4
Device is: UNLOCKED
DTB: rk-kernel.dtb
HASH(ce): OK
ANDROID: fdt overlay OK
dw_dp_bind zyb enter
I2c1 speed: 100000Hz
PMIC: RK8060 (on=0x40, off=0x00)
vdd_cpu_big_s0 init 850000 uV
vdd_npu_s0 750000 uV
vdd_cpu_lit_s0 init 850000 uV
vdd_gpu_s0 init 750000 uV
vdd_logic_s0 init 750000 uV
vdd_ddr_s0 850000 uV
Model: Rockchip RK3576 EVB1 V10 Board
Rockchip UBOOT DRM driver version: v1.0.1
Assign plane mask automatically
VOP have 3 active VP
vp0 have layer nr:1[2 ], primary plane: 2
vp1 have layer nr:1[3 ], primary plane: 3
vp2 have layer nr:1[8 ], primary plane: 8
disp info 2, type:16, id:0
base2_disp_info couldn't be found, screen_info type[0] or id[0] mismatched
Using display timing dts
dsi@27d80000: detailed mode clock 132000 kHz, flags[a]
H: 1080 1095 1099 1129
V: 1920 1935 1937 1952
bus_format: 100e
VOP update mode to: 1080x1920p60, type: MIPI0 for VP1
VP1 set crtc_clock to 132000KHz
Unsupported bt709f at 10bit csc depth, use bt601f instead
VOP VP1 enable Esmart1[654x270->654x270@213x825] fmt[0] addr[0xfdf00000]
final DSI-Link bandwidth: 880000 Kbps x 4
disp info 0, type:11, id:0
Monitor has basic audio support
base_parameter.mode:1920x1080
color_format:0
hdmi_select_link_config use tmds mode
mode:1920x1080 bus_format:0x100a
hdmi@27da0000: detailed mode clock 148500 kHz, flags[5]
H: 1920 2008 2052 2200
V: 1080 1084 1089 1125
bus_format: 100a
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
Unsupported bt709f at 10bit csc depth, use bt601f instead
acm and csc is not support
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
VP0 set crtc_clock to 1485KHz
Unsupported bt709f at 10bit csc depth, use bt601f instead
VOP VP0 enable Esmart0[654x270->654x270@633x405] fmt[0] addr[0xfdf00000]
CEA mode used vic=16
mtmdsclock:148500000
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
dw_hdmi_setup HDMI mode
don't use dsc mode
dw hdmi qp use tmds mode
bus_width:0x16a8c8,bit_rate:1485000
hdptx phy lane locked!
enter Rockusb!
RKUSB: LUN 0, dev 0, hwpart 0, sector 0x0, count 0x3a40000
|usb device is high-speed

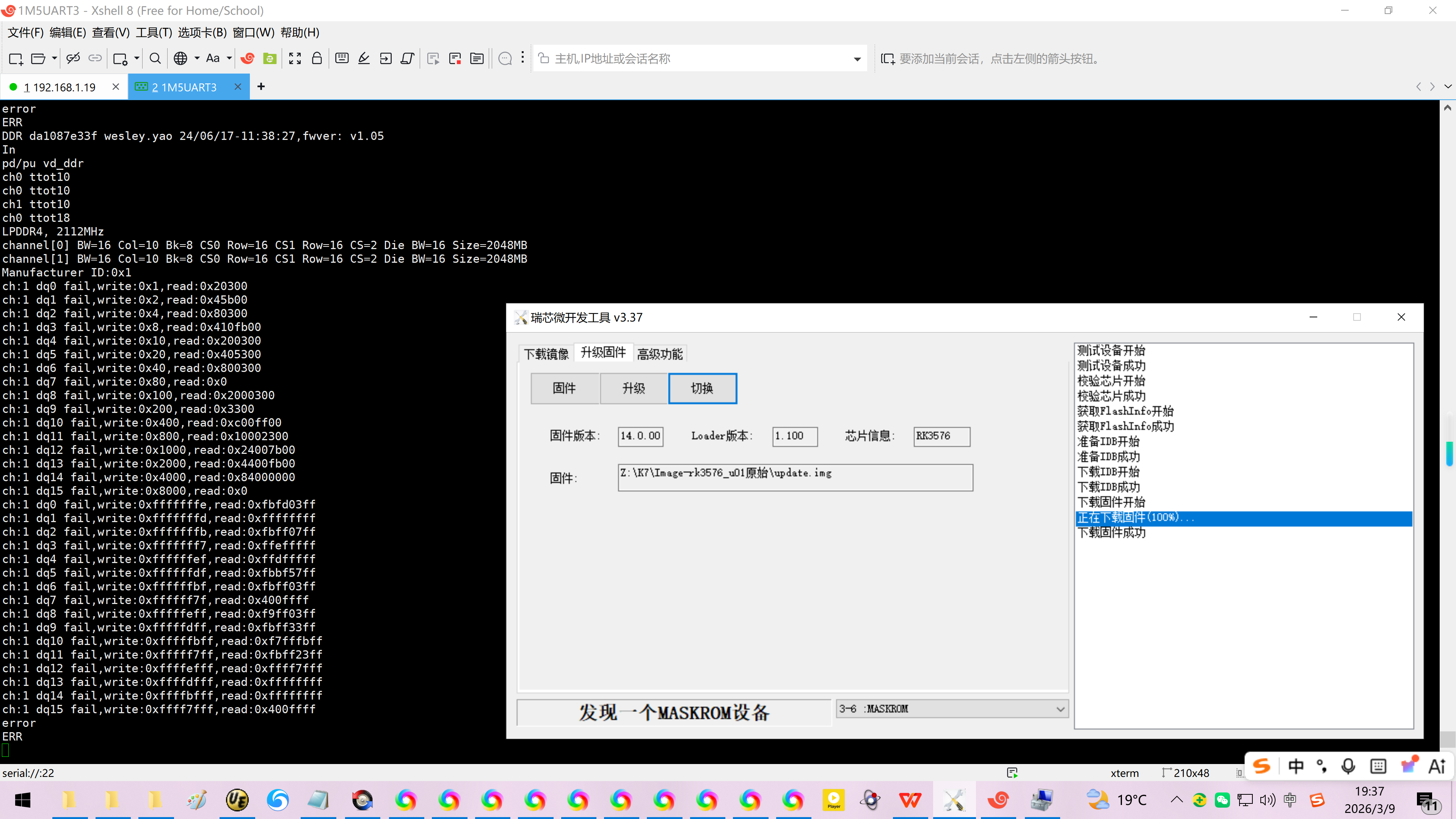

/DDR da1087e33f wesley.yao 24/06/17-11:38:27,fwver: v1.05
In
ch0 ttot10
ch0 ttot10
ch1 ttot10
ch0 ttot18
LPDDR4, 2112MHz
channel[0] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
channel[1] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
Manufacturer ID:0x1
ch:1 dq0 fail,write:0x1,read:0x20300
ch:1 dq1 fail,write:0x2,read:0x45b00
ch:1 dq2 fail,write:0x4,read:0x80300
ch:1 dq3 fail,write:0x8,read:0x100000
ch:1 dq4 fail,write:0x10,read:0x200300
ch:1 dq5 fail,write:0x20,read:0x405300
ch:1 dq6 fail,write:0x40,read:0x800300
ch:1 dq7 fail,write:0x80,read:0x0
ch:1 dq8 fail,write:0x100,read:0x2000300
ch:1 dq9 fail,write:0x200,read:0x3300
ch:1 dq10 fail,write:0x400,read:0x8000300
ch:1 dq11 fail,write:0x800,read:0x10002300
ch:1 dq12 fail,write:0x1000,read:0x24007b00
ch:1 dq13 fail,write:0x2000,read:0x44001200
ch:1 dq14 fail,write:0x4000,read:0x84000000
ch:1 dq15 fail,write:0x8000,read:0x0
ch:1 dq0 fail,write:0xfffffffe,read:0xdbfd03ff
ch:1 dq1 fail,write:0xfffffffd,read:0xfbff5bff
ch:1 dq2 fail,write:0xfffffffb,read:0xfbff03ff
ch:1 dq3 fail,write:0xfffffff7,read:0xffefffff
ch:1 dq4 fail,write:0xffffffef,read:0xfbdf07ff
ch:1 dq5 fail,write:0xffffffdf,read:0xfbbf53ff
ch:1 dq6 fail,write:0xffffffbf,read:0xfbff07ff
ch:1 dq7 fail,write:0xffffff7f,read:0x400ffff
ch:1 dq8 fail,write:0xfffffeff,read:0xf9ff03ff
ch:1 dq9 fail,write:0xfffffdff,read:0xfbff33ff
ch:1 dq10 fail,write:0xfffffbff,read:0xf7fffbff
ch:1 dq11 fail,write:0xfffff7ff,read:0xfbff27ff
ch:1 dq12 fail,write:0xffffefff,read:0xffff7fff
ch:1 dq13 fail,write:0xffffdfff,read:0xffffffff
ch:1 dq14 fail,write:0xffffbfff,read:0x7fff04ff
ch:1 dq15 fail,write:0xffff7fff,read:0x400ffff
error
ERR
DDR da1087e33f wesley.yao 24/06/17-11:38:27,fwver: v1.05
In
pd/pu vd_ddr
ch0 ttot10
ch0 ttot10
ch1 ttot10
ch0 ttot18
LPDDR4, 2112MHz
channel[0] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
channel[1] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
Manufacturer ID:0x1
ch:1 dq0 fail,write:0x1,read:0x20300
ch:1 dq1 fail,write:0x2,read:0x45b00
ch:1 dq2 fail,write:0x4,read:0x80300
ch:1 dq3 fail,write:0x8,read:0x410fb00
ch:1 dq4 fail,write:0x10,read:0x200300
ch:1 dq5 fail,write:0x20,read:0x405300
ch:1 dq6 fail,write:0x40,read:0x800300
ch:1 dq7 fail,write:0x80,read:0x0
ch:1 dq8 fail,write:0x100,read:0x2000300
ch:1 dq9 fail,write:0x200,read:0x3300
ch:1 dq10 fail,write:0x400,read:0xc00ff00
ch:1 dq11 fail,write:0x800,read:0x10002300
ch:1 dq12 fail,write:0x1000,read:0x24007b00
ch:1 dq13 fail,write:0x2000,read:0x4400fb00
ch:1 dq14 fail,write:0x4000,read:0x84000000
ch:1 dq15 fail,write:0x8000,read:0x0
ch:1 dq0 fail,write:0xfffffffe,read:0xfbfd03ff
ch:1 dq1 fail,write:0xfffffffd,read:0xffffffff
ch:1 dq2 fail,write:0xfffffffb,read:0xfbff07ff
ch:1 dq3 fail,write:0xfffffff7,read:0xffefffff
ch:1 dq4 fail,write:0xffffffef,read:0xffdfffff
ch:1 dq5 fail,write:0xffffffdf,read:0xfbbf57ff
ch:1 dq6 fail,write:0xffffffbf,read:0xfbff03ff
ch:1 dq7 fail,write:0xffffff7f,read:0x400ffff
ch:1 dq8 fail,write:0xfffffeff,read:0xf9ff03ff
ch:1 dq9 fail,write:0xfffffdff,read:0xfbff33ff
ch:1 dq10 fail,write:0xfffffbff,read:0xf7fffbff
ch:1 dq11 fail,write:0xfffff7ff,read:0xfbff23ff
ch:1 dq12 fail,write:0xffffefff,read:0xffff7fff
ch:1 dq13 fail,write:0xffffdfff,read:0xffffffff
ch:1 dq14 fail,write:0xffffbfff,read:0xffffffff
ch:1 dq15 fail,write:0xffff7fff,read:0x400ffff
error
ERR
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ rm rkbin -rf
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ ll *.tgz
-rwx------ 1 rootroot rootroot 31020561 3月 7 17:38 rkbin需要更新K7的内存文件20260307_1738.tgz*
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ tar --use-compress-program=pigz -xvpf rkbin需要更新K7的内存文件20260307_1738.tgz
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ cd u-boot/
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14/u-boot$ ll
total 28556
drwxrwxr-x 28 rootroot rootroot 4096 3月 9 12:59 ./
drwx------ 38 rootroot rootroot 4096 3月 9 19:41 ../
drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 api/
drwxrwxr-x 14 rootroot rootroot 4096 3月 8 12:45 arch/
-rw-rw-r-- 1 rootroot rootroot 16384 3月 9 10:34 bl31_0x3fe70000.bin
-rw-rw-r-- 1 rootroot rootroot 184640 3月 9 10:34 bl31_0x40040000.bin
-rw-rw-r-- 1 rootroot rootroot 20480 3月 9 10:34 bl31_0x400f0000.bin
-rw-rw-r-- 1 rootroot rootroot 349032 3月 9 10:34 bl31.elf
drwxrwxr-x 181 rootroot rootroot 4096 3月 8 12:45 board/
-rw-rw-r-- 1 rootroot rootroot 610 3月 8 12:45 .checkpatch.conf
drwxrwxr-x 5 rootroot rootroot 12288 3月 9 10:34 cmd/
drwxrwxr-x 6 rootroot rootroot 12288 3月 9 10:34 common/
-rw-rw-r-- 1 rootroot rootroot 42048 3月 9 10:34 .config
-rw-rw-r-- 1 rootroot rootroot 2260 3月 8 12:45 config.mk
drwxrwxr-x 2 rootroot rootroot 69632 3月 8 12:45 configs/
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 disk/
drwxrwxr-x 10 rootroot rootroot 12288 3月 8 12:45 doc/
drwxrwxr-x 3 rootroot rootroot 4096 3月 8 12:45 Documentation/
drwxrwxr-x 58 rootroot rootroot 4096 3月 9 10:34 drivers/
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 dts/
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 env/
drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:45 examples/
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 fit/
drwxrwxr-x 12 rootroot rootroot 4096 3月 9 10:34 fs/
drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 .git/
-rw-rw-r-- 1 rootroot rootroot 859 3月 8 12:45 .gitignore
drwxrwxr-x 34 rootroot rootroot 20480 3月 9 10:34 include/
-rw-rw-r-- 1 rootroot rootroot 1863 3月 8 12:45 Kbuild
-rw-rw-r-- 1 rootroot rootroot 16875 3月 8 12:45 Kconfig
drwxrwxr-x 15 rootroot rootroot 12288 3月 9 10:34 lib/
drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 Licenses/
-rw-rw-r-- 1 rootroot rootroot 1323 3月 8 12:45 .mailmap
-rw-rw-r-- 1 rootroot rootroot 14626 3月 8 12:45 MAINTAINERS
-rw-rw-r-- 1 rootroot rootroot 58294 3月 8 12:45 Makefile
-rwxrwxr-x 1 rootroot rootroot 21449 3月 8 12:45 make.sh*
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 net/
drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:45 post/
-rw-rw-r-- 1 rootroot rootroot 34 3月 8 12:45 PREUPLOAD.cfg
-rw-rw-r-- 1 rootroot rootroot 187683 3月 8 12:45 README
-rw-rw-r-- 1 rootroot rootroot 360960 3月 9 12:59 resource.img
-rw-rw-r-- 1 rootroot rootroot 348160 3月 9 10:34 rk3576_idblock_v1.09.107.img
-rw-rw-r-- 1 rootroot rootroot 774649 3月 9 10:34 rk3576_spl_loader_v1.09.107.bin
drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:45 scripts/
-rw-rw-r-- 1 rootroot rootroot 17 3月 8 12:45 snapshot.commit
drwxrwxr-x 13 rootroot rootroot 4096 3月 9 10:34 spl/
-rw-rw-r-- 1 rootroot rootroot 220020 3月 9 10:34 System.map
-rw-rw-r-- 1 rootroot rootroot 428360 3月 9 10:34 tee.bin
drwxrwxr-x 12 rootroot rootroot 4096 3月 9 10:34 test/
drwxrwxr-x 18 rootroot rootroot 4096 3月 9 10:34 tools/
drwxrwxr-x 10 rootroot rootroot 4096 3月 9 10:34 tpl/
-rw-rw-r-- 1 rootroot rootroot 11367 3月 8 12:45 .travis.yml
-rwxrwxr-x 1 rootroot rootroot 12416088 3月 9 10:34 u-boot*
-rw-rw-r-- 1 rootroot rootroot 1336216 3月 9 10:34 u-boot.bin
-rw-rw-r-- 1 rootroot rootroot 46 3月 9 10:34 .u-boot.bin.cmd
-rw-rw-r-- 1 rootroot rootroot 19000 3月 9 10:34 u-boot.cfg
-rw-rw-r-- 1 rootroot rootroot 12185 3月 9 10:34 u-boot.cfg.configs
-rw-rw-r-- 1 rootroot rootroot 1819 3月 9 10:34 .u-boot.cmd
-rw-rw-r-- 1 rootroot rootroot 9326 3月 9 10:34 u-boot.dtb
-rw-rw-r-- 1 rootroot rootroot 1336214 3月 9 10:34 u-boot-dtb.bin
-rw-rw-r-- 1 rootroot rootroot 71 3月 9 10:34 .u-boot-dtb.bin.cmd
-rw-rw-r-- 1 rootroot rootroot 251 3月 9 10:34 .u-boot-dtb.img.cmd
-rw-rw-r-- 1 rootroot rootroot 4194304 3月 9 10:34 uboot.img
-rw-rw-r-- 1 rootroot rootroot 243 3月 9 10:34 .u-boot.img.cmd
-rw-rw-r-- 1 rootroot rootroot 1304 3月 9 10:34 u-boot.lds
-rw-rw-r-- 1 rootroot rootroot 7564 3月 9 10:34 .u-boot.lds.cmd
-rw-rw-r-- 1 rootroot rootroot 1044446 3月 9 10:34 u-boot.map
-rwxrwxr-x 1 rootroot rootroot 1326888 3月 9 10:34 u-boot-nodtb.bin*
-rw-rw-r-- 1 rootroot rootroot 354 3月 9 10:34 .u-boot-nodtb.bin.cmd
-rwxrwxr-x 1 rootroot rootroot 3980754 3月 9 10:34 u-boot.srec*
-rw-rw-r-- 1 rootroot rootroot 341 3月 9 10:34 .u-boot.srec.cmd
-rw-rw-r-- 1 rootroot rootroot 419895 3月 9 10:34 u-boot.sym
-rw-rw-r-- 1 rootroot rootroot 190 3月 9 10:34 .u-boot.sym.cmd
-rw-rw-r-- 1 rootroot rootroot 72 3月 8 12:45 usb_update.txt
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14/u-boot$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14/u-boot$ make distclean
CLEAN dts/../arch/arm/dts
CLEAN dts
CLEAN examples/standalone
CLEAN tools
CLEAN tools/lib tools/common
CLEAN spl/arch spl/board spl/cmd spl/common spl/disk spl/drivers spl/dts spl/env spl/fs spl/lib spl/u-boot.cfg spl/u-boot-spl spl/u-boot-spl.bin spl/u-boot-spl.dtb spl/u-boot-spl-dtb.bin spl/u-boot-spl.lds spl/u-boot-spl.map spl/u-boot-spl-nodtb.bin spl/u-boot-spl.sym tpl/arch tpl/board tpl/common tpl/disk tpl/drivers tpl/dts tpl/fs tpl/u-boot.cfg tpl/u-boot-spl.lds tpl/u-boot-tpl tpl/u-boot-tpl.bin tpl/u-boot-tpl.map tpl/u-boot-tpl-nodtb.bin tpl/u-boot-tpl.sym
CLEAN u-boot u-boot.bin u-boot.cfg u-boot.cfg.configs u-boot.dtb u-boot-dtb.bin u-boot.lds u-boot.map u-boot-nodtb.bin u-boot.srec u-boot.sym System.map bl31_0x3fe70000.bin bl31_0x40040000.bin bl31_0x400f0000.bin rk3576_spl_loader_v1.09.107.bin tee.bin u-boot.bin u-boot-dtb.bin u-boot-nodtb.bin resource.img rk3576_idblock_v1.09.107.img uboot.img
CLEAN scripts/basic
CLEAN scripts/dtc
CLEAN scripts/kconfig
CLEAN include/config include/generated spl tpl
CLEAN .config include/autoconf.mk include/autoconf.mk.dep include/config.h
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14/u-boot$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14/u-boot$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14/u-boot$ ll
total 908
drwxrwxr-x 26 rootroot rootroot 4096 3月 9 19:41 ./
drwx------ 38 rootroot rootroot 4096 3月 9 19:41 ../
drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 api/
drwxrwxr-x 14 rootroot rootroot 4096 3月 8 12:45 arch/
-rw-rw-r-- 1 rootroot rootroot 349032 3月 9 10:34 bl31.elf
drwxrwxr-x 181 rootroot rootroot 4096 3月 8 12:45 board/
-rw-rw-r-- 1 rootroot rootroot 610 3月 8 12:45 .checkpatch.conf
drwxrwxr-x 5 rootroot rootroot 12288 3月 9 19:41 cmd/
drwxrwxr-x 6 rootroot rootroot 12288 3月 9 19:41 common/
-rw-rw-r-- 1 rootroot rootroot 2260 3月 8 12:45 config.mk
drwxrwxr-x 2 rootroot rootroot 69632 3月 8 12:45 configs/
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 19:41 disk/
drwxrwxr-x 10 rootroot rootroot 12288 3月 8 12:45 doc/
drwxrwxr-x 3 rootroot rootroot 4096 3月 8 12:45 Documentation/
drwxrwxr-x 58 rootroot rootroot 4096 3月 9 19:41 drivers/
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 19:41 dts/
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 19:41 env/
drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:45 examples/
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 fit/
drwxrwxr-x 12 rootroot rootroot 4096 3月 9 19:41 fs/
drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 .git/
-rw-rw-r-- 1 rootroot rootroot 859 3月 8 12:45 .gitignore
drwxrwxr-x 32 rootroot rootroot 20480 3月 9 19:41 include/
-rw-rw-r-- 1 rootroot rootroot 1863 3月 8 12:45 Kbuild
-rw-rw-r-- 1 rootroot rootroot 16875 3月 8 12:45 Kconfig
drwxrwxr-x 15 rootroot rootroot 12288 3月 9 19:41 lib/
drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 Licenses/
-rw-rw-r-- 1 rootroot rootroot 1323 3月 8 12:45 .mailmap
-rw-rw-r-- 1 rootroot rootroot 14626 3月 8 12:45 MAINTAINERS
-rw-rw-r-- 1 rootroot rootroot 58294 3月 8 12:45 Makefile
-rwxrwxr-x 1 rootroot rootroot 21449 3月 8 12:45 make.sh*
drwxrwxr-x 2 rootroot rootroot 4096 3月 9 19:41 net/
drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:45 post/
-rw-rw-r-- 1 rootroot rootroot 34 3月 8 12:45 PREUPLOAD.cfg
-rw-rw-r-- 1 rootroot rootroot 187683 3月 8 12:45 README
drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:45 scripts/
-rw-rw-r-- 1 rootroot rootroot 17 3月 8 12:45 snapshot.commit
drwxrwxr-x 12 rootroot rootroot 4096 3月 9 19:41 test/
drwxrwxr-x 16 rootroot rootroot 4096 3月 9 19:41 tools/
-rw-rw-r-- 1 rootroot rootroot 11367 3月 8 12:45 .travis.yml
-rw-rw-r-- 1 rootroot rootroot 72 3月 8 12:45 usb_update.txt
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14/u-boot$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14/u-boot$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14/u-boot$ cd ..
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ ll
total 30472
drwx------ 38 rootroot rootroot 4096 3月 9 19:41 ./
drwxr-x--- 33 rootroot rootroot 12288 3月 9 19:40 ../
-rwx------ 1 rootroot rootroot 1258 3月 8 11:44 1RK3576_Android14.0_SDK_RELEASE.tar.gz.md5sum.txt*
lrwxrwxrwx 1 rootroot rootroot 19 3月 8 12:44 Android.bp -> build/soong/root.bp
drwxrwxr-x 38 rootroot rootroot 4096 3月 8 12:44 art/
drwxrwxr-x 15 rootroot rootroot 4096 3月 8 12:44 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:44 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 3月 8 12:44 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 3月 8 12:44 build/
lrwxrwxrwx 1 rootroot rootroot 23 3月 8 12:44 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 3月 8 12:44 build.sh -> device/rockchip/common/build/rockchip/build.sh*
lrwxrwxrwx 1 rootroot rootroot 33 3月 8 12:44 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 3月 8 12:44 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 14 rootroot rootroot 4096 3月 8 12:44 cts/
drwxrwxr-x 8 rootroot rootroot 4096 3月 8 12:44 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:44 developers/
drwxrwxr-x 23 rootroot rootroot 4096 3月 8 12:44 development/
drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:44 device/
drwxrwxr-x 409 rootroot rootroot 12288 3月 8 12:44 external/
drwxrwxr-x 16 rootroot rootroot 4096 3月 8 12:45 frameworks/
drwxrwxr-x 20 rootroot rootroot 4096 3月 8 12:45 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 3月 8 12:44 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:45 kernel/
drwxrwxr-x 28 rootroot rootroot 4096 3月 9 12:59 kernel-6.1/
drwxrwxr-x 21 rootroot rootroot 4096 3月 8 12:45 libcore/
drwxrwxr-x 10 rootroot rootroot 4096 3月 8 12:45 libnativehelper/
drwxrwxr-x 10 rootroot rootroot 4096 3月 8 12:45 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 3月 8 12:44 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 3月 8 12:44 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 14 rootroot rootroot 4096 3月 9 13:00 out/
drwxrwxr-x 9 rootroot rootroot 4096 3月 8 12:45 packages/
drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:45 pdk/
drwxrwxr-x 11 rootroot rootroot 4096 3月 8 12:45 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 3月 8 12:47 prebuilts/
drwxrwxr-x 7 rootroot rootroot 4096 7月 1 2024 .repo/
-r-xr-xr-x 1 rootroot rootroot 519 3月 8 12:45 restore_patches.sh*
drwxrwxr-x 9 rootroot rootroot 4096 3月 7 17:38 rkbin/
drwxrwxr-x 10 rootroot rootroot 4096 3月 8 16:43 rkbin2/
-rwx------ 1 rootroot rootroot 31020561 3月 7 17:38 rkbin需要更新K7的内存文件20260307_1738.tgz*
drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:44 RKDocs/
drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:47 rkst/
drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:44 RKTools/
drwxrwxr-x 10 rootroot rootroot 4096 3月 9 13:06 rockdev/
drwxrwxr-x 21 rootroot rootroot 4096 3月 8 12:47 sdk/
drwxrwxr-x 48 rootroot rootroot 4096 3月 8 12:47 system/
drwxrwxr-x 12 rootroot rootroot 4096 3月 8 12:45 test/
drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:45 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 3月 8 12:45 tools/
drwxrwxr-x 26 rootroot rootroot 4096 3月 9 19:41 u-boot/
drwxrwxr-x 3 rootroot rootroot 4096 3月 8 12:45 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 3月 8 12:44 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ source build/envsetup.sh
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ lunch
You're building on Linux
Lunch menu .. Here are the common combinations:
-
aosp_arm-eng
-
aosp_arm64-eng
-
aosp_x86-eng
-
aosp_x86_64-eng
-
rk3576_ebook-user
-
rk3576_ebook-userdebug
-
rk3576_u-user
-
rk3576_u-userdebug
Which would you like? [aosp_arm-eng]
Pick from common choices above (e.g. 13) or specify your own (e.g. aosp_barbet-eng): 8
Hint: next time you can simply run 'lunch rk3576_u-userdebug'
============================================
PLATFORM_VERSION_CODENAME=REL
PLATFORM_VERSION=14
PRODUCT_INCLUDE_TAGS=com.android.mainline
TARGET_PRODUCT=rk3576_u
TARGET_BUILD_VARIANT=userdebug
TARGET_ARCH=arm64
TARGET_ARCH_VARIANT=armv8-a
TARGET_CPU_VARIANT=generic
TARGET_2ND_ARCH=arm
TARGET_2ND_ARCH_VARIANT=armv8-a
TARGET_2ND_CPU_VARIANT=generic
HOST_OS=linux
HOST_OS_EXTRA=Linux-6.8.0-90-generic-x86_64-Ubuntu-22.04.5-LTS
HOST_CROSS_OS=windows
BUILD_ID=UQ1A.240205.004.B1
OUT_DIR=out
============================================
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ ./build.sh -Uu
============================================
PLATFORM_VERSION_CODENAME=REL
PLATFORM_VERSION=14
PRODUCT_INCLUDE_TAGS=com.android.mainline
TARGET_PRODUCT=rk3576_u
TARGET_BUILD_VARIANT=userdebug
TARGET_ARCH=arm64
TARGET_ARCH_VARIANT=armv8-a
TARGET_CPU_VARIANT=generic
TARGET_2ND_ARCH=arm
TARGET_2ND_ARCH_VARIANT=armv8-a
TARGET_2ND_CPU_VARIANT=generic
HOST_OS=linux
HOST_OS_EXTRA=Linux-6.8.0-90-generic-x86_64-Ubuntu-22.04.5-LTS
HOST_CROSS_OS=windows
BUILD_ID=UQ1A.240205.004.B1
OUT_DIR=out
============================================
ninja: no work to do.
build completed successfully (10 seconds)
make and copy android images
TARGET_PRODUCT=rk3576_u
TARGET_BASE_PARAMETER_IMAGE==device/rockchip/common/baseparameter/v2.0/baseparameter.img
TARGET_AUTO_PQ_IMAGE==
HIGH_RELIABLE_RECOVERY_OTA=
BOARD_AVB_ENABLE=false
system filesysystem is ext4
create dtbo.img...
done.
create rockdev/Image-rk3576_u/resource.img...
done.
skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/init_boot.img
skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/pvmfw.img
create rockdev/Image-rk3576_u/boot.img...
done.
create rockdev/Image-rk3576_u/boot-debug.img...
done.
skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/vendor_boot.img
skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/vendor_boot-debug.img
create rockdev/Image-rk3576_u/recovery.img...
done.
create rockdev/Image-rk3576_u/super.img...
done.
skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/userdata.img
create vbmeta.img...
BOARD_AVB_ENABLE is false, use default vbmeta.img
create misc.img.... done.
create uboot.img...
u-boot/trust.img not fount! Please make it from u-boot first!
create loader...
create config.cfg...
create baseparameter...done.
Make image ok!

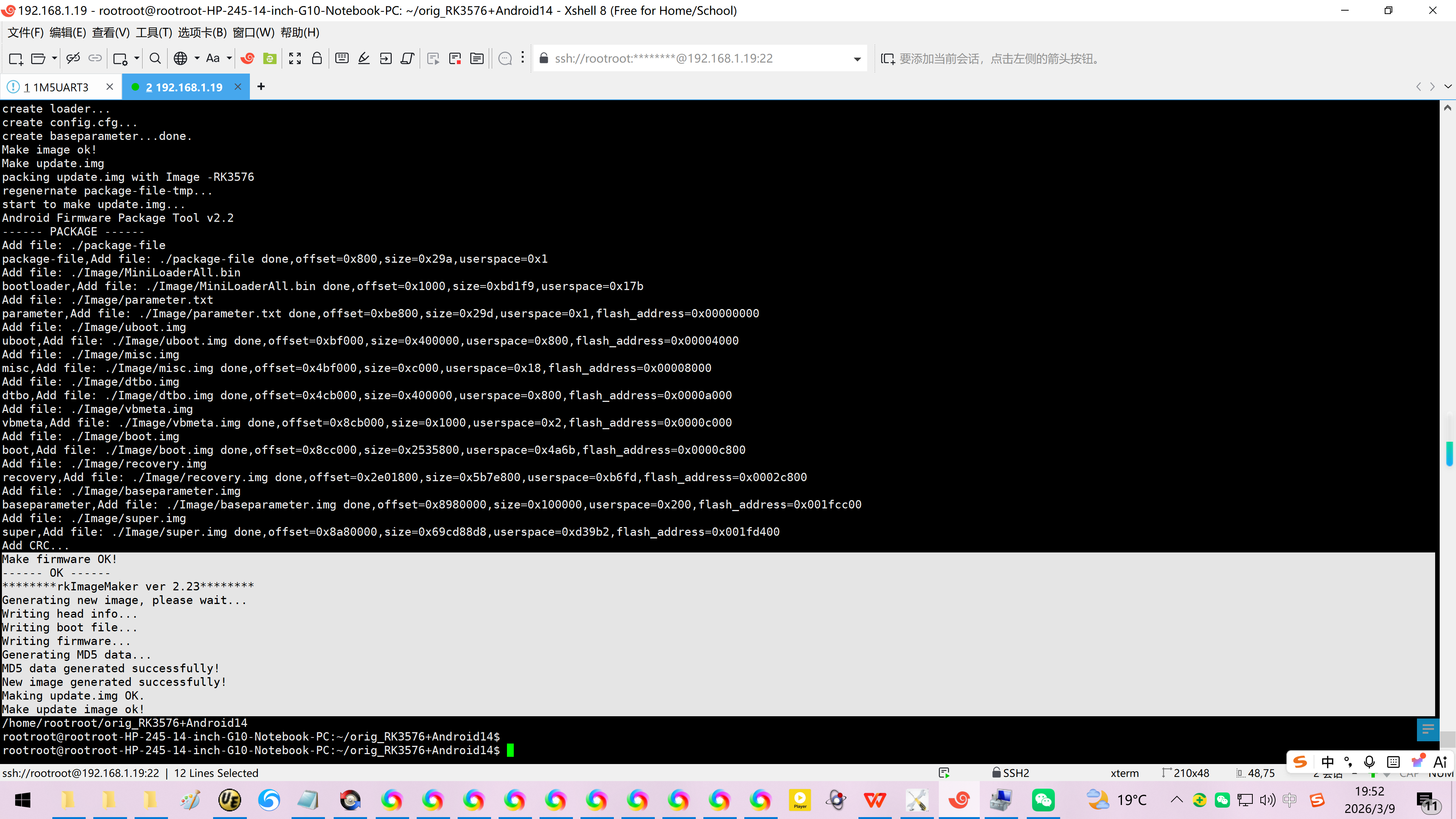

Make update.img
packing update.img with Image -RK3576
regenernate package-file-tmp...
start to make update.img...
Android Firmware Package Tool v2.2
------ PACKAGE ------
Add file: ./package-file
package-file,Add file: ./package-file done,offset=0x800,size=0x29a,userspace=0x1
Add file: ./Image/MiniLoaderAll.bin
bootloader,Add file: ./Image/MiniLoaderAll.bin done,offset=0x1000,size=0xbd1f9,userspace=0x17b
Add file: ./Image/parameter.txt
parameter,Add file: ./Image/parameter.txt done,offset=0xbe800,size=0x29d,userspace=0x1,flash_address=0x00000000
Add file: ./Image/uboot.img
uboot,Add file: ./Image/uboot.img done,offset=0xbf000,size=0x400000,userspace=0x800,flash_address=0x00004000
Add file: ./Image/misc.img
misc,Add file: ./Image/misc.img done,offset=0x4bf000,size=0xc000,userspace=0x18,flash_address=0x00008000
Add file: ./Image/dtbo.img
dtbo,Add file: ./Image/dtbo.img done,offset=0x4cb000,size=0x400000,userspace=0x800,flash_address=0x0000a000
Add file: ./Image/vbmeta.img
vbmeta,Add file: ./Image/vbmeta.img done,offset=0x8cb000,size=0x1000,userspace=0x2,flash_address=0x0000c000
Add file: ./Image/boot.img
boot,Add file: ./Image/boot.img done,offset=0x8cc000,size=0x2535800,userspace=0x4a6b,flash_address=0x0000c800
Add file: ./Image/recovery.img
recovery,Add file: ./Image/recovery.img done,offset=0x2e01800,size=0x5b7e800,userspace=0xb6fd,flash_address=0x0002c800
Add file: ./Image/baseparameter.img
baseparameter,Add file: ./Image/baseparameter.img done,offset=0x8980000,size=0x100000,userspace=0x200,flash_address=0x001fcc00
Add file: ./Image/super.img
super,Add file: ./Image/super.img done,offset=0x8a80000,size=0x69cd88d8,userspace=0xd39b2,flash_address=0x001fd400
Add CRC...
Make firmware OK!
------ OK ------
********rkImageMaker ver 2.23********
Generating new image, please wait...
Writing head info...
Writing boot file...
Writing firmware...
Generating MD5 data...
MD5 data generated successfully!
New image generated successfully!
Making update.img OK.
Make update image ok!
/home/rootroot/orig_RK3576+Android14
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$

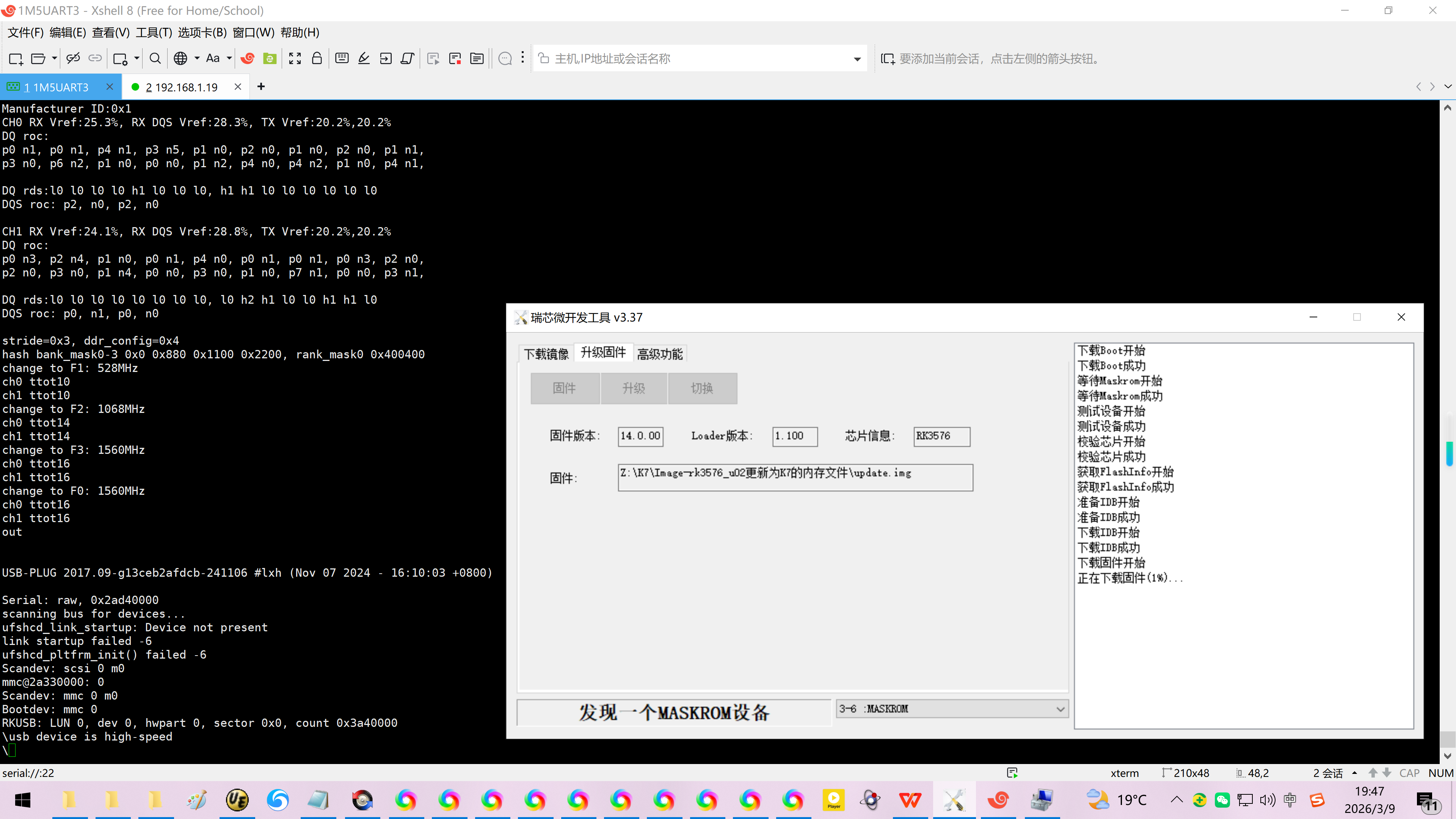

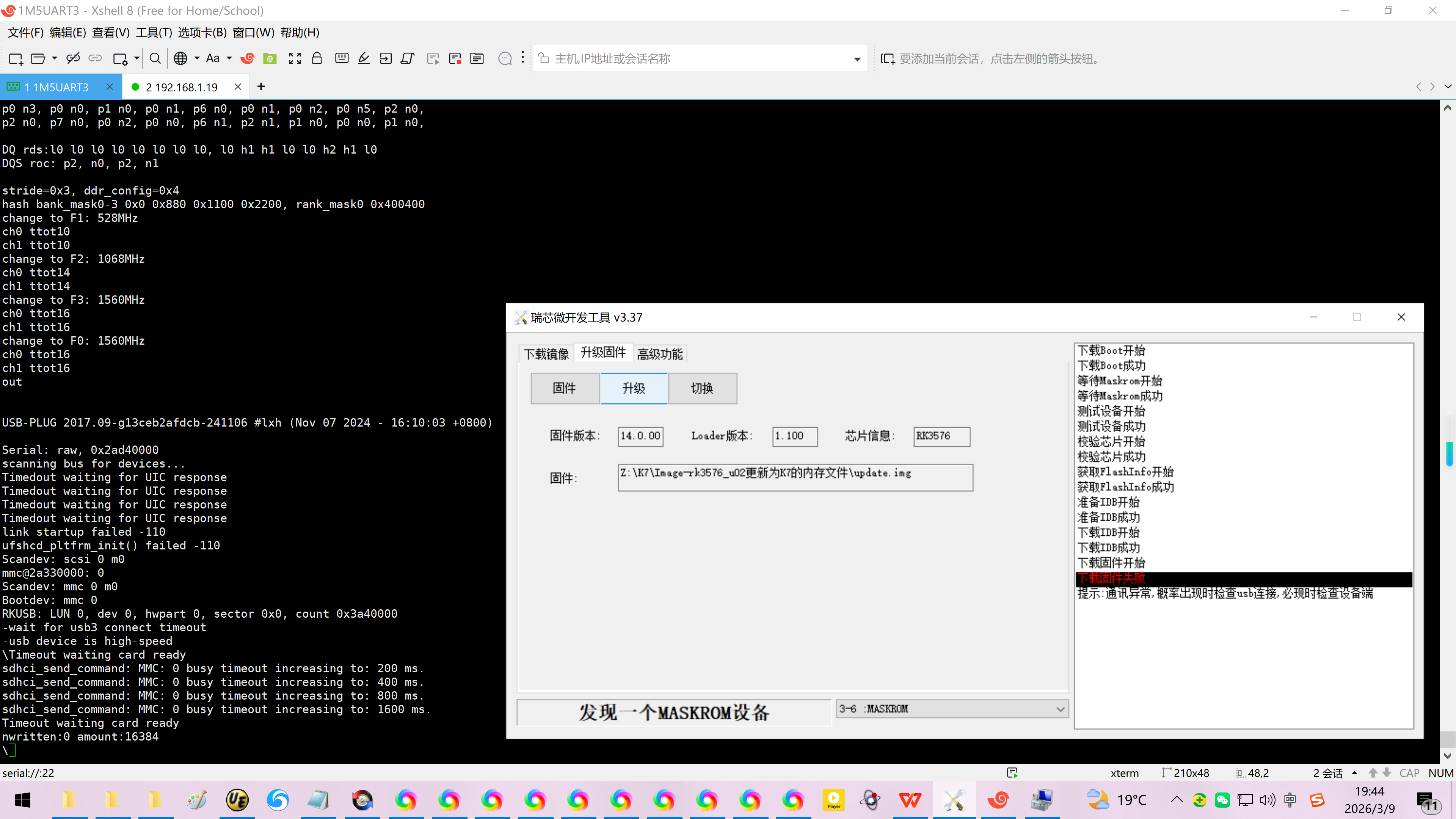

更新系统IMG固件：
完整的LOG：
BEGIN\] 2026/3/9 19:40:20 rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~$ cd orig_RK3576+Android14/ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ ll total 30472 drwx------ 38 rootroot rootroot 4096 3月 8 22:29 ./ drwxr-x--- 33 rootroot rootroot 12288 3月 9 19:40 ../ -rwx------ 1 rootroot rootroot 1258 3月 8 11:44 1RK3576_Android14.0_SDK_RELEASE.tar.gz.md5sum.txt\* lrwxrwxrwx 1 rootroot rootroot 19 3月 8 12:44 Android.bp -\> build/soong/root.bp drwxrwxr-x 38 rootroot rootroot 4096 3月 8 12:44 art/ drwxrwxr-x 15 rootroot rootroot 4096 3月 8 12:44 bionic/ drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:44 bootable/ lrwxrwxrwx 1 rootroot rootroot 26 3月 8 12:44 bootstrap.bash -\> build/soong/bootstrap.bash\* drwxrwxr-x 9 rootroot rootroot 4096 3月 8 12:44 build/ lrwxrwxrwx 1 rootroot rootroot 23 3月 8 12:44 BUILD -\> build/bazel/bazel.BUILD lrwxrwxrwx 1 rootroot rootroot 46 3月 8 12:44 build.sh -\> device/rockchip/common/build/rockchip/build.sh\* lrwxrwxrwx 1 rootroot rootroot 33 3月 8 12:44 .classpath -\> device/rockchip/common/.classpath\* lrwxrwxrwx 1 rootroot rootroot 46 3月 8 12:44 Copyright_Statement.pdf -\> device/rockchip/common/Copyright_Statement.pdf\* drwxrwxr-x 14 rootroot rootroot 4096 3月 8 12:44 cts/ drwxrwxr-x 8 rootroot rootroot 4096 3月 8 12:44 dalvik/ drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:44 developers/ drwxrwxr-x 23 rootroot rootroot 4096 3月 8 12:44 development/ drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:44 device/ drwxrwxr-x 409 rootroot rootroot 12288 3月 8 12:44 external/ drwxrwxr-x 16 rootroot rootroot 4096 3月 8 12:45 frameworks/ drwxrwxr-x 20 rootroot rootroot 4096 3月 8 12:45 hardware/ lrwxrwxrwx 1 rootroot rootroot 33 3月 8 12:44 javaenv.sh -\> device/rockchip/common/javaenv.sh drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:45 kernel/ drwxrwxr-x 28 rootroot rootroot 4096 3月 9 12:59 kernel-6.1/ drwxrwxr-x 21 rootroot rootroot 4096 3月 8 12:45 libcore/ drwxrwxr-x 10 rootroot rootroot 4096 3月 8 12:45 libnativehelper/ drwxrwxr-x 10 rootroot rootroot 4096 3月 8 12:45 mkcombinedroot/ lrwxrwxrwx 1 rootroot rootroot 36 3月 8 12:44 mkimage_ab.sh -\> device/rockchip/common/mkimage_ab.sh\* lrwxrwxrwx 1 rootroot rootroot 33 3月 8 12:44 mkimage.sh -\> device/rockchip/common/mkimage.sh\* drwxrwxr-x 14 rootroot rootroot 4096 3月 9 13:00 out/ drwxrwxr-x 9 rootroot rootroot 4096 3月 8 12:45 packages/ drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:45 pdk/ drwxrwxr-x 11 rootroot rootroot 4096 3月 8 12:45 platform_testing/ drwxrwxr-x 32 rootroot rootroot 4096 3月 8 12:47 prebuilts/ drwxrwxr-x 7 rootroot rootroot 4096 7月 1 2024 .repo/ -r-xr-xr-x 1 rootroot rootroot 519 3月 8 12:45 restore_patches.sh\* drwxrwxr-x 9 rootroot rootroot 4096 3月 9 10:34 rkbin/ drwxrwxr-x 10 rootroot rootroot 4096 3月 8 16:43 rkbin2/ -rwx------ 1 rootroot rootroot 31020561 3月 7 17:38 rkbin需要更新K7的内存文件20260307_1738.tgz\* drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:44 RKDocs/ drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:47 rkst/ drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:44 RKTools/ drwxrwxr-x 10 rootroot rootroot 4096 3月 9 13:06 rockdev/ drwxrwxr-x 21 rootroot rootroot 4096 3月 8 12:47 sdk/ drwxrwxr-x 48 rootroot rootroot 4096 3月 8 12:47 system/ drwxrwxr-x 12 rootroot rootroot 4096 3月 8 12:45 test/ drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:45 toolchain/ drwxrwxr-x 25 rootroot rootroot 4096 3月 8 12:45 tools/ drwxrwxr-x 28 rootroot rootroot 4096 3月 9 12:59 u-boot/ drwxrwxr-x 3 rootroot rootroot 4096 3月 8 12:45 vendor/ lrwxrwxrwx 1 rootroot rootroot 27 3月 8 12:44 WORKSPACE -\> build/bazel/bazel.WORKSPACE rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rm rk rkbin/ rkbin2/ rkbin需要更新K7的内存文件20260307_1738.tgz rkst/ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rm rk rkbin/ rkbin2/ rkbin需要更新K7的内存文件20260307_1738.tgz rkst/ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rm rk rkbin/ rkbin2/ rkbin需要更新K7的内存文件20260307_1738.tgz rkst/ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rm rkbin -rf rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ ll \*.tgz -rwx------ 1 rootroot rootroot 31020561 3月 7 17:38 rkbin需要更新K7的内存文件20260307_1738.tgz\* rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ tar --use-compress-program=pigz -xvpf rkbin需要更新K7的内存文件20260307_1738.tgz rkbin/ rkbin/RKBOOT/ rkbin/RKBOOT/RV1106MINIALL_SPI_NOR_TB_NOMCU.ini rkbin/RKBOOT/PX3SEMINIALL.ini rkbin/RKBOOT/RV1106MINIALL_TB_SC200AI.ini rkbin/RKBOOT/RK3308MINIALL_SPI_NAND_UART4.ini rkbin/RKBOOT/RK30BMINI.ini rkbin/RKBOOT/RK310B.ini rkbin/RKBOOT/RK3568MINIALL_NAND.ini rkbin/RKBOOT/RKNPULIONMINIALL.ini rkbin/RKBOOT/PX30MINIALL.ini rkbin/RKBOOT/RV1126MINIALL_FTL.ini rkbin/RKBOOT/RK322XHMINIALL.ini rkbin/RKBOOT/RK3126MINIALL_SLC.ini rkbin/RKBOOT/RV1103BMINIALL_FASTBOOT_SPI_NOR_SPI_NAND.ini rkbin/RKBOOT/RK3036MINIALL.ini rkbin/RKBOOT/RK302A.ini rkbin/RKBOOT/RK3308MINIALL_SPI_NOR.ini rkbin/RKBOOT/RV1106MINIALL.ini rkbin/RKBOOT/RV1106MINIALL_EMMC_TB.ini rkbin/RKBOOT/RV1106MINIALL_EMMC_TB_NOMCU.ini rkbin/RKBOOT/RKCROWN.ini rkbin/RKBOOT/RV1126MINIALL_LP4_EMMC_TB.ini rkbin/RKBOOT/RK3126MINIALL.ini rkbin/RKBOOT/RK310BMINIALL.ini rkbin/RKBOOT/RK3308MINIALL_UART4.ini rkbin/RKBOOT/RK3562MINIALL_ULTRA.ini rkbin/RKBOOT/RK3399MINIALL.ini rkbin/RKBOOT/RK3528MINIALL.ini rkbin/RKBOOT/RV110XMINIALL.ini rkbin/RKBOOT/RK3506BMINIALL.ini rkbin/RKBOOT/RK3576MINIALL.ini rkbin/RKBOOT/RK3032MINIALL.ini rkbin/RKBOOT/RV1106MINIALL_SPI_NOR_TB_GC2093.ini rkbin/RKBOOT/RK3506MINIALL.ini rkbin/RKBOOT/RK3368BOXMINIALL.ini rkbin/RKBOOT/RK3568MINIALL_SPI_NAND.ini rkbin/RKBOOT/RV1126MINIALL.ini rkbin/RKBOOT/RK3288MINIALL.ini rkbin/RKBOOT/RV1106MINIALL_SPI_NAND_TB_NOMCU.ini rkbin/RKBOOT/RK302AMINI.ini rkbin/RKBOOT/RV1106MINIALL_TB_DUAL_CAMERA_SC3338_SC3338.ini rkbin/RKBOOT/RK310BMINI.ini rkbin/RKBOOT/RK3588MINIALL_RAMBOOT.ini rkbin/RKBOOT/RK3566MINIALL_ULTRA.ini rkbin/RKBOOT/RK3583MINIALL.ini rkbin/RKBOOT/RV1103BMINIALL_AUTO_MERGE.ini rkbin/RKBOOT/RK3308MINIALL_WO_FTL.ini rkbin/RKBOOT/RK1808MINIALL.ini rkbin/RKBOOT/RK3326MINIALL_SLC.ini rkbin/RKBOOT/RK3032MINIALL_SLC.ini rkbin/RKBOOT/RK3576MINIALL_IPC.ini rkbin/RKBOOT/RK3368MINIALL.ini rkbin/RKBOOT/RK30MINI.ini rkbin/RKBOOT/RV1106MINIALL_SPI_NOR_TB.ini rkbin/RKBOOT/RK3576MINIALL_FSPI1.ini rkbin/RKBOOT/RK3562MINIALL_AMP_CPU3.ini rkbin/RKBOOT/RKNANO.ini rkbin/RKBOOT/RV1103BMINIALL_UART0M2_SPI_NOR_SPI_NAND.ini rkbin/RKBOOT/RK3568MINIALL_RAMBOOT.ini rkbin/RKBOOT/RV1106MINIALL_TB_SC450AI.ini rkbin/RKBOOT/RK3566MINIALL.ini rkbin/RKBOOT/RV1106MINIALL_TB_DUAL_CAMERA_SC230AI_SC230AI.ini rkbin/RKBOOT/RK3399MINIALL_SPINOR.ini rkbin/RKBOOT/RK3288.ini rkbin/RKBOOT/RK30BMINIALL.ini rkbin/RKBOOT/RV1126MINIALL_RAMBOOT.ini rkbin/RKBOOT/RV1106MINIALL_TB_SC4336.ini rkbin/RKBOOT/PX30MINIALL_WO_FTL.ini rkbin/RKBOOT/RK3399PROMINIALL.ini rkbin/RKBOOT/RK3128MINIALL_SLC.ini rkbin/RKBOOT/RV1103BMINIALL_SPI_NAND_W25N01XX_TB.ini rkbin/RKBOOT/RK3128.ini rkbin/RKBOOT/RK322XATMINIALL.ini rkbin/RKBOOT/RK3566MINIALL_NAND.ini rkbin/RKBOOT/RK3128MINIALL.ini rkbin/RKBOOT/RV1126MINIALL_EMMC_TB.ini rkbin/RKBOOT/RK30B.ini rkbin/RKBOOT/RV1126MINIALL_SPI_NOR_TB.ini rkbin/RKBOOT/SDBOOT.ini rkbin/RKBOOT/RK3308MINIALL.ini rkbin/RKBOOT/RK3576MINIALL_ULTRA.ini rkbin/RKBOOT/RK3036.ini rkbin/RKBOOT/RV1103BMINIALL.ini rkbin/RKBOOT/RK1808MINIALL_WO_FTL.ini rkbin/RKBOOT/RV1106MINIALL_TB_GC3003.ini rkbin/RKBOOT/RV1106MINIALL_SPI_NOR_WAKEUP.ini rkbin/RKBOOT/RV1103BMINIALL_TB_EMMC.ini rkbin/RKBOOT/RV1103BMINIALL_SPI_NOR_SPI_NAND_TB.ini rkbin/RKBOOT/RK3126MINIALL_WO_FTL.ini rkbin/RKBOOT/RK30MINIALL.ini rkbin/RKBOOT/RK3368HMINIALL.ini rkbin/RKBOOT/RK3036MINIALL_SLC.ini rkbin/RKBOOT/RV1106MINIALL_TB_SC230AI.ini rkbin/RKBOOT/RK3188MINIALL.ini rkbin/RKBOOT/RKSMART.ini rkbin/RKBOOT/RK3588MINIALL_IPC.ini rkbin/RKBOOT/RK3326AARCH32MINIALL_SLC.ini rkbin/RKBOOT/RK3308MINIALL_SPI_NAND.ini rkbin/RKBOOT/RK322XMINIALL.ini rkbin/RKBOOT/RK30.ini rkbin/RKBOOT/RV1103BMINIALL_UART0M2_SPI_NOR_TB.ini rkbin/RKBOOT/RK3568MINIALL.ini rkbin/RKBOOT/RK302AMINIALL.ini rkbin/RKBOOT/PX3SEMINIALL_SLC.ini rkbin/RKBOOT/RK3126.ini rkbin/RKBOOT/RK3568MINIALL_PCIE_EP.ini rkbin/RKBOOT/PX30MINIALL_SLC.ini rkbin/RKBOOT/RK3128XMINIALL.ini rkbin/RKBOOT/RV1126MINIALL_LP3_EMMC_TB.ini rkbin/RKBOOT/RK3368.ini rkbin/RKBOOT/RK3326AARCH32MINIALL.ini rkbin/RKBOOT/RK1806MINIALL.ini rkbin/RKBOOT/RKCAYMAN.ini rkbin/RKBOOT/RV1126MINIALL_IPC.ini rkbin/RKBOOT/RV1106MINIALL_TB_DUAL_CAMERA_SC301IOT_SC230AI.ini rkbin/RKBOOT/RK3326MINIALL.ini rkbin/RKBOOT/RKPANDA.ini rkbin/RKBOOT/RV1126MINIALL_SPI_NOR_TINY.ini rkbin/RKBOOT/RV1103BMINIALL_FASTBOOT_EMMC.ini rkbin/RKBOOT/RK3562MINIALL.ini rkbin/RKBOOT/RV1106MINIALL_TB_SC3336_SC3338.ini rkbin/RKBOOT/PX5MINIALL.ini rkbin/RKBOOT/RK3308MINIALL_SPI_NOR_UART4.ini rkbin/RKBOOT/RK3328MINIALL.ini rkbin/RKBOOT/RV1106MINIALL_SPI_NAND_TB.ini rkbin/RKBOOT/RK3366MINIALL.ini rkbin/RKBOOT/PX5KERNEL4.4MINIALL.ini rkbin/RKBOOT/RK3588MINIALL_PCIE_EP.ini rkbin/RKBOOT/RK3036_ECHOMINIALL.ini rkbin/RKBOOT/RK3588MINIALL.ini rkbin/scripts/ rkbin/scripts/checkpatch.sh rkbin/RKTRUST/ rkbin/RKTRUST/RK3036TOS.ini rkbin/RKTRUST/RV1106TOS_TB.ini rkbin/RKTRUST/RK3308AARCH32TRUST.ini rkbin/RKTRUST/RK3588TRUST.ini rkbin/RKTRUST/RK3399PROTRUST.ini rkbin/RKTRUST/RK3128XTOS.ini rkbin/RKTRUST/RK3368HTRUST.ini rkbin/RKTRUST/RK3308TRUST_CPU3.ini rkbin/RKTRUST/RV1126TOS_TB.ini rkbin/RKTRUST/PX30TRUST.ini rkbin/RKTRUST/RV1103BTOS_MCU_WRAP.ini rkbin/RKTRUST/RK3568TRUST_L3_PART_ECC.ini rkbin/RKTRUST/RK3128TOS.ini rkbin/RKTRUST/RK3399TRUST.ini rkbin/RKTRUST/RKNPULIONTRUST.ini rkbin/RKTRUST/RK3358TRUST.ini rkbin/RKTRUST/PX5KERNEL4.4TRUST.ini rkbin/RKTRUST/RK3562TRUST.ini rkbin/RKTRUST/RK3288TOS.ini rkbin/RKTRUST/RK322XHTRUST.ini rkbin/RKTRUST/RK3576TRUST.ini rkbin/RKTRUST/RK3126TOS.ini rkbin/RKTRUST/RV1103BTOS.ini rkbin/RKTRUST/RK3368BOXTRUST.ini rkbin/RKTRUST/RK3528TRUST.ini rkbin/RKTRUST/RV1126TOS_SPI_NOR_TINY.ini rkbin/RKTRUST/RK3506TOS_TA.ini rkbin/RKTRUST/RV1126TOS.ini rkbin/RKTRUST/RK3308TRUST.ini rkbin/RKTRUST/RV1126TOS_MINI_MEM.ini rkbin/RKTRUST/RV1106TOS_WAKEUP.ini rkbin/RKTRUST/RV1126TOS_TB_NOMCU.ini rkbin/RKTRUST/RK3328TRUST.ini rkbin/RKTRUST/RK3126TOS_LADDR.ini rkbin/RKTRUST/RK3326TRUST.ini rkbin/RKTRUST/RK3566TRUST_ULTRA.ini rkbin/RKTRUST/RK3568TRUST_CPU3.ini rkbin/RKTRUST/RK3506TOS.ini rkbin/RKTRUST/RK1806TRUST.ini rkbin/RKTRUST/RK1808TRUST.ini rkbin/RKTRUST/RK3568TRUST.ini rkbin/RKTRUST/RK322XTOS.ini rkbin/RKTRUST/RK3568TRUST_RT.ini rkbin/RKTRUST/PX5TRUST.ini rkbin/RKTRUST/RV1106TOS.ini rkbin/RKTRUST/PX3SETOS.ini rkbin/RKTRUST/RK3368TRUST.ini rkbin/tools/ rkbin/tools/burner_image_kits/ rkbin/tools/burner_image_kits/make_spi_nand.sh rkbin/tools/burner_image_kits/multi_idb_pack.sh rkbin/tools/burner_image_kits/tools/ rkbin/tools/burner_image_kits/tools/align_to_flash_block_size.sh rkbin/tools/burner_image_kits/tools/rk_bch rkbin/tools/burner_image_kits/tools/transfer_4K_2_2K.sh rkbin/tools/burner_image_kits/make.sh rkbin/tools/burner_image_kits/make_slc_nand.sh rkbin/tools/parameter_gpt.txt rkbin/tools/programmer_image_tool rkbin/tools/loaderimage rkbin/tools/mkimage rkbin/tools/mkkrnlimg rkbin/tools/gpt2env rkbin/tools/ddrbin_tool_user_guide.txt rkbin/tools/resource_tool rkbin/tools/upgrade_tool rkbin/tools/kernelimage rkbin/tools/rkdeveloptool rkbin/tools/config.ini rkbin/tools/ddrbin_tool rkbin/tools/trust_merger rkbin/tools/rk_sign_tool rkbin/tools/firmwareMerger rkbin/tools/boot_merger rkbin/tools/ddrbin_tool.py rkbin/tools/setting.ini rkbin/tools/bmp2gray16 rkbin/tools/ddrbin_param.txt rkbin/tools/pcie_idb_config.sh rkbin/RKBOOT.ini rkbin/img/ rkbin/img/rk1x/ rkbin/img/rk1x/rk1806_loader_v1.04.105.bin rkbin/img/rk1x/rk1806_trust_v1.12.img rkbin/README rkbin/LICENSE rkbin/doc/ rkbin/doc/release/ rkbin/doc/release/RK3128X_EN.md rkbin/doc/release/RK3399_EN.md rkbin/doc/release/RK3368_RK3368H_EN.md rkbin/doc/release/RK3328_EN.md rkbin/doc/release/RK3126_CN.md rkbin/doc/release/RK1808_CN.md rkbin/doc/release/RK3506_CN.md rkbin/doc/release/RKNPU_LION_EN.md rkbin/doc/release/RK3128X_CN.md rkbin/doc/release/RK322XH_CN.md rkbin/doc/release/RV1126_CN.md rkbin/doc/release/RV1103B_CN.md rkbin/doc/release/RK3308_CN.md rkbin/doc/release/RK3368_RK3368H_CN.md rkbin/doc/release/RK322XH_EN.md rkbin/doc/release/RK3032_CN.md rkbin/doc/release/RK3308_EN.md rkbin/doc/release/RK3126_EN.md rkbin/doc/release/RK3566_EN.md rkbin/doc/release/RK3588_EN.md rkbin/doc/release/RK3328_CN.md rkbin/doc/release/RK3566_CN.md rkbin/doc/release/RV1106_CN.md rkbin/doc/release/RK3358_EN.md rkbin/doc/release/RK3399_CN.md rkbin/doc/release/PX30_EN.md rkbin/doc/release/RK3358_CN.md rkbin/doc/release/RK1808_EN.md rkbin/doc/release/RK3399PRO_EN.md rkbin/doc/release/RK322X_CN.md rkbin/doc/release/RK3288_CN.md rkbin/doc/release/RV1106_EN.md rkbin/doc/release/RK3576_EN.md rkbin/doc/release/RK3032_EN.md rkbin/doc/release/RK3288_EN.md rkbin/doc/release/RK3399PRO_CN.md rkbin/doc/release/RK3562_CN.md rkbin/doc/release/PX30_CN.md rkbin/doc/release/RK3528_EN.md rkbin/doc/release/RK3506_EN.md rkbin/doc/release/RK3568_CN.md rkbin/doc/release/RK3568_EN.md rkbin/doc/release/RV1108_CN.md rkbin/doc/release/RK3326_CN.md rkbin/doc/release/RV1108_EN.md rkbin/doc/release/RK3562_EN.md rkbin/doc/release/RK3326_EN.md rkbin/doc/release/RV1103B_EN.md rkbin/doc/release/RV1126_EN.md rkbin/doc/release/RK3528_CN.md rkbin/doc/release/RK322X_EN.md rkbin/doc/release/RKNPU_LION_CN.md rkbin/doc/release/RK3036_CN.md rkbin/doc/release/RK3588_CN.md rkbin/doc/release/RK3036_EN.md rkbin/doc/release/RK3576_CN.md rkbin/.gitignore rkbin/bin/ rkbin/bin/rk1x/ rkbin/bin/rk1x/rk1808_bl32_v2.04.bin rkbin/bin/rk1x/rk1808_bl31_v1.15.elf rkbin/bin/rk1x/rk1808_ddr_933MHz_v1.06.bin rkbin/bin/rk1x/rk1808_miniloader_v1.05.bin rkbin/bin/rk1x/rk1808_bl32_v2.05.bin rkbin/bin/rk1x/rk1808_miniloader_wo_ftl_v1.06.bin rkbin/bin/rk1x/rk1808_usbplug_wo_ftl_v1.06.bin rkbin/bin/rk1x/rk1808_usbplug_v1.05.bin rkbin/bin/rk30/ rkbin/bin/rk30/rk303x_usbplug_slc_v2.64.bin rkbin/bin/rk30/rk303x_miniloader_v2.57.bin rkbin/bin/rk30/rk3036_ddr_300MHz_uart0_v1.11.bin rkbin/bin/rk30/rk3036_ddr_528MHz_v1.09.bin rkbin/bin/rk30/rk3036_tee_uart0_v2.00.bin rkbin/bin/rk30/rk3032_usbplug_slc_v2.63.bin rkbin/bin/rk30/rk303x_usbplug_slc_v2.65.bin rkbin/bin/rk30/rk3036_ddr_300MHz_v1.09.bin rkbin/bin/rk30/rk3036_ddr_396MHz_v1.09.bin rkbin/bin/rk30/rk3036_ddr_300MHz_v1.11.bin rkbin/bin/rk30/rk3036_ddr_528MHz_uart0_v1.11.bin rkbin/bin/rk30/rk303x_miniloader_slc_v2.64.bin rkbin/bin/rk30/rk3036_ddr_456MHz_uart0_v1.11.bin rkbin/bin/rk30/rk3036_ddr_396MHz_v1.11.bin rkbin/bin/rk30/rk3032_miniloader_slc_v2.63.bin rkbin/bin/rk30/rk3032_usbplug_v2.61.bin rkbin/bin/rk30/rk303x_miniloader_slc_v2.65.bin rkbin/bin/rk30/rk3036_ddr_396MHz_uart0_v1.11.bin rkbin/bin/rk30/rk303x_usbplug_v2.57.bin rkbin/bin/rk30/rk3032_miniloader_v2.61.bin rkbin/bin/rk30/rk3036_ddr_456MHz_v1.11.bin rkbin/bin/rk30/rk3036_tee_v2.00.bin rkbin/bin/rk30/rk303x_echo_miniloader_v2.36.bin rkbin/bin/rk30/rk3036_ddr_456MHz_v1.09.bin rkbin/bin/rk30/rk3036_ddr_528MHz_v1.11.bin rkbin/bin/rk31/ rkbin/bin/rk31/rk3126_tee_laddr_v1.04.bin rkbin/bin/rk31/rk3188_miniloader_v2.00.bin rkbin/bin/rk31/rk3126_tee_ta_v2.04.bin rkbin/bin/rk31/rk312x_miniloader_wo_ftl_v2.63.bin rkbin/bin/rk31/px3se_ddr_300MHz_v2.09_uart1.bin rkbin/bin/rk31/rk3126_usbplug_v2.63.bin rkbin/bin/rk31/px3se_miniloader_slc_v2.63.bin rkbin/bin/rk31/px3se_tee_ta_uart1_v1.34.bin rkbin/bin/rk31/px3se_ddr_300MHz_v2.09_uart2.bin rkbin/bin/rk31/rk3128x_tee_ta_v2.12.bin rkbin/bin/rk31/rk3128x_tee_v1.93.bin rkbin/bin/rk31/rk3128_ddr_300MHz_v2.12.bin rkbin/bin/rk31/px3se_miniloader_20180122.bin rkbin/bin/rk31/rk3128x_miniloader_v2.57.bin rkbin/bin/rk31/rk3188_usbplug_v2.00.bin rkbin/bin/rk31/rk312x_miniloader_slc_v2.65.bin rkbin/bin/rk31/rk3126_usbplug_slc_v2.63.bin rkbin/bin/rk31/rk3128_usbplug_v2.63.bin rkbin/bin/rk31/rk3126_ddr_300MHz_v2.09.bin rkbin/bin/rk31/rk3126_usbplug_wo_ftl_v2.63.bin rkbin/bin/rk31/rk3128x_usbplug_v2.57.bin rkbin/bin/rk31/rk312x_miniloader_v2.63.bin rkbin/bin/rk31/px3se_usbplug_slc_v2.63.bin rkbin/bin/rk31/rk3188_ddr_v2.00.bin rkbin/bin/rk31/rk3128_usbplug_slc_v2.65.bin rkbin/bin/rk31/rk3128x_ddr_300MHz_v1.08.bin rkbin/bin/rv11/ rkbin/bin/rv11/rv1106_ddr_924MHz_tb_v1.15.bin rkbin/bin/rv11/rv1126_tpl_924MHz_ddr3_tb_v1.08.bin rkbin/bin/rv11/rv1106_hpmcu_tb_gc2093_v1.80.bin rkbin/bin/rv11/rv1106_hpmcu_wakeup_v1.00.bin rkbin/bin/rv11/rv1126_tpl_924MHz_lp4_tb_v1.08.bin rkbin/bin/rv11/rv1106_hpmcu_tb_gc3003_v1.64.bin rkbin/bin/rv11/rv1106_hpmcu_tb_sc200ai_v1.90.bin rkbin/bin/rv11/rv1126_spl_spi_nor_tb_v1.00.bin rkbin/bin/rv11/rv1108_ddr3_v1.12.bin rkbin/bin/rv11/rv1126_tee_mini_mem_v1.00.bin rkbin/bin/rv11/rv1106_ddr_792MHz_tb_v1.15.bin rkbin/bin/rv11/rv1103b_flash_acc_w25n01xx_v1.00.bin rkbin/bin/rv11/rv1106_hpmcu_tb_dual_camera_sc230ai_sc230ai_v1.71.bin rkbin/bin/rv11/rv1126_tpl_924MHz_ddr4_tb_v1.08.bin rkbin/bin/rv11/rv1106_hpmcu_tb_dual_camera_sc301iot_sc230ai_v1.90.bin rkbin/bin/rv11/rv1126_ddr_1056MHz_v1.10.bin rkbin/bin/rv11/rv1126_ddr_784MHz_v1.10.bin rkbin/bin/rv11/rv1106_hpmcu_wrap_v1.70.bin rkbin/bin/rv11/rv1126_spl_spi_nor_tiny_v1.01.bin rkbin/bin/rv11/rv1103b_tee_ta_v1.03.bin rkbin/bin/rv11/rv1126_riscv_os04c10_2688_1520_SBGGR10_compact_v1.30.bin rkbin/bin/rv11/rv1106_hpmcu_tb_sc4336_v1.90.bin rkbin/bin/rv11/rv1106_hpmcu_tb_sc230ai_v1.90.bin rkbin/bin/rv11/rv1126_spl_emmc_tb_v1.13.bin rkbin/bin/rv11/rv1126_riscv_imx415_3864_2192_SGBRG10_compact_v1.00.bin rkbin/bin/rv11/rv110x_miniloader_v1.26.bin rkbin/bin/rv11/rv1106_hpmcu_tb_sc3336_sc3338_v1.91.bin rkbin/bin/rv11/rv1126_mcu.bin rkbin/bin/rv11/rv1106_spl_v1.02.bin rkbin/bin/rv11/rv1126_ramboot_v1.12.bin rkbin/bin/rv11/rv1126_tpl_528MHz_lp4_tb_v1.08.bin rkbin/bin/rv11/rv1106_tee_ta_v1.13.bin rkbin/bin/rv11/rv110x_usbplug_v1.26.bin rkbin/bin/rv11/rv1126_ddr_924MHz_v1.10.bin rkbin/bin/rv11/rv1126_riscv_sc210iot_1920_1080_SBGGR10_compact_v1.00.bin rkbin/bin/rv11/rv1103b_ddr_924MHz_tb_v1.05.bin rkbin/bin/rv11/rv1106_hpmcu_tb_v1.01.bin rkbin/bin/rv11/rv1126_spl_v1.10.bin rkbin/bin/rv11/rv1126_tee_ta_tb_v1.07.bin rkbin/bin/rv11/rv1126_ddr_924MHz_v1.11.bin rkbin/bin/rv11/rv1106_usbplug_v1.09.bin rkbin/bin/rv11/rv1103b_usbplug_auto_merge_v1.10.bin rkbin/bin/rv11/rv1126_miniloader_ftl_v1.23.bin rkbin/bin/rv11/rv1106_ddr_924MHz_v1.15.bin rkbin/bin/rv11/rv1126_usbplug_v1.24.bin rkbin/bin/rv11/rv1126_ddr_784MHz_v1.11.bin rkbin/bin/rv11/rv1106_spl_spi_nand_tb_v1.00.bin rkbin/bin/rv11/rv1106_hpmcu_tb_sc450ai_v1.91.bin rkbin/bin/rv11/rv1106_tee_ta_v1.11.bin rkbin/bin/rv11/rv1103b_spl_v1.00.bin rkbin/bin/rv11/rv1106_hpmcu_tb_dual_camera_sc3338_sc3338_v1.90.bin rkbin/bin/rv11/rv1103b_hpmcu_wrap_v2.02.bin rkbin/bin/rv11/rv1126_tee_ta_v2.14.bin rkbin/bin/rv11/rv1126_tee_ta_v2.12.bin rkbin/bin/rv11/rv1103b_ddr_924MHz_UART0M2_tb_v1.05.bin rkbin/bin/rv11/rv1106_spl_spi_nor_tb_v1.00.bin rkbin/bin/rv11/rv1103b_hpmcu_tb_v1.00.bin rkbin/bin/rv11/rv1103b_ddr_924MHz_v1.05.bin rkbin/bin/rv11/rv1126_tee_v1.04.bin rkbin/bin/rv11/rv1126_tpl_924MHz_lp3_tb_v1.08.bin rkbin/bin/rv11/rv1106_spl_emmc_tb_v1.00.bin rkbin/bin/rv11/rv1108k_ddr3_v1.12.bin rkbin/bin/rv11/rv1126_ddr_1056MHz_v1.11.bin rkbin/bin/rv11/rv1126_usbplug_ftl_v1.23.bin rkbin/bin/rv11/rv1103b_usbplug_v1.00.bin rkbin/bin/rv11/rv1126_tpl_528MHz_lp3_tb_v1.08.bin rkbin/bin/rv11/rv1103b_usbplug_w25n01xx_v1.00.bin rkbin/bin/rk33/ rkbin/bin/rk33/rk3326_usbplug_v1.36.bin rkbin/bin/rk33/px30_bl31_v1.34.elf rkbin/bin/rk33/rk3399_ddr_933MHz_v1.30.bin rkbin/bin/rk33/rk3368_ddr_600MHz_v2.06.bin rkbin/bin/rk33/rk3399_miniloader_spinor_v1.14.bin rkbin/bin/rk33/rk3358m_ddr_333MHz_v2.11.bin rkbin/bin/rk33/px30_bl32_v2.19.bin rkbin/bin/rk33/rk3368_bl30_v2.13.bin rkbin/bin/rk33/rk3368_miniloader_v2.68.bin rkbin/bin/rk33/rk3308_ddr_589MHz_uart4_m0_v2.10.bin rkbin/bin/rk33/rk3308_bl31_aarch32_v2.26.elf rkbin/bin/rk33/rk3308_ddr_589MHz_uart4_m0_v2.08.bin rkbin/bin/rk33/rk3308_miniloader_wo_ftl_v1.43.bin rkbin/bin/rk33/rknpu_lion_miniloader_usb_v1.03.bin rkbin/bin/rk33/rk3326_miniloader_aarch32_slc_v1.36.bin rkbin/bin/rk33/rk3308_ddr_393MHz_uart4_m0_v2.10.bin rkbin/bin/rk33/rk3328_ddr_333MHz_v1.21.bin rkbin/bin/rk33/px30_miniloader_wo_ftl_v1.35.bin rkbin/bin/rk33/rk3326_miniloader_aarch32_v1.36.bin rkbin/bin/rk33/rk3308_bl32_v2.07.bin rkbin/bin/rk33/rk3308_ddr_451MHz_uart4_m0_v2.10.bin rkbin/bin/rk33/rk3308_bl32_v2.09.bin rkbin/bin/rk33/rk3326_usbplug_slc_v1.37.bin rkbin/bin/rk33/rk3308_miniloader_v1.39.bin rkbin/bin/rk33/rk322xh_miniloader_v2.50.bin rkbin/bin/rk33/rk3399_miniloader_v1.30.bin rkbin/bin/rk33/rk3399pro_miniloader_v1.26.bin rkbin/bin/rk33/rk3399_bl31_v1.36.elf rkbin/bin/rk33/rknpu_lion_ddr_933MHz_v1.04.bin rkbin/bin/rk33/rk3399pro_usbplug_v1.26.bin rkbin/bin/rk33/rk3368_bl31_v1.91.bin rkbin/bin/rk33/rk322xh_usbplug_v2.50.bin rkbin/bin/rk33/rk3308_ddr_451MHz_uart2_m1_v2.08.bin rkbin/bin/rk33/rk3368_usbplug_v2.62.bin rkbin/bin/rk33/rk3399pro_bl32_v2.12.bin rkbin/bin/rk33/rk3358j_ddr_333MHz_v2.09.bin rkbin/bin/rk33/rk3399_usbplug_spinor_v1.14.bin rkbin/bin/rk33/rk3308_ddr_589MHz_uart2_m1_v2.10.bin rkbin/bin/rk33/rk3308_usbplug_wo_ftl_v1.43.bin rkbin/bin/rk33/rk3368_bl32_v0.10.bin rkbin/bin/rk33/rk3308_ddr_393MHz_uart2_m1_v2.08.bin rkbin/bin/rk33/rknpu_lion_bl32_v2.03.bin rkbin/bin/rk33/rk322xh_ddr_333MHz_v1.21.bin rkbin/bin/rk33/px30_usbplug_wo_ftl_v1.36.bin rkbin/bin/rk33/rk3308_miniloader_spinor_v1.43.bin rkbin/bin/rk33/rk3308_ddr_393MHz_uart2_m1_v2.10.bin rkbin/bin/rk33/rk3366_miniloader_v1.02.bin rkbin/bin/rk33/rk3326_miniloader_v1.40.bin rkbin/bin/rk33/rk3368_miniloader_v2.58.bin rkbin/bin/rk33/rk3358_bl31_v1.32.elf rkbin/bin/rk33/rk3328_ddr_333MHz_v1.19.bin rkbin/bin/rk33/px30_ddr_333MHz_v2.10.bin rkbin/bin/rk33/rk3308_ddr_451MHz_uart2_m1_v2.10.bin rkbin/bin/rk33/rk3366_usbplug_v1.02.bin rkbin/bin/rk33/rk3399pro_ddr_933MHz_v1.30.bin rkbin/bin/rk33/px30_miniloader_v1.35.bin rkbin/bin/rk33/rk3368_bl30_v2.16.bin rkbin/bin/rk33/rk3308_usbplug_wo_ftl_v1.41.bin rkbin/bin/rk33/rk3358j_ddr_333MHz_v2.11.bin rkbin/bin/rk33/rk3308_miniloader_wo_ftl_v1.41.bin rkbin/bin/rk33/rk3326_bl32_v2.16.bin rkbin/bin/rk33/rk3308_ddr_451MHz_uart4_m0_v2.08.bin rkbin/bin/rk33/rknpu_lion_bl31_v1.12.elf rkbin/bin/rk33/px30_miniloader_slc_v1.37.bin rkbin/bin/rk33/px30_usbplug_slc_v1.37.bin rkbin/bin/rk33/rk322xh_ddr_400MHz_v1.21.bin rkbin/bin/rk33/rk3358_bl32_v2.07.bin rkbin/bin/rk33/rk3399pro_bl31_v1.35.elf rkbin/bin/rk33/px30_usbplug_v1.36.bin rkbin/bin/rk33/rk3326_bl31_v1.34.elf rkbin/bin/rk33/rk3308_ddr_393MHz_uart4_m0_v2.08.bin rkbin/bin/rk33/rk3308_miniloader_spiflash_v1.32.bin rkbin/bin/rk33/rk3326_ddr_333MHz_v2.11.bin rkbin/bin/rk33/rk3326_miniloader_slc_v1.37.bin rkbin/bin/rk33/rk3326_bl32_v2.19.bin rkbin/bin/rk33/rk3368_usbplug_v2.68.bin rkbin/bin/rk33/rk3399_bl32_v2.12.bin rkbin/bin/rk33/rk3368_usbplug_v2.58.bin rkbin/bin/rk33/rkpx5_miniloader_v2.62.bin rkbin/bin/rk33/rk3399pro_ddr_666MHz_v1.30.bin rkbin/bin/rk33/px30_bl32_v2.16.bin rkbin/bin/rk33/rk3308_miniloader_v1.43.bin rkbin/bin/rk33/rk3308_usbplug_v1.43.bin rkbin/bin/rk33/rk3399pro_ddr_800MHz_v1.30.bin rkbin/bin/rk33/rk3308_bl31_v2.26.elf rkbin/bin/rk33/rk3358m_ddr_333MHz_v2.09.bin rkbin/bin/rk33/rk3399_usbplug_v1.30.bin rkbin/bin/rk33/rk3358_bl32_v2.10.bin rkbin/bin/rk33/rk322xh_ddr_400MHz_v1.19.bin rkbin/bin/rk33/rk3399_ddr_666MHz_v1.30.bin rkbin/bin/rk33/rk3308_ddr_589MHz_uart2_m1_v2.08.bin rkbin/bin/rk33/rk322xh_bl31_v1.49.elf rkbin/bin/rk33/rk3366_ddr_800MHz_v1.00.bin rkbin/bin/rk33/rk3368h_bl32_v2.02.bin rkbin/bin/rk33/rk322xh_bl32_v2.02.bin rkbin/bin/rk33/rk3326_ddr_333MHz_v2.10.bin rkbin/bin/rk33/rk3328_ddr_400MHz_v1.19.bin rkbin/bin/rk33/rk3368h_bl31_v2.28.elf rkbin/bin/rk33/rknpu_lion_bl32_v2.02.bin rkbin/bin/rk33/rk3399_ddr_800MHz_v1.30.bin rkbin/bin/rk33/rk3328_ddr_400MHz_v1.21.bin rkbin/bin/rk33/rk3308_usbplug_v1.39.bin rkbin/bin/rk33/rk3308_bl31_cpu3_v1.00.elf rkbin/bin/rk33/rk3326_miniloader_v1.35.bin rkbin/bin/rk33/rk322xh_ddr_333MHz_v1.19.bin rkbin/bin/rk33/px30_ddr_333MHz_v2.11.bin rkbin/bin/rk35/ rkbin/bin/rk35/rk356x_usbplug_v1.17.bin rkbin/bin/rk35/rk3562_bl32_v1.07.bin rkbin/bin/rk35/rk3583_ddr_lp4_1848MHz_lp5_2112MHz_v1.14.bin rkbin/bin/rk35/rk3566_ddr_920MHz_ultra_v1.10.bin rkbin/bin/rk35/rk3588_usbplug_v1.11.bin rkbin/bin/rk35/rk3576_ddr_lp4_2112MHz_lp5_2736MHz_v1.05.bin rkbin/bin/rk35/rk3568_pcie_v2.10.bin rkbin/bin/rk35/rk3568_ddr_1560MHz_D3_LP3_eyescan_v1.22.bin rkbin/bin/rk35/rk3588_bl31_v1.46.elf rkbin/bin/rk35/rk3528_ddr_1056MHz_4BIT_PCB_v1.09.bin rkbin/bin/rk35/rk3562_ddr_1056MHz_ultra_v1.06.bin rkbin/bin/rk35/rk3566_ddr_1056MHz_D3_LP3_eyescan_v1.22.bin rkbin/bin/rk35/rk3528_bl32_v1.06.bin rkbin/bin/rk35/rk3576_bl31_v1.09.elf rkbin/bin/rk35/rk3562_ddr_1332MHz_D3_LP3_eyescan_v1.06.bin rkbin/bin/rk35/rk3576_ddr_lp4_2112MHz_lp5_2736MHz_ultra_v1.05.bin rkbin/bin/rk35/rk3568_ddr_1560MHz_v1.22.bin rkbin/bin/rk35/rk3528_bl31_v1.18.elf rkbin/bin/rk35/rk3528_ddr_1056MHz_4BIT_PCB_v1.10.bin rkbin/bin/rk35/rk3568_bl31_rt_v1.02.elf rkbin/bin/rk35/rk3568_ramboot_null1.bin rkbin/bin/rk35/rk3562_ddr_1332MHz_v1.07.bin rkbin/bin/rk35/rk3562_spl_v1.05.bin rkbin/bin/rk35/rk3588_bl32_v1.19.bin rkbin/bin/rk35/rk3566_ddr_1056MHz_v1.22.bin rkbin/bin/rk35/rk3576_usbplug_v1.02.bin rkbin/bin/rk35/rk3562_ddr_1392MHz_v1.06.bin rkbin/bin/rk35/rk3562_ddr_1392MHz_v1.07.bin rkbin/bin/rk35/rk3588_ddr_lp4_2112MHz_lp5_2400MHz_v1.18.bin rkbin/bin/rk35/rk3562_ddr_920MHz_v1.07.bin rkbin/bin/rk35/rk3568_bl31_v1.44.elf rkbin/bin/rk35/rk3568_bl32_v2.12.bin rkbin/bin/rk35/rk3506_ddr_750MHz_v1.04.bin rkbin/bin/rk35/rk3566_ddr_1056MHz_D4_LP4_4x_eyescan_v1.22.bin rkbin/bin/rk35/rk3562_ddr_1056MHz_ultra_v1.05.bin rkbin/bin/rk35/rk3588_pcie_v2.20.bin rkbin/bin/rk35/rk3562_ddr_1560MHz_v1.07.bin rkbin/bin/rk35/rk3568_ddr_1056MHz_D3_LP3_eyescan_v1.23.bin rkbin/bin/rk35/rk3588_ddr_lp4_2112MHz_lp5_2400MHz_v1.17.bin rkbin/bin/rk35/rk3566_ddr_1056MHz_v1.23.bin rkbin/bin/rk35/rk3576_spl_v1.07.bin rkbin/bin/rk35/rk3566_ddr_920MHz_v1.23.bin rkbin/bin/rk35/rk3562_ddr_1332MHz_D4_LP4_4x_eyescan_v1.07.bin rkbin/bin/rk35/rk3528_ddr_1056MHz_2L_PCB_v1.10.bin rkbin/bin/rk35/rk3568_ddr_1560MHz_D4_LP4_4x_eyescan_v1.22.bin rkbin/bin/rk35/rk356x_usbplug_nand_v1.04.bin rkbin/bin/rk35/rk3576_ddr_lp4_2112MHz_lp5_2736MHz_ultra_v1.09.bin rkbin/bin/rk35/rk3568_miniloader_spinand_v1.15.bin rkbin/bin/rk35/rk3568_ddr_1332MHz_v1.22.bin rkbin/bin/rk35/rk3583_ddr_lp4_1848MHz_lp5_2112MHz_v1.18.bin rkbin/bin/rk35/rk3528_usbplug_v1.03.bin rkbin/bin/rk35/rk3562_ddr_1332MHz_D4_LP4_4x_eyescan_v1.06.bin rkbin/bin/rk35/rk3562_bl31_v1.21.elf rkbin/bin/rk35/rk3562_ddr_1056MHz_v1.06.bin rkbin/bin/rk35/rk3506_spl_v1.10.bin rkbin/bin/rk35/rk3576_spl_fspi1_v1.00.bin rkbin/bin/rk35/rk3506_tee_ta_v1.00.bin rkbin/bin/rk35/rk3528_mcu_v1.00.bin rkbin/bin/rk35/rk3566_ddr_1056MHz_ultra_v1.20.bin rkbin/bin/rk35/rk3576_bl32_v1.02.bin rkbin/bin/rk35/rk3562_usbplug_v1.04.bin rkbin/bin/rk35/rk3576_bl31_v1.14.elf rkbin/bin/rk35/rk3568_ddr_1560MHz_D4_LP4_4x_eyescan_v1.23.bin rkbin/bin/rk35/rk3566_ddr_1056MHz_D4_LP4_4x_eyescan_v1.23.bin rkbin/bin/rk35/rk3576_boost_v1.02.bin rkbin/bin/rk35/rk3568_bl31_cpu3_v1.01.elf rkbin/bin/rk35/rk3568_ddr_920MHz_v1.23.bin rkbin/bin/rk35/rk3528_spl_v1.05.bin rkbin/bin/rk35/rk3568_ddr_1056MHz_v1.22.bin rkbin/bin/rk35/rk3576_usbplug_fspi1_v1.02.bin rkbin/bin/rk35/rk3588_spl_v1.13.bin rkbin/bin/rk35/rk3568_ramboot_null0.bin rkbin/bin/rk35/rk3588_bl32_v1.16.bin rkbin/bin/rk35/rk3506b_ddr_750MHz_v1.04.bin rkbin/bin/rk35/rk3562_spl_v1.06.bin rkbin/bin/rk35/rk3528_bl31_v1.17.elf rkbin/bin/rk35/rk3588_bl31_v1.48.elf rkbin/bin/rk35/rk3562_ddr_1056MHz_v1.07.bin rkbin/bin/rk35/rk3562_bl32_v1.04.bin rkbin/bin/rk35/rk3528_bl32_v1.04.bin rkbin/bin/rk35/rk3576_ddr_lp4_1560MHz_lp5_2736MHz_v1.09.bin rkbin/bin/rk35/rk3562_ddr_1332MHz_v1.06.bin rkbin/bin/rk35/rk3562_ddr_1332MHz_D3_LP3_eyescan_v1.07.bin rkbin/bin/rk35/rk3562_mcu_v1.00.bin rkbin/bin/rk35/rk3576_usbplug_v1.04.bin rkbin/bin/rk35/rk3568_ddr_1056MHz_v1.23.bin rkbin/bin/rk35/rk3588_ddr_lp4_2112MHz_lp5_2736MHz_eyescan_v1.11.bin rkbin/bin/rk35/rk3576_ddr_lp4_2112MHz_lp5_2736MHz_eyescan_v1.09.bin rkbin/bin/rk35/rk3568_ddr_1332MHz_v1.23.bin rkbin/bin/rk35/rk3528_ddr_1056MHz_v1.09.bin rkbin/bin/rk35/rk3528_ddr_1056MHz_v1.10.bin rkbin/bin/rk35/rk3568_ramboot_v1.08.bin rkbin/bin/rk35/rk3568_ddr_1560MHz_v1.23.bin rkbin/bin/rk35/rk3566_ddr_920MHz_v1.22.bin rkbin/bin/rk35/rk3562_bl31_v1.20.elf rkbin/bin/rk35/rk3568_bl32_v2.15.bin rkbin/bin/rk35/rk356x_spl_v1.14.bin rkbin/bin/rk35/rk3588_pcie_v2.10.bin rkbin/bin/rk35/rk3506_usbplug_v1.02.bin rkbin/bin/rk35/rk3528_ddr_1056MHz_2L_PCB_v1.09.bin rkbin/bin/rk35/rk3576_ddr_lp4_2112MHz_lp5_2736MHz_eyescan_v1.05.bin rkbin/bin/rk35/rk3562_ddr_920MHz_v1.06.bin rkbin/bin/rk35/rk3576_usbplug_fspi1_v1.03.bin rkbin/bin/rk35/rk3588_ramboot_null1.bin rkbin/bin/rk35/rk3576_spl_v1.05.bin rkbin/bin/rk35/rk3566_ddr_1056MHz_D3_LP3_eyescan_v1.23.bin rkbin/bin/rk35/rk3506_tee_v1.27.bin rkbin/bin/rk35/rk3588_ramboot_null0.bin rkbin/bin/rk35/rk3566_ddr_528MHz_ultra_v1.10.bin rkbin/bin/rk35/rk3566_ddr_780MHz_ultra_v1.10.bin rkbin/bin/rk35/rk3568_ddr_920MHz_v1.22.bin rkbin/bin/rk35/rk3568_bl31_ultra_v2.17.elf rkbin/bin/rk35/rk3576_ddr_lp4_2112MHz_lp5_2736MHz_v1.09.bin rkbin/bin/rk35/rk3568_bl31_l3_part_ecc_v1.00.elf rkbin/bin/rk35/rk356x_spl_nand_v1.14.bin rkbin/bin/rk35/rk3576_bl32_v1.05.bin rkbin/bin/rk35/rk3588_ramboot_v1.06.bin rkbin/bin/rk35/rk3562_ddr_1560MHz_v1.06.bin rkbin/bin/rk32/ rkbin/bin/rk32/rk322x_miniloader_v2.56.bin rkbin/bin/rk32/rk322x_miniloader_at_v2.56.bin rkbin/bin/rk32/rk322x_ddr_300MHz_v1.10.bin rkbin/bin/rk32/rk3288_usbplug_v2.63.bin rkbin/bin/rk32/rk322x_tee_v2.00.bin rkbin/bin/rk32/rk322x_usbplug_v2.56.bin rkbin/bin/rk32/rk3288_ddr_400MHz_v1.12.bin rkbin/bin/rk32/rk3288_tee_ta_v2.03.bin rkbin/bin/rk32/rk3288_miniloader_v2.63.bin rkbin/bin/rk32/rk322x_tee_ta_v2.12.bin rkbin/bin/rk32/rk322x_ddr_400MHz_v1.09.bin rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ cd u-boot/ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14/u-boot$ ll total 28556 drwxrwxr-x 28 rootroot rootroot 4096 3月 9 12:59 ./ drwx------ 38 rootroot rootroot 4096 3月 9 19:41 ../ drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 api/ drwxrwxr-x 14 rootroot rootroot 4096 3月 8 12:45 arch/ -rw-rw-r-- 1 rootroot rootroot 16384 3月 9 10:34 bl31_0x3fe70000.bin -rw-rw-r-- 1 rootroot rootroot 184640 3月 9 10:34 bl31_0x40040000.bin -rw-rw-r-- 1 rootroot rootroot 20480 3月 9 10:34 bl31_0x400f0000.bin -rw-rw-r-- 1 rootroot rootroot 349032 3月 9 10:34 bl31.elf drwxrwxr-x 181 rootroot rootroot 4096 3月 8 12:45 board/ -rw-rw-r-- 1 rootroot rootroot 610 3月 8 12:45 .checkpatch.conf drwxrwxr-x 5 rootroot rootroot 12288 3月 9 10:34 cmd/ drwxrwxr-x 6 rootroot rootroot 12288 3月 9 10:34 common/ -rw-rw-r-- 1 rootroot rootroot 42048 3月 9 10:34 .config -rw-rw-r-- 1 rootroot rootroot 2260 3月 8 12:45 config.mk drwxrwxr-x 2 rootroot rootroot 69632 3月 8 12:45 configs/ drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 disk/ drwxrwxr-x 10 rootroot rootroot 12288 3月 8 12:45 doc/ drwxrwxr-x 3 rootroot rootroot 4096 3月 8 12:45 Documentation/ drwxrwxr-x 58 rootroot rootroot 4096 3月 9 10:34 drivers/ drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 dts/ drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 env/ drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:45 examples/ drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 fit/ drwxrwxr-x 12 rootroot rootroot 4096 3月 9 10:34 fs/ drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 .git/ -rw-rw-r-- 1 rootroot rootroot 859 3月 8 12:45 .gitignore drwxrwxr-x 34 rootroot rootroot 20480 3月 9 10:34 include/ -rw-rw-r-- 1 rootroot rootroot 1863 3月 8 12:45 Kbuild -rw-rw-r-- 1 rootroot rootroot 16875 3月 8 12:45 Kconfig drwxrwxr-x 15 rootroot rootroot 12288 3月 9 10:34 lib/ drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 Licenses/ -rw-rw-r-- 1 rootroot rootroot 1323 3月 8 12:45 .mailmap -rw-rw-r-- 1 rootroot rootroot 14626 3月 8 12:45 MAINTAINERS -rw-rw-r-- 1 rootroot rootroot 58294 3月 8 12:45 Makefile -rwxrwxr-x 1 rootroot rootroot 21449 3月 8 12:45 make.sh\* drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 net/ drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:45 post/ -rw-rw-r-- 1 rootroot rootroot 34 3月 8 12:45 PREUPLOAD.cfg -rw-rw-r-- 1 rootroot rootroot 187683 3月 8 12:45 README -rw-rw-r-- 1 rootroot rootroot 360960 3月 9 12:59 resource.img -rw-rw-r-- 1 rootroot rootroot 348160 3月 9 10:34 rk3576_idblock_v1.09.107.img -rw-rw-r-- 1 rootroot rootroot 774649 3月 9 10:34 rk3576_spl_loader_v1.09.107.bin drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:45 scripts/ -rw-rw-r-- 1 rootroot rootroot 17 3月 8 12:45 snapshot.commit drwxrwxr-x 13 rootroot rootroot 4096 3月 9 10:34 spl/ -rw-rw-r-- 1 rootroot rootroot 220020 3月 9 10:34 System.map -rw-rw-r-- 1 rootroot rootroot 428360 3月 9 10:34 tee.bin drwxrwxr-x 12 rootroot rootroot 4096 3月 9 10:34 test/ drwxrwxr-x 18 rootroot rootroot 4096 3月 9 10:34 tools/ drwxrwxr-x 10 rootroot rootroot 4096 3月 9 10:34 tpl/ -rw-rw-r-- 1 rootroot rootroot 11367 3月 8 12:45 .travis.yml -rwxrwxr-x 1 rootroot rootroot 12416088 3月 9 10:34 u-boot\* -rw-rw-r-- 1 rootroot rootroot 1336216 3月 9 10:34 u-boot.bin -rw-rw-r-- 1 rootroot rootroot 46 3月 9 10:34 .u-boot.bin.cmd -rw-rw-r-- 1 rootroot rootroot 19000 3月 9 10:34 u-boot.cfg -rw-rw-r-- 1 rootroot rootroot 12185 3月 9 10:34 u-boot.cfg.configs -rw-rw-r-- 1 rootroot rootroot 1819 3月 9 10:34 .u-boot.cmd -rw-rw-r-- 1 rootroot rootroot 9326 3月 9 10:34 u-boot.dtb -rw-rw-r-- 1 rootroot rootroot 1336214 3月 9 10:34 u-boot-dtb.bin -rw-rw-r-- 1 rootroot rootroot 71 3月 9 10:34 .u-boot-dtb.bin.cmd -rw-rw-r-- 1 rootroot rootroot 251 3月 9 10:34 .u-boot-dtb.img.cmd -rw-rw-r-- 1 rootroot rootroot 4194304 3月 9 10:34 uboot.img -rw-rw-r-- 1 rootroot rootroot 243 3月 9 10:34 .u-boot.img.cmd -rw-rw-r-- 1 rootroot rootroot 1304 3月 9 10:34 u-boot.lds -rw-rw-r-- 1 rootroot rootroot 7564 3月 9 10:34 .u-boot.lds.cmd -rw-rw-r-- 1 rootroot rootroot 1044446 3月 9 10:34 u-boot.map -rwxrwxr-x 1 rootroot rootroot 1326888 3月 9 10:34 u-boot-nodtb.bin\* -rw-rw-r-- 1 rootroot rootroot 354 3月 9 10:34 .u-boot-nodtb.bin.cmd -rwxrwxr-x 1 rootroot rootroot 3980754 3月 9 10:34 u-boot.srec\* -rw-rw-r-- 1 rootroot rootroot 341 3月 9 10:34 .u-boot.srec.cmd -rw-rw-r-- 1 rootroot rootroot 419895 3月 9 10:34 u-boot.sym -rw-rw-r-- 1 rootroot rootroot 190 3月 9 10:34 .u-boot.sym.cmd -rw-rw-r-- 1 rootroot rootroot 72 3月 8 12:45 usb_update.txt rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14/u-boot$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14/u-boot$ make distclean CLEAN dts/../arch/arm/dts CLEAN dts CLEAN examples/standalone CLEAN tools CLEAN tools/lib tools/common CLEAN spl/arch spl/board spl/cmd spl/common spl/disk spl/drivers spl/dts spl/env spl/fs spl/lib spl/u-boot.cfg spl/u-boot-spl spl/u-boot-spl.bin spl/u-boot-spl.dtb spl/u-boot-spl-dtb.bin spl/u-boot-spl.lds spl/u-boot-spl.map spl/u-boot-spl-nodtb.bin spl/u-boot-spl.sym tpl/arch tpl/board tpl/common tpl/disk tpl/drivers tpl/dts tpl/fs tpl/u-boot.cfg tpl/u-boot-spl.lds tpl/u-boot-tpl tpl/u-boot-tpl.bin tpl/u-boot-tpl.map tpl/u-boot-tpl-nodtb.bin tpl/u-boot-tpl.sym CLEAN u-boot u-boot.bin u-boot.cfg u-boot.cfg.configs u-boot.dtb u-boot-dtb.bin u-boot.lds u-boot.map u-boot-nodtb.bin u-boot.srec u-boot.sym System.map bl31_0x3fe70000.bin bl31_0x40040000.bin bl31_0x400f0000.bin rk3576_spl_loader_v1.09.107.bin tee.bin u-boot.bin u-boot-dtb.bin u-boot-nodtb.bin resource.img rk3576_idblock_v1.09.107.img uboot.img CLEAN scripts/basic CLEAN scripts/dtc CLEAN scripts/kconfig CLEAN include/config include/generated spl tpl CLEAN .config include/autoconf.mk include/autoconf.mk.dep include/config.h rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14/u-boot$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14/u-boot$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14/u-boot$ ll total 908 drwxrwxr-x 26 rootroot rootroot 4096 3月 9 19:41 ./ drwx------ 38 rootroot rootroot 4096 3月 9 19:41 ../ drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 api/ drwxrwxr-x 14 rootroot rootroot 4096 3月 8 12:45 arch/ -rw-rw-r-- 1 rootroot rootroot 349032 3月 9 10:34 bl31.elf drwxrwxr-x 181 rootroot rootroot 4096 3月 8 12:45 board/ -rw-rw-r-- 1 rootroot rootroot 610 3月 8 12:45 .checkpatch.conf drwxrwxr-x 5 rootroot rootroot 12288 3月 9 19:41 cmd/ drwxrwxr-x 6 rootroot rootroot 12288 3月 9 19:41 common/ -rw-rw-r-- 1 rootroot rootroot 2260 3月 8 12:45 config.mk drwxrwxr-x 2 rootroot rootroot 69632 3月 8 12:45 configs/ drwxrwxr-x 2 rootroot rootroot 4096 3月 9 19:41 disk/ drwxrwxr-x 10 rootroot rootroot 12288 3月 8 12:45 doc/ drwxrwxr-x 3 rootroot rootroot 4096 3月 8 12:45 Documentation/ drwxrwxr-x 58 rootroot rootroot 4096 3月 9 19:41 drivers/ drwxrwxr-x 2 rootroot rootroot 4096 3月 9 19:41 dts/ drwxrwxr-x 2 rootroot rootroot 4096 3月 9 19:41 env/ drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:45 examples/ drwxrwxr-x 2 rootroot rootroot 4096 3月 9 10:34 fit/ drwxrwxr-x 12 rootroot rootroot 4096 3月 9 19:41 fs/ drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 .git/ -rw-rw-r-- 1 rootroot rootroot 859 3月 8 12:45 .gitignore drwxrwxr-x 32 rootroot rootroot 20480 3月 9 19:41 include/ -rw-rw-r-- 1 rootroot rootroot 1863 3月 8 12:45 Kbuild -rw-rw-r-- 1 rootroot rootroot 16875 3月 8 12:45 Kconfig drwxrwxr-x 15 rootroot rootroot 12288 3月 9 19:41 lib/ drwxrwxr-x 2 rootroot rootroot 4096 3月 8 12:45 Licenses/ -rw-rw-r-- 1 rootroot rootroot 1323 3月 8 12:45 .mailmap -rw-rw-r-- 1 rootroot rootroot 14626 3月 8 12:45 MAINTAINERS -rw-rw-r-- 1 rootroot rootroot 58294 3月 8 12:45 Makefile -rwxrwxr-x 1 rootroot rootroot 21449 3月 8 12:45 make.sh\* drwxrwxr-x 2 rootroot rootroot 4096 3月 9 19:41 net/ drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:45 post/ -rw-rw-r-- 1 rootroot rootroot 34 3月 8 12:45 PREUPLOAD.cfg -rw-rw-r-- 1 rootroot rootroot 187683 3月 8 12:45 README drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:45 scripts/ -rw-rw-r-- 1 rootroot rootroot 17 3月 8 12:45 snapshot.commit drwxrwxr-x 12 rootroot rootroot 4096 3月 9 19:41 test/ drwxrwxr-x 16 rootroot rootroot 4096 3月 9 19:41 tools/ -rw-rw-r-- 1 rootroot rootroot 11367 3月 8 12:45 .travis.yml -rw-rw-r-- 1 rootroot rootroot 72 3月 8 12:45 usb_update.txt rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14/u-boot$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14/u-boot$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14/u-boot$ cd .. rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ ll total 30472 drwx------ 38 rootroot rootroot 4096 3月 9 19:41 ./ drwxr-x--- 33 rootroot rootroot 12288 3月 9 19:40 ../ -rwx------ 1 rootroot rootroot 1258 3月 8 11:44 1RK3576_Android14.0_SDK_RELEASE.tar.gz.md5sum.txt\* lrwxrwxrwx 1 rootroot rootroot 19 3月 8 12:44 Android.bp -\> build/soong/root.bp drwxrwxr-x 38 rootroot rootroot 4096 3月 8 12:44 art/ drwxrwxr-x 15 rootroot rootroot 4096 3月 8 12:44 bionic/ drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:44 bootable/ lrwxrwxrwx 1 rootroot rootroot 26 3月 8 12:44 bootstrap.bash -\> build/soong/bootstrap.bash\* drwxrwxr-x 9 rootroot rootroot 4096 3月 8 12:44 build/ lrwxrwxrwx 1 rootroot rootroot 23 3月 8 12:44 BUILD -\> build/bazel/bazel.BUILD lrwxrwxrwx 1 rootroot rootroot 46 3月 8 12:44 build.sh -\> device/rockchip/common/build/rockchip/build.sh\* lrwxrwxrwx 1 rootroot rootroot 33 3月 8 12:44 .classpath -\> device/rockchip/common/.classpath\* lrwxrwxrwx 1 rootroot rootroot 46 3月 8 12:44 Copyright_Statement.pdf -\> device/rockchip/common/Copyright_Statement.pdf\* drwxrwxr-x 14 rootroot rootroot 4096 3月 8 12:44 cts/ drwxrwxr-x 8 rootroot rootroot 4096 3月 8 12:44 dalvik/ drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:44 developers/ drwxrwxr-x 23 rootroot rootroot 4096 3月 8 12:44 development/ drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:44 device/ drwxrwxr-x 409 rootroot rootroot 12288 3月 8 12:44 external/ drwxrwxr-x 16 rootroot rootroot 4096 3月 8 12:45 frameworks/ drwxrwxr-x 20 rootroot rootroot 4096 3月 8 12:45 hardware/ lrwxrwxrwx 1 rootroot rootroot 33 3月 8 12:44 javaenv.sh -\> device/rockchip/common/javaenv.sh drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:45 kernel/ drwxrwxr-x 28 rootroot rootroot 4096 3月 9 12:59 kernel-6.1/ drwxrwxr-x 21 rootroot rootroot 4096 3月 8 12:45 libcore/ drwxrwxr-x 10 rootroot rootroot 4096 3月 8 12:45 libnativehelper/ drwxrwxr-x 10 rootroot rootroot 4096 3月 8 12:45 mkcombinedroot/ lrwxrwxrwx 1 rootroot rootroot 36 3月 8 12:44 mkimage_ab.sh -\> device/rockchip/common/mkimage_ab.sh\* lrwxrwxrwx 1 rootroot rootroot 33 3月 8 12:44 mkimage.sh -\> device/rockchip/common/mkimage.sh\* drwxrwxr-x 14 rootroot rootroot 4096 3月 9 13:00 out/ drwxrwxr-x 9 rootroot rootroot 4096 3月 8 12:45 packages/ drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:45 pdk/ drwxrwxr-x 11 rootroot rootroot 4096 3月 8 12:45 platform_testing/ drwxrwxr-x 32 rootroot rootroot 4096 3月 8 12:47 prebuilts/ drwxrwxr-x 7 rootroot rootroot 4096 7月 1 2024 .repo/ -r-xr-xr-x 1 rootroot rootroot 519 3月 8 12:45 restore_patches.sh\* drwxrwxr-x 9 rootroot rootroot 4096 3月 7 17:38 rkbin/ drwxrwxr-x 10 rootroot rootroot 4096 3月 8 16:43 rkbin2/ -rwx------ 1 rootroot rootroot 31020561 3月 7 17:38 rkbin需要更新K7的内存文件20260307_1738.tgz\* drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:44 RKDocs/ drwxrwxr-x 5 rootroot rootroot 4096 3月 8 12:47 rkst/ drwxrwxr-x 6 rootroot rootroot 4096 3月 8 12:44 RKTools/ drwxrwxr-x 10 rootroot rootroot 4096 3月 9 13:06 rockdev/ drwxrwxr-x 21 rootroot rootroot 4096 3月 8 12:47 sdk/ drwxrwxr-x 48 rootroot rootroot 4096 3月 8 12:47 system/ drwxrwxr-x 12 rootroot rootroot 4096 3月 8 12:45 test/ drwxrwxr-x 4 rootroot rootroot 4096 3月 8 12:45 toolchain/ drwxrwxr-x 25 rootroot rootroot 4096 3月 8 12:45 tools/ drwxrwxr-x 26 rootroot rootroot 4096 3月 9 19:41 u-boot/ drwxrwxr-x 3 rootroot rootroot 4096 3月 8 12:45 vendor/ lrwxrwxrwx 1 rootroot rootroot 27 3月 8 12:44 WORKSPACE -\> build/bazel/bazel.WORKSPACE rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ source build/envsetup.sh rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ lunch You're building on Linux Lunch menu .. Here are the common combinations: 1. aosp_arm-eng 2. aosp_arm64-eng 3. aosp_x86-eng 4. aosp_x86_64-eng 5. rk3576_ebook-user 6. rk3576_ebook-userdebug 7. rk3576_u-user 8. rk3576_u-userdebug Which would you like? \[aosp_arm-eng
Pick from common choices above (e.g. 13) or specify your own (e.g. aosp_barbet-eng): 8
Hint: next time you can simply run 'lunch rk3576_u-userdebug'
============================================
PLATFORM_VERSION_CODENAME=REL
PLATFORM_VERSION=14
PRODUCT_INCLUDE_TAGS=com.android.mainline
TARGET_PRODUCT=rk3576_u
TARGET_BUILD_VARIANT=userdebug
TARGET_ARCH=arm64
TARGET_ARCH_VARIANT=armv8-a
TARGET_CPU_VARIANT=generic
TARGET_2ND_ARCH=arm
TARGET_2ND_ARCH_VARIANT=armv8-a
TARGET_2ND_CPU_VARIANT=generic
HOST_OS=linux
HOST_OS_EXTRA=Linux-6.8.0-90-generic-x86_64-Ubuntu-22.04.5-LTS
HOST_CROSS_OS=windows
BUILD_ID=UQ1A.240205.004.B1
OUT_DIR=out
============================================
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/orig_RK3576+Android14$ ./build.sh -Uu
will build u-boot
will build update.img
-------------------KERNEL_VERSION:6.1
-------------------KERNEL_DTS:rk3576-evb1-v10
============================================
PLATFORM_VERSION_CODENAME=REL
PLATFORM_VERSION=14
PRODUCT_INCLUDE_TAGS=com.android.mainline
TARGET_PRODUCT=rk3576_u
TARGET_BUILD_VARIANT=userdebug
TARGET_ARCH=arm64
TARGET_ARCH_VARIANT=armv8-a
TARGET_CPU_VARIANT=generic
TARGET_2ND_ARCH=arm
TARGET_2ND_ARCH_VARIANT=armv8-a
TARGET_2ND_CPU_VARIANT=generic
HOST_OS=linux
HOST_OS_EXTRA=Linux-6.8.0-90-generic-x86_64-Ubuntu-22.04.5-LTS
HOST_CROSS_OS=windows
BUILD_ID=UQ1A.240205.004.B1
OUT_DIR=out
============================================
start build uboot: rk3576_defconfig
build completed successfully
build completed successfully (1 seconds)
build completed successfully (1 seconds)
HOSTCC scripts/basic/fixdep
HOSTCC scripts/kconfig/conf.o
SHIPPED scripts/kconfig/zconf.tab.c
SHIPPED scripts/kconfig/zconf.lex.c
SHIPPED scripts/kconfig/zconf.hash.c
HOSTCC scripts/kconfig/zconf.tab.o
HOSTLD scripts/kconfig/conf
configuration written to .config
build completed successfully (2 seconds)
scripts/kconfig/conf --silentoldconfig Kconfig
CHK include/config.h
UPD include/config.h
CFG u-boot.cfg
GEN include/autoconf.mk.dep
CFG spl/u-boot.cfg
CFG tpl/u-boot.cfg
GEN include/autoconf.mk
GEN spl/include/autoconf.mk
GEN tpl/include/autoconf.mk
CHK include/config/uboot.release
CHK include/generated/timestamp_autogenerated.h
UPD include/generated/timestamp_autogenerated.h
HOSTCC scripts/dtc/dtc.o
HOSTCC scripts/dtc/flattree.o
HOSTCC scripts/dtc/fstree.o
HOSTCC scripts/dtc/data.o
HOSTCC scripts/dtc/livetree.o
HOSTCC scripts/dtc/treesource.o
HOSTCC scripts/dtc/srcpos.o
HOSTCC scripts/dtc/checks.o
HOSTCC scripts/dtc/util.o
SHIPPED scripts/dtc/dtc-lexer.lex.c
SHIPPED scripts/dtc/dtc-parser.tab.h
SHIPPED scripts/dtc/dtc-parser.tab.c
HOSTCC scripts/dtc/dtc-lexer.lex.o
HOSTCC scripts/dtc/dtc-parser.tab.o
UPD include/config/uboot.release
CHK include/generated/version_autogenerated.h
CHK include/config.h
UPD include/generated/version_autogenerated.h
CFG u-boot.cfg
CC lib/asm-offsets.s
CC arch/arm/lib/asm-offsets.s
CHK include/generated/asm-offsets.h
CHK include/generated/generic-asm-offsets.h
UPD include/generated/asm-offsets.h
UPD include/generated/generic-asm-offsets.h
LDS u-boot.lds
HOSTLD scripts/dtc/dtc
HOSTCC tools/gen_eth_addr
HOSTCC tools/gen_ethaddr_crc.o
WRAP tools/lib/crc8.c
HOSTCC tools/mkenvimage.o
HOSTCC tools/os_support.o
WRAP tools/lib/crc32.c
HOSTCC tools/aisimage.o
HOSTCC tools/atmelimage.o
WRAP tools/common/bootm.c
HOSTCC tools/default_image.o
WRAP tools/lib/fdtdec_common.c
WRAP tools/lib/fdtdec.c
HOSTCC tools/fit_common.o
HOSTCC tools/fit_image.o
WRAP tools/common/image-fit.c
HOSTCC tools/image-host.o
WRAP tools/common/image.c
HOSTCC tools/imximage.o
HOSTCC tools/imagetool.o
WRAP tools/lib/md5.c
HOSTCC tools/kwbimage.o
HOSTCC tools/mxsimage.o
HOSTCC tools/lpc32xximage.o
HOSTCC tools/omapimage.o
HOSTCC tools/pblimage.o
HOSTCC tools/vybridimage.o
HOSTCC tools/pbl_crc32.o
HOSTCC tools/rkcommon.o
HOSTCC tools/rkimage.o
WRAP tools/lib/rc4.c
HOSTCC tools/rknand.o
HOSTCC tools/rkspi.o
HOSTCC tools/rksd.o
WRAP tools/lib/sha1.c
HOSTCC tools/socfpgaimage.o
WRAP tools/lib/sha256.c
WRAP tools/common/hash.c
HOSTCC tools/ublimage.o
HOSTCC tools/zynqimage.o
HOSTCC tools/libfdt/fdt_wip.o
HOSTCC tools/libfdt/fdt.o
HOSTCC tools/zynqmpimage.o
HOSTCC tools/libfdt/fdt_sw.o
HOSTCC tools/libfdt/fdt_rw.o
HOSTCC tools/libfdt/fdt_strerror.o
HOSTCC tools/libfdt/fdt_empty_tree.o
HOSTCC tools/libfdt/fdt_addresses.o
HOSTCC tools/libfdt/fdt_overlay.o
WRAP tools/lib/libfdt/fdt_ro.c
WRAP tools/lib/libfdt/fdt_region.c
HOSTCC tools/gpimage.o
HOSTCC tools/gpimage-common.o
HOSTCC tools/dumpimage.o
HOSTCC tools/mkimage.o
HOSTCC tools/rockchip/resource_tool.o
HOSTCC tools/rockchip/bmp2gray16.o
HOSTCC tools/proftool
HOSTCC tools/relocate-rela
HOSTCC tools/fdtgrep.o
HOSTCC tools/lib/crc8.o
HOSTCC tools/lib/crc32.o
HOSTCC tools/common/bootm.o
HOSTCC tools/lib/fdtdec_common.o
HOSTCC tools/lib/fdtdec.o
HOSTCC tools/common/image-fit.o
HOSTCC tools/common/image.o
HOSTCC tools/lib/md5.o
HOSTCC tools/lib/rc4.o
HOSTCC tools/lib/sha1.o
HOSTCC tools/lib/sha256.o
HOSTCC tools/common/hash.o
HOSTCC tools/lib/libfdt/fdt_ro.o
HOSTCC tools/lib/libfdt/fdt_region.o
tools/rockchip/bmp2gray16.c: In function 'usage':
tools/rockchip/bmp2gray16.c:121:25: warning: '%s' directive argument is not a nul-terminated string [-Wformat-overflow=]
121 | printf("Version %s (zwp@rock-chips.com)\n", version);
| ^~ ~~~~~~~
tools/rockchip/bmp2gray16.c:109:19: note: referenced argument declared here
109 | static const char version[4] = "1.00";
| ^~~~~~~
HOSTLD tools/mkenvimage
HOSTLD tools/gen_ethaddr_crc
HOSTLD tools/bmp2gray16
HOSTLD tools/fdtgrep
HOSTLD tools/dumpimage
HOSTLD tools/mkimage
HOSTLD tools/resource_tool
LD arch/arm/cpu/built-in.o
CC board/rockchip/evb_rk3576/evb_rk3576.o
CC disk/part.o
CC disk/part_dos.o
CC disk/part_efi.o
CC arch/arm/cpu/armv8/cpu.o
CC arch/arm/cpu/armv8/generic_timer.o
LD drivers/cpu/built-in.o
CC arch/arm/cpu/armv8/cache_v8.o
AS arch/arm/lib/crt0_64.o
AS arch/arm/cpu/armv8/exceptions.o
AS arch/arm/lib/setjmp_aarch64.o
AS arch/arm/lib/relocate_64.o
AS arch/arm/cpu/armv8/cache.o
CC arch/arm/cpu/armv8/fwcall.o
LD drivers/dma/built-in.o
CC arch/arm/lib/bootm-fdt.o
AS arch/arm/cpu/armv8/tlb.o
CC arch/arm/lib/zimage.o
AS arch/arm/cpu/armv8/transition.o
CC arch/arm/cpu/armv8/cpu-dt.o
CC arch/arm/lib/bootm.o
AS arch/arm/cpu/armv8/smccc-call.o
CC arch/arm/lib/stack.o
CC arch/arm/mach-rockchip/fit_misc.o
CC arch/arm/cpu/armv8/../armv7/suspend.o
CC arch/arm/lib/sections.o
AS arch/arm/mach-rockchip/lowlevel_init.o
CC arch/arm/mach-rockchip/chip_info.o
CC drivers/gpio/gpio-uclass.o
AS arch/arm/lib/gic_64.o
CC drivers/i2c/i2c-uclass.o
CC drivers/i2c/rk_i2c.o
AS arch/arm/cpu/armv8/sleep.o
CC arch/arm/lib/interrupts_64.o
CC drivers/gpio/rk_gpio.o
CC arch/arm/lib/stacktrace_64.o
CC arch/arm/mach-rockchip/boot_mode.o
CC arch/arm/cpu/armv8/sha1_ce_glue.o
CC arch/arm/mach-rockchip/boot_rkimg.o
CC arch/arm/lib/cache.o
CC drivers/i2c/muxes/i2c-mux-uclass.o
AS arch/arm/cpu/armv8/sha1_ce_core.o
CC arch/arm/cpu/armv8/sha256_ce_glue.o
AS arch/arm/cpu/armv8/sha256_ce_core.o
CC drivers/mtd/mtdcore.o
CC drivers/mtd/mtd_uboot.o
LD drivers/mtd/onenand/built-in.o
CC arch/arm/mach-rockchip/board.o
LD board/rockchip/evb_rk3576/built-in.o
CC arch/arm/mach-rockchip/iomem.o
AS arch/arm/cpu/armv8/start.o
CC drivers/adc/adc-uclass.o
CC arch/arm/mach-rockchip/memblk.o
CC arch/arm/lib/psci-dt.o
LD drivers/net/built-in.o
LD drivers/ata/built-in.o
CC drivers/mtd/spi/sf-uclass.o
CC drivers/mtd/mtd-uclass.o
CC drivers/block/blk-uclass.o
CC drivers/mtd/mtd_blk.o
CC arch/arm/mach-rockchip/hotkey.o
AR arch/arm/lib/lib.a
CC cmd/boot.o
CC common/init/board_init.o
LD drivers/net/phy/built-in.o
CC cmd/bootm.o
CC drivers/adc/rockchip-saradc-v2.o
CC drivers/clk/clk-uclass.o
CC drivers/mtd/spi/sf_probe.o
CC arch/arm/mach-rockchip/kernel_dtb.o
CC drivers/clk/clk_fixed_rate.o
CC drivers/mtd/nand/core.o
CC common/main.o
LD drivers/i2c/muxes/built-in.o
CC cmd/help.o
LD arch/arm/lib/built-in.o
CC drivers/core/device.o
CC common/exports.o
CC drivers/mtd/nand/bbt.o
CC drivers/core/fdtaddr.o
CC drivers/crypto/crypto-uclass.o
LD drivers/pci/built-in.o
LD common/init/built-in.o
CC drivers/crypto/fsl/sec.o
CC drivers/clk/rockchip/clk_pll.o
LD drivers/i2c/built-in.o
LD drivers/dfu/built-in.o
CC drivers/power/charge-display-uclass.o
CC drivers/clk/rockchip/clk_rk3576.o
CC common/hash.o
CC drivers/core/lists.o
CC arch/arm/mach-rockchip/fit.o
CC drivers/mtd/spi/spi-nor-ids.o
LD drivers/power/battery/built-in.o
CC drivers/power/charge_animation.o
CC cmd/version.o
CC drivers/mtd/spi/spi-nor-core.o
CC drivers/crypto/rockchip/crypto_v2.o
LD arch/arm/cpu/armv8/built-in.o
CC drivers/mtd/nand/spi/gigadevice.o
CC drivers/firmware/firmware-uclass.o
CC drivers/power/charge/bq25700_charger.o
CC drivers/core/root.o
CC common/cli_hush.o
LD drivers/adc/built-in.o
CC drivers/input/key-uclass.o
CC drivers/firmware/psci.o
LD drivers/crypto/fsl/built-in.o
CC cmd/blk_common.o
CC drivers/input/input.o
CC drivers/power/charge/bq25890_charger.o
LD drivers/block/built-in.o
CC drivers/core/uclass.o
CC drivers/input/key_matrix.o
CC drivers/core/util.o
LD drivers/clk/tegra/built-in.o
CC drivers/power/rockchip_pm.o
LD drivers/gpio/built-in.o
CC drivers/irq/irq-gic.o
CC drivers/input/rk8xx_pwrkey.o
CC drivers/input/adc_key.o
CC drivers/irq/irq-gpio-v2.o
CC drivers/power/charge/sgm41542_charger.o
CC cmd/blk.o
CC drivers/mtd/nand/spi/macronix.o
LD drivers/power/domain/built-in.o
CC drivers/mtd/nand/spi/micron.o
LD disk/built-in.o
CC drivers/mtd/nand/spi/toshiba.o
CC drivers/clk/clk_scmi.o
CC drivers/mtd/spi/sf_mtd.o
CC drivers/mtd/nand/spi/winbond.o
LD drivers/power/dvfs/built-in.o
CC drivers/firmware/scmi/scmi_agent-uclass.o
CC drivers/mtd/nand/spi/dosilicon.o
CC arch/arm/mach-rockchip/rockchip_smccc.o
CC arch/arm/mach-rockchip/vendor.o
CC drivers/crypto/rockchip/crypto_hash_cache.o
CC drivers/crypto/rockchip/crypto_v2_pka.o
CC drivers/crypto/rsa_mod_exp/mod_exp_uclass.o
CC drivers/core/device-remove.o
CC arch/arm/mach-rockchip/vendor_misc.o
CC drivers/crypto/rsa_mod_exp/mod_exp_sw.o
CC drivers/power/fuel_gauge/fuel_gauge_uclass.o
LD drivers/mtd/nand/nandcore.o
LD drivers/input/built-in.o
CC drivers/firmware/scmi/smt.o
CC drivers/mtd/nand/spi/esmt.o
LD drivers/power/io-domain/built-in.o
CC drivers/core/simple-bus.o
CC drivers/irq/irq-generic.o
CC drivers/irq/irq-gpio-switch.o
CC drivers/power/fuel_gauge/fg_cw201x.o
CC drivers/crypto/rockchip/crypto_v2_util.o
CC cmd/source.o
CC common/autoboot.o
LD drivers/power/mfd/built-in.o
CC drivers/firmware/scmi/smccc_agent.o
CC drivers/core/dump.o
CC arch/arm/mach-rockchip/param.o
CC arch/arm/mach-rockchip/resource_img.o
CC drivers/irq/virq.o
CC drivers/core/regmap.o
LD drivers/mailbox/built-in.o
CC common/board_f.o
CC common/board_r.o
CC drivers/power/fuel_gauge/fg_cw221x.o
LD drivers/crypto/rsa_mod_exp/built-in.o
LD drivers/memory/built-in.o
CC arch/arm/mach-rockchip/sdram.o
CC common/board_info.o
LD drivers/power/charge/built-in.o
CC cmd/bdinfo.o
LD drivers/power/built-in.o
CC common/bootm.o
CC cmd/boot_android.o
CC drivers/mtd/nand/spi/xincun.o
CC drivers/power/pmic/pmic-uclass.o
CC drivers/power/pmic/rk8xx.o
LD drivers/mtd/spi/spi-nor.o
CC drivers/power/regulator/regulator-uclass.o
CC drivers/misc/misc-uclass.o
CC drivers/power/regulator/pwm_regulator.o
CC drivers/mtd/nand/spi/xtx.o
LD drivers/mtd/spi/built-in.o
CC drivers/mtd/nand/spi/hyf.o
CC common/bootm_os.o
CC drivers/power/regulator/fixed.o
LD drivers/pcmcia/built-in.o
LD drivers/firmware/scmi/built-in.o
CC common/fdt_support.o
CC drivers/power/regulator/gpio-regulator.o
LD drivers/firmware/built-in.o
CC drivers/mmc/mmc.o
CC drivers/phy/phy-uclass.o
CC arch/arm/mach-rockchip/rk3576/syscon_rk3576.o
CC drivers/mmc/mmc-uclass.o
CC drivers/mmc/mmc_write.o
CC drivers/serial/serial-uclass.o
CC drivers/serial/ns16550.o
CC drivers/mmc/dw_mmc.o
CC drivers/misc/misc_otp.o
CC drivers/core/syscon-uclass.o
LD drivers/irq/built-in.o
CC drivers/mmc/rockchip_dw_mmc.o
CC common/miiphyutil.o
CC drivers/spi/spi-uclass.o
LD drivers/usb/cdns3/built-in.o
CC drivers/spi/spi-mem.o
CC drivers/mmc/rpmb.o
CC drivers/misc/misc_decompress.o
CC drivers/usb/common/common.o
CC arch/arm/mach-rockchip/rk3576/rk3576.o
CC drivers/core/of_access.o
CC arch/arm/mach-rockchip/rk3576/clk_rk3576.o
CC drivers/spi/rockchip_sfc.o
CC drivers/mmc/sdhci.o
LD drivers/power/fuel_gauge/built-in.o
CC drivers/core/of_addr.o
CC drivers/phy/phy-rockchip-inno-usb2.o
CC drivers/mtd/nand/spi/fmsh.o
CC cmd/android.o
CC drivers/misc/rockchip-otp.o
LD drivers/crypto/rockchip/built-in.o
CC drivers/mtd/nand/spi/foresee.o
LD drivers/crypto/built-in.o
CC drivers/power/regulator/rk8xx.o
CC drivers/phy/phy-rockchip-samsung-hdptx.o
LD drivers/usb/common/built-in.o
CC drivers/usb/dwc3/core.o
LD drivers/usb/emul/built-in.o
CC drivers/phy/phy-rockchip-usbdp.o
CC drivers/usb/dwc3/gadget.o
CC drivers/core/read.o
CC drivers/usb/dwc3/ep0.o
CC arch/arm/mach-rockchip/rk_atags.o
LD drivers/power/pmic/built-in.o
CC drivers/usb/dwc3/dwc3-generic.o
CC cmd/bootfit.o
CC drivers/mtd/nand/spi/biwin.o
CC cmd/bootz.o
CC cmd/booti.o
CC drivers/misc/rockchip_decompress.o
CC drivers/core/of_extra.o
CC cmd/console.o
CC cmd/charge.o
LD drivers/usb/eth/built-in.o
CC cmd/crypto_sum.o
LD arch/arm/mach-rockchip/rk3576/built-in.o
CC drivers/core/ofnode.o
CC drivers/core/read_extra.o
CC drivers/usb/gadget/epautoconf.o
CC common/usb.o
CC drivers/mmc/rockchip_sdhci.o
LD drivers/phy/marvell/built-in.o
LD drivers/serial/built-in.o
CC drivers/usb/gadget/config.o
CC drivers/mtd/nand/spi/etron.o
CC drivers/mtd/nand/spi/jsc.o
CC drivers/pinctrl/pinctrl-uclass.o
CC drivers/phy/phy-rockchip-naneng-combphy.o
LD arch/arm/mach-rockchip/built-in.o
LD drivers/spi/built-in.o
CC drivers/pinctrl/pinctrl-generic.o
CC drivers/power/power_delivery/power_delivery_uclass.o
CC drivers/usb/gadget/udc/udc-core.o
LD drivers/clk/rockchip/built-in.o
CC common/usb_hub.o
CC drivers/power/power_delivery/tcpm.o
CC common/usb_storage.o
CC drivers/power/power_delivery/fusb302.o
LD drivers/clk/built-in.o
CC drivers/usb/gadget/udc/udc-uclass.o
CC drivers/power/power_delivery/tcpci.o
CC cmd/dtimg.o
CC drivers/pwm/pwm-uclass.o
LD drivers/misc/built-in.o
CC drivers/pwm/rk_pwm.o
CC drivers/usb/gadget/usbstring.o
CC cmd/echo.o
CC drivers/mtd/nand/spi/silicongo.o
CC common/iomux.o
CC cmd/exit.o
CC drivers/power/power_delivery/tcpci_husb311.o
CC drivers/ram/ram-uclass.o
CC drivers/ram/rockchip/sdram_rk3576.o
LD drivers/pinctrl/nxp/built-in.o
CC drivers/reset/reset-uclass.o
CC drivers/usb/host/usb-uclass.o
LD drivers/usb/dwc3/dwc3.o
CC cmd/ext4.o
CC drivers/mtd/nand/spi/unim.o
CC drivers/mtd/nand/spi/skyhigh.o
CC drivers/pinctrl/rockchip/pinctrl-rockchip-core.o
CC drivers/usb/gadget/g_dnl.o
LD drivers/usb/musb/built-in.o
LD drivers/usb/gadget/udc/built-in.o
CC common/splash.o
LD drivers/usb/phy/built-in.o
CC drivers/rng/rng-uclass.o
CC drivers/usb/gadget/f_mass_storage.o
CC drivers/pinctrl/rockchip/pinctrl-rk3576.o
LD drivers/mmc/built-in.o
CC drivers/pinctrl/pinctrl-rockchip.o
LD drivers/power/regulator/built-in.o
CC cmd/ext2.o
LD drivers/pwm/built-in.o
CC drivers/usb/host/ohci-hcd.o
CC drivers/mtd/nand/spi/gsto.o
CC drivers/usb/gadget/f_fastboot.o
CC drivers/rng/rockchip_rng.o
CC drivers/reset/reset-rockchip.o
CC cmd/fat.o
LD drivers/usb/ulpi/built-in.o
CC cmd/fdt.o
LD drivers/ram/rockchip/built-in.o
CC cmd/fs.o
LD drivers/ram/built-in.o
CC cmd/gpio.o
LD drivers/usb/musb-new/built-in.o
LD drivers/core/built-in.o
CC drivers/mtd/nand/spi/core.o
CC drivers/rng/rockchip_rand.o
CC drivers/usb/host/ohci-generic.o
CC drivers/usb/host/ehci-hcd.o
CC drivers/rtc/date.o
CC cmd/load.o
CC common/menu.o
CC env/common.o
CC drivers/usb/host/ehci-generic.o
CC fs/fs.o
CC env/env.o
CC drivers/usb/host/xhci.o
CC fs/ext4/ext4fs.o
CC drivers/usb/host/xhci-mem.o
LD drivers/reset/built-in.o
CC common/cli_readline.o
CC fs/fat/fat_write.o
CC common/cli_simple.o
LD drivers/rtc/built-in.o
CC fs/ext4/ext4_common.o
CC fs/ext4/dev.o
LD drivers/phy/built-in.o
LD test/built-in.o
CC env/attr.o
CC fs/fs_internal.o
CC common/edid.o
CC net/checksum.o
LD drivers/rng/built-in.o
CC net/arp.o
CC net/bootp.o
LD drivers/pinctrl/rockchip/built-in.o
CC env/callback.o
CC net/eth_legacy.o
CC cmd/download.o
CC net/eth_common.o
CC net/net.o
CC common/bouncebuf.o
LD drivers/usb/dwc3/built-in.o
CC lib/avb/libavb_atx/avb_atx_validate.o
CC net/nfs.o
CC common/console.o
CC lib/avb/libavb_user/avb_ops_user.o
CC drivers/usb/host/xhci-ring.o
CC env/flags.o
CC lib/avb/libavb_user/avb_user_verification.o
CC lib/avb/libavb/avb_chain_partition_descriptor.o
CC cmd/mem.o
CC drivers/scsi/scsi-uclass.o
LD drivers/soc/built-in.o
CC drivers/usb/host/xhci-dwc3.o
LD drivers/sound/built-in.o
CC test/dm/cmd_dm.o
LD drivers/spmi/built-in.o
CC lib/avb/libavb/avb_cmdline.o
CC lib/avb/libavb/avb_crc32.o
CC common/dlmalloc.o
CC lib/avb/libavb_user/avb_user_verity.o
CC common/malloc_simple.o
CC common/image.o
CC drivers/scsi/scsi.o
CC lib/avb/libavb/avb_crypto.o
LD drivers/thermal/built-in.o
LD drivers/pinctrl/built-in.o
CC drivers/sysreset/sysreset-uclass.o
CC common/image-android.o
LD drivers/tpm/built-in.o
CC drivers/sysreset/sysreset-syscon-reboot.o
CC cmd/mii.o
CC drivers/sysreset/sysreset_psci.o
CC drivers/ufs/ufs.o
CC env/nowhere.o
LD drivers/mtd/nand/spi/spinand.o
CC drivers/sysreset/sysreset_rockchip.o
LD drivers/mtd/nand/spi/built-in.o
CC cmd/mmc.o
CC net/ping.o
LD test/dm/built-in.o
CC drivers/ufs/ufs-uclass.o
LD drivers/mtd/nand/built-in.o
LD fs/ext4/built-in.o
CC lib/avb/libavb/avb_descriptor.o
LD lib/avb/libavb_atx/built-in.o
CC net/tftp.o
CC common/android_bootloader.o
CC lib/avb/rk_avb_user/rk_avb_ops_user.o
LD drivers/mtd/built-in.o
LD drivers/watchdog/built-in.o
CC drivers/ufs/ufs-rockchip.o
CC lib/avb/rk_avb_user/rk_ab_ops_user.o
CC cmd/mtd_blk.o
CC lib/libxbc/libxbc.o
CC drivers/video/display-uclass.o
CC drivers/video/backlight-uclass.o
CC lib/libfdt/fdt.o
CC drivers/video/panel-uclass.o
CC lib/libfdt/fdt_wip.o
CC lib/optee_clientApi/OpteeClientMem.o
CC drivers/video/simple_panel.o
LD lib/avb/libavb_user/built-in.o
CC lib/libfdt/fdt_strerror.o
CC lib/avb/libavb/avb_hash_descriptor.o
CC lib/avb/libavb/avb_footer.o
LD env/built-in.o
LD drivers/power/power_delivery/built-in.o
LD drivers/sysreset/built-in.o
CC lib/avb/libavb/avb_hashtree_descriptor.o
CC drivers/video/video-uclass.o
CC drivers/video/vidconsole-uclass.o
CC lib/avb/libavb/avb_kernel_cmdline_descriptor.o
CC lib/libfdt/fdt_sw.o
CC cmd/net.o
LD drivers/usb/host/built-in.o
CC lib/rsa/rsa-mod-exp.o
CC cmd/part.o
LD lib/libxbc/built-in.o
CC common/image-fdt.o
CC lib/zlib/zlib.o
CC lib/optee_clientApi/OpteeClientApiLib.o
CC common/image-fit.o
CC drivers/video/video_bmp.o
CC lib/optee_clientApi/OpteeClientInterface.o
CC lib/avb/libavb/avb_property_descriptor.o
CC lib/optee_clientApi/OpteeClientSMC.o
CC drivers/ufs/ufs-rockchip-usbplug.o
CC common/memsize.o
LD net/built-in.o
CC drivers/video/pwm_backlight.o
CC lib/of_live.o
CC cmd/pcmcia.o
CC lib/avb/libavb/avb_rsa.o
CC common/stdio.o
CC lib/libfdt/fdt_rw.o
CC lib/optee_clientApi/OpteeClientRPC.o
CC lib/optee_clientApi/OpteeClientLoadTa.o
AS lib/optee_clientApi/tee_smc-arm64.o
LD lib/rsa/built-in.o
CC lib/avb/libavb/avb_sha256.o
CC lib/optee_clientApi/OpteeClientRkFs_common.o
CC lib/charset.o
CC cmd/pinmux.o
CC common/image-android-dt.o
LD fs/fat/built-in.o
LD drivers/scsi/built-in.o
CC drivers/video/console_normal.o
LD fs/built-in.o
CC lib/avb/libavb/avb_sha512.o
CC common/image-sparse.o
CC lib/avb/libavb/avb_sysdeps_posix.o
CC lib/optee_clientApi/OpteeClientRkNewFs_v1.o
CC drivers/video/bridge/video-bridge-uclass.o
CC lib/avb/libavb/avb_slot_verify.o
CC lib/crc7.o
CC cmd/pxe.o
CC lib/libfdt/fdt_empty_tree.o
CC lib/crc8.o
LD lib/avb/rk_avb_user/built-in.o
CC common/fb_mmc.o
CC cmd/rockusb.o
CC lib/avb/libavb/avb_util.o
CC lib/libfdt/fdt_addresses.o
CC lib/avb/libavb/avb_vbmeta_image.o
CC lib/avb/libavb/avb_version.o
CC lib/optee_clientApi/OpteeClientRkNewFs_v2.o
CC lib/libfdt/fdt_overlay.o
CC common/fb_common.o
CC lib/libfdt/fdt_ro.o
LD drivers/video/sunxi/built-in.o
CC lib/libfdt/fdt_region.o
CC lib/crc16.o
CC cmd/sf.o
CC cmd/scsi.o
CC common/cli.o
CC cmd/disk.o
LD drivers/video/bridge/built-in.o
CC common/command.o
CC cmd/spi.o
CC cmd/test.o
CC drivers/video/drm/drm_modes.o
CC lib/errno_str.o
CC common/s_record.o
CC lib/fdtdec_common.o
CC common/write_keybox.o
LD drivers/ufs/built-in.o
CC cmd/ufs.o
CC common/keymaster.o
CC lib/initcall.o
CC drivers/video/drm/rockchip_display.o
CC lib/lmb.o
CC cmd/usb.o
CC common/attestation_key.o
CC lib/sysmem.o
CC lib/bidram.o
CC lib/ldiv.o
CC common/id_attestation.o
CC drivers/video/drm/rockchip_display_helper.o
CC drivers/video/drm/rockchip_crtc.o
LD drivers/usb/gadget/built-in.o
CC cmd/fastboot.o
CC drivers/video/drm/rockchip_phy.o
CC lib/lz4_wrapper.o
CC cmd/usb_mass_storage.o
CC lib/net_utils.o
CC drivers/video/drm/rockchip_bridge.o
CC cmd/gpt.o
CC cmd/optee.o
CC drivers/video/drm/rockchip_vop.o
CC drivers/video/drm/rockchip_vop_reg.o
CC lib/qsort.o
CC cmd/rkimgtest.o
CC lib/rc4.o
CC drivers/video/drm/rockchip_vop2.o
CC cmd/atags.o
CC lib/sha256.o
CC lib/list_sort.o
CC cmd/nvedit.o
CC drivers/video/drm/bmp_helper.o
CC drivers/video/drm/rockchip_connector.o
CC lib/sha1.o
CC lib/gunzip.o
CC drivers/video/drm/rockchip_post_csc.o
CC drivers/video/drm/libnsbmp.o
LD lib/libfdt/built-in.o
CC drivers/video/drm/drm_mipi_dsi.o
CC lib/rational.o
CC lib/fdtdec.o
CC drivers/video/drm/drm_dp_helper.o
CC drivers/video/drm/drm_dsc.o
CC lib/abuf.o
CC drivers/video/drm/dw_mipi_dsi2.o
CC lib/hashtable.o
CC lib/errno.o
CC lib/display_options.o
CC drivers/video/drm/rockchip_dw_hdmi_qp.o
CC lib/crc32.o
CC drivers/video/drm/dw_hdmi_qp.o
CC drivers/video/drm/phy-rockchip-samsung-hdptx-hdmi.o
CC drivers/video/drm/analogix_dp.o
CC drivers/video/drm/analogix_dp_reg.o
CC lib/ctype.o
CC lib/div64.o
CC lib/hang.o
CC drivers/video/drm/dw-dp.o
CC drivers/video/drm/rockchip_rgb.o
CC lib/linux_compat.o
CC drivers/video/drm/rockchip_panel.o
CC lib/linux_string.o
CC lib/membuff.o
LD lib/optee_clientApi/built-in.o
CC lib/slre.o
LD lib/zlib/built-in.o
LD lib/avb/libavb/built-in.o
CC drivers/video/drm/samsung_mipi_dcphy.o
CC lib/string.o
CC lib/stdlib.o
CC lib/tables_csum.o
CC lib/time.o
CC lib/hexdump.o
CC lib/uuid.o
CC lib/vsprintf.o
CC lib/panic.o
CC lib/strmhz.o
CC lib/strto.o
LD cmd/built-in.o
LD common/built-in.o
LD lib/built-in.o
LD drivers/video/drm/built-in.o
LD drivers/video/built-in.o
LD drivers/built-in.o
CC examples/standalone/stubs.o
CC examples/standalone/hello_world.o
LD examples/standalone/libstubs.o
LD examples/standalone/hello_world
OBJCOPY examples/standalone/hello_world.srec
OBJCOPY examples/standalone/hello_world.bin
LD u-boot
OBJCOPY u-boot.srec
OBJCOPY u-boot-nodtb.bin
SYM u-boot.sym
DTC arch/arm/dts/rk3036-sdk.dtb
DTC arch/arm/dts/rk3066a-mk808.dtb
DTC arch/arm/dts/rk3126-evb.dtb
DTC arch/arm/dts/rk3128-evb.dtb
DTC arch/arm/dts/rk3188-radxarock.dtb
DTC arch/arm/dts/rk3288-evb.dtb
DTC arch/arm/dts/rk3288-fennec.dtb
DTC arch/arm/dts/rk3288-firefly.dtb
DTC arch/arm/dts/rk3288-miqi.dtb
DTC arch/arm/dts/rk3288-phycore-rdk.dtb
DTC arch/arm/dts/rk3288-popmetal.dtb
DTC arch/arm/dts/rk3288-rock2-square.dtb
start=(/home/rootroot/orig_RK3576+Android14/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-6.3.1-2017.05-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu-nm u-boot \| grep __rel_dyn_start \| cut -f 1 -d ' '); end=(/home/rootroot/orig_RK3576+Android14/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-6.3.1-2017.05-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu-nm u-boot | grep __rel_dyn_end | cut -f 1 -d ' '); tools/relocate-rela u-boot-nodtb.bin 0x40200000 start end
DTC arch/arm/dts/rk3288-tinker.dtb
DTC arch/arm/dts/rk3288-veyron-jerry.dtb
DTC arch/arm/dts/rk3288-veyron-mickey.dtb
DTC arch/arm/dts/rk3288-veyron-minnie.dtb
DTC arch/arm/dts/rk3288-vyasa.dtb
DTC arch/arm/dts/rk3308-evb.dtb
DTC arch/arm/dts/rk3328-evb.dtb
DTC arch/arm/dts/rk3368-lion.dtb
DTC arch/arm/dts/rk3368-sheep.dtb
DTC arch/arm/dts/rk3368-geekbox.dtb
DTC arch/arm/dts/rk3368-px5-evb.dtb
DTC arch/arm/dts/rk3399-evb.dtb
DTC arch/arm/dts/rk3399-firefly.dtb
DTC arch/arm/dts/rk3399-puma-ddr1333.dtb
DTC arch/arm/dts/rk3399-puma-ddr1600.dtb
DTC arch/arm/dts/rk3399-puma-ddr1866.dtb
DTC arch/arm/dts/rv1106-evb.dtb
DTC arch/arm/dts/rv1108-evb.dtb
DTC arch/arm/dts/rv1106-evb2.dtb
DTC arch/arm/dts/rk3576-evb.dtb
FDTGREP dts/dt.dtb
FDTGREP dts/dt-spl.dtb
FDTGREP dts/dt-tpl.dtb
CAT u-boot-dtb.bin
MKIMAGE u-boot.img
COPY u-boot.dtb
MKIMAGE u-boot-dtb.img
COPY u-boot.bin
ALIGN u-boot.bin
LD spl/arch/arm/cpu/built-in.o
CC spl/board/rockchip/evb_rk3576/evb_rk3576.o
CC spl/common/init/board_init.o
LD spl/dts/built-in.o
CC spl/cmd/nvedit.o
CC spl/disk/part.o
CC spl/fs/fs_internal.o
CC spl/disk/part_efi.o
CC spl/env/common.o
CC spl/env/env.o
CC spl/common/spl/spl.o
CC spl/common/spl/spl_fit.o
CC spl/arch/arm/mach-rockchip/fit_misc.o
CC spl/arch/arm/mach-rockchip/spl_boot_mode.o
CC spl/arch/arm/mach-rockchip/param.o
CC spl/common/spl/spl_mmc.o
CC spl/common/spl/spl_mtd_blk.o
CC spl/common/spl/spl_atf.o
CC spl/common/spl/spl_ab.o
CC spl/arch/arm/mach-rockchip/sdram.o
LDS spl/u-boot-spl.lds
LD tpl/arch/arm/cpu/built-in.o
AS spl/arch/arm/lib/crt0_64.o
CC spl/common/common_fit.o
CC tpl/board/rockchip/evb_rk3576/evb_rk3576.o
COPY spl/u-boot-spl.dtb
CC spl/arch/arm/cpu/armv8/cpu.o
CC tpl/disk/part.o
CC tpl/common/init/board_init.o
CC tpl/arch/arm/mach-rockchip/param.o
CC spl/common/fdt_support.o
CC spl/arch/arm/mach-rockchip/rk3576/syscon_rk3576.o
CC spl/arch/arm/mach-rockchip/rk3576/rk3576.o
AS spl/arch/arm/lib/setjmp_aarch64.o
CC tpl/arch/arm/cpu/armv8/cpu.o
AS tpl/arch/arm/lib/crt0_64.o
AS spl/arch/arm/lib/relocate_64.o
LD spl/common/init/built-in.o
CC spl/arch/arm/cpu/armv8/generic_timer.o
AS tpl/arch/arm/lib/setjmp_aarch64.o
LD spl/drivers/ata/built-in.o
CC spl/arch/arm/lib/bootm-fdt.o
CC spl/lib/avb/rk_avb_user/rk_avb_ops_user.o
LD tpl/board/rockchip/evb_rk3576/built-in.o
CC spl/arch/arm/mach-rockchip/rk3576/clk_rk3576.o
LD spl/board/rockchip/evb_rk3576/built-in.o
CC tpl/arch/arm/cpu/armv8/generic_timer.o
CC tpl/arch/arm/cpu/armv8/cache_v8.o
CC spl/drivers/block/blk-uclass.o
CC tpl/arch/arm/mach-rockchip/sdram.o
CC spl/drivers/clk/clk-uclass.o
CC tpl/arch/arm/lib/spl.o
CC spl/common/spl/spl_ufs.o
CC spl/lib/avb/rk_avb_user/rk_ab_ops_user.o
CC spl/drivers/clk/clk_fixed_rate.o
CC spl/arch/arm/cpu/armv8/cache_v8.o
LD spl/fs/built-in.o
CC tpl/arch/arm/mach-rockchip/rk3576/rk3576.o
AS tpl/arch/arm/cpu/armv8/exceptions.o
CC tpl/arch/arm/mach-rockchip/rk3576/clk_rk3576.o
LD tpl/common/init/built-in.o
CC spl/arch/arm/lib/bootm.o
AS tpl/arch/arm/cpu/armv8/cache.o
LD spl/arch/arm/mach-rockchip/rk3576/built-in.o
CC spl/common/bouncebuf.o
CC tpl/arch/arm/lib/zimage.o
CC spl/common/console.o
CC spl/drivers/core/device.o
CC spl/drivers/core/fdtaddr.o
CC spl/lib/libfdt/fdt.o
CC spl/drivers/crypto/crypto-uclass.o
AS spl/arch/arm/cpu/armv8/exceptions.o
LD spl/env/built-in.o
CC spl/drivers/core/lists.o
CC spl/drivers/crypto/fsl/sec.o
CC spl/drivers/core/root.o
CC spl/lib/libxbc/libxbc.o
CC spl/drivers/crypto/rockchip/crypto_v2.o
LD spl/common/spl/built-in.o
CC spl/drivers/crypto/rsa_mod_exp/mod_exp_uclass.o
LD tpl/disk/built-in.o
CC tpl/arch/arm/mach-rockchip/bootrom.o
CC spl/drivers/crypto/rsa_mod_exp/mod_exp_sw.o
CC spl/common/dlmalloc.o
AS tpl/arch/arm/cpu/armv8/tlb.o
CC spl/arch/arm/mach-rockchip/bootrom.o
CC spl/drivers/clk/rockchip/clk_pll.o
LD spl/cmd/built-in.o
CC tpl/arch/arm/lib/bootm-fdt.o
CC spl/lib/rsa/rsa-mod-exp.o
CC spl/common/malloc_simple.o
CC spl/lib/libfdt/fdt_wip.o
CC spl/common/image.o
CC spl/arch/arm/mach-rockchip/spl.o
LD spl/drivers/crypto/fsl/built-in.o
CC spl/arch/arm/lib/zimage.o
CC spl/arch/arm/mach-rockchip/spl-boot-order.o
CC spl/common/image-fdt.o
LD tpl/arch/arm/mach-rockchip/rk3576/built-in.o
CC spl/common/image-fit.o
CC tpl/arch/arm/mach-rockchip/tpl.o
CC spl/common/memsize.o
LD spl/drivers/clk/tegra/built-in.o
CC spl/lib/libfdt/fdt_strerror.o
LD spl/drivers/crypto/rsa_mod_exp/built-in.o
CC spl/lib/libfdt/fdt_sw.o
CC spl/arch/arm/mach-rockchip/rk_atags.o
CC spl/drivers/clk/rockchip/clk_rk3576.o
CC tpl/arch/arm/mach-rockchip/rk_atags.o
CC tpl/arch/arm/lib/sections.o
AS tpl/arch/arm/cpu/armv8/transition.o
LD spl/lib/libxbc/built-in.o
CC spl/drivers/firmware/firmware-uclass.o
CC spl/common/stdio.o
LD spl/lib/avb/rk_avb_user/built-in.o
AS spl/arch/arm/cpu/armv8/cache.o
AS spl/arch/arm/cpu/armv8/tlb.o
CC spl/drivers/firmware/psci.o
LD spl/drivers/block/built-in.o
CC spl/drivers/core/uclass.o
CC tpl/arch/arm/lib/stack.o
AS tpl/arch/arm/lib/gic_64.o
CC tpl/arch/arm/cpu/armv8/fwcall.o
CC spl/arch/arm/lib/sections.o
CC tpl/drivers/ram/rockchip/sdram_rk3576.o
CC tpl/arch/arm/cpu/armv8/cpu-dt.o
CC spl/arch/arm/lib/stack.o
CC tpl/drivers/serial/serial-uclass.o
CC tpl/drivers/serial/ns16550.o
CC spl/common/image-android-dt.o
CC spl/lib/libfdt/fdt_rw.o
CC spl/drivers/crypto/rockchip/crypto_hash_cache.o
CC tpl/arch/arm/lib/interrupts_64.o
CC spl/lib/zlib/zlib.o
CC spl/drivers/crypto/rockchip/crypto_v2_pka.o
AS spl/arch/arm/cpu/armv8/transition.o
LD spl/lib/rsa/built-in.o
CC spl/drivers/crypto/rockchip/crypto_v2_util.o
CC spl/arch/arm/cpu/armv8/fwcall.o
CC spl/drivers/core/util.o
LD tpl/drivers/ram/rockchip/built-in.o
AS tpl/arch/arm/cpu/armv8/smccc-call.o
CC spl/lib/sha1.o
LD tpl/drivers/ram/built-in.o
CC spl/drivers/gpio/gpio-uclass.o
CC spl/lib/sha256.o
CC tpl/arch/arm/lib/stacktrace_64.o
CC spl/drivers/gpio/rk_gpio.o
CC tpl/arch/arm/lib/cache.o
CC spl/drivers/core/simple-bus.o
LD tpl/arch/arm/mach-rockchip/built-in.o
LD spl/drivers/firmware/built-in.o
CC tpl/arch/arm/cpu/armv8/sha1_ce_glue.o
AS spl/arch/arm/lib/gic_64.o
CC spl/lib/libfdt/fdt_empty_tree.o
LD tpl/dts/built-in.o
CC spl/drivers/core/dump.o
CC spl/arch/arm/lib/interrupts_64.o
LD spl/arch/arm/mach-rockchip/built-in.o
CC spl/lib/gunzip.o
CC spl/drivers/misc/misc-uclass.o
AS tpl/arch/arm/cpu/armv8/sha1_ce_core.o
CC tpl/arch/arm/lib/psci-dt.o
CC spl/arch/arm/cpu/armv8/cpu-dt.o
CC spl/lib/fdtdec_common.o
CC tpl/arch/arm/cpu/armv8/sha256_ce_glue.o
AS spl/arch/arm/cpu/armv8/smccc-call.o
CC spl/drivers/misc/misc_otp.o
CC spl/arch/arm/cpu/armv8/sha1_ce_glue.o
CC spl/drivers/misc/misc_decompress.o
AS spl/arch/arm/cpu/armv8/sha1_ce_core.o
CC spl/drivers/mmc/mmc.o
CC spl/drivers/misc/rockchip-otp.o
CC spl/arch/arm/cpu/armv8/sha256_ce_glue.o
CC spl/lib/libfdt/fdt_addresses.o
CC spl/drivers/core/regmap.o
CC spl/drivers/mmc/mmc-uclass.o
AS spl/drivers/misc/rk3576-secure-otp.o
AR tpl/arch/arm/lib/lib.a
LD spl/disk/built-in.o
LD tpl/arch/arm/lib/built-in.o
CC spl/arch/arm/lib/cache.o
CC spl/arch/arm/lib/stacktrace_64.o
CC spl/drivers/misc/rockchip_decompress.o
AS spl/arch/arm/cpu/armv8/sha256_ce_core.o
CC spl/drivers/mtd/mtdcore.o
CC spl/lib/libfdt/fdt_overlay.o
CC spl/lib/fdtdec.o
CC spl/drivers/mmc/mmc_write.o
CC spl/common/cli.o
AS tpl/arch/arm/cpu/armv8/sha256_ce_core.o
CC tpl/fs/fs_internal.o
CC spl/lib/charset.o
CC spl/drivers/mtd/mtd_uboot.o
CC spl/drivers/core/syscon-uclass.o
AS spl/arch/arm/cpu/armv8/start.o
CC spl/arch/arm/lib/psci-dt.o
CC spl/drivers/mmc/dw_mmc.o
AS tpl/arch/arm/cpu/armv8/start.o
CC spl/common/command.o
CC spl/lib/abuf.o
CC spl/drivers/mtd/mtd-uclass.o
LD tpl/drivers/serial/built-in.o
LD spl/arch/arm/cpu/armv8/built-in.o
LD tpl/drivers/built-in.o
CC spl/lib/hashtable.o
CC spl/drivers/mtd/spi/sf-uclass.o
CC spl/common/s_record.o
CC spl/drivers/mtd/spi/sf_probe.o
LD tpl/arch/arm/cpu/armv8/built-in.o
CC spl/drivers/mmc/rockchip_dw_mmc.o
LD tpl/fs/built-in.o
CC spl/drivers/mtd/mtd_blk.o
LDS tpl/u-boot-spl.lds
CC spl/lib/errno.o
CC spl/drivers/mmc/rpmb.o
CC spl/drivers/core/of_access.o
AR spl/arch/arm/lib/lib.a
CC spl/lib/display_options.o
LD spl/drivers/clk/rockchip/built-in.o
LD spl/arch/arm/lib/built-in.o
CC spl/lib/crc32.o
LD spl/drivers/clk/built-in.o
CC spl/drivers/core/of_addr.o
CC spl/lib/libfdt/fdt_ro.o
CC spl/lib/libfdt/fdt_region.o
CC spl/drivers/ram/ram-uclass.o
CC spl/drivers/pinctrl/pinctrl-uclass.o
CC spl/drivers/pinctrl/pinctrl-generic.o
LD spl/drivers/misc/built-in.o
CC spl/drivers/mtd/spi/spi-nor-ids.o
CC spl/drivers/mmc/sdhci.o
CC spl/drivers/mtd/spi/spi-nor-core.o
CC spl/drivers/mmc/rockchip_sdhci.o
LD spl/drivers/gpio/built-in.o
CC spl/lib/ctype.o
CC spl/drivers/ram/rockchip/sdram_rk3576.o
CC spl/lib/div64.o
CC spl/drivers/reset/reset-uclass.o
LD spl/drivers/crypto/rockchip/built-in.o
CC spl/drivers/reset/reset-rockchip.o
LD spl/drivers/crypto/built-in.o
LD spl/drivers/pinctrl/nxp/built-in.o
LD spl/common/built-in.o
CC spl/drivers/scsi/scsi-uclass.o
CC spl/drivers/core/read.o
CC spl/drivers/mtd/spi/sf_mtd.o
CC spl/lib/hang.o
CC spl/drivers/pinctrl/rockchip/pinctrl-rockchip-core.o
CC spl/drivers/serial/serial-uclass.o
CC spl/drivers/core/of_extra.o
CC spl/lib/linux_compat.o
CC spl/drivers/mtd/nand/core.o
CC spl/drivers/mtd/nand/bbt.o
LD spl/drivers/ram/rockchip/built-in.o
CC spl/drivers/pinctrl/rockchip/pinctrl-rk3576.o
LD spl/drivers/ram/built-in.o
CC spl/drivers/spi/spi-uclass.o
CC spl/drivers/sysreset/sysreset-uclass.o
CC spl/drivers/pinctrl/pinctrl-rockchip.o
CC spl/drivers/core/ofnode.o
LD tpl/u-boot-tpl
CC spl/drivers/spi/spi-mem.o
CC spl/drivers/scsi/scsi.o
CC spl/lib/linux_string.o
CC spl/drivers/core/read_extra.o
OBJCOPY tpl/u-boot-tpl-nodtb.bin
LD spl/drivers/reset/built-in.o
COPY tpl/u-boot-tpl.bin
CC spl/drivers/sysreset/sysreset_rockchip.o
CC spl/drivers/mtd/nand/spi/gigadevice.o
CC spl/drivers/spi/rockchip_sfc.o
CC spl/drivers/serial/ns16550.o
CC spl/lib/membuff.o
CC spl/drivers/mtd/nand/spi/macronix.o
CC spl/lib/slre.o
CC spl/drivers/mtd/nand/spi/micron.o
CC spl/drivers/mtd/nand/spi/toshiba.o
CC spl/drivers/ufs/ufs.o
CC spl/lib/string.o
CC spl/drivers/ufs/ufs-uclass.o
CC spl/drivers/ufs/ufs-rockchip.o
CC spl/lib/stdlib.o
CC spl/drivers/mtd/nand/spi/winbond.o
LD spl/drivers/sysreset/built-in.o
CC spl/lib/tables_csum.o
CC spl/lib/time.o
CC spl/drivers/mtd/nand/spi/dosilicon.o
LD spl/drivers/pinctrl/rockchip/built-in.o
CC spl/lib/hexdump.o
CC spl/drivers/mtd/nand/spi/esmt.o
CC spl/drivers/ufs/ufs-rockchip-usbplug.o
CC spl/drivers/mtd/nand/spi/xincun.o
CC spl/lib/uuid.o
LD spl/drivers/mtd/spi/spi-nor.o
LD spl/drivers/mtd/spi/built-in.o
CC spl/drivers/mtd/nand/spi/xtx.o
CC spl/lib/tiny-printf.o
LD spl/lib/libfdt/built-in.o
CC spl/drivers/mtd/nand/spi/hyf.o
CC spl/drivers/mtd/nand/spi/fmsh.o
CC spl/lib/panic.o
CC spl/drivers/mtd/nand/spi/foresee.o
LD spl/drivers/mtd/nand/nandcore.o
CC spl/drivers/mtd/nand/spi/etron.o
CC spl/drivers/mtd/nand/spi/biwin.o
CC spl/lib/strto.o
LD spl/lib/zlib/built-in.o
CC spl/drivers/mtd/nand/spi/unim.o
CC spl/drivers/mtd/nand/spi/silicongo.o
CC spl/drivers/mtd/nand/spi/jsc.o
CC spl/drivers/mtd/nand/spi/skyhigh.o
CC spl/drivers/mtd/nand/spi/gsto.o
CC spl/drivers/mtd/nand/spi/core.o
LD spl/drivers/mmc/built-in.o
LD spl/drivers/serial/built-in.o
LD spl/drivers/scsi/built-in.o
LD spl/lib/built-in.o
LD spl/drivers/spi/built-in.o
LD spl/drivers/pinctrl/built-in.o
LD spl/drivers/core/built-in.o
LD spl/drivers/ufs/built-in.o
LD spl/drivers/mtd/nand/spi/spinand.o
LD spl/drivers/mtd/nand/spi/built-in.o
LD spl/drivers/mtd/nand/built-in.o
LD spl/drivers/mtd/built-in.o
LD spl/drivers/built-in.o
LD spl/u-boot-spl
OBJCOPY spl/u-boot-spl-nodtb.bin
CAT spl/u-boot-spl-dtb.bin
COPY spl/u-boot-spl.bin
CFGCHK u-boot.cfg
SEC=1
pack u-boot.itb okay! Input: /home/rootroot/orig_RK3576+Android14/rkbin/RKTRUST/RK3576TRUST.ini
FIT description: FIT Image with ATF/OP-TEE/U-Boot/MCU
Created: Mon Mar 9 19:42:32 2026
Image 0 (uboot)
Description: U-Boot
Created: Mon Mar 9 19:42:32 2026
Type: Standalone Program
Compression: uncompressed
Data Size: 1326888 Bytes = 1295.79 KiB = 1.27 MiB
Architecture: AArch64
Load Address: 0x40200000
Entry Point: unavailable
Hash algo: sha256
Hash value: 8f72ed997f44d495e980c4ec283ce0a0601efa35363b151f2959bd2e51b20a6c
Image 1 (atf-1)
Description: ARM Trusted Firmware
Created: Mon Mar 9 19:42:32 2026
Type: Firmware
Compression: uncompressed
Data Size: 184640 Bytes = 180.31 KiB = 0.18 MiB
Architecture: AArch64
Load Address: 0x40040000
Hash algo: sha256
Hash value: 1c50b242b2c19722003b1e7423fff432c6450d6341b8cb7f3bf0ca5fdbf9ce07
Image 2 (atf-2)
Description: ARM Trusted Firmware
Created: Mon Mar 9 19:42:32 2026
Type: Firmware
Compression: uncompressed
Data Size: 20480 Bytes = 20.00 KiB = 0.02 MiB
Architecture: AArch64
Load Address: 0x400f0000
Hash algo: sha256
Hash value: 8afb712810e97fe9069131cc996ff8e4dcc98e8dea0f75895e23cf5b29692524
Image 3 (atf-3)
Description: ARM Trusted Firmware
Created: Mon Mar 9 19:42:32 2026
Type: Firmware
Compression: uncompressed
Data Size: 16384 Bytes = 16.00 KiB = 0.02 MiB
Architecture: AArch64
Load Address: 0x3fe70000
Hash algo: sha256
Hash value: 3af1bf762b5e866cc0ba28720cd2e51f5b105aaa23df29b886e2f1fad5ec9f1f
Image 4 (optee)
Description: OP-TEE
Created: Mon Mar 9 19:42:32 2026
Type: Firmware
Compression: uncompressed
Data Size: 428360 Bytes = 418.32 KiB = 0.41 MiB
Architecture: AArch64
Load Address: 0x48400000
Hash algo: sha256
Hash value: 010f86355ada5f4c24ff1334cab2341c05d9fbfd07a6ca1d3bef52bd4c1bf005
Image 5 (fdt)
Description: U-Boot dtb
Created: Mon Mar 9 19:42:32 2026
Type: Flat Device Tree
Compression: uncompressed
Data Size: 9326 Bytes = 9.11 KiB = 0.01 MiB
Architecture: AArch64
Hash algo: sha256
Hash value: 673916e062f91b50e0437addd72cd465060defa26563ec62b27ab435313c1010
Default Configuration: 'conf'
Configuration 0 (conf)
Description: rk3576-evb
Kernel: unavailable
Firmware: atf-1
FDT: fdt
Loadables: uboot
atf-2
atf-3
optee
********boot_merger ver 1.35********
Info:Pack loader ok.
creating new idblock from loader...
idblock binary saving at rk3576_idblock_v1.09.107.img
pack loader okay! Input: /home/rootroot/orig_RK3576+Android14/rkbin/RKBOOT/RK3576MINIALL.ini
/home/rootroot/orig_RK3576+Android14/u-boot
Image(no-signed, version=0): uboot.img (FIT with uboot, trust...) is ready
Image(no-signed): rk3576_idblock_v1.09.107.img (with spl, ddr...) is ready
pack uboot.img okay! Input: /home/rootroot/orig_RK3576+Android14/rkbin/RKTRUST/RK3576TRUST.ini
Platform RK3576 is build OK, with exist .config
/home/rootroot/orig_RK3576+Android14/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-6.3.1-2017.05-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu-
2026年 03月 09日 星期一 19:42:32 CST
/home/rootroot/orig_RK3576+Android14
Build uboot ok!
package resoure.img with charger images
Pack ./tools/images/ & ../kernel-6.1/resource.img to resource.img ...
Unpacking old image(../kernel-6.1/resource.img):
rk-kernel.dtb battery_1.bmp battery_2.bmp battery_3.bmp battery_4.bmp battery_5.bmp battery_fail.bmp logo.bmp logo_kernel.bmp battery_0.bmp 10
Pack to resource.img successed!
Packed resources:
rk-kernel.dtb battery_1.bmp battery_2.bmp battery_3.bmp battery_4.bmp battery_5.bmp battery_fail.bmp logo.bmp logo_kernel.bmp battery_0.bmp 10
./resource.img with battery images is ready
/home/rootroot/orig_RK3576+Android14
============================================
PLATFORM_VERSION_CODENAME=REL
PLATFORM_VERSION=14
PRODUCT_INCLUDE_TAGS=com.android.mainline
TARGET_PRODUCT=rk3576_u
TARGET_BUILD_VARIANT=userdebug
TARGET_ARCH=arm64
TARGET_ARCH_VARIANT=armv8-a
TARGET_CPU_VARIANT=generic
TARGET_2ND_ARCH=arm
TARGET_2ND_ARCH_VARIANT=armv8-a
TARGET_2ND_CPU_VARIANT=generic
HOST_OS=linux
HOST_OS_EXTRA=Linux-6.8.0-90-generic-x86_64-Ubuntu-22.04.5-LTS
HOST_CROSS_OS=windows
BUILD_ID=UQ1A.240205.004.B1
OUT_DIR=out
============================================
100% 2/2\] Creating Bazel symlink forest audioflinger want to conditional Compile devicefactory want to conditional Compile hw_output_defaults want to conditional Compile libaudioclient want to conditional Compile libaudiohal want to conditional Compile libeptz want to conditional Compile libgralloc_priv want to conditional Compile libmpimmz conditional Compile libpq want to conditional Compile librga want to conditional Compile librkvt_win want to conditional Compile librockx want to conditional Compile pq_init want to conditional Compile Rockchip conditional compile rockit want to conditional Compile cc_rockit_hw_service want to conditional Compile tvinput want to conditional Compile ninja: no work to do. #### build completed successfully (17 seconds) #### ============================================ PLATFORM_VERSION_CODENAME=REL PLATFORM_VERSION=14 PRODUCT_INCLUDE_TAGS=com.android.mainline TARGET_PRODUCT=rk3576_u TARGET_BUILD_VARIANT=userdebug TARGET_ARCH=arm64 TARGET_ARCH_VARIANT=armv8-a TARGET_CPU_VARIANT=generic TARGET_2ND_ARCH=arm TARGET_2ND_ARCH_VARIANT=armv8-a TARGET_2ND_CPU_VARIANT=generic HOST_OS=linux HOST_OS_EXTRA=Linux-6.8.0-90-generic-x86_64-Ubuntu-22.04.5-LTS HOST_CROSS_OS=windows BUILD_ID=UQ1A.240205.004.B1 OUT_DIR=out ============================================ ninja: no work to do. #### build completed successfully (10 seconds) #### make and copy android images TARGET_PRODUCT=rk3576_u TARGET_BASE_PARAMETER_IMAGE==device/rockchip/common/baseparameter/v2.0/baseparameter.img TARGET_AUTO_PQ_IMAGE== HIGH_RELIABLE_RECOVERY_OTA= BOARD_AVB_ENABLE=false system filesysystem is ext4 create dtbo.img... done. create rockdev/Image-rk3576_u/resource.img... done. skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/init_boot.img skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/pvmfw.img create rockdev/Image-rk3576_u/boot.img... done. create rockdev/Image-rk3576_u/boot-debug.img... done. skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/vendor_boot.img skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/vendor_boot-debug.img create rockdev/Image-rk3576_u/recovery.img... done. create rockdev/Image-rk3576_u/super.img... done. skip copy images: /home/rootroot/orig_RK3576+Android14/out/target/product/rk3576_u/userdata.img create vbmeta.img... BOARD_AVB_ENABLE is false, use default vbmeta.img create misc.img.... done. create uboot.img... u-boot/trust.img not fount! Please make it from u-boot first! create loader... create config.cfg... create baseparameter...done. Make image ok! Make update.img packing update.img with Image -RK3576 regenernate package-file-tmp... start to make update.img... Android Firmware Package Tool v2.2 ------ PACKAGE ------ Add file: ./package-file package-file,Add file: ./package-file done,offset=0x800,size=0x29a,userspace=0x1 Add file: ./Image/MiniLoaderAll.bin bootloader,Add file: ./Image/MiniLoaderAll.bin done,offset=0x1000,size=0xbd1f9,userspace=0x17b Add file: ./Image/parameter.txt parameter,Add file: ./Image/parameter.txt done,offset=0xbe800,size=0x29d,userspace=0x1,flash_address=0x00000000 Add file: ./Image/uboot.img uboot,Add file: ./Image/uboot.img done,offset=0xbf000,size=0x400000,userspace=0x800,flash_address=0x00004000 Add file: ./Image/misc.img misc,Add file: ./Image/misc.img done,offset=0x4bf000,size=0xc000,userspace=0x18,flash_address=0x00008000 Add file: ./Image/dtbo.img dtbo,Add file: ./Image/dtbo.img done,offset=0x4cb000,size=0x400000,userspace=0x800,flash_address=0x0000a000 Add file: ./Image/vbmeta.img vbmeta,Add file: ./Image/vbmeta.img done,offset=0x8cb000,size=0x1000,userspace=0x2,flash_address=0x0000c000 Add file: ./Image/boot.img boot,Add file: ./Image/boot.img done,offset=0x8cc000,size=0x2535800,userspace=0x4a6b,flash_address=0x0000c800 Add file: ./Image/recovery.img recovery,Add file: ./Image/recovery.img done,offset=0x2e01800,size=0x5b7e800,userspace=0xb6fd,flash_address=0x0002c800 Add file: ./Image/baseparameter.img baseparameter,Add file: ./Image/baseparameter.img done,offset=0x8980000,size=0x100000,userspace=0x200,flash_address=0x001fcc00 Add file: ./Image/super.img super,Add file: ./Image/super.img done,offset=0x8a80000,size=0x69cd88d8,userspace=0xd39b2,flash_address=0x001fd400 Add CRC... Make firmware OK! ------ OK ------ \*\*\*\*\*\*\*\*rkImageMaker ver 2.23\*\*\*\*\*\*\*\* Generating new image, please wait... Writing head info... Writing boot file... Writing firmware... Generating MD5 data... MD5 data generated successfully! New image generated successfully! Making update.img OK. Make update image ok! /home/rootroot/orig_RK3576+Android14 rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:\~/orig_RK3576+Android14$ \[END\] 2026/3/9 19:53:06
