20260903实测给飞凌OK3576-C开发板刷入Rockchip原厂的IMG固件

2026/9/3 17:36

缘起：需要使用Rockchip原厂的SDK适配飞凌OK3576-C开发板。

先输入Rockchip原厂最原始的IMG固件。

功能测试小结：

1、eth0可用。eth1异常。

2、3个USB3.0口插入USB2.0鼠标都可以用！

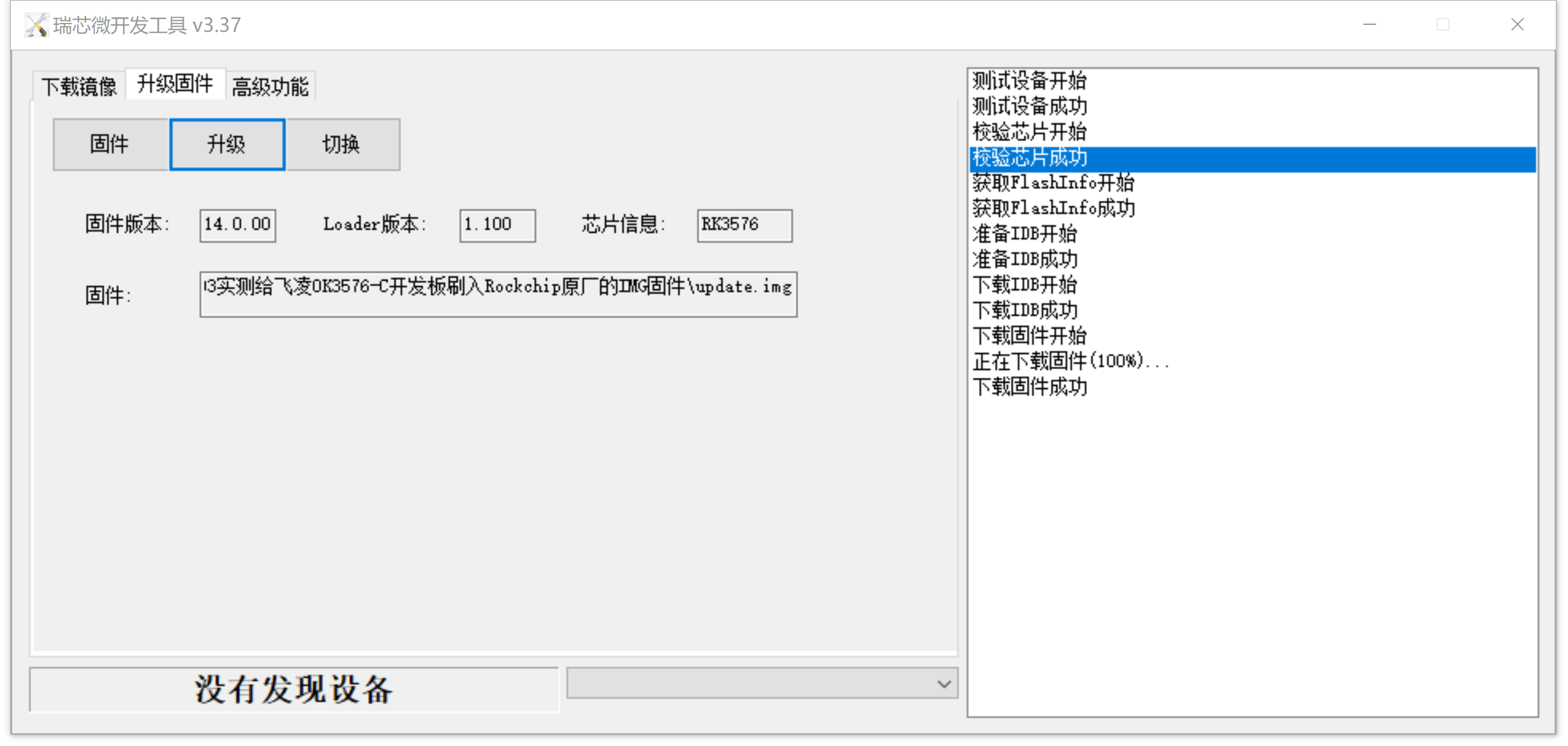

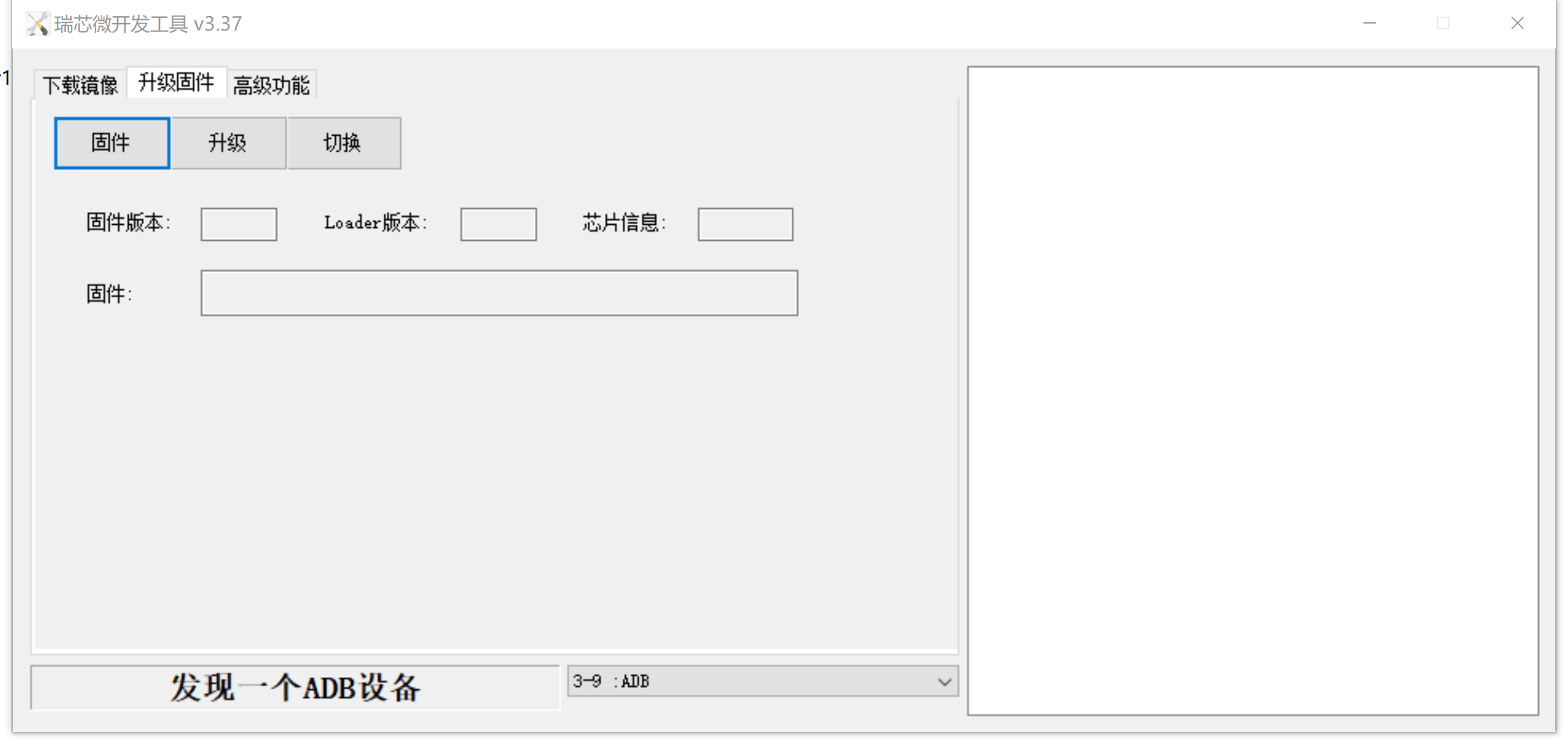

3、刷机口和电脑之间插入USB先，显示：没有发现设备。【ADB不能用】飞凌的SDK编译之后显示：发现一个ADB设备。

Android14的SDK有可能改动的地方【应该对测试结果没有影响^_】

1、

\\192.168.1.19\rootroot\home\rootroot\RK3576_Android14.0_SDK_RELEASE\rkbin

Y:\RK3576_Android14.0_SDK_RELEASE\rkbin

【为了适配K7开发板,可能更改过这里】

2、

Android14部分可能有微小改动。（适配WIFI/BT模块AP6256没有成功！为了适配K7开发板）

3、

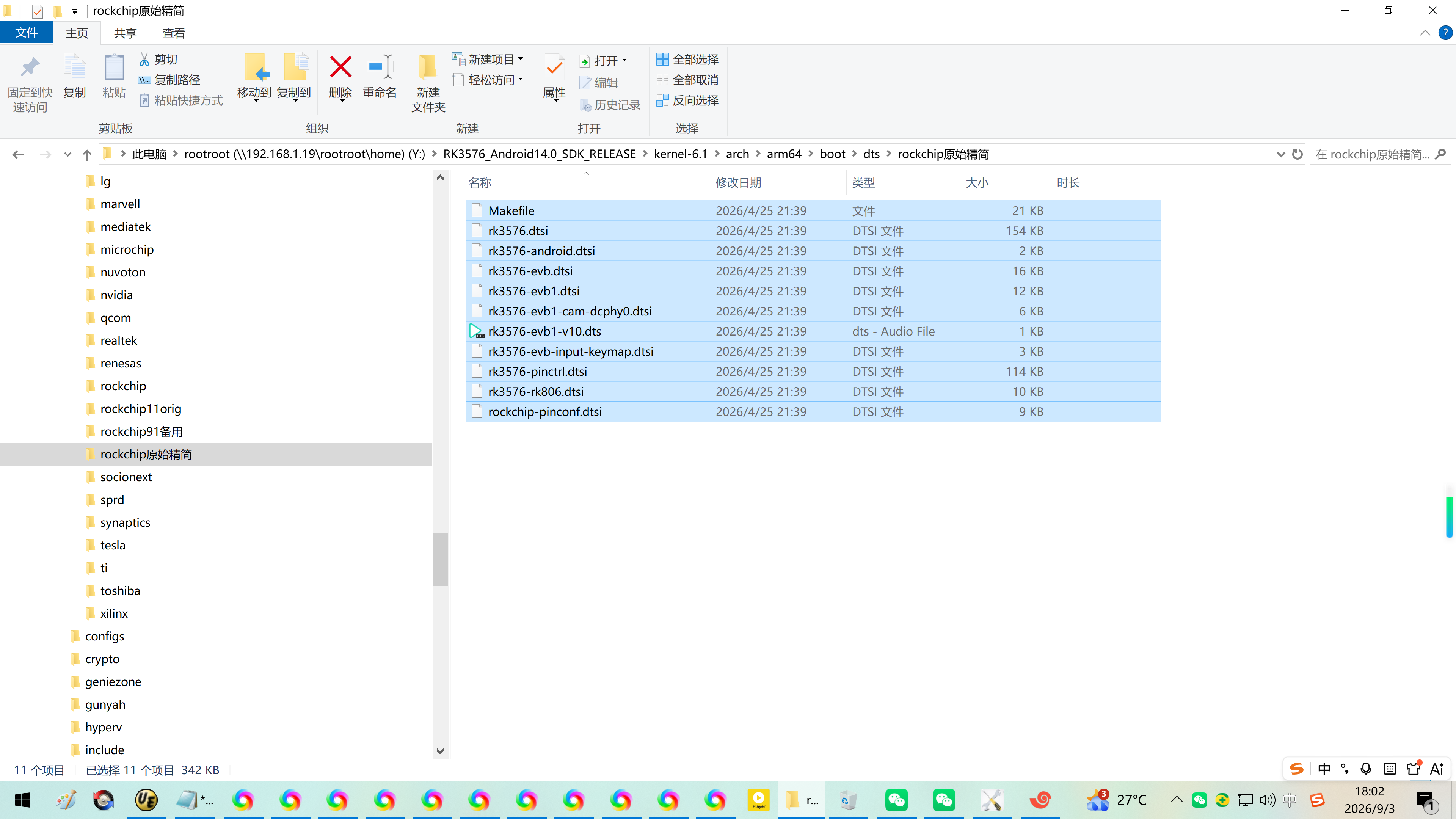

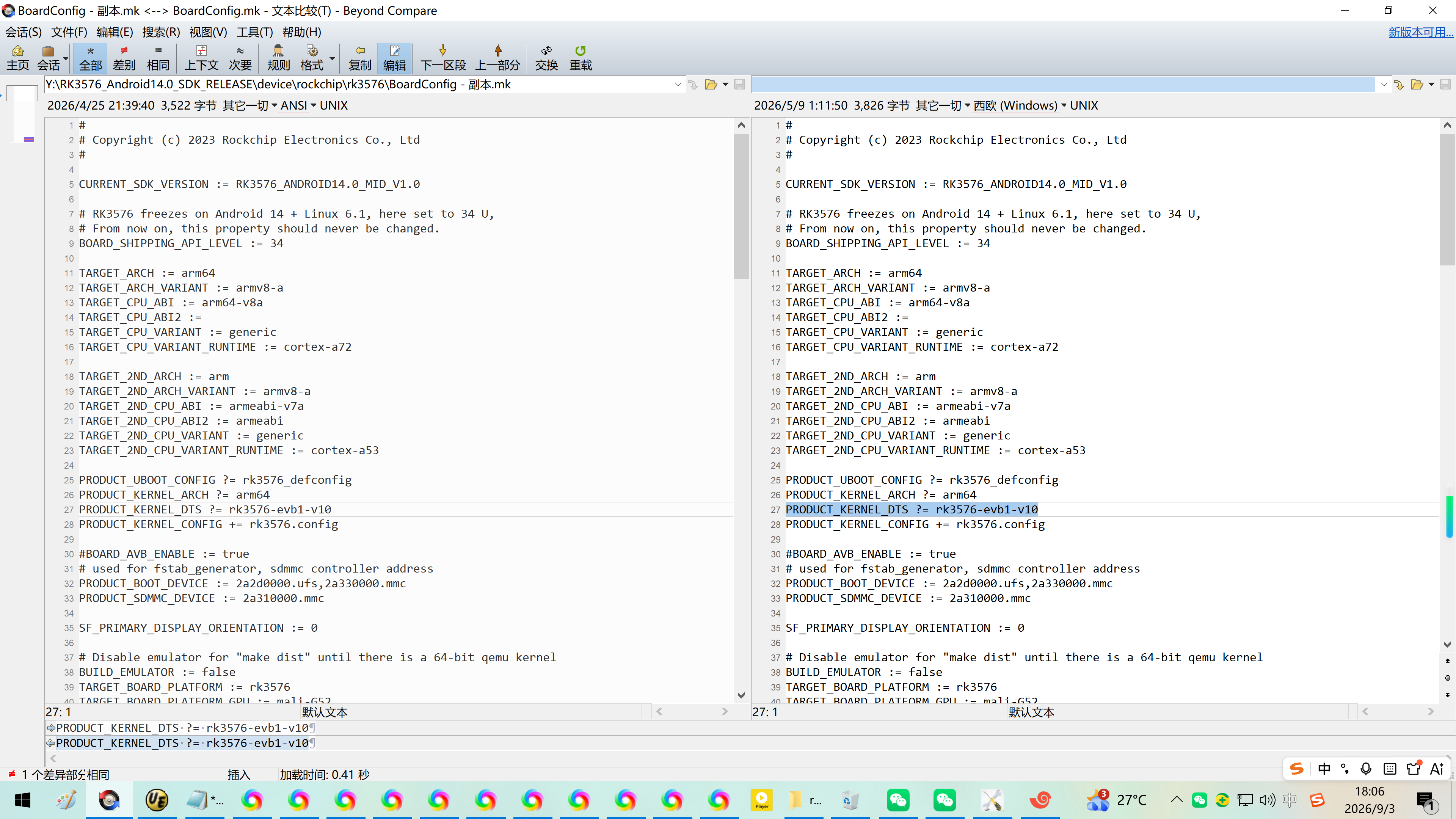

DTS还原为EVB1了。rk3576-evb1-v10.dts

Y:\RK3576_Android14.0_SDK_RELEASE\kernel-6.1\arch\arm64\boot\dts\rockchip原始精简

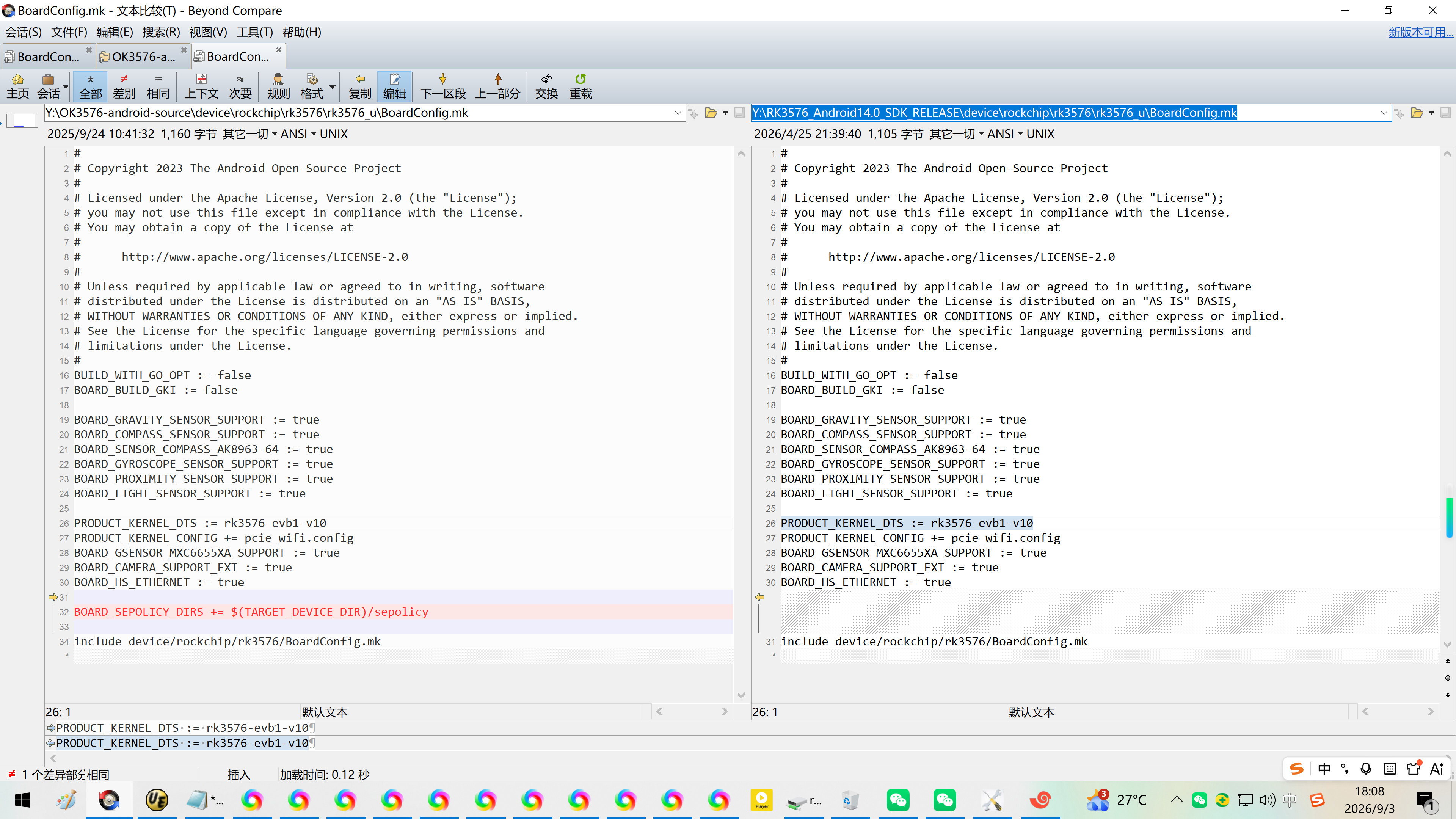

Y:\RK3576_Android14.0_SDK_RELEASE\device\rockchip\rk3576\BoardConfig.mk

./BoardConfig.mk:PRODUCT_KERNEL_DTS ?= rk3576-evb1-v10

Y:\RK3576_Android14.0_SDK_RELEASE\device\rockchip\rk3576\rk3576_u\BoardConfig.mk

./rk3576_u/BoardConfig.mk:PRODUCT_KERNEL_DTS := rk3576-evb1-v10

rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/RK3576_Android14.0_SDK_RELEASE/device/rockchip/rk3576$ grep rk3576-evb1-v10 . -R

grep: ./.git/config: No such file or directory

grep: ./.git/objects: No such file or directory

grep: ./.git/packed-refs: No such file or directory

grep: ./.git/hooks: No such file or directory

grep: ./.git/svn: No such file or directory

grep: ./.git/info: No such file or directory

grep: ./.git/description: No such file or directory

grep: ./.git/rr-cache: No such file or directory

grep: ./.git/logs: No such file or directory

grep: ./.git/refs: No such file or directory

./BoardConfig.mk:PRODUCT_KERNEL_DTS ?= rk3576-evb1-v10

./BoardConfig - 副本.mk:PRODUCT_KERNEL_DTS ?= rk3576-evb1-v10

grep: ./rk3576_ebook/.git/config: No such file or directory

grep: ./rk3576_ebook/.git/objects: No such file or directory

grep: ./rk3576_ebook/.git/packed-refs: No such file or directory

grep: ./rk3576_ebook/.git/hooks: No such file or directory

grep: ./rk3576_ebook/.git/svn: No such file or directory

grep: ./rk3576_ebook/.git/info: No such file or directory

grep: ./rk3576_ebook/.git/description: No such file or directory

grep: ./rk3576_ebook/.git/rr-cache: No such file or directory

grep: ./rk3576_ebook/.git/logs: No such file or directory

grep: ./rk3576_ebook/.git/refs: No such file or directory

./rk3576_u/BoardConfig.mk:PRODUCT_KERNEL_DTS := rk3576-evb1-v10

rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/RK3576_Android14.0_SDK_RELEASE/device/rockchip/rk3576$

测试步骤：

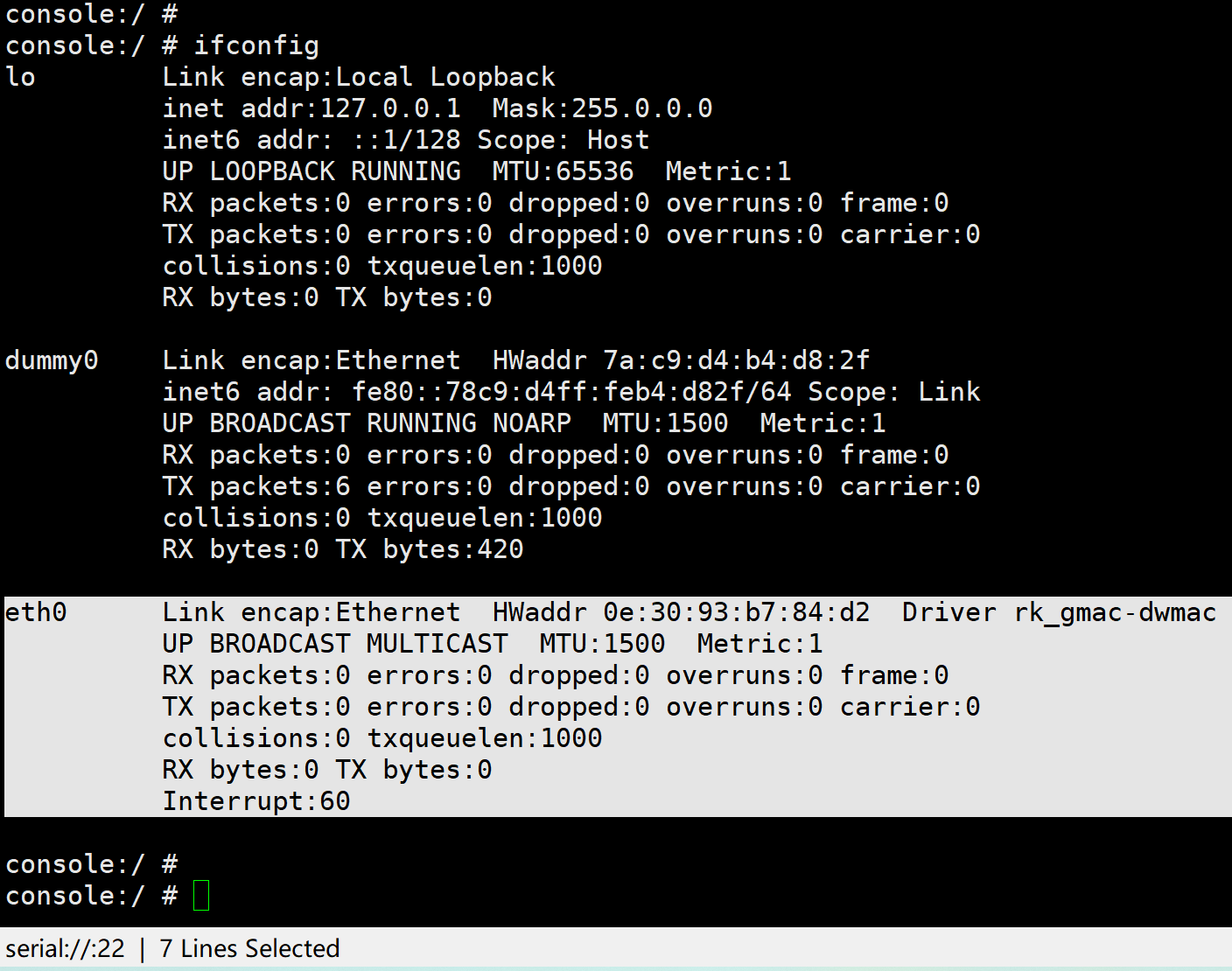

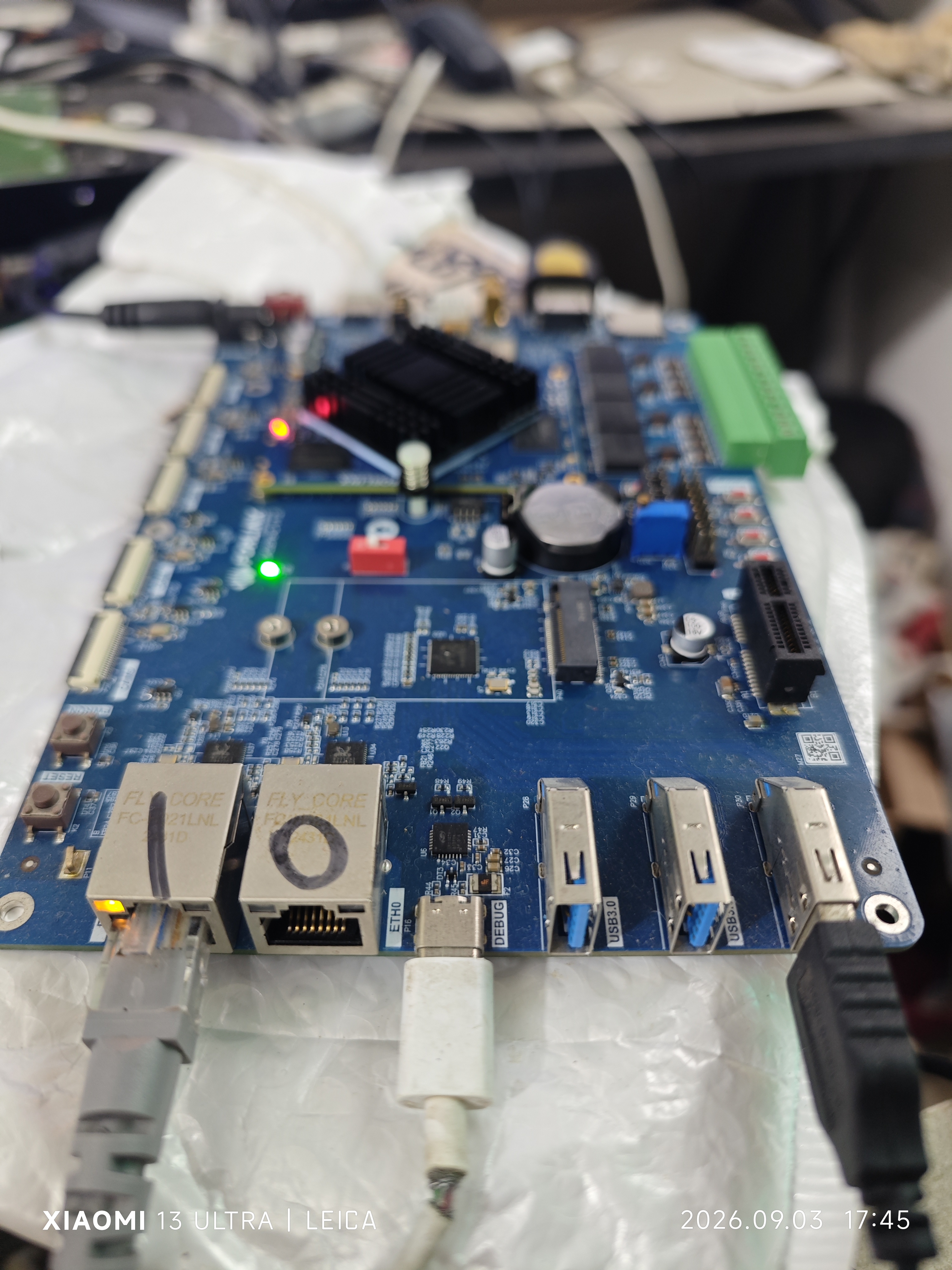

1、将以太网线插入eth1：

console:/ #

console:/ # ifconfig

lo Link encap:Local Loopback

inet addr:127.0.0.1 Mask:255.0.0.0

inet6 addr: ::1/128 Scope: Host

UP LOOPBACK RUNNING MTU:65536 Metric:1

RX packets:0 errors:0 dropped:0 overruns:0 frame:0

TX packets:0 errors:0 dropped:0 overruns:0 carrier:0

collisions:0 txqueuelen:1000

RX bytes:0 TX bytes:0

dummy0 Link encap:Ethernet HWaddr 7a:c9:d4:b4:d8:2f

inet6 addr: fe80::78c9:d4ff:feb4:d82f/64 Scope: Link

UP BROADCAST RUNNING NOARP MTU:1500 Metric:1

RX packets:0 errors:0 dropped:0 overruns:0 frame:0

TX packets:6 errors:0 dropped:0 overruns:0 carrier:0

collisions:0 txqueuelen:1000

RX bytes:0 TX bytes:420

eth0 Link encap:Ethernet HWaddr 0e:30:93:b7:84:d2 Driver rk_gmac-dwmac
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:0
Interrupt:60

console:/ #

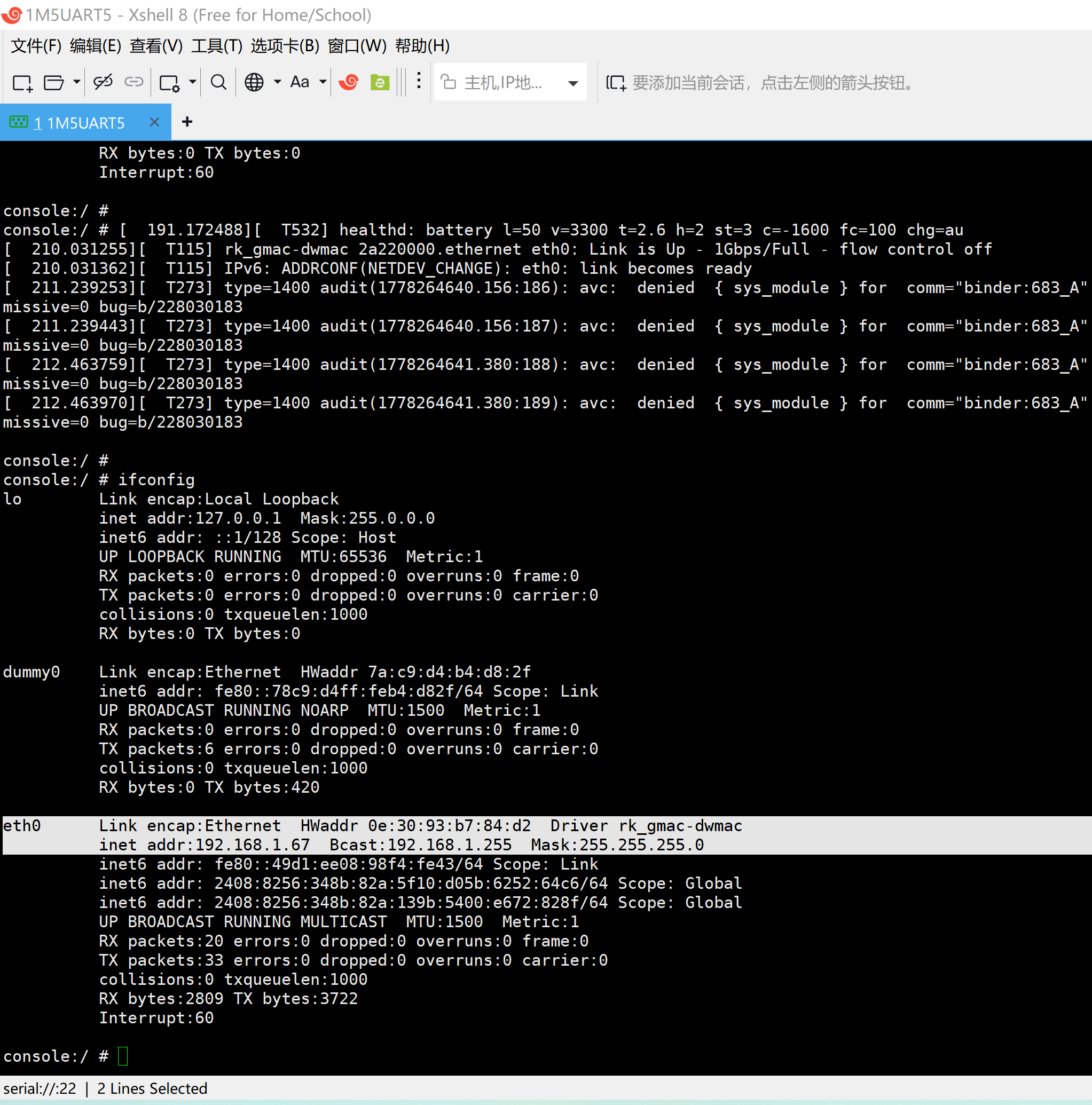

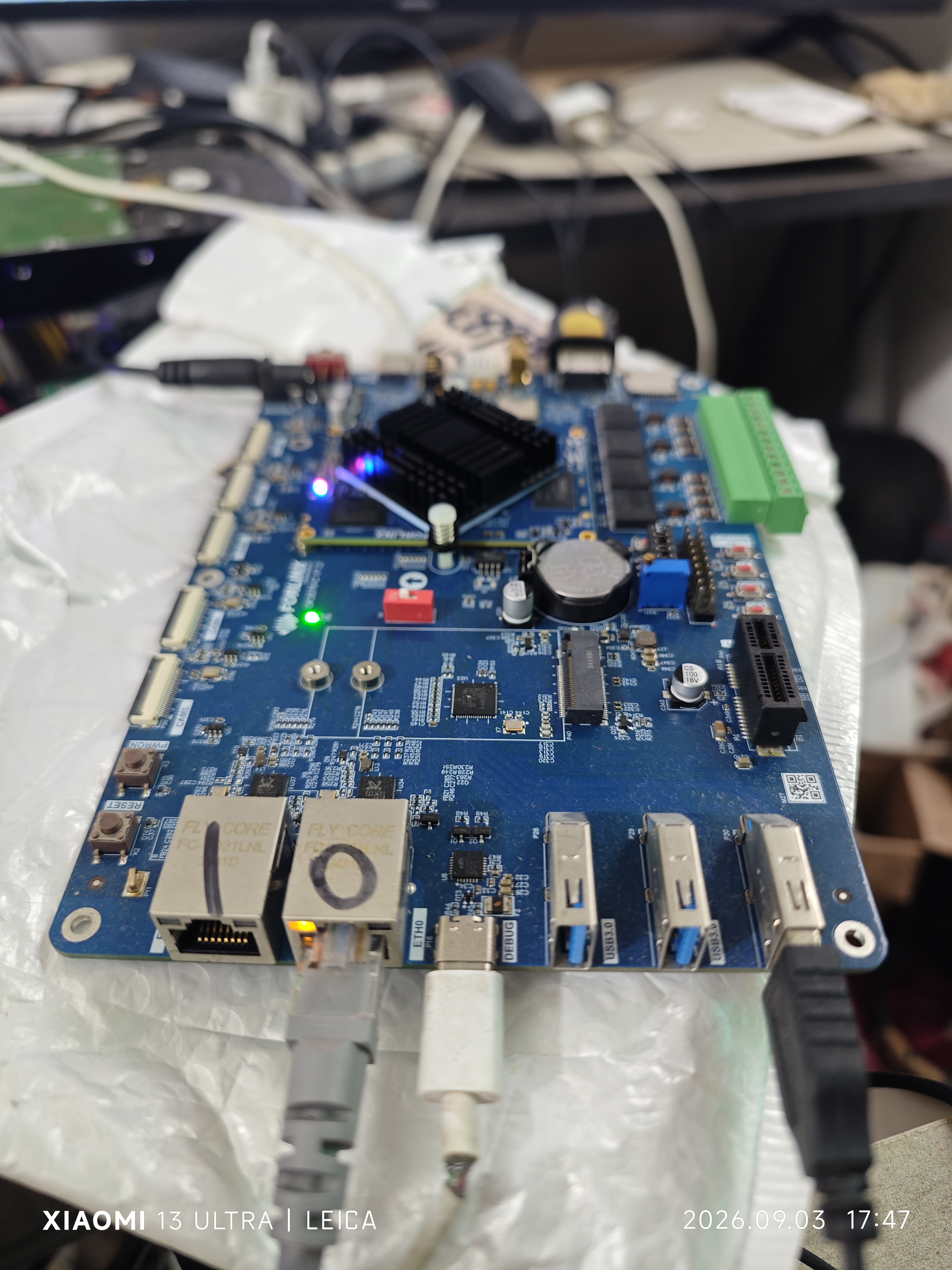

2、将以太网线插入eth0：

console:/ #

console:/ # ifconfig

lo Link encap:Local Loopback

inet addr:127.0.0.1 Mask:255.0.0.0

inet6 addr: ::1/128 Scope: Host

UP LOOPBACK RUNNING MTU:65536 Metric:1

RX packets:0 errors:0 dropped:0 overruns:0 frame:0

TX packets:0 errors:0 dropped:0 overruns:0 carrier:0

collisions:0 txqueuelen:1000

RX bytes:0 TX bytes:0

dummy0 Link encap:Ethernet HWaddr 7a:c9:d4:b4:d8:2f

inet6 addr: fe80::78c9:d4ff:feb4:d82f/64 Scope: Link

UP BROADCAST RUNNING NOARP MTU:1500 Metric:1

RX packets:0 errors:0 dropped:0 overruns:0 frame:0

TX packets:6 errors:0 dropped:0 overruns:0 carrier:0

collisions:0 txqueuelen:1000

RX bytes:0 TX bytes:420

eth0 Link encap:Ethernet HWaddr 0e:30:93:b7:84:d2 Driver rk_gmac-dwmac
inet addr:192.168.1.67 Bcast:192.168.1.255 Mask:255.255.255.0

inet6 addr: fe80::49d1:ee08:98f4:fe43/64 Scope: Link

inet6 addr: 2408:8256:348b:82a:5f10:d05b:6252:64c6/64 Scope: Global

inet6 addr: 2408:8256:348b:82a:139b:5400:e672:828f/64 Scope: Global

UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1

RX packets:20 errors:0 dropped:0 overruns:0 frame:0

TX packets:33 errors:0 dropped:0 overruns:0 carrier:0

collisions:0 txqueuelen:1000

RX bytes:2809 TX bytes:3722

Interrupt:60

console:/ #

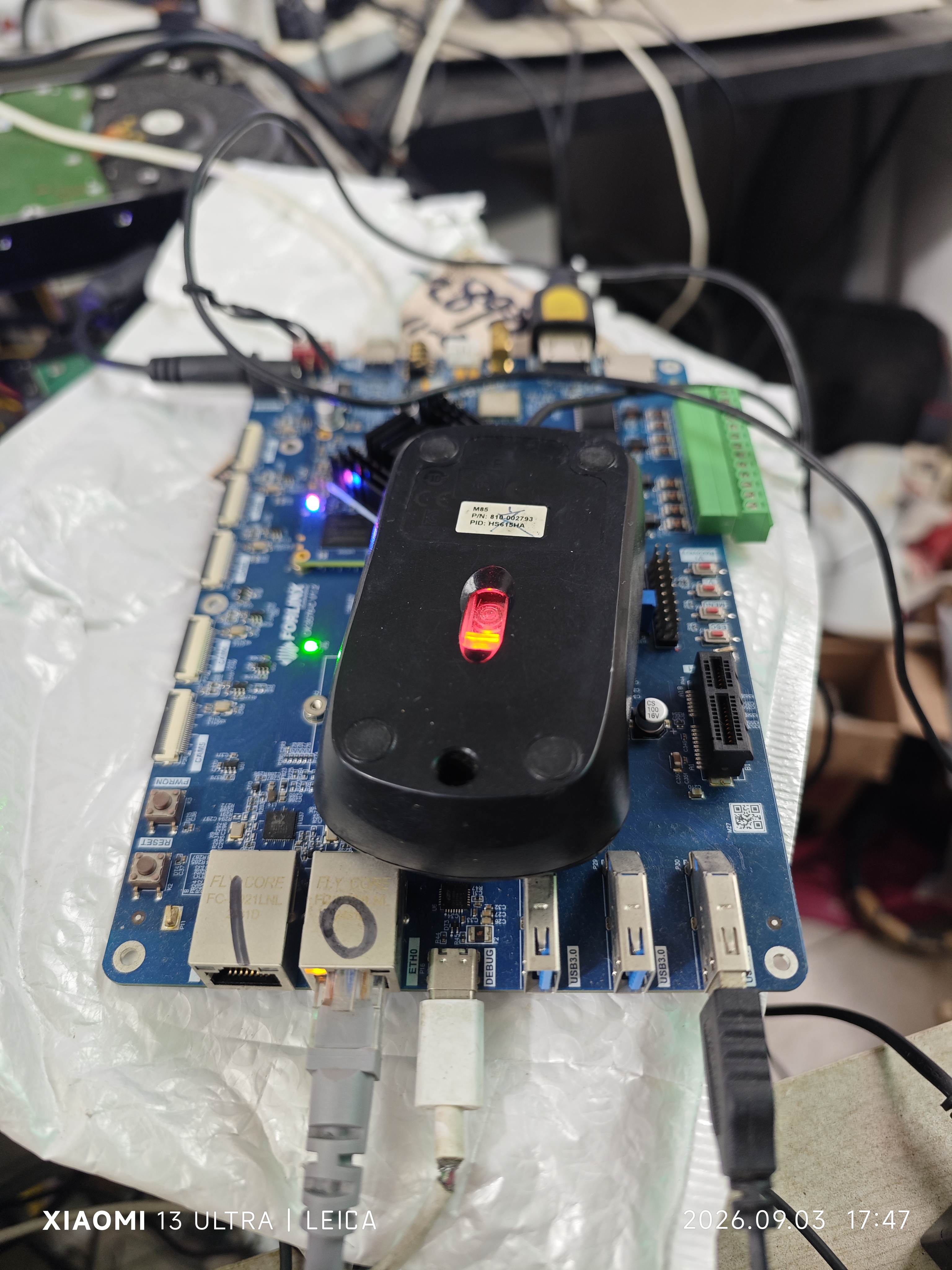

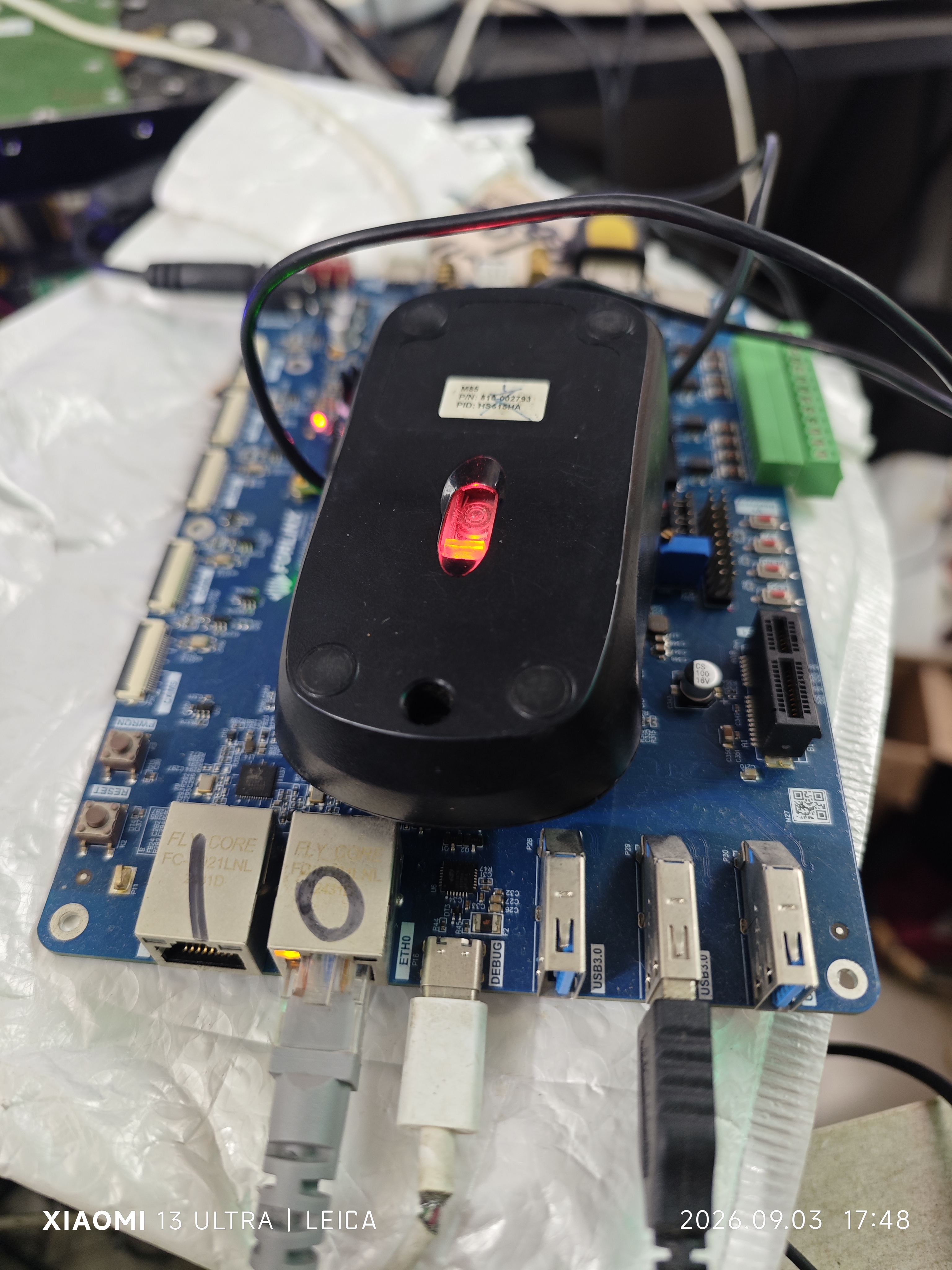

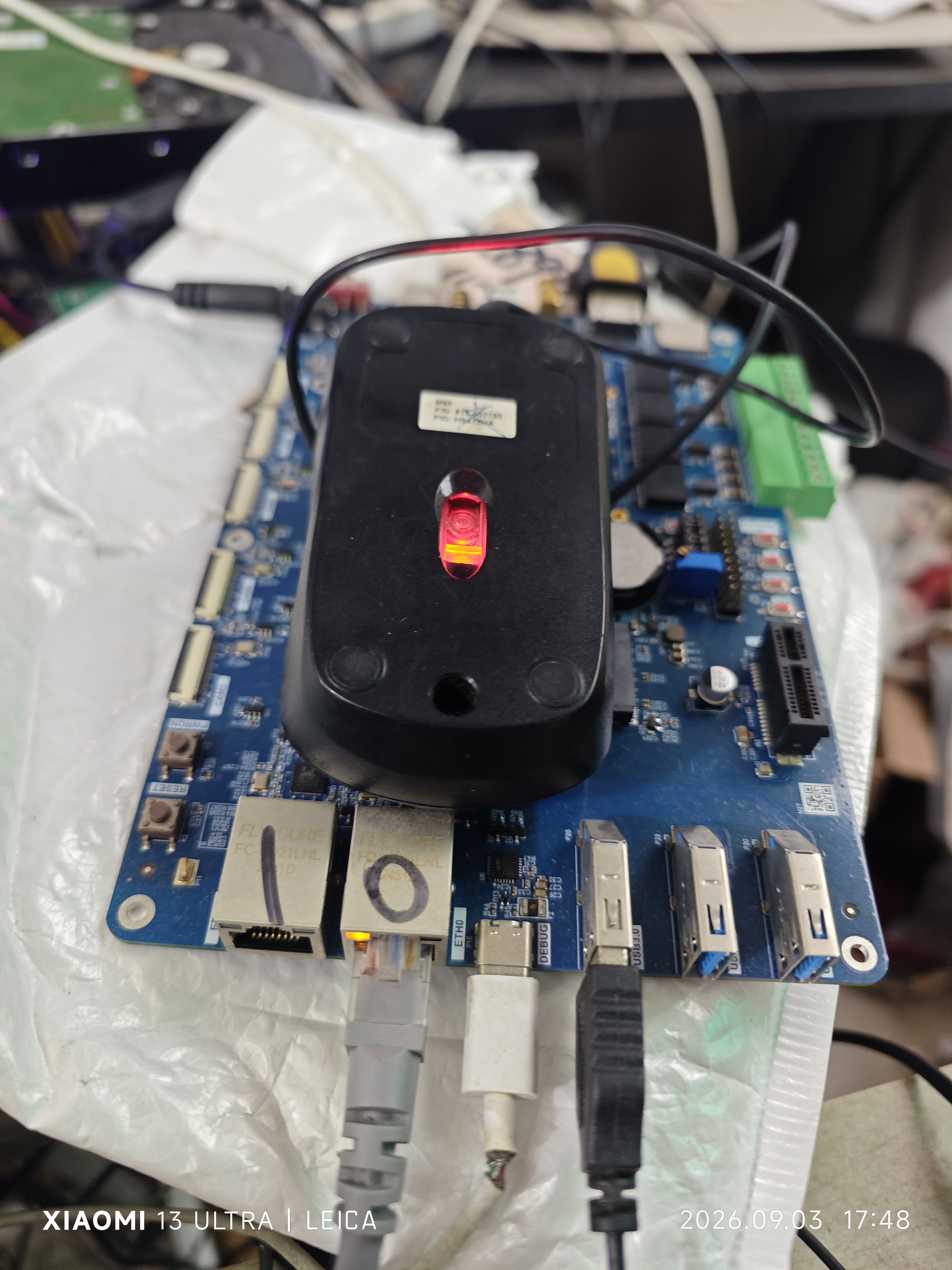

3、USB2.0鼠标接入3个USB口：

console:/ # $244.958084$ $T273$ type=1400 audit(1788428814.903:190): avc: denied { sys_module } for comm="binder:683_4" capability=16 scontext=u:r:system_server:s0 tcontext=u:r:system_server:s0 tclass=capability permissive=0 bug=b/228030183

$244.958309$ $T273$ type=1400 audit(1788428814.903:191): avc: denied { sys_module } for comm="binder:683_4" capability=16 scontext=u:r:system_server:s0 tcontext=u:r:system_server:s0 tclass=capability permissive=0 bug=b/228030183

$244.990784$ $T260$ servicemanager: Found android.hardware.security.keymint.IRemotelyProvisionedComponent/default in device VINTF manifest.

$251.172783$ $T532$ healthd: battery l=50 v=3300 t=2.6 h=2 st=3 c=-1600 fc=100 chg=au

$295.087911$ $T154$ usb 1-1.1: USB disconnect, device number 3

$296.072999$ $T154$ usb 1-1.3: new low-speed USB device number 4 using xhci-hcd

$296.177123$ $T154$ usb 1-1.3: New USB device found, idVendor=046d, idProduct=c05a, bcdDevice=63.00

$296.177225$ $T154$ usb 1-1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=0

$296.177270$ $T154$ usb 1-1.3: Product: USB Optical Mouse

$296.177309$ $T154$ usb 1-1.3: Manufacturer: Logitech

$296.262381$ $T154$ input: Logitech USB Optical Mouse as /devices/platform/23400000.usb/xhci-hcd.0.auto/usb1/1-1/1-1.3/1-1.3:1.0/0003:046D:C05A.0002/input/input8

$296.267972$ $T154$ hid-generic 0003:046D:C05A.0002: input,hidraw0: USB HID v1.11 Mouse $Logitech USB Optical Mouse$ on usb-xhci-hcd.0.auto-1.3/input0

$296.299685$ $T273$ type=1400 audit(1788428866.243:192): avc: denied { read } for comm="InputReader" name="country" dev="sysfs" ino=53303 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=0

$311.172582$ $T532$ healthd: battery l=50 v=3300 t=2.6 h=2 st=3 c=-1600 fc=100 chg=au

$325.297672$ $T154$ usb 1-1.3: USB disconnect, device number 4
$326.772919$ $T154$ usb 1-1.2: new low-speed USB device number 5 using xhci-hcd
$326.877091$ $T154$ usb 1-1.2: New USB device found, idVendor=046d, idProduct=c05a, bcdDevice=63.00
$326.877197$ $T154$ usb 1-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber=0
$326.877243$ $T154$ usb 1-1.2: Product: USB Optical Mouse
$326.877283$ $T154$ usb 1-1.2: Manufacturer: Logitech
$326.963131$ $T154$ input: Logitech USB Optical Mouse as /devices/platform/23400000.usb/xhci-hcd.0.auto/usb1/1-1/1-1.2/1-1.2:1.0/0003:046D:C05A.0003/input/input9
$326.966287$ $T154$ hid-generic 0003:046D:C05A.0003: input,hidraw0: USB HID v1.11 Mouse $Logitech USB Optical Mouse$ on usb-xhci-hcd.0.auto-1.2/input0

$327.000994$ $T273$ type=1400 audit(1788428896.943:193): avc: denied { read } for comm="InputReader" name="country" dev="sysfs" ino=53554 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=0

console:/ #

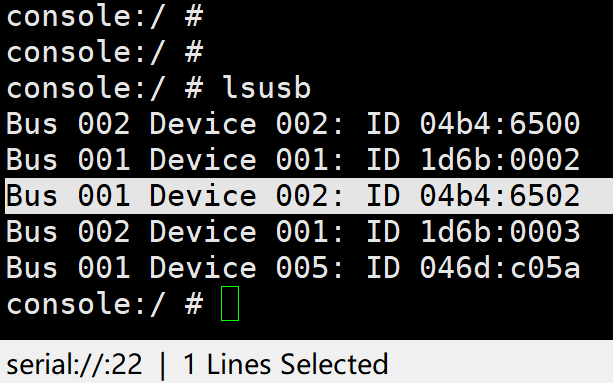

console:/ # lsusb

Bus 002 Device 002: ID 04b4:6500

Bus 001 Device 001: ID 1d6b:0002

Bus 001 Device 002: ID 04b4:6502

Bus 002 Device 001: ID 1d6b:0003

Bus 001 Device 005: ID 046d:c05a

console:/ #
