【LCD屏幕相关】针对中景园

汉字篇

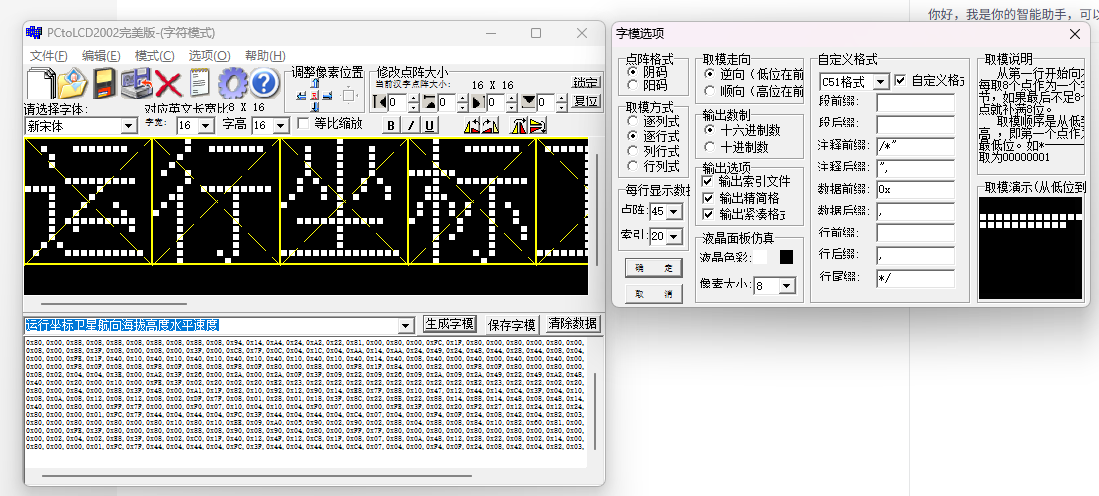

取字模，一般使用新宋体，利用率比较高

依葫芦画瓢修改就行

c 复制代码

	LCD_ShowChinese(35,45,"坐标",WHITE,BLACK,16,0);
	LCD_ShowChinese(35,70,"卫星",WHITE,BLACK,16,0);   LCD_ShowChinese(105,70,"海拔高度",WHITE,BLACK,16,0);
	LCD_ShowChinese(35,95,"航向",WHITE,BLACK,16,0);   LCD_ShowChinese(105,95,"水平速度",WHITE,BLACK,16,0);

要注意原先的格式怎么写的

c 复制代码

typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[32];
}typFNT_GB16;
const typFNT_GB16 tfont16[]={ //宋体 16*16
"运",0x00,0x00,0xC4,0x1F,0x08,0x00,0x08,0x00,0x00,0x00,0xE0,0x3F,0x0F,0x02,0x08,0x01,0x88,0x08,0x48,0x10,0xE8,0x3F,0x48,0x20,0x08,0x00,0x14,0x00,0xE2,0x7F,0x00,0x00,/*"运",0*/
"行",0x10,0x00,0x90,0x3F,0x08,0x00,0x04,0x00,0x12,0x00,0x10,0x00,0xC8,0x7F,0x0C,0x04,0x0A,0x04,0x09,0x04,0x08,0x04,0x08,0x04,0x08,0x04,0x08,0x04,0x08,0x05,0x08,0x02,/*"行",1*/
"坐",0x80,0x00,0x88,0x08,0x88,0x08,0x88,0x08,0x88,0x08,0x94,0x14,0xA4,0x24,0xA2,0x22,0x81,0x00,0x80,0x00,0xFC,0x1F,0x80,0x00,0x80,0x00,0x80,0x00,0xFF,0x7F,0x00,0x00,/*"坐",2*/
"标",0x08,0x00,0x88,0x3F,0x08,0x00,0x08,0x00,0x3F,0x00,0xC8,0x7F,0x0C,0x04,0x1C,0x04,0xAA,0x14,0xAA,0x24,0x49,0x24,0x48,0x44,0x28,0x44,0x08,0x04,0x08,0x05,0x08,0x02,/*"标",3*/
"卫",0x00,0x00,0xFE,0x1F,0x40,0x10,0x40,0x10,0x40,0x10,0x40,0x10,0x40,0x10,0x40,0x10,0x40,0x14,0x40,0x08,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0xFF,0x7F,0x00,0x00,/*"卫",4*/
"星",0x00,0x00,0xF8,0x0F,0x08,0x08,0xF8,0x0F,0x08,0x08,0xF8,0x0F,0x80,0x00,0x88,0x00,0xF8,0x1F,0x84,0x00,0x82,0x00,0xF8,0x0F,0x80,0x00,0x80,0x00,0xFE,0x3F,0x00,0x00,/*"星",5*/
"航",0x08,0x02,0x04,0x04,0x3E,0x00,0xA2,0x3F,0x26,0x00,0x2A,0x00,0x2A,0x0F,0x3F,0x09,0x22,0x09,0x26,0x09,0x2A,0x09,0x2A,0x49,0x22,0x49,0xA2,0x48,0xAA,0x70,0x51,0x00,/*"航",6*/
"向",0x40,0x00,0x20,0x00,0x10,0x00,0xFE,0x3F,0x02,0x20,0x02,0x20,0xE2,0x23,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0xE2,0x23,0x22,0x22,0x02,0x20,0x02,0x28,0x02,0x10,/*"向",7*/
"海",0x80,0x00,0x84,0x00,0x88,0x3F,0x48,0x00,0xA1,0x1F,0x82,0x10,0x92,0x12,0x90,0x14,0xE8,0x7F,0x88,0x10,0x47,0x12,0x44,0x14,0xC4,0x3F,0x04,0x10,0x04,0x0A,0x00,0x04,/*"海",8*/
"拔",0x08,0x0A,0x08,0x12,0x08,0x12,0x08,0x02,0xDF,0x7F,0x08,0x01,0x28,0x01,0x18,0x3F,0x8C,0x22,0x8B,0x22,0x88,0x14,0x88,0x14,0x48,0x08,0x48,0x14,0x2A,0x22,0x84,0x41,/*"拔",9*/
"高",0x40,0x00,0x80,0x00,0xFF,0x7F,0x00,0x00,0xF0,0x07,0x10,0x04,0x10,0x04,0xF0,0x07,0x00,0x00,0xFE,0x3F,0x02,0x20,0xF2,0x27,0x12,0x24,0x12,0x24,0xF2,0x27,0x02,0x30,/*"高",10*/
"度",0x80,0x00,0x00,0x01,0xFC,0x7F,0x44,0x04,0x44,0x04,0xFC,0x3F,0x44,0x04,0x44,0x04,0xC4,0x07,0x04,0x00,0xF4,0x0F,0x24,0x08,0x42,0x04,0x82,0x03,0x61,0x0C,0x1C,0x70,/*"度",11*/
"水",0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x10,0x80,0x10,0xBE,0x09,0xA0,0x05,0x90,0x02,0x90,0x02,0x88,0x04,0x88,0x08,0x84,0x10,0x82,0x60,0x81,0x00,0xA0,0x00,0x40,0x00,/*"水",12*/
"平",0x00,0x00,0xFE,0x3F,0x80,0x00,0x80,0x00,0x88,0x08,0x90,0x08,0x90,0x04,0x80,0x00,0xFF,0x7F,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,/*"平",13*/
"速",0x00,0x02,0x04,0x02,0xE8,0x3F,0x08,0x02,0xC0,0x1F,0x40,0x12,0x4F,0x12,0xC8,0x1F,0x08,0x07,0x88,0x0A,0x48,0x12,0x28,0x22,0x08,0x02,0x14,0x00,0xE2,0x7F,0x00,0x00,/*"速",14*/
"度",0x80,0x00,0x00,0x01,0xFC,0x7F,0x44,0x04,0x44,0x04,0xFC,0x3F,0x44,0x04,0x44,0x04,0xC4,0x07,0x04,0x00,0xF4,0x0F,0x24,0x08,0x42,0x04,0x82,0x03,0x61,0x0C,0x1C,0x70,/*"度",15*/
};

图片篇

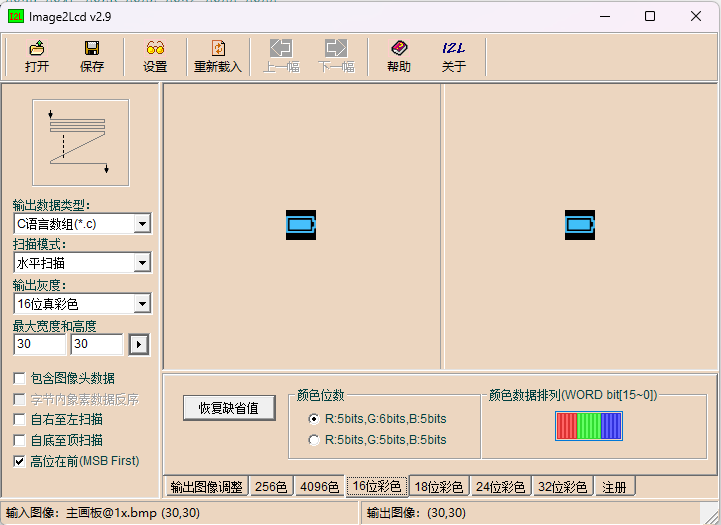

用自带的电脑软件将图片格式另存为bmp16色位图（如果发现颜色失真，默认的24色图同样可以），导入下面的软件中：

注意：16真彩、高度和宽度设置好、仅勾选高位在前

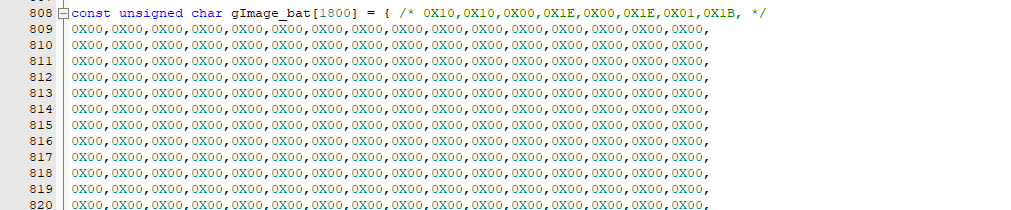

然后点保存，替代图片数组即可

设置好图片高度和宽度就可以了

c 复制代码

LCD_ShowPicture(80,15,30,30,gImage_bat);
