Segement Routing（SR）BE场景超详细实验解析

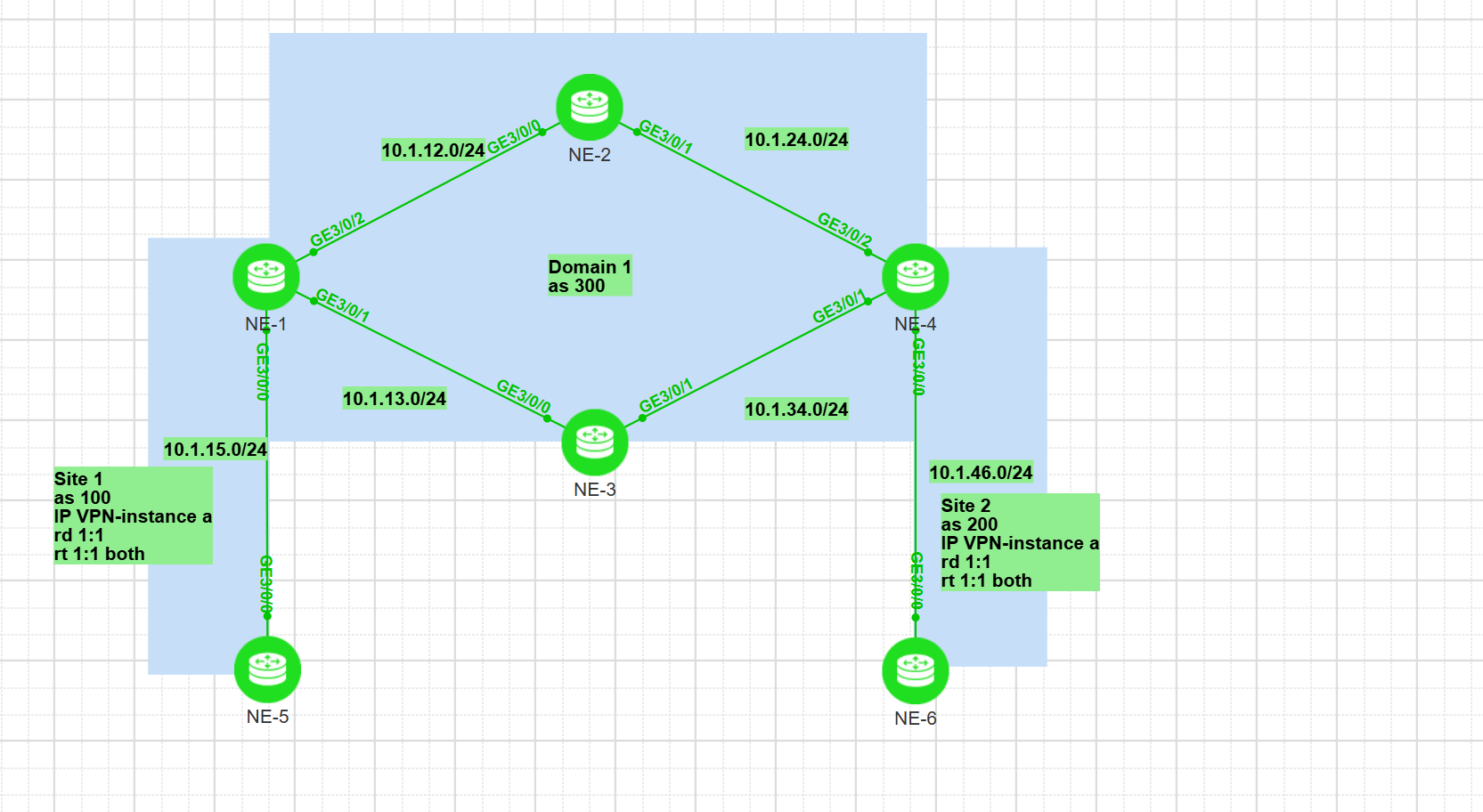

1.实验拓扑：

2.基础配置（每一步在结果验证都有对应）：

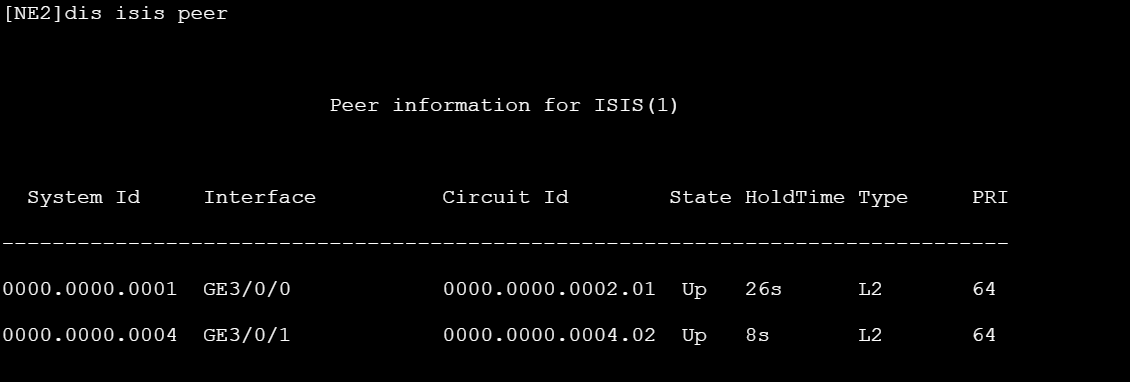

a.Domain的基础配置（IGP，IP地址）

复制代码

NE1:
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0001.0000.0000.0001.00
#
int g3/0/1
 ip add 10.1.13.1 24
 isis en 1
int g3/0/2
 ip add 10.1.12.1 24
 isis en 1
int l0
 ip add 1.1.1.1 32
 isis en 1

NE2:
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0001.0000.0000.0002.00
#
int g3/0/0
 ip add 10.1.12.2 24
 isis en 1
int g3/0/1
 ip add 10.1.24.2 24
 isis en 1
int l0
 ip add 2.2.2.2 32
 isis en 1

NE3:
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0001.0000.0000.0003.00
#
int g3/0/0
 ip add 10.1.13.3 24
 isis en 1
int g3/0/1
 ip add 10.1.34.3 24
 isis en 1
int l0
 ip add 3.3.3.3 32
 isis en 1

NE4:
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0001.0000.0000.0004.00
#
int g3/0/1
 ip add 10.1.34.4 24
 isis en 1
int g3/0/2
 ip add 10.1.24.4 24
 isis en 1
int l0
 ip add 4.4.4.4 32
 isis en 1

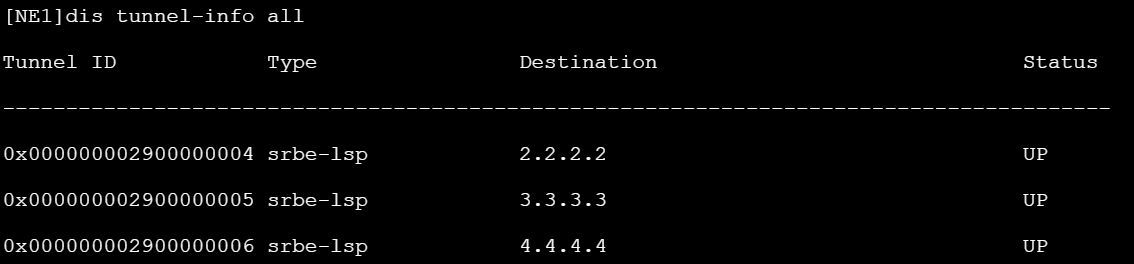

b.使能MPLS，配置Segment Routing，使能TI-LFA FRR

复制代码

NE1:
 mpls lsr 1.1.1.1
 mpls
 segment-routing
 isis 1
 segment-routing mpls
 segment-routing global-block 16000 23999
 frr
  loop-free-alternate level-2
  ti-lfa level-2
 int l0
 isis prefix-sid index 10


NE2:
 mpls lsr 2.2.2.2
 mpls
 segment-routing
 isis 1
 segment-routing mpls
 segment-routing global-block 16000 23999
 frr
  loop-free-alternate level-2
  ti-lfa level-2
 int l0
 isis prefix-sid index 20


NE3:
 mpls lsr 3.3.3.3
 mpls
 segment-routing
 isis 1
 segment-routing mpls
 segment-routing global-block 16000 23999
 frr
  loop-free-alternate level-2
  ti-lfa level-2
 int l0
 isis prefix-sid index 30


NE4:
 mpls lsr 4.4.4.4
 mpls
 segment-routing
 isis 1
 segment-routing mpls
 segment-routing global-block 16000 23999
 frr
  loop-free-alternate level-2
  ti-lfa level-2
 int l0
 isis prefix-sid index 40

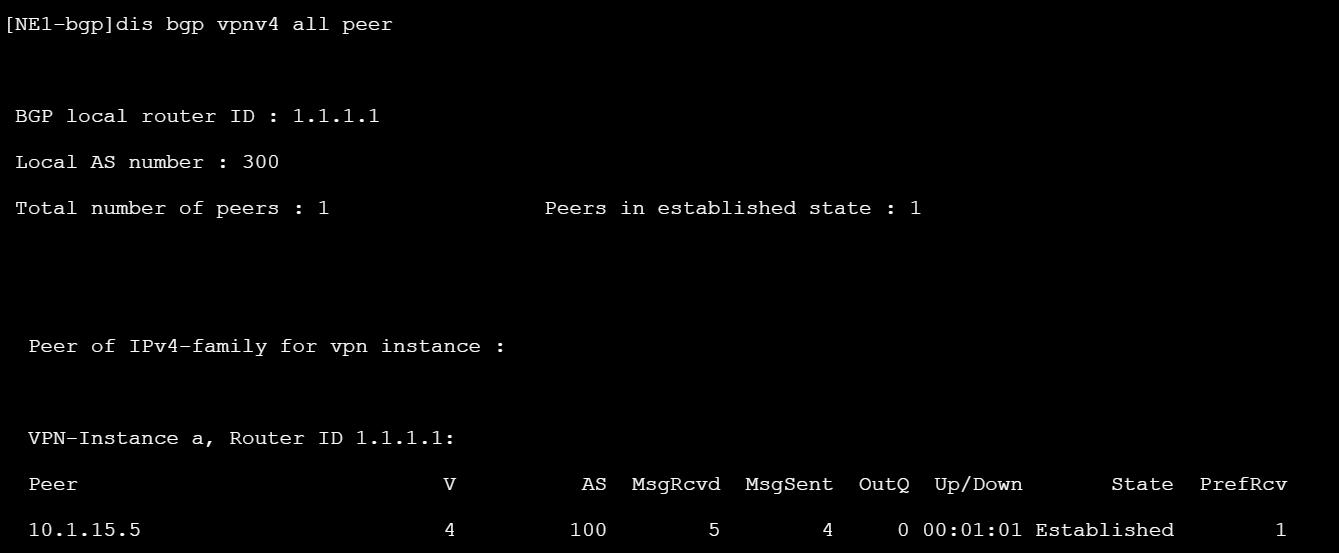

c.Site1和Domain之间EBGP邻居建立

复制代码

Site1:
NE1:
#
ip vpn-instance a
 ipv4-family
  route-distinguisher 1:1
  vpn-target 1:1 export-extcommunity
  vpn-target 1:1 import-extcommunity
#
interface GigabitEthernet3/0/0
 ip binding vpn-instance a
 ip address 10.1.15.1 255.255.255.0
#
bgp 300
 router-id 1.1.1.1
 peer 10.1.15.5 as-number 100
 #
 ipv4-family vpn-instance a
  peer 10.1.15.5 as-number 100
#

NE5:
#
interface GigabitEthernet3/0/0
 undo shutdown
 ip address 10.1.15.5 255.255.255.0
#
interface LoopBack0
 ip address 5.5.5.5 255.255.255.255
#
bgp 100
 router-id 5.5.5.5
 peer 10.1.15.1 as-number 300
 #
 ipv4-family unicast
  undo synchronization
  network 5.5.5.5 255.255.255.255
  peer 10.1.15.1 enable
#

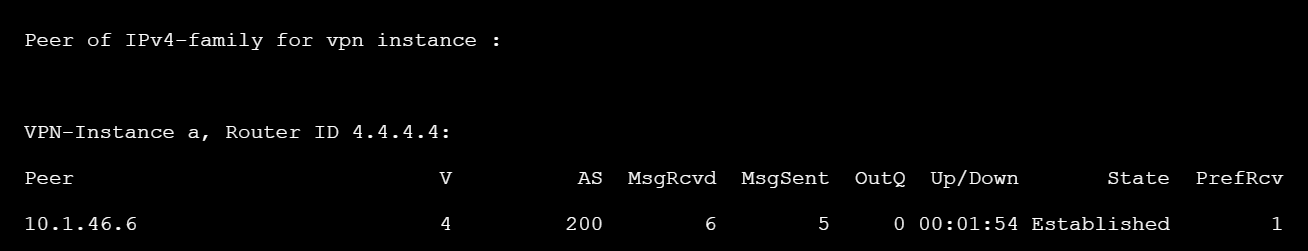

Site2:
NE4:
#
ip vpn-instance a
 ipv4-family
  route-distinguisher 1:2
  vpn-target 1:1 export-extcommunity
  vpn-target 1:1 import-extcommunity
#
interface GigabitEthernet3/0/0
 ip binding vpn-instance a
 ip address 10.1.46.4 255.255.255.0
#
bgp 300
 router-id 4.4.4.4
 peer 10.1.46.6 as-number 200
 #
 ipv4-family vpn-instance a
  peer 10.1.46.6 as-number 200
#


NE6:
#
interface GigabitEthernet3/0/0
 undo shutdown
 ip address 10.1.46.6 255.255.255.0
#
interface LoopBack0
 ip address 6.6.6.6 255.255.255.255
#
#
bgp 200
 router-id 6.6.6.6
 peer 10.1.46.4 as-number 300
 #
 ipv4-family unicast
  undo synchronization
  network 6.6.6.6 255.255.255.255
  peer 10.1.46.4 enable
#

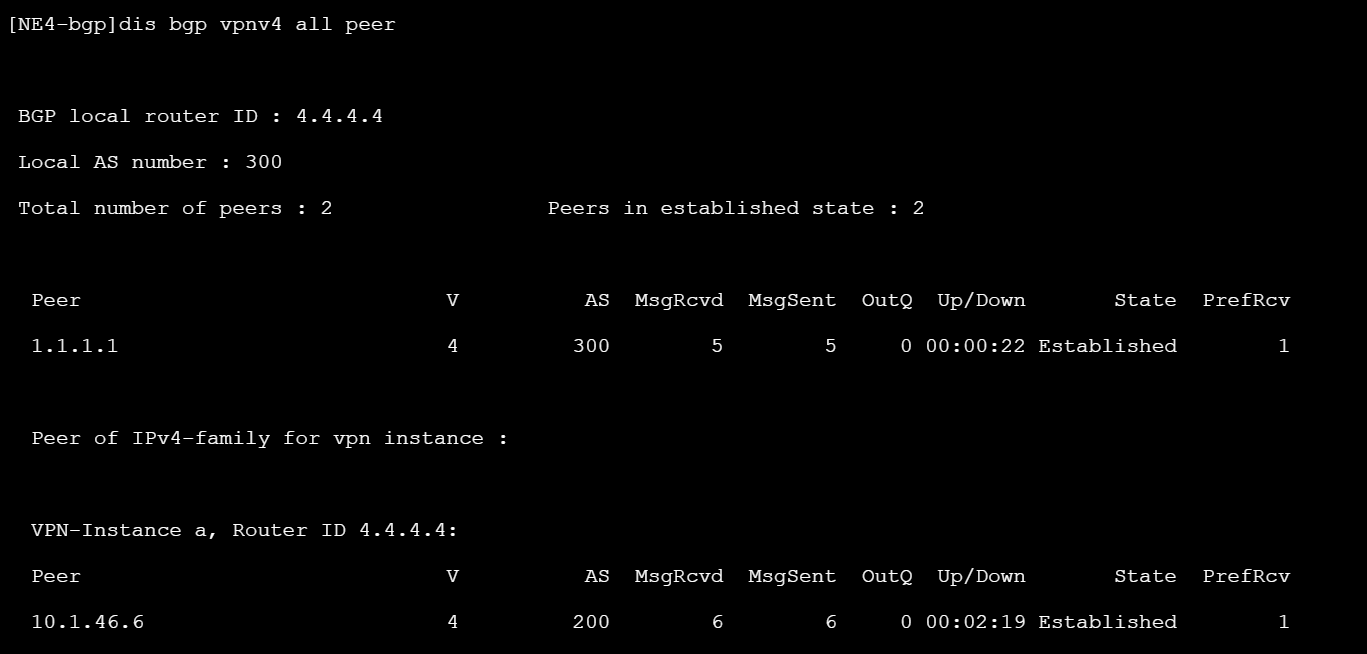

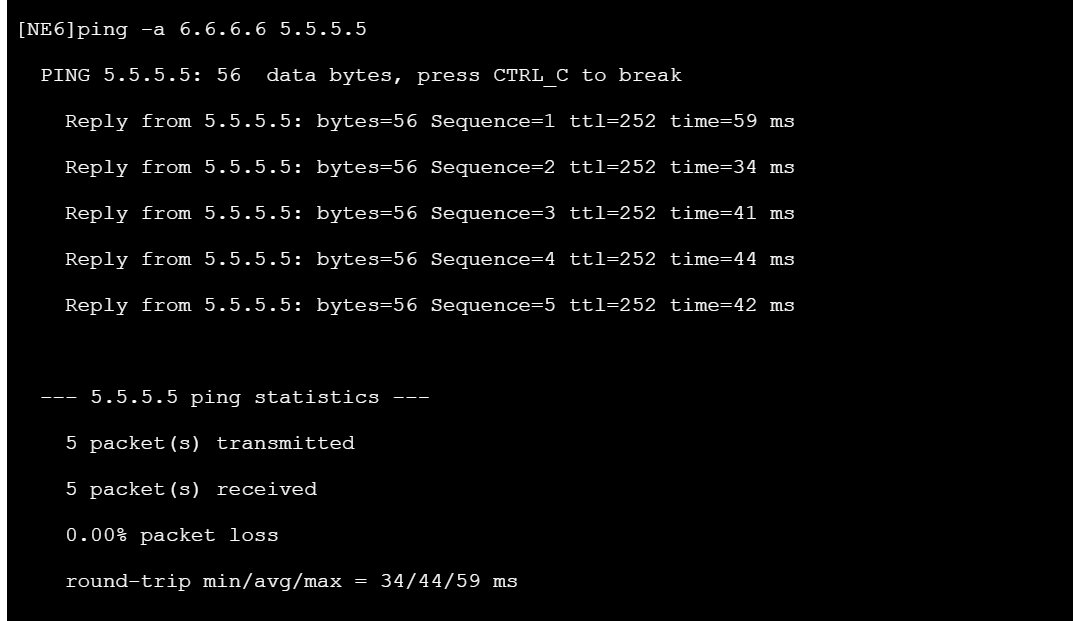

d.Domain的PE之间MP-BGP建立

复制代码

NE1:
bgp 300
 router-id 1.1.1.1
 peer 4.4.4.4 as-number 300
 peer 4.4.4.4 connect-interface LoopBack0
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 4.4.4.4 enable
 #

NE4:
bgp 300
 router-id 4.4.4.4
 peer 1.1.1.1 as-number 300
 peer 1.1.1.1 connect-interface LoopBack0
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 1.1.1.1 enable
 #
