目录
效果

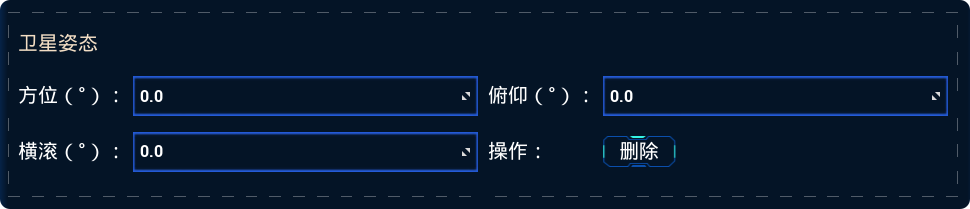

如图所示，制作一个UMG虚线框背景材质
步骤
一、创建材质
创建一个材质，这里命名为"M_DashedBorder"

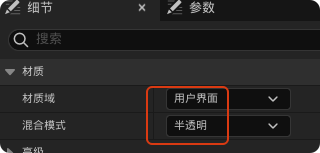

打开"M_DashedBorder"，材质域设置为用户界面，混合模式设置为半透明

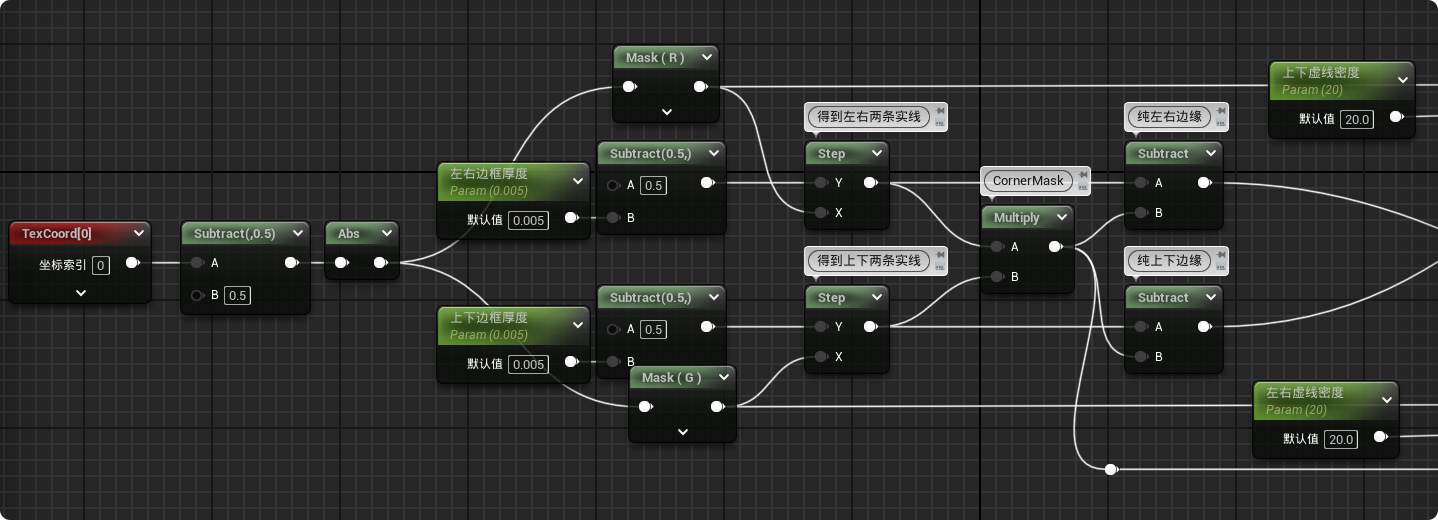

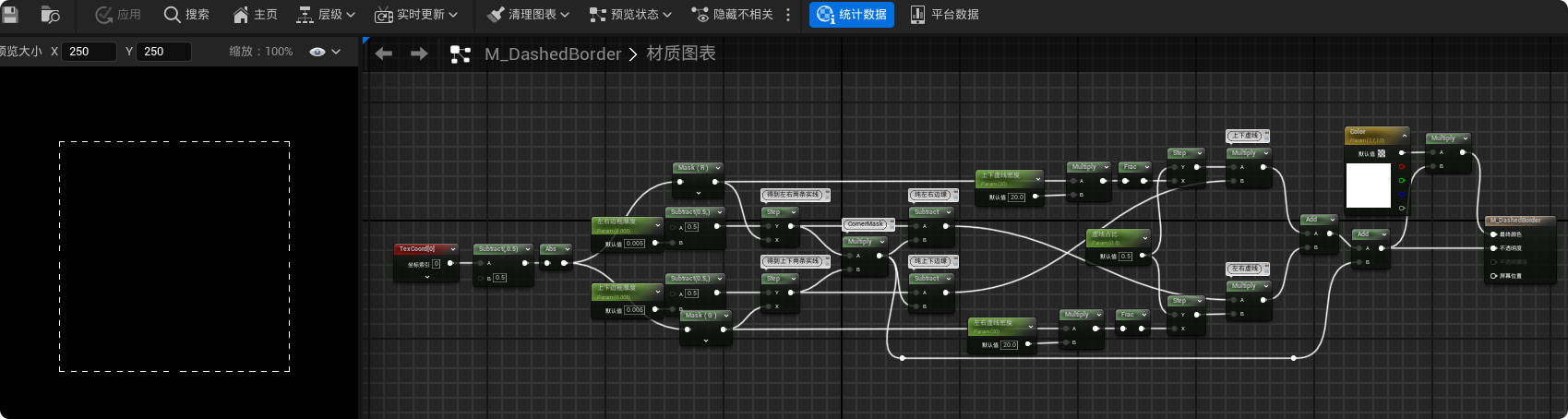

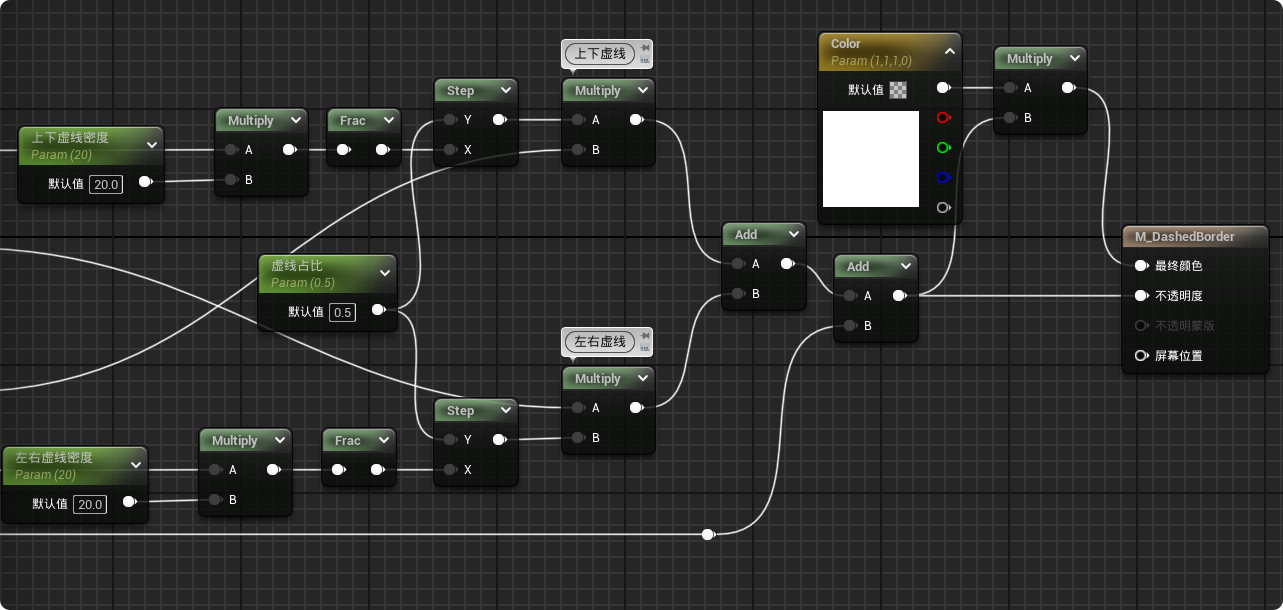

添加如下节点
bash
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_0" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_0'"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_5" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_0.MaterialExpressionMultiply_5'"
End Object
Begin Object Name="MaterialExpressionMultiply_5" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_0.MaterialExpressionMultiply_5'"
A=(Expression="/Script/Engine.MaterialExpressionVectorParameter'MaterialGraphNode_25.MaterialExpressionVectorParameter_0'",Mask=1,MaskR=1,MaskG=1,MaskB=1)
B=(Expression="/Script/Engine.MaterialExpressionAdd'MaterialGraphNode_1.MaterialExpressionAdd_1'")
MaterialExpressionEditorX=1264
MaterialExpressionEditorY=-192
MaterialExpressionGuid=73D951A046E9ECF4579F73AEFF9721BF
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_5'"
NodePosX=1264
NodePosY=-192
NodeGuid=6ABD57D94EC3C6E20EC237811413AB57
CustomProperties Pin (PinId=3F06DA8C46D8B7326FA83CA628B8504D,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_25 A4D6199F40FCAD0E5F8EFA9DE0C17112,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=BE731D134590462EE17099899E7F6CCB,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_1 1CC0A69A4291CE3E933EE38B0594F3DC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=6D26714D454DED50B6D806823D66EDCB,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Root_0 154B1BA142413327DE63A4A8D0EDEA5A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_1" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_1'"
Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_1" ExportPath="/Script/Engine.MaterialExpressionAdd'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_1.MaterialExpressionAdd_1'"
End Object
Begin Object Name="MaterialExpressionAdd_1" ExportPath="/Script/Engine.MaterialExpressionAdd'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_1.MaterialExpressionAdd_1'"
A=(Expression="/Script/Engine.MaterialExpressionAdd'MaterialGraphNode_24.MaterialExpressionAdd_0'")
B=(Expression="/Script/Engine.MaterialExpressionReroute'MaterialGraphNode_Knot_1.MaterialExpressionReroute_3'")
MaterialExpressionEditorX=1104
MaterialExpressionEditorY=16
MaterialExpressionGuid=4B251B634B8D6A72C923A3BFDC56F4A2
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_1'"
NodePosX=1104
NodePosY=16
NodeGuid=8B9433B44F7A475657A7D1BE1FF3C4ED
CustomProperties Pin (PinId=2EC91B5F4A31639685789691D0530B6E,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_24 84BB4CC94F3354B0094286AF4155110F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=93F3BCDA4CF3B1212B702683827F8242,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_Knot_1 35137E7B4FCBA0B0165A99AF6A8CBEA7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=1CC0A69A4291CE3E933EE38B0594F3DC,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Root_0 836195254E7D7BB39274EA8F3529CD2A,MaterialGraphNode_0 BE731D134590462EE17099899E7F6CCB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_2" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_2'"
Begin Object Class=/Script/Engine.MaterialExpressionTextureCoordinate Name="MaterialExpressionTextureCoordinate_0" ExportPath="/Script/Engine.MaterialExpressionTextureCoordinate'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_2.MaterialExpressionTextureCoordinate_0'"
End Object
Begin Object Name="MaterialExpressionTextureCoordinate_0" ExportPath="/Script/Engine.MaterialExpressionTextureCoordinate'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_2.MaterialExpressionTextureCoordinate_0'"
MaterialExpressionEditorX=-972
MaterialExpressionEditorY=48
MaterialExpressionGuid=8CDC5ACE4F95AFC99BFD7CBC551EA3FD
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionTextureCoordinate'MaterialExpressionTextureCoordinate_0'"
NodePosX=-972
NodePosY=48
AdvancedPinDisplay=Hidden
NodeGuid=5236477A4B203E26CF04F2975AE344E3
CustomProperties Pin (PinId=F64D362F4541C606358B47A8EAEC0F27,PinName="坐标索引",PinType.PinCategory="optional",PinType.PinSubCategory="int",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=835C790545A436733D1A01BE1509DB61,PinName="U平铺",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=5B35B2644BE89FB7187B07B2965C8310,PinName="V平铺",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=56DCF22649C0D017D92E7A933D98F690,PinName="解除镜像U",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=70AB2CE34B52C762E810B38A588EFD2D,PinName="解除镜像V",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=9D6928454908EAD326A4309A9F186299,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_3 3CF0AD9B47FB6605FD8212A96EBEF106,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_3" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_3'"
Begin Object Class=/Script/Engine.MaterialExpressionSubtract Name="MaterialExpressionSubtract_0" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_3.MaterialExpressionSubtract_0'"
End Object
Begin Object Name="MaterialExpressionSubtract_0" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_3.MaterialExpressionSubtract_0'"
A=(Expression="/Script/Engine.MaterialExpressionTextureCoordinate'MaterialGraphNode_2.MaterialExpressionTextureCoordinate_0'")
ConstB=0.500000
MaterialExpressionEditorX=-800
MaterialExpressionEditorY=48
MaterialExpressionGuid=43AF942649FAF66CFF05D096927580FB
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionSubtract'MaterialExpressionSubtract_0'"
NodePosX=-800
NodePosY=48
NodeGuid=924CDE154CF019B54DE1C98E62DAD342
CustomProperties Pin (PinId=3CF0AD9B47FB6605FD8212A96EBEF106,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_2 9D6928454908EAD326A4309A9F186299,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=8BB8E91F4C2A9877793769A4F420964B,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=787AAB3A4B4180F313771D84E0FFDDA4,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_4 A6F740E341C7EFE5575734AF2B360ECF,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_4" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_4'"
Begin Object Class=/Script/Engine.MaterialExpressionAbs Name="MaterialExpressionAbs_0" ExportPath="/Script/Engine.MaterialExpressionAbs'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_4.MaterialExpressionAbs_0'"
End Object
Begin Object Name="MaterialExpressionAbs_0" ExportPath="/Script/Engine.MaterialExpressionAbs'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_4.MaterialExpressionAbs_0'"
Input=(Expression="/Script/Engine.MaterialExpressionSubtract'MaterialGraphNode_3.MaterialExpressionSubtract_0'")
MaterialExpressionEditorX=-656
MaterialExpressionEditorY=48
MaterialExpressionGuid=1804DF024348AF27D78F8282AA005C78
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionAbs'MaterialExpressionAbs_0'"
NodePosX=-656
NodePosY=48
NodeGuid=36C682314E3F69BCFECF099D8AE6A87C
CustomProperties Pin (PinId=A6F740E341C7EFE5575734AF2B360ECF,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_3 787AAB3A4B4180F313771D84E0FFDDA4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=4BD3888849AE86284A1C768F0287A31F,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 3B82F6CC46CE006A22E5C3A489C0F014,MaterialGraphNode_8 8F68B24D48CDBEFBACFB4D87E0BE75D1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_26" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_26'"
Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_0" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_26.MaterialExpressionScalarParameter_0'"
End Object
Begin Object Name="MaterialExpressionScalarParameter_0" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_26.MaterialExpressionScalarParameter_0'"
DefaultValue=0.005000
ParameterName="左右边框厚度"
ExpressionGUID=3ADB3CD047BF7C76BA9D5485456F3F40
MaterialExpressionEditorX=-544
MaterialExpressionEditorY=-11
MaterialExpressionGuid=CBF3912A466E8D8A2D103DA0658AD25F
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_0'"
NodePosX=-544
NodePosY=-11
bCanRenameNode=True
NodeGuid=DAD10BCA4C22CDC672FCB6A8EB1EF081
CustomProperties Pin (PinId=3DE0E4E942DA9AB84BDE2D8DCFF434D6,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.005",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=47631158448B672827B6B3A104F5ACB4,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_27 D955A418494724F7A8B542AA731B2FD8,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_27" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_27'"
Begin Object Class=/Script/Engine.MaterialExpressionSubtract Name="MaterialExpressionSubtract_1" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_27.MaterialExpressionSubtract_1'"
End Object
Begin Object Name="MaterialExpressionSubtract_1" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_27.MaterialExpressionSubtract_1'"
B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_26.MaterialExpressionScalarParameter_0'")
ConstA=0.500000
MaterialExpressionEditorX=-384
MaterialExpressionEditorY=-32
MaterialExpressionGuid=1682A36B4B1C54760578B0975768FF1A
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionSubtract'MaterialExpressionSubtract_1'"
NodePosX=-384
NodePosY=-32
NodeGuid=F140312D4B7488B90DB6AC9D29ED2E73
CustomProperties Pin (PinId=8B50E95D44C2497B0ED99E8AC61B01BA,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=D955A418494724F7A8B542AA731B2FD8,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_26 47631158448B672827B6B3A104F5ACB4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=3D53D9A040B8CC44879F1097876E98D4,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 1AA8A85549A5C38F9E5A119354BFF26D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_7" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_7'"
Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_0" ExportPath="/Script/Engine.MaterialExpressionComponentMask'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_7.MaterialExpressionComponentMask_0'"
End Object
Begin Object Name="MaterialExpressionComponentMask_0" ExportPath="/Script/Engine.MaterialExpressionComponentMask'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_7.MaterialExpressionComponentMask_0'"
Input=(Expression="/Script/Engine.MaterialExpressionAbs'MaterialGraphNode_4.MaterialExpressionAbs_0'")
R=True
MaterialExpressionEditorX=-368
MaterialExpressionEditorY=-128
MaterialExpressionGuid=5A6BDCF14E46A0FE174DA784BF5E1476
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_0'"
NodePosX=-368
NodePosY=-128
AdvancedPinDisplay=Hidden
NodeGuid=DAFD3205411F760D4C5446B4B5A659A5
CustomProperties Pin (PinId=3B82F6CC46CE006A22E5C3A489C0F014,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_4 4BD3888849AE86284A1C768F0287A31F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=F7EC1D664FEF45652B2038B717C313E8,PinName="R",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="true",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=98471F36499AE064F3B5D48EE0B5F660,PinName="G",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=FB2C17B44D13580E845E8483B6A8BED8,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=947C61BE441FD64B9C1D2FB0FD1A73F7,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=8554E8D040563428FBDBF889CCDD88CD,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 40BD9ADD4FB2CBAC460A168C6B52E611,MaterialGraphNode_16 85F07BA44D8C8A62F3E888B9677F82D0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_8" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_8'"
Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_1" ExportPath="/Script/Engine.MaterialExpressionComponentMask'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_8.MaterialExpressionComponentMask_1'"
End Object
Begin Object Name="MaterialExpressionComponentMask_1" ExportPath="/Script/Engine.MaterialExpressionComponentMask'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_8.MaterialExpressionComponentMask_1'"
Input=(Expression="/Script/Engine.MaterialExpressionAbs'MaterialGraphNode_4.MaterialExpressionAbs_0'")
G=True
MaterialExpressionEditorX=-352
MaterialExpressionEditorY=192
MaterialExpressionGuid=4D5C40884317B78CD61A1DABF10AA436
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_1'"
NodePosX=-352
NodePosY=192
AdvancedPinDisplay=Hidden
NodeGuid=9726326448FF29778B3607866524E7FE
CustomProperties Pin (PinId=8F68B24D48CDBEFBACFB4D87E0BE75D1,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_4 4BD3888849AE86284A1C768F0287A31F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=AFCFF6114A1AFAFF9A37368AD98536F6,PinName="R",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=350E97984226FE80D7E065B90DF5B32C,PinName="G",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="true",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=49BDB04D47D40180D933DC87BEE273CA,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=00FC822A4C89C359797E10BB81D90551,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=6BCA1A544671888E3949C48ECF2EBACD,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 75A2C45249FEE84ADD47AEBC1179E1E9,MaterialGraphNode_19 C64F151E4B9AD173890D4285A11FC59C,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_9" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_9'"
Begin Object Class=/Script/Engine.MaterialExpressionStep Name="MaterialExpressionStep_0" ExportPath="/Script/Engine.MaterialExpressionStep'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_9.MaterialExpressionStep_0'"
End Object
Begin Object Name="MaterialExpressionStep_0" ExportPath="/Script/Engine.MaterialExpressionStep'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_9.MaterialExpressionStep_0'"
Y=(Expression="/Script/Engine.MaterialExpressionSubtract'MaterialGraphNode_27.MaterialExpressionSubtract_1'")
X=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_7.MaterialExpressionComponentMask_0'")
MaterialExpressionEditorX=-176
MaterialExpressionEditorY=-32
MaterialExpressionGuid=237C2F9B4BC024DC1E5CAD87824EC202
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
Desc="得到左右两条实线"
bCommentBubbleVisible=True
End Object
MaterialExpression="/Script/Engine.MaterialExpressionStep'MaterialExpressionStep_0'"
NodePosX=-176
NodePosY=-32
bCommentBubbleVisible=True
NodeComment="得到左右两条实线"
NodeGuid=B1E80A04460DA0EA156444982D07B8FF
CustomProperties Pin (PinId=1AA8A85549A5C38F9E5A119354BFF26D,PinName="Y",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_27 3D53D9A040B8CC44879F1097876E98D4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=40BD9ADD4FB2CBAC460A168C6B52E611,PinName="X",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_7 8554E8D040563428FBDBF889CCDD88CD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=235D7E9D46DF23689C2F89B7BC5E6F1D,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 D7CB810140B13E4C6CC06D8477ACE6BA,MaterialGraphNode_12 8F0FCEC5448BD51EB03E7DAE559442A1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_10" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_10'"
Begin Object Class=/Script/Engine.MaterialExpressionStep Name="MaterialExpressionStep_1" ExportPath="/Script/Engine.MaterialExpressionStep'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_10.MaterialExpressionStep_1'"
End Object
Begin Object Name="MaterialExpressionStep_1" ExportPath="/Script/Engine.MaterialExpressionStep'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_10.MaterialExpressionStep_1'"
Y=(Expression="/Script/Engine.MaterialExpressionSubtract'MaterialGraphNode_6.MaterialExpressionSubtract_4'")
X=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_8.MaterialExpressionComponentMask_1'")
MaterialExpressionEditorX=-176
MaterialExpressionEditorY=112
MaterialExpressionGuid=AB7C56CE41F2835058F8AEA4321FBD13
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
Desc="得到上下两条实线"
bCommentBubbleVisible=True
End Object
MaterialExpression="/Script/Engine.MaterialExpressionStep'MaterialExpressionStep_1'"
NodePosX=-176
NodePosY=112
bCommentBubbleVisible=True
NodeComment="得到上下两条实线"
NodeGuid=3C49401E4CE599000182A9AD2A0F2703
CustomProperties Pin (PinId=A52AD43348DDDB2FEEE1819187F85922,PinName="Y",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_6 3D53D9A040B8CC44879F1097876E98D4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=75A2C45249FEE84ADD47AEBC1179E1E9,PinName="X",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_8 6BCA1A544671888E3949C48ECF2EBACD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=92FF90C34A293FE4AC6E5897E6C01386,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 E6D34F42420D788FE1E10286D03BF266,MaterialGraphNode_13 87619BC5401704BEEA9DF4BA9C3DD347,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_11" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_11'"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_0" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_11.MaterialExpressionMultiply_0'"
End Object
Begin Object Name="MaterialExpressionMultiply_0" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_11.MaterialExpressionMultiply_0'"
A=(Expression="/Script/Engine.MaterialExpressionStep'MaterialGraphNode_9.MaterialExpressionStep_0'")
B=(Expression="/Script/Engine.MaterialExpressionStep'MaterialGraphNode_10.MaterialExpressionStep_1'")
MaterialExpressionEditorY=32
MaterialExpressionGuid=65D478AF4F703F03F4851DA6B4AFABA4
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
Desc="CornerMask"
bCommentBubbleVisible=True
End Object
MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_0'"
NodePosY=32
bCommentBubbleVisible=True
NodeComment="CornerMask"
NodeGuid=4B866844486690FC173F7981D81E0B90
CustomProperties Pin (PinId=D7CB810140B13E4C6CC06D8477ACE6BA,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_9 235D7E9D46DF23689C2F89B7BC5E6F1D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=E6D34F42420D788FE1E10286D03BF266,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_10 92FF90C34A293FE4AC6E5897E6C01386,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=3FC8B8EE45CAAB281E623F853C6D29BD,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_12 11A0D9674F4CC1A587330095BAFEEB7B,MaterialGraphNode_13 8D8F75244C6246642219BB934AC14708,MaterialGraphNode_Knot_0 4C3FCB6D4BBDB543BBC8E4903DECEC52,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_12" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_12'"
Begin Object Class=/Script/Engine.MaterialExpressionSubtract Name="MaterialExpressionSubtract_2" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_12.MaterialExpressionSubtract_2'"
End Object
Begin Object Name="MaterialExpressionSubtract_2" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_12.MaterialExpressionSubtract_2'"
A=(Expression="/Script/Engine.MaterialExpressionStep'MaterialGraphNode_9.MaterialExpressionStep_0'")
B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_11.MaterialExpressionMultiply_0'")
MaterialExpressionEditorX=144
MaterialExpressionEditorY=-32
MaterialExpressionGuid=838F509145841653F0B5B0806C4E69A5
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
Desc="纯左右边缘"
bCommentBubbleVisible=True
End Object
MaterialExpression="/Script/Engine.MaterialExpressionSubtract'MaterialExpressionSubtract_2'"
NodePosX=144
NodePosY=-32
bCommentBubbleVisible=True
NodeComment="纯左右边缘"
NodeGuid=0B881D0A41B3117634B369B7835F09AD
CustomProperties Pin (PinId=8F0FCEC5448BD51EB03E7DAE559442A1,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_9 235D7E9D46DF23689C2F89B7BC5E6F1D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=11A0D9674F4CC1A587330095BAFEEB7B,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_11 3FC8B8EE45CAAB281E623F853C6D29BD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=BF25856D4729FFF7D0F97F906EC575A3,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 D6BB495C40B5D74EBB1A7BB844F6EDFE,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_13" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_13'"
Begin Object Class=/Script/Engine.MaterialExpressionSubtract Name="MaterialExpressionSubtract_3" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_13.MaterialExpressionSubtract_3'"
End Object
Begin Object Name="MaterialExpressionSubtract_3" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_13.MaterialExpressionSubtract_3'"
A=(Expression="/Script/Engine.MaterialExpressionStep'MaterialGraphNode_10.MaterialExpressionStep_1'")
B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_11.MaterialExpressionMultiply_0'")
MaterialExpressionEditorX=144
MaterialExpressionEditorY=112
MaterialExpressionGuid=202262C54E41FEBA6996DF9A1243A6CD
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
Desc="纯上下边缘"
bCommentBubbleVisible=True
End Object
MaterialExpression="/Script/Engine.MaterialExpressionSubtract'MaterialExpressionSubtract_3'"
NodePosX=144
NodePosY=112
bCommentBubbleVisible=True
NodeComment="纯上下边缘"
NodeGuid=FD7F2F8C46CAA02C95B22F9F4289C1D1
CustomProperties Pin (PinId=87619BC5401704BEEA9DF4BA9C3DD347,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_10 92FF90C34A293FE4AC6E5897E6C01386,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=8D8F75244C6246642219BB934AC14708,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_11 3FC8B8EE45CAAB281E623F853C6D29BD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=ACF547A841A712E27EF23C9ED5643823,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 EC8A257C4E3809AA3676DC8F906E13B6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_14" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_14'"
Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_1" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_14.MaterialExpressionScalarParameter_1'"
End Object
Begin Object Name="MaterialExpressionScalarParameter_1" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_14.MaterialExpressionScalarParameter_1'"
DefaultValue=20.000000
ParameterName="上下虚线密度"
ExpressionGUID=0EF3E76D44518F4EE122A3B50A4A68DB
MaterialExpressionEditorX=288
MaterialExpressionEditorY=-112
MaterialExpressionGuid=8311D6684EAD2BDE5130F8951661DE55
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_1'"
NodePosX=288
NodePosY=-112
bCanRenameNode=True
NodeGuid=2111C9E541FA86E160639ABC147E2A73
CustomProperties Pin (PinId=2AF11472410D642474C82FA8A1BC98C2,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="20.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=31D1EF204C648E3E547C8C906A2820F3,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 4FDD1ECF41A1BE9859FA8C8A87884D4B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_15" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_15'"
Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_2" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_15.MaterialExpressionScalarParameter_2'"
End Object
Begin Object Name="MaterialExpressionScalarParameter_2" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_15.MaterialExpressionScalarParameter_2'"
DefaultValue=0.500000
ParameterName="虚线占比"
ExpressionGUID=9FF0FA8C43BE9312C33AE2880C6F2FDD
MaterialExpressionEditorX=528
MaterialExpressionEditorY=16
MaterialExpressionGuid=D6E240E54ECA49306CC1AAB03CF39777
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_2'"
NodePosX=528
NodePosY=16
bCanRenameNode=True
NodeGuid=F312C613453D4ACE19531ABB5A8C7CDA
CustomProperties Pin (PinId=BA33143A4C269DFFABD8AA9B10AF73EC,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=2B6A9D504069C4937EDE20B55F774B09,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 7B568C964DFC2F2E096501A415D72EE3,MaterialGraphNode_21 9CC1ACB4442ADB66418C9DB17B40BC14,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_16" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_16'"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_1" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_16.MaterialExpressionMultiply_1'"
End Object
Begin Object Name="MaterialExpressionMultiply_1" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_16.MaterialExpressionMultiply_1'"
A=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_7.MaterialExpressionComponentMask_0'")
B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_14.MaterialExpressionScalarParameter_1'")
MaterialExpressionEditorX=485
MaterialExpressionEditorY=-130
MaterialExpressionGuid=9B69935945D26F0165A964B57441A9BD
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_1'"
NodePosX=485
NodePosY=-130
NodeGuid=B1CFD0B64ECD1411A259F8BDE955FB60
CustomProperties Pin (PinId=85F07BA44D8C8A62F3E888B9677F82D0,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_7 8554E8D040563428FBDBF889CCDD88CD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=4FDD1ECF41A1BE9859FA8C8A87884D4B,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_14 31D1EF204C648E3E547C8C906A2820F3,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=8EE717564263FA9B9EBE1BA142A4B22E,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 8AF41AC84E33C466E8B6ABB638F46488,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_17" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_17'"
Begin Object Class=/Script/Engine.MaterialExpressionFrac Name="MaterialExpressionFrac_0" ExportPath="/Script/Engine.MaterialExpressionFrac'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_17.MaterialExpressionFrac_0'"
End Object
Begin Object Name="MaterialExpressionFrac_0" ExportPath="/Script/Engine.MaterialExpressionFrac'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_17.MaterialExpressionFrac_0'"
Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_16.MaterialExpressionMultiply_1'")
MaterialExpressionEditorX=597
MaterialExpressionEditorY=-130
MaterialExpressionGuid=9B69D4BB4F90AFD084BC5B931A2898CC
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionFrac'MaterialExpressionFrac_0'"
NodePosX=597
NodePosY=-130
NodeGuid=D6E0B4DB48780B7099BD8E9DAEE3C427
CustomProperties Pin (PinId=8AF41AC84E33C466E8B6ABB638F46488,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 8EE717564263FA9B9EBE1BA142A4B22E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=166852CD43C07819DB1F72870F2CC268,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 B608C6904C4D0C365354ECB02626654E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_18" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_18'"
Begin Object Class=/Script/Engine.MaterialExpressionStep Name="MaterialExpressionStep_2" ExportPath="/Script/Engine.MaterialExpressionStep'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_18.MaterialExpressionStep_2'"
End Object
Begin Object Name="MaterialExpressionStep_2" ExportPath="/Script/Engine.MaterialExpressionStep'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_18.MaterialExpressionStep_2'"
Y=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_15.MaterialExpressionScalarParameter_2'")
X=(Expression="/Script/Engine.MaterialExpressionFrac'MaterialGraphNode_17.MaterialExpressionFrac_0'")
MaterialExpressionEditorX=704
MaterialExpressionEditorY=-160
MaterialExpressionGuid=09B53E0147EB73B1AF8F18B6F56F41C2
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionStep'MaterialExpressionStep_2'"
NodePosX=704
NodePosY=-160
NodeGuid=063DFBFD4EC2C079EE46DB8A43F4F6FA
CustomProperties Pin (PinId=7B568C964DFC2F2E096501A415D72EE3,PinName="Y",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_15 2B6A9D504069C4937EDE20B55F774B09,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=B608C6904C4D0C365354ECB02626654E,PinName="X",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_17 166852CD43C07819DB1F72870F2CC268,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=8FE5D6114DCF47E3C3FF9888CB250735,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 C3A431A14CC5EF703E33A090D723B11A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_19" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_19'"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_2" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_19.MaterialExpressionMultiply_2'"
End Object
Begin Object Name="MaterialExpressionMultiply_2" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_19.MaterialExpressionMultiply_2'"
A=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_8.MaterialExpressionComponentMask_1'")
B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_29.MaterialExpressionScalarParameter_5'")
MaterialExpressionEditorX=469
MaterialExpressionEditorY=190
MaterialExpressionGuid=0A9FB0AF4F50B1DB72A77B872986675F
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_2'"
NodePosX=469
NodePosY=190
NodeGuid=7E43FF5B40B8D94BAD62A28D3DB4ED9C
CustomProperties Pin (PinId=C64F151E4B9AD173890D4285A11FC59C,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_8 6BCA1A544671888E3949C48ECF2EBACD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=6118CF784579EF61AF43838FF77769D6,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_29 789317944DCA2E2945F4C3955487D320,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=7CABB40040192867E27747904346F76B,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 D1D7CB0348215ED86F6960BA4BAD3D28,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_20" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_20'"
Begin Object Class=/Script/Engine.MaterialExpressionFrac Name="MaterialExpressionFrac_1" ExportPath="/Script/Engine.MaterialExpressionFrac'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_20.MaterialExpressionFrac_1'"
End Object
Begin Object Name="MaterialExpressionFrac_1" ExportPath="/Script/Engine.MaterialExpressionFrac'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_20.MaterialExpressionFrac_1'"
Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_19.MaterialExpressionMultiply_2'")
MaterialExpressionEditorX=592
MaterialExpressionEditorY=190
MaterialExpressionGuid=A6D007EE4C9EC9011C248E9BEBB38E0D
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionFrac'MaterialExpressionFrac_1'"
NodePosX=592
NodePosY=190
NodeGuid=772E11BB4F2B5E3A326A029B1575F1AA
CustomProperties Pin (PinId=D1D7CB0348215ED86F6960BA4BAD3D28,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 7CABB40040192867E27747904346F76B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=68C9C7834716AD78DD46B69DDF9CFF77,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_21 C758E40C408C4643543C2CA2056598DB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_21" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_21'"
Begin Object Class=/Script/Engine.MaterialExpressionStep Name="MaterialExpressionStep_3" ExportPath="/Script/Engine.MaterialExpressionStep'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_21.MaterialExpressionStep_3'"
End Object
Begin Object Name="MaterialExpressionStep_3" ExportPath="/Script/Engine.MaterialExpressionStep'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_21.MaterialExpressionStep_3'"
Y=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_15.MaterialExpressionScalarParameter_2'")
X=(Expression="/Script/Engine.MaterialExpressionFrac'MaterialGraphNode_20.MaterialExpressionFrac_1'")
MaterialExpressionEditorX=704
MaterialExpressionEditorY=160
MaterialExpressionGuid=66BFA0D2422E87FA4E0F3CBED2453A25
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionStep'MaterialExpressionStep_3'"
NodePosX=704
NodePosY=160
NodeGuid=A20A6DD645BFF42871B8BC9306F70FEC
CustomProperties Pin (PinId=9CC1ACB4442ADB66418C9DB17B40BC14,PinName="Y",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_15 2B6A9D504069C4937EDE20B55F774B09,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C758E40C408C4643543C2CA2056598DB,PinName="X",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_20 68C9C7834716AD78DD46B69DDF9CFF77,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=7272AE29452734323CCCCF85F2C99F38,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 C92DB5BC41CFD5D967B46690FC802262,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_22" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_22'"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_3" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_22.MaterialExpressionMultiply_3'"
End Object
Begin Object Name="MaterialExpressionMultiply_3" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_22.MaterialExpressionMultiply_3'"
A=(Expression="/Script/Engine.MaterialExpressionStep'MaterialGraphNode_18.MaterialExpressionStep_2'")
B=(Expression="/Script/Engine.MaterialExpressionSubtract'MaterialGraphNode_13.MaterialExpressionSubtract_3'")
MaterialExpressionEditorX=832
MaterialExpressionEditorY=-160
MaterialExpressionGuid=921C0F9A4081845A5DA5DC9020D561E3
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
Desc="上下虚线"
bCommentBubbleVisible=True
End Object
MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_3'"
NodePosX=832
NodePosY=-160
bCommentBubbleVisible=True
NodeComment="上下虚线"
NodeGuid=867293284F6CEF2395967B9B78A39D9A
CustomProperties Pin (PinId=C3A431A14CC5EF703E33A090D723B11A,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_18 8FE5D6114DCF47E3C3FF9888CB250735,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=EC8A257C4E3809AA3676DC8F906E13B6,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_13 ACF547A841A712E27EF23C9ED5643823,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=A2143192498128975E87B8B2D2B4C216,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_24 E614C2FA473A92770C837B9DCF3C3002,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_23" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_23'"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_4" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_23.MaterialExpressionMultiply_4'"
End Object
Begin Object Name="MaterialExpressionMultiply_4" ExportPath="/Script/Engine.MaterialExpressionMultiply'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_23.MaterialExpressionMultiply_4'"
A=(Expression="/Script/Engine.MaterialExpressionSubtract'MaterialGraphNode_12.MaterialExpressionSubtract_2'")
B=(Expression="/Script/Engine.MaterialExpressionStep'MaterialGraphNode_21.MaterialExpressionStep_3'")
MaterialExpressionEditorX=832
MaterialExpressionEditorY=128
MaterialExpressionGuid=71C01CEB401D7BA222089FAC5384EF86
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
Desc="左右虚线"
bCommentBubbleVisible=True
End Object
MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_4'"
NodePosX=832
NodePosY=128
bCommentBubbleVisible=True
NodeComment="左右虚线"
NodeGuid=ED059BE74EC8F0E63A38B0BA25434CD1
CustomProperties Pin (PinId=D6BB495C40B5D74EBB1A7BB844F6EDFE,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_12 BF25856D4729FFF7D0F97F906EC575A3,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C92DB5BC41CFD5D967B46690FC802262,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_21 7272AE29452734323CCCCF85F2C99F38,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=2AF3251540982BDDDB5BC98FF0644E53,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_24 8FAB0EE84091C5AB669A8FBC9A0E5AC6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_24" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_24'"
Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_0" ExportPath="/Script/Engine.MaterialExpressionAdd'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_24.MaterialExpressionAdd_0'"
End Object
Begin Object Name="MaterialExpressionAdd_0" ExportPath="/Script/Engine.MaterialExpressionAdd'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_24.MaterialExpressionAdd_0'"
A=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_22.MaterialExpressionMultiply_3'")
B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_23.MaterialExpressionMultiply_4'")
MaterialExpressionEditorX=992
MaterialExpressionEditorY=-16
MaterialExpressionGuid=76BFD1CE4FC8A77AC8863B8DFFBED593
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_0'"
NodePosX=992
NodePosY=-16
NodeGuid=A6C4EDA04291B3CC77FB8386C5DCB002
CustomProperties Pin (PinId=E614C2FA473A92770C837B9DCF3C3002,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_22 A2143192498128975E87B8B2D2B4C216,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=8FAB0EE84091C5AB669A8FBC9A0E5AC6,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_23 2AF3251540982BDDDB5BC98FF0644E53,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=84BB4CC94F3354B0094286AF4155110F,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_1 2EC91B5F4A31639685789691D0530B6E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_25" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_25'"
Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_0" ExportPath="/Script/Engine.MaterialExpressionVectorParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_25.MaterialExpressionVectorParameter_0'"
End Object
Begin Object Name="MaterialExpressionVectorParameter_0" ExportPath="/Script/Engine.MaterialExpressionVectorParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_25.MaterialExpressionVectorParameter_0'"
DefaultValue=(R=1.000000,G=1.000000,B=1.000000,A=0.000000)
ParameterName="Color"
ExpressionGUID=A4F2609D409E9AA954CC6794F8C4C57F
MaterialExpressionEditorX=1088
MaterialExpressionEditorY=-206
MaterialExpressionGuid=2190B91A45A51C9F061377966F86B512
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_0'"
NodePosX=1088
NodePosY=-206
bCanRenameNode=True
NodeGuid=1CCC711A4F617108AE21A791678291A8
CustomProperties Pin (PinId=B04F5A6C454B1FE223FB0B9021FE5212,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="rgba",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="(R=1.000000,G=1.000000,B=1.000000,A=0.000000)",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=A4D6199F40FCAD0E5F8EFA9DE0C17112,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_0 3F06DA8C46D8B7326FA83CA628B8504D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=AB0C37C14DE90F4641D848AB9D3D6A20,PinName="Output2",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=CC93A34A4C1DE32980D3248B1F3E1374,PinName="Output3",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="green",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=215E92C84D2182C35B033A8A5D6A13A3,PinName="Output4",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="blue",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=B62B26D9433AF5E79C878C9A7B13E336,PinName="Output5",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="alpha",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Knot Name="MaterialGraphNode_Knot_0" ExportPath="/Script/UnrealEd.MaterialGraphNode_Knot'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_Knot_0'"
Begin Object Class=/Script/Engine.MaterialExpressionReroute Name="MaterialExpressionReroute_2" ExportPath="/Script/Engine.MaterialExpressionReroute'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_Knot_0.MaterialExpressionReroute_2'"
End Object
Begin Object Name="MaterialExpressionReroute_2" ExportPath="/Script/Engine.MaterialExpressionReroute'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_Knot_0.MaterialExpressionReroute_2'"
Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_11.MaterialExpressionMultiply_0'")
MaterialExpressionEditorX=112
MaterialExpressionEditorY=288
MaterialExpressionGuid=2F59D5544140748C175827BAB4920894
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionReroute'MaterialExpressionReroute_2'"
NodePosX=112
NodePosY=288
bCanRenameNode=False
NodeGuid=B886B41E4CF0A1CBB1FCFD98469BBA39
CustomProperties Pin (PinId=4C3FCB6D4BBDB543BBC8E4903DECEC52,PinName="InputPin",PinType.PinCategory="wildcard",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 3FC8B8EE45CAAB281E623F853C6D29BD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=True,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=292D98E64D119DB7F3091BBDFD9BD035,PinName="OutputPin",Direction="EGPD_Output",PinType.PinCategory="wildcard",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Knot_1 9DDF945B4BDD8A7E178ED2BB1C8EC569,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Knot Name="MaterialGraphNode_Knot_1" ExportPath="/Script/UnrealEd.MaterialGraphNode_Knot'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_Knot_1'"
Begin Object Class=/Script/Engine.MaterialExpressionReroute Name="MaterialExpressionReroute_3" ExportPath="/Script/Engine.MaterialExpressionReroute'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_Knot_1.MaterialExpressionReroute_3'"
End Object
Begin Object Name="MaterialExpressionReroute_3" ExportPath="/Script/Engine.MaterialExpressionReroute'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_Knot_1.MaterialExpressionReroute_3'"
Input=(Expression="/Script/Engine.MaterialExpressionReroute'MaterialGraphNode_Knot_0.MaterialExpressionReroute_2'")
MaterialExpressionEditorX=960
MaterialExpressionEditorY=288
MaterialExpressionGuid=A36A7CB54E4B5E12FE6E0CA269C6870D
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionReroute'MaterialExpressionReroute_3'"
NodePosX=960
NodePosY=288
bCanRenameNode=False
NodeGuid=6717FB5E4B134705BDD0C79693FEB751
CustomProperties Pin (PinId=9DDF945B4BDD8A7E178ED2BB1C8EC569,PinName="InputPin",PinType.PinCategory="wildcard",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Knot_0 292D98E64D119DB7F3091BBDFD9BD035,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=True,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=35137E7B4FCBA0B0165A99AF6A8CBEA7,PinName="OutputPin",Direction="EGPD_Output",PinType.PinCategory="wildcard",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_1 93F3BCDA4CF3B1212B702683827F8242,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_6" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_6'"
Begin Object Class=/Script/Engine.MaterialExpressionSubtract Name="MaterialExpressionSubtract_4" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_6.MaterialExpressionSubtract_4'"
End Object
Begin Object Name="MaterialExpressionSubtract_4" ExportPath="/Script/Engine.MaterialExpressionSubtract'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_6.MaterialExpressionSubtract_4'"
B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_28.MaterialExpressionScalarParameter_4'")
ConstA=0.500000
MaterialExpressionEditorX=-384
MaterialExpressionEditorY=112
MaterialExpressionGuid=0FADB25E4D3F5D76F0F7628F62CC8BC4
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionSubtract'MaterialExpressionSubtract_4'"
NodePosX=-384
NodePosY=112
NodeGuid=7055B69C47588B451608798226607ED7
CustomProperties Pin (PinId=8B50E95D44C2497B0ED99E8AC61B01BA,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=D955A418494724F7A8B542AA731B2FD8,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_28 C5100450412BB960E01644AB0A6AC84D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=3D53D9A040B8CC44879F1097876E98D4,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 A52AD43348DDDB2FEEE1819187F85922,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_28" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_28'"
Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_4" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_28.MaterialExpressionScalarParameter_4'"
End Object
Begin Object Name="MaterialExpressionScalarParameter_4" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_28.MaterialExpressionScalarParameter_4'"
DefaultValue=0.005000
ParameterName="上下边框厚度"
ExpressionGUID=3094D85B4CB77BBB6859A68A780ECD2C
MaterialExpressionEditorX=-544
MaterialExpressionEditorY=133
MaterialExpressionGuid=9F2C162546070C9B460D69B2280A3986
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_4'"
NodePosX=-544
NodePosY=133
bCanRenameNode=True
NodeGuid=84384460475CD6B366E0978FF12E4459
CustomProperties Pin (PinId=61C9BF42428C5B41A90EC5BF99A16424,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.005",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C5100450412BB960E01644AB0A6AC84D,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_6 D955A418494724F7A8B542AA731B2FD8,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_29" ExportPath="/Script/UnrealEd.MaterialGraphNode'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_29'"
Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_5" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_29.MaterialExpressionScalarParameter_5'"
End Object
Begin Object Name="MaterialExpressionScalarParameter_5" ExportPath="/Script/Engine.MaterialExpressionScalarParameter'/Engine/Transient.M_DashedBorder:MaterialGraph_0.MaterialGraphNode_29.MaterialExpressionScalarParameter_5'"
DefaultValue=20.000000
ParameterName="左右虚线密度"
ExpressionGUID=C15B6F5E43E7EF7B5FB2B28F087BEFCF
MaterialExpressionEditorX=272
MaterialExpressionEditorY=208
MaterialExpressionGuid=B99F948748C6D7CD2DFBF98FB1AC7EE0
Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.M_DashedBorder'"
End Object
MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_5'"
NodePosX=272
NodePosY=208
bCanRenameNode=True
NodeGuid=BC5027DA4E315D007CE630B44F71E55E
CustomProperties Pin (PinId=BEFD40C2423EAD56177C21B99ED69D67,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="20.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=789317944DCA2E2945F4C3955487D320,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 6118CF784579EF61AF43838FF77769D6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object二、创建材质实例
对"M_DashedBorder"创建材质实例"MI_DashedBorder"
打开材质实例，调整适配图像大小的虚线框参数
三、在控件上使用

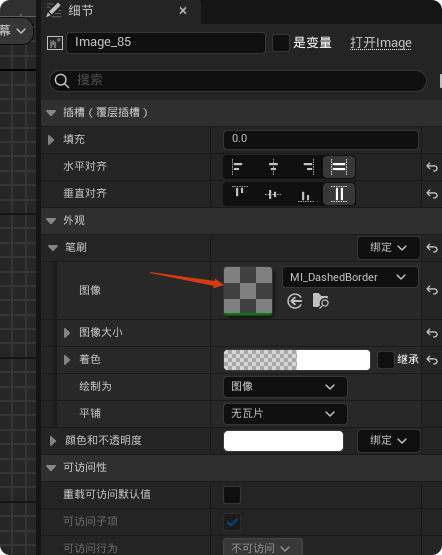

在控件蓝图中添加图像控件作为背景
图像设置为材质实例"MI_DashedBorder"
