一、keepalived
1.1 简介：
Keepalived 是基于 VRRP（虚拟路由冗余协议） 实现的高可用（HA） 集群管理软件，主要用于解决单点故障问题。
1.2 作用：
（1） 它通过构建主备冗余节点架构，对外提供VIP（虚拟 IP 地址） 作为统一访问入口，并支持对后端服务或节点的健康状态检测。
（2） 当主节点或对应服务失效时，Keepalived 可实现秒级故障自动切换，将 VIP 漂移至备用节点，保障业务连续性与高可用性。
（3） 常与 LVS、HAProxy、Nginx 等负载均衡组件配合，构建高可用、高可靠的四层 / 七层负载均衡集群。
二、keepalived 的环境部署
2.1 实验环境
|-----------|----------------------------------------------|------|
| 主机名 | IP | 角色 |
| KA1 | eth0:192.168.198.50 模式:NAT | 调度器1 |
| KA2 | eth0:192.168.198.60 模式:NAT | 调度器2 |
| webserve1 | 192.168.248.10 模式:host-only wg:192.168.248.2 | 服务器1 |
| webserve2 | 192.168.248.20 模式:host-only wg:192.168.248.2 | 服务器1 |
| client | 192.168.198.10 模式:host-only | 客户端 |
2.2 环境配置
2.2.1 KA1的环境配置
bash
[root@KA1 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@KA1 ~]# cat > /etc/hosts << EOF
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.198.50 KA1
192.168.198.60 KA2
192.168.248.10 web1
192.168.248.20 web2
EOF
[root@KA1 ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.198.50 KA1
192.168.198.60 KA2
192.168.248.10 web1
192.168.248.20 web2
[root@KA1 ~]# vim /etc/chrony.conf
26 allow 0.0.0.0/0
27
28 # Serve time even if not synchronized to a time source.
29 local stratum 10
[root@KA1 ~]# systemctl restart chronyd
[root@KA1 ~]# systemctl enable --now chronyd2.2.2 KA2的环境配置
bash
[root@KA2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:f6:15:27 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.60/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef6:1527/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@KA2 ~]# cat > /etc/hosts << EOF
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.198.50 KA1
192.168.198.60 KA2
192.168.248.10 web1
192.168.248.20 web2
EOF
[root@KA2 ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.198.50 KA1
192.168.198.60 KA2
192.168.248.10 web1
192.168.248.20 web2
[root@KA2 ~]# vim /etc/chrony.conf
3 pool 192.168.198.50 iburst
[root@KA2 ~]# systemctl restart chronyd
[root@KA2 ~]# systemctl enable --now chronyd2.2.3 web1的环境配置
bash
[root@web1 ~]# ip ad
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:f2:dc:c4 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.248.10/24 brd 192.168.248.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef2:dcc4/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@web1 ~]# dnf install httpd -y
[root@web1 ~]# echo RS1 - 192.168.248.10 > /var/www/html/index.html
[root@web1 ~]# cat > /etc/hosts << EOF
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.198.50 KA1
192.168.198.60 KA2
192.168.248.10 web1
192.168.248.20 web2
EOF
[root@web1 ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.198.50 KA1
192.168.198.60 KA2
192.168.248.10 web1
192.168.248.20 web22.2.4 web2的环境配置
bash
[root@web2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:ad:be:2c brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.248.20/24 brd 192.168.248.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fead:be2c/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@web2 ~]# cat > /etc/hosts << EOF
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.198.50 KA1
192.168.198.60 KA2
192.168.248.10 web1
192.168.248.20 web2
EOF
[root@web2 ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.198.50 KA1
192.168.198.60 KA2
192.168.248.10 web1
192.168.248.20 web2测试：
查看KA2的时间是否与KA1同步
bash
[root@KA2 ~]# chronyc sources -v
.-- Source mode '^' = server, '=' = peer, '#' = local clock.
/ .- Source state '*' = current best, '+' = combined, '-' = not combined,
| / 'x' = may be in error, '~' = too variable, '?' = unusable.
|| .- xxxx [ yyyy ] +/- zzzz
|| Reachability register (octal) -. | xxxx = adjusted offset,
|| Log2(Polling interval) --. | | yyyy = measured offset,
|| \ | | zzzz = estimated error.
|| | | \
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^* KA1 3 6 17 56 -225us[ -328us] +/- 38ms注意
时间同步：保证 VRRP 协议判断一致，防止脑裂、保证切换正常。
域名解析：keepalived 启动、健康检查需要解析配置中的主机名。
三、Keepalived 的子配置文件设定
3.1 简介
Keepalived 支持通过 include 指令将主配置文件拆分为多个子配置文件，便于维护和协作，实现模块化管，避免单一配置文件过于臃肿。主配置文件通过 include 指令引入子配置目录，Keepalived 启动时会自动合并所有子配置。
3.2 keepalived 文件配置
bash
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
3 global_defs {
4 notification_email {
5 3305275485@qq.com
6 }
7 notification_email_from 3305275485@qq.com
8 smtp_server 127.0.0.1
9 smtp_connect_timeout 30
10 router_id KA1
11 vrrp_skip_check_adv_addr
12 #vrrp_strict
13 vrrp_garp_interval 1
14 vrrp_gna_interval 1
15 vrrp_mcast_group4 224.0.0.44
16 }
17 include /etc/keepalived/conf.d/*.conf
[root@KA1 ~]# mkdir /etc/keepalived/conf.d -p
[root@KA1 ~]# vim /etc/keepalived/conf.d/webvip.conf
1 vrrp_instance WEB_VIP {
2 state MASTER
3 interface eth0
4 virtual_router_id 51
5 priority 100
6 advert_int 1
7 authentication {
8 auth_type PASS
9 auth_pass 1111
10 }
11 virtual_ipaddress {
12 192.168.248.100/24 dev eth0 label eth0:0
13 }
14 }3.2.1 通知邮件相关配置

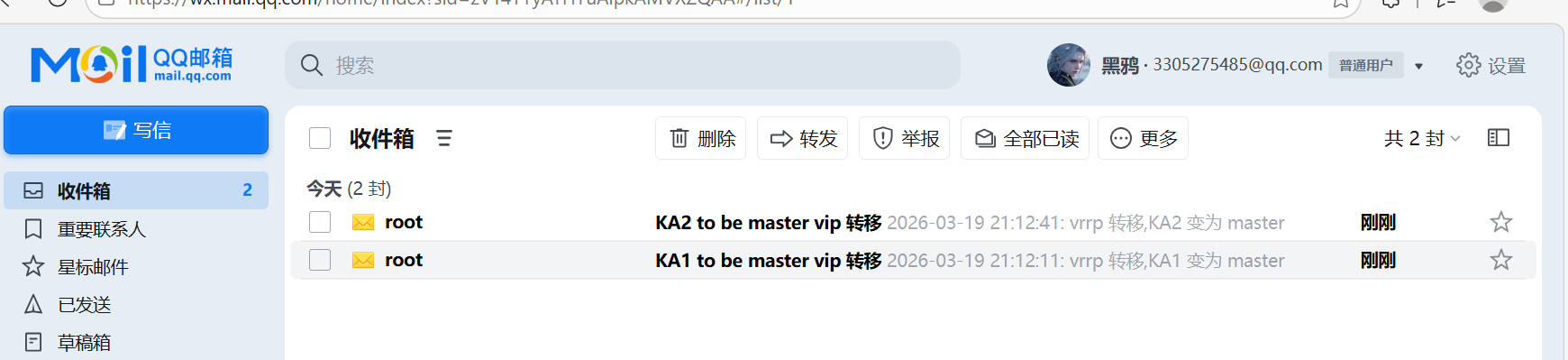

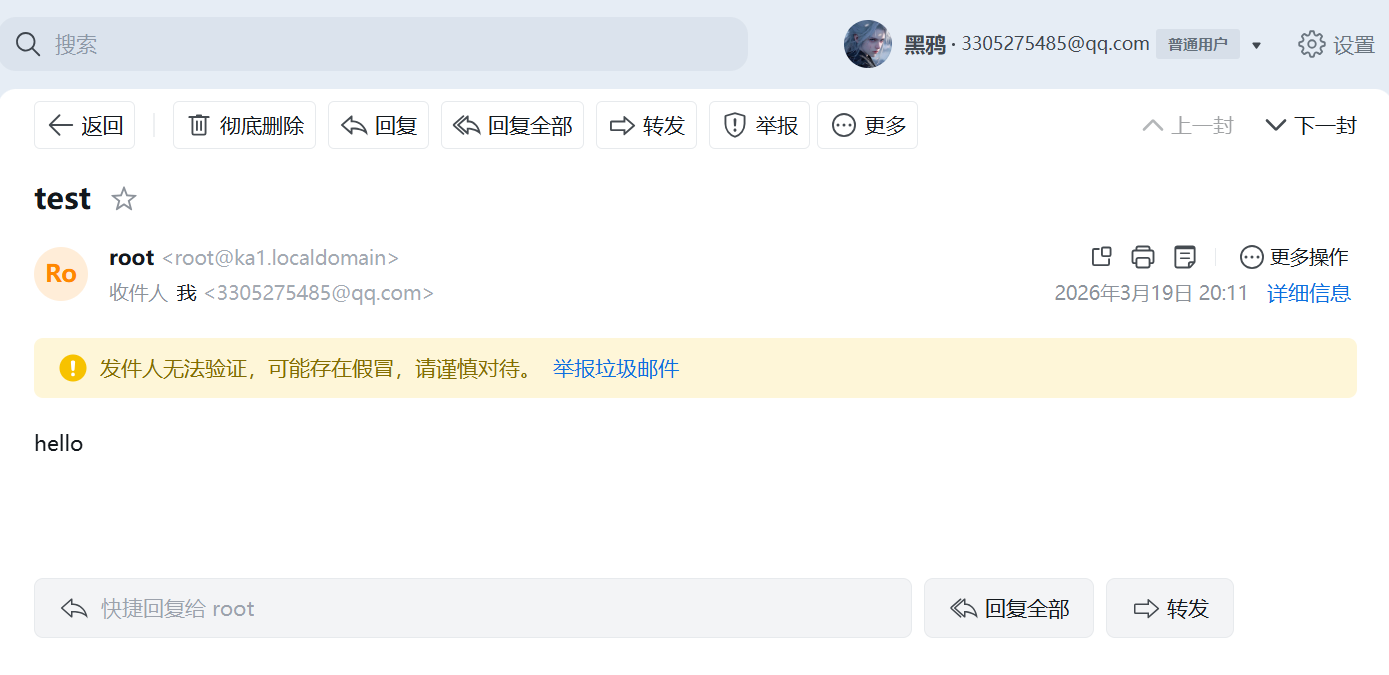

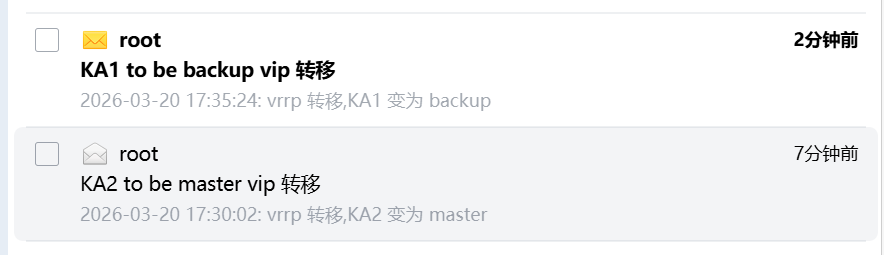

notification_email：指定接收告警邮件的地址，当主备切换、服务异常时，Keepalived 会发邮件到这个地址。
notification_email_from：指定发件人邮箱地址，用于邮件头部。
smtp_server：指定发送邮件的 SMTP 服务器，这里用的是本地 127.0.0.1（即本机 Postfix 或 Sendmail 等服务）。
smtp_connect_timeout：SMTP 连接超时时间，单位是秒，这里设为 30 秒。
3.2.2 路由器ID配置
router_id：当前 Keepalived 节点的唯一标识，在同一个 VRRP 组内不能重复，用于日志和状态区分，这里是 KA1。
3.2.3 VRRP 相关配置
vrrp_skip_check_adv_addr：跳过对 VRRP 通告报文源地址的检查，避免某些网络场景下误判通告来源。
vrrp_garp_interval 1：免费 ARP（GARP）发送间隔，单位为秒，这里是 1 秒。用于向网络宣告虚拟 IP 的 MAC 地址更新，保证其他设备能及时更新 ARP 表。
vrrp_gna_interval 1：免费 NA（GNA，IPv6 下的邻居宣告）发送间隔，单位为秒，这里是 1 秒，作用和 GARP 类似，针对 IPv6 环境。
vrrp_mcast_group4 224.0.0.44：指定 VRRP 协议使用的IPv4 多播组地址，默认是 224.0.0.18，这里改成了 224.0.0.44，用于节点间发送 VRRP 通告报文。
3.2.4 web_vip 基础定义
vrrp_instance：定义一个 VRRP 实例，WEB_VIP 是该实例的自定义名称（可自定义，用于标识业务）。
3.2.5 节点角色与网络
state MASTER：当前节点的初始角色为主节点（备节点应设为 BACKUP），主节点优先级更高时会抢占 VIP。
interface eth0：指定 VRRP 报文在 eth0 网卡上传输，需与实际网卡名一致。
virtual_router_id 51：VRRP 组的唯一标识，同一组内所有节点必须相同（范围 1-255），用于区分不同 VRRP 组。
3.2.6 优先级与通告
priority 100：节点优先级，范围 1-254，主节点优先级应高于备节点（如备节点设为 90），优先级高者成为 Master。
advert_int 1：VRRP 通告报文的发送间隔，单位为秒，同一组内节点必须一致，用于节点间心跳检测
3.2.7 认证配置
auth_type PASS：使用密码认证（另一种是 AH 认证，较少用），防止非法节点加入 VRRP 组。
auth_pass 1111：认证密码，同一组内所有节点必须相同，最多 8 个字符
3.2.8 虚拟ip配置
192.168.248.100/24：对外提供服务的虚拟 IP（VIP），主节点故障时会自动漂移到备节点。
dev eth0：指定 VIP 绑定在 eth0 网卡上。
label eth0:0：给 VIP 分配网卡别名，便于在系统中查看（如 ip addr 可看到 eth0:0）。
注意：设置子配置时在主配置文件中把相应的配置文件删除，否则会出现配置文件参数冲突。
3.3 测试
检查子配置文件是否报错，重启keepalived 后 虚拟ip 在eth0上是否挂载成功
bash
[root@KA1 ~]# keepalived -t -f /etc/keepalived/conf.d/webvip.conf
[root@KA1 ~]# systemctl restart keepalived.service
[root@KA1 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/24 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever四、Keepalived虚拟路由配置
4.1 简介
Keepalived 的虚拟路由核心是基于 VRRP（虚拟路由冗余协议） 实现的高可用，目的是让多个物理节点对外表现为一个统一的虚拟 IP（VIP），当主节点故障时，备节点能自动接管 VIP，保证服务不中断。
4.2 keepalived 主文件配置
在KA1中的配置
bash
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
3 global_defs {
4 notification_email {
5 3305275485@qq.com
6 }
7 notification_email_from 3305275485@qq.com
8 smtp_server 127.0.0.1
9 smtp_connect_timeout 30
10 router_id KA1
11 vrrp_skip_check_adv_addr
12 #vrrp_strict
13 vrrp_garp_interval 1
14 vrrp_gna_interval 1
15 vrrp_mcast_group4 224.0.0.44
16 }
18 vrrp_instance WEB_VIP {
19 state MASTER
20 interface eth0
21 virtual_router_id 51
22 priority 100
23 advert_int 1
24 authentication {
25 auth_type PASS
26 auth_pass 1111
27 }
28 virtual_ipaddress{
29 192.168.248.100/24 dev eth0 label eth0:0
30 }
31 }
[root@KA1 ~]# systemctl restart keepalived.service在KA2中的配置
bash
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
1 ! Configuration File for keepalived
2
3 global_defs {
4 notification_email {
5 3305275485@qq.com
6 }
7 notification_email_from 3305275485@qq.com
8 smtp_server 127.0.0.1
9 smtp_connect_timeout 30
10 router_id KA2
11 vrrp_skip_check_adv_addr
12 #vrrp_strict
13 vrrp_garp_interval 1
14 vrrp_gna_interval 1
15 vrrp_mcast_group4 224.0.0.44
16 }
18 vrrp_instance WEB_VIP {
19 state BACKUP
20 interface eth0
21 virtual_router_id 51
22 priority 80
23 advert_int 1
24 authentication {
25 auth_type PASS
26 auth_pass 1111
27 }
28 virtual_ipaddress {
29 192.168.248.100 dev eth0 label eth0:0
30 }
31 }
[root@KA2 ~]# systemctl restart keepalived.service4.3 测试
bash
[root@KA1 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/24 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever此时vip在KA1中，关闭KA1 keepalived 服务观察 VIP是否便偏移到KA2
bash
[root@KA2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:f6:15:27 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.60/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/32 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef6:1527/64 scope link noprefixroute
valid_lft forever preferred_lft forever开启KA1 keepalived服务观察 VIP 是否回到 KA1
bash
[root@KA1 ~]# systemctl restart keepalived.service
[root@KA1 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/24 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever五、Keepalived日志分离
5.1 简介：
默认情况下。keepalived的日志会被保存在/var/log/messages文件中，这个文件中除了含有keepalived的日志外，还有其他服务的日志信息，这样不利于对于keepalived的日志进行查看。
5.2 开启日志
修改 keepalived 配置文件和 rsyslog 日志配置文件
bash
[root@KA1 log]# vim /etc/sysconfig/keepalived
14 KEEPALIVED_OPTIONS="-D -S 6"
[root@KA1 log]# systemctl restart keepalived.service
[root@KA1 log]# vim /etc/rsyslog.conf
68 local6.* /var/log/keepalived.log
[root@KA1 log]# systemctl restart rsyslog.service-D：开启调试模式，输出更详细的日志（便于排错）
-S 6：指定日志使用 local6 设施（facility） 输出，这是 syslog 中自定义的日志分类，方便后续单独收集
local6.*：匹配所有来自 local6 设施的日志（即 Keepalived 输出的日志）
/var/log/keepalived.log：将匹配到的日志单独写入这个文件，而不是默认的 /var/log/messages
5.3 测试
重启 keepalived 服务查看 /var/log/ m目录下是否生成日志 keepalived
bash
[root@KA1 log]# systemctl restart keepalived.service
[root@KA1 log]# ls keepalived.log
keepalived.log六、抢占模式
6.1 简介：
6.1.1 抢占模式
（1 ）核心逻辑：
谁的优先级更高，VIP 就归谁持有。
（2） 适用场景：
主节点性能更强，希望它恢复后立刻接管服务。
对主节点身份有强绑定需求的场景（比如主节点承载额外业务）。
6.1.2 非抢占模式
（1）核心逻辑：
只要当前持有 VIP 的节点 VRRP 通告正常，就不会发生 VIP 迁移，即使有更高优先级的节点上线。
（2）适用场景：
避免频繁切换 VIP 导致服务抖动（比如数据库、存储类业务对切换敏感）。
希望保持服务稳定性，优先保证当前 Master 持续提供服务。
6.1.3 延迟抢占模式
（1）核心逻辑：
是抢占模式的优化版：高优先级节点上线 / 恢复后，不会立即抢占 VIP，而是等待一段预设时间（延迟时间），确认自身状态稳定后再发起抢占。
过滤掉短暂的节点 / 网络异常（如重启、闪断），避免不必要的 VIP 切换。
（2） 适用场景：
主节点重启后，需要等待依赖服务（如数据库、应用）完全启动，再接管 VIP。
网络环境不稳定，存在短暂丢包 / 抖动，防止误判导致频繁切换。
对服务连续性要求高的业务（如金融、支付），在保证主节点优先的同时，减少切换带来的短暂不可用。
6.2 开启非抢占模式的配置
在KA2上配置
bash
[root@KA1 log]# vim /etc/keepalived/keepalived.conf
18 vrrp_instance WEB_VIP {
19 state BACKUP
20 interface eth0
21 virtual_router_id 51
22 nopreempt
23 priority 100
24 advert_int 1
25 authentication {
26 auth_type PASS
27 auth_pass 1111
28 }
29 virtual_ipaddress{
30 192.168.248.100/24 dev eth0 label eth0:0
31 }
32 }
[root@KA1 log]# [root@KA1 log]# systemctl restart keepalived.service
[root@KA1 log]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/24 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forevernopreempt：开启非抢占模式
在KA2上配置
bash
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
18 vrrp_instance WEB_VIP {
19 state BACKUP
20 interface eth0
21 virtual_router_id 51
22 nooreempt
23 priority 80
24 advert_int 1
25 authentication {
26 auth_type PASS
27 auth_pass 1111
28 }
29 virtual_ipaddress {
30 192.168.248.100 dev eth0 label eth0:0
31 }
32 }
[root@KA2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:f6:15:27 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.60/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef6:1527/64 scope link noprefixroute

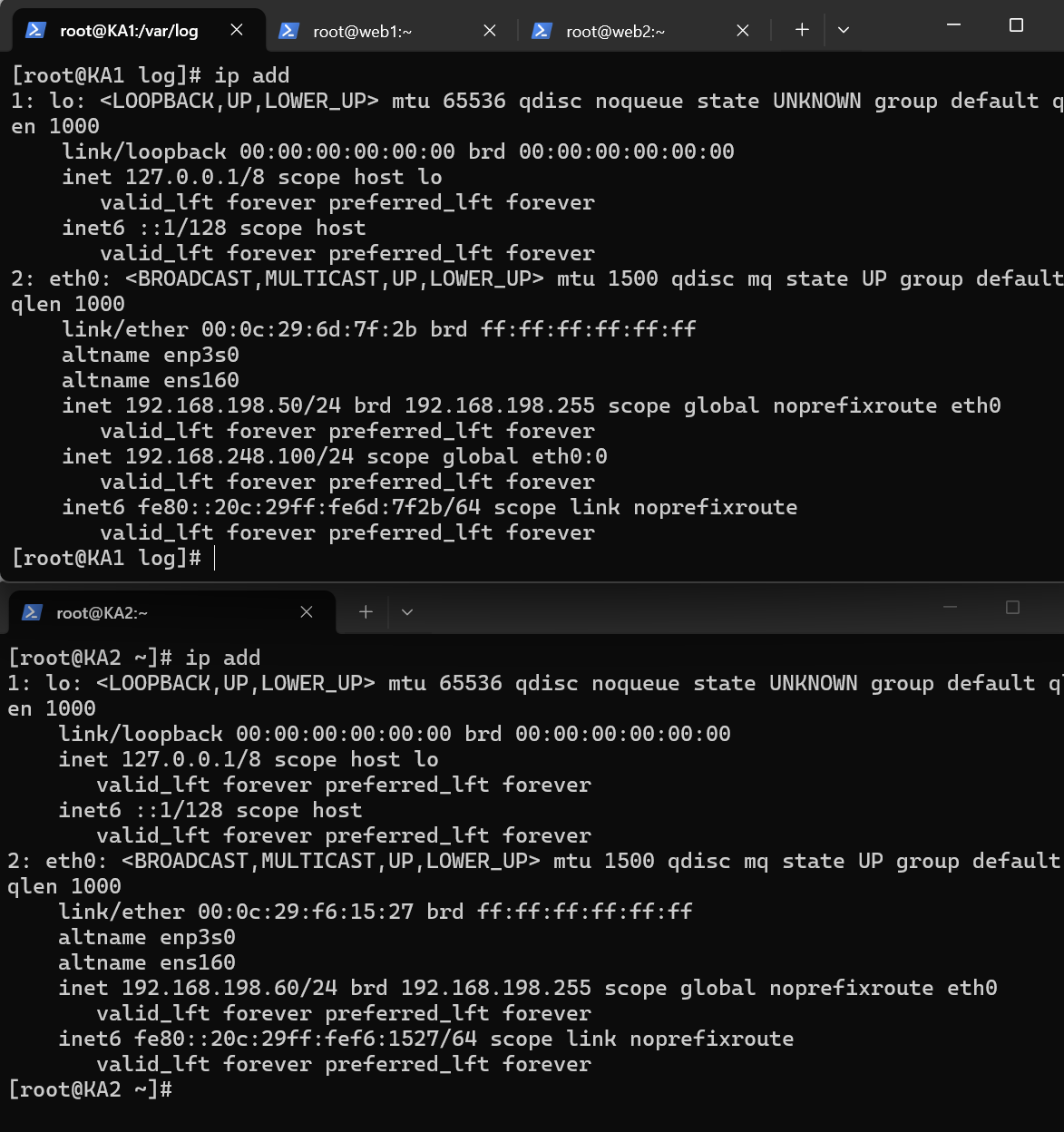

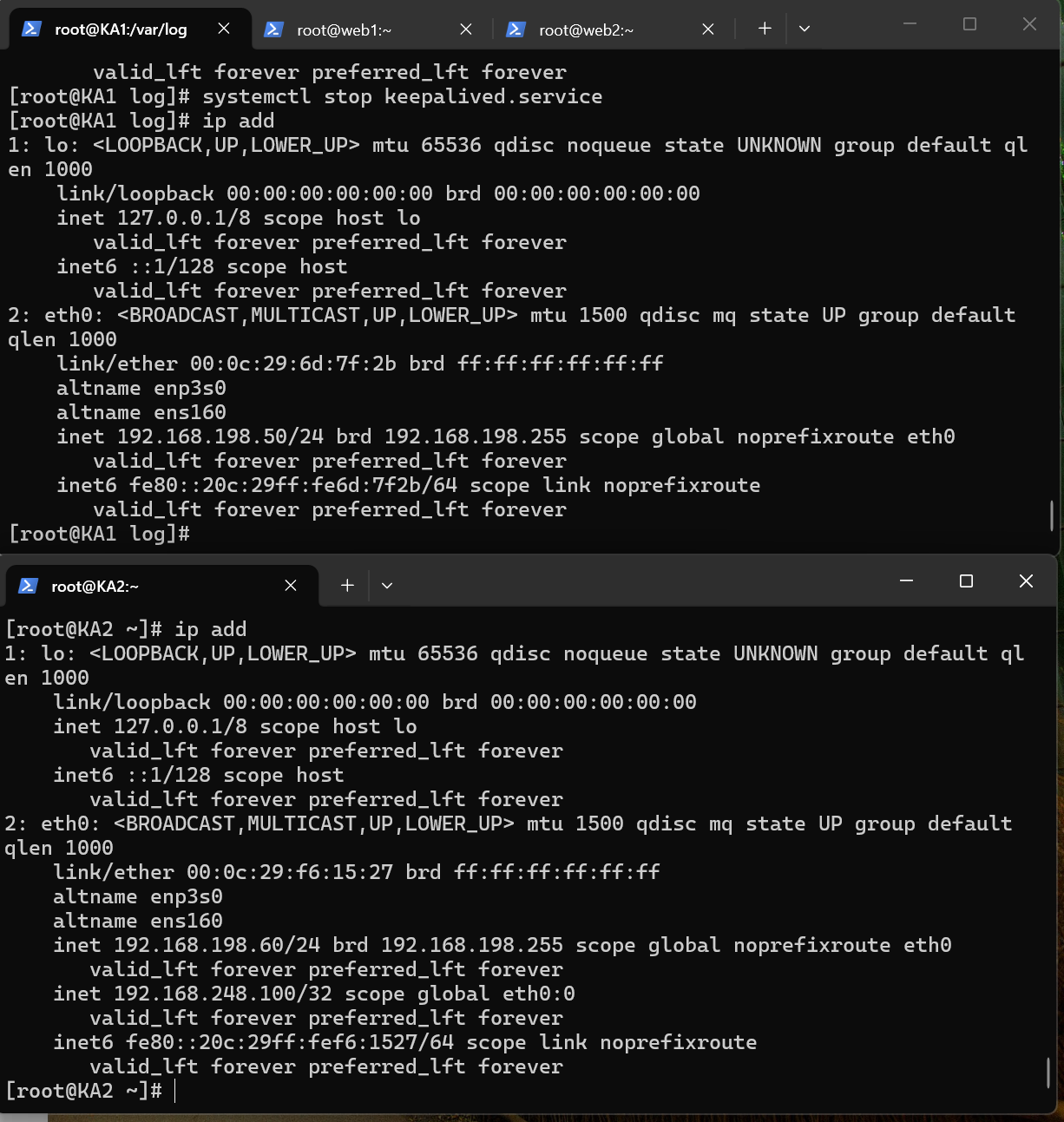

valid_lft forever preferred_lft forever6.3 测试，关闭KA1 观察 VIP 是否偏移
bash
[root@KA1 log]# systemctl stop keepalived.service
[root@KA1 log]# ip ad
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@KA2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:f6:15:27 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.60/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/32 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef6:1527/64 scope link noprefixroute
valid_lft forever preferred_lft forever重启KA1 keepalived 服务观察VIP 是否偏移回来
bash
[root@KA1 log]# systemctl restart keepalived.service
[root@KA1 log]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@KA2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:f6:15:27 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.60/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/32 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef6:1527/64 scope link noprefixroute
valid_lft forever preferred_lft forever关闭 KA2 服务观察 VIP 是否偏移到 KA1 上
bash
[root@KA2 ~]# systemctl stop keepalived.service
[root@KA1 log]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/24 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever6.4 开启延迟抢占模式配置
在KA1 中配置
bash
[root@KA1 log]# vim /etc/keepalived/keepalived.conf
18 vrrp_instance WEB_VIP {
19 state BACKUP
20 interface eth0
21 virtual_router_id 51
22 priority 100
23 preempt_delay 10
24 advert_int 1
25 authentication {
26 auth_type PASS
27 auth_pass 1111
28 }
[root@KA1 log]# systemctl restart keepalived.service在KA2中配置
bash
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
18 vrrp_instance WEB_VIP {
19 state BACKUP
20 interface eth0
21 virtual_router_id 51
22 preempt_delay 10
23 priority 80
24 advert_int 1
25 authentication {
26 auth_type PASS
27 auth_pass 1111
28 }
[root@KA2 ~]# systemctl restart keepalived.service6.4 测试

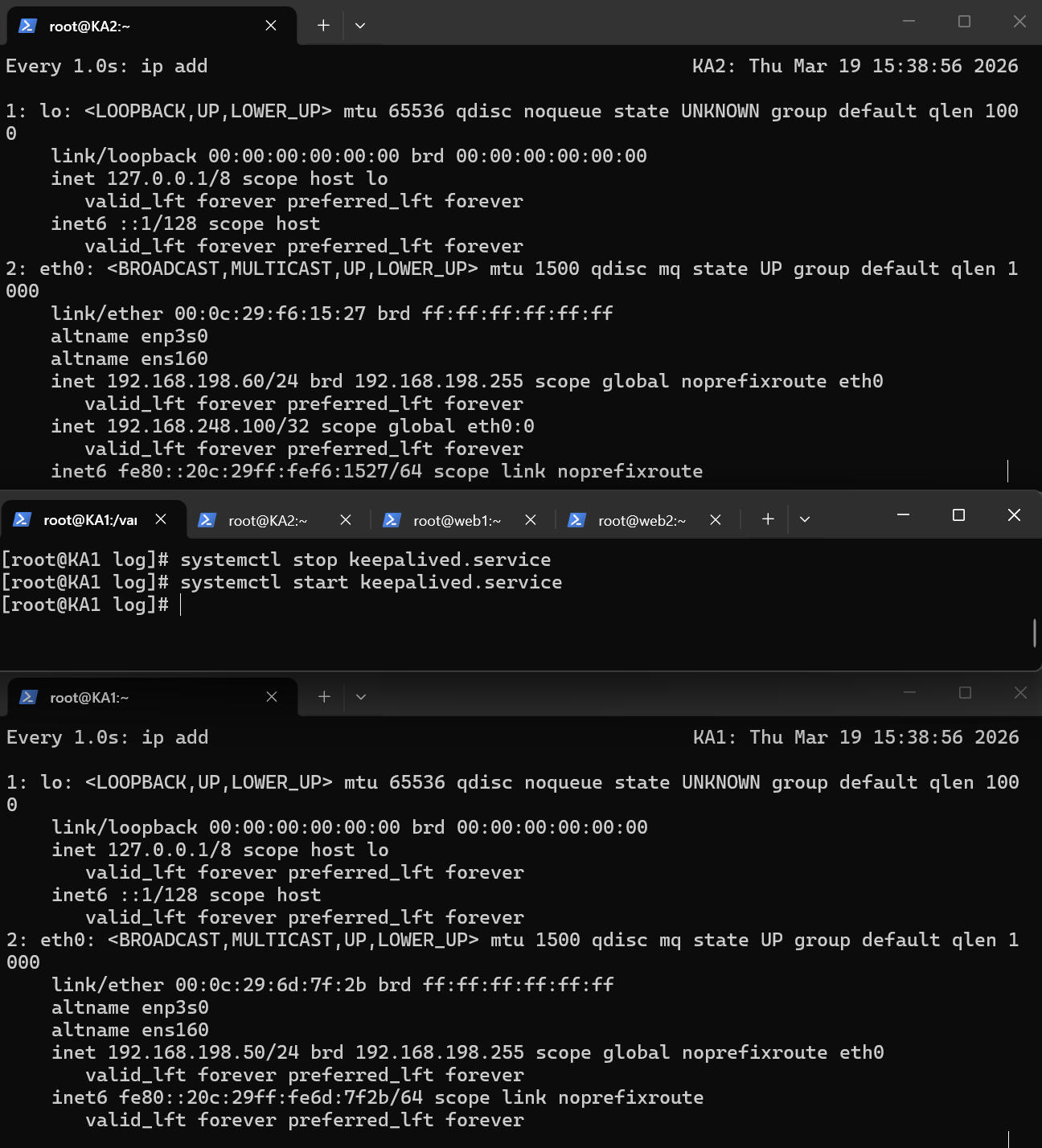

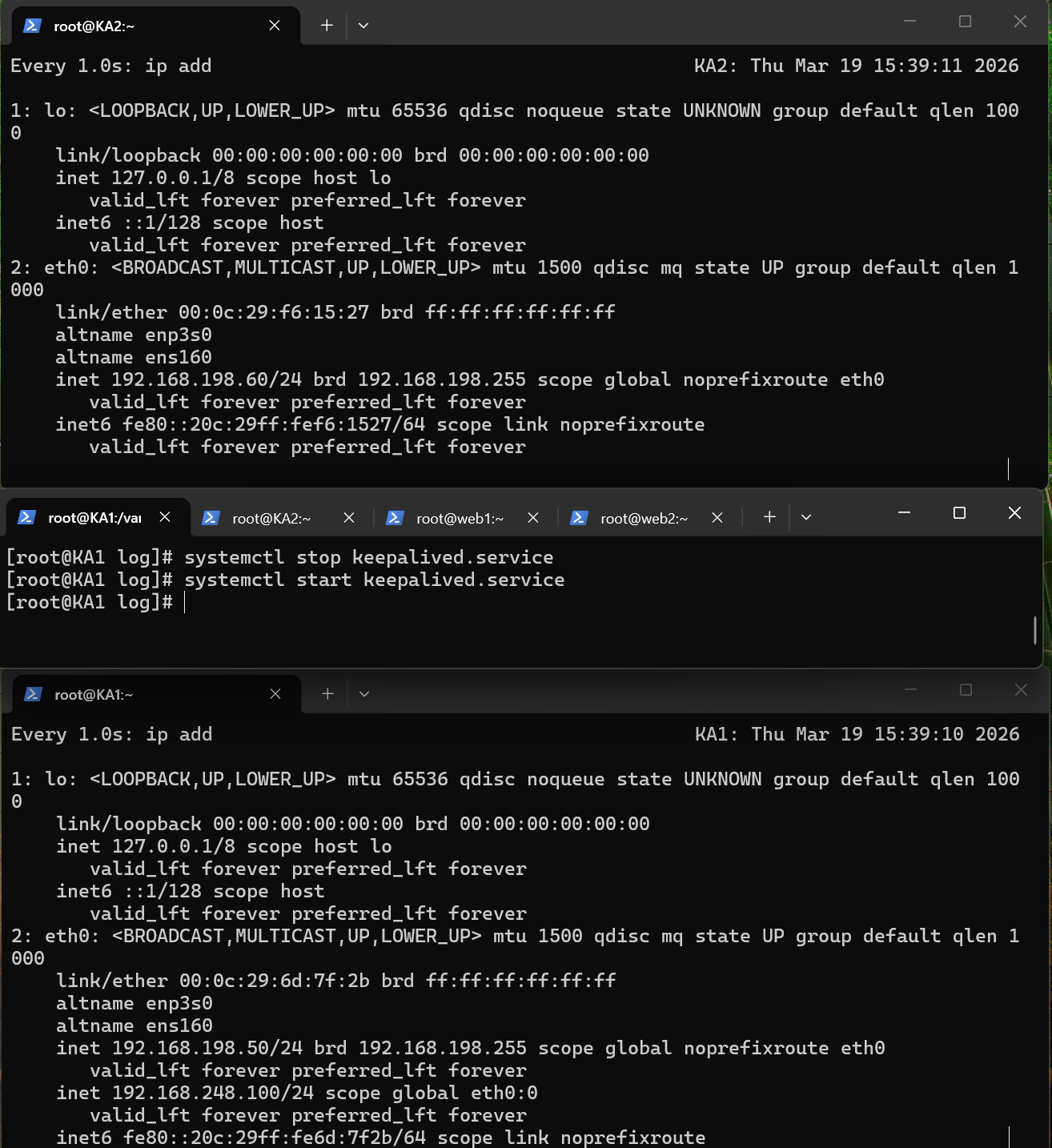

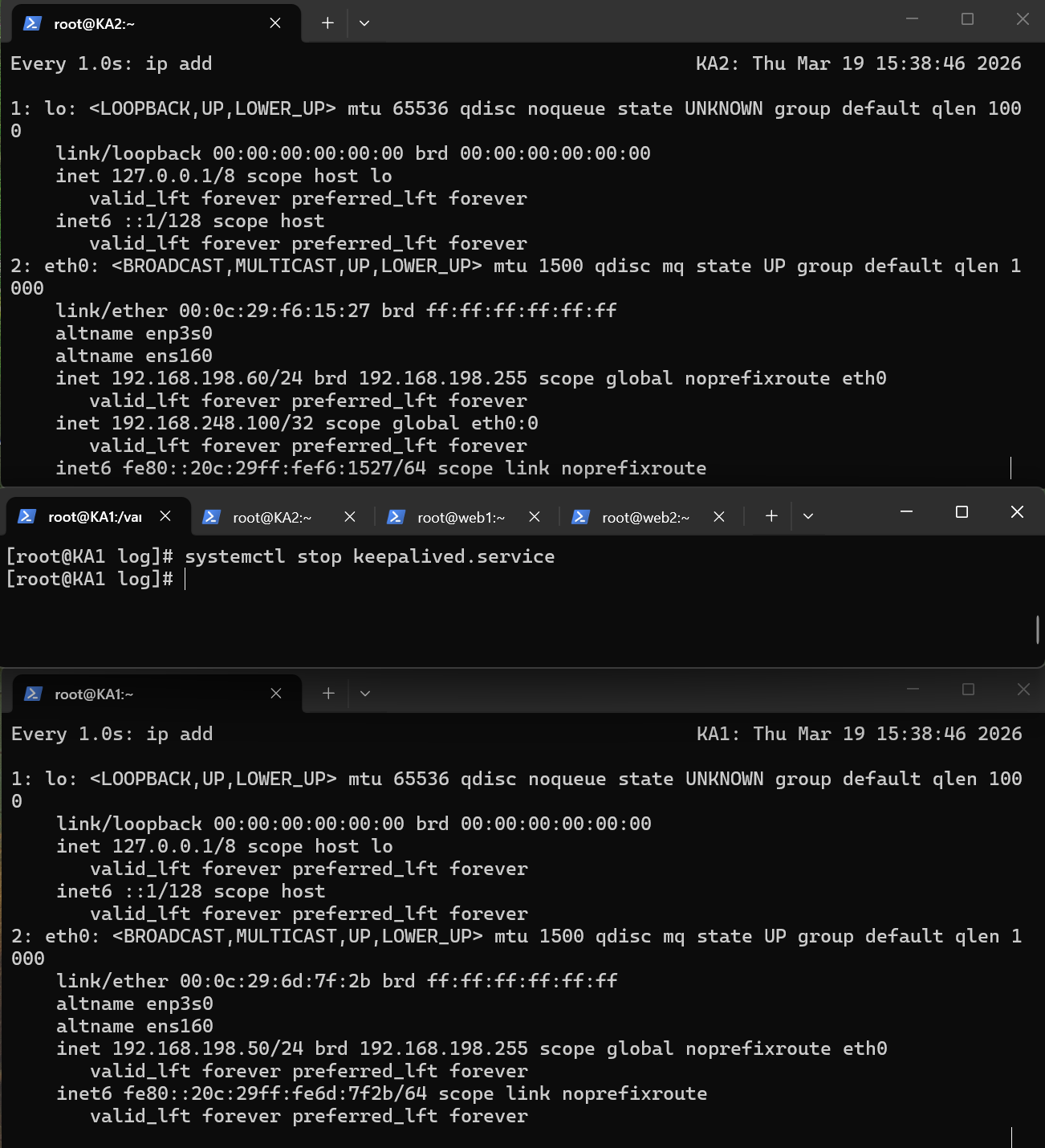

关闭KA1 keepalived服务，再开启keep alived 服务，查看 VIP 偏移过程
总结：
呈现的效果，当KA1 keepalived 服务关闭时，KA2 优先级比 KA1 低，会立刻抢占VIP，当KA1 keepalived 服务开启时， KA1 会延迟十秒再抢占 VIP
这里有个易错点：只有优先级高的才有权力抢占优先级低的 master ，优先级低的只能被动等待优先级高的故障时才接管VIP，所以当关闭KA1 的服务时，KA2 立即获得VIP，当KA1 服务开启时，KA1 等待10秒后才抢占 master。
七、单播模式
7.1 简介
Keepalived 默认使用 多播（multicast） 发送 VRRP 通告报文，但在部分网络环境（如多播被禁用、跨网段部署）中，需要切换为单播模式（unicast），直接向指定对端节点发送 VRRP 报文。
特点：
（1） 解决多播限制：在云环境（如阿里云、AWS）、部分物理交换机或跨网段场景中，多播地址（224.0.0.18）可能被封禁，单播模式可保证 VRRP 通信正常。
（2） 精准通信：直接向指定的备节点 IP 发送通告，避免多播扩散带来的网络开销，提升安全性和稳定性。
（3） 兼容复杂网络：支持跨网段部署主备节点，不再受限于同一广播域
7.2 开启单播模式
在KA1 中
bash
[root@KA1 log]# vim /etc/keepalived/keepalived.conf
13 vrrp_garp_interval 1
14 vrrp_gna_interval 1
15 #vrrp_mcast_group4 224.0.0.44
16 }
17
18 vrrp_instance WEB_VIP {
19 state BACKUP
20 interface eth0
21 virtual_router_id 51
23 priority 100
24 advert_int 1
25 unicast_src_ip 192.168.248.50
26 unicast_peer {
27 192.168.248.60
28 }
[root@KA1 log]# systemctl restart keepalived.service#vrrp_mcast_group4 224.0.0.44：关闭组播
unicast_src_ip 172.25.254.60：指定单播源地址，通常是本机IP
unicast_peer { 172.25.254.50 } ：#指定单播接收地址
在KA2 中
bash
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
15 #vrrp_mcast_group4 224.0.0.44
16 }
17
18 vrrp_instance WEB_VIP {
19 state MASTER
20 interface eth0
21 virtual_router_id 51
23 priority 80
24 advert_int 1
25 unicast_src_ip 192.168.248.60
26 unicast_peer {
27 192.168.248.50
28 }
[root@KA2 ~]# systemctl restart keepalived.service7.3 测试
关闭KA1 的keepalived 服务，观察 VIP的偏移
开启 KA1 的keepalived 服务
8、Keepalived业务vip迁移告警
8.1 简介
Keepalived 支持在 VIP 发生主备切换（迁移） 时，通过脚本或邮件向运维人员发送告警，及时感知服务高可用状态变化。
作用：
实时感知故障： 当主节点宕机、网络故障或手动切换时，VIP 漂移到备节点，立刻触发告警，让运维人员第一时间发现问题。
业务连续性保障： 避免 VIP 迁移后无人知晓，导致后续问题排查滞后，保障业务持续可用。
**可扩展通知：**支持邮件、企业微信、钉钉、短信等多种通知方式，适配不同运维场景。
8.2 开启 keepalived 业务vip迁移警告
8.2.1 安装邮件代理
bash
[root@KA1 ~]# dnf install s-nail postfix -y
[root@KA1 ~]# systemctl start postfix.service
bash
[root@KA2 ~]# dnf install s-nail postfix -y
[root@KA2 ~]# systemctl start postfix.service8.2.2 配置mailcap文件
给KA1 配置
bash
[root@KA1 ~]# vim /etc/mailcap
15 set smtp=smtp.com
16 set smtp-auth=login
17 set smtp-auth-user=3305275485@qq.com
18 set smtp-auth-password=pqnigeilnddydbba
19 set from=3305275485@qq.com
20 set ssl-verify=ignoreset smtp=：指定 SMTP 服务器地址
set smtp-auth=login：设置 SMTP 认证方式 ，login 是最常用的用户名 / 密码登录认证
set smtp-auth-user=：认证用的发件人邮箱账号
set smtp-auth-password=：认证用的密码 / 授权码
set from=：邮件的发件人地址 ，显示在邮件头的 From 字段
set ssl-verify=ignore：忽略 SSL 证书验证，避免因证书问题导致发件失败（测试环境常用，生产环境建议开启验证）
给KA2 配置
8.3 测试
使用邮件工具给自己发送邮件
bash
[root@KA1 ~]# echo hello | mailx -s test
[root@KA1 ~]# mailq
-Queue ID- --Size-- ----Arrival Time---- -Sender/Recipient-------
3137FC0910D8* 321 Thu Mar 19 20:11:38 root@KA1.localdomain
3305275485@qq.com
-- 0 Kbytes in 1 Request.查看自己的邮箱是否收到邮件
8.4 设定keepalived告警脚本
KA1和KA2都要做
bash
[root@KA1 ~]# vim /etc/keepalived/scripts/waring.sh
[root@KA1 ~]# chmod +x /etc/keepalived/scripts/waring.sh
[root@KA1 ~]# /etc/keepalived/scripts/waring.sh master
1 #!/bin/bash
2 mail_dest='3305275485@qq.com'
3 #inet_protocols = ipv4
4 mail_send()
5 {
6 mail_subj="$HOSTNAME to be $1 vip 转移"
7 mail_mess="`date +%F\ %T`: vrrp 转移,$HOSTNAME 变为 $1"
8 echo "$mail_mess" | mail -s "$mail_subj" $mail_dest
9 }
10 case $1 in
11 master)
12 mail_send master
13 ;;
14 backup)
15 mail_send backup
16 ;;
17 fault)
18 mail_send fault
19 ;;
20 *)
21 exit 1
22 ;;
23 esac测试：
bash
[root@KA1 ~]# /etc/keepalived/scripts/waring.sh master
bash
[root@KA2 ~]# /etc/keepalived/scripts/waring.sh master
8.5 配置keepalived告警
修改/etc/keepalived/keepalived.conf 文件信息
bash
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
3 global_defs {
4 notification_email {
5 3305275485@qq.com
6 }
7 notification_email_from 3305275485@qq.com
8 smtp_server 127.0.0.1
9 smtp_connect_timeout 30
10 router_id KA1
11 vrrp_skip_check_adv_addr
12 #vrrp_strict
13 vrrp_garp_interval 1
14 vrrp_gna_interval 1
15 vrrp_mcast_group4 224.0.0.44
16 enable_script_security
17 script_user root
18 }
20 vrrp_instance WEB_VIP {
21 state MASTER
22 interface eth0
23 virtual_router_id 51
24 priority 100
25 advert_int 1
26 authentication {
27 auth_type PASS
28 auth_pass 1111
29 }
30 virtual_ipaddress{
31 192.168.248.100/24 dev eth0 label eth0:0
32 }
33 notify_master "/etc/keepalived/scripts/waring.sh master"
34 notify_backup "/etc/keepalived/scripts/waring.sh backup"
35 notify_fault "/etc/keepalived/scripts/waring.sh fault"
36 }
[root@KA1 ~]# systemctl restart keepalived.serviceenable_script_security： 启用脚本安全机制，对 notify/vrrp_script 等自定义脚本进行安全校验。
script_user root：指定所有自定义脚本（notify_script、vrrp_script 等）以 root 用户身份执行。
notify_master：当本节点晋升为 MASTER 时触发
notify_backup：当本节点晋升为 BACKUP 时触发
notify_fault：当本节点检测到故障，进入 FAULT 状态时触发
bash
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
3 global_defs {
4 notification_email {
5 3305275485@qq.com
6 }
7 notification_email_from 3305275485@qq.com
8 smtp_server 127.0.0.1
9 smtp_connect_timeout 30
10 router_id KA1
11 vrrp_skip_check_adv_addr
12 #vrrp_strict
13 vrrp_garp_interval 1
14 vrrp_gna_interval 1
15 vrrp_mcast_group4 224.0.0.44
16 enable_script_security
17 script_user root
18 }
20 vrrp_instance WEB_VIP {
21 state BACKUP
22 interface eth0
23 virtual_router_id 51
24 priority 80
25 advert_int 1
26 authentication {
27 auth_type PASS
28 auth_pass 1111
29 }
30 virtual_ipaddress {
31 192.168.248.100 dev eth0 label eth0:0
32 }
33 notify_master "/etc/keepalived/scripts/waring.sh master"
34 notify_backup "/etc/keepalived/scripts/waring.sh backup"
35 notify_fault "/etc/keepalived/scripts/waring.sh fault"
36 }
[root@KA2 ~]# systemctl restart keepalived.service测试：
关闭KA1 的keepalived 服务
bash
[root@KA1 ~]# systemctl stop keepalived.service
开启KA1的keepalived 服务
bash
[root@KA1 ~]# systemctl start keepalived.service
九、keepalived 双主模式
9.1 简介：
Keepalived 双主模式（Dual-Master Mode）是一种高可用架构，它能让两个节点同时对外提供服务，实现负载均衡 + 故障自动切换。
特点：
同时持有 VIP：两个节点都可以成为 MASTER，各自绑定不同的虚拟 IP（VIP），流量会被分担到两台机器上。
互为主备：节点 A 是 VIP1 的主节点，同时是 VIP2 的备节点，节点 B 是 VIP2 的主节点，同时是 VIP1 的备节点
故障自动切换：如果其中一台宕机，另一台会自动接管它的 VIP，保证服务不中断。
适用场景：
业务流量较大：需要两台机器分担请求，提升并发能力
多业务 / 多 VIP 场景：比如一个 VIP 给 Web 服务，另一个给数据库服务
资源利用率更高：避免主备模式下备机长期闲置
9.2 开启keepalived 的双主模式
KA1上设置
bash
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
20 vrrp_instance WEB_VIP {
21 state MASTER
22 interface eth0
23 virtual_router_id 51
24 priority 100
25 advert_int 1
26 authentication {
27 auth_type PASS
28 auth_pass 1111
29 }
30 virtual_ipaddress{
31 192.168.248.100/24 dev eth0 label eth0:0
32 }
33 #notify_master "/etc/keepalived/scripts/waring.sh master"
34 #notify_backup "/etc/keepalived/scripts/waring.sh backup"
35 #notify_fault "/etc/keepalived/scripts/waring.sh fault"
36 }
37
38 vrrp_instance DB_VIP {
39 state BACKUP
40 interface eth0
41 virtual_router_id 52
42 priority 80
43 advert_int 1
44 authentication {
45 auth_type PASS
46 auth_pass 1111
47 }
48 virtual_ipaddress {
49 192.168.248.200/24 dev eth0 label eth0:1
50 }
51 }
[root@KA1 ~]# systemctl restart keepalived.serviceKA2上设置
bash
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
20 vrrp_instance WEB_VIP {
21 state BACKUP
22 interface eth0
23 virtual_router_id 51
24 priority 80
25 advert_int 1
26 authentication {
27 auth_type PASS
28 auth_pass 1111
29 }
30 virtual_ipaddress {
31 192.168.248.100 dev eth0 label eth0:0
32 }
33 }
34
35 vrrp_instance DB_VIP {
36 state MASTER
37 interface eth0
38 virtual_router_id 52
39 priority 100
40 advert_int 1
41 authentication {
42 auth_type PASS
43 auth_pass 1111
44 }
45 virtual_ipaddress {
46 192.168.248.200/24 dev eth0 label eth0:1
47 }
[root@KA2 ~]# systemctl restart keepalived.service测试，查看IP
bash
[root@KA1 ~]# ip ad
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/24 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@KA2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:f6:15:27 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.60/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.200/24 scope global eth0:1
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef6:1527/64 scope link noprefixroute
valid_lft forever preferred_lft forever关闭KA1 的keepalived 服务 再查看ip
bash
[root@KA1 ~]# systemctl stop keepalived.service
[root@KA1 ~]# ip ad
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@KA2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:f6:15:27 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.60/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.200/24 scope global eth0:1
valid_lft forever preferred_lft forever
inet 192.168.248.100/32 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef6:1527/64 scope link noprefixroute
valid_lft forever preferred_lft forever再打开KA1 keepalived 服务查看 ip
bash
[root@KA1 ~]# systemctl restart keepalived.service
[root@KA1 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:6d:7f:2b brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.50/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.100/24 scope global eth0:0
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe6d:7f2b/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@KA2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:f6:15:27 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 192.168.198.60/24 brd 192.168.198.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet 192.168.248.200/24 scope global eth0:1
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef6:1527/64 scope link noprefixroute
valid_lft forever preferred_lft forever
