XXL-JOB集成到springBoot手册
- 初始换xxl-job需要的数据库
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| # # XXL-JOB v2.3.0 # Copyright (c) 2015-present, xuxueli. CREATE database if NOT EXISTS `xxl_job` default character set utf8mb4 collate utf8mb4_unicode_ci; use `xxl_job`; SET NAMES utf8mb4; CREATE TABLE `xxl_job_info` ( `id` int(11) NOT NULL AUTO_INCREMENT, `job_group` int(11) NOT NULL COMMENT '执行器主键ID', `job_desc` varchar(255) NOT NULL, `add_time` datetime DEFAULT NULL, `update_time` datetime DEFAULT NULL, `author` varchar(64) DEFAULT NULL COMMENT '作者', `alarm_email` varchar(255) DEFAULT NULL COMMENT '报警邮件', `schedule_type` varchar(50) NOT NULL DEFAULT 'NONE' COMMENT '调度类型', `schedule_conf` varchar(128) DEFAULT NULL COMMENT '调度配置，值含义取决于调度类型', `misfire_strategy` varchar(50) NOT NULL DEFAULT 'DO_NOTHING' COMMENT '调度过期策略', `executor_route_strategy` varchar(50) DEFAULT NULL COMMENT '执行器路由策略', `executor_handler` varchar(255) DEFAULT NULL COMMENT '执行器任务handler', `executor_param` varchar(512) DEFAULT NULL COMMENT '执行器任务参数', `executor_block_strategy` varchar(50) DEFAULT NULL COMMENT '阻塞处理策略', `executor_timeout` int(11) NOT NULL DEFAULT '0' COMMENT '任务执行超时时间，单位秒', `executor_fail_retry_count` int(11) NOT NULL DEFAULT '0' COMMENT '失败重试次数', `glue_type` varchar(50) NOT NULL COMMENT 'GLUE类型', `glue_source` mediumtext COMMENT 'GLUE源代码', `glue_remark` varchar(128) DEFAULT NULL COMMENT 'GLUE备注', `glue_updatetime` datetime DEFAULT NULL COMMENT 'GLUE更新时间', `child_jobid` varchar(255) DEFAULT NULL COMMENT '子任务ID，多个逗号分隔', `trigger_status` tinyint(4) NOT NULL DEFAULT '0' COMMENT '调度状态：0-停止，1-运行', `trigger_last_time` bigint(13) NOT NULL DEFAULT '0' COMMENT '上次调度时间', `trigger_next_time` bigint(13) NOT NULL DEFAULT '0' COMMENT '下次调度时间', PRIMARY KEY (`id`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4; CREATE TABLE `xxl_job_log` ( `id` bigint(20) NOT NULL AUTO_INCREMENT, `job_group` int(11) NOT NULL COMMENT '执行器主键ID', `job_id` int(11) NOT NULL COMMENT '任务，主键ID', `executor_address` varchar(255) DEFAULT NULL COMMENT '执行器地址，本次执行的地址', `executor_handler` varchar(255) DEFAULT NULL COMMENT '执行器任务handler', `executor_param` varchar(512) DEFAULT NULL COMMENT '执行器任务参数', `executor_sharding_param` varchar(20) DEFAULT NULL COMMENT '执行器任务分片参数，格式如 1/2', `executor_fail_retry_count` int(11) NOT NULL DEFAULT '0' COMMENT '失败重试次数', `trigger_time` datetime DEFAULT NULL COMMENT '调度-时间', `trigger_code` int(11) NOT NULL COMMENT '调度-结果', `trigger_msg` text COMMENT '调度-日志', `handle_time` datetime DEFAULT NULL COMMENT '执行-时间', `handle_code` int(11) NOT NULL COMMENT '执行-状态', `handle_msg` text COMMENT '执行-日志', `alarm_status` tinyint(4) NOT NULL DEFAULT '0' COMMENT '告警状态：0-默认、1-无需告警、2-告警成功、3-告警失败', PRIMARY KEY (`id`), KEY `I_trigger_time` (`trigger_time`), KEY `I_handle_code` (`handle_code`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4; CREATE TABLE `xxl_job_log_report` ( `id` int(11) NOT NULL AUTO_INCREMENT, `trigger_day` datetime DEFAULT NULL COMMENT '调度-时间', `running_count` int(11) NOT NULL DEFAULT '0' COMMENT '运行中-日志数量', `suc_count` int(11) NOT NULL DEFAULT '0' COMMENT '执行成功-日志数量', `fail_count` int(11) NOT NULL DEFAULT '0' COMMENT '执行失败-日志数量', `update_time` datetime DEFAULT NULL, PRIMARY KEY (`id`), UNIQUE KEY `i_trigger_day` (`trigger_day`) USING BTREE ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4; CREATE TABLE `xxl_job_logglue` ( `id` int(11) NOT NULL AUTO_INCREMENT, `job_id` int(11) NOT NULL COMMENT '任务，主键ID', `glue_type` varchar(50) DEFAULT NULL COMMENT 'GLUE类型', `glue_source` mediumtext COMMENT 'GLUE源代码', `glue_remark` varchar(128) NOT NULL COMMENT 'GLUE备注', `add_time` datetime DEFAULT NULL, `update_time` datetime DEFAULT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4; CREATE TABLE `xxl_job_registry` ( `id` int(11) NOT NULL AUTO_INCREMENT, `registry_group` varchar(50) NOT NULL, `registry_key` varchar(255) NOT NULL, `registry_value` varchar(255) NOT NULL, `update_time` datetime DEFAULT NULL, PRIMARY KEY (`id`), KEY `i_g_k_v` (`registry_group`,`registry_key`,`registry_value`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4; CREATE TABLE `xxl_job_group` ( `id` int(11) NOT NULL AUTO_INCREMENT, `app_name` varchar(64) NOT NULL COMMENT '执行器AppName', `title` varchar(12) NOT NULL COMMENT '执行器名称', `address_type` tinyint(4) NOT NULL DEFAULT '0' COMMENT '执行器地址类型：0=自动注册、1=手动录入', `address_list` text COMMENT '执行器地址列表，多地址逗号分隔', `update_time` datetime DEFAULT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4; CREATE TABLE `xxl_job_user` ( `id` int(11) NOT NULL AUTO_INCREMENT, `username` varchar(50) NOT NULL COMMENT '账号', `password` varchar(50) NOT NULL COMMENT '密码', `role` tinyint(4) NOT NULL COMMENT '角色：0-普通用户、1-管理员', `permission` varchar(255) DEFAULT NULL COMMENT '权限：执行器ID列表，多个逗号分割', PRIMARY KEY (`id`), UNIQUE KEY `i_username` (`username`) USING BTREE ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4; CREATE TABLE `xxl_job_lock` ( `lock_name` varchar(50) NOT NULL COMMENT '锁名称', PRIMARY KEY (`lock_name`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4; INSERT INTO `xxl_job_group`(`id`, `app_name`, `title`, `address_type`, `address_list`, `update_time`) VALUES (1, 'xxl-job-executor-sample', '示例执行器', 0, NULL, '2018-11-03 22:21:31' ); INSERT INTO `xxl_job_info`(`id`, `job_group`, `job_desc`, `add_time`, `update_time`, `author`, `alarm_email`, `schedule_type`, `schedule_conf`, `misfire_strategy`, `executor_route_strategy`, `executor_handler`, `executor_param`, `executor_block_strategy`, `executor_timeout`, `executor_fail_retry_count`, `glue_type`, `glue_source`, `glue_remark`, `glue_updatetime`, `child_jobid`) VALUES (1, 1, '测试任务1', '2018-11-03 22:21:31', '2018-11-03 22:21:31', 'XXL', '', 'CRON', '0 0 0 * * ? *', 'DO_NOTHING', 'FIRST', 'demoJobHandler', '', 'SERIAL_EXECUTION', 0, 0, 'BEAN', '', 'GLUE代码初始化', '2018-11-03 22:21:31', ''); INSERT INTO `xxl_job_user`(`id`, `username`, `password`, `role`, `permission`) VALUES (1, 'admin', 'e10adc3949ba59abbe56e057f20f883e', 1, NULL); INSERT INTO `xxl_job_lock` ( `lock_name`) VALUES ( 'schedule_lock'); commit; |
- 通过docker拉取镜像
|-----------------------------------------|
| docker pull xuxueli/xxl-job-admin:2.3.0 |
- 查看镜像是否拉取成功
命令：
|---------------|
| docker images |
四、启动镜像
注意：需要修改连接的数据库的地址
命令
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| docker run -e PARAMS="--spring.datasource.url=jdbc:mysql://ip:3306/xxl_job?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&serverTimezone=UTC --spring.datasource.username=root --spring.datasource.password=密码" -p 8093:8080 -v $PWD/xxldata:/data/applogs --name=xxl-job-admin -d xuxueli/xxl-job-admin:2.3.0 |
五、查看服务是否启动成功
命令：
|-----------|
| docekr ps |
- 浏览器访问
http ://ip:8093/xxl-job-admin/
初始账号密码：
用户:admin
密码:123456
- 在springBoot中集成
- 引入依赖
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| <!-- xxl-job-core --> <dependency> <groupId>com.xuxueli</groupId> <artifactId>xxl-job-core</artifactId> <version>${project.parent.version}</version> </dependency> |
- 配置信息
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| # xxl-job xxl: job: admin: addresses: http://xxml-job admin服务IP:服务端口/xxl-job-admin/ # 任务中心地址 accessToken: executor: appname: my-job # 任务名称 见名之意且唯一 address: ip: port: 19999 #指定任务工程与admin工程心跳检测端口 注意该端口不是你的服务的端口,是特别指定的端口 logpath: ./logs/xxl-job/stock-job/ # 日志文件路径 logretentiondays: 30 # 日志文件保存天数 |
- 配置类
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| @Configuration public class XxlJobConfig { private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class); @Value("{xxl.job.admin.addresses}") private String adminAddresses; @Value("{xxl.job.accessToken}") private String accessToken; @Value("{xxl.job.executor.appname}") private String appname; @Value("{xxl.job.executor.address}") private String address; @Value("{xxl.job.executor.ip}") private String ip; @Value("{xxl.job.executor.port}") private int port; @Value("{xxl.job.executor.logpath}") private String logPath; @Value("{xxl.job.executor.logretentiondays}") private int logRetentionDays; /** Spring整合XXL-JOB任务执行器 * 该执行器可调度当前工程下的一些子任务 */ @Bean public XxlJobSpringExecutor xxlJobExecutor() { logger.info(">>>>>>>>>>> xxl-job config init."); XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor(); xxlJobSpringExecutor.setAdminAddresses(adminAddresses); xxlJobSpringExecutor.setAppname(appname); xxlJobSpringExecutor.setAddress(address); xxlJobSpringExecutor.setIp(ip); xxlJobSpringExecutor.setPort(port); xxlJobSpringExecutor.setAccessToken(accessToken); xxlJobSpringExecutor.setLogPath(logPath); xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays); return xxlJobSpringExecutor; } } |

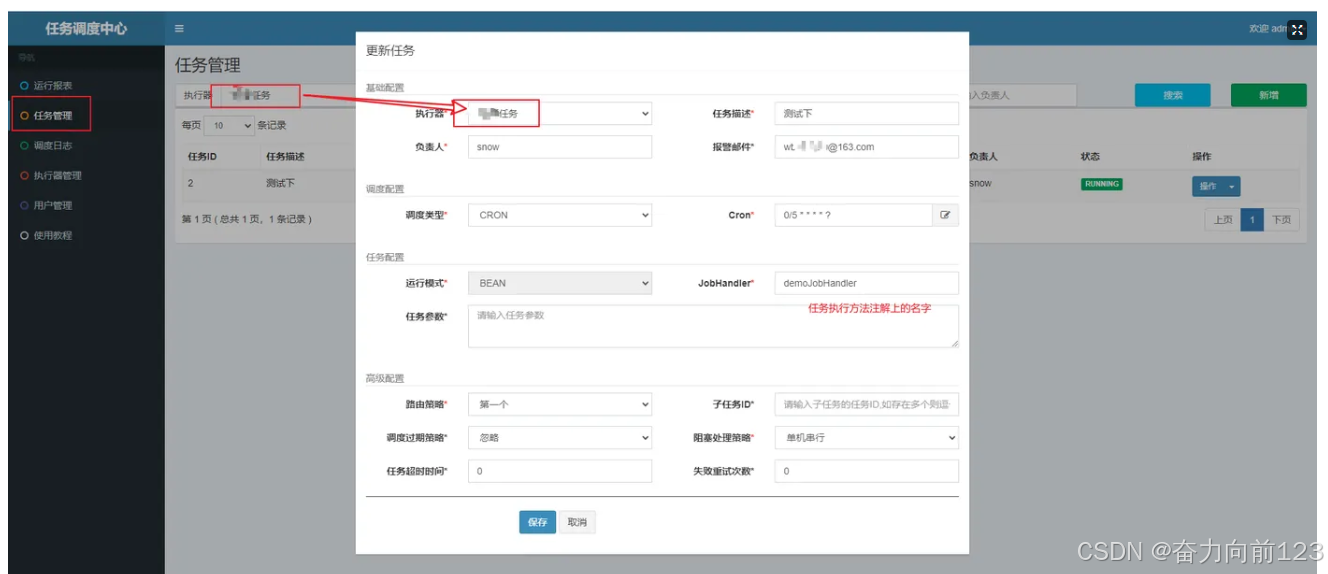

- 定义定时任务示例
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| @Slf4j @Component public class SampleXxlJob { /** * 1、简单任务示例（Bean模式） */ @XxlJob("demoJobHandler") public void demoJobHandler() throws Exception { // 打印时间 System.out.println("hello XXL-job....." + LocalDateTime.now().format(DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss"))); } } |
