二进制基于kubeasz部署 K8s 1.34.x 高可用集群实战指南-第二章：HAProxy + Keepalived负载均衡高可用配置（2-4）

0.部署节点安装 Docker (仅在 160 执行)

复制代码

# 安装 Docker (用于 kubeasz)
cd /usr/local/src
tar xvf runtime-docker_24.0.9-containerd_1.7.20-binary-install.tar.gz
bash runtime-install.sh docker

# 验证
docker version

第二章：HAProxy + Keepalived负载均衡高可用配置

目标：在 109 和 110 节点部署 HAProxy + Keepalived，为 Kubernetes API Server 提供高可用访问入口（VIP: 192.168.44.188:6443）。

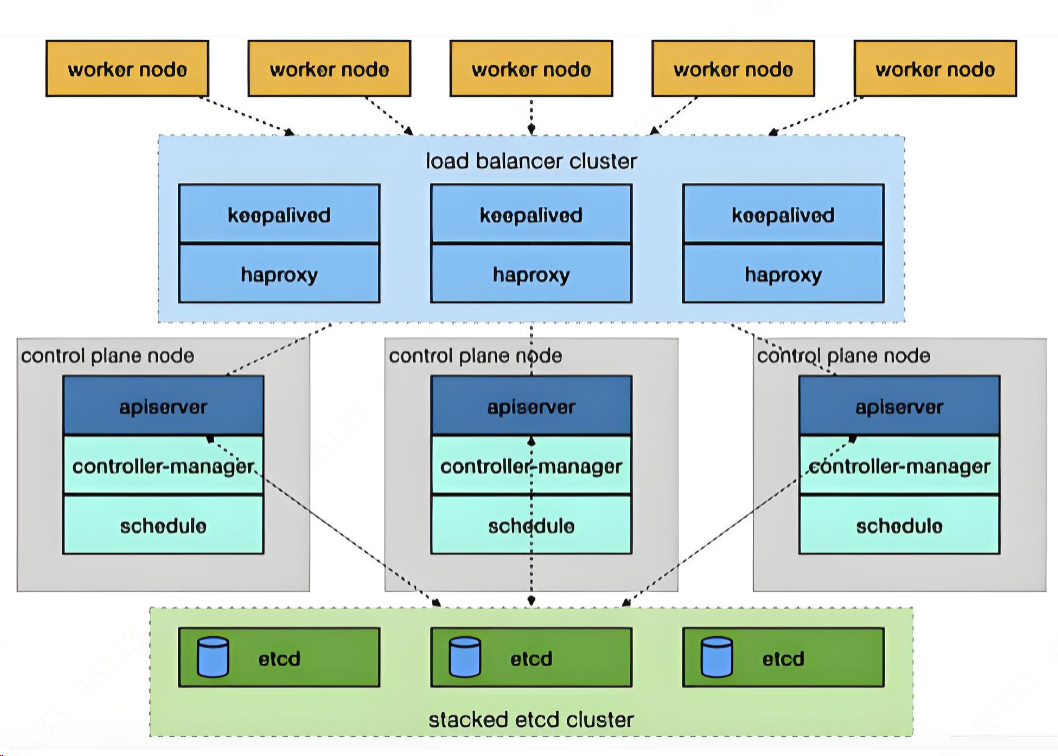

2.1 架构说明

复制代码

                    ┌─────────────────┐
                    │   客户端访问     │
                    │  (kubectl)      │
                    └────────┬────────┘
                             ▼
                    ┌─────────────────┐
                    │  VIP: 192.168.44.188:6443 │
                    └────────┬────────┘
                             │
              ┌──────────────┴──────────────┐
              ▼                             ▼
    ┌─────────────────┐           ┌─────────────────┐
    │  HAProxy1       │           │  HAProxy2       │
    │  192.168.44.109 │◄─────────►│  192.168.44.110 │
    │  (Keepalived    │           │  (Keepalived    │
    │   MASTER)       │           │   BACKUP)       │
    └────────┬────────┘           └────────┬────────┘
              │                             │
              └──────────────┬──────────────┘
                             ▼
              ┌─────────────────────────────┐
              │     Kubernetes API Server   │
              │  192.168.44.101:6443        │
              │  192.168.44.102:6443        │
              │  192.168.44.103:6443        │
              └─────────────────────────────┘

2.2 安装软件 (两台节点 109 和 110 都执行)

复制代码

# 登录 192.168.44.109 和 192.168.44.110
ssh root@192.168.44.109
ssh root@192.168.44.110

# 安装 HAProxy 和 Keepalived
apt update
apt install -y haproxy keepalived

# 验证安装
haproxy -v
keepalived -v

2.3 配置 Keepalived

2.3.1 主节点配置 (192.168.44.109)

复制代码

cat > /etc/keepalived/keepalived.conf << EOF
global_defs {
    router_id LVS_MASTER
}

vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 51
    priority 150   # 主节点优先级高
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.44.188/24 dev ens33   # 这里必须是 ens33
    }
}
EOF

2.3.2 备节点配置 (192.168.44.110)

复制代码

cat > /etc/keepalived/keepalived.conf << EOF
global_defs {
    router_id LVS_BACKUP
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    virtual_router_id 51
    priority 100   # 备节点优先级低
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.44.188/24 dev ens33   # 这里必须是 ens33
    }
}
EOF

2.3.3 启动 Keepalived

复制代码

# 两台都执行
systemctl enable keepalived
systemctl start keepalived
systemctl status keepalived

# 验证 VIP (只在主节点显示)
ip addr show | grep 192.168.44.188

2.4 配置 HAProxy (两台节点配置相同)

复制代码

cat > /etc/haproxy/haproxy.cfg << 'EOF'
global
    log /dev/log local0
    user haproxy
    group haproxy
    daemon

defaults
    log global
    mode tcp
    option tcplog
    timeout connect 5s
    timeout client 50s
    timeout server 50s

frontend k8s-api
    bind *:6443
    mode tcp
    default_backend k8s-masters

backend k8s-masters
    mode tcp
    balance roundrobin
    server master1 192.168.44.101:6443 check inter 3s fall 3 rise 5
    server master2 192.168.44.102:6443 check inter 3s fall 3 rise 5
    server master3 192.168.44.103:6443 check inter 3s fall 3 rise 5
EOF

# 启动 HAProxy
systemctl enable haproxy
systemctl start haproxy
systemctl status haproxy

# 验证监听
netstat -tnlp | grep 6443
# 预期输出: tcp  0  0 0.0.0.0:6443  0.0.0.0:*  LISTEN  xxx/haproxy

2.5 验证负载均衡

2.5.1 验证 VIP 漂移

复制代码

# 在主节点查看 VIP
ip addr show | grep 192.168.44.188

# 停止主节点 Keepalived 测试 VIP 漂移
systemctl stop keepalived

# 在备节点查看 VIP (应该出现)
ip addr show | grep 192.168.44.188

# 恢复主节点
systemctl start keepalived

2.5.2 验证 API Server 代理

复制代码

# 在任意节点测试 (或部署节点)
curl -k https://192.168.44.188:6443/version

# 预期输出 (虽然还没部署 API Server，但会显示连接被拒绝)
# 待 Master 部署完成后可正常访问

# 验证 HAProxy 后端健康检查
echo "show stat" | socat /run/haproxy/admin.sock stdio 2>/dev/null | grep k8s-masters

2.6 本章检查清单

|----------------|------------------------------------------|-----------------------------|
| 检查项 | 验证命令 | 预期结果 |
| Keepalived 主节点 | ip addr show | grep 188 | 显示 192.168.44.188 |
| Keepalived 备节点 | ip addr show | grep 188 | 无显示 (VIP 不在备节点) |
| HAProxy 监听 | netstat -tnlp | grep 6443 | 显示 LISTEN |
| VIP 漂移 | systemctl stop keepalived | VIP 切换到备节点 |
| HAProxy 语法 | haproxy -f /etc/haproxy/haproxy.cfg -c | Configuration file is valid |

2.7 故障模拟测试

复制代码

# 模拟主节点故障
systemctl stop keepalived
# 检查备节点 VIP 是否接管
# 模拟恢复
systemctl start keepalived

# 模拟 HAProxy 故障
systemctl stop haproxy
# 检查端口是否还在监听
# 模拟恢复
systemctl start haproxy
