1.查询系统架构
bash
uname -m国产操作系统架构不可使用（官方暂不支持Linux-arm架构）
2.服务器上安装操作
-

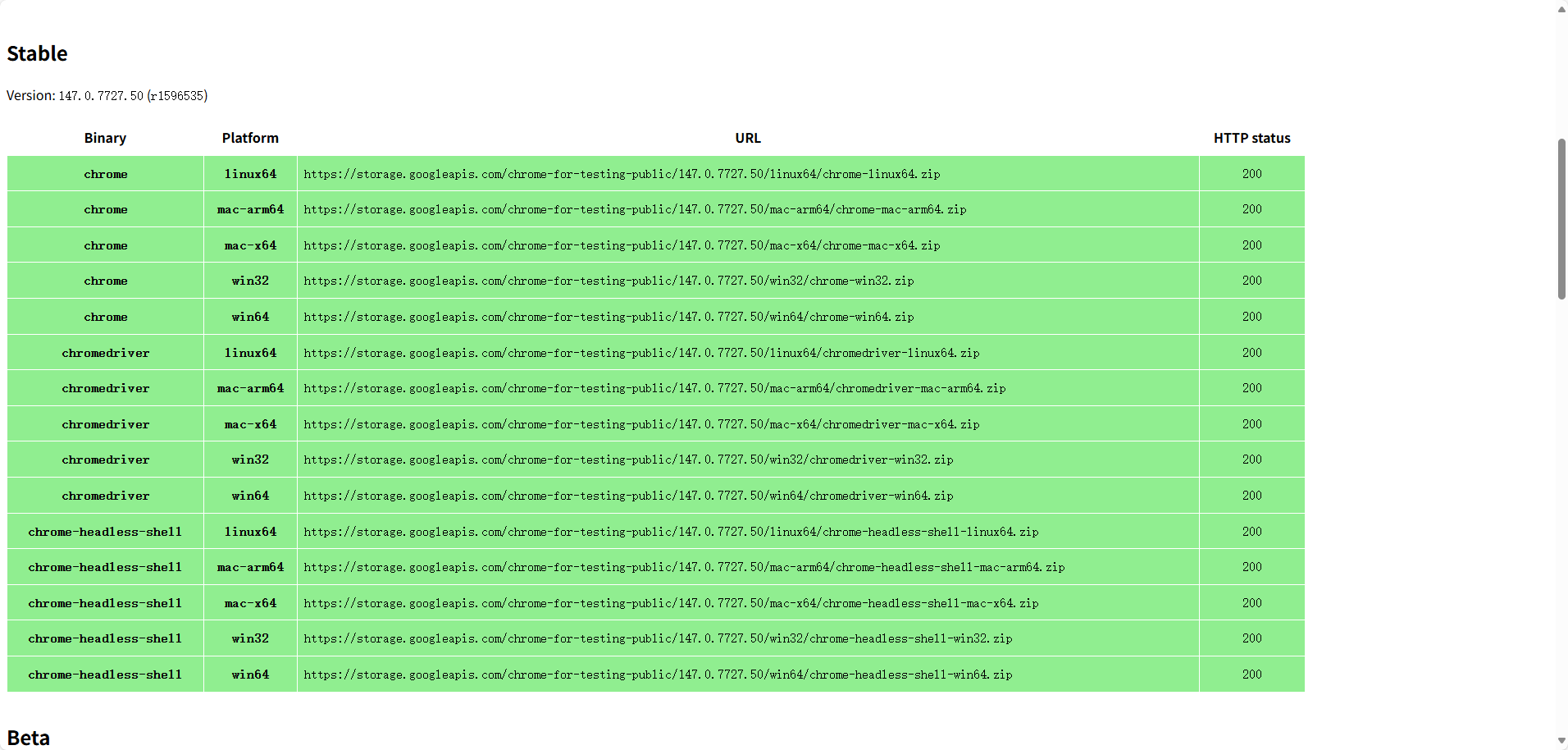

把chromedriver-linux64.zip解压出来的chromedriver放到/usr/bin下面
-
用ekp账号把chrome-headless-shell-linux64.zip解压到opt或者其他目录下，然后将具体路径
写入代码配置中HeadlessBrowserUtil.DEFAULT_HEAD_LESS_SHELL_PATH
java
/**
* 无头浏览器工具类
* 支持显式等待 JS 执行完成标志 + 直接生成 PDF byte[]
*/
public class HeadlessBrowserUtil implements AutoCloseable {
private static final Logger logger = LoggerFactory.getLogger(HeadlessBrowserUtil.class);
// 常量定义（提升维护性）
private static final long DEFAULT_TIMEOUT_SECONDS = 30;
private static final String DEFAULT_PDF_PAGE_SIZE = "A4";
private static final boolean DEFAULT_PRINT_BACKGROUND = true;
private static final String DEFAULT_CHROME_DRIVER_PATH = "/usr/bin/chromedriver";
private static final String DEFAULT_HEAD_LESS_SHELL_PATH = "/home/fengxh/DevEnv/chroma/chrome-headless-shell-linux64/chrome-headless-shell";
private WebDriver driver;
private WebDriverWait defaultWait;
private final long defaultTimeoutSeconds;
// ========== 构造方法 ==========
public HeadlessBrowserUtil() {
this(DEFAULT_TIMEOUT_SECONDS);
}
public HeadlessBrowserUtil(long defaultTimeoutSeconds) {
this.defaultTimeoutSeconds = defaultTimeoutSeconds;
initDriver();
}
/**
* 自定义 ChromeOptions 的构造方法
*/
public HeadlessBrowserUtil(ChromeOptions customOptions) {
this(customOptions, DEFAULT_TIMEOUT_SECONDS);
}
public HeadlessBrowserUtil(ChromeOptions customOptions, long defaultTimeoutSeconds) {
this.defaultTimeoutSeconds = defaultTimeoutSeconds;
try {
this.driver = new ChromeDriver(customOptions);
this.defaultWait = new WebDriverWait(driver, Duration.ofSeconds(defaultTimeoutSeconds));
logger.info("ChromeDriver初始化成功（自定义Options）");
} catch (Exception e) {
logger.error("ChromeDriver初始化失败（自定义Options）", e);
throw new RuntimeException("ChromeDriver初始化失败", e);
}
}
// ========== 初始化 ==========
// 先在类顶部新增常量（替换为你的ChromeDriver实际路径）
// private static final String DEFAULT_HEAD_LESS_SHELL_PATH = "/home/fengxh/DevEnv/chroma/chrome-headless-shell-linux64/chrome-headless-shell";
private void initDriver() {
ChromeOptions options = new ChromeOptions();
// 1. 显式指定ChromeDriver路径（关键！避免系统加载旧版本）
System.setProperty("webdriver.chrome.driver", DEFAULT_CHROME_DRIVER_PATH);
// 2. 适配144版本的无头参数（精简+兼容）
options.setBinary(DEFAULT_HEAD_LESS_SHELL_PATH);
options.addArguments("--headless=new"); // 144版本推荐的无头模式
options.addArguments("--disable-gpu"); // 兼容Linux无GPU环境
options.addArguments("--window-size=1920,1080");
options.addArguments("--remote-allow-origins=*");// 解决跨域限制
options.addArguments("--disable-dev-shm-usage"); // 关键！Linux下避免/dev/shm内存不足
options.addArguments("--no-sandbox"); // 非root用户运行必需（Linux常见问题）
options.addArguments("--disable-extensions"); // 禁用扩展，减少干扰
// 以下参数144版本可保留，不影响兼容
options.addArguments("--disable-blink-features=AutomationControlled");
options.setExperimentalOption("excludeSwitches", new String[]{"enable-automation"});
try {
this.driver = new ChromeDriver(options);
this.defaultWait = new WebDriverWait(driver, Duration.ofSeconds(defaultTimeoutSeconds));
logger.info("ChromeDriver初始化成功，默认超时时间={}秒，ChromeDriver路径={}",
defaultTimeoutSeconds, DEFAULT_CHROME_DRIVER_PATH);
} catch (Exception e) {
// 补充详细错误日志（路径、版本、异常栈）
logger.error("===== ChromeDriver初始化失败详情 =====", e);
logger.error("1. ChromeDriver路径：{}", DEFAULT_CHROME_DRIVER_PATH);
logger.error("2. Headless Shell路径：{}", DEFAULT_HEAD_LESS_SHELL_PATH);
logger.error("3. 异常类型：{}", e.getClass().getName());
logger.error("4. 异常信息：{}", e.getMessage());
throw new RuntimeException("无头浏览器初始化失败，请检查日志中路径/版本/依赖", e);
}
}
// ========== 核心新增：生成 PDF byte[] 方法 ==========
/**
* 生成当前页面的 PDF 字节数组（基于 CDP，无临时文件）
* @return PDF 字节数组
*/
public byte[] generatePdfAsBytes() {
return generatePdfAsBytes(DEFAULT_PDF_PAGE_SIZE, DEFAULT_PRINT_BACKGROUND, false);
}
/**
* 自定义 PDF 参数生成字节数组
* @param pageSize 页面大小（A4/Letter/Legal/A3 等）
* @param printBackground 是否打印背景色/图片
* @param removeMargins 是否移除打印边距
* @return PDF 字节数组
*/
public byte[] generatePdfAsBytes(String pageSize, boolean printBackground, boolean removeMargins) {
try {
// 1. 等待页面完全渲染（确保异步资源加载完成）
waitForPageLoad();
waitForAllImagesLoaded();
logger.info("页面渲染完成，开始通过CDP生成PDF");
// 2. 构造CDP打印参数
Map<String, Object> printParams = new HashMap<>();
printParams.put("paperWidth", getPageWidth(pageSize)); // 宽度（英寸）
printParams.put("paperHeight", getPageHeight(pageSize)); // 高度（英寸）
printParams.put("printBackground", printBackground); // 打印背景
printParams.put("marginTop", removeMargins ? 0 : 0.4); // 上边距（英寸）
printParams.put("marginBottom", removeMargins ? 0 : 0.4); // 下边距
printParams.put("marginLeft", removeMargins ? 0 : 0.4); // 左边距
printParams.put("marginRight", removeMargins ? 0 : 0.4); // 右边距
printParams.put("preferCSSPageSize", true); // 优先使用CSS定义的页面大小
printParams.put("transferMode", "ReturnAsBase64"); // 返回Base64格式
// 3. 调用CDP的Page.printToPDF方法
ChromeDriver chromeDriver = (ChromeDriver) this.driver;
Map<String, Object> result = chromeDriver.executeCdpCommand("Page.printToPDF", printParams);
String pdfBase64 = (String) result.get("data");
// 4. Base64转byte[]
byte[] pdfBytes = java.util.Base64.getDecoder().decode(pdfBase64);
logger.info("PDF生成成功，字节数={}", pdfBytes.length);
return pdfBytes;
} catch (Exception e) {
logger.error("生成PDF字节数组失败", e);
throw new RuntimeException("PDF生成失败", e);
}
}
/**
* 注入HTML字符串并生成PDF字节数组（一站式调用）
* @param htmlContent HTML字符串
* @return PDF字节数组
*/
public byte[] generatePdfFromHtml(String htmlContent) {
// 注入HTML并等待渲染
injectHtml(htmlContent);
// 生成PDF
return generatePdfAsBytes();
}
// ========== 辅助方法 ==========
/**
* 注入HTML字符串到空白页（解决本地HTML渲染问题）
*/
public HeadlessBrowserUtil injectHtml(String htmlContent) {
try {
// 打开空白页
get("about:blank").waitForPageLoad();
// 注入HTML并关闭文档流（避免渲染异常）
executeScript("document.write(arguments[0]); document.close();", htmlContent);
logger.info("HTML字符串注入完成，开始等待渲染");
// 等待页面完全渲染（含图片/异步JS）
waitForPageLoad();
waitForAllImagesLoaded();
logger.info("HTML渲染完成");
return this;
} catch (Exception e) {
logger.error("HTML注入/渲染失败", e);
throw new RuntimeException("HTML注入失败", e);
}
}
/**
* 等待所有图片加载完成（避免PDF缺图）
* JDK8 适配点：
* 1. 移除字符串文本块（JDK15+支持），替换为字符串拼接
* 2. 确保 Lambda 泛型推导兼容 JDK8
*/
/**
* 等待所有图片加载完成（避免PDF缺图）
* 修复点：
* 1. JS脚本统一返回数值（0/1），避免布尔值导致类型转换异常
* 2. Java端接收Number类型，兼容Long/Integer等数值类型
* 3. 简化逻辑判断，直接基于数值判断是否加载完成
*/
private void waitForAllImagesLoaded() {
waitForCondition((Function<WebDriver, Boolean>) webDriver -> {
// 修正JS脚本：统一返回数值（1=加载完成，0=未完成）
Number result = (Number) ((JavascriptExecutor) webDriver).executeScript(
"var images = document.images;" +
"if (images.length === 0) return 1;" + // 无图片时返回1（完成）
"var loaded = 0;" +
"for (var i = 0; i < images.length; i++) {" +
" if (images[i].complete && !images[i].error) loaded++;" +
"}" +
"return loaded === images.length ? 1 : 0;" // 有图片时，完成=1，未完成=0
);
// 数值转int，判断是否等于1（加载完成）
return result.intValue() == 1;
}, defaultTimeoutSeconds);
}
/**
* 页面大小转英寸（CDP的printToPDF参数要求英寸单位）
* JDK8 适配点：移除 switch 表达式（JDK14+支持），替换为 switch 语句
*/
private double getPageWidth(String pageSize) {
String upperPageSize = pageSize.toUpperCase();
switch (upperPageSize) {
case "A4":
return 8.27;
case "A3":
return 11.69;
case "LETTER":
return 8.5;
case "LEGAL":
return 8.5;
default:
return 8.27; // 默认A4
}
}
/**
* 页面高度转英寸
* JDK8 适配点：移除 switch 表达式（JDK14+支持），替换为 switch 语句
*/
private double getPageHeight(String pageSize) {
String upperPageSize = pageSize.toUpperCase();
switch (upperPageSize) {
case "A4":
return 11.69;
case "A3":
return 16.54;
case "LETTER":
return 11.0;
case "LEGAL":
return 14.0;
default:
return 11.69; // 默认A4
}
}
// ========== 备选方案：临时文件方式（兼容低版本ChromeDriver） ==========
/**
* 临时文件方式生成PDF byte[]（若CDP调用失败时使用）
* @param tempPdfPath 临时文件路径
* @return PDF字节数组
*/
public byte[] generatePdfByTempFile(String tempPdfPath) {
// 1. 构造带打印参数的ChromeOptions
ChromeOptions options = new ChromeOptions();
options.addArguments("--headless=new");
options.addArguments("--disable-gpu");
options.addArguments("--print-to-pdf=" + tempPdfPath);
options.addArguments("--print-to-pdf-page-size=" + DEFAULT_PDF_PAGE_SIZE);
options.addArguments("--print-backgrounds=" + DEFAULT_PRINT_BACKGROUND);
options.addArguments("--no-margins");
// 2. 重新初始化Driver（必须重新创建才能生效打印参数）
WebDriver tempDriver = new ChromeDriver(options);
try {
// 3. 复制当前页面的URL/HTML（保持上下文）
tempDriver.get(this.driver.getCurrentUrl());
WebDriverWait tempWait = new WebDriverWait(tempDriver, Duration.ofSeconds(defaultTimeoutSeconds));
tempWait.until(webDriver -> ((JavascriptExecutor) webDriver)
.executeScript("return document.readyState").equals("complete"));
// 4. 读取临时文件并转byte[]
File pdfFile = new File(tempPdfPath);
if (!pdfFile.exists() || pdfFile.length() == 0) {
throw new RuntimeException("临时PDF文件生成失败：" + tempPdfPath);
}
byte[] pdfBytes = Files.readAllBytes(pdfFile.toPath());
logger.info("临时文件方式生成PDF成功，字节数={}", pdfBytes.length);
return pdfBytes;
} catch (Exception e) {
logger.error("临时文件方式生成PDF失败", e);
throw new RuntimeException("PDF生成失败", e);
} finally {
// 5. 清理临时文件+关闭临时Driver
tempDriver.quit();
File pdfFile = new File(tempPdfPath);
if (pdfFile.exists() && !pdfFile.delete()) {
logger.warn("临时PDF文件清理失败：{}", tempPdfPath);
}
}
}
// ========== 原有方法保留 + 少量优化 ==========
public HeadlessBrowserUtil get(String url) {
try {
driver.get(url);
logger.debug("访问URL：{}", url);
return this;
} catch (Exception e) {
logger.error("访问URL失败：{}", url, e);
throw new RuntimeException("访问URL失败", e);
}
}
public Object executeScript(String script, Object... args) {
try {
return ((JavascriptExecutor) driver).executeScript(script, args);
} catch (Exception e) {
logger.error("执行JS脚本失败：{}", script.substring(0, Math.min(script.length(), 100)), e);
throw new RuntimeException("JS脚本执行失败", e);
}
}
public Object executeAsyncScript(String script, Object... args) {
try {
return ((JavascriptExecutor) driver).executeAsyncScript(script, args);
} catch (Exception e) {
logger.error("执行异步JS脚本失败", e);
throw new RuntimeException("异步JS脚本执行失败", e);
}
}
public WebElement waitForElement(By locator) {
return defaultWait.until(ExpectedConditions.presenceOfElementLocated(locator));
}
public WebElement waitForElement(By locator, long timeoutSeconds) {
return new WebDriverWait(driver, Duration.ofSeconds(timeoutSeconds))
.until(ExpectedConditions.presenceOfElementLocated(locator));
}
public WebElement waitForElementVisible(By locator) {
return defaultWait.until(ExpectedConditions.visibilityOfElementLocated(locator));
}
public WebElement waitForElementClickable(By locator) {
return defaultWait.until(ExpectedConditions.elementToBeClickable(locator));
}
public boolean waitForTextContains(By locator, String text) {
return defaultWait.until(ExpectedConditions.textToBePresentInElementLocated(locator, text));
}
public boolean waitForAttributeValue(By locator, String attribute, String value) {
return defaultWait.until(ExpectedConditions.attributeToBe(locator, attribute, value));
}
public boolean waitForTitleContains(String title) {
return defaultWait.until(ExpectedConditions.titleContains(title));
}
public boolean waitForTitleIs(String title) {
return defaultWait.until(ExpectedConditions.titleIs(title));
}
public WebElement waitForJsCompleteMarker(String markerId) {
return waitForElement(By.id(markerId));
}
public int[] waitForJsCompleteWithResult(String markerId, String successAttr, String failAttr) {
WebElement marker = waitForElement(By.id(markerId));
String success = marker.getAttribute(successAttr);
String fail = marker.getAttribute(failAttr);
return new int[]{
Integer.parseInt(success != null ? success : "0"),
Integer.parseInt(fail != null ? fail : "0")
};
}
public String waitForJsCompleteSimple(String inputId) {
WebElement input = waitForElement(By.id(inputId));
new WebDriverWait(driver, Duration.ofSeconds(defaultTimeoutSeconds))
.until((Function<WebDriver, Boolean>) d -> {
String val = input.getAttribute("value");
return val != null && !val.isEmpty();
});
return input.getAttribute("value");
}
public boolean waitForBodyDataAttribute(String attributeName, String expectedValue) {
String fullAttr = "data-" + attributeName;
return defaultWait.until(ExpectedConditions.attributeToBe(By.tagName("body"), fullAttr, expectedValue));
}
public <T> T waitForCondition(Function<WebDriver, T> condition, long timeoutSeconds) {
return new FluentWait<>(driver)
.withTimeout(Duration.ofSeconds(timeoutSeconds))
.pollingEvery(Duration.ofMillis(500))
.ignoring(NoSuchElementException.class, StaleElementReferenceException.class) // 增加异常忽略
.until(condition);
}
public WebElement findElement(By locator) {
return driver.findElement(locator);
}
public List<WebElement> findElements(By locator) {
return driver.findElements(locator);
}
public HeadlessBrowserUtil click(By locator) {
waitForElementClickable(locator).click();
return this;
}
public HeadlessBrowserUtil sendKeys(By locator, String text) {
WebElement element = waitForElementVisible(locator);
element.clear();
element.sendKeys(text);
return this;
}
public String getText(By locator) {
return waitForElementVisible(locator).getText();
}
public String getPageSource() {
return driver.getPageSource();
}
public String getCurrentUrl() {
return driver.getCurrentUrl();
}
public String getTitle() {
return driver.getTitle();
}
public HeadlessBrowserUtil refresh() {
driver.navigate().refresh();
return this;
}
public HeadlessBrowserUtil back() {
driver.navigate().back();
return this;
}
public HeadlessBrowserUtil forward() {
driver.navigate().forward();
return this;
}
public byte[] takeScreenshot() {
return ((TakesScreenshot) driver).getScreenshotAs(OutputType.BYTES);
}
public File takeScreenshotAsFile() {
return ((TakesScreenshot) driver).getScreenshotAs(OutputType.FILE);
}
public HeadlessBrowserUtil switchToFrame(By locator) {
driver.switchTo().frame(waitForElement(locator));
return this;
}
public HeadlessBrowserUtil switchToDefaultContent() {
driver.switchTo().defaultContent();
return this;
}
/**
* 【过时】无头模式下无效，建议使用 generatePdfAsBytes()
*/
@Deprecated
public HeadlessBrowserUtil triggerPrint() {
logger.warn("triggerPrint()方法在无头模式下无效，请使用generatePdfAsBytes()生成PDF");
Actions actions = new Actions(driver);
actions.keyDown(Keys.CONTROL).sendKeys("p").keyUp(Keys.CONTROL).perform();
return this;
}
public HeadlessBrowserUtil sleep(long seconds) {
try {
Thread.sleep(seconds * 1000);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
return this;
}
public HeadlessBrowserUtil waitForPageLoad() {
defaultWait.until(webDriver -> ((JavascriptExecutor) webDriver)
.executeScript("return document.readyState").equals("complete"));
return this;
}
public HeadlessBrowserUtil waitForLibraryLoad(String libraryName) {
defaultWait.until(webDriver -> ((JavascriptExecutor) webDriver)
.executeScript("return typeof " + libraryName + " !== 'undefined'").equals(true));
return this;
}
@Override
public void close() {
if (driver != null) {
try {
driver.quit();
logger.info("ChromeDriver已正常关闭");
} catch (Exception e) {
logger.error("ChromeDriver关闭失败", e);
} finally {
driver = null;
}
}
}
public WebDriver getDriver() {
return driver;
}
public HeadlessBrowserUtil setDefaultTimeout(long seconds) {
this.defaultWait = new WebDriverWait(driver, Duration.ofSeconds(seconds));
return this;
}
}3.测试验证
- 在chrome-headless-shell-linux64.zip解压路径下运行
- 测试访问网页并生成PDF（纯无头模式）
bash
./chrome-headless-shell \
--headless \
--no-sandbox \
--disable-gpu \
--print-to-pdf=/tmp/test.pdf \
https://www.baidu.com
bash
./chrome-headless-shell \
--headless=new \
--no-sandbox \
--disable-gpu \
--print-to-pdf=/tmp/test.pdf \
https://www.baidu.com- 检查是否生成文件且不为空，则验证成功
