vue对接海康摄像头-H5player

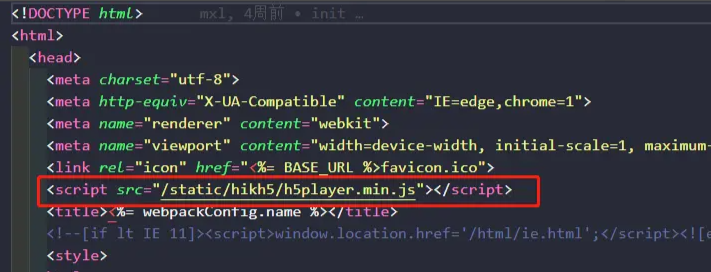

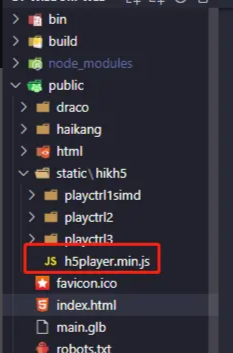

1 .驻公有中放入js

视口大小

|----------------------------------------------------------------------------------------------------------------------------|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 | init() { ``// 设置播放容器的宽高并监听窗口大小变化 ``window.addEventListener(``"resize"``, () => { ``this``.player.JS_Resize(); ``}); }, // 媒体查询设置窗口的大小 @media screen and (max-width: 1990px) { ``#player { ``width: calc(100vw - 16px); ``height: calc((90vw - 16px) * 5 / 8); ``} ``#control { ``width: calc(100vw - 10px); ``height: 50px; ``margin-top: -3px; ``position: relative; ``z-index: 1; ``background-color: rgb(62, 61, 66, 0.8); ``display: flex; ``align-items: center; ``justify-content: space-between; ``padding: 0 20px; ``} } @media screen and (min-width: 750px) { ``#player { ``width: calc(70vw - 8px); ``height: calc((70vw - 8px) * 5 / 8); ``} ``#control { ``width: calc(70vw - 10px); ``height: 50px; ``background-color: rgb(62, 61, 66, 0.8); ``margin-top: -3px; ``position: relative; ``z-index: 1; ``display: flex; ``align-items: center; ``justify-content: space-between; ``padding: 0 20px; ``} } |

监控点树形列表

|----------------------------------------------------------------------------------------------------------------------------------------------|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 | // 查询区域列表v2 ``getNodesByParams() { ``this``.forwardParams.requestMethod = ``"post"``; ``this``.forwardParams.url = ``process.env.VUE_APP_BASE_URL + ``"/api/irds/v2/region/nodesByParams"``; ``this``.forwardParams.paramType = ``"body"``; ``this``.forwardParams.``params = { ``resourceType: ``"camera"``, ``pageNo: ``"1"``, ``pageSize: ``"100"``, ``}; ``getHik(``this``.forwardParams).then((res) => { ``const jsonStr = res.data; ``const data = JSON.parse(jsonStr); ``console.log(``"区域列表"``, data.data.list); ``const nodeList = data.data.list; ``this``.getCameraOnline(nodeList); ``}); ``}, ``// 获取监控点列表 ``getCameraOnline(nodeList) { ``this``.forwardParams.requestMethod = ``"post"``; ``this``.forwardParams.url = ``process.env.VUE_APP_BASE_URL + ``"/api/resource/v2/camera/search"``; ``this``.forwardParams.paramType = ``"body"``; ``this``.forwardParams.``params = { ``pageNo: ``"1"``, ``pageSize: ``"100"``, ``}; ``getHik(``this``.forwardParams).then((res) => { ``const jsonStr = res.data; ``const data = JSON.parse(jsonStr); ``if (data.data) { ``// console.log("视频列表", data.data.list); ``const cameraList = data.data.list; ``const newCodeArray = cameraList.map((camera) => ({ ``name: camera.name, ``parentIndexCode: camera.regionIndexCode, ``indexCode: camera.indexCode, ``cameraType: camera.cameraType, ``})); ``const tree = [...newCodeArray, ...nodeList]; ``this``.treeData = ``this``.handleTree(tree, ``"indexCode"``, ``"parentIndexCode"``); ``// console.log("treeData", this.treeData); ``} ``}); ``}, |

获取视频流

|----------------------------------------------------------------------------------------------------------------------------------|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 | handleNodeClick(data) { ``this``.count++; ``if (``this``.count % 2 === 0) { ``// 偶数次点击的逻辑 ``console.log(``'偶数次点击'``); ``console.log(``"data"``, data); ``// 球机弹出云台控制卡片 ``if (data.cameraType === 2) { ``this``.allowClick = ``true``; ``this``.customTreeStyle.minHeight = ``"55%"``; ``} ``else { ``this``.allowClick = ``false``; ``this``.customTreeStyle.minHeight = ``"95%"``; ``} ``//码流类型，0:主码流 1:子码流 2:第三码流参数不填，默认为主码流 ``if (``this``.splitNum === 3) { ``this``.streamType = 1; ``} ``else { ``this``.streamType = 0; ``} ``this``.cameraIndexCode = data.indexCode; ``this``.forwardParams.requestMethod = ``"post"``; ``this``.forwardParams.url = ``process.env.VUE_APP_BASE_URL + ``"/api/video/v2/cameras/previewURLs"``; ``this``.forwardParams.paramType = ``"body"``; ``this``.forwardParams.``params = { ``cameraIndexCode: data.indexCode, ``streamType: ``this``.streamType, ``protocol: ``"ws"``, ``transmode: 1, ``expand: ``"transcode=0"``, ``streamform: ``"ps"``, ``}; ``getHik(``this``.forwardParams).then((res) => { ``const jsonStr = res.data; ``const data = JSON.parse(jsonStr); ``console.log(``"视频流"``, data.data.url); ``const url = data.data.url; ``this``.urls.realplay = url; ``this``.realplay(); ``// 预览视频方法 ``}); ``} ``}, |

云台控制

|-------------------------------------------------|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 | // 云台操作 ``controlling(command) { ``this``.forwardParams.requestMethod = ``"post"``; ``this``.forwardParams.url = ``process.env.VUE_APP_BASE_URL + ``"/api/video/v1/ptzs/controlling"``; ``this``.forwardParams.paramType = ``"body"``; ``this``.forwardParams.``params = { ``cameraIndexCode: ``this``.cameraIndexCode, ``action: 0, ``command: command, ``presetIndex: 20, ``}; ``getHik(``this``.forwardParams).then((res) => { ``const jsonStr = res.data; ``const data = JSON.parse(jsonStr); |
