一、表格滚动效果
数据可视化中的动态展示能够有效吸引用户注意力，特别是在监控大屏或排行榜场景中。当数据量较大而显示区域有限时，滚动展示成为一种高效的解决方案。通过平滑的滚动动画，可以让用户在不中断观看的情况下浏览全部数据，提升信息获取效率。本文将介绍如何使用 HTML、CSS 和 JavaScript 实现表格滚动效果。
二、效果演示

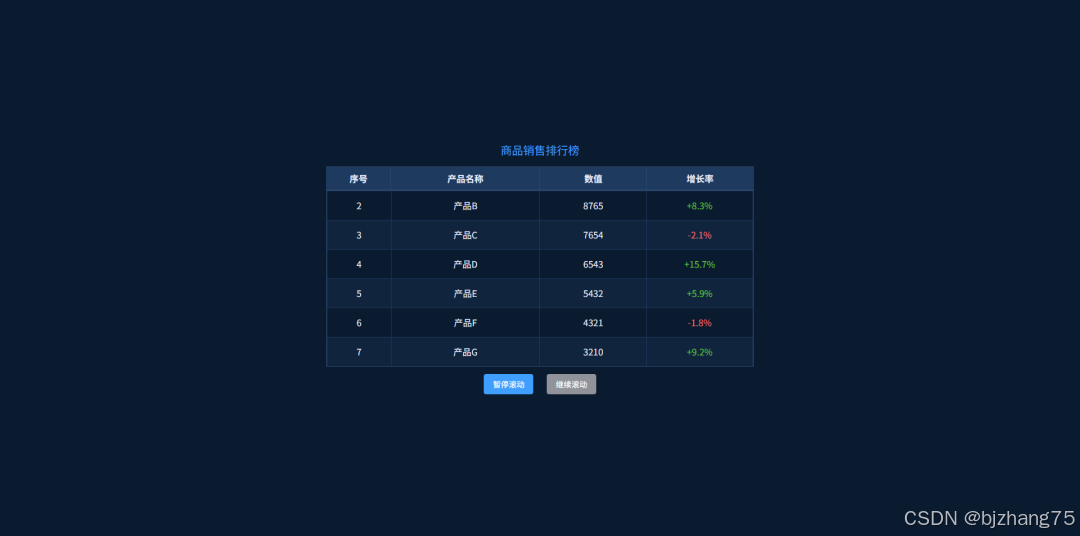

这个表格滚动效果模拟了一个商品销售排行榜的展示界面。页面顶部显示表格标题，下方是带有表头的滚动表格区域。数据行会从底部向上滚动，当一行完全滚出视窗后，其后续行继续滚动。整个滚动过程平滑连续，当所有数据都滚动完成后，会立即回到初始状态。
三、系统分析
1.页面结构
页面主要包括以下几个区域：
1.1 容器区域
包含整个表格组件的外层容器，设置了深色背景和合适的尺寸。
html
<div class="screen-container">
<div class="table-title">商品销售排行榜</div>
<div class="table-wrapper">
<!-- 表格内容 -->
</div>
<div class="control-btn">
<button id="pauseBtn">暂停滚动</button>
<button id="playBtn" disabled>继续滚动</button>
</div>
</div>1.2 表头区域
固定不动的表格头部，包含列标题，不会随数据滚动。
html
<div class="table-header">
<table class="header-table">
<tr>
<th>序号</th>
<th>产品名称</th>
<th>数值</th>
<th>增长率</th>
</tr>
</table>
</div>1.3 滚动表格区域
包含实际数据内容，是滚动效果的主要部分。
html
<div class="scroll-table" id="scrollTable">
<div class="table-content" id="tableContent"></div>
</div>2 核心功能实现
2.1 数据初始化与渲染
首先准备表格数据，并根据容器高度计算最大可见行数。initTable 函数负责初始化表格内容，它复制原始数据以创建循环效果，并计算可显示的最大行数。当数据量少于最大可见行数时，自动禁用滚动功能。
javascript
function initTable() {
renderDataTable([...tableData, ...tableData]);
const availableHeight = scrollTable.clientHeight;
maxVisibleRows = Math.floor(availableHeight / rowHeight);
if (tableData.length <= maxVisibleRows) {
pauseBtn.disabled = true;
playBtn.disabled = true;
pauseBtn.textContent = '数据不足';
return false;
}
return true;
}2.2 动态内容渲染
renderDataTable 函数根据传入的数据动态生成表格 HTML 内容。该函数不仅渲染基本的表格结构，还根据增长率的正负值设置不同的颜色样式，使数据展示更加直观。
javascript
function renderDataTable(data) {
const tableHtml = `<table class="data-table">
${data.map(item => `<tr>
<td>${item.id}</td>
<td>${item.name}</td>
<td>${item.value}</td>
<td style="color: ${item.rate.includes('-') ? '#f56c6c' : '#67c23a'}">${item.rate}</td>
</tr>`).join('')}
</table>`;
tableContent.innerHTML = tableHtml;
} 2.3 滚动动画控制
animateScroll 函数是滚动效果的核心，通过 requestAnimationFrame 实现平滑动画，并在每行到达顶部时设置暂停状态。
javascript
function animateScroll() {
if (!isScrolling) return;
if (scrollState === 'scrolling') {
const distance = targetTop - topValue;
if (Math.abs(distance) <= scrollSpeed) {
topValue = targetTop;
tableContent.style.top = `${topValue}px`;
if (currentRowIndex >= tableData.length) {
topValue = 0;
tableContent.style.top = `${topValue}px`;
currentRowIndex = 0;
renderDataTable([...tableData, ...tableData]);
targetTop = 0;
}
scrollState = 'paused';
pauseTimeoutId = setTimeout(() => {
currentRowIndex++;
targetTop = -currentRowIndex * rowHeight;
scrollState = 'scrolling';
scrollAnimationId = requestAnimationFrame(animateScroll);
}, pauseDuration);
} else {
topValue += distance > 0 ? scrollSpeed : -scrollSpeed;
tableContent.style.top = `${topValue}px`;
scrollAnimationId = requestAnimationFrame(animateScroll);
}
}
}2.4 播放暂停控制
startScroll 和 pauseScroll 函数分别负责启动和暂停滚动，同时处理动画帧和定时器的清理工作，防止内存泄漏。
javascript
function startScroll() {
if (scrollAnimationId) cancelAnimationFrame(scrollAnimationId);
if (pauseTimeoutId) clearTimeout(pauseTimeoutId);
if (tableData.length > maxVisibleRows) {
scrollState = 'scrolling';
scrollAnimationId = requestAnimationFrame(animateScroll);
}
}
javascript
function pauseScroll() {
if (scrollAnimationId) {
cancelAnimationFrame(scrollAnimationId);
scrollAnimationId = null;
}
if (pauseTimeoutId) {
clearTimeout(pauseTimeoutId);
pauseTimeoutId = null;
}
}四、扩展建议
- 支持不同滚动速度配置，满足多样化展示需求
- 增加鼠标悬停暂停功能，提升用户体验
- 实现数据动态更新机制，支持实时数据展示
五、完整代码
git地址：https://gitee.com/ironpro/hjdemo/blob/master/table-moveup/index.html
html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>表格滚动效果</title>
<style>
body { margin: 0; padding: 0; background-color: #0a1a2f; display: flex; justify-content: center; align-items: center; min-height: 100vh; }
.screen-container { width: 800px; height: 490px; background-color: #0a1a2f; padding: 20px; border-radius: 8px; box-sizing: border-box; overflow: hidden; display: flex; flex-direction: column; }
.table-title { color: #409eff; font-size: 20px; margin-bottom: 15px; text-align: center; flex-shrink: 0; }
.table-wrapper { width: 100%; flex: 1; margin-bottom: 10px; display: flex; flex-direction: column; min-height: 0; }
.table-header { flex-shrink: 0; width: 100%; height: 42px; }
.header-table, .data-table { width: 100%; border-collapse: collapse; color: #e5eaf5; font-size: 16px; table-layout: fixed; }
.header-table th, .data-table td { padding: 0 10px; text-align: center; box-sizing: border-box; white-space: nowrap; overflow: hidden; text-overflow: ellipsis; }
.header-table th:nth-child(1), .data-table td:nth-child(1) { width: 15%; }
.header-table th:nth-child(2), .data-table td:nth-child(2) { width: 35%; }
.header-table th:nth-child(3), .data-table td:nth-child(3) { width: 25%; }
.header-table th:nth-child(4), .data-table td:nth-child(4) { width: 25%; }
.header-table th { background-color: #1e3a5f; height: 40px; line-height: 40px; border: 1px solid #2d496e; box-sizing: border-box; }
.scroll-table { width: 100%; flex: 1; overflow: hidden; position: relative; border: 1px solid #2d496e; box-sizing: border-box; min-height: 0; }
.table-content { position: absolute; top: 0; left: 0; width: 100%; }
.data-table tr { height: 52px; line-height: 50px; box-sizing: border-box; }
.data-table td { border: 1px solid #1e3a5f; box-sizing: border-box; height: 50px; vertical-align: middle; }
.data-table tr:nth-child(odd) { background-color: rgba(30, 58, 95, 0.3); }
.data-table tr:hover { background-color: rgba(64, 158, 255, 0.2); }
.control-btn { text-align: center; height: 40px; line-height: 40px; }
button { padding: 8px 16px; margin: 0 10px; background-color: #409eff; color: white; border: none; border-radius: 4px; cursor: pointer; font-size: 14px; }
button:hover { background-color: #66b1ff; }
button:disabled { background-color: #909399; cursor: not-allowed; }
</style>
</head>
<body>
<div class="screen-container">
<div class="table-title">商品销售排行榜</div>
<div class="table-wrapper">
<div class="table-header">
<table class="header-table">
<tr>
<th>序号</th>
<th>产品名称</th>
<th>数值</th>
<th>增长率</th>
</tr>
</table>
</div>
<div class="scroll-table" id="scrollTable">
<div class="table-content" id="tableContent"></div>
</div>
</div>
<div class="control-btn">
<button id="pauseBtn">暂停滚动</button>
<button id="playBtn" disabled>继续滚动</button>
</div>
</div>
<script>
const tableData = [
{ id: 1, name: '产品A', value: '9876', rate: '+12.5%' },
{ id: 2, name: '产品B', value: '8765', rate: '+8.3%' },
{ id: 3, name: '产品C', value: '7654', rate: '-2.1%' },
{ id: 4, name: '产品D', value: '6543', rate: '+15.7%' },
{ id: 5, name: '产品E', value: '5432', rate: '+5.9%' },
{ id: 6, name: '产品F', value: '4321', rate: '-1.8%' },
{ id: 7, name: '产品G', value: '3210', rate: '+9.2%' },
{ id: 8, name: '产品H', value: '2109', rate: '+7.4%' }
];
const tableContent = document.getElementById('tableContent');
const scrollTable = document.getElementById('scrollTable');
const pauseBtn = document.getElementById('pauseBtn');
const playBtn = document.getElementById('playBtn');
let scrollAnimationId = null;
let pauseTimeoutId = null;
let isScrolling = true;
const rowHeight = 52;
let topValue = 0;
let targetTop = 0;
let currentRowIndex = 0;
let scrollSpeed = 2;
let pauseDuration = 1500;
let maxVisibleRows = 0;
let scrollState = 'scrolling';
function initTable() {
renderDataTable([...tableData, ...tableData]);
const availableHeight = scrollTable.clientHeight;
maxVisibleRows = Math.floor(availableHeight / rowHeight);
if (tableData.length <= maxVisibleRows) {
pauseBtn.disabled = true;
playBtn.disabled = true;
pauseBtn.textContent = '数据不足';
return false;
}
return true;
}
function renderDataTable(data) {
const tableHtml = `<table class="data-table">
${data.map(item => `<tr> <td>${item.id}</td> <td>${item.name}</td> <td>${item.value}</td> <td style="color: ${item.rate.includes('-') ? '#f56c6c' : '#67c23a'}">${item.rate}</td> </tr>`).join('')}
</table>`;
tableContent.innerHTML = tableHtml;
}
function animateScroll() {
if (!isScrolling) return;
if (scrollState === 'scrolling') {
const distance = targetTop - topValue;
if (Math.abs(distance) <= scrollSpeed) {
topValue = targetTop;
tableContent.style.top = `${topValue}px`;
if (currentRowIndex >= tableData.length) {
topValue = 0;
tableContent.style.top = `${topValue}px`;
currentRowIndex = 0;
renderDataTable([...tableData, ...tableData]);
targetTop = 0;
}
scrollState = 'paused';
pauseTimeoutId = setTimeout(() => {
currentRowIndex++;
targetTop = -currentRowIndex * rowHeight;
scrollState = 'scrolling';
scrollAnimationId = requestAnimationFrame(animateScroll);
}, pauseDuration);
} else {
topValue += distance > 0 ? scrollSpeed : -scrollSpeed;
tableContent.style.top = `${topValue}px`;
scrollAnimationId = requestAnimationFrame(animateScroll);
}
}
}
function startScroll() {
if (scrollAnimationId) cancelAnimationFrame(scrollAnimationId);
if (pauseTimeoutId) clearTimeout(pauseTimeoutId);
if (tableData.length > maxVisibleRows) {
scrollState = 'scrolling';
scrollAnimationId = requestAnimationFrame(animateScroll);
}
}
function pauseScroll() {
if (scrollAnimationId) {
cancelAnimationFrame(scrollAnimationId);
scrollAnimationId = null;
}
if (pauseTimeoutId) {
clearTimeout(pauseTimeoutId);
pauseTimeoutId = null;
}
}
pauseBtn.addEventListener('click', () => {
if (isScrolling) {
pauseScroll();
isScrolling = false;
pauseBtn.disabled = true;
playBtn.disabled = false;
pauseBtn.textContent = '已暂停';
}
});
playBtn.addEventListener('click', () => {
if (!isScrolling && tableData.length > maxVisibleRows) {
isScrolling = true;
startScroll();
pauseBtn.disabled = false;
playBtn.disabled = true;
pauseBtn.textContent = '暂停滚动';
}
});
const isInitable = initTable();
if (isInitable) {
startScroll();
}
window.addEventListener('beforeunload', () => {
if (scrollAnimationId) {
cancelAnimationFrame(scrollAnimationId);
}
if (pauseTimeoutId) {
clearTimeout(pauseTimeoutId);
}
});
</script>
</body>
</html>
