这一节主要了解一下Compose中使用视频录制功能，在应用开发过程中，经常会用到这个视频录制及播放功能，其中主要用到是Android camera相关的依赖库。简单总结:

添加依赖

Kotlin 复制代码
android {
    compileSdk = 35
    defaultConfig {
        minSdk = 24
        targetSdk = 35
    }
    compileOptions {
        sourceCompatibility = JavaVersion.VERSION_1_8
        targetCompatibility = JavaVersion.VERSION_1_8
    }
    kotlinOptions {
        jvmTarget = "1.8"
    }
}

dependencies {
    implementation("androidx.camera:camera-core:1.3.0")
    implementation("androidx.camera:camera-camera2:1.3.0")
    implementation("androidx.camera:camera-lifecycle:1.3.0")
    implementation("androidx.camera:camera-view:1.3.0")
    implementation("androidx.camera:camera-video:1.3.0")

    implementation("com.google.accompanist:accompanist-permissions:0.34.0")

    implementation("androidx.compose.ui:ui:1.6.8")
    implementation("androidx.compose.material3:material3:1.2.1")
    implementation("androidx.activity:activity-compose:1.8.2")
}

添加权限

Kotlin 复制代码
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" android:maxSdkVersion="32" />
<uses-permission android:name="android.permission.READ_MEDIA_VIDEO" />
<uses-permission android:name="android.permission.READ_MEDIA_AUDIO" />

<uses-feature android:name="android.hardware.camera.any" />
<uses-feature android:name="android.hardware.microphone" android:required="true" />

视频录制:

Kotlin 复制代码
import android.content.ContentValues
import android.net.Uri
import android.os.Build
import android.provider.MediaStore
import androidx.camera.core.CameraSelector
import androidx.camera.core.Preview
import androidx.camera.lifecycle.ProcessCameraProvider
import androidx.camera.view.PreviewView
import androidx.camera.video.*
import androidx.camera.video.VideoCapture
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Button
import androidx.compose.material3.Text
import androidx.compose.runtime.*
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.platform.LocalLifecycleOwner
import androidx.compose.ui.unit.dp
import androidx.compose.ui.viewinterop.AndroidView
import androidx.core.content.ContextCompat
import androidx.core.content.PermissionChecker
import com.google.accompanist.permissions.ExperimentalPermissionsApi
import com.google.accompanist.permissions.isGranted
import com.google.accompanist.permissions.rememberMultiplePermissionsState
import java.text.SimpleDateFormat
import java.util.Locale
import java.util.concurrent.ExecutorService
import java.util.concurrent.Executors

@OptIn(ExperimentalPermissionsApi::class)
@Composable
fun VideoRecorderScreen() {
    val context = LocalContext.current
    val lifecycleOwner = LocalLifecycleOwner.current

    val permissions = if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
        listOf(
            android.Manifest.permission.CAMERA,
            android.Manifest.permission.RECORD_AUDIO,
            android.Manifest.permission.READ_MEDIA_VIDEO
        )
    } else {
        listOf(
            android.Manifest.permission.CAMERA,
            android.Manifest.permission.RECORD_AUDIO,
            android.Manifest.permission.WRITE_EXTERNAL_STORAGE
        )
    }

    val permissionState = rememberMultiplePermissionsState(permissions)
    var hasPermissions by remember { mutableStateOf(false) }

    var isRecording by remember { mutableStateOf(false) }
    var recordedVideoUri by remember { mutableStateOf<Uri?>(null) }

    val cameraProviderFuture = remember { ProcessCameraProvider.getInstance(context) }
    var videoCapture: VideoCapture<Recorder>? by remember { mutableStateOf(null) }
    val cameraExecutor: ExecutorService = remember { Executors.newSingleThreadExecutor() }
    var recording: Recording? by remember { mutableStateOf(null) }
    LaunchedEffect(Unit) {
        permissionState.launchMultiplePermissionRequest()
    }

    LaunchedEffect(permissionState.permissions) {
        hasPermissions = permissionState.permissions.all { it.status.isGranted }
    }

    DisposableEffect(Unit) {
        onDispose {
            cameraExecutor.shutdown()
            recording?.stop()
        }
    }

    if (!hasPermissions) {
        Box(modifier = Modifier.fillMaxSize(), contentAlignment = Alignment.Center) {
            Text("请授予相机、录音和存储权限以录制视频")
        }
        return
    }

    fun startRecording() {
        val videoCapture = videoCapture ?: return

        val name = SimpleDateFormat("yyyyMMdd_HHmmss", Locale.getDefault()).format(System.currentTimeMillis())
        val contentValues = ContentValues().apply {
            put(MediaStore.MediaColumns.DISPLAY_NAME, name)
            put(MediaStore.MediaColumns.MIME_TYPE, "video/mp4")
            if (Build.VERSION.SDK_INT > Build.VERSION_CODES.P) {
                put(MediaStore.Video.Media.RELATIVE_PATH, "Movies/CameraX-Video")
            }
        }

        val outputOptions = MediaStoreOutputOptions
            .Builder(context.contentResolver, MediaStore.Video.Media.EXTERNAL_CONTENT_URI)
            .setContentValues(contentValues)
            .build()

        recording = videoCapture.output
            .prepareRecording(context, outputOptions)
            .apply {
                if (PermissionChecker.checkSelfPermission(context, android.Manifest.permission.RECORD_AUDIO) == PermissionChecker.PERMISSION_GRANTED) {
                    withAudioEnabled()
                }
            }
            .start(ContextCompat.getMainExecutor(context)) { recordEvent ->
                when (recordEvent) {
                    is VideoRecordEvent.Start -> {
                        isRecording = true
                        recordedVideoUri = null
                    }
                    is VideoRecordEvent.Finalize -> {
                        isRecording = false
                        if (!recordEvent.hasError()) {
                            recordedVideoUri = recordEvent.outputResults.outputUri
                        }
                    }
                }
            }
    }

    fun stopRecording() {
        recording?.stop()
        recording = null
    }

    Box(modifier = Modifier.fillMaxSize()) {

        AndroidView(
            factory = { ctx ->
                val previewView = PreviewView(ctx).apply {
                    scaleType = PreviewView.ScaleType.FILL_CENTER
                }

                val preview = Preview.Builder().build().apply {
                    setSurfaceProvider(previewView.surfaceProvider)
                }

                val recorder = Recorder.Builder()
                    .setQualitySelector(QualitySelector.from(Quality.HD))
                    .build()
                videoCapture = VideoCapture.withOutput(recorder)

                val cameraProvider = cameraProviderFuture.get()
                try {
                    cameraProvider.unbindAll()
                    cameraProvider.bindToLifecycle(
                        lifecycleOwner,
                        CameraSelector.DEFAULT_BACK_CAMERA,
                        preview,
                        videoCapture
                    )
                } catch (e: Exception) {
                    e.printStackTrace()
                }
                previewView
            },
            modifier = Modifier.fillMaxSize()
        )

        Button(
            onClick = { if (isRecording) stopRecording() else startRecording() },
            modifier = Modifier
                .align(Alignment.BottomCenter)
                .padding(30.dp)
        ) {
            Text(if (isRecording) "停止录制" else "开始录制")
        }

        //录制成功提示
        recordedVideoUri?.let { uri ->
            Text(
                text = "录制成功：$uri",
                modifier = Modifier
                    .align(Alignment.TopCenter)
                    .padding(20.dp)
            )
        }
    }
}

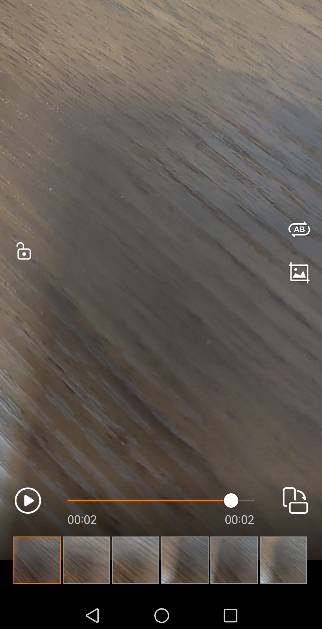

视频录制+时长显示+视频预览:

Kotlin 复制代码
import android.content.ContentValues
import android.content.Intent
import android.net.Uri
import android.os.Build
import android.provider.MediaStore
import android.widget.Toast
import androidx.camera.core.CameraSelector
import androidx.camera.core.Preview
import androidx.camera.lifecycle.ProcessCameraProvider
import androidx.camera.view.PreviewView
import androidx.camera.video.*
import androidx.camera.video.VideoCapture
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Button
import androidx.compose.material3.Text
import androidx.compose.runtime.*
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.platform.LocalLifecycleOwner
import androidx.compose.ui.unit.dp
import androidx.compose.ui.viewinterop.AndroidView
import androidx.core.content.ContextCompat
import androidx.core.content.PermissionChecker
import com.google.accompanist.permissions.ExperimentalPermissionsApi
import com.google.accompanist.permissions.isGranted
import com.google.accompanist.permissions.rememberMultiplePermissionsState
import kotlinx.coroutines.delay
import java.text.SimpleDateFormat
import java.util.Locale
import java.util.concurrent.ExecutorService
import java.util.concurrent.Executors

@OptIn(ExperimentalPermissionsApi::class)
@Composable
fun VideoRecorderScreenDemo() {
    val context = LocalContext.current
    val lifecycleOwner = LocalLifecycleOwner.current

    val permissions = if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
        listOf(
            android.Manifest.permission.CAMERA,
            android.Manifest.permission.RECORD_AUDIO,
            android.Manifest.permission.READ_MEDIA_VIDEO
        )
    } else {
        listOf(
            android.Manifest.permission.CAMERA,
            android.Manifest.permission.RECORD_AUDIO,
            android.Manifest.permission.WRITE_EXTERNAL_STORAGE
        )
    }

    val permissionState = rememberMultiplePermissionsState(permissions)
    var hasPermissions by remember { mutableStateOf(false) }

    var isRecording by remember { mutableStateOf(false) }
    var recordedVideoUri by remember { mutableStateOf<Uri?>(null) }
    var recordingTime by remember { mutableStateOf(0) }
    var isTimerRunning by remember { mutableStateOf(false) }

    val cameraProviderFuture = remember { ProcessCameraProvider.getInstance(context) }
    var videoCapture: VideoCapture<Recorder>? by remember { mutableStateOf(null) }
    val cameraExecutor: ExecutorService = remember { Executors.newSingleThreadExecutor() }
    var recording: Recording? by remember { mutableStateOf(null) }

    LaunchedEffect(Unit) {
        permissionState.launchMultiplePermissionRequest()
    }

    LaunchedEffect(permissionState.permissions) {
        hasPermissions = permissionState.permissions.all { it.status.isGranted }
    }

    LaunchedEffect(isTimerRunning) {
        if (isTimerRunning) {
            while (isRecording) {
                delay(1000)
                recordingTime++
            }
            isTimerRunning = false
        }
    }

    DisposableEffect(Unit) {
        onDispose {
            cameraExecutor.shutdown()
            recording?.stop()
            isRecording = false
            isTimerRunning = false
        }
    }

    fun formatRecordingTime(seconds: Int): String {
        val min = seconds / 60
        val sec = seconds % 60
        return String.format("%02d:%02d", min, sec)
    }

    fun playRecordedVideo(uri: Uri) {
        val intent = Intent(Intent.ACTION_VIEW).apply {
            setDataAndType(uri, "video/mp4")
            flags = Intent.FLAG_GRANT_READ_URI_PERMISSION
        }
        if (intent.resolveActivity(context.packageManager) != null) {
            context.startActivity(intent)
        } else {
            Toast.makeText(context, "没有找到视频播放器", Toast.LENGTH_SHORT).show()
        }
    }

    fun startRecording() {
        val videoCapture = videoCapture ?: return
        recordingTime = 0
        isRecording = true
        isTimerRunning = true

        val name = SimpleDateFormat("yyyyMMdd_HHmmss", Locale.getDefault()).format(System.currentTimeMillis())
        val contentValues = ContentValues().apply {
            put(MediaStore.MediaColumns.DISPLAY_NAME, name)
            put(MediaStore.MediaColumns.MIME_TYPE, "video/mp4")
            if (Build.VERSION.SDK_INT > Build.VERSION_CODES.P) {
                put(MediaStore.Video.Media.RELATIVE_PATH, "Movies/CameraX-Video")
            }
        }

        val outputOptions = MediaStoreOutputOptions
            .Builder(context.contentResolver, MediaStore.Video.Media.EXTERNAL_CONTENT_URI)
            .setContentValues(contentValues)
            .build()

        recording = videoCapture.output
            .prepareRecording(context, outputOptions)
            .apply {
                if (PermissionChecker.checkSelfPermission(context, android.Manifest.permission.RECORD_AUDIO) == PermissionChecker.PERMISSION_GRANTED) {
                    withAudioEnabled()
                }
            }
            .start(ContextCompat.getMainExecutor(context)) { recordEvent ->
                when (recordEvent) {
                    is VideoRecordEvent.Start -> {
                        isRecording = true
                        recordedVideoUri = null
                    }
                    is VideoRecordEvent.Finalize -> {
                        isRecording = false
                        if (!recordEvent.hasError()) {
                            recordedVideoUri = recordEvent.outputResults.outputUri
                            Toast.makeText(context, "录制成功！", Toast.LENGTH_SHORT).show()
                        } else {
                            Toast.makeText(context, "录制失败：${recordEvent.error}", Toast.LENGTH_SHORT).show()
                        }
                    }
                }
            }
    }

    fun stopRecording() {
        recording?.stop()
        recording = null
        isRecording = false
    }

    if (!hasPermissions) {
        Box(modifier = Modifier.fillMaxSize(), contentAlignment = Alignment.Center) {
            Text("请授予相机、录音和存储权限以录制视频")
        }
        return
    }


    Box(modifier = Modifier.fillMaxSize()) {
        AndroidView(
            factory = { ctx ->
                val previewView = PreviewView(ctx).apply {
                    scaleType = PreviewView.ScaleType.FILL_CENTER
                }

                val preview = Preview.Builder().build().apply {
                    setSurfaceProvider(previewView.surfaceProvider)
                }

                val recorder = Recorder.Builder()
                    .setQualitySelector(QualitySelector.from(Quality.HD))
                    .build()
                videoCapture = VideoCapture.withOutput(recorder)

                val cameraProvider = cameraProviderFuture.get()
                try {
                    cameraProvider.unbindAll()
                    cameraProvider.bindToLifecycle(
                        lifecycleOwner,
                        CameraSelector.DEFAULT_BACK_CAMERA,
                        preview,
                        videoCapture
                    )
                } catch (e: Exception) {
                    e.printStackTrace()
                }
                previewView
            },
            modifier = Modifier.fillMaxSize()
        )


        if (isRecording) {
            Text(
                text = formatRecordingTime(recordingTime),
                modifier = Modifier
                    .align(Alignment.TopCenter)
                    .padding(20.dp),
                color = androidx.compose.ui.graphics.Color.White
            )
        }

        Button(
            onClick = { if (isRecording) stopRecording() else startRecording() },
            modifier = Modifier
                .align(Alignment.BottomStart)
                .padding(30.dp)
        ) {
            Text(if (isRecording) "停止录制" else "开始录制")
        }

        recordedVideoUri?.let { uri ->
            Button(
                onClick = { playRecordedVideo(uri) },
                modifier = Modifier
                    .align(Alignment.BottomEnd)
                    .padding(30.dp)
            ) {
                Text("播放视频")
            }
        }
    }
}
相关推荐
周周不一样4 小时前
Andorid基础笔记2-jar&反射
笔记·pycharm·jar
智者知已应修善业4 小时前
【51单片机单按键切换广告屏】2023-5-17
c++·经验分享·笔记·算法·51单片机
凉、介5 小时前
别再把 PCIe 的 inbound/outbound、iATU 和 eDMA 混为一谈
linux·笔记·学习·嵌入式·pcie
雷工笔记8 小时前
MES / WMS / AGV 交互时序图及生产管理模块界面设计清单
人工智能·笔记
大邳草民8 小时前
Python 中 global 与 nonlocal 的语义与机制
开发语言·笔记·python
landuochong2008 小时前
claude-obsidian 再升级
人工智能·笔记·claudecode
CheerWWW8 小时前
C++学习笔记——线程、计时器、多维数组、排序
c++·笔记·学习
ljt27249606618 小时前
Compose笔记(七十六)--拍照预览
笔记·android jetpack
ZC跨境爬虫9 小时前
dankoe视频笔记：如何培养对自己喜欢之事的痴迷感
人工智能·笔记·搜索引擎
热门推荐
01GitHub 镜像站点02一周AI热点速览（2026.03.31-04.06）：GPT-6曝光、谷歌开源Gemma 4、资本狂飙与模型军备竞赛03基于 Docker 部署 Hermes Agent 并接入飞书机器人的完整指南04OpenClaw 请求超时 llm request timed out 怎么解决？3 种方案实测，附完整排查流程05VMware Workstation Pro 17 虚拟机完整安装教程（2026最新）06CodeBuddy与WorkBuddy深度对比：腾讯两款AI工具差异及实操指南07开发者环境配置：用 Ollama 实现本地大模型部署(附下载慢的解决方案08UV安装并设置国内源09Oh My Codex 快速使用指南10AI Weekly | 2026年4月第二周 · GitHub热门项目与AI发展趋势深度解析
