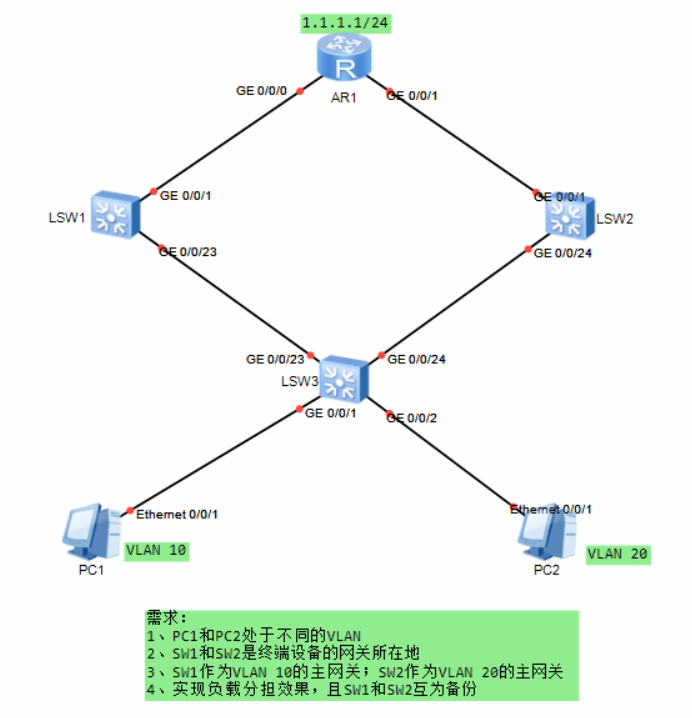

题目：

需求：

1、PC1 和 PC2 处于不同的 VLAN

2、SW1 和 SW2 是终端设备的网关所在地

3、SW1 作为 VLAN 10 的主网关；SW2 作为 VLAN 20 的主网关

4、实现负载分担效果，且 SW1 和 SW2 互为备份

分析

1.LSW1 和 LSW2 是终端设备的网关所在地配置 LSW1、LSW2 为三层交换机，创建 VLANIF 接口作为网关

2利用 VRRP 多组技术实现负载分担，让两台设备同时工作，提高设备利用率。

出口路由器配置静态路由，保证内网与外部路由可达。

4.通过优先级控制 VRRP 主备关系，实现流量分担与冗余备份。

代码

bash 复制代码

//AR1

[Huawei]sysname AR1

[AR1]interface GigabitEthernet 0/0/0
[AR1-GigabitEthernet0/0/0]ip address 10.0.12.1 255.255.255.0
[AR1-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1
[AR1-GigabitEthernet0/0/1]ip address 10.0.12.2 255.255.255.0
Error: The specified address conflicts with another address.
[AR1-GigabitEthernet0/0/1]ip route-static 192.168.10.0 255.255.255.0 10.0.12.10
[AR1]ip route-static 192.168.20.0 255.255.255.0 10.0.12.20

//lsw1
[LSW1]vlan batch 10 20
Info: This operation may take a few seconds. Please wait for a moment...done.
[LSW1]interface GigabitEthernet 0/0/1

[LSW1-GigabitEthernet0/0/1] ip address 10.0.12.10 255.255.255.0
[LSW1]interface GigabitEthernet 0/0/23
[LSW1-GigabitEthernet0/0/23] port link-type trunk
[LSW1-GigabitEthernet0/0/23] port trunk allow-pass vlan 10 20
[LSW1]interface Vlanif 10
[LSW1-Vlanif10] ip address 192.168.10.2 255.255.255.0
[LSW1-Vlanif10] vrrp vrid 1 virtual-ip 192.168.10.1
[LSW1-Vlanif10] vrrp vrid 1 priority 120
[LSW1]interface Vlanif 20
[LSW1-Vlanif20] ip address 192.168.20.2 255.255.255.0
[LSW1-Vlanif20] vrrp vrid 2 virtual-ip 192.168.20.1
[LSW1]ip route-static 0.0.0.0 0.0.0.0 10.0.12.1


//lsw2



<Huawei>system-view

[Huawei]sysname LSW2
[LSW2]vlan batch 10 20

[LSW2]interface GigabitEthernet 0/0/1

[LSW2-GigabitEthernet0/0/1] ip address 10.0.12.20 255.255.255.0
[LSW2]interface GigabitEthernet 0/0/24
[LSW2-GigabitEthernet0/0/24] port link-type trunk
[LSW2-GigabitEthernet0/0/24] port trunk allow-pass vlan 10 20
[LSW2]interface Vlanif 10
[LSW2-Vlanif10] ip address 192.168.10.3 255.255.255.0
[LSW2-Vlanif10] vrrp vrid 1 virtual-ip 192.168.10.1
[LSW2]interface Vlanif 20
[LSW2-Vlanif20] ip address 192.168.20.3 255.255.255.0
[LSW2-Vlanif20] vrrp vrid 2 virtual-ip 192.168.20.1
[LSW2-Vlanif20] vrrp vrid 2 priority 120
[LSW2]ip route-static 0.0.0.0 0.0.0.0 10.0.12.2

//lsw3
[LSW3]interface GigabitEthernet 0/0/1
[LSW3-GigabitEthernet0/0/1] port link-type access
[LSW3-GigabitEthernet0/0/1] port default vlan 10
[LSW3]# PC2  GigabitEthernet 0/0/2
[LSW3]interface GigabitEthernet 0/0/2
[LSW3-GigabitEthernet0/0/2] port link-type access
[LSW3-GigabitEthernet0/0/2] port default vlan 20
[LSW3]interface GigabitEthernet 0/0/23
[LSW3-GigabitEthernet0/0/23] port link-type trunk
[LSW3-GigabitEthernet0/0/23] port trunk allow-pass vlan 10 20
[LSW3]interface GigabitEthernet 0/0/24
[LSW3-GigabitEthernet0/0/24] port link-type trunk
[LSW3-GigabitEthernet0/0/24] port trunk allow-pass vlan 10 20

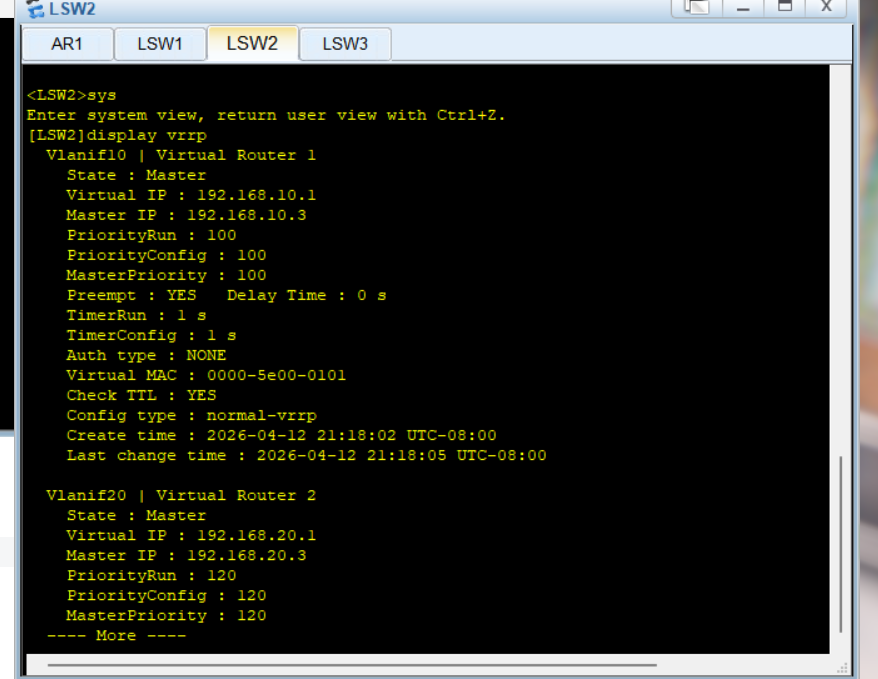

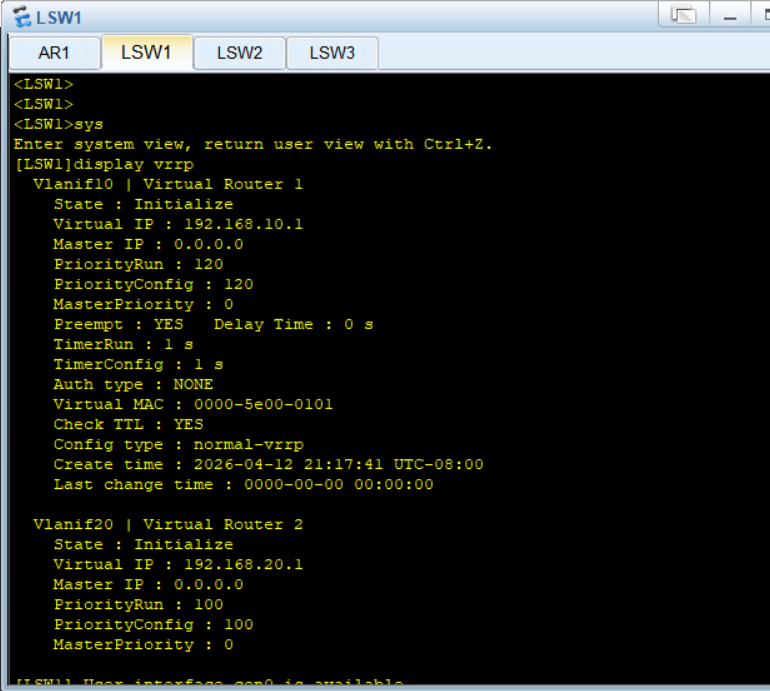

验证

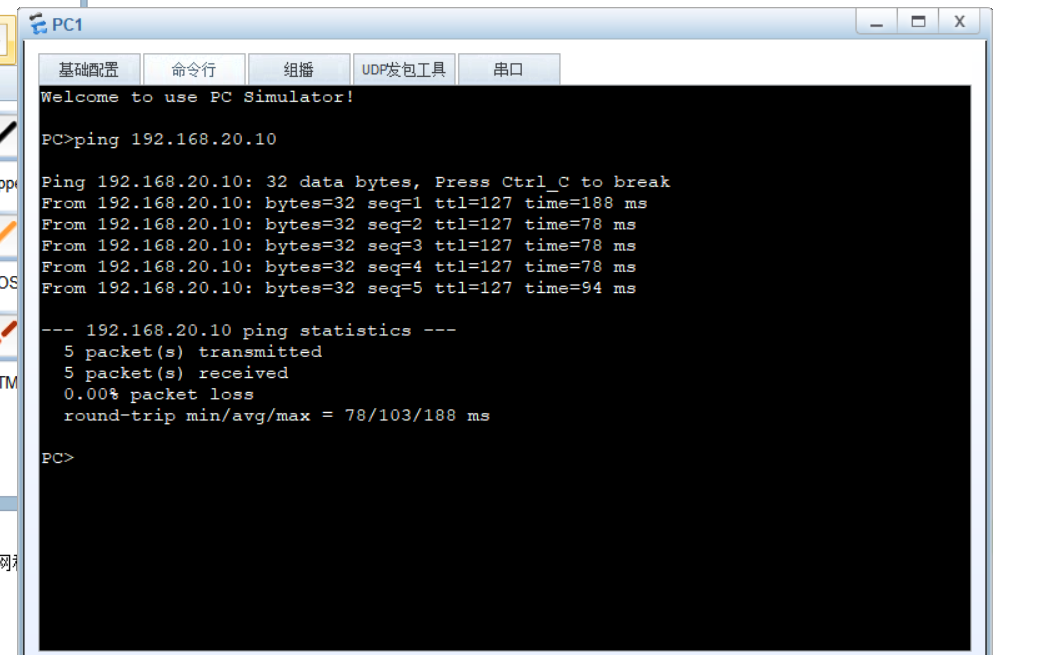

P1 ping P2
