如何实现自定义的虚拟列表

腹黑天蝎座2026-04-17 9:25

从零实现一个虚拟列表，支持固定高度与动态高度两种场景

在大数据列表渲染场景中，虚拟列表是提升性能的利器。本文将从原理到实践，带你手动实现一个支持固定高度和动态高度的虚拟列表组件。

前言

当页面需要展示成千上万条数据时，如果直接全部渲染到 DOM 中，会导致：

  • DOM 节点过多：浏览器渲染压力大，页面卡顿
  • 内存占用高：每个 DOM 节点都占用内存
  • 滚动性能差：大量节点的重排重绘消耗性能

虚拟列表 的核心思想：只渲染可视区域内的元素，通过动态计算和位置定位，实现海量数据的高性能渲染。

核心原理

1. 基本概念

虚拟列表的实现基于以下几个关键点：

scss 复制代码
┌─────────────────────────────────────┐
│          Container (可视区域)        │
│  ┌─────────────────────────────┐    │
│  │     可见列表项 (实际渲染)     │    │
│  │                             │    │
│  │        Item 3               │    │
│  │        Item 4               │    │
│  │        Item 5               │    │
│  │        Item 6               │    │
│  │        Item 7               │    │
│  └─────────────────────────────┘    │
│                                     │
│  ↑ 缓冲区 (预渲染)                   │
│  ↓ 缓冲区 (预渲染)                   │
└─────────────────────────────────────┘
│          Phantom (撑开容器)          │  ← 总高度 = 所有项高度之和
└─────────────────────────────────────┘
  • Container ：固定高度的容器，设置 overflow: auto 实现滚动
  • Phantom：一个占位元素，高度等于所有列表项高度之和，用于撑开滚动条
  • Visible Items：只渲染可视区域 + 缓冲区内的列表项
  • Buffer：上下缓冲区，防止快速滚动时出现白屏

2. 两种场景对比

特性 固定高度 动态高度
位置计算 index * itemHeight，O(1) 复杂度 需要累积计算，O(n) 复杂度
实现难度 简单 较复杂
适用场景 列表项高度一致 列表项高度不一致
性能 极高 较高（需要缓存和测量）

实现方案

核心点一：位置计算

固定高度模式
javascript 复制代码
// 固定高度：直接计算，O(1) 复杂度
function calculatePositions(data, itemHeight) {
  return data.map((_, index) => ({
    top: index * itemHeight,
    height: itemHeight
  }));
}
动态高度模式
javascript 复制代码
// 动态高度：需要累积计算
function calculatePositions(data, heightCache, estimateHeight) {
  const positions = [];
  let currentTop = 0;

  for (let i = 0; i < data.length; i++) {
    // 优先使用已测量的高度，否则使用预估高度
    const height = heightCache.get(i) ?? estimateHeight(data[i], i);

    positions.push({
      top: currentTop,
      height
    });

    currentTop += height;
  }

  return positions;
}

核心点二：二分查找定位可视区域

当列表项数量巨大时，线性查找可视区域的起始和结束索引效率太低。使用二分查找可以将时间复杂度从 O(n) 降到 O(log n)。

javascript 复制代码
/**
 * 二分查找：找到第一个顶部位置 >= scrollTop 的项索引
 * 时间复杂度：O(log n)
 */
function binarySearchFirstVisible(positions, scrollTop) {
  let left = 0;
  let right = positions.length - 1;
  let result = 0;

  while (left <= right) {
    const mid = Math.floor((left + right) / 2);
    const midBottom = positions[mid].top + positions[mid].height;

    if (midBottom <= scrollTop) {
      left = mid + 1;
    } else {
      result = mid;
      right = mid - 1;
    }
  }

  return result;
}

/**
 * 二分查找：找到第一个底部位置 > scrollBottom 的项索引
 */
function binarySearchLastVisible(positions, scrollBottom) {
  let left = 0;
  let right = positions.length - 1;
  let result = positions.length - 1;

  while (left <= right) {
    const mid = Math.floor((left + right) / 2);

    if (positions[mid].top < scrollBottom) {
      left = mid + 1;
    } else {
      result = mid;
      right = mid - 1;
    }
  }

  return result;
}

核心点三：缓冲区机制

快速滚动时，如果只渲染可视区域内的元素，会出现短暂的白屏。缓冲区机制通过预渲染可视区域上下额外的元素来解决这一问题。

javascript 复制代码
/**
 * 计算缓冲区大小
 * 快速滚动时增大缓冲区，减少白屏
 */
function getBufferSize(containerHeight, bufferRatio, isScrolling) {
  // 滚动中时增加缓冲区
  return isScrolling
    ? containerHeight * bufferRatio * 2
    : containerHeight * bufferRatio;
}

/**
 * 获取可视区域的范围（含缓冲区）
 */
function getVisibleRange(positions, scrollTop, containerHeight, bufferSize, overscan) {
  const scrollTopWithBuffer = Math.max(0, scrollTop - bufferSize);
  const scrollBottomWithBuffer = scrollTop + containerHeight + bufferSize;

  // 二分查找可视区域
  let start = binarySearchFirstVisible(positions, scrollTopWithBuffer);
  let end = binarySearchLastVisible(positions, scrollBottomWithBuffer);

  // 添加 overscan 预渲染项
  start = Math.max(0, start - overscan);
  end = Math.min(positions.length - 1, end + overscan);

  return { start, end };
}

核心点四：动态高度测量与缓存

动态高度的难点在于：渲染前无法知道元素的实际高度。解决方案：

  1. 初始预估 ：使用 estimateHeight 函数预估初始高度
  2. 渲染后测量 ：使用 getBoundingClientRect() 测量实际高度
  3. 缓存更新：将测量结果缓存，避免重复测量
  4. 批量更新：所有测量完成后统一更新位置，避免频繁重算
javascript 复制代码
// 渲染可视区域的元素
function render() {
  const { start, end } = getVisibleRange();

  // 记录需要测量高度的元素
  const pendingMeasure = [];

  for (let i = start; i <= end; i++) {
    if (!renderedItems.has(i)) {
      const item = data[i];
      const position = positions[i];

      // 创建并定位元素
      const el = document.createElement('div');
      el.style.position = 'absolute';
      el.style.top = `${position.top}px`;
      el.innerHTML = renderItem(item, i);
      container.appendChild(el);
      renderedItems.set(i, el);

      // 动态高度：记录需要测量的元素
      if (!isFixedHeight && !heightCache.has(i)) {
        pendingMeasure.push({ el, index: i });
      }
    }
  }

  // 批量测量高度，避免频繁更新位置
  if (pendingMeasure.length > 0) {
    requestAnimationFrame(() => {
      let hasUpdate = false;

      pendingMeasure.forEach(({ el, index }) => {
        const actualHeight = el.getBoundingClientRect().height;
        heightCache.set(index, actualHeight);
        hasUpdate = true;
      });

      // 所有高度测量完成后统一更新一次
      if (hasUpdate) {
        updatePositions();
        rerenderVisible();
      }
    });
  }
}

核心点五：滚动优化

滚动事件触发频繁，需要优化性能：

javascript 复制代码
function bindEvents() {
  let rafId = null;
  let scrollTimer = null;

  container.addEventListener('scroll', (e) => {
    scrollTop = e.target.scrollTop;

    // 快速滑动检测
    isScrolling = true;

    if (scrollTimer) {
      clearTimeout(scrollTimer);
    }

    // 滚动停止后 150ms 重置状态
    scrollTimer = setTimeout(() => {
      isScrolling = false;
    }, 150);

    // 使用 requestAnimationFrame 优化渲染
    if (rafId) {
      cancelAnimationFrame(rafId);
    }

    rafId = requestAnimationFrame(() => {
      render();
    });
  });
}

效果演示

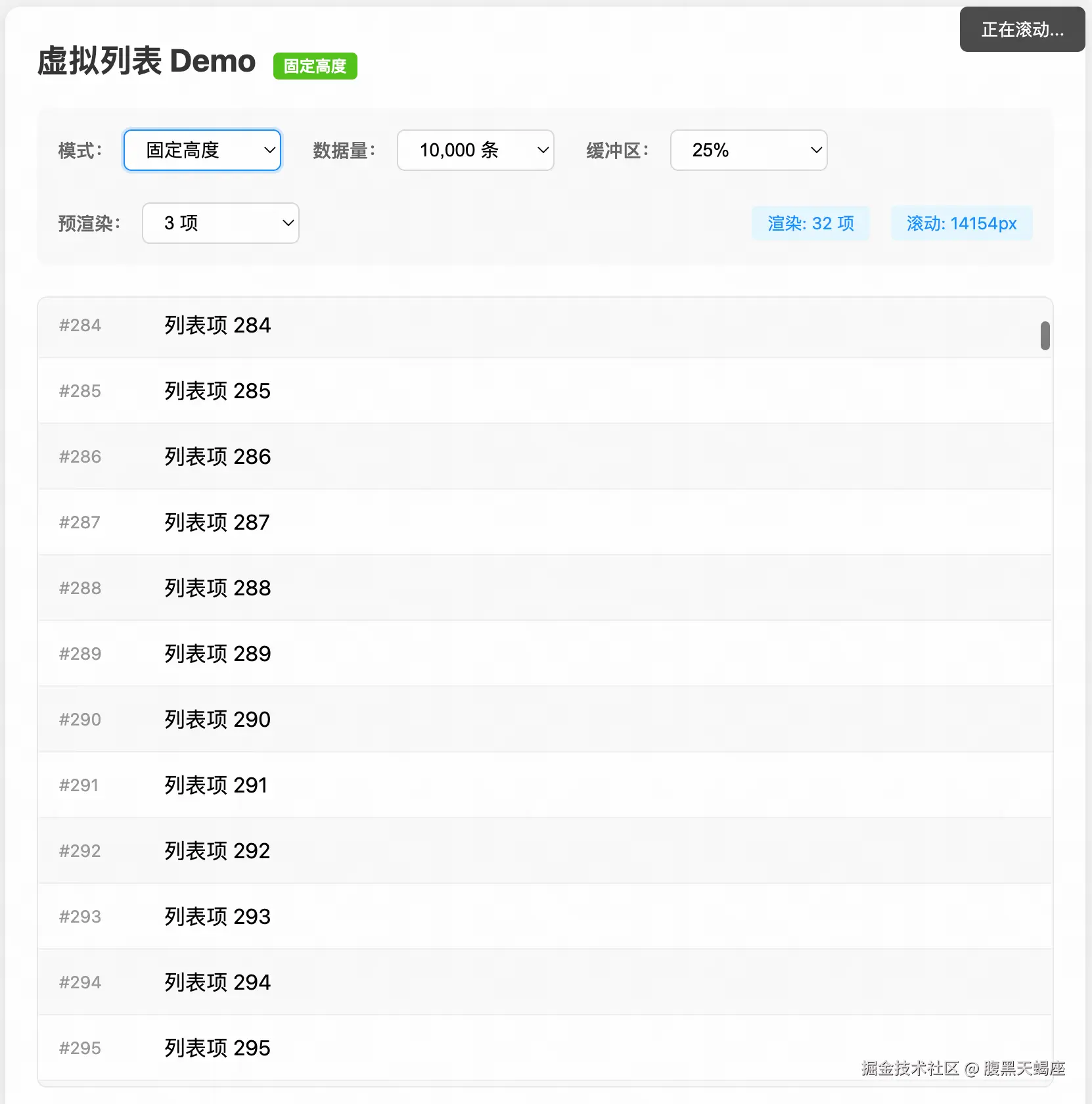

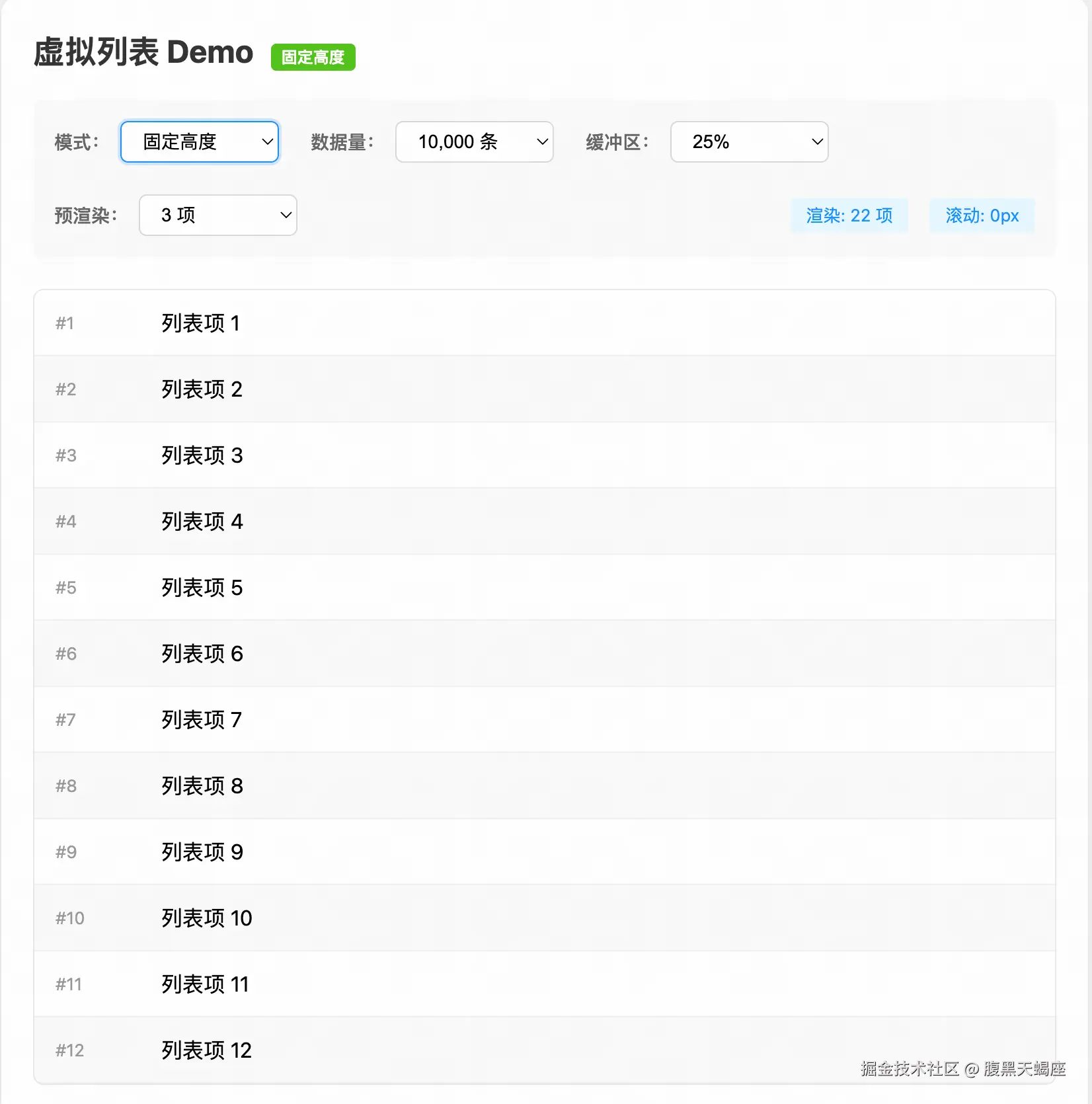

固定高度模式

每项高度固定为 50px，列表滚动流畅，渲染项数稳定。切换到固定高度模式后，可以看到所有列表项高度一致，适合用于简单列表场景。

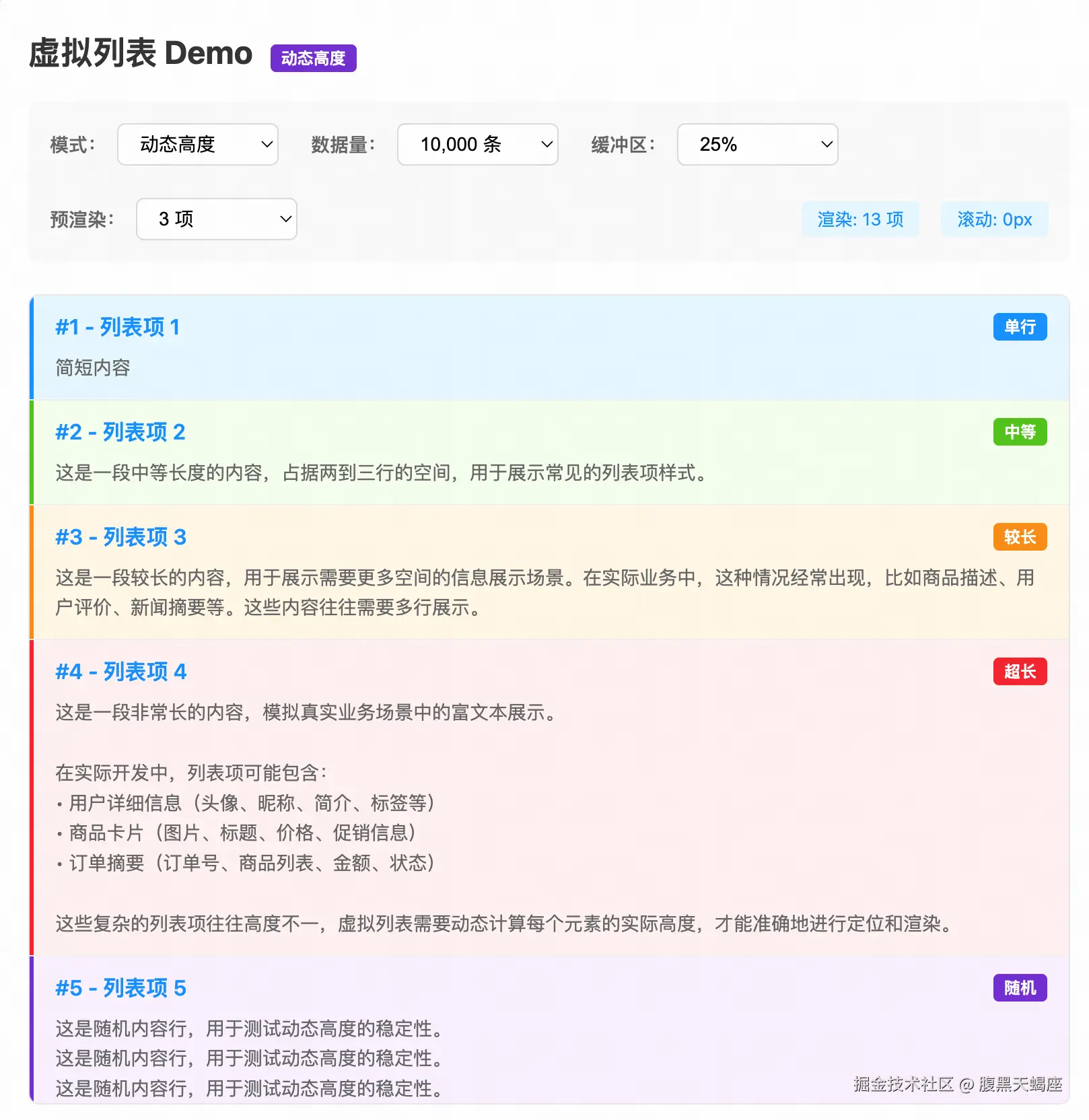

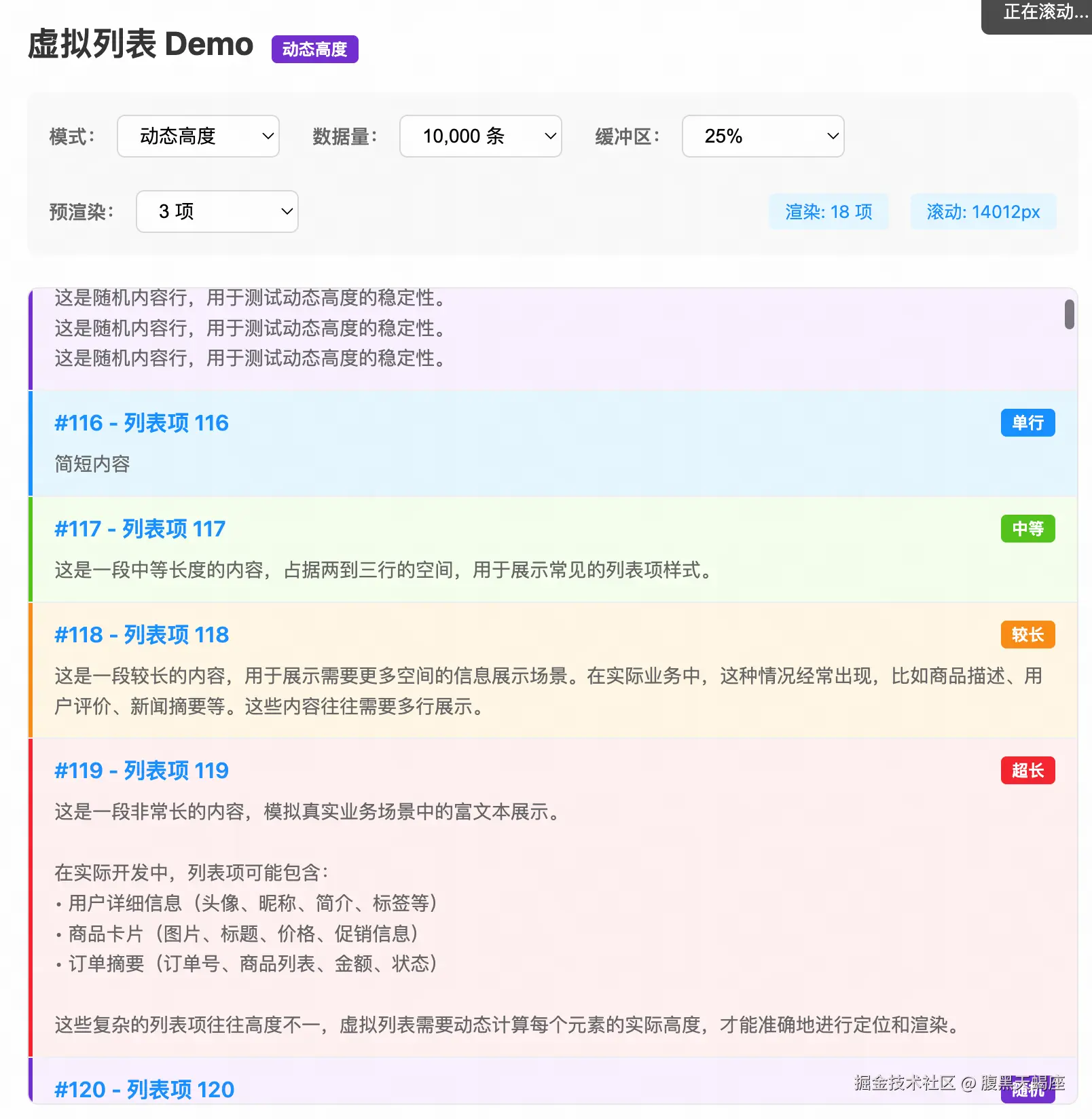

动态高度模式

不同类型的内容高度不同，通过颜色标签区分：

  • 🔵 蓝色（单行）：约 45px，简短内容
  • 🟢 绿色（中等）：约 85px，2-3 行内容
  • 🟠 橙色（较长）：约 155px，5-6 行内容
  • 🔴 红色（超长）：约 285px，包含多段内容
  • 🟣 紫色（随机）：约 60-120px，高度随机波动

性能优化总结

优化点 说明 效果
二分查找 定位可视区域 O(log n) 查找效率
缓冲区 上下预渲染 减少快速滚动白屏
高度缓存 避免重复测量 每项只测量一次
批量更新 统一更新位置 减少频繁重算
rAF 节流 requestAnimationFrame 平滑滚动渲染
滚动检测 快速滚动时增大缓冲区 提升用户体验

完整代码

原生 JavaScript 实现（可直接运行）

以下是完整的 HTML 文件，保存后可直接在浏览器中打开运行：

html 复制代码
<!DOCTYPE html>
<html lang="zh-CN">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>虚拟列表 Demo</title>
  <style>
    * { margin: 0; padding: 0; box-sizing: border-box; }
    body {
      font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
      background: #f5f5f5;
      padding: 20px;
    }
    .demo-container {
      max-width: 900px;
      margin: 0 auto;
      background: #fff;
      border-radius: 12px;
      box-shadow: 0 2px 12px rgba(0,0,0,0.1);
      padding: 24px;
    }
    h1 { font-size: 24px; margin-bottom: 20px; color: #333; }
    .control-panel {
      display: flex;
      gap: 24px;
      margin-bottom: 24px;
      padding: 16px;
      background: #fafafa;
      border-radius: 8px;
      flex-wrap: wrap;
      align-items: center;
    }
    .control-group { display: flex; align-items: center; gap: 8px; }
    .control-group label { font-size: 14px; color: #666; font-weight: 500; }
    .control-group select {
      padding: 6px 12px;
      border: 1px solid #d9d9d9;
      border-radius: 6px;
      font-size: 14px;
      background: #fff;
      cursor: pointer;
      min-width: 120px;
    }
    .stats {
      margin-left: auto;
      display: flex;
      gap: 16px;
      font-size: 13px;
      color: #999;
    }
    .stats span {
      padding: 4px 12px;
      background: #e6f7ff;
      border-radius: 4px;
      color: #1890ff;
    }
    .list-wrapper {
      border: 1px solid #e8e8e8;
      border-radius: 8px;
      overflow: hidden;
      margin-bottom: 24px;
    }
    .virtual-list-container {
      height: 600px;
      overflow: auto;
      position: relative;
      background: #fff;
    }
    .virtual-list-phantom { position: relative; }
    .virtual-list-item {
      position: absolute;
      left: 0;
      right: 0;
      border-bottom: 1px solid #f0f0f0;
    }
    .virtual-list-item:hover { background: #f5f5f5; }
    .fixed-item {
      height: 100%;
      padding: 0 16px;
      display: flex;
      align-items: center;
    }
    .fixed-item .index { width: 80px; color: #999; font-size: 13px; }
    .fixed-item .content { flex: 1; }
    .dynamic-item { padding: 12px 16px; }
    .dynamic-item .header {
      font-weight: 600;
      margin-bottom: 8px;
      color: #1890ff;
      display: flex;
      justify-content: space-between;
      align-items: center;
    }
    .dynamic-item .text { color: #666; line-height: 1.6; font-size: 14px; white-space: pre-line; }
    .mode-tag {
      display: inline-block;
      padding: 2px 8px;
      background: #52c41a;
      color: #fff;
      border-radius: 4px;
      font-size: 12px;
      margin-left: 8px;
    }
    .mode-tag.dynamic { background: #722ed1; }
  </style>
</head>
<body>
  <div class="demo-container">
    <h1>虚拟列表 Demo <span class="mode-tag dynamic" id="modeTag">动态高度</span></h1>
    <div class="control-panel">
      <div class="control-group">
        <label>模式：</label>
        <select id="modeSelect">
          <option value="fixed">固定高度</option>
          <option value="dynamic" selected>动态高度</option>
        </select>
      </div>
      <div class="control-group">
        <label>数据量：</label>
        <select id="countSelect">
          <option value="1000">1,000 条</option>
          <option value="10000" selected>10,000 条</option>
          <option value="100000">100,000 条</option>
        </select>
      </div>
      <div class="control-group">
        <label>缓冲区：</label>
        <select id="bufferSelect">
          <option value="0">无缓冲</option>
          <option value="0.25">25%</option>
          <option value="0.5" selected>50%</option>
          <option value="1">100%</option>
        </select>
      </div>
      <div class="stats">
        <span id="renderCount">渲染: 0 项</span>
        <span id="scrollPos">滚动: 0px</span>
      </div>
    </div>
    <div class="list-wrapper">
      <div class="virtual-list-container" id="container">
        <div class="virtual-list-phantom" id="phantom"></div>
      </div>
    </div>
  </div>

  <script>
    // 配置参数
    const CONFIG = {
      containerHeight: 600,
      fixedItemHeight: 50,
      bufferRatio: 0.5,
      overscan: 3,
      mode: 'dynamic',
      itemCount: 10000
    };

    // DOM 元素
    const container = document.getElementById('container');
    const phantom = document.getElementById('phantom');
    const renderCountEl = document.getElementById('renderCount');
    const scrollPosEl = document.getElementById('scrollPos');
    const modeTag = document.getElementById('modeTag');

    // 数据生成
    function generateData(count, mode) {
      const result = [];
      for (let i = 0; i < count; i++) {
        if (mode === 'fixed') {
          result.push({ id: i, text: `列表项 ${i + 1}`, index: i });
        } else {
          const heightType = i % 5;
          let content = '', tag = '';
          switch (heightType) {
            case 0: content = '简短内容'; tag = '单行'; break;
            case 1: content = '这是一段中等长度的内容，占据两到三行的空间。'; tag = '中等'; break;
            case 2: content = '这是一段较长的内容，用于展示需要更多空间的信息展示场景。'; tag = '较长'; break;
            case 3: content = '这是一段非常长的内容，模拟真实业务场景中的富文本展示。\n\n在实际开发中，列表项可能包含各种复杂内容。'; tag = '超长'; break;
            case 4: content = Array(3).fill('这是随机内容行。').join('\n'); tag = '随机'; break;
          }
          result.push({ id: i, text: `列表项 ${i + 1}`, content, tag, heightType, index: i });
        }
      }
      return result;
    }

    // 虚拟列表类
    class VirtualList {
      constructor(options) {
        this.container = options.container;
        this.phantom = options.phantom;
        this.data = options.data || [];
        this.itemHeight = options.itemHeight;
        this.containerHeight = options.containerHeight;
        this.bufferRatio = options.bufferRatio || 0.5;
        this.overscan = options.overscan || 3;
        this.renderItem = options.renderItem;
        this.estimateHeight = options.estimateHeight;
        this.isFixedHeight = this.itemHeight !== undefined;
        this.heightCache = new Map();
        this.positions = [];
        this.scrollTop = 0;
        this.isScrolling = false;
        this.renderedItems = new Map();
        this.init();
      }

      init() {
        this.updatePositions();
        this.render();
        this.bindEvents();
      }

      updatePositions() {
        this.positions = [];
        let currentTop = 0;
        for (let i = 0; i < this.data.length; i++) {
          let height;
          if (this.isFixedHeight) {
            height = this.itemHeight;
          } else {
            height = this.heightCache.get(i) ?? (this.estimateHeight?.(this.data[i], i) ?? 50);
          }
          this.positions.push({ top: currentTop, height });
          currentTop += height;
        }
        this.totalHeight = currentTop;
        this.phantom.style.height = `${this.totalHeight}px`;
      }

      binarySearchStart(scrollTop) {
        let left = 0, right = this.positions.length - 1, result = 0;
        while (left <= right) {
          const mid = Math.floor((left + right) / 2);
          const midBottom = this.positions[mid].top + this.positions[mid].height;
          if (midBottom <= scrollTop) { left = mid + 1; }
          else { result = mid; right = mid - 1; }
        }
        return result;
      }

      binarySearchEnd(scrollBottom) {
        let left = 0, right = this.positions.length - 1, result = this.positions.length - 1;
        while (left <= right) {
          const mid = Math.floor((left + right) / 2);
          if (this.positions[mid].top < scrollBottom) { left = mid + 1; }
          else { result = mid; right = mid - 1; }
        }
        return result;
      }

      getBufferSize() {
        return this.isScrolling ? this.containerHeight * this.bufferRatio * 2 : this.containerHeight * this.bufferRatio;
      }

      getVisibleRange() {
        if (this.positions.length === 0) return { start: 0, end: 0 };
        const bufferSize = this.getBufferSize();
        const scrollTopWithBuffer = Math.max(0, this.scrollTop - bufferSize);
        const scrollBottomWithBuffer = this.scrollTop + this.containerHeight + bufferSize;
        let start = this.binarySearchStart(scrollTopWithBuffer);
        let end = this.binarySearchEnd(scrollBottomWithBuffer);
        start = Math.max(0, start - this.overscan);
        end = Math.min(this.positions.length - 1, end + this.overscan);
        return { start, end };
      }

      render() {
        const { start, end } = this.getVisibleRange();
        this.renderedItems.forEach((el, index) => {
          if (index < start || index > end) { el.remove(); this.renderedItems.delete(index); }
        });
        const pendingMeasure = [];
        for (let i = start; i <= end; i++) {
          if (!this.renderedItems.has(i)) {
            const item = this.data[i];
            const position = this.positions[i];
            const el = document.createElement('div');
            el.className = 'virtual-list-item';
            el.style.cssText = `position: absolute; top: ${position.top}px; left: 0; right: 0;`;
            if (this.isFixedHeight) el.style.height = `${this.itemHeight}px`;
            el.innerHTML = this.renderItem(item, i, this.isFixedHeight);
            this.phantom.appendChild(el);
            this.renderedItems.set(i, el);
            if (!this.isFixedHeight && !this.heightCache.has(i)) pendingMeasure.push({ el, index: i });
          }
        }
        if (pendingMeasure.length > 0) {
          requestAnimationFrame(() => {
            let hasUpdate = false;
            pendingMeasure.forEach(({ el, index }) => {
              if (this.renderedItems.has(index)) {
                this.heightCache.set(index, el.getBoundingClientRect().height);
                hasUpdate = true;
              }
            });
            if (hasUpdate) { this.updatePositions(); this.rerenderVisible(); }
          });
        }
        renderCountEl.textContent = `渲染: ${end - start + 1} 项`;
      }

      rerenderVisible() {
        this.renderedItems.forEach((el, index) => {
          const position = this.positions[index];
          if (position) el.style.top = `${position.top}px`;
        });
      }

      bindEvents() {
        let rafId = null, scrollTimer = null;
        this.container.addEventListener('scroll', (e) => {
          this.scrollTop = e.target.scrollTop;
          scrollPosEl.textContent = `滚动: ${Math.round(this.scrollTop)}px`;
          this.isScrolling = true;
          if (scrollTimer) clearTimeout(scrollTimer);
          scrollTimer = setTimeout(() => { this.isScrolling = false; }, 150);
          if (rafId) cancelAnimationFrame(rafId);
          rafId = requestAnimationFrame(() => this.render());
        });
      }

      setData(data) {
        this.data = data;
        this.heightCache.clear();
        this.renderedItems.forEach(el => el.remove());
        this.renderedItems.clear();
        this.scrollTop = 0;
        this.container.scrollTop = 0;
        this.updatePositions();
        this.render();
      }

      updateConfig(options) {
        if ('itemHeight' in options) {
          this.itemHeight = options.itemHeight;
          this.isFixedHeight = options.itemHeight !== undefined && options.itemHeight !== null;
        }
        if ('estimateHeight' in options) this.estimateHeight = options.estimateHeight;
        if (options.bufferRatio !== undefined) this.bufferRatio = options.bufferRatio;
        if (options.overscan !== undefined) this.overscan = options.overscan;
        this.heightCache.clear();
        this.renderedItems.forEach(el => el.remove());
        this.renderedItems.clear();
        this.scrollTop = 0;
        this.container.scrollTop = 0;
        this.updatePositions();
      }
    }

    // 渲染函数
    function renderItem(item, index, isFixed) {
      if (isFixed) {
        const bgColor = index % 2 === 0 ? '#fff' : '#fafafa';
        return `<div class="fixed-item" style="background: ${bgColor}"><span class="index">#${index + 1}</span><span class="content">${item.text}</span></div>`;
      } else {
        const colors = {
          0: { bg: '#e6f7ff', border: '#1890ff', tag: '#1890ff' },
          1: { bg: '#f6ffed', border: '#52c41a', tag: '#52c41a' },
          2: { bg: '#fff7e6', border: '#fa8c16', tag: '#fa8c16' },
          3: { bg: '#fff1f0', border: '#f5222d', tag: '#f5222d' },
          4: { bg: '#f9f0ff', border: '#722ed1', tag: '#722ed1' },
        };
        const c = colors[item.heightType] || colors[0];
        return `<div class="dynamic-item" style="background: ${c.bg}; border-left: 3px solid ${c.border};"><div class="header"><span>#${index + 1} - ${item.text}</span><span style="background: ${c.tag}; color: #fff; padding: 2px 8px; border-radius: 4px; font-size: 12px;">${item.tag}</span></div><div class="text">${item.content}</div></div>`;
      }
    }

    function estimateHeight(item) {
      return { 0: 45, 1: 85, 2: 155, 3: 285, 4: 100 }[item.heightType] || 60;
    }

    // 初始化
    let data = generateData(CONFIG.itemCount, CONFIG.mode);
    const virtualList = new VirtualList({
      container, phantom, data,
      itemHeight: CONFIG.mode === 'fixed' ? CONFIG.fixedItemHeight : undefined,
      containerHeight: CONFIG.containerHeight,
      bufferRatio: CONFIG.bufferRatio,
      overscan: CONFIG.overscan,
      renderItem,
      estimateHeight: CONFIG.mode === 'dynamic' ? estimateHeight : undefined
    });

    // 事件绑定
    document.getElementById('modeSelect').addEventListener('change', (e) => {
      CONFIG.mode = e.target.value;
      modeTag.textContent = CONFIG.mode === 'fixed' ? '固定高度' : '动态高度';
      modeTag.className = `mode-tag ${CONFIG.mode === 'dynamic' ? 'dynamic' : ''}`;
      virtualList.updateConfig({
        itemHeight: CONFIG.mode === 'fixed' ? CONFIG.fixedItemHeight : undefined,
        estimateHeight: CONFIG.mode === 'dynamic' ? estimateHeight : undefined
      });
      data = generateData(CONFIG.itemCount, CONFIG.mode);
      virtualList.setData(data);
    });

    document.getElementById('countSelect').addEventListener('change', (e) => {
      CONFIG.itemCount = parseInt(e.target.value);
      data = generateData(CONFIG.itemCount, CONFIG.mode);
      virtualList.setData(data);
    });

    document.getElementById('bufferSelect').addEventListener('change', (e) => {
      CONFIG.bufferRatio = parseFloat(e.target.value);
      virtualList.updateConfig({ bufferRatio: CONFIG.bufferRatio });
    });
  </script>
</body>
</html>

React 版本实现

React 版本使用 Hooks 实现，支持 TypeScript 类型，完全参照原生 JavaScript 版本的实现逻辑：

typescript 复制代码
/**
 * 虚拟列表完整实现 - React 版本
 * 支持固定高度和动态高度两种模式
 */

import React, { useRef, useState, useEffect, useCallback, useMemo } from 'react';

// ============================================
// 类型定义
// ============================================

interface VirtualListProps<T> {
  data: T[];
  renderItem: (item: T, index: number) => React.ReactNode;
  keyExtractor: (item: T, index: number) => string | number;
  containerHeight: number;
  itemHeight?: number;  // 固定高度模式：传入此项则使用固定高度
  estimateItemHeight?: (item: T, index: number) => number;  // 动态高度预估函数
  bufferRatio?: number;
  overscan?: number;
}

// ============================================
// 二分查找函数：O(log n) 定位可视区域
// ============================================

function binarySearchStart(
  positions: { top: number; height: number }[],
  scrollTop: number
): number {
  let left = 0;
  let right = positions.length - 1;
  let result = 0;

  while (left <= right) {
    const mid = Math.floor((left + right) / 2);
    const midBottom = positions[mid].top + positions[mid].height;

    if (midBottom <= scrollTop) {
      left = mid + 1;
    } else {
      result = mid;
      right = mid - 1;
    }
  }

  return result;
}

function binarySearchEnd(
  positions: { top: number; height: number }[],
  scrollBottom: number
): number {
  let left = 0;
  let right = positions.length - 1;
  let result = positions.length - 1;

  while (left <= right) {
    const mid = Math.floor((left + right) / 2);

    if (positions[mid].top < scrollBottom) {
      left = mid + 1;
    } else {
      result = mid;
      right = mid - 1;
    }
  }

  return result;
}

// ============================================
// 核心组件：虚拟列表
// ============================================

function VirtualList<T>({
  data,
  renderItem,
  keyExtractor,
  containerHeight,
  itemHeight,
  estimateItemHeight,
  bufferRatio = 0.5,
  overscan = 3,
}: VirtualListProps<T>) {
  // 判断是否固定高度模式
  const isFixedHeight = itemHeight !== undefined;

  // Refs：使用 ref 存储可变值，避免频繁触发重渲染
  const containerRef = useRef<HTMLDivElement>(null);
  const phantomRef = useRef<HTMLDivElement>(null);
  const itemsRef = useRef<Map<number, HTMLDivElement>>(new Map());
  const heightCacheRef = useRef<Map<number, number>>(new Map());
  const positionsRef = useRef<{ top: number; height: number }[]>([]);
  const scrollTopRef = useRef(0);
  const isScrollingRef = useRef(false);
  const scrollTimerRef = useRef<ReturnType<typeof setTimeout>>();

  // 状态
  const [, forceUpdate] = useState(0);
  const [isScrolling, setIsScrolling] = useState(false);

  // ============================================
  // 核心点1：计算所有项的位置信息
  // ============================================
  const updatePositions = useCallback(() => {
    const positions: { top: number; height: number }[] = [];
    let currentTop = 0;

    for (let i = 0; i < data.length; i++) {
      let height: number;

      if (isFixedHeight) {
        height = itemHeight!;
      } else {
        if (heightCacheRef.current.has(i)) {
          height = heightCacheRef.current.get(i)!;
        } else if (estimateItemHeight) {
          height = estimateItemHeight(data[i], i);
        } else {
          height = 50;
        }
      }

      positions.push({
        top: currentTop,
        height,
      });

      currentTop += height;
    }

    positionsRef.current = positions;

    // 更新 phantom 高度
    if (phantomRef.current) {
      phantomRef.current.style.height = `${currentTop}px`;
    }
  }, [data, isFixedHeight, itemHeight, estimateItemHeight]);

  // ============================================
  // 核心点2：计算缓冲区大小
  // ============================================
  const getBufferSize = useCallback(() => {
    // 快速滚动时增大缓冲区，减少白屏
    return isScrolling
      ? containerHeight * bufferRatio * 2
      : containerHeight * bufferRatio;
  }, [containerHeight, bufferRatio, isScrolling]);

  // ============================================
  // 核心点3：获取可视区域的项目（二分查找）
  // ============================================
  const getVisibleRange = useCallback(() => {
    const positions = positionsRef.current;
    if (positions.length === 0) {
      const defaultEnd = Math.min(20, data.length - 1);
      return { start: 0, end: Math.max(0, defaultEnd) };
    }

    const bufferSize = getBufferSize();
    const scrollTop = scrollTopRef.current;
    const scrollTopWithBuffer = Math.max(0, scrollTop - bufferSize);
    const scrollBottomWithBuffer = scrollTop + containerHeight + bufferSize;

    // 二分查找可视区域
    let start = binarySearchStart(positions, scrollTopWithBuffer);
    let end = binarySearchEnd(positions, scrollBottomWithBuffer);

    // 添加预渲染项
    start = Math.max(0, start - overscan);
    end = Math.min(positions.length - 1, end + overscan);

    return { start, end };
  }, [containerHeight, getBufferSize, overscan, data.length]);

  // ============================================
  // 核心点4：重新渲染可见区域位置
  // ============================================
  const rerenderVisible = useCallback(() => {
    const positions = positionsRef.current;
    itemsRef.current.forEach((el, index) => {
      const position = positions[index];
      if (position) {
        el.style.top = `${position.top}px`;
      }
    });
  }, []);

  // 初始化和更新
  useEffect(() => {
    updatePositions();
    forceUpdate((prev) => prev + 1);
  }, [updatePositions]);

  // 监听 itemHeight 变化（模式切换）
  const prevItemHeightRef = useRef(itemHeight);
  useEffect(() => {
    // 检测模式切换（固定高度 <-> 动态高度）
    if ((prevItemHeightRef.current === undefined) !== (itemHeight === undefined)) {
      // 模式切换时重置所有状态
      // 注意：不要直接操作 DOM，让 React 自己处理 DOM 的更新
      heightCacheRef.current.clear();
      itemsRef.current.clear();
      scrollTopRef.current = 0;
      if (containerRef.current) {
        containerRef.current.scrollTop = 0;
      }
      updatePositions();
      forceUpdate((prev) => prev + 1);
    }
    prevItemHeightRef.current = itemHeight;
  }, [itemHeight, updatePositions]);

  // ============================================
  // 核心点5：滚动事件处理
  // ============================================
  const handleScroll = useCallback((e: React.UIEvent<HTMLDivElement>) => {
    scrollTopRef.current = e.currentTarget.scrollTop;

    isScrollingRef.current = true;
    setIsScrolling(true);

    if (scrollTimerRef.current) {
      clearTimeout(scrollTimerRef.current);
    }

    // 滚动停止后重置状态
    scrollTimerRef.current = setTimeout(() => {
      isScrollingRef.current = false;
      setIsScrolling(false);
    }, 150);

    forceUpdate((prev) => prev + 1);
  }, []);

  // 清理定时器
  useEffect(() => {
    return () => {
      if (scrollTimerRef.current) {
        clearTimeout(scrollTimerRef.current);
      }
    };
  }, []);

  // 数据变化时重置
  const prevDataLengthRef = useRef(data.length);
  useEffect(() => {
    if (data.length !== prevDataLengthRef.current) {
      heightCacheRef.current.clear();
      itemsRef.current.clear();
      scrollTopRef.current = 0;
      prevDataLengthRef.current = data.length;
      if (containerRef.current) {
        containerRef.current.scrollTop = 0;
      }
      updatePositions();
    }
  }, [data.length, updatePositions]);

  // ============================================
  // 计算可视数据
  // ============================================
  const { start, end } = getVisibleRange();
  const visibleData = useMemo(() => {
    return data.slice(start, end + 1).map((item, i) => ({
      item,
      index: start + i,
    }));
  }, [data, start, end]);

  const totalHeight = useMemo(() => {
    const positions = positionsRef.current;
    if (positions.length === 0) return 0;
    const last = positions[positions.length - 1];
    return last.top + last.height;
  }, [data.length, forceUpdate]);

  // ============================================
  // 动态高度测量：使用 requestAnimationFrame 批量更新
  // ============================================
  useEffect(() => {
    if (isFixedHeight) return;

    const pendingMeasure: { el: HTMLDivElement; index: number }[] = [];

    itemsRef.current.forEach((el, index) => {
      if (!heightCacheRef.current.has(index)) {
        pendingMeasure.push({ el, index });
      }
    });

    if (pendingMeasure.length > 0) {
      requestAnimationFrame(() => {
        let hasUpdate = false;
        pendingMeasure.forEach(({ el, index }) => {
          if (itemsRef.current.has(index)) {
            const actualHeight = el.getBoundingClientRect().height;
            heightCacheRef.current.set(index, actualHeight);
            hasUpdate = true;
          }
        });

        if (hasUpdate) {
          updatePositions();
          rerenderVisible();
        }
      });
    }
  }, [visibleData, isFixedHeight, updatePositions, rerenderVisible]);

  // ============================================
  // 渲染
  // ============================================
  return (
    <div
      ref={containerRef}
      style={{
        height: containerHeight,
        overflow: 'auto',
        position: 'relative',
      }}
      onScroll={handleScroll}
    >
      <div
        ref={phantomRef}
        style={{
          height: totalHeight,
          position: 'relative',
        }}
      >
        {visibleData.map(({ item, index }) => {
          const position = positionsRef.current[index];
          return (
            <div
              key={keyExtractor(item, index)}
              ref={(el) => {
                if (el) {
                  itemsRef.current.set(index, el);
                } else {
                  itemsRef.current.delete(index);
                }
              }}
              style={{
                position: 'absolute',
                top: position?.top ?? 0,
                left: 0,
                right: 0,
                height: isFixedHeight ? itemHeight : 'auto',
              }}
            >
              {renderItem(item, index)}
            </div>
          );
        })}
      </div>
    </div>
  );
}

export default VirtualList;

// ============================================
// 使用示例
// ============================================

/**
 * 示例1：固定高度列表
 */
export const FixedHeightExample = () => {
  const data = Array.from({ length: 10000 }, (_, i) => ({
    id: i,
    text: `列表项 ${i + 1}`,
  }));

  return (
    <VirtualList
      data={data}
      containerHeight={600}
      itemHeight={50}
      keyExtractor={(item) => item.id}
      renderItem={(item) => (
        <div
          style={{
            height: '100%',
            padding: '0 16px',
            display: 'flex',
            alignItems: 'center',
            borderBottom: '1px solid #eee',
          }}
        >
          {item.text}
        </div>
      )}
    />
  );
};

/**
 * 示例2：动态高度列表
 */
export const DynamicHeightExample = () => {
  const data = Array.from({ length: 10000 }, (_, i) => {
    const heightType = i % 5;
    let content = '';
    let tag = '';

    switch (heightType) {
      case 0:
        content = '简短内容';
        tag = '单行';
        break;
      case 1:
        content = '这是一段中等长度的内容，占据两到三行的空间。';
        tag = '中等';
        break;
      case 2:
        content = '这是一段较长的内容，用于展示需要更多空间的信息展示场景。';
        tag = '较长';
        break;
      case 3:
        content = `这是一段非常长的内容，模拟真实业务场景中的富文本展示。

在实际开发中，列表项可能包含：
• 用户详细信息
• 商品卡片
• 订单摘要`;
        tag = '超长';
        break;
      case 4:
        content = Array(3).fill('这是随机内容行。').join('\n');
        tag = '随机';
        break;
    }

    return { id: i, text: `列表项 ${i + 1}`, content, tag, heightType };
  });

  // 预估高度函数：根据内容类型返回预估高度
  const estimateHeight = (item: { heightType: number }) => {
    const heightMap: Record<number, number> = {
      0: 45,   // 单行
      1: 85,   // 中等
      2: 155,  // 较长
      3: 285,  // 超长
      4: 100   // 随机
    };
    return heightMap[item.heightType] || 60;
  };

  const renderItem = (item: { text: string; content: string; tag: string; heightType: number }, index: number) => {
    const colorMap: Record<number, { bg: string; border: string; tag: string }> = {
      0: { bg: '#e6f7ff', border: '#1890ff', tag: '#1890ff' },
      1: { bg: '#f6ffed', border: '#52c41a', tag: '#52c41a' },
      2: { bg: '#fff7e6', border: '#fa8c16', tag: '#fa8c16' },
      3: { bg: '#fff1f0', border: '#f5222d', tag: '#f5222d' },
      4: { bg: '#f9f0ff', border: '#722ed1', tag: '#722ed1' },
    };
    const colors = colorMap[item.heightType] || colorMap[0];

    return (
      <div
        style={{
          padding: '12px 16px',
          backgroundColor: colors.bg,
          borderLeft: `3px solid ${colors.border}`,
          borderBottom: '1px solid #f0f0f0',
        }}
      >
        <div
          style={{
            display: 'flex',
            justifyContent: 'space-between',
            alignItems: 'center',
            marginBottom: 8,
          }}
        >
          <span style={{ fontWeight: 600, color: '#333' }}>#{index + 1} - {item.text}</span>
          <span
            style={{
              backgroundColor: colors.tag,
              color: '#fff',
              padding: '2px 8px',
              borderRadius: 4,
              fontSize: 12,
            }}
          >
            {item.tag}
          </span>
        </div>
        <div style={{ color: '#666', lineHeight: 1.6, whiteSpace: 'pre-line' }}>
          {item.content}
        </div>
      </div>
    );
  };

  return (
    <VirtualList
      data={data}
      containerHeight={600}
      keyExtractor={(item) => item.id}
      estimateItemHeight={estimateHeight}
      renderItem={renderItem}
    />
  );
};

/**
 * 示例3：完整 Demo 组件（支持模式切换）
 */
export const VirtualListDemo = () => {
  const [mode, setMode] = useState<'fixed' | 'dynamic'>('dynamic');
  const [itemCount, setItemCount] = useState(10000);

  const fixedData = useMemo(
    () => Array.from({ length: itemCount }, (_, i) => ({ id: i, text: `列表项 ${i + 1}` })),
    [itemCount]
  );

  const dynamicData = useMemo(() => {
    return Array.from({ length: itemCount }, (_, i) => {
      const heightType = i % 5;
      let content = '';
      let tag = '';

      switch (heightType) {
        case 0:
          content = '简短内容';
          tag = '单行';
          break;
        case 1:
          content = '这是一段中等长度的内容，占据两到三行的空间。';
          tag = '中等';
          break;
        case 2:
          content = '这是一段较长的内容，用于展示需要更多空间的信息展示场景。';
          tag = '较长';
          break;
        case 3:
          content = `这是一段非常长的内容，模拟真实业务场景。\n\n包含多行内容展示。`;
          tag = '超长';
          break;
        case 4:
          content = Array(3).fill('这是随机内容行。').join('\n');
          tag = '随机';
          break;
      }

      return { id: i, text: `列表项 ${i + 1}`, content, tag, heightType };
    });
  }, [itemCount]);

  const estimateHeight = (item: { heightType: number }) => {
    return { 0: 45, 1: 85, 2: 155, 3: 285, 4: 100 }[item.heightType] || 60;
  };

  const renderFixedItem = (item: { text: string }, index: number) => (
    <div
      style={{
        height: '100%',
        padding: '0 16px',
        display: 'flex',
        alignItems: 'center',
        backgroundColor: index % 2 === 0 ? '#fff' : '#f9f9f9',
        borderBottom: '1px solid #eee',
      }}
    >
      <span style={{ width: 80, color: '#999' }}>#{index + 1}</span>
      <span>{item.text}</span>
    </div>
  );

  const renderDynamicItem = (item: { text: string; content: string; tag: string; heightType: number }, index: number) => {
    const colors = {
      0: { bg: '#e6f7ff', border: '#1890ff', tag: '#1890ff' },
      1: { bg: '#f6ffed', border: '#52c41a', tag: '#52c41a' },
      2: { bg: '#fff7e6', border: '#fa8c16', tag: '#fa8c16' },
      3: { bg: '#fff1f0', border: '#f5222d', tag: '#f5222d' },
      4: { bg: '#f9f0ff', border: '#722ed1', tag: '#722ed1' },
    }[item.heightType] || { bg: '#e6f7ff', border: '#1890ff', tag: '#1890ff' };

    return (
      <div
        style={{
          padding: '12px 16px',
          backgroundColor: colors.bg,
          borderLeft: `3px solid ${colors.border}`,
        }}
      >
        <div style={{ display: 'flex', justifyContent: 'space-between', alignItems: 'center', marginBottom: 8 }}>
          <span style={{ fontWeight: 600, color: '#1890ff' }}>#{index + 1} - {item.text}</span>
          <span style={{ backgroundColor: colors.tag, color: '#fff', padding: '2px 8px', borderRadius: 4, fontSize: 12 }}>
            {item.tag}
          </span>
        </div>
        <div style={{ color: '#666', lineHeight: 1.6, whiteSpace: 'pre-line' }}>{item.content}</div>
      </div>
    );
  };

  return (
    <div style={{ padding: 20 }}>
      <h2>虚拟列表 Demo</h2>

      <div style={{ marginBottom: 20, display: 'flex', gap: 16, alignItems: 'center' }}>
        <div>
          <label>模式：</label>
          <select value={mode} onChange={(e) => setMode(e.target.value as 'fixed' | 'dynamic')}>
            <option value="fixed">固定高度</option>
            <option value="dynamic">动态高度</option>
          </select>
        </div>

        <div>
          <label>数据量：</label>
          <select value={itemCount} onChange={(e) => setItemCount(Number(e.target.value))}>
            <option value={1000}>1,000 条</option>
            <option value={10000}>10,000 条</option>
            <option value={100000}>100,000 条</option>
          </select>
        </div>
      </div>

      <div style={{ border: '1px solid #ddd', borderRadius: 8, overflow: 'hidden' }}>
        {mode === 'fixed' ? (
          <VirtualList
            data={fixedData}
            containerHeight={600}
            itemHeight={50}
            keyExtractor={(item) => item.id}
            renderItem={renderFixedItem}
          />
        ) : (
          <VirtualList
            data={dynamicData}
            containerHeight={600}
            keyExtractor={(item) => item.id}
            estimateItemHeight={estimateHeight}
            renderItem={renderDynamicItem}
          />
        )}
      </div>
    </div>
  );
};

参考资料

总结

虚拟列表是处理大数据列表渲染的经典方案，核心思想是只渲染可视区域内的元素。本文详细介绍了：

  1. 固定高度模式：实现简单，O(1) 时间复杂度计算位置
  2. 动态高度模式：需要高度缓存和测量，O(n) 时间复杂度计算位置
  3. 性能优化：二分查找、缓冲区、批量更新等策略

掌握虚拟列表的实现原理，不仅能解决实际开发中的性能问题，也能加深对浏览器渲染机制的理解。希望本文对你有所帮助！

如果觉得本文有帮助，欢迎点赞收藏，有问题欢迎在评论区讨论！

相关推荐
Highcharts.js1 小时前
React 应用中的图表选择：Highcharts vs Apache ECharts 深度对比
前端·javascript·react.js·echarts·highcharts·可视化图表·企业级图表
用户350144817921 小时前
继承和原型链：js如何实现继承
前端
Bernard02151 小时前
给普通人的 AI 黑话翻译手册：一文看懂 LLM、RAG、Agent 到底是什么
前端·后端
恋猫de小郭1 小时前
JetBrains Amper 0.10 ，期待它未来替代 Gradle
android·前端·flutter
胖纳特1 小时前
Seafile 文件预览增强方案：集成 BaseMetas Fileview 突破格式限制
前端·后端
梵得儿SHI1 小时前
Vue 3 工程化实践：多页面路由配置 + Pinia 状态管理完全指南
前端·javascript·vue.js·vuerouter4·pinia状态管理的·模块化store设计·路由与状态管理
小李子呢02112 小时前
为什么会有react和vue这些框架的出现
前端·vue.js·react.js
军训猫猫头2 小时前
7.带输入参数的线程启动 C# + WPF 完整示例
开发语言·前端·c#·.net·wpf
热门推荐
012026年4月技术前沿：AI大模型爆发、智能体革命与量子安全新纪元02GitHub 镜像站点032026 年 AI 编程助手全面对比评测：Cursor vs Copilot vs Claude Code vs GitHub Copilot Free04一周AI热点速览（2026.03.31-04.06）：GPT-6曝光、谷歌开源Gemma 4、资本狂飙与模型军备竞赛05GPT-6发布日深度解析-Symphony架构200万Token实战06AI Weekly | 2026年4月第二周 · GitHub热门项目与AI发展趋势深度解析07基于 Docker 部署 Hermes Agent 并接入飞书机器人的完整指南08GPT-6核心能力解析及与现有主流大模型对比09从限购到畅通：GLM-5.1 Coding Plan接入攻略10零成本！Ollama本地部署国产大模型全指南（支持Kimi-K2.5/GLM-5/Qwen，新手秒上手）
