C# OnnxRuntime 部署 DDColor

目录

说明

效果

模型信息

项目

代码

下载

---

说明

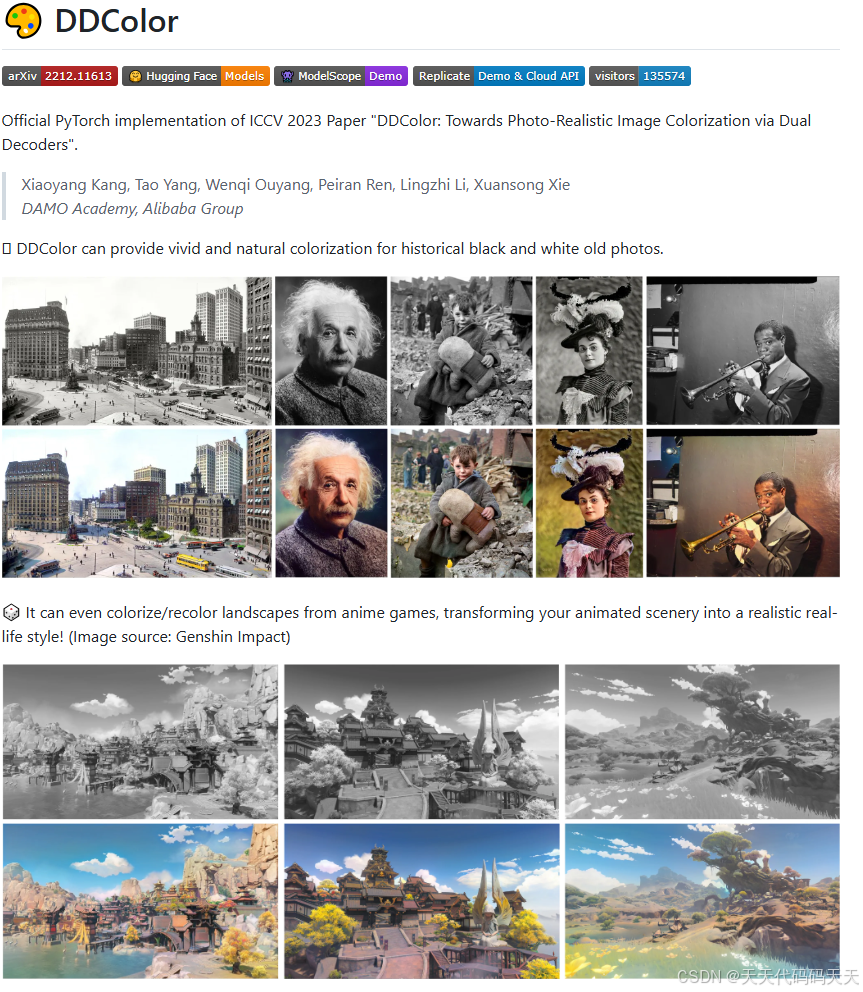

地址：https://github.com/piddnad/DDColor

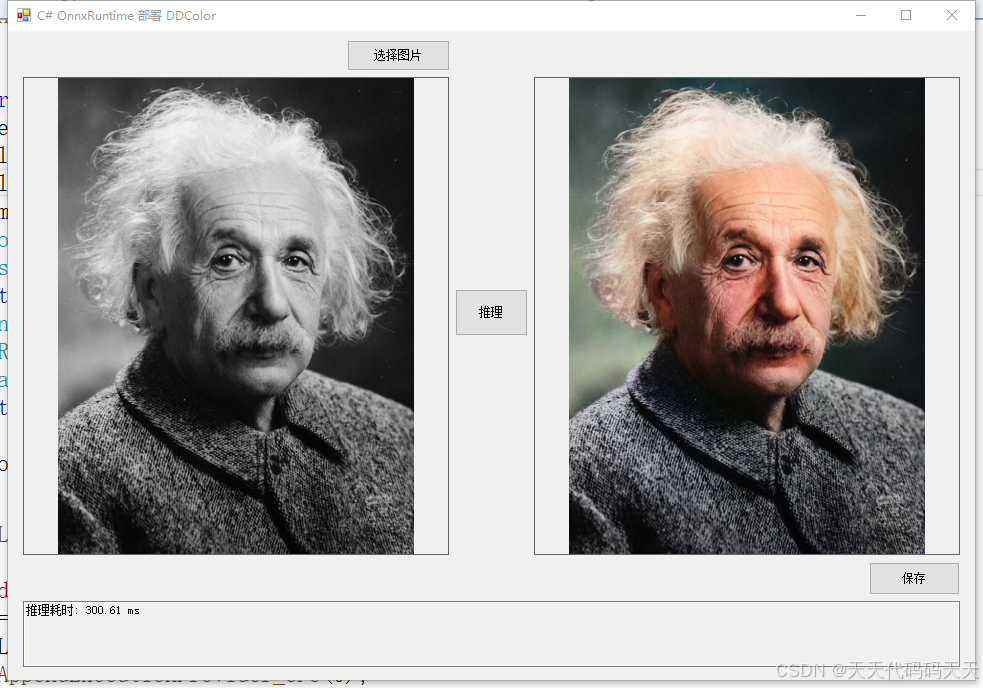

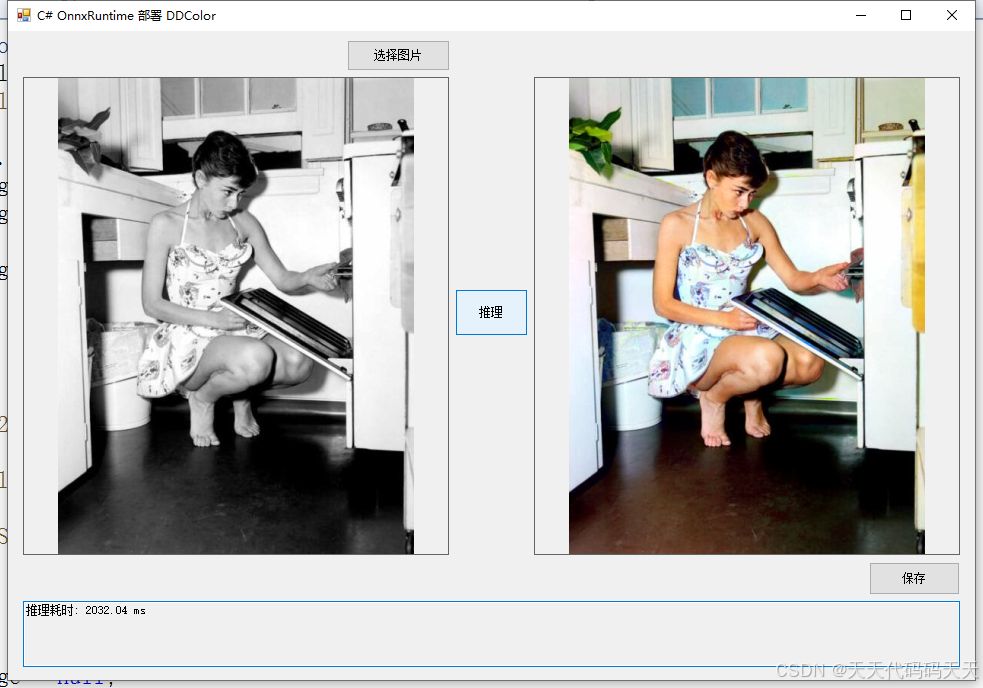

效果

模型信息

Model Properties

---

---

Inputs

---

name：input

tensor：Float[1, 3, 256, 256]

---

Outputs

---

name：output

tensor：Float[1, 2, 256, 256]

---

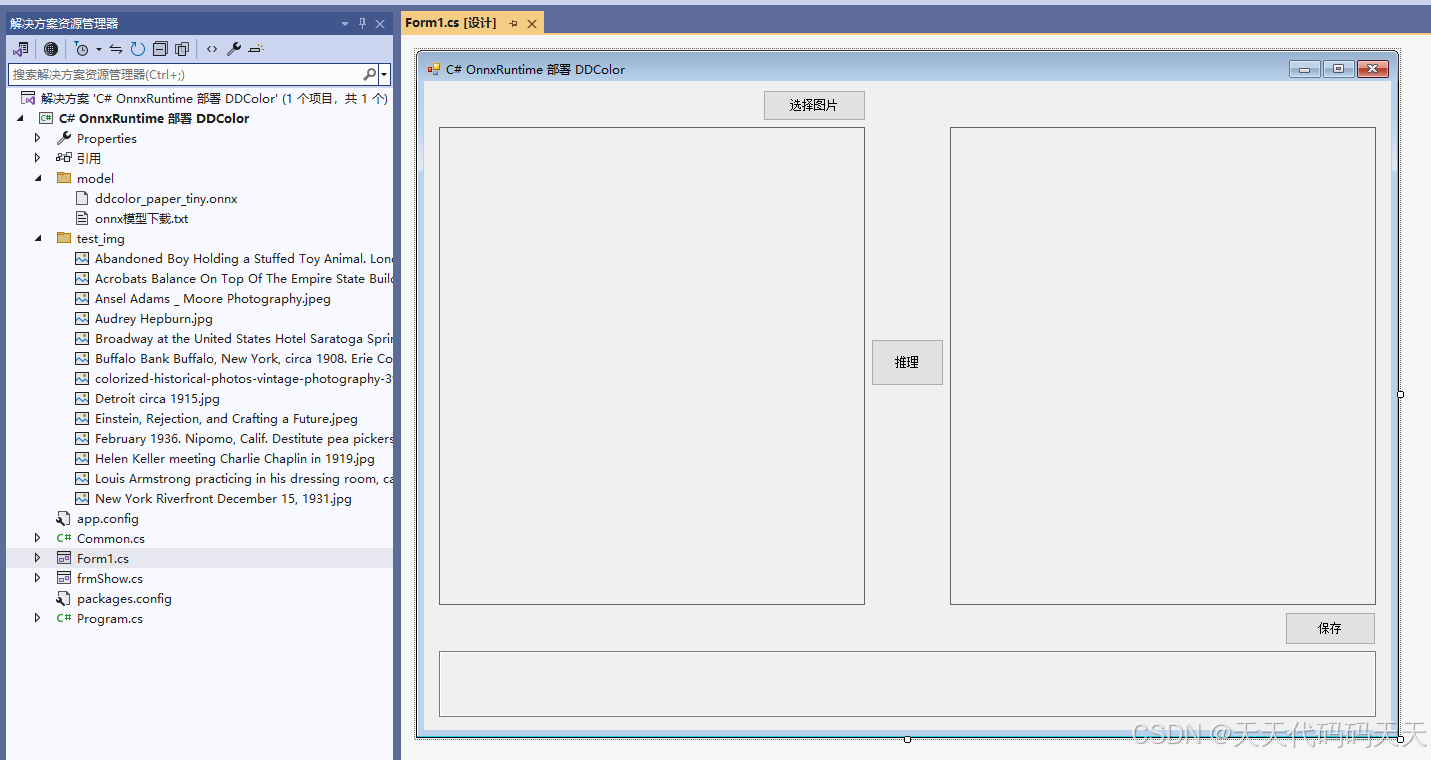

项目

代码

using Microsoft.ML.OnnxRuntime;

using Microsoft.ML.OnnxRuntime.Tensors;

using OpenCvSharp;

using System;

using System.Collections.Generic;

using System.Drawing;

using System.Drawing.Imaging;

using System.Linq;

using System.Windows.Forms;

using Size = OpenCvSharp.Size;

namespace Onnx_Demo

{

public partial class Form1 : Form

{

public Form1()

{

InitializeComponent();

}

private readonly string fileFilter = "图像文件|*.bmp;*.jpg;*.jpeg;*.tiff;*.png";

private string imagePath = "";

private string modelPath;

private Mat originalImage;

private Mat resultImage;

private SessionOptions sessionOptions;

private InferenceSession onnxSession;

private Tensor<float> inputTensor;

private List<NamedOnnxValue> inputContainer;

private IDisposableReadOnlyCollection<DisposableNamedOnnxValue> inferenceResult;

private DisposableNamedOnnxValue[] resultOnnxValues;

private Tensor<float> outputTensor;

private const int ModelInputSize = 256; // 模型固定输入尺寸

private void Form1_Load(object sender, EventArgs e)

{

modelPath = "model/ddcolor_paper_tiny.onnx";

sessionOptions = new SessionOptions();

sessionOptions.LogSeverityLevel = OrtLoggingLevel.ORT_LOGGING_LEVEL_INFO;

sessionOptions.AppendExecutionProvider_CPU(0);

// 如需 GPU：sessionOptions.AppendExecutionProvider_CUDA(0);

onnxSession = new InferenceSession(modelPath, sessionOptions);

inputContainer = new List<NamedOnnxValue>();

string testImg = "test_img/Einstein, Rejection, and Crafting a Future.jpeg";

if (System.IO.File.Exists(testImg))

{

imagePath = testImg;

pictureBox1.Image = new Bitmap(imagePath);

originalImage = new Mat(imagePath);

}

}

private void button1_Click(object sender, EventArgs e)

{

OpenFileDialog ofd = new OpenFileDialog();

ofd.Filter = fileFilter;

if (ofd.ShowDialog() != DialogResult.OK) return;

imagePath = ofd.FileName;

pictureBox1.Image?.Dispose();

pictureBox1.Image = new Bitmap(imagePath);

originalImage = new Mat(imagePath);

pictureBox2.Image = null;

textBox1.Text = "";

}

private void button2_Click(object sender, EventArgs e)

{

if (string.IsNullOrEmpty(imagePath) || originalImage == null)

{

MessageBox.Show("请先选择图片！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);

return;

}

button2.Enabled = false;

pictureBox2.Image = null;

textBox1.Text = "";

Application.DoEvents();

try

{

int origH = originalImage.Height;

int origW = originalImage.Width;

// ========== 1. 预处理 ==========

// 1.1 BGR -> RGB，归一化到 [0,1] 浮点

Mat rgb = new Mat();

Cv2.CvtColor(originalImage, rgb, ColorConversionCodes.BGR2RGB);

rgb.ConvertTo(rgb, MatType.CV_32FC3, 1.0 / 255.0);

// 1.2 RGB -> LAB，提取 L 通道（范围 0～100）

Mat lab = new Mat();

Cv2.CvtColor(rgb, lab, ColorConversionCodes.RGB2Lab);

Mat[] labChannels = Cv2.Split(lab);

Mat L = labChannels[0]; // L 通道，float，范围 0～100

Mat originalL = L.Clone(); // 保存原始 L 用于最终合并

// 1.3 构造模型输入：灰度 RGB 图（通过 Lab -> RGB 转换，与 Python 代码一致）

// 调整 L 到模型输入尺寸 256x256

Mat resizedL = new Mat();

Cv2.Resize(L, resizedL, new Size(ModelInputSize, ModelInputSize), 0, 0, InterpolationFlags.Linear);

// 创建三通道 Lab 图像：L=resizedL, a=0, b=0

Mat grayLab = new Mat();

Mat[] grayLabChannels = new Mat[3];

grayLabChannels[0] = resizedL;

grayLabChannels[1] = Mat.Zeros(resizedL.Size(), MatType.CV_32FC1);

grayLabChannels[2] = Mat.Zeros(resizedL.Size(), MatType.CV_32FC1);

Cv2.Merge(grayLabChannels, grayLab);

// Lab -> RGB，得到灰度 RGB 图像（范围 0～1）

Mat grayRgb = new Mat();

Cv2.CvtColor(grayLab, grayRgb, ColorConversionCodes.Lab2RGB);

// 1.4 转换为 CHW 格式的 float 数组

int height = grayRgb.Height;

int width = grayRgb.Width;

float[] inputData = new float[3 * height * width];

Mat[] rgbChannels = Cv2.Split(grayRgb); // 顺序: R, G, B

int index = 0;

for (int c = 0; c < 3; c++)

{

float[] channelData = new float[height * width];

System.Runtime.InteropServices.Marshal.Copy(rgbChannels[c].Data, channelData, 0, height * width);

foreach (float val in channelData)

inputData[index++] = val;

}

var inputTensor = new DenseTensor<float>(inputData, new[] { 1, 3, height, width });

// ========== 2. 推理 ==========

var inputs = new List<NamedOnnxValue> { NamedOnnxValue.CreateFromTensor("input", inputTensor) };

DateTime t1 = DateTime.Now;

using (var results = onnxSession.Run(inputs))

{

DateTime t2 = DateTime.Now;

var output = results.First(item => item.Name == "output").AsTensor<float>();

float[] outputData = output.ToArray(); // shape: [1, 2, 256, 256]

float minVal = outputData.Min();

float maxVal = outputData.Max();

// ========== 3. 后处理 ==========

int outH = ModelInputSize;

int outW = ModelInputSize;

// 3.1 将输出 ab 通道转换为双通道 Mat (HWC, float)

Mat abMat = new Mat(outH, outW, MatType.CV_32FC2);

int idx = 0;

for (int y = 0; y < outH; y++)

{

for (int x = 0; x < outW; x++)

{

Vec2f ab;

ab.Item0 = outputData[idx]; // a 通道

ab.Item1 = outputData[idx + outH * outW]; // b 通道

abMat.Set(y, x, ab);

idx++;

}

}

// 3.2 将 ab 双通道图放大到原始图像尺寸（双线性插值）

Mat resizedAb = new Mat();

Cv2.Resize(abMat, resizedAb, new Size(origW, origH), 0, 0, InterpolationFlags.Linear);

// 3.3 合并原始 L 与放大后的 ab 得到 LAB 图像

Mat[] labResultChannels = new Mat[3];

labResultChannels[0] = originalL; // L (0～100)

Mat[] abChannels = Cv2.Split(resizedAb); // abChannels[0] = a, abChannels[1] = b

labResultChannels[1] = abChannels[0];

labResultChannels[2] = abChannels[1];

Mat labResult = new Mat();

Cv2.Merge(labResultChannels, labResult);

// 3.4 LAB -> RGB -> BGR（用于显示/保存）

Mat rgbResult = new Mat();

Cv2.CvtColor(labResult, rgbResult, ColorConversionCodes.Lab2RGB);

Mat bgrResult = new Mat();

Cv2.CvtColor(rgbResult, bgrResult, ColorConversionCodes.RGB2BGR);

// 3.5 将像素值从 [0,1] 转到 [0,255] 并转为 8UC3

bgrResult.ConvertTo(bgrResult, MatType.CV_8UC3, 255.0);

resultImage = bgrResult.Clone();

pictureBox2.Image = new Bitmap(resultImage.ToMemoryStream());

textBox1.Text = $"推理耗时: {(t2 - t1).TotalMilliseconds:F2} ms";

// 释放资源

abMat.Dispose();

resizedAb.Dispose();

foreach (var m in abChannels) m.Dispose();

labResult.Dispose();

rgbResult.Dispose();

}

// 释放资源

rgb.Dispose();

lab.Dispose();

L.Dispose();

resizedL.Dispose();

grayLab.Dispose();

grayRgb.Dispose();

foreach (var m in rgbChannels) m.Dispose();

foreach (var m in labChannels) m.Dispose();

foreach (var m in grayLabChannels) m.Dispose();

}

catch (Exception ex)

{

MessageBox.Show($"推理失败: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);

textBox1.Text = "推理出错";

}

finally

{

button2.Enabled = true;

}

}

private void button3_Click(object sender, EventArgs e)

{

if (resultImage == null || resultImage.Empty())

{

MessageBox.Show("请先进行推理！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);

return;

}

SaveFileDialog sfd = new SaveFileDialog();

sfd.Title = "保存图像";

sfd.Filter = "PNG图片 (*.png)|*.png|JPEG图片 (*.jpg)|*.jpg|BMP图片 (*.bmp)|*.bmp";

sfd.FilterIndex = 1;

if (sfd.ShowDialog() == DialogResult.OK)

{

string ext = System.IO.Path.GetExtension(sfd.FileName).ToLower();

ImageFormat format = ImageFormat.Png;

if (ext == ".jpg" || ext == ".jpeg")

format = ImageFormat.Jpeg;

else if (ext == ".bmp")

format = ImageFormat.Bmp;

using (var stream = resultImage.ToMemoryStream())

using (var bitmap = new Bitmap(stream))

{

bitmap.Save(sfd.FileName, format);

}

MessageBox.Show($"保存成功！\n位置: {sfd.FileName}", "完成", MessageBoxButtons.OK, MessageBoxIcon.Information);

}

}

private void pictureBox1_DoubleClick(object sender, EventArgs e)

{

ShowImageInNormalWindow(pictureBox1.Image);

}

private void pictureBox2_DoubleClick(object sender, EventArgs e)

{

ShowImageInNormalWindow(pictureBox2.Image);

}

private void ShowImageInNormalWindow(Image img)

{

if (img == null) return;

Form frm = new Form

{

Width = img.Width + 20,

Height = img.Height + 40,

StartPosition = FormStartPosition.CenterScreen,

Text = "查看大图"

};

PictureBox pb = new PictureBox

{

Image = img,

Dock = DockStyle.Fill,

SizeMode = PictureBoxSizeMode.Zoom

};

frm.Controls.Add(pb);

frm.ShowDialog();

}

}

}
