量化平台中的风控系统设计与实现

风控系统是量化平台的生命线。没有完善的风控系统，再好的策略也可能导致巨大的损失。EasyQuant 的风控系统设计基于"防御深度"（Defense in Depth）原则，在策略执行前、执行中、执行后都进行严格的风险检查。

结论先行：EasyQuant 的风控系统采用优先级队列的短路检查机制，支持可配置的风控规则、实时风险监控、自动风险预警，确保策略执行的安全性。

一、风控系统架构

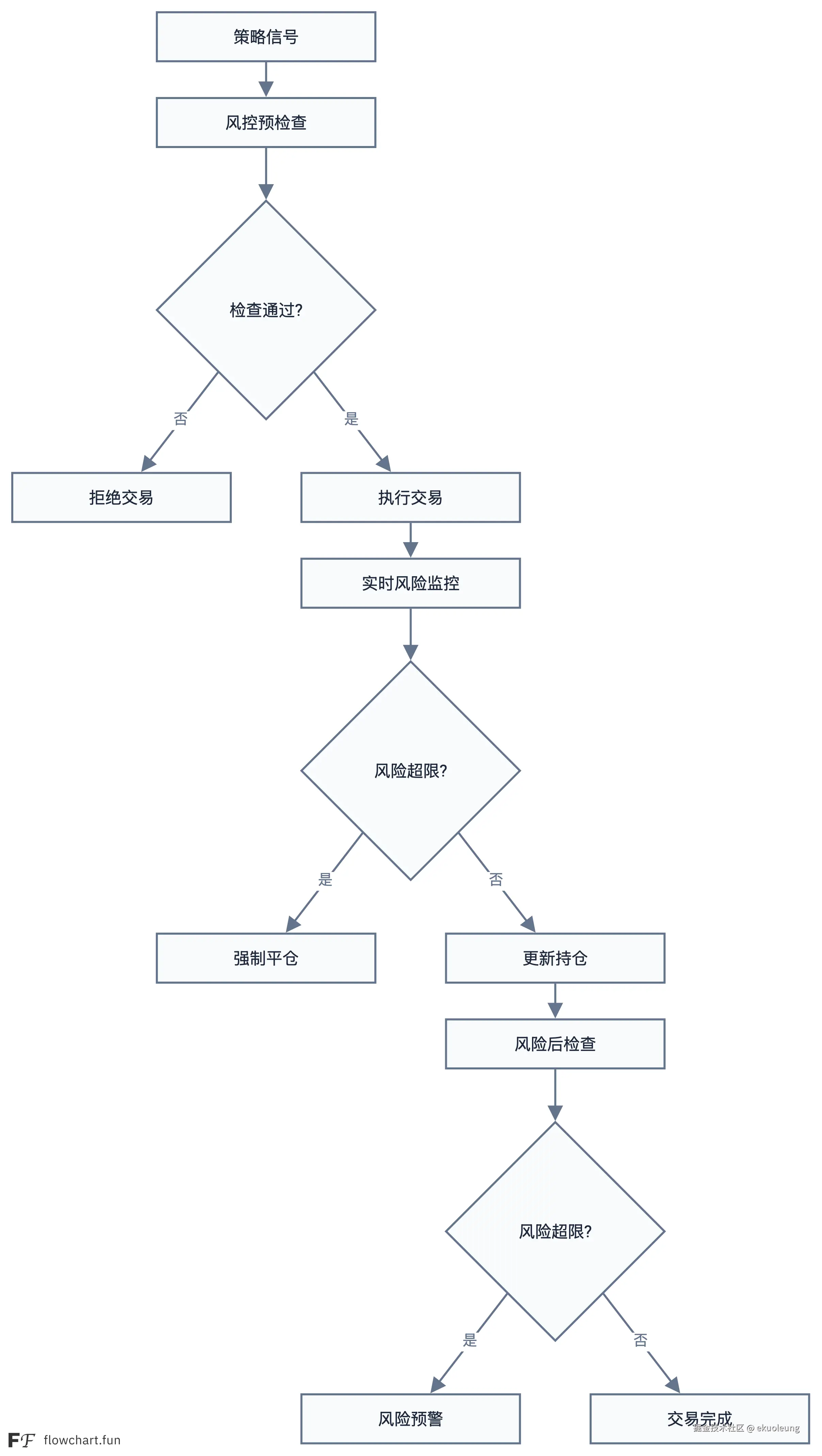

1）风控检查流程

2）风控检查优先级

scss 复制代码

// domain/RiskCheckPriority.java

public enum RiskCheckPriority {
    CRITICAL(1),  // 关键检查，必须通过
    HIGH(2),      // 高优先级检查
    MEDIUM(3),    // 中等优先级检查
    LOW(4);       // 低优先级检查

    private final int value;

    RiskCheckPriority(int value) {
        this.value = value;
    }

    public int getValue() {
        return value;
    }
}

二、风控检查实现

1）风控检查接口

typescript 复制代码

// risk/RiskCheck.java

public interface RiskCheck {

    /**
     * 检查优先级
     */
    RiskCheckPriority getPriority();

    /**
     * 检查名称
     */
    String getName();

    /**
     * 执行检查
     */
    RiskCheckResult check(RiskCheckContext context);

    /**
     * 是否启用
     */
    boolean isEnabled();
}

// risk/RiskCheckResult.java

@Data
public class RiskCheckResult {

    private boolean passed;
    private BlockingReasonCode reason;
    private String message;
    private Map<String, Object> context;

    public static RiskCheckResult pass() {
        return new RiskCheckResult(true, null, "通过", Map.of());
    }

    public static RiskCheckResult fail(BlockingReasonCode reason, String message) {
        return new RiskCheckResult(false, reason, message, Map.of());
    }

    public static RiskCheckResult fail(
        BlockingReasonCode reason,
        String message,
        Map<String, Object> context
    ) {
        return new RiskCheckResult(false, reason, message, context);
    }
}

// risk/RiskCheckContext.java

@Data
@Builder
public class RiskCheckContext {

    private StrategySignal signal;
    private Portfolio portfolio;
    private Position position;
    private Account account;
    private MarketData marketData;
    private Map<String, Object> params;
}

2）具体风控检查实现

kotlin 复制代码

// risk/checks/VolumeRiskCheck.java

@Component
public class VolumeRiskCheck implements RiskCheck {

    @Value("${risk.max-volume:10000}")
    private long maxVolume;

    @Value("${risk.volume-check.enabled:true}")
    private boolean enabled;

    @Override
    public RiskCheckPriority getPriority() {
        return RiskCheckPriority.HIGH;
    }

    @Override
    public String getName() {
        return "VOLUME_CHECK";
    }

    @Override
    public RiskCheckResult check(RiskCheckContext context) {
        StrategySignal signal = context.getSignal();

        if (signal.getVolume() > maxVolume) {
            return RiskCheckResult.fail(
                BlockingReasonCode.VOLUME_TOO_LARGE,
                String.format("单笔交易量 %d 超过限制 %d", signal.getVolume(), maxVolume),
                Map.of(
                    "volume", signal.getVolume(),
                    "maxVolume", maxVolume
                )
            );
        }

        return RiskCheckResult.pass();
    }

    @Override
    public boolean isEnabled() {
        return enabled;
    }
}

// risk/checks/PositionLimitCheck.java

@Component
public class PositionLimitCheck implements RiskCheck {

    @Value("${risk.max-position-ratio:0.3}")
    private double maxPositionRatio;

    @Value("${risk.position-check.enabled:true}")
    private boolean enabled;

    @Override
    public RiskCheckPriority getPriority() {
        return RiskCheckPriority.HIGH;
    }

    @Override
    public String getName() {
        return "POSITION_LIMIT_CHECK";
    }

    @Override
    public RiskCheckResult check(RiskCheckContext context) {
        StrategySignal signal = context.getSignal();
        Portfolio portfolio = context.getPortfolio();

        // 计算新持仓价值
        BigDecimal newPositionValue = signal.getPrice()
            .multiply(BigDecimal.valueOf(signal.getVolume()));

        // 计算当前总资产
        BigDecimal totalAssets = portfolio.getTotalAssets();

        // 计算持仓比例
        double positionRatio = newPositionValue
            .divide(totalAssets, 4, RoundingMode.HALF_UP)
            .doubleValue();

        if (positionRatio > maxPositionRatio) {
            return RiskCheckResult.fail(
                BlockingReasonCode.POSITION_LIMIT,
                String.format("持仓比例 %.2f%% 超过限制 %.2f%%",
                    positionRatio * 100, maxPositionRatio * 100),
                Map.of(
                    "positionRatio", positionRatio,
                    "maxPositionRatio", maxPositionRatio,
                    "newPositionValue", newPositionValue,
                    "totalAssets", totalAssets
                )
            );
        }

        return RiskCheckResult.pass();
    }

    @Override
    public boolean isEnabled() {
        return enabled;
    }
}

// risk/checks/FundSufficiencyCheck.java

@Component
public class FundSufficiencyCheck implements RiskCheck {

    @Value("${risk.min-fund-ratio:0.1}")
    private double minFundRatio;

    @Value("${risk.fund-check.enabled:true}")
    private boolean enabled;

    @Override
    public RiskCheckPriority getPriority() {
        return RiskCheckPriority.CRITICAL;
    }

    @Override
    public String getName() {
        return "FUND_SUFFICIENCY_CHECK";
    }

    @Override
    public RiskCheckResult check(RiskCheckContext context) {
        StrategySignal signal = context.getSignal();
        Account account = context.getAccount();

        // 计算交易金额
        BigDecimal tradeAmount = signal.getPrice()
            .multiply(BigDecimal.valueOf(signal.getVolume()));

        // 计算可用资金
        BigDecimal availableFund = account.getAvailableFund();

        // 检查资金是否充足
        if (tradeAmount.compareTo(availableFund) > 0) {
            return RiskCheckResult.fail(
                BlockingReasonCode.INSUFFICIENT_FUNDS,
                String.format("资金不足：需要 %.2f，可用 %.2f",
                    tradeAmount, availableFund),
                Map.of(
                    "tradeAmount", tradeAmount,
                    "availableFund", availableFund
                )
            );
        }

        // 检查剩余资金比例
        BigDecimal remainingFund = availableFund.subtract(tradeAmount);
        double remainingRatio = remainingFund
            .divide(account.getTotalFund(), 4, RoundingMode.HALF_UP)
            .doubleValue();

        if (remainingRatio < minFundRatio) {
            return RiskCheckResult.fail(
                BlockingReasonCode.INSUFFICIENT_FUNDS,
                String.format("剩余资金比例 %.2f%% 低于最小要求 %.2f%%",
                    remainingRatio * 100, minFundRatio * 100),
                Map.of(
                    "remainingRatio", remainingRatio,
                    "minFundRatio", minFundRatio,
                    "remainingFund", remainingFund,
                    "totalFund", account.getTotalFund()
                )
            );
        }

        return RiskCheckResult.pass();
    }

    @Override
    public boolean isEnabled() {
        return enabled;
    }
}

// risk/checks/DrawdownCheck.java

@Component
public class DrawdownCheck implements RiskCheck {

    @Value("${risk.max-drawdown:0.2}")
    private double maxDrawdown;

    @Value("${risk.drawdown-check.enabled:true}")
    private boolean enabled;

    @Override
    public RiskCheckPriority getPriority() {
        return RiskCheckPriority.MEDIUM;
    }

    @Override
    public String getName() {
        return "DRAWDOWN_CHECK";
    }

    @Override
    public RiskCheckResult check(RiskCheckContext context) {
        Portfolio portfolio = context.getPortfolio();

        // 计算当前回撤
        BigDecimal currentEquity = portfolio.getCurrentEquity();
        BigDecimal peakEquity = portfolio.getPeakEquity();

        double drawdown = peakEquity.subtract(currentEquity)
            .divide(peakEquity, 4, RoundingMode.HALF_UP)
            .doubleValue();

        if (drawdown > maxDrawdown) {
            return RiskCheckResult.fail(
                BlockingReasonCode.MAX_DRAWDOWN,
                String.format("当前回撤 %.2f%% 超过最大限制 %.2f%%",
                    drawdown * 100, maxDrawdown * 100),
                Map.of(
                    "drawdown", drawdown,
                    "maxDrawdown", maxDrawdown,
                    "currentEquity", currentEquity,
                    "peakEquity", peakEquity
                )
            );
        }

        return RiskCheckResult.pass();
    }

    @Override
    public boolean isEnabled() {
        return enabled;
    }
}

三、风控服务实现

1）风控服务

scss 复制代码

// service/RiskService.java

@Service
public class RiskService {

    private final List<RiskCheck> riskChecks;
    private final EventPublisher eventPublisher;
    private final RiskMetricsCollector metricsCollector;

    public RiskService(List<RiskCheck> riskChecks) {
        // 按优先级排序
        this.riskChecks = riskChecks.stream()
            .sorted(Comparator.comparing(RiskCheck::getPriority))
            .toList();
        this.eventPublisher = new EventPublisher();
        this.metricsCollector = new RiskMetricsCollector();
    }

    /**
     * 执行所有风控检查（短路机制）
     */
    public RiskCheckResult preCheckAll(RiskCheckContext context) {
        long startTime = System.currentTimeMillis();

        for (RiskCheck check : riskChecks) {
            if (!check.isEnabled()) {
                continue;
            }

            long checkStart = System.currentTimeMillis();
            RiskCheckResult result = check.check(context);
            long checkDuration = System.currentTimeMillis() - checkStart;

            // 记录检查指标
            metricsCollector.recordCheck(
                check.getName(),
                check.getPriority(),
                result.isPassed(),
                checkDuration
            );

            // 发布检查事件
            eventPublisher.publishEvent(new RiskCheckEvent(
                check.getName(),
                check.getPriority(),
                result,
                checkDuration
            ));

            // 短路机制：如果检查失败，立即返回
            if (!result.isPassed()) {
                long totalDuration = System.currentTimeMillis() - startTime;

                // 记录失败指标
                metricsCollector.recordFailure(
                    check.getName(),
                    check.getPriority(),
                    result.getReason(),
                    totalDuration
                );

                log.warn("风控检查失败: {} - {}",
                    check.getName(), result.getMessage());

                return result;
            }
        }

        long totalDuration = System.currentTimeMillis() - startTime;

        // 记录成功指标
        metricsCollector.recordSuccess(totalDuration);

        log.info("风控检查全部通过，耗时 {}ms", totalDuration);

        return RiskCheckResult.pass();
    }

    /**
     * 执行单个风控检查
     */
    public RiskCheckResult preCheck(
        String checkName,
        RiskCheckContext context
    ) {
        RiskCheck check = riskChecks.stream()
            .filter(c -> c.getName().equals(checkName))
            .findFirst()
            .orElseThrow(() ->
                new IllegalArgumentException("未找到风控检查: " + checkName)
            );

        if (!check.isEnabled()) {
            return RiskCheckResult.pass();
        }

        return check.check(context);
    }

    /**
     * 实时风险监控
     */
    public void monitorRisk(Portfolio portfolio) {
        // 计算风险指标
        RiskMetrics metrics = calculateRiskMetrics(portfolio);

        // 检查风险是否超限
        if (metrics.isRiskExceeded()) {
            // 发布风险预警
            eventPublisher.publishEvent(new RiskWarningEvent(
                portfolio.getId(),
                metrics,
                "风险指标超限"
            ));

            // 如果风险严重，触发强制平仓
            if (metrics.isCritical()) {
                eventPublisher.publishEvent(new ForceCloseEvent(
                    portfolio.getId(),
                    "风险严重，强制平仓"
                ));
            }
        }
    }

    /**
     * 计算风险指标
     */
    private RiskMetrics calculateRiskMetrics(Portfolio portfolio) {
        RiskMetrics metrics = new RiskMetrics();

        // 计算回撤
        BigDecimal currentEquity = portfolio.getCurrentEquity();
        BigDecimal peakEquity = portfolio.getPeakEquity();
        metrics.setDrawdown(peakEquity.subtract(currentEquity)
            .divide(peakEquity, 4, RoundingMode.HALF_UP)
            .doubleValue());

        // 计算波动率
        metrics.setVolatility(calculateVolatility(portfolio));

        // 计算夏普比率
        metrics.setSharpeRatio(calculateSharpeRatio(portfolio));

        // 计算最大持仓比例
        metrics.setMaxPositionRatio(calculateMaxPositionRatio(portfolio));

        return metrics;
    }

    private double calculateVolatility(Portfolio portfolio) {
        // 计算波动率
        List<BigDecimal> equityHistory = portfolio.getEquityHistory();
        if (equityHistory.size() < 2) {
            return 0.0;
        }

        double mean = equityHistory.stream()
            .mapToDouble(BigDecimal::doubleValue)
            .average()
            .orElse(0.0);

        double variance = equityHistory.stream()
            .mapToDouble(BigDecimal::doubleValue)
            .map(v -> Math.pow(v - mean, 2))
            .average()
            .orElse(0.0);

        return Math.sqrt(variance);
    }

    private double calculateSharpeRatio(Portfolio portfolio) {
        // 计算夏普比率
        double totalReturn = portfolio.getTotalReturn();
        double volatility = calculateVolatility(portfolio);
        double riskFreeRate = 0.03; // 无风险利率

        if (volatility == 0) {
            return 0.0;
        }

        return (totalReturn - riskFreeRate) / volatility;
    }

    private double calculateMaxPositionRatio(Portfolio portfolio) {
        // 计算最大持仓比例
        BigDecimal totalAssets = portfolio.getTotalAssets();

        return portfolio.getPositions().stream()
            .mapToDouble(pos -> pos.getValue()
                .divide(totalAssets, 4, RoundingMode.HALF_UP)
                .doubleValue())
            .max()
            .orElse(0.0);
    }
}

2）风险指标收集器

arduino 复制代码

// risk/RiskMetricsCollector.java

@Component
public class RiskMetricsCollector {

    private final MeterRegistry meterRegistry;

    public RiskMetricsCollector(MeterRegistry meterRegistry) {
        this.meterRegistry = meterRegistry;
    }

    /**
     * 记录风控检查
     */
    public void recordCheck(
        String checkName,
        RiskCheckPriority priority,
        boolean passed,
        long duration
    ) {
        // 记录检查次数
        Counter.builder("risk.check.count")
            .tag("check", checkName)
            .tag("priority", priority.name())
            .tag("result", passed ? "pass" : "fail")
            .register(meterRegistry)
            .increment();

        // 记录检查耗时
        Timer.builder("risk.check.duration")
            .tag("check", checkName)
            .tag("priority", priority.name())
            .register(meterRegistry)
            .record(duration, TimeUnit.MILLISECONDS);
    }

    /**
     * 记录失败
     */
    public void recordFailure(
        String checkName,
        RiskCheckPriority priority,
        BlockingReasonCode reason,
        long duration
    ) {
        // 记录失败次数
        Counter.builder("risk.check.failure")
            .tag("check", checkName)
            .tag("priority", priority.name())
            .tag("reason", reason.name())
            .register(meterRegistry)
            .increment();

        // 记录失败耗时
        Timer.builder("risk.check.failure.duration")
            .tag("check", checkName)
            .tag("priority", priority.name())
            .tag("reason", reason.name())
            .register(meterRegistry)
            .record(duration, TimeUnit.MILLISECONDS);
    }

    /**
     * 记录成功
     */
    public void recordSuccess(long duration) {
        // 记录成功次数
        Counter.builder("risk.check.success")
            .register(meterRegistry)
            .increment();

        // 记录成功耗时
        Timer.builder("risk.check.success.duration")
            .register(meterRegistry)
            .record(duration, TimeUnit.MILLISECONDS);
    }
}

四、风险预警系统

1）风险预警事件

kotlin 复制代码

// event/RiskWarningEvent.java

@Data
@AllArgsConstructor
public class RiskWarningEvent {

    private Long portfolioId;
    private RiskMetrics metrics;
    private String message;
    private Instant timestamp;

    public RiskWarningEvent(Long portfolioId, RiskMetrics metrics, String message) {
        this.portfolioId = portfolioId;
        this.metrics = metrics;
        this.message = message;
        this.timestamp = Instant.now();
    }
}

// event/ForceCloseEvent.java

@Data
@AllArgsConstructor
public class ForceCloseEvent {

    private Long portfolioId;
    private String reason;
    private Instant timestamp;

    public ForceCloseEvent(Long portfolioId, String reason) {
        this.portfolioId = portfolioId;
        this.reason = reason;
        this.timestamp = Instant.now();
    }
}

2）风险预警处理器

csharp 复制代码

// handler/RiskWarningHandler.java

@Component
public class RiskWarningHandler {

    private final NotificationService notificationService;
    private final ExecutionService executionService;

    @EventListener
    public void handleRiskWarning(RiskWarningEvent event) {
        log.warn("风险预警: 组合 {} - {}",
            event.getPortfolioId(), event.getMessage());

        // 发送通知
        notificationService.sendRiskWarning(event);

        // 更新风险状态
        updateRiskStatus(event);
    }

    @EventListener
    public void handleForceClose(ForceCloseEvent event) {
        log.error("强制平仓: 组合 {} - {}",
            event.getPortfolioId(), event.getReason());

        // 发送紧急通知
        notificationService.sendEmergencyAlert(event);

        // 执行强制平仓
        executionService.forceClose(event.getPortfolioId());
    }

    private void updateRiskStatus(RiskWarningEvent event) {
        // 更新组合风险状态
        // ...
    }
}

五、风控配置管理

1）风控配置

yaml 复制代码

# application.yml

risk:
  # 交易量限制
  max-volume: 10000
  volume-check:
    enabled: true

  # 持仓限制
  max-position-ratio: 0.3
  position-check:
    enabled: true

  # 资金限制
  min-fund-ratio: 0.1
  fund-check:
    enabled: true

  # 回撤限制
  max-drawdown: 0.2
  drawdown-check:
    enabled: true

  # 波动率限制
  max-volatility: 0.3
  volatility-check:
    enabled: true

  # 风险预警阈值
  warning:
    drawdown-threshold: 0.15
    volatility-threshold: 0.25
    position-ratio-threshold: 0.25

  # 强制平仓阈值
  force-close:
    drawdown-threshold: 0.2
    volatility-threshold: 0.3
    position-ratio-threshold: 0.3

2）风控配置管理

java 复制代码

// config/RiskProperties.java

@ConfigurationProperties(prefix = "risk")
@Data
public class RiskProperties {

    // 交易量限制
    private long maxVolume = 10000;
    private VolumeCheckConfig volumeCheck = new VolumeCheckConfig();

    // 持仓限制
    private double maxPositionRatio = 0.3;
    private PositionCheckConfig positionCheck = new PositionCheckConfig();

    // 资金限制
    private double minFundRatio = 0.1;
    private FundCheckConfig fundCheck = new FundCheckConfig();

    // 回撤限制
    private double maxDrawdown = 0.2;
    private DrawdownCheckConfig drawdownCheck = new DrawdownCheckConfig();

    // 波动率限制
    private double maxVolatility = 0.3;
    private VolatilityCheckConfig volatilityCheck = new VolatilityCheckConfig();

    // 风险预警阈值
    private WarningConfig warning = new WarningConfig();

    // 强制平仓阈值
    private ForceCloseConfig forceClose = new ForceCloseConfig();

    @Data
    public static class VolumeCheckConfig {
        private boolean enabled = true;
    }

    @Data
    public static class PositionCheckConfig {
        private boolean enabled = true;
    }

    @Data
    public static class FundCheckConfig {
        private boolean enabled = true;
    }

    @Data
    public static class DrawdownCheckConfig {
        private boolean enabled = true;
    }

    @Data
    public static class VolatilityCheckConfig {
        private boolean enabled = true;
    }

    @Data
    public static class WarningConfig {
        private double drawdownThreshold = 0.15;
        private double volatilityThreshold = 0.25;
        private double positionRatioThreshold = 0.25;
    }

    @Data
    public static class ForceCloseConfig {
        private double drawdownThreshold = 0.2;
        private double volatilityThreshold = 0.3;
        private double positionRatioThreshold = 0.3;
    }
}

六、最佳实践总结

1）风控设计原则

防御深度：在多个层面进行风控检查
优先级明确：关键检查优先执行
短路机制：检查失败立即返回
可配置性：风控规则可动态配置

2）风控检查原则

性能优先：风控检查必须快速
准确性：风控检查必须准确
可观测性：风控检查必须可观测
可扩展性：支持自定义风控检查

3）风险预警原则

及时性：风险预警必须及时
准确性：风险预警必须准确
可操作性：风险预警必须可操作
可追溯性：风险预警必须可追溯

结语：风控系统是量化平台的生命线

风控系统是量化平台的生命线，它保护投资者的资金安全，控制风险暴露，确保策略的稳定运行。

关键优势总结：

防御深度：多层面风控检查
优先级明确：关键检查优先执行
短路机制：检查失败立即返回
可配置性：风控规则可动态配置
实时监控：实时风险监控和预警

对于正在构建量化平台的团队，完善的风控系统是必不可少的。
