Kubernetes创建只读权限的kubeconfig

背景：由于openclaw和其他智能体的兴起，使k8s集群的运维巡检效率都得到了提升，但是风险也会提升，因此需要给智能体提供只读权限的kubeconfig配置文件，保证不会私自篡改集群配置

注：由于k8s集群自带具有只读权限的名为 view 的clusterrole，因此我们创建 serviceaccount，并创建 clusterrolebinding 将 view 和我们新建的serviceaccount绑定到一块

特：由于 view 具备的权限有限，不具备查询 ClusterRole 和 ClusterRoleBinding、Role 和 RoleBinding、Secrets 和 Nodes 权限，如果需要这些权限，需要创建更多权限的 clusterrole 来和 serviceaccount 绑定。

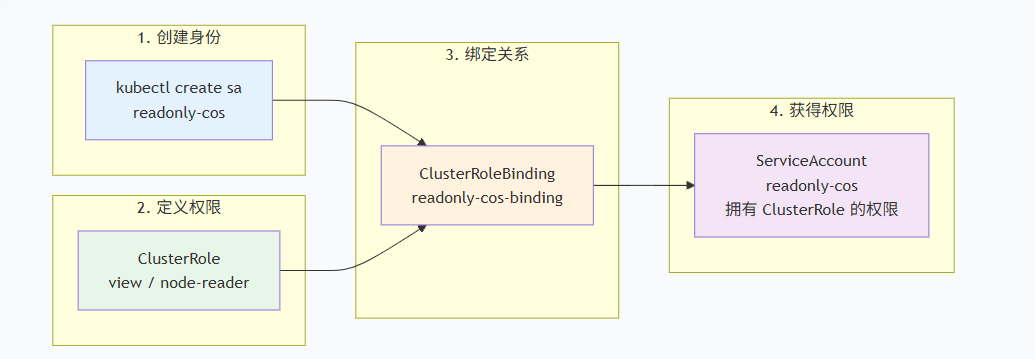

ServiceAccount、ClusterRole、clusterRolebinding关系图如下：

1、创建 ServiceAccount

bash 复制代码

kubectl create sa readonly-cos -n kube-system

2、创建clusterrolebinding，将view与sa绑定到一起

yaml 复制代码

# readonly-clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: readonly-sa-binding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: view
subjects:
- kind: ServiceAccount
  name: readonly-cos
  namespace: kube-system

bash 复制代码


kubectl apply -f eadonly-clusterrolebinding.yaml

3、创建 ServiceAccount 的长期 Token

yaml 复制代码

# sa-secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: readonly-cos-secret
  namespace: kube-system
  annotations:
    kubernetes.io/service-account.name: readonly-cos
type: kubernetes.io/service-account-token

bash 复制代码

kubectl apply -f sa-secret.yaml

TOKEN=$(kubectl get secret readonly-cos-secret -n kube-system -o jsonpath='{.data.token}' | base64 -d)

echo $TOKEN

4、生成kubeconfig文件

4.1、获取集群信息

bash 复制代码

CLUSTER_NAME=$(kubectl config current-context)

API_SERVER=$(kubectl config view --minify -o jsonpath='{.clusters[0].cluster.server}')

CA_DATA=$(kubectl config view --raw -o jsonpath='{.clusters[0].cluster.certificate-authority-data}')

4.2、生成配置文件

bash 复制代码

kubectl config set-cluster cluster-readonly-cos \
  --server=$API_SERVER \
  --certificate-authority=<(echo $CA_DATA | base64 -d) \
  --embed-certs=true \
  --kubeconfig=readonly-kubeconfig

  会在当前目录下生成名为readonly-kubeconfig的配置文件

4.3、设置用户凭证

bash 复制代码

kubectl config set-credentials user-readonly-cos \
  --token=$TOKEN \
  --kubeconfig=readonly-kubeconfig

会在配置文件readonly-kubeconfig添加token配置

4.4、设置上下文

bash 复制代码

kubectl config set-context context-readonly-cos \
  --cluster=cluster-readonly-cos \
  --user=user-readonly-cos \
  --kubeconfig=readonly-kubeconfig

会在配置文件readonly-kubeconfig配置上下文信息

kubectl config use-context context-readonly-cos --kubeconfig=/zq/readonly/readonly-kubeconfig
输出：Switched to context "context-readonly-cos".

kubectl config current-context --kubeconfig=/zq/readonly/readonly-kubeconfig
输出：context-readonly-cos

4.5、验证

当编辑资源时会提示拒绝

bash 复制代码

[root@master readonly]# kubectl --kubeconfig=/zq/readonly/readonly-kubeconfig edit deploy apisix-dashboard -n apisix
error: deployments.apps "apisix-dashboard" could not be patched: deployments.apps "apisix-dashboard" is forbidden: User "system:serviceaccount:kube-system:readonly-cos" cannot patch resource "deployments" in API group "apps" in the namespace "apisix"
You can run `kubectl replace -f /tmp/kubectl-edit-864880171.yaml` to try this update again.
[root@master readonly]#

5、添加 node 权限

默认的 view 不带集群节点的权限，因此使用上述生成的kubeconfig查询时会提示拒绝

bash 复制代码

[root@master readonly]# kubectl --kubeconfig=/zq/readonly/readonly-kubeconfig get nodes
Error from server (Forbidden): nodes is forbidden: User "system:serviceaccount:kube-system:readonly-cos" cannot list resource "nodes" in API group "" at the cluster scope

需新建一个clusterrole，并将这个具备node权限的clusterrole也帮到ServiceAccount上

yaml 复制代码

# node-readonly-cos.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: node-readonly-cos
rules:
- apiGroups: [""]
  resources: ["nodes"]
  verbs: ["get", "list", "watch"]

bash 复制代码

kubectl apply -f node-readonly-cos.yaml

创建clusterrolebinding绑定

bash 复制代码

kubectl create clusterrolebinding nodes-readonly-cos \
  --clusterrole=node-readonly-cos \
  --serviceaccount=kube-system:readonly-cos

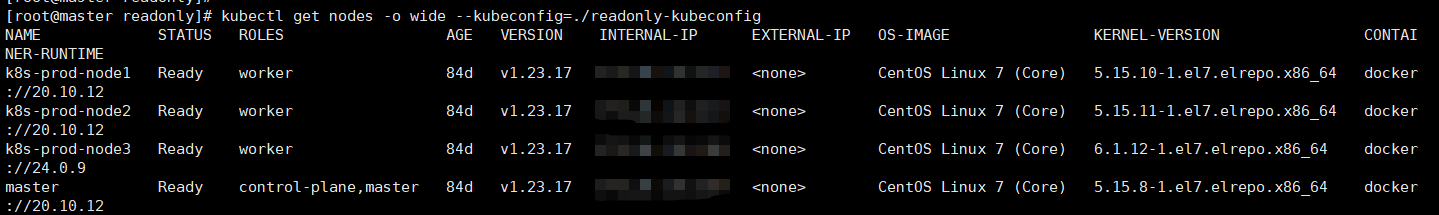

再次查询node信息就可以了

6、更大权限的clusterrole

yaml 复制代码

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: all-readonly
rules:
- apiGroups: ["*"]
  resources: ["*"]
  verbs: ["get", "list", "watch"]

将此clusterrole绑定到ServiceAccount上，可获得更大的权限：

bash 复制代码

kubectl create clusterrolebinding all-readonly-cos \
  --clusterrole=all-readonly \
  --serviceaccount=kube-system:readonly-cos
