Android项目工程化-Github Actions

android项目工程化之Github Actions

本地部署

环境搭建

当前系统：windows

用 WSL 跑 Ruby + Fastlane

【结论】：WSL跑 Ruby + Fastlane 不可行，系统环境问题

使用Ubuntu22.04 ：

结论：直接使用Ubuntu22.04

windows上安装Linux子系统

打开powershell

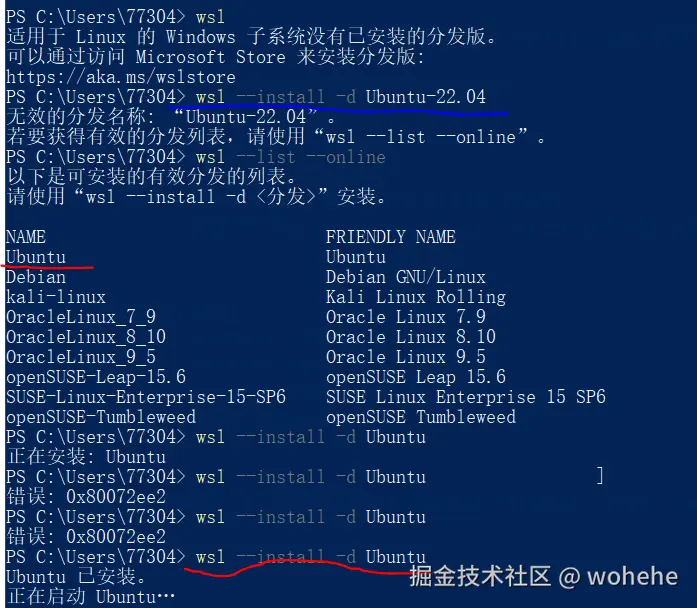

查看可用Linux子系统版本： wsl --list --online 指令
安装Linux子系统：wsl --install -d Ubuntu

安装ruby

启动Ubuntu子系统

打开powershell -> wsl

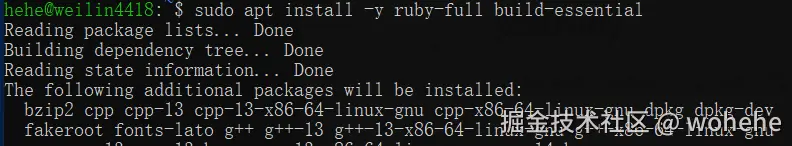

安装 ruby：sudo apt install -y ruby-full build-essential
验证：ruby -v

安装Fastlane

gem 属于 ruby的【RubyGems is a package manager for Ruby.】

复制代码

gem install bundler

坑点

解决：sudo gem install bundler

或者添加为系统环境变量：

bash 复制代码

echo 'export GEM_HOME=$HOME/.gem' >> ~/.bashrc
echo 'export PATH=$HOME/.gem/bin:$PATH' >> ~/.bashrc
source ~/.bashrc

配置Java环境

安装 JDK21

sql 复制代码

sudo apt update
sudo apt install -y openjdk-21-jdk

配置环境变量

bash 复制代码

echo 'export JAVA_HOME=/usr/lib/jvm/java-21-openjdk-amd64' >> ~/.bashrc
echo 'export PATH=$JAVA_HOME/bin:$PATH' >> ~/.bashrc
source ~/.bashrc

验证：java -version

配置Android SDK环境

安装SDK

shell 复制代码

mkdir -p $HOME/Android/cmdline-tools
cd $HOME/Android

wget https://dl.google.com/android/repository/commandlinetools-linux-14742923_latest.zip -O cmdline-tools.zip
unzip cmdline-tools.zip -d cmdline-tools

整理目录 mv cmdline-tools/cmdline-tools cmdline-tools/latest

工具链

bash 复制代码

yes | sdkmanager --licenses

sdkmanager \
  "platform-tools" \
  "platforms;android-34" \
  "build-tools;34.0.0" \
  "cmake;3.22.1" \
  "ndk;25.2.9519653"

配置环境变量

bash 复制代码

echo 'export ANDROID_HOME=$HOME/Android' >> ~/.bashrc
echo 'export ANDROID_SDK_ROOT=$HOME/Android' >> ~/.bashrc
echo 'export PATH=$ANDROID_HOME/cmdline-tools/latest/bin:$ANDROID_HOME/platform-tools:$PATH' >> ~/.bashrc

source ~/.bashrc

安装SDK组件

bash 复制代码

yes | sdkmanager --licenses

sdkmanager \
  "platform-tools" \
  "platforms;android-34" \
  "build-tools;34.0.0" \
  "cmake;3.22.1" \
  "ndk;25.2.9519653"

安装CMake

arduino 复制代码

sdkmanager "cmake;3.22.1"

本地执行

给项目添加Fastlane

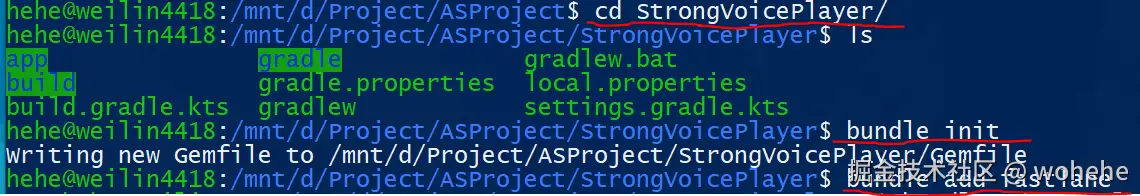

进入项目根目录 -> 执行指令

csharp 复制代码

bundle init
bundle add fastlane

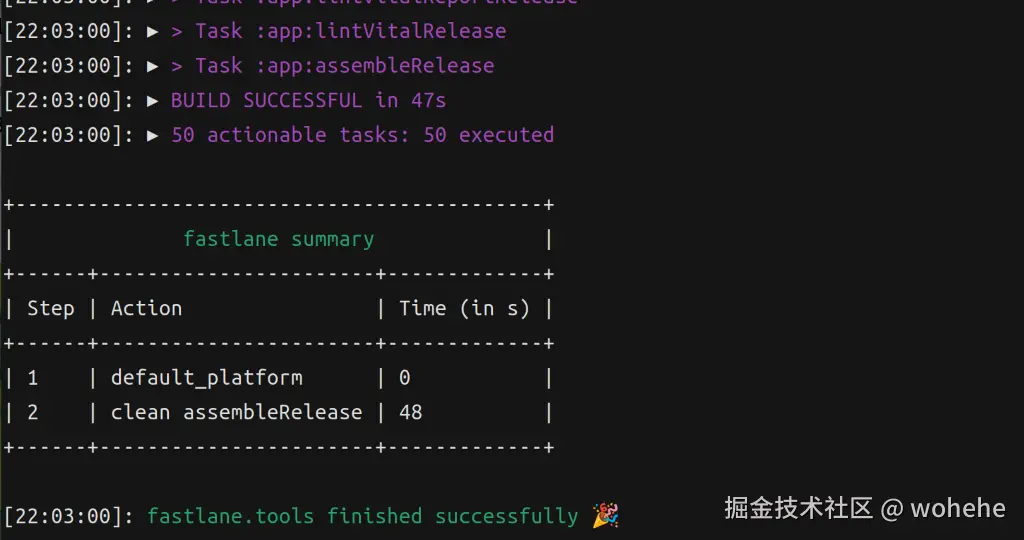

执行Fastlane进行打包

bash 复制代码

bundle exec fastlane deploy

执行结果：【需配置信息以及指导】

powershell 复制代码

[22:04:15]: Detected an Android project in the current directory...$ cd ..
[22:04:15]: -----------------------------StrongVoicePlayer$ cat fastlane/Fastfile
[22:04:15]: --- Welcome to fastlane 🚀 ---rectory
[22:04:15]: -----------------------------StrongVoicePlayer$ cat Gemfile
[22:04:15]: fastlane can help you with all kinds of automation for your mobile app
[22:04:15]: We recommend automating one task first, and then gradually automating more over time
[22:04:15]: s://rubygems.org"
[22:04:15]: To avoid re-entering your package name and issuer every time you run fastlane, we'll store those in a so-called Appfile.
############## 配置包名  ##########################
[22:04:15]: Package Name (com.krausefx.app): com.weiyi.strongvoiceplayer

############## Google商店信息配置【可选】  ##########################
To automatically upload builds and metadata to Google Play, fastlane needs a service account json secret file
Follow the Setup Guide on how to get the Json file: https://docs.fastlane.tools/actions/supply/
Feel free to press Enter at any time in order to skip providing pieces of information when asked
[22:04:42]: Path to the json secret file: trongVoicePlayer$ bundle exec fastlane init
[22:05:33]:
[22:05:33]: Do you plan on uploading metadata, screenshots, and builds to Google Play using fastlane?
[22:05:33]: We will now download your existing metadata and screenshots into the `fastlane` folder so fastlane can manage it
[22:05:33]: Download existing metadata and setup metadata management? (y/n)
n

############## 引导1：`fastlane supply init`重新配置信息  ##########################
[22:05:55]: You can run `fastlane supply init` to set up metadata management at a later point.
[22:05:55]: --------------------------------------------------------
[22:05:55]: --- ✅  Successfully generated fastlane configuration ---
[22:05:55]: --------------------------------------------------------
[22:05:55]: Generated Fastfile at path `./fastlane/Fastfile`
[22:05:55]: Generated Appfile at path `./fastlane/Appfile`
[22:05:55]: Gemfile and Gemfile.lock at path `Gemfile`
[22:05:55]: Please check the newly generated configuration files into git along with your project
[22:05:55]: This way everyone in your team can benefit from your fastlane setup
[22:05:55]: Continue by pressing Enter ⏎

############## 引导2：错误信息收集指引文档  ##########################
[22:06:45]: fastlane will collect the number of errors for each action to detect integration issues
[22:06:45]: No sensitive/private information will be uploaded, more information: https://docs.fastlane.tools/#metrics    #文档地址
[22:06:45]: ----------------------
[22:06:45]: --- fastlane lanes ---
[22:06:45]: ----------------------
[22:06:45]: fastlane uses a `Fastfile` to store the automation configuration
[22:06:45]: Within that, you'll see different lanes.
[22:06:45]: Each is there to automate a different task, like screenshots, code signing, or pushing new releases
[22:06:45]: Continue by pressing Enter ⏎

############## 引导3：如何自定义你的Fastfile  ##########################
[22:07:15]: --------------------------------------
[22:07:15]: --- How to customize your Fastfile ---
[22:07:15]: --------------------------------------
[22:07:15]: Use a text editor of your choice to open the newly created Fastfile and take a look
[22:07:15]: You can now edit the available lanes and actions to customize the setup to fit your needs
[22:07:15]: To get a list of all the available actions, open https://docs.fastlane.tools/actions  #文档
[22:07:15]: Continue by pressing Enter ⏎

############## 引导4：各种配置文档  ##########################
[22:07:48]: ------------------------------
[22:07:48]: --- Where to go from here? ---
[22:07:48]: ------------------------------
[22:07:48]: 📸  Learn more about how to automatically generate localized Google Play screenshots:
[22:07:48]:             https://docs.fastlane.tools/getting-started/android/screenshots/
[22:07:48]: 👩‍✈️  Learn more about distribution to beta testing services:
[22:07:48]:             https://docs.fastlane.tools/getting-started/android/beta-deployment/
[22:07:48]: 🚀  Learn more about how to automate the Google Play release process:
[22:07:48]:             https://docs.fastlane.tools/getting-started/android/release-deployment/
[22:07:48]:
[22:07:48]: To try your new fastlane setup, just enter and run
[22:07:48]: $ fastlane test

坑点

Windows 与 Linux文件系统格式是不一样的，如果使用Windows进行项目开发，wsl（Linux）进行 Fastlane 打包，是会报错的，Ext4 和NTFS 文件系统权限不一样导致

解决：

bash 复制代码

#复制Windows目录中项目 到 Linux子系统的系统目录中
cp /mnt/.../[项目目录] ~/

ci脚本存放目录

lua 复制代码

<你的仓库根目录>/
└─ .github/
   └─ workflows/
      └─ android-ci.yml   <-- 这里放你的 workflow 脚本

android-ci.yml脚本

yaml 复制代码

name: Android CI/CD (Windows + WSL + Fastlane)

on:
  push:
    tags:
      - 'v*.*.*'  # 只在版本标签时触发

jobs:
  build-deploy:
    runs-on: windows-latest

    env:
      # GitHub Secret，存放 Google Play Service Account JSON
      SUPPLY_JSON_KEY: ${{ secrets.GOOGLE_PLAY_JSON_KEY }}

    steps:
      # 1️⃣ 检出代码
      - name: Checkout repository
        uses: actions/checkout@v3

      # 2️⃣ 安装 WSL 2（Ubuntu）
      - name: Enable WSL
        run: |
          wsl --install -d Ubuntu-22.04

      # 3️⃣ 在 WSL 内安装 Ruby + Fastlane
      - name: Install Ruby & Fastlane
        run: |
          wsl sudo apt update
          wsl sudo apt install -y ruby-full build-essential git
          wsl gem install bundler
          wsl bundle install

      # 4️⃣ 在 WSL 内安装 Android SDK
      - name: Install Android SDK
        run: |
          wsl sudo apt install -y openjdk-17-jdk wget unzip
          wsl mkdir -p $HOME/Android/cmdline-tools
          wsl wget https://dl.google.com/android/repository/commandlinetools-linux-9477386_latest.zip -O cmdline-tools.zip
          wsl unzip cmdline-tools.zip -d $HOME/Android/cmdline-tools
          wsl yes | $HOME/Android/cmdline-tools/cmdline-tools/bin/sdkmanager --licenses
          wsl $HOME/Android/cmdline-tools/cmdline-tools/bin/sdkmanager "platform-tools" "platforms;android-33" "build-tools;33.0.2"

      # 5️⃣ 构建 APK/AAB 并发布
      - name: Build & Deploy
        run: |
          wsl bundle exec fastlane deploy

Push 标签

yaml 复制代码

on:
  push:
    tags:
      - 'v*.*.*'   # 当 push 的标签符合 v1.0.0、v2.3.4 格式触发

操作：

perl 复制代码

git tag v1.0.0
git push origin v1.0.0

Workflow 会在推送标签时自动触发。

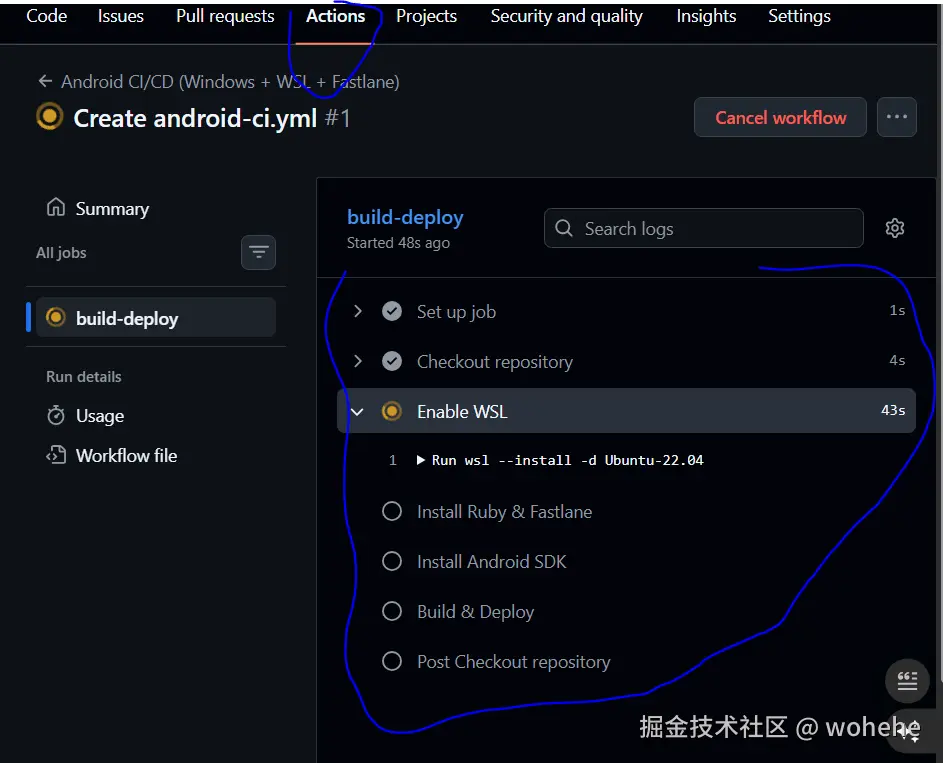

进入Github项目中查看Action标签
