基于多设计模式的抽奖系统 - 测试报告

一、项目概述

1.项目背景

基于 Spring Boot 开发的在线抽奖管理平台，支持活动创建、奖品管理、用户管理、抽奖执行和中奖记录查询等功能。具备异常回滚机制，确保业务处理正常，中奖数据不会丢失，中奖结果通过邮箱、短信通知。

2.项目结构

• 管理员模块：登录、注册
• 普通用户模块：用户列表、普通用户注册
• 奖品模块：奖品列表、奖品创建
• 活动模块：活动列表、创建活动
• 抽奖模块：抽奖活动、中奖结果展示

3.测试环境

操作系统：Windows 11

浏览器：Chrome

测试工具：Selenium、JMeter、postman

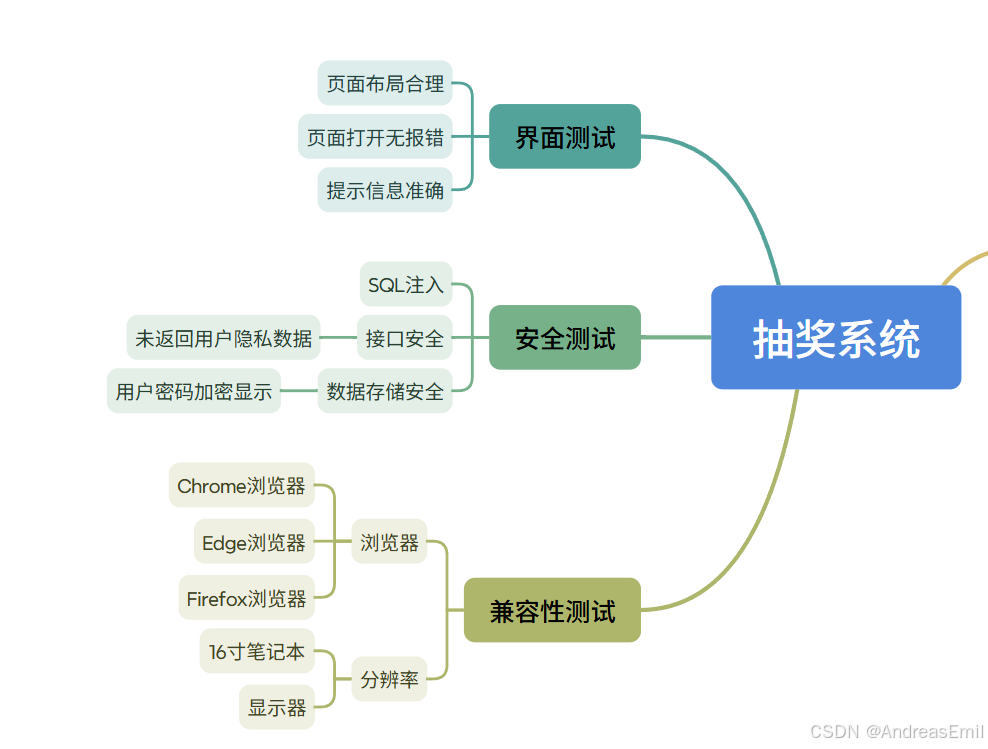

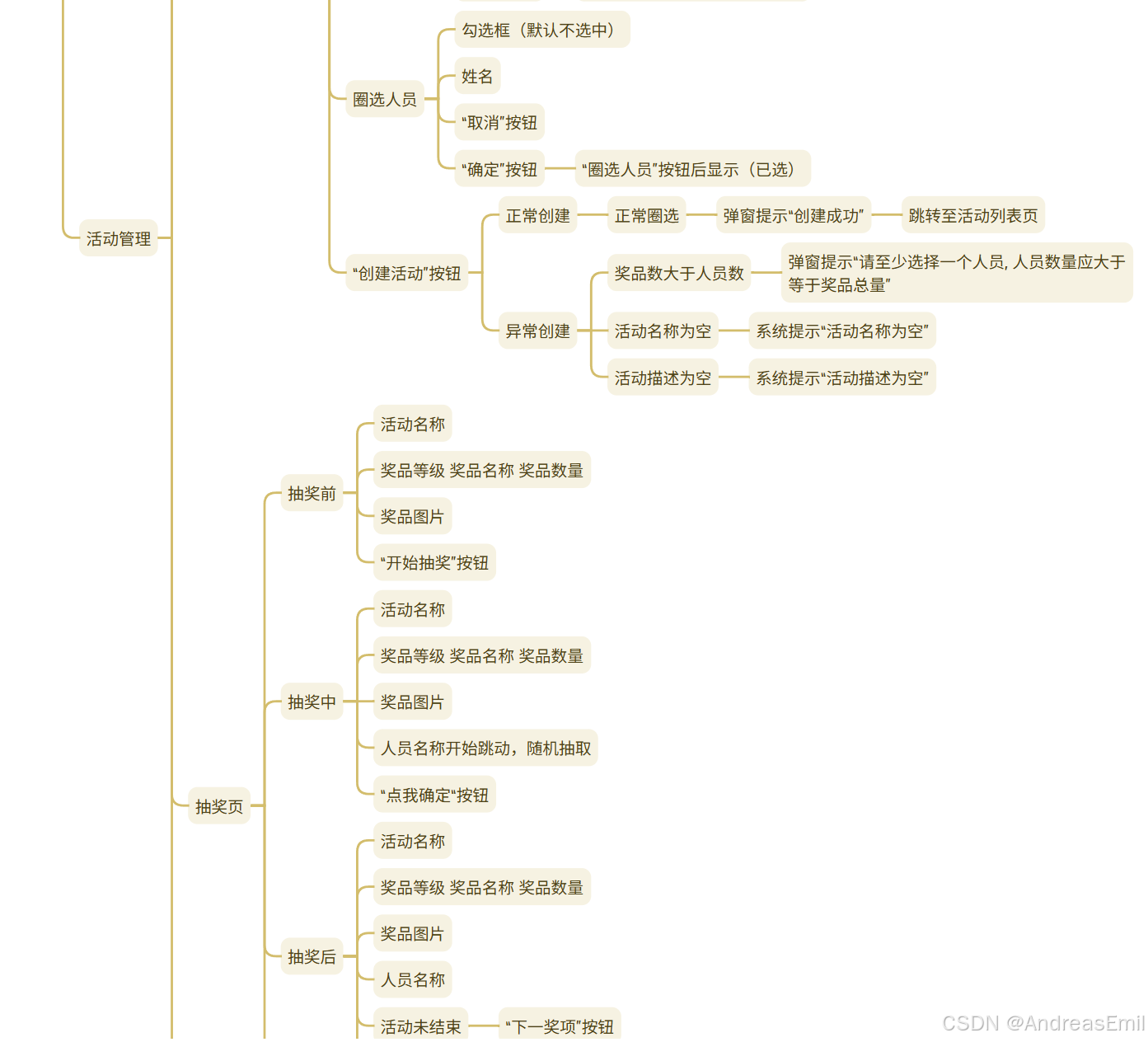

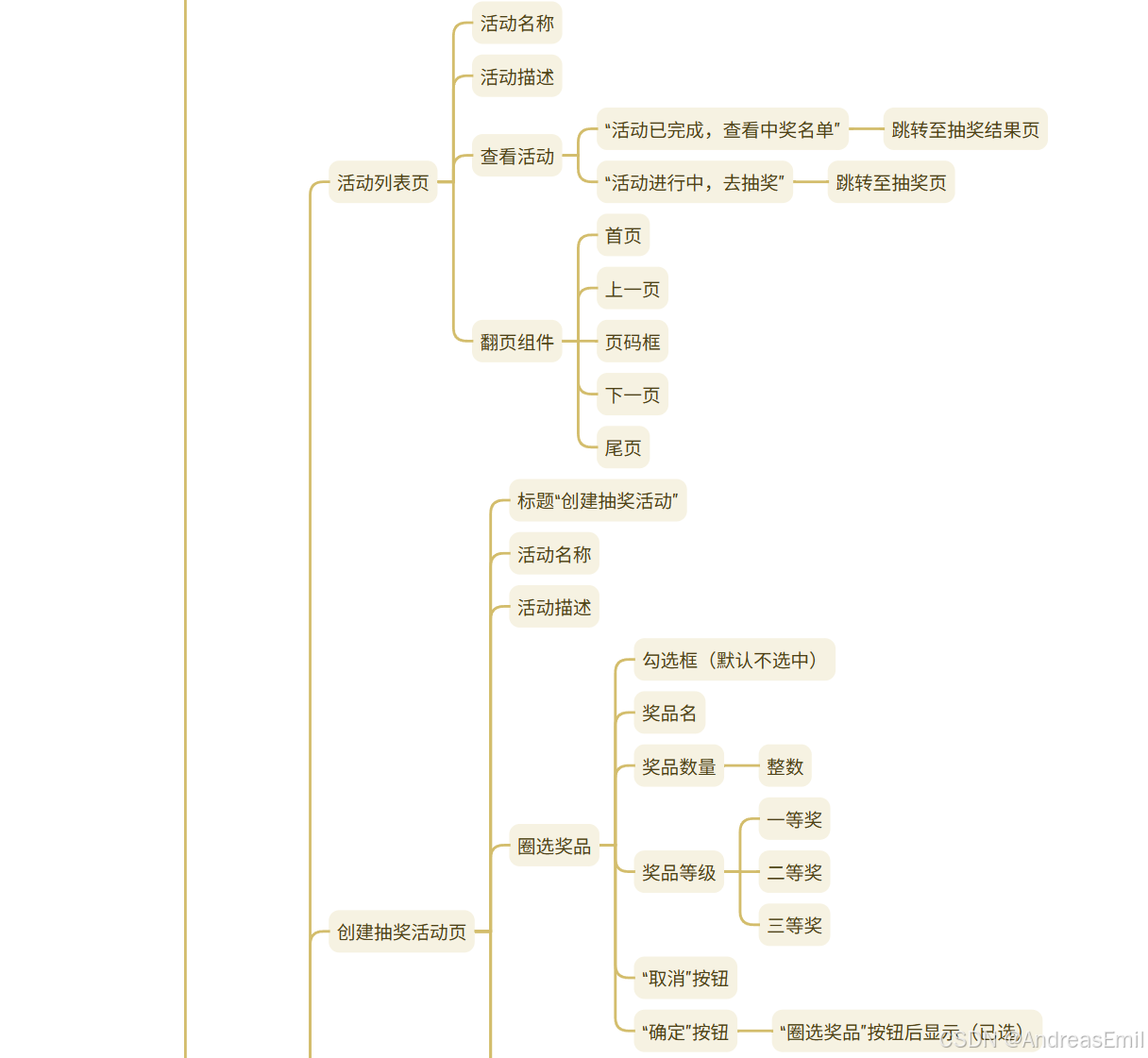

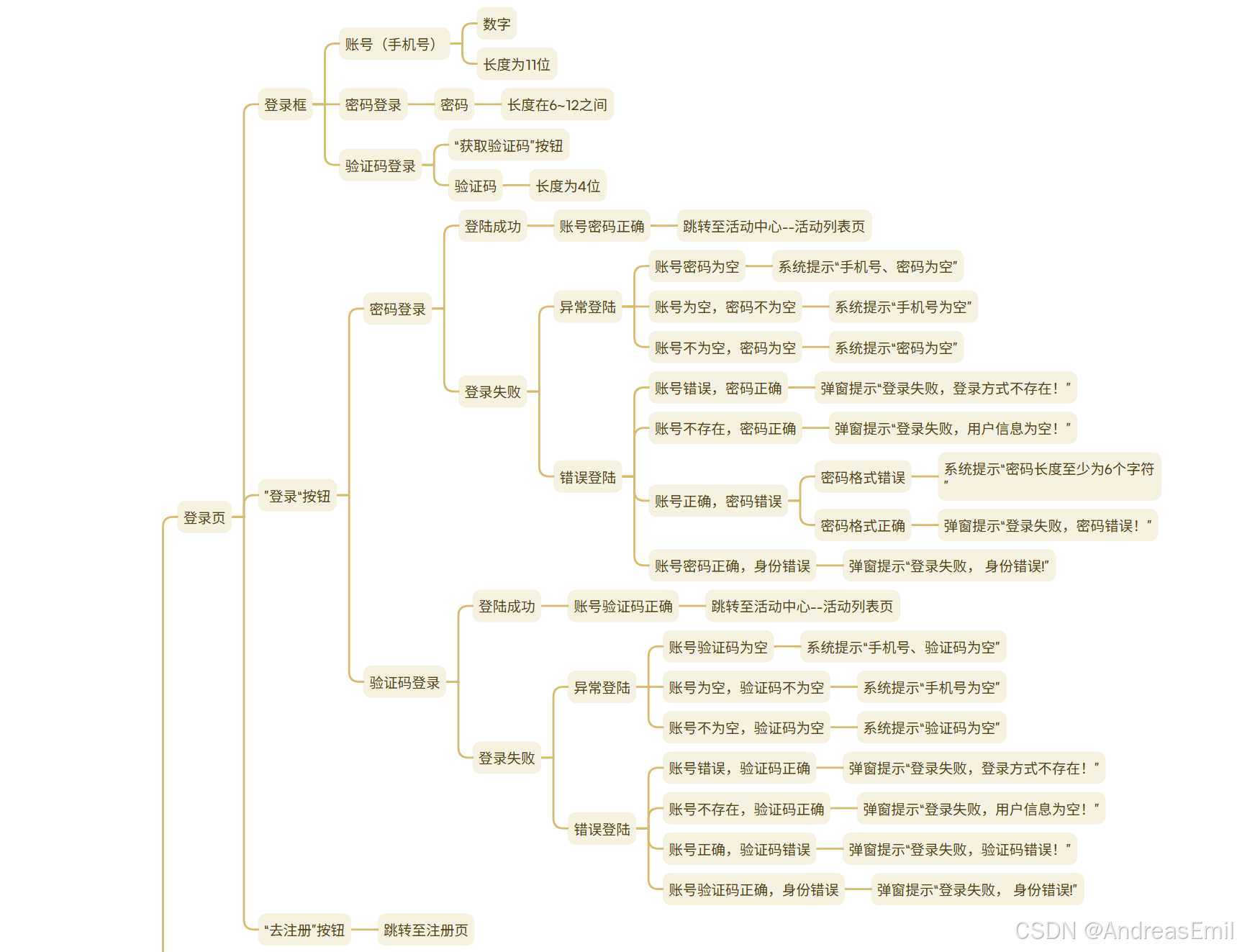

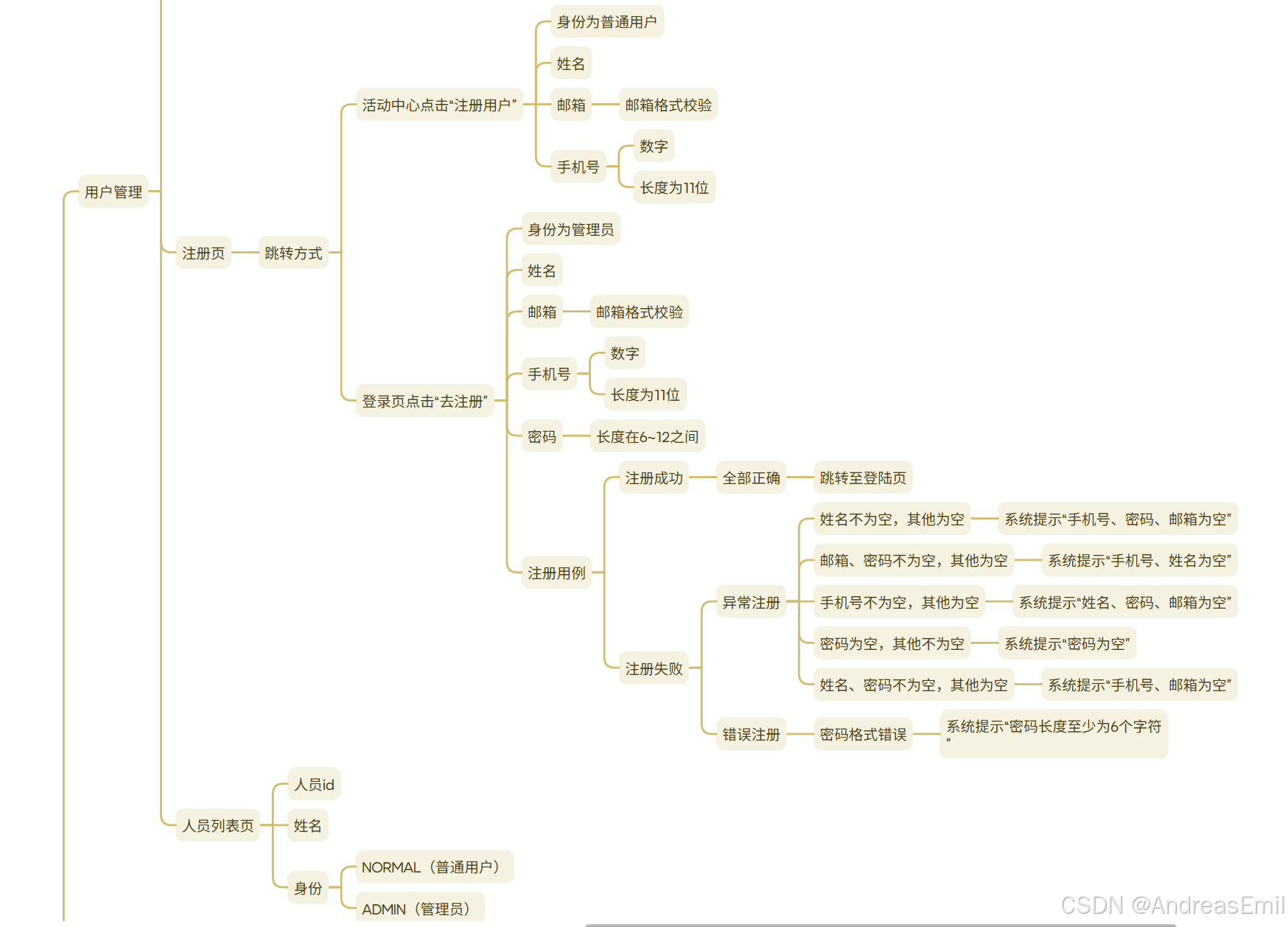

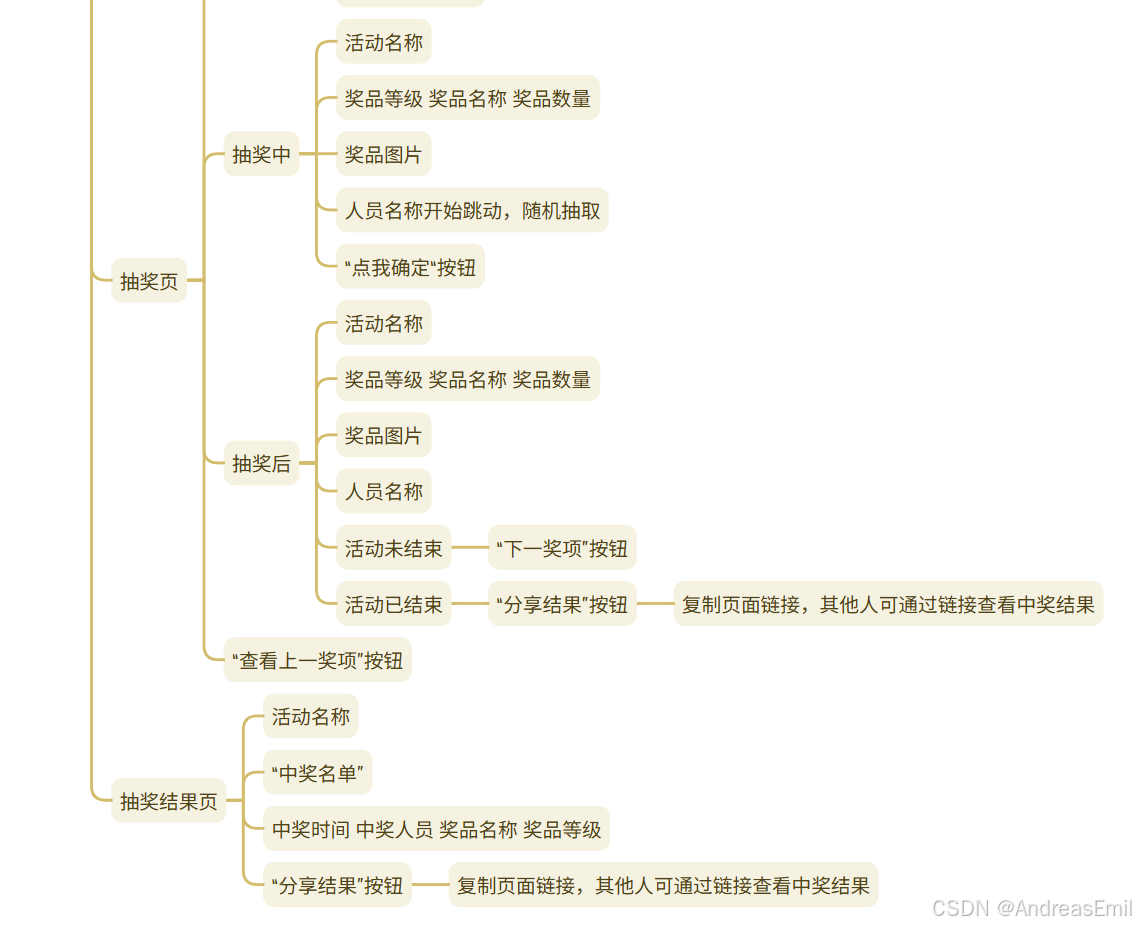

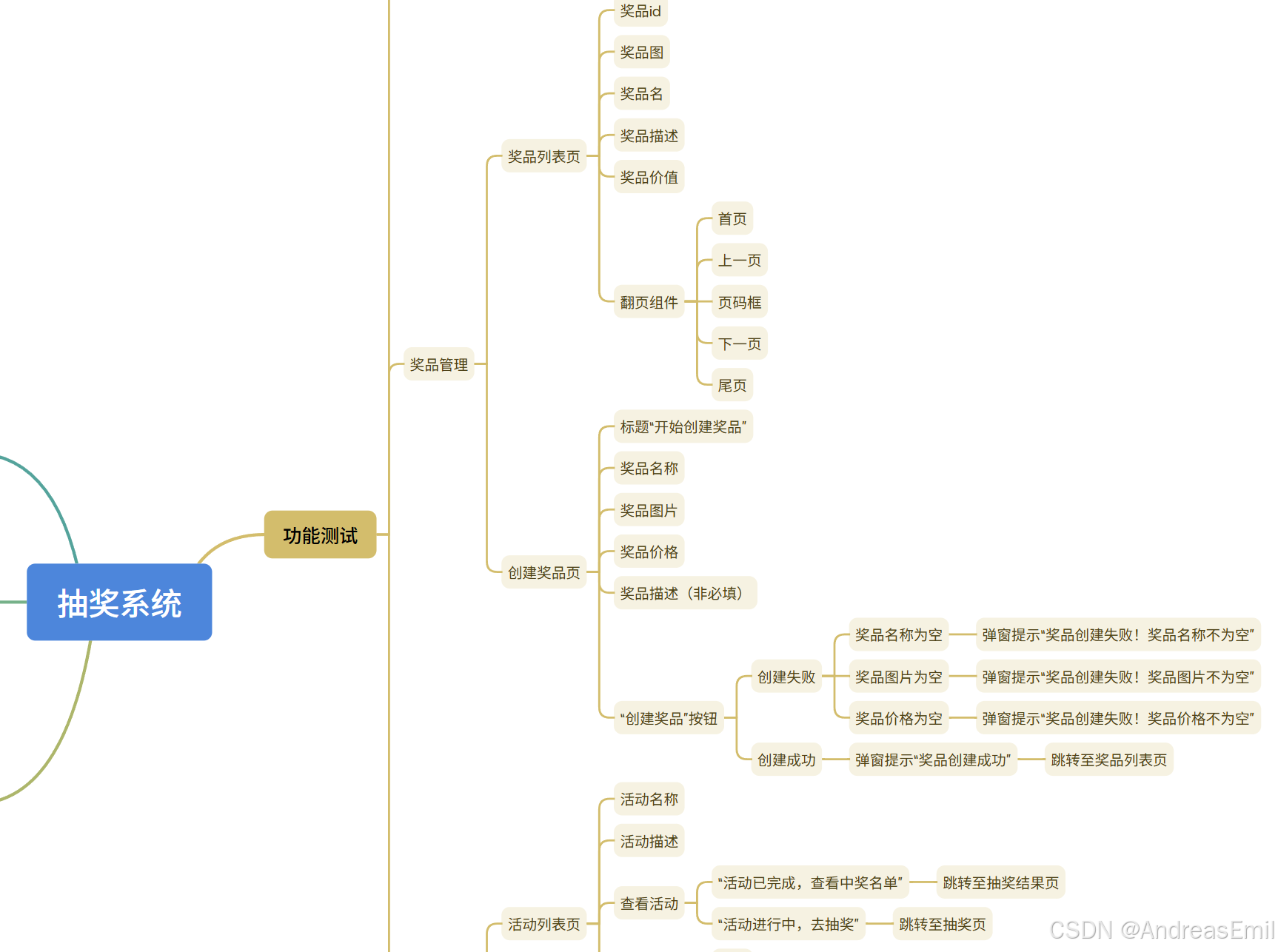

二、测试用例

三、功能测试

1.手动测试

1.1登录页面测试

1.1.1密码登录

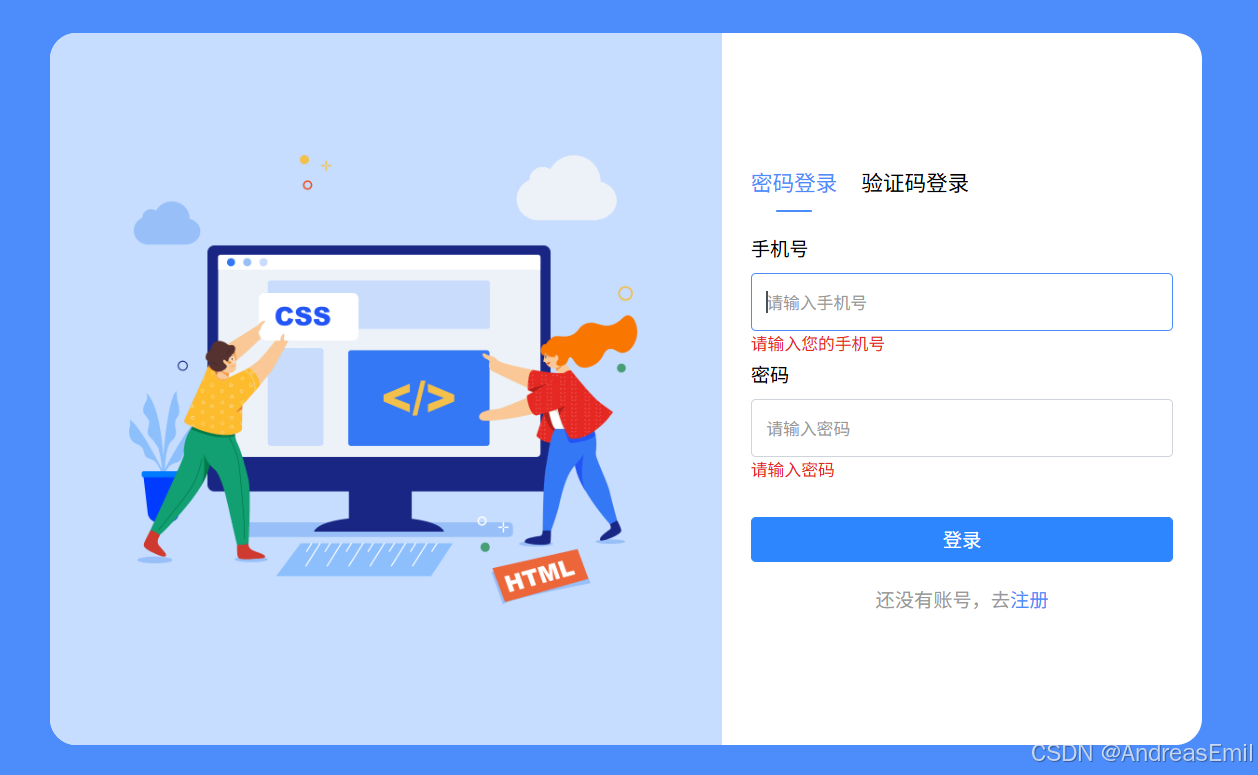

测试场景一：手机号和密码都不填

预期结果：系统提示手机号、密码为空

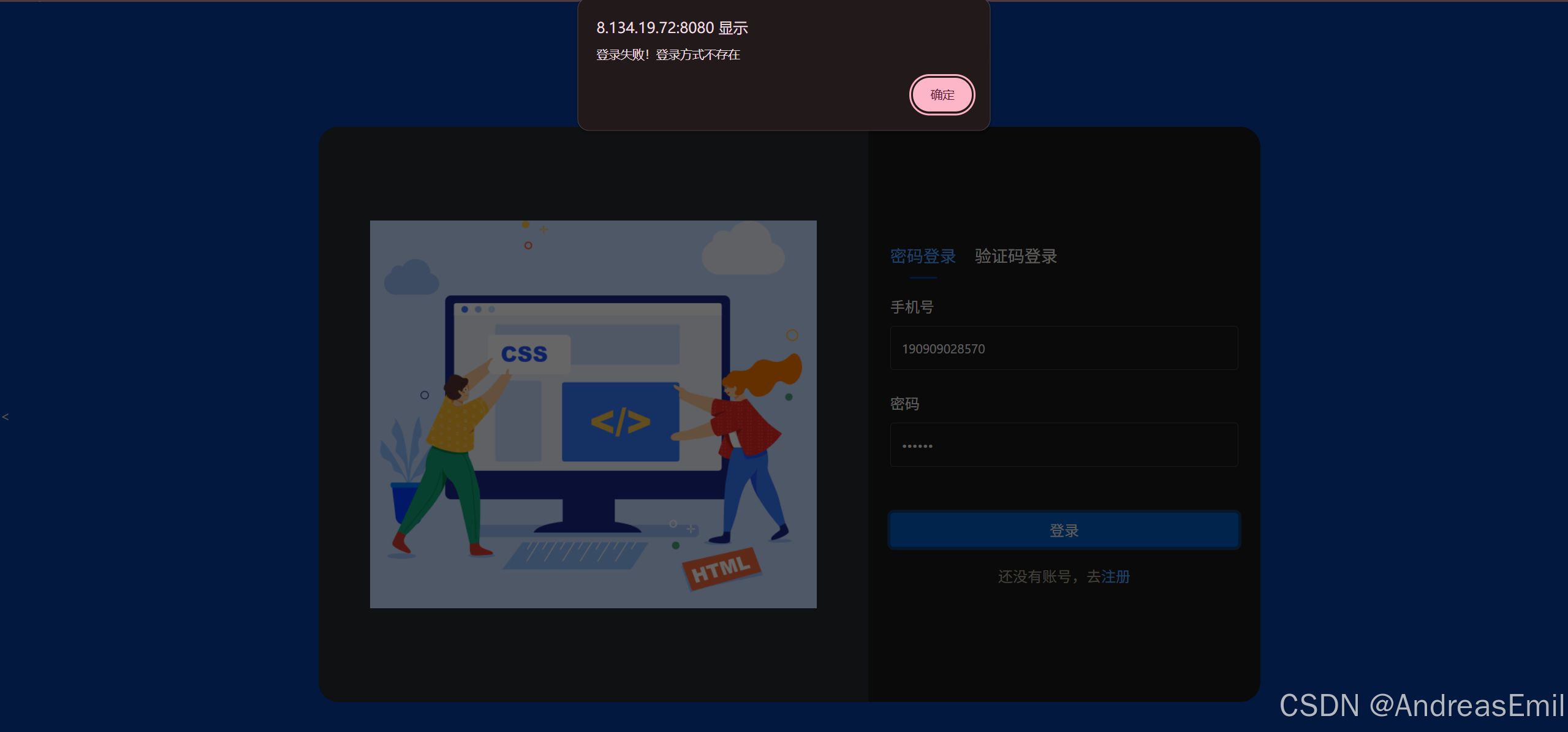

测试场景二：手机号填写正确和密码填写正确（手机号格式不正确）

预期结果：弹窗提醒"登录失败,登录方式不存在"

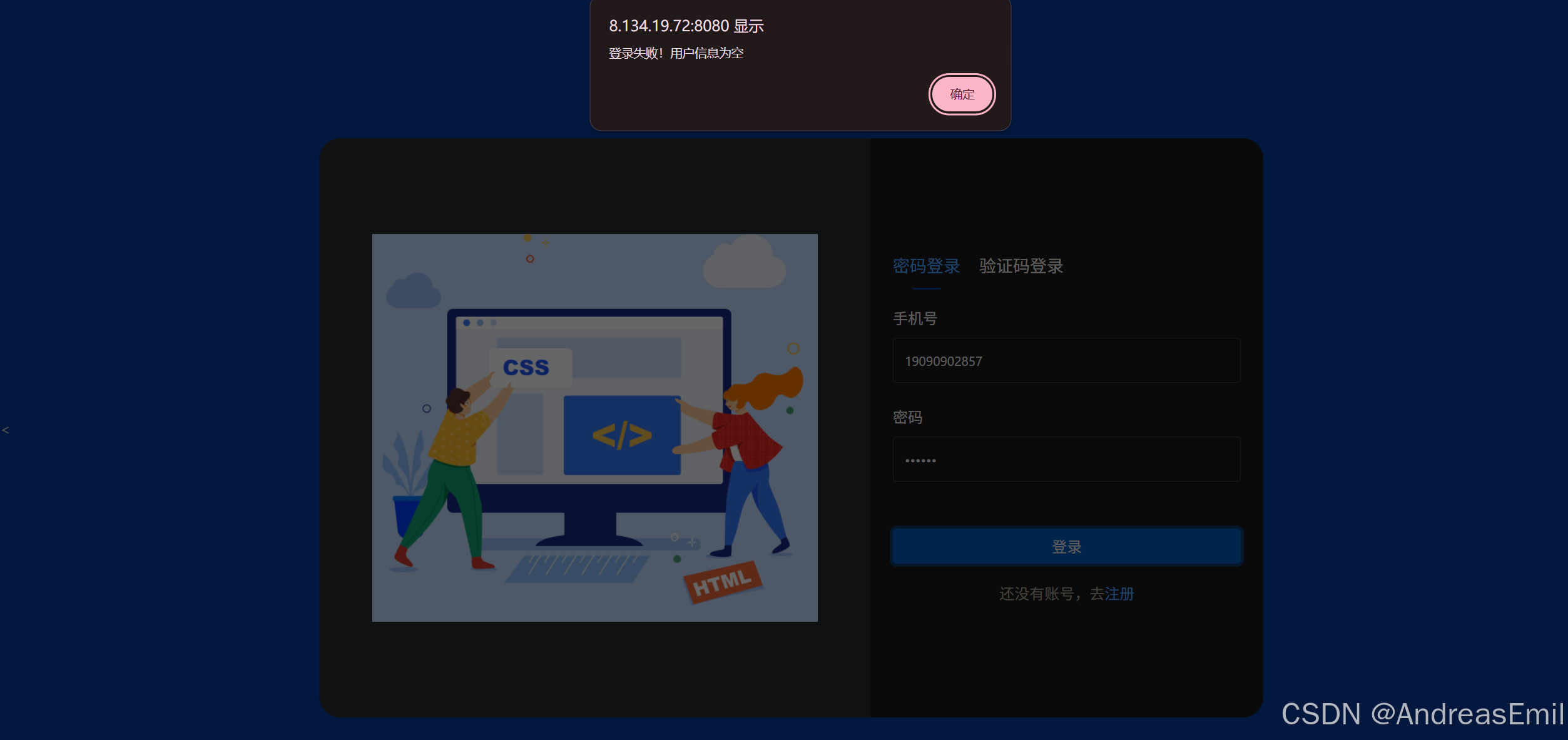

测试场景三：手机号填写错误和密码填写正确（手机号格式正确）

预期结果：弹窗提醒"登录失败用户信息为空"

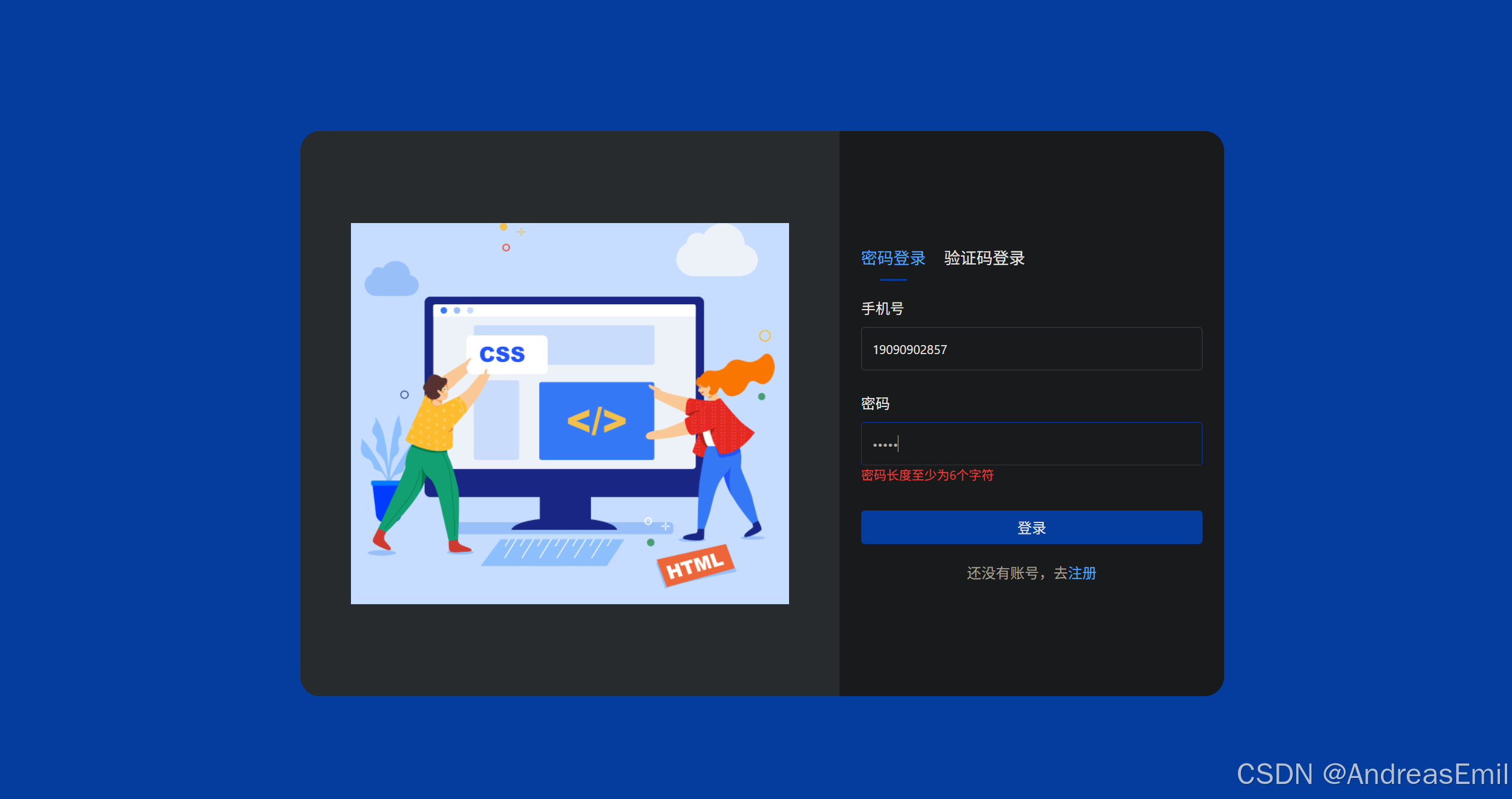

测试场景四：手机号正确，密码错误（密码格式错误）

预期结果：系统提醒"密码长度至少为6个字符"

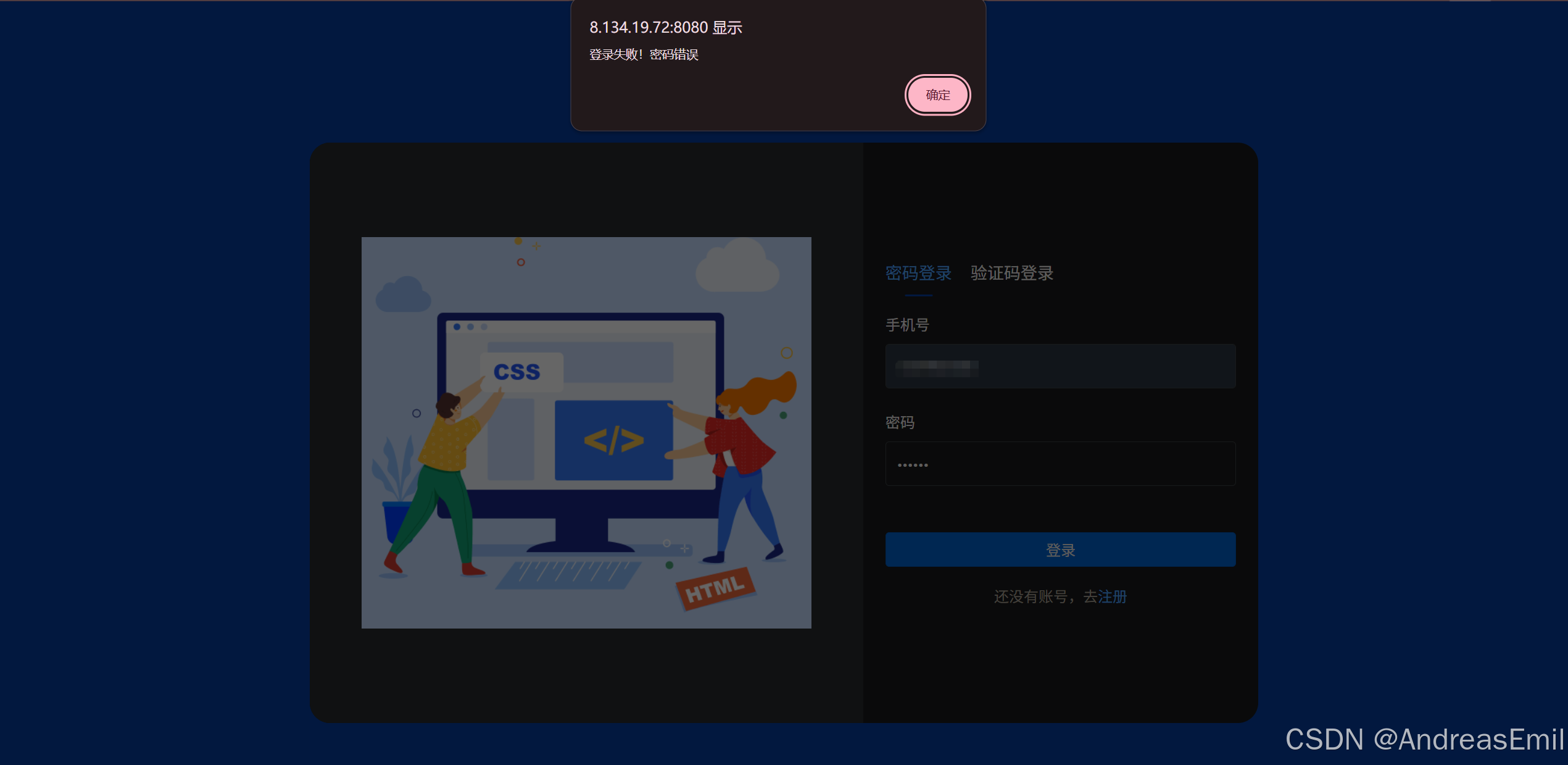

测试场景五：手机号正确，密码错误（密码格式正确）

预期结果：弹窗提醒"登录失败密码错误"

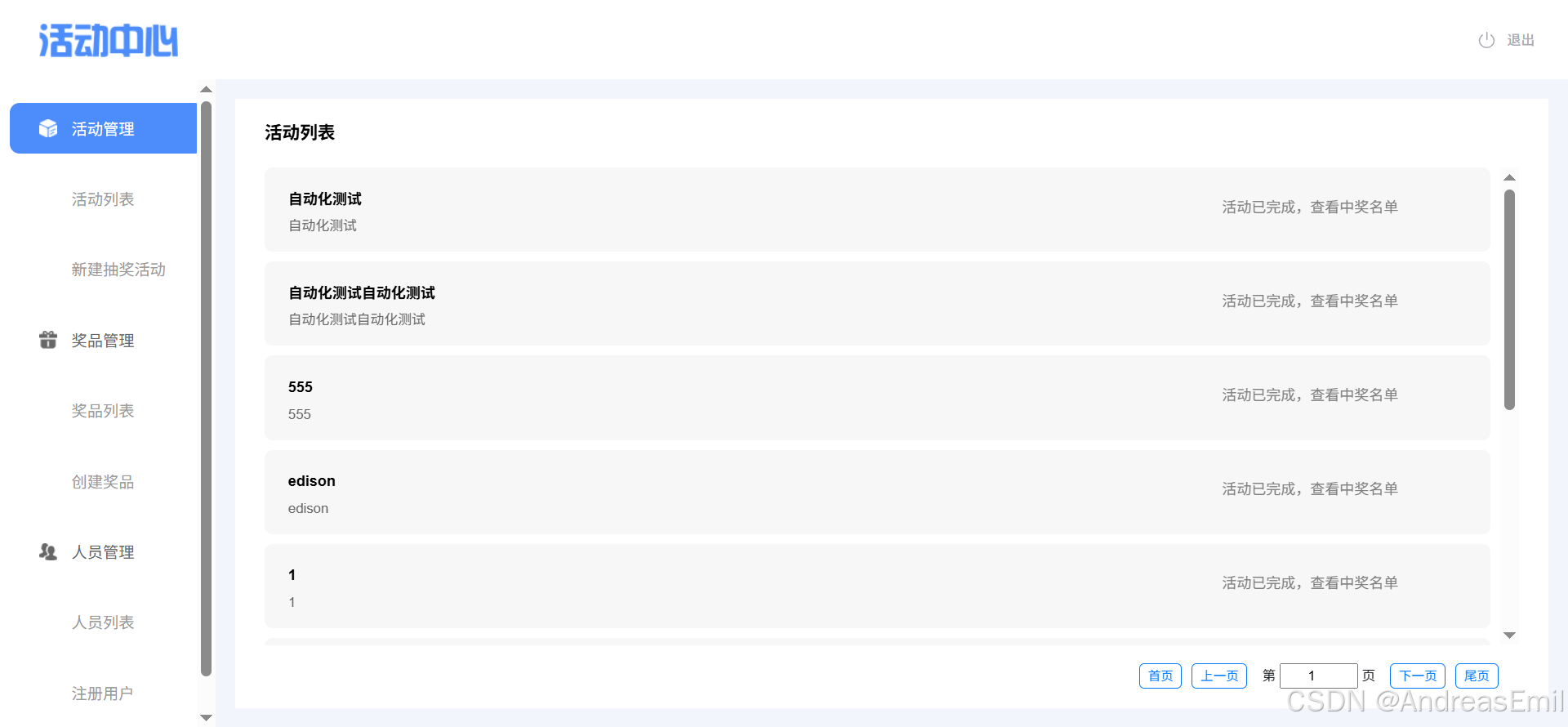

测试场景六：手机号正确，密码正确

预期结果：跳转到活动中心页

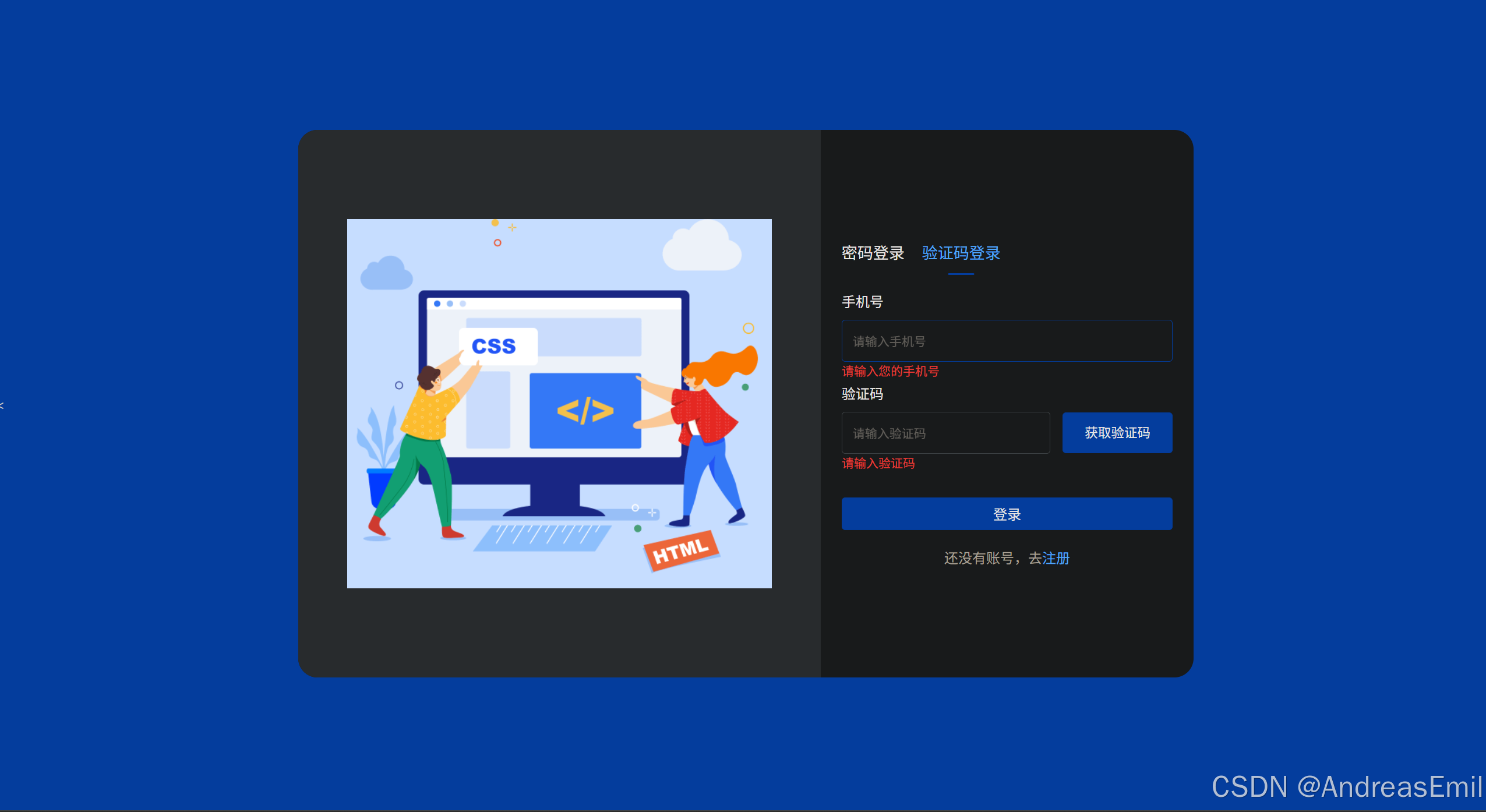

1.1.2 验证码登录

测试场景一：手机号和验证码都为空

预期结果：系统提示"手机、验证码为空"

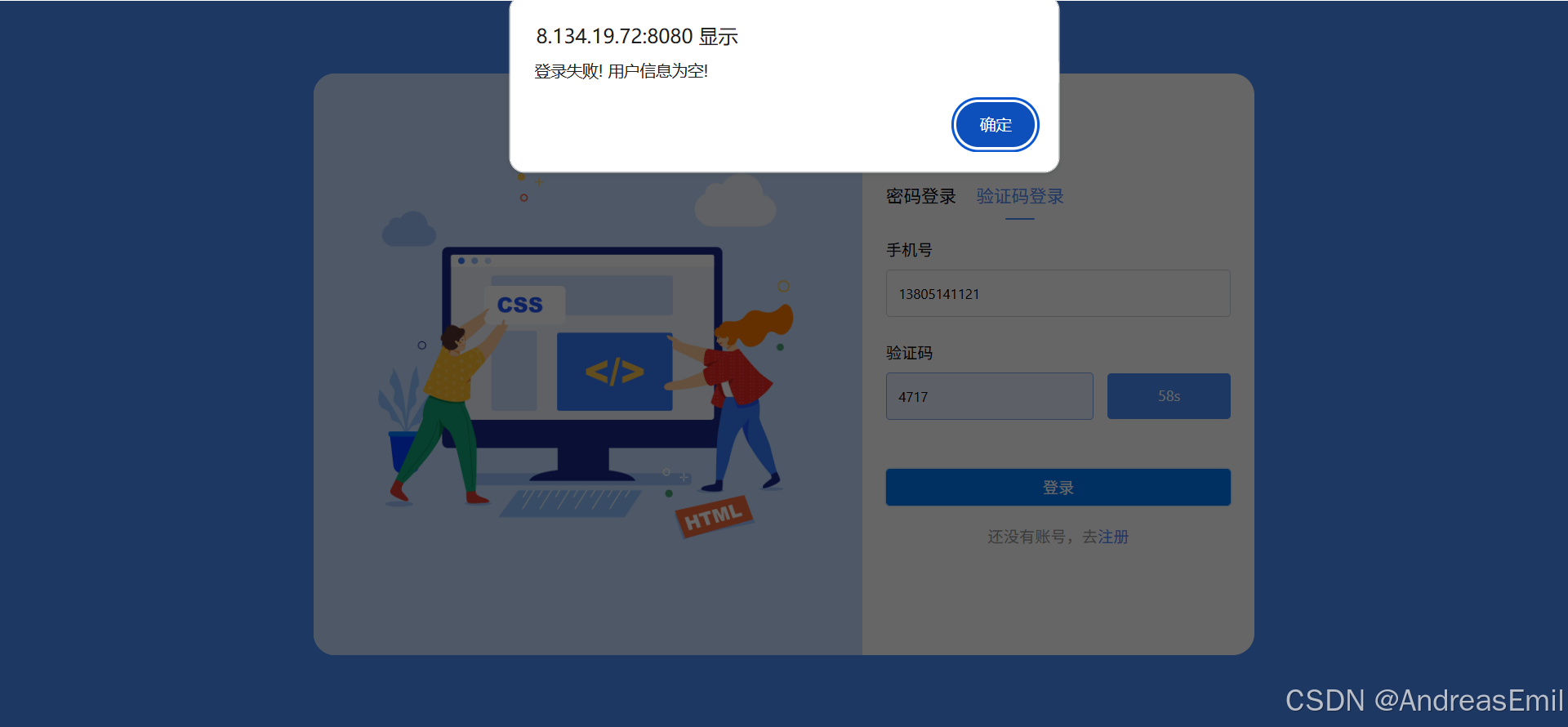

测试场景二：手机号错误和验证码正确

预期结果：弹窗提醒"登录失败用户信息为空"

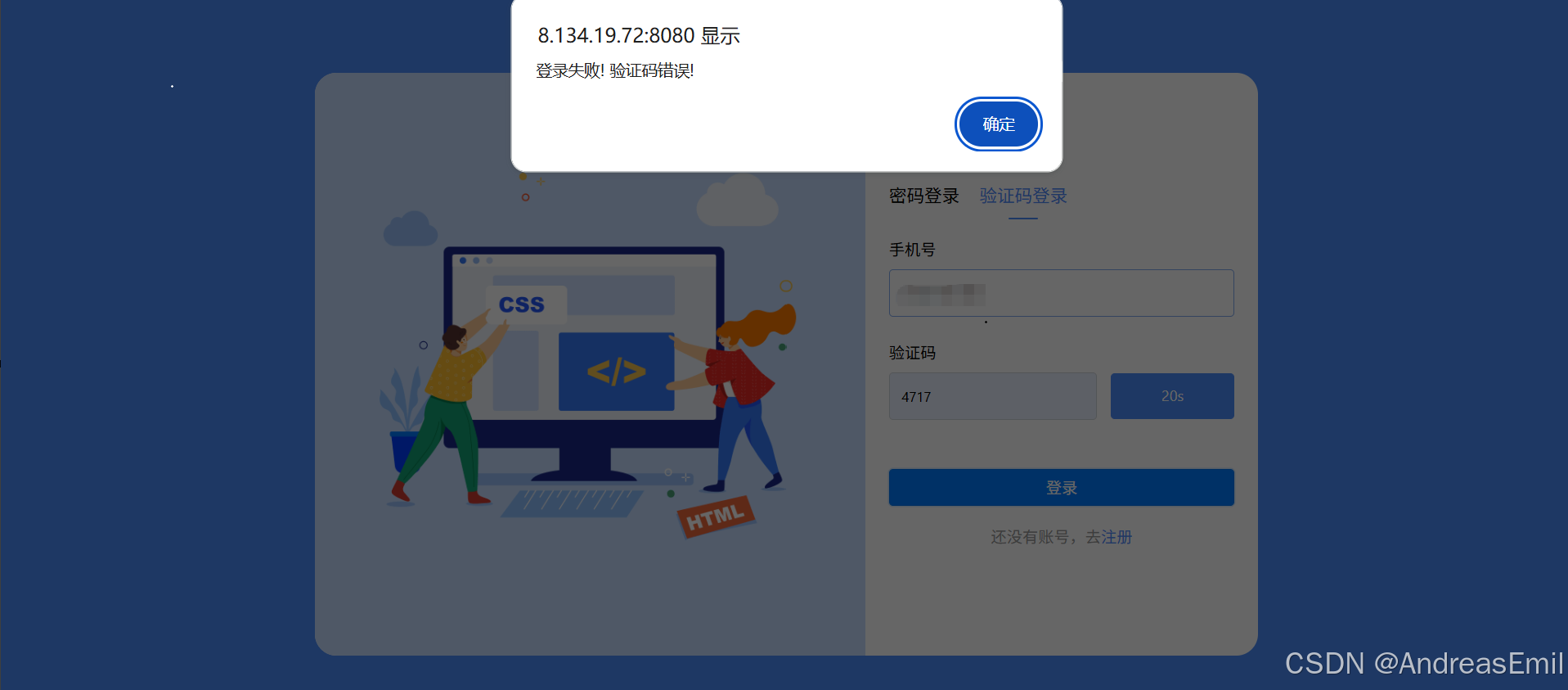

测试场景三：手机号正确和验证码不正确

预期结果：弹窗提醒"登录失败验证码错误"

测试场景四：手机号和验证码都正确

预期结果：进去活动中心页

1.2 注册管理员用户页面测试

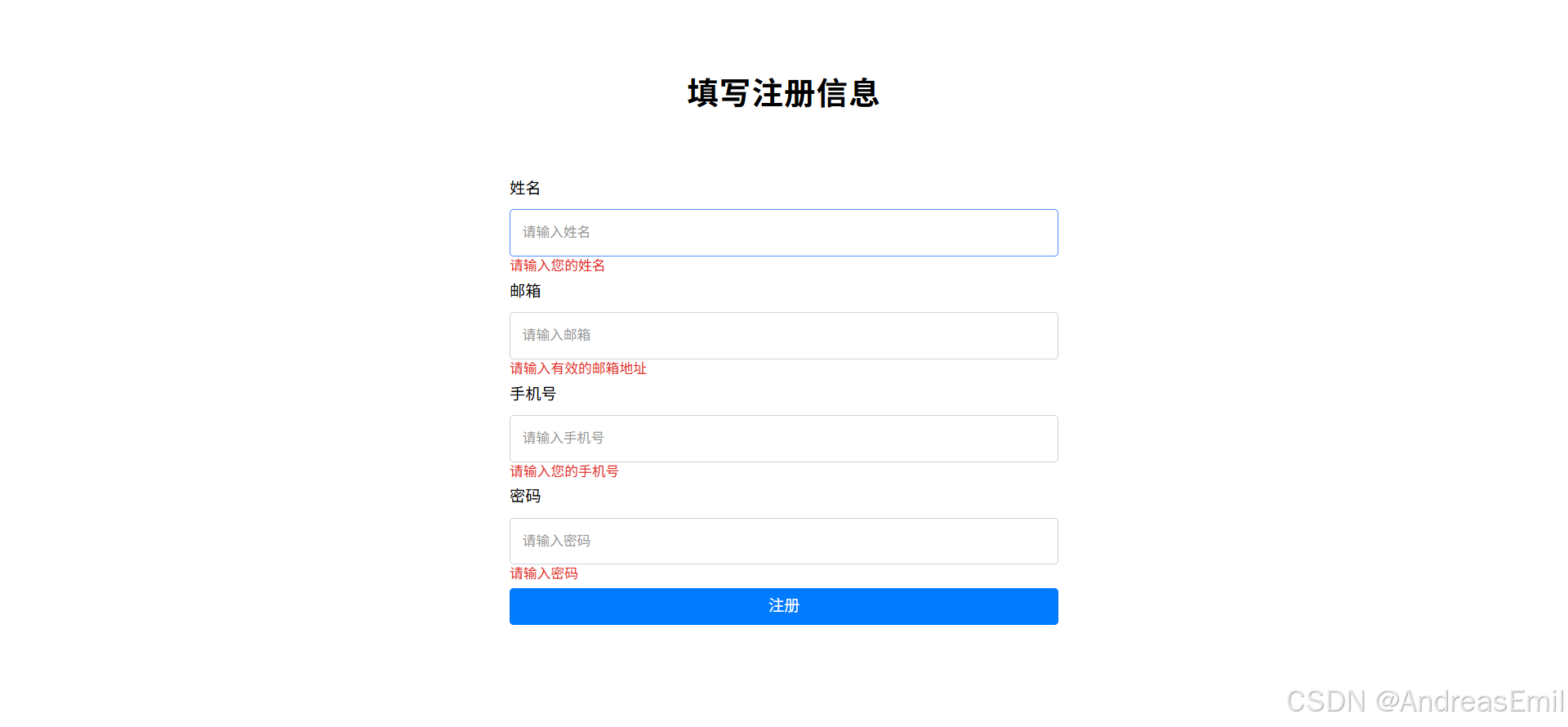

测试场景一：所有都为空

预测场景：系统提示为空

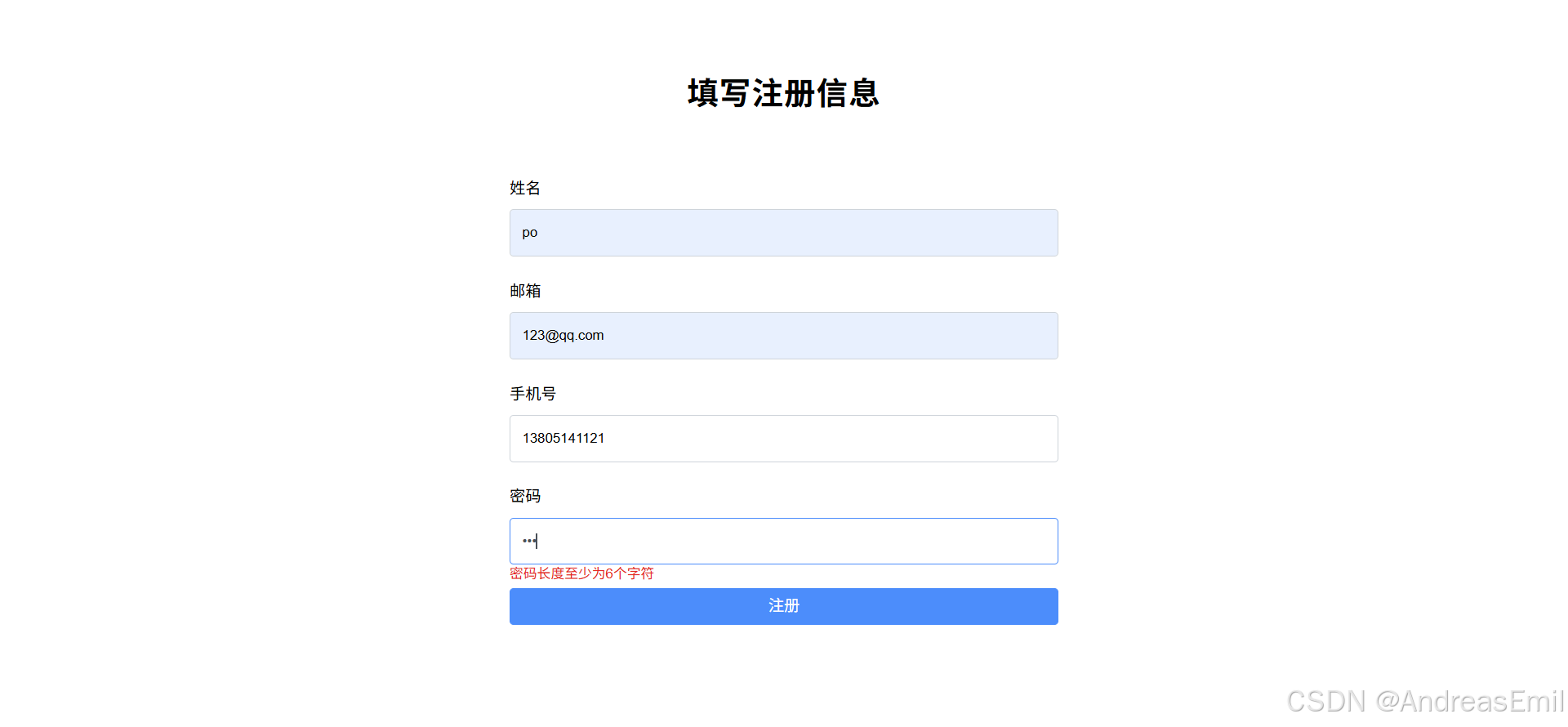

测试场景二：密码格式错误，其他正确

预测场景：系统提示密码长度至少为6个字符

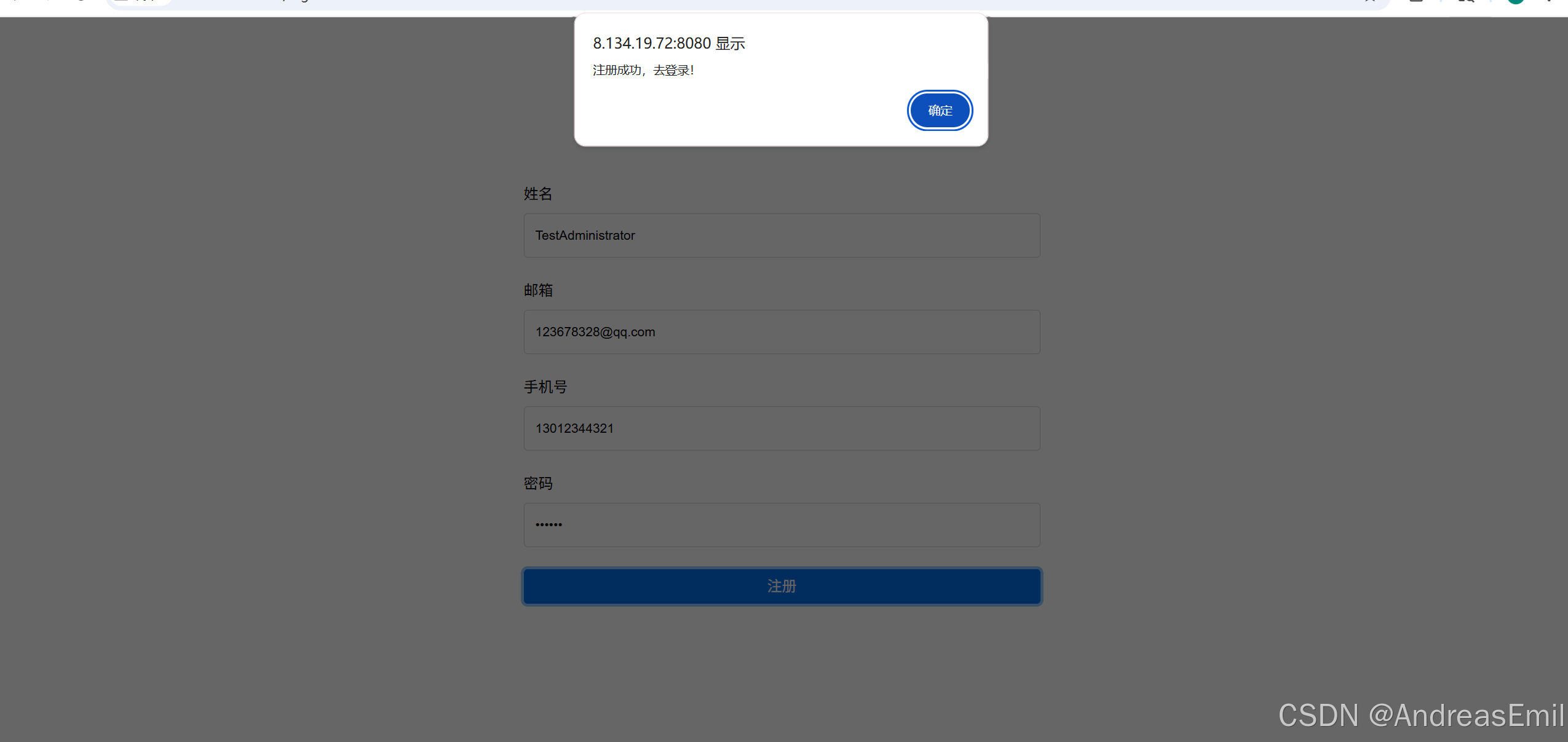

测试场景三：全部正确

预测场景：弹窗"注册成功，点击确定"，成功跳转登录页

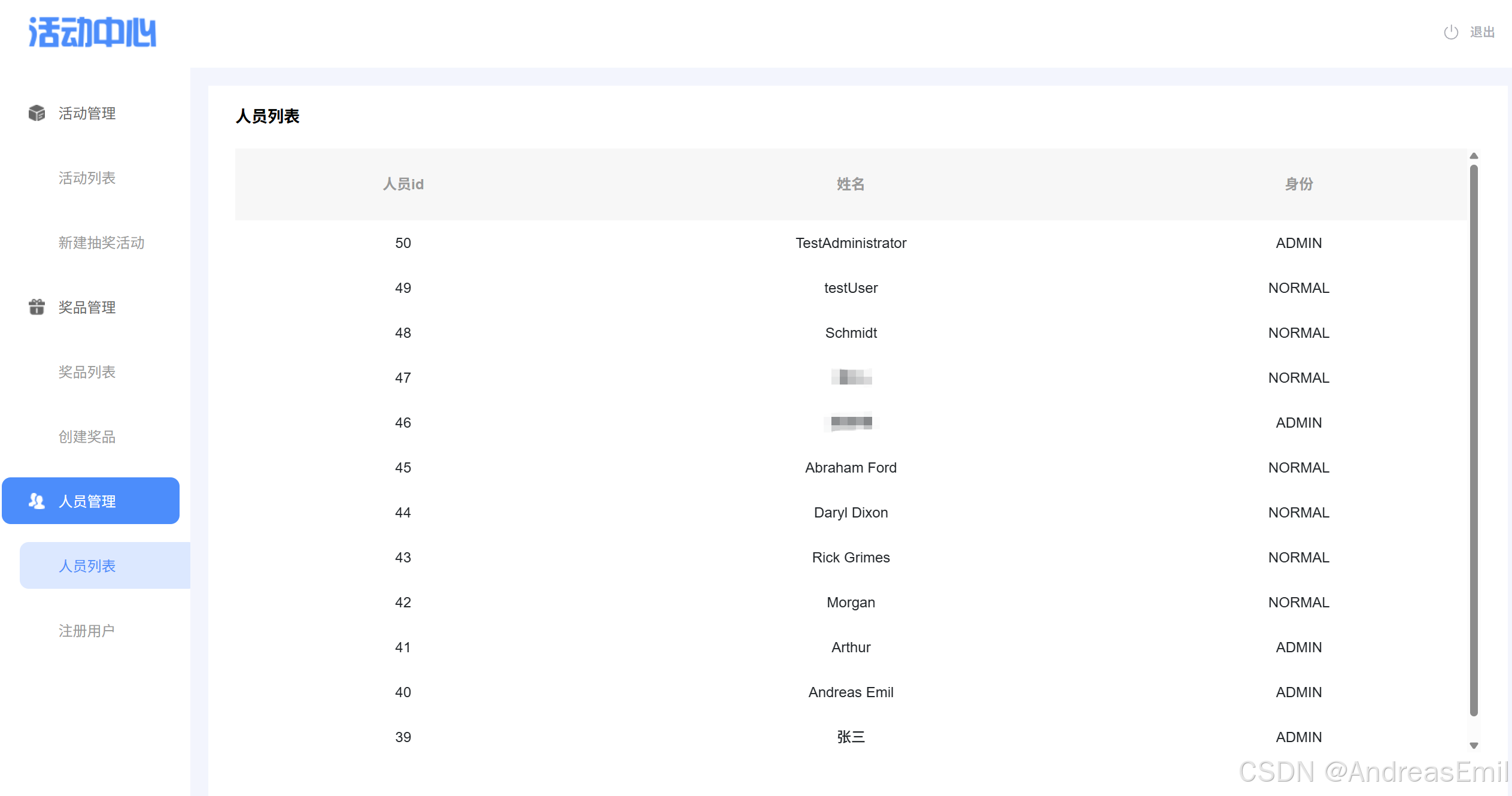

1.3 用户列表页面测试

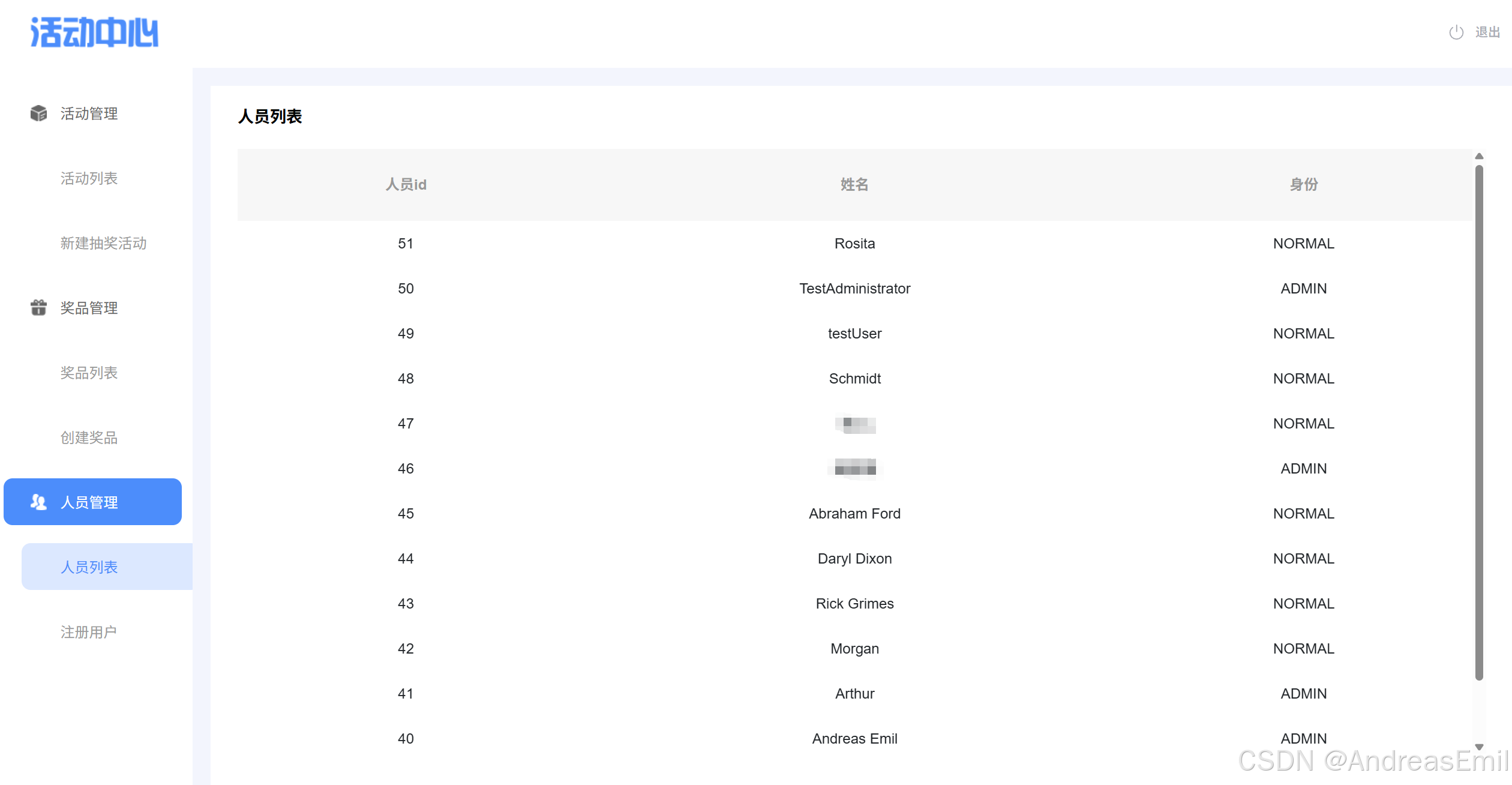

测试场景一：点击人员列表

预测场景：正常显示人员列表

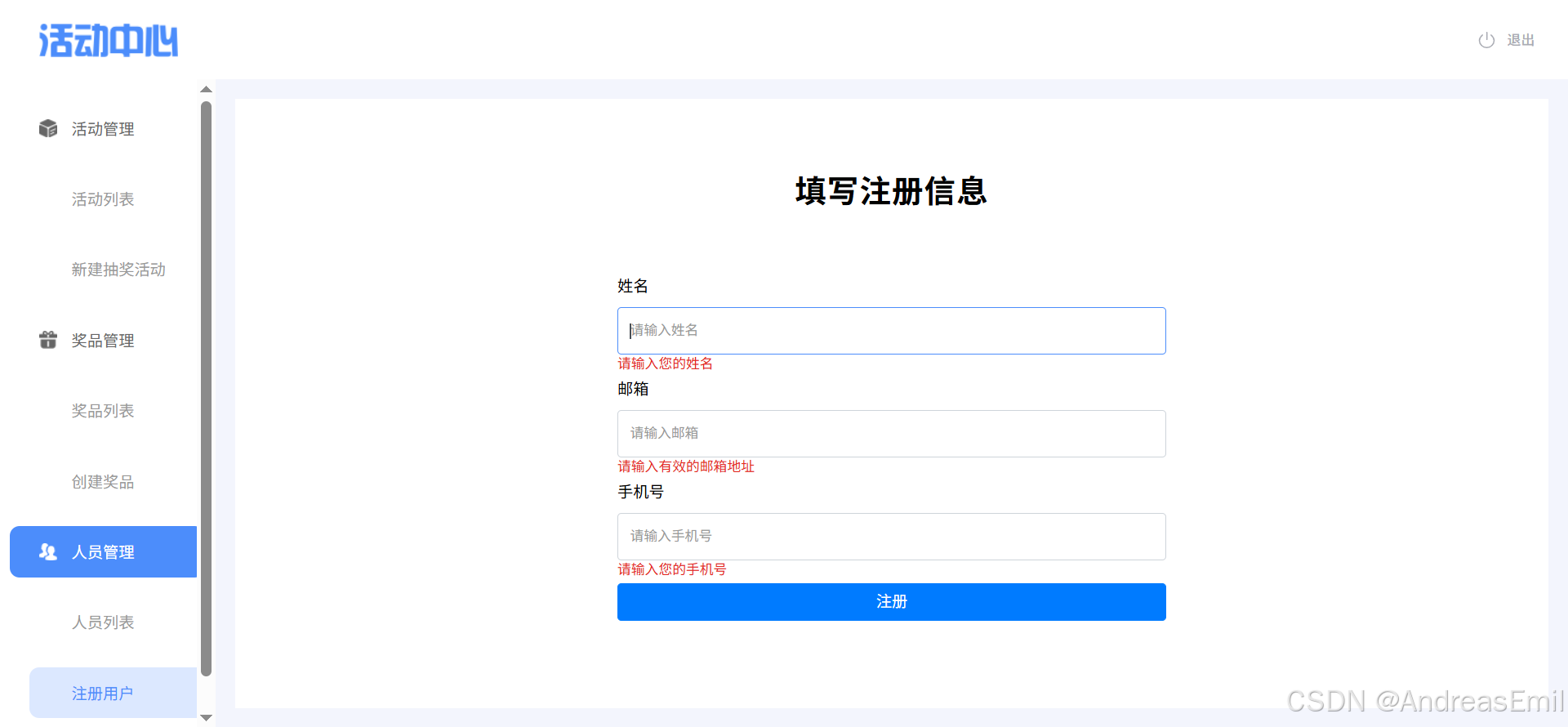

1.4 注册普通用户页面测试

测试场景一：姓名、邮箱和手机号都为空

预期结果：系统提示姓名、邮箱、手机号为空

测试场景二：全部正确填写

预期结果：跳转人员列表

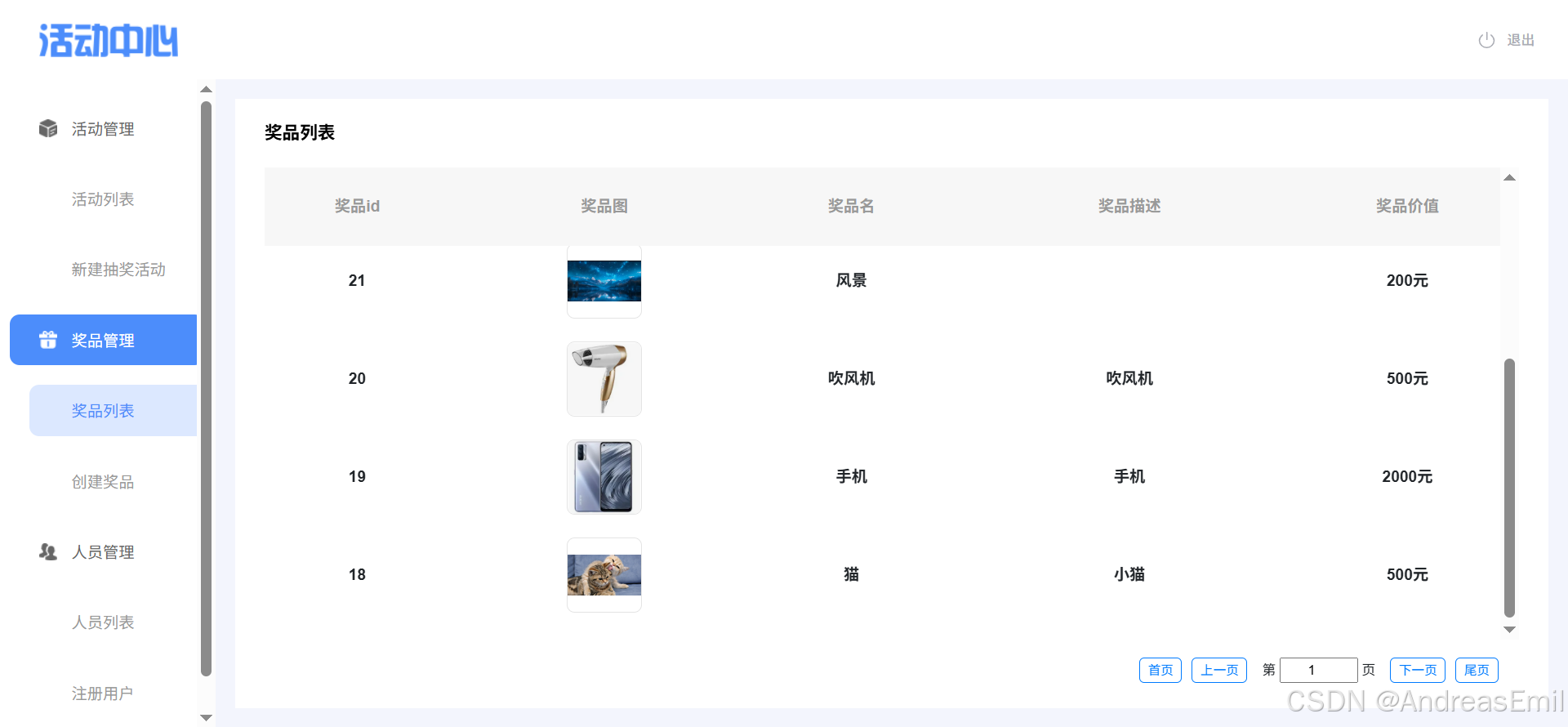

1.5 奖品列表页面测试

测试场景一：点击奖品列表

预测场景：正常显示奖品列表

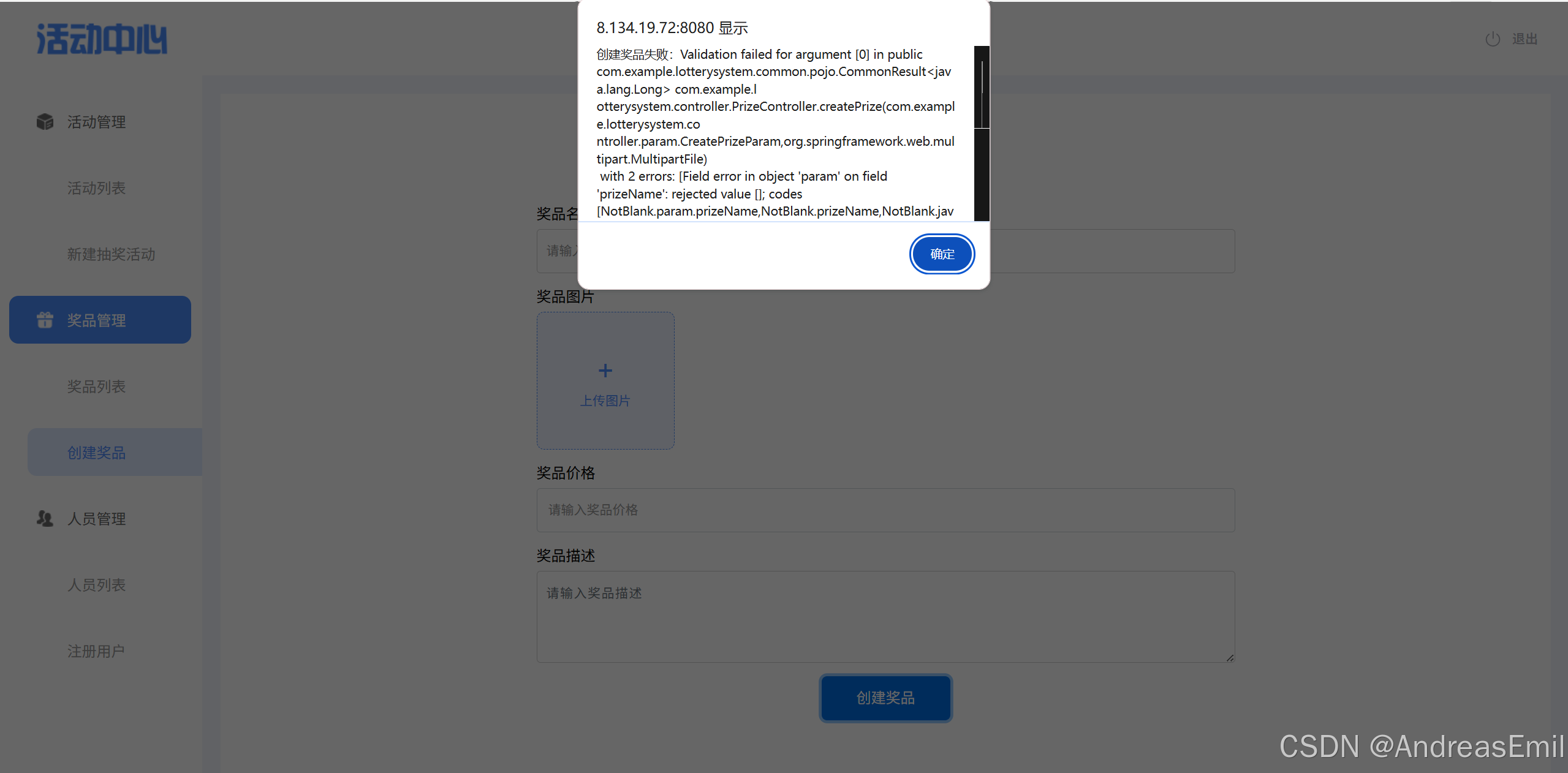

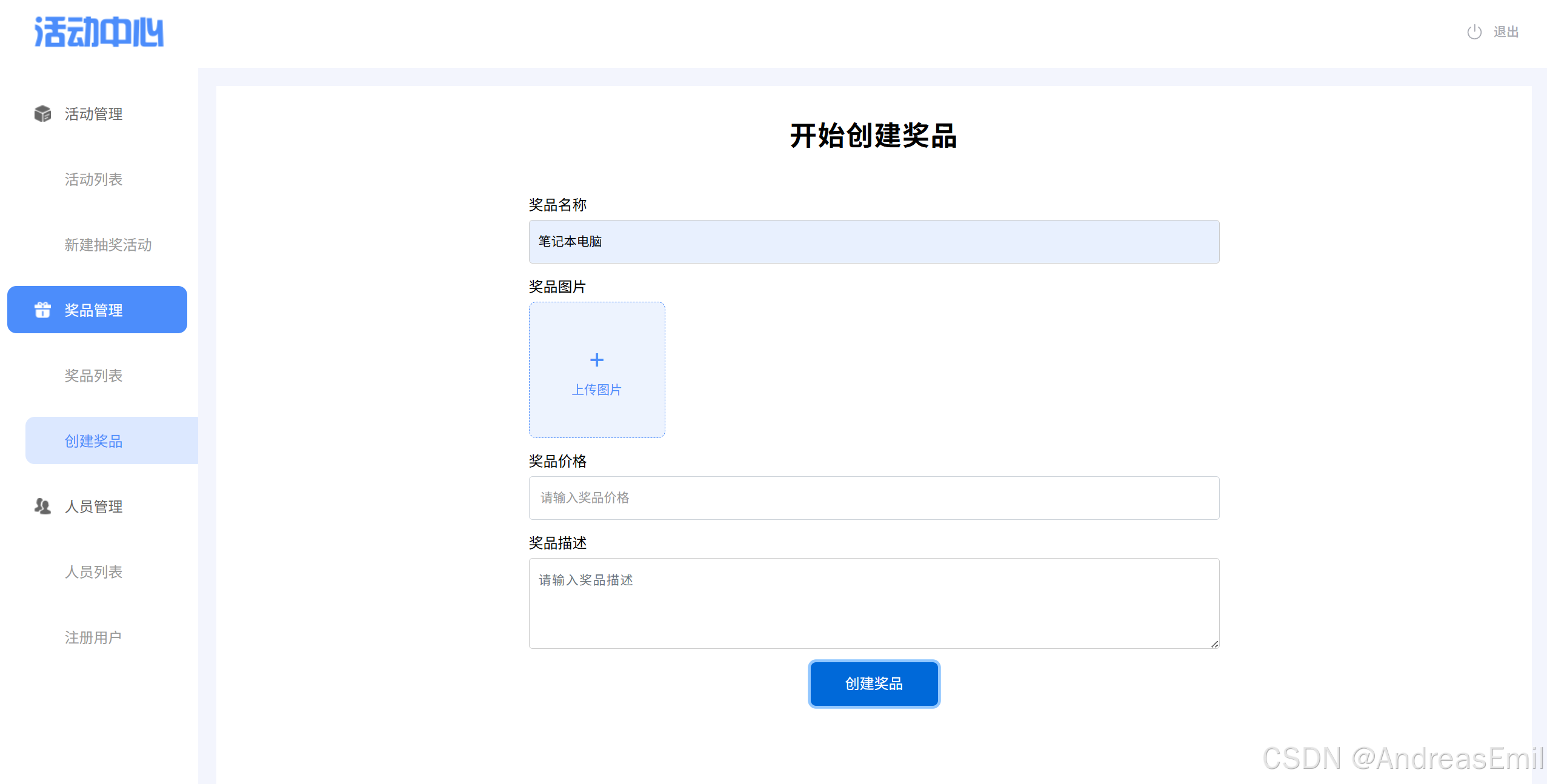

1.6 创建奖品页面测试

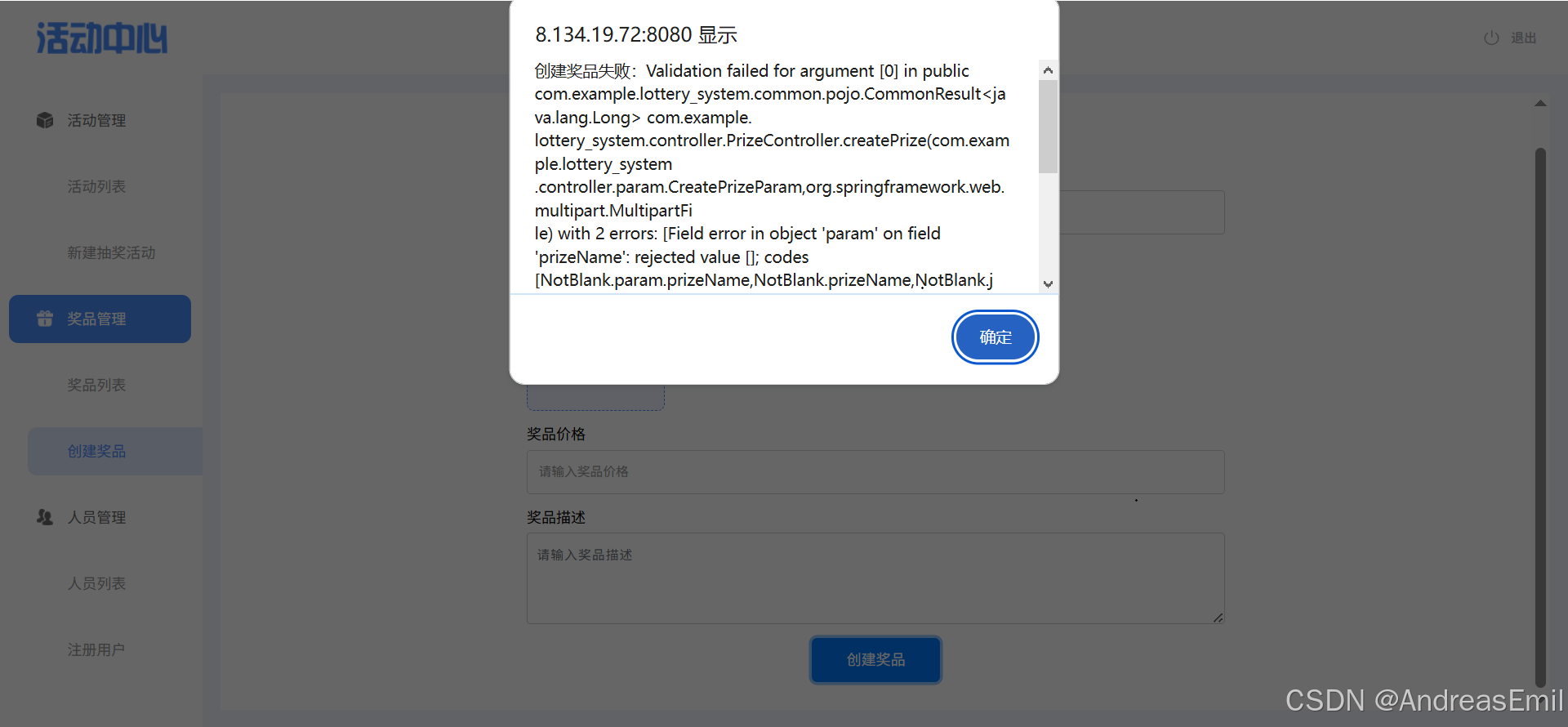

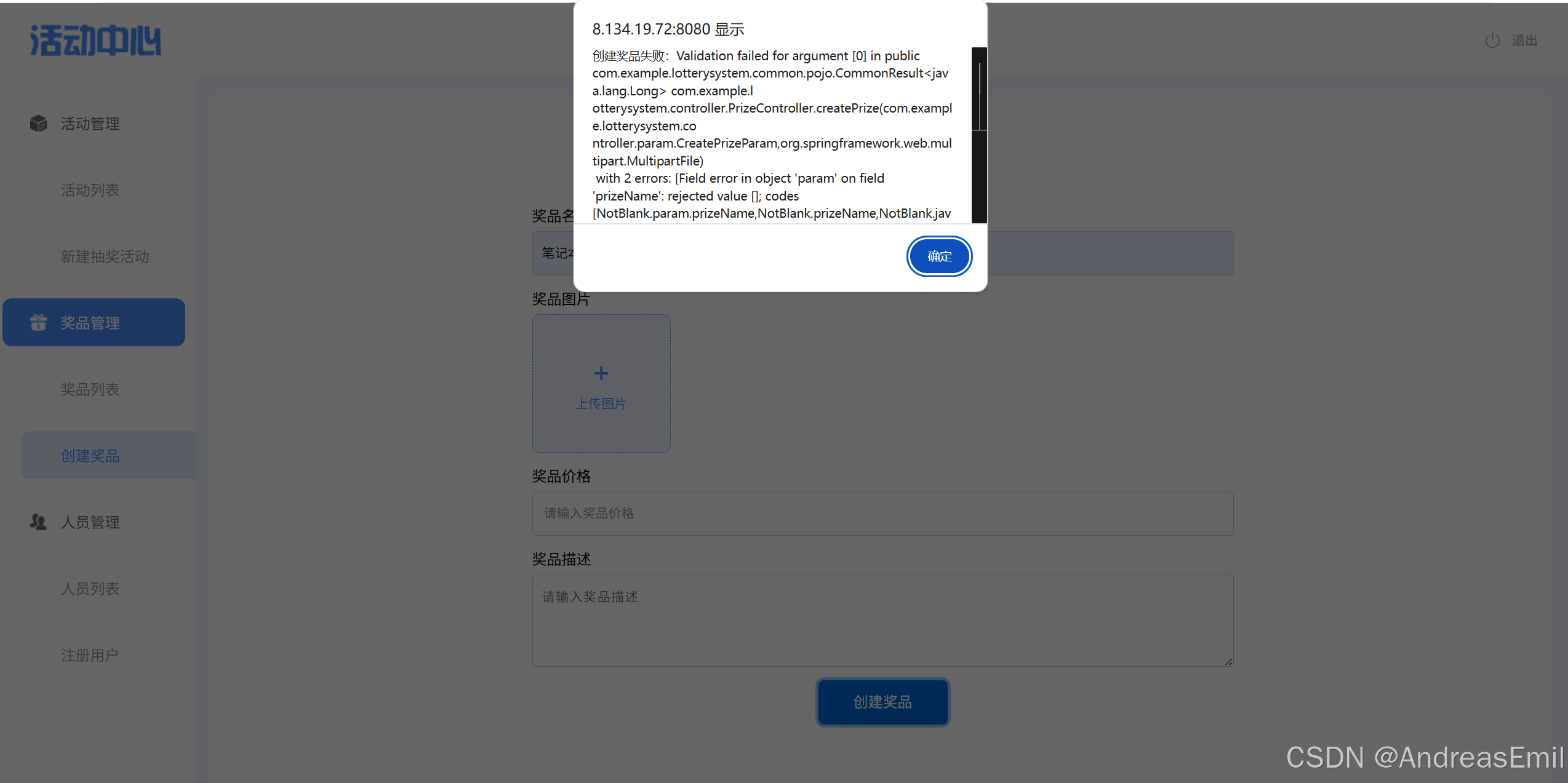

测试场景一：全部空着提交

预测场景：弹窗"创建失败"

测试场景二：只填奖品名称、其他不填

预测场景：弹窗"创建失败"

测试场景三：全部正常填写

预测场景：弹窗"创建成功"

---

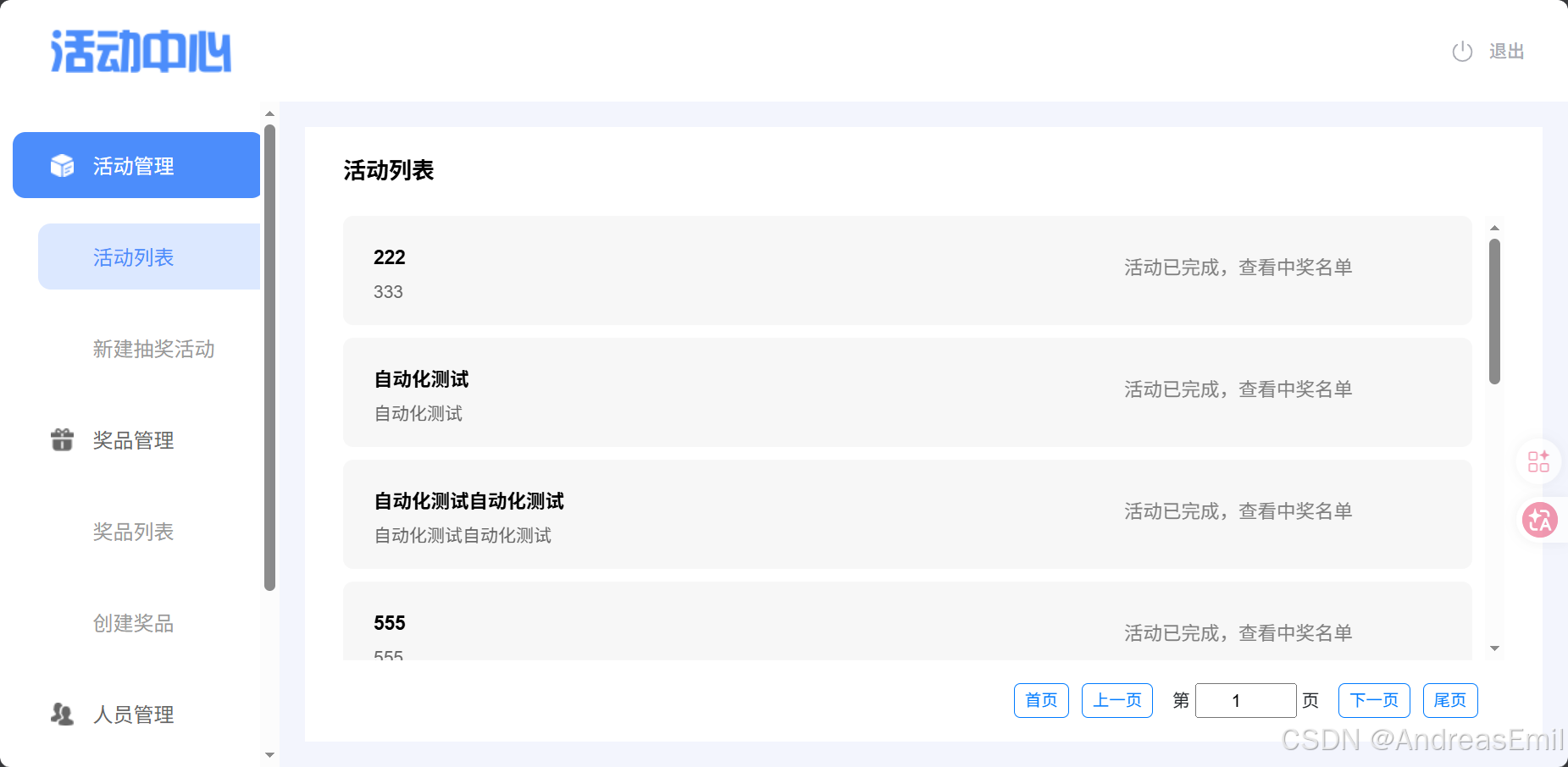

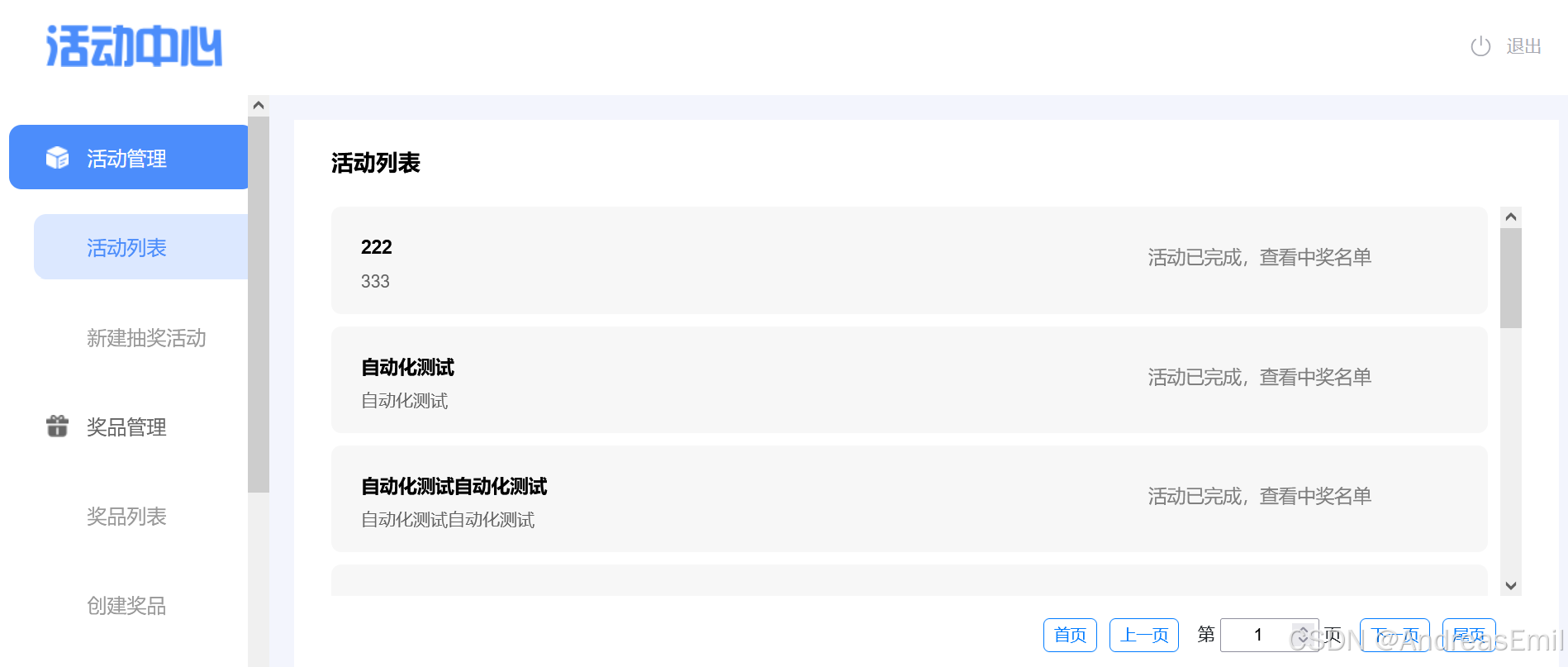

1.7 活动页面测试

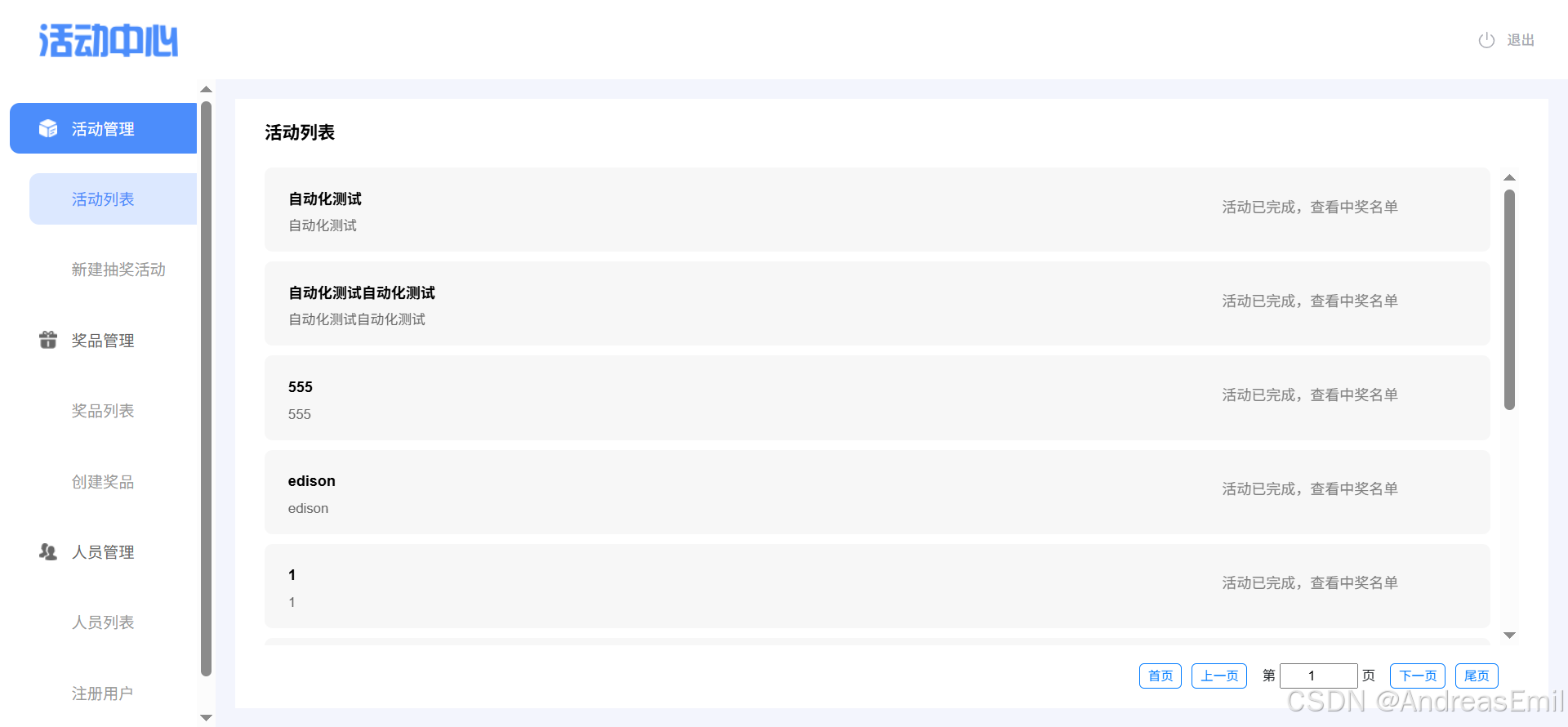

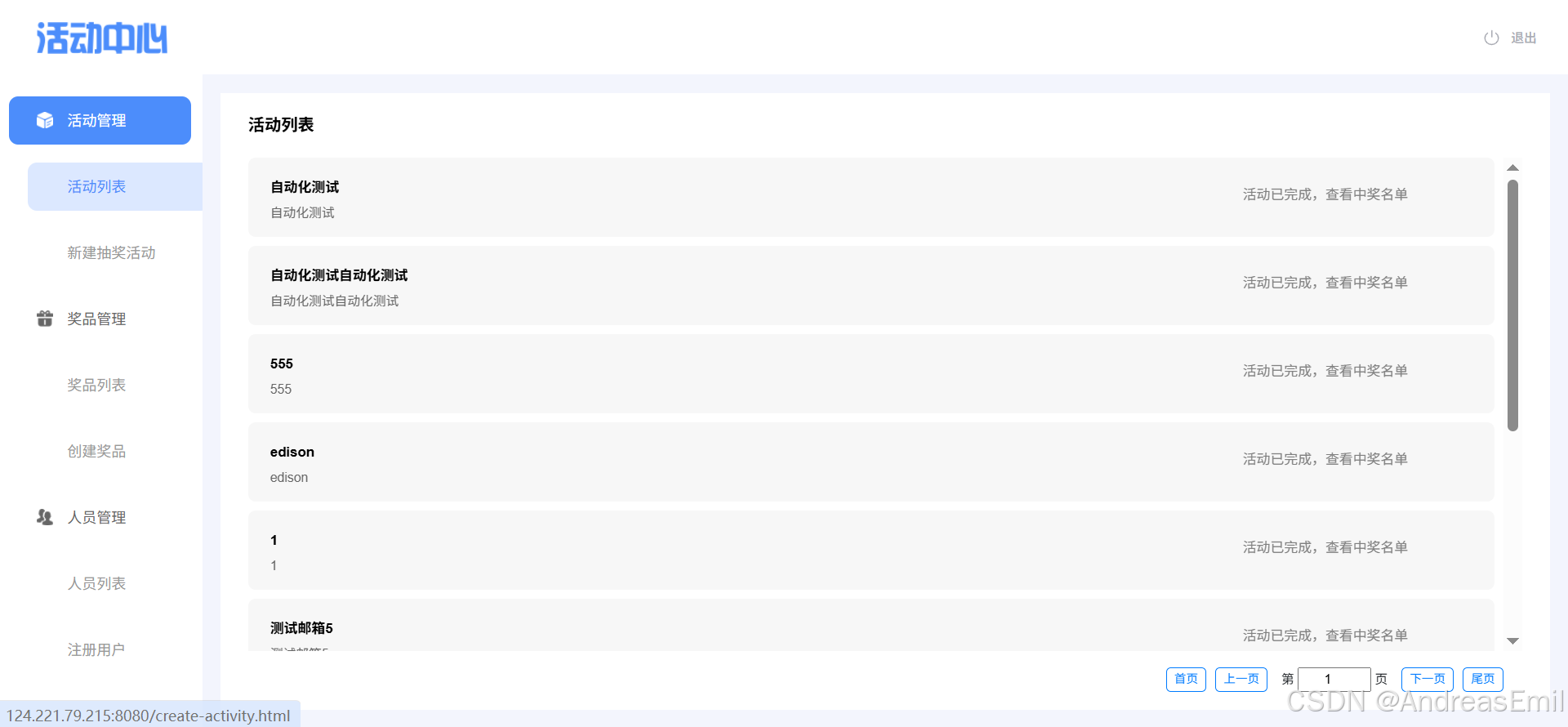

测试场景一：点击活动列表

预测场景：正常显示活动列表

1.8 创建活动页面测试

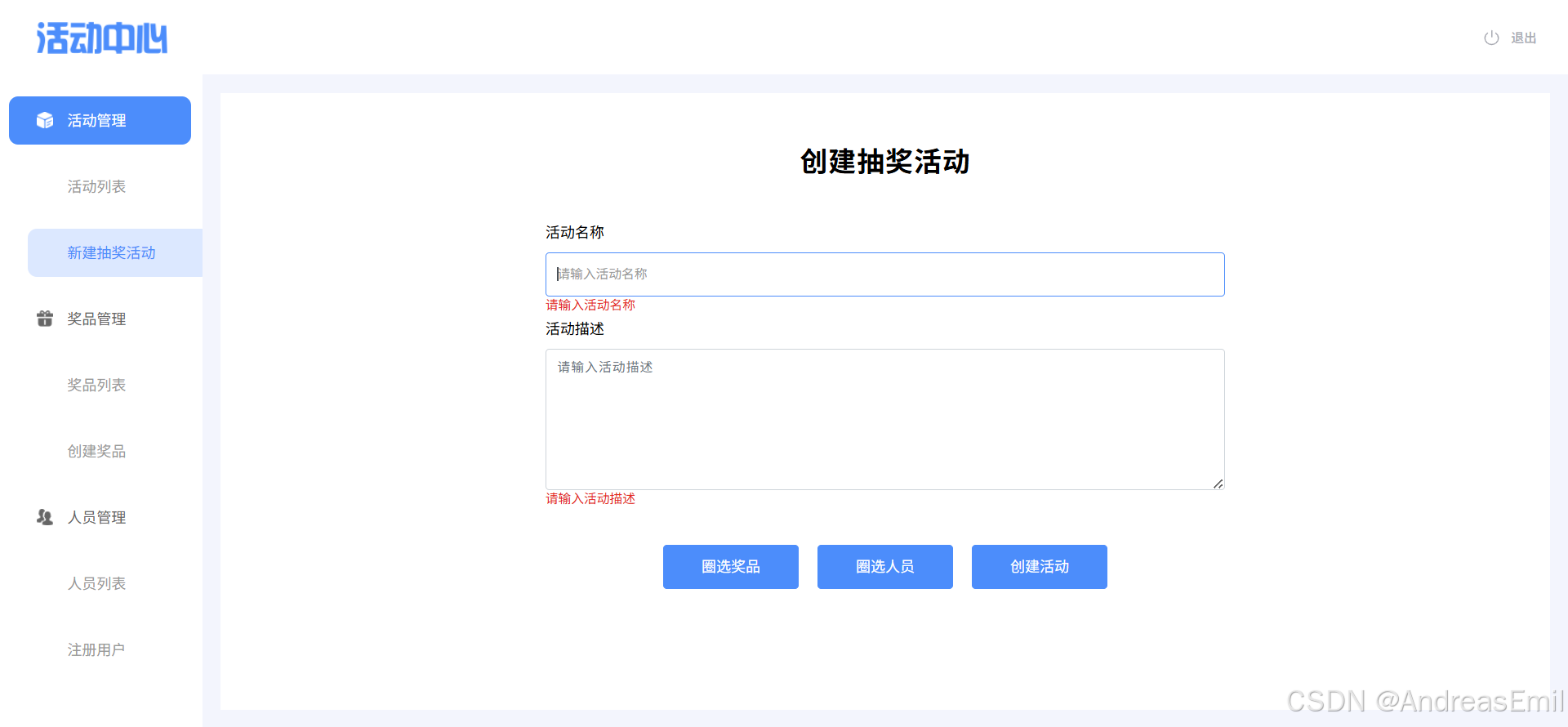

测试场景一：都空着

预测场景：系统提示为空

测试场景二：填写活动名称和奖品描述，未圈选奖品和人员

预测场景：弹窗提醒"请至少选择一个奖品"

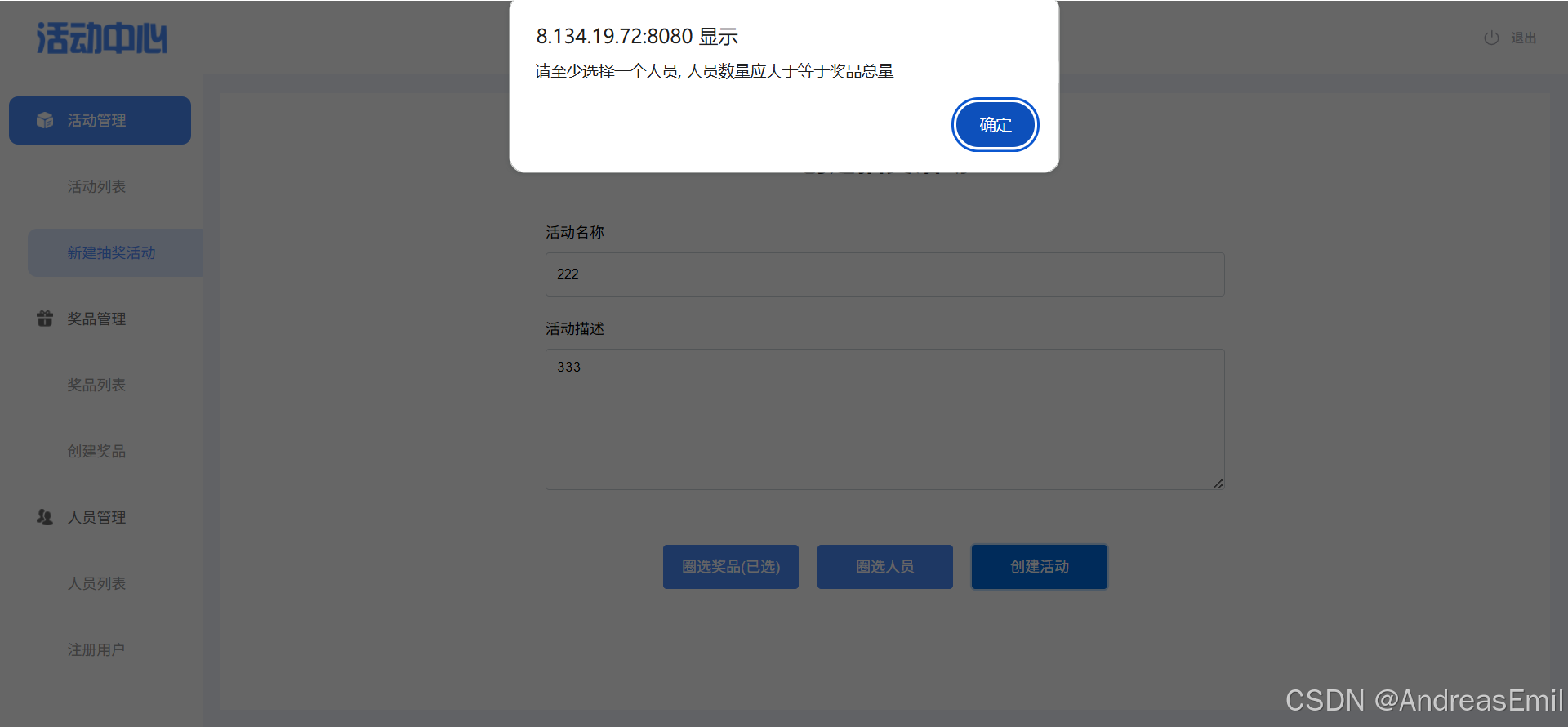

测试场景三：填写活动名称和奖品描述，圈选奖品，未圈选人员

预测场景：弹窗提醒"请至少选择一个人员"

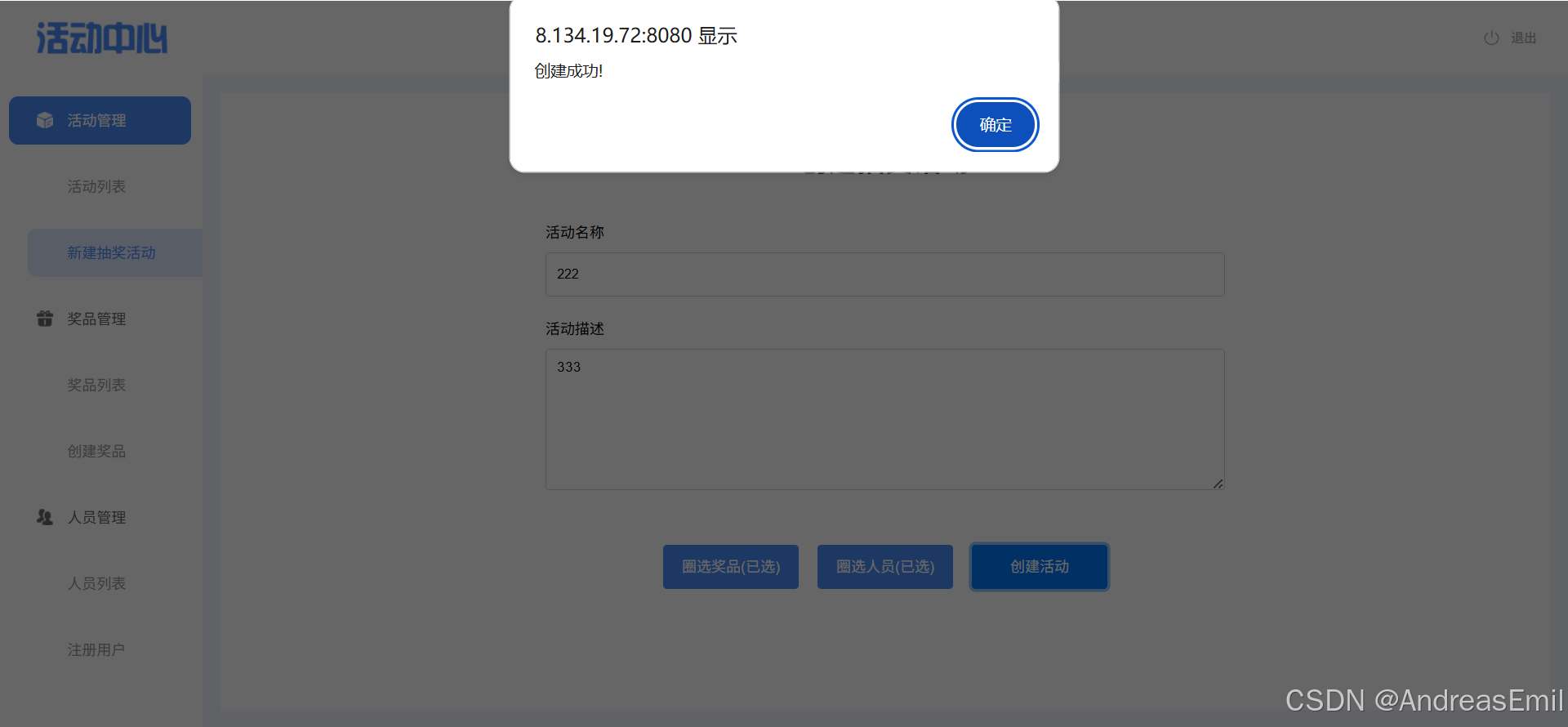

测试场景四：填写活动名称和奖品描述，圈选奖品，圈选人员（圈选人员人数比奖品多）

预测场景：弹窗提示创建成功，跳转活动列表

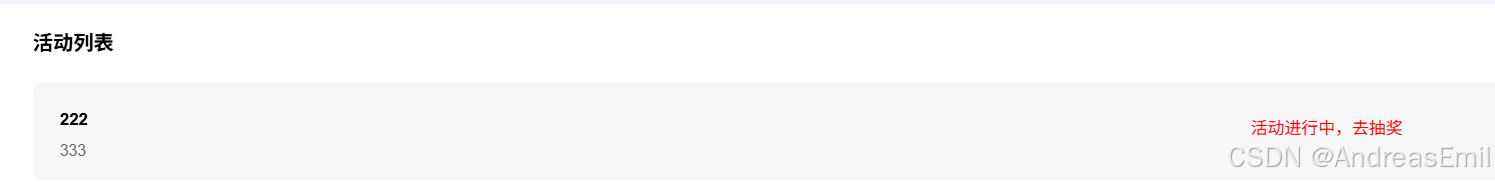

1.9抽奖页面测试

测试场景一：正常抽奖流程

预期结果：展示中奖者名单

---

1.10 中奖者展示页面测试

测试用例一：查看抽奖结束后的名单

预期结果：展示名单

---

2. 自动化测试

2.1 工具类

Maven 依赖配置

<!-- Selenium 依赖 -->
<dependency>
    <groupId>org.seleniumhq.selenium</groupId>
    <artifactId>selenium-java</artifactId>
    <version>4.24.0</version>
    <scope>test</scope>
</dependency>

<!-- WebDriverManager 依赖 -->
<dependency>
    <groupId>io.github.bonigarcia</groupId>
    <artifactId>webdrivermanager</artifactId>
    <version>5.9.2</version>
    <scope>test</scope>
</dependency>

<!-- Apache Commons IO 依赖，用于截图保存 -->
<dependency>
    <groupId>commons-io</groupId>
    <artifactId>commons-io</artifactId>
    <version>2.16.1</version>
    <scope>test</scope>
</dependency>

自动化测试工具类

Utils.java

package common;

import io.github.bonigarcia.wdm.WebDriverManager;
import org.apache.commons.io.FileUtils;
import org.openqa.selenium.OutputType;
import org.openqa.selenium.TakesScreenshot;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;
import org.openqa.selenium.edge.EdgeDriver;
import org.openqa.selenium.edge.EdgeOptions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.io.File;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.time.Duration;

public class Utils {
    public static WebDriver driver = null;
    public WebDriverWait wait = null;
    public static String detailUrl = "";

    public Utils(String url){
        driver = createDriver();
        driver.get(url);

        wait = new WebDriverWait(driver, Duration.ofSeconds(3));
    }

    public static WebDriver createDriver(){
        if(driver == null){
            WebDriverManager.chromedriver().setup();
            ChromeOptions options = new ChromeOptions();
            options.addArguments("--remote-allow-origins=*");
            options.addArguments("--no-sandbox");
            options.addArguments("--disable-dev-shm-usage");
            options.addArguments("--headless");
            options.addArguments("--disable-gpu");
            options.addArguments("--window-size=1920,1080");
            driver = new ChromeDriver(options);
            driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(3));
        }
        return driver;
    }

    public void screenShot(String str) throws IOException {
        SimpleDateFormat sim1 = new SimpleDateFormat("yyyy-MM-dd");
        SimpleDateFormat sim2 = new SimpleDateFormat("HHmmssSS");
        String dirTime = sim1.format(System.currentTimeMillis());
        String fileTime = sim2.format(System.currentTimeMillis());

        String fileName = "./src/test/java/images/" + dirTime + "/" + str + "-" + fileTime + ".png";
        File srcFile = ((TakesScreenshot)driver).getScreenshotAs(OutputType.FILE);
        FileUtils.copyFile(srcFile, new File(fileName));
    }

    public static void quit(){
        if (driver != null){
            driver.quit();
        }
    }
}

自动化测试案例

UserRegisterTest.java

package com.example.lotterysystem;

import common.Utils;
import org.junit.jupiter.api.AfterAll;
import org.junit.jupiter.api.BeforeAll;
import org.junit.jupiter.api.Test;
import org.openqa.selenium.Alert;
import org.openqa.selenium.By;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.io.IOException;
import java.time.Duration;
import java.util.List;

public class UserRegisterTest {
    private static Utils utils;

    @BeforeAll
    public static void setUp() {
        // 启动浏览器并打开注册页面
        utils = new Utils("http://localhost:8080/register.html");
    }

    @Test
    public void testUserRegister() throws IOException {
        // 等待页面加载
        WebDriverWait wait = new WebDriverWait(utils.driver, Duration.ofSeconds(10));

        // 等待所有输入框加载完成
        wait.until(ExpectedConditions.presenceOfAllElementsLocatedBy(By.tagName("input")));

        // 获取所有输入框
        List<WebElement> inputElements = utils.driver.findElements(By.tagName("input"));

        // 输入姓名（第一个输入框）
        if (inputElements.size() > 0) {
            inputElements.get(0).sendKeys("testuser");
        }

        // 输入邮箱（第二个输入框）
        if (inputElements.size() > 1) {
            inputElements.get(1).sendKeys("test@example.com");
        }

        // 输入手机号（第三个输入框）
        if (inputElements.size() > 2) {
            inputElements.get(2).sendKeys("13800138000");
        }

        // 输入密码（第四个输入框）
        if (inputElements.size() > 3) {
            inputElements.get(3).sendKeys("123456");
        }

        // 点击注册按钮（使用标签名定位）
        WebElement registerButton = wait.until(ExpectedConditions.elementToBeClickable(By.tagName("button")));
        registerButton.click();

        // 等待结果
        try {
            Thread.sleep(2000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

        // 处理弹出的提示框
        try {
            Alert alert = wait.until(ExpectedConditions.alertIsPresent());
            System.out.println("Alert text: " + alert.getText());
            alert.accept(); // 点击确定按钮
        } catch (Exception e) {
            // 没有弹出框，继续执行
        }

        // 截图保存
        utils.screenShot("register_result");
    }

    @AfterAll
    public static void tearDown() {
        // 关闭浏览器
        Utils.quit();
    }
}

运行测试的命令

# 清理并重新编译项目
.\mvnw clean test-compile

# 运行测试
.\mvnw test -Dtest=UserRegisterTest

2.2 注册测试类

自动化测试工具类（Utils.java）

package common;

import io.github.bonigarcia.wdm.WebDriverManager;
import org.apache.commons.io.FileUtils;
import org.openqa.selenium.OutputType;
import org.openqa.selenium.TakesScreenshot;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.io.File;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.time.Duration;

public class Utils {
    public static WebDriver driver = null;
    public WebDriverWait wait = null;

    public Utils(String url){
        driver = createDriver();
        driver.get(url);
        wait = new WebDriverWait(driver, Duration.ofSeconds(3));
    }

    public static WebDriver createDriver(){
        if(driver == null){
            WebDriverManager.chromedriver().setup();
            ChromeOptions options = new ChromeOptions();
            options.addArguments("--remote-allow-origins=*");
            options.addArguments("--no-sandbox");
            options.addArguments("--headless");
            driver = new ChromeDriver(options);
            driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(3));
        }
        return driver;
    }

    public void screenShot(String str) throws IOException {
        SimpleDateFormat sim1 = new SimpleDateFormat("yyyy-MM-dd");
        SimpleDateFormat sim2 = new SimpleDateFormat("HHmmssSS");
        String dirTime = sim1.format(System.currentTimeMillis());
        String fileTime = sim2.format(System.currentTimeMillis());
        String fileName = "./src/test/java/images/" + dirTime + "/" + str + "-" + fileTime + ".png";
        File srcFile = ((TakesScreenshot)driver).getScreenshotAs(OutputType.FILE);
        FileUtils.copyFile(srcFile, new File(fileName));
    }

    public static void quit(){
        if (driver != null){
            driver.quit();
        }
    }
}

注册测试类

RegisterPage.java

package tests;

import common.Utils;
import org.junit.jupiter.api.AfterAll;
import org.junit.jupiter.api.BeforeAll;
import org.junit.jupiter.api.Test;
import org.openqa.selenium.Alert;
import org.openqa.selenium.By;
import org.openqa.selenium.support.ui.ExpectedConditions;

import java.io.IOException;

public class RegisterPage extends Utils {
    public static String url = "http://8.134.19.72:8080/register.html?admin=true";
    private static RegisterPage registerPage;

    @BeforeAll
    public static void setUp() {
        registerPage = new RegisterPage();
    }

    public RegisterPage() {
        super(url);
    }

    @Test
    public void checkPage() throws IOException {
        String title = driver.findElement(By.cssSelector("body > div > h2")).getText();
        assert title.equals("填写注册信息");
        driver.findElement(By.cssSelector("#name"));
        driver.findElement(By.cssSelector("#mail"));
        driver.findElement(By.cssSelector("#phoneNumber"));
        driver.findElement(By.cssSelector("#password"));
        driver.findElement(By.cssSelector("#registerForm > button"));
        screenShot(Thread.currentThread().getStackTrace()[1].getMethodName());
    }

    @Test
    public void registerFail() {
        driver.findElement(By.cssSelector("#name")).clear();
        driver.findElement(By.cssSelector("#mail")).clear();
        driver.findElement(By.cssSelector("#phoneNumber")).clear();
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#name")).sendKeys("zy");
        driver.findElement(By.cssSelector("#mail")).sendKeys("127@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("13805141117");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        wait.until(ExpectedConditions.alertIsPresent());
        Alert alert = driver.switchTo().alert();
        alert.accept();
    }

    @Test
    public void registerSuccess() {
        driver.findElement(By.cssSelector("#name")).clear();
        driver.findElement(By.cssSelector("#mail")).clear();
        driver.findElement(By.cssSelector("#phoneNumber")).clear();
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#name")).sendKeys("zmh");
        driver.findElement(By.cssSelector("#mail")).sendKeys("128@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("19067399268");
        driver.findElement(By.cssSelector("#password")).sendKeys("123456");
        driver.findElement(By.cssSelector("#registerForm > button")).click();
        wait.until(ExpectedConditions.alertIsPresent());
        Alert alert = driver.switchTo().alert();
        alert.accept();
    }

    @AfterAll
    public static void tearDown() {
        Utils.quit();
    }
}

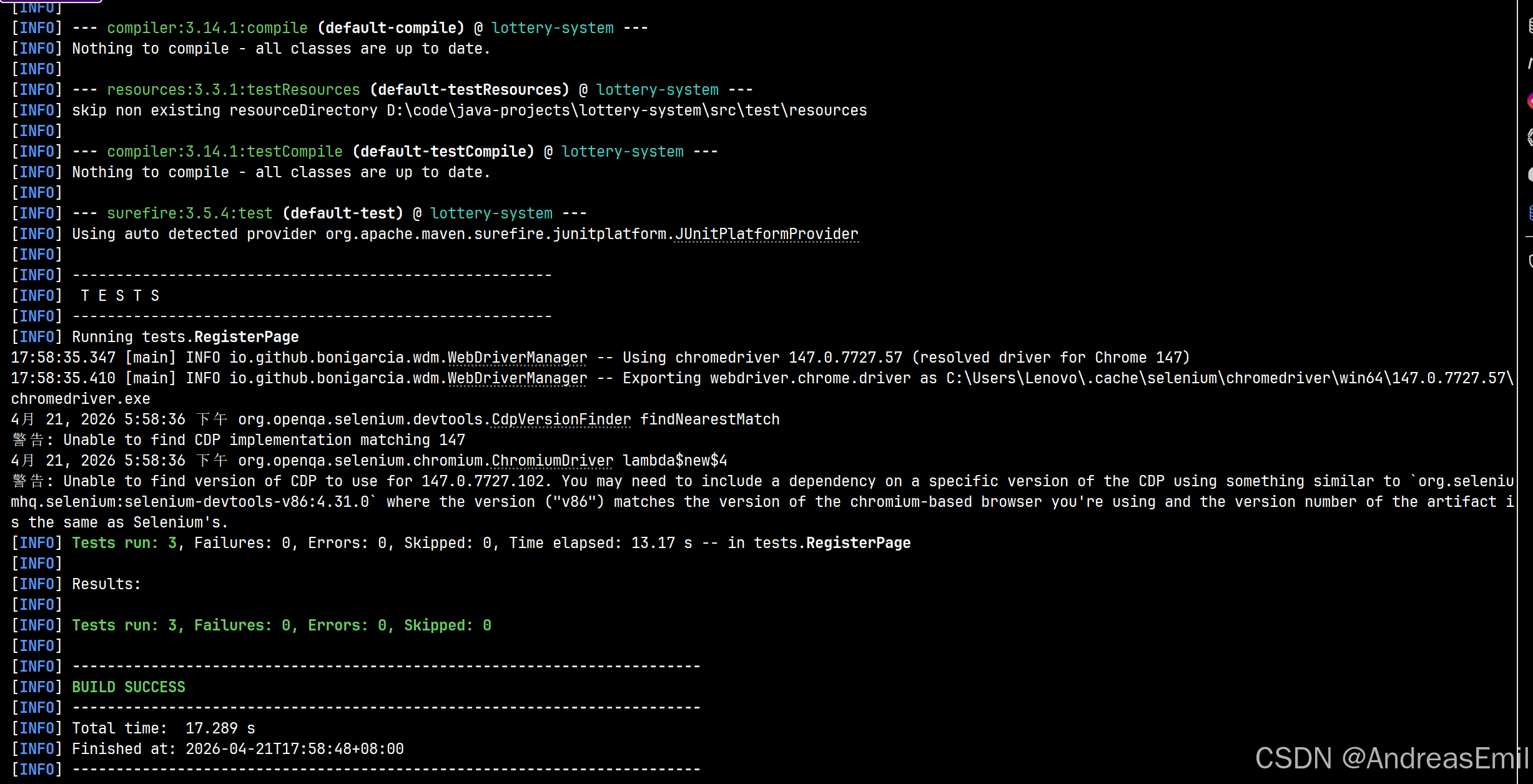

输出结果

2.3 登陆测试

LoginPage.java

package tests;

import common.Utils;
import org.junit.jupiter.api.AfterAll;
import org.junit.jupiter.api.BeforeAll;
import org.junit.jupiter.api.Test;
import org.openqa.selenium.Alert;
import org.openqa.selenium.By;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.io.IOException;
import java.time.Duration;

public class LoginPage extends Utils {
    public static String url = "http://8.134.19.72:8080/blogin.html";
    private static LoginPage loginPage;

    @BeforeAll
    public static void setUp() {
        loginPage = new LoginPage();
    }

    public LoginPage() {
        super(url);
    }

    @Test
    public void checkPage() throws IOException {
        // 等待页面加载
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));
        longWait.until(ExpectedConditions.presenceOfAllElementsLocatedBy(By.tagName("input")));

        // 检查元素
        driver.findElement(By.cssSelector("body > div > div.login-container.col-sm-6.col-md-6.col-lg-5.col-xl-5 > div.tab-box > span:nth-child(1)"));
        driver.findElement(By.cssSelector("body > div > div.login-container.col-sm-6.col-md-6.col-lg-5.col-xl-5 > div.tab-box > span:nth-child(2)"));
        driver.findElement(By.cssSelector("#phoneNumber"));
        driver.findElement(By.cssSelector("#password"));
        driver.findElement(By.cssSelector("#loginForm > button"));
        driver.findElement(By.cssSelector("body > div > div.login-container.col-sm-6.col-md-6.col-lg-5.col-xl-5 > div.register-link > a"));

        screenShot(Thread.currentThread().getStackTrace()[1].getMethodName());
    }

    @Test
    public void loginFail(){
        // 使用更长的等待时间
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击密码登录标签
        WebElement passwordLoginTab = longWait.until(ExpectedConditions.elementToBeClickable(
                By.cssSelector("body > div > div.login-container.col-sm-6.col-md-6.col-lg-5.col-xl-5 > div.tab-box > span:nth-child(1)")
        ));
        passwordLoginTab.click();

        // 等待手机号输入框可交互
        WebElement mobileInput = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#phoneNumber")));
        WebElement passwordInput = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#password")));

        // 清空输入框
        mobileInput.clear();
        passwordInput.clear();

        // 正确用户名,错误密码
        mobileInput.sendKeys("13019523030");
        passwordInput.sendKeys("1234567");
        driver.findElement(By.cssSelector("#loginForm > button")).click();

        // 等待弹窗出现,处理弹窗
        longWait.until(ExpectedConditions.alertIsPresent());
        Alert alert = driver.switchTo().alert();
        alert.accept();
    }

    @Test
    public void loginSuccess(){
        // 使用更长的等待时间
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击密码登录标签
        WebElement passwordLoginTab = longWait.until(ExpectedConditions.elementToBeClickable(
                By.cssSelector("body > div > div.login-container.col-sm-6.col-md-6.col-lg-5.col-xl-5 > div.tab-box > span:nth-child(1)")
        ));
        passwordLoginTab.click();

        // 等待手机号输入框可交互
        WebElement mobileInput = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#phoneNumber")));
        WebElement passwordInput = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#password")));

        // 清空输入框
        mobileInput.clear();
        passwordInput.clear();

        // 正确登录
        mobileInput.sendKeys("13019523030");
        passwordInput.sendKeys("123456");
        driver.findElement(By.cssSelector("#loginForm > button")).click();
    }

    @AfterAll
    public static void tearDown() {
        // 关闭浏览器
        Utils.quit();
    }
}

命令执行

# 使用 Maven Wrapper 运行测试
.\mvnw test -Dtest=LoginPage

运行日志

INFO\] Running tests.LoginPage 21:38:33.031 \[main\] INFO io.github.bonigarcia.wdm.WebDriverManager -- Using chromedriver 147.0.7727.57 (resolved driver for Chrome 147) \[INFO\] Tests run: 3, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 5.942 s -- in tests.LoginPage \[INFO\] BUILD SUCCESS

2.4 活动中心测试

package tests;

import common.Utils;
import org.junit.jupiter.api.AfterAll;
import org.junit.jupiter.api.BeforeAll;
import org.junit.jupiter.api.Test;
import org.openqa.selenium.Alert;
import org.openqa.selenium.By;
import org.openqa.selenium.JavascriptExecutor;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.io.IOException;
import java.time.Duration;
import java.util.List;
import java.util.Set;

public class ActivePage extends Utils {
    public static String loginUrl = "http://8.134.19.72:8080/blogin.html";
    public static String adminUrl = "http://8.134.19.72:8080/admin.html";
    private static ActivePage activePage;

    @BeforeAll
    public static void setUp() {
        activePage = new ActivePage();
        activePage.loginFirst();
    }

    public ActivePage() {
        super(loginUrl);
    }

    public void loginFirst() {
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(20));

        // 先点击密码登录标签
        WebElement passwordLoginTab = longWait.until(ExpectedConditions.elementToBeClickable(
                By.cssSelector("body > div > div.login-container.col-sm-6.col-md-6.col-lg-5.col-xl-5 > div.tab-box > span:nth-child(1)")
        ));
        passwordLoginTab.click();

        // 等待手机号输入框可交互
        WebElement mobileInput = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#phoneNumber")));
        WebElement passwordInput = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#password")));

        // 清空输入框
        mobileInput.clear();
        passwordInput.clear();

        // 正确登录
        mobileInput.sendKeys("13019523030");
        passwordInput.sendKeys("123456");
        driver.findElement(By.cssSelector("#loginForm > button")).click();

        // 等待URL变化
        try {
            Thread.sleep(2000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

        // 输出当前URL
        System.out.println("After login, current URL: " + driver.getCurrentUrl());

        // 看看页面是否有alert
        try {
            Alert alert = driver.switchTo().alert();
            System.out.println("Alert text: " + alert.getText());
            alert.accept();
        } catch (Exception e) {
            System.out.println("No alert found");
        }

        // 再等待URL变化
        try {
            Thread.sleep(3000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

        System.out.println("After waiting, current URL: " + driver.getCurrentUrl());

        // 直接导航到adminUrl
        ensureOnAdminPage();

        System.out.println("Final URL: " + driver.getCurrentUrl());
    }

    /**
     * 确保在admin页面
     */
    private void ensureOnAdminPage() {
        if (!driver.getCurrentUrl().contains(adminUrl)) {
            driver.get(adminUrl);
            WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));
            longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("body")));
        }
    }

    @Test
    public void checkPage() throws IOException {
        ensureOnAdminPage();
        // 等待页面加载
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));
        longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("body")));

        // 先截图看看页面结构
        screenShot("checkPage-before");

        // 先检查页面是否加载了，获取当前URL
        System.out.println("Current URL: " + driver.getCurrentUrl());
        System.out.println("Page title: " + driver.getTitle());

        // 尝试检查一些基本元素
        List<WebElement> allInputs = driver.findElements(By.cssSelector("input"));
        System.out.println("Found " + allInputs.size() + " input elements");

        List<WebElement> allLinks = driver.findElements(By.cssSelector("a"));
        System.out.println("Found " + allLinks.size() + " link elements");

        // 获取页面源代码看看结构
        String pageSource = driver.getPageSource();
        System.out.println("Page source length: " + pageSource.length());
        if (pageSource.length() > 0) {
            System.out.println("Page preview: " + pageSource.substring(0, Math.min(500, pageSource.length())));
        }

        screenShot(Thread.currentThread().getStackTrace()[1].getMethodName());
    }

    // 用户管理
    @Test
    public void checkRegisterPage() throws IOException {
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));
        WebElement registerButton = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#register")));
        registerButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        // 检查元素
        String title = driver.findElement(By.cssSelector("body > div > h2")).getText();
        assert title.equals("填写注册信息");
        driver.findElement(By.cssSelector("#name"));
        driver.findElement(By.cssSelector("#mail"));
        driver.findElement(By.cssSelector("#phoneNumber"));
        driver.findElement(By.cssSelector("#registerForm > button"));

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();

        screenShot(Thread.currentThread().getStackTrace()[1].getMethodName());
    }

    @Test
    public void registerFail() {
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击注册按钮
        WebElement registerButton = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#register")));
        registerButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        driver.findElement(By.cssSelector("#name")).clear();
        driver.findElement(By.cssSelector("#mail")).clear();
        driver.findElement(By.cssSelector("#phoneNumber")).clear();

        driver.findElement(By.cssSelector("#name")).sendKeys("zy");
        driver.findElement(By.cssSelector("#mail")).sendKeys("127@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("13019523030");
        driver.findElement(By.cssSelector("#registerForm > button")).click();

        // 等待弹窗出现,处理弹窗
        longWait.until(ExpectedConditions.alertIsPresent());
        Alert alert = driver.switchTo().alert();
        alert.accept();

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();
    }

    @Test
    public void registerSuccess() {
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击注册按钮
        WebElement registerButton = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#register")));
        registerButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        driver.findElement(By.cssSelector("#name")).clear();
        driver.findElement(By.cssSelector("#mail")).clear();
        driver.findElement(By.cssSelector("#phoneNumber")).clear();

        driver.findElement(By.cssSelector("#name")).sendKeys("zyq");
        driver.findElement(By.cssSelector("#mail")).sendKeys("129@qq.com");
        driver.findElement(By.cssSelector("#phoneNumber")).sendKeys("13019523030");
        driver.findElement(By.cssSelector("#registerForm > button")).click();

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();
    }

    @Test
    public void checkUserPage() throws IOException {
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));
        WebElement userListButton = longWait.until(ExpectedConditions.elementToBeClickable(By.cssSelector("#userList")));
        userListButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        // 检查元素
        String title = driver.findElement(By.cssSelector("body > div > h2")).getText();
        assert title.equals("人员列表");
        String userId = driver.findElement(By.cssSelector("body > div > div > table > thead > tr > th:nth-child(1)")).getText();
        assert userId.equals("人员id");
        String username = driver.findElement(By.cssSelector("body > div > div > table > thead > tr > th:nth-child(2)")).getText();
        assert username.equals("姓名");
        String identity = driver.findElement(By.cssSelector("body > div > div > table > thead > tr > th:nth-child(3)")).getText();
        assert identity.equals("身份");

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();

        screenShot(Thread.currentThread().getStackTrace()[1].getMethodName());
    }

    // 奖品管理
    @Test
    public void checkCreatePrizePage() throws IOException {
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击奖品管理菜单
        WebElement prizeManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '奖品管理')]")
        ));
        prizeManagement.click();

        // 等待子菜单出现
        WebElement createPrizeButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '创建奖品')]")
        ));
        createPrizeButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        // 检查元素
        String title = driver.findElement(By.cssSelector("body > div > h2")).getText();
        assert title.equals("开始创建奖品");
        driver.findElement(By.cssSelector("#prizeName"));
        driver.findElement(By.cssSelector("#prizeImageUrl"));
        driver.findElement(By.cssSelector("#price"));
        driver.findElement(By.cssSelector("#description"));
        driver.findElement(By.cssSelector("body > div > button"));

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();

        screenShot(Thread.currentThread().getStackTrace()[1].getMethodName());
    }

    @Test
    public void createPrizeFail(){
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击奖品管理菜单
        WebElement prizeManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '奖品管理')]")
        ));
        prizeManagement.click();

        // 等待子菜单出现
        WebElement createPrizeButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '创建奖品')]")
        ));
        createPrizeButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        driver.findElement(By.cssSelector("#prizeName")).sendKeys("手机2");
        driver.findElement(By.cssSelector("#prizeImageUrl"));
        driver.findElement(By.cssSelector("#price")).sendKeys("6000");
        driver.findElement(By.cssSelector("#description")).sendKeys("一部手机");
        driver.findElement(By.cssSelector("body > div > button")).click();

        // 等待弹窗出现,处理弹窗
        longWait.until(ExpectedConditions.alertIsPresent());
        Alert alert = driver.switchTo().alert();
        alert.accept();

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();
    }

    @Test
    public void createPrizeSuccess(){
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击奖品管理菜单
        WebElement prizeManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '奖品管理')]")
        ));
        prizeManagement.click();

        // 等待子菜单出现
        WebElement createPrizeButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '创建奖品')]")
        ));
        createPrizeButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        driver.findElement(By.cssSelector("#prizeName")).sendKeys("手机2");
        driver.findElement(By.cssSelector("#prizeImageUrl"))
                .sendKeys("D:\\比特学习\\PIC\\bc832f1e-ea49-4621-ab8f-c9204490418e.png");
        driver.findElement(By.cssSelector("#price")).sendKeys("6000");
        driver.findElement(By.cssSelector("#description")).sendKeys("一部手机");
        driver.findElement(By.cssSelector("body > div > button")).click();

        // 等待弹窗出现,处理弹窗
        longWait.until(ExpectedConditions.alertIsPresent());
        Alert alert = driver.switchTo().alert();
        alert.accept();

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();
    }

    @Test
    public void checkPricePage() throws IOException {
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击奖品管理菜单
        WebElement prizeManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '奖品管理')]")
        ));
        prizeManagement.click();

        // 等待子菜单出现
        WebElement prizeListButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '奖品列表')]")
        ));
        prizeListButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        // 检查元素
        String title = driver.findElement(By.cssSelector("body > div > h2")).getText();
        assert title.equals("奖品列表");
        String id = driver.findElement(By.cssSelector("body > div > div.table-box > table > thead > tr > th:nth-child(1)")).getText();
        assert id.equals("奖品id");
        String prizePic = driver.findElement(By.cssSelector("body > div > div.table-box > table > thead > tr > th:nth-child(2)")).getText();
        assert prizePic.equals("奖品图");
        String prizeName = driver.findElement(By.cssSelector("body > div > div.table-box > table > thead > tr > th:nth-child(3)")).getText();
        assert prizeName.equals("奖品名");
        String prizeDesc = driver.findElement(By.cssSelector("body > div > div.table-box > table > thead > tr > th:nth-child(4)")).getText();
        assert prizeDesc.equals("奖品描述");
        String price = driver.findElement(By.cssSelector("body > div > div.table-box > table > thead > tr > th:nth-child(5)")).getText();
        assert price.equals("奖品价值");

        driver.findElement(By.cssSelector("body > div > div.pagination > button:nth-child(1)"));
        driver.findElement(By.cssSelector("body > div > div.pagination > button:nth-child(2)"));
        driver.findElement(By.cssSelector("body > div > div.pagination > span"));
        driver.findElement(By.cssSelector("body > div > div.pagination > button:nth-child(4)"));
        driver.findElement(By.cssSelector("body > div > div.pagination > button:nth-child(5)"));

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();

        screenShot(Thread.currentThread().getStackTrace()[1].getMethodName());
    }

    // 活动管理
    @Test
    public void checkCreateActivityPage() throws IOException {
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击活动管理菜单
        WebElement activityManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '活动管理')]")
        ));
        activityManagement.click();

        // 等待子菜单出现
        WebElement createActivityButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '创建活动')]")
        ));
        createActivityButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        // 检查元素
        String title = driver.findElement(By.cssSelector("body > div > h2")).getText();
        assert title.equals("创建抽奖活动");
        driver.findElement(By.cssSelector("#activityName"));
        driver.findElement(By.cssSelector("#description"));
        driver.findElement(By.cssSelector("#buttonPrizes"));
        driver.findElement(By.cssSelector("#buttonUsers"));
        driver.findElement(By.cssSelector("#createActivity"));

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();

        screenShot(Thread.currentThread().getStackTrace()[1].getMethodName());
    }

    @Test
    public void createActivityFail(){
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击活动管理菜单
        WebElement activityManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '活动管理')]")
        ));
        activityManagement.click();

        // 等待子菜单出现
        WebElement createActivityButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '创建活动')]")
        ));
        createActivityButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        driver.findElement(By.cssSelector("#activityName")).clear();
        driver.findElement(By.cssSelector("#description")).clear();
        driver.findElement(By.cssSelector("#activityName")).sendKeys("自动化测试");
        driver.findElement(By.cssSelector("#description")).sendKeys("自动化测试");

        driver.findElement(By.cssSelector("#buttonPrizes")).click();
        List<WebElement> prizes = driver.findElements(By.xpath("//*[@id=\"prizesContainer\"]//input"));
        prizes.get(0).click();
        prizes.get(1).clear();
        prizes.get(1).sendKeys("2");
        driver.findElement(By.cssSelector("#prizesModal > div > div.form-btn-box > button.btn.btn-primary")).click();

        driver.findElement(By.cssSelector("#buttonUsers")).click();
        List<WebElement> users = driver.findElements(By.xpath("//*[@id=\"usersContainer\"]//input"));
        users.get(0).click();
        driver.findElement(By.cssSelector("#usersModal > div > div.form-btn-box > button.btn.btn-primary")).click();

        driver.findElement(By.cssSelector("#createActivity")).click();
        // 等待弹窗出现,处理弹窗
        longWait.until(ExpectedConditions.alertIsPresent());
        Alert alert = driver.switchTo().alert();
        alert.accept();

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();
    }

    @Test
    public void createActivitySuccess(){
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击活动管理菜单
        WebElement activityManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '活动管理')]")
        ));
        activityManagement.click();

        // 等待子菜单出现
        WebElement createActivityButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '创建活动')]")
        ));
        createActivityButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        driver.findElement(By.cssSelector("#activityName")).clear();
        driver.findElement(By.cssSelector("#description")).clear();
        driver.findElement(By.cssSelector("#activityName")).sendKeys("自动化测试");
        driver.findElement(By.cssSelector("#description")).sendKeys("自动化测试");
        driver.findElement(By.cssSelector("#buttonPrizes")).click();
        List<WebElement> prizes = driver.findElements(By.xpath("//*[@id=\"prizesContainer\"]//input"));
        prizes.get(0).click();
        prizes.get(1).clear();
        prizes.get(1).sendKeys("2");
        driver.findElement(By.cssSelector("#prizesModal > div > div.form-btn-box > button.btn.btn-primary")).click();

        driver.findElement(By.cssSelector("#buttonUsers")).click();
        List<WebElement> users = driver.findElements(By.xpath("//*[@id=\"usersContainer\"]//input"));
        users.get(0).click();
        users.get(1).click();
        driver.findElement(By.cssSelector("#usersModal > div > div.form-btn-box > button.btn.btn-primary")).click();

        driver.findElement(By.cssSelector("#createActivity")).click();
        // 等待弹窗出现,处理弹窗
        longWait.until(ExpectedConditions.alertIsPresent());
        Alert alert = driver.switchTo().alert();
        alert.accept();

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();
    }

    @Test
    public void checkActivityPage() throws IOException {
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击活动管理菜单
        WebElement activityManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '活动管理')]")
        ));
        activityManagement.click();

        // 等待子菜单出现
        WebElement activityListButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '活动列表')]")
        ));
        activityListButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        // 检查元素
        String title = driver.findElement(By.cssSelector("body > div > h2")).getText();
        assert title.equals("活动列表");
        driver.findElement(By.cssSelector("#activities > div:nth-child(1) > div.activity-info > h4"));
        driver.findElement(By.cssSelector("#activities > div:nth-child(1) > div.activity-info > p"));
        driver.findElement(By.cssSelector("#activities > div:nth-child(1) > div.active > p > a"));

        driver.findElement(By.cssSelector("body > div > div.pagination > button:nth-child(1)"));
        driver.findElement(By.cssSelector("body > div > div.pagination > button:nth-child(2)"));
        driver.findElement(By.cssSelector("body > div > div.pagination > span"));
        driver.findElement(By.cssSelector("body > div > div.pagination > button:nth-child(4)"));
        driver.findElement(By.cssSelector("body > div > div.pagination > button:nth-child(5)"));

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();

        screenShot(Thread.currentThread().getStackTrace()[1].getMethodName());
    }

    @Test
    public void checkDrawPage(){
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击活动管理菜单
        WebElement activityManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '活动管理')]")
        ));
        activityManagement.click();

        // 等待子菜单出现
        WebElement activityListButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '活动列表')]")
        ));
        activityListButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        String curWindow = driver.getWindowHandle();
        driver.findElement(By.cssSelector("#activities > div:nth-child(1) > div.active > p > a")).click();

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();

        Set<String> windowHandles = driver.getWindowHandles();
        for (String windowHandle : windowHandles){
            if(!curWindow.equals(windowHandle)){
                driver.switchTo().window(windowHandle);
                break;
            }
        }

        driver.findElement(By.cssSelector("#title"));
        driver.findElement(By.cssSelector("#disc"));
        driver.findElement(By.cssSelector("#image"));

        // 等待页面完全加载
        longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#container")));

        // 找到按钮并滚动到视口
        WebElement prevBtn = driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.pre-btn"));
        WebElement nextBtn = driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn"));

        // 关键：滚动到元素可见
        ((JavascriptExecutor) driver).executeScript("arguments[0].scrollIntoView({block: 'center'});", prevBtn);
        ((JavascriptExecutor) driver).executeScript("arguments[0].scrollIntoView({block: 'center'});", nextBtn);

        String prev = prevBtn.getText().trim();
        String next = nextBtn.getText().trim();
        System.out.println(prev + next);
        assert prev.contains("查看上一奖项");
        assert next.contains("开始抽奖");
    }

    @Test
    public void draw(){
        ensureOnAdminPage();
        WebDriverWait longWait = new WebDriverWait(driver, Duration.ofSeconds(15));

        // 先点击活动管理菜单
        WebElement activityManagement = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//li[contains(text(), '活动管理')]")
        ));
        activityManagement.click();

        // 等待子菜单出现
        WebElement activityListButton = longWait.until(ExpectedConditions.elementToBeClickable(
                By.xpath("//a[contains(text(), '活动列表')]")
        ));
        activityListButton.click();

        // 先切换到 iframe
        WebElement iframe = longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#contentFrame")));
        driver.switchTo().frame(iframe);

        String curWindow = driver.getWindowHandle();
        driver.findElement(By.cssSelector("#activities > div:nth-child(1) > div.active > p > a")).click();

        // 操作完成后，切回主页面
        driver.switchTo().defaultContent();

        Set<String> windowHandles = driver.getWindowHandles();
        for (String windowHandle : windowHandles){
            if(!curWindow.equals(windowHandle)){
                driver.switchTo().window(windowHandle);
                break;
            }
        }

        // 等待页面完全加载
        longWait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("#container")));

        while(driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).getText().contains("开始抽奖")){
            driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).click();
            // 等待抽奖动画完成
            try {
                Thread.sleep(2000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).click();
        }

        String next = driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).getText();
        assert next.contains("已抽完，下一步");
        driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.next-btn")).click();

        String share = driver.findElement(By.cssSelector("#container > div.opt-box > span.btn.copy-btn")).getText();
        assert share.contains("分享结果");
    }

    @AfterAll
    public static void tearDown() {
        // 关闭浏览器
        Utils.quit();
    }
}

四、兼容性测试

测试场景一：在Edge浏览器中进入抽奖系统

预期结果：无异常且布局显示功能与预期一致

测试场景二：在火狐浏览器中进入抽奖系统

预期结果：无异常且布局显示功能与预期一致

五、易用性测试

1. 错误有引导，反馈清晰

六、测试总结

1.问题点

1.1有些错误提示不明显

2.总结

本次测试覆盖的功能、性能、兼容性、安全性等核心指标均满足上线标准 ，建议项目可按计划上线。
