- 将这个html文件放到云服务器, 然后通过连接访问这个html文件, 就可以打开界面(本地测试直接使用浏览器打开)
2.由于网页端无法使用1883访问mqtt服务器, 只能使用8083端口, 因此需要让mqtt broker支持
3.理论条件完全打通, 只需要订阅单片机设备的发布订阅主题, 那么就可以通过这个主题发送不容的命令, 读取/写入配置(客户不需要下载app, 手机/电脑可以同时访问, 简直完美)

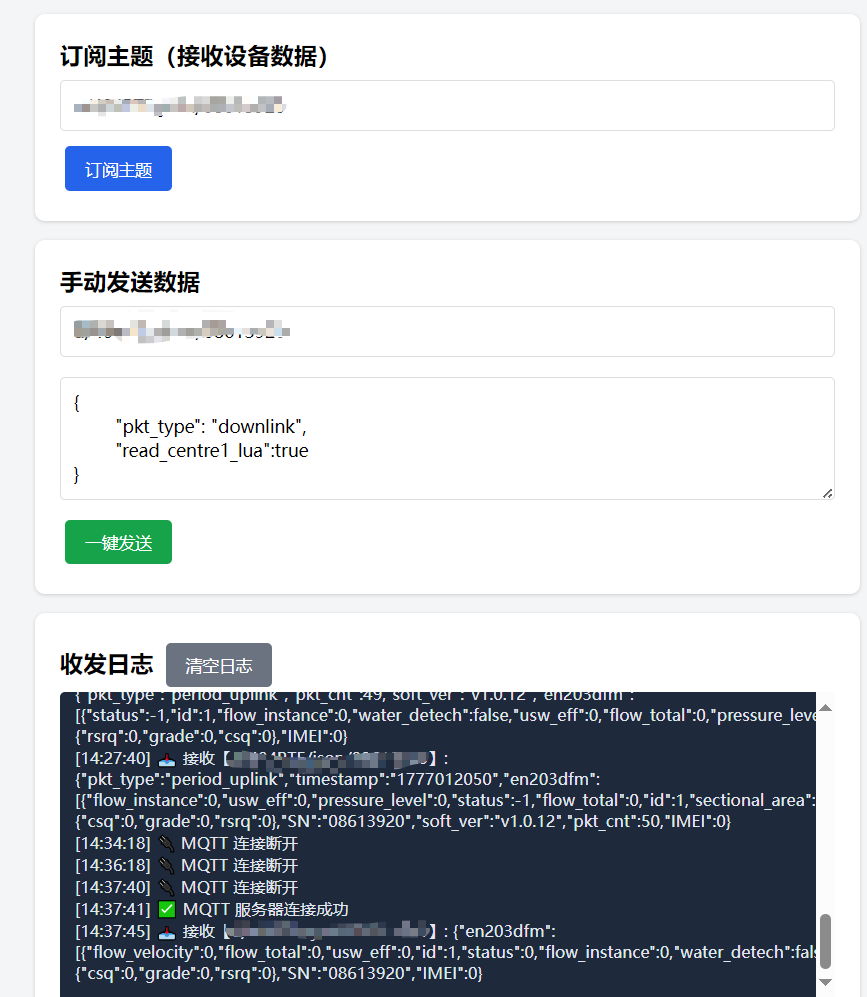

电脑端展示

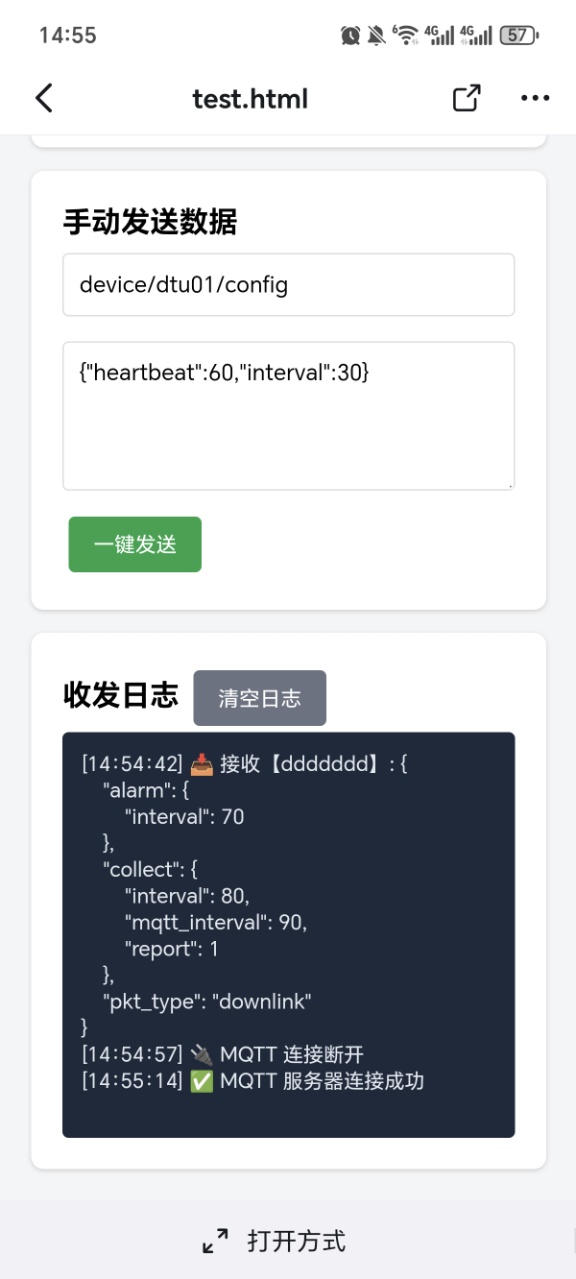

手机端展示
html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8" />
<title>MQTT 收发调试面板</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: "Microsoft Yahei", sans-serif;
}
body {
background-color: #f4f5f7;
padding: 20px;
max-width: 700px;
margin: 0 auto;
}
.box {
background: #fff;
padding: 20px;
border-radius: 8px;
margin-bottom: 15px;
box-shadow: 0 1px 3px #ccc;
}
.status-on {
color: #16a34a;
font-weight: bold;
}
.status-off {
color: #ef4444;
font-weight: bold;
}
input, textarea {
width: 100%;
padding: 10px;
margin: 8px 0;
border: 1px solid #ddd;
border-radius: 4px;
font-size: 14px;
}
button {
padding: 9px 16px;
border: none;
border-radius: 4px;
cursor: pointer;
margin: 4px;
}
.btn-blue {
background: #2563eb;
color: #fff;
}
.btn-green {
background: #16a34a;
color: #fff;
}
.btn-gray {
background: #6b7280;
color: #fff;
}
.log-area {
height: 260px;
background: #1e293b;
color: #e2e8f0;
padding: 12px;
border-radius: 4px;
overflow-y: auto;
white-space: pre-wrap;
font-size: 13px;
}
</style>
</head>
<body>
<!-- MQTT连接配置 -->
<div class="box">
<h3>MQTT 连接配置 <span id="connState" class="status-off">未连接</span></h3>
<input type="text" id="mqttIp" placeholder="服务器公网IP" value="" />
<input type="number" id="mqttPort" placeholder="WebSocket端口 8083" value="8083" />
<input type="text" id="mqttUser" placeholder="账号(无则空)" value="" />
<input type="text" id="mqttPwd" placeholder="密码(无则空)" value="" />
<div>
<button class="btn-blue" onclick="mqttConnect()">连接服务器</button>
<button class="btn-gray" onclick="mqttDisconnect()">断开连接</button>
</div>
</div>
<!-- 订阅区域 -->
<div class="box">
<h3>订阅主题（接收设备数据）</h3>
<input type="text" id="subTopic" placeholder="例：device/dtu01/reply" value="device/dtu01/reply" />
<button class="btn-blue" onclick="subTopic()">订阅主题</button>
</div>
<!-- 发送区域 -->
<div class="box">
<h3>手动发送数据</h3>
<input type="text" id="pubTopic" placeholder="发送主题" value="device/dtu01/config" />
<textarea id="pubMsg" rows="4" placeholder="输入要下发的指令/JSON">{"heartbeat":60,"interval":30}</textarea>
<button class="btn-green" onclick="sendMsg()">一键发送</button>
</div>
<!-- 日志区域 -->
<div class="box">
<h3>收发日志 <button class="btn-gray" onclick="clearLog()">清空日志</button></h3>
<div class="log-area" id="logBox"></div>
</div>
<script src="https://cdn.jsdelivr.net/npm/mqtt@4.3.7/dist/mqtt.min.js"></script>
<script>
let client = null;
const logBox = document.getElementById('logBox');
const connState = document.getElementById('connState');
// 打印日志
function log(text) {
const time = new Date().toLocaleTimeString();
logBox.innerText += `[${time}] ${text}\n`;
logBox.scrollTop = logBox.scrollHeight;
}
// 连接MQTT
function mqttConnect() {
const ip = document.getElementById('mqttIp').value.trim();
const port = document.getElementById('mqttPort').value;
const user = document.getElementById('mqttUser').value;
const pwd = document.getElementById('mqttPwd').value;
if (!ip) {
alert("请填写服务器IP");
return;
}
const wsUrl = `ws://${ip}:${port}/mqtt`;
const opts = {
username: user || undefined,
password: pwd || undefined,
clientId: "web_send_" + Date.now()
};
client = mqtt.connect(wsUrl, opts);
client.on('connect', () => {
connState.innerText = "已连接";
connState.className = "status-on";
log("✅ MQTT 服务器连接成功");
});
client.on('error', (err) => {
log(`❌ 连接失败：${err.message}`);
});
client.on('close', () => {
connState.innerText = "已断开";
connState.className = "status-off";
log("🔌 MQTT 连接断开");
});
// 接收订阅消息
client.on('message', (topic, payload) => {
const data = payload.toString();
log(`📥 接收【${topic}】: ${data}`);
});
}
// 订阅主题
function subTopic() {
if (!client || !client.connected) {
alert("请先连接MQTT服务器");
return;
}
const topic = document.getElementById('subTopic').value.trim();
client.subscribe(topic);
log(`📌 已订阅主题：${topic}`);
}
// 发布发送数据
function sendMsg() {
if (!client || !client.connected) {
alert("请先连接MQTT服务器");
return;
}
const topic = document.getElementById('pubTopic').value.trim();
const msg = document.getElementById('pubMsg').value;
client.publish(topic, msg);
log(`📤 发送【${topic}】: ${msg}`);
}
// 断开连接
function mqttDisconnect() {
if (client) client.end();
}
// 清空日志
function clearLog() {
logBox.innerText = "";
}
</script>
</body>
</html>
