调试OpenWrt的iw组件的link.c文件

滴水之功2026-05-02 9:04

link.c文件代码内容(调试打印已添加)：

#include <net/if.h>

#include <errno.h>

#include <string.h>

#include <stdbool.h>

#include <netlink/genl/genl.h>

#include <netlink/genl/family.h>

#include <netlink/genl/ctrl.h>

#include <netlink/msg.h>

#include <netlink/attr.h>

#include "nl80211.h"

#include "iw.h"

/* ========== 调试宏定义 ========== */

#define IW_DEBUG_ENABLED 1

#ifdef IW_DEBUG_ENABLED

#define IW_DEBUG(fmt, ...) \

do { \

fprintf(stderr, "IW-DEBUG %s:%d %s ", FILE, LINE, func); \

fprintf(stderr, fmt, ##VA_ARGS); \

fflush(stderr); \

} while(0)

#else

#define IW_DEBUG(fmt, ...)

#endif

#define IW_INFO(fmt, ...) \

do { \

fprintf(stderr, "IW-INFO " fmt, ##VA_ARGS); \

fflush(stderr); \

} while(0)

#define IW_ERROR(fmt, ...) \

do { \

fprintf(stderr, "IW-ERROR %s:%d: " fmt, FILE, LINE, ##VA_ARGS); \

fflush(stderr); \

} while(0)

/* ========== 调试宏定义结束 ========== */

struct link_result {

uint8_t sta_addr8;

bool link_found;

bool anything_found;

bool mld;

};

static struct link_result lr = { .link_found = false };

static int link_bss_handler(struct nl_msg *msg, void *arg)

{

IW_DEBUG("开始处理BSS消息\n");

IW_DEBUG("msg=%p, arg=%p\n", msg, arg);

struct nlattr *tbNL80211_ATTR_MAX + 1;

struct genlmsghdr *gnlh = nlmsg_data(nlmsg_hdr(msg));

struct nlattr *bssNL80211_BSS_MAX + 1;

static struct nla_policy bss_policyNL80211_BSS_MAX + 1 = {

NL80211_BSS_TSF = { .type = NLA_U64 },

NL80211_BSS_FREQUENCY = { .type = NLA_U32 },

NL80211_BSS_FREQUENCY_OFFSET = { .type = NLA_U32 },

NL80211_BSS_BSSID = { },

NL80211_BSS_BEACON_INTERVAL = { .type = NLA_U16 },

NL80211_BSS_CAPABILITY = { .type = NLA_U16 },

NL80211_BSS_INFORMATION_ELEMENTS = { },

NL80211_BSS_SIGNAL_MBM = { .type = NLA_U32 },

NL80211_BSS_SIGNAL_UNSPEC = { .type = NLA_U8 },

NL80211_BSS_STATUS = { .type = NLA_U32 },

};

struct link_result *result = arg;

char mac_addr20, dev20, link_addr20;

int link_id = -1;

const char *indent = "\t";

int freq_offset = 0;

int i;

int attr_count = 0, bss_attr_count = 0;

IW_DEBUG("解析Netlink消息属性\n");

nla_parse(tb, NL80211_ATTR_MAX, genlmsg_attrdata(gnlh, 0),

genlmsg_attrlen(gnlh, 0), NULL);

/* 调试：输出所有解析到的属性（不尝试访问未定义的数组） */

IW_DEBUG("解析到的Netlink属性:\n");

for (i = 0; i <= NL80211_ATTR_MAX; i++) {

if (tbi) {

attr_count++;

IW_DEBUG(" tb%d 存在，长度=%d\n", i, nla_len(tbi));

}

}

IW_DEBUG("总共找到 %d 个Netlink属性\n", attr_count);

if (!tbNL80211_ATTR_BSS) {

IW_ERROR("缺少NL80211_ATTR_BSS属性\n");

fprintf(stderr, "bss info missing!\n");

return NL_SKIP;

} else {

IW_DEBUG("找到NL80211_ATTR_BSS属性\n");

}

IW_DEBUG("开始解析嵌套的BSS属性\n");

if (nla_parse_nested(bss, NL80211_BSS_MAX,

tbNL80211_ATTR_BSS,

bss_policy)) {

IW_ERROR("解析嵌套属性失败\n");

fprintf(stderr, "failed to parse nested attributes!\n");

return NL_SKIP;

} else {

IW_DEBUG("成功解析嵌套属性\n");

}

/* 调试：输出BSS属性（不尝试访问未定义的数组） */

IW_DEBUG("解析到的BSS属性:\n");

for (i = 0; i <= NL80211_BSS_MAX; i++) {

if (bssi) {

bss_attr_count++;

IW_DEBUG(" bss%d 存在，长度=%d\n", i, nla_len(bssi));

}

}

IW_DEBUG("总共找到 %d 个BSS属性\n", bss_attr_count);

if (!bssNL80211_BSS_BSSID) {

IW_DEBUG("缺少NL80211_BSS_BSSID，跳过\n");

return NL_SKIP;

} else {

IW_DEBUG("找到NL80211_BSS_BSSID属性\n");

}

if (!bssNL80211_BSS_STATUS) {

IW_DEBUG("缺少NL80211_BSS_STATUS，跳过\n");

return NL_SKIP;

} else {

IW_DEBUG("找到NL80211_BSS_STATUS属性\n");

}

mac_addr_n2a(mac_addr, nla_data(bssNL80211_BSS_BSSID));

if_indextoname(nla_get_u32(tbNL80211_ATTR_IFINDEX), dev);

IW_DEBUG("接口信息: BSSID=%s, 设备=%s\n", mac_addr, dev);

int status = nla_get_u32(bssNL80211_BSS_STATUS);

IW_DEBUG("BSS状态: %d\n", status);

switch (status) {

case NL80211_BSS_STATUS_AUTHENTICATED:

IW_DEBUG("状态: 已认证\n");

break;

case NL80211_BSS_STATUS_ASSOCIATED:

IW_DEBUG("状态: 已关联\n");

break;

case NL80211_BSS_STATUS_IBSS_JOINED:

IW_DEBUG("状态: 已加入IBSS\n");

break;

default:

IW_DEBUG("状态: 未知 (%d)\n", status);

break;

}

if (bssNL80211_BSS_MLO_LINK_ID) {

link_id = nla_get_u8(bssNL80211_BSS_MLO_LINK_ID);

IW_DEBUG("MLO链路ID: %d\n", link_id);

} else {

IW_DEBUG("无MLO链路ID属性\n");

}

if (bssNL80211_BSS_MLD_ADDR) {

IW_DEBUG("检测到MLD地址，这是多链路设备\n");

mac_addr_n2a(link_addr, nla_data(bssNL80211_BSS_BSSID));

indent = "\t\t";

if (result->mld) {

IW_DEBUG("设备已经是MLD设备\n");

if (memcmp(result->sta_addr,

nla_data(bssNL80211_BSS_MLD_ADDR), 6)) {

mac_addr_n2a(mac_addr, nla_data(bssNL80211_BSS_MLD_ADDR));

IW_ERROR("MLD地址不一致: 期望 %02x:%02x:%02x:%02x:%02x:%02x, 实际 %s\n",

result->sta_addr0, result->sta_addr1, result->sta_addr2,

result->sta_addr3, result->sta_addr4, result->sta_addr5,

mac_addr);

printf("!! inconsistent MLD address information (%s)\n",

mac_addr);

} else {

IW_DEBUG("MLD地址一致\n");

}

} else {

IW_DEBUG("首次设置设备为MLD设备\n");

mac_addr_n2a(mac_addr, nla_data(bssNL80211_BSS_MLD_ADDR));

result->mld = true;

memcpy(result->sta_addr,

nla_data(bssNL80211_BSS_MLD_ADDR), 6);

IW_DEBUG("设置MLD地址: %s\n", mac_addr);

if (nla_get_u32(bssNL80211_BSS_STATUS) == NL80211_BSS_STATUS_ASSOCIATED) {

IW_INFO("已连接到MLD设备 %s (接口: %s)\n", mac_addr, dev);

printf("Connected to %s (on %s)\n", mac_addr, dev);

}

if (bssNL80211_BSS_INFORMATION_ELEMENTS) {

IW_DEBUG("打印MLD信息元素\n");

print_ies(nla_data(bssNL80211_BSS_INFORMATION_ELEMENTS),

nla_len(bssNL80211_BSS_INFORMATION_ELEMENTS),

false, PRINT_LINK_MLO_MLD, false);

}

}

} else {

IW_DEBUG("非MLD设备\n");

memcpy(result->sta_addr, nla_data(bssNL80211_BSS_BSSID), 6);

IW_DEBUG("设置STA地址: %02x:%02x:%02x:%02x:%02x:%02x\n",

result->sta_addr0, result->sta_addr1, result->sta_addr2,

result->sta_addr3, result->sta_addr4, result->sta_addr5);

}

/* 输出连接状态 */

switch (status) {

case NL80211_BSS_STATUS_ASSOCIATED:

if (result->mld) {

IW_INFO("MLD链路 %d BSSID %s\n", link_id, link_addr);

printf("\tLink %d BSSID %s\n", link_id, link_addr);

} else {

IW_INFO("已连接到 %s (接口: %s)\n", mac_addr, dev);

printf("Connected to %s (on %s)\n", mac_addr, dev);

}

break;

case NL80211_BSS_STATUS_AUTHENTICATED:

IW_INFO("已认证到 %s (接口: %s)\n", mac_addr, dev);

printf("Authenticated with %s (on %s)\n", mac_addr, dev);

return NL_SKIP;

case NL80211_BSS_STATUS_IBSS_JOINED:

IW_INFO("已加入IBSS %s (接口: %s)\n", mac_addr, dev);

printf("Joined IBSS %s (on %s)\n", mac_addr, dev);

break;

default:

IW_DEBUG("未知状态，跳过\n");

return NL_SKIP;

}

result->anything_found = true;

IW_DEBUG("设置anything_found=true\n");

if (bssNL80211_BSS_INFORMATION_ELEMENTS) {

IW_DEBUG("打印信息元素\n");

print_ies(nla_data(bssNL80211_BSS_INFORMATION_ELEMENTS),

nla_len(bssNL80211_BSS_INFORMATION_ELEMENTS),

false, result->mld ? PRINT_LINK_MLO_LINK : PRINT_LINK,

false);

} else {

IW_DEBUG("无信息元素属性\n");

}

if (bssNL80211_BSS_FREQUENCY_OFFSET) {

freq_offset = nla_get_u32(bssNL80211_BSS_FREQUENCY_OFFSET);

IW_DEBUG("频率偏移: %d\n", freq_offset);

} else {

IW_DEBUG("无频率偏移属性\n");

}

if (bssNL80211_BSS_FREQUENCY) {

int freq = nla_get_u32(bssNL80211_BSS_FREQUENCY);

IW_INFO("频率: %d.%d MHz\n", freq, freq_offset);

printf("%sfreq: %d.%d\n", indent, freq, freq_offset);

} else {

IW_DEBUG("无频率属性\n");

}

if (bssNL80211_BSS_SIGNAL_MBM) {

int signal_mbm = nla_get_u32(bssNL80211_BSS_SIGNAL_MBM);

float signal_dbm = signal_mbm / 100.0;

IW_DEBUG("信号强度: %d mBm (%.1f dBm)\n", signal_mbm, signal_dbm);

} else {

IW_DEBUG("无信号强度(MBM)属性\n");

}

if (bssNL80211_BSS_SIGNAL_UNSPEC) {

int8_t signal = (int8_t)nla_get_u8(bssNL80211_BSS_SIGNAL_UNSPEC);

IW_DEBUG("信号强度(未指定): %d\n", signal);

} else {

IW_DEBUG("无信号强度(未指定)属性\n");

}

if (nla_get_u32(bssNL80211_BSS_STATUS) != NL80211_BSS_STATUS_ASSOCIATED) {

IW_DEBUG("非关联状态，跳过站点信息获取\n");

return NL_SKIP;

}

/* 只有关联状态才需要获取站点信息 */

result->link_found = true;

IW_DEBUG("设置link_found=true\n");

IW_DEBUG("link_bss_handler处理完成\n");

return NL_SKIP;

}

static int handle_scan_for_link(struct nl80211_state *state,

struct nl_msg *msg,

int argc, char **argv,

enum id_input id)

{

IW_DEBUG("处理扫描链接命令\n");

IW_DEBUG("状态: %p, 消息: %p, 参数: %d, ID: %d\n", state, msg, argc, id);

for (int i = 0; i < argc; i++) {

IW_DEBUG(" argv%d: %s\n", i, argvi);

}

if (argc > 0) {

IW_ERROR("扫描链接命令不接受额外参数\n");

return 1;

}

IW_DEBUG("注册link_bss_handler回调\n");

register_handler(link_bss_handler, &lr);

IW_DEBUG("扫描链接命令处理完成\n");

return 0;

}

static int print_link_sta(struct nl_msg *msg, void *arg)

{

IW_DEBUG("打印站点信息\n");

IW_DEBUG("msg=%p, arg=%p\n", msg, arg);

struct nlattr *tbNL80211_ATTR_MAX + 1;

struct genlmsghdr *gnlh = nlmsg_data(nlmsg_hdr(msg));

struct nlattr *sinfoNL80211_STA_INFO_MAX + 1;

struct nlattr *binfoNL80211_STA_BSS_PARAM_MAX + 1;

static struct nla_policy stats_policyNL80211_STA_INFO_MAX + 1 = {

NL80211_STA_INFO_INACTIVE_TIME = { .type = NLA_U32 },

NL80211_STA_INFO_RX_BYTES = { .type = NLA_U32 },

NL80211_STA_INFO_TX_BYTES = { .type = NLA_U32 },

NL80211_STA_INFO_RX_PACKETS = { .type = NLA_U32 },

NL80211_STA_INFO_TX_PACKETS = { .type = NLA_U32 },

NL80211_STA_INFO_SIGNAL = { .type = NLA_U8 },

NL80211_STA_INFO_RX_BITRATE = { .type = NLA_NESTED },

NL80211_STA_INFO_TX_BITRATE = { .type = NLA_NESTED },

NL80211_STA_INFO_LLID = { .type = NLA_U16 },

NL80211_STA_INFO_PLID = { .type = NLA_U16 },

NL80211_STA_INFO_PLINK_STATE = { .type = NLA_U8 },

};

static struct nla_policy bss_policyNL80211_STA_BSS_PARAM_MAX + 1 = {

NL80211_STA_BSS_PARAM_CTS_PROT = { .type = NLA_FLAG },

NL80211_STA_BSS_PARAM_SHORT_PREAMBLE = { .type = NLA_FLAG },

NL80211_STA_BSS_PARAM_SHORT_SLOT_TIME = { .type = NLA_FLAG },

NL80211_STA_BSS_PARAM_DTIM_PERIOD = { .type = NLA_U8 },

NL80211_STA_BSS_PARAM_BEACON_INTERVAL = { .type = NLA_U16 },

};

int attr_count = 0, sinfo_attr_count = 0;

IW_DEBUG("解析Netlink消息属性\n");

nla_parse(tb, NL80211_ATTR_MAX, genlmsg_attrdata(gnlh, 0),

genlmsg_attrlen(gnlh, 0), NULL);

/* 调试：统计属性数量 */

for (int i = 0; i <= NL80211_ATTR_MAX; i++) {

if (tbi) {

attr_count++;

}

}

IW_DEBUG("找到 %d 个Netlink属性\n", attr_count);

if (!tbNL80211_ATTR_STA_INFO) {

IW_ERROR("缺少NL80211_ATTR_STA_INFO属性\n");

fprintf(stderr, "sta stats missing!\n");

return NL_SKIP;

} else {

IW_DEBUG("找到NL80211_ATTR_STA_INFO属性\n");

}

IW_DEBUG("开始解析嵌套的站点信息属性\n");

if (nla_parse_nested(sinfo, NL80211_STA_INFO_MAX,

tbNL80211_ATTR_STA_INFO,

stats_policy)) {

IW_ERROR("解析嵌套站点信息属性失败\n");

fprintf(stderr, "failed to parse nested attributes!\n");

return NL_SKIP;

} else {

IW_DEBUG("成功解析嵌套站点信息属性\n");

}

/* 统计站点信息属性数量 */

for (int i = 0; i <= NL80211_STA_INFO_MAX; i++) {

if (sinfoi) {

sinfo_attr_count++;

}

}

IW_DEBUG("找到 %d 个站点信息属性\n", sinfo_attr_count);

IW_DEBUG("输出接收统计\n");

if (sinfoNL80211_STA_INFO_RX_BYTES && sinfoNL80211_STA_INFO_RX_PACKETS) {

uint32_t rx_bytes = nla_get_u32(sinfoNL80211_STA_INFO_RX_BYTES);

uint32_t rx_packets = nla_get_u32(sinfoNL80211_STA_INFO_RX_PACKETS);

IW_DEBUG("接收: %u 字节, %u 包\n", rx_bytes, rx_packets);

printf("\tRX: %u bytes (%u packets)\n", rx_bytes, rx_packets);

} else {

IW_DEBUG("无接收统计信息\n");

}

IW_DEBUG("输出发送统计\n");

if (sinfoNL80211_STA_INFO_TX_BYTES && sinfoNL80211_STA_INFO_TX_PACKETS) {

uint32_t tx_bytes = nla_get_u32(sinfoNL80211_STA_INFO_TX_BYTES);

uint32_t tx_packets = nla_get_u32(sinfoNL80211_STA_INFO_TX_PACKETS);

IW_DEBUG("发送: %u 字节, %u 包\n", tx_bytes, tx_packets);

printf("\tTX: %u bytes (%u packets)\n", tx_bytes, tx_packets);

} else {

IW_DEBUG("无发送统计信息\n");

}

IW_DEBUG("输出信号强度\n");

if (sinfoNL80211_STA_INFO_SIGNAL) {

int8_t signal = (int8_t)nla_get_u8(sinfoNL80211_STA_INFO_SIGNAL);

IW_DEBUG("信号强度: %d dBm\n", signal);

printf("\tsignal: %d dBm\n", signal);

} else {

IW_DEBUG("无信号强度信息\n");

}

if (sinfoNL80211_STA_INFO_RX_BITRATE) {

IW_DEBUG("解析接收速率\n");

char buf100;

parse_bitrate(sinfoNL80211_STA_INFO_RX_BITRATE, buf, sizeof(buf));

IW_INFO("接收速率: %s\n", buf);

printf("\trx bitrate: %s\n", buf);

} else {

IW_DEBUG("无接收速率信息\n");

}

if (sinfoNL80211_STA_INFO_TX_BITRATE) {

IW_DEBUG("解析发送速率\n");

char buf100;

parse_bitrate(sinfoNL80211_STA_INFO_TX_BITRATE, buf, sizeof(buf));

IW_INFO("发送速率: %s\n", buf);

printf("\ttx bitrate: %s\n", buf);

} else {

IW_DEBUG("无发送速率信息\n");

}

if (sinfoNL80211_STA_INFO_BSS_PARAM) {

IW_DEBUG("解析BSS参数\n");

int bss_param_count = 0;

if (nla_parse_nested(binfo, NL80211_STA_BSS_PARAM_MAX,

sinfoNL80211_STA_INFO_BSS_PARAM,

bss_policy)) {

IW_ERROR("解析嵌套BSS参数失败\n");

fprintf(stderr, "failed to parse nested bss parameters!\n");

} else {

IW_DEBUG("成功解析BSS参数\n");

/* 统计BSS参数数量 */

for (int i = 0; i <= NL80211_STA_BSS_PARAM_MAX; i++) {

if (binfoi) {

bss_param_count++;

}

}

IW_DEBUG("找到 %d 个BSS参数\n", bss_param_count);

char *delim = "";

printf("\tbss flags: ");

IW_DEBUG("输出BSS标志\n");

if (binfoNL80211_STA_BSS_PARAM_CTS_PROT) {

IW_DEBUG("CTS保护已启用\n");

printf("CTS-protection");

delim = " ";

}

if (binfoNL80211_STA_BSS_PARAM_SHORT_PREAMBLE) {

IW_DEBUG("短前导码已启用\n");

printf("%sshort-preamble", delim);

delim = " ";

}

if (binfoNL80211_STA_BSS_PARAM_SHORT_SLOT_TIME) {

IW_DEBUG("短时隙已启用\n");

printf("%sshort-slot-time", delim);

}

IW_DEBUG("\n");

printf("\n");

if (binfoNL80211_STA_BSS_PARAM_DTIM_PERIOD) {

uint8_t dtim = nla_get_u8(binfoNL80211_STA_BSS_PARAM_DTIM_PERIOD);

IW_DEBUG("DTIM周期: %d\n", dtim);

printf("\tdtim period: %d\n", dtim);

} else {

IW_DEBUG("无DTIM周期信息\n");

}

if (binfoNL80211_STA_BSS_PARAM_BEACON_INTERVAL) {

uint16_t beacon_int = nla_get_u16(binfoNL80211_STA_BSS_PARAM_BEACON_INTERVAL);

IW_DEBUG("信标间隔: %d\n", beacon_int);

printf("\tbeacon int: %d\n", beacon_int);

} else {

IW_DEBUG("无信标间隔信息\n");

}

}

} else {

IW_DEBUG("无BSS参数信息\n");

}

IW_DEBUG("站点信息打印完成\n");

return NL_SKIP;

}

static int handle_link_sta(struct nl80211_state *state,

struct nl_msg *msg,

int argc, char **argv,

enum id_input id)

{

IW_DEBUG("处理链接站点命令\n");

IW_DEBUG("状态: %p, 消息: %p, 参数: %d, ID: %d\n", state, msg, argc, id);

for (int i = 0; i < argc; i++) {

IW_DEBUG(" argv%d: %s\n", i, argvi);

}

if (argc < 1) {

IW_ERROR("缺少MAC地址参数\n");

return 1;

}

unsigned char mac_addrETH_ALEN;

IW_DEBUG("解析MAC地址: %s\n", argv0);

if (mac_addr_a2n(mac_addr, argv0)) {

IW_ERROR("无效的MAC地址: %s\n", argv0);

fprintf(stderr, "invalid mac address\n");

return 2;

}

IW_DEBUG("解析的MAC地址: %02x:%02x:%02x:%02x:%02x:%02x\n",

mac_addr0, mac_addr1, mac_addr2,

mac_addr3, mac_addr4, mac_addr5);

argc--;

argv++;

if (argc) {

IW_ERROR("有多余参数\n");

return 1;

}

IW_DEBUG("将MAC地址添加到Netlink消息\n");

NLA_PUT(msg, NL80211_ATTR_MAC, ETH_ALEN, mac_addr);

IW_DEBUG("注册print_link_sta回调\n");

register_handler(print_link_sta, NULL);

IW_DEBUG("链接站点命令处理完成\n");

return 0;

nla_put_failure:

IW_ERROR("添加Netlink属性失败\n");

return -ENOBUFS;

}

static int handle_link(struct nl80211_state *state,

struct nl_msg *msg, int argc, char **argv,

enum id_input id)

{

IW_DEBUG("处理链接命令\n");

IW_DEBUG("状态: %p, 消息: %p, 参数: %d, ID: %d\n", state, msg, argc, id);

for (int i = 0; i < argc; i++) {

IW_DEBUG(" argv%d: %s\n", i, argvi);

}

char *link_argv\[\] = {

NULL,

"link",

"get_bss",

NULL,

};

char *station_argv\[\] = {

NULL,

"link",

"get_sta",

NULL,

NULL,

};

char addr_buf3 \* 6;

int err;

/* 重置全局状态 */

IW_DEBUG("重置link_result状态\n");

memset(&lr, 0, sizeof(lr));

IW_DEBUG("当前lr状态: link_found=%d, anything_found=%d, mld=%d\n",

lr.link_found, lr.anything_found, lr.mld);

/* 检查STA地址是否被正确清除 */

IW_DEBUG("STA地址: %02x:%02x:%02x:%02x:%02x:%02x\n",

lr.sta_addr0, lr.sta_addr1, lr.sta_addr2,

lr.sta_addr3, lr.sta_addr4, lr.sta_addr5);

link_argv0 = argv0;

IW_DEBUG("调用handle_cmd获取BSS信息\n");

IW_DEBUG("参数: %s %s %s\n",

link_argv0 ? link_argv0 : "(null)",

link_argv1 ? link_argv1 : "(null)",

link_argv2 ? link_argv2 : "(null)");

err = handle_cmd(state, id, 3, link_argv);

IW_DEBUG("handle_cmd返回: %d\n", err);

if (err) {

IW_ERROR("获取BSS信息失败: %d\n", err);

return err;

}

IW_DEBUG("扫描后lr状态: link_found=%d, anything_found=%d, mld=%d\n",

lr.link_found, lr.anything_found, lr.mld);

IW_DEBUG("扫描后STA地址: %02x:%02x:%02x:%02x:%02x:%02x\n",

lr.sta_addr0, lr.sta_addr1, lr.sta_addr2,

lr.sta_addr3, lr.sta_addr4, lr.sta_addr5);

if (!lr.link_found) {

if (!lr.anything_found) {

IW_INFO("未找到连接\n");

printf("Not connected.\n");

} else {

IW_DEBUG("找到BSS但未关联\n");

}

return 0;

}

IW_DEBUG("找到有效连接\n");

mac_addr_n2a(addr_buf, lr.sta_addr);

addr_buf17 = '\0';

IW_DEBUG("连接到的AP地址: %s\n", addr_buf);

IW_DEBUG("是否MLD: %s\n", lr.mld ? "是" : "否");

if (lr.mld) {

IW_INFO("MLD %s 统计:\n", addr_buf);

printf("MLD %s stats:\n", addr_buf);

}

station_argv0 = argv0;

station_argv3 = addr_buf;

IW_DEBUG("调用handle_cmd获取站点统计信息\n");

IW_DEBUG("参数: %s %s %s %s\n",

station_argv0 ? station_argv0 : "(null)",

station_argv1 ? station_argv1 : "(null)",

station_argv2 ? station_argv2 : "(null)",

station_argv3 ? station_argv3 : "(null)");

int result = handle_cmd(state, id, 4, station_argv);

IW_DEBUG("handle_cmd返回: %d\n", result);

return result;

}

TOPLEVEL(link, NULL, 0, 0, CIB_NETDEV, handle_link,

"Print information about the current connection, if any.");

HIDDEN(link, get_sta, "<mac-addr>", NL80211_CMD_GET_STATION, 0,

CIB_NETDEV, handle_link_sta);

HIDDEN(link, get_bss, NULL, NL80211_CMD_GET_SCAN, NLM_F_DUMP,

CIB_NETDEV, handle_scan_for_link);

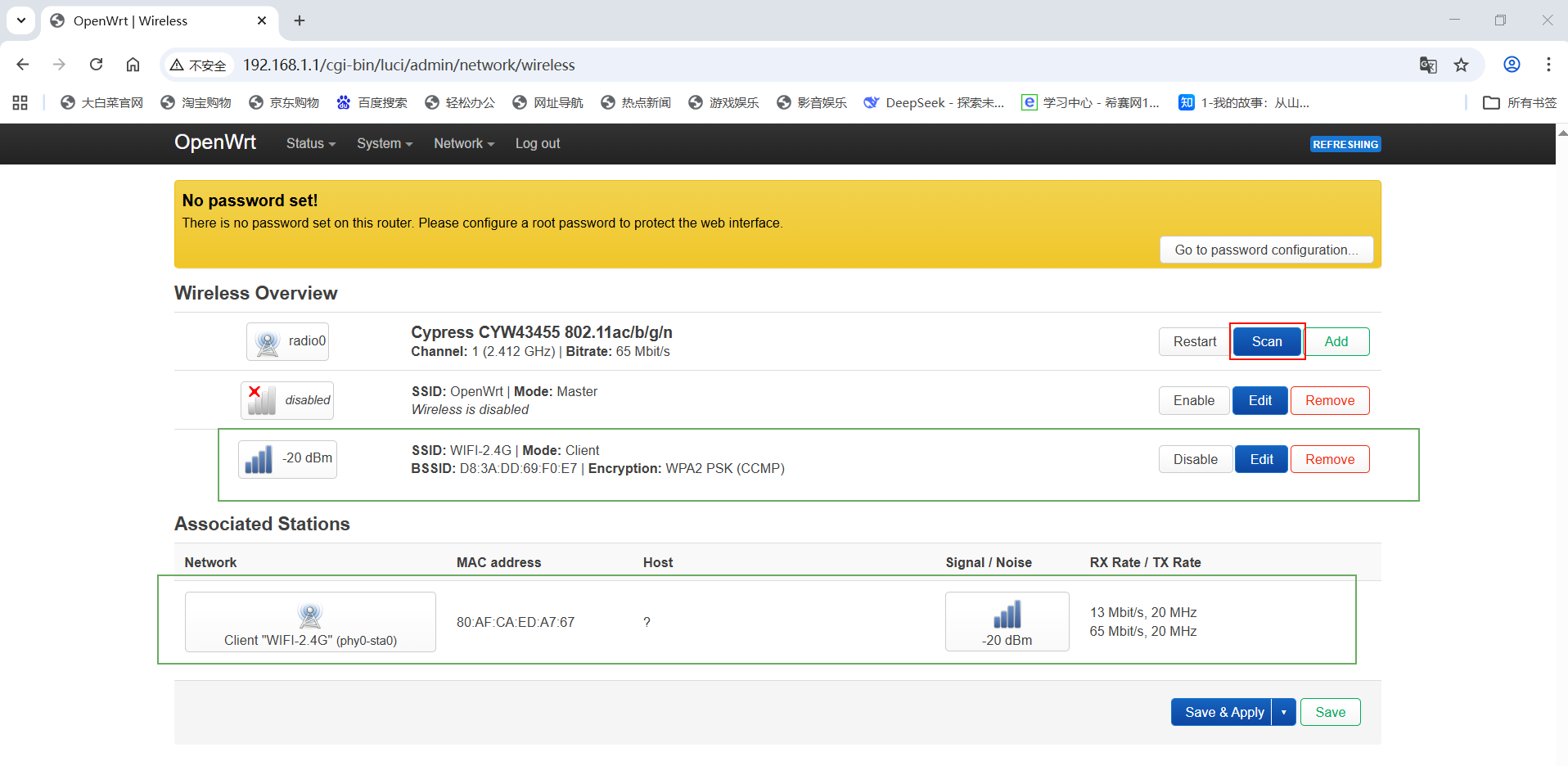

连接的wifi：

运行该命令的打印日志：

root@OpenWrt:~# iw dev phy0-sta0 link

DEBUG iw tool starting. argc=4

argv0: iw

argv1: dev

argv2: phy0-sta0

argv3: link

DEBUG __handle_cmd: idby=1, argc=2, argv0=phy0-sta0

DEBUG command_idby=0, devidx=0

DEBUG section=(null)

DEBUG selected command: link

IW-DEBUG link.c:556 handle_link 处理链接命令

IW-DEBUG link.c:557 handle_link 状态: 0x7fcccaaf40, 消息: 0, 参数: 2, ID: 1

IW-DEBUG link.c:560 handle_link argv0: phy0-sta0

IW-DEBUG link.c:560 handle_link argv1: link

IW-DEBUG link.c:580 handle_link 重置link_result状态

IW-DEBUG link.c:583 handle_link 当前lr状态: link_found=0, anything_found=0, mld=0

IW-DEBUG link.c:587 handle_link STA地址: 00:00:00:00:00:00

IW-DEBUG link.c:593 handle_link 调用handle_cmd获取BSS信息

IW-DEBUG\] link.c:594 \[handle_link\] 参数: \[phy0-sta0\] \[link\] \[get_bss

DEBUG __handle_cmd: idby=1, argc=3, argv0=phy0-sta0

DEBUG command_idby=0, devidx=0

DEBUG section=(null)

DEBUG selected command: get_bss

IW-DEBUG link.c:298 handle_scan_for_link 处理扫描链接命令

IW-DEBUG link.c:299 handle_scan_for_link 状态: 0x7fcccaaf40, 消息: 0x7fa1dc9160, 参数: 0, ID: 1

IW-DEBUG link.c:310 handle_scan_for_link 注册link_bss_handler回调

IW-DEBUG link.c:313 handle_scan_for_link 扫描链接命令处理完成

DEBUG About to send NL command: 0x20

DEBUG nl_send_auto_complete returned: 28

IW-DEBUG link.c:53 link_bss_handler 开始处理BSS消息

IW-DEBUG link.c:54 link_bss_handler msg=0x7fa1dc91c0, arg=0x442391

IW-DEBUG link.c:79 link_bss_handler 解析Netlink消息属性

IW-DEBUG link.c:84 link_bss_handler 解析到的Netlink属性:

IW-DEBUG link.c:88 link_bss_handler tb3 存在，长度=4

IW-DEBUG link.c:88 link_bss_handler tb46 存在，长度=4

IW-DEBUG link.c:88 link_bss_handler tb47 存在，长度=336

IW-DEBUG link.c:88 link_bss_handler tb153 存在，长度=8

IW-DEBUG link.c:91 link_bss_handler 总共找到 4 个Netlink属性

IW-DEBUG link.c:98 link_bss_handler 找到NL80211_ATTR_BSS属性

IW-DEBUG link.c:101 link_bss_handler 开始解析嵌套的BSS属性

IW-DEBUG link.c:109 link_bss_handler 成功解析嵌套属性

IW-DEBUG link.c:113 link_bss_handler 解析到的BSS属性:

IW-DEBUG link.c:117 link_bss_handler bss1 存在，长度=6

IW-DEBUG link.c:117 link_bss_handler bss2 存在，长度=4

IW-DEBUG link.c:117 link_bss_handler bss3 存在，长度=8

IW-DEBUG link.c:117 link_bss_handler bss4 存在，长度=2

IW-DEBUG link.c:117 link_bss_handler bss5 存在，长度=2

IW-DEBUG link.c:117 link_bss_handler bss6 存在，长度=229

IW-DEBUG link.c:117 link_bss_handler bss7 存在，长度=4

IW-DEBUG link.c:117 link_bss_handler bss9 存在，长度=4

IW-DEBUG link.c:117 link_bss_handler bss10 存在，长度=4

IW-DEBUG link.c:117 link_bss_handler bss15 存在，长度=8

IW-DEBUG link.c:117 link_bss_handler bss20 存在，长度=4

IW-DEBUG link.c:117 link_bss_handler bss23 存在，长度=4

IW-DEBUG link.c:120 link_bss_handler 总共找到 12 个BSS属性

IW-DEBUG link.c:126 link_bss_handler 找到NL80211_BSS_BSSID属性

IW-DEBUG link.c:133 link_bss_handler 找到NL80211_BSS_STATUS属性

IW-DEBUG link.c:139 link_bss_handler 接口信息: BSSID=80:af:ca:ed:a7:67, 设备=phy0-sta0

IW-DEBUG link.c:142 link_bss_handler BSS状态: 1

IW-DEBUG link.c:149 link_bss_handler 状态: 已关联

IW-DEBUG link.c:163 link_bss_handler 无MLO链路ID属性

IW-DEBUG link.c:206 link_bss_handler 非MLD设备

IW-DEBUG link.c:208 link_bss_handler 设置STA地址: 80:af:ca:ed:a7:67

IW-INFO 已连接到 80:af:ca:ed:a7:67 (接口: phy0-sta0)

Connected to 80:af:ca:ed:a7:67 (on phy0-sta0)

IW-DEBUG link.c:238 link_bss_handler 设置anything_found=true

IW-DEBUG link.c:241 link_bss_handler 打印信息元素

SSID: WIFI-2.4G

IW-DEBUG link.c:252 link_bss_handler 频率偏移: 0

IW-INFO 频率: 2412.0 MHz

freq: 2412.0

IW-DEBUG link.c:268 link_bss_handler 信号强度: -1900 mBm (-19.0 dBm)

IW-DEBUG link.c:277 link_bss_handler 无信号强度(未指定)属性

IW-DEBUG link.c:287 link_bss_handler 设置link_found=true

IW-DEBUG link.c:289 link_bss_handler link_bss_handler处理完成

IW-DEBUG link.c:600 handle_link handle_cmd返回: 0

IW-DEBUG link.c:607 handle_link 扫描后lr状态: link_found=1, anything_found=1, mld=0

IW-DEBUG link.c:610 handle_link 扫描后STA地址: 80:af:ca:ed:a7:67

IW-DEBUG link.c:624 handle_link 找到有效连接

IW-DEBUG link.c:629 handle_link 连接到的AP地址: 80:af:ca:ed:a7:67

IW-DEBUG link.c:630 handle_link 是否MLD: 否

IW-DEBUG link.c:640 handle_link 调用handle_cmd获取站点统计信息

IW-DEBUG\] link.c:641 \[handle_link\] 参数: \[phy0-sta0\] \[link\] \[get_sta\] \[80:af:ca:ed:a7:67

DEBUG __handle_cmd: idby=1, argc=4, argv0=phy0-sta0

DEBUG command_idby=0, devidx=0

DEBUG section=(null)

DEBUG selected command: get_sta

IW-DEBUG link.c:505 handle_link_sta 处理链接站点命令

IW-DEBUG link.c:506 handle_link_sta 状态: 0x7fcccaaf40, 消息: 0x7fa1dc9110, 参数: 1, ID: 1

IW-DEBUG link.c:509 handle_link_sta argv0: 80:af:ca:ed:a7:67

IW-DEBUG link.c:519 handle_link_sta 解析MAC地址: 80:af:ca:ed:a7:67

IW-DEBUG link.c:526 handle_link_sta 解析的MAC地址: 80:af:ca:ed:a7:67

IW-DEBUG link.c:538 handle_link_sta 将MAC地址添加到Netlink消息

IW-DEBUG link.c:541 handle_link_sta 注册print_link_sta回调

IW-DEBUG link.c:544 handle_link_sta 链接站点命令处理完成

DEBUG About to send NL command: 0x11

DEBUG nl_send_auto_complete returned: 40

IW-DEBUG link.c:319 print_link_sta 打印站点信息

IW-DEBUG link.c:320 print_link_sta msg=0x7fa1dc91d0, arg=0

IW-DEBUG link.c:348 print_link_sta 解析Netlink消息属性

IW-DEBUG link.c:358 print_link_sta 找到 4 个Netlink属性

IW-DEBUG link.c:365 print_link_sta 找到NL80211_ATTR_STA_INFO属性

IW-DEBUG link.c:368 print_link_sta 开始解析嵌套的站点信息属性

IW-DEBUG link.c:376 print_link_sta 成功解析嵌套站点信息属性

IW-DEBUG link.c:385 print_link_sta 找到 12 个站点信息属性

IW-DEBUG link.c:387 print_link_sta 输出接收统计

IW-DEBUG link.c:391 print_link_sta 接收: 9199 字节, 31 包

RX: 9199 bytes (31 packets)

IW-DEBUG link.c:397 print_link_sta 输出发送统计

IW-DEBUG link.c:401 print_link_sta 发送: 7189 字节, 38 包

TX: 7189 bytes (38 packets)

IW-DEBUG link.c:407 print_link_sta 输出信号强度

IW-DEBUG link.c:410 print_link_sta 信号强度: -21 dBm

signal: -21 dBm

IW-DEBUG link.c:417 print_link_sta 解析接收速率

IW-INFO 接收速率: 65.0 MBit/s

rx bitrate: 65.0 MBit/s

IW-DEBUG link.c:427 print_link_sta 解析发送速率

IW-INFO 发送速率: 72.2 MBit/s

tx bitrate: 72.2 MBit/s

IW-DEBUG link.c:437 print_link_sta 解析BSS参数

IW-DEBUG link.c:445 print_link_sta 成功解析BSS参数

IW-DEBUG link.c:453 print_link_sta 找到 4 个BSS参数

IW-DEBUG link.c:457 print_link_sta 输出BSS标志

IW-DEBUG link.c:465 print_link_sta 短前导码已启用

IW-DEBUG link.c:470 print_link_sta 短时隙已启用

IW-DEBUG\] link.c:473 \[print_link_sta

bss flags: short-preamble short-slot-time

IW-DEBUG link.c:478 print_link_sta DTIM周期: 2

dtim period: 2

IW-DEBUG link.c:486 print_link_sta 信标间隔: 100

beacon int: 100

IW-DEBUG link.c:496 print_link_sta 站点信息打印完成

IW-DEBUG link.c:648 handle_link handle_cmd返回: 0

root@OpenWrt:~#

相关推荐
阿钱真强道2 天前
27 鸿蒙LiteOS RK2206 设备连路由器完整实战（配网+联网验证+网络连通性测试）
wifi·harmonyos·鸿蒙·rk·liteos·开源鸿蒙·瑞芯微
深念Y9 天前
openwrt.ai：一款在线OpenWrt固件定制编译平台
网络·智能路由器·编译·openwrt·刷机·软路由·固件
星恒讯工业路由器13 天前
物联网网关天线：分类解析与信号质量认知误区
网络·物联网·wifi·信息与通信·wifi 天线·lora 天线·物联网关天线
星恒讯工业路由器15 天前
WiFi 安全技术演进全解析：从 WEP 到 WPA3 的迭代与安全蜕变
网络·安全·wifi·信息与通信
桑榆肖物18 天前
ImprovWifi 跨平台传输层设计：把协议层做薄，把宿主层做稳
嵌入式硬件·wifi·.net·ble
绿竹-大地1 个月前
韦东山开发板imx6ull移植WS1-CBS-Kit
嵌入式硬件·wifi
青天喵喵1 个月前
Linux WiFi 架构解析：从用户态到驱动与硬件（基础篇）
linux·运维·arm开发·架构·wifi·嵌入式
棒棒的唐1 个月前
OpenWrt 25.12 版本概览
openwrt
酣大智1 个月前
POE概念
网络·wifi·无线·poe
热门推荐
01《置身钉内》原文-可播放阅读02GitHub 镜像站点03【AI】2026 年具身智能模型和世界模型总结04Claude Code、Codex、Cursor三分天下：2026年AI编程Agent生态全景剖析052026 AI 编程工具终极实战指南：Cursor vs Claude Code vs Copilot，开发者该怎么选？06Codex 下载安装指南：Windows 和 macOS 官方版下载072026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf08【踩坑记录 | 第一篇】微软商店无法使用时，如何手动安装 OpenAI Codex？附`.msix`文件系统错误解决方法09AI科技热点日报 | 2026年6月1日10CC-Switch 下载、安装与使用配置指南【2026.5.29】
