SPI机制代码分析

在之前的文章里提到Spring Boot的类加载中有一种是SPI机制。但为了不冲淡主题，没有写SPI机制的详细代码分析。于是打算重新写一篇文章，把SPI机制的源码分析一遍。于我而言，是思考的总结，也是防止遗忘的备忘录。

SPI（Service Provider Interface）是 Java 提供的一种服务发现机制，它允许程序在运行时动态地为某个接口找到具体的实现类，而无需在代码中硬编码实现类名。下面我们追随代码，看看它的工作原理。如下代码是LoggerFactory.java 类通过ServiceLoader加载具体日志处理类的入口

java 复制代码

LoggerFactory.java
private static ServiceLoader<SLF4JServiceProvider> getServiceLoader(final ClassLoader classLoaderOfLoggerFactory) {
    ServiceLoader<SLF4JServiceProvider> serviceLoader;
    SecurityManager securityManager = System.getSecurityManager();
    if(securityManager == null) {
        serviceLoader = ServiceLoader.load(SLF4JServiceProvider.class, classLoaderOfLoggerFactory);
     } else {
        final PrivilegedAction<ServiceLoader<SLF4JServiceProvider>> action = () -> ServiceLoader.load(SLF4JServiceProvider.class, classLoaderOfLoggerFactory);
        serviceLoader = AccessController.doPrivileged(action);
    }
    return serviceLoader;
}

第6行，ServiceLoader.load函数实际是ServiceLoader对象的初始化函数，代码如下

java 复制代码

ServiceLoader.java
public static <S> ServiceLoader<S> load(Class<S> service,
ClassLoader loader)
{
    return new ServiceLoader<>(Reflection.getCallerClass(), service, loader);
}

得到ServiceLoader对象serviceLoader后，再获得serviceLoader的iterator对象（下文代码第18行）。通过iterator，循环实例化provider对象（下文代码第20行）

java 复制代码

LoggerFactory.java
static List<SLF4JServiceProvider> findServiceProviders() {
    List<SLF4JServiceProvider> providerList = new ArrayList<>();

    // retain behaviour similar to that of 1.7 series and earlier. More specifically, use the class loader that
    // loaded the present class to search for services
    final ClassLoader classLoaderOfLoggerFactory = LoggerFactory.class.getClassLoader();

    SLF4JServiceProvider explicitProvider = loadExplicitlySpecified(classLoaderOfLoggerFactory);
    if(explicitProvider != null) {
        providerList.add(explicitProvider);
        return providerList;
    }


    ServiceLoader<SLF4JServiceProvider> serviceLoader = getServiceLoader(classLoaderOfLoggerFactory);

    Iterator<SLF4JServiceProvider> iterator = serviceLoader.iterator();
    while (iterator.hasNext()) {
        safelyInstantiate(providerList, iterator);
    }
    return providerList;
}

下面来看看ServiceLoader的iterator函数

java 复制代码

public Iterator<S> iterator() {

    // create lookup iterator if needed
    if (lookupIterator1 == null) {
        lookupIterator1 = newLookupIterator();
    }

    return new Iterator<S>() {

        // record reload count
        final int expectedReloadCount = ServiceLoader.this.reloadCount;

        // index into the cached providers list
        int index;

       /**
         * Throws ConcurrentModificationException if the list of cached
         * providers has been cleared by reload.
        */
        private void checkReloadCount() {
            if (ServiceLoader.this.reloadCount != expectedReloadCount)
                throw new ConcurrentModificationException();
        }

        @Override
        public boolean hasNext() {
            checkReloadCount();
            if (index < instantiatedProviders.size())
                return true;
            return lookupIterator1.hasNext();
        }

        @Override
        public S next() {
            checkReloadCount();
            S next;
            if (index < instantiatedProviders.size()) {
                next = instantiatedProviders.get(index);
            } else {
                next = lookupIterator1.next().get();
                instantiatedProviders.add(next);
            }
            index++;
            return next;
        }

    };
}

在第5行，新建了一个newLookupIterator对象，赋值给lookupIterator1。它包含了两个Iterator，如下文代码第6行第7行所示

java 复制代码

private Iterator<Provider<S>> newLookupIterator() {
    assert layer == null || loader == null;
    if (layer != null) {
        return new LayerLookupIterator<>();
    } else {
        Iterator<Provider<S>> first = new ModuleServicesLookupIterator<>();
        Iterator<Provider<S>> second = new LazyClassPathLookupIterator<>();
        return new Iterator<Provider<S>>() {
            @Override
            public boolean hasNext() {
                return (first.hasNext() || second.hasNext());
            }
            @Override
            public Provider<S> next() {
                if (first.hasNext()) {
                    return first.next();
                } else if (second.hasNext()) {
                    return second.next();
                } else {
                    throw new NoSuchElementException();
                }
            }
        };
    }
}

所以，调用iterator.hasNext()时，会调用lookupIterator1.hasNext()，最后调用代码return (first.hasNext() || second.hasNext());

first这个iterator，会在module的各个layer中去查找provider。如果查找不到，就使用second这个iterator，在各个classLoader的classpath中查找provider。由于Spring Boot只是兼容模块化，但是它本身并不适用模块化，故在first中是查找不到provider的。之后second.hasNext()就会被调用。second对象的类是LazyClassPathLookupIterator，它的hasNext()方法如下

java 复制代码

public boolean hasNext() {
    if (acc == null) {
        return hasNextService();
    } else {
        PrivilegedAction<Boolean> action = new PrivilegedAction<>() {
        public Boolean run() { return hasNextService(); }
    };
    return AccessController.doPrivileged(action, acc);
}

第3行，就是SPI查找及初始化查找出的provider的具体逻辑

java 复制代码

private boolean hasNextService() {
    while (nextProvider == null && nextError == null) {
        try {
            //查找provider类
            Class<?> clazz = nextProviderClass();
            if (clazz == null)
                return false;

            if (clazz.getModule().isNamed()) {
                // ignore class if in named module
                continue;
            }

            if (service.isAssignableFrom(clazz)) {
            // 初始化provider对象
                Class<? extends S> type = (Class<? extends S>) clazz;
                Constructor<? extends S> ctor
= (Constructor<? extends S>)getConstructor(clazz);
                ProviderImpl<S> p = new ProviderImpl<S>(service, type, ctor, acc);
                nextProvider = (ProviderImpl<T>) p;
            } else {
                fail(service, clazz.getName() + " not a subtype");
            }
        } catch (ServiceConfigurationError e) {
            nextError = e;
        }
    }
return true;
}

第5行是调用nextProviderClass函数查找provider，第15行之后，是初始化provider对象。nextProviderClass函数的代码是：

java 复制代码

static final String PREFIX = "META-INF/services/";
private Class<?> nextProviderClass() {
    if (configs == null) {
        try {
            String fullName = PREFIX + service.getName();
            if (loader == null) {
                configs = ClassLoader.getSystemResources(fullName);
            } else if (loader == ClassLoaders.platformClassLoader()) {
                // The platform classloader doesn't have a class path,
                // but the boot loader might.
                if (BootLoader.hasClassPath()) {
                    configs = BootLoader.findResources(fullName);
                } else {
                    configs = Collections.emptyEnumeration();
                }
            } else {
                configs = loader.getResources(fullName);
            }
        } catch (IOException x) {
            fail(service, "Error locating configuration files", x);
        }
    }
    while ((pending == null) || !pending.hasNext()) {
        if (!configs.hasMoreElements()) {
            return null;
        }
        pending = parse(configs.nextElement());
    }
    String cn = pending.next();
    try {
        return Class.forName(cn, false, loader);
    } catch (ClassNotFoundException x) {
        fail(service, "Provider " + cn + " not found");
        return null;
    }
}

nextProviderClass函数的逻辑是，首先拼接fullName，因为loader为LaunchedClassLoader，故代码会进入第17行。调用LaunchedClassLoader的getResources函数。LaunchedClassLoader的getResources函数继承自ClassLoader，代码如下

java 复制代码

public Enumeration<URL> getResources(String name) throws IOException {
    Objects.requireNonNull(name);
    @SuppressWarnings("unchecked")
    Enumeration<URL>[] tmp = (Enumeration<URL>[]) new Enumeration<?>[2];
    if (parent != null) {
        tmp[0] = parent.getResources(name);
    } else {
        tmp[0] = BootLoader.findResources(name);
    }
    tmp[1] = findResources(name);

    return new CompoundEnumeration<>(tmp);
}

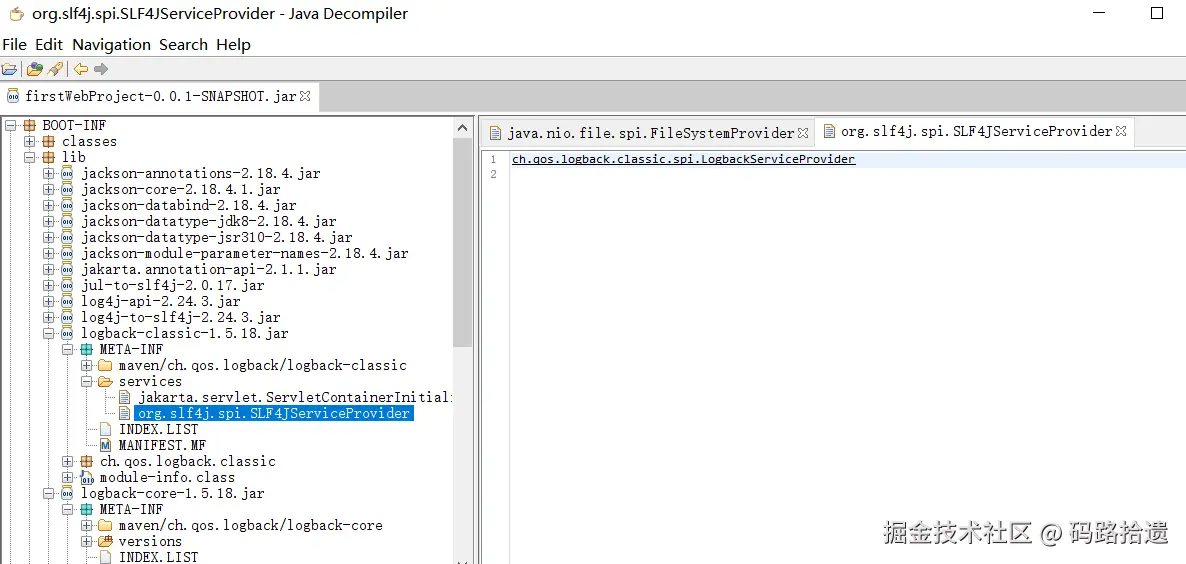

从第五六行可以看出，会递归查找所有父类和当前类的module和classpath中是否有该文件。以日志系统为例，传入的类是SLF4JServiceProvider，即代码serviceLoader = ServiceLoader.load(SLF4JServiceProvider.class, classLoaderOfLoggerFactory);那么查找的文件fullName就是META-INF/services/org.slf4j.spi.SLF4JServiceProvider，最终查找到的文件为nested:/磁盘路径/项目路径/项目名/target/firstWebProject-0.0.1-SNAPSHOT.jar/!BOOT-INF/lib/logback-classic-1.5.18.jar!/META-INF/services/org.slf4j.spi.SLF4JServiceProvider。再读取org.slf4j.spi.SLF4JServiceProvider文件中的值，根据这个值加载class。最终加载的provider就是ch.qos.logback.classic.spi.LogbackServiceProvider。最后贴一张图，看看该文件在jar包中的样子。

当我们要更换provider时，只需要调整文件里的内容，就可以了。这样就做到了解耦。
