挑战AI辅助从零构建3D模型编辑器：基于Vue3 + Three.js的现代化架构设计

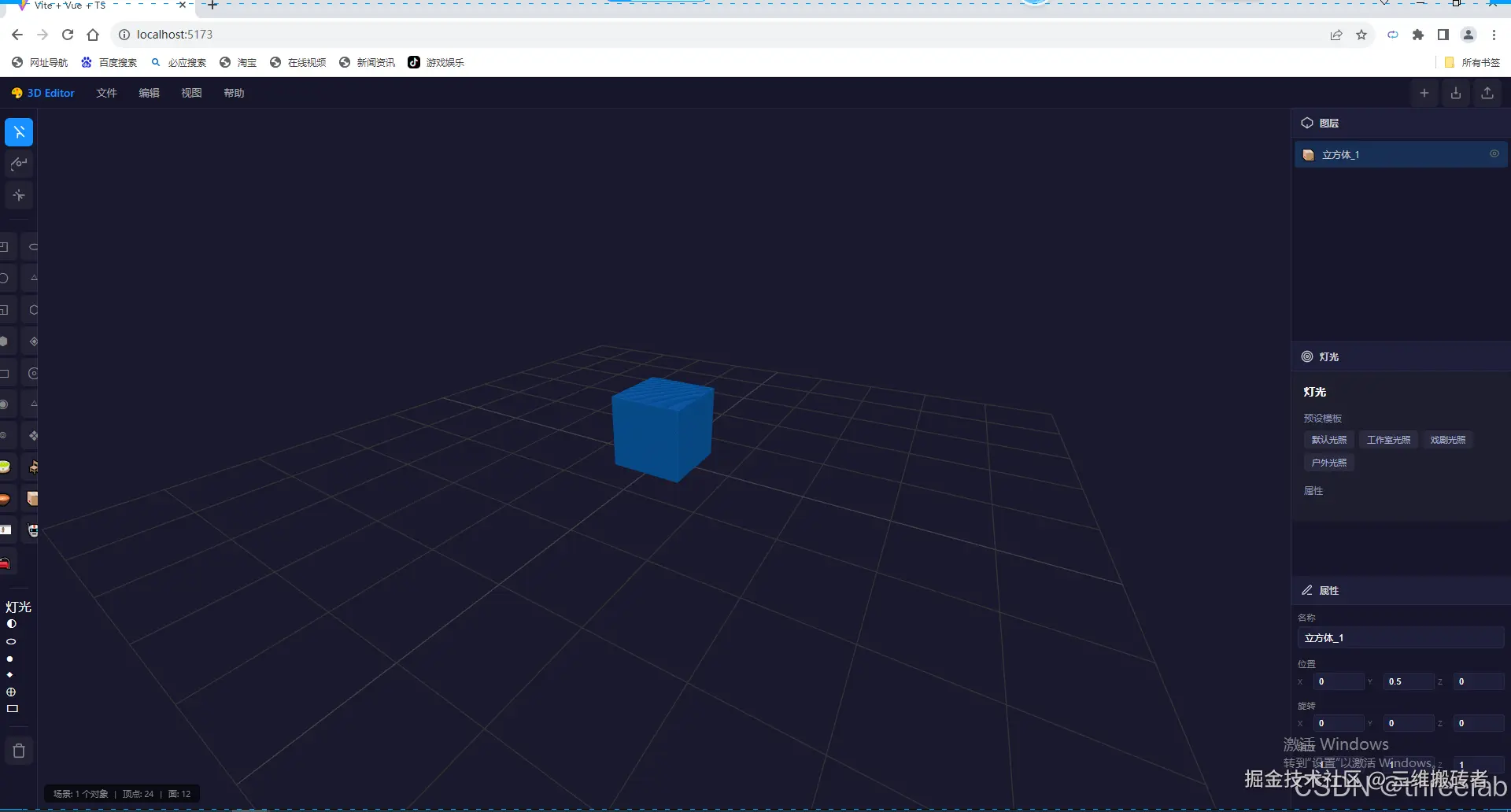

引言
在Web 3D开发领域，构建一个可扩展、可维护的3D模型编辑器是一项具有挑战性的任务。本文将详细介绍如何基于Vue3 + Three.js构建一个专业级的3D模型编辑器框架，包含完整的架构设计、核心实现和最佳实践。
一、项目背景与目标
1.1 技术趋势
随着WebGL技术的成熟和浏览器性能的提升，Web端3D应用越来越普及：
- 在线3D模型查看器
- 交互式产品展示
- 3D游戏和虚拟体验
- 建筑可视化
1.2 项目目标
我们的目标是构建一个：
- 可扩展：支持插件化扩展机制
- 可维护：清晰的分层架构设计
- 高性能：优化的渲染和资源管理
- 易用性：友好的API和开发体验
二、技术栈选型
2.1 核心技术对比
| 技术 | 选型理由 |
|---|---|
| Three.js | 最成熟的Web 3D库，API稳定，社区活跃 |
| Vue 3 | 组合式API适合复杂交互，响应式系统完善 |
| TypeScript | 类型安全，减少运行时错误 |
| Vite | 快速热更新，开发体验优秀 |
2.2 技术栈详情
typescript
// package.json 核心依赖
{
"three": "^0.183.0",
"vue": "^3.5.0",
"typescript": "^5.7.2",
"vite": "^6.1.0"
}三、架构设计
3.1 分层架构
yaml
┌─────────────────────────────────────────────────────────────┐
│ Layer 4: UI层 │
│ ┌─────────────────────────────────────────────────────┐ │
│ │ SceneView (场景视图) │ │
│ └─────────────────────────────────────────────────────┘ │
│ │ │
│ ▼ │
│ Layer 1: Core层 │
│ ┌─────────────────────────────────────────────────────┐ │
│ │ SceneManager (场景管理) │ │
│ └─────────────────────────────────────────────────────┘ │
└─────────────────────────────────────────────────────────────┘3.2 实际项目结构
bash
src/
├── core/ # 核心模块
│ ├── SceneManager.ts # 场景管理核心类
│ └── index.ts # 统一导出入口
├── components/ # UI组件
│ └── SceneView.vue # 3D场景视图组件
├── App.vue # 应用主组件
├── main.ts # 入口文件
└── vite-env.d.ts # Vite类型定义四、核心类设计详解
4.1 SceneManager 核心实现
SceneManager 是整个框架的核心，负责管理Three.js场景、相机、渲染器和交互控制。
4.1.1 类型定义
typescript
export interface SceneManagerConfig {
container: HTMLElement;
cameraPosition?: [number, number, number];
cameraTarget?: [number, number, number];
fov?: number;
near?: number;
far?: number;
backgroundColor?: number;
enableShadow?: boolean;
enableGrid?: boolean;
}
export interface ObjectTransform {
position: [number, number, number];
rotation: [number, number, number];
scale: [number, number, number];
}
export interface LightConfig {
type: 'ambient' | 'directional' | 'point' | 'spot';
color?: string;
intensity?: number;
position?: [number, number, number];
}
export interface CreateCubeOptions {
size?: number;
color?: string;
position?: [number, number, number];
rotation?: [number, number, number];
scale?: [number, number, number];
}4.1.2 类结构
typescript
export class SceneManager {
public readonly scene: THREE.Scene;
public readonly camera: THREE.PerspectiveCamera;
public readonly renderer: THREE.WebGLRenderer;
public readonly orbitControls: OrbitControls;
public readonly transformControls: TransformControls;
private container: HTMLElement;
private animationFrameId: number | null = null;
private objects: THREE.Object3D[] = [];
private selectedObject: THREE.Object3D | null = null;
private isInitialized: boolean = false;
}4.1.3 构造函数实现
typescript
constructor(config: SceneManagerConfig) {
this.container = config.container;
this.scene = new THREE.Scene();
this.scene.background = new THREE.Color(config.backgroundColor ?? 0x1a1a2e);
const { clientWidth, clientHeight } = config.container;
this.camera = new THREE.PerspectiveCamera(
config.fov ?? 75,
clientWidth / clientHeight,
config.near ?? 0.1,
config.far ?? 1000
);
const cameraPos = config.cameraPosition ?? [3, 3, 5];
this.camera.position.set(cameraPos[0], cameraPos[1], cameraPos[2]);
const target = config.cameraTarget ?? [0, 0, 0];
this.camera.lookAt(target[0], target[1], target[2]);
this.renderer = new THREE.WebGLRenderer({
antialias: true,
powerPreference: 'high-performance'
});
this.renderer.setSize(clientWidth, clientHeight);
this.renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2));
this.renderer.shadowMap.enabled = config.enableShadow ?? true;
this.renderer.shadowMap.type = THREE.PCFSoftShadowMap;
this.orbitControls = new OrbitControls(this.camera, this.renderer.domElement);
this.orbitControls.enableDamping = true;
this.orbitControls.dampingFactor = 0.05;
this.transformControls = new TransformControls(this.camera, this.renderer.domElement);
this.setupEventListeners();
if (config.enableGrid !== false) {
this.setupGridHelper();
}
this.setupDefaultLighting();
}4.1.4 生命周期管理
typescript
public init(): void {
if (this.isInitialized) {
console.warn('SceneManager has already been initialized');
return;
}
this.container.appendChild(this.renderer.domElement);
this.setupClickHandler();
this.startRenderLoop();
this.isInitialized = true;
}
public destroy(): void {
if (!this.isInitialized) return;
if (this.animationFrameId !== null) {
cancelAnimationFrame(this.animationFrameId);
}
this.clearScene();
this.orbitControls.dispose();
this.transformControls.dispose();
this.renderer.dispose();
if (this.renderer.domElement.parentNode === this.container) {
this.container.removeChild(this.renderer.domElement);
}
window.removeEventListener('resize', this.handleResize);
this.isInitialized = false;
}4.1.5 对象管理
typescript
public addObject(object: THREE.Object3D): void {
if (!this.isInitialized) {
throw new Error('SceneManager must be initialized before adding objects');
}
this.objects.push(object);
this.scene.add(object);
}
public removeObject(object: THREE.Object3D): void {
const index = this.objects.indexOf(object);
if (index > -1) {
this.objects.splice(index, 1);
}
if (this.selectedObject === object) {
this.deselectObject();
}
this.scene.remove(object);
this.disposeObjectResources(object);
}
public createCube(options: CreateCubeOptions = {}): THREE.Mesh {
const {
size = 1,
color = '#1890ff',
position = [0, 0, 0],
rotation = [0, 0, 0],
scale = [1, 1, 1]
} = options;
const geometry = new THREE.BoxGeometry(size, size, size);
const material = new THREE.MeshStandardMaterial({
color,
metalness: 0.3,
roughness: 0.4
});
const cube = new THREE.Mesh(geometry, material);
cube.name = 'Cube';
cube.castShadow = true;
cube.receiveShadow = true;
cube.position.set(position[0], position[1], position[2]);
cube.rotation.set(rotation[0], rotation[1], rotation[2]);
cube.scale.set(scale[0], scale[1], scale[2]);
return cube;
}4.1.6 对象变换控制
typescript
public selectObject(object: THREE.Object3D): void {
if (this.selectedObject === object) return;
this.deselectObject();
this.selectedObject = object;
this.transformControls.attach(object);
}
public deselectObject(): void {
if (this.selectedObject) {
this.transformControls.detach();
this.selectedObject = null;
}
}
public setTransformMode(mode: 'translate' | 'rotate' | 'scale'): void {
this.transformControls.setMode(mode);
}4.1.7 光照管理
typescript
public addLight(config: LightConfig): THREE.Light | null {
let light: THREE.Light | null = null;
switch (config.type) {
case 'ambient':
light = new THREE.AmbientLight(config.color ?? '#ffffff', config.intensity ?? 0.5);
break;
case 'directional':
light = new THREE.DirectionalLight(config.color ?? '#ffffff', config.intensity ?? 1);
if (config.position) {
light.position.set(config.position[0], config.position[1], config.position[2]);
}
light.castShadow = true;
break;
case 'point':
light = new THREE.PointLight(config.color ?? '#ffffff', config.intensity ?? 1);
if (config.position) {
light.position.set(config.position[0], config.position[1], config.position[2]);
}
break;
case 'spot':
light = new THREE.SpotLight(config.color ?? '#ffffff', config.intensity ?? 1);
if (config.position) {
light.position.set(config.position[0], config.position[1], config.position[2]);
}
break;
}
if (light) {
this.scene.add(light);
}
return light;
}五、Vue组件集成
5.1 SceneView 组件
vue
<template>
<div class="scene-container">
<div class="toolbar">
<button
class="tool-btn"
:class="{ active: transformMode === 'translate' }"
@click="setTransformMode('translate')"
title="移动"
>
<svg width="20" height="20" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
<polyline points="5 3 15 14 10 14 10 21"></polyline>
<line x1="15" y1="3" x2="20" y2="8"></line>
<line x1="15" y1="14" x2="20" y2="19"></line>
</svg>
</button>
<button
class="tool-btn"
:class="{ active: transformMode === 'rotate' }"
@click="setTransformMode('rotate')"
title="旋转"
>
<svg width="20" height="20" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
<polyline points="23 4 23 10 17 10"></polyline>
<path d="M4 22.5a5.5 5.5 0 0 1-1.38-10.68l9-9.03"></path>
<circle cx="12" cy="12" r="3"></circle>
</svg>
</button>
<button
class="tool-btn"
:class="{ active: transformMode === 'scale' }"
@click="setTransformMode('scale')"
title="缩放"
>
<svg width="20" height="20" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
<line x1="21" y1="12" x2="12" y2="12"></line>
<line x1="7" y1="12" x2="3" y2="12"></line>
<line x1="12" y1="21" x2="12" y2="12"></line>
<line x1="12" y1="7" x2="12" y2="3"></line>
<line x1="17" y1="17" x2="12" y2="12"></line>
<line x1="12" y1="12" x2="7" y2="7"></line>
</svg>
</button>
</div>
<div ref="containerRef" class="canvas-wrapper"></div>
</div>
</template>
<script setup lang="ts">
import { ref, onMounted, onUnmounted } from 'vue';
import { SceneManager } from '../core';
const containerRef = ref<HTMLElement | null>(null);
const transformMode = ref<'translate' | 'rotate' | 'scale'>('translate');
let sceneManager: SceneManager | null = null;
const setTransformMode = (mode: 'translate' | 'rotate' | 'scale') => {
transformMode.value = mode;
sceneManager?.setTransformMode(mode);
};
onMounted(() => {
if (containerRef.value) {
sceneManager = new SceneManager({
container: containerRef.value,
cameraPosition: [3, 3, 5],
cameraTarget: [0, 0.5, 0],
backgroundColor: 0x1a1a2e
});
sceneManager.init();
const cube = sceneManager.createCube({
size: 1,
color: '#1890ff',
position: [0, 0.5, 0]
});
sceneManager.addObject(cube);
}
});
onUnmounted(() => {
sceneManager?.destroy();
});
</script>
<style scoped>
.scene-container {
width: 100%;
height: 100%;
position: relative;
overflow: hidden;
}
.canvas-wrapper {
width: 100%;
height: 100%;
}
.toolbar {
position: absolute;
top: 16px;
left: 16px;
display: flex;
gap: 8px;
padding: 8px;
background: rgba(30, 30, 50, 0.9);
border-radius: 8px;
backdrop-filter: blur(10px);
z-index: 100;
}
.tool-btn {
width: 40px;
height: 40px;
display: flex;
align-items: center;
justify-content: center;
background: rgba(255, 255, 255, 0.1);
border: none;
border-radius: 6px;
color: #aaa;
cursor: pointer;
transition: all 0.2s ease;
}
.tool-btn:hover {
background: rgba(255, 255, 255, 0.2);
color: #fff;
}
.tool-btn.active {
background: #1890ff;
color: #fff;
}
</style>5.2 App.vue
vue
<template>
<div class="app-container">
<SceneView />
</div>
</template>
<script setup lang="ts">
import SceneView from './components/SceneView.vue';
</script>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
html, body, #app {
width: 100%;
height: 100%;
overflow: hidden;
}
.app-container {
width: 100%;
height: 100%;
}
</style>5.3 main.ts
typescript
import { createApp } from 'vue';
import App from './App.vue';
createApp(App).mount('#app');六、SDK化设计
6.1 导出配置
typescript
// src/core/index.ts
export {
SceneManager,
type SceneManagerConfig,
type ObjectTransform,
type LightConfig,
type CreateCubeOptions
} from './SceneManager';
export { default } from './SceneManager';6.2 使用示例
typescript
import { SceneManager } from '@3d-editor/core';
// 创建实例
const container = document.getElementById('canvas-container');
const sceneManager = new SceneManager({
container,
cameraPosition: [3, 3, 5],
cameraTarget: [0, 0.5, 0],
backgroundColor: 0x1a1a2e
});
// 初始化
sceneManager.init();
// 创建对象
const cube = sceneManager.createCube({
size: 1,
color: '#1890ff',
position: [0, 0.5, 0]
});
sceneManager.addObject(cube);
// 销毁
sceneManager.destroy();七、性能优化策略
7.1 资源管理
typescript
private disposeObjectResources(object: THREE.Object3D): void {
object.traverse((child) => {
if (child instanceof THREE.Mesh) {
child.geometry?.dispose();
if (child.material) {
if (Array.isArray(child.material)) {
child.material.forEach(m => m.dispose());
} else {
child.material.dispose();
}
}
} else if (child instanceof THREE.Light) {
child.dispose?.();
}
});
}7.2 渲染优化
| 优化项 | 实现方式 |
|---|---|
| 抗锯齿 | 启用MSAA抗锯齿 |
| 阴影优化 | 使用PCFSoftShadowMap |
| 像素比限制 | Math.min(window.devicePixelRatio, 2) |
| 渲染循环 | requestAnimationFrame |
| 高性能模式 | powerPreference: 'high-performance' |
八、交互功能说明
8.1 相机控制
| 操作 | 效果 |
|---|---|
| 左键拖动 | 旋转视角 |
| 右键拖动 | 平移视角 |
| 滚轮 | 缩放 |
8.2 对象变换
| 按钮 | 功能 |
|---|---|
| 移动 | 显示移动手柄，可在三个轴向上移动对象 |
| 旋转 | 显示旋转圆环，可绕三个轴旋转对象 |
| 缩放 | 显示缩放手柄，可在三个轴向上缩放对象 |
8.3 对象选择
- 点击场景中的立方体即可选中
- 选中后显示变换手柄
- 点击空白区域取消选中
九、总结
本文详细介绍了基于Vue3 + Three.js构建3D模型编辑器的完整架构设计。核心要点：
- 分层架构：UI层 → Core层的简洁设计
- 配置驱动：通过配置对象灵活初始化
- 生命周期管理：明确的init/destroy方法
- 类型安全：完整的TypeScript类型定义
- SDK化设计：支持包导出和独立使用
- 交互完善：完整的相机控制和对象变换功能
项目地址 ：three-vue-edit
编辑版权 threelab.cn
