一、需求描述
分类汇总报表，计算复卷率。
二、技术要点
${cboMachineId}：输入框传参
COALESCE：SQL 中用于处理 NULL 值 的核心函数，它返回参数列表中第一个非空（NOT NULL）的值。如果所有参数都为 NULL，则返回 NULL。
三、解决方案
数据集脚本：
sql
WITH
-- 淋膜产出
lm_output_links as (
select tax0009.C_GROUP_LINE,top3230.*
from Top_3230 top3230
inner join tax_0009 tax0009 on tax0009.C_MACHINE_CD=top3230.C_MACHINE_ID
inner join top_3240 top3240 on top3240.C_PAPERROLL_NO=top3230.C_PAPERROLL_NO
where
top3230.C_PROC_CD='10028' and top3240.C_PAPERROLL_NO like 'L%'
and (tax0009.C_GROUP_LINE='${cboMachineId}' or '${cboMachineId}'='')
and (top3230.C_CLASS_GROUP='${cboClassGroup}' or '${cboClassGroup}'='')
and top3230.D_OUTPUT_TIME > '${dateEditor0}' AND top3230.D_OUTPUT_TIME <= '${dateEditor1}'
),
-- 淋膜产出汇总
lm_table as (
select op.D_OUTPUT_TIME,op.C_GROUP_LINE,op.C_CLASS_GROUP,count(1) lmjs,sum(N_WGT) lmwgt
from lm_output_links op
group by op.D_OUTPUT_TIME,op.C_GROUP_LINE,op.C_CLASS_GROUP
),
-- 复卷产出明细
fj_table AS (
select mm.D_OUTPUT_TIME,mm.C_GROUP_LINE,mm.C_class_group,count(1) as fjjs,sum(N_WGT) as fjwgt
from (
select distinct C.C_BAR_CODE,c.D_OUTPUT_TIME,tax0009.C_GROUP_LINE,a.C_class_group,c.N_WGT
from top_3240 a
inner join top_3130 b on a.C_BAR_CODE =b.C_OLD_BAR_CODE
inner join top_3240 c on b.C_OUTPUT_NO =c.C_OUTPUT_NO
inner join top_3230 d on d.C_BAR_CODE=c.C_BAR_CODE
inner join tax_0009 tax0009 on tax0009.C_MACHINE_CD=a.C_MACHINE_ID
where c.C_PROC_CD ='10004' AND d.C_WORK_TYPE='复卷'
and (tax0009.C_GROUP_LINE='${cboMachineId}' or '${cboMachineId}'='')
and (a.C_CLASS_GROUP='${cboClassGroup}' or '${cboClassGroup}'='')
and c.D_OUTPUT_TIME > '${dateEditor0}' AND c.D_OUTPUT_TIME <= '${dateEditor1}'
) mm group by mm.D_OUTPUT_TIME,mm.C_GROUP_LINE,mm.C_class_group
),
-- 最终结果，合并淋膜和复卷数据
result_table as (
SELECT
COALESCE(lm.D_OUTPUT_TIME, fj.D_OUTPUT_TIME) AS D_OUTPUT_TIME,
COALESCE(lm.C_GROUP_LINE, fj.C_GROUP_LINE) AS C_GROUP_LINE,
COALESCE(lm.C_CLASS_GROUP, fj.C_CLASS_GROUP) AS C_CLASS_GROUP,
COALESCE(lm.lmjs, 0) AS lmjs,
COALESCE(lm.lmwgt, 0) AS lmwgt,
COALESCE(fj.fjjs, 0) AS fjjs,
COALESCE(fj.fjwgt, 0) AS fjwgt
FROM lm_table lm
LEFT JOIN fj_table fj ON
lm.D_OUTPUT_TIME = fj.D_OUTPUT_TIME
AND lm.C_GROUP_LINE = fj.C_GROUP_LINE
AND lm.C_CLASS_GROUP = fj.C_CLASS_GROUP
),
result_table1 as (
select t.d_output_time,t.c_group_line,t.c_class_group,sum(t.lmjs) lmjs,sum(t.fjjs) fjjs,sum(t.lmwgt) lmwgt,sum(t.fjwgt) fjwgt
from result_table t
group by t.d_output_time,t.c_group_line,t.c_class_group
)
select *
,(select sum(t2.fjjs)/sum(t2.lmjs) from result_table1 t2 where t2.d_output_time=t1.d_output_time and t2.c_group_line=t1.c_group_line) as lmlv
from result_table1 t1

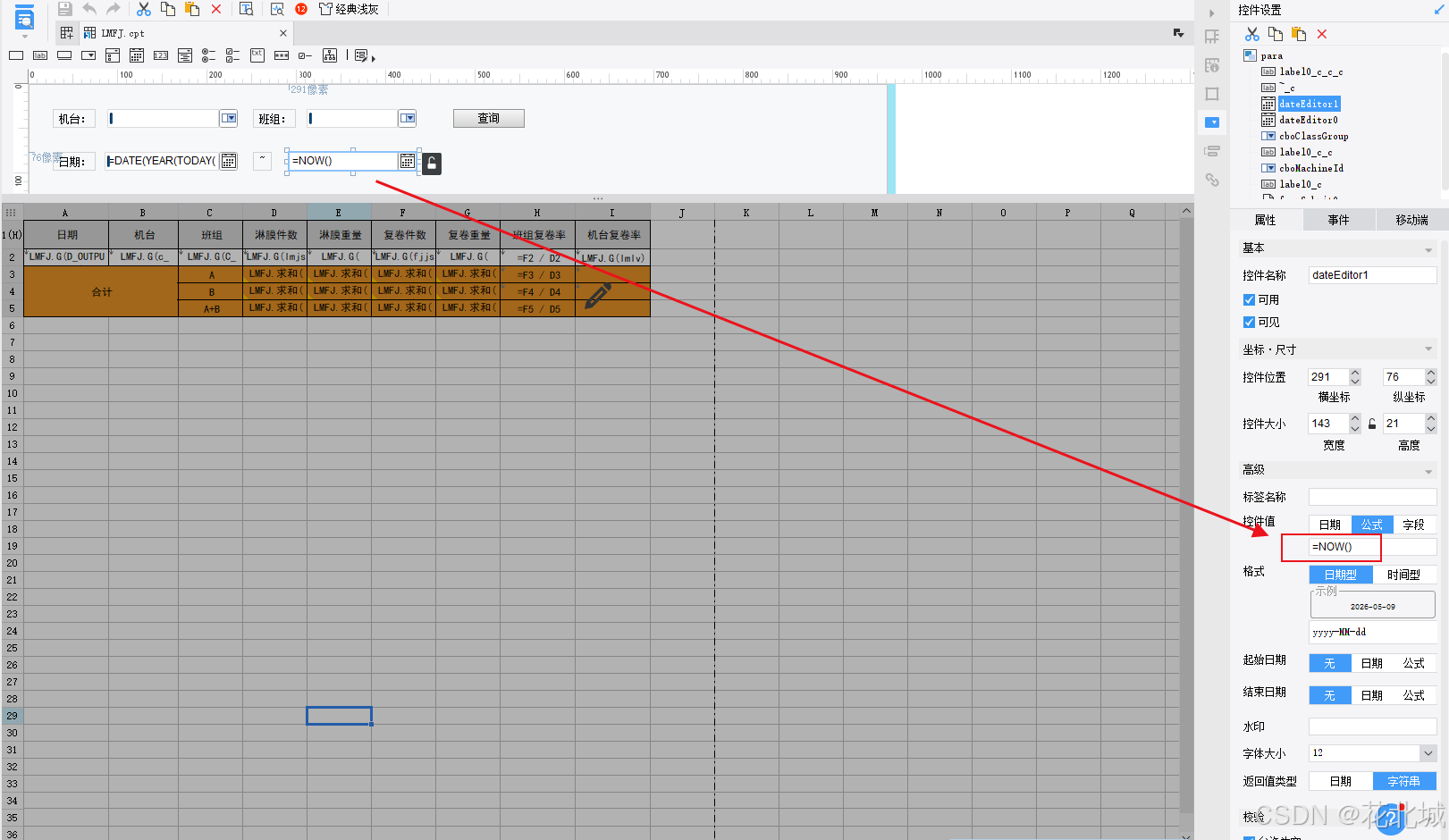

order by t1.d_output_time,t1.c_group_line,t1.c_class_group样式布局
