MGRE实验

ytdbc2026-05-12 11:04

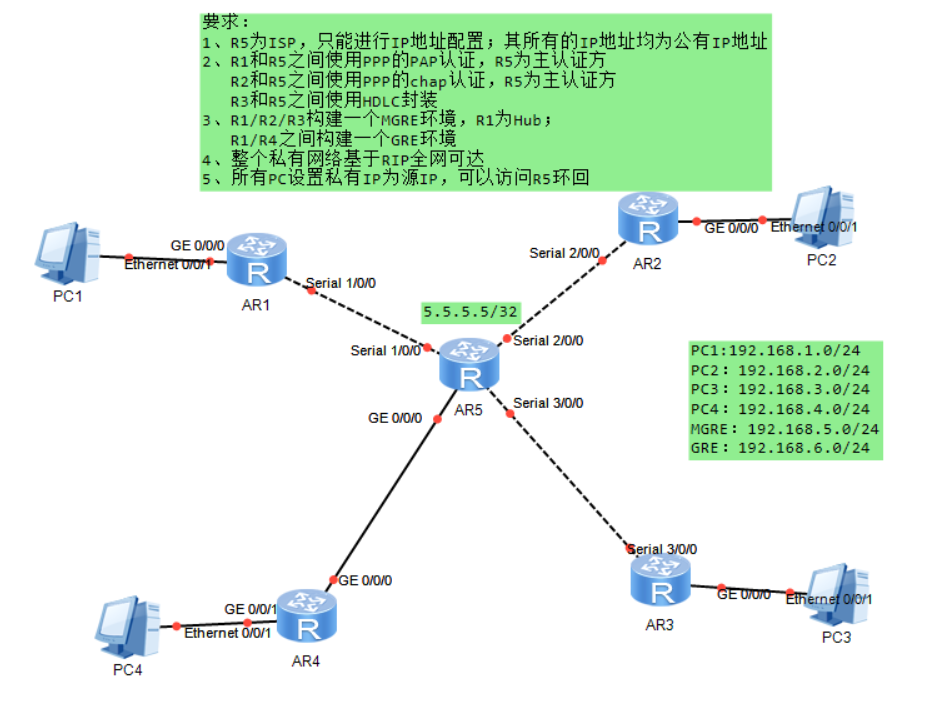

要求：

1、R5 为 ISP，只能进行 IP 地址配置；其所有的 IP 地址均为公有 IP 地址

2、R1 和 R5 之间使用 PPP 的 PAP 认证，R5 为主认证方 R2 和 R5 之间使用 PPP 的 chap 认证，R5 为主认证方 R3 和 R5 之间使用 HDLC 封装

3、R1/R2/R3 构建一个 MGRE 环境，R1 为 Hub； R1/R4 之间构建一个 GRE 环境

4、整个私有网络基于 RIP 全网可达5、所有 PC 设置私有 IP 为源 IP，可以访问 R5 环回

代码实现

1.先给IP地址

AR1 ---AR5 15.0.0.0 24

AR2 ---AR5 25.0.0.0 24

AR3 ---AR5 35.0.0.0 24

AR4 ---AR5 45.0.0.0 24

bash 复制代码
//AR1
[AR1]interface Serial 1/0/0
[AR1-Serial1/0/0]ip address 15.0.0.1 24
[AR1-Serial1/0/0]int g 0/0/0
[AR1-GigabitEthernet0/0/0]ip address  192.168.1.1  24

//AR2
[AR2]INT GigabitEthernet 0/0/0
[AR2-GigabitEthernet0/0/0]IP address 192.168.2.1 24
[AR2-GigabitEthernet0/0/0]int s 2/0/0
[AR2-Serial2/0/0]ip address 25.0.0.1 24

//AR3
[AR3]int Serial 3/0/0
[AR3-Serial3/0/0]ip address 35.0.0.1 24
[AR3]INT G 0/0/0
[AR3-GigabitEthernet0/0/0]ip address 192.168.3.1 24

//AR4
[AR4]int g 0/0/0
[AR4-GigabitEthernet0/0/0]ip address 45.0.0.1 24
[AR4]int GigabitEthernet  0/0/1
[AR4-GigabitEthernet0/0/1]ip address 192.168.4.1 24

//AR5
[AR5]int s 1/0/0
[AR5-Serial1/0/0]ip address 15.0.0.2 24
[AR5-Serial1/0/0]int s 2/0/0
[AR5-Serial2/0/0]ip address 25.0.0.2 24
[AR5-Serial2/0/0]int s 3/0/0
[AR5-Serial3/0/0]ip address 35.0.0.2 24

[AR5-Serial3/0/0]int g 0/0/0
[AR5-GigabitEthernet0/0/0]ip address 45.0.0.2 24

[AR5-GigabitEthernet0/0/0]q

[AR5]int LoopBack 0

[AR5-LoopBack0]ip address  5.5.5.5 32

2.配认证

bash 复制代码
//AR5
[AR5]aaa
[AR5-aaa]local-user AR1 P
[AR5-aaa]local-user AR1 password cipher  123456
Info: Add a new user.
[AR5-aaa]local-user  AR1 service-type ppp
[AR5-aaa]q
[AR5]int s 1/0/0
[AR5-Serial1/0/0]ppp authentication-mode  pap
[AR5-Serial1/0/0]q


[AR5-aaa]local-user  AR2 password cipher  123456
Info: Add a new user.
[AR5-aaa]local-user AR2 service-type ppp
[AR5-aaa]q
[AR5]int s 2/0/0
[AR5-Serial2/0/0]ppp authentication-mode chap



[AR5]int s 3/0/0
[AR5-Serial3/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y
May 11 2026 19:02:39-08:00 AR5 %%01IFNET/4/CHANGE_ENCAP(l)[4]:The user performed
 the configuration that will change the encapsulation protocol of the link and t
hen selected Y.

//AR2

[AR2]int Serial 2/0/0
[AR2-Serial2/0/0]ppp chap  user  AR2
[AR2-Serial2/0/0]PPP chap password  cipher  123456

//AR1
[AR1]int s 1/0/0
[AR1-Serial1/0/0]ppp pap local-user AR1 password  cipher  123456


//AR3
[AR3]int Serial  3/0/0
[AR3-Serial3/0/0]link-protocol hdlc

3.构建MERE环境

bash 复制代码
///MGRE配置
//AR1
[AR1]interface Tunnel 0/0/0
[AR1-Tunnel0/0/0]ip address  192.168.5.1 24
[AR1-Tunnel0/0/0]tunnel-protocol  gre p2mp

[AR1-Tunnel0/0/0]source  15.0.0.1
[AR1]rip
[AR1-rip-1]rip 1

[AR1-rip-1]version 2

[AR1-rip-1]network 192.168.1.0
[AR1-rip-1]network 192.168.5.0
[AR1-rip-1]q

[AR1]interface  Tunnel 0/0/0

[AR1-Tunnel0/0/0]nhrp  entry multicast dynamic

[AR1-Tunnel0/0/0]undo rip split-horizon



//AR3
[AR3]interface Tunnel  0/0/0
[AR3-Tunnel0/0/0]ip address 192.168.5.3 24
[AR3-Tunnel0/0/0]tunnel-protocol gre p2mp
[AR3-Tunnel0/0/0]source Serial 3/0/0
[AR3-Tunnel0/0/0]nhrp entry 192.168.5.1 15.0.0.1 register
[AR3]rip 1
[AR3-rip-1]version  2
[AR3-rip-1]network 192.168.3.0
[AR3-rip-1]network 192.168.5.0


//AR2
[AR2]interface  Tunnel  0/0/0

[AR2-Tunnel0/0/0]ip address  192.168.5.2 24

[AR2-Tunnel0/0/0]tunnel-protocol gre p2mp

[AR2-Tunnel0/0/0]source Serial  2/0/0
May 11 2026 19:24:49-08:00 AR2 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
 on the interface Tunnel0/0/0 has entered the UP state.

[AR2-Tunnel0/0/0]nhrp entry 192.168.5.1 15.0.0.1 register
[AR2-Tunnel0/0/0]q

[AR2]rip 1

[AR2-rip-1]version  2

[AR2-rip-1]network 192.168.2.0
[AR2-rip-1]network 192.168.5.0
[AR2-rip-1]q



///GRE配置
//AR1
[AR1]interface  Tunnel 0/0/1
[AR1-Tunnel0/0/1]ip add 192.168.6.1 24
[AR1-Tunnel0/0/1]tunnel-protocol gre
[AR1-Tunnel0/0/1]source 15.0.0.1
[AR1-Tunnel0/0/1]destination 45.0.0.1
May 11 2026 19:41:39-08:00 AR1 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
 on the interface Tunnel0/0/1 has entered the UP state.

[AR1-Tunnel0/0/1]rip 1
[AR1-rip-1]network 192.168.6.0

//AR4
[AR4]interface Tunnel 0/0/1
[AR4-Tunnel0/0/1]ip add 192.168.6.2 24
[AR4-Tunnel0/0/1]tunnel-protocol gre
[AR4-Tunnel0/0/1]source 45.0.0.1
[AR4-Tunnel0/0/1]destination 15.0.0.1
May 11 2026 19:42:32-08:00 AR4 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
 on the interface Tunnel0/0/1 has entered the UP state.
[AR4-Tunnel0/0/1]rip 1
[AR4-rip-1]version 2
[AR4-rip-1]network 192.168.6.0
[AR4-rip-1]network 192.168.4.0

路由方面 与 nat

bash 复制代码
指向AR5
[AR1]ip route-static 0.0.0.0 0 15.0.0.2

[AR2]ip route-static 0.0.0.0 0 25.0.0.2

[AR3]ip route-static 0.0.0.0 0 35.0.0.2

[AR4]ip route-static 0.0.0.0 0 45.0.0.2

回路由  这边做了子网汇总
[AR5]ip route-static 192.168.0.0 255.255.0.0 15.0.0.1   # 回 R1 私网
[AR5]ip route-static 192.168.0.0 255.255.0.0 25.0.0.1   # 回 R2 私网
[AR5]ip route-static 192.168.0.0 255.255.0.0 35.0.0.1   # 回 R3 私网
[AR5]ip route-static 192.168.0.0 255.255.0.0 45.0.0.1   # 回 R4 私网


nat
//AR1
[AR1]acl number 2000
[AR1-acl-basic-2000] rule permit source 192.168.1.0 0.0.0.255
[AR1-acl-basic-2000] rule permit source 192.168.5.0 0.0.0.255
[AR1-acl-basic-2000] rule permit source 192.168.6.0 0.0.0.255
[AR1-acl-basic-2000]
[AR1-acl-basic-2000]interface Serial1/0/0
[AR1-Serial1/0/0] nat outbound 2000

//AR2
[AR2]acl number 2000
[AR2-acl-basic-2000]
[AR2-acl-basic-2000] rule permit source 192.168.2.0 0.0.0.255
[AR2-acl-basic-2000]
[AR2-acl-basic-2000] rule permit source 192.168.5.0 0.0.0.255
[AR2-acl-basic-2000]
[AR2-acl-basic-2000]
[AR2-acl-basic-2000]
[AR2-acl-basic-2000]interface Serial2/0/0
[AR2-Serial2/0/0]
[AR2-Serial2/0/0] nat outbound 2000
[AR2-Serial2/0/0]

//AR3
[AR3]acl number 2000
[AR3-acl-basic-2000] rule permit source 192.168.3.0 0.0.0.255
[AR3-acl-basic-2000] rule permit source 192.168.5.0 0.0.0.255
[AR3-acl-basic-2000]
[AR3-acl-basic-2000]interface Serial3/0/0
[AR3-Serial3/0/0] nat outbound 2000
[AR3-Serial3/0/0]

//AR4

[AR4]acl number 2000
[AR4-acl-basic-2000] rule permit source 192.168.4.0 0.0.0.255
[AR4-acl-basic-2000] rule permit source 192.168.6.0 0.0.0.255
[AR4-acl-basic-2000]
[AR4-acl-basic-2000]interface GigabitEthernet0/0/1
[AR4-GigabitEthernet0/0/1] nat outbound 2000
[AR4-GigabitEthernet0/0/1]

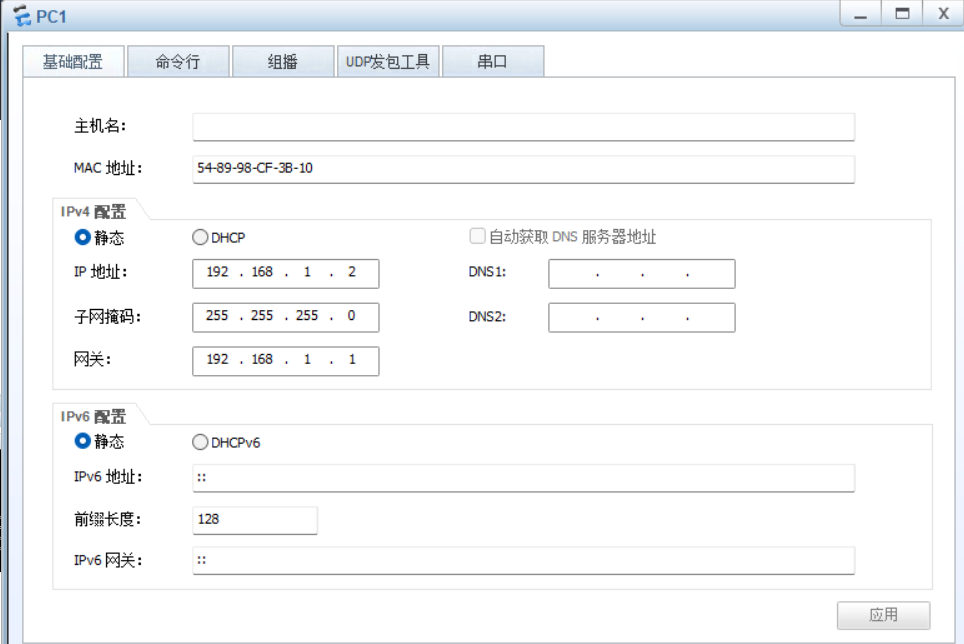

给pc配置静态IP地址

pc2 192.168.2.2 24

pc3 192.168.3.2 24

pc4192.168.4.2 24

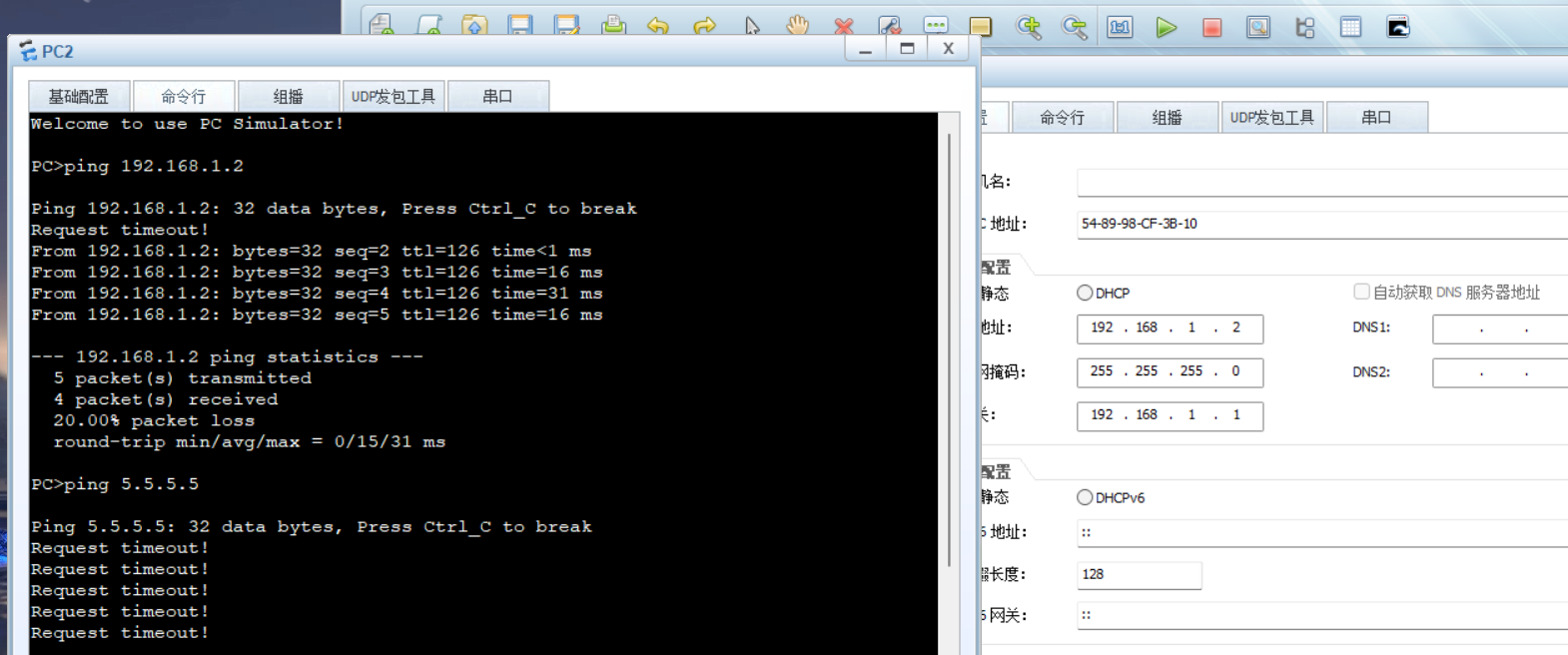

验证

pc2可以ping通pc1

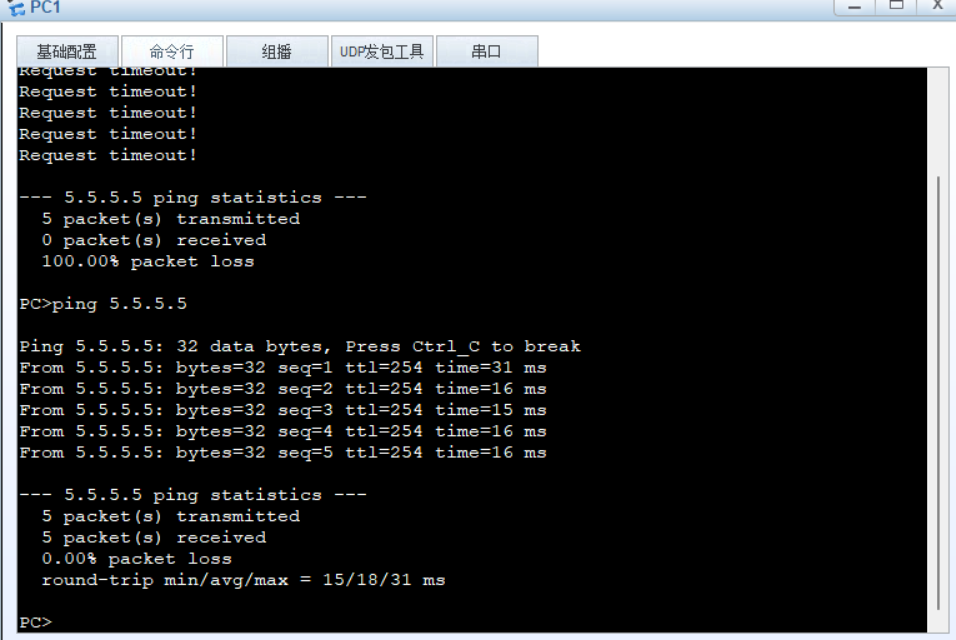

pc1 可以ping通环回5.5.5.5
