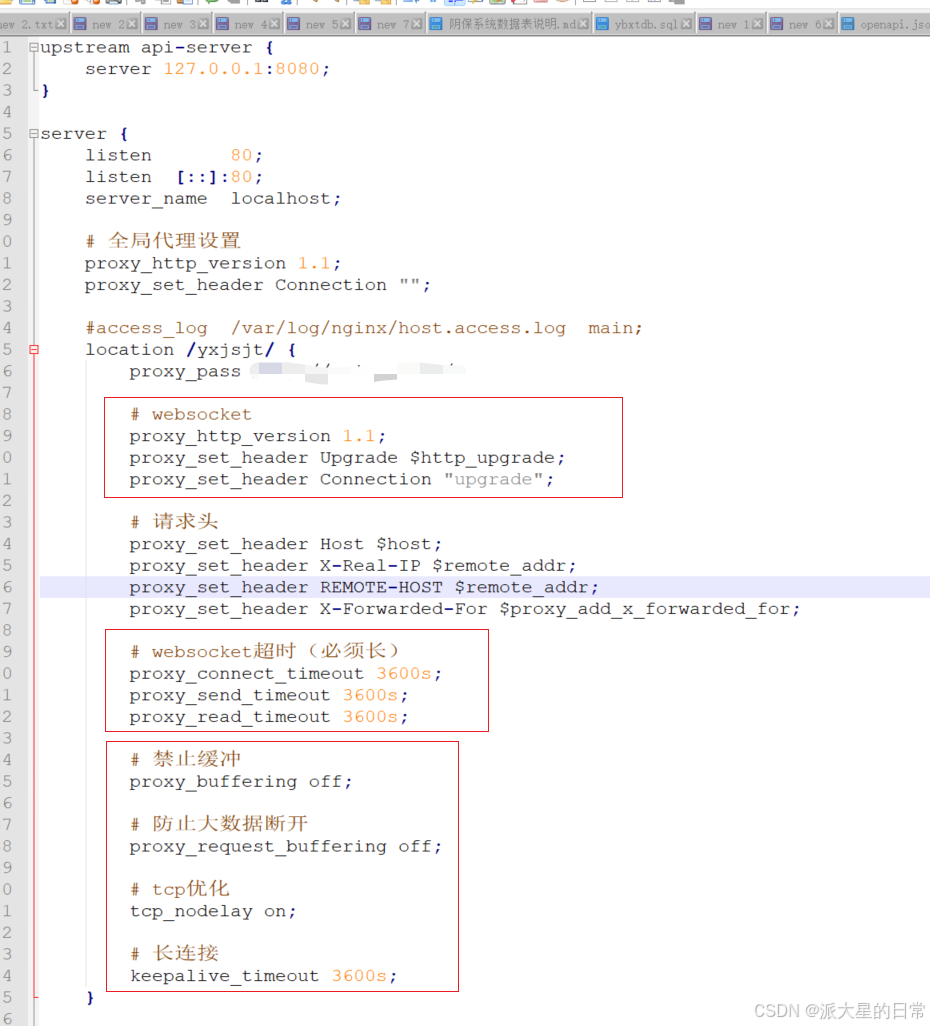

1. nginx设置超时时间配置
websocket
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";
websocket超时（必须长）
proxy_connect_timeout 3600s;
proxy_send_timeout 3600s;
proxy_read_timeout 3600s;
禁止缓冲
proxy_buffering off;
防止大数据断开
proxy_request_buffering off;
tcp优化
tcp_nodelay on;
长连接
keepalive_timeout 3600s;
2. 引入WebSocket配置
java
/**
* 开启WebSocket支持
* @author Zgz
*/
@Configuration
public class WebSocketConfig {
@Bean
public ServerEndpointExporter serverEndpointExporter() {
return new ServerEndpointExporter();
}
}3.开启异步支持
java
@Configuration
@EnableAsync // 确保开启异步支持
public class AsyncTaskConfig {
@Bean("taskExecutor") // 定义Bean名称为taskExecutor，@Async默认会使用它
public Executor taskExecutor() {
ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
// 设置核心线程数，可根据您的任务数量和服务器CPU核心数调整
executor.setCorePoolSize(10);
// 设置最大线程数
executor.setMaxPoolSize(30);
// 设置队列容量
executor.setQueueCapacity(100);
// 设置线程空闲时间（秒）
executor.setKeepAliveSeconds(60);
// 设置线程名称前缀，便于日志追踪
executor.setThreadNamePrefix("DiagnosisAsync-");
// 设置拒绝策略：当线程池和队列都满时，由调用者线程（通常是定时任务线程）自己执行
// 这是一种保证任务不会被丢弃的策略，适合您的业务场景 [1,6](@ref)
executor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());
// 初始化线程池
executor.initialize();
return executor;
}

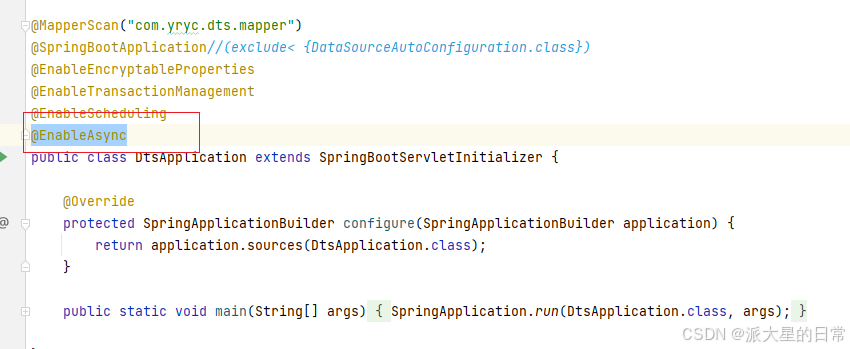

}4.启动类添加异步识别注解
5.定义webSocket接口前端访问地址
java
/**
* @author Lxz
* 状态监测WebSocket - 已增加心跳保活（ping/pong）
*/
@ServerEndpoint("/conditionMonitoring/{userId}")
@Component
public class ConditionMonitoringSocket {
static Log log = LogFactory.get(ConditionMonitoringSocket.class);
/**静态变量，用来记录当前在线连接数。应该把它设计成线程安全的。*/
private static int onlineCount = 0;
/**concurrent包的线程安全Set，用来存放每个客户端对应的MyWebSocket对象。*/
private static ConcurrentHashMap<String, ConditionMonitoringSocket> webSocketMap = new ConcurrentHashMap<>();
/**与某个客户端的连接会话，需要通过它来给客户端发送数据*/
private Session session;
/**接收userId*/
private String userId = "";
/**
* 连接建立成功调用的方法
*/
@OnOpen
public void onOpen(Session session, @PathParam("userId") String userId) {
this.session = session;
this.userId = userId;
if (webSocketMap.containsKey(userId)) {
webSocketMap.remove(userId);
webSocketMap.put(userId, this);
} else {
webSocketMap.put(userId, this);
addOnlineCount();
}
log.info("用户连接:" + userId + ",当前在线人数为:" + getOnlineCount());
try {
sendMessage("连接成功");
} catch (IOException e) {
log.error("用户:" + userId + ",网络异常!!!!!!");
}
}
/**
* 连接关闭调用的方法
*/
@OnClose
public void onClose() {
if (webSocketMap.containsKey(userId)) {
webSocketMap.remove(userId);
subOnlineCount();
}
log.info("用户退出:" + userId + ",当前在线人数为:" + getOnlineCount());
}
/**
* 收到客户端消息后调用的方法
*
* @param message 客户端发送过来的消息
*/
@OnMessage
public void onMessage(String message, Session session) {
log.info("用户消息:" + userId + ",报文:" + message);
// ===================== 【新增：心跳包自动响应】 =====================
if ("ping".equalsIgnoreCase(message)) {
try {
sendMessage("pong");
log.info("用户[{}] 心跳响应 pong", userId);
} catch (IOException e) {
log.error("用户[{}] 心跳回复失败", userId, e);
}
return; // 心跳包不进入业务逻辑
}
// ==================================================================
if (StrUtil.isNotEmpty(message)) {
try {
String toUserId = this.userId;
if (StrUtil.isNotEmpty(toUserId) && webSocketMap.containsKey(toUserId)) {
webSocketMap.get(toUserId).sendMessage(message);
} else {
log.error("请求的userId:" + toUserId + "不在该服务器上");
}
} catch (Exception e) {
e.printStackTrace();
}
}
}
/**
* @param session
* @param error
*/
@OnError
public void onError(Session session, Throwable error) {
log.error("用户错误:" + this.userId + ",原因:" + error.getMessage());
error.printStackTrace();
}
/**
* 实现服务器主动推送(----异步推送----)
*/
public void sendMessage(String message) throws IOException {
this.session.getAsyncRemote().sendText(message);
}
/**
* 发送自定义消息
*/
public static void sendInfo(String message, @PathParam("userId") String userId) throws IOException {
log.info("发送消息到:" + userId + "，报文:" + message);
if (StrUtil.isNotEmpty(userId) && webSocketMap.containsKey(userId)) {
webSocketMap.get(userId).sendMessage(message);
} else {
log.error("用户" + userId + ",不在线！");
}
}
public static synchronized int getOnlineCount() {
return onlineCount;
}
public static synchronized void addOnlineCount() {
ConditionMonitoringSocket.onlineCount++;
}
public static synchronized void subOnlineCount() {
ConditionMonitoringSocket.onlineCount--;
}
public static ConcurrentHashMap<String, ConditionMonitoringSocket> getWebSocketSet() {
return webSocketMap;
}
}6.开启定时推送数据
java
@Component
public class ConditionMonitoringTask {
@Resource
private SzlsProcessPointService szlsProcessPointService;
@Scheduled(cron = "*/15 * * * * *")
public void run() throws Exception {
try {
ConcurrentHashMap<String, ConditionMonitoringSocket> webSocketMap = ConditionMonitoringSocket.getWebSocketSet();
Set<String> collect = ConditionMonitoringSocket.getWebSocketSet().keySet().stream().collect(Collectors.toSet());
// 查询当前设备运行状态
if(collect.size()>0){
Object monitoring = szlsProcessPointService.conditionMonitoringInternal(null);
for (String s : collect) {
Map<String,Object> returnMap = new HashMap<>();
returnMap.put("code",200);
returnMap.put("msg","成功");
returnMap.put("data",monitoring);
webSocketMap.get(s).sendMessage(JSONObject.toJSONString(returnMap));
}
}
} catch (IOException e) {
e.printStackTrace();
}
}
}后端测试地址为：ws://IP:端口号/realTimeData/userId
注：这个userId无论是前端还是后端都要传成随机数，不能重复。
