前面实现了单个LVS集群
但存在调度器单点故障的问题
本实验在之前的实验基础上进行改进，增加一台LVS高度器，再通过Keepalived实现高可用性以及LVS规则自动添加，无需使用ipvsadm服务进行管理

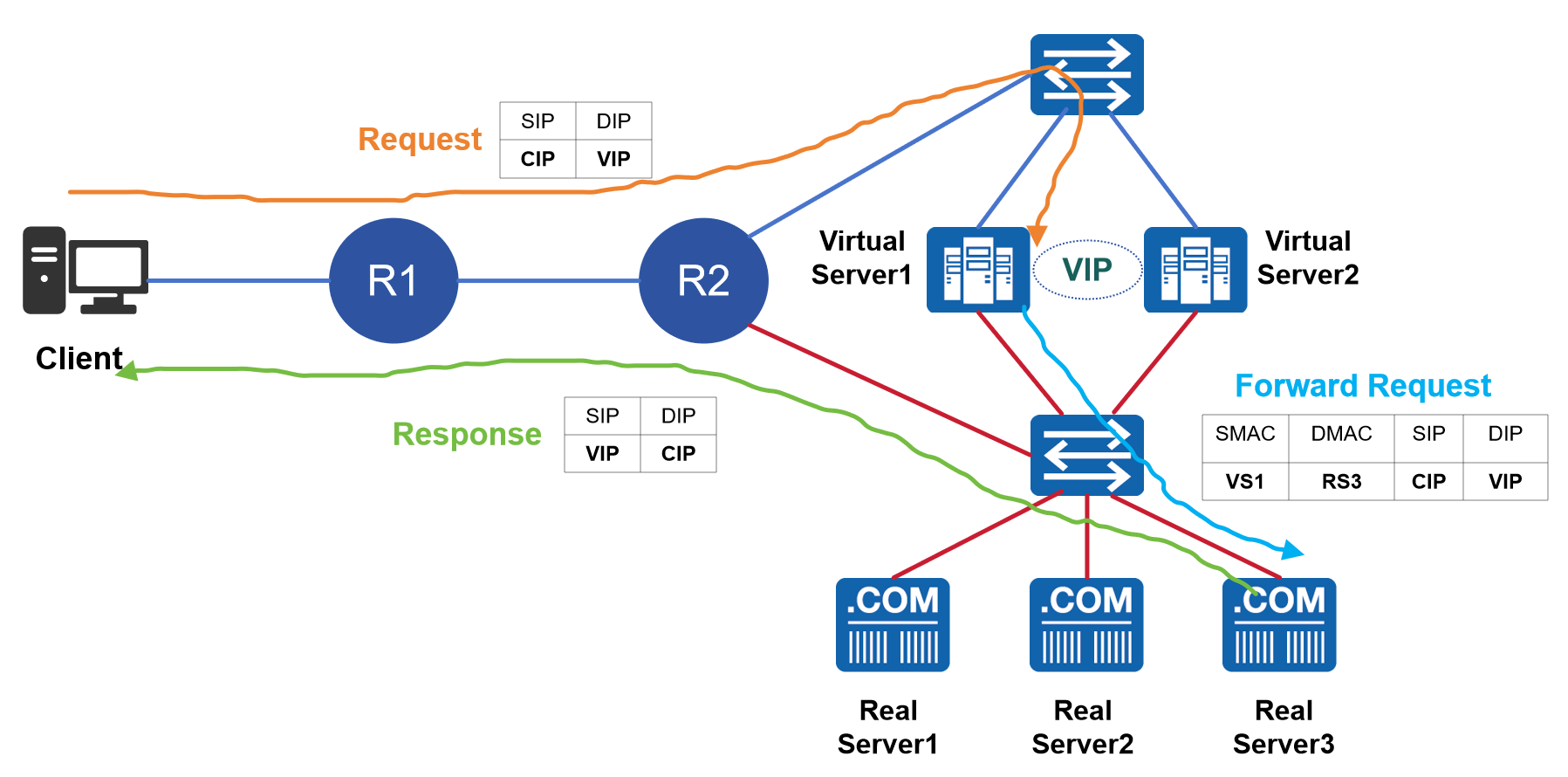

一、实验拓扑
二、地址规划
需对原来的IP地址进行规划调整
|-----------------|------|------------------|--------------|----------------|
| | 接口 | IP地址 | 网关 | 虚拟IP |
| Client | - | 192.168.10.20/24 | 192.168.10.1 | |
| Virtual Server1 | 外网 | 123.1.1.101/24 | 123.1.1.1 | 123.1.1.100/32 |
| Virtual Server1 | DIP | 172.16.1.101/24 | - | 123.1.1.100/32 |
| Virtual Server2 | 外网 | 123.1.1.102/24 | 123.1.1.1 | 123.1.1.100/32 |
| Virtual Server2 | DIP | 172.16.1.102/24 | - | 123.1.1.100/32 |
| Real Server1 | RIP1 | 172.16.1.21/24 | 172.16.1.1 | |
| Real Server1 | lo | 123.1.1.100/32 | | |
| Real Server2 | RIP2 | 172.16.1.22/24 | 172.16.1.1 | |
| Real Server2 | lo | 123.1.1.100/32 | | |
| Real Server3 | RIP3 | 172.16.1.23/24 | 172.16.1.1 | |
| Real Server3 | lo | 123.1.1.100/32 | | |
三、基础环境调整
由于前面实验已经实现LVS DR模式，调度器（Virtual Server）上已开启路由转发，Real Server上已开启arp_ignnore和arp_announce

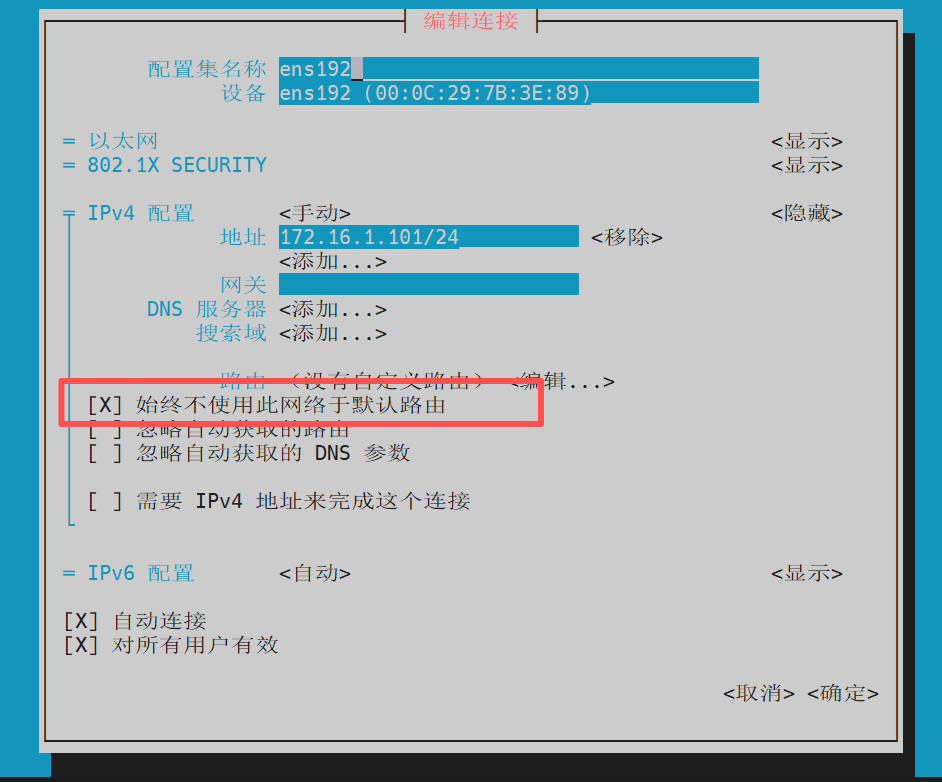

只需按照上面规划调整服务器IP地址即可，参考前面文档中设置方法
调度器（Virtual Server）上把ipvsadm服务自启动关闭，停止服务，并清空lvs规则
systemctl disable --now ipvsadm
ipvsadm -C
四、配置keepalived
装包
两台Virtual Server安装keepalived
dnf -y install keepalived
配置文件1

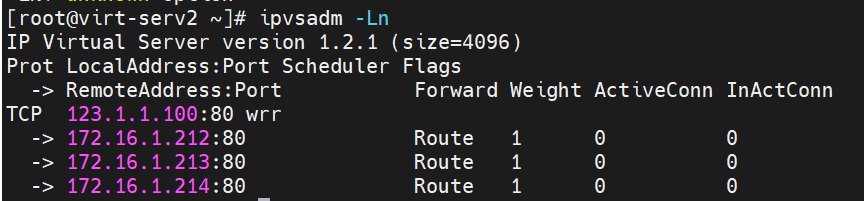

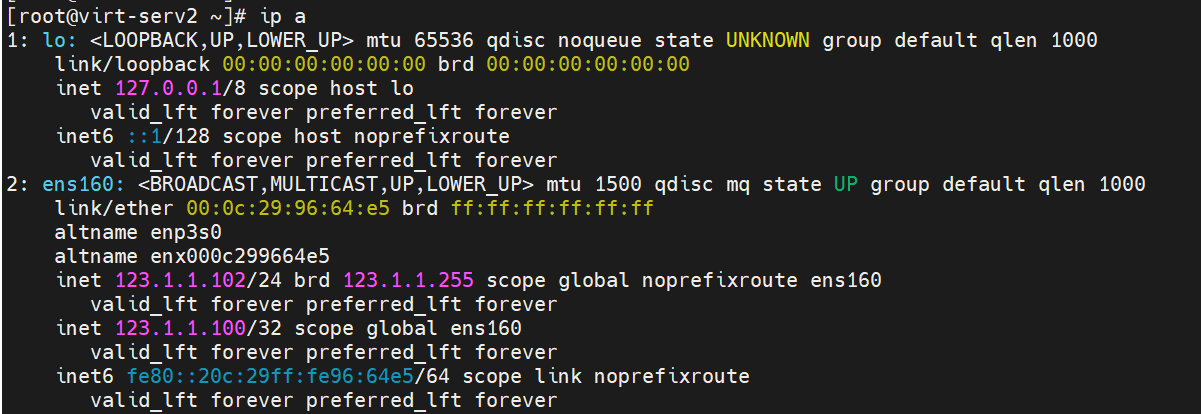

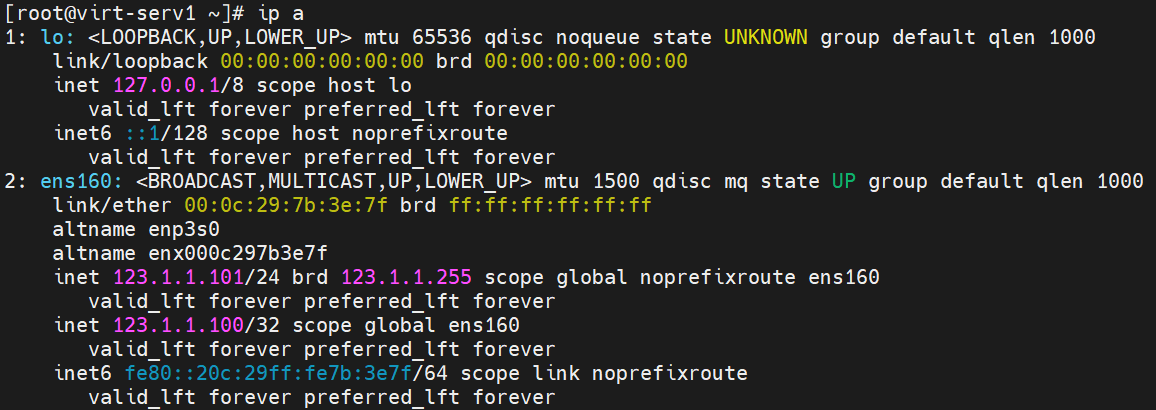

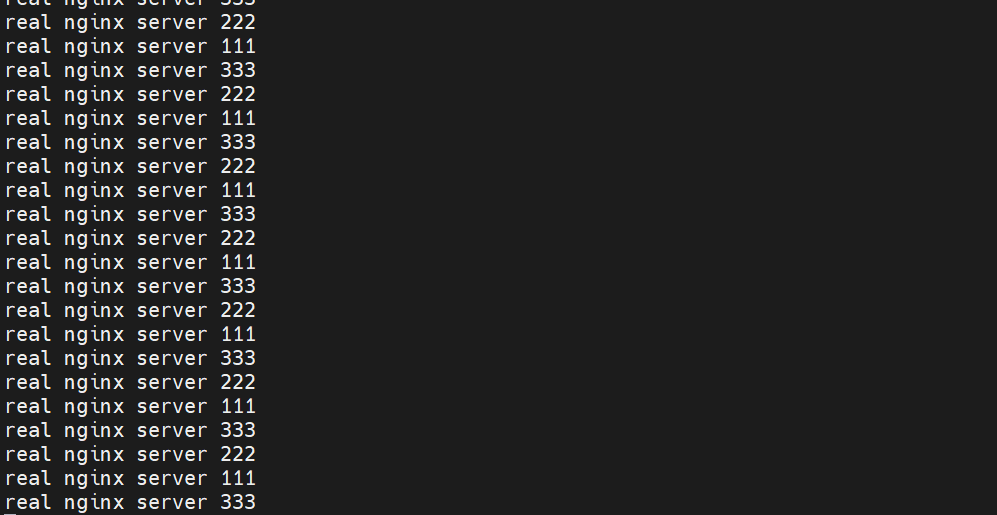

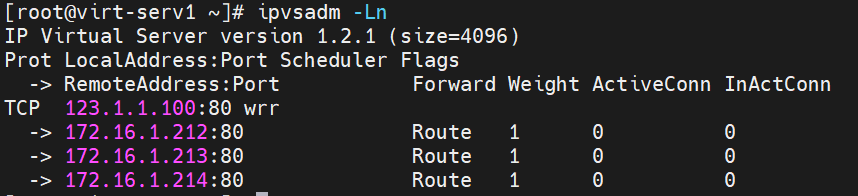

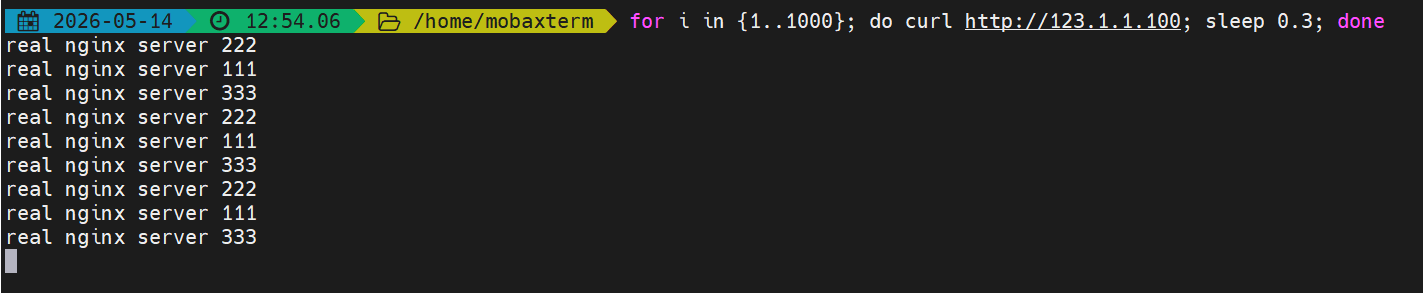

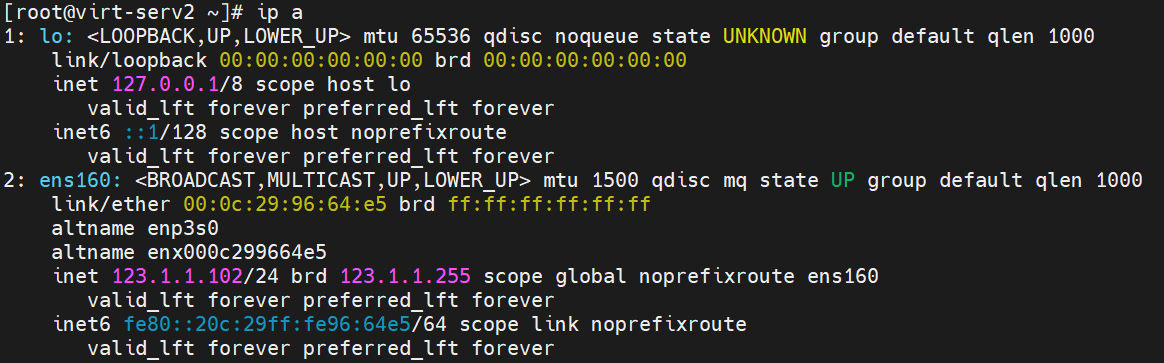

root@virt-serv1 \~\]# cat /etc/keepalived/keepalived.conf ! Configuration File for keepalived global_defs { notification_email { acassen@firewall.loc failover@firewall.loc sysadmin@firewall.loc } notification_email_from Alexandre.Cassen@firewall.loc smtp_server 192.168.200.1 smtp_connect_timeout 30 **router_id LVS_Virtual_Server01 //两台Virtual Server的ID设置成不一样的** vrrp_skip_check_adv_addr **! vrrp_strict //必须注释掉，否则VIP不通** vrrp_garp_interval 0 vrrp_gna_interval 0 } vrrp_instance VI_1 { **state MASTER //一端为MASTER，另一端为BACKUP** **interface ens160 //VIP关联的网卡** **virtual_router_id 100 //两台Virtual Server的ID必须一致** priority 150 advert_int 1 authentication { auth_type PASS **auth_pass 147369 //两台Virtual Server的认证密码必须一致** } virtual_ipaddress { 123.1.1.100 } } virtual_server 123.1.1.100 80 { delay_loop 3 lb_algo wrr lb_kind DR **persistence_timeout 0 //改为0，否则一直单台real server回复** protocol TCP real_server 172.16.1.212 80 { weight 1 HTTP_GET { url { **path /index.html //健康检查，配错导致无法添加LVS规则 status_code 200** } connect_timeout 1 retry 3 delay_before_retry 1 } } real_server 172.16.1.213 80 { weight 1 HTTP_GET { url { path /index.html status_code 200 } connect_timeout 1 retry 3 delay_before_retry 1 } } real_server 172.16.1.214 80 { weight 1 HTTP_GET { url { path /index.html status_code 200 } connect_timeout 1 retry 3 delay_before_retry 1 } } } ### 配置文件2 \[root@virt-serv2 \~\]# cat /etc/keepalived/keepalived.conf ! Configuration File for keepalived global_defs { notification_email { acassen@firewall.loc failover@firewall.loc sysadmin@firewall.loc } notification_email_from Alexandre.Cassen@firewall.loc smtp_server 192.168.200.1 smtp_connect_timeout 30 router_id LVS_Virtual_Server02 vrrp_skip_check_adv_addr ! vrrp_strict vrrp_garp_interval 0 vrrp_gna_interval 0 } vrrp_instance VI_1 { state BACKUP interface ens160 virtual_router_id 100 priority 100 advert_int 1 authentication { auth_type PASS auth_pass 147369 } virtual_ipaddress { 123.1.1.100 } } virtual_server 123.1.1.100 80 { delay_loop 3 lb_algo wrr lb_kind DR persistence_timeout 0 protocol TCP real_server 172.16.1.212 80 { weight 1 HTTP_GET { url { path /index.html status_code 200 } connect_timeout 1 retry 3 delay_before_retry 1 } } real_server 172.16.1.213 80 { weight 1 HTTP_GET { url { path /index.html status_code 200 } connect_timeout 1 retry 3 delay_before_retry 1 } } real_server 172.16.1.214 80 { weight 1 HTTP_GET { url { path /index.html status_code 200 } connect_timeout 1 retry 3 delay_before_retry 1 } } } ### 启服务 systemctl enable --now keepalived ## 五、实验效果 master获得虚拟IP   两台virtual server均自动添加了lvs规则，此处显示IP根据实际配置而定   调度效果  停用master的网卡后，自动切换到backup上，服务未中断 如果有多个网卡，除VIP所在网卡外，其余的都设置成"始终不使用此网络于默认路由"，否则会导致切换后网络不通     启用master网卡后，服务又切换回来了
