效果图：

1.判断轴向：

[2. 切平：](#2. 切平：)

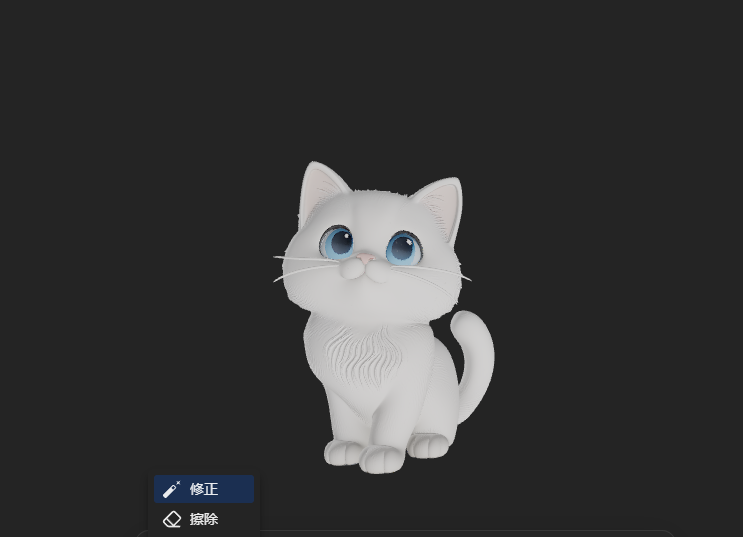

效果图：

1.判断轴向：

bash 复制代码

exec(open(r"E:\project\bpy_pro\zhou.py").read())

python 复制代码

import bpy
obj = bpy.context.active_object
verts = obj.data.vertices

x_vals = [v.co.x for v in verts]
y_vals = [v.co.y for v in verts]
z_vals = [v.co.z for v in verts]

print(f"X轴范围: {min(x_vals):.2f} ~ {max(x_vals):.2f}  高度差: {max(x_vals)-min(x_vals):.2f}")
print(f"Y轴范围: {min(y_vals):.2f} ~ {max(y_vals):.2f}  高度差: {max(y_vals)-min(y_vals):.2f}")
print(f"Z轴范围: {min(z_vals):.2f} ~ {max(z_vals):.2f}  高度差: {max(z_vals)-min(z_vals):.2f}")

2. 切平：

执行脚本：

python 复制代码

exec(open(r"E:\project\bpy_pro\qie_ping.py").read())

E:\project\bpy_pro\qie_ping.py

python 复制代码

import bpy


def flatten_bottom_vertices(axis='Y', z_target=0, threshold=0.01):
    """
    将物体底部的顶点压平

    参数:
        axis: 高度轴，可选 'X', 'Y', 'Z'
        z_target: 目标高度值
        threshold: 容差
    """
    obj = bpy.context.active_object
    if obj is None or obj.type != 'MESH':
        print("请先选中一个网格物体")
        return

    bpy.ops.object.mode_set(mode='OBJECT')
    mesh = obj.data

    # 根据选择的轴获取坐标值
    axis_idx = {'X': 0, 'Y': 1, 'Z': 2}[axis]

    # 找出该轴的最小值
    coords = [v.co[axis_idx] for v in mesh.vertices]
    lowest = min(coords)

    print(f"沿 {axis} 轴，最低点: {lowest:.4f}")

    # 选择底部顶点（距离最低点小于阈值的顶点）
    selected_verts = []
    for v in mesh.vertices:
        if abs(v.co[axis_idx] - lowest) < threshold:
            selected_verts.append(v)

    print(f"找到 {len(selected_verts)} 个底部顶点")

    if not selected_verts:
        print("未找到底部顶点，请尝试增大threshold")
        return

    # 直接修改坐标
    for v in selected_verts:
        co = list(v.co)
        co[axis_idx] = z_target
        v.co = co
    mesh.update()

    print(f"已将 {len(selected_verts)} 个顶点压平到 {axis}={z_target}")


# ===== 使用Y轴，压平到Y=0 =====
flatten_bottom_vertices(axis='Y', z_target=0, threshold=0.05)
