期刊复现| Python 实现带边缘密度与残差检验的回归拟合图

py小王子2026-05-28 10:55

论文地址：

https://www.nature.com/articles/s41467-024-46374-w

论文题目：

Genome-scale community modelling reveals conserved metabolic cross-feedings in epipelagic bacterioplankton communities

复现图片：

配色方案：

python 复制代码
COLOR_SCHEMES = {
    1: ['#4d4d4d', '#ff9f4b', '#1f77b4'],#本文选择该配色
    2: ['#1D3557', '#E63946', '#A8DADC'],
    3: ['#2B2D42', '#EF233C', '#56E39F'],
    4: ['#E9C46A', '#264653', '#E76F51'],
    5: ['#2A9D8F', '#BC4749', '#6C757D'],
    6: ['#7209B7', '#FFD60A', '#121212'],
    7: ['#003049', '#D62828', '#EAE2B7'],
    8: ['#06D6A0', '#9D4EDD', '#FF6B6B'],
    9: ['#212529', '#D90429', '#F8F9FA'],
    10: ['#606C38', '#DDA15E', '#BC6C25'],
    11: ['#023E8A', '#48CAE4', '#FF9F1C'],
    12: ['#8AB17D', '#B5838D', '#E5989B'],
    13: ['#1B4332', '#D4AF37', '#4A0404'],
    14: ['#00509D', '#CCFF33', '#000000'],
    15: ['#A2D2FF', '#FF0054', '#FFBD00'],
    16: ['#6C757D', '#FFD166', '#118AB2'],
    17: ['#5A189A', '#FB8500', '#2EC4B6'],
    18: ['#000000', '#FFFFFF', '#C9A227'],
    19: ['#240046', '#00B4D8', '#FF006E'],
    20: ['#583101', '#E36414', '#8ECAE6'],
    21: ['#2B2B2B', '#FFE66D', '#4ECDC4'],
    22: ['#4F3222', '#9EF01A', '#F0EFEB'],
    23: ['#40E0D0', '#DC143C', '#2F4F4F'],
    24: ['#3E2723', '#81C784', '#FFF3E0'],
    25: ['#191970', '#FF1493', '#FFFF00'],
    26: ['#22333B', '#AE2012', '#E09F3E'],
    27: ['#99E2B4', '#FFADAD', '#CDB4DB'],
    28: ['#414833', '#A47148', '#1A1A1A'],
    29: ['#4CC9F0', '#F72585', '#F9C74F'],
    30: ['#14213D', '#800020', '#D3D3D3'],
    31: ['#10B981', '#EF4444', '#F59E0B'],
    32: ['#0077B6', '#F4A261', '#E76F51'],
    33: ['#5D2E8E', '#FDB927', '#F0F0F0'],
    34: ['#132A13', '#D00000', '#ADB5BD'],
    35: ['#0021f3', '#c65d08', '#f5f5f5'],
    36: ['#004225', '#FF0000', '#343A40'],
    37: ['#3A0CA3', '#CCFF00', '#FF7B00'],
    38: ['#9F86C0', '#5E548E', '#57CC99'],
    39: ['#000000', '#880808', '#C0C0C0'],
    40: ['#F8F9FA', '#03045E', '#B5179E']
}

拆分子图：

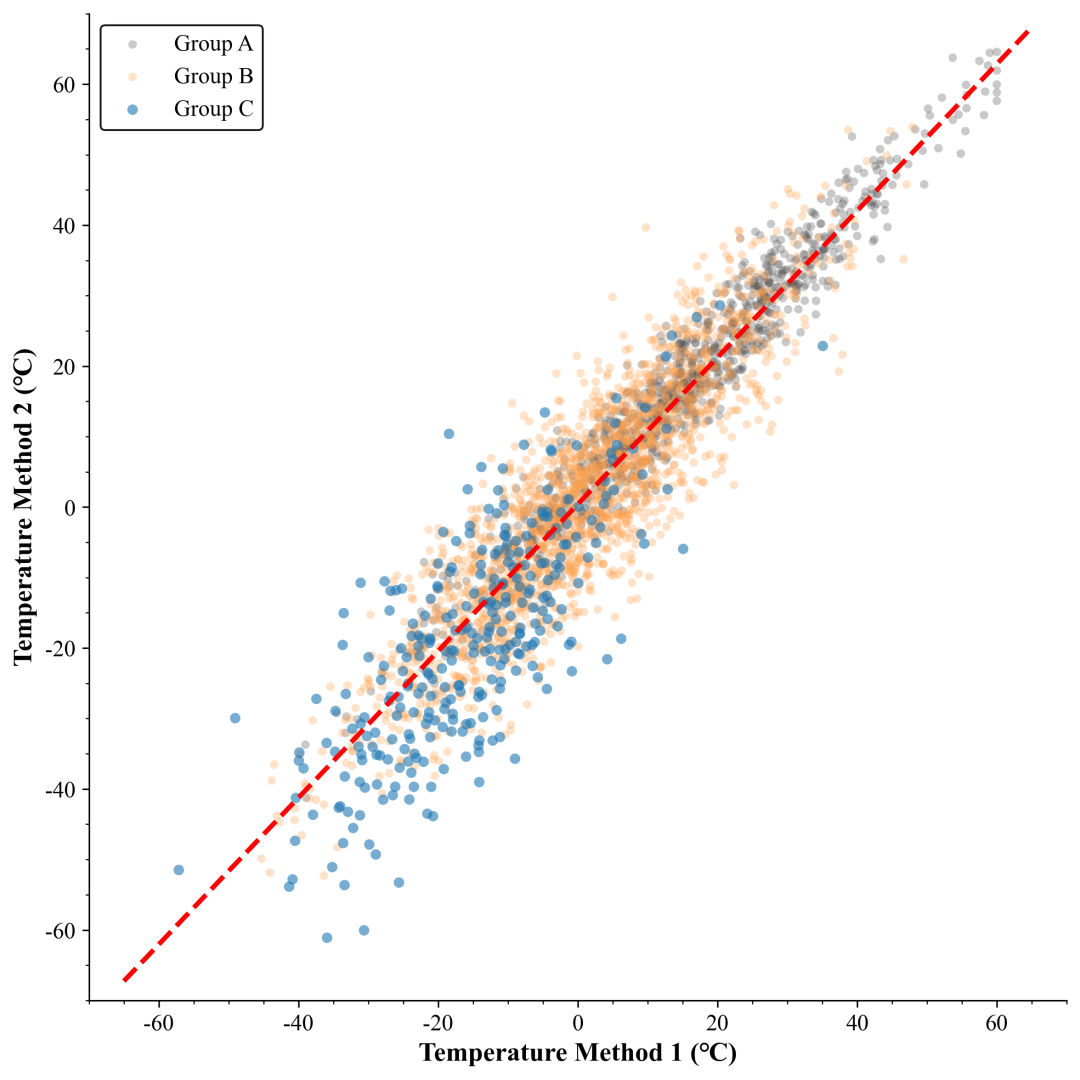

图 1 散点回归图：该图展示两种测温方法测量结果的线性相关关系。横坐标为方法 1 测得温度，纵坐标为方法 2 测得温度，红色虚线为整体线性拟合线。不同颜色散点区分 A、B、C 三组样本，散点越贴近拟合线，代表两种检测方法的测量一致性越好。正式图注：图 1 两种测温方法测量结果的散点分布及线性拟合关系。

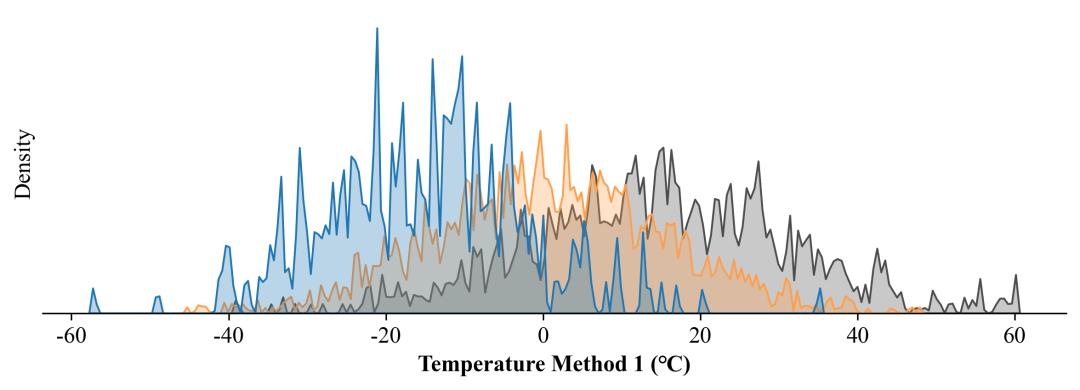

图 2 X 轴密度图：解读：该图为方法 1 测量数据的核密度分布曲线，不同颜色曲线分别对应三组样本。曲线峰值代表数据集中区间，可直观反映方法 1 测量值的分布范围、集中程度与离散特征。正式图注：图 2 测温方法 1 测量数据的核密度分布。

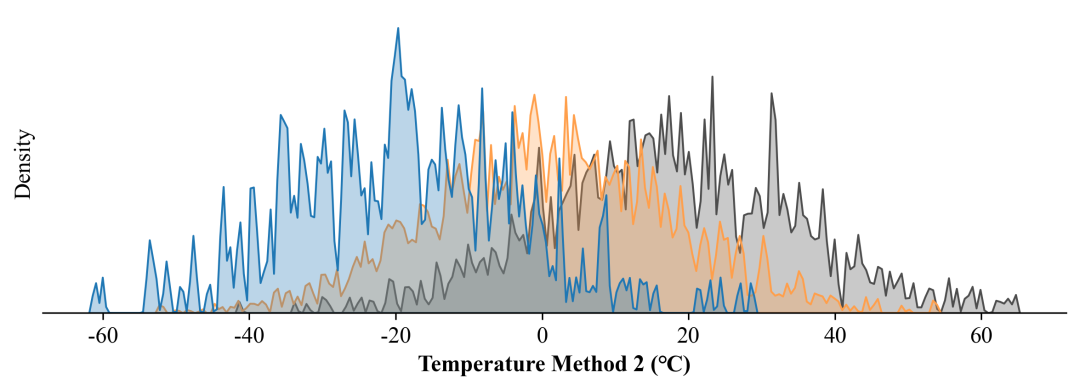

图 3 Y 轴密度图：解读：该图为方法 2 测量数据的核密度分布曲线，用于分析三组样本下方法 2 测量值的整体分布规律，判断数据是否集中、有无明显偏移或极端分布特征。正式图注：图 3 测温方法 2 测量数据的核密度分布。

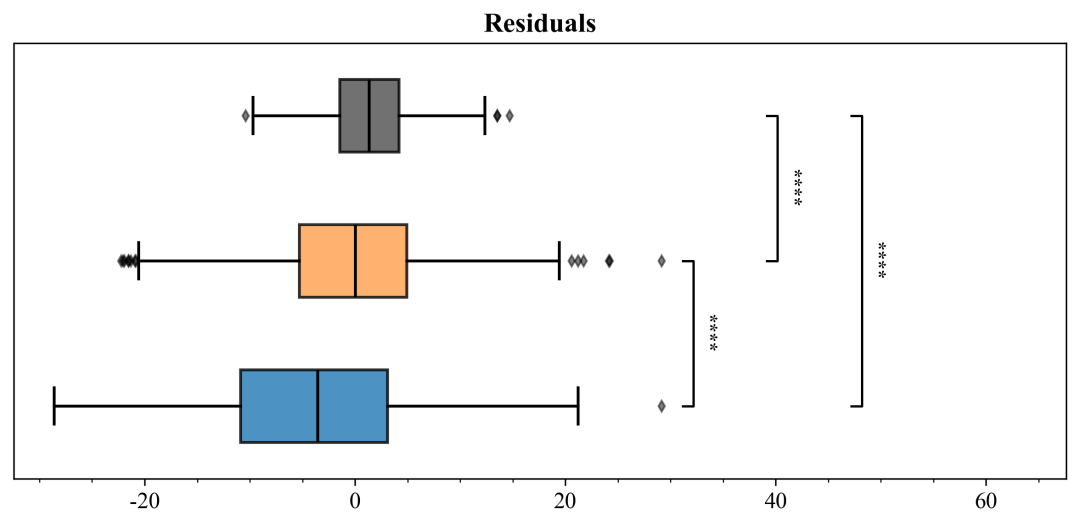

图 4 残差箱线图：解读：该图为回归模型残差箱线图，残差表征两种方法的测量误差。箱体位置与宽度反映误差大小和稳定性，图中标注的显著性符号基于 Mann-Whitney U 检验，用于判定三组样本的测量误差是否存在统计学差异。正式图注：图 4 各组测量残差分布及组间显著性差异检验结果。

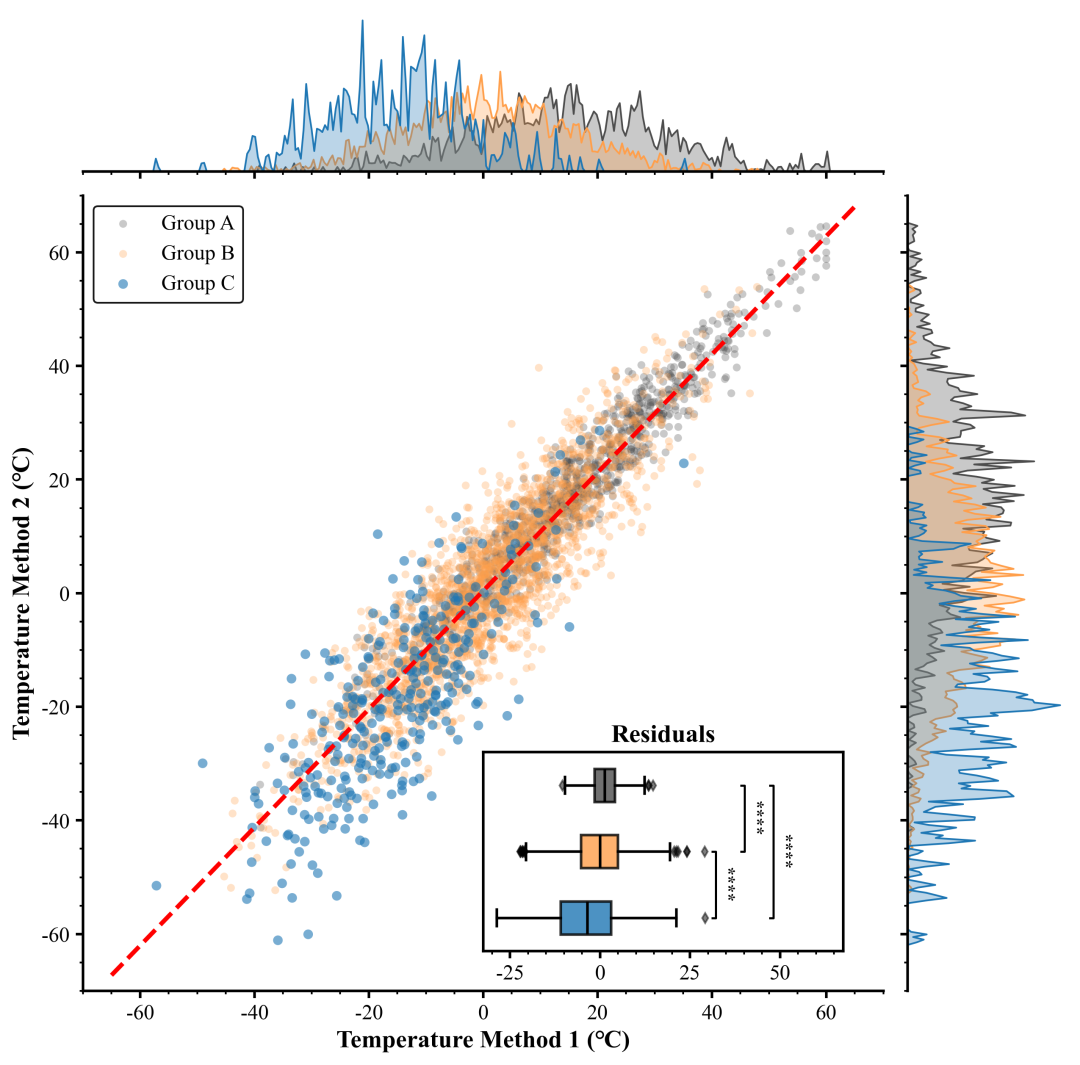

图 5 完整组合图：解读：该综合图整合了相关性、数据分布与误差分析结果。主体为两种测温方法的散点拟合图，上方与右侧分别对应两组数据的核密度分布，内嵌箱线图展示残差及组间差异，可全面评价方法的一致性与可靠性。正式图注：图 5 两种测温方法测量结果的综合分析图。

完整代码：
