OSPF综合实验

ytdbc2026-05-31 18:43

1，R4 为 ISP，其上只能配置 IP 地址； R4 与其他所有直连设备间均使用公有 IP

2，R3-R5/6/7 为 MGRE 环境，R3 为中心站点；

3，整个 OSPF 环境 IP 基于 172.16.0.0/16 划分；

4，所有设备均可访问 R4 的环回；

5，减少 LSA 的更新量，加快收敛，保障更新安全；

6，全网可达

需求分析

1.R4 为 ISP，仅配置 IP 地址，与直连设备使用公有 IP

  1. 子网划分与OSPF基础配置

以172.16.0.0/16为总网段，根据设备接口需求划分对应子网，单独划分私网网段用于RIP协议。为每台路由器配置唯一的OSPF设备标识，按照拓扑规划划分多个OSPF区域，将所有内网接口网段宣告进对应OSPF区域，建立OSPF邻居关系

  1. 配置RIP协议与路由重发布

在指定内网路由器上部署RIP路由协议，宣告RIP对应的私网网段。在同时运行OSPF和RIP的边界设备上配置路由重发布，将RIP学习到的路由导入OSPF，解决两种路由协议互不通信的问题，让全网设备都能学习到所有内网网段路由。

4.所有设备均可访问 R4 的环回；

配置NAT实现内网访问公网 将AR4设备作为公网ISP服务器，在AR3、AR5、AR6、AR7四台出口路由器上配置简易NAT转换。

5.加快网络收敛：全网配置BFD与OSPF联动

6.，减少 LSA 的更新量 :在abr对零散的子网路由做路由汇总 划分特殊区域

代码实现

一.ip配置

  1. 先分配ip地址

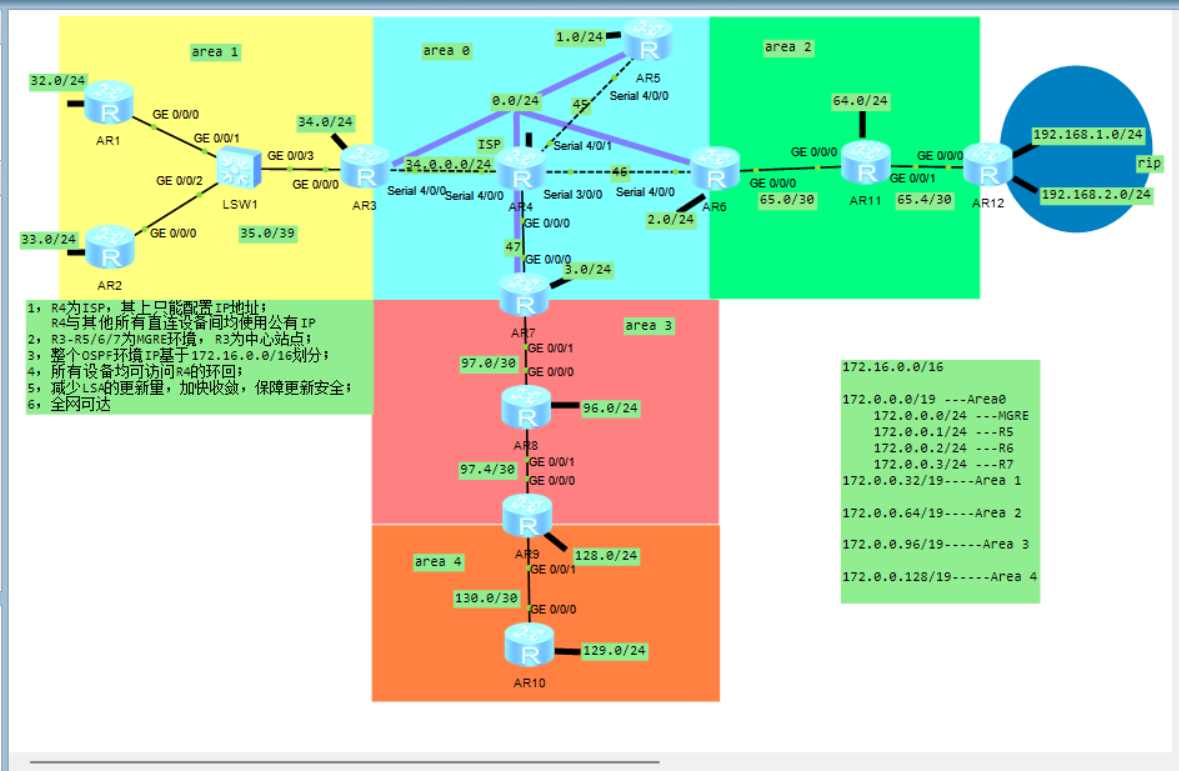

先根据5个区域将总IP地址172.16.0.0/16分成5个，再细分 我图上有缩写

172.16.0.0/16

172.0.0.0/19 ---Area0

172.0.0.0/24 ---MGRE

172.0.0.1/24 ---R5

172.0.0.2/24 ---R6

172.0.0.3/24 ---R7

AR3--AR4 34.0.0.0/24

AR4--AR5 45.0.0.0/24

AR4--AR6 46.0.0.0/24

AR4--AR7 47.0.0.0/24

172.0.0.32/19----Area 1

172.16.35.0 / 29---互联

172.16.32.0 /24----AR1环回

172.16.33.0 /24----AR2环回

172.16.34.0 /24---AR3环回

172.0.0.64/19----Area 2

172.16.64.0 /24---AR11环回

AR6--AR11 172.16.65.0 /30

AR11--AR12 172.16.65.4 /30

(后面看我的图，有缩写)

172.0.0.96/19-----Area 3

172.0.0.128/19-----Area 4

AR12两环回给 192.168.1.0 /24 192.168.2.0 /24

bash 复制代码
//AR1
[AR1-LoopBack0]ip address 172.16.32.1 24
[AR1-LoopBack0]ospf network-type broadcast    //OSPF 会按照你实际配置的掩码（这里 / 24）发布路由，不再强制改成 / 32
[AR1-LoopBack0]q
[AR1]int g 0/0/0
[AR1-GigabitEthernet0/0/0]ip address 172.16.35.1 29
//AR2
[AR2]int LoopBack 0
[AR2-LoopBack0]ip address 172.16.33.1 24

[AR2-LoopBack0]ospf network-type broadcast
[AR2-LoopBack0]q
[AR2]int g 0/0/0
AR2-GigabitEthernet0/0/0]ip address  172.16.35.2 29


//AR3
[AR3]int LoopBack 0

[AR3-LoopBack0]ip address 192.16.34.1 24

[AR3-LoopBack0]ospf network-type broadcast
[AR3-LoopBack0]q
[AR3]int g0/0/0
[AR3-GigabitEthernet0/0/0]ip address 172.16.35.3 29
[AR3]int Serial 4/0/0
[AR3-Serial4/0/0]ip address 34.0.0.3 24

//AR4
[AR4]int Serial 4/0/0

[AR4-Serial4/0/0]ip address 34.0.0.4 24
[AR4-Serial4/0/0]int Serial 4/0/1
[AR4-Serial4/0/1]ip address 45.0.0.4 24

[AR4-Serial4/0/1]int Serial 3/0/0
[AR4-Serial3/0/0]ip address 46.0.0.4 24

[AR4]int GigabitEthernet 0/0/0

[AR4-GigabitEthernet0/0/0]ip address 47.0.0.4 24
[AR4]int LoopBack 0
[AR4-LoopBack0]ip address 4.4.4.4 24


//AR5
[AR5]int LoopBack 0
[AR5-LoopBack0]ip address 172.16.1.1 24

[AR5]int Serial 4/0/0

[AR5-Serial4/0/0]ip address 45.0.0.5 24

[AR5-Serial4/0/0]int LoopBack 0

[AR5-LoopBack0]ospf network-type broadcast


//AR6
[AR6]INT LoopBack 0
[AR6-LoopBack0]ip add 172.16.2.1 24
[AR6-LoopBack0]ospf network-type  broadcast

[AR6]int Serial  4/0/0

[AR6-Serial4/0/0]ip address  46.0.0.6 24
[AR6]int g 0/0/0
[AR6-GigabitEthernet0/0/0]ip address 171.16.65.1 30

//AR7
[AR7]INt LoopBack 0
[AR7-LoopBack0]ip address 172.16.3.1 24
[AR7]int GigabitEthernet 0/0/0
[AR7-GigabitEthernet0/0/0]ip address  47.0.0.7 24
[AR7-GigabitEthernet0/0/0]int GigabitEthernet 0/0/1
[AR7-GigabitEthernet0/0/1]ip address 172.16.97.1 30


//AR8
[AR8]INt GigabitEthernet  0/0/0
[AR8-GigabitEthernet0/0/0]ip address 172.16.97.2 30
[AR8]INt GigabitEthernet 0/0/1
[AR8-GigabitEthernet0/0/1]ip address 172.16.97.5 30
[AR8]int LoopBack 0
[AR8-LoopBack0]ip address 172.16.96.1 24
[AR8-LoopBack0]ospf network-type broadcast

//AR9
[AR9]int GigabitEthernet  0/0/0

[AR9-GigabitEthernet0/0/0]ip address 172.16.97.6 30

[AR9-GigabitEthernet0/0/0]int GigabitEthernet 0/0/1
[AR9-GigabitEthernet0/0/1]ip address 172.16.130.1 30


[AR9]int LoopBack  0
[AR9-LoopBack0]ip add
[AR9-LoopBack0]ip address 172.16.128.1 24

[AR9-LoopBack0]ospf network-type  broadcast

//AR10
[Huawei]sysname AR10

[AR10]INT GigabitEthernet 0/0/0

[AR10-GigabitEthernet0/0/0]IP address 172.16.130.2 30



[AR10]int LoopBack 0
[AR10-LoopBack0]ip add
[AR10-LoopBack0]ip address 172.16.129.1 24
[AR10-LoopBack0]ospf network-type broadcast

//AR11
[AR11]int GigabitEthernet 0/0/0


[AR11-GigabitEthernet0/0/0]ip address  172.16.65.2 30

[AR11-GigabitEthernet0/0/0]int GigabitEthernet 0/0/1
[AR11-GigabitEthernet0/0/1]ip address 172.16.65.5 30

[AR11-GigabitEthernet0/0/1]q
[AR11]int l
[AR11]int LoopBack 0

[AR11-LoopBack0]ip address 172.16.64.1 24
[AR11-LoopBack0]ospf network-type broadcast

//AR12
[AR12]int g 0/0/0
[AR12-GigabitEthernet0/0/0]ip address 172.16.65.6 30
[AR12-GigabitEthernet0/0/0]q
[AR12]int l
[AR12]int LoopBack 0
[AR12-LoopBack0]ip address  192.168.1.1 24
[AR12-LoopBack0]int LoopBack 1
[AR12-LoopBack1]ip address 192.168.2.1 24

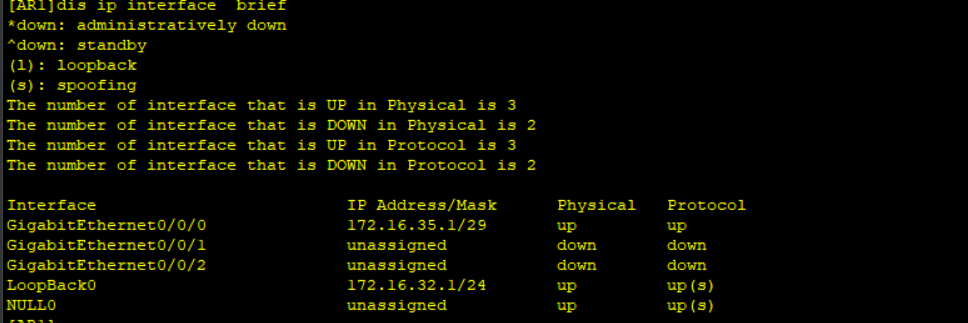

由于本题掩码不同的比较多要进行配置检查

二.搭mgre环境

bash 复制代码
//AR3  hub
[AR3]int Tunnel  0/0/0
[AR3-Tunnel0/0/0]ip address 172.16.0.3 24
[AR3-Tunnel0/0/0]tunnel-protocol gre p2mp

[AR3-Tunnel0/0/0]source 34.0.0.3


//AR5
[AR5]int t 0/0/0
[AR5-Tunnel0/0/0]ip address 172.16.0.5 24

[AR5-Tunnel0/0/0]tunnel-protocol  gre  p2mp

[AR5-Tunnel0/0/0]source Serial 4/0/0

[AR5-Tunnel0/0/0]nhrp entry 172.16.0.3 34.0.0.3 register

//AR6
[AR6]int t 0/0/0
[AR6-Tunnel0/0/0]ip address  172.16.0.6 24
[AR6-Tunnel0/0/0]tunnel-protocol gre p2mp
[AR6-Tunnel0/0/0]source Serial 4/0/0
[AR6-Tunnel0/0/0]nhrp entry 172.16.0.3 34.0.0.3 register

//AR7

[AR7]int Tunnel  0/0/0
[AR7-Tunnel0/0/0]ip address 172.16.0.7 24
[AR7-Tunnel0/0/0]tunnel-protocol gre p2mp
[AR7-Tunnel0/0/0]source GigabitEthernet 0/0/0
[AR7-Tunnel0/0/0]nhrp entry 172.16.0.3 34.0.0.3 register

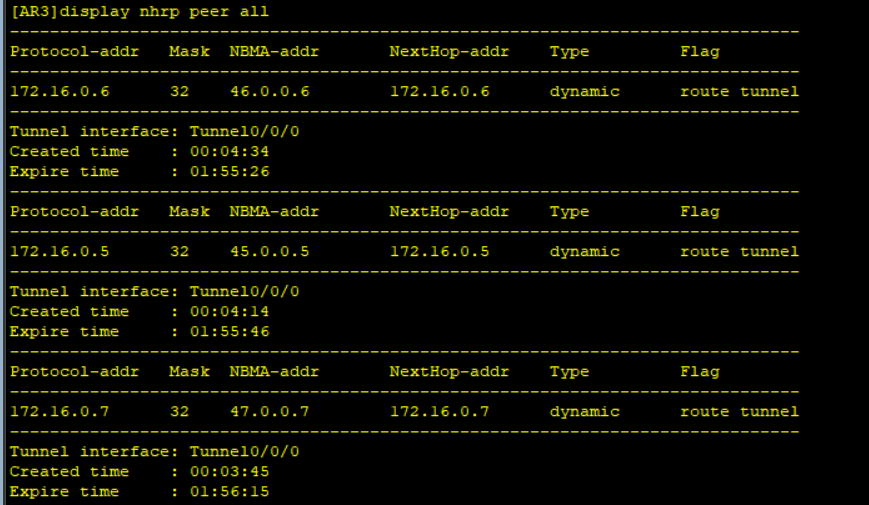

配完但现在隧道是没有建立的，因为此时公网不可达少了缺省

bash 复制代码
//AR3
[AR3]ip route-static 0.0.0.0 0 Serial 4/0/0  串接口下一跳写出接口

//AR5

[AR5]ip route-static 0.0.0.0 0 Serial 4/0/0

//AR6
[AR6]ip route-static 0.0.0.0 0 Serial 4/0/0

//AR7
[AR7]ip route-static 0.0.0.0 0 47.0.0.4

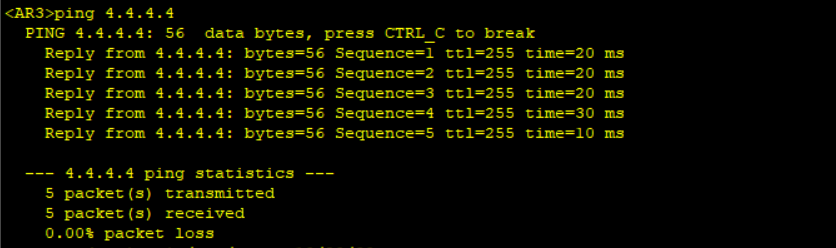

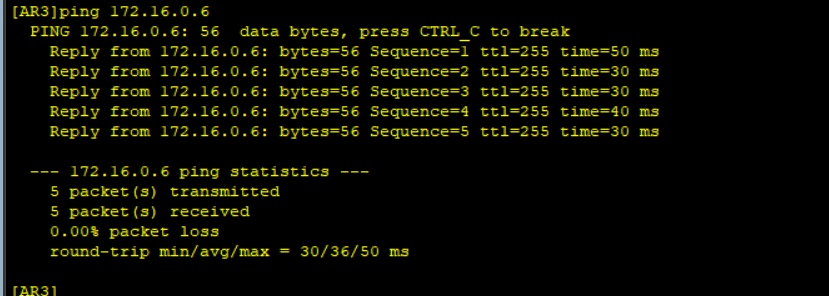

同时可以ping通

三.ospf配置

bash 复制代码
//ar1

[AR1]ospf 1 router-id 1.1.1.1
[AR1-ospf-1]a 1
[AR1-ospf-1-area-0.0.0.1]network 172.16.32.0 0.0.31.255

//ar2
[AR2]ospf 1 router-id 2.2.2.2

[AR2-ospf-1-area-0.0.0.1]network 172.16.32.0 0.0.31.255

//ar3
[AR3-ospf-1]dis th
[V200R003C00]
#
ospf 1 router-id 3.3.3.3
 area 0.0.0.0
  network 172.16.0.3 0.0.0.0
 area 0.0.0.1
  network 172.16.34.1 0.0.0.0
  network 172.16.35.3 0.0.0.0

//ar4


//ar5
[AR5]ospf 1 router-id 5.5.5.5
[AR5-ospf-1-area-0.0.0.0]network 172.16.0.0 0.0.31.255

//ar6
[AR6-ospf-1]display  th
[V200R003C00]
#
ospf 1 router-id 6.6.6.6
 area 0.0.0.0
  network 172.16.0.0 0.0.31.255
 area 0.0.0.2
  network 172.16.64.0 0.0.31.255

//ar7
[AR7]ospf 1 router-id 7.7.7.7

[AR7-ospf-1-area-0.0.0.0]network  172.16.0.7 0.0.0.0

[AR7-ospf-1-area-0.0.0.3]network 172.16.96.0 0.0.31.255
[AR7-ospf-1-area-0.0.0.0]network 172.16.3.1 0.0.0.0

//ar8
[AR8-ospf-1]dis th
[V200R003C00]
#
ospf 1 router-id 8.8.8.8
 area 0.0.0.3
  network 172.16.96.0 0.0.31.255
#


//ar9
[AR9-ospf-1]display th
[V200R003C00]
#
ospf 1 router-id 9.9.9.9
 area 0.0.0.3
  network 172.16.97.6 0.0.0.0
#
[AR9-ospf-2]dis th
[V200R003C00]
#
ospf 2 router-id 9.9.9.9
 area 0.0.0.4
  network 172.16.128.0 0.0.31.255
#


//ar10
[AR10]ospf 1 r 10.10.10.10

[AR10-ospf-1-area-0.0.0.4]network 172.16.128.0 0.0.31.255
//ar11

[AR11]ospf 1 router-id  11.11.11.11
[AR11-ospf-1]a 2

[AR11-ospf-1-area-0.0.0.2]network 172.16.64.0 0.0.31.255\

//ar12
[AR12]rip 1

[AR12-rip-1]version 2
[AR12-rip-1]n
[AR12-rip-1]network 192.168.1.0
[AR12-rip-1]network 192.168.2.0
[AR12-rip-1]

[AR12]ospf 1 router-id 12.12.12.12
[AR12-ospf-1]area 2
[AR12-ospf-1-area-0.0.0.2]network 172.16.65.6 0.0.0.0

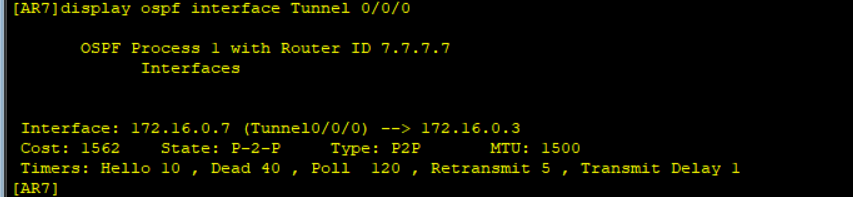

此时检查AR3ospf邻居表 发现mgre里只有一个邻居 默认为点对点建立一个邻居要改格式

AR3-Tunnel0/0/0ospf network-type broadcast

bash 复制代码
//AR3

[AR3-Tunnel0/0/0]ospf network-type broadcast

[AR3-Tunnel0/0/0]nhrp entry multicast dynamic

AR3-Tunnel0/0/0nhrp entry multicast dynamic 开启伪广播

此时AR5类型

AR5没路由

还要改类型

bash 复制代码
[AR5-Tunnel0/0/0]ospf network-type  broadcast

[AR6-Tunnel0/0/0]ospf network-type  broadcast

[AR7-Tunnel0/0/0]ospf network-type  broadcast

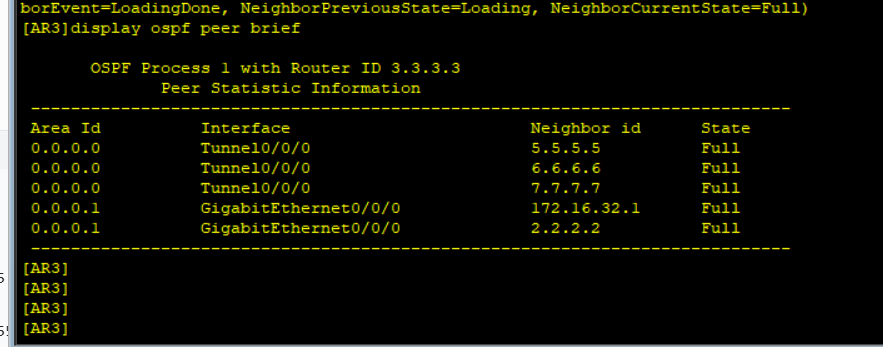

此时AR5,6,7可以参与选举DR,但DR必须为hub节点

改优先级

bash 复制代码
[AR5-Tunnel0/0/0]ospf dr-priority  0
[AR6-Tunnel0/0/0]ospf dr-priority  0
[AR7-Tunnel0/0/0]ospf dr-priority  0

四.重发布

bash 复制代码
//AR12
[AR12]ospf 1
[AR12-ospf-1]import-route rip 1


//AR9

[AR9-ospf-1]import-route ospf 2

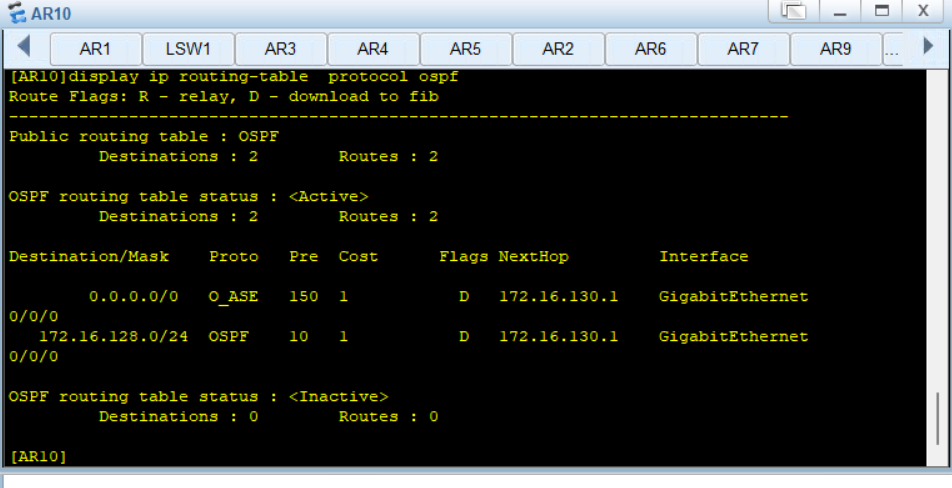

[AR9-ospf-2]default-route-advertise  下放缺省

NAT公网转换

bash 复制代码
[AR3]acl number 2000
[AR3-acl-basic-2000]rule permit source 172.16.0.0 0.0.255.255
[AR3-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[AR3-acl-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[AR3-acl-basic-2000]q
[AR3]interface Serial 4/0/0
[AR3-Serial4/0/0]nat outbound 2000


[AR5]acl number 2000
[AR5-acl-basic-2000] rule permit source 172.16.0.0 0.0.255.255
[AR5-acl-basic-2000] rule permit source 192.168.1.0 0.0.0.255
[AR5-acl-basic-2000] rule permit source 192.168.2.0 0.0.0.255
[AR5-acl-basic-2000]quit
[AR5]
[AR5]interface Serial 4/0/0
[AR5-Serial4/0/0] nat outbound 2000
[AR5-Serial4/0/0]quit


[AR6]acl number 2000
[AR6-acl-basic-2000] rule permit source 172.16.0.0 0.0.255.255
[AR6-acl-basic-2000] rule permit source 192.168.1.0 0.0.0.255
[AR6-acl-basic-2000] rule permit source 192.168.2.0 0.0.0.255
[AR6-acl-basic-2000]quit
[AR6]interface Serial 4/0/0
[AR6-Serial4/0/0] nat outbound 2000
[AR6-Serial4/0/0]

[AR7]acl number 2000
[AR7-acl-basic-2000] rule permit source 172.16.0.0 0.0.255.255
[AR7-acl-basic-2000] rule permit source 192.168.1.0 0.0.0.255
[AR7-acl-basic-2000] rule permit source 192.168.2.0 0.0.0.255
[AR7-acl-basic-2000]quit
[AR7]interface GigabitEthernet 0/0/0
[AR7-GigabitEthernet0/0/0] nat outbound 2000
[AR7-GigabitEthernet0/0/0]

ping通

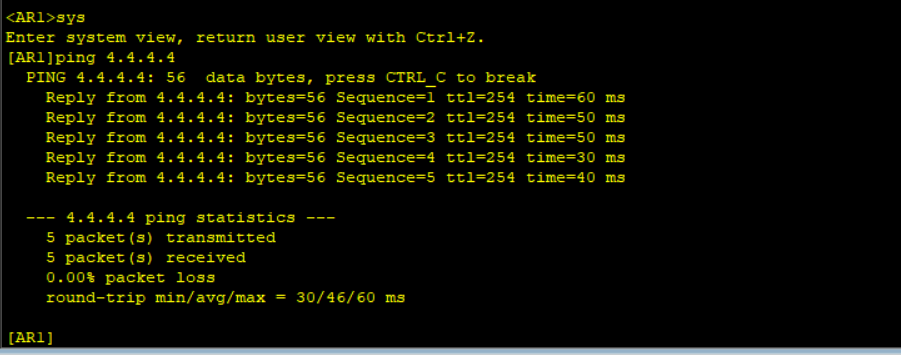

AR1pingAR4环回

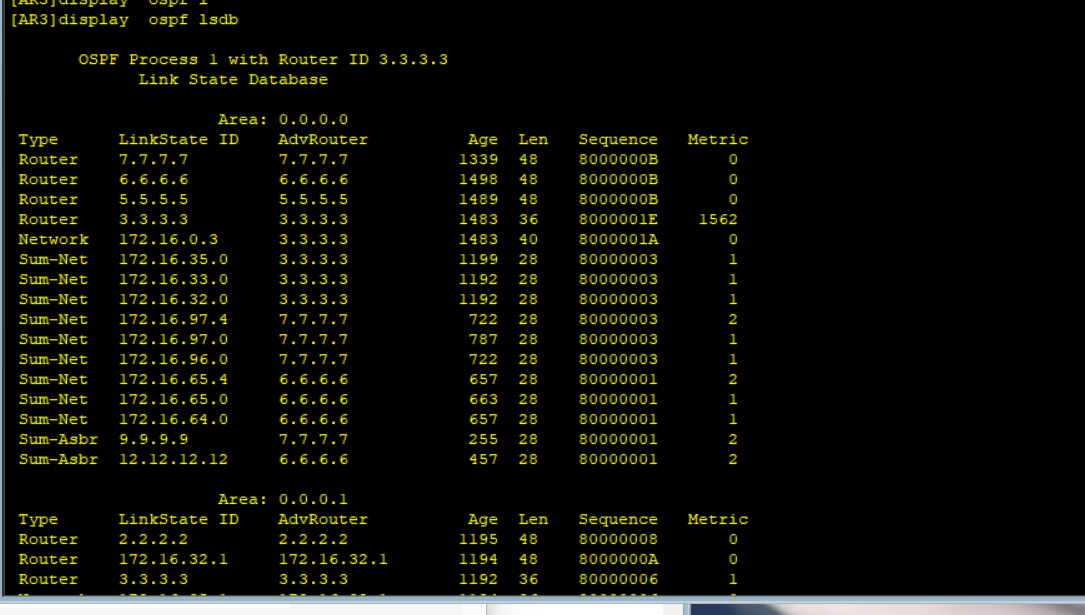

五.优化

路由汇总(减少骨干区域LSA)

AR3

在abr上 域间

bash 复制代码
[AR3-ospf-1-area-0.0.0.1]abr-summary 172.16.32.0 255.255.224.0



[AR6-ospf-1-area-0.0.0.2]abr-summary 172.16.64.0 255.255.224.0


[AR7-ospf-1-area-0.0.0.3]abr-summary 172.16.96.0 255.255.224.0

域外 asbr

bash 复制代码
[AR9-ospf-1]asbr-summary 172.16.128.0 255.255.224.0

[AR12-ospf-1]asbr-summary 192.168.0.0 255.255.252.0

特殊区域

area1没有asbr，做成stub 区域

bash 复制代码
[AR1-ospf-1-area-0.0.0.1]stub

[AR2-ospf-1-area-0.0.0.1]stub

[AR3-ospf-1-area-0.0.0.1]stub no-summary  完全末梢区域


[AR7-ospf-1-area-0.0.0.3]nssa no-import-route
[AR7-ospf-1-area-0.0.0.3]nssa no-summary


[AR8-ospf-1-area-0.0.0.3]nssa

[AR8-ospf-1-area-0.0.0.3]nssa




[AR6-ospf-1-area-0.0.0.2]nssa no-import-route
[AR6-ospf-1-area-0.0.0.2]nssa no-summary


[AR11-ospf-1-area-0.0.0.2]nssa

[AR12-ospf-1-area-0.0.0.2]nssa

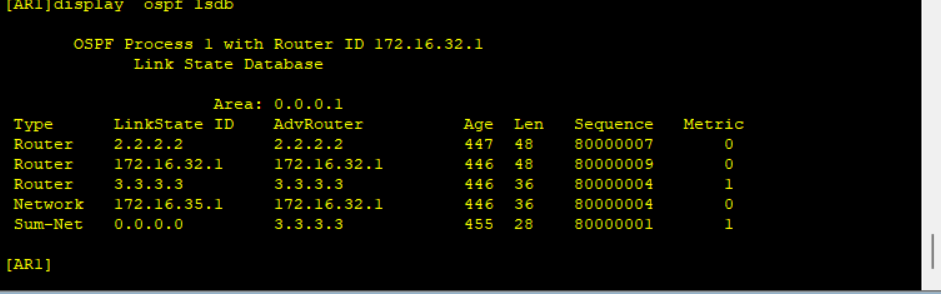

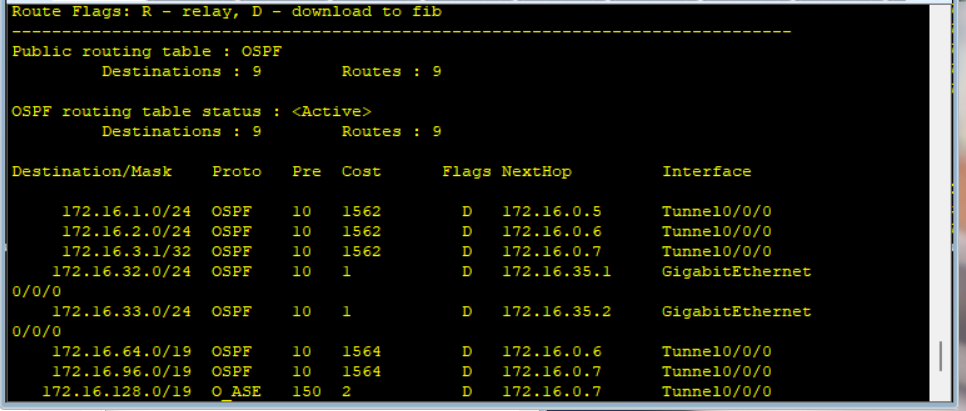

此时

加快收敛

bfd技术（所有设备都打，这里AR1举例）

bash 复制代码
[AR1]bfd
[AR1-bfd]ospf 1
[AR1-ospf-1]bfd all-interfaces enable
